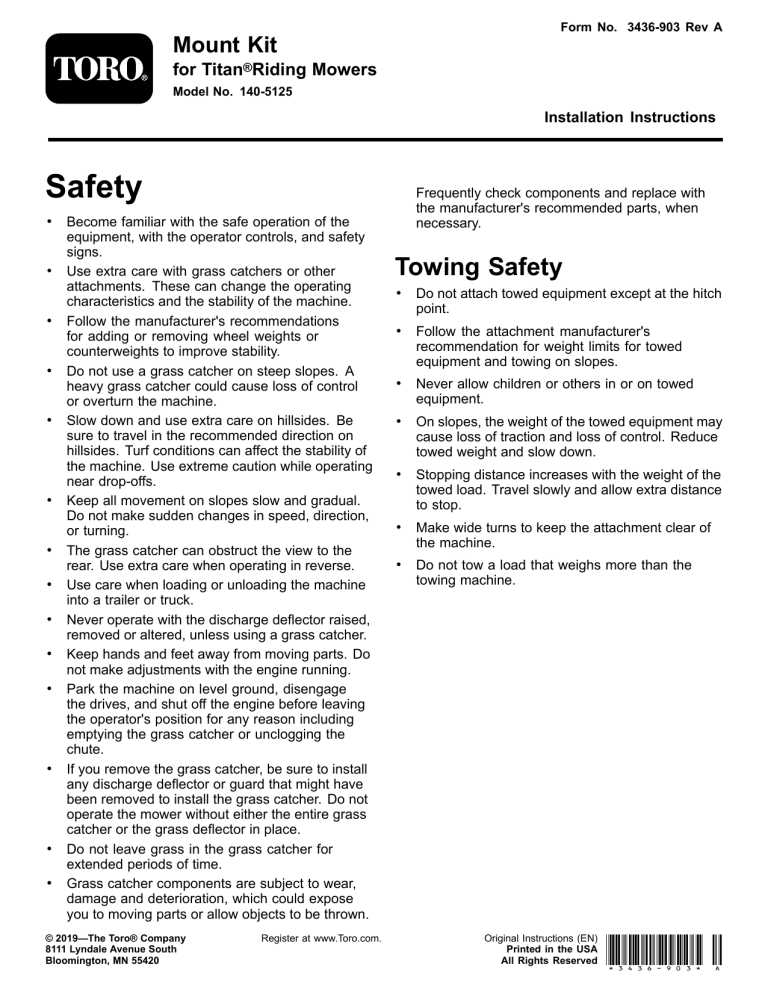

Form No. 3436-903 Rev A
Mount Kit
for Titan®Riding Mowers
Model No. 140-5125
Installation Instructions
Safety
• Become familiar with the safe operation of the
•
•
•
•
•
•
•
•
•
•
•
•
•
equipment, with the operator controls, and safety
signs.
Use extra care with grass catchers or other
attachments. These can change the operating
characteristics and the stability of the machine.
Follow the manufacturer's recommendations
for adding or removing wheel weights or
counterweights to improve stability.
Do not use a grass catcher on steep slopes. A
heavy grass catcher could cause loss of control
or overturn the machine.
Slow down and use extra care on hillsides. Be
sure to travel in the recommended direction on
hillsides. Turf conditions can affect the stability of
the machine. Use extreme caution while operating
near drop-offs.
Keep all movement on slopes slow and gradual.
Do not make sudden changes in speed, direction,
or turning.
The grass catcher can obstruct the view to the
rear. Use extra care when operating in reverse.
Use care when loading or unloading the machine
into a trailer or truck.
Never operate with the discharge deflector raised,
removed or altered, unless using a grass catcher.
Keep hands and feet away from moving parts. Do
not make adjustments with the engine running.
Park the machine on level ground, disengage
the drives, and shut off the engine before leaving
the operator's position for any reason including
emptying the grass catcher or unclogging the
chute.
If you remove the grass catcher, be sure to install
any discharge deflector or guard that might have
been removed to install the grass catcher. Do not
operate the mower without either the entire grass
catcher or the grass deflector in place.
Do not leave grass in the grass catcher for
extended periods of time.
Grass catcher components are subject to wear,
damage and deterioration, which could expose
you to moving parts or allow objects to be thrown.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Frequently check components and replace with
the manufacturer's recommended parts, when
necessary.
Towing Safety
• Do not attach towed equipment except at the hitch
point.
• Follow the attachment manufacturer's
recommendation for weight limits for towed
equipment and towing on slopes.
• Never allow children or others in or on towed
equipment.
• On slopes, the weight of the towed equipment may
cause loss of traction and loss of control. Reduce
towed weight and slow down.
• Stopping distance increases with the weight of the
towed load. Travel slowly and allow extra distance
to stop.
• Make wide turns to keep the attachment clear of
the machine.
• Do not tow a load that weighs more than the
towing machine.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3436-903* A
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Use
Qty.
Stabilizer bracket
Carriage bolt (5/16 x 3/4 inch)
Locknut (5/16 inch)
Self-tapping screw (5/16 x 3/4 inch)
Bolt (5/16 x 1 inch)
Pivot frame
Hairpin cotter
Rod
Washer
1
2
4
2
2
1
2
2
2
Use the chart below to verify that all parts have been
shipped.
Loose Parts
1.
Remove the existing 2 bolts, 2 nuts, and hitch
bracket from the bottom of the engine guard
(Figure 1).
g308799
Figure 2
1. Locknut (5/16 inch)
g308798
Figure 1
1. Nut
2. Existing hitch bracket
2.
3. Bolt
Install the stabilizer bracket to the engine guard
using 2 carriage bolts (5/16 x 3/4 inch) and 2
locknuts (5/16 inch) as shown in Figure 3.
2
2. Carriage bolt (5/16 x 3/4
inch)
3.
Remove the existing 2 self-tapping screws from
the bottom of the machine frame (Figure 4).
4.
Loosely install the pivot frame to the machine
frame using 2 bolts (5/16 x 1 inch) and 2 locknuts
(5/16 inch) as shown in .
g302477
g308335
Figure 3
1. Locknut (5/16 inch)
5.
Figure 5
Left side shown
2. Bolt (5/16 x 1 inch)
Position the pivot frame upward, and secure the
pivot frame to the bottom of the machine frame
using 2 self-tapping screws (5/16 x 3/4 inch) as
shown in Figure 4.
8.
g308797
Figure 4
1. Self-tapping screw (5/16 x 3/4 inch)
6.
Tighten the 2 bolts (5/16 x 1 inch) and 2 locknuts
(5/16 inch) as shown in .
7.
Install the bent, flared end of a rod into the keyed
slot in the left side of the machine frame, and
move the rod rearward to seat it in the frame
(Figure 5).
Note: Repeat this step for the right side of the
machine.
3
Insert the bent ends of the rods into the
attachment mount as shown in Figure 5 and
secure the end of each rod with a washer and
hairpin cotter.
Operation
Note: Determine the left and right sides of the
machine from the normal operating position.
WARNING
To avoid personal injury, follow these
procedures:
• Become familiar with all operating and
safety instructions in the Operator's
Manual for the machine before using this
attachment.
• Always shut the engine off and wait for all
moving parts to stop before clearing an
obstruction from the bagging system.
• Never do maintenance or repairs while the
engine is running.
Using the Draw Bar
The attachment mount has a draw bar feature that
you can use for towing.
• Read and understand all the operating instructions
of the machine.
• When turning, slow down and observe the
clearance.
• Make wide turns and keep towed equipment clear
of the towing vehicle.
• The maximum draw bar pull is 36 kg (80 lb).
• Excessive draw bar pull may cause hydrostatic
transmission failure.
g214733
Figure 6
Your machine may look different.
1. Attachment mount with draw bar
4
