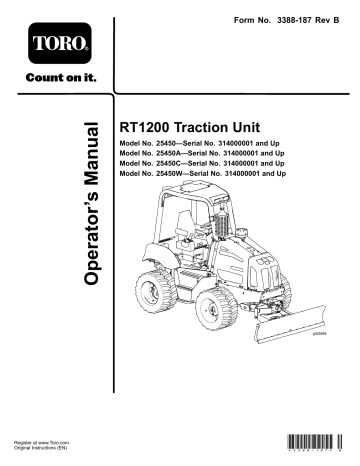

Form No. 3388-187 Rev B
RT1200 Traction Unit
Model No.
Model No.
Model No.
Model No.
Register at www.Toro.com.
Original Instructions (EN)
25450—Serial No. 314000001 and Up
25450A—Serial No. 314000001 and Up
25450C—Serial No. 314000001 and Up
25450W—Serial No. 314000001 and Up
*3388-187* B
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals known to the State of California to
cause cancer, birth defects, or reproductive harm.
Diesel engine exhaust and some of its constituents are known to the State of California
to cause cancer, birth defects, and other reproductive harm.
Introduction
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
This machine is designed to dig trenches in soil to bury
cabling and piping for various applications. It is not intended
to cut any other material other than soil and rock.
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
Figure 2
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, or to register
your product.
1. Safety alert symbol
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Toro Service Dealer
or Toro Customer Service and have the model and serial
numbers of your product ready. Figure 1 illustrates the
location of the model and serial numbers on the product.
Write the numbers in the space provided.
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
Store this Operator’s Manual and the engine owners’s manual in
the manual compartment that is equipped with this machine.
Figure 1
Figure 3
1. Location of the model and serial number plate
1. Manual compartment
Model No.
Serial No.
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA.
All Rights Reserved
Contents
Servicing the Tires ..................................................56
Servicing the Axles .................................................58
Servicing the Transmission ......................................62
Cooling System Maintenance ......................................65
Servicing the Cooling System ...................................65
Belt Maintenance ......................................................69
Servicing the Engine Drive Belt ................................69
Replacing the Engine Drive Belt ...............................69
Hydraulic System Maintenance ....................................70
Servicing the Hydraulic System.................................70
ROPS Maintenance ....................................................74
Checking and Servicing the ROPS.............................74
Welding on the Machine..............................................75
Preparing to Disconnect the Components..................75
Disconnecting the Alternator Wiring.........................75
Disconnecting the Computer-module
Connectors ........................................................75
Connecting the Computer-module
Connectors ........................................................76
Connecting the Alternator Wiring.............................76
Closing the Machine ...............................................76
Cleaning ...................................................................76
Removing Dirt and Debris from the Machine .............76
Storage ........................................................................77
Preparing for Seasonal Storage .................................77
Troubleshooting ...........................................................78
Safety ........................................................................... 4
............................................................................ 4
Electrical Line Safety ............................................... 6
Gas Line Safety ....................................................... 7
Communication Line Safety...................................... 7
Water Line Safety .................................................... 7
Safety and Instructional Decals ................................. 8
Product Overview .........................................................16
Controls ...............................................................17
Command Center ...............................................17
Machine Controls ...............................................17
Traction-Control Cluster .....................................18
Attachment-Control Cluster.................................19
Operator Seat and Seat Belt .................................20
Specifications ........................................................22
Attachments/Accessories........................................22
Operation ....................................................................22
Preparing for Work.................................................22
Adding Fuel to the Engine .......................................22
Checking the Engine-Oil Level.................................25
Checking the Coolant Level in the Reservoir ...............26
Checking the Hydraulic-Fluid Level ..........................26
Checking the Restricted Air-Cleaner Indicator ............27
Inspecting the Machine ...........................................27
Operating the Command Center...............................28
Operating the Engine..............................................33
Operating the Machine in Extreme
Conditions.........................................................34
Operating the Parking Brake ....................................35
Driving and Stopping the Machine ............................35
Operating the Transmission .....................................37
Operating the Machine Tilt Feature ...........................37
Preparing to Operate the Machine.............................38
Using the Backfill Blade...........................................39
Using the Power Port ..............................................40
Transporting the Machine........................................40
Completing the Work for the Day .............................41
Completing the Project ...........................................41
Maintenance .................................................................42
Recommended Maintenance Schedule(s) ......................42
Premaintenance Procedures ........................................43
General Safety........................................................43
Lubrication ...............................................................43
Greasing the Machine .............................................43
Engine Maintenance ..................................................45
Accessing the Engine ..............................................45
Servicing the Engine Oil and Filter............................47
Checking the Crankcase Breather Tube......................48
Checking the Charge-air Piping ................................49
Servicing the Air-cleaner System...............................49
Fuel System Maintenance ...........................................50
Servicing the Fuel System ........................................50
Electrical System Maintenance ....................................53
Maintaining the Battery ...........................................53
Replacing a Fuse.....................................................55
Drive System Maintenance .........................................56
3
Safety
Utility Line
Color
Electric
Red
Improperly using or maintaining this machine can
result in injury. To reduce the potential for injury, comply
with these safety instructions and always pay attention to
the safety alert symbol (Figure 2), which means Caution,
Warning, or Danger—personal safety instruction. Failure
to comply with the instruction may result in personal
injury or death.
Telecommunication, alarm or signal, cables,
or conduit
Orange
Natural gas, oil, steam, petroleum, or other
gaseous or flammable material
Yellow
Sewer and drain
Green
Drinking water
Blue
Important: This machine was manufactured according
to the appropriate regulatory standards in effect at the
time of manufacture. Modifying this machine in any
way may cause it to be out of compliance with those
standards and with the instructions in this Operator’s
Manual. Modifications to this machine should be made
only by an Authorized Toro Service Dealer.
Reclaimed water, irrigation, and slurry lines
Purple
Temporary survey markings
Pink
Proposed excavation limits
White
After locating all the utility lines, carefully dig a hole to the
utility line by hand to verify the location and the depth of
the line.
WARNING
Welding, cutting, or drilling parts of the machine
could cause them to break during operation, which
in turn could result in injury or death.
Training
• Read the Operator's Manual and other training material. If
Do not weld, cut, or drill to repair or to attach items
to parts on this machine.
•
Always follow all safety instructions to avoid serious injury
or death.
•
You can prevent and are responsible for injuries occurring to
yourself and to others and for damage to property.
•
Do not use this machine for applications other than those
which are described in this manual.
•
Before operating this machine, it is your responsibility to
know where all utility lines are buried in the project area and
to avoid them.
the operator(s) or mechanic(s) cannot read English, it is
the owner's responsibility to explain this material to them.
Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
All operators and mechanics must be trained. The owner
is responsible for training the users.
Never let children or untrained people operate or service
the machine. Local regulations may restrict the age of
the operator.
Ensure that you understand the hand signals used on the
job site. Follow the instructions of the signal person.
Preparation
• Before using the machine, have the area marked for
Always ensure that all local utility companies mark
the location of their lines. In the USA and Canada,
call a “One-call System Directory” service. In the
USA, call 811 or your local number. If you do not know
your local number, call the national number (USA and
Canada only) at 1-888-258-0808. Also, contact any utility
companies that are not participants of the “One-call
System Directory” service.
•
Check with local authorities for all laws and regulations that
require you to locate and avoid existing utilities.
•
•
Refer to the following table for the proper utility line and the
corresponding utility line color (USA and Canada only):
•
4
underground utilities, and do not dig in marked areas.
Also, be aware of the location of objects and structures
that may not be marked, such as underground storage
tanks, wells, and septic systems.
Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Use only accessories and attachments approved
by the manufacturer.
Mark the job site clearly and keep bystanders away.
Review the job site hazards, safety and emergency
procedures, and personnel responsibilities with all
workers before beginning the work.
Wear appropriate clothing, including hard hat, safety
glasses, long pants, safety shoes, and hearing protection;
some jobs may also require that you wear a reflective vest
and/or a respirator. Secure long hair, loose clothing, and
jewelry to prevent them from getting tangled in moving
parts.
• Before operating the machine with an attachment, ensure
• Locate the pinch point areas that are marked on the
that the attachment is properly installed.
machine and attachments; keep hands and feet away from
these areas.
• Use extra care when handling fuels. They are flammable
• Lightning can cause severe injury or death. If lightning
and vapors are explosive.
is seen or thunder is heard in the area, do not operate
the machine; seek shelter.
– Use only an approved container.
– Do not remove the fuel cap or add fuel with the
engine running. Allow the engine to cool before
fueling. Do not smoke near the machine while the
engine is running.
Slope Operation
• Avoid operating this machine on slopes, if possible.
• Keep all movements on slopes slow and gradual. Do not
– Do not refuel or drain the machine indoors.
make sudden changes in speed or direction.
• Check that the operator's presence controls, safety
• Avoid starting or stopping the machine on a slope. If the
switches, and shields are attached and functioning
properly. Do not operate the machine unless these
controls, switches, and shields are functioning properly.
machine loses traction, keep the heavy end of the machine
uphill and proceed slowly, straight down the slope.
• Avoid turning the machine on slopes. If you must turn,
turn slowly and keep the heavy end of the machine uphill.
General Operation
• Do not operate the machine near drop-offs, ditches, or
• Always wear the seat belt when operating this machine.
embankments. The machine could suddenly turn over if
a tire or track goes over the edge of a cliff or ditch, or if
an edge caves in.
• Do not run the engine in an enclosed area.
• Do not operate the machine without all of the guards
and panels securely in place. Ensure that all interlocks are
attached, adjusted correctly, and functioning properly.
Rollover Protection Structure (ROPS)
System
• Decrease the ground speed of the machine and use
caution when making turns and crossing roads and rough
or uneven terrain.
• Before operating the machine, ensure that the seat belt is
in good condition and is securely attached to the machine.
• Do not operate the machine while under the influence
• Inspect the ROPS at the interval recommended in this
of alcohol or drugs.
manual or when the ROPS has been in an accident.
• Ensure that the area is clear of other people before
• Replace a damaged ROPS using only genuine Toro
operating the machine. Stop the machine if anyone enters
the area.
replacement parts; do not repair or modify the ROPS.
• Check carefully for overhead clearances (i.e. branches,
• Excessive vibration from a trencher or a plow can cause a
doorways, electrical wires) before driving under any
objects, and do not contact them.
trench, an overhang, or a high bank to collapse, resulting
in possible injury or death.
• Do not remove the ROPS except when replacing it.
• Do not add weight to the machine that exceeds the gross
• If your view of the work area is not clear, always have a
signal person direct the movement of the machine.
weight displayed on the ROPS label.
• Do not leave a running machine unattended. Stop the
engine and remove the key whenever you leave the
machine.
Transporting Safety
When you transport the machine to or from the job site,
observe the following safety precautions:
• Use only Toro-approved attachments. Attachments can
change the stability and the operating characteristics of
the machine.
• Do not carry passengers on the machine.
• Keep all bystanders away while you are moving the
• Watch for traffic when operating the machine near or
across roadways.
machine.
• Only operate the machine in areas where there are no
• Use care when loading or unloading the machine into a
obstacles in close proximity to you. Failure to maintain
an adequate distance from trees, walls, and other barriers
while operating the machine may result in injury and/or
damage. Operate the machine only in areas where there
is sufficient clearance for you to safely maneuver the
machine.
trailer or truck.
• Watch for traffic when you are crossing roadways with
the machine.
• Check for overhead clearances (i.e., branches, doorways,
electrical wires) before driving under any objects, and do
not contact them.
5
Maintenance and Storage
• Battery acid is poisonous and can cause burns. Avoid
contact with skin, eyes, and clothing. Protect your face,
eyes, and clothing when working with a battery.
• Lower the attachment(s), stop the engine, wait for all
moving parts to stop, and remove the key whenever you
adjust, clean, or repair the machine.
• Battery gases can explode. Keep cigarettes, sparks, and
flames away from the battery.
• Do not touch parts that may be hot from operation.
Allow them to cool before attempting to maintain, adjust,
or service the machine.
• Keep your body and hands away from pinhole leaks
or nozzles that eject high-pressure hydraulic fluid. Use
cardboard or paper to find hydraulic leaks; never use
your hands. Hydraulic fluid escaping under pressure can
penetrate skin and cause injury, requiring surgery within
a few hours by a qualified surgeon; otherwise, gangrene
may result.
• Clean debris from all attachments, drives, mufflers, and
the engine to help prevent fires. Clean up oil and fuel
spills.
• Let the engine cool before storing the machine, and do
not store it near an open flame.
•
•
•
•
• Allow the machine to cool before storing it.
Park the machine on level ground.
Do not allow untrained personnel to service the machine.
Electrical Line Safety
Use jack stands to support components when required.
Carefully release pressure from components with stored
energy.
WARNING
If you leave the seat of the machine or touch
any part of the machine when it is charged with
electricity, serious injury or death could result.
• Keep hands and feet away from moving parts. If possible,
do not make adjustments with the engine running.
• Keep all parts in good working condition and all hardware
Do not leave the seat of the machine if the machine
is charged with electricity.
tightened. Replace all worn or damaged decals.
• Keep nuts and bolts tight. Keep all equipment in good
condition.
Important: In the event the machine becomes
electrically charged, immediately contact the proper
emergency and utility authorities to secure the area.
If you are operating the machine and it becomes
electrically charged, do not leave the seat until the source
of electrical energy is removed from the machine. Keep
other people away from the machine if it is electrically
charged.
• Do not tamper with safety devices.
• Use extra care when handling fuels. They are flammable
and vapors are explosive.
– Use only an approved container.
– Do not remove the fuel cap or add fuel when the
engine is running. Allow the engine to cool before
refueling. Do not smoke.
– Do not refuel the machine indoors.
Note: It is possible to strike a utility line without the machine
becoming charged.
– Do not drain the fuel indoors.
• It is likely (but not always the case) that the power-source
– Do not store the machine or a fuel container inside
where there is an open flame, such as near a water
heater or furnace.
interrupter or breaker will trip, but to ensure your safety,
always assume that the machine may be conducting
electricity.
– Do not fill a container while it is inside a vehicle,
trunk, pickup bed, or any surface other than the
ground.
Note: You will be safe as long as you do not leave the
seat of the machine.
• Touching any part of an electrically charged machine while
– Keep the container nozzle in contact with the tank
during filling.
you are on the ground may cause a severe electric shock.
Note: Do not allow another individual to touch or
approach the machine when it is charged.
• Use only genuine Toro replacement parts.
• Disconnect the battery before making any repairs.
Disconnect from the negative battery terminal first and
from the positive battery terminal last. Connect to the
positive terminal first and to the negative terminal last.
• Charge the battery in an open, well-ventilated area,
away from spark and flames. Unplug the charger before
connecting or disconnecting it from the battery. Wear
protective clothing and use insulated tools.
6
Gas Line Safety
WARNING
If you damage a gas line, an immediate explosion
and fire hazard could occur. Leaking gas is both
flammable and explosive and may cause serious
injury or death.
• Do not smoke while operating the machine.
• Shut off the machine and remove the key.
• Remove all individuals from the work area.
• Immediately contact the proper emergency and
utility authorities to secure the area.
Communication Line Safety
CAUTION
If you damage the fiber optic cable and look into
the exposed highly-intense light, you may harm
your eyes.
• Shut off the machine and remove the key.
• Remove all individuals from the work area.
• Immediately contact the proper emergency and
utility authorities to secure the area.
Water Line Safety
If you damage a water line, a potential flood hazard
could occur.
• Shut off the machine and remove the key.
• Remove all individuals from the work area.
• Immediately contact the proper emergency and
utility authorities to secure the area.
7
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or lost.
Figure 4
1. Decal 125-6689
7. Decal 1230–7541 (2 decals, 1 on each side)
2. Decal 125-8479
8. Decal 125-6694 (2 decals, 1 on each side)
3.
4.
5.
6.
Decal
Decal
Decal
Decal
125-4963
125-8480
125-6135
125-8499
9.
10.
11.
12.
8
Decal
Decal
Decal
Decal
125-8481
125-8482
125-6135
125-6139
Figure 5
1. Decal 125-8496
2. Decal 125-8473 (on the floor panel covering the battery)
7. Decal 127-1829
8. Decal 125-8480
3. Decal 125-8495
9. Decal 125-6157 (under the left-side cowl)
4. Decal 127-1828
5. Decal 125-6139
6. Decal 130-7540
10. Decal 125-8483
11. Decal 125-6689
Figure 6
1. Decal 131–0439
2. Decal 127-1830
3. Decal 130-7539
4. Decal 125-8484
5. Decal 131–0440
125–6135
125-4963
1. Warning—do not touch hot surfaces.
9
125-6671
1. Explosion hazard; electric shock hazard—call local utilities
before digging.
125–6139
1. Lift point; tie down point
125-6689
1. Warning—keep away from 2. Cutting/dismemberment
hot surfaces.
hazard, fan—keep away
from moving parts; keep
all guards and safety
devices in place.
0000
0000
0000
125-6157
1. Disconnect the battery
power.
3. On/Start
2. Off/Stop
4. Read the Operator’s
Manual.
125-6694
1. Tie-down point
10
125–8473
1. Explosion hazard—wear
eye protection.
3. Fire hazard—keep open
flames away.
2. Caustic liquid/chemical
burn hazard—rinse
affected area and seek
medical assistance.
4. Poison hazard—do not
tamper with the battery.
125-8481
1. Hydraulic supply
125-8479
1. Burn hazard from contents under pressure—read the
Operator’s Manual.
125-8482
1. Hydraulic return
125-8480
1. Warning—do not climb on ROPS.
125–8483
1. Hydraulic fluid; read the Operator’s Manual.
11
125-8484
1. 12-volt receptacle
125-8499
1. Warning—read the
Operator's Manual.
3. Forward
2. Reverse
4. Transmission—gear
selection
125-8495
1. Tilt the machine left
6. Sideshift—left (optional
attachment)
11. Auxiliary hydraulic (optional 16. Trencher—fast rotation
kit)
(optional accessory)
2. Tilt the machine right
7. Lower the crumber/rotate
the plow forward (optional
attachment)
12. Vibratory plow depth—float 17. Trencher—slow rotation
(optional accessory)
on (optional accessory)
3. Auto frame leveling on
(optional kit)
8. Raise the crumber/rotate
13. Vibratory plow depth—float 18. Warning—read the
Operator's Manual.
the plow backward (optional
off (optional accessory)
attachment)
4. Auto frame leveling off
(optional kit)
9. Rock saw stabilizer—lower 14. Vibratory plow swing—float 19. Explosion hazard; electric
shock hazard—do not dig
(optional accessory)
on (optional accessory)
before contacting local
utility services.
5. Sideshift—right (optional
attachment)
10. Rock saw stabilizer—raise 15. Vibratory plow swing—float
(optional accessory)
off (optional accessory)
131-0439
130-7541
1. Differential—lock
1. Warning—keep bystanders away from the machine.
12
2. Differential—unlock
125-8496
8. Rear wheel steering—turn the wheels right; machine will turn
left
9. Rear wheel steering—auto center (optional kit)
1. Backfill blade/vibratory plow—tilt/swing left
2. Backfill blade/vibratory plow—tilt/swing right
3. Backfill blade/vibratory plow—lower
10. Lower the attachments
4. Backfill blade/vibratory plow—raise
11. Raise the attachments
5. Backfill blade/vibratory plow head—angle left
12. Rear attachment—forward speed
6. Backfill blade/vibratory plow head—angle right
13. Rear attachment—reverse speed
7. Rear wheel steering—turn the wheels left; machine will turn
right
127-1828
1. Hydraulic pressure
4. Raise the attachment.
2. Lower the attachment.
5. Hydraulic return
3. Case drain
13
127-1829
130-7539
1. Oil drain
127-1830
3. Lower the attachment
1. Read the Operator's
Manual.
2. Raise the attachment
131-0440
1. Parking brake—engage
2. Parking brake—disengage
14
1. Electrical power
3. Engine—run
2. Engine—stop
4. Engine—start
130-7540
1. Warning—read the Operator's Manual.
4. Warning—keep bystanders away from
the machine.
2. Warning—do not operate the machine
unless you have received instruction.
5. Warning—keep away from moving
parts; keep all guards and shields in
place.
3. Warning—wear a seatbelt.
6. Warning—wear hearing protection.
15
7. Explosion hazard; electric shock
hazard—before digging call the local
utilities service.
8. Read the Operator's Manual for
information on starting the engine—1)
Engage the parking brake; 2) Set the
traction drive and all attachments to
neutral; 3) Turn the key to the engine
start position.
9. Read the Operator's Manual for
information on stopping the engine—1)
Park the machine on a level surface;
2) Engage the parking brake; 3) Set
the traction drive and all attachments
to neutral; 4) Lower all attachments;
5) Turn the key to the engine stop
position; 6) Remove the key from the
ignition.
Product Overview
Figure 7
1. Nose panel
5. Backfill blade
2. Left side panel
6. Fuel reservoir
3. Grab handles
7. Fuel cap
4. ROPS enclosure
8. Steps
Figure 8
1. Grab handles
4. Steps
2. Right side panel
5. Hydraulic-fluid sight gauge
3. Nose panel
6. Hydraulic-tank cap
16
Controls
Throttle Button
• Throttle-up Button—Press the throttle-up button
Become familiar with all the controls (Figure 9 through Figure
16) before you start the engine and operate the machine.
(button 7), located at the bottom-right corner of the
command center, to increase the engine speed (Figure 9).
Note: Press the button repeatedly to increase the engine
speed up to the maximum engine speed (2,450 rpm).
Command Center
• Throttle-down Button—Press the throttle-down button
Home Screen Controls
(button 8), located at the bottom-right corner of the
command center, to lower the engine speed (Figure 9).
Use the buttons on the command center to control the
operation of machine functions, and to navigate to the
machine setup and diagnostic screens (Figure 9).
Note: Press the button repeatedly to decrease the engine
speed down to the engine-idle speed (950 rpm).
Machine Controls
Differential-Lock Switch
Use the differential-lock switch to control the transmission of
power to all 4 wheels (Figure 10).
• To lock the front and rear differentials—push the switch
up.
• To unlock the front and read differentials—stop the
machine, push the switch down, and move the machine
backward for a short distance.
Figure 9
Home screen shown
1. Button 1 (light On/Off
8. Button 8 (decrease the
button—used with the light
engine speed)
kit option)
2. Button 2 (increase the
set point for the load
control—used with the
load-control kit)
9. Escape (used to return to
the home screen)
3. Button 3 (decrease the
set point for the load
control—used with the
load-control kit)
10. Previous screen (used to
move to a previous screen
function within a screen
mode)
4. Button 4 (load control
On/Off—used with the
load-control option)
11. OK (used to make a
selection)
Figure 10
1. Differential-lock switch
12. Next screen (used to move
5. Button 5 (control
to the next screen function
select—use to determine
within a screen mode)
which attachment the
backfill-blade/vibratory-plow
joystick operates)
6. Button 6
(advanced-steering
mode—used with the
advanced-steering kit)
13. Down screen (used to
move down to the previous
screen mode and enter
diagnostic and calibration
screens)
7. Button 7 (increase the
engine speed)
14. Up screen (used to move
up the next screen mode)
2. Horn button
Parking-Brake Switch
• Set the parking brake by pushing down the parking-brake
switch (Figure 11).
17
Key Switch
Use the key switch to power the electrical accessories, start the
machine, and stop the machine (Figure 11). The 4 key-switch
positions are as follows:
• Accessory—Rotate the key switch to this position to
energize the lamp switch circuits.
• Stop—Rotate the key switch to this position to stop the
engine and de-energize the electrical system.
•
•
Note: When you release the key, it will automatically go
to the Run position.
Figure 11
1. Parking-brake switch
Note: Always remove the key before leaving the
machine.
Run—This position allows the engine to run and will
energize all electrical systems.
Start—Rotate the key switch to this position to start the
engine.
3. Key switch
Foot Pedal
2. Power port
The foot pedal controls the direction and speed of travel of
the machine (Figure 13).
Note: The red parking brake indicator will appear in the
command center display (Figure 12).
Figure 12
1. Parking brake indicator (command center display)
Figure 13
1. Heel pedal (reverse)
• Release the parking brake by pushing up the parking-brake
2. Toe pedal (forward)
switch.
Traction-Control Cluster
Note: When the parking brake is released and the
machine is moved forward or backward, the Home screen
will stop displaying the parking brake indicator.
The traction-control cluster is located at the operator seat,
adjacent to the left armrest.
• If you stop the engine without setting the parking brake,
the machine will set the parking brake and the yellow
parking brake indicator will appear in the command
center display (Figure 12).
Utility-Traction Joystick
When trenching, plowing, or boring, use the utility-traction
joystick to change the direction and speed of the machine
(Figure 14). The further you move the joystick in either
direction, the faster the machine will move in the selected
direction.
18
• Move the utility-traction joystick forward to move the
• Move the joystick to the left to tilt the backfill blade to the
machine forward (Figure 14).
• Move the traction joystick rearward to move the machine
•
in reverse (Figure 14).
• Move the traction joystick to the center (Neutral) position
to stop the machine (Figure 14).
•
left, or move the joystick to the right to tilt the backfill
blade to the right (Figure 15).
Swing the backfill blade or steer the vibratory plow left or
right as follows:
– Twist the thumb control left to swing the backfill
blade left, or twist the thumb control right to swing
the backfill blade right (Figure 15).
– Twist the thumb control left to steer the vibratory
plow left, or twist the thumb control right to steer the
vibratory plow right (Figure 15).
Note: The function of the thumb control depends
on the attachment selected in the command center.
Pull the trigger on the joystick to float the backfill blade
up and down (Figure 15).
3
Figure 14
1. Traction-control cluster
3. Utility-traction joystick
2. Gear-selector switch
Note: The engine speed is controlled with the throttle
buttons on the home screen of the command-center panel;
refer to Throttle Button (page 17).
Gear-Selector Switch
The gear-selector switch is located on top of the utility-traction
joystick (Figure 14), and is used to select the transmission gear.
The current gear is displayed on the home screen of the
command center, above and to the left of the tachometer
display.
1. Thumb control
4. Vibratory plow / trencher
motor joystick
Attachment-Control Cluster
2. Backfill blade / vibratory
plow joystick
5. Attachment elevation
switch
3. Rear-wheel steering
switch
6. Backfill-blade-float trigger
Figure 15
The attachment-control cluster is located at the operator seat
and is adjacent to the right armrest.
Backfill-Blade / Vibratory-Plow Joystick
Rear-Wheel-Steering Switch
The backfill-blade/vibratory-plow joystick operates either
the backfill blade or the vibratory plow, whichever is selected
and displayed on the command center. Move the joystick
controls to change the backfill blade or the vibratory plow
position as follows:
The switch for the rear-wheel steering is used to control the
steering direction (left or right) of the rear wheels. The switch
for the rear-wheel steering is located behind the backfill
blade/vibratory plow joystick.
• Push the joystick forward to lower the backfill blade or
Vibratory-Plow / Trencher-Motor Joystick
vibratory plow or pull the joystick rearward to raise the
backfill blade or vibratory plow (Figure 15).
Vibratory Plow
Note: The function of the vibratory plow / trencher motor
joystick depends on the attachment selected in the command
center.
Note: The function of the joystick depends on the
attachment selected in the command center.
19
• Move the joystick rearward to start the vibration of the
plow blade (Figure 15).
• Move the joystick further rearward to increase the
vibration (Figure 15).
• Move the joystick toward the Neutral position to decrease
and stop the vibration (Figure 15).
Trencher
• Move the joystick forward to start the digging chain in the
forward direction (Figure 15).
• Move the joystick further forward to increase the chain
speed (Figure 15).
Figure 16
• Move the joystick to the Neutral position to stop the
1. Machine tilt—left/right
6. Auxiliary hydraulic
(reserved for an optional
attachment)
2. Auto tilt On/Off (reserved
for an optional kit)
7. Vibratory plow boom float
On/Off (reserved for an
optional attachment)
3. Sideshift left/right
(reserved for an optional
attachment)
8. Vibratory plow swing float
On/Off (reserved for an
optional attachment)
4. Lower/raise the
crumber/rotate the plow
forward (reserved for an
optional attachment)
9. Trencher speed Fast/Slow
(reserved for an optional
attachment)
trencher chain (Figure 15).
Attachment-Elevation Switch
The attachment-elevation switch raises and lowers an
attachment mounted at the rear of the machine.
• Press the switch on the left to lower the attachment boom
(Figure 15).
• Press the switch on the right to raise the attachment
boom (Figure 15).
5. Lower/raise the rock saw
stabilizers (reserved for an
optional attachment)
Auxiliary-Control Panel
The auxiliary-control panel includes the rocker switch that
controls the machine tilt actuator (Figure 16). The panel also
has locations for rocker switches that are installed with the
optional attachments or kits for the machine.
Operator Seat and Seat Belt
Seat-Interlock System
WARNING
The seat-interlock system protects the operator
from injury.
Do not disable the seat-interlock system.
The seat-interlock system requires the operator to sit in the
operator seat while operating this machine.
Note: The neutral-indicator light turns on when you
turn the key switch to the On position and both the
utility-traction-control and attachment-control levers are in
the Neutral position.
Note: If the operator does not remain seated when the
utility-traction lever is not in the Neutral position, the engine
will stop in 1 second. Do not lay a heavy object on the seat or
tamper with the seat-interlock system in any way.
20
Seat-Height and Seat-Slide Buttons
– Rotate the lever for the weight compensator
counterclockwise to reduce the support tension of
the seat.
Armrest-Height Control
Rotate the armrest-height control to raise or lower the
armrest (Figure 17).
Seat-Lumbar Knob
Rotate the seat-lumbar knob, found behind the seat, to adjust
the back lumbar support for best comfort (Figure 17).
Seat Belt
WARNING
Operating the machine without the rollover
protection system (ROPS) securely in place can
result in serious injury or death if the machine rolls
over.
• Ensure that the roll bar is securely in place.
Figure 17
1. Seat-slide buttons
2. Seat-height buttons
5. Seat-frame slide bar
6. Weight compensator
3. Seat-slide lever
7. Armrest-height control
4. Seat-rotation lever
8. Lumbar knob (located on
the seat back)
• Always wear a seat belt with the ROPS in place.
• Ensure that the operator seat is properly secured
to the machine.
Note: Regulations in some localities require that seat belts on
construction machines be 76 mm (3 inch) wide. Check with
local authorities regarding the requirements for seat belts.
• Seat-height buttons–use them to adjust the seat pad up
• To fasten the seat belt, insert the tab end into the left
or down (Figure 17).
buckle.
• Seat-slide buttons—use them to slide the seat pad
Note: Ensure that the tab end and the buckle are
securely fastened.
forward or rearward (Figure 17).
Seat-Frame-Slide Lever and Seat-Base-Slide Lever
• To release the seat belt, push the button on the buckle.
• Seat-frame-slide lever—Use this lever to adjust the
entire seat and frame forward or rearward (Figure 17).
Battery-Disconnect Switch
• Seat-base-slide lever—Use this lever to move the seat
The battery-disconnect switch is located behind the right
engine cowl (Figure 18); use it to electrically disconnect the
battery from the machine.
base forward or rearward on the seat frame (Figure 17).
Seat-Rotation Lever and Seat-Weight Compensator
• Seat-rotation lever—Use this lever to unlock the seat
so that you can rotate the seat to the desired position.
The seat will rotate 360° and lock into position at 10°
increments (Figure 17).
Note: Rotate the seat to the Front position before
driving the machine.
• Seat-weight compensator—Rotate this lever for the
weight compensator to adjust the seat support tension for
the weight of the operator (Figure 17).
– Rotate the lever for the weight compensator clockwise
to increase the support tension of the seat.
21
Operation
Note: Determine the left and right sides of the machine
from the normal operating position.
Preparing for Work
Before operating the machine on the job site, review the
following items:
• Gather all relevant information available about the job
site before you begin working.
• Review all blueprints and other plans, and identify all
existing or proposed structures, characteristics of the
landscape, and other proposed jobs in the area scheduled
at the same time as your job.
Figure 18
1. Battery On position
2. Battery Off position
• Rotate the battery disconnect clockwise to the On
position.
• Rotate the battery disconnect counterclockwise to the
Off position.
Specifications
Note: Specifications and design are subject to change
without notice.
•
Machine Dimensions and Weight Data
Wheel base
195 cm (76.8 inches)
281 cm (110 inches)
Note the following items at the job site:
– Changes in elevation in the proposed work area
– The condition and type of soil in the proposed work
area
– Locations of structures, water, railroad tracks, and
other obstructions that you will need to work near
or around
– Utility markers, meters, and poles
– If the work site is near or on a roadway with traffic,
call the local authorities regarding proper safety
procedures and regulations.
– Access to the site
Call your local One-Call service (811 in the US) or the
One-Call referral number (888-258-0808 in the US and
Canada) and ask the participating utility companies to
locate and mark their underground utility lines. Also call
utility providers that are not part of the One-Call system.
Overall height (to the top of
the ROPS)
Overall width (at the tires)
218 cm (85.8 inches)
Minimum ground clearance
28.5 cm (11.2 inches)
Turning radius (2-wheel
steering)
115 cm ( 291 inches)
Turning radius (4-wheel
steering)
391 cm (154 inches)
Note: Using other fuels can cause a loss of engine power
and high fuel consumption.
Weight (without attachments)
4,570 kg (10,075 lb)
Important: Do not use kerosene or gasoline instead of
diesel fuel; otherwise, you will damage the engine.
Adding Fuel to the Engine
Fuel tank capacity: 182 L (48 US gal)
Fuel type: ultra-low sulfur diesel (ULSD)
Use only diesel fuel for the machine that meets Specification
D975 of the American Society for Testing and Materials
International. See your diesel fuel distributor.
Attachments/Accessories
A selection of Toro approved attachments and accessories is
available for use with the machine to enhance and expand
its capabilities. Contact your Authorized Service Dealer or
Distributor or go to www.Toro.com for a list of all approved
attachments and accessories.
Use only clean, fresh diesel fuel or biodiesel fuels with low
(<500 ppm) or ultra low (<15 ppm) sulfur content. The
minimum cetane rating should be 40. Purchase only enough
fuel that you expect to use within 30 days to ensure that it
stays fresh.
Use summer-grade diesel fuel (No. 2-D) at temperatures
above 20°F (-7°C) and winter-grade diesel fuel (No. 1-D or
No. 1-D/2-D blend) below 20°F (-7°C). Using winter-grade
22
trailer from a portable container rather than from a fuel
dispenser nozzle.
fuel at lower temperatures provides a lower flash point and
cold flow characteristics, which aid in starting the engine and
help prevent clogging the fuel filter.
• If you must use a fuel dispenser nozzle, keep the nozzle in
contact with the rim of the fuel tank or container opening
at all times until fueling is complete.
Using summer-grade fuel above 20° F (-7°C) contributes
toward a longer fuel pump life and increased power compared
to using winter-grade fuel.
Using Biodiesel Fuel
WARNING
Fuel is harmful or fatal if swallowed. Long-term
exposure to fuel vapors can cause serious injury
and illness.
This machine can also use a biodiesel blended fuel of up
to B20 (20% biodiesel, 80% petrodiesel). The petrodiesel
portion should be low or ultra-low sulfur. Observe the
following precautions:
• Avoid prolonged breathing of vapors.
• The biodiesel portion of the fuel must meet specification
ASTM D6751 or EN14214.
• Keep your face away from the nozzle and the
fuel tank opening.
• The blended fuel composition should meet ASTM D975
or EN590.
• Keep fuel away from your eyes and skin.
• Biodiesel blends may damage painted surfaces.
• Use B5 with a biodiesel content of 5% or less in cold
DANGER
weather.
• Check seals, hoses, and gaskets that come in contact with
In certain conditions, fuel is extremely flammable
and highly explosive. A fire or explosion from fuel
can burn you and others and can damage property.
the fuel, as they may degrade over time.
• The fuel filter may become plugged for a time after
converting to a biodiesel fuel blend.
• Fill the fuel tank outdoors in an open area when
the engine is cold. Wipe up any fuel that spills.
• Contact your distributor for more information about
biodiesel fuel.
• Never fill the fuel tank inside an enclosed area.
• Never smoke when handling fuel, and stay away
from an open flame or where fuel fumes may be
ignited by a spark.
Storing Fuel
If you store fuel in a storage tank, it can accumulate foreign
material or water. Keep the fuel storage tank outside, and
keep the fuel as cool as possible. Remove water from the fuel
in the storage container at regular intervals.
• Store fuel in an approved container, and keep
it out of the reach of children. Never buy more
than a 30-day supply of fuel.
• Do not operate the machine without the entire
exhaust system in place and in proper working
condition.
Filling the Fuel Tank
Note: Fill the fuel tank of the machine at the end of each day
to prevent condensation in the fuel tank.
In certain conditions, fueling can release static electricity and
cause a spark, which can ignite the fuel vapors. A fire or
explosion from fuel can burn you and others and can damage
property.
1. Clean around the fuel-tank cap (Figure 19), and remove
the cap from the tank.
• Always place fuel containers on the ground, away from
your vehicle before filling.
• Do not fill fuel containers inside a vehicle or on a truck
or trailer bed, because interior carpets or plastic truck
bed liners may insulate the container and slow the loss
of any static charge.
• When practical, remove the equipment from the truck
or trailer, and refuel the equipment with its wheels on
the ground.
• If refuelling the equipment with its wheels on the ground
is not possible, then refuel such equipment on a truck or
23
Figure 20
1. Fuel-water separator
2. Drain valve
3. Rotate the drain valve counterclockwise approximately
3-1/2 turns until the valve drops down from the
fuel-water separator (Figure 21).
Figure 19
1. Filler neck
Note: The valve should extend 25 mm (1 inch) from
the separator.
2. Fuel-tank cap (off)
Note: Remove the cap slowly to reduce the air
pressure buildup.
2. Fill the fuel tank to the bottom of the neck to allow
space for the fuel to expand.
Note: The fuel tank capacity is 182 L (48 US gal).
3. Install the fuel-tank cap and tighten it securely by hand.
Draining Water from the Fuel-Water
Separator
Figure 21
1. Open the drain valve.
Service Interval: Before each use or daily
3. Close the drain valve.
2. Drain the water.
1. Remove the left side panel; refer to Removing the Side
Panels (page 45).
4. Drain the water and sediment from the separator until
clear fuel is visible (Figure 21).
2. Place a drain container below the drain valve on the
fuel-water separator (Figure 20).
5. Lift up the valve and turn it clockwise until it is hand
tight (Figure 21).
Note: Do not overtighten the drain valve of the
fuel-water separator; overtightening the valve can
damage the threads of the valve.
6. Install the left side panel; refer to Installing the Side
Panels (page 46).
24
Checking the Engine-Oil Level
Service Interval: Before each use or daily
Note: The engine is shipped with oil in the crankcase;
however, check the oil level before and after you first start
the engine.
Oil specification: API classification of CJ-4 or higher
Use only high-quality SAE 15W-40 heavy-duty engine oil with
an API classification of CJ-4 or higher.
While SAE 15W-40 oil with an API classification of CJ-4 or
higher is recommended for most climates, refer to Figure 22
for oil viscosity recommendations for extreme climates.
Figure 23
1. Dipstick
2. Dipstick tube
Figure 22
Note: Limited use of low-viscosity oils such as SAE 10W-30
with an API classification of CJ-4 or higher can be used for
easier starting and providing sufficient oil flow at ambient
temperatures below -5°C (23°F). However, continuous use of
low-viscosity oil can decrease engine life.
Figure 24
5. Insert the dipstick fully into the dipstick tube, then
remove the dipstick (Figure 23).
Toro Premium Engine Oil is available from an Authorized
Toro Service Dealer in either 15W-40 or 10W-30 viscosity
with API classification CJ-4 or higher. See the Parts Catalog
for part numbers. Also, refer to the engine operator's manual,
included with the machine, for further recommendations.
6. Read the oil level on the dipstick (Figure 24).
Note: The oil level on the dipstick should be between
the H (high) mark and L (low) mark.
Important: If the oil level in the crankcase is too low
or too high and you run the engine, you may damage
the engine.
• If the oil level is too low, slowly pour a small
amount of the specified oil into the oil-filler neck
(Figure 65) and wait 3 minutes; refer to step 1 in
Filling the Engine with Oil (page 48).
Note: The best time to check the engine oil is when the
engine is cool before it has been started for the day. If the oil
level is at or below the Add mark on the dipstick, add oil to
the engine to bring the oil level up to the Full mark. Do not
overfill. If the oil level is between the Full and Add marks on
the dipstick, you do not need to add oil.
Important: Do not overfill the engine with oil.
• If the oil level is too high, drain the excess oil until
you obtain the correct oil level on the dipstick;
refer to Draining the Engine Oil (page 47).
1. Ensure that the machine is on a level surface.
7. Repeat steps 4 through 6 until the oil level is correct.
2. Lower all attachments, set the parking brake, stop the
engine, and remove the key.
8. Install the dipstick and oil-fill cap securely.
9. Install the left-side panel; refer to Installing the Side
Panels (page 46).
Note: If you have run the engine, allow at least 15
minutes for the engine oil to settle in the crankcase.
3. Remove the left-side panel; refer to Removing the Side
Panels (page 45).
4. Remove the dipstick and wipe it clean with a clean
cloth (Figure 23).
25
Checking the Coolant Level in
the Reservoir
Checking the Hydraulic-Fluid
Level
Service Interval: Before each use or daily
Service Interval: Before each use or daily
If the engine overheat warning is displayed on the control
panel, check the coolant level in the reservoir and add coolant
if it is low. Also inspect the engine compartment around the
radiator and clear away any obstructions to air flow.
Use Toro Premium All-season Hydraulic Fluid (available
in 5-gallon pails or 55-gallon drums. See the Parts Catalog or
an Authorized Toro Service Dealer for part numbers).
If Toro hydraulic fluid is not available, you may use an
equivalent hydraulic fluid, provided that it meets all the
following material properties and industry specifications. Do
not use a synthetic hydraulic fluid. Consult with your
lubricant distributor to identify a satisfactory product.
1. Park the machine on a level surface, stop the engine,
and remove the ignition key.
2. Allow the engine to cool.
3. Remove the left side panel; refer to Removing the Side
Panels (page 45).
High Viscosity Index/Low Pour Point Anti-wear
Hydraulic Fluid, ISO VG 46
4. Check the coolant level in the reservoir (Figure 25).
Material Properties:
Viscosity, ASTM D445
1
St @ 40°C (104°F): 44 to 48
St @ 100°C (212°F): 7.9 to 8.5
Viscosity Index ASTM
D2270
140 to 160
Pour Point, ASTM D97
-37°C (-34°F) to -45°C (-49°F)
FZG, Fail stage
2
Water content (new fluid)
Industry Specifications:
500 ppm (maximum)
Vickers I-286-S (Quality Level),
Vickers M-2950-S (Quality
Level), Denison HF-0
Note: Many brands of hydraulic fluid are almost colorless,
making it difficult to detect leaks. A red dye additive for the
hydraulic system oil is available in 20 ml (0.68 oz) bottles.
One bottle is sufficient for 15.1 to 22.7 L (4.0 to 6.0 US
gal) of hydraulic fluid; you can order this additive from an
Authorized Toro Service Dealer.
g024979
Figure 25
1. Reservoir
11 or better
2. Coolant level (halfway
between the Add and Full
marks)
1. Park the machine on a level surface, and put all the
attachments in the transport position.
Note: Ensure that the coolant level is between 1/4
and 3/4 of the way up in the sight glass (Figure 25).
2. Stop the engine, set the parking brake, and remove the
ignition key.
5. Add the specified coolant until the coolant level is
between 1/4 and 3/4 of the way up in the sight glass.
3. Check the hydraulic-fluid level in the sight glass located
at the side of the hydraulic reservoir (Figure 26).
Note: Ensure that the coolant solution is thoroughly
mixed before filling the reservoir.
6. Install the left side panel; refer to Installing the Side
Panels (page 46).
26
Figure 27
1. Restricted air-cleaner
indicator
2. Command center
3. Replace the air-cleaner element(s) as follows:
A. Replace the primary air-cleaner element; refer to
Replacing the Air-cleaner Elements (page 49).
Figure 26
1. Fill cap (off)
3. Hydraulic fluid level at the
midpoint of the sight glass
B.
Repeat steps 1 and 2.
C.
If the restricted air-cleaner indicator is still
displayed, replace the secondary air-cleaner
element; refer to Replacing the Air-cleaner
Elements (page 49).
2. Hydraulic fluid
Note: The hydraulic-fluid level should be between the
bottom and midpoint of the sight glass.
Inspecting the Machine
4. If the hydraulic-fluid level is not visible in the sight
glass, remove the fill cap (Figure 26), add the specified
hydraulic fluid until the fluid level is at the midpoint of
the sight glass, and install the fill cap.
Service Interval: Before each use or daily
Inspect the following items on the machine each day before
you start the engine:
Checking the Restricted
Air-Cleaner Indicator
• Check for leaks under the machine, and repair all leaks.
• Check the tires for wear, damage, and low pressure.
• Check the machine for debris, especially around the
Service Interval: Before each use or daily
engine.
1. Start the engine; refer to Starting the Engine (page 33).
Note: Ensure that the area near the engine is clean so
that the engine cools properly.
2. Check to see if the restricted air-cleaner indicator is
displayed in the home screen of the command center
(Figure 27).
• Clean or replace any safety or instructional decal that you
cannot read.
• Clean machine components that you use.
• Remove any loose items from the machine.
• Check the machine for broken, damaged, loose, or
missing parts. Replace, tighten, or adjust these parts
before you operate the machine.
• Repair or replace all damaged ROPS and seat belt parts.
27
Operating the Command
Center
Software Messages
The command center will display information about the
controller version, display version, and installed optional
attachments or kits that are operated through the command
center. This information is displayed on the splash screen
during start up of the machine, as shown in A of Figure 28
or when you access the main selection screen, as shown in B
of Figure 28.
Figure 29
1. Previous screen button
2. Next screen button
Understand the meaning of the icons that indicate the
functions and the state of the machine.
Figure 28
1. Main controller version
3. Down screen button
4. Up screen button
3. Installed optional
attachments or kits
2. Display version
Using the Home Screen
Use the previous screen, next screen, down screen, or up
screen buttons to display either the rpm home screen (A of
Figure 29), the % load home screen (B of Figure 29) or the
main selection screen (C of Figure 29).
28
• Coolant temperature indicator—This indicator shows
the temperature of the coolant in the engine-cooling
system. It is displayed in the lower center area of the
instrument cluster (Figure 30).
Note: If the indicator goes into the red area, reduce
the engine speed to idle for a few minutes to allow the
engine to cool, then stop the engine. Check the coolant
level, for debris on the radiator, or for a thermostat that
does not operate correctly. Also check the drive belt, belt
tensioner, or water-pump pulley.
• Fuel-level indicator—This indicator shows the
remaining level of fuel that is in the tank, and it is
displayed in the lower right area of the command display
(Figure 30).
Figure 30
1. Gear indicator
7. Check alternator or battery
2. Auto-tilt indicator
3. Parking brake indicator
8. Hour meter
9. Hydraulic-fluid
temperature
4. Tachometer
10. Coolant temperature
5. Machine or engine error
11. Fuel level
• Parking-brake-on indicator—This indicator is
displayed while the parking brake is engaged. The
indicator disappears when you release the parking brake.
Reading the Warning Messages in the Command
Display
6. Low engine-oil pressure
Note: When there are warning messages in the command
display, take corrective measures immediately. There may be
more than 1 warning displayed.
Reading the Operating Indicators in the Command
Display
Display the home screen of the command center to find
information about the transmission, engine, hydraulic system,
and fuel quantity.
• Gear indicator—This indicator shows which gear is
selected for the transmission (gears 1 through 4) and is
displayed above and to the left of tachometer (Figure 30).
• Auto-tilt indicator 0(optional kit)—This on/off
indicator displays whether the auto-tilt function is active.
The auto-tilt indicator is located just below and to the left
of the gear indicator (Figure 30).
• Tachometer—The tachometer indicates the engine
speed in revolutions per minute (rpm). The tachometer
is displayed in the upper center of the command-center
display (Figure 30).
•
•
Figure 31
Note: Each number on the gauge is equal to x 100 rpm.
Each space on the gauge is equal to 600 rpm. The range
of the tachometer display is 0 to 3000 rpm.
Hour meter—The hour meter indicates the number
of hours that the engine has run. It is displayed in the
center right area of the command display, to the right of
the tachometer (Figure 30).
Hydraulic-fluid temperature indicator—This indicator
shows the operating temperature of the hydraulic fluid
and is displayed in the lower left area of the command
display (Figure 30).
1. Machine or engine error
3. Engine overheated
2. Low engine-oil pressure
4. Check alternator or battery
• Machine or engine error—This message is displayed
if the machine or engine experiences a fault. The cause
of the fault is given in the Instrument Panel Diagnostics
(Figure 30 and Figure 31).
Important: Do not run the engine if this warning
message is displayed.
• Low engine-oil pressure—This warning message is
displayed if there is no or low oil pressure in the engine
(Figure 30 and Figure 31).
Note: If the indicator moves into the red area, reduce
the work speed. If the gauge remains in the red area, stop
the machine and move the direction control lever to the
Neutral position. Check the oil level and for obstructions
in the radiator or the oil cooler.
Important: Do not run the engine if this warning
message is displayed.
• Engine overheated—This message is displayed if the
engine is overheated (Figure 30 and Figure 31).
29
Important: Do not run the engine if this warning
message is displayed.
Note: If this message is displayed, stop the engine and
replace the hydraulic-charge filter for the transmission.
• Check alternator or battery—This message is displayed
• Hydraulic-charge filter restriction
if the alternator is not charging the battery (Figure 30
and Figure 31).
(accessories)—This message is displayed if the
charge filter for the hydraulic circuit for the accessories is
restricted (Figure 33).
Note: If this message is displayed, stop the engine, repair
the charging system, or replace the battery.
Note: If this warning message is displayed, stop the
engine and replace the charge filter for the hydraulic
circuit for the accessories.
• Wait-to-start-engine indicator—This indicator displays
when the key switch is in the On position and the intake
air heater for the engine is energized (Figure 32).
• Hydraulic-return filter restriction—This message is
displayed if the hydraulic-return filter is restricted (Figure
33).
Note: Wait until the indicator no longer appears before
attempting to start the engine (Figure 32).
Note: If this message is displayed, stop the engine and
replace the hydraulic-return filter.
• Hydraulic-charge filter restriction (traction
motor)—This message is displayed if the charge filter for
the traction motor is restricted (Figure 33).
Note: If this message is displayed, stop the engine and
replace the hydraulic-charge filter for the traction motor.
• Air-filter restriction (engine)—This message is
displayed when the air filter requires service (Figure 33).
• Return to Neutral indicator—This indicator is
Figure 32
displayed if you attempt an operation that requires you to
return the joystick or the traction pedal to the Neutral
position. Return the joystick or the traction pedal to the
Neutral position before continuing operation (Figure 33).
1. Wait-to-start-engine indicator
Reading the Machine or Engine Error Indicators in the
Command Display
Note: This message also appears if you start the engine
when either the utility drive or the attachment joysticks at
the operator seat are not in the Neutral position. Move
the joysticks to the Neutral position to clear the warning.
Note: When a warning indicator is shown in the command
display, take corrective measures immediately.
Accessing the Main-Selection Screen
To access the main-selection screen, press and release the up
arrow and the down arrow buttons (Figure 34) at the same
time. This screen allows the user to choose from the options
shown in Figure 34.
Figure 33
1. Hydraulic-charge filter
restriction (transmission)
4. Hydraulic-charge filter
restriction (traction motor)
2. Hydraulic-charge filter
restriction (accessories)
5. Air-filter restriction
(engine)
3. Hydraulic-return filter
restriction
6. Return the joystick to
neutral indicator
• Hydraulic-charge filter restriction
(transmission)—This message is displayed if
the hydraulic-charge filter for the transmission is restricted
( Figure 33).
30
Figure 35
1. Return to the previous screen
Figure 34
1. Engine information
2. Trencher (traction unit)
setup
5. Trencher (traction unit)
errors
6. Up arrow and down arrow
buttons
3. Screen setup
7. Engine errors
Accessing the Trencher Setup Function Screen
You will need a PIN to access this screen; to obtain the PIN,
contact an Authorized Toro Distributor.
4. Trencher (traction unit)
diagnostics
Accessing the Screen Setup Function Screen
To access the screen setup function, press button number
3 on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
Accessing the Engine Information Screen
To access the engine-information screen, press button
number 1 on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
This screen allows the user to increase or decrease the
brightness of the monitor by pressing the following:
• Button 5—Increase the display brightness (Figure 36)
This screen displays measurements for the following
engine-operating parameters:
• Button 6—Decrease the display brightness (Figure 36)
• Engine speed in rpm (Figure 35)
• Engine load percentage (Figure 35)
• Engine hours (Figure 35)
• Oil pressure and boost pressure (Figure 35)
• Engine coolant and intake temperature (Figure 35)
• Voltage (Figure 35)
• Amount of fuel used (Figure 35)
31
Setting the Front and Rear Steering
Positions
Note: This procedure requires that you have the PIN
number, which you can obtain from an Authorized Service
Dealer.
1. Press button number 2 [Trencher (traction unit) setup]
on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
2. Enter the following programming modes by entering
the PIN for the following functions:
Note: To access the computer function for
the machine, you must enter the unique 8-digit
identification number assigned to the set of functions.
• Maintenance-clearing (8-digit PIN)
• Diagnostic (8-digit PIN)
Note: The numbers (1, 2, and 3) and the letters (A,
B, and C) shown on the display screen are not the
functional PIN numbers.
Figure 36
1. Display brightness
indicator
2. Decrease brightness
3. Increase brightness
Each button enters into the PIN as follows:
• Button 1 enters the number 1 (Figure 37)
• Button 2 enters the number 2 (Figure 37)
• Button 3 enters the number 3 (Figure 37)
• Button 5 enters the letter A (Figure 37)
• Button 6 enters the letter B (Figure 37)
• Button 7 enters the letter C (Figure 37)
4. Return to the previous
screen
Accessing the Trencher Diagnostics Function Screen
You will need a PIN to access this screen; to obtain the PIN,
contact an Authorized Toro Distributor.
Accessing the Trencher Errors Information Screen
Note: Numbers 1, 2, 3, 5, 6, and 7 are the only numbers
that can be used for the PIN.
You will need a PIN to access this screen; to obtain the PIN,
contact an Authorized Toro Distributor.
Accessing the Engine Errors Information Screen
You will need a PIN to access this screen; to obtain the PIN,
contact an Authorized Toro Distributor.
Figure 37
1. Buttons for corresponding
PIN numbers
2. PIN entry appears here
32
3. Enter PIN
4. Return to the previous
screen
Operating the Engine
2. Turn the key switch to the Start position.
Note: If the engine starts and then stops, do not
turn the key switch to the Start position again until the
starter motor has stopped turning.
Before Starting the Engine
WARNING
Important: Do not operate the starter motor until
it stops turning. Do not operate the starter motor
for more than 30 seconds at one time. Allow the
starter motor to cool for 30 seconds before you
operate it again. When you engage the starter
motor, you should see white or black smoke
coming from the exhaust pipe; if you do not, check
the fuel supply.
Before starting the engine, sit in the operator seat,
fasten the seat belt, apply the parking brake, and
ensure that the transmission direction control and
digging control levers are in the Neutral position.
Warn all bystanders that you are starting the engine.
When you start the engine, the transmission is automatically
set to first gear and the auto centering for the rear steering
(optional advanced-steering kit) is in the manual mode.
1. Check the oil level; refer to Checking the Engine-Oil
Level (page 25).
3. When the engine starts, check the command-control
display to ensure that the indicator readings are correct.
If any of the indicators appear on the display, stop the
engine and check the problem.
2. Ensure that the battery-disconnect switch is in the On
position; refer to Battery-Disconnect Switch (page 21).
4. Run at the engine at 1100 rpm until the coolant is
warm; refer to Setting the Engine Speed (page 33).
3. Adjust the seat position, fasten the seat belt, and ensure
that the seat is facing forward.
5. Cycle all the machine components before operating the
machine, and check all the controls and components to
ensure that they are working properly.
Note: The seat interlock system prevents you from
operating the machine unless you are sitting in the
operator seat. If you do not remain seated and
the control levers are not in the Neutral position,
the system will stop both the ground drive and the
attachment drive in 1 second. Do not set a weighted
object on the seat, bypass the seat interlock system,
or tamper with the system.
Note: If the engine is new or newly rebuilt, refer to
Breaking in a New or Rebuilt Engine (page 34).
Setting the Engine Speed
Note: Do not run the engine at full throttle below the peak
torque rpm (refer to the engine data plate for the peak torque
rpm) for more that 30 seconds.
4. Set the parking-brake button to the On position; refer
to Parking-Brake Switch (page 17).
Note: Do not run the engine at a low idle speed for long
periods of time, because it causes a low operating temperature
that can allow acids and deposits to form in the engine oil.
5. Ensure that all control levers are in the Neutral or
the Stop position; refer to Foot Pedal (page 18),
Utility-Traction Joystick (page 18), and Vibratory-Plow
/ Trencher-Motor Joystick (page 19).
Note: Do not operate the engine at full throttle below the
peak torque rpm (refer to the engine data plate for peak
torque rpm) for more than 30 seconds. Operating the engine
at full throttle below the peak torque will seriously damage it.
Note: If the machine is equipped with a backhoe,
ensure that the engine shutoff control is pulled up.
• To increase the engine speed, push button 7 on the
Starting the Engine
command center (Figure 38).
• To decrease the engine speed, push button 8 on the
Note: In extreme hot or cold weather, take the necessary
precautions; refer to Operating the Machine in Extreme
Conditions (page 34).
command center (Figure 38).
1. Turn the key switch to the On position and check that
all controls are in the Neutral position.
Note: The low engine-oil pressure indicator and the
check alternator or battery displays when the key switch
is in the On position and the engine is not running.
Note: In cold weather, the wait-to-start-engine
indicator displays to alert the operator to wait for the
intake air to warm up before starting. When the intake
air is at the proper temperature for starting the engine,
the wait-to-start indicator in the display turns off.
33
Operating the Machine in
Extreme Conditions
Both hot and cold weather place unusual demands upon
the machine and the attachments. You can minimize
temperature-related problems on the machine by performing
the following steps:
Operating the Machine in Hot Weather
1. Clean all dirt and debris from the radiator, heat
exchanger, hydraulic-fluid cooler, and engine area to
ensure that there is proper air flow to cool the engine.
2. Remove any debris from the air inlets in the nose and
side panels.
3. Use lubricants that have the correct viscosity; refer to
Changing the Engine Oil and Filter (page 47).
4. Operate the machine at an appropriate engine speed
and transmission range for the operating conditions;
do not overload the engine.
5. Use pressure-testing equipment to test the radiator cap
before the hot weather begins; replace the cap if it is
damaged.
6. Maintain the correct coolant level in the reservoir and
in the radiator, and ensure that there is a mixture of
50% ethylene glycol and 50% water in the cooling
system.
Figure 38
1. Button 7 (increase the
engine speed)
2. Button 8 (decrease the
engine speed)
Stopping the Engine
1. Park the machine on level ground, if possible.
Important: If you must temporarily park the
machine on a slope or an incline, position the
machine at a right angle to the slope. Ensure that
the machine is behind an object that will not move.
2. Lower all attachments to the ground.
3. Set the parking brake.
4. Reduce the engine speed to idle and allow it to run for
3 to 5 minutes to adequately cool the engine.
Operating the Machine in Cold Weather
5. Turn the key switch to the Off position.
Operating your machine in cold weather requires special
attention to prevent serious damage to the machine.
Performing the following procedures will extend the service
life of your machine:
1. Clean the battery and ensure that it is fully charged.
Note: If you leave the machine unattended, remove
the key from the key switch.
Breaking in a New or Rebuilt Engine
Note: A fully charged battery at -17ºC (0ºF) has
only 40% of the normal starting power. When the
temperature decreases to -29ºC (-20ºF), the battery has
only 18% of the normal power remaining.
During the first 20 hours of operation of a new or rebuilt
engine, do the following:
• Run the engine at a normal operating temperature.
• Do not run the engine at low idle speeds for long periods
Note: The machine comes with a maintenance-free
battery. If you use a different battery and add water to
it when the temperature is below 0ºC (32ºF), ensure
that you charge the battery or run the engine for about
2 hours to prevent the battery from freezing.
2. Inspect the battery cables and terminals. Clean the
terminals, and apply a coat of grease on each terminal
to prevent corrosion.
3. Ensure that the fuel system is clean and free of water;
refer to Draining Water from the Fuel-Water Separator
(page 24).
of time.
• Operate the machine with normal loads for the first 8
hours.
• Do not use special “break-in” lubricating oil. Use the
specified oil; refer to Checking the Engine-Oil Level (page
25) and Changing the Engine Oil and Filter (page 47).
Note: Use the proper fuel for cold weather.
Note: To help prevent condensation from building
up in the fuel tank, fill up the fuel tank at the end of
each day.
34
4. Check the coolant mixture before you operate the
machine in cold weather. Use only a 50% ethylene
glycol and 50% water mixture in the cooling system
year round.
Driving and Stopping the
Machine
5. Before operating the machine, move it at low speed
and actuate each hydraulic control several times to
warm the oil.
Using the Traction-Control Pedal
The traction-control pedal controls the direction and the
speed of the machine. The speed of the machine depends on
the position of the gear-selector switch.
Important: The engine and the hydraulic system
temperature indicators must be in their respective,
normal operating temperature ranges before you
perform any work with the machine.
Note: For maximum speed in either direction, push the
pedal completely down.
• Push down on the top of the pedal to move the machine
forward (Figure 40).
Operating the Parking Brake
• Push down on the bottom of the pedal to move the
1. Toggle the parking-brake switch (Figure 39) up to apply
the parking brake.
machine rearward (Figure 40).
• To reduce speed or to stop the machine, move the pedal
up toward the Neutral position (Figure 40).
Note: The foot pedal overrides the utility-traction control
when you increase or decrease the ground speed while you
are operating rear-mounted attachments.
Figure 39
1. Parking-brake switch
2. Toggle the parking-brake switch down to release the
parking brake.
Note: The parking brake automatically engages when
you stop the engine.
Figure 40
1. Heel pedal (reverse)
2. Toe pedal (forward)
Note: To increase the speed, push down farther on the
pedal; to decrease the speed, allow the pedal to move up
toward the Neutral position.
35
Steering the Machine
Using the Front-wheel Steering
Use the steering wheel to control the front-wheel steering
(Figure 41).
Note: The front-wheel steering and rear-wheel steering
operate independently (unless the machine is equipped with
the optional advanced steering control).
Figure 42
1. Utility-traction joystick
3. Move the lever out of the Neutral detent position and
to 1 of the following positions:
• Move the lever forward (toward the front of the
machine) to move the machine forward (Figure 42).
• Move the lever rearward (toward the rear of the
machine) to move the machine in reverse (Figure
42).
Figure 41
1. Steering wheel
2. Lock ring
3. Rear-wheel steering
switch—turn the wheels
right
2. Rear-wheel steering
switch—turn the wheels
left
Note: Move the lever completely forward or rearward
for the maximum speed.
4. Release the lock ring and the lever (Figure 42).
Note: The lever is held in place front-to-rear by
friction from the lock ring in order to maintain a
constant speed.
Using the Rear-wheel Steering
The switch for the rear-wheel steering is used to control the
steering direction (left or right) of the rear wheels only.
5. Return the lever to the Neutral position to stop the
machine (Figure 42).
• Push the rocker switch for the rear-wheel steering (Figure
41) on the right half of the switch to turn the rear wheels
to the right (turn left).
Note: The ground-drive foot control overrides the
traction-adjustment-control lever. If you use the foot
pedal, you must move the traction-adjustment-control
lever to the Neutral position to release the override and
return the lever to normal operation.
• Push this rocker switch for the rear-wheel steering (Figure
41) on the left half of the switch to turn the rear wheels
to the left (turn right).
Using the Utility-traction Joystick
Stopping the Machine
This joystick allows you to finely adjust the direction and the
speed of the machine during trenching, plowing, or boring.
WARNING
Jumping on or off the machine can cause an injury.
WARNING
When you get on or off the machine, always face the
machine, use the hand rails and steps, move slowly.
To avoid injury, remain in the operator seat to
operate the machine.
This machine has hydrostatic braking. When you remove
your foot from the ground-drive foot pedal or move the
utility-traction control back to the Neutral position, the
machine stops. Always apply the parking brake after you stop
the machine and before you stop the engine.
Note: If you do not remain in the operator seat, the machine
will not move.
1. Release the parking brake.
2. Lift up on the lock ring that is at the bottom of the
joystick handle (Figure 42).
1. Park the machine on level ground.
36
2.
3.
4.
5.
6.
Important: If you must temporarily park the
machine on a slope or an incline, position the
machine at a right angle to the slope, with the
front of the machine toward the bottom of the hill.
Ensure that the machine is behind an object that
will not move.
Support or lower all attachments to the ground.
Set the parking brake.
If the machine has been operating under a heavy load,
decrease the engine speed to idle and allow it to run for
3 to 5 minutes to cool the engine; refer to Setting the
Engine Speed (page 33).
Turn the key switch to the Off position.
Remove the key from the ignition switch.
Machine Task
Gear
Selection
1
Trenching, hard plowing, and boring
2
Light trenching and backfilling
3
Light backfilling
4
Transporting
Note: You must sit in the operator seat when moving either
of the ground-drive controls from the Neutral position;
otherwise, the machine will not move.
Shifting during operation—you can shift gears while the
machine is moving. Press the shift selector rocker switch up
or down to the desired gear, 1 gear at a time.
Note: Do not shift the transmission from 4th gear while
operating at high speed. Decrease the forward speed of the
machine with the foot pedal before shifting the transmission
to a lower gear.
Note: Fill the fuel tank at the end of each work day
to prevent condensation in the tank.
Operating the Transmission
Operating the Machine Tilt
Feature
Operating the Gear-Selector Switch for
the Transmission
Note: When you first start the machine, gear 1 is selected.
Removing the Tilt-lockout Pin
Perform the following to shift the transmission from a lower
gear to a higher gear or to shift from a higher gear to a lower
gear:
• To select a higher gear, press the up-shift (right) button
on the rocker switch (Figure 43).
1. Remove the hairpin that secures the tilt-lockout pin to
the chassis-lockout bracket (Figure 44).
2. Remove the tilt-lockout pin from the holes in the
chassis-lockout bracket and the axle-lockout bracket
(Figure 44).
Figure 43
1. Down-shift button
3. Icon—gear-shift pattern
2. Up-shift button
Figure 44
• To select a lower gear, press the down-shift (left) button
•
on the rocker switch (Figure 43).
Cycle the gear-selector switch up or down until the
desired gear is displayed in the command center.
37
1. Hairpin
3. Axle-lockout bracket
2. Chassis-lockout bracket
4. Tilt-lockout pin
Installing the Tilt-lockout Pin
1. Use the tilt switch to align the hole in the chassis-lockout
bracket with the holes in the axle-lockout bracket
(Figure 44).
2. Remove the hairpin from the tilt-lockout pin (Figure
45).
Note: The tilt-lockout pin should be stowed in the
vertical hole in the axle-lockout bracket.
Figure 46
1. Tilt the machine right
2. Tilt the machine left
Note: Use the tilt gauge (Figure 47) to determine the degree
of tilt at which the machine is operating.
Figure 45
1. Tilt-lock pin
3. Axle-lockout bracket
(vertical holes)
2. Hairpin
3. Remove the tilt-lockout pin from the stowed position.
Figure 47
4. Fully insert the tilt-lockout pin through the horizontal
holes in the chassis-lockout bracket and axle-lockout
bracket (Figure 44).
1. Tilt gauge
5. Secure the tilt-lockout pin to the axle-lockout bracket
with the hairpin (Figure 44).
Preparing to Operate the
Machine
Stowing the Tilt-lockout Pin
1. Insert the tilt-lock pin through the vertical holes in the
axle-lockout bracket (Figure 45).
After starting the engine but before operating the machine at
the work site, do the following:
2. Secure the pin to the lockout bracket with the hairpin
(Figure 45).
• Ensure that the ROPS and the seat belt are properly
installed and in good working order.
• Ensure that all instruments are working properly.
• Ensure that all attachments are working properly in a
Tilting the Machine
Use the machine tilt feature to compensate for side-to-side
tilt when operating the machine across a slope.
clear, open area.
1. Start the engine and warm it up.
• Push the upper part of this switch down (Figure 46) to tilt
2. Raise the engine speed to the desired level.
the machine right for inclined terrain.
3. Raise the attachments.
• Push the lower part of this switch down (Figure 46) to tilt
4. Release the parking brake.
the machine left for inclined terrain.
38
Note: You must sit in the operator seat before you
move the machine; otherwise, the machine will not
move.
Note: The utility-traction lever controls the speed of
the machine. The farther that you move the lever from
the Neutral position, the faster the machine moves.
Important: Control the speed of the machine
travel with the utility-traction lever, not the throttle.
5. Check the indicator display frequently.
Figure 49
Using the Backfill Blade
1. Button 5—backfill blade/vibratory plow selection
(backfill-blade icon shown)
Important: Operate the controls while sitting in the
operator seat.
2. To operate the backfill blade, do the following:
Use the backfill blade to return the spoils into the
trench. You control the backfill blade with the
backfill-blade/vibratory-plow joystick. Use the joystick,
trigger, and thumb switch as shown in Figure 48.
• To lower the backfill blade: Move the joystick
forward (Figure 50).
• To raise the backfill blade: Move the joystick
rearward (Figure 50).
Figure 50
1. Lower the backfill blade
Figure 48
1. Lower the blade (joystick)
5. Turn the blade left
(left-thumb control)
2. Raise the blade (joystick)
6. Turn the blade right
(right-thumb control)
3. Tilt the blade left (joystick)
7. Float the blade (trigger)
2. Raise the backfill blade
• To tilt the backfill blade down on the left: Move the
joystick left—toward you (Figure 48 and Figure 51).
• To tilt the backfill blade down on the right: Move
the joystick right—away from you (Figure 48 and
Figure 52).
4. Tilt the blade right
(joystick)
1. Switch the machine to the backfill blade function by
pressing button 5 on the command center until the
icon for the backfill blade appears (Figure 49).
Figure 51
1. Down—left
39
2. Down—right
• To angle the backfill blade to the left: Press the left
•
8. Stop the engine and remove the key.
9. Fasten the front and rear of the machine to the trailer
using chains and a binder (Figure 53).
half of the thumb control (Figure 52).
To angle the backfill blade to the right: Press the
right half of the thumb control (Figure 52).
Figure 52
1. Angle—left
Figure 53
2. Angle—right
1. Front tie-down point (each
side)
2. Rear tie-down point
• To hold the backfill blade: Keep the joystick in the
•
Hold (Neutral) position (Figure 48).
To float the backfill blade: Pull the trigger (Figure
48).
10. Measure the distance from the ground to the highest
point of the machine.
Note: This is the clearance height to keep in mind
while you transport the machine.
11. Remove the blocks from the front and rear trailer
wheels.
12. After you have driven a few miles, stop the truck and
check that your load is secure.
Note: For best results when backfilling the spoils while
parallel to the trench, make 2 or 3 passes over the spoil pile
with the blade.
Note: If the spoil pile is large, operate the machine at a right
angle to the trench.
Note: Ensure that the chains are still tight and that the
machine has not moved on the trailer.
Using the Power Port
Use the power port to provide a 12–volt electrical source for
12–volt accessories and devices, refer to Figure 11.
Unloading the Machine from a Trailer
1.
2.
3.
4.
Block the front and rear trailer wheels.
Remove the chains and binders from the machine.
Start the engine.
Ensure that the attachments are in the Transport
position.
5. Slowly move the machine off the trailer.
Transporting the Machine
Be sure that you understand the safety rules and laws for the
area in which you are using the machine. Ensure that both
the truck and the machine are equipped with the proper
safety equipment.
Lifting the Machine with a Spreader Bar
Loading the Machine onto a Trailer
1. Attach a crane lift cable to the single-lift point of a
spreader bar.
2. Attach 2 of the lift cables on one end of the spreader
bar to the lift points at the rear of the machine frame.
3. Attach the remaining 2 spreader bar lift cables to the
lift points at the front of the machine frame.
4. Carefully and slowly lift the machine, and lower it to
the desired location.
1. Ensure that the machine is level and that the tilt-lockout
pin is installed; refer to Tilting the Machine (page 38)
and Installing the Tilt-lockout Pin (page 38).
2. Ensure that the trailer and the ramp can support both
your weight and the weight of the machine; refer to
Specifications (page 22).
3. Always have the attachments in the Transport position
when you are loading or unloading the machine.
4. Block the front and rear wheels of the trailer.
Moving a Non-functioning Machine
5. Slowly and carefully move the machine onto the trailer.
Repair a non-functioning machine on the job site, if possible.
Otherwise, you must lift the machine with a spreader bar and
transport the machine to a repair facility.
6. Lower the attachments to the trailer.
7. Engage the parking brake.
40
Completing the Work for the
Day
When you complete your work for the day, do the following:
1. Backfill the spoils in the part(s) of the trench in which
you are finished working.
2. Move the machine to a safe and stable location.
3. Move all levers to the Neutral position.
4. Set the parking brake.
5. Lower all attachments to the ground.
6. Let the machine idle for a few moments to cool it
down.
7. Stop the engine, wait for all moving part to stop, and
remove the ignition key.
8. Turn the battery disconnect switch to the Off position;
refer to Battery-Disconnect Switch (page 21).
Completing the Project
1. After you complete the project, return the spoils back
into the trench with the backfill blade; refer to Using
the Backfill Blade (page 39).
A. Move the machine to the end of the trench, a few
meters (feet) away from the spoil pile.
B.
Aim the machine at the outer edge of the pile.
C.
Adjust the backfill blade to fit the slope of the
ground.
D.
Move the outer edge of the spoil pile toward the
trench.
Note: Make at least 2 passes at the pile to move
it.
E. Repeat the steps above for the spoil pile on the
other side of the trench.
F.
Float the backfill blade over the length of the
trench.
2. Spray the dirt and mud off the machine with water.
Important: Do not spray the console or electrical
components with water.
3. Transport the machine from the completed work site;
refer to Transporting the Machine (page 40).
41
Maintenance
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 100 hours
• Check the oil level in the wheel hubs.
• Check the oil level in the front and rear axles.
After the first 200 hours
• Change the oil in the wheel hubs.
• Change the oil in the axles.
Before each use or daily
•
•
•
•
•
•
•
•
•
•
•
Drain the water and sediment from the fuel-water separator.
Check the engine-oil level.
Check the coolant level in the reservoir.
Check the hydraulic fluid level in the reservoir.
Check the restricted air-cleaner indicator for a restricted air cleaner.
Inspect the machine.
Grease the machine.
Check the crankcase breather tube.
Check the air-intake piping for wear, damage, and loose fasteners.
Drain the water from the fuel tank.
Check the tires and wheels for damage.
Every 50 hours
• Maintain the proper air pressure in the tires.
• Check the coolant level in the radiator.
Every 100 hours
• Check the oil level in the transmission.
Every 250 hours
•
•
•
•
•
•
Every 300 hours
• Check the condition of the coolant system components.
• Clean dirt and debris from them and repair or replace damaged cooling system
components as necessary.
Every 500 hours
•
•
•
•
•
•
•
Grease the drive shaft.
Change the engine oil and filter.
Service the fuel filter system.
Change the transmission filter.
Change the hydraulic-charge filter.
Change the hydraulic-return filter.
Check and maintain the ROPS; check it after an accident.
Every 1,000 hours
•
•
•
•
•
•
•
Replace the fuel tank breather.
Change the oil in the wheel hubs.
Change the oil in the axles.
Clean the axle breather for each axle.
Change the transmission oil.
Check the concentration of the coolant.
Change the hydraulic fluid and replace the breather.
Every 2,000 hours
• Clean the cooling system.
Grease the front and rear axles.
Check the charge-air piping.
Check the air-intake piping for wear, damage, and loose fasteners.
Check the oil level in the wheel hubs.
Check the oil level in the front and rear axles.
Check the condition of the engine drive belt.
42
Premaintenance
Procedures
Lubrication
General Safety
Grease Type: Lithium-based grease.
Greasing the Machine
Greasing the Front and Rear Axles
WARNING
Improperly servicing or repairing the machine can
cause injury or death.
Service Interval: Every 250 hours
1. Clean the grease fittings with a rag.
If you do not understand the service procedures
for this machine, contact an Authorized Toro
Service Dealer or obtain the service manual for this
machine.
2. Connect the grease gun to the grease fittings for the
upper and lower pivots; apply 2 or 3 pumps of grease
to each fitting (Figure 54 and Figure 55).
Note: There are 2 grease fittings at the axle pivot for
each tire.
WARNING
Leaving a machine with raised attachments
unattended can cause injury or death.
Before you leave the operating area, always support
or lower the equipment to the ground and stop the
engine.
WARNING
Replace all covers and guards after you service or
clean the machine. Never operate the machine
without the covers or guards in place.
1. Park the machine on a level surface.
2. Lower all attachments, stop the engine, and remove
the key.
3. Allow the engine to cool 2 or 3 minutes.
Figure 54
Front axle
4. Remove the right-side panel; refer to Removing the
Side Panels (page 45).
1. Grease fitting (upper pivot) 2. Grease fitting (lower pivot)
5. Rotate the battery-disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 21).
43
Greasing the Front and Rear Drive
Shafts
Service Interval: Every 500 hours
1. Clean the grease fittings with a rag.
2. Connect the grease gun to the grease fitting for the
slide coupling at the forward end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
Figure 55
Rear axle
1. Grease fitting (upper pivot) 2. Grease fitting (lower pivot)
3. Connect the grease gun to the grease fittings for the
forward- and rear-axle tilt pivots; apply 2 or 3 pumps
of grease to each fitting (Figure 56).
Figure 57
1. Grease fitting (back
universal joint)
2. Grease fitting (forward
universal joint)
3. Connect the grease gun to the grease fitting for the
universal joint at the forward end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
4. Connect the grease gun to the grease fitting for the
universal joint at the back end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
5. Wipe up any excess grease.
Greasing the Backfill Blade
Service Interval: Before each use or daily
1. Clean the grease fittings with a rag.
2. Connect the grease gun to the fittings on each
blade-angle cylinder, and apply 3 pumps of grease to
each fitting (Figure 58).
Figure 56
1. Grease fittings (4)
4. Wipe up any excess grease.
44
Engine Maintenance
Before maintaining the engine, perform the following steps:
1. Park the machine on level ground, lower all
attachments, and stop the engine.
2. Remove the ignition key and allow the engine to cool
for 2 or 3 minutes.
Accessing the Engine
Figure 58
Removing the Side Panels
1. Grease fitting
1. If the optional backhoe is installed, perform the
following substeps to remove the left side panel;
otherwise, skip to step 2:
3. Wipe up any excess grease.
A. At the left side of the machine, remove the
retaining pin from the front end of the walkway
(Figure 59).
Figure 59
1. Retaining pin
B.
2. Walkway
Pivot the walkway away from the machine as
shown in Figure 59.
2. If the side panel is locked, insert the key for the
side-panel latches into the cylinder of the lock and
unlock the latch.
Note: The key for the side-panel latch is a different
key from the one use to start and run the machine.
3. Press in the button portion of each latch—the part of
the latch including the lock cylinder (Figure 60).
45
Installing the Side Panels
1. Align the side panel with the machine frame.
2. Align the mounting bolt at the top of the side panel
with the hole in the support flange of the hood panel
(Figure 62).
Figure 62
Figure 60
1. Latch lever
3. Side-panel latch
2. Latch button
1. Hole (support
flange—hood panel)
3. Hood panel
2. Mounting bolt
4. Side panel
3. Apply light inward pressure against the panel at 1 of
the latches.
4. Lift the panel up and then away from the machine
(Figure 61).
4. Set the latch by pushing in the latch lever (Figure 60).
5. Repeat steps 3 and 4 at the other latch.
6. If the backhoe is installed on the machine, do the
following substeps:
A. Rotate the front end of the walkway to its original
position (Figure 59).
Figure 61
1. Latch
2. Side panel
46
B.
Align the hole in the walkway with the hole in the
walkway support bracket (Figure 59).
C.
Install the retaining pin through the holes.
Servicing the Engine Oil and
Filter
Crankcase capacity: 15.0 L (15.9 US qt) with the filter.
Use only high-quality SAE 15W-40 heavy-duty engine oil with
an API classification of CH-4 or higher.
While SAE 15W-40 oil with an API classification of CH-4 or
higher is recommended for most climates, refer to Figure 63
for oil viscosity recommendations for extreme climates.
°C -40 -30 -20 -10 0 10 20 30 40 50
°C -40 -22 -2 14 32 50 58 86 104 122
All Seasons
15W-40
Figure 64
Winter Conditions
10W-30
1. Engine-oil drain fitting
Arctic Conditions
5W-30
5. Remove the cap from the drain fitting and allow the
engine oil to drain completely (Figure 64).
°C -40 -30 -20 -10 0 10 20 30 40 50
°C -40 -22 -2 14 32 50 58 86 104 122
Note: Removing the oil-fill cap from the valve cover
helps to drain the engine oil (Figure 65).
G022415
Figure 63
Note: Limited use of low-viscosity oils such as SAE 10W-30
with an API classification of CH-4 or higher can be used for
easier starting and providing sufficient oil flow at ambient
temperatures below -5°C (23°F). However, continuous use of
low viscosity oil can decrease engine life because of wear.
Toro Premium Engine Oil is available from an Authorized
Toro Service Dealer in either 15W-40 or 10W-30 viscosity
with API classification CH-4 or higher. See the Parts Catalog
for part numbers. Also, refer to the Engine Operator's Manual,
included with the machine, for further recommendations.
Changing the Engine Oil and Filter
Service Interval: Every 500 hours
Draining the Engine Oil
1. Run the engine until the water temperature reaches
60°C (140°F).
Figure 65
1. Filler neck
2. Oil-fill cap
Note: Warm oil drains better and carries more
contaminants.
2. Stop the engine.
3. Funnel
6. Clean the mating surfaces of the cap and the drain
fitting.
7. Install the cap onto the drain fitting (Figure 64).
3. Remove the right side panel; refer to Removing the
Side Panels (page 45).
4. Place a drain pan that has a minimum capacity of 20 L
(21 US qt) under the engine-oil drain fitting (Figure 64).
Changing the Engine Oil Filter
1. Remove the right side panel; refer to Removing the
Side Panels (page 45).
2. Place a small drain pan under the oil filter (Figure 66).
47
Important: The oil pressure gauge must indicate
engine oil pressure within 15 seconds after you
start the engine. If there is no indication of engine
oil pressure within 15 seconds, shut off the engine
immediately to avoid damaging the engine and
check that the engine oil level is correct.
5. Stop the engine and remove the key.
6. Wait 5 minutes and check the oil level; refer to steps 4
through 8 in Checking the Engine-Oil Level (page 25).
7. Install the side panel; refer to Installing the Side Panels
(page 46).
Checking the Crankcase
Breather Tube
Figure 66
1. Oil-filter head
2. Oil filter
Service Interval: Before each use or daily
3. Rotate the oil filter to the left and remove the oil filter
(Figure 66).
1. Inspect the crankcase breather tube (Figure 67) for
sludge, debris, or ice inside the tube.
Note: Recycle the used oil filter according to local
codes.
4. Use a rag to wipe clean the surface of the oil-filter head,
where the oil filter seats.
5. Fill the new oil filter with the specified engine oil.
6. Apply a thin layer of the engine oil to the seal of the
new oil filter.
7. Align the new oil filter to the oil-filter head and rotate
the filter to the right until the seal of the oil filter
contacts the oil-filter head (Figure 66).
8. Hand tighten the oil filter an additional 3/4 to 1 full
turn (Figure 66).
Figure 67
Note: Do not use an oil filter wrench to tighten the
new oil filter. The wrench can dent an oil filter, causing
a leak.
1. Front of machine
9. Remove the small oil pan from under the oil filter.
2. Crankcase breather tube
2. If you find sludge, debris, or ice inside the breather
tube, clean the tube with detergent and warm water
or a solvent.
10. Wipe up any spills and recycle the used oil according
to local codes.
11. Install the side panel; refer to Installing the Side Panels
(page 46).
3. Dry the tube with compressed air.
4. Inspect the tube for cracks or damage; replace a cracked
or damaged tube; refer to an Authorized Toro Dealer.
Filling the Engine with Oil
1. Remove the oil-fill cap from the valve cover by rotating
the cap and pulling it upward (Figure 64).
Note: Use a funnel with a flexible hose to direct the
engine oil into the engine.
2. Fill the crankcase with approximately 15.0 L (15.9 US
qt) of the specified engine oil; refer to Servicing the
Engine Oil and Filter (page 47).
3. Install the oil-fill cap.
4. Start the engine, run it at idle for about 2 minutes, and
check for oil leaks.
48
Checking the Air-intake Piping
Checking the Charge-air
Piping
Service Interval: Before each use or daily
Every 250 hours
Service Interval: Every 250 hours
Inspect the air-intake piping for wear, damage, and loose
clamps (Figure 69).
Inspect the charge-air piping and hoses (Figure 68) for leaks,
holes, cracks, or loose connections, and tighten any loose
connections.
Figure 69
1. Charge-air pipe (left)
Figure 68
1. Charge-air pipe (right)
• Replace all damaged pipes, and tighten loose clamps to
prevent the air system from leaking.
Note: Torque the loose clamps to 8 N-m (72 in-lb).
Servicing the Air-cleaner
System
• Check for corrosion under the clamps and hoses.
Corrosion can allow corroded debris and dirt to enter
the intake system. Disassemble and clean the clean the
components as necessary.
Important: Do not remove the air-cleaner elements
from the machine and operate the engine to check for
a restriction; dirt and debris could enter the engine and
cause premature wear. Always follow the instructions in
the following procedures.
Replacing the Air-cleaner Elements
Important: Do not try to clean a dirty primary or
secondary air-cleaner element.
Note: Check the primary and secondary air-cleaner elements
when the restricted air-cleaner light comes on.
1. Remove the left side panel; refer to Removing the Side
Panels (page 45).
Note: Do not replace an old air cleaner element with an
element that is more than 5 years old; check the date of
manufacture on the end cap of the element.
2. Unlatch the 4 latches that hold the air-cleaner cover
and remove the cover (Figure 70).
Note: Every time you service the air cleaner system, ensure
that all hose connections and flanges are air tight. Replace
all damaged parts.
49
Fuel System
Maintenance
Servicing the Fuel System
Draining Water from the Fuel Tank
Service Interval: Before each use or daily
1. Stop the engine.
2. Place a drain pan under the drain plug in the fuel tank.
Figure 70
1. Air pre-cleaner
2. Air-cleaner housing
3. Latch (4)
3. Unscrew the drain plug from the fuel tank and drain
the water (Figure 71).
4. Secondary air-cleaner
element
5. Primary air-cleaner
element
6. Air-cleaner cover
3. Remove the primary and secondary air-cleaner elements
from the air-cleaner housing (Figure 70).
4. Use a clean damp cloth to clean the inside of the
cleaner housing (Figure 70).
5. Inspect the primary air-cleaner element, and replace it
if it is damaged or excessively dirty.
6. Inspect the secondary air-cleaner element and replace
it if it is damaged.
Figure 71
1. Fuel tank
Note: Replace the secondary air-cleaner element after
you have replaced the primary air-cleaner element 3
times or if the air-cleaner restriction indicator comes
on while the engine is running and you have already
replaced primary air-cleaner element.
3. Drain pan
2. Drain plug
4. When clean fuel appears, install the drain plug and
tighten it securely (Figure 71).
7. If you replace the element(s), write the current date
and the engine hours on the new air-cleaner element(s)
with a permanent marking pen.
5. Check the fuel tank drain plug for leaks.
Siphoning Water from the Fuel Tank
8. Insert the secondary air-cleaner element into the
air-cleaner housing.
Note: Siphoning water from the fuel tank is an alternative
to draining water from the fuel tank; refer to Draining Water
from the Fuel Tank (page 50).
9. Insert the primary air-cleaner element into the
air-cleaner housing.
1. Remove the fuel cap from the fuel tank (Figure 72).
10. Secure the air-cleaner cover to the air-cleaner housing
with the 4 latches on the housing (Figure 70).
11. Install the left side panel; refer to Installing the Side
Panels (page 46).
12. Start the engine and check the restricted air-cleaner
indicator; refer to Checking the Restricted Air-Cleaner
Indicator (page 27).
50
3. Install a new breather into the pipe coupling hand tight
(Figure 73).
4. Install the right side panel; refer to Installing the Side
Panels (page 46).
Replacing the Fuel Filters
Service Interval: Every 500 hours
The engine on this machine uses a dual fuel-filter system, with
a primary fuel filter and a secondary fuel filter. The primary
fuel filter includes a fuel-water separator; it is not pressurized
but operates under a vacuum. The secondary fuel filter is for
filtration only and is pressurized by the fuel pump.
Figure 72
1. Intake hose (bottom of the
tank)
3. Siphoning equipment
2. Fuel cap
4. Drain pan
Removing the Primary and Secondary Fuel Filters
Important: Clean all around the filter area before
disassembling the fuel filter system. Dirt or
contaminants can damage the fuel system.
2. Route the intake hose of the siphoning equipment
through the filler neck of the fuel tank and to the
bottom of the tank (Figure 72).
1. Rotate the battery disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 21).
3. Direct the discharge hose of the siphoning equipment
into a drain pan (Figure 72).
2. Remove the right side panel; refer to Removing the
Side Panels (page 45).
4. Siphon the tank until clean fuel appears.
5. Remove the siphoning equipment from the tank.
3. Clean the area around the primary and secondary fuel
filters.
6. Install the fuel cap onto the filler neck of the fuel tank
(Figure 72).
4. Disconnect the wiring harness from the water-in-fuel
sensor.
Note: The water-in-fuel sensor is located at the
bottom of the fuel/water separator, next to the drain
valve.
Replacing the Fuel Tank Breather
Service Interval: Every 1,000 hours
5. Place a small-drain container under the drain valve of
the fuel water separator ; refer to Draining Water from
the Fuel-Water Separator (page 24).
1. Remove the left side panel; refer to Removing the Side
Panels (page 45).
2. At the forward side of the engine compartment panel,
remove the breather from the pipe coupling by rotating
the breather counterclockwise (Figure 73).
Note: The primary fuel filter is a component of the
fuel/water separator.
6. Open the drain valve and allow the fuel-water separator
to drain completely; refer to Draining Water from the
Fuel-Water Separator (page 24).
Note: Discard the old breather.
7. Loosen and remove the primary fuel filter (Figure 74).
Note: If necessary, use a filter wrench to loosen the
fuel filter.
Figure 73
1. Fuel tank breather
2. Pipe coupling
51
a side block-off plug can allow debris to enter the fuel
system and damage fuel system components.
Important: If possible, pre-fill new primary- and
secondary-fuel filters with clean fuel prior to assembly
using the clean side block-off plug packed with the filter.
Do not pour fuel directly into the center of the filter,
because this will allow unfiltered fuel to enter the system
and may damage the fuel system components.
Note: You must prime the system after you install the fuel
filters.
1. Wipe clean the sealing surfaces of the filter adapters
for the primary- and secondary-fuel filters (Figure 74
and Figure 75).
2. Lubricate the seals for the fuel filters with clean engine
oil.
3. Install the primary-fuel filter onto the filter adapter,
and tighten the filter until the gasket contacts the filter
head surface (Figure 74).
Figure 74
1. Filter adapter (primary fuel
filter)
2. Primary-fuel filter
(fuel/water separator)
4. Tighten the fuel filter an additional 3/4 turn after
contact.
8. Place a small-drain container under the secondary fuel
filter.
Important: Do not overtighten the fuel filter.
5. Connect the wiring harness to the water-in-fuel sensor.
9. Loosen and remove the secondary fuel filter (Figure
75).
6. Install the secondary-fuel filter onto the filter adapter,
and tighten the filter until the gasket contacts the filter
head surface (Figure 75).
Note: If necessary, use a filter wrench to loosen the
fuel filter.
7. Tighten the fuel filter an additional 3/4 turn after
contact.
Note: Ensure that the O-ring does not stick to the
fuel filter head. Remove the O-ring with an O-ring
pick, if necessary.
Important: Do not overtighten the fuel filter.
8. Bleed the air from the fuel system by priming the
system; refer to Priming the Fuel System (page 52).
Priming the Fuel System
WARNING
The fuel system is under high pressure. Bleeding
the system without proper precautions and training
could result in injury to you from injected fluid or
fire or explosion.
• Do not loosen any fittings while the engine is
running.
• Read the engine owner’s manual for the proper
bleeding procedure or contact your Authorized
Toro Service Dealer.
Figure 75
1. Secondary fuel filter
2. Filter adapter (secondary
fuel filter)
Prime the fuel system to remove air from the system after the
following events:
• The engine has run until the fuel tank is empty.
• The fuel filters are replaced.
• Parts of the fuel system are removed for repair.
Installing the Primary- and Secondary-Fuel Filters
Important: Do not pre-fill the pressure-side fuel filter
with fuel unless you use a clean side block-off plug.
Pre-filling the pressure-side fuel filter without the use of
1. Ensure that there is fuel in the fuel tank.
52
Electrical System
Maintenance
2. Rotate the battery-disconnect switch clockwise to the
On position; refer to Battery-Disconnect Switch (page
21).
3. Clean the fuel-pump head and the priming pump using
a quick-dry spray cleaner and compressed air (Figure
76).
Maintaining the Battery
Accessing the Battery
Remove the battery cover as follows:
1. Ensure that the battery-disconnect switch is in the Off
position; refer to Battery-Disconnect Switch (page 21).
2. Remove the 2 finger-pull covers from the holes in the
battery cover.
3. Remove the 4 bolts that secures the battery cover to
the ROPS platform (Figure 77).
Note: The battery cover is located between the
operator seat and the rear ROPS bulkhead.
Figure 76
1. Priming-pump handle
3. Fuel/water separator
2. Fuel-pump head
4. Unlock the priming-pump handle by turning it
counterclockwise (Figure 76).
5. Pump the primer handle (Figure 76) until you feel
resistance and the handle cannot be pumped anymore
(approximately 140 to 150 strokes for dry filters or 20
to 60 strokes for pre-filled filters).
6. Lock the manual priming pump handle by turning it
clockwise until it is fully seated (Figure 76).
Figure 77
7. Start the engine; refer to Starting the Engine (page 33).
Important: Do not engage the starter motor for
more than 10 seconds at a time. Allow 2 minutes
between cranking intervals.
1. Operator seat
4. Bolt
2. Finger-pull cover
5. Nut clip
3. Hole (battery cover)
6. ROPS bulkhead
4. Using the finger pulls, lift the battery cover up to
remove it from the ROPS platform
Note: If the engine does not start after priming the
fuel system and making several attempts to start the
engine, bleed the high-pressure fuel lines; refer to your
engine owner’s manual or contact your Authorized
Toro Service Dealer for assistance.
Install the battery cover as follows:
1. Align the holes in the mounting flanges for the battery
cover with the plate nuts in the ROPS platform around
the battery (Figure 77).
8. If the engine does not start, pump the priming pump
and repeat steps 4 through 7 until the engine starts.
2. Secure the battery cover to the ROPS platform with
the 4 bolts (Figure 77).
Note: When the engine starts, it may run erratically
and louder than normal for a few minutes. This is
normal, as air is being purged from the system.
3. Install the 2 finger-pull covers into the holes of the
battery cover.
9. Operate the engine until it runs smoothly, then check
for any leaks.
53
Connecting a Booster Battery
Servicing the Battery
WARNING
WARNING
Exposure to battery acid or a battery explosion can
cause serious personal injury.
Charging the battery produces gasses that can
explode.
Before you service a battery, always wear face
protection, protective gloves, and protective
clothing.
Never smoke near the battery and keep sparks and
flames away from battery.
Note: This procedure requires 2 people to perform. Ensure
that the person making the electrical connections wears the
proper face protection, protective gloves, and clothing.
WARNING
A battery contains sulfuric acid, which can cause
serious burns; and they can produce explosive
gases.
• Avoid contact with skin, eyes, or clothing; flush
affected areas with water.
• If taken internally, drink large quantities of water
or milk. Do not induce vomiting. Seek medical
attention immediately.
• Keep sparks, flames, and lit cigarettes and cigars
away from the battery.
• Ventilate the battery when you are charging it or
using it in an enclosed area.
• Wear eye protection when working near a
battery.
• Wash your hands after handling a battery.
• Keep the battery out of the reach of children.
1. Ensure that all controls are in the Neutral position and
that the parking brake is in the On position.
2. Sit in the operator seat and have the other person make
the connections.
Note: Ensure that the jumper battery is a 12-volt
battery.
Important: If you are using another machine
for power, ensure that the 2 machines are not
touching each other.
3. Ensure that the battery-disconnect switch is in the On
position; refer to Battery-Disconnect Switch (page 21).
4. Remove the cover from the jump post (Figure 78).
WARNING
A frozen battery can be explosive, causing personal
injury to you or others in the area, if you try to
charge the battery or try to jump start the battery
and run the engine.
To prevent the battery electrolyte from freezing,
keep the battery fully charged.
WARNING
Sparks or a flame can cause hydrogen gas in a
battery to explode.
Figure 78
When you disconnect the battery cables, always
disconnect the negative (-) cable first.
1. Jump post
When you connect the battery cables, always
connect the negative (-) cable last.
4. Starter terminals (Do not
use)
2. Jumper-cable clamp
(positive)
5. Jumper-cable clamp
(negative)
3. Battery disconnect switch
6. Ground point (engine
case)
Do not short-circuit the battery posts with a metal
object.
Do not weld, grind, or smoke near a battery.
5. Connect the positive (+) jumper cable to the jump post
(Figure 78).
Note: The electrical system in this machine is 12 volts.
54
4. Connect the battery charger to the electrical source.
6. Connect the negative (-) jumper cable to a ground
point, such as the nut at the pivot point for the
alternator (Figure 78).
Important: Do not overcharge the battery.
Note: Charge the battery as shown in the following
table:
7. Start the engine; refer to steps 1 through 4 in Starting
the Engine (page 33).
Battery Charging Settings and Times
Note: If the engine starts and then stops, do not
operate the starter motor until the starter motor stops
turning. Do not operate the starter motor for more
than 30 seconds at one time. Wait 30 seconds before
operating the starter motor to cool the motor and to
build up the charge in the battery.
Charger Setting
Charging Time
4 to 6 amperes
30 minutes
25 to 30 amperes
10 to 15 minutes
5. When the battery is fully charged, unplug the charger
from the electrical source, then disconnect the charger
leads from the battery posts (Figure 79).
8. When the engine starts, have the other person
disconnect the negative (-) jumper cable from the frame
and then disconnect the positive (+) jumper cable.
Charging the Battery
Replacing a Fuse
1. Remove the left and right side panel; refer to Removing
the Side Panels (page 45).
WARNING
Charging the battery produces gasses that can
explode.
2. Rotate the battery-disconnect switch counterclockwise
to the Off position (Figure 80).
Never smoke near the battery, and keep sparks and
flames away from the battery.
Important: Always keep the battery fully charged. This
is especially important to prevent battery damage when
the temperature is below 32°F (0°C).
1. Clean the exterior of the battery case and the battery
posts.
Note: Connect the leads of the battery charger to
battery posts before connecting the charger to the
electrical source.
2. Connect the positive lead of the battery charger to the
positive-battery post (Figure 80).
4
Figure 80
2
3
1. Battery-disconnect switch
in the On position
1
2. Battery-disconnect switch
in the Off position
3. Remove the 4 hex-flanged bolts (5/16 x 3/4 inch) that
secure the cover to the console and remove the cover
(Figure 81).
G003792
Figure 79
1. Positive-battery post
3. Red (+) charger lead
2. Negative-battery post
4. Black (-) charger lead
3. Connect the negative lead of the battery charger to the
negative-battery post (Figure 79).
55
Drive System
Maintenance
Servicing the Tires
WARNING
Exploding tires and/or rim parts can cause injury
or death.
Figure 81
1. Hex-flanged bolts (5/16 x
3/4 inch)
4. Fuse block
2. Cover
3. Console
5. Fuses
Keep yourself and others out of the area of danger.
Stand on the tread side of the tire. Always fill
the tires to the correct air pressure, and follow
the instructions in this manual for adding air or
servicing the tires.
4. Locate the open fuse and replace it with a fuse of the
same type and amperage (Figure 81).
WARNING
5. Check that the new electrical components function.
Do not weld the wheel or rim with the tire installed.
Welding with an explosive air/gas mixture can
ignite, causing serious injury or death, regardless of
whether the tire is inflated or deflated.
6. Align the hole in the cover with the nut clips on the
flanges of the console (Figure 81).
7. Secure the cover to the console with the 4 hex-flanged
bolts that you removed in step 3.
Removing the air or breaking the bead is not
adequate; you must completely remove the tire from
the rim before welding.
8. Rotate the battery-disconnect switch clockwise to the
On position (Figure 80).
9. Install the left and right side panel; refer to Installing
the Side Panels (page 46).
WARNING
An explosive separation of the tire and/or rim parts
can cause injury or death.
Have a qualified tire mechanic service the tire.
Checking the Tires and Wheels
Service Interval: Before each use or daily
1. Check each tire for embedded objects, separated plies,
missing tread, bulges, or a damaged bead, and replace
it, if necessary.
2. Check each wheel for signs of unusual bending or
damage, and replace it, if necessary.
Maintaining the Air Pressure in the
Tires
Service Interval: Every 50 hours
Important: Maintain the air pressure in the tires at 310
kPa (45 psi).
1. Measure the air pressure in the tires; if the tire pressure
is not at the recommended pressure, complete the rest
of this procedure.
Important: Use an air hose with a remote shutoff
valve and a self-locking chuck.
56
Note: Before you add air, ensure that the tire is
properly installed on the machine, or put the wheel in a
restraining device, such as a tire inflation cage.
2. Remove the cap from the valve stem.
3. Attach the self-locking chuck of the air hose to the
valve stem.
4. When inflating the tire while it is mounted to the
machine, stand behind the tread of the tire.
Note: Ensure that all persons are away from the side
of the tire before you start to add air.
5. Open the remote shutoff valve to inflate the tire to the
specified pressure, then close the valve.
Important: Do not inflate the tire more than the
recommended pressure.
6. Remove the air chuck from the valve stem.
7. Install the cap on the valve stem.
Maintaining the Tires and Wheels
Always have a qualified tire technician service the tires and
wheels of this machine. To prevent accidents, use a restraining
device (such as a tire inflation cage), the correct equipment,
and the correct procedure.
Important: There are 2 different tire-tread pattern and
wheel combinations; the left-side tires and the right-side
tires are different. Ensure that the tread direction of the
tire and the valve stem in the wheel are correctly aligned
before installing the tire to the rim.
Figure 83
Figure 82
1. Left-side tire
3. Right-side tire
2. Forward
4. Valve stem
Torquing the Wheel Nuts
1. Ensure that the mounting flange of the wheel is flush
against the mounting flange of the axle.
2. Incrementally torque the wheel nuts for each wheel
as follows:
A. Torque the all wheel nuts to 100 N-m (75 ft-lb) in
the sequence shown in Figure 83.
57
B.
Torque all the nuts to 200 N-m (150 ft-lb) in the
sequence shown in Figure 83.
C.
Torque all the nuts to 300 N-m (225 ft-lb) in the
sequence shown in Figure 83.
Servicing the Axles
Use Toro Premium All-season Hydraulic Fluid (available
in 5-gallon pails or 55-gallon drums. See the parts catalog or
an Authorized Toro Service Dealer for part numbers).
If Toro hydraulic fluid is not available, you may use an
equivalent hydraulic fluid such as Mobilfluid 424, provided
that it meets all the following material properties and
industry specifications. Do not use a synthetic hydraulic
fluid. Consult with your lubricant distributor to identify a
satisfactory product.
High Viscosity Index/Low Pour Point Anti-wear
Hydraulic Fluid, ISO VG 46
Figure 84
Material Properties:
Viscosity, ASTM D445
St @ 40°C (104°F): 44 to 48
140 to 160
Pour Point, ASTM D97
-37°C (-34°F) to -45°C (-49°F)
Water content (new fluid)
Industry Specifications:
5. Oil port at the 3 o’clock
position (alternative)
3. Stop the engine, set the parking brake, and remove the
ignition key.
11 or better
FZG, Fail stage
4. Drain pan
2. Oil port at the 9 o’clock
position
3. Plug
St @ 100°C (212°F): 7.9 to 8.5
Viscosity Index ASTM
D2270
1. Wheel hub
4. Place a drain pan under the drain port in the wheel hub
(Figure 84).
500 ppm (maximum)
5. Remove the plug from the wheel hub (Figure 84).
Vickers I-286-S (Quality Level),
Vickers M-2950-S (Quality
Level), Denison HF-0
6. Check that the oil level is at the bottom of the threads
of the oil port (Figure 84).
• If the oil level is too high, allow the oil to drain
Checking the Oil Level in the Wheel
Hubs
from the oil port.
• If the oil level is too low, add oil to the wheel hub
through the oil port; refer to step 6 in Changing
the Oil in the Wheel Hubs (page 58).
Service Interval: After the first 100 hours
Every 250 hours
7. Check the condition of the O-ring on the plug.
Oil specification: SAE 75W90 synthetic gear lubrication
API classification level GL5
Note: Replace the O-ring if it is worn or damaged.
8. Install the plug in the oil port of the wheel hub (Figure
84).
Note: Have another person help you align the oil plugs in
the axles when you service the axle oil.
9. Repeat steps 2 through 8 for the other wheel hubs.
1. Ensure that the machine is on a level surface and that
all the attachments are in the transport position.
Changing the Oil in the Wheel Hubs
2. Move the machine forward or backward until the plug
for the wheel hub is at either the 3 o’clock or 9 o’clock
position (Figure 84).
Service Interval: After the first 200 hours
Every 1,000 hours
Wheel hub oil capacity: approximately 1.5 L (1.6 US qt)
Toro Premium Gear Oil is available from an Authorized Toro
Service Dealer. See the parts catalog for part numbers.
Note: If possible, change the oil when it is warm.
1. Move the machine forward or backward until the oil
plug for the wheel hub is at the 6 o’clock position
(Figure 85).
58
Figure 85
1. Wheel hub
4. Oil port at the 3 o’clock
position
2. Oil port at the 6 o’clock
position
5. Plug
3. Drain pan
6. Oil-servicing equipment
Figure 86
Front Axle
1. Front-axle housing
3. Sight port
2. Plug
2. Place a drain pan under the oil port of the wheel hub
(Figure 85).
3. Remove the plug and drain the oil from the planetary
(Figure 85).
4. Check the condition of the O-ring for the plug.
Note: Replace the O-ring if it is worn or damaged.
5. Move the machine forward or backward until the oil
plug for the wheel hub is either at the 3 o’clock or the 9
o’clock position (Figure 85).
6. Add the specified oil to the wheel hub through the oil
port until the oil level is at the bottom of the threads
of the port.
7. Install the plug in the oil port of the wheel hub.
8. Repeat this procedure for the other wheel hubs.
Checking the Oil Level in the Axles
Service Interval: After the first 100 hours
Figure 87
Rear Axle
Every 250 hours
1. Place a drain pan under the pinion housing of the axle.
2. Remove the plugs from the sight port in the pinion
housing of the axle (Figure 86 and Figure 87).
59
1. Rear-axle housing
3. Plug
2. Forward
4. Site port
3. Look through the sight port and check that the oil level
in the axle is level with the bottom of the threads of
the port (Figure 86 and Figure 87).
Note: Use a flashlight and a mirror to help you see
the oil level.
• If the oil level is too high, allow the oil to drain
from the sight port.
• If the oil level is too low, add the specified oil to
the axle housing sight port; refer to steps 6 and 7 in
Changing the Oil in the Axles (page 60).
4. Clean the threads of the sight plug.
Figure 89
Rear Axle
5. Apply PTFE thread sealing tape to the threads of the
plug.
6. Install the sight plug into the sight port in the pinion
housing of the axle (Figure 86 and Figure 87).
Changing the Oil in the Axles
1. Drain plug
3. Drain port
2. Drain pan
4. Rear-axle housing
2. Remove the plugs from the sight port and the drain
port of the pinion housings for the axles (Figure 88
and Figure 89).
Service Interval: After the first 200 hours
Every 1,000 hours
Note: Allow the oil to drain completely from the
pinion housing and axle.
Front axle oil capacity: approximately 9 L (9.5 US qt)
Rear axle oil capacity: approximately 9 L (9.5 US qt)
3. Clean the threads of the plugs.
Toro Premium Gear Oil is available from an Authorized Toro
Service Dealer. See the parts catalog for part numbers.
4. Apply PTFE thread sealing tape to the threads of the
plugs.
5. Install the drain plugs into the drain ports at the pinion
housings (Figure 90 and Figure 91).
1. Place a drain pan under the pinion housing of the axle
(Figure 88 and Figure 89).
Figure 88
Front Axle
1. Drain plug
3. Drain port
2. Drain pan
4. Front-axle housing
60
Figure 90
Front Axle
Figure 91
Rear Axle
1. Front-axle housing
4. Pinion housing
1. Rear-axle housing
4. Fill plug
2. Oil-servicing equipment
5. Sight port
2. Forward
5. Sight port
3. Fill plug
3. Oil-servicing equipment
6. Fill the axles with the specified oil through the sight
port until the oil is level with the threads at the bottom
of the port (Figure 90 and Figure 91).
7. Wait a few minutes for the oil to settle, then add more
oil as necessary.
Note: Continue to add oil until the oil level stabilizes
and is at the bottom of the threads of the sight port.
8. Install the fill plugs into the sight ports of the pinion
housings for the axles (Figure 90 and Figure 91).
Cleaning the Axle Breathers
Service Interval: Every 1,000 hours
1. Clean the area around the breathers with a cleaning
solvent (Figure 92 and Figure 93).
Figure 92
61
1. Breather fitting
2. Front axle
Checking the Oil Level in the
Transmission
Service Interval: Every 100 hours
Important: If you operate the machine while the level of
the transmission oil is below the recommended level, you
may damage the transmission and the parking brake.
1. Park the machine on a level surface.
2. Start the engine and run it for 10 minutes.
Figure 93
1. Breather fitting
3. Stop the engine and remove the ignition key.
2. Rear axle
4. After 5 minutes, check the transmission oil level in the
sight gauge (Figure 94).
2. Remove the breathers from the front axle and rear
axles (Figure 92 and Figure 93).
Note: The oil level should cover 1/2 to 3/4 of the
sight-gauge window.
3. Clean the breathers with a cleaning solvent.
4. Use compressed air to dry the breathers.
Important: Wear face protection when using
compressed air.
5. Install the breathers into the front and rear axles(Figure
92 and Figure 93).
Servicing the Transmission
Use Toro Premium All-season Hydraulic Fluid (available
in 5-gallon pails or 55-gallon drums. See the parts catalog or
an Authorized Toro Service Dealer for part numbers).
If Toro hydraulic fluid is not available, you may use an
equivalent hydraulic fluid such as Mobilfluid 424, provided
that it meets all the following material properties and
industry specifications. Do not use a synthetic hydraulic
fluid. Consult with your lubricant distributor to identify a
satisfactory product.
High Viscosity Index/Low Pour Point Anti-wear
Hydraulic Fluid, ISO VG 46
Figure 94
Material Properties:
Viscosity, ASTM D445
1. Sight gauge
St @ 40°C (104°F): 44 to 48
St @ 100°C (212°F): 7.9 to 8.5
Viscosity Index ASTM
D2270
140 to 160
Pour Point, ASTM D97
-37°C (-34°F) to -45°C (-49°F)
FZG, Fail stage
Water content (new fluid)
Industry Specifications:
5. If the oil level is low, add oil; refer to Filling the
Transmission with Oil (page 63).
6. Repeat steps 2 through 5 until the oil level covers 1/2
to 3/4 of the sight-gauge window (Figure 94).
11 or better
Note: As you add oil to the transmission, perform
steps 2 through 4 to determine the corrected oil level.
500 ppm (maximum)
Vickers I-286-S (Quality Level),
Vickers M-2950-S (Quality
Level), Denison HF-0
62
Changing the Transmission Oil
3. Apply PTFE thread sealing tape to the threads of the
plug.
Service Interval: Every 1,000 hours
4. Fill the transmission with the specified oil through the
fill port (Figure 96).
Draining the Transmission Oil
Important: When you fill the transmission with
oil, slowly add the oil into the transmission to
avoid entraining air with the oil.
Note: If possible, drain the oil when it is warm.
1. Park the machine on a level surface, stop the engine,
and remove the key.
2. Place a drain pan under the forward hole in the
transmission shield (Figure 95).
Figure 96
1. Oil-servicing equipment
3. Fill plug
2. Fill port
5. Install the fill plug into the fill port securely
Figure 95
1. Transmission shield
6. Start the engine and run it for 10 minutes.
3. Drain plug
7. Stop the engine and remove the key.
2. Drain pan
8. After 5 minutes, check the oil level in the sight gauge.
3. Through the transmission shield, clean the area around
the transmission drain plug (Figure 95).
Note: The oil level should cover 1/2 to 3/4 of the
sight-gauge window (Figure 94).
4. Remove the drain plug and allow the transmission to
drain completely.
Note: As you add oil to the transmission, perform
steps 6 through 8 to determine corrected oil level.
5. Clean the threads of the plug.
6. Apply PTFE thread sealing tape to the threads of the
plug.
7. Through the transmission shield, securely install the
drain plug into the drain port of the transmission.
Filling the Transmission with Oil
Transmission oil capacity: approximately 10 L (10.6 US
qt)—with filter change
Important: If you operate the machine while the level of
the transmission oil is below the recommended level, you
may damage the transmission and the parking brake.
1. Remove the fill plug from the fill port of the
transmission.
2. Clean the threads of the plug.
63
Changing the Transmission Filter
9. Check the transmission oil level; if the level is low, add
oil; refer to Checking the Oil Level in the Transmission
(page 62).
Service Interval: Every 500 hours
Note: You can access the transmission filter from underneath
the right side of the machine, inboard of the hydraulic tank.
Important: When you fill the transmission with
oil, slowly add the oil into the transmission to
avoid entraining air with the oil.
1. Place a drain pan under the transmission-oil filter
(Figure 97).
Figure 97
1. Forward
3. Sharp object
2. Transmission-oil filter
4. Drain pan
2. Puncture the bottom of the transmission filter, and
allow the residual hydraulic fluid to drain into the drain
pan (Figure 97).
Note: Use a tapered-center punch or awl to puncture
the filter case
3. Remove the transmission filter with a filter wrench and
discard the filter (Figure 97).
4. Wipe clean the oil filter adapter at the seating surface
for the filter.
5. Apply a thin layer of clean grease or oil onto the O-ring
of the new filter.
6. Install the new filter by hand and tight the filter 1/2
to 3/4 turn after it makes contact with the filter head
(Figure 97).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
7. Start the engine and run it at idle for 1 minute, and
check for leaks.
8. Stop the engine and remove the key.
64
Cooling System
Maintenance
3. Remove the left side panel; refer to Removing the Side
Panels (page 45).
Servicing the Cooling System
4. Check the coolant level by looking at the sight gauge in
the side of the surge tank (Figure 98).
2. Allow the engine to cool.
Note: You should see that the coolant level is above
the midpoint of the sight gauge.
Coolant specification: a mixture of 50% ethylene glycol
and 50% water
Note: An antifreeze having a mixture of 50% ethylene
glycol and 50% water will protect the engine to -37°C (-34°F)
throughout the year.
Engine and radiator coolant capacity: 18.5 L (19.5 US qt)
Important: Using over-concentrated or high-silicate
antifreeze can damage the engine.
WARNING
If you remove the recovery-tank cap from a hot
engine, hot coolant could spray, causing scalding.
• Wear face protection when opening the radiator
cap.
• Allow the cooling system to cool down to below
50°C (120°F) before removing the recovery-tank
cap.
• Follow the instructions for checking and
maintaining the engine cooling system.
Figure 98
1. Reservoir door
2. Hex-head bolt
4. Filler neck
5. Recovery-tank cap
3. Coolant sight gauge
WARNING
Coolant is toxic.
• Keep coolant away from children and pets.
• If you are not re-using the coolant, dispose of it
according to local environmental regulations.
5. If the coolant level is low, preform the following:
A. Remove the 2 hex-head bolts that secure the to
the hood of the machine, and open the reservoir
door (Figure 98).
B.
Checking the Coolant Level
Service Interval: Every 50 hours
Remove the recovery-tank cap from the recovery
tank, and add coolant until the level is up to the
midpoint of the sight gauge (Figure 98).
Important: Do not overfill the surge tank
WARNING
Note: If coolant level is low, check for leaks in
the hoses, radiator, and the recovery tank.
If the engine has been running, the radiator will be
pressurized and the coolant inside will be hot. If
you remove the cap, coolant may spray out, causing
severe burns.
• Do not remove the recovery-tank cap to check
coolant levels.
• Do not remove the recovery-tank cap when the
engine is hot. Allow the engine to cool for at
least 15 minutes or until the radiator cap is cool
enough to touch without burning your hand.
C.
Install the recovery-tank cap, ensuring that it is
tightly sealed.
D.
Close the reservoir door and secure it with the 2
hex-head bolts that you removed in step A.
6. If the air temperature is below 0°C (32°F), mix the
ethylene glycol and water completely by running the
engine at operating temperature for 5 minutes.
7. Install the left side panel; refer to Installing the Side
Panels (page 46).
1. Park the machine on a level surface, stop the engine,
and remove the ignition key.
65
Checking the Condition of Cooling
System Components
Service Interval: Every 300 hours
Check the condition of the cooling system for leaks, damage,
dirt, and loose hoses, and clamps. Clean, repair, tighten, and
replace the components as necessary.
Checking the Concentration of the
Coolant
Service Interval: Every 1,000 hours
Test the concentration of ethylene glycol based antifreeze in
the coolant . Ensure that the coolant is a mixture of 50%
ethylene glycol and 50% water.
Cleaning the Cooling System
Service Interval: Every 2,000 hours/Every 2 years
(whichever comes first)
Figure 99
The coolant capacity of the engine and the radiator: 18.5
L (19.5 US qt).
5. Secure the hose to the drain valve with a hose clamp
(Figure 99).
Draining the Coolant from the System
6. Route the hose down and through the hole in the lower
mounting plate for the back fill blade (Figure 100).
Important: Do not pour coolant onto the ground or into
an unapproved container that can leak.
1. Remove the left and right side panels; refer to
Removing the Side Panels (page 45).
2. Remove the 2 hex-head bolts that secure the reservoir
door to the hood and open the door (Figure 98).
3. Remove the recovery-tank cap from the tank (Figure
98).
4. Slip a coolant resistant hose that is 3/8 x 30 inches over
the outlet for the drain valve in the radiator (Figure 99).
Figure 100
7. Place a drain pan with a minimum capacity of 23 L (6
gallons) under the open end of the drain hose (Figure
100).
8. Open the drain valve on the radiator, and allow the
coolant to drain completely.
Note: Dispose of the used coolant properly according
to local codes.
66
Figure 101
1. Drain valve
9. Close the drain valve (Figure 101).
10. Remove the drain hose and clamp (Figure 99 and
Figure 100).
Figure 102
Flushing the Cooling System
1. Reservoir door
2. Filler neck (recovery tank)
Engine and radiator coolant capacity: 18.5 L (19.5 US qt)
1. Condition the cooling system as follows:
A. Ensure that the coolant is drained from the
radiator and that the drain valve is closed (Figure
101).
B.
C.
Add a cooling system cleaning solution to the to
the cooling system through the filler neck of the
recovery tank (Figure 102).
3. Funnel
4. Coolant system cleaning
solution
Operate the engine for 5 minutes or until the
coolant temperature in the command-center
display indicates 82°C (180°F), then stop the
engine (Figure 103).
Important: Do not install the recovery-tank
cap.
Note: Use cleaning solution of sodium carbonate
and water (or a commercially available equivalent).
Follow the directions that come with the cleaning
solution.
Figure 103
1. 180° F water temperature (command-center display)
CAUTION
The cleaning solution is hot and can
cause burns.
Stay away from the discharge end of the
coolant drain hose.
67
D.
Open the drain valve and drain the cleaning
solution into a drain pan (Figure 99 and Figure
101).
cooling system properly can damage both the engine
and the cooling system.
1. Remove the radiator cap from the recovery tank
(Figure 98).
E. Close the drain valve (Figure 101).
2. Flush the cooling system as follows:
2. Fill the cooling system with the specified coolant
mixture (Figure 105) until the fluid level is up to the
midpoint in the sight gauge (Figure 98).
A. Fill the cooling system with clean water (Figure
104).
Figure 105
Figure 104
1. Filler neck (recovery tank)
1. Coolant level (midpoint in
the sight gauge)
3. Clean water
2. Funnel
3. Coolant (a mixture of 50%
ethylene glycol and 50%
water)
2. Funnel
B.
Operate the engine for 5 minutes or until the
coolant temperature in the command-center
display indicates 82°C (180°F), then stop the
engine.
3. Install the recovery-tank cap (Figure 98).
4. Start the engine and run it at half throttle for 5 minutes.
5. Stop the engine and remove the key.
CAUTION
6. Wait 30 minutes, then check the fluid level in the
recovery tank. If it is low, add coolant.
The water is hot and can cause burns.
7. Close the reservoir door and secure it to the hood with
the 2 hex-head bolts (Figure 98) that you removed in
step 2 of Draining the Coolant from the System (page
66).
Stay away from the discharge end of the
coolant drain hose.
C.
D.
Open the drain valve (Figure 101) and drain the
water into a drain pan.
8. Install the side panels; refer to Installing the Side Panels
(page 46).
If the water drained from the radiator is dirty,
perform steps 2-A through 2-C until the water
drained from the radiator is clean.
E. Close the drain valve (Figure 101).
Filling the System with Coolant
The coolant capacity of the engine and the radiator: 18.5
L (19.5 US qt).
Important: Fill the cooling system properly to prevent
air locks in the cooling passages. Failing to vent the
68
Belt Maintenance
Servicing the Engine Drive
Belt
WARNING
Stop the engine and remove the key from the
key switch before you begin to perform any
maintenance or repair work.
WARNING
Figure 106
Contacting a rotating belt can cause serious injury
or death.
1. Belt tensioner
Always stop the engine and remove the key from the
key switch before working near belts.
3. Remove the belt from the pulleys.
Checking the Condition of the Belt
Cleaning and Inspecting the Belt and
the Pulleys
Service Interval: Every 250 hours
1. Inspect the belt for excessive wear and damage.
Replace the belt under any of the following conditions:
1. Remove the right-side panel; refer to Removing the
Side Panels (page 45).
• The belt is frayed, punctured, or some of its
2. Inspect the belt for cuts, cracks, loose cords, grease, oil,
twisting, or signs of abnormal wear.
material is missing.
• There is embedded debris in the grooves or on the
Note: Replace the belt if it is excessively worn or
damaged; refer to Replacing the Engine Drive Belt
(page 69).
backside of the belt.
• The ribs are uneven or excessively worn.
• The backside of the belt is glazed from high heat.
• There are exposed belt cords.
3. Install the right-side panel; refer to Installing the Side
Panels (page 46).
Note: You can reuse a belt with transverse cracks
(across the belt) are acceptable, but replace a belt with
longitudinal cracks (in the direction of the ribs) that
intersect with transverse cracks.
Replacing the Engine Drive
Belt
2. Clean the idler and the drive pulleys, and inspect them
for wear or cracks.
Removing the Belt
1. Remove the right side panel; refer to Removing the
Side Panels (page 45).
Note: Replace any pulleys that are damaged,
deformed, or excessively worn.
2. Loosen the tension on the belt by rotating the belt
tensioner clockwise (Figure 106).
Installing the Belt
Important: The belt tensioner is spring loaded
and must pivot away from the drive belt. Pivoting
the belt tensioner in the wrong direction could
damage it. Also, do not use excessive force in
the opposite direction of windup or after you
have wound up the tensioner to the positive stop;
otherwise, the tensioner arm may break.
1. Route the belt onto the pulleys, but do not install the
belt over the belt tensioner (Figure 106).
2. Rotate the belt tensioner clockwise and install the belt
by slipping the belt over the belt tensioner.
3. Slowly release the belt tensioner to apply tension to
the drive belt.
4. Ensure that the belt is aligned with the belt tensioner
and in the grooves of the pulleys.
69
Hydraulic System
Maintenance
Changing the Hydraulic Fluid and
Replacing the Breather
Servicing the Hydraulic
System
The capacity of the hydraulic-fluid reservoir: 150 L (40
US gallons)
Service Interval: Every 1,000 hours
The capacity of the hydraulic-fluid system: 182 L (48
US gallons)
The machine comes from the factory with a full hydraulic
fluid reservoir that contains approximately 182 L (48 US
gal) of high-quality hydraulic fluid. Check the level of the
hydraulic fluid before you start the engine for the first
time, and daily thereafter.
Draining the Hydraulic Reservoir
Note: Drain the hydraulic fluid reservoir when the fluid is
warm, if possible.
Use Toro Premium All-season Hydraulic Fluid (available
in 5-gallon pails or 55-gallon drums. See the parts catalog or
an Authorized Toro Service Dealer for part numbers).
1. Remove the right side panel; refer to Removing the
Side Panels (page 45).
2. Rotate the battery disconnect to the Off position
(Figure 107).
If Toro hydraulic fluid is not available, you may use an
equivalent hydraulic fluid, provided that it meets all the
following material properties and industry specifications. Do
not use a synthetic hydraulic fluid. Consult with your
lubricant distributor to identify a satisfactory product.
Note: Toro does not assume responsibility for damage
caused by improper substitutions, so use only products from
reputable manufacturers.
High Viscosity Index/Low Pour Point Anti-wear
Hydraulic Fluid, ISO VG 46
Material Properties:
Viscosity, ASTM D445
St @ 40°C (104°F): 44 to 48
St @ 100°C (212°F): 7.9 to 8.5
Viscosity Index ASTM
D2270
Pour Point, ASTM D97
FZG, Fail stage
Water content (new fluid)
Industry Specifications:
Figure 107
140 to 160
-37°C (-34°F) to -45°C (-49°F)
11 or better
1. Fill cap (hydraulic tank)
4. Pipe coupling
2. Filler neck (hydraulic tank)
5. Battery disconnect switch
(Off position)
3. Breather
500 ppm (maximum)
Vickers I-286-S (Quality Level),
Vickers M-2950-S (Quality
Level), Denison HF-0
3. Remove the fill cap from the filler neck of the tank
(Figure 107).
4. At the forward side of the engine compartment panel,
remove the breather from the pipe coupling by rotating
the breather counterclockwise (Figure 107).
Note: Many brands of hydraulic fluids are almost colorless,
making it difficult to spot leaks. A red dye additive for the
hydraulic system oil is available in 20 ml (0.68 oz) bottles.
One bottle is sufficient for 15.1 to 22.7 L (4.0 to 6.0 US gal)
of hydraulic oil. Order part no. 44-2500 from an Authorized
Toro Service Dealer.
Note: Discard the old breather.
5. Install a new breather into the pipe coupling hand tight
(Figure 107).
Note: If ambient operating temperatures exceed 110°F,
contact Toro for fluid recommendations.
6. Place a container that can hold a minimum of 190 L
(50 US gal) under the hydraulic reservoir drain plug
(Figure 108).
70
Figure 108
1. Fill cap
4. Plug
2. Sight gauge
5. Drain pan
3. Hydraulic reservoir
Figure 109
7. Remove the drain plug from the hydraulic reservoir
(located underneath the reservoir), and drain the
reservoir (Figure 108).
1. Fill level (midpoint)
3. Hydraulic fluid
2. Sight gauge
8. Examine the condition of the seal on the drain plug.
2. Clean the fill cap with solvent.
Note: Replace the seal if it is worn or damaged.
3. Install the fill cap (Figure 109).
9. Install the drain plug (Figure 108).
4. Start the engine and let it idle for approximately 2
minutes.
Important: Change the hydraulic-pressure
and hydraulic-return filters when you change
the hydraulic fluid; refer to Changing the
Hydraulic-charge Filter (page 72) and Changing
the Hydraulic-return Filter (page 73).
5. Stop the engine and remove the key from the key
switch.
6. Check around the pressure and return filters for leaks.
10. Rotate the battery disconnect switch to the On
position and install the right side panel; refer to
Battery-Disconnect Switch (page 21) and Installing the
Side Panels (page 46).
7. Check the drain plug for leaks.
8. Check the level of the hydraulic fluid.
Filling the Hydraulic-fluid Reservoir
1. Fill the hydraulic-fluid reservoir with the specified
hydraulic fluid until the fluid level is at the midpoint of
the sight gauge (Figure 109).
71
Changing the Hydraulic Filters
Removing the Traction-pedal Assembly
Remove the traction-pedal assembly as follows:
1. Remove the 4 hex-flanged head bolts that secure that
traction-pedal assembly to the chassis of the machine
(Figure 110).
Figure 111
1. Container suitable for
hydraulic fluid
Figure 110
1. Hex-flanged head bolts
3. 6-pin connector
(traction-pedal sensor)
2. Traction-pedal assembly
4. 6-socket connector
(machine harness)
3. Hydraulic-charge filter
2. Sharp object
3. Rotate the hydraulic-charge filter counterclockwise and
remove the filter (Figure 111).
Note: Discard the filter.
2. Disconnect the 6-socket connector of the machine
harness from the 6-pin connector of the traction-pedal
sensor (Figure 110).
4. Apply a thin layer of the specified hydraulic fluid to
the O-ring of the new filter.
3. Remove the traction-pedal assembly from the machine
(Figure 110).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
5. Fill the new charge filter with the specified hydraulic
fluid, allow the filter element to saturate with the fluid,
and then pour out the excess fluid.
Changing the Hydraulic-charge Filter
Service Interval: Every 500 hours
Note: Change the hydraulic-return filter when you change
the hydraulic-charge filter.
6. Install the new filter.
Note: Use your hands to tighten the filter an additional
half turn after the filter makes contact with the filter
head.
Note: You can access the hydraulic-charge filter from under
the right side of the machine, behind the hydraulic reservoir
(Figure 111).
7. Repeat steps 3 through 6 for the other charge filter
1. Remove the traction-pedal assembly; refer to Removing
the Traction-pedal Assembly (page 72).
8. Check the level of the hydraulic fluid in the hydraulic
reservoir; refer to Checking the Hydraulic-Fluid Level
(page 26).
2. Place a container under the hydraulic-charge filter
(Figure 111).
9. Start the engine and let it idle for 1 or 2 minutes.
10. Shut off the engine, and check for leaks around the
filter area.
11. Check the level of the hydraulic fluid in the hydraulic
reservoir, and add fluid, if necessary; refer to Checking
the Hydraulic-Fluid Level (page 26).
72
Note: Use a tapered-center punch or awl to puncture
the filter case.
12. Install the traction-pedal assembly; refer to Removing
the Traction-pedal Assembly (page 72).
3. Rotate the hydraulic-return filter counterclockwise and
remove the filter (Figure 112).
Installing the Traction-pedal Assembly
1. Connect the 6-socket connector of the machine
harness to the 6-pin connector of the traction-pedal
sensor (Figure 110).
Note: Discard the filter properly.
4. Apply a thin layer of the specified hydraulic fluid to
the O-ring of the new filter.
2. Align the holes in the plate of the traction-pedal
assembly with the holes in the chassis of the machine
(Figure 110).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
3. Secure the traction-pedal assembly to the chassis of
the machine with the 4 hex-flanged head bolts (6 x 25
mm); refer to Figure 110.
5. Install the new filter.
Note: Use your hands to tighten the filter an additional
half turn after the filter makes contact with the filter
head.
Changing the Hydraulic-return Filter
Service Interval: Every 500 hours
6. Check the level of the hydraulic fluid in the hydraulic
reservoir; refer to Checking the Hydraulic-Fluid Level
(page 26).
Note: Change the hydraulic-charge filter when you change
the hydraulic-return filter.
7. Start the engine and run it at idle for 1 or 2 minutes.
Note: You can access the hydraulic-return filter from
underneath the rear-attachment plate of the machine (Figure
112).
8. Stop the engine and remove the key.
9. Check around the filter for leaks.
1. Place a container under the hydraulic-return filter
(Figure 112).
10. Check the fluid level of the hydraulic reservoir,
and add fluid, if necessary; refer to Checking the
Hydraulic-Fluid Level (page 26).
Figure 112
1. Container suitable for
hydraulic fluid
3. Hydraulic return filter
2. Sharp object
4. Rear-attachment plate
2. Puncture the bottom of the hydraulic-return filter
and allow the residual hydraulic fluid to drain in the
container (Figure 112).
73
ROPS Maintenance
Checking and Servicing the
ROPS
A ROPS certification label located on the support structure
contains information about the maximum gross machine
weight, the machine model number, and the ISO number.
Replacing a Damaged ROPS System
If the ROPS system has been damaged in an accident, such
as a rollover or hitting an overhead object during transport,
replace any damaged ROPS components to restore the ROPS
system to its original level of protection.
1
Important: Do not try to weld or straighten a damaged
ROPS bar.
After an accident, check the following items for damage:
g024988
• The ROPS bar
Figure 113
• Operator seat
1. Bolts
• Seat belt mounting
2. Check that the bolts and nuts that attach the seat-belt
retractor and buckle to the seat are torqued to 47 to 61
N-m (35 to 45 in-lb); refer to Figure 114.
• Seat belt
Before you operate the machine, replace all damaged ROPS
components; contact an Authorized Toro Service Dealer.
1
Checking and Caring for the Seat Belt
Before you operate the machine, always ensure that the ROPS
and the seat belt are properly installed and in good working
order.
1. Check the seat belt for damage, and replace all parts
that are damaged.
2. Ensure that the mounting bolts for the seat belts are
tight.
3. Keep the seat belts clean using only soap and water.
Note: Do not immerse the seat belts in bleach or dye,
because this weakens the belt material.
g024989
Checking and Maintaining the ROPS
Figure 114
1. Bolts
Service Interval: Every 500 hours
Important: If any part of the ROPS system is damaged,
replace it before you operate the machine.
Note: Replace any parts that are worn or damaged.
3. Inspect the ROPS for cracks, rust, or holes in the
ROPS and component parts.
1. Check that the bolts that secure the seat to the chassis
of the machine are torqued to 27 to 34 N-m (20 to 25
in-lb); refer to Figure 113.
Note: Age, weather, and accidents cause damage to
the ROPS and ROPS parts. If you have any doubts
about the ROPS system, contact an Authorized Toro
Service Dealer.
74
Welding on the Machine
Disconnecting the
Computer-module Connectors
Important: Before you use an electric welder to repair
or modify the machine, disconnect all the following
components:
• The wiring at the alternator.
• The 2 connectors for the computer module.
• The connector for the command-center display.
1. Remove the 4 hex-flanged head bolts (6 x 20 mm) that
secure the lower-console panel to the console, and
remove the panel (Figure 116).
After you complete welding on the machine, connect the
alternator, computer module, and command–center display.
Preparing to Disconnect the
Components
1. Remove the right side panel; refer to Removing the
Side Panels (page 45).
2. Rotate the battery-disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 21).
Figure 116
Disconnecting the Alternator
Wiring
1. Lower-console panel
1. At the alternator, slide the boot off the terminal and
stud at the back of the alternator (Figure 115).
2. Disconnect the 50-socket connector (CPU 1) from the
back of the computer module (Figure 117).
Figure 115
1. Charge wire
2. Hex-flanged head bolts (6
x 20 mm)
Figure 117
3. 4-socket connector
(voltage-sense wire)
2. Boot
2. Remove the nut and washer that secures the terminal
of the charge wire to the stud of the alternator, and
remove the terminal.
3. Remove the 4-socket connector for the voltage-sense
wire from the 4-pin connector on top of the alternator
(Figure 115).
1. Forward
3. Computer module
2. 50-socket connector (CPU
1)
4. 38-socket connector
(CPU-2)
3. Disconnect the 38-socket connector (CPU-2) from the
back of the computer module (Figure 117).
75
Connecting the
Computer-module Connectors
Cleaning
Removing Dirt and Debris from
the Machine
1. Connect the 38-socket connector (CPU-2) to the back
of the computer module (Figure 117).
2. Connect the 50-socket connector (CPU 1) to the back
of the computer module (Figure 117).
Important: Operating the engine with blocked screens,
dirty or plugged cooling fins, and/or cooling shrouds
removed, will result in engine damage from overheating.
3. Align the lower-console panel to the console (Figure
116).
1. Lower all attachments and set the parking brake.
4. Secure the panel to the console with the 4 hex-flanged
head bolts (6 x 20 mm).
2. Stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
3. Wipe away dirt and debris from the air cleaner.
Connecting the Alternator
Wiring
4. Clean any dirt and debris buildup on the engine with a
brush or blower.
1. Ensure that the battery-disconnect switch is in the Off
position; refer to Battery-Disconnect Switch (page 21).
Important: It is preferable to blow dirt out, rather
than washing it out. If water is used, keep it away
from electrical items and hydraulic valves. Do
not use a high-pressure washer. High-pressure
washing can damage the electrical system and
hydraulic valves or deplete grease.
2. Connect the 4-socket connector for the voltage-sense
wire to the 4-pin connector on top of the alternator
(Figure 115).
3. Assemble the terminal of the charge wire onto the stud
at the back of the alternator (Figure 115).
4. Secure the charge wire to the stud with the nut and
washer.
5. Align the boot of the charge wire over the terminal
and stud (Figure 115).
Closing the Machine
1. Rotate the battery-disconnect switch to the On
position; refer to Battery-Disconnect Switch (page 21).
2. Install the right side panel; refer to Installing the Side
Panels (page 46).
76
Storage
4. Stop the engine.
Preparing for Seasonal
Storage
6. Secure all the fuel system fittings.
5. Flush the fuel tank with fresh, clean diesel fuel.
7. Service the air cleaner; refer to Servicing the Air-cleaner
System (page 49).
For storage over 30 days, prepare the machine, the
attachments, and the engine as follows:
8. Seal the air cleaner inlet and the exhaust outlet with
plastic and weatherproof tape.
9. Check the anti freeze protection and add a 50%
ethylene glycol and 50% water solution of anti-freeze
as needed for the expected minimum temperature in
your area.
Preparing the Machine and
Attachments
1. Thoroughly clean the machine and all the attachments;
refer to Removing Dirt and Debris from the Machine
(page 76).
2. Lower all the attachments and set the parking brake.
3. Stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
4. Check the tire pressure and adjust it, if necessary; refer
to Maintaining the Air Pressure in the Tires (page 56).
5. Check all fasteners and tighten them as necessary.
6. Grease all fittings and pivot points and wipe up any
excess grease; refer to Greasing the Machine (page 43).
7. Repair any dents in the machine or the attachments,
and lightly sand and paint areas that are bare, scratched,
chipped, or rusted. Paint is available from an
Authorized Toro Service Dealer.
8. Service the battery and the cables as follows:
A. Remove the battery terminals from the battery
posts.
B.
Clean the battery, terminals, and posts with a wire
brush and baking soda solution.
C.
Coat the cable terminals and battery posts with
Grafo 112X skin-over grease (Toro Part No.
505-47) or equivalent grease.
D.
Slowly recharge the battery every 60 days for 24
hours to prevent lead sulfation of the battery.
9. Check and tighten all bolts, nuts, and screws. Repair or
replace any part that is damaged.
10. Store the machine in a clean, dry garage or storage area.
Remove the key from the ignition switch and keep it in
a memorable place.
11. Cover the machine to protect it and keep it clean.
Preparing the Engine
1. Remove dirt, grime, and chaff from the external parts
of the engine.
2. Change the engine oil and the oil filter; refer to
Changing the Engine Oil and Filter (page 47).
3. Start the engine and run it at idle speed for
approximately 2 minutes.
77
Troubleshooting
Problem
The starter does not crank.
Possible Cause
1. The electrical connections are
corroded or loose.
1. Check the electrical connections for
good contact.
2.
3.
4.
5.
2.
3.
4.
5.
A fuse is blown.
A fuse is loose.
The battery is discharged.
The relay or switch is damaged.
6. The starter or starter solenoid is
damaged.
7. Internal engine components have
seized up.
1. The engine cranks but will not start.
Replace the fuse.
Install the fuse.
Charge the battery or replace it.
Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
1. The starting procedure is incorrect.
1. Refer to Starting the Engine in
Operation.
2. The fuel tank is empty.
3. The fuel shutoff valve is closed.
4. There is dirt, water, stale fuel, or
incorrect fuel in the fuel system.
5. The fuel line is clogged.
6. There is air in the fuel.
2. Fill the fuel tank with fresh fuel.
3. Open the fuel shutoff valve.
4. Drain and flush the fuel system; add
fresh fuel.
5. Clean or replace the fuel line.
6. Bleed the nozzles and check for air
leaks at the fuel hose connections
and fittings between the fuel tank and
engine.
7. Check the fuse, glow plugs, and wiring.
8. Check the battery, oil viscosity, and
starting motor (contact your Authorized
Service Dealer).
9. Service the air cleaning system
elements.
10. Replace the fuel filter.
11. Drain the fuel system, replace the fuel
filter, and add fresh fuel having the
proper grade for ambient temperature
conditions. You may need to warm up
the entire machine.
12. Contact your Authorized Service
Dealer.
13. Contact your Authorized Service
Dealer.
7. The glow plugs do not operate.
8. The cranking speed is slow.
9. The air cleaning system elements are
dirty.
10. The fuel filter is clogged.
11. The fuel is not the proper grade for
cold-weather use.
12. The engine has low compression.
13. The injection nozzles or pump are
malfunctioning.
The engine starts but does not keep
running.
Corrective Action
1. The fuel tank vent is restricted.
1. Loosen the cap. If the engine runs with
the cap loosened, replace the cap.
2. There is dirt or water in the fuel system.
2. Drain and flush the fuel system; add
fresh fuel.
3. Replace the fuel filter.
4. Bleed the nozzles and check for air
leaks at fuel hose connections and
fittings between the fuel tank and the
engine.
5. Drain the fuel system, replace the fuel
filter, and add fresh fuel having the
proper grade for ambient temperature
conditions. You may need to warm up
the entire machine.
6. Contact your Authorized Service
Dealer.
3. The fuel filter is clogged.
4. There is air in the fuel.
5. The fuel is not the proper grade for
cold-weather use.
6. The fuel pump is damaged.
78
Problem
The engine runs but knocks or misses.
Possible Cause
1. There is dirt or water in the fuel system.
1. Drain and flush the fuel system; add
fresh fuel.
2. The engine overheats.
2. Check the engine oil level and add oil
as needed; also check and service the
coolant system, if necessary.
3. Bleed the nozzle and check for air
leaks at the fuel hose connections and
the fittings between the fuel tank and
the engine.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
3. There is air in the fuel.
4. The injection nozzles are damaged.
5. The engine has low compression.
6. There is excessive carbon buildup.
7. The engine has internal wear or
damage.
The engine is overheated.
1. The coolant level is too low.
1. Check the coolant level and add
coolant to the system.
2. The air flow to the radiator is restricted.
3. The engine oil level is either too low or
too high.
4. The machine is under an excessive
load.
2. Inspect and clean the radiator screen.
3. Either add or drain the engine oil until
the oil level is at the Full mark.
4. Reduce the load on the machine;
operate the machine at a slower
ground speed.
5. Drain and flush the fuel system, then
add fresh fuel.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
8. Contact your Authorized Service
Dealer.
5. There is improper fuel in the fuel
system.
6. The thermostat is damaged.
7. The injection timing is incorrect.
8. The coolant pump is damaged.
There is excessive black smoke in the
exhaust.
1. The air cleaning system elements are
dirty.
1. Service the air cleaning system
elements.
2. There is improper fuel in the fuel
system.
3. The injection pump timing is incorrect.
2. Drain and flush the fuel system, then
add fresh fuel.
3. Contact your Authorized Service
Dealer.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
4. The injection pump is damaged.
5. The injection nozzles are damaged.
6. The turbo charger is damaged.
There is excessive white smoke in the
exhaust.
Corrective Action
1. The key was turned to the Start position
before the glow plug light turned off.
1. Turn the key to the Run position and
allow the glow plug light to turn off
before starting the engine.
2. The engine temperature is low.
2. Check the thermostat and replace it if
necessary.
3. Check the fuse, glow plugs, and wiring.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
3. The glow plugs are not operating.
4. The injection nozzles are damaged.
5. The engine has low compression.
6. There is an internal coolant leak in the
engine.
79
Problem
The engine loses power.
Possible Cause
1. The engine is under an excessive load.
1. Reduce the ground speed of the
machine.
2. The engine oil level is either too low or
too high.
3. The air cleaning system elements are
dirty.
4. There is dirt or water in the fuel system.
2. Either add or drain the engine oil until
the oil level is at the Full mark.
3. Service the air cleaning system
elements.
4. Drain and flush the fuel system; add
fresh fuel.
5. Check the engine oil level and add oil
as needed; also check and service the
coolant system, if necessary.
6. Bleed the nozzle and check for air
leaks at the fuel hose connections and
the fittings between the fuel tank and
the engine.
7. Contact your Authorized Service
Dealer.
8. Loosen the cap. If the engine runs with
the cap loosened, replace the cap.
9. Contact your Authorized Service
Dealer.
5. The engine overheats.
6. There is air in the fuel.
7. The engine has low compression.
8. The fuel tank vent is restricted.
9. The injection pump is damaged.
The machine does not drive.
Corrective Action
1. The parking brake is engaged.
1. Release the parking brake.
2. The hydraulic fluid level is low.
3. The pump and/or motor is damaged.
2. Add hydraulic fluid to the reservoir.
3. Contact your Authorized Service
Dealer.
4. Contact your Authorized Service
Dealer.
4. The relief valve is damaged.
80
Notes:
81
Notes:
82
Notes:
83
Underground
Equipment
The Toro Underground Warranty
A Limited Warranty
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company, pursuant
to an agreement between them, jointly warrant your Toro Underground
Equipment (“Product”) to be free from defects in materials or workmanship.
Where a warrantable condition exists, we will repair the Product
at no cost to you including diagnostics, labor, and parts.
The following warranty applies from the date the Product is delivered to the
original retail purchaser or rental owner.
Products
RT600, RT1200, DD2024, and
DD4045
All Other Engine Powered Base
Units and Fluid Mixers
All Serialized Attachments
Rock Hammer
Engines
Warranty Period
2 years or 1500 operating hours,
whichever occurs first
1 year or 1000 operating hours,
whichever occurs first
1 year
6 months
Through engine manufacturers:
2 years or 2000 operating hours,
whichever occurs first
Instructions for Obtaining Warranty Service
You are responsible for notifying the Underground Dealer from whom you
purchased the Product as soon as you believe a warrantable condition
exists. If you need help locating a Underground Dealer, or if you have
questions regarding your warranty rights or responsibilities, you may
contact us at:
Toro Customer Care
Toro Warranty Company
8111 Lyndale Avenue South
bulbs, belts, tracks or tires, digging teeth, digging booms, digging,
drive, or track chains, track pads, drive sprockets, idlers, rollers,
blades, cutting edges, or other ground engaging components.
•
Failures caused by outside influence. Conditions considered to be
outside influence include, but are not limited to, weather, storage
practices, contamination, use of unapproved fuels, coolants, lubricants,
additives, water, or chemicals, etc.
•
Failure or performance issues due to the use of fuels (e.g. gasoline,
diesel, or biodiesel) that do not conform to their respective industry
standards.
•
•
Normal noise, vibration, wear and tear, and deterioration.
•
Hauling expenses, travel time, mileage, or overtime associated with
transporting product to the authorized Toro dealer.
Normal “wear and tear” includes, but is not limited to, damage to seats
due to wear or abrasion, worn painted surfaces, scratched decals, etc.
Parts
Parts scheduled for replacement as required maintenance in the
Operator’s Manual,are warranted for the period of time up to the scheduled
replacement time for that part. Parts replaced under this warranty are
covered for the duration of the original product warranty and become the
property of Toro. Toro will make the final decision whether to repair any
existing part or assembly or replace it. Toro may use remanufactured parts
for warranty repairs.
Maintenance is at Owner’s Expense
Bloomington, MN 55420-1196
Toll Free at 855-493-0088 (U.S. Customers)
1-952-948-4318 (International Customers)
Owner Responsibilities
As the Product owner, you are responsible for required maintenance and
adjustments stated in your Operator's Manual. Failure to perform required
maintenance and adjustments can be grounds for disallowing a warranty
claim.
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the warranty
period are defects in materials or workmanship. This warranty does not
cover the following:
Engine tune-up, lubrication, cleaning and polishing, replacement of filters,
coolant, and completing recommended maintenance are some of the
normal services Toro products require that are at the owner’s expense.
General Conditions
Repair by an Authorized Toro Underground Dealer is your sole remedy
under this warranty.
Neither The Toro Company nor Toro Warranty Company is liable for
indirect, incidental or consequential damages in connection with the
use of the Toro Products covered by this warranty, including any
cost or expense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending completion
of repairs under this warranty. Except for the Emissions warranty
referenced below, if applicable, there is no other express warranty. All
implied warranties of merchantability and fitness for use are limited to
the duration of this express warranty.
•
Product failures which result from the use of non-Toro replacement
parts, or from installation and use of add-on, or modified non-Toro
branded accessories and products. A separate warranty may be
provided by the manufacturer of these items.
•
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions and limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from
state to state.
Product failures which result from failure to perform recommended
maintenance and/or adjustments. Failure to properly maintain your
Toro product per the Recommended Maintenance listed in the
Operator’s Manual can result in claims for warranty being denied.
Note regarding engine warranty:
•
Product failures which result from operating the Product in an abusive,
negligent, or reckless manner.
•
Parts subject to consumption through use unless found to be defective.
Examples of parts which are consumed, or used up, during normal
Product operation include, but are not limited to: brakes, filters, lights,
The Emissions Control System on your Product may be covered by
a separate warranty meeting requirements established by the U.S.
Environmental Protection Agency (EPA) and/or the California Air Resources
Board (CARB). The hour limitations set forth above do not apply to the
Emissions Control System Warranty. Refer to the Engine Emission Control
Warranty Statement supplied with your product or contained in the engine
manufacturer’s documentation for details.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Underground Dealer’s service or have difficulty
obtaining guarantee information, contact the Toro importer.
Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro
Dealer.
374-0292 Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
