Toro RT1200 Traction Unit User manual

Toro RT1200 Traction Unit User manual

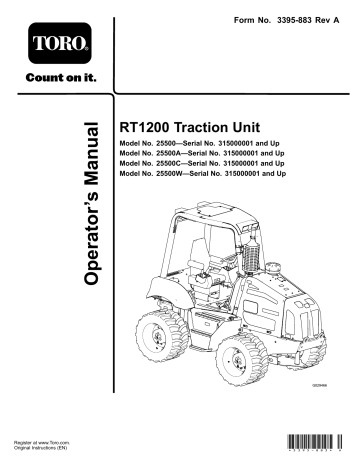

Form No. 3395-883 Rev A
RT1200 Traction Unit
Model No.
Model No.
Model No.
Model No.
Register at www.Toro.com.
Original Instructions (EN)
25500—Serial No. 315000001 and Up
25500A—Serial No. 315000001 and Up
25500C—Serial No. 315000001 and Up
25500W—Serial No. 315000001 and Up
*3395-883* A
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals known to the State of California to
cause cancer, birth defects, or reproductive harm.
Diesel engine exhaust and some of its constituents are known to the State of California
to cause cancer, birth defects, and other reproductive harm.
Because in some areas there are local, state, or federal
regulations requiring that a spark arrester be used on the
engine of this machine, a spark arrester is available as
an option. If you require a spark arrester, contact your
Authorized Toro Service Dealer.
on any forest-covered, brush-covered, or grass-covered
land. Other states or federal areas may have similar laws.
The enclosed Engine Owner's Manual is supplied for
information regarding the US Environmental Protection
Agency (EPA) and the California Emission Control
Regulation of emission systems, maintenance, and
warranty. Replacements may be ordered through the
engine manufacturer.
Spark arresters recommended by Toro for this product are
USDA Forestry approved.
Important: This engine is not equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate the engine
Introduction
This machine is designed to dig trenches in soil to bury
cabling and piping for various applications. It is not intended
to cut any other material other than soil and rock.
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
You may contact Toro directly at www.Toro.com for product
safety and operation training materials, accessory information,
help finding a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Toro Service Dealer
or Toro Customer Service and have the model and serial
numbers of your product ready. Figure 1 illustrates the
location of the model and serial numbers on the product.
Write the numbers in the space provided.
Figure 1
1. Location of the model and serial number plate
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
© 2015—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA
All Rights Reserved
Contents
Safety ........................................................................... 4
............................................................................ 5
Electrical Line Safety ............................................... 7
Gas Line Safety ....................................................... 7
Communication Line Safety...................................... 7
Water Line Safety .................................................... 7
Safety and Instructional Decals ................................. 8
Product Overview .........................................................15
Controls ...............................................................15
Command Center ...............................................15
Machine Controls ...............................................16
Traction-Control Cluster .....................................17
Attachment-Control Cluster.................................17
Operator Seat and Seat Belt .................................19
Specifications ........................................................20
Attachments/Accessories........................................20
Operation ....................................................................21
Think Safety First ...................................................21
Preparing for Work.................................................21
Adding Fuel to the Engine .......................................21
Checking the Engine-Oil Level.................................24
Checking the Coolant Level in the Reservoir ...............25
Checking the Hydraulic-Fluid Level ..........................25
Checking the Restricted Air-Cleaner Indicator ............26
Inspecting the Machine ...........................................26
Operating the Command Center...............................26
Operating the Engine..............................................33
Operating the Machine in Extreme
Conditions.........................................................34
Operating the Parking Brake ....................................35
Driving and Stopping the Machine ............................35
Operating the Transmission .....................................37
Operating the Machine Tilt Feature ...........................37
Preparing to Operate the Machine.............................38
Using the Power Port ..............................................39
Transporting the Machine........................................39
Completing the Work for the Day .............................40
Completing the Project ...........................................40
Maintenance .................................................................41
Recommended Maintenance Schedule(s) ......................41
Premaintenance Procedures ........................................42
General Safety........................................................42
Lubrication ...............................................................42
Greasing the Machine .............................................42
Engine Maintenance ..................................................44
Accessing the Engine ..............................................44
Servicing the Engine Oil and Filter............................45
Checking the Crankcase Breather Tube......................47
Checking the Charge-air Piping ................................47
Servicing the Air-cleaner System...............................47
Fuel System Maintenance ...........................................49
Servicing the Fuel System ........................................49
Electrical System Maintenance ....................................52
Maintaining the Battery ...........................................52
Replacing a Fuse.....................................................54
Drive System Maintenance .........................................55
Figure 2
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
Store this Operator’s Manual and the engine owners’s manual in
the manual compartment that is equipped with this machine.
Figure 3
1. Manual compartment
3
Safety
Servicing the Tires ..................................................55
Servicing the Axles .................................................56
Servicing the Transmission ......................................60
Cooling System Maintenance ......................................63
Servicing the Cooling System ...................................63
Belt Maintenance ......................................................67
Servicing the Engine Drive Belt ................................67
Replacing the Engine Drive Belt ...............................67
Hydraulic System Maintenance ....................................68
Servicing the Hydraulic System.................................68
ROPS Maintenance ....................................................72
Checking and Servicing the ROPS.............................72
Welding on the Machine..............................................73
Preparing to Disconnect the Components..................73
Disconnecting the Alternator Wiring.........................74
Disconnecting the Computer-module
Connectors ........................................................74
Connecting the Computer-module
Connectors ........................................................74
Connecting the Alternator Wiring.............................75
Closing the Machine ...............................................75
Cleaning ...................................................................75
Removing Dirt and Debris from the Machine .............75
Storage ........................................................................76
Preparing for Seasonal Storage .................................76
Troubleshooting ...........................................................77
Improperly using or maintaining this machine can
result in injury. To reduce the potential for injury, comply
with these safety instructions and always pay attention to
the safety alert symbol (Figure 2), which means Caution,
Warning, or Danger—personal safety instruction. Failure
to comply with the instruction may result in personal
injury or death.
Important: This machine was manufactured according
to the appropriate regulatory standards in effect at the
time of manufacture. Modifying this machine in any
way may cause it to be out of compliance with those
standards and with the instructions in this Operator’s
Manual. Modifications to this machine should be made
only by an Authorized Toro Service Dealer.
WARNING
Welding, cutting, or drilling parts of the machine
could cause them to break during operation, which
in turn could result in injury or death.
Do not weld, cut, or drill to repair or to attach items
to parts on this machine.
Always follow all safety instructions to avoid serious injury
or death.
You can prevent and are responsible for injuries occurring to
yourself and to others and for damage to property.
Do not use this machine for applications other than those
which are described in this manual.
Before operating this machine, it is your responsibility to
know where all utility lines are buried in the project area and
to avoid them.
Always ensure that all local utility companies mark
the location of their lines. In the USA and Canada,
call a “One-call System Directory” service. In the
USA, call 811 or your local number. If you do not know
your local number, call the national number (USA and
Canada only) at 1-888-258-0808. Also, contact any utility
companies that are not participants of the “One-call
System Directory” service.
Check with local authorities for all laws and regulations that
require you to locate and avoid existing utilities.
Refer to the following table for the proper utility line and the
corresponding utility line color (USA and Canada only):
4
Utility Line
Color
Electric
Red
Telecommunication, alarm or signal, cables,
or conduit
Orange
Natural gas, oil, steam, petroleum, or other
gaseous or flammable material
Yellow
Sewer and drain
Green
Drinking water
Blue
Reclaimed water, irrigation, and slurry lines
Purple
Temporary survey markings
Pink
Proposed excavation limits
White
• Before operating the machine with an attachment, ensure
that the attachment is properly installed.
• Use extra care when handling fuels. They are flammable
and vapors are explosive.
– Use only an approved container.
– Do not remove the fuel cap or add fuel with the
engine running. Allow the engine to cool before
fueling. Do not smoke near the machine while the
engine is running.
– Do not refuel or drain the machine indoors.
• Check that the operator's presence controls, safety
switches, and shields are attached and functioning
properly. Do not operate the machine unless these
controls, switches, and shields are functioning properly.
After locating all the utility lines, carefully dig a hole to the
utility line by hand to verify the location and the depth of
the line.
General Operation
• Always wear the seat belt when operating this machine.
Training
• Do not run the engine in an enclosed area.
• Read the Operator's Manual and other training material. If
• Do not operate the machine without all of the guards
•
•
•
•
and panels securely in place. Ensure that all interlocks are
attached, adjusted correctly, and functioning properly.
the operator(s) or mechanic(s) cannot read English, it is
the owner's responsibility to explain this material to them.
Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
All operators and mechanics must be trained. The owner
is responsible for training the users.
Never let children or untrained people operate or service
the machine. Local regulations may restrict the age of
the operator.
Ensure that you understand the hand signals used on the
job site. Follow the instructions of the signal person.
• Decrease the ground speed of the machine and use
caution when making turns and crossing roads and rough
or uneven terrain.
• Do not operate the machine while under the influence
of alcohol or drugs.
• Ensure that the area is clear of other people before
operating the machine. Stop the machine if anyone enters
the area.
• Excessive vibration from a trencher or a plow can cause a
trench, an overhang, or a high bank to collapse, resulting
in possible injury or death.
Preparation
• Before using the machine, have the area marked for
•
•
•
•
• If your view of the work area is not clear, always have a
underground utilities, and do not dig in marked areas.
Also, be aware of the location of objects and structures
that may not be marked, such as underground storage
tanks, wells, and septic systems.
Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Use only accessories and attachments approved
by the manufacturer.
Mark the job site clearly and keep bystanders away.
Review the job site hazards, safety and emergency
procedures, and personnel responsibilities with all
workers before beginning the work.
Wear appropriate clothing, including hard hat, safety
glasses, long pants, safety shoes, and hearing protection;
some jobs may also require that you wear a reflective vest
and/or a respirator. Secure long hair, loose clothing, and
jewelry to prevent them from getting tangled in moving
parts.
signal person direct the movement of the machine.
• Do not leave a running machine unattended. Stop the
engine and remove the key whenever you leave the
machine.
• Use only Toro-approved attachments. Attachments can
change the stability and the operating characteristics of
the machine.
• Watch for traffic when operating the machine near or
across roadways.
• Only operate the machine in areas where there are no
obstacles in close proximity to you. Failure to maintain
an adequate distance from trees, walls, and other barriers
while operating the machine may result in injury and/or
damage. Operate the machine only in areas where there
is sufficient clearance for you to safely maneuver the
machine.
5
Maintenance and Storage
• Locate the pinch point areas that are marked on the
machine and attachments; keep hands and feet away from
these areas.
• Lower the attachment(s), stop the engine, wait for all
• Lightning can cause severe injury or death. If lightning
is seen or thunder is heard in the area, do not operate
the machine; seek shelter.
•
Slope Operation
•
• Avoid operating this machine on slopes, if possible.
• Keep all movements on slopes slow and gradual. Do not
•
make sudden changes in speed or direction.
• Avoid starting or stopping the machine on a slope. If the
•
•
•
•
machine loses traction, keep the heavy end of the machine
uphill and proceed slowly, straight down the slope.
• Avoid turning the machine on slopes. If you must turn,
turn slowly and keep the heavy end of the machine uphill.
• Do not operate the machine near drop-offs, ditches, or
•
embankments. The machine could suddenly turn over if
a tire or track goes over the edge of a cliff or ditch, or if
an edge caves in.
•
•
Rollover Protection Structure (ROPS)
System
•
•
• Before operating the machine, ensure that the seat belt is
in good condition and is securely attached to the machine.
• Inspect the ROPS at the interval recommended in this
manual or when the ROPS has been in an accident.
• Replace a damaged ROPS using only genuine Toro
replacement parts; do not repair or modify the ROPS.
• Check carefully for overhead clearances (i.e. branches,
doorways, electrical wires) before driving under any
objects, and do not contact them.
• Do not remove the ROPS except when replacing it.
• Do not add weight to the machine that exceeds the gross
weight displayed on the ROPS label.
Transporting Safety
When you transport the machine to or from the job site,
observe the following safety precautions:
•
•
• Do not carry passengers on the machine.
• Keep all bystanders away while you are moving the
machine.
• Use care when loading or unloading the machine into a
•
trailer or truck.
• Watch for traffic when you are crossing roadways with
the machine.
•
• Check for overhead clearances (i.e., branches, doorways,
electrical wires) before driving under any objects, and do
not contact them.
6
moving parts to stop, and remove the key whenever you
adjust, clean, or repair the machine.
Do not touch parts that may be hot from operation.
Allow them to cool before attempting to maintain, adjust,
or service the machine.
Clean debris from all attachments, drives, mufflers, and
the engine to help prevent fires. Clean up oil and fuel
spills.
Let the engine cool before storing the machine, and do
not store it near an open flame.
Park the machine on level ground.
Do not allow untrained personnel to service the machine.
Use jack stands to support components when required.
Carefully release pressure from components with stored
energy.
Keep hands and feet away from moving parts. If possible,
do not make adjustments with the engine running.
Keep all parts in good working condition and all hardware
tightened. Replace all worn or damaged decals.
Keep nuts and bolts tight. Keep all equipment in good
condition.
Do not tamper with safety devices.
Use extra care when handling fuels. They are flammable
and vapors are explosive.
– Use only an approved container.
– Do not remove the fuel cap or add fuel when the
engine is running. Allow the engine to cool before
refueling. Do not smoke while fueling the machine.
– Do not refuel the machine indoors.
– Do not drain the fuel indoors.
– Do not store the machine or a fuel container inside
where there is an open flame, such as near a water
heater or furnace.
– Do not fill a container while it is inside a vehicle,
trunk, pickup bed, or any surface other than the
ground.
– Keep the container nozzle in contact with the tank
during filling.
Use only genuine Toro replacement parts.
Disconnect the battery before making any repairs.
Disconnect from the negative battery terminal first and
from the positive battery terminal last. Connect to the
positive terminal first and to the negative terminal last.
Charge the battery in an open, well-ventilated area,
away from spark and flames. Unplug the charger before
connecting or disconnecting it from the battery. Wear
protective clothing and use insulated tools.
Battery acid is poisonous and can cause burns. Avoid
contact with skin, eyes, and clothing. Protect your face,
eyes, and clothing when working with a battery.
Gas Line Safety
• Battery gases can explode. Keep cigarettes, sparks, and
flames away from the battery.
• Keep your body and hands away from pinhole leaks
WARNING
or nozzles that eject high-pressure hydraulic fluid. Use
cardboard or paper to find hydraulic leaks; never use
your hands. Hydraulic fluid escaping under pressure can
penetrate skin and cause injury, requiring surgery within
a few hours by a qualified surgeon; otherwise, gangrene
may result.
If you damage a gas line, an immediate explosion
and fire hazard could occur. Leaking gas is both
flammable and explosive and may cause serious
injury or death.
• Do not smoke while operating the machine.
• Allow the machine to cool before storing it.
• Shut off the machine and remove the key.
Electrical Line Safety
• Remove all individuals from the work area.
• Immediately contact the proper emergency and
utility authorities to secure the area.
WARNING
If you leave the seat of the machine or touch
any part of the machine when it is charged with
electricity, serious injury or death could result.
Communication Line Safety
Do not leave the seat of the machine if the machine
is charged with electricity.
CAUTION
If you damage the fiber optic cable and look into
the exposed highly-intense light, you may harm
your eyes.
Important: In the event the machine becomes
electrically charged, immediately contact the proper
emergency and utility authorities to secure the area.
If you are operating the machine and it becomes
electrically charged, do not leave the seat until the source
of electrical energy is removed from the machine. Keep
other people away from the machine if it is electrically
charged.
• Shut off the machine and remove the key.
• Remove all individuals from the work area.
• Immediately contact the proper emergency and
utility authorities to secure the area.
Note: It is possible to strike a utility line without the machine
becoming charged.
Water Line Safety
• It is likely (but not always the case) that the power-source
interrupter or breaker will trip, but to ensure your safety,
always assume that the machine may be conducting
electricity.
If you damage a water line, a potential flood hazard
could occur.
Note: You will be safe as long as you do not leave the
seat of the machine.
• Remove all individuals from the work area.
• Shut off the machine and remove the key.
• Immediately contact the proper emergency and
• Touching any part of an electrically charged machine while
utility authorities to secure the area.
you are on the ground may cause a severe electric shock.
Note: Do not allow another individual to touch or
approach the machine when it is charged.
7
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or lost.
Figure 4
1. Decal 125-6689
2.
3.
4.
5.
6.
Decal
Decal
Decal
Decal
Decal
125-4963
125-8479
125-8480
125-8499
125-6135
Figure 5
7. Decal 125-6694 (2 decals,
1 on each side)
8.
9.
10.
11.
Decal
Decal
Decal
Decal
1. Decal 125-8496
2. Decal 125-8473 (on the
floor panel covering the
battery)
125-8481
125-8482
117-2718
125-6139
7. Decal 125-4963
8. Decal 127-1829
3. Decal 125-8495
4. Decal 127-1828
9. Decal 125-8480
10. Decal 125-6157 (under
the left-side cowl)
5. Decal 125-6139
6. Decal 130-7540
11. Decal 125-8483
12. Decal 125-6689
Figure 6
1. Decal 131–0439
2. Decal 130-7539
8
3. Decal 125-8484
4. Decal 131–0440
117-2718
0000
0000
0000
125-4963
1. Warning—do not touch hot surfaces.
125-6157
1. Disconnect the battery
power.
3. On/Start
2. Off/Stop
4. Read the Operator’s
Manual.
125–6135
125-6671
1. Explosion hazard; electric shock hazard—call local utilities
before digging.
125–6139
1. Lift point; tie down point
9
125-8479
125-6689
1. Burn hazard from contents under pressure—read the
Operator’s Manual.
1. Warning—keep away from 2. Cutting/dismemberment
hot surfaces.
hazard, fan—keep away
from moving parts; keep
all guards and safety
devices in place.
125-8480
1. Warning—no riders
125-6694
1. Tie-down point
125-8481
1. Hydraulic supply
125–8473
1. Explosion hazard—wear
eye protection.
3. Fire hazard—keep open
flames away.
2. Caustic liquid/chemical
burn hazard—rinse
affected area and seek
medical assistance.
4. Poison hazard—do not
tamper with the battery.
10
125-8499
125-8482
1. Hydraulic return
1. Warning—read the
Operator's Manual.
3. Forward
2. Reverse
4. Transmission—gear
selection
125–8483
131-0439
1. Hydraulic fluid; read the Operator’s Manual.
1. Differential—lock
125-8484
2. Differential—unlock
127-1829
1. 12-volt receptacle
1. Oil drain
11
131-0440
1. Parking brake—engage
2. Parking brake—disengage
130-7539
1. Electrical power
3. Engine—run
2. Engine—stop
4. Engine—start
125-8495
1. Tilt the machine right
6. Sideshift—left (optional
attachment)
11. Auxiliary hydraulic (optional 16. Trencher—fast rotation
kit)
(optional accessory)
2. Tilt the machine left
7. Lower the crumber/rotate
the plow forward (optional
attachment)
12. Vibratory plow depth—float 17. Trencher—slow rotation
(optional accessory)
on (optional accessory)
3. Auto frame leveling on
(optional kit)
8. Raise the crumber/rotate
13. Vibratory plow depth—float 18. Warning—read the
Operator's Manual.
the plow backward (optional
off (optional accessory)
attachment)
4. Auto frame leveling off
(optional kit)
9. Rock saw stabilizer—lower 14. Vibratory plow swing—float 19. Explosion hazard; electric
(optional accessory)
shock hazard—do not dig
on (optional accessory)
before contacting local
utility services.
5. Sideshift—right (optional
attachment)
10. Rock saw stabilizer—raise 15. Vibratory plow swing—float
(optional accessory)
off (optional accessory)
127-1828
1. Hydraulic pressure
4. Raise the attachment.
2. Lower the attachment.
5. Hydraulic return
3. Case drain
12
125-8496
8. Rear wheel steering—turn the wheels right; machine will turn
left
9. Rear wheel steering—auto center (optional kit)
1. Backfill blade/vibratory plow—tilt/swing left
2. Backfill blade/vibratory plow—tilt/swing right
3. Backfill blade/vibratory plow—lower
10. Lower the attachments
4. Backfill blade/vibratory plow—raise
11. Raise the attachments
5. Backfill blade/vibratory plow head—angle left
12. Rear attachment—forward speed
6. Backfill blade/vibratory plow head—angle right
13. Rear attachment—reverse speed
7. Rear wheel steering—turn the wheels left; machine will turn
right
13
130-7540
1. Warning—read the Operator's Manual.
4. Warning—keep bystanders away from
the machine.
2. Warning—do not operate the machine
unless you have received instruction.
5. Warning—keep away from moving
parts; keep all guards and shields in
place.
3. Warning—wear a seatbelt.
6. Warning—wear hearing protection.
14
7. Explosion hazard; electric shock
hazard—before digging call the local
utilities service.
8. Read the Operator's Manual for
information on starting the engine—1)
Engage the parking brake; 2) Set the
traction drive and all attachments to
neutral; 3) Turn the key to the engine
start position.
9. Read the Operator's Manual for
information on stopping the engine—1)
Park the machine on a level surface;
2) Engage the parking brake; 3) Set
the traction drive and all attachments
to neutral; 4) Lower all attachments;
5) Turn the key to the engine stop
position; 6) Remove the key from the
ignition.
Product Overview
Controls
Become familiar with all the controls (Figure 9 through Figure
16) before you start the engine and operate the machine.
Command Center
Home Screen Controls
Use the buttons on the command center to control the
operation of machine functions, and to navigate to the
machine setup and diagnostic screens (Figure 9).
Figure 7
1. Nose panel
5. Fuel reservoir
2. Left side panel
6. Fuel cap
3. Grab handles
7. Steps
4. ROPS enclosure
Figure 9
Home screen shown
1. Button 1 (light On/Off
8. Button 8 (decrease the
button—used with the light
engine speed)
kit option)
2. Button 2 (increase the
set point for the load
control—used with the
load-control kit)
9. Escape (used to return to
the home screen)
3. Button 3 (decrease the
set point for the load
control—used with the
load-control kit)
10. Previous screen (used to
move to a previous screen
function within a screen
mode)
4. Button 4 (load control
On/Off—used with the
load-control option)
11. OK (used to make a
selection)
5. Button 5 (control
12. Next screen (used to move
select—use to determine
to the next screen function
which attachment the
within a screen mode)
backfill-blade/vibratory-plow
joystick operates)
Figure 8
1. Grab handles
4. Steps
2. Right side panel
5. Hydraulic-fluid sight gauge
3. Nose panel
6. Hydraulic-tank cap
15
6. Button 6
(advanced-steering
mode—used with the
advanced-steering kit)
13. Down screen (used to
move down to the previous
screen mode and enter
diagnostic and calibration
screens)
7. Button 7 (increase the
engine speed)
14. Up screen (used to move
up the next screen mode)
Throttle Button
• Throttle-up Button—Press the throttle-up button
(button 7), located at the bottom-right corner of the
command center, to increase the engine speed (Figure 9).
Note: Press the button repeatedly to increase the engine
speed up to the maximum engine speed (2,450 rpm).
• Throttle-down Button—Press the throttle-down button
(button 8), located at the bottom-right corner of the
command center, to lower the engine speed (Figure 9).
Note: Press the button repeatedly to decrease the engine
speed down to the engine-idle speed (950 rpm).
Machine Controls
Differential-Lock Switch
Figure 11
Use the differential-lock switch to control the transmission of
power to all 4 wheels (Figure 10).
1. Parking-brake switch
3. Key switch
2. Power port
• To lock the front and rear differentials—push the switch
up.
Note: The red parking brake indicator will appear in the
command center display (Figure 12).
• To unlock the front and read differentials—stop the
machine, push the switch down, and move the machine
backward for a short distance.
Figure 10
1. Differential-lock switch
Figure 12
2. Horn button (optional)
1. Parking brake indicator (command center display)
Parking-Brake Switch
• Release the parking brake by pushing up the parking-brake
• Set the parking brake by pushing down the parking-brake
switch.
switch (Figure 11).
Note: When the parking brake is released and the
machine is moved forward or backward, the Home screen
will stop displaying the parking brake indicator.
• If you stop the engine without setting the parking brake,
the machine will set the parking brake and the yellow
parking brake indicator will appear in the command
center display (Figure 12).
16
• Move the utility-traction joystick forward to move the
Key Switch
machine forward (Figure 14).
Use the key switch to power the electrical accessories, start the
machine, and stop the machine (Figure 11). The 4 key-switch
positions are as follows:
• Accessory—Rotate the key switch to this position to
energize the lamp switch circuits.
• Stop—Rotate the key switch to this position to stop the
engine and de-energize the electrical system.
•
•
• Move the traction joystick rearward to move the machine
in reverse (Figure 14).
• Move the traction joystick to the center (Neutral) position
to stop the machine (Figure 14).
Note: Always remove the key before leaving the
machine.
Run—This position allows the engine to run and will
energize all electrical systems.
Start—Rotate the key switch to this position to start the
engine.
Note: When you release the key, it will automatically go
to the Run position.
Foot Pedal
The foot pedal controls the direction and speed of travel of
the machine (Figure 13).
3
Figure 14
1. Traction-control cluster
3. Utility-traction joystick
2. Gear-selector switch
Note: The engine speed is controlled with the throttle
buttons on the home screen of the command-center panel;
refer to Throttle Button (page 16).
Gear-Selector Switch
The gear-selector switch is located on top of the utility-traction
joystick (Figure 14), and is used to select the transmission gear.
The current gear is displayed on the home screen of the
command center, above and to the left of the tachometer
display.
Attachment-Control Cluster
The attachment-control cluster is located at the operator seat
and is adjacent to the right armrest.
Figure 13
1. Heel pedal (reverse)
2. Toe pedal (forward)
Backfill-Blade / Vibratory-Plow Joystick
Note: The backfill blade and the vibratory plow are optional
attachments.
Traction-Control Cluster
The traction-control cluster is located at the operator seat,
adjacent to the left armrest.
Utility-Traction Joystick
Note: The function of the backfill blade / vibratory plow
joystick depends on the attachment selected in the command
center.
When trenching, plowing, or boring, use the utility-traction
joystick to change the direction and speed of the machine
(Figure 14). The further you move the joystick in either
direction, the faster the machine will move in the selected
direction.
The backfill-blade/vibratory-plow joystick operates either
the backfill blade or the vibratory plow, whichever is selected
and displayed on the command center. Move the joystick
controls to change the backfill blade or the vibratory plow
position as follows:
17
• Push the joystick forward to lower the backfill blade or
Rear-Wheel-Steering Switch
vibratory plow or pull the joystick rearward to raise the
backfill blade or vibratory plow (Figure 15).
The switch for the rear-wheel steering is used to control the
steering direction (left or right) of the rear wheels. The switch
for the rear-wheel steering is located behind the backfill
blade/vibratory plow joystick.
Note: The function of the joystick depends on the
attachment selected in the command center.
• Move the joystick to the left to tilt the backfill blade to the
Vibratory-Plow / Trencher-Motor Joystick
left, or move the joystick to the right to tilt the backfill
blade to the right (Figure 15).
Note: The vibratory plow and the trencher are optional
attachments.
• Swing the backfill blade or steer the vibratory plow left or
right as follows:
Vibratory Plow
– Twist the thumb control left to swing the backfill
blade left, or twist the thumb control right to swing
the backfill blade right (Figure 15).
Note: The function of the vibratory plow / trencher motor
joystick depends on the attachment selected in the command
center.
– Twist the thumb control left to steer the vibratory
plow left, or twist the thumb control right to steer the
vibratory plow right (Figure 15).
• Move the joystick rearward to start the vibration of the
plow blade (Figure 15).
• Move the joystick further rearward to increase the
Note: The function of the thumb control depends
on the attachment selected in the command center.
vibration (Figure 15).
• Move the joystick toward the Neutral position to decrease
• Pull the trigger on the joystick to float the backfill blade
and stop the vibration (Figure 15).
up and down (Figure 15).
Trencher
• Move the joystick forward to start the digging chain in the
forward direction (Figure 15).
• Move the joystick further forward to increase the chain
speed (Figure 15).
• Move the joystick to the Neutral position to stop the
trencher chain (Figure 15).
Figure 15
1. Thumb control
4. Vibratory plow / trencher
motor joystick
2. Backfill blade / vibratory
plow joystick
5. Attachment elevation
switch
3. Rear-wheel steering
switch
6. Backfill-blade-float trigger
18
Note: The neutral-indicator light turns on when you
turn the key switch to the On position and both the
utility-traction-control and attachment-control levers are in
the Neutral position.
Attachment-Elevation Switch
The attachment-elevation switch raises and lowers an
attachment mounted at the rear of the machine.
• Press the switch on the left to lower the attachment boom
(Figure 15).
• Press the switch on the right to raise the attachment
boom (Figure 15).
Note: If the operator does not remain seated when the
utility-traction lever is not in the Neutral position, the engine
will stop in 1 second. Do not lay a heavy object on the seat or
tamper with the seat-interlock system in any way.
Auxiliary-Control Panel
Seat-Height and Seat-Slide Buttons
The auxiliary-control panel includes the rocker switch that
controls the machine tilt actuator (Figure 16). The panel also
has locations for rocker switches that are installed with the
optional attachments or kits for the machine.
Figure 16
1. Machine tilt—left/right
6. Auxiliary hydraulic
(reserved for an optional
attachment)
2. Auto tilt On/Off (reserved
for an optional kit)
7. Vibratory plow boom float
On/Off (reserved for an
optional attachment)
3. Sideshift left/right
(reserved for an optional
attachment)
8. Vibratory plow swing float
On/Off (reserved for an
optional attachment)
4. Lower/raise the
crumber/rotate the plow
forward (reserved for an
optional attachment)
9. Trencher speed Fast/Slow
(reserved for an optional
attachment)
Figure 17
1. Seat-slide buttons
2. Seat-height buttons
5. Seat-frame slide bar
6. Weight compensator
3. Seat-slide lever
7. Armrest-height control
4. Seat-rotation lever
8. Lumbar knob (located on
the seat back)
• Seat-height buttons–use them to adjust the seat pad up
5. Lower/raise the rock saw
stabilizers (reserved for an
optional attachment)
or down (Figure 17).
• Seat-slide buttons—use them to slide the seat pad
forward or rearward (Figure 17).
Operator Seat and Seat Belt
Seat-Frame-Slide Lever and Seat-Base-Slide Lever
Seat-Interlock System
• Seat-frame-slide lever—Use this lever to adjust the
entire seat and frame forward or rearward (Figure 17).
WARNING
• Seat-base-slide lever—Use this lever to move the seat
base forward or rearward on the seat frame (Figure 17).
The seat-interlock system protects the operator
from injury.
Do not disable the seat-interlock system.
The seat-interlock system requires the operator to sit in the
operator seat while operating this machine.
19
Seat-Rotation Lever and Seat-Weight Compensator
• Seat-rotation lever—Use this lever to unlock the seat
so that you can rotate the seat to the desired position.
The seat will rotate 360° and lock into position at 10°
increments (Figure 17).
Note: Rotate the seat to the Front position before
driving the machine.
• Seat-weight compensator—Rotate this lever for the
weight compensator to adjust the seat support tension for
the weight of the operator (Figure 17).
– Rotate the lever for the weight compensator clockwise
to increase the support tension of the seat.
– Rotate the lever for the weight compensator
counterclockwise to reduce the support tension of
the seat.
Figure 18
Armrest-Height Control
1. Battery On position
Rotate the armrest-height control to raise or lower the
armrest (Figure 17).
2. Battery Off position
• Rotate the battery disconnect clockwise to the On
position.
Seat-Lumbar Knob
• Rotate the battery disconnect counterclockwise to the
Off position.
Rotate the seat-lumbar knob, found behind the seat, to adjust
the back lumbar support for best comfort (Figure 17).
Specifications
Seat Belt
Note: Specifications and design are subject to change
without notice.
WARNING
Operating the machine without the rollover
protection system (ROPS) securely in place can
result in serious injury or death if the machine rolls
over.
Machine Dimensions and Weight Data
Wheel base
195 cm (76.8 inches)
• Ensure that the roll bar is securely in place.
Overall height (to the top of
the ROPS)
Overall width (at the tires)
218 cm (85.8 inches)
• Always wear a seat belt with the ROPS in place.
Minimum ground clearance
28.5 cm (11.2 inches)
• Ensure that the operator seat is properly secured
to the machine.
Turning radius (2-wheel
steering)
115 cm ( 291 inches)
Turning radius (4-wheel
steering)
391 cm (154 inches)
Note: Regulations in some localities require that seat belts on
construction machines be 76 mm (3 inch) wide. Check with
local authorities regarding the requirements for seat belts.
281 cm (110 inches)
Weight (without attachments)
4,343 kg (9,575 lb)
• To fasten the seat belt, insert the tab end into the left
buckle.
Attachments/Accessories
Note: Ensure that the tab end and the buckle are
securely fastened.
A selection of Toro approved attachments and accessories is
available for use with the machine to enhance and expand
its capabilities. Contact your Authorized Service Dealer or
Distributor or go to www.Toro.com for a list of all approved
attachments and accessories.
• To release the seat belt, push the button on the buckle.
Battery-Disconnect Switch
The battery-disconnect switch is located behind the right
engine cowl (Figure 18); use it to electrically disconnect the
battery from the machine.
20
Operation
• Gather all relevant information available about the job
Note: Determine the left and right sides of the machine
from the normal operating position.
• Review all blueprints and other plans, and identify all
site before you begin working.
existing or proposed structures, characteristics of the
landscape, and other proposed jobs in the area scheduled
at the same time as your job.
Think Safety First
Note the following items at the job site:
Carefully read all safety instructions and symbols in the
safety section. Knowing this information could help you or
bystanders avoid injury.
– Changes in elevation in the proposed work area
– The condition and type of soil in the proposed work
area
DANGER
– Locations of structures, water, railroad tracks, and
other obstructions that you will need to work near
or around
Operating on wet grass or a steep slopes can cause
sliding and loss of control.
– Utility markers, meters, and poles
Wheels dropping over an edge can cause a rollover,
which may result in serious injury, drowning, or
death.
– If the work site is near or on a roadway with traffic,
call the local authorities regarding proper safety
procedures and regulations.
Always use the seat belt.
– Access to the site
Read and follow the rollover protection instructions
and warnings.
• Call your local One-Call service (811 in the US) or the
One-Call referral number (888-258-0808 in the US and
Canada) and ask the participating utility companies to
locate and mark their underground utility lines. Also call
utility providers that are not part of the One-Call system.
To avoid loss of control and possibility of rollover:
• Do not operate the machine near drop-offs or
near water.
• Reduce your ground speed and use extreme
caution on slopes.
• Avoid sudden turns or rapid changes in speed.
Adding Fuel to the Engine
Fuel tank capacity: 182 L (48 US gal)
Fuel type: ultra-low sulfur diesel (ULSD)
CAUTION
Note: Using other fuels can cause a loss of engine power
and high fuel consumption.
This machine produces sound levels that can cause
hearing loss through extended periods of exposure.
Important: Do not use kerosene or gasoline instead of
diesel fuel; otherwise, you will damage the engine.
Wear hearing protection when operating this
machine.
Use only diesel fuel for the machine that meets Specification
D975 of the American Society for Testing and Materials
International. See your diesel fuel distributor.
The use of protective equipment for eyes, ears, hands, feet,
and head is recommended.
1
Use only clean, fresh diesel fuel or biodiesel fuels with low
(<500 ppm) or ultra low (<15 ppm) sulfur content. The
minimum cetane rating should be 40. Purchase only enough
fuel that you expect to use within 30 days to ensure that it
stays fresh.
2
G009027
Use summer-grade diesel fuel (No. 2-D) at temperatures
above 20°F (-7°C) and winter-grade diesel fuel (No. 1-D or
No. 1-D/2-D blend) below 20°F (-7°C). Using winter-grade
fuel at lower temperatures provides a lower flash point and
cold flow characteristics, which aid in starting the engine and
help prevent clogging the fuel filter.
Figure 19
1. Wear safety glasses.
2. Wear hearing protection.
Preparing for Work
Using summer-grade fuel above 20° F (-7°C) contributes
toward a longer fuel pump life and increased power compared
to using winter-grade fuel.
Before operating the machine on the job site, review the
following items:
21
portion should be low or ultra-low sulfur. Observe the
following precautions:
• The biodiesel portion of the fuel must meet specification
ASTM D6751 or EN14214.
• The blended fuel composition should meet ASTM D975
or EN590.
• Biodiesel blends may damage painted surfaces.
• Use B5 with a biodiesel content of 5% or less in cold
weather.
• Check seals, hoses, and gaskets that come in contact with
the fuel, as they may degrade over time.
• The fuel filter may become plugged for a time after
converting to a biodiesel fuel blend.
• Contact your distributor for more information about
biodiesel fuel.
WARNING
Fuel is harmful or fatal if swallowed. Long-term
exposure to fuel vapors can cause serious injury
and illness.
• Avoid prolonged breathing of vapors.
• Keep your face away from the nozzle and the
fuel tank opening.
• Keep fuel away from your eyes and skin.
DANGER
In certain conditions, fuel is extremely flammable
and highly explosive. A fire or explosion from fuel
can burn you and others and can damage property.
• Fill the fuel tank outdoors in an open area when
the engine is cold. Wipe up any fuel that spills.
• Never fill the fuel tank inside an enclosed area.
• Never smoke when handling fuel, and stay away
from an open flame or where fuel fumes may be
ignited by a spark.
• Store fuel in an approved container, and keep
it out of the reach of children. Never buy more
than a 30-day supply of fuel.
• Do not operate the machine without the entire
exhaust system in place and in proper working
condition.
Storing Fuel
If you store fuel in a storage tank, it can accumulate foreign
material or water. Keep the fuel storage tank outside, and
keep the fuel as cool as possible. Remove water from the fuel
in the storage container at regular intervals.
Filling the Fuel Tank
Note: Fill the fuel tank of the machine at the end of each day
to prevent condensation in the fuel tank.
1. Clean around the fuel-tank cap (Figure 20), and remove
the cap from the tank.
In certain conditions, fueling can release static electricity and
cause a spark, which can ignite the fuel vapors. A fire or
explosion from fuel can burn you and others and can damage
property.
• Always place fuel containers on the ground, away from
your vehicle before filling.
• Do not fill fuel containers inside a vehicle or on a truck
or trailer bed, because interior carpets or plastic truck
bed liners may insulate the container and slow the loss
of any static charge.
• When practical, remove the equipment from the truck
or trailer, and refuel the equipment with its wheels on
the ground.
• If refuelling the equipment with its wheels on the ground
is not possible, then refuel such equipment on a truck or
trailer from a portable container rather than from a fuel
dispenser nozzle.
• If you must use a fuel dispenser nozzle, keep the nozzle in
contact with the rim of the fuel tank or container opening
at all times until fueling is complete.
Using Biodiesel Fuel
Figure 20
1. Filler neck
This machine can also use a biodiesel blended fuel of up
to B20 (20% biodiesel, 80% petrodiesel). The petrodiesel
22
2. Fuel-tank cap (off)
Note: Remove the cap slowly to reduce the air
pressure buildup.
2. Fill the fuel tank to the bottom of the neck to allow
space for the fuel to expand.
Note: The fuel tank capacity is 182 L (48 US gal).
3. Install the fuel-tank cap and tighten it securely by hand.
Draining Water from the Fuel-Water
Separator
Figure 22
Service Interval: Before each use or daily
1. Open the drain valve.
1. Remove the left side panel; refer to Removing the Side
Panels (page 44).
3. Close the drain valve.
2. Drain the water.
2. Place a drain container below the drain valve on the
fuel-water separator (Figure 21).
4. Drain the water and sediment from the separator until
clear fuel is visible (Figure 22).
5. Lift up the valve and turn it clockwise until it is hand
tight (Figure 22).
Note: Do not overtighten the drain valve of the
fuel-water separator; overtightening the valve can
damage the threads of the valve.
6. Install the left side panel; refer to Installing the Side
Panels (page 45).
Figure 21
1. Fuel-water separator
2. Drain valve
3. Rotate the drain valve counterclockwise approximately
3-1/2 turns until the valve drops down from the
fuel-water separator (Figure 22).
Note: The valve should extend 25 mm (1 inch) from
the separator.
23
Checking the Engine-Oil Level
Service Interval: Before each use or daily
Note: The engine is shipped with oil in the crankcase;
however, check the oil level before and after you first start
the engine.
Oil specification: API classification of CJ-4 or higher
Use only high-quality SAE 15W-40 heavy-duty engine oil with
an API classification of CJ-4 or higher.
While SAE 15W-40 oil with an API classification of CJ-4 or
higher is recommended for most climates, refer to Figure 23
for oil viscosity recommendations for extreme climates.
Figure 24
1. Dipstick
2. Dipstick tube
Figure 23
Note: Limited use of low-viscosity oils such as SAE 10W-30
with an API classification of CJ-4 or higher can be used for
easier starting and providing sufficient oil flow at ambient
temperatures below -5°C (23°F). However, continuous use of
low-viscosity oil can decrease engine life.
Figure 25
5. Insert the dipstick fully into the dipstick tube, then
remove the dipstick (Figure 24).
Toro Premium Engine Oil is available from an Authorized
Toro Service Dealer in either 15W-40 or 10W-30 viscosity
with API classification CJ-4 or higher. See the Parts Catalog
for part numbers. Also, refer to the engine operator's manual,
included with the machine, for further recommendations.
6. Read the oil level on the dipstick (Figure 25).
Note: The oil level on the dipstick should be between
the H (high) mark and L (low) mark.
Important: If the oil level in the crankcase is too low
or too high and you run the engine, you may damage
the engine.
• If the oil level is too low, slowly pour a small
amount of the specified oil into the oil-filler neck
(Figure 64) and wait 3 minutes; refer to step 1 in
Filling the Engine with Oil (page 46).
Note: The best time to check the engine oil is when the
engine is cool before it has been started for the day. If the oil
level is at or below the Add mark on the dipstick, add oil to
the engine to bring the oil level up to the Full mark. Do not
overfill. If the oil level is between the Full and Add marks on
the dipstick, you do not need to add oil.
Important: Do not overfill the engine with oil.
• If the oil level is too high, drain the excess oil until
you obtain the correct oil level on the dipstick;
refer to Draining the Engine Oil (page 45).
1. Ensure that the machine is on a level surface.
7. Repeat steps 4 through 6 until the oil level is correct.
2. Lower all attachments, set the parking brake, stop the
engine, and remove the key.
8. Install the dipstick and oil-fill cap securely.
9. Install the left-side panel; refer to Installing the Side
Panels (page 45).
Note: If you have run the engine, allow at least 15
minutes for the engine oil to settle in the crankcase.
3. Remove the left-side panel; refer to Removing the Side
Panels (page 44).
4. Remove the dipstick and wipe it clean with a clean
cloth (Figure 24).
24
Checking the Coolant Level in
the Reservoir
Checking the Hydraulic-Fluid
Level
Service Interval: Before each use or daily
Service Interval: Before each use or daily
If the engine overheat warning is displayed on the control
panel, check the coolant level in the reservoir and add coolant
if it is low. Also inspect the engine compartment around the
radiator and clear away any obstructions to air flow.
Hydraulic fluid specification: Mobilfluid 424
Note: Many brands of hydraulic fluid are almost colorless,
making it difficult to detect leaks. A red dye additive for the
hydraulic system oil is available in 20 ml (0.68 oz) bottles.
One bottle is sufficient for 15.1 to 22.7 L (4.0 to 6.0 US
gal) of hydraulic fluid; you can order this additive from an
Authorized Toro Service Dealer.
1. Park the machine on a level surface, stop the engine,
and remove the ignition key.
2. Allow the engine to cool.
3. Remove the left side panel; refer to Removing the Side
Panels (page 44).
1. Park the machine on a level surface, and put all the
attachments in the transport position.
4. Check the coolant level in the reservoir (Figure 26).
2. Stop the engine, set the parking brake, and remove the
ignition key.
3. Check the hydraulic-fluid level in the sight glass located
at the side of the hydraulic reservoir (Figure 27).
1
2
g024979
Figure 26
1. Reservoir
2. Coolant level (halfway
between the Add and Full
marks)
Note: Ensure that the coolant level is between 1/4
and 3/4 of the way up in the sight glass (Figure 26).
5. Add the specified coolant until the coolant level is
between 1/4 and 3/4 of the way up in the sight glass.
Figure 27
Note: Ensure that the coolant solution is thoroughly
mixed before filling the reservoir.
1. Fill cap (off)
6. Install the left side panel; refer to Installing the Side
Panels (page 45).
3. Hydraulic fluid level at the
midpoint of the sight glass
2. Hydraulic fluid
Note: The hydraulic-fluid level should be between the
bottom and midpoint of the sight glass.
4. If the hydraulic-fluid level is not visible in the sight
glass, remove the fill cap (Figure 27), add the specified
hydraulic fluid until the fluid level is at the midpoint of
the sight glass, and install the fill cap.
25
Checking the Restricted
Air-Cleaner Indicator
• Clean machine components that you use.
• Remove any loose items from the machine.
• Check the machine for broken, damaged, loose, or
Service Interval: Before each use or daily
missing parts. Replace, tighten, or adjust these parts
before you operate the machine.
1. Start the engine; refer to Operating the Engine (page
33).
• Repair or replace all damaged ROPS and seat belt parts.
2. Check to see if the restricted air-cleaner indicator is
displayed in the home screen of the command center
(Figure 28).
Operating the Command
Center
Software Messages
The command center will display information about the
controller version, display version, and installed optional
attachments or kits that are operated through the command
center. This information is displayed on the splash screen
during start up of the machine, as shown in A of Figure 29
or when you access the main selection screen, as shown in B
of Figure 29.
Figure 28
1. Restricted air-cleaner
indicator
2. Command center
3. Replace the air-cleaner element(s) as follows:
A. Replace the primary air-cleaner element; refer to
Replacing the Air-cleaner Elements (page 48).
B.
Repeat steps 1 and 2.
C.
If the restricted air-cleaner indicator is still
displayed, replace the secondary air-cleaner
element; refer to Replacing the Air-cleaner
Elements (page 48).
Inspecting the Machine
Service Interval: Before each use or daily
Inspect the following items on the machine each day before
you start the engine:
Figure 29
• Check for leaks under the machine, and repair all leaks.
• Check the tires for wear, damage, and low pressure.
• Check the machine for debris, especially around the
1. Main controller version
2. Display version
engine.
Note: Ensure that the area near the engine is clean so
that the engine cools properly.
• Clean or replace any safety or instructional decal that you
cannot read.
26
3. Installed optional
attachments or kits
Using the Home Screen
Use the previous screen, next screen, down screen, or up
screen buttons to display either the rpm home screen (A of
Figure 30), the % load home screen (B of Figure 30) or the
main selection screen (C of Figure 30).
Figure 31
1. Gear indicator
6. Check alternator or battery
2. Parking brake indicator
7. Hour meter
3. Tachometer
8. Hydraulic-fluid
temperature
4. Machine or engine error
9. Coolant temperature
5. Low engine-oil pressure
10. Fuel level
Reading the Operating Indicators in the Command
Display
Display the home screen of the command center to find
information about the transmission, engine, hydraulic system,
and fuel quantity.
• Gear indicator—This indicator shows which gear is
selected for the transmission (gears 1 through 4) and is
displayed above and to the left of tachometer (Figure 31).
• Tachometer—The tachometer indicates the engine
speed in revolutions per minute (rpm). The tachometer
is displayed in the upper center of the command-center
display (Figure 31).
Note: Each number on the gauge is equal to x 100 rpm.
Each space on the gauge is equal to 600 rpm. The range
of the tachometer display is 0 to 3000 rpm.
Figure 30
1. Previous screen button
2. Next screen button
3. Down screen button
4. Up screen button
• Hour meter—The hour meter indicates the number
of hours that the engine has run. It is displayed in the
center right area of the command display, to the right of
the tachometer (Figure 31).
Understand the meaning of the icons that indicate the
functions and the state of the machine.
• Hydraulic-fluid temperature indicator—This indicator
shows the operating temperature of the hydraulic fluid
and is displayed in the lower left area of the command
display (Figure 31).
Note: If the indicator moves into the red area, reduce
the work speed. If the gauge remains in the red area, stop
the machine and move the direction control lever to the
Neutral position. Check the oil level and for obstructions
in the radiator or the oil cooler.
• Coolant temperature indicator—This indicator shows
the temperature of the coolant in the engine-cooling
system. It is displayed in the lower center area of the
instrument cluster (Figure 31).
27
Note: If the indicator goes into the red area, reduce
the engine speed to idle for a few minutes to allow the
engine to cool, then stop the engine. Check the coolant
level, for debris on the radiator, or for a thermostat that
does not operate correctly. Also check the drive belt, belt
tensioner, or water-pump pulley.
• Fuel-level indicator—This indicator shows the
remaining level of fuel that is in the tank, and it is
displayed in the lower right area of the command display
(Figure 31).
• Parking-brake-on indicator—This indicator is
displayed while the parking brake is engaged (Figure 31).
The indicator disappears when you release the parking
brake.
Figure 33
Changing Units of Measure
Use this procedure to change from English to metric units or
from metric to English units
1. Machine or engine error
4. Check alternator or battery
2. Low engine-oil pressure
(flashes)
5. Engine overheated
(flashes)
3. High hydraulic-oil
temperature (flashes)
6. Low fuel quantity (flashes)
• Machine or engine error—This message displays if the
1. Display the home screen of the command center
(Figure 32).
machine or engine experiences a fault. The cause of the
fault is given in the Instrument Panel Diagnostics (Figure
33).
Important: Do not run the engine if this warning
message appears.
• Low engine-oil pressure—This warning message
displays if the oil pressure of the engine is 90 Kpa (13 psi)
or lower (Figure 31 and Figure 33).
Important: Do not run the engine if this warning
message appears.
• High hydraulic-oil temperature—This message flashes
if the oil in the hydraulic system is 102° C (215° F) or
higher (Figure 33)
Important: Do not run the engine if this warning
message appears.
Figure 32
• Check alternator or battery—This message displays
1. Left+right+up buttons
if the alternator and battery voltage is 12 volts or less
(Figure 31 and Figure 33).
Note: If this message is appears, stop the engine, repair
the charging system, or replace the battery.
2. Press the left+right+up buttons (Figure 32).
Note: The units of measure should change from
English to metric units or from metric to English units.
• Engine overheated—This message flashes if the engine
coolant is 104° C (220° F) or higher (Figure 31 and Figure
33).
Note: If the display changes from the home screen to
the main selection screen, press the left, right, up, or
down button to return to the home screen.
Important: Do not run the engine if this warning
message appears.
Reading the Warning Messages in the Command
Display
• Low fuel quantity—This message displays when the fuel
Note: When there are warning messages in the command
display, take corrective measures immediately. There may be
more than 1 warning displayed.
• Wait-to-start-engine indicator—This indicator displays
quantity in the tank is less than 18.2 L (5.8 US gal).
when the key switch is in the On position and the intake
air heater for the engine is energized (Figure 34).
Note: Wait until the indicator no longer appears before
attempting to start the engine (Figure 34).
28
Note: If this message is displayed, stop the engine and
replace the hydraulic-return filter.
• Hydraulic-charge filter restriction (traction
motor)—This message is displayed if the charge filter for
the traction motor is restricted (Figure 35).
Note: If this message is displayed, stop the engine and
replace the hydraulic-charge filter for the traction motor.
• Air-filter restriction (engine)—This message is
displayed when the air filter requires service (Figure 35).
• Return to Neutral indicator—This indicator is
Figure 34
displayed if you attempt an operation that requires you to
return the joystick or the traction pedal to the Neutral
position. Return the joystick or the traction pedal to the
Neutral position before continuing operation (Figure 35).
1. Wait-to-start-engine indicator
Reading the Machine or Engine Error Indicators in the
Command Display
Note: This message also appears if you start the engine
when either the utility drive or the attachment joysticks at
the operator seat are not in the Neutral position. Move
the joysticks to the Neutral position to clear the warning.
Note: When a warning indicator is shown in the command
display, take corrective measures immediately.
Figure 35
1. Hydraulic-charge filter
restriction (transmission)
4. Hydraulic-charge filter
restriction (traction motor)
2. Hydraulic-charge filter
restriction (accessories)
5. Air-filter restriction
(engine)
3. Hydraulic-return filter
restriction
6. Return the joystick to
neutral indicator
• Hydraulic-charge filter restriction
(transmission)—This message is displayed if
the hydraulic-charge filter for the transmission is restricted
( Figure 35).
Note: If this message is displayed, stop the engine and
replace the hydraulic-charge filter for the transmission.
• Hydraulic-charge filter restriction
(accessories)—This message is displayed if the
charge filter for the hydraulic circuit for the accessories is
restricted (Figure 35).
Note: If this warning message is displayed, stop the
engine and replace the charge filter for the hydraulic
circuit for the accessories.
• Hydraulic-return filter restriction—This message is
displayed if the hydraulic-return filter is restricted (Figure
35).
29
Accessing the Main-Selection Screen
To access the main-selection screen, press and release the up
arrow and the down arrow buttons (Figure 36) at the same
time. This screen allows the user to choose from the function
screens shown in Figure 36.
Figure 37
1. Return to the previous screen
Accessing the Trencher Setup Function Screen
Note: You need the PIN to access this screen; to obtain the
PIN, contact an Authorized Toro Distributor.
Figure 36
1. Engine information
2. Trencher (traction unit)
setup
3. Screen setup
Use the trencher setup screen to access calibration settings
for the following functions:
5. Trencher (traction unit)
errors
6. Engine errors
• Foot pedal for traction control
• Advanced-steering control (optional accessory)
7. Propel (ground speed)
limits
• Automatic-tilt chassis (optional accessory)
4. Trencher (traction unit and
attachments) diagnostics
Accessing the Screen Setup Function Screen
To access the screen setup function, press button number
3 on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
Accessing the Engine Information Screen
To access the engine-information screen, press button
number 1 on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
This screen allows the user to increase or decrease the
brightness of the monitor by pressing the following:
• Button 5—Increase the display brightness (Figure 38)
This screen displays measurements for the following
engine-operating parameters:
• Button 6—Decrease the display brightness (Figure 38)
• Engine speed in rpm (Figure 37)
• Engine load percentage (Figure 37)
• Engine hours (Figure 37)
• Oil pressure and boost pressure (Figure 37)
• Engine coolant and intake temperature (Figure 37)
• Voltage (Figure 37)
• Amount of fuel used (Figure 37)
30
Figure 39
Accessing the Engine Errors Information Screen
Use the trencher diagnostic screen (Figure 40) view suspect
part number—failure mode identifier (SPN-FMI) codes for
the engine; contact an Authorized Service Dealer.
Figure 38
1. Display brightness
indicator
2. Decrease brightness
3. Increase brightness
4. Return to the previous
screen
Accessing the Trencher Diagnostics Function Screen
Use the trencher diagnostic screen to view state and signal
information for the following machine and attachment
functions:
• Traction control
• Optional trencher attachment
• Optional vibration plow attachment
Figure 40
• Optional back hoe attachment; Optional/standard
backfill blade attachment
• Optional automatic-tilt chassis
Setting the Propel-Limit Function Screen
• Optional advanced-steering control
Accessing the Trencher Errors Information Screen
Use the propel-limit function to restrict the forward
and reverse ground speed that you can control with the
utility-traction joystick.
Use the trencher diagnostic screen (Figure 39) view suspect
part number—failure mode identifier (SPN-FMI) codes for
the traction unit; contact an Authorized Service Dealer.
Note: You can restrict the ground speed controlled by the
utility-traction joystick by a percent (15 to 100%) of the
ground speed that you can set with the foot pedal.
1. From the main-selection screen, press button number
7 access the settings for the propel limit function; refer
to Figure 36 in Accessing the Main-Selection Screen
(page 30).
31
Using the PIN screen
Note: This procedure requires that you have the PIN
number, which you can obtain from an Authorized Service
Dealer.
Note: To access the trencher setup function for the machine,
you must enter the unique 8-digit identification number
assigned into the PIN screen. The trencher setup functions
protected by the PIN screen include the following:
• Pedal calibration
• Steering setup
• Auto-tilt setup
1. Press button number 2 [Trencher (traction unit) setup]
on the main-selection screen; refer to Accessing the
Main-Selection Screen (page 30).
Figure 41
1. Decrease the range of
ground speed set with the
utility-traction joystick
3. Save setting
2. Percent setting (50%
shown)
4. Increase the range of
ground speed set with the
utility-traction joystick
2. Enter the 8-digit PIN.
3. Press button number 8 [Enter].
Note: Numbers 1, 2, 3, 5, 6, and 7 are the only numbers
that can be used for the PIN.
2. Set the ground speed limit for the utility-traction
joystick as follows:
• Press button 3 (Figure 41) to lower the percent
of ground speed that you can set with the
utility-traction joystick (down to 15% of the ground
speed that you can set with the foot pedal.).
Note: This gives you finer control over a smaller
range of ground speed.
• Press button 7 (Figure 41) to increase the percent
of ground speed that you can set with the
utility-traction joystick.
Note: This gives you courser control over a larger
range of ground speed (up to 100% of the ground
speed that you can set with the foot pedal.
Figure 42
3. Press button 8 to save your setting (Figure 41).
1. Buttons for corresponding
PIN numbers
2. PIN entry appears here
Note: The save icon momentarily displays the word
Save and turns green.
32
3. Enter PIN
4. Return to the previous
screen
Operating the Engine
intake air to warm up before starting. When the intake
air is at the proper temperature for starting the engine,
the wait-to-start indicator in the display turns off.
Before Starting the Engine
2. Turn the key switch to the Start position.
1. Check the oil level; refer to Checking the Engine-Oil
Level (page 24).
Note: If the engine starts and then stops, do not
turn the key switch to the Start position again until the
starter motor has stopped turning.
2. Ensure that the battery-disconnect switch is in the On
position; refer to Battery-Disconnect Switch (page 20).
Important: Do not operate the starter motor until
it stops turning. Do not operate the starter motor
for more than 30 seconds at one time. Allow the
starter motor to cool for 30 seconds before you
operate it again. When you engage the starter
motor, you should see white or black smoke
coming from the exhaust pipe; if you do not, check
the fuel supply.
3. Adjust the seat position, fasten the seat belt, and ensure
that the seat is facing forward.
Note: The seat interlock system prevents you from
operating the machine unless you are sitting in the
operator seat. If you do not remain seated and
the control levers are not in the Neutral position,
the system will stop both the ground drive and the
attachment drive in 1 second. Do not set a weighted
object on the seat, bypass the seat interlock system,
or tamper with the system.
3. When the engine starts, check the command-control
display to ensure that the indicator readings are correct.
If any of the indicators appear on the display, stop the
engine and check the problem.
4. Set the parking-brake button to the On position; refer
to Parking-Brake Switch (page 16).
4. Run at the engine at 1100 rpm until the coolant is
warm; refer to Setting the Engine Speed (page 33).
5. Ensure that all control levers are in the Neutral or
the Stop position; refer to Foot Pedal (page 17),
Utility-Traction Joystick (page 17), and Backfill-Blade /
Vibratory-Plow Joystick (page 17)/ Vibratory-Plow /
Trencher-Motor Joystick (page 18).
5. Cycle all the machine components before operating the
machine, and check all the controls and components to
ensure that they are working properly.
Note: If the engine is new or newly rebuilt, refer to
Breaking in a New or Rebuilt Engine (page 34).
Note: If the machine is equipped with a backhoe,
ensure that the engine shutoff control is pulled up.
Setting the Engine Speed
Starting the Engine
Note: Do not run the engine at full throttle below the peak
torque rpm (refer to the engine data plate for the peak torque
rpm) for more that 30 seconds.
WARNING
Before starting the engine, sit in the operator seat,
fasten the seat belt, apply the parking brake, and
ensure that the transmission direction control and
digging control levers are in the Neutral position.
Warn all bystanders that you are starting the engine.
Note: Do not run the engine at a low idle speed for long
periods of time, because it causes a low operating temperature
that can allow acids and deposits to form in the engine oil.
Note: Do not operate the engine at full throttle below the
peak torque rpm (refer to the engine data plate for peak
torque rpm) for more than 30 seconds. Operating the engine
at full throttle below the peak torque will seriously damage it.
Important: When you start the engine, the transmission
is automatically set to first gear and the auto centering
for the rear steering (optional advanced-steering kit) is
in the manual mode.
• To increase the engine speed, push button 7 on the
command center (Figure 43).
Note: In extreme hot or cold weather, take the necessary
precautions; refer to Operating the Machine in Extreme
Conditions (page 34).
• To decrease the engine speed, push button 8 on the
command center (Figure 43).
1. Turn the key switch to the On position and check that
all controls are in the Neutral position.
Note: The low engine-oil pressure indicator and the
check alternator or battery displays when the key switch
is in the On position and the engine is not running.
Note: In cold weather, the wait-to-start-engine
indicator displays to alert the operator to wait for the
33
Operating the Machine in
Extreme Conditions
Both hot and cold weather place unusual demands upon
the machine and the attachments. You can minimize
temperature-related problems on the machine by performing
the following steps:
Operating the Machine in Hot Weather
1. Clean all dirt and debris from the radiator, heat
exchanger, hydraulic-fluid cooler, and engine area to
ensure that there is proper air flow to cool the engine.
2. Remove any debris from the air inlets in the nose and
side panels.
3. Use lubricants that have the correct viscosity; refer to
Checking the Engine-Oil Level (page 24).
4. Operate the machine at an appropriate engine speed
and transmission range for the operating conditions;
do not overload the engine.
5. Use pressure-testing equipment to test the radiator cap
before the hot weather begins; replace the cap if it is
damaged.
6. Maintain the correct coolant level in the reservoir and
in the radiator, and ensure that there is a mixture of
50% ethylene glycol and 50% water in the cooling
system.
Figure 43
1. Button 7 (increase the
engine speed)
2. Button 8 (decrease the
engine speed)
Stopping the Engine
1. Park the machine on level ground, if possible.
Important: If you must temporarily park the
machine on a slope or an incline, position the
machine at a right angle to the slope. Ensure that
the machine is behind an object that will not move.
2. Lower all attachments to the ground.
3. Set the parking brake.
4. Reduce the engine speed to idle and allow it to run for
3 to 5 minutes to adequately cool the engine.
Operating the Machine in Cold Weather
5. Turn the key switch to the Off position.
Operating your machine in cold weather requires special
attention to prevent serious damage to the machine.
Performing the following procedures will extend the service
life of your machine:
1. Clean the battery and ensure that it is fully charged.
Note: If you leave the machine unattended, remove
the key from the key switch.
Breaking in a New or Rebuilt Engine
Note: A fully charged battery at -17ºC (0ºF) has
only 40% of the normal starting power. When the
temperature decreases to -29ºC (-20ºF), the battery has
only 18% of the normal power remaining.
During the first 20 hours of operation of a new or rebuilt
engine, do the following:
• Run the engine at a normal operating temperature.
• Do not run the engine at low idle speeds for long periods
Note: The machine comes with a maintenance-free
battery. If you use a different battery and add water to
it when the temperature is below 0ºC (32ºF), ensure
that you charge the battery or run the engine for about
2 hours to prevent the battery from freezing.
2. Inspect the battery cables and terminals. Clean the
terminals, and apply a coat of grease on each terminal
to prevent corrosion.
3. Ensure that the fuel system is clean and free of water;
refer to Draining Water from the Fuel-Water Separator
(page 23).
of time.
• Operate the machine with normal loads for the first 8
hours.
• Do not use special “break-in” lubricating oil. Use the
specified oil; refer to Checking the Engine-Oil Level (page
24) and Servicing the Engine Oil and Filter (page 45).
Note: Use the proper fuel for cold weather.
Note: To help prevent condensation from building
up in the fuel tank, fill up the fuel tank at the end of
each day.
34
4. Check the coolant mixture before you operate the
machine in cold weather. Use only a 50% ethylene
glycol and 50% water mixture in the cooling system
year round.
Driving and Stopping the
Machine
5. Before operating the machine, move it at low speed
and actuate each hydraulic control several times to
warm the oil.
Using the Traction-Control Pedal
The traction-control pedal controls the direction and the
speed of the machine. The speed of the machine depends on
the position of the gear-selector switch.
Important: The engine and the hydraulic system
temperature indicators must be in their respective,
normal operating temperature ranges before you
perform any work with the machine.
Note: For maximum speed in either direction, push the
pedal completely down.
• Push down on the top of the pedal to move the machine
forward (Figure 45).
Operating the Parking Brake
• Push down on the bottom of the pedal to move the
1. Toggle the parking-brake switch (Figure 44) up to apply
the parking brake.
machine rearward (Figure 45).
• To reduce speed or to stop the machine, move the pedal
up toward the Neutral position (Figure 45).
Note: The foot pedal overrides the utility-traction control
when you increase or decrease the ground speed while you
are operating rear-mounted attachments.
Figure 44
1. Parking-brake switch
2. Toggle the parking-brake switch down to release the
parking brake.
Note: The parking brake automatically engages when
you stop the engine.
Figure 45
1. Heel pedal (reverse)
2. Toe pedal (forward)
Note: To increase the speed, push down farther on the
pedal; to decrease the speed, allow the pedal to move up
toward the Neutral position.
35
Steering the Machine
Using the Front-wheel Steering
Use the steering wheel to control the front-wheel steering
(Figure 46).
Note: The front-wheel steering and rear-wheel steering
operate independently (unless the machine is equipped with
the optional advanced steering control).
Figure 47
1. Utility-traction joystick
3. Move the lever out of the Neutral detent position and
to 1 of the following positions:
• Move the lever forward (toward the front of the
machine) to move the machine forward (Figure 47).
• Move the lever rearward (toward the rear of the
machine) to move the machine in reverse (Figure
47).
Figure 46
1. Steering wheel
2. Lock ring
3. Rear-wheel steering
switch—turn the wheels
right
2. Rear-wheel steering
switch—turn the wheels
left
Note: Move the lever completely forward or rearward
for the maximum speed.
4. Release the lock ring and the lever (Figure 47).
Note: The lever is held in place front-to-rear by
friction from the lock ring in order to maintain a
constant speed.
Using the Rear-wheel Steering
The switch for the rear-wheel steering is used to control the
steering direction (left or right) of the rear wheels only.
5. Return the lever to the Neutral position to stop the
machine (Figure 47).
• Push the rocker switch for the rear-wheel steering (Figure
46) on the right half of the switch to turn the rear wheels
to the right (turn left).
Note: The ground-drive foot control overrides the
traction-adjustment-control lever. If you use the foot
pedal, you must move the traction-adjustment-control
lever to the Neutral position to release the override and
return the lever to normal operation.
• Push this rocker switch for the rear-wheel steering (Figure
46) on the left half of the switch to turn the rear wheels
to the left (turn right).
Using the Utility-traction Joystick
Stopping the Machine
This joystick allows you to finely adjust the direction and the
speed of the machine during trenching, plowing, or boring.
WARNING
Jumping on or off the machine can cause an injury.
WARNING
When you get on or off the machine, always face the
machine, use the hand rails and steps, move slowly.
To avoid injury, remain in the operator seat to
operate the machine.
This machine has hydrostatic braking. When you remove
your foot from the ground-drive foot pedal or move the
utility-traction control back to the Neutral position, the
machine stops. Always apply the parking brake after you stop
the machine and before you stop the engine.
Note: If you do not remain in the operator seat, the machine
will not move.
1. Release the parking brake.
2. Lift up on the lock ring that is at the bottom of the
joystick handle (Figure 47).
1. Park the machine on level ground.
36
2.
3.
4.
5.
6.
Important: If you must temporarily park the
machine on a slope or an incline, position the
machine at a right angle to the slope, with the
front of the machine toward the bottom of the hill.
Ensure that the machine is behind an object that
will not move.
Support or lower all attachments to the ground.
Set the parking brake.
If the machine has been operating under a heavy load,
decrease the engine speed to idle and allow it to run for
3 to 5 minutes to cool the engine; refer to Setting the
Engine Speed (page 33).
Turn the key switch to the Off position.
Remove the key from the ignition switch.
Machine Task
Gear
Selection
1
Trenching, hard plowing, and boring
2
Light trenching and backfilling
3
Light backfilling
4
Transporting
Note: You must sit in the operator seat when moving either
of the ground-drive controls from the Neutral position;
otherwise, the machine will not move.
Shifting during operation—you can shift gears while the
machine is moving. Press the shift selector rocker switch up
or down to the desired gear, 1 gear at a time.
Note: Do not shift the transmission from 4th gear while
operating at high speed. Decrease the forward speed of the
machine with the foot pedal before shifting the transmission
to a lower gear.
Note: Fill the fuel tank at the end of each work day
to prevent condensation in the tank.
Operating the Transmission
Operating the Machine Tilt
Feature
Operating the Gear-Selector Switch for
the Transmission
Note: When you first start the machine, gear 1 is selected.
Removing the Tilt-lockout Pin
Perform the following to shift the transmission from a lower
gear to a higher gear or to shift from a higher gear to a lower
gear:
• To select a higher gear, press the up-shift (right) button
on the rocker switch (Figure 48).
1. Remove the hairpin that secures the tilt-lockout pin to
the chassis-lockout bracket (Figure 49).
2. Remove the tilt-lockout pin from the holes in the
chassis-lockout bracket and the axle-lockout bracket
(Figure 49).
Figure 48
1. Down-shift button
3. Icon—gear-shift pattern
2. Up-shift button
Figure 49
• To select a lower gear, press the down-shift (left) button
•
on the rocker switch (Figure 48).
Cycle the gear-selector switch up or down until the
desired gear is displayed in the command center.
37
1. Hairpin
3. Axle-lockout bracket
2. Chassis-lockout bracket
4. Tilt-lockout pin
Installing the Tilt-lockout Pin
1. Use the tilt switch to align the hole in the chassis-lockout
bracket with the holes in the axle-lockout bracket
(Figure 49).
2. Remove the hairpin from the tilt-lockout pin (Figure
50).
Note: The tilt-lockout pin should be stowed in the
vertical hole in the axle-lockout bracket.
Figure 51
1. Tilt the machine right
2. Tilt the machine left
Note: Use the tilt gauge (Figure 52) to determine the degree
of tilt at which the machine is operating.
Figure 50
1. Tilt-lock pin
3. Axle-lockout bracket
(vertical holes)
2. Hairpin
3. Remove the tilt-lockout pin from the stowed position.
Figure 52
4. Fully insert the tilt-lockout pin through the horizontal
holes in the chassis-lockout bracket and axle-lockout
bracket (Figure 49).
1. Tilt gauge
5. Secure the tilt-lockout pin to the axle-lockout bracket
with the hairpin (Figure 49).
Preparing to Operate the
Machine
Stowing the Tilt-lockout Pin
1. Insert the tilt-lock pin through the vertical holes in the
axle-lockout bracket (Figure 50).
After starting the engine but before operating the machine at
the work site, do the following:
2. Secure the pin to the lockout bracket with the hairpin
(Figure 50).
• Ensure that the ROPS and the seat belt are properly
installed and in good working order.
• Ensure that all instruments are working properly.
• Ensure that all attachments are working properly in a
Tilting the Machine
Use the machine tilt feature to compensate for side-to-side
tilt when operating the machine across a slope.
clear, open area.
1. Start the engine and warm it up.
• Push the upper part of this switch down (Figure 51) to tilt
2. Raise the engine speed to the desired level.
the machine right for inclined terrain.
3. Raise the attachments.
• Push the lower part of this switch down (Figure 51) to tilt
4. Release the parking brake.
the machine left for inclined terrain.
38
Note: You must sit in the operator seat before you
move the machine; otherwise, the machine will not
move.
Note: The utility-traction lever controls the speed of
the machine. The farther that you move the lever from
the Neutral position, the faster the machine moves.
Important: Control the speed of the machine
travel with the utility-traction lever, not the throttle.
5. Check the indicator display frequently.
Figure 53
Using the Power Port
1. Front tie-down point (each
side)
2. Rear tie-down point
Use the power port to provide a 12–volt electrical source for
12–volt accessories and devices, refer to Figure 11.
10. Measure the distance from the ground to the highest
point of the machine.
Transporting the Machine
Note: This is the clearance height to keep in mind
while you transport the machine.
Be sure that you understand the safety rules and laws for the
area in which you are using the machine. Ensure that both
the truck and the machine are equipped with the proper
safety equipment.
11. Remove the blocks from the front and rear trailer
wheels.
12. After you have driven a few miles, stop the truck and
check that your load is secure.
Loading the Machine onto a Trailer
Note: Ensure that the chains are still tight and that the
machine has not moved on the trailer.
1. Ensure that the machine is level and that the tilt-lockout
pin is installed; refer to Tilting the Machine (page 38)
and Installing the Tilt-lockout Pin (page 38).
Unloading the Machine from a Trailer
2. Ensure that the trailer and the ramp can support both
your weight and the weight of the machine; refer to
Specifications (page 20).
1. Block the front and rear trailer wheels.
2. Remove the chains and binders from the machine.
3. Always have the attachments in the Transport position
when you are loading or unloading the machine.
3. Start the engine.
4. Block the front and rear wheels of the trailer.
4. Ensure that the attachments are in the Transport
position.
5. Slowly and carefully move the machine onto the trailer.
5. Slowly move the machine off the trailer.
6. Lower the attachments to the trailer.
Lifting the Machine with a Spreader Bar
7. Engage the parking brake.
8. Stop the engine and remove the key.
1. Attach a crane lift cable to the single-lift point of a
spreader bar.
9. Fasten the front and rear of the machine to the trailer
using chains and a binder (Figure 53).
2. Attach 2 of the lift cables on one end of the spreader
bar to the lift points at the rear of the machine frame.
3. Attach the remaining 2 spreader bar lift cables to the
lift points at the front of the machine frame.
4. Carefully and slowly lift the machine, and lower it to
the desired location.
39
Moving a Non-functioning Machine
Repair a non-functioning machine on the job site, if possible.
Otherwise, you must lift the machine with a spreader bar and
transport the machine to a repair facility.
Completing the Work for the
Day
When you complete your work for the day, do the following:
1. Backfill the spoils in the part(s) of the trench in which
you are finished working.
2. Move the machine to a safe and stable location.
3. Move all levers to the Neutral position.
4. Set the parking brake.
5. Lower all attachments to the ground.
6. Let the machine idle for a few moments to cool it
down.
7. Stop the engine, wait for all moving part to stop, and
remove the ignition key.
8. Turn the battery disconnect switch to the Off position;
refer to Battery-Disconnect Switch (page 20).
Completing the Project
1. After you complete the project, return the spoils back
into the trench with the optional backfill blade or other
soil moving equipment.
A. Move the machine to the end of the trench, a few
meters (feet) away from the spoil pile.
B.
Aim the machine at the outer edge of the pile.
C.
Adjust the blade of the machine to fit the slope
of the ground.
D.
Move the outer edge of the spoil pile toward the
trench.
Note: Make at least 2 passes at the pile to move
it.
E. Repeat the steps above for the spoil pile on the
other side of the trench.
F.
Float the backfill blade over the length of the
trench.
2. Spray the dirt and mud off the machine with water.
Important: Do not spray the console or electrical
components with water.
3. Transport the machine from the completed work site;
refer to Transporting the Machine (page 39).
40
Maintenance
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 100 hours
• Check the oil level in the wheel hubs.
• Check the oil level in the front and rear axles.
After the first 200 hours
• Change the oil in the wheel hubs.
• Change the oil in the axles.
Before each use or daily
•
•
•
•
•
•
•
•
•
•
Drain the water and sediment from the fuel-water separator.
Check the engine-oil level.
Check the coolant level in the reservoir.
Check the hydraulic fluid level in the reservoir.
Check the restricted air-cleaner indicator for a restricted air cleaner.
Inspect the machine.
Check the crankcase breather tube.
Check the air-intake piping for wear, damage, and loose fasteners.
Drain the water from the fuel tank.
Check the tires and wheels for damage.
Every 50 hours
• Maintain the proper air pressure in the tires.
• Check the coolant level in the radiator.
Every 100 hours
• Check the oil level in the transmission.
Every 250 hours
•
•
•
•
•
•
Every 300 hours
• Check the condition of the coolant system components.
• Clean dirt and debris from them and repair or replace damaged cooling system
components as necessary.
Every 500 hours
•
•
•
•
•
•
•
Grease the drive shaft.
Change the engine oil and filter.
Service the fuel filter system.
Change the transmission filter.
Change the hydraulic-charge filter.
Change the hydraulic-return filter.
Check and maintain the ROPS; check it after an accident.
Every 1,000 hours
•
•
•
•
•
•
•
Replace the fuel tank breather.
Change the oil in the wheel hubs.
Change the oil in the axles.
Clean the axle breather for each axle.
Change the transmission oil.
Check the concentration of the coolant.
Change the hydraulic fluid and replace the breather.
Every 2,000 hours
• Clean the cooling system.
Grease the front and rear axles.
Check the charge-air piping.
Check the air-intake piping for wear, damage, and loose fasteners.
Check the oil level in the wheel hubs.
Check the oil level in the front and rear axles.
Check the condition of the engine drive belt.
41
Premaintenance
Procedures
Lubrication
General Safety
Grease Type: Lithium-based grease.
Greasing the Machine
Greasing the Front and Rear Axles
WARNING
Improperly servicing or repairing the machine can
cause injury or death.
Service Interval: Every 250 hours
1. Clean the grease fittings with a rag.
If you do not understand the service procedures
for this machine, contact an Authorized Toro
Service Dealer or obtain the service manual for this
machine.
2. Connect the grease gun to the grease fittings for the
upper and lower pivots; apply 2 or 3 pumps of grease
to each fitting (Figure 54 and Figure 55).
Note: There are 2 grease fittings at the axle pivot for
each tire.
WARNING
Leaving a machine with raised attachments
unattended can cause injury or death.
Before you leave the operating area, always support
or lower the equipment to the ground and stop the
engine.
WARNING
Replace all covers and guards after you service or
clean the machine. Never operate the machine
without the covers or guards in place.
1. Park the machine on a level surface.
2. Lower all attachments, stop the engine, and remove
the key.
3. Allow the engine to cool 2 or 3 minutes.
Figure 54
Front axle
4. Remove the right-side panel; refer to Removing the
Side Panels (page 44).
1. Grease fitting (upper pivot) 2. Grease fitting (lower pivot)
5. Rotate the battery-disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 20).
42
Greasing the Front and Rear Drive
Shafts
Service Interval: Every 500 hours
1. Clean the grease fittings with a rag.
2. Connect the grease gun to the grease fitting for the
slide coupling at the forward end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
Figure 55
Rear axle
1. Grease fitting (upper pivot) 2. Grease fitting (lower pivot)
3. Connect the grease gun to the grease fittings for the
forward- and rear-axle tilt pivots; apply 2 or 3 pumps
of grease to each fitting (Figure 56).
Figure 57
1. Grease fitting (back
universal joint)
2. Grease fitting (forward
universal joint)
3. Connect the grease gun to the grease fitting for the
universal joint at the forward end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
4. Connect the grease gun to the grease fitting for the
universal joint at the back end of the drive shaft, and
apply 2 or 3 pumps of grease to the fitting (Figure 57).
5. Wipe up any excess grease.
Figure 56
1. Grease fittings (4)
4. Wipe up any excess grease.
43
Engine Maintenance
Before maintaining the engine, perform the following steps:
1. Park the machine on level ground, lower all
attachments, and stop the engine.
2. Remove the ignition key and allow the engine to cool
for 2 or 3 minutes.
Accessing the Engine
Removing the Side Panels
1. If the optional backhoe is installed, perform the
following substeps to remove the left side panel;
otherwise, skip to step 2:
A. At the left side of the machine, remove the
retaining pin from the front end of the walkway
(Figure 58).
Figure 59
1. Latch lever
3. Side-panel latch
2. Latch button
4. Lift the panel up and then away from the machine
(Figure 60).
Figure 58
1. Retaining pin
B.
2. Walkway
Figure 60
1. Latch
Pivot the walkway away from the machine as
shown in Figure 58.
2. If the side panel is locked, insert the key for the
side-panel latches into the cylinder of the lock and
unlock the latch.
Note: The key for the side-panel latch is a different
key from the one use to start and run the machine.
3. Press in the button portion of each latch—the part of
the latch including the lock cylinder (Figure 59).
44
2. Side panel
Installing the Side Panels
Servicing the Engine Oil and
Filter
1. Align the side panel with the machine frame.
2. Align the mounting bolt at the top of the side panel
with the hole in the support flange of the hood panel
(Figure 61).
Crankcase capacity: 15.0 L (15.9 US qt) with the filter.
Use only high-quality SAE 15W-40 heavy-duty engine oil with
an API classification of CH-4 or higher.
While SAE 15W-40 oil with an API classification of CH-4 or
higher is recommended for most climates, refer to Figure 62
for oil viscosity recommendations for extreme climates.
°C -40 -30 -20 -10 0 10 20 30 40 50
°C -40 -22 -2 14 32 50 58 86 104 122
All Seasons
15W-40
Winter Conditions
10W-30
Arctic Conditions
°C -40 -30 -20 -10 0 10 20 30 40 50
°C -40 -22 -2 14 32 50 58 86 104 122
Figure 61
1. Hole (support
flange—hood panel)
3. Hood panel
2. Mounting bolt
4. Side panel
5W-30
G022415
Figure 62
Note: Limited use of low-viscosity oils such as SAE 10W-30
with an API classification of CH-4 or higher can be used for
easier starting and providing sufficient oil flow at ambient
temperatures below -5°C (23°F). However, continuous use of
low viscosity oil can decrease engine life because of wear.
3. Apply light inward pressure against the panel at 1 of
the latches.
4. Set the latch by pushing in the latch lever (Figure 59).
5. Repeat steps 3 and 4 at the other latch.
Toro Premium Engine Oil is available from an Authorized
Toro Service Dealer in either 15W-40 or 10W-30 viscosity
with API classification CH-4 or higher. See the Parts Catalog
for part numbers. Also, refer to the Engine Operator's Manual,
included with the machine, for further recommendations.
6. If the backhoe is installed on the machine, do the
following substeps:
A. Rotate the front end of the walkway to its original
position (Figure 58).
B.
Align the hole in the walkway with the hole in the
walkway support bracket (Figure 58).
C.
Install the retaining pin through the holes.
Changing the Engine Oil and Filter
Service Interval: Every 500 hours
Draining the Engine Oil
1. Run the engine until the water temperature reaches
60°C (140°F).
Note: Warm oil drains better and carries more
contaminants.
2. Stop the engine.
3. Remove the right side panel; refer to Removing the
Side Panels (page 44).
4. Place a drain pan that has a minimum capacity of 20 L
(21 US qt) under the engine-oil drain fitting (Figure 63).
45
Figure 65
1. Oil-filter head
Figure 63
1. Engine-oil drain fitting
2. Oil filter
3. Rotate the oil filter to the left and remove the oil filter
(Figure 65).
5. Remove the cap from the drain fitting and allow the
engine oil to drain completely (Figure 63).
Note: Recycle the used oil filter according to local
codes.
Note: Removing the oil-fill cap from the valve cover
helps to drain the engine oil (Figure 64).
4. Use a rag to wipe clean the surface of the oil-filter head,
where the oil filter seats.
5. Fill the new oil filter with the specified engine oil.
6. Apply a thin layer of the engine oil to the seal of the
new oil filter.
7. Align the new oil filter to the oil-filter head and rotate
the filter to the right until the seal of the oil filter
contacts the oil-filter head (Figure 65).
8. Hand tighten the oil filter an additional 3/4 to 1 full
turn (Figure 65).
Note: Do not use an oil filter wrench to tighten the
new oil filter. The wrench can dent an oil filter, causing
a leak.
9. Remove the small oil pan from under the oil filter.
10. Wipe up any spills and recycle the used oil according
to local codes.
11. Install the side panel; refer to Installing the Side Panels
(page 45).
Figure 64
1. Filler neck
2. Oil-fill cap
Filling the Engine with Oil
3. Funnel
1. Remove the oil-fill cap from the valve cover by rotating
the cap and pulling it upward (Figure 63).
Note: Use a funnel with a flexible hose to direct the
engine oil into the engine.
6. Clean the mating surfaces of the cap and the drain
fitting.
7. Install the cap onto the drain fitting (Figure 63).
2. Fill the crankcase with approximately 15.0 L (15.9 US
qt) of the specified engine oil; refer to Servicing the
Engine Oil and Filter (page 45).
Changing the Engine Oil Filter
3. Install the oil-fill cap.
1. Remove the right side panel; refer to Removing the
Side Panels (page 44).
2. Place a small drain pan under the oil filter (Figure 65).
4. Start the engine, run it at idle for about 2 minutes, and
check for oil leaks.
46
Checking the Charge-air
Piping
Important: The oil pressure gauge must indicate
engine oil pressure within 15 seconds after you
start the engine. If there is no indication of engine
oil pressure within 15 seconds, shut off the engine
immediately to avoid damaging the engine and
check that the engine oil level is correct.
Service Interval: Every 250 hours
Inspect the charge-air piping and hoses (Figure 67) for leaks,
holes, cracks, or loose connections, and tighten any loose
connections.
5. Stop the engine and remove the key.
6. Wait 5 minutes and check the oil level; refer to steps 4
through 8 in Checking the Engine-Oil Level (page 24).
7. Install the side panel; refer to Installing the Side Panels
(page 45).
Checking the Crankcase
Breather Tube
Service Interval: Before each use or daily
1. Inspect the crankcase breather tube (Figure 66) for
sludge, debris, or ice inside the tube.
Figure 67
1. Charge-air pipe (right)
Servicing the Air-cleaner
System
Figure 66
1. Front of machine
Important: Do not remove the air-cleaner elements
from the machine and operate the engine to check for
a restriction; dirt and debris could enter the engine and
cause premature wear. Always follow the instructions in
the following procedures.
2. Crankcase breather tube
2. If you find sludge, debris, or ice inside the breather
tube, clean the tube with detergent and warm water
or a solvent.
Note: Check the primary and secondary air-cleaner elements
when the restricted air-cleaner light comes on.
3. Dry the tube with compressed air.
4. Inspect the tube for cracks or damage; replace a cracked
or damaged tube; refer to an Authorized Toro Dealer.
Note: Do not replace an old air cleaner element with an
element that is more than 5 years old; check the date of
manufacture on the end cap of the element.
Note: Every time you service the air cleaner system, ensure
that all hose connections and flanges are air tight. Replace
all damaged parts.
47
Checking the Air-intake Piping
Service Interval: Before each use or daily—Check the
air-intake piping for wear, damage, and
loose fasteners.
Every 250 hours—Check the air-intake piping for
wear, damage, and loose fasteners.
Inspect the air-intake piping for wear, damage, and loose
clamps (Figure 68).
Figure 69
1. Air pre-cleaner
2. Air-cleaner housing
3. Latch (4)
4. Secondary air-cleaner
element
5. Primary air-cleaner
element
6. Air-cleaner cover
3. Remove the primary and secondary air-cleaner elements
from the air-cleaner housing (Figure 69).
4. Use a clean damp cloth to clean the inside of the
cleaner housing (Figure 69).
5. Inspect the primary air-cleaner element, and replace it
if it is damaged or excessively dirty.
Figure 68
6. Inspect the secondary air-cleaner element and replace
it if it is damaged.
1. Charge-air pipe (left)
Note: Replace the secondary air-cleaner element after
you have replaced the primary air-cleaner element 3
times or if the air-cleaner restriction indicator comes
on while the engine is running and you have already
replaced primary air-cleaner element.
• Replace all damaged pipes, and tighten loose clamps to
prevent the air system from leaking.
Note: Torque the loose clamps to 8 N-m (72 in-lb).
• Check for corrosion under the clamps and hoses.
Corrosion can allow corroded debris and dirt to enter
the intake system. Disassemble and clean the clean the
components as necessary.
7. If you replace the element(s), write the current date
and the engine hours on the new air-cleaner element(s)
with a permanent marking pen.
Replacing the Air-cleaner Elements
8. Insert the secondary air-cleaner element into the
air-cleaner housing.
Important: Do not try to clean a dirty primary or
secondary air-cleaner element.
9. Insert the primary air-cleaner element into the
air-cleaner housing.
1. Remove the left side panel; refer to Removing the Side
Panels (page 44).
10. Secure the air-cleaner cover to the air-cleaner housing
with the 4 latches on the housing (Figure 69).
2. Unlatch the 4 latches that hold the air-cleaner cover
and remove the cover (Figure 69).
11. Install the left side panel; refer to Installing the Side
Panels (page 45).
12. Start the engine and check the restricted air-cleaner
indicator; refer to Checking the Restricted Air-Cleaner
Indicator (page 26).
48
Fuel System
Maintenance
Servicing the Fuel System
Draining Water from the Fuel Tank
Service Interval: Before each use or daily
1. Stop the engine.
2. Place a drain pan under the drain plug in the fuel tank.
Figure 71
3. Unscrew the drain plug from the fuel tank and drain
the water (Figure 70).
1. Intake hose (bottom of the
tank)
3. Siphoning equipment
2. Fuel cap
4. Drain pan
2. Route the intake hose of the siphoning equipment
through the filler neck of the fuel tank and to the
bottom of the tank (Figure 71).
3. Direct the discharge hose of the siphoning equipment
into a drain pan (Figure 71).
4. Siphon the tank until clean fuel appears.
5. Remove the siphoning equipment from the tank.
6. Install the fuel cap onto the filler neck of the fuel tank
(Figure 71).
Figure 70
1. Fuel tank
Replacing the Fuel Tank Breather
3. Drain pan
2. Drain plug
Service Interval: Every 1,000 hours
1. Remove the left side panel; refer to Removing the Side
Panels (page 44).
4. When clean fuel appears, install the drain plug and
tighten it securely (Figure 70).
2. At the forward side of the engine compartment panel,
remove the breather from the pipe coupling by rotating
the breather counterclockwise (Figure 72).
5. Check the fuel tank drain plug for leaks.
Siphoning Water from the Fuel Tank
Note: Discard the old breather.
Note: Siphoning water from the fuel tank is an alternative
to draining water from the fuel tank; refer to Draining Water
from the Fuel Tank (page 49).
1. Remove the fuel cap from the fuel tank (Figure 71).
Figure 72
1. Fuel tank breather
49
2. Pipe coupling
3. Install a new breather into the pipe coupling hand tight
(Figure 72).
4. Install the right side panel; refer to Installing the Side
Panels (page 45).
Replacing the Fuel Filters
Service Interval: Every 500 hours
The engine on this machine uses a dual fuel-filter system, with
a primary fuel filter and a secondary fuel filter. The primary
fuel filter includes a fuel-water separator; it is not pressurized
but operates under a vacuum. The secondary fuel filter is for
filtration only and is pressurized by the fuel pump.
Removing the Primary and Secondary Fuel Filters
Important: Clean all around the filter area before
disassembling the fuel filter system. Dirt or
contaminants can damage the fuel system.
Figure 73
1. Filter adapter (primary fuel
filter)
1. Rotate the battery disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 20).
2. Primary-fuel filter
(fuel/water separator)
2. Remove the right side panel; refer to Accessing the
Engine (page 44).
8. Place a small-drain container under the secondary fuel
filter.
3. Clean the area around the primary and secondary fuel
filters.
9. Loosen and remove the secondary fuel filter (Figure
74).
4. Disconnect the wiring harness from the water-in-fuel
sensor.
Note: If necessary, use a filter wrench to loosen the
fuel filter.
Note: Ensure that the O-ring does not stick to the
fuel filter head. Remove the O-ring with an O-ring
pick, if necessary.
Note: The water-in-fuel sensor is located at the
bottom of the fuel/water separator, next to the drain
valve.
5. Place a small-drain container under the drain valve of
the fuel water separator ; refer to Draining Water from
the Fuel-Water Separator (page 23).
Note: The primary fuel filter is a component of the
fuel/water separator.
6. Open the drain valve and allow the fuel-water separator
to drain completely; refer to Draining Water from the
Fuel-Water Separator (page 23).
7. Loosen and remove the primary fuel filter (Figure 73).
Note: If necessary, use a filter wrench to loosen the
fuel filter.
Figure 74
1. Secondary fuel filter
2. Filter adapter (secondary
fuel filter)
Installing the Primary- and Secondary-Fuel Filters
Important: Do not pre-fill the pressure-side fuel filter
with fuel unless you use a clean side block-off plug.
Pre-filling the pressure-side fuel filter without the use of
50
a side block-off plug can allow debris to enter the fuel
system and damage fuel system components.
2. Rotate the battery-disconnect switch clockwise to the
On position; refer to Battery-Disconnect Switch (page
20).
Important: If possible, pre-fill new primary- and
secondary-fuel filters with clean fuel prior to assembly
using the clean side block-off plug packed with the filter.
Do not pour fuel directly into the center of the filter,
because this will allow unfiltered fuel to enter the system
and may damage the fuel system components.
3. Clean the fuel-pump head and the priming pump using
a quick-dry spray cleaner and compressed air (Figure
75).
Note: You must prime the system after you install the fuel
filters.
1. Wipe clean the sealing surfaces of the filter adapters
for the primary- and secondary-fuel filters (Figure 73
and Figure 74).
2. Lubricate the seals for the fuel filters with clean engine
oil.
3. Install the primary-fuel filter onto the filter adapter,
and tighten the filter until the gasket contacts the filter
head surface (Figure 73).
4. Tighten the fuel filter an additional 3/4 turn after
contact.
Important: Do not overtighten the fuel filter.
5. Connect the wiring harness to the water-in-fuel sensor.
Figure 75
6. Install the secondary-fuel filter onto the filter adapter,
and tighten the filter until the gasket contacts the filter
head surface (Figure 74).
1. Priming-pump handle
3. Fuel/water separator
2. Fuel-pump head
7. Tighten the fuel filter an additional 3/4 turn after
contact.
4. Unlock the priming-pump handle by turning it
counterclockwise (Figure 75).
Important: Do not overtighten the fuel filter.
5. Pump the primer handle (Figure 75) until you feel
resistance and the handle cannot be pumped anymore
(approximately 140 to 150 strokes for dry filters or 20
to 60 strokes for pre-filled filters).
8. Bleed the air from the fuel system by priming the
system; refer to Priming the Fuel System (page 51).
Priming the Fuel System
6. Lock the manual priming pump handle by turning it
clockwise until it is fully seated (Figure 75).
WARNING
7. Start the engine; refer to Operating the Engine (page
33).
The fuel system is under high pressure. Bleeding
the system without proper precautions and training
could result in injury to you from injected fluid or
fire or explosion.
• Do not loosen any fittings while the engine is
running.
• Read the engine owner’s manual for the proper
bleeding procedure or contact your Authorized
Toro Service Dealer.
Important: Do not engage the starter motor for
more than 10 seconds at a time. Allow 2 minutes
between cranking intervals.
Note: If the engine does not start after priming the
fuel system and making several attempts to start the
engine, bleed the high-pressure fuel lines; refer to your
engine owner’s manual or contact your Authorized
Toro Service Dealer for assistance.
8. If the engine does not start, pump the priming pump
and repeat steps 4 through 7 until the engine starts.
Prime the fuel system to remove air from the system after the
following events:
• The engine has run until the fuel tank is empty.
• The fuel filters are replaced.
• Parts of the fuel system are removed for repair.
Note: When the engine starts, it may run erratically
and louder than normal for a few minutes. This is
normal, as air is being purged from the system.
9. Operate the engine until it runs smoothly, then check
for any leaks.
1. Ensure that there is fuel in the fuel tank.
51
Servicing the Battery
Electrical System
Maintenance
WARNING
Exposure to battery acid or a battery explosion can
cause serious personal injury.
Maintaining the Battery
Before you service a battery, always wear face
protection, protective gloves, and protective
clothing.
Accessing the Battery
Remove the battery cover as follows:
WARNING
1. Ensure that the battery-disconnect switch is in the Off
position; refer to Battery-Disconnect Switch (page 20).
A battery contains sulfuric acid, which can cause
serious burns; and they can produce explosive
gases.
• Avoid contact with skin, eyes, or clothing; flush
affected areas with water.
• If taken internally, drink large quantities of water
or milk. Do not induce vomiting. Seek medical
attention immediately.
• Keep sparks, flames, and lit cigarettes and cigars
away from the battery.
• Ventilate the battery when you are charging it or
using it in an enclosed area.
• Wear eye protection when working near a
battery.
• Wash your hands after handling a battery.
• Keep the battery out of the reach of children.
2. Remove the 2 finger-pull covers from the holes in the
battery cover.
3. Remove the 4 bolts that secures the battery cover to
the ROPS platform (Figure 76).
Note: The battery cover is located between the
operator seat and the rear ROPS bulkhead.
WARNING
A frozen battery can be explosive, causing personal
injury to you or others in the area, if you try to
charge the battery or try to jump start the battery
and run the engine.
Figure 76
1. Operator seat
4. Bolt
2. Finger-pull cover
5. Nut clip
3. Hole (battery cover)
6. ROPS bulkhead
To prevent the battery electrolyte from freezing,
keep the battery fully charged.
WARNING
4. Using the finger pulls, lift the battery cover up to
remove it from the ROPS platform
Sparks or a flame can cause hydrogen gas in a
battery to explode.
Install the battery cover as follows:
When you disconnect the battery cables, always
disconnect the negative (-) cable first.
1. Align the holes in the mounting flanges for the battery
cover with the plate nuts in the ROPS platform around
the battery (Figure 76).
When you connect the battery cables, always
connect the negative (-) cable last.
2. Secure the battery cover to the ROPS platform with
the 4 bolts (Figure 76).
Do not short-circuit the battery posts with a metal
object.
3. Install the 2 finger-pull covers into the holes of the
battery cover.
Do not weld, grind, or smoke near a battery.
Note: The electrical system in this machine is 12 volts.
52
Connecting a Booster Battery
6. Connect the negative (-) jumper cable to a ground
point, such as the nut at the pivot point for the
alternator (Figure 77).
WARNING
7. Start the engine; refer to steps 1 through 4 in Starting
the Engine (page 33).
Charging the battery produces gasses that can
explode.
Note: If the engine starts and then stops, do not
operate the starter motor until the starter motor stops
turning. Do not operate the starter motor for more
than 30 seconds at one time. Wait 30 seconds before
operating the starter motor to cool the motor and to
build up the charge in the battery.
Never smoke near the battery and keep sparks and
flames away from battery.
Note: This procedure requires 2 people to perform. Ensure
that the person making the electrical connections wears the
proper face protection, protective gloves, and clothing.
8. When the engine starts, have the other person
disconnect the negative (-) jumper cable from the frame
and then disconnect the positive (+) jumper cable.
1. Ensure that all controls are in the Neutral position and
that the parking brake is in the On position.
2. Sit in the operator seat and have the other person make
the connections.
Charging the Battery
Note: Ensure that the jumper battery is a 12-volt
battery.
WARNING
Charging the battery produces gasses that can
explode.
Important: If you are using another machine
for power, ensure that the 2 machines are not
touching each other.
Never smoke near the battery, and keep sparks and
flames away from the battery.
3. Ensure that the battery-disconnect switch is in the On
position; refer to Battery-Disconnect Switch (page 20).
Important: Always keep the battery fully charged. This
is especially important to prevent battery damage when
the temperature is below 32°F (0°C).
4. Remove the cover from the jump post (Figure 77).
1. Clean the exterior of the battery case and the battery
posts.
Note: Connect the leads of the battery charger to
battery posts before connecting the charger to the
electrical source.
2. Connect the positive lead of the battery charger to the
positive-battery post (Figure 79).
4
2
3
1
Figure 77
1. Jump post
4. Starter terminals (Do not
use)
2. Jumper-cable clamp
(positive)
5. Jumper-cable clamp
(negative)
3. Battery disconnect switch
6. Ground point (engine
case)
G003792
Figure 78
5. Connect the positive (+) jumper cable to the jump post
(Figure 77).
1. Positive-battery post
3. Red (+) charger lead
2. Negative-battery post
4. Black (-) charger lead
3. Connect the negative lead of the battery charger to the
negative-battery post (Figure 78).
53
4. Connect the battery charger to the electrical source.
Important: Do not overcharge the battery.
Note: Charge the battery as shown in the following
table:
Battery Charging Settings and Times
Charger Setting
Charging Time
4 to 6 amperes
30 minutes
25 to 30 amperes
10 to 15 minutes
Figure 80
5. When the battery is fully charged, unplug the charger
from the electrical source, then disconnect the charger
leads from the battery posts (Figure 78).
Replacing a Fuse
1. Hex-flanged bolts (5/16 x
3/4 inch)
4. Fuse block
2. Cover
3. Console
5. Fuses
4. Locate the open fuse and replace it with a fuse of the
same type and amperage (Figure 80).
1. Remove the left and right side panel; refer to Removing
the Side Panels (page 44).
5. Check that the new electrical components function.
6. Align the hole in the cover with the nut clips on the
flanges of the console (Figure 80).
2. Rotate the battery-disconnect switch counterclockwise
to the Off position (Figure 79).
7. Secure the cover to the console with the 4 hex-flanged
bolts that you removed in step 3.
8. Rotate the battery-disconnect switch clockwise to the
On position (Figure 79).
9. Install the left and right side panel; refer to Installing
the Side Panels (page 45).
Figure 79
1. Battery-disconnect switch
in the On position
2. Battery-disconnect switch
in the Off position
3. Remove the 4 hex-flanged bolts (5/16 x 3/4 inch) that
secure the cover to the console and remove the cover
(Figure 80).
54
Drive System
Maintenance
Note: Before you add air, ensure that the tire is
properly installed on the machine, or put the wheel in a
restraining device, such as a tire inflation cage.
2. Remove the cap from the valve stem.
Servicing the Tires
3. Attach the self-locking chuck of the air hose to the
valve stem.
4. When inflating the tire while it is mounted to the
machine, stand behind the tread of the tire.
WARNING
Exploding tires and/or rim parts can cause injury
or death.
Note: Ensure that all persons are away from the side
of the tire before you start to add air.
Keep yourself and others out of the area of danger.
Stand on the tread side of the tire. Always fill
the tires to the correct air pressure, and follow
the instructions in this manual for adding air or
servicing the tires.
5. Open the remote shutoff valve to inflate the tire to the
specified pressure, then close the valve.
Important: Do not inflate the tire more than the
recommended pressure.
6. Remove the air chuck from the valve stem.
7. Install the cap on the valve stem.
WARNING
Do not weld the wheel or rim with the tire installed.
Welding with an explosive air/gas mixture can
ignite, causing serious injury or death, regardless of
whether the tire is inflated or deflated.
Maintaining the Tires and Wheels
Always have a qualified tire technician service the tires and
wheels of this machine. To prevent accidents, use a restraining
device (such as a tire inflation cage), the correct equipment,
and the correct procedure.
Removing the air or breaking the bead is not
adequate; you must completely remove the tire from
the rim before welding.
Important: There are 2 different tire-tread pattern and
wheel combinations; the left-side tires and the right-side
tires are different. Ensure that the tread direction of the
tire and the valve stem in the wheel are correctly aligned
before installing the tire to the rim.
WARNING
An explosive separation of the tire and/or rim parts
can cause injury or death.
Have a qualified tire mechanic service the tire.
Checking the Tires and Wheels
Service Interval: Before each use or daily
1. Check each tire for embedded objects, separated plies,
missing tread, bulges, or a damaged bead, and replace
it, if necessary.
2. Check each wheel for signs of unusual bending or
damage, and replace it, if necessary.
Figure 81
Maintaining the Air Pressure in the
Tires
1. Left-side tire
3. Right-side tire
2. Forward
4. Valve stem
Service Interval: Every 50 hours
Torquing the Wheel Nuts
Important: Maintain the air pressure in the tires at 310
kPa (45 psi).
1. Ensure that the mounting flange of the wheel is flush
against the mounting flange of the axle.
1. Measure the air pressure in the tires; if the tire pressure
is not at the recommended pressure, complete the rest
of this procedure.
2. Incrementally torque the wheel nuts for each wheel
as follows:
Important: Use an air hose with a remote shutoff
valve and a self-locking chuck.
A. Torque the all wheel nuts to 100 N-m (75 ft-lb) in
the sequence shown in Figure 82.
55
Servicing the Axles
Hub-and-axle oil specification: Mobilfluid 424
Checking the Oil Level in the Wheel
Hubs
Service Interval: After the first 100 hours
Every 250 hours
Note: Have another person help you align the oil plugs in
the axles when you service the axle oil.
1. Ensure that the machine is on a level surface and that
all the attachments are in the transport position.
2. Move the machine forward or backward until the plug
for the wheel hub is at either the 3 o’clock or 9 o’clock
position (Figure 83).
Figure 82
B.
Torque all the nuts to 200 N-m (150 ft-lb) in the
sequence shown in Figure 82.
C.
Torque all the nuts to 300 N-m (225 ft-lb) in the
sequence shown in Figure 82.
Figure 83
1. Wheel hub
4. Drain pan
2. Oil port at the 9 o’clock
position
5. Oil port at the 3 o’clock
position (alternative)
3. Plug
3. Stop the engine, set the parking brake, and remove the
ignition key.
4. Place a drain pan under the drain port in the wheel hub
(Figure 83).
5. Remove the plug from the wheel hub (Figure 83).
6. Check that the oil level is at the bottom of the threads
of the oil port (Figure 83).
• If the oil level is too high, allow the oil to drain
from the oil port.
• If the oil level is too low, add the specified oil to the
wheel hub through the oil port; refer to step 6 in
Changing the Oil in the Wheel Hubs (page 57).
7. Check the condition of the O-ring on the plug.
Note: Replace the O-ring if it is worn or damaged.
8. Install the plug in the oil port of the wheel hub (Figure
83).
9. Repeat steps 2 through 8 for the other wheel hubs.
56
Changing the Oil in the Wheel Hubs
7. Install the plug in the oil port of the wheel hub.
Service Interval: After the first 200 hours
8. Repeat this procedure for the other wheel hubs.
Every 1,000 hours
Checking the Oil Level in the Axles
Wheel hub oil capacity: approximately 1.5 L (1.6 US qt)
Service Interval: After the first 100 hours
Toro Premium Gear Oil is available from an Authorized Toro
Service Dealer. See the parts catalog for part numbers.
Every 250 hours
1. Place a drain pan under the pinion housing of the axle.
Note: If possible, change the oil when it is warm.
2. Remove the plugs from the sight port in the pinion
housing of the axle (Figure 85 and Figure 86).
1. Move the machine forward or backward until the oil
plug for the wheel hub is at the 6 o’clock position
(Figure 84).
Figure 85
Front Axle
Figure 84
1. Wheel hub
4. Oil port at the 3 o’clock
position
1. Front-axle housing
2. Oil port at the 6 o’clock
position
5. Plug
2. Plug
3. Drain pan
6. Oil-servicing equipment
2. Place a drain pan under the oil port of the wheel hub
(Figure 84).
3. Remove the plug and drain the oil from the planetary
(Figure 84).
4. Check the condition of the O-ring for the plug.
Note: Replace the O-ring if it is worn or damaged.
5. Move the machine forward or backward until the oil
plug for the wheel hub is either at the 3 o’clock or the 9
o’clock position (Figure 84).
6. Add the specified oil to the wheel hub through the oil
port until the oil level is at the bottom of the threads
of the port.
57
3. Sight port
Figure 87
Front Axle
1. Drain plug
3. Drain port
2. Drain pan
4. Front-axle housing
Figure 86
Rear Axle
1. Rear-axle housing
3. Plug
2. Forward
4. Site port
3. Look through the sight port and check that the oil level
in the axle is level with the bottom of the threads of
the port (Figure 85 and Figure 86).
Figure 88
Rear Axle
Note: Use a flashlight and a mirror to help you see
the oil level.
• If the oil level is too high, allow the oil to drain
from the sight port.
• If the oil level is too low, add the specified oil to
the axle housing sight port; refer to steps 6 and 7 in
Changing the Oil in the Axles (page 58).
4. Clean the threads of the sight plug.
5. Apply PTFE thread sealing tape to the threads of the
plug.
6. Install the sight plug into the sight port in the pinion
housing of the axle (Figure 85 and Figure 86).
1. Drain plug
3. Drain port
2. Drain pan
4. Rear-axle housing
2. Remove the plugs from the sight port and the drain
port of the pinion housings for the axles (Figure 87
and Figure 88).
Note: Allow the oil to drain completely from the
pinion housing and axle.
3. Clean the threads of the plugs.
4. Apply PTFE thread sealing tape to the threads of the
plugs.
Changing the Oil in the Axles
5. Install the drain plugs into the drain ports at the pinion
housings (Figure 89 and Figure 90).
Service Interval: After the first 200 hours
Every 1,000 hours
Front axle oil capacity: approximately 9 L (9.5 US qt)
Rear axle oil capacity: approximately 9 L (9.5 US qt)
Toro Premium Gear Oil is available from an Authorized Toro
Service Dealer. See the parts catalog for part numbers.
1. Place a drain pan under the pinion housing of the axle
(Figure 87 and Figure 88).
58
Figure 89
Front Axle
Figure 90
Rear Axle
1. Front-axle housing
4. Pinion housing
1. Rear-axle housing
4. Fill plug
2. Oil-servicing equipment
5. Sight port
2. Forward
5. Sight port
3. Fill plug
3. Oil-servicing equipment
6. Fill the axles with the specified oil through the sight
port until the oil is level with the threads at the bottom
of the port (Figure 89 and Figure 90).
7. Wait a few minutes for the oil to settle, then add more
oil as necessary.
Note: Continue to add oil until the oil level stabilizes
and is at the bottom of the threads of the sight port.
8. Install the fill plugs into the sight ports of the pinion
housings for the axles (Figure 89 and Figure 90).
59
Cleaning the Axle Breathers
Servicing the Transmission
Service Interval: Every 1,000 hours
Transmission-oil specification: Mobilfluid 424
1. Clean the area around the breathers with a cleaning
solvent (Figure 91 and Figure 92).
Checking the Oil Level in the
Transmission
Service Interval: Every 100 hours
Important: If you operate the machine while the level of
the transmission oil is below the recommended level, you
may damage the transmission and the parking brake.
1. Park the machine on a level surface.
2. Start the engine and run it for 10 minutes.
3. Stop the engine and remove the ignition key.
4. After 5 minutes, check the transmission oil level in the
sight gauge (Figure 93).
Figure 91
1. Breather fitting
Note: The oil level should cover 1/2 to 3/4 of the
sight-gauge window.
2. Front axle
Figure 92
1. Breather fitting
2. Rear axle
2. Remove the breathers from the front axle and rear
axles (Figure 91 and Figure 92).
3. Clean the breathers with a cleaning solvent.
4. Use compressed air to dry the breathers.
Important: Wear face protection when using
compressed air.
Figure 93
1. Sight gauge
5. Install the breathers into the front and rear axles(Figure
91 and Figure 92).
5. If the oil level is low, add the specified oil into the
transmission; refer to Filling the Transmission with Oil
(page 61).
6. Repeat steps 2 through 5 until the oil level covers 1/2
to 3/4 of the sight-gauge window (Figure 93).
Note: As you add oil to the transmission, perform
steps 2 through 4 to determine the corrected oil level.
60
Changing the Transmission Oil
3. Apply PTFE thread sealing tape to the threads of the
plug.
Service Interval: Every 1,000 hours
4. Fill the transmission with the specified oil through the
fill port (Figure 95).
Draining the Transmission Oil
Important: When you fill the transmission with
oil, slowly add the oil into the transmission to
avoid entraining air with the oil.
Note: If possible, drain the oil when it is warm.
1. Park the machine on a level surface, stop the engine,
and remove the key.
2. Place a drain pan under the forward hole in the
transmission shield (Figure 94).
Figure 95
1. Oil-servicing equipment
3. Fill plug
2. Fill port
5. Install the fill plug into the fill port securely
Figure 94
1. Transmission shield
6. Start the engine and run it for 10 minutes.
3. Drain plug
7. Stop the engine and remove the key.
2. Drain pan
8. After 5 minutes, check the oil level in the sight gauge.
3. Through the transmission shield, clean the area around
the transmission drain plug (Figure 94).
Note: The oil level should cover 1/2 to 3/4 of the
sight-gauge window (Figure 93).
4. Remove the drain plug and allow the transmission to
drain completely.
Note: As you add oil to the transmission, perform
steps 6 through 8 to determine corrected oil level.
5. Clean the threads of the plug.
6. Apply PTFE thread sealing tape to the threads of the
plug.
7. Through the transmission shield, securely install the
drain plug into the drain port of the transmission.
Filling the Transmission with Oil
Transmission oil capacity: approximately 10 L (10.6 US
qt)—with filter change
Important: If you operate the machine while the level of
the transmission oil is below the recommended level, you
may damage the transmission and the parking brake.
1. Remove the fill plug from the fill port of the
transmission.
2. Clean the threads of the plug.
61
Changing the Transmission Filter
9. Check the transmission oil level; if the level is low, add
the specified oil to the transmission; refer to Filling the
Transmission with Oil (page 61).
Service Interval: Every 500 hours
Note: You can access the transmission filter from underneath
the right side of the machine, inboard of the hydraulic tank.
Important: When you fill the transmission with
oil, slowly add the oil into the transmission to
avoid entraining air with the oil.
1. Place a drain pan under the transmission-oil filter
(Figure 96).
Figure 96
1. Forward
3. Sharp object
2. Transmission-oil filter
4. Drain pan
2. Puncture the bottom of the transmission filter, and
allow the residual hydraulic fluid to drain into the drain
pan (Figure 96).
Note: Use a tapered-center punch or awl to puncture
the filter case
3. Remove the transmission filter with a filter wrench and
discard the filter (Figure 96).
4. Wipe clean the oil filter adapter at the seating surface
for the filter.
5. Apply a thin layer of clean grease or oil onto the O-ring
of the new filter.
6. Install the new filter by hand and tight the filter 1/2
to 3/4 turn after it makes contact with the filter head
(Figure 96).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
7. Start the engine and run it at idle for 1 minute, and
check for leaks.
8. Stop the engine and remove the key.
62
Cooling System
Maintenance
3. Remove the left side panel; refer to Removing the Side
Panels (page 44).
Servicing the Cooling System
4. Check the coolant level by looking at the sight gauge in
the side of the surge tank (Figure 97).
2. Allow the engine to cool.
Note: You should see that the coolant level is above
the midpoint of the sight gauge.
Coolant specification: a mixture of 50% ethylene glycol
and 50% water
Note: An antifreeze having a mixture of 50% ethylene
glycol and 50% water will protect the engine to -37°C (-34°F)
throughout the year.
Engine and radiator coolant capacity: 18.5 L (19.5 US qt)
Important: Using over-concentrated or high-silicate
antifreeze can damage the engine.
WARNING
If you remove the recovery-tank cap from a hot
engine, hot coolant could spray, causing scalding.
• Wear face protection when opening the radiator
cap.
• Allow the cooling system to cool down to below
50°C (120°F) before removing the recovery-tank
cap.
• Follow the instructions for checking and
maintaining the engine cooling system.
Figure 97
1. Reservoir door
2. Hex-head bolt
4. Filler neck
5. Recovery-tank cap
3. Coolant sight gauge
WARNING
Coolant is toxic.
• Keep coolant away from children and pets.
• If you are not re-using the coolant, dispose of it
according to local environmental regulations.
5. If the coolant level is low, preform the following:
A. Remove the 2 hex-head bolts that secure the to
the hood of the machine, and open the reservoir
door (Figure 97).
B.
Checking the Coolant Level
Service Interval: Every 50 hours
Remove the recovery-tank cap from the recovery
tank, and add coolant until the level is up to the
midpoint of the sight gauge (Figure 97).
Important: Do not overfill the surge tank
WARNING
Note: If coolant level is low, check for leaks in
the hoses, radiator, and the recovery tank.
If the engine has been running, the radiator will be
pressurized and the coolant inside will be hot. If
you remove the cap, coolant may spray out, causing
severe burns.
• Do not remove the recovery-tank cap to check
coolant levels.
• Do not remove the recovery-tank cap when the
engine is hot. Allow the engine to cool for at
least 15 minutes or until the radiator cap is cool
enough to touch without burning your hand.
C.
Install the recovery-tank cap, ensuring that it is
tightly sealed.
D.
Close the reservoir door and secure it with the 2
hex-head bolts that you removed in step A.
6. If the air temperature is below 0°C (32°F), mix the
ethylene glycol and water completely by running the
engine at operating temperature for 5 minutes.
7. Install the left side panel; refer to Installing the Side
Panels (page 45).
1. Park the machine on a level surface, stop the engine,
and remove the ignition key.
63
Checking the Condition of Cooling
System Components
Service Interval: Every 300 hours
Check the condition of the cooling system for leaks, damage,
dirt, and loose hoses, and clamps. Clean, repair, tighten, and
replace the components as necessary.
Checking the Concentration of the
Coolant
Service Interval: Every 1,000 hours
Test the concentration of ethylene glycol based antifreeze in
the coolant . Ensure that the coolant is a mixture of 50%
ethylene glycol and 50% water.
Cleaning the Cooling System
Service Interval: Every 2,000 hours/Every 2 years
(whichever comes first)
Figure 98
1. Drain valve
The coolant capacity of the engine and the radiator: 18.5
L (19.5 US qt).
3. Drain hose (coolant
resistant)
2. Hose clamp
Draining the Coolant from the System
5. Secure the hose to the drain valve with a hose clamp
(Figure 98).
Important: Do not pour coolant onto the ground or into
an unapproved container that can leak.
6. Route the hose down and through the hole in the lower
mounting plate for the back fill blade (Figure 99).
1. Remove the left and right side panels; refer to
Removing the Side Panels (page 44).
2. Remove the 2 hex-head bolts that secure the reservoir
door to the hood and open the door (Figure 97).
3. Remove the recovery-tank cap from the tank (Figure
97).
4. Slip a coolant resistant hose that is 3/8 x 30 inches over
the outlet for the drain valve in the radiator (Figure 98).
Figure 99
1. Front of the machine
4. Drain hose (coolant
resistant)
2. Up
5. Drain pan—minimum
capacity of 23 L (6 gallons)
3. Hole (lower mounting
plate)
7. Place a drain pan with a minimum capacity of 23 L (6
gallons) under the open end of the drain hose (Figure
99).
8. Open the drain valve on the radiator, and allow the
coolant to drain completely.
64
Note: Dispose of the used coolant properly according
to local codes.
Figure 100
1. Drain valve
9. Close the drain valve (Figure 100).
Figure 101
10. Remove the drain hose and clamp (Figure 98 and
Figure 99).
1. Reservoir door
2. Filler neck (recovery tank)
Flushing the Cooling System
3. Funnel
4. Coolant system cleaning
solution
Engine and radiator coolant capacity: 18.5 L (19.5 US qt)
C.
1. Condition the cooling system as follows:
A. Ensure that the coolant is drained from the
radiator and that the drain valve is closed (Figure
100).
B.
Operate the engine for 5 minutes or until the
coolant temperature in the command-center
display indicates 82°C (180°F), then stop the
engine (Figure 102).
Important: Do not install the recovery-tank
cap.
Add a cooling system cleaning solution to the to
the cooling system through the filler neck of the
recovery tank (Figure 101).
Note: Use cleaning solution of sodium carbonate
and water (or a commercially available equivalent).
Follow the directions that come with the cleaning
solution.
Figure 102
1. 180° F water temperature (command-center display)
CAUTION
The cleaning solution is hot and can
cause burns.
Stay away from the discharge end of the
coolant drain hose.
65
D.
Open the drain valve and drain the cleaning
solution into a drain pan (Figure 98 and Figure
100).
cooling system properly can damage both the engine
and the cooling system.
1. Remove the radiator cap from the recovery tank
(Figure 97).
E. Close the drain valve (Figure 100).
2. Flush the cooling system as follows:
2. Fill the cooling system with the specified coolant
mixture (Figure 104) until the fluid level is up to the
midpoint in the sight gauge (Figure 97).
A. Fill the cooling system with clean water (Figure
103).
Figure 104
Figure 103
1. Filler neck (recovery tank)
1. Coolant level (midpoint in
the sight gauge)
3. Clean water
2. Funnel
3. Coolant (a mixture of 50%
ethylene glycol and 50%
water)
2. Funnel
B.
Operate the engine for 5 minutes or until the
coolant temperature in the command-center
display indicates 82°C (180°F), then stop the
engine.
3. Install the recovery-tank cap (Figure 97).
4. Start the engine and run it at half throttle for 5 minutes.
5. Stop the engine and remove the key.
CAUTION
6. Wait 30 minutes, then check the fluid level in the
recovery tank. If it is low, add coolant.
The water is hot and can cause burns.
7. Close the reservoir door and secure it to the hood with
the 2 hex-head bolts (Figure 97) that you removed in
step 2 of Draining the Coolant from the System (page
64).
Stay away from the discharge end of the
coolant drain hose.
C.
D.
Open the drain valve (Figure 100) and drain the
water into a drain pan.
8. Install the side panels; refer to Installing the Side Panels
(page 45).
If the water drained from the radiator is dirty,
perform steps 2-A through 2-C until the water
drained from the radiator is clean.
E. Close the drain valve (Figure 100).
Filling the System with Coolant
The coolant capacity of the engine and the radiator: 18.5
L (19.5 US qt).
Important: Fill the cooling system properly to prevent
air locks in the cooling passages. Failing to vent the
66
Belt Maintenance
Servicing the Engine Drive
Belt
WARNING
Stop the engine and remove the key from the
key switch before you begin to perform any
maintenance or repair work.
WARNING
Figure 105
Contacting a rotating belt can cause serious injury
or death.
1. Belt tensioner
Always stop the engine and remove the key from the
key switch before working near belts.
3. Remove the belt from the pulleys.
Checking the Condition of the Belt
Cleaning and Inspecting the Belt and
the Pulleys
Service Interval: Every 250 hours
1. Inspect the belt for excessive wear and damage.
Replace the belt under any of the following conditions:
1. Remove the right-side panel; refer to Removing the
Side Panels (page 44).
• The belt is frayed, punctured, or some of its
2. Inspect the belt for cuts, cracks, loose cords, grease, oil,
twisting, or signs of abnormal wear.
material is missing.
• There is embedded debris in the grooves or on the
Note: Replace the belt if it is excessively worn or
damaged; refer to Replacing the Engine Drive Belt
(page 67).
backside of the belt.
• The ribs are uneven or excessively worn.
• The backside of the belt is glazed from high heat.
• There are exposed belt cords.
3. Install the right-side panel; refer to Installing the Side
Panels (page 45).
Note: You can reuse a belt with transverse cracks
(across the belt) are acceptable, but replace a belt with
longitudinal cracks (in the direction of the ribs) that
intersect with transverse cracks.
Replacing the Engine Drive
Belt
2. Clean the idler and the drive pulleys, and inspect them
for wear or cracks.
Removing the Belt
1. Remove the right side panel; refer to Removing the
Side Panels (page 44).
Note: Replace any pulleys that are damaged,
deformed, or excessively worn.
2. Loosen the tension on the belt by rotating the belt
tensioner clockwise (Figure 105).
Installing the Belt
Important: The belt tensioner is spring loaded
and must pivot away from the drive belt. Pivoting
the belt tensioner in the wrong direction could
damage it. Also, do not use excessive force in
the opposite direction of windup or after you
have wound up the tensioner to the positive stop;
otherwise, the tensioner arm may break.
1. Route the belt onto the pulleys, but do not install the
belt over the belt tensioner (Figure 105).
2. Rotate the belt tensioner clockwise and install the belt
by slipping the belt over the belt tensioner.
3. Slowly release the belt tensioner to apply tension to
the drive belt.
4. Ensure that the belt is aligned with the belt tensioner
and in the grooves of the pulleys.
67
Hydraulic System
Maintenance
Changing the Hydraulic Fluid and
Replacing the Breather
Servicing the Hydraulic
System
The capacity of the hydraulic-fluid reservoir: 150 L (40
US gallons)
Service Interval: Every 1,000 hours
The capacity of the hydraulic-fluid system: 182 L (48
US gallons)
Hydraulic-fluid specification: Toro Premium All-season
Hydraulic Fluid
Draining the Hydraulic Reservoir
If Toro Premium All-season Hydraulic Fluid is not available,
you may use Mobil DTE 15M Special (Mobil DTE 15M fluid
with special antiwear additive package).
Note: Drain the hydraulic fluid reservoir when the fluid is
warm, if possible.
1. Remove the right side panel; refer to Removing the
Side Panels (page 44).
Note: Toro Premium All-season Hydraulic Fluid is available
in 5-gallon pails or 55-gallon drums. See the parts catalog or
an Authorized Toro Service Dealer for part numbers.
2. Rotate the battery disconnect to the Off position
(Figure 106).
The machine comes from the factory with a full hydraulic
fluid reservoir that contains approximately 182 L (48 US
gal) of high-quality hydraulic fluid. Check the level of the
hydraulic fluid before you start the engine for the first
time, and daily thereafter.
Note: Toro does not assume responsibility for damage
caused by improper substitutions, so use only products from
reputable manufacturers.
Note: Many brands of hydraulic fluids are almost colorless,
making it difficult to spot leaks. A red dye additive for the
hydraulic system oil is available in 20 ml (0.68 oz) bottles.
One bottle is sufficient for 15.1 to 22.7 L (4.0 to 6.0 US gal)
of hydraulic oil. Order part no. 44-2500 from an Authorized
Toro Service Dealer.
Figure 106
Note: If ambient operating temperatures exceed 110°F,
contact Toro for fluid recommendations.
1. Fill cap (hydraulic tank)
4. Pipe coupling
2. Filler neck (hydraulic tank)
5. Battery disconnect switch
(Off position)
3. Breather
3. Remove the fill cap from the filler neck of the tank
(Figure 106).
4. At the forward side of the engine compartment panel,
remove the breather from the pipe coupling by rotating
the breather counterclockwise (Figure 106).
Note: Discard the old breather.
5. Install a new breather into the pipe coupling hand tight
(Figure 106).
6. Place a container that can hold a minimum of 190 L
(50 US gal) under the hydraulic reservoir drain plug
(Figure 107).
68
Figure 107
1. Fill cap
3. Plug
2. Sight gauge (hydraulic
reservoir)
4. Drain pan
Figure 108
7. Remove the drain plug from the hydraulic reservoir
(located underneath the reservoir), and drain the
reservoir (Figure 107).
1. Fill level (midpoint)
3. Hydraulic fluid
2. Sight gauge
8. Examine the condition of the seal on the drain plug.
Note: Replace the seal if it is worn or damaged.
2. Clean the fill cap with solvent.
9. Install the drain plug (Figure 107).
3. Install the fill cap (Figure 108).
Important: Change the hydraulic-pressure
and hydraulic-return filters when you change
the hydraulic fluid; refer to Changing the
Hydraulic-charge Filter (page 70) and Changing
the Hydraulic-return Filter (page 71).
4. Start the engine and let it idle for approximately 2
minutes.
5. Stop the engine and remove the key from the key
switch.
6. Check around the pressure and return filters for leaks.
10. Rotate the battery disconnect switch to the On
position and install the right side panel; refer to
Battery-Disconnect Switch (page 20) and Installing the
Side Panels (page 45).
7. Check the drain plug for leaks.
8. Check the level of the hydraulic fluid.
Filling the Hydraulic-fluid Reservoir
1. Fill the hydraulic-fluid reservoir with the specified
hydraulic fluid until the fluid level is at the midpoint of
the sight gauge (Figure 108).
69
Changing the Hydraulic Filters
Removing the Traction-pedal Assembly
Remove the traction-pedal assembly as follows:
1. Remove the 4 hex-flanged head bolts that secure that
traction-pedal assembly to the chassis of the machine
(Figure 109).
Figure 110
1. Container suitable for
hydraulic fluid
Figure 109
1. Hex-flanged head bolts
3. 6-pin connector
(traction-pedal sensor)
2. Traction-pedal assembly
4. 6-socket connector
(machine harness)
3. Hydraulic-charge filter
2. Sharp object
3. Rotate the hydraulic-charge filter counterclockwise and
remove the filter (Figure 110).
Note: Discard the filter.
2. Disconnect the 6-socket connector of the machine
harness from the 6-pin connector of the traction-pedal
sensor (Figure 109).
4. Apply a thin layer of the specified hydraulic fluid to
the O-ring of the new filter.
3. Remove the traction-pedal assembly from the machine
(Figure 109).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
5. Fill the new charge filter with the specified hydraulic
fluid, allow the filter element to saturate with the fluid,
and then pour out the excess fluid.
Changing the Hydraulic-charge Filter
Service Interval: Every 500 hours
Note: Change the hydraulic-return filter when you change
the hydraulic-charge filter.
6. Install the new filter.
Note: Use your hands to tighten the filter an additional
half turn after the filter makes contact with the filter
head.
Note: You can access the hydraulic-charge filter from under
the right side of the machine, behind the hydraulic reservoir
(Figure 110).
7. Repeat steps 3 through 6 for the other charge filter
1. Remove the traction-pedal assembly; refer to Removing
the Traction-pedal Assembly (page 70).
8. Check the level of the hydraulic fluid in the hydraulic
reservoir; refer to Checking the Hydraulic-Fluid Level
(page 25).
2. Place a container under the hydraulic-charge filter
(Figure 110).
9. Start the engine and let it idle for 1 or 2 minutes.
10. Shut off the engine, and check for leaks around the
filter area.
11. Check the level of the hydraulic fluid in the hydraulic
reservoir, and add fluid, if necessary; refer to Filling the
Hydraulic-fluid Reservoir (page 69).
70
Note: Use a tapered-center punch or awl to puncture
the filter case.
12. Install the traction-pedal assembly; refer to Removing
the Traction-pedal Assembly (page 70).
3. Rotate the hydraulic-return filter counterclockwise and
remove the filter (Figure 111).
Installing the Traction-pedal Assembly
1. Connect the 6-socket connector of the machine
harness to the 6-pin connector of the traction-pedal
sensor (Figure 109).
Note: Discard the filter properly.
4. Apply a thin layer of the specified hydraulic fluid to
the O-ring of the new filter.
2. Align the holes in the plate of the traction-pedal
assembly with the holes in the chassis of the machine
(Figure 109).
Important: Do not use a filter strap wrench to
tighten the filter. A strap wrench can dent the
filter, causing it to leak.
3. Secure the traction-pedal assembly to the chassis of
the machine with the 4 hex-flanged head bolts (6 x 25
mm); refer to Figure 109.
5. Install the new filter.
Note: Use your hands to tighten the filter an additional
half turn after the filter makes contact with the filter
head.
Changing the Hydraulic-return Filter
Service Interval: Every 500 hours
6. Check the level of the hydraulic fluid in the hydraulic
reservoir; refer to Checking the Hydraulic-Fluid Level
(page 25).
Note: Change the hydraulic-charge filter when you change
the hydraulic-return filter.
7. Start the engine and run it at idle for 1 or 2 minutes.
Note: You can access the hydraulic-return filter from
underneath the rear-attachment plate of the machine (Figure
111).
8. Stop the engine and remove the key.
9. Check around the filter for leaks.
1. Place a container under the hydraulic-return filter
(Figure 111).
10. Check the fluid level of the hydraulic reservoir, and add
fluid, if necessary; refer to Filling the Hydraulic-fluid
Reservoir (page 69).
Figure 111
1. Container suitable for
hydraulic fluid
3. Hydraulic return filter
2. Sharp object
4. Rear-attachment plate
2. Puncture the bottom of the hydraulic-return filter
and allow the residual hydraulic fluid to drain in the
container (Figure 111).
71
ROPS Maintenance
Checking and Servicing the
ROPS
A ROPS certification label located on the support structure
contains information about the maximum gross machine
weight, the machine model number, and the ISO number.
Replacing a Damaged ROPS System
If the ROPS system has been damaged in an accident, such
as a rollover or hitting an overhead object during transport,
replace any damaged ROPS components to restore the ROPS
system to its original level of protection.
1
Important: Do not try to weld or straighten a damaged
ROPS bar.
After an accident, check the following items for damage:
g024988
• The ROPS bar
Figure 112
• Operator seat
1. Bolts
• Seat belt mounting
2. Check that the bolts and nuts that attach the seat-belt
retractor and buckle to the seat are torqued to 47 to 61
N-m (35 to 45 in-lb); refer to Figure 113.
• Seat belt
Before you operate the machine, replace all damaged ROPS
components; contact an Authorized Toro Service Dealer.
1
Checking and Caring for the Seat Belt
Before you operate the machine, always ensure that the ROPS
and the seat belt are properly installed and in good working
order.
1. Check the seat belt for damage, and replace all parts
that are damaged.
2. Ensure that the mounting bolts for the seat belts are
tight.
3. Keep the seat belts clean using only soap and water.
Note: Do not immerse the seat belts in bleach or dye,
because this weakens the belt material.
g024989
Checking and Maintaining the ROPS
Figure 113
1. Bolts
Service Interval: Every 500 hours
Important: If any part of the ROPS system is damaged,
replace it before you operate the machine.
Note: Replace any parts that are worn or damaged.
3. Inspect the ROPS for cracks, rust, or holes in the
ROPS and component parts.
1. Check that the bolts that secure the seat to the chassis
of the machine are torqued to 27 to 34 N-m (20 to 25
in-lb); refer to Figure 112.
Note: Age, weather, and accidents cause damage to
the ROPS and ROPS parts. If you have any doubts
about the ROPS system, contact an Authorized Toro
Service Dealer.
72
Welding on the Machine
5. Using the finger pulls, lift the battery cover up to
remove it from the ROPS platform (Figure 114).
Important: Before you use an electric welder to repair
or modify the machine, perform all the following:
6. Remove the lock-washer nut (3/8 inch) securing the
negative-battery cable and ring terminal to the negative
stud of the battery and remove the cables from the
battery (Figure 115).
•
•
•
•
•
Rotate the battery-disconnect switch to the Off position
Disconnect the negative and positive battery cables.
Disconnect the wiring at the alternator.
Disconnect the 2 connectors for the computer module.
Disconnect the connector for the command-center
display.
After you complete welding on the machine, connect the
command–center display, computer module, alternator, and
battery cables and rotate the .battery-disconnect switch to
the On position
Preparing to Disconnect the
Components
1. Remove the right side panel; refer to Removing the
Side Panels (page 44).
2. Rotate the battery-disconnect switch to the Off
position; refer to Battery-Disconnect Switch (page 20).
Figure 115
3. Remove the 2 finger-pull covers from the holes in the
battery cover (Figure 114).
Note: The battery cover is located between the
operator seat and the rear ROPS bulkhead.
4. Flange-head bolts (5/16 x
1 inch)
2. Finger-pull cover
5. Nut clip
3. Hole (battery cover)
6. ROPS bulkhead
4. Lock-washer nut (3/8 inch)
2. Negative-battery cable
5. Negative stud (battery)
3. Ring terminal
6. Positive stud (battery)
7. Move back the insulator boot and remove the
lock-washer nut (3/8 inch) securing the positive-battery
cable to the positive stud of the battery and remove the
cable from the battery (Figure 115).
Figure 114
1. Operator seat
1. Positive-battery cable
4. Remove the 4 flange-head bolts (5/16 x 1 inch) that
secure the battery cover to the ROPS platform (Figure
114).
73
Disconnecting the Alternator
Wiring
1. At the alternator, slide the boot off the terminal and
stud at the back of the alternator (Figure 116).
Figure 117
1. Lower-console panel
2. Hex-flanged head bolts (6
x 20 mm)
2. Disconnect the 50-socket connector (CPU 1) from the
back of the computer module (Figure 118).
Figure 116
1. Charge wire
3. 4-socket connector
(voltage-sense wire)
2. Boot
2. Remove the nut and washer that secures the terminal
of the charge wire to the stud of the alternator, and
remove the terminal.
3. Remove the 4-socket connector for the voltage-sense
wire from the 4-pin connector on top of the alternator
(Figure 116).
Disconnecting the
Computer-module Connectors
Figure 118
1. Remove the 4 hex-flanged head bolts (6 x 20 mm) that
secure the lower-console panel to the console, and
remove the panel (Figure 117).
1. Forward
3. Computer module
2. 50-socket connector (CPU
1)
4. 38-socket connector
(CPU-2)
3. Disconnect the 38-socket connector (CPU-2) from the
back of the computer module (Figure 118).
Connecting the
Computer-module Connectors
1. Connect the 38-socket connector (CPU-2) to the back
of the computer module (Figure 118).
2. Connect the 50-socket connector (CPU 1) to the back
of the computer module (Figure 118).
74
Cleaning
3. Align the lower-console panel to the console (Figure
117).
4. Secure the panel to the console with the 4 hex-flanged
head bolts (6 x 20 mm).
Removing Dirt and Debris from
the Machine
Connecting the Alternator
Wiring
Important: Operating the engine with blocked screens,
dirty or plugged cooling fins, and/or cooling shrouds
removed, will result in engine damage from overheating.
1. Ensure that the battery-disconnect switch is in the Off
position; refer to Battery-Disconnect Switch (page 20).
1. Lower all attachments and set the parking brake.
2. Stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
2. Connect the 4-socket connector for the voltage-sense
wire to the 4-pin connector on top of the alternator
(Figure 116).
3. Wipe away dirt and debris from the air cleaner.
3. Assemble the terminal of the charge wire onto the stud
at the back of the alternator (Figure 116).
4. Clean any dirt and debris buildup on the engine with a
brush or blower.
4. Secure the charge wire to the stud with the nut and
washer.
Important: It is preferable to blow dirt out, rather
than washing it out. If water is used, keep it away
from electrical items and hydraulic valves. Do
not use a high-pressure washer. High-pressure
washing can damage the electrical system and
hydraulic valves or deplete grease.
5. Align the boot of the charge wire over the terminal
and stud (Figure 116).
Closing the Machine
1. Assemble the positive-battery cable into the positive
stud of the battery (Figure 115) with the lock-washer
nut (3/8 inch) that you removed in step 7 of Preparing
to Disconnect the Components (page 73).
2. Torque the lock-washer nut to (10 to 15 ft-lb) and align
the insulator boot over the nut and stud.
3. Assemble the negative-battery cable into the negative
stud of the battery (Figure 115) with the lock-washer
nut (3/8 inch) that you removed in step 6 of Preparing
to Disconnect the Components (page 73).
4. Align the holes in the battery cover with the clip nuts
at the mounting flange for the cover (Figure 114).
5. Secure the battery cover to the machine with the 4
flange-head bolts (5/16 x 1 inch) that you removed in
step 4 of Preparing to Disconnect the Components
(page 73).
6. Install the finger-pull cover into the holes in the battery
cover.
7. Rotate the battery-disconnect switch to the On
position; refer to Battery-Disconnect Switch (page 20).
8. Install the right side panel; refer to Installing the Side
Panels (page 45).
75
Storage
4. Stop the engine.
Preparing for Seasonal
Storage
6. Secure all the fuel system fittings.
5. Flush the fuel tank with fresh, clean diesel fuel.
7. Service the air cleaner; refer to Servicing the Air-cleaner
System (page 47).
For storage over 30 days, prepare the machine, the
attachments, and the engine as follows:
8. Seal the air cleaner inlet and the exhaust outlet with
plastic and weatherproof tape.
9. Check the anti freeze protection and add a 50%
ethylene glycol and 50% water solution of anti-freeze
as needed for the expected minimum temperature in
your area.
Preparing the Machine and
Attachments
1. Thoroughly clean the machine and all the attachments;
refer to Removing Dirt and Debris from the Machine
(page 75).
2. Lower all the attachments and set the parking brake.
3. Stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
4. Check the tire pressure and adjust it, if necessary; refer
to Maintaining the Air Pressure in the Tires (page 55).
5. Check all fasteners and tighten them as necessary.
6. Grease all fittings and pivot points and wipe up any
excess grease; refer to Greasing the Machine (page 42).
7. Repair any dents in the machine or the attachments,
and lightly sand and paint areas that are bare, scratched,
chipped, or rusted. Paint is available from an
Authorized Toro Service Dealer.
8. Service the battery and the cables as follows:
A. Remove the battery terminals from the battery
posts.
B.
Clean the battery, terminals, and posts with a wire
brush and baking soda solution.
C.
Coat the cable terminals and battery posts with
Grafo 112X skin-over grease (Toro Part No.
505-47) or equivalent grease.
D.
Slowly recharge the battery every 60 days for 24
hours to prevent lead sulfation of the battery.
9. Check and tighten all bolts, nuts, and screws. Repair or
replace any part that is damaged.
10. Store the machine in a clean, dry garage or storage area.
Remove the key from the ignition switch and keep it in
a memorable place.
11. Cover the machine to protect it and keep it clean.
Preparing the Engine
1. Remove dirt, grime, and chaff from the external parts
of the engine.
2. Change the engine oil and the oil filter; refer to
Changing the Engine Oil and Filter (page 45).
3. Start the engine and run it at idle speed for
approximately 2 minutes.
76
Troubleshooting
Problem
The starter does not crank.
Possible Cause
1. The electrical connections are
corroded or loose.
1. Check the electrical connections for
good contact.
2.
3.
4.
5.
2.
3.
4.
5.
A fuse is blown.
A fuse is loose.
The battery is discharged.
The relay or switch is damaged.
6. The starter or starter solenoid is
damaged.
7. Internal engine components have
seized up.
1. The engine cranks but will not start.
Replace the fuse.
Install the fuse.
Charge the battery or replace it.
Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
1. The starting procedure is incorrect.
1. Refer to Starting the Engine in
Operation.
2. The fuel tank is empty.
3. The fuel shutoff valve is closed.
4. There is dirt, water, stale fuel, or
incorrect fuel in the fuel system.
5. The fuel line is clogged.
6. There is air in the fuel.
2. Fill the fuel tank with fresh fuel.
3. Open the fuel shutoff valve.
4. Drain and flush the fuel system; add
fresh fuel.
5. Clean or replace the fuel line.
6. Bleed the nozzles and check for air
leaks at the fuel hose connections
and fittings between the fuel tank and
engine.
7. Check the fuse, glow plugs, and wiring.
8. Check the battery, oil viscosity, and
starting motor (contact your Authorized
Service Dealer).
9. Service the air cleaning system
elements.
10. Replace the fuel filter.
11. Drain the fuel system, replace the fuel
filter, and add fresh fuel having the
proper grade for ambient temperature
conditions. You may need to warm up
the entire machine.
12. Contact your Authorized Service
Dealer.
13. Contact your Authorized Service
Dealer.
7. The glow plugs do not operate.
8. The cranking speed is slow.
9. The air cleaning system elements are
dirty.
10. The fuel filter is clogged.
11. The fuel is not the proper grade for
cold-weather use.
12. The engine has low compression.
13. The injection nozzles or pump are
malfunctioning.
The engine starts but does not keep
running.
Corrective Action
1. The fuel tank vent is restricted.
1. Loosen the cap. If the engine runs with
the cap loosened, replace the cap.
2. There is dirt or water in the fuel system.
2. Drain and flush the fuel system; add
fresh fuel.
3. Replace the fuel filter.
4. Bleed the nozzles and check for air
leaks at fuel hose connections and
fittings between the fuel tank and the
engine.
5. Drain the fuel system, replace the fuel
filter, and add fresh fuel having the
proper grade for ambient temperature
conditions. You may need to warm up
the entire machine.
6. Contact your Authorized Service
Dealer.
3. The fuel filter is clogged.
4. There is air in the fuel.
5. The fuel is not the proper grade for
cold-weather use.
6. The fuel pump is damaged.
77
Problem
The engine runs but knocks or misses.
Possible Cause
1. There is dirt or water in the fuel system.
1. Drain and flush the fuel system; add
fresh fuel.
2. The engine overheats.
2. Check the engine oil level and add oil
as needed; also check and service the
coolant system, if necessary.
3. Bleed the nozzle and check for air
leaks at the fuel hose connections and
the fittings between the fuel tank and
the engine.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
3. There is air in the fuel.
4. The injection nozzles are damaged.
5. The engine has low compression.
6. There is excessive carbon buildup.
7. The engine has internal wear or
damage.
The engine is overheated.
1. The coolant level is too low.
1. Check the coolant level and add
coolant to the system.
2. The air flow to the radiator is restricted.
3. The engine oil level is either too low or
too high.
4. The machine is under an excessive
load.
2. Inspect and clean the radiator screen.
3. Either add or drain the engine oil until
the oil level is at the Full mark.
4. Reduce the load on the machine;
operate the machine at a slower
ground speed.
5. Drain and flush the fuel system, then
add fresh fuel.
6. Contact your Authorized Service
Dealer.
7. Contact your Authorized Service
Dealer.
8. Contact your Authorized Service
Dealer.
5. There is improper fuel in the fuel
system.
6. The thermostat is damaged.
7. The injection timing is incorrect.
8. The coolant pump is damaged.
There is excessive black smoke in the
exhaust.
1. The air cleaning system elements are
dirty.
1. Service the air cleaning system
elements.
2. There is improper fuel in the fuel
system.
3. The injection pump timing is incorrect.
2. Drain and flush the fuel system, then
add fresh fuel.
3. Contact your Authorized Service
Dealer.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
4. The injection pump is damaged.
5. The injection nozzles are damaged.
6. The turbo charger is damaged.
There is excessive white smoke in the
exhaust.
Corrective Action
1. The key was turned to the Start position
before the glow plug light turned off.
1. Turn the key to the Run position and
allow the glow plug light to turn off
before starting the engine.
2. The engine temperature is low.
2. Check the thermostat and replace it if
necessary.
3. Check the fuse, glow plugs, and wiring.
4. Contact your Authorized Service
Dealer.
5. Contact your Authorized Service
Dealer.
6. Contact your Authorized Service
Dealer.
3. The glow plugs are not operating.
4. The injection nozzles are damaged.
5. The engine has low compression.
6. There is an internal coolant leak in the
engine.
78
Problem
The engine loses power.
Possible Cause
1. The engine is under an excessive load.
1. Reduce the ground speed of the
machine.
2. The engine oil level is either too low or
too high.
3. The air cleaning system elements are
dirty.
4. There is dirt or water in the fuel system.
2. Either add or drain the engine oil until
the oil level is at the Full mark.
3. Service the air cleaning system
elements.
4. Drain and flush the fuel system; add
fresh fuel.
5. Check the engine oil level and add oil
as needed; also check and service the
coolant system, if necessary.
6. Bleed the nozzle and check for air
leaks at the fuel hose connections and
the fittings between the fuel tank and
the engine.
7. Contact your Authorized Service
Dealer.
8. Loosen the cap. If the engine runs with
the cap loosened, replace the cap.
9. Contact your Authorized Service
Dealer.
5. The engine overheats.
6. There is air in the fuel.
7. The engine has low compression.
8. The fuel tank vent is restricted.
9. The injection pump is damaged.
The machine does not drive.
Corrective Action
1. The parking brake is engaged.
1. Release the parking brake.
2. The hydraulic fluid level is low.
3. The pump and/or motor is damaged.
2. Add hydraulic fluid to the reservoir.
3. Contact your Authorized Service
Dealer.
4. Contact your Authorized Service
Dealer.
4. The relief valve is damaged.
79
Underground
Equipment
The Toro Underground Warranty
A Limited Warranty
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company, pursuant
to an agreement between them, jointly warrant your Toro Underground
Equipment (“Product”) to be free from defects in materials or workmanship.
Where a warrantable condition exists, we will repair the Product
at no cost to you including diagnostics, labor, and parts.
The following warranty applies from the date the Product is delivered to the
original retail purchaser or rental owner.
Products
Engine Powered Units & Fluid Mixers
All Serialized Attachments
Rock Hammer
Engines
Warranty Period
1 year or 1000 operating hours,
whichever occurs first
1 year
6 months
Through engine manufacturers:
2 years or 2000 operating hours,
whichever occurs first
Instructions for Obtaining Warranty Service
You are responsible for notifying the Underground Dealer from whom you
purchased the Product as soon as you believe a warrantable condition
exists. If you need help locating a Underground Dealer, or if you have
questions regarding your warranty rights or responsibilities, you may
contact us at:
Toro Customer Care
Toro Warranty Company
8111 Lyndale Avenue South
drive, or track chains, track pads, drive sprockets, idlers, rollers,
blades, cutting edges, or other ground engaging components.
•
Failures caused by outside influence. Conditions considered to be
outside influence include, but are not limited to, weather, storage
practices, contamination, use of unapproved fuels, coolants, lubricants,
additives, water, or chemicals, etc.
•
Failure or performance issues due to the use of fuels (e.g. gasoline,
diesel, or biodiesel) that do not conform to their respective industry
standards.
•
•
Normal noise, vibration, wear and tear, and deterioration.
•
Hauling expenses, travel time, mileage, or overtime associated with
transporting product to the authorized Toro dealer.
Normal “wear and tear” includes, but is not limited to, damage to seats
due to wear or abrasion, worn painted surfaces, scratched decals, etc.
Parts
Parts scheduled for replacement as required maintenance in the
Operator’s Manual,are warranted for the period of time up to the scheduled
replacement time for that part. Parts replaced under this warranty are
covered for the duration of the original product warranty and become the
property of Toro. Toro will make the final decision whether to repair any
existing part or assembly or replace it. Toro may use remanufactured parts
for warranty repairs.
Maintenance is at Owner’s Expense
Bloomington, MN 55420-1196
Toll Free at 855-493-0088 (U.S. Customers)
1-952-948-4318 (International Customers)
Engine tune-up, lubrication, cleaning and polishing, replacement of filters,
coolant, and completing recommended maintenance are some of the
normal services Toro products require that are at the owner’s expense.
General Conditions
Owner Responsibilities
As the Product owner, you are responsible for required maintenance and
adjustments stated in your Operator's Manual. Failure to perform required
maintenance and adjustments can be grounds for disallowing a warranty
claim.
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the warranty
period are defects in materials or workmanship. This warranty does not
cover the following:
•
Product failures which result from the use of non-Toro replacement
parts, or from installation and use of add-on, or modified non-Toro
branded accessories and products. A separate warranty may be
provided by the manufacturer of these items.
•
Product failures which result from failure to perform recommended
maintenance and/or adjustments. Failure to properly maintain your
Toro product per the Recommended Maintenance listed in the
Operator’s Manual can result in claims for warranty being denied.
•
Product failures which result from operating the Product in an abusive,
negligent, or reckless manner.
•
Parts subject to consumption through use unless found to be defective.
Examples of parts which are consumed, or used up, during normal
Product operation include, but are not limited to: brakes, filters, lights,
bulbs, belts, tracks or tires, digging teeth, digging booms, digging,
Repair by an Authorized Toro Underground Dealer is your sole remedy
under this warranty.
Neither The Toro Company nor Toro Warranty Company is liable for
indirect, incidental or consequential damages in connection with the
use of the Toro Products covered by this warranty, including any
cost or expense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending completion
of repairs under this warranty. Except for the Emissions warranty
referenced below, if applicable, there is no other express warranty. All
implied warranties of merchantability and fitness for use are limited to
the duration of this express warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions and limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from
state to state.
Note regarding engine warranty:
The Emissions Control System on your Product may be covered by
a separate warranty meeting requirements established by the U.S.
Environmental Protection Agency (EPA) and/or the California Air Resources
Board (CARB). The hour limitations set forth above do not apply to the
Emissions Control System Warranty. Refer to the Engine Emission Control
Warranty Statement supplied with your product or contained in the engine
manufacturer’s documentation for details.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Underground Dealer’s service or have difficulty
obtaining guarantee information, contact the Toro importer.
Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro
Dealer.
374-0292 Rev B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
