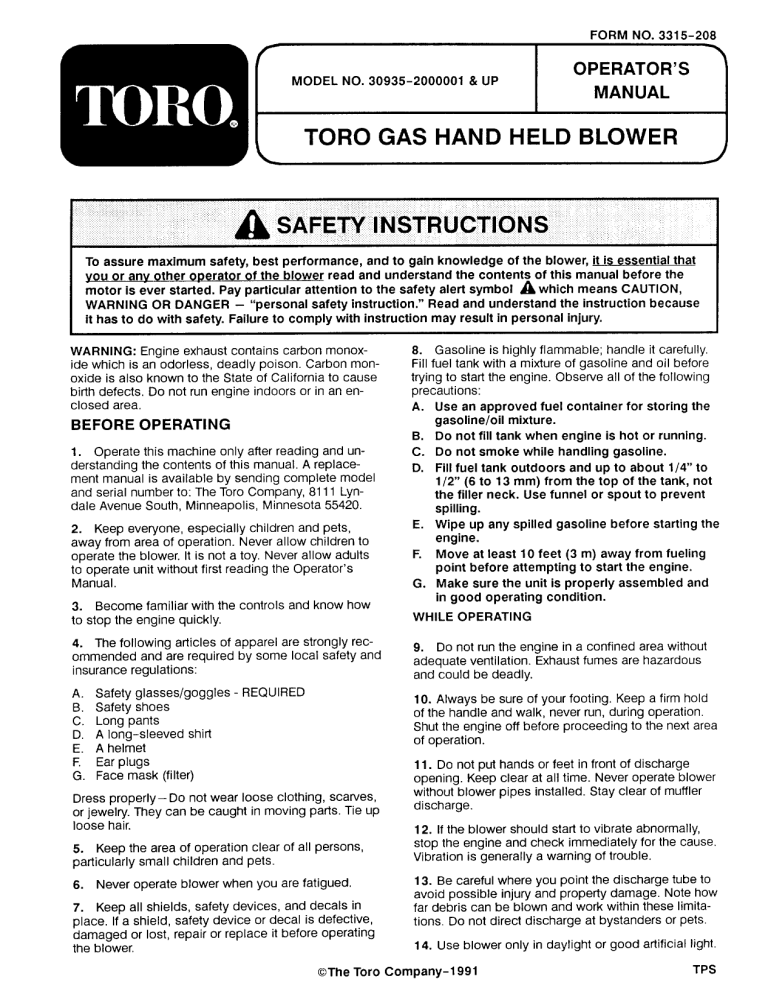

FORM NO. 3315-208
7
MODEL NO. 30935-2000001 & UP
OPERATOR'S в
MANUAL
N
TORO GAS HAND HELD BLOWER
To assure maximum safety, best performance, and to gain knowledge of the blower, it is essential that
you or any other operator of the blower read and understand the contents of this manual before the
motor is ever started. Pay particular attention to the safety alert symbol
WARNING OR DANGER — “personal safety instruction.” Read and understand the instruction because
it has to do with safety. Failure to comply with instruction may result in personal injury.
À which means CAUTION,
WARNING: Engine exhaust contains carbon monox-
ide which is an odorless, deadly poison. Carbon mon-
oxide is also known to the State of California to cause
birth defects. Do not run engine indoors or in an en-
closed area.
BEFORE OPERATING
1. Operate this machine only after reading and un-
derstanding the contents of this manual. A replace-
ment manual is available by sending complete model
and serial number to: The Toro Company, 8111 Lyn-
dale Avenue South, Minneapolis, Minnesota 55420.
2. Keep everyone, especially children and pets,
away from area of operation. Never allow children to
operate the blower. It is not a toy. Never allow adults
to operate unit without first reading the Operators
Manual.
3. Become familiar with the controls and know how
to stop the engine quickly.
4. The following articles of apparel are strongly rec-
ommended and are required by some local safety and
insurance regulations:
A. Safety glasses/goggles - REQUIRED
B. Safety shoes
C. Long pants
D. A long-sieeved shirt
E. Ahelmet
F. Ear plugs
G.
Face mask (filter)
Dress properly — Do not wear loose clothing, scarves,
or jewelry. They can be caught in moving parts. Tie up
loose hair.
5. Keep the area of operation clear of all persons,
particularly small children and pets.
6. Never operate blower when you are fatigued.
7. Keep all shields, safety devices, and decals in
place. If a shield, safety device or decal is defective,
damaged or lost, repair or replace it before operating
the blower.
8. Gasoline is highly flammable; handle it carefully.
Fill fuel tank with a mixture of gasoline and oil before
trying to start the engine. Observe all of the following
precautions:
A. Use an approved fuel container for storing the
gasoline/oil mixture.
B. Do not fill tank when engine is hot or running.
C. Do not smoke while handling gasoline.
D
Fill fuel tank outdoors and up to about 1/4” to
1/2” (6 to 13 mm) from the top of the tank, not
the filler neck. Use funnel or spout to prevent
spilling.
E. Wipe up any spilled gasoline before starting the
engine.
F. Move at least 10 feet (3 m) away from fueling
point before attempting to start the engine.
G. Make sure the unit is properly assembled and
in good operating condition.
WHILE OPERATING
9. Do not run the engine in a confined area without
adequate ventilation. Exhaust fumes are hazardous
and could be deadly.
10. Always be sure of your footing. Keep a firm hold
of the handle and walk, never run, during operation.
Shut the engine off before proceeding to the next area
of operation.
11. Do not put hands or feet in front of discharge
opening. Keep clear at all time. Never operate blower
without blower pipes installed. Stay clear of muffler
discharge.
12. If the blower should start to vibrate abnormally,
stop the engine and check immediately for the cause.
Vibration is generally a warning of trouble.
13. Be careful where you point the discharge tube 10
avoid possible injury and property damage. Note how
far debris can be blown and work within these limita-
tions. Do not direct discharge at bystanders or pets.
14. Use blower only in daylight or good artificial light.
©The Toro Company-1991 TPS
A) SAFETY INSTRUCTIONS
15. Shut off engine and be certain all moving parts
have completely stopped rotating before performing
any adjustment or maintenance procedures.
16. Before servicing or making adjustments to the ma-
chine, stop the engine and pull wire off spark plug to
prevent accidental starting of the engine.
MAINTENANCE
17. Ensure entire machine is in good condition. Keep
all nuts, bolts and screws properly tightened.
18. Replace cracked or damaged parts before operat-
Ing. If major repairs are ever needed or if assistance is
desired, contact an Authorized Toro Service Dealer.
19. To reduce potential fire hazard, keep the engine
area free of excessive oil, grass, leaves and accumu-
lation of dirt,
20. If the engine must be running to perform a mainte-
nance adjustment, keep hands, feet, clothing and any
part of the body away from unit and any moving parts.
Keep everyone away.
A\ SAFETY DECALS AND INSTRUCTIONS
Safety decals and instructions are easily visible to the operator and are located at any indicated area
of potential danger. Replace any decal that is damaged.
I VIN: —
Fa - ER ATTACHED.
WEAR PROTECTIVE EYE GEAR. a2--5020
„”
UNLEADED
On Top of Fan Housing
(Part No. 82-5920)
FA
READ YOUR OPERATOR'S MANUAL FOR OPERATING AND
SAFETY INSTRUCTIONS. TO GET A REPLACEMENT MANUAL,
SEND MODEL AND SERIAL NUMBERS TO: THE TORO CO.. 8111
LYNDALE AVE. S., MPLS., MN 55420 65-3090
On Top of Fan Housing
(Part No. 65-3080)
On Recoil Housing
(Part No. 65-3040)
CHOKE
S SOUND LEVEL RAT
§ per ANSI 175.7 1090 o 73 dBA
On Air Cleaner Cover
(Part No. 65-3030)
TABLE OF CONTENTS
On Fan Housing Below Screen
(Part No. 82-5720)
AA WARNING
wi "in
On Fan Housing Above
Muffler Cover
(Part No. 82-2520)
Page Page
Safety Instructions ............... 1 Servicing Muffier ............... . . 7
SafetyDecals .............................. 2 Replacing Spark Plug .................... 8
Loose Parts Chart ........................... 3 Cooling System Service .................. 8
Set-Up Instructions es Cee 3 Replacing Fuel Filter... .... ........ 8
Install Blower Pipes To Housing ............ ; Adjusting Throttle Control ................. 8
Assemble Should SUP eones Preparing Blower for Storage .............. 9
Before Operating ........................... 4 ;
,( | Trouble Shooting Chart. ..................... . 10
Operating Instructions ....................... 5 ee
Maintenance ........... 6 Product Identification ........................ 10
Servicing Air Cleaner ....... aaa 6 Toro Service Support .......... LLL. 10
Adjusting Carburetor ..................... 6 The Toro Total Coverage Guarantee
LOOSE PARTS CHART
Loose Parts Qty. Where Used
Straight Pipes with Molded-in Clamp 2 Mount to blower and to each other.
Screws 4 Assemble to straight pipe clamps.
Nuts 4
End Pipe 1 Mount to straight pipe(s).
End Pipe Clamp 1 Assemble to end pipe.
Operator's Manual 1 Read before operating blower.
Registration Card 1 Fill out and return to TORO.
SET-UP INSTRUCTIONS
INSTALL BLOWER PIPES TO BLOWER
HOUSING (Fig. 1 & 2)
1. Assemble two mounting screws and nuts through
end of each straight tube.
BLOWER
HOUSING
MOUNTING
MOUNTING HOLE
\ STRAIGHT PIPE
MOUNTING SCREWS 100
Figure 1
STRAIGHT PIPE
END PIPE
101
2. Slide a straight tube onto blower housing as
shown in Fig. 1. Bumps on blower housing must en-
gage holes in pipe.
3. Tighten mounting screws.
4, Slide second pipe onto first until bump engages
mounting hole in pipe. Tighten screws.
5. Slide clamp onto end tube.
6. Slide end tube onto straight tube, aligning end
tube as shown in Fig. 2. Tighten clamp.
ASSEMBLE OPTIONAL SHOULDER
STRAP (Part No. 65-4290)
1. Insert the strap through openings in blower hous-
ing. Thread strap through buckle (Fig. 3).
SHOULDER STRAP 190
Figure 2
Figure 3
2. Adjust the strap so that the blower fits comfortably
against your body.
Ga
BEFORE OPERATING
DANGER: Gasoline is extremely flammable and explosive under certain conditions. Do not smoke
when handling fuel and keep fuel far away from open flames and sparks. Never buy more than a 30
day supply of gasoline. Store it in an approved container. Keep gasoline out of reach of children.
Refuel outdoors and only when engine is cold. Do not fill tank full. Fill to 1/4” to 1/2” (6 to 13 mm)
from top of the tank, not into the filler neck. This space is for expansion of fuel. Use funnel or spout
to prevent spilling. Wipe up any spilled gas before starting engine.
MIX GASOLINE AND OIL (Fig. 4)
1. Approved Mixture — For simplicity and best engine
performance, mix the contents of one 8-ounce bottle
of Toro 32:1 Two-Cycle Oil with two gallons of fresh
unleaded regular gasoline. You can also use Toro
“Easy Mix” Two-Cycle Qil (3.2 ounce bottle mixed one
per gallons of gasoline 40:1 ratio) in this Toro two-
cycle engine. Leaded regular gasoline may be used if
unleaded regular is not available.
Toro Two-Cycle Qil is specially formulated to provide
superior lubrication, make starting easy, and prolong
engine life. If Toro Two-Cycle Oil is not available, mix
two gallons of gasoline and 8 ounces of another high
grade two-cycle oil that has the NMMA or BIA-TCW
certification printed on the label.
NEVER USE AUTOMOTIVE OIL (i.e. SAE 30,
10W30 etc.), TWO-CYCLE OIL THAT IS NOT CER-
TIFIED NMMA/BIA-TCW OR THE WRONG MIX RA-
TIO BECAUSE THE ENGINE CAN BE DAMAGED,
AND IT WOULD NOT BE COVERED BY THE TORO
WARRANTY.
2. . Mixing Gasoline and Oil—Pour a haif gallon of
gasoline into an approved gasoline container and add
the correct amount of two-cycle oil. Install cap on
gasoline container and shake the container to mix oil
thoroughly. Remove cap and add remaining amount of
gasoline.
Toro also recommends that Toro Stabilizer/Conditioner
be used regularly in all Toro gasoline powered prod-
ucts during operation and storage seasons. Toro Sta-
bilizer/Conditioner cleans the engine during operation
and prevents gum-like varnish deposits from forming
in the engine during periods of storage.
IMPORTANT: NEVER USE METHANOL, GASOLINE
CONTAINING METHANOL, GASOHOL CONTAIN-
ING MORE THAN 10% ETHANOL, PREMIUM GAS-
OLINE, OR WHITE GAS BECAUSE ENGINE FUEL
SYSTEM DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO’S STA-
BILIZER/CONDITIONER OR A SIMILAR PRODUCT.
TORO’S STABILIZER/CONDITIONER IS A PETRO-
LEUM DISTILLATE BASED CONDITIONER/STABI-
LIZER. TORO DOES NOT RECOMMEND STABILIZ-
ERS WITH AN ALCOHOL BASE SUCH AS ETHA-
NOL, METHANOL OR ISOPROPYL. ADDITIVES
SHOULD NOT BE USED TO TRY TO ENHANCE
THE POWER OR PERFORMANCE OF MACHINE.
Note: Do not mix gasoline and oil in the product fuel
tank. Oil that is at room temperature mixes easier and
more thoroughly than cold oil.
32:1 GAS/OIL MIXING CHART
U.S. GALLON
Gasoline Oil
1 gallon 4 oz.
1.5 gallons 6 oz.
2 gallons 8 oz.
© © ©
Add remaining
amount of gasoline.
Add oil to small
amount of gasoline.
Install cap and
shake can to mix.
111
Figure 4
OPERATING INSTRUCTIONS
STARTING AND STOPPING
INSTRUCTIONS (Fig. 5)
1. Place blower on a level surface.
2. Move ignition switch to “ON” position.
3. Raise choke lever to close completely.
THROTTLE
„”
103
To Stop Engine
1. Release throttle lever and move ignition switch to
“STOP”.
OPERATING TIPS
e Fan blades r rotate at t high speed inside of
blower housing.
e Personal contact with rotating fan blades
can cause severe personal injury.
e Always keep discharge tubes attached to
prevent potential contact of fingers or oth-
er body parts with fan blades.
e Air stream discharge blows debris at high
speeds.
e Blown debris can cause severe personal
injury to operator, bystanders or animals.
e Always wear safety goggles or safety
glasses, shoes, long pants and long sleeve
shirt while operating.
e Keep all people and animals far away from
blower when operating.
e Be extremely careful where the air stream
discharge is directed to avoid personal
injury or property damage.
Figure 5
4. Squeeze throttle lever to half position and hold.
5. Pull recoil starter handle out slowly until starter
ratchets are engaged, then pull handle with short,
sharp strokes until engine starts.
Note: When initially starting blower or after an ex-
tended storage period, several pulls may be required
to draw fuel from the tank to carburetor.
6. After engine starts, gradually lower choke lever
and return throttle lever to idle position.
WARM ENGINE
1. Move ignition switch to “ON” position.
2. Raise choke lever to close completely.
3. Leave throttle lever in idle position.
4. Pull recoil starter handle out slowly until starter
ratchets are engaged, then pull handle with short,
sharp strokes until engine starts.
5. After engine starts, gradually lower choke lever.
e Muffler surface becomes hot when blower
is in operation.
e Contact with hot muffler surface could
cause a burn.
e Wear along sleeve shirt or other similar
protection to avoid possible contact with
hot muffler surface.
e Operating noise of blower is loud.
e Exposure to blower operating noise over
prolonged periods of time could cause
hearing damage.
e Ear protection must be worn when oper-
ating blower for prolonged periods of
time (over 2-1/2 hours).
1. Allow the engine to warm up for a few minutes
after initial start to make sure engine is up to proper
operating temperature.
OPERATING INSTRUCTIONS
2. The engine may be operated at any speed be-
tween an idle of 3000-3200 RPM and full throttle
speed. The speed of the engine, therefore, dictates
the velocity of the air out the nozzle, making the blow-
er a versatile cleaning unit capable of moving debris
where only a gentle breeze is needed to move larger
objects that can only be moved by a high speed
blast.
3. Vary engine RPM by operating the throttle lever
(Fig. 5). Idle speed, if desired for blowing leaves from
a lawn or flower bed, is achieved by leaving the
throttle elver in the idle position.
Medium to high speed, used to clean grass, wet
leaves, etc. from walks, patios and drives, is achieved
by squeezing the lever midway between the closed
and full throttle positions.
High speed, used to move gravel, dirt, snow, bottles
or cans from driveways, streets, parking lots or sta-
diums, is achieved by squeezing the throttle lever to a
fully open position.
4. Get in a normal, comfortable position with both
feet firmly positioned before beginning operation. Sur-
vey the area before beginning to enable you to plan
your procedures. If the area is fairly well enclosed
where large amounts of dust may be thrown into the
air, it is advisable to wear a face filter mask.
5. Avoid directing the nozzle at walls or other vertical
surfaces where debris could ricochet off and be di-
rected at you or could possibly cause damage.
e Blower air inlet cover could crack or break.
e Broken or cracked equipment could cause
personal injury to operator or bystanders.
e Never operate blower if air inlet cover or
blower housing is cracked or broken.
e Replace damaged parts before operating
blower.
MAINTENANCE
e Engine could start accidentally.
e Accidental starting of engine could cause
serious injury to operator or bystanders.
e Pull wire off spark plug if engine does not
have to be running while performing adjust-
ment or maintenance procedures.
SERVICING AIR CLEANER (Fig. 6)
Check and clean the air filter after each use of the
blower to make sure that performance and durability
of the engine will not be affected.
FOAM
FILTER
AIR CLEANER
AIR CLEANER
BODY
104
Figure 6
1. Remove screw securing air cleaner cover to air
cleaner body. Remove cover.
2. Carefully remove foam filter from air cleaner
cover.
3. Wash foam filter in a soap and water solution and
thoroughly dry. If filter shown any sign of damage, re-
place it.
4. Saturate the filter with SAE 30 oil: then squeeze it
to distribute the oil evenly and to remove excess oil. A
damp filter is desirable.
5. Reinstall filter and cover and secure with mounting
SCrew.
ADJUSTING CARBURETOR (Fig. 7)
The carburetor has been adjusted at the factory, but
an adjustment may be required to compensate for dif-
ference in fuel, temperature, and altitude.
1. Fuel Adjusting Screw — Screw is set in the middle
of five notches. If adjustment is too rich, turn screw to
the right. If adjustment is too lean, turn screw to the
left (Fig. 7). Adjust while engine is at low speed.
2. Idle Speed Adjusting Screw — Adjust screw to at-
tain idle speed of 3000-3200 RPM (Fig. 7).
MAINTENANCE
/
0 —
/ FUEL ADJUSTING
SCREW
\\\_.
| |
E eL
IDLE ADJUSTING
SCREW
105
2. Remove two (2) bolts securing muffler and gasket
to blower.
3. Clean any carbon buildup from inside of muffler.
4. Rotate the engine crankshaft until the piston total-
ly covers the exhaust port (Fig. 9).
IMPORTANT: Use extreme care when cleaning ex-
haust port. Stay clear of the piston so it will not be
damaged. Piston damage can cause early engine
failure.
5. Make sure the muffler gasket is still useable (re-
place, if necessary) and install muffler and muffler
cover to blower. Tighten all fasteners securely.
Figure 7
SERVICING MUFFLER (Fig. 8, 9, 10)
If engine speed or power decreases drastically, in-
spect and clean muffler and exhaust port of carbon
deposits to relieve back pressure.
1. Remove two (2) screws securing muffler cover 10
blower,
MOUNTING
BOLTS
GASKET
MUFFLER
MUFFLER MOUNTING
COVER SCREW
106
Figure 8
107
Figure 9
EXHAUST
PORT
108
MAINTENANCE
REPLACING SPARK PLUG (Fig. 11)
Use an NGK BM-7A spark plug or equivalent. Correct
air gap is .024-.028" (0.6 - 0.7 mm). Remove plug
after every 25 operating hours and check its condition.
1. Stop engine and pull wire off spark plug.
2. Clean around spark plug and remove plug from
cylinder head.
IMPORTANT: Replace a cracked, fouled or dirty
spark plug. Do not sand blast, scrape or clean
electrodes because engine damage could result
from grit entering cylinder.
3. Set air gap at .024” - .028” (0.6 - 0.7 mm). Install
correctly gapped spark plug and gasket seal. Tighten
plug firmly to 9 ft-Ib (1.2 Kg-m).
?
|
0.024 - .028”
(.06 - .07 mm)
110
Alternate Method: Insert a clean wire with a hooked
end into tank, hook suction hose above weight, and
carefully pull hose out fuel tank opening.
3. Replace fuel filter and reinstall suction hose into
tank.
4. Reinstall fuel tank cap.
ADJUSTING THROTTLE CONTROL
(Fig. 13)
1. Remove screw securing air cleaner cover to air
Cleaner body. Remove cover and filter.
2. Push choke lever down to open carburetor, expos-
ing throttle valve.
Figure 11
COOLING SYSTEM SERVICE
To avoid overheating and possible engine damage,
visually inspect the cooling air inlet for debris ob-
structing the air passages, muffler, and also the cool-
ing fins around the cylinder after each use. Remove
any contamination by using a flat piece of wood
shaped so it will pass between the fins.
REPLACING FUEL FILTER (Fig. 12)
After every 25 hours of operation, remove and replace
fuel filter.
1. Drain gasoline from fuel tank. Start engine and let
it run at idle speed until it stops and all fuel is ex-
pended.
2. Remove fuel tank cap. Invert blower and shake
until end of suction hose is accessible or passes
through fuel tank opening.
-——— ————
u
. |
A
=== ==
SUCTION
HOSE
FUEL
FILTER
--— —
Figure 12
105
Figure 13
3. Squeeze throttle lever and note travel of throttle
valve in carburetor opening. Throttle valve should trav-
el to top of carburetor opening when lever is in full
throttle position.
4. To adjust, loosen jam nut on throttle cable and
rotate turnbuckle to increase or decrease travel of
throttle valve.
5. Tighten jam nut and check adjustment.
6. Reinstall air cleaner components to blower.
7. Recheck idle speed and adjust if necessary. Refer
to Adjusting Carburetor.
MAINTENANCE
PREPARING BLOWER FOR STORAGE
1. Drain gasoline from fuel tank. Pull recoil starter
handle a number of times to purge fuel remaining from
carburetor.
2. Remove dirt and grime from external parts of
blower housing and engine. Also clean the cooling
system: refer to Cooling System Service.
3. Clean carbon from internal parts of engine: refer to
Servicing Muffler.
4. Pull wire off spark plug, clean area around plug so
foreign matter cannot fall into cylinder when plug is
removed. Remove plug from cylinder head and pour
one teaspoon (5 ml) of 2 cycle oil into spark plug
hole. Pull recoil starter handle slowly to distribute oil
on inside of cylinder. Reinstall spark plug and tighten
it to 9 ft-lbs (1.2 Kg-m). If torque wrench is not used,
tighten plug firmly. DO NOT REINSTALL WIRE ON
SPARK PLUG.
5. Check fuel filter; refer to Fuel Filter Service.
6. Clean the air cleaner; refer to Air Cleaner Service.
7. Check and tighten all capscrews, screws, bolts,
nuts and mating parts. If any part is damaged, repair
or replace it.
8. Touch up all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
Note: TORO Re-Kote “touch-up” paint is available
from an Authorized Toro Service Dealer. The spray
paint dries in minutes to a glossy, factory finish.
9. Store blower in a clean, dry place. Cover blower
to protect it and keep it clean.
TROUBLESHOOTING CHART
Trouble Possible Cause Remedy
Engine Won't Start or A. No Fuel A. Fill fuel tank with gasoline, oil
Hard Starting mix: refer to Preparation Before
Starting.
B. Stale Fuel B. Drain fuel tank. Fill with proper
fuel.
C. Carburetor Maladjusted C. Adjust: refer to Adjusting
Carburetor.
D. Faulty Spark Piug D. Replace spark plug.
E. Improper Starting E. Refer to Starting and Stopping
Procedures.
F. Clogged Air Cleaner F. Refer to Air Cleaner Service.
G. Fuel Filter Plugged G. Replace fuel filter.
H. Carbon Buildup in Exhaust H. Clean exhaust system; refer to
System Servicing Muffler.
Engine RPM Too Slow A. Wrong Fuel Mix A. Drain fuel tank. Fill with proper
(Below 3000 RPM) gasoline, oil mix. Refer to Before
Operation.
B. Clogged Air Cleaner B. Refer to Air Cleaner Service.
C. Engine Overheating C. Refer to Cooling System Service.
D. Carbon Buildup in Exhaust D. Clean exhaust system; refer to
System Servicing Muffler.
E. Throttle Cable Maladjusted E. Refer to Adjusting Throttle Control.
Engine Runs Erratically A. Carburetor Maladjusted A. Adjust; refer to Adjusting
Carburetor.
B. Fuel Filter Plugged B. Replace fuel filter.
Engine Stops Running A. Out of Fuel A. Fill fuel tank.
B. Fuel Filter Plugged B. Replace fuel filter.
Reduction of Air Flow A. Air Inlet Cover Clogged A. Clean cover.
Output at Full Throttle with Debris
B. Engine RPM Too Slow B. See above.
A model number and a serial number decal is located on blower housing. Always refer to specific numbers on this
decal in correspondence or when replacement parts are needed.
If help — concerning safety, set-up, operation, maintenance or troubleshooting — is ever needed, contact the local Au-
thorized TORO Service Dealer or Distributor. Refer to the “Yellow Pages” for assistance. In addition to skilled service
technicians, the dealer and distributor have factory approved accessories and replacement parts. Keep your TORO all
PRODUCT IDENTIFICATION
TORO SERVICE SUPPORT
TORO. Buy genuine TORO replacement parts and accessories.
10
Consumer
Products
THE TORO TOTAL COVERAGE
GUARANTEE
A Full Two-Year Warranty
(Limited Warranty for Commercial Use)
What Is Covered By This Express Warranty?
The Toro Company promises to repair any TORO Product
used for residential purposes if defective in materials or work-
manship for a period of two years from the date of purchase.
The cost of parts and labor are included, but the customer
pays the transportation costs.
Transportation within a 15 mile radius of the servicing dealer
is covered under this warranty for two-stage snowthrowers,
walk behind debris equipment and all TORO Wheel Horse
riding products. Walk power mowers, single stage snow-
throwers, and other products not specifically covered, are
excluded from the transportation coverage provided by this
warranty.
What Products Are Covered By This Warranty?
This warranty applies to all gasoline powered Consumer
Products (including TORO Wheel Horse riding products).
Wide area walk behind mowers, ProLine 118, and 21” Com-
mercial mowers without blade stop controls are covered Dy
separate warranty statements.
How About Commercial Use?
TORO Consumer Products used for commercial, institutional
or rental use are covered by a limited warranty for the follow-
ing time periods from the date of purchase:
Products Warranty Period
e 300 through 700 Series Tractors
(except 612-Z) and 1600 HMR
Chassis ...... 1 year limited warranty
Engine ....... 2 year limited warranty
е 21" Commercial Duty Walk Mower
with blade stop controls . 1 year limited warranty
e 200 Series Tractors, Rear Engine Riders,
612-Z, 1200 HMR
3.0 and 3.5 HP Edgers
Straight Shaft Trimmers,
and Backpack Blowers ..... 90 day limited warranty
®Ф AlIOthers ................ 45 day limited warranty
How Do You Get Warranty Service?
Should you feel your TORO product contains a defect in ma-
terial or workmanship, contact the dealer who sold you the
product or any Authorized TORO Service Dealer or TORO
Master Service Dealer. The Yellow Pages of your telephone
directory is a good reference source. The dealer will either
arrange service at his/her dealership or recom mend another
Authorized Service Dealer who may be more convenient. You
may need proof of purchase (Copy of registration card, sales
receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with the Service Dealer's
analysis of the defect in materials or workmanship or if you
need a referral to a TORO Service Dealer, please feel free to
contact us at the following address:
Toro Customer Service Department
8111 Lyndale Avenue South
Minneapolis, MN 55420
612-888-8801
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the main-
tenance procedures described in the operators manual.
Such routine maintenance, whether performed by a dealer or
by you, is at your expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except the TORO Starting
Guarantee on GTS Engines. This express warranty does not
cover:
e Cost of regular maintenance service or parts, such as fil-
ters, fuel, lubricants, tune-up parts, blade sharpening, brake
and clutch adjustments.
e Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents,
or lack of proper maintenance.
e Repairs necessary due to improper fuel, contaminants in
the fuel system, or failure to properly prepare the fuel system
prior to any period of non-use over three months.
e Pickup and delivery charges for distances beyonda 15
mile radius from an Authorized TORO Service Dealer (cov-
ered products only).
All repairs covered by this warranty must be performed by an
Authorized TORO Service Dealer using Toro approved re-
placement parts.
Repair by an Authorized TORO Service Dealer is your sole
remedy under this warranty.
The Toro Company is not liable for indirect, incidental or con-
sequential damages in connection with the use of the TORO
Products covered by this warranty, including any cost or ex-
pense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending com-
pletion of repairs under this warranty. Some states do not al-
low exclusions of incidental or consequential damages, so
the above exclusion may not apply to you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
fail, you may contact us at The Toro Company.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should contact their TORO
Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with
your Distributor's service or have difficulty obtaining guarantee information, contact the TORO importer. If all other remedies
V41-692
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
