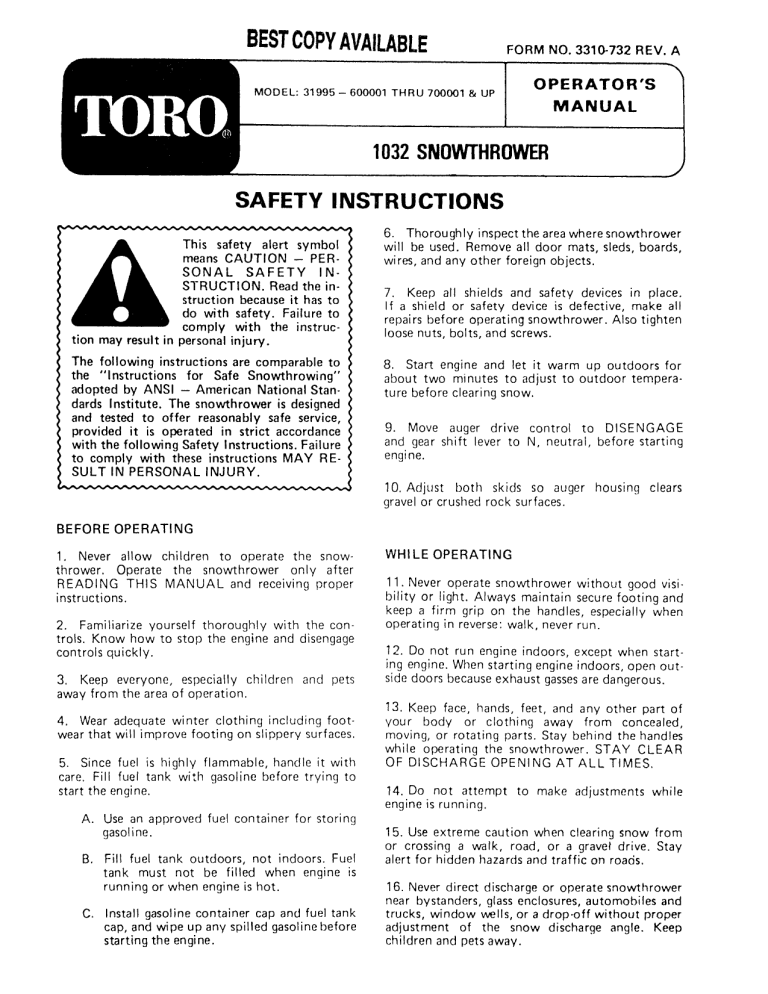

BEST COPY AVAILABLE
MODEL: 31995 — 600001 THRU 700001 & UP
FORM NO. 3310-732 REV. A
OPERATOR'S \
MANUAL
1032 SNOWTHROWER
р
SAFETY INSTRUCTIONS
This safety alert symbol
means CAUTION — PER-
SONAL SAFETY IN-
STRUCTION. Read the in-
struction because it has to
do with safety. Failure to
comply with the instruc-
tion may result in personal injury.
The following instructions are comparable to
the “Instructions for Safe Snowthrowing”
adopted by ANSI — American National Stan-
dards Institute. The snowthrower is designed
and tested to offer reasonably safe service,
provided it is operated in strict accordance
with the following Safety Instructions. Failure
to comply with these instructions MAY RE-
SULT IN PERSONAL INJURY.
BEFORE OPERATING
1. Never allow children to operate the snow-
thrower. Operate the snowthrower only after
READING THIS MANUAL and receiving proper
instructions.
2. Famiharize yourself thoroughly with the con-
trols. Know how to stop the engine and disengage
controls quickly.
3. Keep everyone, especially children and pets
away from the area of operation.
4. Wear adequate winter clothing including foot-
wear that will improve footing on slippery surfaces.
5. Since fuel is highly flammable, handle it with
care. Fill fuel tank with gasoline before trying to
start the engine.
A. Use an approved fuel container for storing
gasoline,
B. Fill fuel tank outdoors, not indoors. Fuel
tank must not be filled when engine is
running or when engine is hot.
C. Install gasoline container cap and fuel tank
cap, and wipe up any spilled gasoline before
starting the engine.
6. Thoroughly inspect the area where snowthrower
Will be used. Remove all door mats, sleds, boards,
wires, and any other foreign objects.
7. Keep all shields and safety devices in place.
If a shield or safety device is defective, make all
repairs before operating snowthrower. Also tighten
loose nuts, bolts, and screws.
8. Start engine and let it warm up outdoors for
about two minutes to adjust to outdoor tempera-
ture before clearing snow.
9. Move auger drive control to DISENGAGE
and gear shift lever to N, neutral, before starting
engine.
10. Adjust both skids so auger housing clears
gravel or crushed rock surfaces.
WHILE OPERATING
11. Never operate snowthrower without good visi-
bility or light. Always maintain secure footing and
keep a firm grip on the handles, especially when
operating in reverse: walk, never run.
12. Do not run engine indoors, except when start-
ing engine. When starting engine indoors, open out-
side doors because exhaust gasses are dangerous.
13. Keep face, hands, feet, and any other part of
your body or clothing away from concealed,
moving, or rotating parts. Stay behind the handles
while operating the snowthrower. STAY CLEAR
OF DISCHARGE OPENING AT ALL TIMES.
14. Do not attempt to make adjustments while
engine is running.
15. Use extreme caution when clearing snow from
or crossing a walk, road, or a gravet drive. Stay
alert for hidden hazards and traffic on roaas.
16. Never direct discharge or operate snowthrower
near bystanders, glass enclosures, automobiles and
trucks, window wells, or a drop-off without proper
adjustment of the snow discharge angle. Keep
children and pets away.
SAFETY INSTRUCTIONS
17. Never direct snow discharge at bystanders, and
do not allow anyone in front of the snowthrower,
18. Do not clear snow across the face of slopes.
Never clear snow from steep slopes. Exercise ex-
treme caution when changing direction on slopes.
19. Do not overload the snowthrower by clearing
snow at too fast a rate.
20. If a solid object is hit or if the snowthrower
vibrates abnormally, turn key to OFF so engine
stops. After waiting for all moving parts to stop,
remove high tension wire from spark plug and make
sure it does not contact plug accidentally. Then
check snowthrower for possible damage, an ob-
struction, or loose: parts. Repair any damage be-
fore starting and operating the snowthrower.
21. Before leaving the operator's position — behind
handles — move auger drive control to DIS-
ENGAGE, move gear shift lever to N, neutral,
and rotate ignition key to OFF. Remove key from
switch if snowthrower will be left unattended.
22. Before adjusting, cleaning, repairing and in-
specting the snowthrower, and before unclogging
the discharge guide, shut engine off and wait for
ali moving parts to stop. Next, remove high tension
wire from spark plug and keep wire away from the
plug to prevent accidental starting.
23. Move auger drive control to DISENGAGE
before transporting or storing the snowthrower.
Never operate snowthrower at high transport
speeds on slippery surfaces. Use care when backing.
24. Let engine run for a few minutes after clear-
ing snow so moving parts do not freeze,
ON BACK OF ENGINE
MAINTENANCE AND STORAGE
25. When storing the snowthrower, REMOVE KEY
FROM SWITCH. Store key in a memorable place.
26. Never let fuel in the snowthrower fuel tank
when snowthrower is stored in a building where
there is flame or spark present. Allow engine to
cool before storing.
27. Before performing any maintenance or servicing
the snowthrower, turn key to OFF and ‘wait for
engine and all moving parts to stop. Remove key
from switch and high tension wire from spark plug.
Make sure high tension wire does not contact plug
accidentally.
28. Perform maintenance and use storage instruc-
tions described in this manual.
29. Keep all nuts, bolts, and screws tight to
assure snowthrower is in safe working condition.
30. At the time of manufacture, the snowthrower
conformed with and exceeded safety standards in
effect for snowthrowers. Therefore, to assure opti-
mum performance and safety, purchase genuine
TORO replacement parts and accessories to keep
the Toro all TORO. NEVER USE "WILL-FIT"
REPLACEMENT PARTS AND ACCESSORIES.
The TORO logo assures genuineness.
31. For safety reasons, use only those accessories
and attachments, recommended by The Toro
Company to assure continued safety certification of
the product. Using unapproved accessories and
attachments could void the product warranty of
The Toro Company.
SAFETY DECALS
Safety and instruction decals are located on the control panel and snowthrower
chassis. Replace any decal that is damaged.
ON AUGER HOUSING
NEAR HANDLE GRIP
. A CAUTION
AVOID POTENTIAL HAZARDS
. STOP ENGINE AND WAIT FOR ALL MOVEMENT TO
STOP BEFORE UNCLOGGING OR SERVICING MA
CHINE.
DO NOT DEFEAT INTERLOCK SYSTEM IT 15 FOR
YQUR PROTECTION.
NEVER DIRECT DISCHARGE TOWARD BYSTANDERS
—
M
Ca)
AWARNING
KEEP CLEAR OF AUGER
WHILE ENGINE 15 RUNNING
STOP ENGINE
BEFORE REMOVING DEBRIS
SAFETY
INTERLOCK
UP TO RUN
NOR WINDOWS, NOR ALLOW ANYONE IN FRONT
OF OR NEAR THE MACHINE WHILE OPERATING
8E SURE SNOWTHROWER IS PROPERLY ASSEM
BLED AND ADJUSTED,
READ YOUR OWNERS MANUAL FOR OPERATING
AND SAFETY INSTRUCTIONS. IF YOU DO NOT
HAVE AN OWNER'S MANUAL WRITE US, INCLUDING
MODEL AND SERIAL NUMBERS,
THE TORO COMPANY , 8111 LYNDALE AVE, S. MINNEAPOLIS, MN 55420
£a
wn
COPYRIGHT 1976 BY
TheToro Company
AWARNING
ON KEEP HANDS OUT OF CHUTE
STOP ENGINE BEFORE UNCLOG-
DEFLECTOR GING OR REMOVING DEBRIS
DO NOT DIRECT DISCHARGE AT
BYSTANDERS
2 MINNEAPOLIS MINK 86420 tre
FOREWORD
The 1032 Snowthrower is an outstanding product for snow removal. It has advanced concepts in
engineering, design, and safety: and if maintained properly, the snowthrower will be reliable.
Since the snowthrower is a quality product, Toro is concerned about its future use and the safety of the
user. Therefore, read this manual to familiarize yourself with correct set-up, operation, and maintenance.
The four major sections of the manual are:
1. Setting Up Instructions
2. Preparation Before Starting
3. Operating Instructions
4. Maintenance
Some information in this manual needs emphasizing. The words CAUTION, IMPORTANT, and NOTE are
used to classify the information. ‘Caution’ identifies personal safety related information. Important”
identifies mechanical information demanding special attention. Be sure to read the directive because it has
to do with the possibility of damaging a part or parts of the snowthrower. “Note” identifies general
information worthy of special attention.
If help — concerning the snowthrower — is ever needed, contact the local Authorized TORO Service Dealer
or TORO Distributor. Refer to the yellow pages for assistance. In addition to genuine TORO replacement
parts, the dealer and distributor have other TORO products and many accessories for these products.
TABLE OF CONTENTS
Page Page
Specifications . . . . . . . . . . . . 4 Starting and Stopping Instructions... 14
Loose Parts . . . LL 12/85 Operating Instructions . . Co 14-15
Setting Up Instructions aa . 510 Left and Right Wheel Clutches . . . . . 14
Install Handles . . . a 5 Safety Interlock System . . . . . . . 15
Install Throttle Control and Snowthrowing Tips. . . . . . . . 15
Wheel Clutch Rods . . . . 5 Maintenance Co 16- 22
Install Auger Drive Control Rad 5 Lubricating Snowthrower 12120 16
Install Whee! Drive Control 6 Changing Crankcase Oil 1.2... 16
Install Discharge Chute Control 7 Changing Auger Gear Box Oil 17
Check Wheel Drive Adjustment 7 Adjusting Skids 17
Connect Light and Interlock Wires 8 Replacing V-Belts . . 18
Check Auger Gear Box Oil 8 Adjusting Auger Drive Belt 18
Remove Battery From Mounting Plate 8 Adjusting Traction Disc 19
Fill Battery with Electrolyte . 9 Adjusting Ground Speed 19
Neutralize and Dispose Excess Electrolyte 9 Replacing Spark Plug 20
Charge Battery 10 Adjusting Carburetor . . 20
Install Battery on Mounting Plate 10 Maintaining and Charging Battery 21
Check Tire Pressure aa a O Preparing Snowthrower For Storage . . . 22
Preparation Before Starting . . . . . . . 11 Wiring Diagrams . . . . . . . . . . . 23
Fill Crankcase With Oil. . 2. . . . . . I Troubleshooting . a 23
Fill Fuel Tank With Gasoline . . . . . 11 Identification and Ordering Back Page
Open Fuel Shut-Off Valve а Я The Toro Promise Back Page
Controls . . . ; a A
SPECIFICATIONS
Briggs and Stratton Engine: Model 251417, type
0140-01, four cycle, air cooled engine with an out-
put of 10 hp @3600 rpm and 16.80 ft-lb of torque
@2400 rpm. Displacement is 24.36 cubic inches.
Engine is equipped with manual choke, remote
control throttle and battery operated starter.
Fuel Tank: Tank is made of steel and has an
approximate capacity of four quarts. The winter-
ized fuel tank cap has a side vent.
Auger: Two section, drum-type auger is made of
heavy gauge steel: welded type construction. Each
auger section has two flights that are 3% inches
deep. Approximate diameter of auger is 16 inches.
Auger speed is 103 rpm when engine is running at
3400 rpm.
Auger Housing: Auger housing is approximately 32
inches wide and 22 inches high. The pivoting
scraper blade has a rotational height of approxi-
mately one inch. By adjusting skids at sides of
auger housing side plates, height of auger housing
can range from O to 2 inches from the ground.
Auger/!mpeller Drive: Drive is belt-type with idler
pulley, with power transmitted to a worm gear
which drives the auger and impeller; reduction is
9.00:1.
Impeller: The three blade, 14 inch diameter im-
peller is made of heavy gauge steel: welded type
construction. Impeller speed is 925 rpm when
engine 1s running at 3400 rpm. Blade tip speed of
impeller is 3300 ft/min when engine is running at
3400 rpm. Mass throw range per minute is 1200-
1500 pounds and a throw distance of approximate-
ly 25-30 feet. When auger drive control is dis-
engaged, brake mechanism stops impeller in less
than five seconds.
Discharge Chute: Chute is made of heavy gauge
steel and has throat diameter of approximately 7
inches. Chute angle of rotation from side to side is
200° and deflector angle of rotation is 60° up and
down.
Tires: Pneumatic tire is 16 x 4.80-8 with
diamond tread design. Track width from out-
side of tires is approximately 26% inches.
Traction Drive Transmission: Friction disc-type
drive with forward speeds of 0.7, 1.4, and 2.2 mph,
and reverse speed of 1.4 mph at engine speed of
3400 rpm. Wheel clutches transmit power to
wheels.
Controls: Mounted on control panel are the throt-
tle, ignition switch, wheel drive control, auger
drive control, and two wheel clutches. Chute con-
trol rod is mounted at side of left handle, and in-
terlock levers are mounted at grip end of handles.
Engine has manual choke and electric starter. Head
lamp has toggle switch.
Handles: Two, 1-1/4 inch diameter steel tubing
handles have zinc plating and a clear chromate
dip. Grip at end of both handles. Width between
handles is approximately 25 inches and height to
top of handle grip is approximately 37 inches.
Battery: Automotive type P22 F-NC battery.
12 volts and 54 amp hours.
Headlamp: Mounted on upper right handle is the
12 volt, 60 watt, sealed beam headlamp. Bulb size
is Par 36 and lamp number is 4461. Wire harness
has an inline, 7% amp fuse.
Dimensions:
Overall width is approximately 35 inches.
Overall length is approximately 63 inches.
Overal! height is approximately 41 inches.
Weight: Approximate dry weight is 360 pounds.
Accessories:
Tire Chains (part no. 23-2340)
Drift Breaker/Storage Bar (part no. 20-0650)
Snow Cab (part no. 12-8100)
Grader Blade (model no. 59051)
Sweeper (model no. 5907?)
LOOSE PARTS
| Part
Use
Flange Screws
Sems Screw & Lock Nut
Small Knob
Clevis Pin (%" Ig.) & Cotter Pin
Clevis Pin (2 1g.), Large Flat Washer
Hair Pin Cotter, Spring
Clevis Pin (1%” 1g.), Cotter Pin & Large Knob
Cap Screw & Lock Nut
Carriage Bolt, Lock Nut & Pyramidal Washer
Keys
Registration Card
<
install Handles, page 5, step 2
> Install Throttle, page 5, steps 1 & 2
Install Auger Drive Rod, page 6, step 2
Install Wheel! Drive Control, page 6,
steps 2,4 & 6
Install Discharge Chute Control, page 7, step 1
Install Discharge Chute Control, page 7, step 2
Use in ignition switch
SETTING UP INSTRUCTIONS
NOTE: Determine left and right sides of snow-
thrower by standing behind it.
Install Handles _
Tools Required: 9/16-Inch Socket and a Torque
Wrench
and chute
1. Remove from handles
control rod.
any tape
2. Position handles against outside of traction
unit side plates. Next, secure handles in place with
four hex flange screws (Fig. 1). Tighten hex flange
screws to 23 ft-Ib.
Figure 1
Install Throttle Control and Wheel Clutch Rods
Tools Required: 5/16-Inch Socket, 3/8-Inch Socket,
and 9/16-Inch Open End Wrench
|
SCREWS AND `
LOCK NUTS
Figure 2
1. From back side, slide throttle control lever
through slot in control panel. Next, secure throttle
control plate In place with two hex head sems
screws and lock nuts (Fig. 2),
2. Push or, If required, tap small knob onto
throttle lever.
3. Remove couplings from wheel clutch rods.
Next, thread couplings fully onto bottom rods
(Fig. 3).
4. Thread jam nuts (Fig. 3) completely onto
wheel clutch rods; then screw rods into couplings
(Fig. 3) until rods “bottom out” in the couplings.
Next, tighten jam nuts firmly onto top of
couplings.
WHEEL
CLUTCH
LL RODS J
ANTS
== COUPLINGS
Y
J JU
Figure 3
SETTING UP INSTRUCTIONS
Install Auger Drive Control Rod
Tools Required: Pliers and 9/16-Inch Open End
Wrench
1. Move auger drive control down to DISENGAGE
and hold it tn that position.
2. Rotate clevis {Fig. 4) on end af control rod
unti! holes in clevis line up with hole in bent rod.
Next, secure clevis and bent rod together with
clevis pin and cotter pin (Fig. 4).
Figure 4
NOTE: Use Adjusting Auger Drive Belt instructions
оп раде 16 tf additional adjustment 1s required.
3. Bottom jam nut firmly onto clevis (Fig. 4).
Install Wheel Drive Control
Tools Required: Pliers
1. Install tension spring through hole at bottom
center of wheel drive control (Fig. 5).
2. From back side, slide wheel drive control lever
through 1st gear slot in control panel (Fig. 5). Next,
line up holes in wheel drive control pivot with
U-shaped pivot bracket; then secure Darts In place
with clevis pin (Fig. 5). Head of clevis pin must be
on right side of U-shaped bracket.
J BX CV AY Th
Pa Dir dise
CoO
pore iE
О DAS
Fiqure 5
3. Slide flat washer onto clevis pin; then install
hair pin cotter through clevis pin so all parts are
retained in place (Fig. 6).
- USHAPED PIVOT BRACKET “*
TN
Figure 6
4. Line up holes in U-shaped end of control rod
with hole in tube at center of traction unit (Fig. 7).
Next, secure parts together with clevis pin and
cotter pin (Fig. 7).
LATA
DA ee, -
i В: @
Г
002,
2"
IDO
НО
CLEVISPIN /
AND @ -
COTTER PING |
Figure 7
5. Install end of tension spring into hole in
contro! panel (Fig. 6).
6. Screw large knob onto end of wheel drive
control lever.
SETTING UP INSTRUCTIONS
Install Discharge Chute Control
Tools
Wrench
Required: %-Inch Socket and %-Inch
1. Install chute control bracket and rod against
left side of handle with cap screw and lock nut
(Fig. 9); but do not tighten the lock nut.
BRACKET LAL
AND ROD ——— UA a
hs
LOCK NUT
Figure 9
2. Apply no. 2 wheel bearing grease on worm gear
(Fig. 10). Next, mount worm bracket and gear on
top of mounting flange with carriage bolt, pyrami-
dal washer and cone lock nut (Fig. 10). Do not
tighten lock nut.
CARRIAGE
ъ
Figure 10
3. Push worm firmly against teeth in retaining
ring; then tighten lock nut (Fig. 10). Also tighten
lock nut holding chute control bracket against
handle (Fig. 9).
Check Wheel Drive Adjustment
Tools Required: Tape Measure
1. Move wheel drive control into “third” gear and
check position of lever (Fig. 11), Bottom of shift
lever must be 1/4 — 3/8 inch from bottom of
slot (Fig. 11). If lever is not in correct position,
proceed to step 2 and adjust the U-shaped pivot
bracket that holds wheel drive control. If lever is
in correct position, proceed to step 4.
CENTER] 1/4" TO 3/8”
ON.
| (
|
| | LEVER POSITIONS
J
R
Figure 11
2. Shift into “first” gear; then remove hair pin
cotter, flat washer, and clevis pin retaining wheel
drive control in place (Fig. 12). Next, move wheel
drive control away from U-shaped pivot bracket
and rotate the pivot bracket one complete turn
(Fig. 12). Then reinstall gear shift.
NOTE: Rotate U-shaped pivot bracket clockwise —
in — to lower wheel drive control lever and coun-
terclockwise — out — to raise the lever (Fig. 12).
| U-SHAPED
PIVOT BRACKET _
A
>
- = В
207 tte
*
Aa EA
PELA ан
=
Figure 12
3. Check the adjustment by repeating step 1.
4. Move wheel drive control to N — neutral,
SETTING UP INSTRUCTIONS
Connect Light And Interlock Wires
Tools Required: None
1. Push connector at end of headlamp wire onto
terminal below center of starter motor (Fig. 13).
Figure 13
2. Push ignitton connector onto ignition switch
terminals (Fig. 14).
3. The 19nition connector has a single wire that
Is free. Push the terminal at end of single wire
onto top terminal of wheel drive control interfock
switch (Fig. 14).
\
Figure 14
Check Auger Gear Box Oil
Tools Required: 3/8-Inch Open End Wrench
1. Move snowthrower to a level surface.
2. Remove pipe plug from gear box (Fig. 15); then
check level of oil in gear box. Oil must be at point
of overflowing in filler opening.
Figure 15
3. If level of oil is low, add SAE 90 EP trans-
mission oil to the gear box until point of overflow.
4. Install pipe plug in gear box (Fig. 15).
IMPORTANT: Change oil in auger gear box once a
year. I possible, run auger just before changing oil
because warm ol flows better and carries more
contaminants than cold oil.
Remove Battery From Mounting Plate
Tools Required: Two, 1/2-Inch Open End Wrenches
1. Remove two top nuts retaining end of battery
strap (Fig. 16). Set battery strap aside.
NOTE: Battery cover cannot be removed at this
time because there 1s interference with other parts.
Figure 16
2. Loosen both bottom nuts until clamps do not
secure battery in place (Fig. 16). Next, slide
battery off mounting plate about two inches:
then remove cover from top of battery.
SETTING UP INSTRUCTIONS
3. In sequence, slide positive and negative battery
cables off the battery posts (Fig. 17). Next, lift
battery off mounting plate and set it aside.
NEGATIVE
BATTERY CABLE
Figure 17
Fill Battery With Electrolyte.
Tools
Gloves
Required: Safety Goggles and Rubber
NOTE: There is no electrolyte shipped with the
snowthrower; therefore, the electrolyte must be
purchased at an ‘’automotive supply store” ог
“service station”. Correct “specific gravity” for
the electrolyte is 1.260.
CAUTION
Electrolyte — battery acid — is corrosive
and poisonous because it contains sul-
furic acid. Keep electrolyte out of the
reach of children. Avoid acid contact
with skin, eyes, and clothing. When filling
battery with electrolyte, wear safety
goggles and rubber gloves to protect eyes
and hands.
1. Remove vent caps from top of battery by
pulling them up (Fig. 18).
VENT CAPS
FILLER ~~
NECK LEVEL TT
r LA
TOP OF
PLATES
[ ]
Figure 18
A CAUTION
Read instructions on electrolyte package
before filling battery to prevent possible
accidents.
2. Fill battery cells until level of electrolyte
is over the plates, but only up to the ring at bottom
of filler neck (Fig. 18). DO NOT OVERFILL. Next,
let battery stand for about 15 minutes. During
this time, level of electrolyte may settle and fall
below the prescribed level; therefore, add electro-
lyte to any affected cell until level is up to ring
at bottom of filter neck.
IMPORTANT: Never add electrolyte to any battery
cell after battery is charged because damage to the
battery will result.
3. install vent caps on top of battery.
A CAUTION
After filling the battery cells, a small
amount of electrolyte is usually left in
the electrolyte package. This excess elec-
trolyte must be neutralized and dis-
posed safely.
Neutralize and Dispose Excess Electrolyte
Tools Required: Plastic Pail, Baking Soda, Wooden
Stick, Safety Goggles, and Rubber Gloves.
1. Put approximately one pint of water and five
heaping teaspoons of BAKING SODA into a
plastic pail.
2. Dissolve baking soda by stirring solution with
the wooden stick.
3. After baking soda is dissolved, pour excess
electrolyte into the soda-water solution. Foaming
action will result. Next, rinse inside of electrolyte
package with water; then pour the water into the
pail of soda-water. The electrolyte package is now
neutralized and can be disposed.
4. Stir solution in pail with wooden stick.
Continue to stir the solution and add more
BAKING SODA until all foaming stops. When
foaming stops electrolyte is neutralized and safe
for disposal.
5. Dispose of the solution in the pail by flushing
solution down a toilet or by pouring it down a
9
SETTING UP INSTRUCTIONS
drain. Next, rinse the pail and wooden stick with
clean water; then dispose of the water. The pail
and stick are now neutralized.
6. Dispose of the electrolyte package and wooden
stick by putting them in a refuse container.
Charge Battery
Tools Required: 6 to 10 Amp Battery Charger
A CAUTION
Charge battery in a well-ventilated area
because gases are produced while battery
is being charged. Do not inhale the gases
because nausea may result. Also, the
gases are explosive; therefore, do not
smoke, and keep away from open flame
and electrical spark to prevent a possible
explosion. Have enough water -v.:iable
to flush electrolyte from skin and eyes,
If it is accidentally contacted. Wear
safety goggles when near a battery being
charged.
Do not connect or disconnect battery
and charger while charger is plugged into
110-120 VAC wall outlet because a spark
could possibly cause the battery to
explode. Therefore, pull charger plug
out of wall outlet before connecting or
disconnecting charger from battery
(Fig. 19).
1. Charge the battery. Using a 6 to 10 amp
charger {Fig. 19), charge battery according to the
instructions supplied by the manufacturer of the
charger. “Quick charging’ the battery is not
recommended.
Figure 19
10
2. After battery is charged, remove vent caps from
top of battery (Fig. 18). Next, check level of
electrolyte in battery cells to make sure it is up to
the ring at bottom of filler neck (Fig. 18). If level is
low, add drinking water to raise level.
3. Install vent caps on top of battery.
4. On top of the battery there are some die-cut
circles with numbers. Lift out the die-cut circles
to indicate month and year of the initial charging.
Install Battery on Mounting Plate
Tools Required: Two, 1/2-Inch Open End Wrenches
1. Set battery onto mounting plate of snow-
thrower. Battery posts must be to the outside, not
toward the fuel tank (Fig. 17). Allow about one
inch of the battery to extend over outside of
mounting plate (Fig. 17).
2. Push clamp at end of black battery cable,
which is grounded to engine, onto smallest dia-
meter, negative (-), battery post (Fig. 17). Tighten
clamp retaining nut. Next, push clamp at end of
black battery cable with red band, which is con-
nected to the solenoid, onto the largest diameter,
positive (+), battery post (Fig. 17). Tighten clamp
retarning nut.
NOTE: Battery cables must be specially routed on
and around the batte: y (Fig. 17).
3. install cover on top of battery. Next, slide
battery completely onto mounting plate. Secure
battery in place with cap screws, battery hold-down
clamps, and nuts (Fig. 17).
4. Install battery strap onto battery cover and
slide mounting ends of strap onto ends of cap
screws {Fig. 1B). Secure all parts in place with two
nuts (Fig. 16).
Check Tire Pressure
IMPORTANT: Check pressure of tires before the
snowthrower is operated. Assure that pressure in
both tires is 30 psi.
A CAUTION
For optimum performance, to gain know-
ledge of the product, and most im-
portantly, to assure maximum safety, it
is essential that you or any other opera-
tor of the snowthrower read and under-
stand the contents of this manual before
the engine is ever started.
PREPARATION BEFORE STARTING
Fill Crankcase With Oi!
Tools Required: Funnel and Clean Rag
IMPORTANT: Check level of oil every 5 operating
hours or each time snowthrower is used. Initially,
change oil after first 2 operating hours; thereafter,
under normal conditions, change oil after every 25
hours of operation. If possible, run engine just be-
fore changing oil because warm oil flows better and
carries more contaminants than cold oil.
1. Move snowthrower to a level surface. If snow-
thrower 1s tilted, level of oil will be too high or
too low.
2. Clean area around dipstick so foreign matter
does not enter filler hole when dipstick 1s removed.
Next, remove dipstick from filler neck (Fig. 20).
Figure 20
3. Slowly, pour approximately 48 ounces of any
high-quality detergent oil with “service classifi-
cation” SC, SD, SE, or MS into the filler neck.
Oil Viscosity — weight — must be selected accord-
ing to ambient temperature. Temperature/viscosity
recommendations are:
A. From +50 F to 0°F — Use SAE 5W-20 or
5W-30. SAE 10 or 10W-30 may be used if
the other oils are not available.
В. Below 0°F — Use SAE 10 or 10W-30 that
is diluted 10% with kerosene.
4. Wipe end of dipstick. Next, push dispstick
completely down into filler neck to get accurate
oil level reading (Fig. 20); then pull dipstick out
and check oil level. !f level of oil is low, add enough
oil to raise level to “F'” mark -—- full — on dipstick.
DO NOT OVERFILL.
5. Push dipstick into filler neck (Fig. 20).
Fill Fuel Tank With Gasoline
Tools Required: Clean Rag and Funnel
IMPORTANT: Do not mix oil w/gasoline because
engine damage and poor performance may result.
Do not use premium gas, white gas or gasoline
additives, Either leaded-regular or lead-free gasoline
is recommended to fill the 4 quart fuel tank.
CAUTION
Because gasoline is flammable, caution
must be used when storing or handling
it. Do not fill fuel tank while engine is
running, hot or when unit is in an en-
closed area. Keep away from open flame
and electrical spark, and DO NOT
SMOKE while filling the fuel tank to
prevent the possibility of an explosion.
Always fill fuel tank outside and wipe
up any spilled gasoline before starting
engine. Use a funnel or spout to pre-
vent spilling gasoline, and fill fuel tank
to about 1/2 inch from the top of the
tank, not the filler neck.
Store gasoline in a clean, approved con-
tainer and keep the cap in place on the
container, Keep gasoline in a cool, well-
ventilated place: never in the house. To
assure volatility, do not buy more than a
30 day supply of gasoline. Gasoline is a
fuel for internal combustion engines;
therefore, do not use it for any other
purpose. Since many children like the
smell of gasoline, keep it out of their
reach because the fumes are explosive
and dangerous to inhale.
1. Clean area around the fuel tank cap. Remove
cap from fuel tank and fill tank to within 1/2 inch
from the top w/lead-free or leaded-reqular gasoline.
Reinstall fuel tank cap securely.
NOTE: Lead-free gasoline reduces combustion de-
posits and extends valve life, and when available,
this type of gasoline is recommended. Otherwise,
use leaded-regular gasoline.
11
CONTROLS
Fuel Shut-Off Valve (Fig. 21) -- Close valve to stop
fuel How from fuel tank and open valve to allow
fuel to flow to the carburetor.
ETA
AA: ave _ |
Fiqure 21
Auger Drive Control (Fig. 22) - Control has two
positions: ENGAGE and DISENGAGE. To engage
auger and impeller, pull control up slowly until it
stops in an over center position. To disengage auger
and impeller, pull control down.
Interlock Levers (Fig. 22) One interlock lever
must be compressed against handle grip when
auger drive or wheel drive control 1s engaged. The
engine will shut off If both levers are released when
auger drive or wheel drive control is engaged. This
is a safety feature that reminds the user to dis
engage auger drive control before leaving operators
nosition behind the handles.
Wheel Clutches (Fig. 22) — Pull both wheel
clutches out to get free-wheeling characteristic. By
contrast, push both clutches in to get direct drive
to both wheels. When one wheel clutch is pushed in
and the other is out, direct drive will be to the
wheel :that has clutch pushed in: and the other
wheel wiil be free-wheeling.
Wheel Drive Control (Fig. 22) — The control has
five positions: N-—neutral, R—reverse, 1, 2, and 3.
To change speeds, move wheel drive control to
position desired. Control must be held in R--reverse
— when backing, and when it is released, gear shift
automatically returns to neutral. Use positions 1, 2,
and 3 depending on snow conditions. Keep inter-
lock lever compressed when shifting.
Throttle (Fig. 22) — The variable speed throttle
has two positions: FAST and SLOW. Moving the
throttle forward increases engine speed. Use only
enough engine speed to throw snow to the place
desired.
12
INTERLOCK LEVER WHEEL CLUTCHES
AUGER DRIVE
CONTROL IGNITION
SWITCH
€
INTERLOCK
LEVER
WHEEL
DRIVE
CONTROL THROTTLE
DISCHARGE
/ CHUTE CONTROL
Figure 22
Discharge Chute Control (Fig. 22) — Rotate dis-
charge chute control clockwise to move discharge
chute to the left and counterclockwise to move
chute to the right.
Ignition Switch (Fig. 22) — Ignition switch is used
to start and stop the engine. Rotate key fully clock-
wise to engage starter motor with ring gear in
engine. Release key immediately when engine starts.
DO NOT ENGAGE STARTER MOTOR WHILE
ENGINE IS RUNNING because damage will likely
result, Rotate key counterc |
Choke (Fig. 23) The choke is on left side of
engine. Push choke down until it stops to get full
choke position for starting a cold engine. As
engine warms up, move choke fully up.
Figure 23
Deflector Handle — Deflector handle is on top of
discharge chute and it is used to control height of
the snow stream.
SNOWTHROWER
CAR
DRIFT BREAKER
STORAGE BAR
Service Dealer.
NOTE: Optional cab, drift hreaker/storage bar, and tire chains are available at an Authorized Toro
|
X
TIRE
CHAINS
13
STARTING AND STOPPING INSTRUCTIONS
To Start Engine:
IMPORTANT: Check auger and impeller to assure
that both parts are not frozen solid, but free to
rotate. Also, make sure discharge chute is not
obstructed.
1. Move auger drive control down to DISENGAGE
(Fig. 22).
2. Move wheel drive contro! to N — neutral — and
throttle to FAST (Fig. 22).
3. Open fuel shut-off valve (Fig. 21).
4. Move choke down until it stops (Fig. 23).
5. Insert key into ignition switch (Fig. 22); then
rotate key to START position. Release key as soon
as engine starts and regulate the choke to keep
engine running. As engine warms up, move choke
fully up. Let engine warm up for a few minutes
before using snowthrower.
IMPORTANT: Do not keep starter motor engaged
for more than 8-10 seconds because the starter
motor may overheat.
NOTE: If engine does not start and temperature
is -10°F or less, rotate needle valve on carburetor
1/8 turn counterclockwise (Fig. 41). Repeat steps
4 & 5. When engine fires, move choke up slightly;
engine should start.
6. After engine starts, regulate choke and throttle
until engine runs smoothly. Allow engine to warm
up before using the snowthrower.
To Stop Engine:
1. Move wheel drive contro! to N — neutral — and
auger drive control to DISENGAGE (Fig. 22).
2. Move throttle to SLOW and rotate ignition key
counterclockwise to OFF (Fig. 22).
NOTE: Always close fuel shut-off valve after engine
is shut off. This prevents fuel from flowing from
the fuel tank and into the carburetor.
OPERATING INSTRUCTIONS
Left and Right Wheel Clutches
Before the snowthrower is started and operated,
practice using the left and right wheel clutches.
1. With snowthrower on a flat surface, push the
left or right wheel clutch in (Fig. 24). If clutch
cannot be pushed in, exert pressure on the knob
while moving opposite handle back and forth until
clutch moves down (Fig. 24). Next, push the other
whee! clutch in. If clutch cannot be pushed in,
exert pressure on the knob while moving opposite
handle back and forth until ctutch moves down.
or ATR
Figure 24
14
IMPORTANT: Do not use too much force when
pushing wheel clutches because damage may result.
2. When wheel clutches can be pushed in and
pulled out without trouble, move snowthrower to
an open area and start the engine.
3. With engine running at idle speed and wheel
drive control in 2 — second gear — push both
wheel clutches down (Fig. 25) to transmit power
to both wheels. MAKE SURE BOTH WHEEL
CLUTCHES ARE FULLY ENGAGED — PUSHED
IN — TO PREVENT ACCIDENTAL DISENGAGE-
MENT OF THE WHEELS.
go
Mi CF
WHEEL
po
£ CLUTCHES
INTERLOCK
LEVER
Figure 25
OPERATING INSTRUCTIONS
4. Pull left wheel clutch out fully (Fig. 24).
The snowthrower will turn left because right wheel
is driving and left wheel is free-wheeling. Just
before turn Is completed, exert steady pressure on
left wheel clutch until it moves fully toward the
control panel. Both wheels will now drive. Do the
opposite to turn right.
5. In some conditions; a wheel clutch may not be
able to be pulled out — disengaged. |f this happens,
move wheel drive control to N — neutral position:
then pull wheel clutch out.
6. Transport — When moving snowthrower by
pushing it from one place to another, pull both
wheel clutches out so wheels are free to rotate.
Checking Safety Interlock System
The safety interlock system grounds out and stops
the engine through a series of switches (Fig. 26), if
the operator releases both interlock levers at once
before moving wheel drive control to N — neutral —
and auger drive control to DISENGAGE. So, to
keep engine running when wheel drive is in gear or
when auger drive control is ENGAGED, at least
one of the safety interlock levers (Fig. 25) must be
compressed against handle grip. This system also
prevents the operator from starting the engine with
the wheel drive control in gear or auger drive
contro! engaged.
WARNING
If interlock system does not operate
properly, have the interlock system re-
paired immediately by an Authorized
TORO Service Dealer. DO NOT TRY
TO DEFEAT THE INTERLOCK
SYSTEM BY DISCONNECTING WIRES
OR SWITCHES, OR IN ANY OTHER
WAY MAKE IT INOPERATIVE. An in-
operative interlock system will allow the
auger and impeller to rotate continuously
when operator's position is left; and
this situation is HAZARDOUS. Check
the interlock system every time snow-
thrower is used.
SWITCH
Figure 26
switch.
To Check Interlock System:
1. Push snowthrower outdoors onto a flat, open
area. Start the engine: refer to Starting and Stopping
Instructions, page 14.
2. Slowly, move auger drive control to ENGAGE
while both interlock levers are fully released.
Engine should begin to shut off; and when it does,
immediately move auger drive control back to
DISENGAGE. If engine begins to shut off, switch
is operating correctly.
3. Slowly, move wheel drive control to 1 — 151
gear — while both interlock levers are fully re-
leased. Engine should begin to shut off; and when
it does, immediately move wheel! drive control back
to N — neutral. If engtne begins to shut off, switch
Is operating correctly.
Snowthrowing Tips
1. When snowthrower is not being used, close fuel
shut-off valve, have wheel drive control in N —
neutral position, auger drive control in DISEN-
GAGE position and key removed from the ignition
2. Remove snow as soon as possible after it falls.
This will produce best snow removal results.
3. If snow will be removed from crushed rock or
gravel areas, adjust skids so bottom of auger
housing clears the rocks: refer to Adjusting Skids,
page 17,
4. For concrete or asphalt surfaces, adjust skids
so there is 1/8 inch between bottom of auger and
concrete or asphalt surface.
5, The snowthrower is designed to clean snow
down to the contact surface, but there are times
when front of snowthrower may tend to ride
up. lf this happens, reduce forward speed by shift-
ing into a lower gear. If front still tends to ride
up, lift up on both handles to hold down front of
snowthrower
6. Discharge snow downwind whenever possible,
and overlap each swath to assure complete snow
removal. If wheels slip, shift into a lower gear which
reduces forward speed.
7. Normally, chains are not required; however,
tire chains are recommended when the wheels spin
excessively,
8. In some snow and cold weather conditions,
some controls and moving parts may freeze solid.
Therefore, when any control becomes hard to
operate, stop the engine; then check all parts for
freeze up. DONOT USE EXCESSIVE FORCE AND
TRY TO OPERATE THE CONTROLS WHEN
FROZEN. Free all controls and moving parts be-
fore operating.
15
MAINTENANCE
CAUTION
To prevent accidental starting of the
engine while performing maintenance,
rotate ignition key to off and remove it
from the switch. Next, pull high tension
wire off spark plug (Fig. 27) and make
sure wire does not accidentally touch
the plug.
Figure 27
Lubricating Snowthrower
Tools Required: 3/8-Inch Socket and Clean Rag
Lubricate control linkage and other moving parts
of the snowthrower after every 15 hours of opera:
tion.
1. Lubricate pivot points in the control linkage
with a few drops of SAE 10W-40 oil (Fig. 28). Wipe
up any excess otl.
Figure 28
16
2. Lubricate pivot points of both wheel clutches
with two drops of SAE 10W-40 oil (Fig. 29). Wipe
Up any excess oil.
Figure 29
3. Remove four thread forming screws holding
rear shield against traction unit; then slide shield
away from traction unit. Next, lightly lubricate
drive chains, sprocket hushing, nylon ring, hex
shaft, and the other pivot points with SAE 1T0W-40
oil and #2 grease (Fig. 30). Wipe up any excess oil.
Lastly, install rear shield against traction unit with
four thread forming screws.
IMPORTANT: Do not get oil on rubber wheel or
friction drive plate because the wheel will slip
and the rubber may deteriorate.
Г
* À + Ei
A A a
Р
с (dm
EL ВЕ
В" В E
-
.
- La
- -
e -
- -
=
7 Li hol
e -
e:
=
Г]
‘ >
nA
Le
4 №
НЕ
Za
Figure 30
Changing Crankcase Oil
Tools Required: 15/16-Inch Open End Wrench,
Drain Pan, and Clean Rag
Initially, change oil after the first 2 hours of
engine operation. Thereafter, change oil after every
25 hours of engine operation. Tf possible, run engine
just before changing oil because warm oil flows
better and carries more contaminants than cold oil.
MAINTENANCE
NOTE: Drain oil when fuel tank is empty to pre-
vent spilling gasoline.
1. Pull high tension wire off spark plug and make
sure it does not contact plug accidentally.
2. Put a two inch block under the right wheel so
snowthrower is tipped slightly to the side. This will
assure that all oil is drained from crankcase.
3. Clean area around oil drain cap. Next, slide
oil drain pan below drain extension: then remove
oil drain cap (Fig. 31).
Figure 31
4. After all oil is drained, install oil drain cap.
Also, REMOVE BLOCK FROM UNDER RIGHT
WHEEL.
5. Position snowthrower on a level surface. Next,
fill crankcase with oil: use Fill Crankcase With
Oil, page 11. Wipe up any oil that may have spilled.
Changing Auger Gear Box Oil
Tools Required: 3/8-Inch Open End Wrench, Drain
Pan, and Clean Rag
Change auger gear box oil once a year. !f possible,
run the auger just before changing oil because warm
oil flows better and carries more contaminants than
cold oil.
1. Remove battery from snowthrower: use
Remove Battery From Mounting Plate, page 8.
2. Drain gasoline from fuel tank. Wipe up any
spilled gas.
3. Position snowthrower on a level surface.
4. Clean area around pipe plug so dirt is removed.
5. Put a drain pan below the pipe plug (Fig. 32) at
front of auger gear box; then remove pipe plug.
Figure 32
6. Tip snowthrower forward and hold it up until
all oil drains from the gear box.
7. Carefully let snowthrower down to its normal
position. Make sure it is on a level surface. Next,
fill auger gear box with 3 ounces of SAE 90 EP
transmission oil, or fill to point of overflow.
8. Thread pipe plug back into gear box (Fig. 32).
9. Install battery: use Install battery On Mount-
ing Plate, page 10.
Adjusting Skids
Tools Required: 9/16-Inch Wrench
When snowthrower will be used on concrete or
asphalt surfaces, adjust skids using steps 1 - 3.
However, use step 4 when snowthrower will be
used on gravel or crushed rock surfaces.
1. Move snowthrower to a level surface. Next,
loosen four flange nuts (Fig. 33) securing both
skids to auger side plates. Skids must slide up and
down.
Figure 33
17
MAINTENANCE
2. Push snowthrower forward so pivoting scraper
blade moves backward.
3. Adjust both skids so there is 1/8-inch between
bottom of auger and level surface. When skids are
adjusting correctly, tighten flange nuts. Next, check
pivoting scraper blade that is mounted at bottom
of auger housing. Scraper must be parallel with
level surface. If scraper is not parallel, adjust skids
again. Do not use step 4 after adjusting skids for
hard surfaces.
4. Loosen four flange nuts (Fig. 33) securing both
skids to auger side plates. Next, slide skids down as
far as possible so auger is as far from the level
surface as skid adjustment allows; then tighten
flange nuts.
Replacing V-Belts
Tools Required: 7/16G-Inch Socket and 9/16-Inch
Open End Wrench
When traction or auger drive belt becomes worn,
stretched, oil-soaked, or otherwise defective, belt
replacement 1s required.
1. Pull high tension wire off spark plug and make
sure tt does not contact plug accidentally.
2. Remove two thread forming screws holding
belt guard in place,
3. Remove two upper flange screws and [oosen the
two lower lock nuts holding auger housing and
traction unit together.
4, Remove the defective belt or belts; then install
new belt(s). Make sure auger drive belt is installed
to inside of the belt quide (Fig. 34). Traction drive
belt must be installed against inside of the idler
pulley (Fig. 34).
AUGER DRIVE Ta
1:16 -
18
9. Secure auger housing and traction unit together
by lining up top holes and installing two flange
screws. Tighten two upper flange screws and lower
lock nuts.
6. Install belt guard with two thread forming
screws.
Adjusting Auger Drive Belt
Tools Required: Pliers and 9/16-Inch Open End
Wrench
If auger slips, which means the auger drive belt
1s slipping, an adjustment is required. When a new
belt is installed, an adjustment may also be required.
1. Loosen jam nut from clevis at bottom of
auger drive control rod (Fig. 35). Next, remove
cotter pin and clevis pin holding clevis to bent
rod {Fig. 35).
JAMNUT,
AGC Eat
Figure 35
2. Rotate clevis (Fig. 35) counterciockwise — out
— to increase belt tension. By contrast, rotate clevis
clockwise — in — to decrease belt tension.
NOTE: When adjusting clevis, rotate it one
complete — 360° — turn.
3. Connect clevis to bent rod with clevis pin and
cotter pin (Fig. 35). Next, tighten jam nut against
top of clevis {Fig. 35).
4. Check tension of belt by operating the auger.
tf belt still slips, adjust clevis again.
IMPORTANT: Do not adjust belt too tight because
the belt will wear out quickly or possibly cause
damage to the snowthrower. Belt is too tight when
auger will not disengage.
Adjusting Traction Disc
Tools Required: Pliers, 3/8-Inch Socket
If snowthrower does not drive in reverse or forward
speeds, or if snowthrower does not disengage —
come out of gear — an adjustment is required.
1. Move wheel drive control to 1, first gear.
2. Disengage back of wheel drive control from U-
shaped pivot bracket by removing hair pin cotter,
flat washer, and clevis pin (Fig. 6). Next, move
control away from U-shaped pivot bracket (Fig.
36).
| U-SHAPED |
PIVOT BRACKET ,
!
Figure 36
3. If snowthrower does not drive tn reverse or
forward speeds, rotate U-shaped pivot bracket
(Fig. 36) outward — counterclockwise — one com-
plete turn. By contrast, rotate pivot bracket inward
— clockwise — if drive does not come out of gear.
4. Install back of wheel drive control between
U-shaped pivot bracket with clevis pin, flat washer,
and hair pin cotter (Fig. 6). Head of clevis pin
must be on right side.
5. Remove four thread forming screws holding
rear shield against traction unit; then slide shield
away from traction unit. Next, move wheel drive
control to N, neutral position.
6. Slide a 3/32 inch gauge between rubber wheel
and friction disc (Fig. 37). If there is too little or
too much clearance, repeat steps 1 - 4. If clearance
is as specified — 3/32 inch — install rear shield with
four thread forming screws.
Figure 37
IMPORTANT: Too little clearance between rubber
wheel and friction plate will cause the rubber
wheel to wear rapidly. If it will not drive forward
or reverse, even after correct adjustment is made,
contact the local Authorized TORO Service Dealer.
Adjusting Ground Speed
Tools Required: 7/16-Inch Socket and 7/16-Inch
Wrench
if ground speed In 1 — first gear — Is too slow or
too fast, or if it is hard to move wheel drive control
into 3rd gear, an adjustment is required.
1. Loosen two cap screws and lock nuts holding
swivel bracket against control panel (Fig. 38).
2. To reduce ground speed, move swivel bracket
(Fig. 38) to the right. By contrast, move swivel
bracket to the left to increase speed in 1st gear.
3. When desired adjustment is obtained, tighten
the two cap screws and lock nuts (Fig. 38).
ay
N SWIVEL
о ВВАСКЕТ
3 > и й
i
' й
: Y 7
À N {
Da В .
M e MU 8 à
| e Biar ce
A ВУ GEN Ra NH Kr POMENES
Figure 38
19
MAINTENANCE
Replacing Spark Plug
Tools Required: 3/4-Inch Spark Plug Socket,
Spark Plug Gapping Tool, and Clean Rag
Correct spark plug to use is a Champion RCJ-8 or
Autolite AR7N, and correct air gap is 0.030 of an
inch. Since air gap between center and side elec-
trodes of the spark plug increases gradual!y during
normal engine operation, install a new plug after
every 25 hours of engine operation.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when plug is removed.
2. Pull high tension wire off spark plug (Fig. 39);
then remove plug from cylinder head.
IMPORTANT: A cracked, fouled, or dirty spark
plug must be replaced. Do not sand blast, scrape,
or clean electrodes using a wire brush because grit
may eventually release from the plug and fall into
the cylinder. The result will likely be engine
damage.
HET eT die
й A
‚ НН:
Бой
Figure 39
3. Set air gap between electrodes of new spark
plug at 0.030 of an inch (Fig. 40). Next, install
spark plug in cylinder head. Tighten plug to 15
ft-lb. if torque wrench is not used, tighten plug
firmly.
Figure 40
4, Push high tension wire onto spark plug (Fig.
39).
20
Adjusting Carburetor
Tools Required: Screwdriver
The carburetor has been adjusted at the factory,
but an adjustment may be required if carburetor
has been disassembled. Do not make unnecessary
carburetor adjustments because factory settings
are correct for most applications.
IMPORTANT: Do not close needle valve too
tight because valve and seat in carburetor will
likely be damaged.
1. Needle Valve (Fig. 41) — Close needle valve by
gently rotating it clockwise.
2. Rotate — open — needle valve (Fig. 41) 1-1/8
turns counterclockwise.
IMPORTANT: Do not close idle valve too tight
because valve and seat in carburetor will likely
be damaged.
3. Idle Valve (Fig. 41) — Close idle valve by
gently rotating it clockwise.
4. Rotate — open — idle valve (Fig. 41) 1-1/8
turns counterclockwise.
NOTE: The needle valve and idle valve settings are
approximates: however, the settings will allow
engine to be started so carburetor can be fine
tuned — steps 5 - 11.
A CAUTION
Encine must be running so final adjust-
ment of the carburetor can be perform-
ed. To guard against possible personal
injury, move auger drive and wheel drive
controls to DISENGAGE and N, and
remember to keep hands, feet, face, and
other parts of the body away from
muffler, auger, discharge chute, and any
moving part(s).
5. Start engine and let it warm up for approxi:
mately two to three minutes; then move throttle
to FAST.
6. Rotate needle valve (Fig. 41) clockwise — in —
until engine misses because of a lean gasoline mix-
ture. Then rotate needle valve counterclockwise —
out — so engine runs unevenly because of a rich
gasoline mixture. Next, rotate needle valve clock-
wise, back to the midpoint between the rich and
lean setting so engine runs smoothly.
7. Move throttle backward to idle speed. Next,
MAINTENANCE
rotate idle speed adjusting screw (Fig. 41) until
engine idles fast — 1750 rpm.
meta as
NEEDLE К Вы
AS (AS
A
Figure 41
8. Rotate idle valve (Fig. 41) ciockwise — 1n —
until engine begins to miss because of a lean
mixture. Then rotate idle valve counterclockwise —
out — until engine runs unevenly because of rich
mixture. Next, rotate idle valve clockwise, back
to the mid-point between rich and lean setting.
9. Again, rotate idle speed adjusting screw (Fig.
41) until engine idles at 1750 rpm.
10. Check carburetor adjustment by quickly mov-
ing throttle from low speed to high speed. Engine
should accelerate without hesitation or sputtering.
If engine does not accelerate properly, adjust
carburetor to a slightly richer mixture.
11. After carburetor 15 adjusted, shut engine off.
Maintaining and Charging Battery
Tools Required: 6 to 10 Amp Battery Charger
Before charging the 12 volt battery, make sure the
battery case is not cracked. Also, remove vent
caps and look into filler holes. Top of plates
must not have ice crystals on them. {f ice crystals
are evident, do not charge the battery; take battery
indoors so it can warm up. After ice crystals are
dissolved, battery can be charged.
During normal use and storage, the battery may
discharge slowly. A partial short or leaving the snow-
thrower light on for a long time could also cause a
stow discharge of the battery. Whenever the battery
is discharged, charge it using a 6 to 10 amp charger.
Use charging instructions supplied by manufacturer
of charger.
CAUTION
Charge battery in a well-ventilated area
because gases are produced while battery
is being charged. Do not inhale the gases
because nausea may result. Also, the
gases are explosive; therefore, stay away
from open flame and electrical spark, and
do not smoke while the battery is being
charged.
1. Remove the battery; use Remove Battery From
Mounting Plate, page 8.
2. Connect battery charger cables to battery posts
(Fig. 42). Make sure that red, positive charger con-
nector is attached to positive (+) — largest diameter
— battery post (Fig. 42). The black, negative charger
connector must be attached to negative (-) —
smallest diameter — battery post (Fig. 42).
Figure 42
3. Plug power cord of charger into a grounded
110-120 volt outlet so battery can be charged
(Fig. 42).
IMPORTANT: Battery must not be in a discharged
condition during cold temperatures because battery
case could crack.
CAUTION
Do not connect or disconnect the charger
and battery when charger is plugged into
110-120 volt outlet because a spark could
possibly cause the battery to explode.
4. After battery is charged, remove power cord of
21
MAINTENANCE
charger from wall outlet (Fig. 42). Next, discon-
nect charger from battery (Fig. 42).
5. Remove vent caps from battery (Fig. 43).
Next, check level of electrolyte in each cell. Add
drinking water to the battery if electrolyte is not
up to the ring at bottom of filler neck (Fig. 43).
ADD WATER ONLY AFTER CHARGING THE
BATTERY. Install vent caps (Fig. 43).
VENT CAPS
eN
FILLER
ры À
NECK LEVEL ONT DT
Ar
TOP OF > TA Late bento na
PLATES HN
Figure 43
6. install the battery: use Install Battery on
Mounting Plate, page 10.
Preparing Snowthrower For Storage
1. Drain gasoline from fuel tank. Wipe up any
gasoline that may have spilled. Also clean fuel
filter. Open fuel shut-off valve.
2. Start the engine and let 1t run until it stops
because there is no gasoline in the fuel system.
When engine sputters, push choke down so fuel in
carburetor 1s expended.
3. Remove spark plug from cylinder head. Next,
pour two teaspoons of SAE 30 engine oil into spark
plug hole in cylinder head. Install spark plug in
cylinder head, but do not install high tension wire
on the plug. Then pull recoil starter slowly to
distribute oil on inside of cylinder.
4. Change otl in crankcase: use Changing Crank-
case Oil, page 16.
22
b. Change oil in auger gear box: use Changing
Auger Gear Box Oil, page 17.
6. Lubricate the snowthrower: use Lubricating
Snowthrower, page 16.
7. Clean the snowthrower. Touch up chipped
surfaces with paint. Sand affected areas before
painting. Use a rust preventative to prevent metal
parts from rusting.
8. Tighten all screws and nuts. If any part is
damaged, repatr or replace it.
9. Store snowthrower in a clean, dry place, and
cover it to give protection.
10. If snowthrower is equipped with the optional,
drift breaker storage bar, the snowthrower may be
stored in upright positicn (Fig. 44). However, re-
move battery from mounting plate, and make sure
to drain gas before tipping snowthrower upright.
Figure 44
11. Store the battery in a cool, dry place and give
it a booster charge every 30 days. If the battery,
for some reason, must be stored in freezing
temperatures, make sure it 1$ fully charged be-
cause a discharged battery will freeze and probably
crack.
Main Wiring Schematic
WIRING DIAGRAMS
Interlock Schematic
BATTERY Y TO MAGNETO TERMINAL ON ENGINE
+ +
q YT LAICA
A ! ;
ee 6 ! | :
| STARTER 77 1 ы
MO x =
ENOID ©
| ENGINE ©
CARBURETOR -
MAGNETO CHARGING
TERMINAL >: CIRCUIT {N 9
BROWN |
; + IN | KEY SWITCH SWITCHIS OPEN SWITCH 18 OPEN WITH
оне SHORTS IGNITION — WITH SPEED SELECTOR AUGER/IMPELLER
BLACK TO GROUND IN IN ‘N° POSITION DRIVE DISENGAGED
WIRE TO TRACTION ORANGE OFF POSITION
{CRO SWITCH
FIELD ASST) | RED (
\ FUSE 6 AMP |
BROWN ыент | LEER BE ses Le ARTE \
PLUG TO KEY SWITCH
rd (FIELD ASS'Y}
Figure 45 Figure 46
PROBLEM SOLUTION
1. Starter mechanism fails to crank e Frozen starter drive — Thaw it out,
engine, e | ow or dead battery — Recharge
2. Engine fails to start. e Make sure auger impeller clutch is disengaged and gear shift is in neutral
and are actuating interlock switches under control panel.
® Check fuel tank for gas and fuel shutoff valve. (Turn counterclockwise
for ON”)
e Throttle lever not in start position.
e Spark plug or spark plug wire loose, disconnected or wet.
e Carburetor improperly adjusted.
e Engine flooded. Remove dry plug, crank engrne with plug removed and
throttie in run, {full on} position. Replace plug and wire and resume start
procedure.
3. Erratic engine operation, hard e Insufficient fuel in tank.
starting or loss of power e | pose spark plug wire.
® Dirt in gas tank.
® Carburetor improperly adjusted.
® (as cap vent plugged.
4. Occasional engine skip ® Spark plug fouled or gap too wide.
(hesitates) at high speed. ® (Carburetor improperly adjusted.
5. Erratic idle. e (Carburetor idle speed adjustment improperly set.
e Spark plug gap too close.
6. Engine overheats. e | ow on crankcase oil,
® (Carburetor improperly adjusted.
Auger and impeller e Broken or loose belt. Adjust belt idler or replace belt.
sluggish or fail to run. e Impeller frozen in housing -- break loose.
8. Dead man reverse fails to e Broken or missing shift fever spring. Replace with new spring.
return shift tever to neutral.
9%. Wheel drive fails to rotate ® | ow wheel drive belt tension, or worn belt. Adjust idler.
wheels when shift lever is in ® Check two final drive chains.
VERA, 2, 3, or reverse. e Check traction disc adjustment to assure good rubber f:c:on whee! contact.
10. Poor snow cleanup. ® Pivoting scraper blade hung up or jammed. Remove objects
® (Check skid adjustment.
NOTE: For repairs beyond the minor adjustments listed above, please contact your local TORO service dealer. (see Yellow Pages)
23
IDENTIFICATION AND ORDERING
Model and Serial Numbers
The snowthrowsr has two identification numbers:
a model number and a serial number. The two
numbers are stamped on a decal (Fig. 47) which is
located on left rear side of the engine mounting
plate. In any correspondence concerning the snow-
thrower, supply model and serial numbers to assure
that correct information and replacement parts are
obtained.
To order renlacement parts from an Authorized
TORO Service Dealer, supply the following infor-
mation:
1. Model and serial numbers of the snowthrower.
2. Part number,
description, and quantity of
part(s) desired.
NOTE: Do not order by reference number if a
parts catalog is
NUMBER.
being used; use the PART
Figure 47
It is Toro’s policy to design and produce TORO products
to provide our customers with a high level of per-
formance and durability in normal operation. Our
products, however, are produced in high volume, and
it is inevitable that occasionally a unit will reach a
customer with a defect in materials or workmanship
which causes the unit to fall below the normal high
Should the customer feel that a product is defective and
wish to rely on The Toro Promise, the following
procedure is recommended:
1. Contact any Authorized TORO Service Dealer or
Distributor, but preferably the dealer or distributor
from whom you purchased the product.
2. He will instruct you to either return the product to
him, or tell you the name and address of your nearest
Authorized TORO Service Dealer or Distributor if the
nroduct is to be returned to such a dealer or
distributor.
3. Bring the product and your original sales slip, or
other evidence of purchase date, to the service dealer
or distributor.
FORINT ООО ООО ООО ОИ
THE TORO PROMISE
level of TORO performance. invariably, such a defect
will be noticed in a residential product and in an
institutional product within one year after purchase.
Recognizing this possibility, Toro has established a
simple guarantee policy and procedure that is intended
to assure customer satisfaction. This guarantee state-
ment is as follows:
2 VV YYW DWN OYA es
= — =
= | | 4 (il + + e с "2
> Chr Corn rose =
- . ze
= A Tull One Year Warranty =
= The Toro Company promises to repair any TORO product if defective in materials or workman- <=
= ship, The following time periods from the date of purchase apply: =
= Residential and Institutional Products ..... 1 year <
= Residential Products Used Commercially . 45 days a
ms о
= =
= The costs of parts and labor are included, but the customer pays the transportation costs. Just =
= return any residential product to an Authorized TORQ Service Dealer, or any institutional product =
=) to a TORO distributor. >
Vi
4. The servicing dealer or distributor will inspect the
unit, advise you whether the product is defective and,
if so, make all repairs necessary to correct the defect
without extra charge to the customer.
If for any reason the customer is dissatisfied with the
dealer's or distributor's analysis of the defect or the
service he performs, he can contact us. Write:
TORO “Customer Care” Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
Litho In USA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
