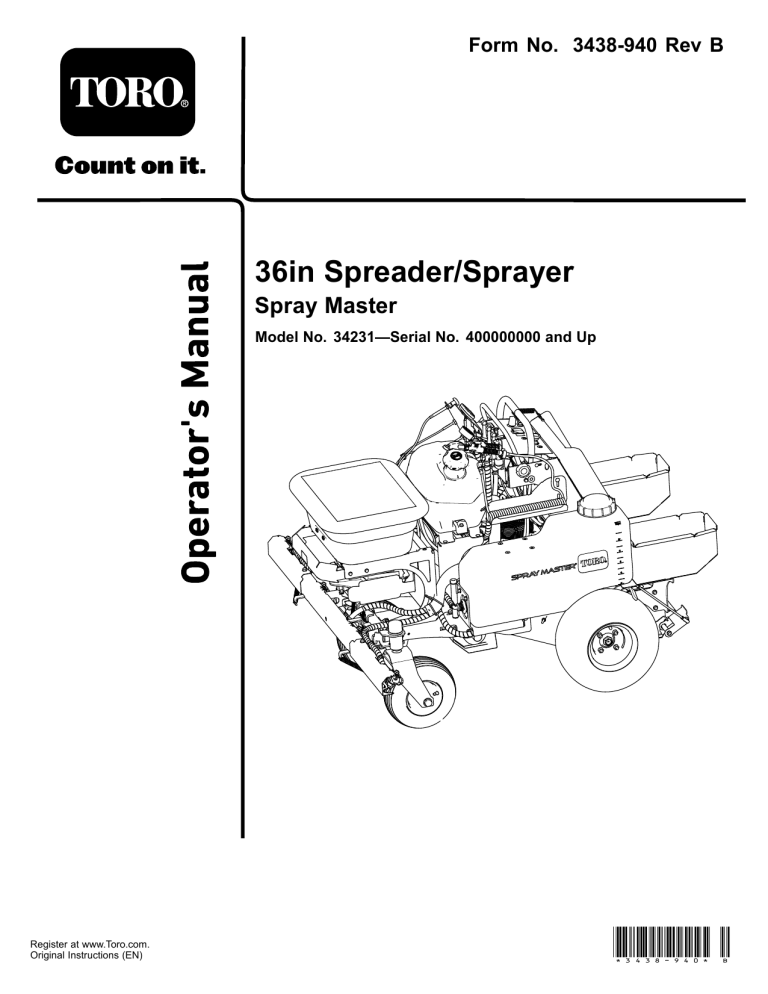

Form No. 3438-940 Rev B
36in Spreader/Sprayer
Spray Master
Model No. 34231—Serial No. 400000000 and Up
Register at www.Toro.com.
Original Instructions (EN)
*3438-940* B
It is a violation of California Public Resource Code
Section 4442 or 4443 to use or operate the engine on
any forest-covered, brush-covered, or grass-covered
land unless the engine is equipped with a spark
arrester, as defined in Section 4442, maintained in
effective working order or the engine is constructed,
equipped, and maintained for the prevention of fire.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready. Figure 1
identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.
The enclosed engine owner's manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance,
and warranty. Replacements may be ordered through
the engine manufacturer.
Important: With your mobile device, you can
scan the QR code (if equipped) on the serial
number plate to access warranty, parts, and other
product information.
WARNING
CALIFORNIA
Proposition 65 Warning
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to
the State of California to cause
cancer and reproductive harm. Wash
hands after handling.
Use of this product may cause exposure
to chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
g311361
Figure 1
1. Model and serial number location
Model No.
Serial No.
Introduction
This stand-on spreader sprayer is intended for use
by trained operators in residential and commercial
applications. The machine is primarily designed for
chemical distribution used for turf care or snow/ice
removal at residential grounds, parks, sports fields,
and on commercial grounds. Using this product for
purposes other than its intended use could prove
dangerous to you and bystanders.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Visit www.Toro.com for product safety and operation
training materials, accessory information, help finding
a dealer, or to register your product.
© 2020—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA
All Rights Reserved
Contents
Jump-Starting the Machine............................... 62
Servicing the Fuses .......................................... 63
Drive System Maintenance .................................. 64
Checking the Tire Pressure............................... 64
Checking the Wheel-Lug Nuts .......................... 64
Checking the Wheel-Hub Nut ........................... 64
Brake Maintenance ............................................. 65
Adjusting the Parking Brake.............................. 65
Belt Maintenance ................................................ 65
Checking the Belt for Wear ............................... 65
Replacing the Belt ............................................ 65
Adjusting the Belt Tension................................. 66
Controls System Maintenance ............................. 67
Adjusting the Maximum Forward Speed............ 67
Adjusting the Motion-Control Linkage ............... 67
Adjusting the Motion Control Tracking............... 69
Hydraulic System Maintenance ........................... 69
Hydraulic Fluid Specification............................. 69
Checking the Hydraulic Fluid Level ................... 69
Changing the Hydraulic Fluid and
Filter.............................................................. 70
Purging Air from the Hydraulic System .............. 71
Checking the Hydraulic System Fittings ............ 71
Maintaining the Chassis ....................................... 72
Checking the Machine for Loose
Hardware ...................................................... 72
Maintaining the Sprayer and Spreader
Systems ........................................................ 72
Checking the Sprayer System........................... 72
Checking the Spreader System ........................ 72
Cleaning .............................................................. 73
Cleaning the Engine and the Exhaust
System Area ................................................. 73
Cleaning the Debris from the Machine............... 73
Cleaning the Engine Debris Guard.................... 73
Waste Disposal................................................. 74
Storage ................................................................... 75
Short-Term Storage .......................................... 75
Preparing the Machine for Extended or
Winter Storage .............................................. 75
Troubleshooting ...................................................... 76
The Charging System ....................................... 76
Schematics ............................................................. 82
Safety ....................................................................... 4
Safety-Alert Symbol............................................ 4
General Safety ................................................... 4
Safety and Instructional Decals .......................... 5
Setup ...................................................................... 12
1 Checking the Tire Air Pressure....................... 12
2 Checking the Engine-Oil Level ....................... 12
3 Checking the Hydraulic-Fluid Level ................ 12
4 Connecting the Battery .................................. 13
Product Overview ................................................... 14
Controls ........................................................... 14
Machine Controls .......................................... 14
Engine Controls ............................................ 15
Spreader Controls......................................... 15
Sprayer Controls ........................................... 16
Specifications .................................................. 17
Before Operation ................................................. 18
Before Operation Safety ................................... 18
Performing Daily Maintenance.......................... 19
Fuel Specification ............................................. 19
Using Stabilizer/Conditioner ............................. 20
Filling the Fuel Tank .......................................... 20
During Operation ................................................. 20
During Operation Safety ................................... 20
Operating the Machine ..................................... 23
Operating the Spreader .................................... 25
Operating the Sprayer ...................................... 33
After Operation .................................................... 40
After Operation Safety ...................................... 40
Cleaning and Lubricating the Spreader ............. 41
Cleaning the Sprayer ........................................ 42
Transporting the Machine ................................. 45
Maintenance ........................................................... 47
Maintenance Safety.......................................... 47
Recommended Maintenance Schedule(s) ........... 48
Notation for Areas of Concern........................... 49
Pre-Maintenance Procedures .............................. 49
Preparing the Machine...................................... 49
Accessing the Machine..................................... 49
Lubrication .......................................................... 51
Grease Specification ........................................ 51
Greasing the Caster Pivots ............................... 51
Lubricating the Caster-Axle Bearings................ 52
Greasing the Belt Tensioner.............................. 52
Engine Maintenance ........................................... 53
Servicing the Air Cleaner .................................. 53
Engine Oil Specification.................................... 53
Checking the Engine-Oil Level.......................... 54
Changing the Oil Filter and Engine
Oil ................................................................. 55
Servicing the Spark Plug................................... 57
Fuel System Maintenance ................................... 58
Replacing the Fuel Filter ................................... 58
Electrical System Maintenance ........................... 59
Servicing the Battery......................................... 59
Removing and Installing the Battery.................. 61
3
General Safety
Safety
This machine is capable of amputating hands and feet
and of throwing objects. Toro designed and tested this
machine to offer reasonably safe service; however,
failure to comply with safety instructions may result in
injury or death.
The following instructions are from ANSI standard
B71.4-2017.
Safety-Alert Symbol
• Read, understand, and follow all instructions and
warnings in the Operator’s Manual and other
training materials, on the machine, the engine, and
attachments. All operators and mechanics should
be trained. If the operator(s) or mechanic(s) cannot
read this manual, it is the owner’s responsibility to
explain this material to them; other languages may
be available on our website.
The safety-alert symbol (Figure 2) is used both in
this manual and on the machine to identify important
safety messages that you must follow to avoid an
accident.
This symbol means Attention! Become Alert! Your
Safety Is Involved!
• Only allow trained, responsible, and physically
capable operators who are familiar with the safe
operation, operator controls, and safety signs and
instructions to operate the machine. Never allow
children or untrained people operate or service the
equipment. Local regulations may restrict the age
of the operator.
g000502
Figure 2
Safety-alert symbol
• Always use appropriate personal protective
The safety-alert symbol appears above information
which alerts you to unsafe actions or situations and is
followed by the word Danger, Warning, or Caution.
equipment (PPE) to guard against contact with
chemicals.
• Do not operate the machine near drop-offs,
Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
ditches, embankments, water, or other hazards.
• Do not put your hands or feet near moving
components of the machine.
Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
• Never operate the machine with damaged guards,
Caution indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
• Stop the machine, shut off the engine, and remove
shields, or covers. Always have safety shields,
guards, switches and other devices in place and in
proper working condition.
the key before servicing, fueling, or unclogging
the machine.
This manual uses 2 other words to highlight
information. Important calls attention to special
mechanical information and Note emphasizes general
information worthy of special attention.
4
Safety and Instructional Decals
• Keep all safety signs legible. Remove all grease,
dirt, and debris from safety signs and instructional
labels.
• Replace all worn, damaged, or missing safety
decal126-2055
signs.
126-2055
• When you install replacement components, ensure
1. Wheel lug nut—torque to 129 N∙m (95 ft-lb).
that current safety signs are affixed to those
components.
2. Wheel hub nut—torque to 319 N∙m (235 ft-lb).
3. Read the Operator’s Manual before performing
maintenance; check the torque after the first 100 hours and
every 500 hours after.
• If you have installed an attachment or accessory,
ensure that current safety signs are visible.
• Familiarize yourself with the following safety signs
and instruction labels. They are critical to the safe
operation of your machine.
decal115-9625
115-9625
1. Parking
brake—disengaged
2. Parking brake—engaged
decal142-4366
142-4366
1. Spray pressure—Decrease
5. Center nozzle spray—Off
2. Spray pressure—Increase
6. Center nozzle spray—On
3. Left nozzle spray—Off
7. Right nozzle spray—Off
4. Left nozzle spray—On
8. Right nozzle spray—On
5
decal135-6398
135-6398
1. Read the Operator’s
Manual.
3. Only use blue-colored
10W-50 engine oil.
2. Only use green-colored
15W-50 hydraulic fluid.
decal135-6420
135-6420
decal135-6424
135-6424
6
decal135-6430
135-6430
decal135-7911
1. Press and hold the foot
pedal to lock the caster
wheels in the straight
position.
135-7911
2. Release the foot pedal to
unlock the caster wheels
to allow turning.
1. Hydro oil level—Full
decal135-6725
135-6725
1. Cutting/dismemberment hazard of hand, spinner—stay
away from moving parts.
decal135-6728
135-6728
1. Press and hold foot button
to turn on spray.
2. Release foot button to shut
off spray.
7
2. Hydro oil level—Add
142-4373
Spreader / Sprayer Calibration:
Mixing of liquid or dry product should be in accordance to manufacturers labels. Remember this is designed
for low volume spraying so the mix will be more concentrated.
CAPACITY
Drop
Size
ONE
NOZZLE
IN GPM
PSI
CAPACITY
_______SPACING________
/\
20"
/\
ONE
NOZZLE
GPA
IN
OZ./MIN
4 MPH
5 MPH
Remember that your machine is factory set to put down 1/3 gallon of liquid per 1,000 sq. ft ( at 5MPH and
40PSI ). For instance, some products call for 1.1 to 1.5 oz per 1,000 sq. ft. We would recommend using 1.3
GALLONS PER 1,000 SQ. FT.
3 MPH
4 MPH
5 MPH
(median value of 1.1 to 1.5). Since you are using a 1/3 gallon tip, you need to multiply by 3, then multiply that
amount by the number of gallons put in the tank.
142-3306
30
40
50
60
VC
VC
VC
C
0.13
0.15
0.17
0.18
17
19
22
23
9.7
11.1
12.6
13.4
7.7
8.9
10.1
10.7
0.29
0.34
0.39
0.41
0.22
0.26
0.29
0.31
0.18
0.20
0.23
0.24
1.3 (median value of 1.1 to 1.5) X 3 (1.3 gallon tip) X gallons of water needed. If you were filling a 30 gallon tank your
equation would look like this:
1.3 X 3 X 30 = 117 ounces in 30 gallons of water.
142-3307
30
40
50
60
VC
VC
VC
VC
0.17
0.20
0.22
0.24
22
26
28
31
12.6
14.9
16.3
17.8
10.1
11.9
13.1
14.3
0.39
0.45
0.50
0.54
0.29
0.34
0.37
0.41
0.23
0.27
0.30
0.33
Approximate Granular Calibration
142-3308
30
40
50
60
VC
VC
VC
VC
0.22
0.25
0.28
0.31
28
32
36
40
16.3
18.6
21
23
13.1
14.9
16.6
18.4
0.50
0.57
0.63
0.70
0.37
0.43
0.48
0.53
0.30
0.34
0.38
0.42
142-3309
30
40
50
XC
VC
VC
0.26
0.30
0.34
33
38
44
19.3
22
25
15.4
17.8
20
0.59
0.68
0.77
0.44
0.51
0.58
0.35
0.41
0.46
Mixed Fine Pellets
142-3310
30
40
50
XC
XC
VC
0.35
0.40
0.45
45
51
58
26
30
33
21
24
27
0.79
0.91
1.00
0.60
0.68
0.77
0.48
0.54
0.61
Small Pellets
142-3311
30
40
50
XC
XC
VC
0.43
0.50
0.56
55
64
72
32
37
42
26
30
33
0.97
1.10
1.30
0.73
0.85
0.95
0.58
0.68
0.76
142-3312
30
40
50
XC
XC
VC
0.52
0.60
0.67
67
77
86
39
45
50
31
36
40
1.20
1.40
1.50
0.88
1.00
1.10
0.71
0.82
0.91
Product
1
2
3
2
4
6
2
4
6
4.75
5.25
5.5
5.0
6.0
6.5
4.25
5.5
5.75
Nitrogen Pellets Med.
1
2
3
4.75
5.5
6.0
Med. Pellets & Granules
2
4
6
4.75
5.5
6.5
Large Heavy Pellets
2
4
6
5
6.25
7.25
Fine Pellets
*Grey tips are to be used ONLY the 4 tip booms*
HIGH VOLUME SPRAY CHART (XRC TIPS)
Drop
Size
At 15 PSI
(1 bar)
Pressure
At 60 PSI
(4 bar)
Pressure
CAPACITY
CAPACITY
ONE NOZZLE
ONE NOZZLE
IN GPM
Accuway
__HIGH VOLUME SPRAYING (SPACING)_
_
/\
20"
/\
GPA
IN OZ./MIN
GALLONS PER 1,000 SQ. FT.
4 MPH
5 MPH
135-8413
15
20
30
40
VC
VC
C
C
0.61
0.71
0.87
1.00
78
91
111
128
45
53
65
74
36
42
52
59
1.40
1.60
2.00
2.30
1.00
1.20
1.50
1.70
0.83
0.97
1.20
1.40
117-5839
15
20
30
40
XC
XC
VC
C
0.92
1.06
1.30
1.50
118
136
166
192
68
79
97
111
55
63
77
89
2.10
2.40
2.90
3.40
1.60
1.80
2.20
2.60
1.30
1.40
1.80
2.00
PSI
4 MPH
5 MPH
3 MPH
*NOTE: Always double check your application rates.
Tabulations are based on spraying water at 70 ∞ F (21∞ C)
Coarse
Very Coarse
Throw fertilizer back to the center of tire tracks
Lbs. per
Full Rate
1,000 sq ft
*Calibrated at 5 MPH
Accuway balances the spread pattern, by shifting the product placement on the spinner. Placing the product on the
impeller close to the shaft or the center will cause the spread pattern to be heavier to the right as it rides the impeller
for a longer period. If the product is placed on the outer edge of the impeller, the spread pattern will be heavier to the
left ( because the spinner is turning clockwise ).
1) Start with the Accuway control cable all the way forward or in ( this is home base ).
2) Begin to spread the product. As you are spreading you should be able to see the spread pattern in front of you.
Generally, all spreaders will tend to throw fertilizer heavy to the right. As you continue to spread, pull the Accuway
control towards you very slowly ( small increments ) until you begin to bring the spread pattern directly centered
in front of you.
3) Once you have the spread pattern centered, lock the Accuway cable in place. There should be no reason to reset
the Accuway for that product unless you see that the spread pattern has changed due to bumping the lever. If it has
changed slightly, simply re-adjust the pattern while you’re spreading.
Extremely Coarse
Fine
Mixed Fine
Small
Small/Med
Medium
Heavy
decal142-4373
142-4373
8
decal142-4365
142-4365
1. Spread On-Pull handle up. 5. Spread Lock-Rotate
counterclockwise to
unlock; rotate clockwise to
lock.
2. Spread Off-Push handle
6. Deflector-Pull knob up to
down
open
3. Spread pattern control-Pull 7. Deflector-Push knob down
to close
handle up if heavy on left
side
4. Spread pattern
control-Push handle
down if heavy on right side
9
decal142-4183
142-4183
1. Fast
2. Slow
14. Park brake—Off
15. Spreader speed
3. Neutral
16. Spreader speed—Increase
4. Reverse
17. Spreader speed—Decrease
5. Warning—Read the Operator’s Manual; Do Not operate this
machine unless you are trained. Wear hearing protection.
18. Spray pump switch—On
6. Warning—Stay away from moving parts; keep all guards
in place. Stop engine and remove key before adjusting,
servicing, or cleaning.
19. Spray pump switch—Off
7. Warning—Disengage sprayer controls, move drive lever to
neutral position, engage parking brake, and stop engine
before leaving the operator’s position.
20. Throttle—Fast
21. Continuous variable setting
8. Crushing/dismemberment hazard of bystanders—Do Not
carry passengers, look forward and down when operating the
machine, look behind and down when reversing.
9. Thrown object hazard—keep bystanders away.
22. Throttle—Slow
10. Warning—operate across slopes not up and down. Loads
may shift on slopes or when turning. Do Not operate on wet
slopes–use extreme caution when operating on slopes.
23. Hour meter
11. Caustic liquid/chemical burn and toxic gas inhalation
hazard—wear hand, skin, eye, and respiratory protection.
24. Engine—Off
12. Warning—Use fresh, clean water:
- for first-aid washing
- for rinsing the tank.
25. Engine—On
13. Park brake—On
26. Engine—Start
10
decal142-3919
142-3919
1. Read the instructions before servicing or performing
maintenance
2. Time interval
5. Check tire and caster wheel pressure (4 locations)
6. Grease idler pivot; refer to the Operator's manual for further
instructions
7. Grease caster pivots; refer to the Operator’s manual for
further instructions (2 locations)
3. Check engine oil level
4. Check hydraulic oil level; refer to the Operator's manual for
further instructions
11
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
Description
4
Use
Qty.
–
No parts required
Connect the battery.
Media and Additional Parts
Description
Use
Qty.
Operator's Manual
1
Read before operating the machine.
Key
2
Start the machine.
1
3
Checking the Tire Air
Pressure
Checking the
Hydraulic-Fluid Level
No Parts Required
No Parts Required
Procedure
Procedure
Check the air pressure in the front and rear tires, and
if necessary, add air to the appropriate pressure; refer
to Checking the Tire Pressure (page 64).
The hydraulic tank comes with fluid; check
hydraulic-fluid level in the hydraulic tank, and if
necessary, add to the appropriate level; refer to
Checking the Hydraulic Fluid Level (page 69).
2
Checking the Engine-Oil
Level
No Parts Required
Procedure
The engine comes with oil; check the engine-oil level
and, if necessary, add to the appropriate level; refer to
Engine Oil Specification (page 53) and Checking the
Engine-Oil Level (page 54).
12
4
Connecting the Battery
No Parts Required
Procedure
Install the negative battery cable to the negative (–)
battery terminal with a carriage bolt and flanged
locknut (Figure 3).
g311995
Figure 3
1. Flange locknut
3. Negative battery terminal
2. Negative battery cable
4. Carriage bolt
13
Product Overview
g317512
Figure 4
1. Spray wand
7. Motion-control levers
2. Fuel-tank cap
8. Control panel
3. Hopper cover
9. Platform
4. Hopper
10. Sprayer-tank cap
5. Spreader controls
11. Sprayer nozzles
6. Reference bar
12. Battery
Controls
Motion-Control Levers
Machine Controls
Use the motion-control levers to drive the machine
forward, reverse, and turn either direction (Figure 5).
Sprayer and Information Display
The sprayer and information display is located to
the right of the throttle, at the bottom of the control
console (Figure 5).
The sprayer and information display shows the
following information:
• Sprayer controller firmware version
• Hour meter for the engine
• Hour meter for the sprayer-pump motor
• Battery voltage
g317350
Figure 5
1. Motion-control levers
• Spray-system pressure
2. Sprayer and information
display
• Fault codes
14
Caster Wheel-Lock Pedal
Ignition Switch
• Press and hold the caster wheel-lock pedal (Figure
The ignition switch is located at the left side of the
control console (Figure 7).
6) to lock the caster wheels in the straight position.
• Release the caster wheel-lock pedal to unlock the
Use the ignition switch to start and run, or shut off the
engine. The ignition switch has 3 positions: STOP,
RUN and START .
caster wheels, and allow the machine to freely
turn.
Note: You must engage the parking brake to start
the engine.
Throttle Control
The throttle controls the engine speed, and it has a
continuous-variable setting from the SLOW to FAST
position (Figure 7).
Choke Control
Use the choke control to start a cold engine.
Hour Meter
g311617
Figure 6
1. Brake foot pedal (parking
brake)
The hour meter displays the total hours of engine
operation. The hour meter (Figure 7) starts to function
whenever you rotate the key switch to the ON position
or if the engine is running.
2. Caster-lock pedal
Parking Brakes
Spreader Controls
• Push the left and right brake foot-pedals (Figure 6)
down to engage the brakes.
• Push the left and right brake foot-pedals up to
disengage the parking brakes.
Engine Controls
g317353
Figure 8
1. Impeller-speed control
3. Diffuser control
2. Deflector control
4. Hopper-door control
Impeller-Speed Control
Use the impeller-speed control (Figure 8) to set the
speed of the hydraulic motor for the spreader.
Hopper-Door Control
The hopper-door control (Figure 8) opens and closes
the door inside the base of the hopper
g317354
Figure 7
1. Throttle control
2. Choke control
3. Hour meter
4. Ignition switch
Deflector Control
The deflector control (Figure 8) pivots the deflector
into the spreader pattern.
15
Sprayer Controls
Diffuser Control
The diffuser control (Figure 8) shifts the product
placement of the impeller either to the edge of the
impeller or to the middle of the impeller.
Drop-rate Cam and Linkage
The drop-rate cam and linkage are located at the front
of the machine and below the hopper on the spreader
(Figure 9).
g317355
Figure 10
1. Left boom spray-control
4. Sprayer pressure gauge
valve
2. Center boom spray-control 5. Spray-pump switch
valve
3. Right boom spray-control
valve
g027033
Figure 9
1. Slot–maximum position
2. Linkage
Spray-Pump Switch
Use the drop-rate cam to set the maximum amount of
granular material dispensed through the impeller gate
and onto the impeller.
Push the spray-pump switch (Figure 10) forward to
turn on spray.
Push the spray-pump switch rearward to turn off spray.
The slot in the cam, after setting 9 on the cam,
allows you to open the impeller gate to the maximum
position. You can use this setting for dry sand, ice
melt, or other materials that are difficult to spread.
Left Boom Spray-Control Valve
Push the left boom sprayer-control valve (Figure 10)
to activate spray for the left boom.
Note: Use cam setting 9 may when you are cleaning
out the hopper.
Center Boom Spray-Control Valve
Push the center boom sprayer-control valve (Figure
10) to activate spray for the center boom.
Right Boom Spray-Control Valve
Push the right boom sprayer-control valve (Figure 10)
to activate spray for the right boom.
Sprayer Pressure Gauge
The sprayer pressure gauge (Figure 10) displays the
pressure (in psi) while you are spraying.
Spray-Pump Foot Switch
Press and hold the spray-pump switch (Figure 11) to
turn on the spray.
Release the spray-pump switch to shut off the spray.
16
Specifications
Overall width
161 cm (63-1/2
inches)
left and right booms
folded
90 cm (35-1/2
inches)
Overall length
185 cm (73
inches)
Overall height
127 cm (50
inches)
Weight
g311618
left and right booms
extended
Figure 11
1. Spray-pump switch
Spray Wand
Maximum
machine weight
sprayer tank and
hopper empty
331 kg (730 lb)
only hopper full
386 kg (850 lb)
only sprayer tank
full
376 kg (830 lb)
sprayer tank and
hopper full with 2
bags granular
476 kg (1050 lb)
loaded machine +
operator
581 kg (1280 lb)
Hopper capacity
54 kg (120 lb)
Spreader cast
0.9 m (3 ft)
through 7.6 m
(25 ft)
Sprayer tank
capacity
left and right
91 L (24 US
gallon)
Spray Width
left or right boom
61 cm (2 ft)
center boom
122 cm (4 ft)
Maximum Spray
Width
Maximum ground
speed
g311619
Figure 12
1. Trigger lock
3. Spray wand handle
2. Spray wand trigger
4. Spray tip
Spray Wand Trigger
Squeeze the trigger (Figure 12) to the handle to spray;
release the trigger to stop.
Spray Wand Trigger Lock
Squeeze the trigger against the handle and push
trigger lock (Figure 12) forward to keep the wand in
the OPEN position. Pull the lock back to release the
trigger.
17
244 cm (8 ft)
forward
11.3 kph (7 mph)
reverse
6 kph (4 mph)
Operation
Ensure that as little skin as possible is exposed
while using chemicals. Use appropriate personal
protective equipment (PPE) to guard against
personal contact with chemicals, such as the
following:
Note: Determine the left and right sides of the
machine from the normal operating position.
– safety glasses, goggles, and/or face shield
Before Operation
– chemical-resistant gloves
– rubber boots or other substantial footwear
Before Operation Safety
– hearing protection
– respirator or filter mask
General Safety
– clean change of clothes, soap, and disposable
towels, to be kept on-hand in the event of a
chemical spill
• Evaluate the terrain to determine what accessories
•
•
•
•
•
•
•
and attachments are needed to properly and
safely perform the job. Use only accessories and
attachments approved by Toro.
Inspect the area where you will use the equipment,
and remove all rocks, toys, sticks, wires,
bones, and other foreign objects that may be
contaminated by chemicals and/or affect the
stability of the machine.
Wear appropriate clothing, including safety
glasses, substantial slip-resistant footwear, and
hearing protection. Tie back long hair and avoid
loose clothing or jewelry that may get tangled in
moving parts.
Do not operate the machine while people,
especially children, or pets are in the area. Stop
the machine and the attachment(s) if anyone
enters the area.
Do not fill, calibrate, or clean the machine while
people, especially children, or pets are in the area.
Check all sprayer components for wear and leaks
before applying pressure to the system. Do not
use the machine if it is leaking or damaged.
Ensure that the operator platform is clean and free
from chemical residue and debris buildup.
Check that the operator-presence controls
(if applicable), safety switches, and shields
are attached and functioning properly. Do
not operate the machine unless they are
functioning properly. Frequently check for worn
or deteriorating components and replace them
with the manufacturer’s recommended parts when
necessary.
• If you are using more than 1 chemical, read the
•
•
•
•
•
•
•
•
•
•
•
Chemical Safety
•
Chemical substances used in the spreader-sprayer
system may be hazardous and toxic to you,
bystanders, animals, plants, soils or other property.
• Carefully read and follow the chemical warning
labels and Safety Data Sheets (SDS) for all
chemicals used and protect yourself according to
the chemical manufacturer's recommendations.
•
•
18
information about each chemical. Refuse to
operate or work on the spreader-sprayer if this
information is not available.
Before working on a spreader-sprayer system,
ensure that the system has been triple rinsed and
neutralized according to the recommendations
of the chemical manufacturer(s) and that all the
valves have been cycled three times.
Verify there is an adequate supply of clean water
and soap nearby, and immediately wash off any
chemicals that contact you.
Obtain proper training before using or handling
chemicals.
Use the correct chemical for the job.
Follow the chemical manufacturer's instructions
for the safe application of the chemical and do
not exceed the recommended system application
pressure.
Handle chemicals in a well-ventilated area.
Have clean water available, especially when filling
the spray tank.
Do not eat, drink, or smoke while working with
chemicals.
Do not clean spray nozzles by blowing through
them or placing them in your mouth.
Always wash your hands and other exposed areas
as soon as possible after finishing the work.
Keep chemicals in their original packages and in a
safe location.
Properly dispose of unused chemicals and
chemical containers as instructed by the chemical
manufacturer and your local codes.
Chemicals and fumes are dangerous; never enter
the tank or hopper, and do not place your head
over or in the opening.
Follow all local, state, and federal requirements for
spreading and spraying chemicals.
Fuel Safety
• Gasoline is harmful or fatal if swallowed.
Long-term exposure to vapors has caused cancer
in laboratory animals. Failure to use caution may
cause serious injury or illness.
Use extreme care when handling fuel.
In certain conditions gasoline is extremely flammable
and its vapors are explosive. A fire or explosion from
gasoline can burn you, others, and cause property
damage.
• Fill the fuel tank outdoors on level ground, in an
open area, when the engine is cold. Wipe up any
gasoline that spills.
• Never refill the fuel tank or drain the machine
indoors or inside an enclosed trailer.
• Do not fill the fuel tank completely full. Fill the fuel
tank to the bottom of the filler neck. The empty
space in the tank allows the gasoline to expand.
• Never smoke when handling gasoline, and stay
away from an open flame or where gasoline fumes
may be ignited by a spark.
• Store gasoline in an approved container and keep
it out of the reach of children.
• Add fuel before starting the engine. Never remove
the cap of the fuel tank or add fuel when engine is
running or when the engine is hot.
• If you spill fuel, do not attempt to start the engine.
Move away from the area of the spill and avoid
creating any source of ignition until the fuel vapors
have dissipated.
• Do not operate the machine without the entire
exhaust system in place and in proper working
condition.
• In certain conditions during fueling, static electricity
can be released, causing a spark, which can ignite
gasoline vapors. A fire or explosion from gasoline
can burn you and others and cause property
damage.
– Always place gasoline containers on the
ground away from your vehicle before filling.
– Do not fill gasoline containers inside a vehicle
or on a truck or trailer bed, because interior
carpets or plastic truck bed liners may insulate
the container and slow the loss of any static
charge.
– When practical, remove gasoline-powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the ground.
– If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container rather than from a gasoline-dispenser
nozzle.
– If you must use a gasoline-dispenser nozzle,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times
until fueling is complete. Do not use a nozzle
lock-open device.
– Avoid prolonged breathing of vapors.
– Keep your face away from the nozzle and
gasoline tank or container opening.
– Keep gasoline away from your eyes and skin.
– Never siphon gasoline by mouth.
• To help prevent fires, do the following:
– Keep the engine and the engine area free
from accumulation of grass, leaves, excessive
grease or oil, and other debris that can
accumulate in these areas.
– Clean up oil and fuel spills and remove
fuel-soaked debris.
– Allow the machine to cool before storing the
machine in any enclosure. Do not store the
machine near a flame or any enclosed area
where open pilot lights or heat appliances are
present.
Performing Daily
Maintenance
Before starting the machine each day, perform the
following daily-check procedures:
•
•
•
Checking the Engine-Oil Level (page 54)
Checking the Hydraulic Fluid Level (page 69)
Checking the Machine for Loose Hardware (page
72)
Fuel Specification
Petroleum Use unleaded gasoline with an octane rating of 87
fuel
or higher ((R+M)/2 rating method).
Use an unleaded-gasoline blend with up to 10%
ethanol (gasohol) or 15% MTBE (methyl tertiary
butyl ether) by volume is acceptable. Ethanol and
MTBE are not the same.
Ethanol
blended
fuel
Gasoline with 15% ethanol (E15) by volume is
not approved for use. Never use gasoline that
contains more than 10% ethanol by volume, such
as E15 (contains 15% ethanol), E20 (contains
20% ethanol), or E85 (contains up to 85%
ethanol). Using unapproved gasoline may cause
performance problems and/or engine damage
which may not be covered under warranty.
Important: For best results, use only clean, fresh
fuel (less than 30 days old).
• Do not use gasoline containing methanol.
19
During Operation
• Do not store fuel either in the fuel tank or fuel
containers over the winter unless you use a fuel
stabilizer.
During Operation Safety
• Do not add oil to gasoline.
General Safety
Using
Stabilizer/Conditioner
Use your full attention when operating the machine.
Do not engage in any activity that causes distractions;
otherwise, injury or property damage may occur.
• Running the engine will cause engine parts,
especially the muffler, to become extremely hot.
Severe burns can occur on contact, and debris,
such as leaves, grass, and brush, can catch fire.
– Allow engine parts, especially the muffler, to
cool before touching them.
– Remove accumulated debris from the muffler
and engine area.
• Engine exhaust contains carbon monoxide, which
is an odorless, deadly poison that can kill you. Do
not run the engine indoors or in a small, confined
area where carbon monoxide fumes can collect.
• Chemicals are hazardous and can cause personal
injury.
– Read the directions on the chemical labels
before handling the chemicals and follow
all manufacturer recommendations and
precautions.
– Keep chemicals away from your skin. Should
contact occur, wash the affected area
thoroughly with soap and clean water.
– Wear goggles, gloves, and any other protective
equipment recommended by the chemical
manufacturer.
– The owner/user can prevent and is responsible
for accidents that may cause personal injury or
property damage.
– This machine was designed for 1 operator only.
Do not carry passengers and keep all others
away from machine during operation.
– Do not operate the machine under the influence
of alcohol or drugs.
– Operate only in daylight or good artificial light.
– Do not operate the machine when there is the
risk of lightning.
– Be aware of weather conditions and check
that spray nozzles, patterns, and volume are
suitable.
– Keep away from holes, ruts, bumps, rocks,
and other hidden hazards. Use care when
approaching blind corners, shrubs, trees, tall
grass or other objects that may hide obstacles
or obscure vision. Uneven terrain could
Use a fuel stabilizer/conditioner in the machine to
provide the following benefits:
Important: Do not use fuel additives containing
methanol or ethanol.
Add the correct amount of fuel stabilizer/conditioner
to the gasoline.
Note: A fuel stabilizer/conditioner is most effective
when mixed with fresh gasoline. To minimize the
chance of varnish deposits in the fuel system, always
use fuel stabilizer.
Filling the Fuel Tank
Fuel tank capacity: 22.7 L (5 US gallons)
1.
Park the machine on a level surface and shut
off the engine.
2.
Allow the engine to cool.
3.
Clean around the fuel-tank cap and remove it
(Figure 13).
g311556
Figure 13
4.
Fill the tank with fuel (Figure 13) to the bottom
of the filler neck. Do not fill into the filler neck
of the tank.
Important: Do not fill the tank more than
the bottom of the filler neck because the fuel
needs room to expand.
5.
Install the fuel-tank cap securely.
6.
Wipe up any spilled fuel.
20
•
•
•
•
•
•
•
•
•
•
overturn the machine or cause you to lose your
balance or footing.
– Do not operate the machine with damaged
guards, shields, or covers. Always have safety
shields, guards, switches and other devices in
place and working properly.
– Keep clear of the discharge area at all times.
– Keep your hands and feet away from moving
parts. If possible, Do not make any adjustments
while engine is running.
Your hands, feet, hair, clothing, or accessories
can become entangled in rotating parts and cause
serious injury.
– Do not operate the machine without guards,
shields, and safety devices in place and
working properly.
– Keep your hands, feet, hair, jewelry, or clothing
away from rotating parts.
Be aware of the spreading/spraying path and
direct the discharge away from others. Avoid
discharging material against a wall or obstruction
as the material may ricochet back toward you.
Be alert, slow down, and use caution when making
turns. Look behind you and to the side before
changing directions. Do not spread or spray in
reverse unless it is absolutely necessary.
Stop spreading or spraying while making tight
turns to minimize uneven distribution pattern,
application rate, and chemical drift.
Chemicals may drift and cause injury to people
and animals; it may also damage plants, soil, or
other property.
Do not change the engine governor setting or
overspeed the engine.
Ensure that all drives are in neutral and engage
the parking brake before starting the engine.
Park the machine on level ground. Shut off the
engine, wait for all moving parts to stop, remove
key, and engage the parking brake before doing
the following:
– Checking, cleaning, or working on the machine
– Clearing blockages
– Leaving the machine; do not leave a running
machine unattended.
Shut off the engine, wait for all moving parts to
stop, and engage parking brake before refueling.
Tragic accidents can occur if you are not alert to the
presence of children. Children are often attracted
to the machine and the spreader-spraying activity.
Never assume that children will remain where you
last saw them.
– Keep children out of the working area and
under the watchful care of another responsible
adult.
•
•
•
•
•
•
•
21
– Be alert and shut off the machine if children
enter the area.
– Before and while backing or changing direction,
look behind you, down, and side-to-side for
small children.
– Never allow children to operate the machine.
– Do not carry children, even if the machine is not
in use. Children could fall off and be seriously
injured or interfere with the safe operation of
the machine. Children wanting a ride could
appear in the working area without warning and
be run over or backed over by the machine.
Reduce the weight of the load when operating the
machine on hills and rough terrain to avoid tipping
or overturning of the machine.
Liquid loads and granular materials can shift. This
shifting happens most often while turning; going
up or down hills; suddenly changing speeds; or
while driving over rough surfaces. Shifting loads
can cause the machine to tip over.
When operating with a heavy load, reduce your
speed and allow for sufficient stopping distance.
Reduce the speed and load while operating the
machine on rough terrain, uneven ground, and
near curbs, holes, and other sudden changes in
terrain. Loads may shift, causing the sprayer to
become unstable.
Sudden changes in terrain may cause abrupt
steering wheel movement, possibly resulting in
hand and arm injuries. Reduce the speed when
operating on rough terrain or near curbs.
Safely relieve liquid from the spray wand every
time you shut off the engine.
The spray wand traps liquids under high pressure,
even when engine is not running. High-pressure
spray discharge could cause serious injury or
death.
– Keep clear of the nozzle and do not direct
spray or stream at people, pets, or non-work
area property.
– Do not direct the spray on or near electrical
power components or source.
– Do not repair the spray wand, hoses, seals,
nozzle, or other wand components; replace
them.
– Do not attach hoses or other components to
the end of the spray wand nozzle.
– Do not attempt to disconnect the spray
wand from the machine while the system is
pressurized.
– Do not use the spray wand if the trigger lock is
damaged or missing.
– Do not keep the spray wand in the locked-open
position after you complete the job.
– When draining or relieving the system, Do not
allow anyone to stand in front of the nozzles
and do not drain on a person’s feet.
Slope Safety
Slopes are a major factor related to loss of control and
rollover accidents, which can result in severe injury or
death. You are responsible for safe slope operation.
Operating the machine on any slope requires extra
caution.
• Review the slope instructions listed below for
operating the machine on slopes and to determine
whether you can operate the machine in the
conditions on that day and at that job site.
Changes in the terrain can result in a change in
slope operation for the machine.
g222400
Figure 14
• Operate across slopes, never up and down. Avoid
1. Safe Zone — Use the machine here
2. Danger Zone - Use a walk behind machine or a hand held
tool near drop offs, ditches, embankments, water or other
hazards.
3. Water
4. W=width of the machine
5. Keep a safe distance (twice the width of the machine)
between the machine and any hazard.
operation on excessively steep or wet slopes.
• Identify hazards at the base of the slope.
Determine if the slope is safe for machine
operation, including surveying the site. Always
use common sense and good judgment when
performing this survey.
• Avoid starting, stopping, or turning the machine
on slopes. Travel up and down on slopes. Avoid
making sudden changes in speed or direction.
If you must turn the machine, turn it slowly and
gradually downhill, if possible. Use care when
reversing the machine.
• Use extra care while operating the machine with
attachments; they can affect the stability of the
machine.
• If the engine stalls or you begin to lose momentum
while climbing a hill, gradually apply the brakes
and slowly back straight down the hill.
• Do not operate a machine when you are uncertain
about the traction, steering, or stability.
• Always keep the transmission in gear (if applicable)
• Remove or mark obstructions such as ditches,
when you drive the machine down a slope.
holes, ruts, bumps, rocks, or other hidden hazards.
Tall grass can hide obstructions. Uneven terrain
could overturn the machine.
• Do not park the machine on an incline.
• The weight of the material in the tank can change
• Be aware that operating the machine on wet
the handling of the machine. To avoid loss of
control and personal injury, follow these guidelines:
surfaces, across slopes, or downhill may cause
the machine to lose traction. Loss of traction to the
wheels may result in sliding and a loss of braking
and steering.
– When operating with a heavy load, reduce your
speed and allow for sufficient braking distance.
Do not suddenly apply the brakes. Use extra
caution on slopes.
• Use extreme caution when operating the machine
near drop-offs, ditches, embankments, water
hazards, or other hazards. The machine could
suddenly roll over if a wheel goes over the edge
or the edge caves in. Establish a safety area
between the machine and any hazard.
– Liquid loads shift, especially while turning,
going up or down slopes, suddenly changing
speeds, or while driving over rough surfaces.
Shifting loads can cause the machine to tip
over.
22
Driving the Machine
Operating the Machine
CAUTION
Starting the Engine
The machine can turn rapidly by moving
the steering control to the far right or left.
You may lose control of the machine, which
may injure you and others, and damage the
machine.
CAUTION
The machine produces sound levels in excess
of 85 dBA at the operator’s ear, and may
cause hearing loss through extended periods
of exposure.
• Use caution when making turns.
Wear hearing protection while operating the
machine.
1.
2.
3.
4.
• Slow down the machine before making
sharp turns.
Move the motion-control levers to the NEUTRAL
position and engage the parking brake; refer to
Motion-Control Levers (page 14) and Parking
Brakes (page 15).
Move the throttle lever midway between the
SLOW and FAST positions; refer to Throttle
Control (page 15).
If the engine is cold, pull up the choke control to
the ON position; refer to Choke Control (page
15).
Important: If the motion-control levers do not
return to the NEUTRAL position when you release
them, contact an authorized service dealer.
Important: To begin moving the machine (forward
or backward), the parking-brake lever must be
released before you move the motion-control
lever.
Note: If the engine is warm , push down the
choke lever to the OFF position.
Rotate the ignition switch to the START position;
refer to Ignition Switch (page 15).
Note: When the engine starts, release the
switch.
5.
Important: Do not crank the engine
continuously for more than 10 seconds at a
time. If the engine does not start, allow a 60
second cool-down period between starting
attempts. Failure to follow these guidelines
can overheat the starter motor
If the choke control is in the ON position,
gradually move the lever down, toward the OFF
position as the engine warms up.
g316796
Figure 15
1. Left motion-control lever
2. Right motion-control lever
5. Forward
6. Neutral
3. Front
reference/speed-control
bar
4. Front of the machine
7. Reverse
Shutting Off the Engine
1.
2.
3.
4.
Move motion-control lever to the NEUTRAL
position, bring the machine to a full stop,
and engage the parking brake; refer to
Motion-Control Levers (page 14) and Parking
Brakes (page 15).
Move the throttle in the midway between the
SLOW and FAST positions; refer to Throttle
Control (page 15).
Run the engine for a minimum of 15 seconds,
then turn the ignition switch to the OFF position;
refer to Ignition Switch (page 15).
Remove the key; refer to Ignition Switch (page
15).
Driving Forward
1.
Disengage the parking brake; refer to Parking
Brakes (page 15).
2.
Slowly push the motion-control levers forward
(Figure 16).
Note: The farther you move the motion-control
levers in either direction, the faster the machine
moves in that direction.
Note: To stop, pull the motion-control levers
back to the NEUTRAL position.
23
Stopping the Machine
CAUTION
Children or bystanders may be injured if they
move or attempt to operate the machine while
it is unattended.
Always remove the key and engage the
parking brake when leaving the machine
unattended.
g311580
Figure 16
1.
Move the motion-control levers to neutral and
engage the parking brake.
2.
If running, shut off the spray pump.
3.
If running, shut off the impeller motor.
4.
Shut off the engine and remove the key.
5.
If you are parking the machine on an incline,
chock the tires in addition to engaging the
parking brake.
Driving Across Hills
Driving Backward
Slowly pull the motion-control levers rearward (Figure
17).
The caster-wheel lock allows the operator to lock the
front caster wheels in the forward position to increase
side hill stability.
Note: To stop, pull the motion-control levers back
• Press and hold the caster wheel-lock pedal to lock
to the NEUTRAL position.
the caster wheels in the straight position.
• Release the caster wheel-lock pedal to unlock the
caster wheels, and allow the machine to freely
turn.
g311579
Figure 17
24
The Display
Use the spreader to disperses free-flowing granular
materials such as grass seed, fertilizer, ice melt, etc.
When you use the spreader, first fill the hopper, then
apply the granular materials to the work site, and
finish by cleaning the spreader.
Refer to the User’s Manual for the display of the
following information:
Display Information Types
• Time of day
• Stopwatch
• Ground speed
• Odometer
• Battery voltage
• Hour meter (internal)
• Air temperature
• Display battery voltage
Important: When you use your spreader,
thoroughly clean it at the end of the day.
Adjusting the Impeller-Speed
Control
Display Operation Controls
• User interface and buttons
• Backlighting
• Data Reset
g311592
Figure 18
1. Knob (impeller-speed control)
Setup Mode
• Units of measure
Use the impeller-speed control (Figure 18) to start the
hydraulic motor that drives the impeller, adjust the
impeller-motor speed and adjust the broadcast pattern
width, and shut off the impeller motor.
– Distance—KM/H (kilometers per hour) or M/H
(miles per hour)
– Temperature—°C or °F
• Clock format and time of day
• Low voltage caution and warning
• Rotate the impeller control knob counterclockwise
Maintenance
• Rotate the impeller control knob clockwise to
to run the impeller motor, increase motor speed
and increase the broadcast pattern.
decrease motor speed and decrease the broadcast
pattern, or shut off the impeller motor.
Changing the display battery
Operating the Spreader
CAUTION
Chemicals are hazardous and can cause
personal injury.
• Read the chemical manufacturer’s
directions on the label before handling
the chemicals; follow all manufacturer
recommendations and precautions.
• Keep chemicals away from your skin.
Should contact occur, wash the affected
area thoroughly with soap and clean water.
• Wear eye protection, gloves, and any other
protective equipment recommended by the
chemical manufacturer.
25
Hopper Controls
• Pull the handle to broadcast granular product
•
3.
from the left side of the impeller.
Push the handle to block granular product
from broadcasting at the left side of the
impeller.
Rotate the handle of the deflector control
clockwise to lock the control (Figure 19).
Adjusting the Diffuser Control
Use the diffuser control to adjust the spread granular
product heavier to the left, consistent in the middle, or
heavier to the right.
g312313
1.
Rotate the handle of the diffuser control
counterclockwise to unlock the control (Figure
19).
2.
Adjust the diffuser control as follows:
• Pull the handle to broadcast more granular
product from the right side of the impeller.
• Center the handle to balance the broadcast
granular product evenly.
• Push the handle to broadcast more granular
product from the left side of the impeller.
3.
Rotate the handle of the diffuser control
clockwise to lock the control (Figure 19).
Figure 19
1. Unlock
2. Lock
3. Hopper-door control
4. Deflector control
5. Diffuser control
Adjusting the Hopper-Door Control
Important: Close and lock the hopper-door
control when you are not spreading.
Before Operating the Spreader
Use the hopper-door control to open and close
granular-substance flow from the hopper.
1.
2.
Before you start using the spreader, calibrate the
spreader for the material that you will disperse; refer
to Calibrating the Spreader (page 26).
Rotate the handle of the hopper-door control
counterclockwise to unlock the control (Figure
19).
Important: Prior to filling the hopper, verify that
you have set the proper spreader-application rate.
Open or close the hopper door as follows:
Calibrating the Spreader
• Pull the handle to allow granular product to
flow from the hopper to the impeller.
Calibrate the spreader each time you change granular
materials. The spreader broadcasts material in a
pattern 1 to 7.6 m (3 to 25 ft) wide depending on the
material particle size, volume/density, impeller-motor
speed, rate of travel, and wind conditions.
• Push the handle to shut off the flow of
granular product.
3.
Rotate the handle of the hopper-door control
clockwise to lock the control (Figure 19).
Use the Spreading Charts (page 30) along with
information from Determining the Distribution Pattern
(page 28), Determining the Effective Spreading Width
(page 28), and Calculating the Application Rate (page
28) when calibrating the spreader.
Adjusting the Deflector Control
Use the deflector control to adjust the broadcast of
granular product from left side of the impeller. The
deflector control is pulled during normal spreader
operation.
1.
Rotate the handle of the deflector control
counterclockwise to unlock the control (Figure
19).
2.
Adjust the broadcast deflector as follows:
Preparing the Test Site and Machine
Operator supplied equipment: 15 shallow collection
pans and 15 graduated measuring cylinders
Note: The most accurate method to measure
the distribution uses shallow collection pans and
graduated measuring cylinders. In the example below,
the 15 shallow collection pans approximately 30 cm
26
(12 inches) wide, 91 cm (36 inches) long, and 5 cm
(2 inches) tall.
1.
Place one pan in the center of the drive path.
Arrange the next two pans, one on each side,
far enough apart to allow adequate room for the
drive tires of the machine to pass around the
center pan.
2.
Place the remaining pans in a straight line as
shown in Figure 20 or Figure 21.
• For larger granule materials:
Space 6 additional pans, on each side, 12
inches (30 cm) apart (Figure 20).
g027327
Figure 21
Pan spacing for small granule materials
1. Spreader moving toward
pans
4. Right collection pans (no
gap between each)
2. Center collection pan
5. L1 and R1 collection pan
gap (spread apart to allow
machine to pass through)
3. Lest collection pans (no
gap between each)
6. Graduated measuring
cylinder
3.
Move the machine far enough away from the
test area (where the collection pans are located)
to ensure that the machine travels at the desired
spreading speed before reaching the site.
4.
Determine the application rate and the related
drop-rate cam setting; refer to Spreading Charts
(page 30).
5.
Rotate the drop rate cam (Figure 22) to the cam
setting you determined in step 4.
g027328
Figure 20
Pan spacing for larger granule materials
1. Spreader moving toward
pans
4. L1 and R1 collection pan
gap (spread apart to allow
machine to pass through)
2. Center pan
5. 30 cm (12 inch) gap
3. Collection pans (gap
between each)
6. Graduated measuring
cylinder
• For small granule materials:
Place 6 additional pans, on each side, with
no gap in between each pan (Figure 21).
g259776
Figure 22
1. Drop rate cam
27
6.
Ensure that the hopper-door control is in the
close position, and fill the hopper approximately
half-full with the desired material; refer to Filling
the Spreader Hopper (page 29).
7.
Pull the deflector control handle and lock it; refer
to Adjusting the Deflector Control (page 26).
Determining the Distribution Pattern
1.
Set the diffuser control to the middle of its travel
and lock it; refer to Adjusting the Diffuser Control
(page 26).
2.
Adjust the impeller speed control to set the
broadcast pattern width; refer to Adjusting the
Impeller-Speed Control (page 25).
3.
Drive the machine toward the test site at the
appropriate speed.
4.
As you approach the center pan, pull the wide
distribution granular gate control to the open
position, and drive over the center pan.
5.
Close the gate control, move motion-control
lever to the NEUTRAL position, shut off the
engine, wait for all moving parts to stop, remove
key, and engage parking brake.
6.
7.
3.
Record the effective spreading width here:
.
Preparing the Calibration Course for
Calculating the Application Rate
1.
9.
10.
Determine a course length by dividing 93 m2
(1,000 ft2) by the effective spread width that
you determined in Determining the Effective
Spreading Width (page 28); use the course
length formula. Record the course length
.
here:
Calibration Course Length Formula
Label each graduated measuring cylinder to
correspond with the distribution pans (such as
L2, L1, Center, R1, R2); refer to Figure 20 and
Figure 21.
Formula
Example
One at a time, take a collection pan and dump
the contents into the corresponding graduated
cylinder. Record the amount of granular material
collected and return the pan to its location.
Repeat this until all pan contents have been
emptied.
2.
Note: Repeat broadcasting over the test site
several times, moving in the same direction
each time, until enough material is dispensed to
the collection pan to half fill a graduated cylinder.
8.
Go to the two corresponding pans. Starting from
the outer edge, measure the distance between
left pan, across the center pan, to the outer edge
of the right pan, and record the measurement.
93 m2 (1,000 ft2)
/ Effective width
measurement
=
Calibration course
length
93 m2 (1,000 ft2)
/ 1.8 m (6 ft)
=
51 m (167 ft)
Note: In this example the effective width
measures 1.8 m (6 ft).
Measure and visibly mark the course length.
Ensure that you allow enough distance before
the starting marker so that the spreader moving
forward at full speed when crossing the first
mark of the course.
Calculating the Application Rate
With the graduated measuring cylinder in the
same straight line as the pans, evaluate the
volume of material in each cylinder to determine
the quality of the distribution from the spreader.
1.
Determine the area and amount of material that
you are applying to the job site and record those
amounts in the area and materials worksheet.
To adjust the spreader pattern, refer to the
Adjusting the Spreader Pattern (page 31).
Record the job site area here:
.
Fill the hopper half-full of the desired material
and repeat steps 1 through 9 until you achieve
a uniform pattern.
Record the amount of job site material here:
.
Initially, use the recommended application rate
indicated in the Spreading Charts (page 30)
section or use the rate recommended listed on
the product manufacturer’s label as a guide to
help determine the amount of material that you
would spread over a 93 m2 (1,000 ft2) area.
2.
Determining the Effective Spreading Width
Use the effective width to determine the uniform
distribution of the granular material.
Note: The spreading width range is 1 to 8 m (3 to
25 ft).
1.
After the spreader pattern is correctly adjusted,
evaluate the amount of material in the center
graduated measuring cylinder.
2.
Locate the 2 graduated cylinder, one each
side of center, that contains 1/2 the measured
amount of the material that you observed in the
center graduated cylinder.
3.
4.
Note: In this example the calibration course is
1.8 m (6 ft) by 51m (167 ft).
Set the appropriate drop-rate cam setting; refer
to the Spreading Charts (page 30) as a starting
point.
Add material to the hopper.
Note: In this example we added 11.3 kg (25
lb) of material.
28
5.
Drive the spreader over the calibration course
while applying the material.
6.
Empty the remaining material of the hopper into
a clean bucket.
7.
Weigh the bucket containing the material and
record the weight. Pour the contents back
into the hopper and then weigh the empty
bucket. Calculate the remaining material weight
using the remaining material weight formula.
Record the remaining material weight here:
.
Filling the Spreader Hopper
Maximum hopper weight capacity: 54 kg (120 lb)
Remaining Material Weight Formula
Formula
Example
(Remaining
material and
bucket weight) (Bucket weight)
10 kg (22 lb) 1 kg (2 lb)
1.
Drive the machine to the work site.
2.
Move the machine to a level surface, move
motion-control lever to the NEUTRAL position,
shut off the engine, wait for all moving parts to
stop, remove key, and engage parking brake.
3.
Ensure that the hopper-door control is in the fully
forward (closed) position; refer to Adjusting the
Hopper-Door Control (page 26).
4.
Use the Spreading Charts (page 30) to
determine the setting for the drop-rate cam
(Figure 23).
= Remaining material
weight
Note: If the setting is not listed for the type of
material that you are using, set the cam to the
setting with a lower value then adjust as needed.
=
9 kg (20 lb)
Note: In this example, 9 kg (20 lb) of material
remain in the hopper after applying the material
to the test course.
8.
Calculate applies material weigh using
the applied material formula that follows.
Record the applied material weight here:
.
Applied Material Weight Formula
Formula
(Original
material weight)
- (Remaining
material weight)
=
Applied material
weight
g312531
Example
11.3 kg (25 lb)
- 9 kg (20 lb)
Figure 23
=
2.3 kg (5 lb)
1. Cover
3
3. Drop-rate cam
2. Hopper
Note: This calculation means that at the
selected motor-rotation speed, 2.3 kg (5 lb) of
material was applied to the 93 m2 (1,000 ft2) test
course.
9.
5.
If necessary, adjust the drop-rate cam to achieve
the recommended application rate. Once you
achieve the correct application rate, repeat
this procedure an additional time to verify your
results.
Remove the cover from the hopper, add the
material that you are spreading, and install the
cover onto the hopper (Figure 23).
Note: Do not overload the hopper; the
maximum weight capacity of the hopper is 54
kg (120 lb).
Note: You may place extra bags of granular
material in the cargo boxes behind the spray
tanks.
Important: Designate a new calibration
course each time, so that the turf is not
damaged by excessive application of
material.
29
Using the Spreader
Spreading Charts
Note: The cam setting tables for granular material and the grass seed are provided with permission from the
Brinly-Hardy Company; reference the Brinly-Hardy Company website for more information.
Use these charts as an approximate guideline only. Other factors, such as weather conditions, spreader
operation, and the condition of material affects spreader performance.
Cam Settings for Pellet and Granular Material Application
Type
kg per 93 m2 (lb per 1,000 ft2)
Cam Setting — One Pass
Cam Setting — Two Passes
0.5 (1)
3.6
3.1
0.9 (2)
4.0
3.5
1.4 (3)
4.2
3.7
0.9 (2)
3.7
3.2
1.8 (4)
4.7
4.1
2.7 (6)
5.2
4.5
0.9 (2)
3
2.2
1.8 (4)
4.2
3.7
2.7 (6)
4.5
4
0.5 (1)
3.5
3
0.9 (2)
4.2
3.7
1.4 (3)
4.7
4
0.9 (2)
3.5
3
1.8 (4)
4.2
3.8
2.7 (6)
5.2
4.5
0.9 (2)
3.8
3.3
1.8 (4)
4.9
4.1
2.7 (6)
5.9
4.9
Fine Pellets
Mixed Fine Pellets
Small Pellets
Nitrogen Pellets Medium Size
Medium Pellets and Granules
Large Heavy Pellets
Use the chart below for reference only. When spraying and spreading at the same time, set the spread pattern
to twice the width of the spray; this will help avoid striping and streaking. For example, standard spray width =
2.7 m (9 ft) and spread width = 5.4 m (18 ft).
Cam Settings for Grass Seed Application
Type
Bag Weight
Coverage - m2 (ft2)
Cam Setting –
Full Rate
Blue Grass or Red
Top
0.23 kg (0.5 lb)
93 (1,000)
1.25
4
0.45 kg (1 lb)
93 (1,000)
2.0
4
0.9 kg (2 lb)
93 (1,000)
2.5
4
2.27 kg (.5 lb)
93 (1,000)
2.5
4
0.45 kg (1 lb)
93 (1,000)
3.0
4
0.9 kg (2 lb)
93 (1,000)
3.5
4
0.9 kg (2 lb)
93 (1,000)
2.75
2.25
6
1.36 kg (3 lb)
93 (1,000)
3.0
2.5
6
1.81 kg (4 lb)
93 (1,000)
3.25
2.75
6
Park, Merion,
Delta, or Kentucky
Bluegrass
Hulled Bermuda
30
Cam Setting –
Half Rate
Spreader Width
Cam Settings for Grass Seed Application (cont'd.)
Type
Mixtures Including
Coarse Seeds
Rye Grasses or Tall
Fescue
Dichondra
Pensacola Bahia
Bag Weight
Coverage - m2 (ft2)
Cam Setting –
Full Rate
0.9 kg (2 lb)
93 (1,000)
6.0
6
1.81 kg (4 lb)
93 (1,000)
7.0
6
2.72 kg (6 lb)
93 (1,000)
7.0
6
0.9 kg (2 lb)
93 (1,000)
6.0
6
1.81 kg (4 lb)
93 (1,000)
7.0
6
2.72 kg (6 lb)
93 (1,000)
7.75
6
113 kg (4 oz)
93 (1,000)
1.9
8
227 g (8 oz)
93 (1,000)
2.1
8
340 g (12 oz)
93 (1,000)
2.5
8
1.81 kg (4 lb)
93 (1,000)
4.5
3.75
7
2.27 kg (.5 lb)
93 (1,000)
4.75
4.0
7
2.72 kg (6 lb)
93 (1,000)
5.0
4.25
7
Cam Setting –
Half Rate
Spreader Width
Adjusting the Spreader Pattern
If the spreader casts material unequally side-to
side—too light/heavy to one side—(see Figure 24,
adjust the spreader-pattern.
g025543
Figure 24
1. Heavy to left side
3. Heavy to right side
2. Move ramp pattern to
shaded position
g312533
Figure 25
Note: Do not adjust the ramps that split the product
flow. Adjust only the front or rear ramp positions.
1.
Unlock the diffuser control by turning the handle
counterclockwise 90° as shown in 2 of Figure 25.
1. Diffuser control
4. Start notch if pattern is
heavy to right side
2. Rotate counterclockwise
to unlock
3. Start notch if pattern is
heavy to left side
5. Rotate clockwise to lock
2.
31
Adjust the spreader pattern as follows:
• If the material is broadcast too heavy at the
left side of the machine, push the diffuser
control down slightly; refer to 3 of Figure 25.
• If the material is broadcast too heavy at the
right side of the machine, pull the diffuser
control up slightly; refer to 4 of Figure 25.
3.
Lock the spreader-pattern control by turning the
handle clockwise 90°; refer to 5 of Figure 25.
Using the Deflector Gate
Use the deflector control to temporarily stop or deflect
granular material away from sidewalks, parking lots,
patios, or anywhere the granular chemicals are not
desired.
g312555
Figure 27
1. Deflector-control handle
Note: The deflector gate changes the discharged of
materials from the left side of the spreader only.
3. Push (block left side
product broadcast)
2. Pull (broadcast at the left
and right sides)
• Push the handle to temporarily block granular
product from broadcasting at the left side of the
impeller.
Spreading Granular Material
1.
Start the engine, and adjust the throttle midway
between the SLOW and the FAST positions.
2.
Rotate the knob of the impeller-speed control to
run the impeller motor (Figure 28).
g312556
Figure 26
1. Fence
3. Deflector gate lowered
2. Flowers
• Pull the deflector-control handle to broadcast
granular product from the left side of the impeller.
g317353
Figure 28
32
1. Impeller-speed control
3. Diffuser control
2. Deflector control
4. Hopper-door control
3.
Move the throttle to the FAST position, and drive
the machine forward.
4.
Open the hopper-door control to begin spreading
the granular material (Figure 29).
Operating the Sprayer
CAUTION
Chemicals are hazardous and can cause
personal injury.
• Read the chemical manufacturer’s
directions on the label before handling
the chemicals; follow all manufacturer
recommendations and precautions.
• Keep chemicals away from your skin.
Should contact occur, wash the affected
area thoroughly with soap and clean water.
• Wear eye protection, gloves, and any other
protective equipment recommended by the
chemical manufacturer.
g312557
Figure 29
Use the sprayer to disperse liquid herbicides,
pesticides, fertilizers, and other substances. Before
using the sprayer ensure that you have cleaned
the tank, plumbing, and nozzles before adding any
chemicals. When you use the sprayer, you first fill the
spray tank, then apply the chemical solution to the
work site, and then when you are finished spraying,
clean the tank. It is important to complete all 3 of
these steps to avoid damaging the sprayer. For
example, Do not mix and add chemicals in the spray
tank the night before and then spray in the morning.
This could lead to separation of the chemicals and
possible cause damage to components of the sprayer.
1. Effective broadcast width—variable 0.9 to 7.6 m (3 to 25 ft)
5.
Evaluate the spread pattern.
Note: If you need to adjustment the spreading
pattern, refer to Adjusting the Impeller-Speed
Control (page 25), Calibrating the Spreader
(page 26), and Adjusting the Spreader Pattern
(page 31).
6.
When you are finished spreading, close the
hopper-door control.
7.
Clean the hopper after each spreading session;
refer to Cleaning and Lubricating the Spreader
(page 41).
Important: When you use your sprayer,
thoroughly clean it at the end of the day.
Important: Always empty and clean the
spreader immediately after each use. Failure
to do so may cause the chemicals to corrode
the spreader and other components.
Spreading Tips
Important: Ensure that you calibrate the spreader
before you start using it.
• To ensure uniform application, broadcast pellet or
granular material in an overlapping pattern.
Note: The highest amount of material will
dispense from the front of the hopper and less
material from each side. You can adjust the
distribution pattern to achieve the desired results.
• Watch for changes in the distribution pattern;
unequal distribution may lead to striping.
33
Extending and Folding the Outer
Spray Booms
Selecting the Right Spray Tank
Rotate the valve handles as shown in Figure 31.
g311514
Figure 32
g312788
Figure 30
1. Outer spray boom
• Rotate the outer spray boom forward to extend the
•
1. Left tank return valve
(CLOSE position)
3. Right tank suction valve
(OPEN position)
2. Left tank suction valve
(CLOSE position)
4. Right tank return valve
(OPEN position)
Selecting Both Spray Tanks
boom (Figure 30).
Rotate the outer spray boom rearward to fold the
boom (Figure 30).
Rotate the valve handles as shown in Figure 33.
Using the Sprayer Tank Shutoff
Valves
Selecting the Left Spray Tank
Rotate the valve handles as shown in Figure 31.
g311407
Figure 33
g311515
Figure 31
1. Left tank return valve
(OPEN position)
3. Right tank suction valve
(CLOSE position)
2. Left tank suction valve
(OPEN position)
4. Right tank return valve
(CLOSE position)
34
1. Left tank return valve
(OPEN position)
3. Right tank suction valve
(OPEN position)
2. Left tank suction valve
(OPEN position)
4. Right tank return valve
(OPEN position)
Transferring Fluid Between Tanks
Transferring Fluid from the Left Tank to the
Right Tank
1.
Ensure that the right tank has capacity to hold
fluid from the left tank.
2.
Ensure that the handles for the spray-control
valves are in the OFF position (Figure 34).
g311516
Figure 36
1. Left tank return valve
(CLOSE position)
3. Right tank suction valve
(CLOSE position)
2. Left tank suction valve
(OPEN position)
4. Right tank return valve
(OPEN position)
5.
g311519
Figure 34
1. Spray-control valve (left
boom)
Press the sprayer-pump switch to the
position (Figure 37).
ON
3. Spray-control valve (right
boom)
2. Spray-control valve
(center boom)
3.
Loosen the locknut, and open the throttle valve
(Figure 35).
g311518
Figure 37
1. Sprayer-pump switch
6.
When the quantity of fluid is transferred to the
right tank, press the sprayer-pump switch to the
OFF position.
Transferring Fluid from the Right Tank to the
Left Tank
g311520
Figure 35
1. Locknut
4.
1.
Ensure that the left tank has capacity to hold
fluid from the right tank.
2.
Rotate the valve handles as shown in Figure 38.
2. Throttle valve knob
Rotate the valve handles as shown in Figure 36.
35
Note: Each sprayer tip shuts off when sprayer
pressure is <0.3 bar (5 psi) to prevent dripping.
Nozzle Application Rate Table
Nozzle
tip color
Ground speed
Sprayer
pressure
Application
rate
Yellow
8 kph
5 mph
2.8
bar
40 psi
1.0 L/
93 m2
0.27
(1/4)
US
gallon/
1,000
ft2
Lavender 8 kph
5 mph
2.8
bar
40 psi
1.3 L/
93 m2
0.34
(1/3)
US
gallon/
1,000
ft2
Red
8 kph
5 mph
2.8
bar
40 psi
2.0 L/
93 m2
0.54
(1/2)
US
gallon/
1,000
ft2
Brown
8 kph
5 mph
3.4
bar
50 psi
2.9 L/
93 m2
76
(3/4)
US
gallon/
1,000
ft2
Gray
6.5
kph
4 mph
2.8
bar
40 psi
3.8 L/
93 m2
1 US
gallon/
1,000
ft2
g311517
Figure 38
1. Left tank return valve
(OPEN position)
3. Right tank suction valve
(OPEN position)
2. Left tank suction valve
(CLOSE position)
4. Right tank return valve
(CLOSE position)
3.
Press the sprayer-pump switch to the
position (Figure 39).
ON
g311518
Figure 39
Important: Note: this chart only applies if you
use air injected nozzle tips. Using other tips
require different calculations
1. Sprayer-pump switch
4.
When the quantity of fluid is transferred to the
right tank, press the sprayer-pump switch to the
OFF position.
Adjusting the Sprayer Pressure
The throttle valve adjusts sprayer pressure. The
throttle valve is located at the left side of the control
console.
Sprayer Nozzle Application Rate
The machine is factory equipped with lavender
colored nozzle tips that have an application rate of
1.3 L (0.34 US gallon) per 93 m2 (1,000 ft2) when the
sprayer pressure is 2.8 bar (40 psi), and the machine
is driven 8 kph (5 mph).
• Turn the knob of the throttle valve clockwise to
increase spray-system pressure (Figure 40).
• Use to the nozzle application rate chart that follows
when selecting nozzles and spraying with the
machine.
• Refer to the spreader/sprayer chart affixed to
the back of the knee pad for quick reference
calibration information in the field.
• Your machine supports application rates between
0.95 L per 93 m2 (0.25 US gallon per 1,000 ft2)
through 3.8 L per 93 m2 (1.0 US gallon per 1,000
ft2).
36
Calculating the Amount of Product for a
Solution of Chemical
1.
Multiply the average product application rate by
the 1-gallon nozzle tip factor to determine the
1-gallon application rate.
Example: median application rate value—38
ml/93 m2 (1.3 fl oz per 1,000 ft2) of 1.1 to 1.5) x
3 (lavender nozzle tip—nozzle tip factor) = 3.9
(adjusted application rate)
g311520
2.
Figure 40
1. Locknut
2. Throttle valve knob
Multiply the 1-gallon application rate by the
amount of chemical solution that you need to
add to the spray tank.
Example: 3.9 (adjusted application rate) x
gallons needed. If you are preparing a 114 L (30
US gallon) solution of chemical, use 3.5 L (117 fl
oz) of product (3.9 x 30) for 114 L (30 US gallon)
of water.
• Turn the knob of the throttle valve counterclockwise
to decrease spray-system pressure (Figure 40).
Sprayer-system pressure displays on the pressure
gauge (Figure 41). When the spray nozzles are open,
sprayer-system pressure decreases slightly; adjust
throttle valve to compensate for the drop in pressure.
Nozzle Tip/Application Rate and Tip Factor
Chart
Average
product
application
rate
(example)
Nozzle tip/
application
rate
Nozzle Water
tip
in the
factor sprayer
tank
(example)
Product
per 114
L (30 US
gallon)
(example)
38 ml/93 m2
(1.3 fl oz per
1,000 ft2)
Yellow 1.0
L/93 m2 (0.27
or 1/4 US
gallon/ 1,000
ft2)
(x) 4
(x) 114 L
(30 US
gallons)
4.6 L (156
fl oz)
38 ml/93 m2
(1.3 fl oz per
1,000 ft2)
Lavender 1.3
L/93 m2 (0.34
or 1/3 US
gallon/ 1,000
ft2)
(x) 3
(x) 114 L
(30 US
gallons)
3.5 L (117
fl oz)
38 ml/93 m2
(1.3 fl oz per
1,000 ft2)
(x) 2
(x) 114 L
(30 US
gallons)
2.3 L (78
fl oz)
To determine about of product to mix for solution of
chemical in the tank, you need to understand what
nozzle application rate of your machine (the factory
installed lavender nozzle tip application rate is 1.3
L/93 m2 (1 / 3 gallon per 1,000 ft2).
Red 2.0 L/93
m2 (0.54
or 1/2 US
gallon/ 1,000
ft2)
38 ml/93 m2
(1.3 fl oz per
1,000 ft2)
Brown 2.9
L/93 m2 (.76
(3/4) US
gallon/ 1,000
ft2)
(x) 1.3
x 114 L
(30 US
gallons)
1.5 L (51
fl oz)
For example, a product may specify an application
rate range of 33 to 44 ml/93 m2 (1.1 to 1.5 oz per 1,000
ft2). When calibrating the sprayer, use the formula that
follows to calculate the average application rate:
38 ml/93 m2
(1.3 fl oz per
1,000 ft2)
Gray 3.8 L/93
m2 (1 US
gallon/ 1,000
ft2)
(x) 1
(x) 114 L
(30 US
gallons)
1.2 L (39
fl oz)
g312649
Figure 41
Mixing Product
Calculating the Average Application Rate
Average Application Rate Formula
[lowest application rate] +
[highest application rate]
= [sum rate]
[sum rate] / 2
= average application rate
Example: 33 + 44 ml (1.1 + 1.5 oz) = [77 ml (2.6 oz)
sum rate]; 77 ml / 2 (2.6 oz / 2) =38.5 ml/93 m2 (1.3 oz
per 1,000 ft2)―the average application rate value
37
Using the Sprayer
6.
Add 3/4 of the required water to the sprayer tank
through the filler neck.
Before Operating the Sprayer
Important: Always use fresh, clean water
Some chemicals are more aggressive than others
and each chemical interacts differently with various
materials. Some consistencies of sprayer chemicals
(e.g. wettable powders, charcoal) are more abrasive
and lead to higher-wear rates. If a chemical is
available in a formulation that would provide increased
life to the sprayer, use this alternative formulation.
in the spray tank. Do not pour chemical
concentrate into an empty tank.
Calibrate the sprayer before you start the spray
application; refer to Sprayer Nozzle Application Rate
(page 36).
7.
Loosen the locknut and turn the knob of the
throttle valve counterclockwise (Figure 40).
8.
Start the engine and set the throttle midway
between the SLOW and FAST positions.
9.
Set the sprayer-pump switch to the ON position
(Figure 43).
Filling the Tank
Important: Ensure that the chemicals that you
are using in the sprayer are compatible for use
with O-rings and seals made from fluoroelastomer
material (refer to the chemical manufacturer's
label; it should indicate if it is not compatible). If
you use a chemical that is not compatible with
fluoroelastomer material, the O-rings and seals in
the sprayer can degrade and leak.
g311518
Figure 43
1. Sprayer-pump switch
Important: Do not use brackish or reclaimed
10.
water in the spray system.
1. Move the machine to a level surface, move
motion-control lever to the NEUTRAL position,
shut off the engine, wait for all moving parts to
stop, remove key, and engage parking brake.
2. Ensure that the 3 boom sprayer-control valves
are in the OFF position.
3. Adjust the tank shutoff valves for the spray tank
that you are using; refer to Using the Sprayer
Tank Shutoff Valves (page 34).
4. Determine the amount of product and water
needed to mix the amount of chemical solution
as specified by the chemical manufacturer;
refer to Calculating the Amount of Product for a
Solution of Chemical (page 37).
5. Open the tank cap on the spray tank (Figure 42).
Move the throttle to the FAST position.
Note: The water in the tank will circulate.
11.
Add the specified amount of chemical
concentrate to the tank as directed by the
chemical manufacturer.
Important: If you are using a
wettable-powder chemical, mix the
powder with a small amount of water to form
a liquid slurry before adding the chemical
mixture to the tank.
12.
Add remaining water to the tank and install cap
onto the filler neck of the tank.
Note: Allow the content of the sprayer tank to
mix thoroughly.
Important: Before applying chemicals to the job
site, adjust the sprayer-pressure with the throttle
valve according to the sprayer nozzle application
rate.
Spraying with the Sprayer Boom
Important: To ensure that your chemical solution
remains well mixed. For the agitation feature
to work, set the sprayer-pump switch to the ON
position, pull back the tank-agitation lever, and run
the engine at high idle. If you shut off the machine
and agitation is needed, leave the motion-control
lever in the NEUTRAL position, engage the parking
brake, increase the throttle to the FAST position,
start the sprayer pump and run tank agitation.
g312608
Figure 42
1. Sprayer-tank cap
2. Filler neck
38
Note: Calibrate the sprayer before you start the
spray application; refer to Sprayer Nozzle Application
Rate (page 36).
1. Press the spray-pump switch on the control
console to the OFF position.
2. Adjust the sprayer-pressure with the throttle
valve according to the sprayer nozzle application
rate; refer to Adjusting the Sprayer Pressure
(page 36).
3. Drive the machine to the job site.
4. As needed, set the left, center, and right boom
sprayer-control valves to the ON position.
5. Drive the machine and step on the spray-pump
foot switch to turn on the spray pump; refer to
Spray-Pump Foot Switch (page 16).
• Watch for plugged sprayer nozzles.
• Move the boom sprayer-control valves to the OFF
•
•
•
Important: Keep your hands on the traction
Note: When the tank is nearly empty, the tank
agitation may cause foaming of the chemical solution
in the tank. In this case, throttle valve to the OFF
position. Alternatively, if an anti-foaming agent
compatible with the existing chemical—add the
anti-foaming agent according to the manufacturer’s
instructions.
control levers; use the spray-pump foot
switch. Use the spray-pump switch on
the control console for mixing the tank(s),
transferring fluid between tanks, and
spraying with the hand wand.
6.
position to stop the spray flow before stopping the
motion of the machine. Once stopped, leave the
motion-control lever in NEUTRAL and leave the
sprayer-pump switch in the ON position.
You obtain better results if the machine is moving
when spray controls are turned ON.
Ensure adequate pump pressure for proper spray
distribution by push the tank-agitation lever to the
OFF position.
Watch for changes in the application rate.
Changes in the application rate indicate that your
ground speed has changed beyond the operating
range of the nozzles or there is a problem with the
sprayer system.
Note: Step off the spray-pump foot switch to
shut off spray pump.
When you finish spraying, move the boom
sprayer-control valves are in the OFF position.
Spraying with the Spray Wand
WARNING
Note: If you need to continue to mix the sprayer
tank contents, open the throttle valve, and use
the spray-pump switch on the control console.
The spray wand traps liquids under
high pressure, even when engine is off.
High-pressure spray discharge could cause
serious injury or death.
• Keep clear of the nozzle and do not direct
the spray or stream from the wand at
people, pets, or non-work area property.
• Do not direct the spray at or near
electrical-power components or source.
• Do not repair the spray wand, hoses, seals,
nozzle, or other wand components; always
replace them.
• Do not attach the hoses or other
components to the nozzle at the end of the
spray wand.
• Do not attempt to disconnect the spray
wand from the machine while the sprayer
system is pressurized.
• Do not use the spray wand if trigger lock is
damaged or missing.
• Rotate the spray-wand lock to the OFF
position when job is complete.
Spraying Tips
• Do not overlap the effective spray area that you
have previously sprayed (Figure 44).
g312650
Figure 44
1. Overlap area
1.
2. Effective spray area
39
Move the machine to a level surface, move
motion-control lever to the NEUTRAL position,
and engage parking brake.
2.
Ensure that the 3 boom sprayer-control valves
are in the OFF position.
3.
Remove the spray wand from the tool clip at the
left side of the machine (Figure 45).
8.
When finished spraying, if you locked the trigger
of the spray-wand—unlock it, and release the
trigger (Figure 46)
9.
Close the spray wand-shutoff valve, shut off the
spray pump, and insert the spay wand into the
tool clip (Figure 45).
After Operation
After Operation Safety
General Safety
• Park the machine on level ground and allow it to
cool. Never allow untrained personnel to service
the machine.
g312651
Figure 45
• Disengage the spray or close the spreader gate,
1. Throttle-valve knob
3. Tool clip
2. Spray wand
4. Spray wand-shutoff valve
4.
set the parking brake, shut off the engine, and
remove the key or disconnect the spark-plug wire.
Wait for all movement to stop before adjusting,
cleaning or repairing the machine.
Firmly grip the spray wand and point it in the
direction that you will spray.
• Clean the machine as stated in Cleaning and
Note: The wand may recoil; ensure that you
Lubricating the Spreader (page 41) and Cleaning
the Sprayer (page 42)
hold it securely.
5.
Open spray wand-shutoff valve (Figure 45).
6.
Use the throttle valve (Figure 45) to adjust the
spray-system pressure as follows:
• Frequently check for worn or deteriorating
components that could create a hazard. Tighten
loose hardware.
• Shut off the fuel when storing or transporting the
• To increase the spray-system pressure to the
machine. Do not store fuel near flames or drain
fuel indoors.
wand, rotate the throttle valve clockwise.
• To decrease the spray-system pressure
to the wand, rotate the throttle valve
counterclockwise.
7.
Squeeze the trigger to the spray-wand handle
to begin spraying; lock the trigger in place if
desired (Figure 46).
g312653
Figure 46
1. Trigger lock
3. Spray wand handle
2. Spray wand trigger
4. Spray tip
40
Cleaning and Lubricating
the Spreader
Cleaning the Spreader
Service Interval: After each use
Important: Do not use brackish or reclaimed
water to clean the machine.
1.
Drive the machine to a designated cleaning area
with a level surface.
2.
Move the motion-control levers to the NEUTRAL
position, shut off the engine, wait for all moving
parts to stop, remove key, and engage parking
brake.
g312831
Figure 48
1. Hopper pan
2. Screen
3.
If installed, remove the cover, and empty the
hopper.
6.
Remove any pellet or granular material at the
bottom of the hopper.
4.
Open the hopper gate to the maximum open
position:
7.
Using a hose to spray the inside and outside of
the entire spreader with clean water.
A.
Pull rate gate linkage outward (Figure 47).
Note: Do not use a power washer to clean
B.
Rotate the drop rate cam until the slot aligns
with the linkage (Figure 47).
C.
Push in the linkage (Figure 47).
the machine. The high-pressure water
can force residual-corrosive materials into
sprayer-spreader components.
g027033
Figure 47
1. Slot–maximum position
5.
2. Linkage
Rotate the 2 hopper screens and remove them
from the hopper pan (Figure 48).
41
8.
Install the hopper screens.
9.
Allow the hopper to drained, pull the linkage,
and adjust the drop-rate cam to position 9.
Lubricating the Spreader
1.
2.
Fill the sprayer tank with 19 L (5 US gallons) or
more of clean water and install the cap; refer to
Filling the Tank (page 38).
3.
Engage the parking brake, move the
motion-control levers to the NEUTRAL position,
and start the engine.
4.
Set the engine throttle to FAST position.
Apply water-displacing lubricant to the control
cables and pivot points as shown in Figure 49.
Cleaning the Sprayer System and
Wand
Important: Always empty and clean the sprayer
immediately after each use. Failure to do so
may cause the chemicals to dry or thicken in the
hoses, clogging the pump and other components.
g312832
Figure 49
2.
1.
Adjust the sprayer-pressure with the throttle
valve; refer to Adjusting the Sprayer Pressure
(page 36).
2.
Set the left, center, and right boom
sprayer-control valves to the ON position.
3.
On the control console, press the spray-pump
switch to turn on the spray pump; refer to
Spray-Pump Switch (page 16).
4.
Allow the rinse water in the tank to spray through
the nozzles.
5.
Check that all nozzles spray correctly.
6.
Remove the sprayer wand from the holder, point
the wand in a safe direction, and squeeze the
trigger; refer to Spraying with the Spray Wand
(page 39).
Allow the spreader-sprayer to completely dry
before the next use.
Note: Allow the rinse water to discharge from
the wand for 1 to 2 minutes.
Cleaning the Sprayer
Service Interval: After each use
WARNING
Swallowing or inhaling chemicals could cause
serious injury or death.
• Do not clean sprayer nozzles using your
mouth or blowing through the nozzles.
• Replace all worn and damaged sprayer
nozzles.
• Ensure that the nozzles are installed
correctly.
Important: Do not use brackish or reclaimed
water to clean the machine.
Preparing the Machine
1.
Empty the sprayer tank.
42
7.
Release the trigger for the wand and return it to
the tool clip on the machine; refer to Spraying
with the Spray Wand (page 39).
8.
Move the boom sprayer-control valves to the
OFF position, set the sprayer-pump switch to the
OFF position, and shut off the engine.
9.
Clean the strainer; refer to Cleaning the Strainer
(page 43).
10.
Repeat steps 2 through 9 using cleaners and
neutralizers recommended by the chemical
manufacturers; refer to Filling the Tank (page
38).
11.
Repeat steps 2 through 9 using clean water only.
Cleaning the External Components
1.
2.
3.
Using a hose to wash off the outside of the
sprayer tank with clean water.
Rotate the strainer bowl counterclockwise and
remove the bowl and screen from the body of
the strainer (Figure 52).
Note: Do not use a power washer to clean
Note: Remove the strainer bowl by hand.
the machine. The high-pressure water
may force residual corrosive materials into
spreader-spreader components.
Remove and clean the sprayer nozzles; refer to
Cleaning the Sprayer Nozzles (page 44).
Note: Replace the gasket or screen or both if
these parts are worn or damaged.
Note: Replace damaged or worn nozzles.
3.
Allow the spreader-sprayer to completely dry
before the next use.
Cleaning the Strainer
Service Interval: After each use
Important: If you used wettable-powder
chemicals, clean the strainer after each time that
you rinse the sprayer tank.
1. Rotate the left tank and right tank return and
suction valves to the closed position (Figure 50).
g311410
Figure 52
1. Strainer bowl
2. Gasket
4.
g311408
3. Right tank suction valve
(open position)
2. Left tank suction valve
(open position)
4. Right tank return valve
(open position)
2.
Allow any residual chemical solution to drain
from the strainer body.
Note: Dispose of the waste solution according
Figure 50
1. Left tank return valve
(open position)
3. Screen
4. Strainer body
to local codes and the chemical manufacturer's
instructions.
5.
Use a soft-bristle brush and clean water to clean
the screen and bowl.
6.
Install the screen into the strainer body (Figure
52).
7.
Install the gasket and strainer bowl onto the
strainer body, and hand tighten the bowl (Figure
52).
Align a drain pan under the strainer (Figure 51).
g311412
Figure 51
43
Cleaning the Sprayer Nozzles
Service Interval: After each use
1.
Rotate the nozzle cap 90° counterclockwise and
remove the cap from the nozzle body (Figure
53).
g311414
Figure 53
1. Nozzle body
3. Sprayer tip
2. Strainer
4. Nozzle cap
g311417
2.
Figure 54
Remove the sprayer tip and strainer from the
nozzle body (Figure 53).
1. Flow-regulator case
Note: Replace any worn or damaged nozzle
parts.
3.
Use a soft-bristle brush and clean water to clean
the nozzle tip and strainer.
4.
Assemble the strainer into the nozzle body
(Figure 53).
5.
Assemble the sprayer tip into the nozzle cap
(Figure 53).
6.
Install the tip and cap onto the nozzle body
(Figure 53).
3. Atomizer slot (incorrect)
2. Atomizer slot
(aligned—correct)
Note: Use the slot to rotate the atomizer (Figure
54) of the sprayer tip forward (in-line with the
flow-regulator case of the nozzle body).
44
7.
Rotate the nozzle cap 90° clockwise (Figure 53).
8.
Repeat steps 1 through 7 for the other spray
nozzles.
Transporting the Machine
1.
Machine weight: 376 kg (829 lb)—both sprayer tank
and hopper empty; 521 kg (1150 lb)—both sprayer
tank and hopper full
2.
3.
4.
CAUTION
This machine does not have turn signals,
lights, reflective markings, or a slow
moving vehicle emblem. Driving on a street
or roadway without such equipment is
dangerous and can lead to accidents causing
personal injury.
5.
If using a trailer, connect it to the towing vehicle
and connect the safety chains.
If applicable, connect the trailer brakes.
Lower the ramp.
Align the machine to the ramp and lock the
caster wheels; refer to Caster Wheel-Lock Pedal
(page 15)
Back the machine up the ramp (Figure 55).
Do not drive the machine on a public street
or roadway.
g312789
Figure 55
Note: Refer to the chemical warning product
label(s) before transporting the machine and follow
all local/state/federal requirements for transporting
chemicals.
1. Back the machine up the
ramp.
Note: Make sure that the spreader hopper cover and
6.
the spray wand are secure before transporting.
7.
Loading the Machine
2. Walk the machine forward
down the ramp.
Secure the machine; refer to Securing the
Machine for Transport (page 45).
If your machine has material in the spreader
hopper, install the hopper cover
Securing the Machine for
Transport
WARNING
Loading a machine onto a trailer or truck
increases the possibility of tip-over and could
cause serious injury or death.
• Use extreme caution when operating a
machine on a ramp.
• Back the machine up the ramp and walk it
forward down the ramp.
• Avoid sudden acceleration or deceleration
while driving the machine on a ramp as
this could cause a loss of control or a
tip-over situation.
• Do not attempt to turn the machine while
on the ramp; you may lose control and
drive off the side.
• Use only a single, full-width ramp; do not
use individual ramps for each side of the
machine.
• If you must use individual ramps, use
enough ramps to create an unbroken ramp
surface wider than the machine.
WARNING
Securing the machine at any upper frame
location could cause the parking brake to not
function properly, which could cause serious
injury or death.
Only use the front tie-down locations at the
lower frame to secure the front of the machine.
Only use the rear tie-down locations at the
back of the frame to secure the back of the
machine.
Note: Refer to the chemical-warning-product
label(s) before transporting the machine and follow
all local/state/federal requirements for transporting
chemicals.
Note: Ensure that the spreader-hopper cover and the
spray wand are secure before transporting.
1. At the left side of the machine, ensure that the
shutoff valve for the sprayer tank is closed and
the drain plug is secure. At the right side of the
machine, ensure that the pump-shutoff valve is
closed.
2. Shut off the engine, remove the key, and engage
the parking brake(s).
Use a heavy-duty trailer or truck to transport the
machine. Ensure that the trailer or truck has all
the necessary brakes, lighting, and marking as
required by law. Please carefully read all the safety
instructions.
45
3.
Block the tires.
4.
Use the tie-down points on the machine to
securely bind the machine to the trailer or truck
with straps, chains, cable, or ropes (Figure 56
and Figure 57). Refer to local regulations for
trailer and tie-down requirements.
g313453
Figure 56
1. Front tie-down points
g313454
Figure 57
1. Rear tie-down points
46
Maintenance
Maintenance Safety
could be dangerous. The mechanical or hydraulic
jacks may not be enough support or may
malfunction, allowing the machine to fall and cause
possible injury. Do not rely solely on mechanical
or hydraulic jacks for support. Use adequate jack
stands or equivalent support.
• While performing maintenance on the machine,
•
•
•
•
•
•
•
•
someone could start the engine. Accidental
starting of the engine could seriously injure you or
others. Remove the key from the ignition switch,
engage parking brake, and pull the wire(s) off the
spark plug(s) before you do any maintenance.
Also, push the wire(s) aside so that it does not
accidentally contact the spark plug(s).
The engine can become very hot. Touching a hot
engine can cause severe burns. Allow the engine
to cool completely before servicing or repairing
around the engine area.
Park the machine on level ground and allow it to
cool. Never allow untrained personnel to service
the machine.
Disengage the spray or close the spreader gate,
set the parking brake, shut off the engine, and
remove the key or disconnect the spark-plug wire.
Wait for all movement to stop before adjusting,
cleaning, or repairing the machine.
Disconnect the battery or remove the spark-plug
wire before making any repairs. Disconnect the
negative terminal first and the positive terminal
last. Connect positive terminal first and negative
terminal last.
Relieve the pressure from the spray system before
servicing the machine.
Empty the tank and/or hopper before tilting the
machine for maintenance and before storage.
Hydraulic fluid escaping under pressure can
penetrate skin and cause injury. Fluid accidentally
injected into the skin must be surgically removed
within a few hours by a doctor familiar with this
form of injury; otherwise, gangrene may result.
– If equipped, ensure that all hydraulic fluid
hoses and lines are in good condition and
that all hydraulic connections and fittings are
tight before applying pressure to the hydraulic
system.
– Keep your body and hands away from pinhole
leaks or nozzles that eject high-pressure
hydraulic fluid.
– Use cardboard or paper, not your hands, to
find hydraulic leaks.
– Safely relieve all pressure in the hydraulic
system by placing the motion-control levers
in neutral and shutting off the engine before
working on the hydraulic system.
Raising the machine for service or maintenance
relying solely on mechanical or hydraulic jacks
• Carefully release the pressure from components
with stored energy.
• Keep your hands and feet away from moving
parts. If possible, do not make adjustments while
the engine is running. If the maintenance or
adjustment procedure requires the engine to be
running and components moving, use extreme
caution.
• Contact with moving parts or hot surfaces may
cause personal injury. Keep your fingers, hands,
and clothing clear of rotating components and hot
surfaces.
• Check all bolts frequently to maintain their proper
tightness.
47
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 5 hours
• Change the engine oil.
After the first 100 hours
• Check the wheel-hub nut torque.
• Change the hydraulic fluid and filter.
Before each use or daily
• Check the engine-oil level.
• Check the hydraulic-fluid level.
• Check the machine for loose hardware.
After each use
•
•
•
•
•
•
Every 25 hours
• Check the foam pre-cleaner; replace if dirty (more often under severe conditions).
Every 40 hours
• Check the belt.
• Check the hydraulic hoses and fittings for leaks, damage, or wear. Repair any
leaking, damaged, or worn hydraulic components.
Every 50 hours
• Check the tire pressure.
• Check the sprayer system.
• Check the spreader system.
Every 80 hours
• Remove the engine shrouds and clean the cooling fins.
Every 100 hours
•
•
•
•
Every 100 hours or yearly,
whichever comes first
Clean and lubricate the spreader.
Clean the sprayer system.
Clean the strainer.
Clean the sprayer nozzles.
Clean the engine and the exhaust system area
Clean the grass and debris buildup from the machine.
Lubricate the grease fittings.
Grease the belt tensioner.
Change the engine oil (more often under severe condition).
Service the spark plugs.
• Clean or change the air filter.
Every 400 hours
• Replace the air filter.
• Replace the fuel filter.
Every 500 hours
• Check the wheel-hub nut torque.
• Change the hydraulic fluid and filter.
Monthly
Yearly
Yearly or before storage
• Check the battery.
• Check the wheel-lug nut torque.
• Lubricate the caster-axle bearings.
• Prepare the machine for storage.
48
Notation for Areas of Concern
Inspection performed by:
Item
Date
Information
1
2
3
4
5
6
7
8
Important: Refer to your engine owner’s manual for additional maintenance procedures.
Pre-Maintenance
Procedures
Preparing the Machine
WARNING
While you are maintaining or adjusting the
machine, someone could start the engine.
Accidentally starting the engine could
seriously injure you or other bystanders.
g311995
Figure 58
1. Flange locknut
3. Negative battery terminal
2. Negative battery cable
4. Carriage bolt
Remove the key from the ignition, engage
parking brake, and pull the wire(s) off the
spark plug(s) before you do any maintenance.
Also push the wire(s) aside so it does not
accidentally contact the spark plug(s).
Accessing the Machine
Perform the following before servicing, cleaning, or
making any adjustments to the machine.
Removing the Knee Pad
1.
Shut the hopper-door control, shut off the
impeller-speed control, shut off the boom
sprayer-control valves, and shut off the
sprayer-pump switch.
2.
Park the machine on a level surface.
3.
Move the motion controls to the NEUTRAL
position.
4.
Shut off the engine and remove the key.
5.
Engage the parking brake.
6.
Wait for all moving parts to stop allow the engine
to cool before servicing, storing, or making
repairs.
7.
Remove the cable from the negative battery
terminal (Figure 58).
Rotate the knee pad up and remove it from the control
console as shown in Figure 59.
49
Accessing the Engine
Opening the Tanks
1.
At the spray tank that you need to move, remove
the flange-head bolt and flange locknut that
secures the tank lock plate to the support (Figure
61).
g317513
Figure 59
g311931
Figure 61
Left shown, the right tank is similar.
Installing the Knee Pad
1.
Insert the tabs of the knee pad into the slots in
the control console (Figure 60).
1. Flange-head bolt
3. Support
2. Tank lock plate
4. Flange locknut
2.
Rotate the tank to access the engine as shown
in Figure 62.
g317511
Figure 60
1. Tabs (knee pad)
2.
2. Slots (control console)
Rotate the knee pad down (Figure 60).
g311932
Figure 62
50
Lubrication
Closing the Tanks
1.
Rotate the tank closed as shown in Figure 63.
Grease Specification
Grease type: National Lubricating Grease Institute
(NGLI) grade No. 2 multi-purpose gun grease.
Greasing the Caster Pivots
Service Interval: Every 100 hours
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Wipe the grease fittings at caster clean with a
rag (Figure 65).
g311944
Figure 63
2.
Align the hole in the tank lock plate with the hole
in the support (Figure 64).
g312856
Figure 65
g311931
Figure 64
Left shown, the right tank is similar.
1. Flange-head bolt
3. Support
2. Tank lock plate
4. Flange locknut
3.
Assemble the flange-head bolt through the holes
in the lock plate and support, and secure the bolt
with the flange locknut (Figure 64).
4.
Torque nut and bolt to 91 to 113 N∙m (67 to 83
ft-lb).
51
3.
Connect a grease gun to the fittings (Figure 65).
4.
Pump grease into the fittings until grease begins
to come out of the bearings.
5.
Wipe up any excess grease.
6.
Repeat steps 1 through 5 at the other caster
pivot.
Lubricating the Caster-Axle Greasing the Belt Tensioner
Service Interval: Every 100 hours
Bearings
Service Interval: Yearly
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Connect a grease gun to the fitting in the hub of
the caster wheel (Figure 66).
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
At the bottom of the machine, wipe the grease
fittings at belt tensioner pivot clean with a rag
(Figure 67).
g312854
Figure 67
g314064
Figure 66
1. Grease fitting (caster-wheel hub)
3.
Pump grease into the fittings until grease begins
to come out of the bearings.
4.
Wipe up any excess grease.
5.
Repeat steps 2 through 4 at the other caster
wheel.
52
3.
Connect a grease gun to the fittings (Figure 67).
4.
Pump grease into the fittings until grease begins
to come out of the bushings.
5.
Wipe up any excess grease.
Engine Maintenance
Servicing the Air Cleaner
Service Interval: Every 25 hours—Check the foam
pre-cleaner; replace if dirty (more
often under severe conditions).
Every 100 hours or yearly, whichever comes
first—Clean or change the air filter.
Every 400 hours—Replace the air filter.
Important: Do not operate the engine without the
air filter assembly; extreme engine damage may
occur.
Cleaning the Foam Filter Element
1.
Open the spray tanks to access the engine; refer
to Opening the Tanks (page 50).
2.
Remove the foam pre-cleaner from the paper
element.(Figure 68).
3.
g313099
Figure 68
1. Cover
2. Clip
4. Plate
5. Cartridge
Wash the pre-cleaner with warm water and a
mild detergent.
3. Knob
6. Foam pre-cleaner
4.
Rinse the pre-cleaner and allow it to air dry.
8.
5.
Lightly oil pre-cleaner with new engine oil;
squeeze out excess oil.
6.
Close the spray tanks; refer to Closing the Tanks
(page 51).
Engine Oil Specification
Oil Type: Toro 4-Cycle Premium Engine Oil or a
high-quality detergent oil (including synthetic) API
service SJ or higher
Replacing the Air-Cleaner
Assembly
1.
Open the spray tanks to access the engine; refer
to Opening the Tanks (page 50).
2.
Unhook the clips on the air-cleaner cover and
remove the cover (Figure 68).
3.
Remove the knob and plate (Figure 68).
4.
Carefully remove the air-cleaner assembly to
prevent debris from entering the carburetor.
5.
Install the new foam pre-cleaner on to the new
cartridge (Figure 68).
6.
Install the air-cleaner assembly, plate, and knob
in the body (Figure 68).
7.
Install the cover and secure it using the clips
(Figure 68).
Close the spray tanks; refer to Closing the Tanks
(page 51).
Oil viscosity: Refer to the table below.
g312926
Figure 69
53
Checking the Engine-Oil
Level
Service Interval: Before each use or daily
Important: Do not operate the engine with the oil
level below the Low (or Add) mark on the dipstick,
or over the Full mark.
1.
Move the machine to a level surface.
2.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
3.
Rotate open the right spray tank and allow the
engine to cool; Opening the Tanks (page 50).
4.
Remove the dipstick from the engine and wipe
the dipstick with a clean rag (Figure 70).
g312872
Figure 71
1. Maximum oil level
(dipstick)
3. Filler neck
2. Minimum oil level (dipstick)
6.
Remove the dipstick from the filer neck, and
check oil level on the dipstick (Figure 71).
Note: The engine oil level must cover the
hatch-marked area of the dipstick (Figure 71).
7.
If the oil level is low, wipe off the area around the
filler neck and add the specified oil (Figure 72)
until the oil level is between the hatch marked
areas on the dipstick.
g312874
Important: Do not overfill the engine with
Figure 70
oil.
1. Dipstick and filler neck
5.
Insert the dipstick into the engine , and tighten
the dipstick Figure 71.
g312937
Figure 72
54
8.
Hand tighten the dipstick into the filler neck
(Figure 70).
9.
Close and secure the right spray tank; refer to
Closing the Tanks (page 51).
Changing the Oil Filter and
Engine Oil
Service Interval: After the first 5 hours
Every 100 hours (more often under severe
condition).
Draining the Engine Oil
g312969
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Rotate open the right spray tank and allow the
engine to cool; refer to Opening the Tanks (page
50).
3.
Align the oil-drain hose out the right side of the
machine, and remove the plug from the hose
(Figure 73).
Figure 74
1. Drain hose (stowed position)
Changing the Oil Filter
Note: Allow the engine oil to drain completely.
1.
Rotate open the left spray tank; refer to Opening
the Tanks (page 50).
2.
Apply a light coat of clean engine oil to the
gasket of the new oil filter.
3.
Remove the oil filter from the engine (Figure 75).
g312971
g312972
Figure 75
1. Filter adapter
4.
g312970
4.
Approximate engine oil capacity: 1.6 L (56 fl oz)
2. Plug
Important: Do not operate the engine with the oil
level below the Low (or Add) mark on the dipstick,
or over the Full mark.
Install the drain plug into the hose, and tighten
the plug (Figure 73).
1.
Note: Wipe clean any residual oil.
5.
Thread the new oil filter onto the filter adapter of
the engine (Figure 75) until the gasket contacts
the adapter, then tighten the filter an additional
1/2 to 3/4 turn.
Adding Engine Oil to the Engine
Figure 73
1. Drain hose
2. Oil filter
Stow the drain hose as shown in Figure 74.
55
Remove the dipstick from the filler neck of the
engine and wipe the dipstick and filler neck with
a clean rag (Figure 76).
g312874
Figure 76
1. Dipstick and filler neck
2.
g312872
Figure 78
1. Maximum oil level
(dipstick)
Slowly pour 1.6 L (56 fl oz) of the specified oil
into the filler neck (Figure 77) of the engine;
refer to Engine Oil Specification (page 53).
3. Filler neck
2. Minimum oil level (dipstick)
5.
If the oil level is low, add the specified oil into the
engine until the oil level is between the hatch
marked areas on the dipstick (Figure 78).
Important: Do not overfill the engine with
oil.
g312937
Figure 77
3.
Insert the dipstick into the filler neck and tighten
the dipstick Figure 76.
4.
Remove the dipstick from the filler neck and look
at the oil level in the dipstick (Figure 76).
Note: The engine oil level must cover the
hatch-marked area of the dipstick (Figure 78).
56
6.
Insert the dipstick into the filler neck and hand
tighten the dipstick (Figure 78).
7.
Close and secure the left and right spray tanks;
refer to Closing the Tanks (page 51).
Servicing the Spark Plug
Important: Do not clean the spark plug(s).
Always replace the spark plug(s) when it has a
black coating, worn electrodes, an oily film, or
cracks.
Service Interval: Every 100 hours
Spark Plug Specification
Spark plug type: Champion® RJ12
If you see light brown or gray on the insulator, the
engine is operating properly. A black coating on the
insulator usually means the air cleaner is dirty.
Removing the Spark Plug
Use a gapping tool/feeler gauge to check and adjust
the air gap to 0.76 mm (0.030 inch).
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Rotate open the left and right spray tanks; refer
to Opening the Tanks (page 50).
3.
Remove the spark plug as shown in Figure 79.
g206628
Figure 80
Installing the Spark Plug
1.
Tighten the spark plug as follows:
• New spark plug—12 to 15 N∙m (8.7 to 10.8
ft-lb)
• In-service spark plug—23 to 27 N∙m (16.6
to 19.5 ft-lb)
g313515
Figure 81
g312978
2.
g027478
Figure 79
Checking the Spark Plug
Spark-plug gap: 0.76 mm (0.030 inch)
57
Close and secure the left and right spray tanks;
refer to Closing the Tanks (page 51).
Fuel System
Maintenance
Replacing the Fuel Filter
Service Interval: Every 400 hours
1.
Rotate open the right spray tank; refer to
Opening the Tanks (page 50).
2.
Squeeze the tabs on the clamps and slide the
clamps away from the fuel filter (Figure 82).
g313097
g312580
Figure 82
1. Fuel line
3. Clamp
2. Fuel filter
3.
Twist and pull the fuel hoses from the fuel filter
(Figure 82).
Check the fuel hoses for wear, damage, leaks;
replace the hoses if necessary.
4.
Assemble the fuel filter to the ends of the hoses
(Figure 82).
Important: Align the fuel filter with the
arrow pointing toward the engine fuel pump.
58
5.
Secure the fuel hoses to the filter with the
clamps (Figure 82).
6.
Close and secure the right spray tank; refer to
Closing the Tanks (page 51).
Checking the Battery Charge
Electrical System
Maintenance
CAUTION
If the ignition is in the ON position, there
is potential for sparks and for engine
components to move. Sparks could cause an
explosion or moving parts could accidentally
engage, causing personal injury.
Servicing the Battery
Service Interval: Monthly
Always keep the battery clean and fully charged. Use
a paper towel to clean the battery case. If the battery
terminals are corroded, clean them with a solution of
4 parts water and 1 part baking soda. Apply a light
coating of grease to the battery terminals to prevent
corrosion.
Ensure that the ignition switch is in the OFF
position before charging the battery.
Voltage: 12 V
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Carefully slip back the insulator cover of the
positive battery cable (Figure 86).
DANGER
Charging or jump starting the battery may
produce explosive gases. Battery gases can
explode causing serious injury.
• Keep sparks, flames, or cigarettes away
from battery.
• Ventilate when charging or using battery in
an enclosed space.
• Ensure that the venting path of battery is
always open once the battery is filled with
acid.
• Do not lean over the batteries.
g313000
• Always shield eyes and face from battery.
Figure 83
1. Negative battery terminal
DANGER
Battery electrolyte contains sulfuric acid,
which is poisonous and can cause severe
burns. Swallowing electrolyte can be fatal or
if it touches skin can cause severe burns.
• Wear eye protection to shield your eyes
and rubber gloves to protect your skin and
clothing when handling electrolyte.
2. Positive battery terminal
3.
Measure the voltage of the battery with a
voltmeter.
4.
Use the table below to locate the charge state
or the battery, and if needed, the battery-charger
setting and charging interval recommended to
charge the battery to 12.6 V or greater; refer to
the battery charge table below.
Important: Ensure that the negative battery
cable is disconnected, and the battery
charger used for charging the battery
has an output of 16 V and 7 A or less to
avoid damaging the battery (see chart for
recommended charger settings).
• Do not swallow electrolyte.
• In the event of an accident, flush with water
and call a doctor immediately.
59
Charging the Battery
Battery Charge Table
Voltage
Reading
Percent
Charge
Maximum
Charger
Settings
Charging
Interval
12.6 or
greater
100%
16 V/
7A
No Charging
Required
12.4 to 12.6
75 to 100%
16 V/
7A
30 Minutes
12.2 to 12.4
50 to 75%
16 V/
7A
1 Hour
WARNING
Charging the battery produces gasses that
can explode.
Never smoke near the battery and keep sparks
and flames away from battery.
Important: Always keep the battery fully charged
(1.265 specific gravity) to prevent battery damage
when the temperature is below 32°F (0°C).
12.0 to 12.2
25 to 50%
14.4 V/
4A
2 Hours
11.7 to 12.0
0 to 25%
14.4 V/
4A
3 Hours
1.
Remove the battery from the chassis; refer to
Removing the Battery (page 61).
11.7 or less
0%
14.4 V/
2A
6 Hours or
More
2.
Check the electrolyte level.
3.
Ensure that the filler caps are installed on the
battery.
4.
Charge the battery for 1 hour at 25 to 30 A or 6
hours at 4 to 6 A.
5.
When the battery is fully charged, unplug the
charger from the electrical outlet, and disconnect
the charger leads from the battery posts (Figure
84).
6.
Install the battery onto the machine and connect
the battery cables; refer to Installing the Battery
(page 61).
5.
6.
If the positive cable is also disconnected,
connect the positive (red) cable to the positive
battery terminal and slip terminal cover over the
positive terminal (Figure 83).
Remove the screw, washer, and ground cable
from the engine. Secure the battery cable to
the battery terminal with the bolt, washer, and
nut and torque the nut and bolt to 1978 to 2542
N∙cm (175 to 225 in-lb).
Note: If time does not permit charging the
battery or if charging equipment is not available,
connect the negative battery cables and run
the vehicle continuously for 20 to 30 minutes to
charge the battery.
7.
Note: Do not run the machine with the battery
disconnected; electrical damage may occur.
Carefully slip back the insulator cover of the
positive battery cable over the battery terminal
(Figure 83).
g000538
Figure 84
60
1. Positive battery post
3. Red (+) charger lead
2. Negative battery post
4. Black (-) charger lead
Removing and Installing
the Battery
Removing the Battery
WARNING
Battery terminals or metal tools could short
against metal machine components, causing
sparks. Sparks can cause the battery gasses
to explode, resulting in personal injury.
• When removing or installing the battery,
do not allow the battery terminals to touch
any metal parts of the machine.
g313031
Figure 85
• Do not allow metal tools to short between
the battery terminals and metal parts of the
machine.
1. Flange locknut
4. Positive battery cable
2. Negative battery cable
5. Battery strap
3. Carriage bolt
6. Strap flange (battery box)
3.
Slip back the insulator cover of the positive
battery cable (Figure 85).
Incorrect battery-cable routing could damage
the machine and cables causing sparks.
Sparks can cause the battery gasses to
explode, resulting in personal injury.
4.
Remove the flange locknut and carriage bolt that
secure the positive battery cable to the battery,
and remove the cable from the battery (Figure
85).
• Always disconnect the negative battery
cable (black) before disconnecting the
positive (red) cable.
5.
Remove the battery strap from the flange of the
battery box (Figure 85).
6.
Remove the battery from the battery box of the
machine.
WARNING
• Always connect the positive battery cable
(red) before connecting the negative
(black) cable.
1.
2.
Installing the Battery
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
Remove the flange locknut and carriage bolt that
secure the negative battery cable to the battery,
and remove the cable from the battery (Figure
85).
61
1.
Place the battery into the battery box.
2.
Secure the battery to the battery box with the
battery strap (Figure 85).
3.
Assemble the positive battery cable to the
positive terminal of the battery with the carriage
bolt and flange locknut (Figure 85).
4.
Slip back the insulator cover of the positive
battery cable over the battery terminal.
5.
Assemble the negative battery cable to the
positive terminal of the battery with the carriage
bolt and flange locknut (Figure 85).
Jump-Starting the Machine
Note: The positive battery cable is wired to the
starter or solenoid.
DANGER
Jump-starting a battery that is cracked, frozen,
has low electrolyte level, or an open/shorted
battery cell can cause an explosion, resulting
in serious personal injury.
Do not jump-start a battery if these conditions
exist; replace the battery.
CAUTION
g012785
Figure 86
Corrosion or loose connections can cause
unwanted electrical voltage spikes at any time
during the jump-starting procedure.
1. Positive (+) cable on the discharged battery
2. Positive (+) cable on booster battery
3. Negative (–) cable on the booster battery
Do not attempt to jump start a machine
with loose or corroded battery terminals, or
damage to the engine can occur.
4. Negative (–) cable on the engine block
5. Booster battery
6. Discharged battery
7. Engine block
CAUTION
Connecting the jumper cables incorrectly can
immediately damage the electrical system.
4.
Connect the other positive (+) cable clamp (red)
to the positive terminal of the booster battery.
Be certain of the battery-terminal polarity and
the jumper-cable polarity when connecting to
the battery.
5.
Connect the negative (–) cable clamp (black) to
the negative terminal of the booster battery.
6.
Connect the other negative (–) cable clamp
(black) to the engine block of the stalled machine
and away from the discharged battery.
Important: Be sure that the vehicles do not touch
and that both electrical systems are off and at the
same rated system voltage. These instructions
are for negative-ground systems only.
Important: Do not connect the negative (–)
cable clamp (black) to the negative battery
post of the discharged battery.
Important: Use the properly sized jumper cables
(4 to 6 AWG) with short lengths to reduce the
voltage drop between systems. Ensure that the
cables are color coded or labeled for the correct
polarity.
1.
Check the battery terminals of the discharged
battery and the booster battery for corrosion
(white, green, or blue “snow”).
Note: Clean the corrosion from the battery
terminals prior to jump starting. Tighten the
battery cable connections as necessary.
2.
Ensure that the booster is a 12 V battery with
a sufficient amp rating that is in good condition
and fully charged.
Note: Ensure that the vent caps are tight and
level. If available, place a damp cloth over any
vent caps on both batteries.
3.
Connect the positive (+) cable clamp (red) to the
positive (+) terminal of the discharged battery
(Figure 86).
62
7.
Stand away from the discharged battery of the
machine.
8.
Start the machine and remove the cables in
the reverse order of connection, disconnect the
engine block connection first.
Servicing the Fuses
The electrical system is protected by fuses. If a fuse
opens, check the component or circuit for a load or
short.
Circuit protected
Fuse size
Location
Main power
10 A
Between the
ignition switch and
start solenoid.
Sprayer
30 A
Between the start
solenoid and
spray-pump relay.
Display
1A
Between the
ignition switch
and sprayer and
information display.
1.
Remove the negative battery cable from the
battery; refer to step 4 of Removing the Battery
(page 61).
Note: Ensure that the negative battery cable
does not touch the battery terminal.
2.
Rotate open the right spray tank; refer to
Opening the Tanks (page 50).
3.
Open the cover of the fuse holder (Figure 87).
g313063
Figure 87
1. Fuse holder—10 A fuse
(main power)
3. Fuse holder—30 A fuse
(spray pump)
2. Fuse holder—1 A fuse
(display)
4.
Pull the fuse from the socket of the fuse holder
(Figure 87).
5.
Install a fuse of the same type into the socket of
the fuse holder (Figure 87).
63
6.
Close the cover onto the fuse holder until the
cover latches securely (Figure 87).
7.
Close and secure the right spray tank; refer to
Closing the Tanks (page 51).
8.
Install the negative battery cable to the battery
terminal, and install the battery cover; refer to
steps 5 of Installing the Battery (page 61).
Checking the Wheel-Lug
Nuts
Drive System
Maintenance
Check and torque the wheel-lug nuts (Figure 89) to
129 N∙m (95 ft-lb), if needed.
Checking the Tire Pressure
Service Interval: Every 50 hours
Tire air pressure specification: 110 to 138 kPa (16
to 20 psi)
Important: Do not exceed the maximum air
pressure indicated on the sidewall of the tire.
Note: Do not add any type of tire liner or foam fill
material to the tires.
g311487
Figure 89
1. Wheel-lug nut
2. Wheel-hub nut
g001055
Figure 88
Checking the Wheel-Hub
Nut
Service Interval: After the first 100 hours
Every 500 hours
Check and torque the wheel-hub nut (Figure 89) to
319 N∙m (235 ft-lb), if needed.
64
Brake Maintenance
Belt Maintenance
Adjusting the Parking
Brake
Checking the Belt for Wear
Service Interval: Every 40 hours
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Check the air pressure in the drive tires; refer to
Checking the Tire Pressure (page 64).
2.
Raise the machine and support it with jack
stands.
3.
Disengage the parking brake.
3.
Check the belt for wear of damage.
4.
Loosen the 2 jam nuts on the brake linkage at
the rear of the machine (Figure 90).
5.
To increase the brake force, turn the linkage
counterclockwise 1 to 2 turns (Figure 90).
6.
Engage the parking brake and check if you need
to further adjust the parking brake; repeat step
5, if needed.
7.
Note: If the belt is worn or damaged, replace
the belt; refer to Replacing the Belt (page 65)
4.
Lower the machine and remove the jack stands.
Replacing the Belt
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Raise the machine and support it with jack
stands.
3.
While holding the eye bolt in place, loosen the
locknut on the eye bolt to remove tension from
the spring (Figure 91).
Tighten the 2 jam nuts (Figure 90).
g313364
Figure 90
1. Brake linkage
2. Jam nut
8.
Check the parking brake; repeat steps 4 to 7,
if needed.
9.
Repeat this procedure on the other side of the
machine.
g313242
Figure 91
1. Locknut
4.
65
2. Eye bolt
Pull the tension arm away from the belt and
remove the existing belt from the pulleys (Figure
92).
Adjusting the Belt Tension
1.
Ensure that the tension arm and pulley move
freely.
2.
While holding the eye bolt from rotating, tighten
the locknut until the thread length after the
adjustment is 32 mm (1-1/4 inches) as shown
in Figure 94.
g313243
Figure 92
1. Tension arm
5.
With the tension arm pulled away from the pulley
system, route the new belt, starting at the 2
hydraulic-motor pulleys, then around the engine
pulley and tensioner pulley (Figure 93).
g313254
Figure 94
g313241
Figure 93
1. Hydraulic-motor pulleys
3. Tensioner pulley
2. Belt
4. Engine pulley
6.
Tension the belt; refer to Adjusting the Belt
Tension (page 66).
7.
Lower the machine from the jack stands.
66
Adjusting the
Motion-Control Linkage
Controls System
Maintenance
Adjusting the Maximum
Forward Speed
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Loosen the 2 knobs that secure the speed bar
(Figure 95).
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Loosen the 2 knobs that secure the speed bar,
and push the speed bar forward (Figure 96).
g317510
Figure 96
1. Knobs
3.
g317508
Figure 95
1. Knobs
3. Increase the maximum
forward speed
2. Speed bar
4. Decrease the maximum
forward speed
3.
Push the motion-control lever forward, and
measure the distance between the speed bar
and motion control lever (Figure 97).
Note: The motion-control linkage is correctly
adjusted when the gap between the lever and
bar is 79 to 87 mm (3-1/8 to 3-7/16 inches).
Adjust the position of the speed bar as follows:
• Move the speed bar forward to increase the
maximum forward speed of the machine.
• Move the speed bar rearward to decrease
the maximum forward speed of the machine.
4.
2. Speed bar
Tighten the 2 knobs that secure the speed bar
(Figure 95).
67
g313362
Figure 98
1. Left motion-control rod
2. Right motion-control rod
4. Jam nut
5. Jam nut (rod adjustment)
3. Ball joint
g317904
Figure 97
1. 79 to 87 mm (3-1/8 to
3-7/16 inches)
6.
3. More than 87 mm (3-7/16
inches)
• To increase the gap between the speed
2. Less than 79 mm (3-1/8
inches)
4.
If the gap is larger than or smaller than 79 to 87
mm (3-1/8 to 3-7/16 inches), remove the knee
pad; refer to Removing the Knee Pad (page 49).
5.
Loosen the 2 jam nuts that secure the
motion-control rod at the upper and lower ball
joints (Figure 98).
Adjust the motion-control rod as follows:
bar and motion control lever, rotate the
motion-control rod counterclockwise.
• To decrease the gap between the speed
bar and motion control lever, rotate the
motion-control rod clockwise.
68
7.
Tighten the jam nuts (Figure 98).
8.
Repeat steps 3 through 7 for the other motion
control lever.
9.
Install the knee pad; refer to Installing the Knee
Pad (page 50).
Adjusting the Motion
Control Tracking
Hydraulic System
Maintenance
If the machine travels or pulls to one side when the
motion-control levers are in the full forward position,
adjust the tracking.
1.
Hydraulic Fluid
Specification
While driving the machine across a flat field,
push both control levers forward the same
distance.
2.
Check if the machine pulls to one side, stop the
machine, shut off the engine, and engage the
parking brake.
3.
Loosen the 2 jam nuts that secure the
motion-control rod at the upper and lower ball
joints (Figure 99).
Preferred fluid: Toro Hypr-Oil 500
Optional fluid: 15W-50 API rating CI-4/CF hydraulic
fluid
Checking the Hydraulic
Fluid Level
Service Interval: Before each use or daily
1. Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2. Remove the knee pad; refer to Removing the
Knee Pad (page 49).
3. Check the hydraulic fluid level in the tank (Figure
100).
Important: When the hydraulic fluid level is
correct, it is between the full and add marks
on the fluid-level decal.
g313362
Figure 99
1. Left motion-control rod
2. Right motion-control rod
4. Jam nut
5. Jam nut (rod adjustment)
3. Ball joint
4.
Adjust the motion-control rod as follows:
• To increase the speed for the drive, rotate
the motion-control rod counterclockwise in
1/4 turn.
• To decrease the speed for the drive, rotate
g313188
the motion-control rod clockwise in 1/4 turn.
Figure 100
5.
Tighten the jam nuts (Figure 99).
1. Hydraulic tank
3. Full mark (fluid-level decal)
6.
Repeat steps 1 through 5 until the machine
tracks straight when the motion-control levers
are in the full forward position.
2. Cap
4. Add mark (fluid-level
decal)
69
4.
5.
If the hydraulic fluid level is low, perform the
following:
A.
Remove the cap (Figure 100).
B.
Add the specified hydraulic fluid until it is
level with the full mark on the fluid-level
decal (Figure 100); refer to Hydraulic Fluid
Specification (page 69).
C.
Install the cap (Figure 100).
Install the knee pad; refer to Installing the Knee
Pad (page 50).
Changing the Hydraulic
Fluid and Filter
g313257
Figure 102
1. Hydraulic filter
2. Filter head
Service Interval: After the first 100 hours
Every 500 hours/Yearly (whichever comes first)
Hydraulic fluid quantity: 2.4 L (2.5 US qt)
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Remove the knee pad; refer to Removing the
Knee Pad (page 49).
3.
Clean area around hydraulic filter and filter head
(Figure 101).
g313259
Figure 101
1. Hydraulic filter and filter head
4.
Align a drain pan with a 3 L (3 US qt) or greater,
under the filter (Figure 102).
70
5.
Remove the filter, and allow the hydraulic fluid
to drain (Figure 102).
6.
Apply a thin coat of the specified hydraulic fluid
to the gasket of the new hydraulic filter; refer to
Hydraulic Fluid Specification (page 69).
7.
Thread the filter onto the filter head until the
gasket contacts the filter head, and tighten the
filter an additional 2/3 to 3/4 turn.
8.
Add the specified hydraulic fluid to the tank;
refer to step 4 in Checking the Hydraulic Fluid
Level (page 69).
9.
Purge the air from the hydraulic system; refer
to Purging Air from the Hydraulic System (page
71).
Purging Air from the
Hydraulic System
8.
Check the hydraulic fluid level, start the engine,
and run it at full throttle for several minutes, refer
to Checking the Hydraulic Fluid Level (page 69).
Note: You must purge air from the hydraulic system
9.
Shut off the engine, and Install the knee pad
refer to Installing the Knee Pad (page 50).
when you remove any hydraulic components,
including oil filter, or disconnect any hydraulic lines.
1.
Checking the Hydraulic
System Fittings
Open the drive release valves at each hydraulic
pump (Figure 103).
Service Interval: Every 40 hours
Check the hydraulic hoses and fittings for leaks,
damage, or wear. Repair any leaking, damaged, or
worn hydraulic components.
g313237
g313239
Figure 103
1. Drive release valves
2.
Raise the back of the machine until both drive
wheels are off the ground, and support the
machine with jack stands.
3.
Start engine and move throttle control ahead to
full throttle position.
4.
Move the traction-control levers to the FORWARD
and REVERSE positions several times position.
5.
Move the traction-control levers to the NEUTRAL
position, and shut off the engine.
6.
Lower the machine and remove the jack stands.
7.
Close the drive release valves at each hydraulic
pump (Figure 103).
71
Maintaining the Sprayer
and Spreader Systems
Maintaining the Chassis
Checking the Machine for
Loose Hardware
Checking the Sprayer
System
Service Interval: Before each use or daily
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Visually inspect machine for damaged or worn
parts, and check for loose hardware.
Service Interval: Every 50 hours
Note: Before operating the machine, replace
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Check all hoses, nozzles, and fittings for
damage and leaks.
any damaged parts and tighten all loose
hardware.
Note: Replace all damaged or leaking sprayer
components.
3.
Check the nozzle strainers and in-line strainers
for accumulation of dirt and chemical sludge.
Note: Clean or replace strainers with an
accumulation of dirt and chemical sludge.
Checking the Spreader
System
Service Interval: Every 50 hours
72
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Spray the hopper cables, accuway cable, and
the deflector-shield cable with silicone spray, if
needed.
3.
Clean the bottom of the hopper with a wire brush
and clean off any fertilizer, if needed.
4.
Replace the hopper bottom bushing or the
impeller, if needed.
Cleaning the Engine Debris
Guard
Cleaning
Cleaning the Engine and
the Exhaust System Area
Service Interval: Every 80 hours
Service Interval: After each use (clean more often
when operating the machine in dry
or dirty conditions.)
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Rotate open the left spray tank; refer to Opening
the Tanks (page 50).
3.
Use a brush or dry cloth to remove debris from
the engine debris guard (Figure 104).
CAUTION
Excessive debris around engine-air intake
and exhaust system area can cause engine,
exhaust area, and hydraulic system to
overheat which can create a fire hazard.
Note: Also, clean dust, dirt, and oil from
external surfaces of engine which can cause
improper cooling.
Clean all debris from engine and exhaust
system area.
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Clean all debris from the engine, around engine
shrouding, fuel tank, and exhaust system area.
3.
Wipe up any excessive grease or oil around the
engine and exhaust system area.
4.
Clean muffler-heat shields of all debris, dirt, and
oil.
g313101
Cleaning the Debris from
the Machine
Figure 104
4.
Service Interval: After each use
1.
Prepare the machine for maintenance; refer to
Preparing the Machine (page 49).
2.
Clean off any debris or chemical build-up on the
machine, especially the nozzles, sprayer-tank
opening, impeller, and the spray wand and its
holder.
73
Close and secure the left spray tank; refer to
Closing the Tanks (page 51).
Waste Disposal
Chemical Disposal
Improper chemical disposal can pollute the
environment and cause health issues.
Follow the disposal directions on the
chemical-manufacturer’s label. Dispose of
chemicals and containers in accordance to
local/state/federal laws.
Disposing of the Engine Oil
Engine oil and hydraulic fluid are both pollutants to
the environment. Dispose of used pollutants at a
certified-recycling center or according to your state
and local regulations.
Disposing of the Battery
DANGER
Battery electrolyte contains sulfuric acid,
which is poisonous and can cause severe
burns. Swallowing electrolyte can be fatal or
if it touches skin can cause severe burns.
• Wear eye protection to shield eyes, and
rubber gloves to protect skin and clothing
when handling electrolyte.
• Do not swallow electrolyte.
• In the event of an accident, flush with water
and call a doctor immediately.
Federal law states that batteries should not be placed
in the garbage. Management and disposal practices
for batteries must follow relevant federal, state, or
local laws.
Take the battery to a local certified-recycling center
if you replace a worn or damaged battery or if the
machine no longer operates and is being scrapped.
Note: If no local recycling is available, return the
battery to any certified battery seller.
74
Storage
2.
Short-Term Storage
1.
2.
Set sprayer-pump switch to the OFF position,
stop the machine, move motion-control lever to
the NEUTRAL position, shut off the engine, wait
for all moving parts to stop, remove key, and
engage parking brake.
Empty the sprayer system by performing the
following:
A.
Empty the sprayer tank.
B.
Start the machine and set sprayer-pump
switch to the ON position
C.
Move the 3 boom spray-control valves to
the ON position.
Note: Run the sprayer pump until the spray
nozzles is spray air.
Remove dirt and grime from the entire machine.
3.
Important: Do not use brackish or reclaimed
Shut off the sprayer pump and the engine.
water to clean the machine.
Preparing the Sprayer System
Important: You can wash the machine with
Antifreeze type: 15 L (4 US gallon) rust inhibiting,
non-alcohol based, RV-antifreeze concentrate
mild detergent and water. Do not pressure
wash the machine. Avoid excessive use
of water, especially near the engine and
hydrostatic drive.
3.
Service the air cleaner; refer to Servicing the Air
Cleaner (page 53).
4.
Lubricate the machine; refer to Lubrication
(page 51).
5.
Change the engine oil filter and oil; refer to
Changing the Oil Filter and Engine Oil (page 55).
6.
Check and tighten all bolts, nuts, and screws.
Repair or replace any part that is damaged.
7.
Paint all scratched or bare metal surfaces. Paint
is available from your Authorized Service Dealer.
8.
Store the machine in a clean, dry garage or
storage area.
9.
Cover the machine to protect it and keep it clean.
Important: Do not allow all the antifreeze mixture
to empty from the sprayer tank while running the
sprayer nozzles and wand. Keeping some of the
antifreeze in the pump, valves, and hoses will help
prevent corrosion and damage caused by moist
air trapped in the sprayer system.
Do not use brackish or reclaimed water in the
spray system.
1.
Note: Use a rust inhibiting, non-alcohol based,
RV antifreeze concentrate.
Preparing the Machine for
Extended or Winter Storage
To help protect the pumps from freezing temperatures,
ensure that the machine is free of all caustic chemicals
and residue.
2.
Open the tank shutoff valves for both spray
tanks; refer to Selecting Both Spray Tanks (page
34).
3.
Open the throttle valve; refer to Adjusting the
Sprayer Pressure (page 36).
4.
Start the machine and set the sprayer-pump
switch to the ON position.
5.
Move the spray-control valves to the ON position.
Note: Allow the antifreeze to circulate through
sprayer and nozzle.
6.
Cleaning the Spreader
Perform all the steps in Cleaning and Lubricating the
Spreader (page 41).
Remove the wand from its holder, point it in a
safe direction, and squeeze the spray-wand
trigger.
Note: Allow the antifreeze to circulate through
sprayer and nozzle and then return the wand to
its holder.
Winterizing the Sprayer
7.
Emptying the Tank
1.
Pour 7.5 L (2 US gallon) RV anti-freeze
concentrate into each sprayer tank.
Perform all the steps in Cleaning the Sprayer
System and Wand (page 42), Cleaning the
Strainer (page 43), and Cleaning the Sprayer
Nozzles (page 44).
Set the sprayer-pump switch to the OFF position
and shut off the engine.
Battery Storage
Disconnect the battery and place it on a trickle charger
for a few hours, once per month.
75
Troubleshooting
Important: Ensure that the operator safety mechanisms for the machine are connected and in proper
operating condition before you use the machine.
When a problem occurs, do not overlook the simple causes. For example, starting problems could be caused
by an empty fuel tank.
The following table lists some of the common causes of trouble. Do not attempt to service or replace major
engine items or any items that call for special timing of adjustments procedures (such as valves, governor, etc.).
Have this work done by your engine service dealer.
Note: When disconnecting electrical connectors, do not pull on the wires to separate the connectors.
The Charging System
20 Amp Regulated Alternator
The regulated alternator system provides AC current through two output leads to the regulator-rectifier (Figure
105). The regulator-rectifier converts the AC current to DC, and regulates current to the battery. The charging
rate will vary with engine RPM and temperature.
Note: Stator, regulator/rectifier, and fly-wheel are not interchangeable with other charging systems.
g314087
Figure 105
1. Stator assembly
5. 2 yellow AC input leads
2. 2 yellow leads (from stator)
6. Regulator/rectifier
3. Red DC output lead (from the connector)
7. Red DC output lead (to the connector)
4. Connector
Testing the Alternator
Important: When checking the alternator components, preform the tests in the following sequence:
1.
Testing Alternator Output (page 77)
2.
Testing the DC Output Charging Wire (page 78)
3.
Testing the Regulator/Rectifier (page 78)
76
Testing Alternator Output
CAUTION
Attach meter test leads to the AC output terminals (the yellow wires) in the connector before
starting the engine. If the stator is grounded (damaged or worn) and the meter test leads
contact the center DC output pin (the red wire) in the connector, arcing could occur, damaging
the wiring.
When checking the alternator components, preform the tests in the following sequence:
1.
Disconnect stator wire harness from regulator/rectifier.
2.
Insert red test lead into VΩ receptacle in meter.
3.
Insert black test lead into COM receptacle.
4.
Rotate selector to V~ (AC volts) position.
5.
Attach red and black test lead probes to the 2 AC output terminals (yellow wires) of the connector as
shown in Figure 106.
Note: You can attach the test lead probes to either AC output terminal.
g314088
Figure 106
1. Black probe (meter)
5. Red wire
2. Red probe (meter)
6. AC input terminals
3. Connector
7. DC output terminal
4. Yellow wires
6.
If no or low output is found, check for bare wires or other damage.
Note: If shorted leads are not visible, replace the stator.
Note: With the engine running at 3600 rpm, the alternator should output 16 V or more.
7.
Connect stator wire harness to regulator/rectifier.
77
Testing the DC Output Charging Wire
Use this test to check the DC output charging wire circuit. If a wiring problem exists, you can correct it before
testing regulator/rectifier.
Leave stator wire harness disconnected from regulator-rectifier. Ignition switch must be in OFF position.
1.
Turn the ignition switch to the
2.
Disconnect stator wire harness from regulator/rectifier.
3.
Insert red test lead into VΩ receptacle in meter.
4.
Insert black test lead into COM receptacle.
5.
Rotate selector to V~ (AC volts) position.
6.
Attach red test lead probe to the red DC output terminal of the connector (Figure 106).
7.
Attach black test lead probe to negative battery terminal.
8.
Turn ignition switch to the
ON
OFF
position.
position.
Note: Meter should display battery voltage.
Note: Regulator-Rectifier Test
Testing the Regulator/Rectifier
You must install a DC shunt on the negative (-) terminal of the battery to avoid overloading the fuse in the meter
when testing the alternator output. Ensure that all electrical connections are clean and tight for accurate
amperage readings.
1.
Connect stator wire harness to regulator/rectifier.
2.
Install a DC shunt onto the negative battery terminal.
3.
Insert red test lead into VΩ receptacle of the meter. Connect the other end of the red test lead to the
post terminal of the shunt Figure 107.
g314089
Figure 107
1. Black probe (meter)
4. DC shunt
2. Red probe (meter)
5. Post terminal (shunt)
3. Black post terminal (shunt)
4.
Insert black test lead in COM receptacle of the meter. Connect the other end of the black test lead to
the black post terminal of the shunt.
5.
Rotate selector of the meter to 300 mV position.
6.
With the engine running at 3600 RPM, the alternator should output 3-20 A.
Note: Depending on battery voltage and/or current draw on system.
78
Note: If you find no or low alternator output , check that the regulator/rectifier is properly grounded, and
that all electrical connections are clean and secure.
If there is still no or low alternator output, replace the regulator/rectifier.
Troubleshooting the Machine
Problem
The starter does not rotate the engine.
Possible Cause
1. The battery does not have a full
charge.
1. Charge the battery; refer to the
Charging the Battery, and Jump
Starting the Machine procedures.
2. An electrical connection(s) is corroded,
loose or faulty.
2. Check the electrical connection(s)
for good contact. Clean the
connector terminals thoroughly with
electrical-contact cleaner, apply
dielectric grease to the terminals, and
connect the connectors.
3. Replace the open fuse.
4. Contact an authorized Toro service
dealer.
3. A fuse is open.
4. A relay or switch is worn or damaged.
The engine does not start, it starts hard, or
it fails to keep running.
1. The fuel tank is empty.
1. Fill the fuel tank with fuel.
2. The throttle lever or choke lever or
both are not in the correct position.
2. Move the throttle control is midway
between the SLOW and FAST positions.
Set the choke to the ON position when
starting a cold engine or set the choke
to the OFF position when starting a
warm engine.
3. Replace the fuel filter; refer to
Replacing the Fuel Filter procedure.
4. Contact an authorized Toro service
dealer.
5. Clean the foam-filter element or
replace the paper-filter element.
6. Check the electrical connection(s)
for good contact. Clean the
connector terminals thoroughly with
electrical-contact cleaner, apply
dielectric grease to the terminals, and
connect the connectors.
7. Contact an authorized Toro service
dealer.
8. Clean, adjust or replace spark plug.
9. Check the spark-plug wire connection
at the spark plug.
3. There is dirt in fuel filter.
4. There is dirt, water, or stale fuel is in
the fuel system.
5. The air-filter elements are dirty.
6. An electrical connection(s) is corroded,
loose or damaged.
7. A relay or switch is worn or damaged.
8. The spark plug is worn or damaged.
9. The spark-plug wire is not connected
to the spark plug.
The engine loses power.
Corrective Action
1. The engine load is excessive.
1. Reduce the ground speed of the
machine.
2. The air-filter elements are dirty.
2. Clean the foam-filter element or
replace the paper-filter element.
3. Add oil into the engine to the proper
oil level.
4. Clean the cooling fins and the air
passages.
3. The oil level in the engine is low.
4. The cooling fins and the air passages
for the engine are plugged with dirt or
debris.
5. The vent hole in the fuel cap is plugged.
6. There is dirt in the fuel filter.
7. There is dirt, water, or stale fuel is in
the fuel system.
79
5. Clean or replace the fuel cap.
6. Replace the fuel filter; refer to
Replacing the Fuel Filter procedure.
7. Contact an authorized Toro service
dealer.
Problem
The engine overheats.
Possible Cause
1. The engine load is excessive.
1. Reduce the ground speed of the
machine.
2. The oil level in the engine is low.
2. Add oil into the engine to the proper
oil level.
3. Clean the cooling fins and the air
passages.
3. The cooling fins and air passages for
the engine are plugged with dirt or
debris.
The machine pulls to the left or the right
(with steering control fully forward).
The machine does not drive.
The machine vibrates abnormally.
Corrective Action
1. The air pressure in the tires is not
correct.
1. Adjust air pressure in the drive tires.
2. The motion-control linkage is damaged.
3. The front wheel axles are bent or
damaged.
4. The motion control tracking is out of
adjustment.
2. Replace motion-control linkage.
3. Repair or replace the front wheel axles.
1. The drive release valves are not fully
closed.
1. Close the drive release valves.
2. The belt is loose or broken.
2. Tension the belt or replace it.
1. The engine-mounting bolts are loose.
1. Tighten the engine-mounting bolts.
4. Adjust the motion control tracking.
Troubleshooting the Spreader or Sprayer
Problem
The spreader or sprayer pattern is uneven.
The impeller does not rotate.
No material dispensed from hopper.
Possible Cause
Corrective Action
1. The impeller is dirty or damaged.
1. Clean, repair, or replace the impeller.
2. The diffuser control is not adjusted
properly.
3. The sprayer nozzles are clogged.
4. The hopper screen is plugged.
5. Material in the hopper is clumped over
the gate.
6. The diffuser ramp setting is incorrect.
2. Adjust the diffuser control; refer to
the Adjusting the Diffuser Control
procedure.
3. Clean or replace the nozzles.
4. Clean the hopper screen.
5. Check to see if the agitator pin for the
shaft of the impeller motor is present.
6. Adjust the position of the control cable.
1. There is debris buildup at the impeller.
1. Clean the impeller.
2. The hopper screen is plugged.
3. The impeller motor is loose or
damaged.
4. The motor hydraulics are damaged.
2. Clean the hopper screen.
3. Repair or replace the impeller motor.
5. The Impeller-speed control is in the
OFF position or set too slow.
6. The impeller-drive pin is missing.
7. The bearings failed in the impeller
motor.
4. Check the hydraulic hoses and
connections.
5. Set the Impeller-speed control ON
position and adjust the impeller speed.
6. Replace the drive pin.
7. Replace the bearings in the motor or
the motor assembly.
1. Hopper screen is plugged.
1. Clean the hopper screen.
2. Hopper door not adjusted properly.
2. Adjust the hopper door; refer to the
Adjusting the Hopper-Door Control
procedure.
80
Problem
There is no spray from the sprayer nozzles
in the boom or the nozzles have poor
output.
The spray wand does not work.
Possible Cause
Corrective Action
1. The sprayer tank is empty.
1. Fill the sprayer tank.
2. The tank shutoff valve(s) is closed or
partially closed.
3. The strainer is clogged or damaged.
4. The pump is clogged or damaged.
5. The nozzles are clogged.
6. The hoses are clogged, kinked, or
damaged.
7. The boom spray-control valves are not
in the ON position.
8. The sprayer pressure and ground
speed are incorrect.
9. The chemical mixture in the sprayer
tank is incorrect.
10. The spray system is leaking or drawing
air.
2. Fully open the tank shutoff valve(s).
3.
4.
5.
6.
Clean, repair, or replace the strainer.
Clean, repair, or replace the pump.
Clean or replace the nozzles.
Clean, repair, or replace the hoses.
7. Move the lever for the boom
spray-control valves to the ON position.
8. Adjust the sprayer pressure and the
ground speed of the machine.
9. Follow the chemical manufacturer’s
recommendation.
10. Inspect the components of the sprayer
system; clean, repair, or replace
the sprayer-system components as
needed.
1. The sprayer tank is empty.
1. Fill the sprayer tank.
2. The sprayer-wand-pressure control is
in the wrong position.
3. The wand is clogged or damaged.
4. The spray nozzle for the wand is
clogged.
5. The trigger is not pressed.
6. The hose is clogged or damaged.
7. The hose is not connected to the wand.
8. The hose for the wand is kinked.
2. Rotate the pressure control to the
OPEN position.
3. Clean, repair, or replace the wand.
4. Clean or replace the nozzle.
81
5.
6.
7.
8.
Press the trigger.
Clean, repair, or replace the hoses.
Connect the hose to the wand.
Straighten the kink in the hose.
Electrical Schematic 135-6146 (Rev. A)
WHITE
4 G
BLACK
SP1403
START
BLACK
P1401
A
J1401
M 2
S 1
L 3
YELLOW
GREEN
RED
J1412
F21
ORANGE
RED
RED
SP1401
RED
F17
1A
SPEEDOMETER
BLACK
ATC-ATO FUSE HOLDER
J1411
ORANGE
BATTERY
BT1401
10A
MAIN
ATC-ATO FUSE HOLDER
RUN
ORANGE
J1416 J1417
FRAME GROUND
RED
BLACK
J1413
OFF
TERMINAL -
5 B
TERMINAL +
P1401
K1401
START SOLENOID
F22
FRAME GROUND
SP1407
30A
SPRAYER
RED
SP1402
ORANGE
RED
ORANGE
J1410
2 2
FRAME GROUND
YELLOW
ATC-ATO FUSE HOLDER
J1409
J1408
J1407
J1406
J1405
ORANGE
1 1
P1402 P1403
BLACK
BLACK
RED
SP1406
SP1405
J1403
YELLOW
2
1
P1409
BLACK
RED
RED
2 85
1 30
P1407
7
5
2
P1404
ORANGE
ORANGE
P1407
ORANGE
1
P1405
SENSOR -
SENSOR +
GND
+12VDC
RED
BLACK
RED
FOOT Switch
SW1403
FRAME GROUND
J1415
SPEEDOMETER
SPEEDOMETER ASSEMBLY
FRAME GROUND
86 4
87 3
RED
HR
HOUR METER
DIS1401
8
6
4
1
3
P1404
87a 5
PUMP RELAY
K1402
OFF
ON
J1414
82
J1422
PUMP Switch
SW1402
RD
BK
A
B
P1408
START
ALT
FLYWHEEL
IGNITION
MODULES
M
REG
GND-S/D J1402
FRAME GROUND
PUMP MOTOR - 5GPM
M1401
DC
REG
ENGINE - BRIGGS
ENG1401
J1419
IGNITION SWITCH
SW1401
1
P1406
YELLOW
Schematics
g317196
Notes:
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
