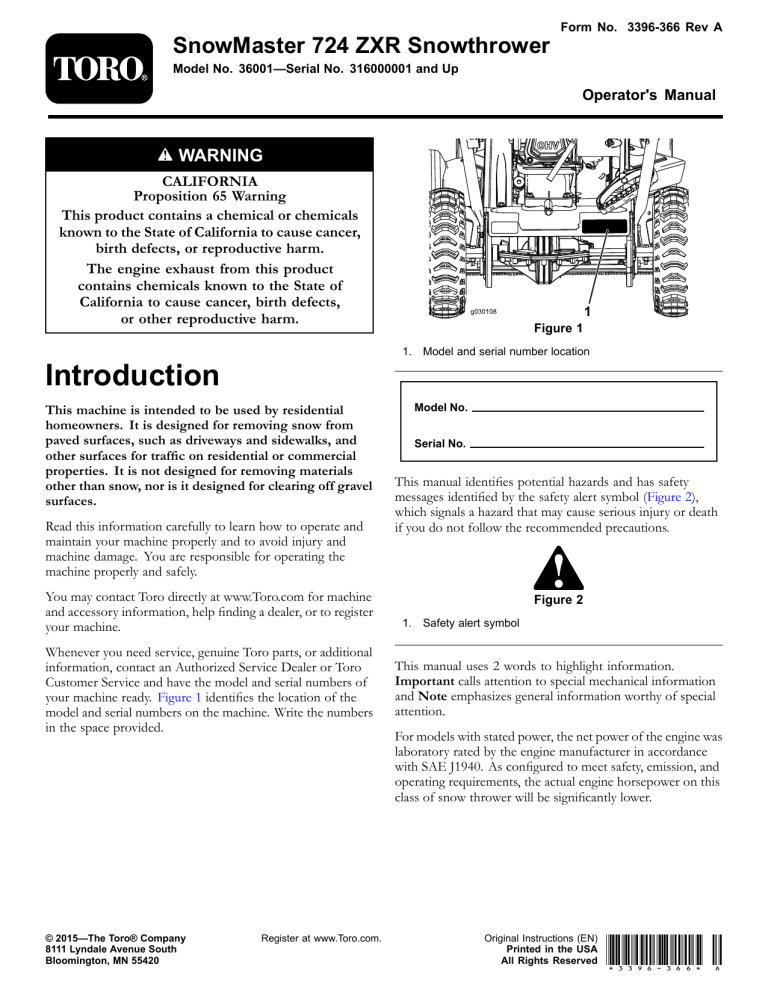

SnowMaster 724 ZXR Snowthrower
Model No. 36001—Serial No. 316000001 and Up
Operator's Manual
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Figure 1
1. Model and serial number location
Introduction
This machine is intended to be used by residential
homeowners. It is designed for removing snow from
paved surfaces, such as driveways and sidewalks, and
other surfaces for traffic on residential or commercial
properties. It is not designed for removing materials
other than snow, nor is it designed for clearing off gravel
surfaces.
Read this information carefully to learn how to operate and
maintain your machine properly and to avoid injury and
machine damage. You are responsible for operating the
machine properly and safely.
You may contact Toro directly at www.Toro.com for machine
and accessory information, help finding a dealer, or to register
your machine.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your machine ready. Figure 1 identifies the location of the
model and serial numbers on the machine. Write the numbers
in the space provided.
© 2015—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
Figure 2
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
For models with stated power, the net power of the engine was
laboratory rated by the engine manufacturer in accordance
with SAE J1940. As configured to meet safety, emission, and
operating requirements, the actual engine horsepower on this
class of snow thrower will be significantly lower.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3396-366* A
Contents
Safety
Introduction .................................................................. 1
Safety ........................................................................... 2
Safety and Instructional Decals ................................. 3
Setup ............................................................................ 4
1 Unfolding the Handle............................................ 4
2 Installing the Discharge Chute ................................ 5
3 Filling the Engine with Oil...................................... 5
4 Checking the Tire Pressure ..................................... 6
Product Overview .......................................................... 7
Operation ..................................................................... 7
Before Operation ....................................................... 7
Safety..................................................................... 7
Filling the Fuel Tank ................................................ 7
Checking the Engine-Oil Level.................................. 8
During Operation ...................................................... 8
Safety..................................................................... 8
Starting the Engine .................................................. 9
Engaging the Auger ................................................. 9
Disengaging the Auger ............................................. 9
Self-Propelling the Machine ...................................... 9
Stopping the Engine ................................................ 9
Adjusting the Discharge Chute and Chute
Deflector ...........................................................10
Clearing a Clogged Discharge Chute .........................10
Operating Tips ......................................................10
After Operation ........................................................10
Safety....................................................................10
Preventing Freeze-up after Use.................................10
Maintenance .................................................................12
Recommended Maintenance Schedule(s) ......................12
Maintenance Safety.................................................12
Checking the Engine Oil Level .................................12
Checking and Adjusting the Skids .............................13
Inspecting the Throwing Edges ................................13
Changing the Engine Oil .........................................13
Replacing the Spark Plug .........................................15
Adjusting the Auger Cable .......................................15
Adjusting the Transmission Cable .............................15
Checking the Tire Pressure ......................................16
Storage ........................................................................17
Storing the Snowthrower .........................................17
This machine meets or exceeds the B71.3 specifications
of the American National Standards Institute in effect
at the time of production.
• Read and understand the contents of the manual before
you start the engine. Make sure that everyone using this
product knows how to use the product and understands
the warnings.
• Do not put your hands or feet near moving components
on the machine.
• Do not operate the machine without all guards and other
safety protective devices in place and working on the
machine.
• Keep clear of any discharge opening. Keep bystanders a
safe distance from the machine.
• Keep children out of the operating area and under the
watchful care of a responsible adult other than the
operator. Never allow children to operate the machine.
• Shut the machine off before unclogging, servicing, or
fueling.
2
Safety and Instructional Decals
Note: Safety and instruction decals are located near areas of potential danger. Replace damaged decals.
131–1785
Order part no. 131–5921
1. Auger drive—squeeze the lever to engage; release the lever
to disengage.
4. Thrown object hazard—keep bystanders a safe distance from
the snowthrower.
2. Warning—read the Operator's Manual.
5. Self-propel drive—push down on the handle to engage the
self-propel drive.
3. Cutting/dismemberment hazard of hand or foot, auger—keep
away from moving parts; keep all guards and shields in place;
stop the engine and wait for the auger to stop before leaving
the machine; remove the ignition key and read the instructions
before servicing or performing maintenance.
1
2
x3
3
4
5
120-9805
120-9805
131–5914
Order part no. 131–5916
1. Insert the key.
2. Prime the engine 3 times.
3. Engage the choke.
1. Cutting/dismemberment hazard of hand or foot, auger—do
not place your hand in the chute; remove the ignition key
and read the instructions before servicing or performing
maintenance.
4. Pull the starter cord.
5. Once the engine is running, disengage the choke.
3
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
4
Description
Qty.
Use
No parts required
–
Unfold the handle.
Bolt (1/4–20 X 1.50 inch)
Washer-faced lock nut (1/4–20 inch)
1
1
Install the discharge chute.
No parts required
–
1
Unfolding the Handle
No Parts Required
Procedure
Important: Ensure the cables are not pinched when
unfolding the handle.
Figure 3
4
2
3
Installing the Discharge Chute
Filling the Engine with Oil
Parts needed for this procedure:
No Parts Required
1
Bolt (1/4–20 X 1.50 inch)
1
Washer-faced lock nut (1/4–20 inch)
Procedure
Your machine comes with oil in the engine.
Procedure
Model
Max fill
Insert the chute post through the bracket into the base of the
machine and secure it using a bolt and a lock nut (Figure 4).
36001
17 oz (0.5 L)
Oil type: automotive detergent oil with an API service
classification of SJ, SL, or higher.
Use Figure 5 below to select the best oil viscosity for the
outdoor temperature range expected:
Figure 5
1. Move the machine to a level surface.
2. Clean around the oil fill cap.
Figure 4
1. Chute post
3. Washer-faced lock nut
(1/4–20 inch)
2. Bolt (1/4–20 X 1.50 inch)
4. Bracket
3. Check the oil level and add oil if necessary.
Note: Do not tighten the dipstick when checking the
oil level.
5
4
Checking the Tire Pressure
No Parts Required
Procedure
The tires are overinflated at the factory for shipping. Reduce
the tire pressure equally in both tires to between 103 and 137
kPa (15 and 20 psi).
Figure 6
1. Low oil level—add oil
2. Correct oil level
6
Product Overview
Operation
Before Operation
Safety
• Use extension cords and receptacles as specified by
•
•
•
•
the manufacturer for all machines with electric starting
motors.
Do not operate the machine without wearing adequate
winter garments. Avoid loose fitting clothing that can get
caught in moving parts. Wear slip resistant footwear that
will improve footing on slippery surfaces.
Always wear safety glasses or eye shields during operation
or while performing an adjustment or repair to protect
eyes from foreign objects that may be thrown from the
machine.
Thoroughly inspect the area where the machine is to be
used and remove all doormats, sleds, boards, wires, and
other foreign objects.
If a shield, safety device, or decal is damaged, illegible, or
lost, repair or replace it before beginning operation. Also,
tighten any loose fasteners.
Figure 7
1. Auger lever
7. Discharge chute
2. Fuel tank cap
8. Chute deflector
3. Dipstick
DANGER
Gasoline is extremely flammable and explosive. A
fire or explosion from gasoline can burn you and
others.
• To prevent a static charge from igniting the
gasoline, place the container and/or machine
on the ground before filling, not in a vehicle or
on an object.
• Fill the tank outdoors when the engine is cold.
Wipe up spills.
• Do not handle gasoline when smoking or around
an open flame or sparks.
• Store gasoline in an approved fuel container, out
of the reach of children.
• Do not tip the machine either forward or
backward with fuel in the fuel tank; otherwise,
fuel may leak out of the machine.
9. Chute deflector control
4. Skid
10. Discharge chute control
5. Auger
11. Upper handle
6. Scraper
Filling the Fuel Tank
Recommended Fuel:
• For best results, use only clean, fresh (less than 30 days
old), unleaded gasoline with an octane rating of 87 or
higher ((R+M)/2 rating method).
• Ehtanol: Gasoline with up to 10% ethanol (gasohol)
or 15% MTBE (methyl tertiary butyl ether) by volume
is acceptable. Ethanol and MTBE are not the same.
Gasoline with 15% ethanol (E15) by volume is not
approved for use. Never use gasoline that contains more
Figure 8
1. Fuel tank cap
4. Choke
2. Primer
3. Ignition key
5. Recoil starter
7
•
•
•
• Exercise extreme caution when operating on slopes.
than 10% ethanol by volume, such as E15 (contains 15%
ethanol), E20 (contains 20% ethanol), or E85 (contains
85% ethanol). Using unapproved gasoline may cause
performance problems and/or engine damage which may
not be covered under warranty.
Do not use gasoline containing methanol.
Do not store fuel either in the fuel tank or fuel containers
over the winter unless a fuel stabilizer is used.
Do not add oil to gasoline.
• Never operate the machine without good visibility or
light.
• Look behind and use care when backing up with the
machine.
• When not actively clearing snow, disengage power to the
rotor blades.
• Use extension cords and receptacles as specified by
the manufacturer for all machines with electric starting
motors.
• Do not attempt to clear snow from a gravel or crushed
rock surface. This product is intended for use only on
paved surfaces.
• Do not use the machine on a roof.
• Never attempt to make any adjustments while the engine
is running (except when specifically recommended by
manufacturer).
• Stay alert for hidden hazards or traffic.
• After striking a foreign object, stop the engine, remove
the ignition key, thoroughly inspect the machine for any
damage, and repair the damage before restarting and
operating the machine.
• If the machine should start to vibrate abnormally, stop
the engine and check immediately for the cause.
• Do not run the engine indoors, except when starting
Figure 9
the engine and for transporting the machine in or out
of the building. Open the outside doors; exhaust fumes
are dangerous.
1. Do not fill above the bottom of the fuel tank neck.
• Do not overload the machine capacity by attempting to
Note: For best results, purchase only the quantity of gasoline
that you expect to use in 30 days. Otherwise, you may add
fuel stabilizer to newly purchased gasoline to keep it fresh for
up to 6 months.
clear snow at too fast a rate.
• Never touch a hot engine or muffler.
• Thoroughly inspect the electrical cord before plugging
it into a power source. If the cord is damaged, do not
use it to start the machine. Replace the damaged cord
immediately. Unplug the power cord whenever you are
not starting the machine.
Checking the Engine-Oil Level
Refer to Changing the Engine Oil (page 13).
During Operation
Safety
• Rotating auger blades can injure fingers or hands.
•
•
Stay behind the handles and away from the discharge
opening while operating the machine. Keep your face,
hands, feet, and any other part of your body or
clothing away from moving or rotating parts.
Never direct the discharge toward people or areas where
property damage can occur.
Exercise caution to avoid slipping or falling. Always be
sure of your footing, and keep a firm hold on the handles.
Walk; never run.
8
Engaging the Auger
Starting the Engine
Note: Fully insert the key to start the engine. The middle
position will not start the engine.
Figure 11
Disengaging the Auger
To disengage the auger, release the auger lever.
Self-Propelling the Machine
To operate the self-propel drive, simply walk with your hands
on the upper handle and your elbows at your sides, and the
machine will automatically keep pace with you (Figure 12).
Note: You can self-propel the machine with the auger
engaged or disengaged.
Figure 12
Figure 10
Stopping the Engine
To stop the engine, remove the key from the ignition or move
the key to the middle position.
9
Adjusting the Discharge Chute
and Chute Deflector
cause the skids to move. Adjust the skids and tighten
the skid bolts securely; refer to Checking and Adjusting
the Skids (page 13).
To raise or lower the angle of the chute deflector, press the
trigger on the chute deflector and move the chute deflector
up or down.
Operating Tips
To adjust the discharge chute, move the chute handle
WARNING
Note: Disengage the auger before adjusting the chute or
chute deflector.
The auger can throw stones, toys, and other foreign
objects and cause serious personal injury to the
operator or to bystanders.
• Keep the area to be cleared free of all objects
that the rotor blades could pick up and throw.
• Keep all children and pets away from the area
of operation.
• Remove the snow as soon as possible after it falls.
• If the machine does not propel itself forward on slippery
surfaces or in heavy snow, push forward on the handle,
but allow the machine to work at its own pace.
• Overlap each swath to ensure complete snow removal.
• Discharge the snow downwind whenever possible.
After Operation
Figure 13
1. Trigger
2. Chute handle
Safety
• Never store the machine with fuel in the fuel tank inside a
building where ignition sources are present, such as hot
water heaters, space heaters, or clothes dryers. Allow the
engine to cool before storing in any enclosure.
Clearing a Clogged Discharge
Chute
• When storing the machine for more than 30 days, refer to
Important: Hand contact with the rotating auger inside
the discharge chute is the most common cause of injury
associated with snowthrowers. Never use your hand to
clean out the discharge chute.
1. While remaining in the operating position, release the
self-propel handle.
2. Engage the auger.
3. Push down on the handle to raise the front of the
machine a few inches (centimeters) off the pavement.,
then lift the handles quickly to bump the front of the
machine onto the pavement.
4. Disengage the auger.
5. Repeat steps 1 through 4, if necessary, until a stream of
snow comes out of the discharge chute.
the Storage section for important details.
Preventing Freeze-up after Use
• Let the engine run for a few minutes to prevent moving
parts from freezing. Stop the engine, wait for all moving
parts to stop, and remove ice and snow from the machine.
• Clean off any snow and ice from the base of the chute.
• Rotate the discharge chute left and right to free it from
any ice buildup.
• With the ignition key in the Off position, pull the recoil
starter handle several times or connect the electrical cord
to a power source and the machine and push the electric
start button once to prevent the recoil starter and/or the
electric starter from freezing up.
Note: If you cannot unclog the discharge chute by bumping
the front of the machine, stop the engine, wait for all
moving parts to stop, and use a snow cleanout tool (not
included); never use your hand.
• In snowy and cold conditions, some controls and moving
parts may freeze. Do not use excessive force when
trying to operate frozen controls. If you have difficulty
operating any control or part, start the engine and let it
run for a few minutes.
Important: Unclogging the discharge chute by
bumping the front of the machine on the pavement may
10
• Do not use the chute control to attempt to move a frozen
discharge chute. Hold down the blue knob and use your
hands to rotate the chute.
• Transporting the machine in an open trailer or vehicle can
cause the controls or discharge chute to freeze.
11
Maintenance
Note: Determine the left and right sides of the machine from the normal operating position.
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first hour
• Check for loose fasteners and tighten them if necessary.
After the first 2 hours
• Change the engine oil.
• Inspect the auger cable and adjust it if necessary.
• Inspect the transmission cable and adjust it if necessary.
Before each use or daily
Every 100 hours
Yearly
Yearly or before storage
• Check the engine oil level and add oil if necessary.
• Replace the spark plug.
• Check the skids and adjust them if necessary.
• Inspect the throwing edges and have an Authorized Service Dealer replace the
throwing edges and scraper if necessary.
• Change the engine oil.
• Inspect the auger cable and adjust it if necessary.
• Inspect the transmission cable and adjust it if necessary.
• Check the tire pressure.
• Check for loose fasteners and tighten them if necessary.
• Have an Authorized Service Dealer inspect the drive belt and replace it if necessary.
• Prepare the machine for storage.
Maintenance Safety
• If the oil level is below the Add mark on the
dipstick (Figure 14), add oil. Refer to 3 Filling the
Engine with Oil (page 5).
Read the following safety precautions before performing any
maintenance on the machine:
• If the oil level above the Full mark (), drain the
• Before performing any maintenance, service, or
excess oil until the oil level is at the Full mark on
the dipstick; refer to 3 Filling the Engine with Oil
(page 5).
adjustment, stop the engine and remove the key. If major
repairs are ever needed, contact an Authorized Service
Dealer.
• Check all fasteners at frequent intervals for proper
tightness to be sure the machine is in safe working
condition.
• Maintain or replace safety and instruction labels, as
necessary.
• Do not change the governor settings on the engine.
• Purchase only genuine Toro replacement parts and
accessories.
Checking the Engine Oil Level
Service Interval: Before each use or daily
1. Remove the dipstick, wipe it clean, then fully insert the
dipstick without threading it in.
Figure 14
1. Low oil level—add oil
2. Remove the dipstick and check the oil level.
12
2. Correct oil level
Checking and Adjusting the
Skids
Inspecting the Throwing
Edges
Service Interval: Yearly
Service Interval: Yearly—Inspect the throwing edges and
have an Authorized Service Dealer
replace the throwing edges and scraper
if necessary.
Check the skids to ensure that the auger does not contact the
paved surface. Adjust the skids as needed to compensate for
wear (Figure 15).
Before each session, inspect the throwing edges for wear.
When a throwing edge has worn down to the wear indicator
hole, have an Authorized Service Dealer replace the throwing
edges (Figure 16).
1. Loosen the skid bolts.
2. Slide a 5 mm (3/16 inch) board underneath the scraper.
Note: Using a thinner board will result in a more
aggressive scraper. A thicker board will result in a less
aggressive scraper.
3. Lower the skids to the ground.
Note: Ensure the skids are flat on the ground.
4. Tighten the skid bolts.
Figure 16
1. The wear indicator hole
is intact; you do not need
to replace the throwing
edges.
2. The wear indicator hole
is exposed; replace both
throwing edges.
Changing the Engine Oil
Service Interval: After the first 2 hours
Yearly
Run the engine a few minutes before changing the oil to warm
it. Warm oil flows better and carries more contaminants.
1. Move the machine to a level surface.
2. Place an oil drain pan under the oil-drain plug, remove
the oil-drain plug, and tip the machine backward and
drain the used oil in the oil-drain pan (Figure 17).
Figure 15
1. 5 mm (3/16 inch) board
2. Ground
13
Figure 17
1. Oil-drain plug
3. After draining the used oil, return the machine to the
operating position.
4. Install the oil drain plug and tighten it securely.
5. Clean around the oil fill cap.
6. Use Figure 18 below to select the best oil viscosity for
the outdoor temperature range expected:
Model
Max fill
36001
17 oz (0.5 L)
Oil type: automotive detergent oil with an API service
classification of SJ, SL, or higher.
Figure 18
Figure 19
1. Low oil level—add oil
14
2. Correct oil level
Replacing the Spark Plug
1. Loosen the nut on the lower cable clamp, but do not
remove it (Figure 22).
Service Interval: Every 100 hours—Replace the spark plug.
WARNING
Replacing the spark plug while the engine is hot
can result in burns.
Wait until the engine is cool to replace the spark
plug.
Use a Toro spark plug or equivalent (Champion® RN9YC or
NGK BPR6ES).
1. Remove the boot (Figure 20).
Figure 22
1. Nut
2. Cable
3. Connector
4. Spring
2. Pull the cable up to remove some slack (Figure 22).
Important: Do not remove all the slack from the
cable. Removing all the slack from the cable will
prevent the auger from stopping properly.
Figure 20
3. Hold the cable in place and tighten the nut (Figure 22).
2. Clean around the base of the spark plug.
Adjusting the Transmission
Cable
3. Remove and discard the old spark plug.
Note: You will need a ratchet wrench extension to
remove the spark plug.
Service Interval: After the first 2 hours
4. Set the gap between the electrodes on a new spark plug
at 0.76 mm (0.030 inch) (Figure 21).
Yearly
If the wheels easily stall out, or if the wheels drive without
engaging the self-propel handle, adjust the transmission cable.
1. Loosen the nut on the upper cable clamp, but do not
remove it (Figure 23).
Figure 21
1. 0.76 mm (0.030 inch)
Adjusting the Auger Cable
Service Interval: After the first 2 hours
Yearly
If the drive belt slips or squeals under heavy load, adjust the
auger cable.
15
Figure 23
1. Nut
2. Cable
2. Pull the cable down to remove most of the slack in the
cable (Figure 23).
Important: Do not remove all the slack from the
cable. Removing all the slack from the cable may
cause the wheels to engage without engaging the
self-propel handle.
3. Tighten the nut (Figure 23).
Checking the Tire Pressure
Service Interval: Yearly
Set the tire pressure equally in both tires to between 103 and
137 kPa (15 and 20 psi).
16
Storage
16. Cover the machine and store it in a clean, dry place
out of the reach of children. Allow the engine to cool
before storing it in any enclosure.
Storing the Snowthrower
WARNING
• Gasoline fumes are highly flammable, explosive,
and dangerous if inhaled. If you store the
machine in an area with an open flame, the
gasoline fumes may ignite and cause an
explosion.
• Do not store the machine in a house (living
area), basement, or any other area where ignition
sources may be present, such as hot water and
space heaters, clothes dryers, furnaces, and
other like appliances.
• Do not tip the machine backward with fuel in
the fuel tank; otherwise, fuel may leak out of
the machine.
1. On the last refueling of the season, add fuel stabilizer
to fresh fuel as directed by the engine manufacturer.
2. Run the engine for 10 minutes to distribute the
conditioned fuel through the fuel system.
3. Stop the engine, allow it to cool, and siphon the fuel
tank or run the engine until it stops.
4. Start the engine and run it until it stops.
5. Choke or prime the engine, start it a third time, and
run the engine until it will not start.
6. Drain the fuel in the carburetor through the carburetor
drain bolt () into an approved gasoline container.
7. Dispose of unused fuel properly. Recycle it according
to local codes, or use it in your automobile.
8. While the engine is still warm, change the engine oil.
Refer to (page ).
9. Remove the spark plug.
10. Squirt 2 teaspoons of oil into the spark plug hole.
11. Install the spark plug by hand and then torque it to
27–30 N-m (20–22 ft-lb).
12. With the ignition key in the Off position, pull the recoil
starter slowly to distribute the oil on the inside of the
cylinder.
13. Clean the machine.
14. Touch up chipped surfaces with paint available from an
Authorized Service Dealer. Sand affected areas before
painting, and use a rust preventative to prevent the
metal parts from rusting.
15. Tighten any loose fasteners. Repair or replace any
damaged parts.
17
Emission Control Warranty Statement
For the United States, California, and Canada
*374-0299*
Your Warranty Rights and Obligations
The California Air Resources Board (CARB), the U.S. Environmental Protection Agency (EPA), and The Toro Company, are pleased to explain the
emission control system warranty on your 2015–2016 small off-road engine/equipment. In California and the United States, new small off-road
engines/equipment must be designed, built, and certified to meet stringent anti-smog standards. The Toro Company warrants the emission control
system on your small off-road engine/equipment for the period of time listed below, provided there has been no abuse, neglect, or improper maintenance
of your small off-road engine/equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines,
fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, The Toro Company will repair your small off-road engine/equipment at no cost to you including diagnosis,
parts and labor.
Manufacturer’s Warranty Coverage
This emission control system is warranted for two years. If any emission-related part on your engine/equipment is defective, the part will be repaired or
replaced by The Toro Company.
Owner Responsibilities
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operator's Manual. We recommend
that you retain all receipts covering maintenance on your small off-road engine/equipment, but we cannot deny warranty solely for the lack of receipts.
As the small off-road engine/equipment owner, you should however be aware that we may deny you warranty coverage if your small off-road
engine/equipment or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine/equipment to a Toro Distribution Center or Service Center as soon as a problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed thirty (30) days.
If you have any questions regarding your warranty coverage, contact us at:
Customer Care Department, Consumer Division
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
1–952–948–4027 (U.S. and Canadian customers)
email Customer Support at: www.toro.com
General Emissions Warranty Coverage
The Toro Company warrants to the ultimate purchaser and each subsequent purchaser that the small off-road engine/equipment is:
•
•
•
Designed, built, and certified to conform with all applicable emissions regulations; and
Free from defects in materials and workmanship that could cause the failure of a warranted part; and
Identical in all material respects to the parts as described in the application for certification.
The warranty period begins on the date the small off-road engine/equipment is delivered to an ultimate purchaser. The warranted period is two years.
Subject to certain conditions and exclusions as stated below, the warranty on evaporative emissions-related parts is as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted
for the warranty period stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by
The Toro Company. Any such part repaired or replaced under warranty will be warranted for the remainder of the warranty period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty
period stated above. Any such part repaired or replaced under the warranty will be warranted for the remainder of the warranty period.
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is
warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the first
scheduled replacement, the part will be repaired or replaced by The Toro Company. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty provisions herein must be performed at an
Authorized Service Dealer at no charge to the owner.
5. Warranty services or repairs will be provided at all Service Dealers authorized to service the subject engines or equipment.
6. The small off-road engine/equipment owner will not be charged for diagnostic labor that is directly associated with diagnosis
of a defective, emission-related warranted part, provided that such diagnostic work is performed at an Authorized Service Dealer.
7. The Toro Company is liable for damages to other engine/equipment components caused by a failure under warranty of any warranted part.
8. Throughout the small off-road engine/equipment warranty period stated above, The Toro Company will maintain a supply
of warranted parts sufficient to meet the expected demand for such parts.
9. Manufacturer approved replacement parts may be used in the performance of any warranty maintenance or repairs and
must be provided without charge to the owner. Such use will not reduce the warranty obligations of The Toro Company.
10. Add-on or modified parts that are not approved by The Toro Company may not be used. The use of a non-approved add-on or modified parts by
the purchaser will be grounds for disallowing a warranty claim. The Toro Company will not be liable to warrant failures of warranted parts caused by
the use of an non-approved add-on or modified parts.
Warranted Parts
The following emission warranty parts are covered, to the extent these parts were present on the Toro engine/equipment and/or Toro supplied fuel system:
374-0299 Rev A
1.
Fuel System Parts
•
•
•
•
•
•
2.
Fuel tank, cap, and tether
Carbon canister
Air cleaner
Intake manifold
Crankcase vent and line(s)
Purge line and fittings
Spark plug(s) and wire(s)
Magneto ignition system
Catalytic Exhaust System
•
•
•
5.
Fuel line, fittings, and clamps
Ignition System
•
•
4.
Fuel pump
Air Induction System
•
•
•
•
3.
Carburetor and internal parts
Cold starting enrichment (primer or choke)
Catalytic converter
Exhaust manifold
Air injector system and valve(s)
Miscellaneous Items Used in Emission Control System
•
•
Valves, switches, and linkages
Connectors, fittings, and brackets
374-0299 Rev A
The Toro Warranty
SnowMaster
A Three-Year Limited Warranty (45 Day Limited Warranty for Commercial Use)
Items and Conditions Not Covered
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company, pursuant to
an agreement between them, jointly promise to repair the Toro Product
listed below if used for residential purposes*, if defective in materials or
workmanship or if it stops functioning due to the failure of a component
for the period listed below.
There is no other express warranty except for special emission system
coverage and engine warranty coverage on some products. This express
warranty does not cover the following:
•
Cost of regular maintenance service or replacement of wear parts,
such as blades, rotor blades (paddles), scraper blades, belts, fuel,
lubricants, oil changes, spark plugs, light bulbs, cable/linkage or brake
adjustments
•
Any product or part which has been altered or misused or neglected
or requires replacement or repair due to accidents or lack of proper
maintenance
•
•
•
Pickup and delivery charges
This warranty covers the cost of parts and labor, but you must pay
transportation costs.
The following time periods apply from the original date of purchase:
Products
Warranty Period
SnowMaster Snowthrowers and Attachments 3 years
— Chute
Lifetime (original owner
only)1
— Deflector
Lifetime (original owner
only)1
— Lower Chute
Lifetime (original owner
only)1
Single-Stage Snowthrowers
•
Operational misuse, neglect, or accidents
Repairs or attempted repairs by anyone other than an Authorized Toro
Service Dealer
Repairs necessary due to failure to follow recommended fuel
procedure (consult Operator's Manual for more details)
Limited Warranty for Commercial Use
–
Removing contaminants from the fuel system is not covered
Gas-powered Toro Products used for commercial, institutional, or rental
use, are warranted for 45 days against defects in materials or workmanship.
Components failing due to normal wear are not covered by this warranty.
–
Use of old fuel (more than one month old) or fuel which contains
more than 10% ethanol or more that 15% MTBE
–
Failure to drain the fuel system prior to any period of non-use
over one month
Instructions for Obtaining Warranty Service
If you think that your Toro Product contains a defect in materials or
workmanship, follow this procedure:
1.
Contact any Authorized Toro Service Dealer to arrange service at their
dealership. To locate a dealer convenient to you, refer to the Yellow
Pages of your telephone directory (look under “Lawn Mowers”) or
access our web site at www.Toro.com. You may also call the numbers
listed in item #3 to use the 24-hour Toro Dealer locator system.
2.
Bring the product and your proof of purchase (sales receipt) to the
Service Dealer. The dealer will diagnose the problem and determine if
it is covered under warranty.
3.
If for any reason you are dissatisfied with the Service Dealer’s
analysis or with the assistance provided, contact us at:
Toro Warranty Company
Customer Care Department, RLC Division
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Toll free at 866-336-5205 (U.S. customers)
Toll free at 866-854-9033 (Canadian customers)
General Conditions
All repairs covered by these warranties must be performed by an Authorized
Toro Service Dealer using Toro approved replacement parts. Repair by an
Authorized Toro Service Dealer is your sole remedy under this warranty.
Neither The Toro Company nor Toro Warranty Company is liable for
indirect, incidental, or consequential damages in connection with the
use of the Toro Products covered by these warranties, including any
cost or expense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending completion of
repairs under these warranties.
All implied warranties of merchantability (that the product is fit for ordinary
use) and fitness for use (that the product is fit for a particular purpose) are
limited to the duration of the express warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Owner Responsibilities
You must maintain your Toro Product by following the maintenance
procedures described in the Operator's Manual. Such routine maintenance,
whether performed by a dealer or by you, is at your expense.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
*Residential purposes means use of the product on the same lot as your home. Use at more than one location, or institutional or rental use, is considered
commercial use, and the commercial use warranty would apply.
374-0314 Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
