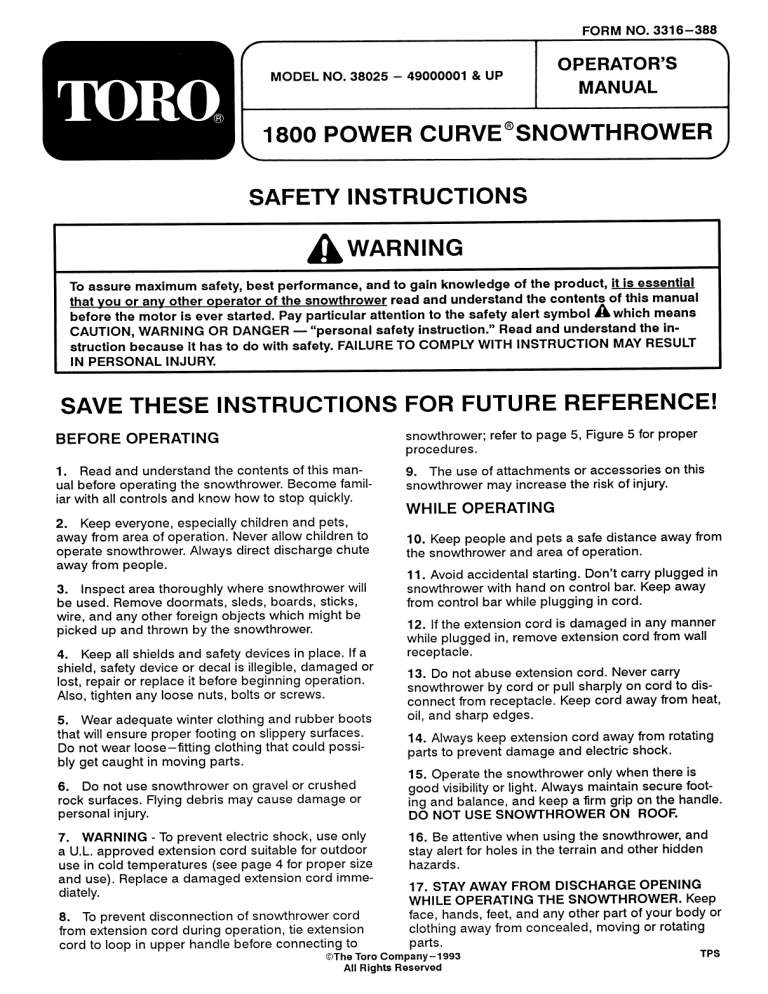

FORM NO. 3316-388
Ya
MODEL NO. 38025 — 49000001 & UP
~
OPERATOR’S
MANUAL
N
1800 POWER CURVE SNOWTHROWER
SAFETY INSTRUCTIONS
AN WARNING
IN PERSONAL INJURY.
To assure maximum safety, best performance, and to gain knowledge of the product, it is essential
that you or any other operator of the snowthrower read and understand the contents of this manual
before the motor is ever started. Pay particular attention to the safety alert symbol
CAUTION, WARNING OR DANGER — “personal safety instruction.” Read and understand the in-
struction because it has to do with safety. FAILURE TO COMPLY WITH INSTRUCTION MAY RESULT
which means
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
BEFORE OPERATING
1. Read and understand the contents of this man-
ual before operating the snowthrower. Become famil-
iar with all controls and know how to stop quickly.
2. Keep everyone, especially children and pets,
away from area of operation. Never allow children to
operate snowthrower. Always direct discharge chute
away from people.
3. Inspect area thoroughly where snowthrower will
be used. Remove doormats, sleds, boards, sticks,
wire, and any other foreign objects which might be
picked up and thrown by the snowthrower.
4. Keep all shields and safety devices in place. If a
shield, safety device or decal is illegible, damaged or
lost, repair or replace it before beginning operation.
Also, tighten any loose nuts, bolts or screws.
5. Wear adequate winter clothing and rubber boots
that will ensure proper footing on slippery surfaces.
Do not wear loose —fitting clothing that could possi-
bly get caught in moving parts.
6. Do not use snowthrower on gravel or crushed
rock surfaces. Flying debris may cause damage or
personal injury.
7. WARNING - To prevent electric shock, use only
a U.L. approved extension cord suitable for outdoor
use in cold temperatures (see page 4 for proper size
and use). Replace a damaged extension cord imme-
diately.
8. To prevent disconnection of snowthrower cord
from extension cord during operation, tie extension
cord to loop in upper handle before connecting to
snowthrower; refer to page 5, Figure 5 for proper
procedures.
9. The use of attachments or accessories on this
snowthrower may increase the risk of injury.
WHILE OPERATING
10. Keep people and pets a safe distance away from
the snowthrower and area of operation.
11. Avoid accidental starting. Don't carry plugged in
snowthrower with hand on control bar. Keep away
from control bar while plugging in cord.
12. If the extension cord is damaged in any manner
while plugged in, remove extension cord from wall
receptacle.
13. Do not abuse extension cord. Never carry
snowthrower by cord or pull sharply on cord to dis-
connect from receptacle. Keep cord away from heat,
oil, and sharp edges.
14. Always keep extension cord away from rotating
parts to prevent damage and electric shock.
15. Operate the snowthrower only when there is
good visibility or light. Always maintain secure foot-
ing and balance, and keep a firm grip on the handle.
DO NOT USE SNOWTHROWER ON ROOF.
16. Be attentive when using the snowthrower, and
stay alert for holes in the terrain and other hidden
hazards.
17. STAY AWAY FROM DISCHARGE OPENING
WHILE OPERATING THE SNOWTHROWER. Keep
face, hands, feet, and any other part of your body or
clothing away from concealed, moving or rotating
parts.
©The Toro Company—1993 TPS
All Rights Reserved
AL SAFETY INSTRUCTIONS
18. Never operate snowthrower near bystanders,
glass enclosures, automobiles and trucks, window
wells or a drop —off without proper adjustment of the
snow discharge angle; refer to page 5, item 2 for
correct operating procedure.
19. Clear snow from slopes by going up and down,
never across the face. Use caution when changing
directions. Never clear snow from steep slopes.
20. Operation of the snowthrower in the hand —held
position (wheels off the ground) is unsafe except
when used in accordance with special instructions in
the Operator's Manual. See page 6, items 5 and 6.
21. When using the secondary handle, always turn
chute in the opposite direction from where you are
standing.
22. Forcing the chute deflector over the stops will
cause snow and debris to spray in the operator's
zone.
23. DO NOT OVERLOAD THE SNOWTHROWER BY
CLEARING SNOW AT TOO FAST A RATE. LET THE
UNIT DO THE WORK.
24. If a solid object is hit or snowthrower vibrates
abnormally, stop snowthrower and wait for all move-
ment to stop. Disconnect extension cord and check
snowthrower immediately for possible damage, an
obstruction, debris in rotor or loose parts. Vibration
is generally a sign of trouble. Repair any damage
before operating snowthrower again.
25. Before adjusting, cleaning, repairing or inspect-
ing the snowthrower, or before unclogging the dis-
charge chute, stop showthrower by releasing the
control bar and wait for all moving parts to stop.
Also, disconnect cord from receptacle to prevent ac-
cidental starting.
26. When through using snowthrower, let it run for a
few minutes so ice does not freeze moving parts
solid.
27. Disconnect extension cord from cord receptacle,
lock, and remove key from handle if snowthrower will
be left unattended.
MAINTAINING SNOWTHROWER
28. Perform only those maintenance instructions de-
scribed in this manual. Disconnect cord from recep-
tacle before performing maintenance procedures to
prevent the possibility of accidental starting. If major
repairs are ever needed, contact your local Author-
ized TORO Service Dealer or TORO Service Center
for assistance.
29. Keep the snowthrower in safe operating condi-
tion by keeping nuts, bolts, and screws tight. Check
all fasteners frequently to assure they are tight.
30. Store snowthrower indoors when not in use in a
dry, locked—up place out of reach of children. Re-
move extension cord from snowthrower and store
with snowthrower to prevent misplacement. Lock
snowthrower and remove key from handle. Store key
in a memorable place.
31. At the time of manufacture, the snowthrower
conformed to and exceeded safety standards in ef-
fect for snowthrowers. Therefore, to assure best per-
formance and safety, purchase genuine TORO re-
placement parts and accessories to keep the TORO
all TORO. NEVER USE “WILL FIT” REPLACEMENT
PARTS AND ACCESSORIES. The TORO logo as-
sures genuineness.
ÁN SAFETY DECALS
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged or lost.
Read operator's manual for operating and safety
instructions. Replacement manual available
by sending model and serial numbers to the
TORO CO. 8111 Lyndale Av. S.. Mpls, MN 55420
A DA NGER (05 LISTED SNOW
MOVER 546X
(=) DOUBLE INSULATED — When servicing.
use only identical replacement parts.
AVOID INJURY! FROM ROTOR/IMPELLER.
KEEP HANDS. FEET AND CLOTHING AWAY FROM DISCHARGE AREA.
00 NOT STEP IN FRONT OF MACHINE. OR USE HANDS ТО UNCLOG CHUTE. TORO 1800
STOP MOTOR AND UNPLUG CORD BEFORE UNCLOGGING SNOW OR DEBRIS.
00 NOT DIRECT DISCHARGE AT OTHERS. USE FOR SNOW REMOVAL ONLY. MODEL 38025
TO PREVENT ELECTRIC SHOCK. REPLACE DAMAGED CORD IMMEDIATELY.
On Rear of Shroud
(Part No. 73-0450)
120 VAC 60 HZ 12 AMP. LOCK
Remove cord, push key in,
tum clockwise, remove key.
On Handle
UNLOCK
Push key in, tum
counterciockwise.
On Rear of Shroud
(Part No. 73-0460)
TABLE OF CONTENTS
Page
Safety Instructions .............ee_eeeoreroreeo.
Set—Up Instructions .................... co. 3
Before Operating .............eeeeeceocorerere. 4
Operating Instructions ......................... 5
Maintenance ...............c iii. 7
Lubricating Snowthrower ................... 7
Replacing Scraper ................ cout. 7
Page
ReplacingRotor ............... coon 7
Replacing Belts ............eeeeesecrercer. 8
Storing Snowthrower ...................... 10
Toro Service Support .......... iii 10
Product Identification ......................... 10
Maintenance Record ................. oat 11
The Toro Promise
SET-UP INSTRUCTIONS
INSTALL UPPER HANDLE AND CHUTE
CRANK
Note: Determine left and right hand sides of
snowthrower by standing in normal operating posi-
tion.
1. Stand snowthrower on wheels and position up-
per handle to prepare for handle assembly. Inspect
the open internal wiring. If damaged do not assem-
ble. Contact your TORO Service Dealer.
A caution
e Internal wiring could be damaged during
assembly.
e Damaged wiring could cause serious per-
sonal injury when operating snowthrower.
e Use care so electrical wiring will not be
damaged during assembly.
e ИН wiring is damaged, do not assemble
snowthrower. Contact your TORO Service
Dealer.
2. Carefully insert right side of upper tubing over
end of lower right side tubing (Fig. 1).
DD
SQUEEZE
DÍA |
Z Y
4. Squeeze upper tubes together as shown in Fig-
ure 1. Wiggle upper tubes down until mounting
holes in upper and lower tubing are aligned (Fig. 1).
5. Place the mounting plate over the tubes (Fig. 2).
Align mounting plate holes with upper and lower tub-
ing holes.
6. Insert end of chute crank through hole in shroud.
Turn chute crank rod lightly until flattened end drops
into slot in gear. Firmly push chute crank into gear
until it snaps into place
(Fig. 2 & 3).
Figure 1
1. Upper tubing 2. Lower tubing
3. Carefully insert left side of upper tubing into end
of lower left side tubing (Fig. 1).
Figure 2
1. Mounting plate 3. Chute crank
2. Shroud 4. Gear
ИХ
/
| |
. 2S деи —
' -- XK
— ee. =——
—
Figure 3
1. Chute crank 2. Chute crank gear
SET-UP INSTRUCTIONS
7. Secure upper and lower tubing and mounting
plate together with (2) #10—-24 NC machine screws
and locknuts. Position screw heads on the outside of
the mounting plate. Be careful not to damage the
electrical wiring when inserting screws. If hole is
blocked, use a blunt 1/8” punch to carefully route
electrical wiring away from aligned holes.
INSTALL DISCHARGE CHUTE (Fig. 4)
1. Position deflector onto discharge chute, aligning
mounting holes. Insert a rubber washer between de-
flector and discharge chute while maintaining hole
alignment.
2. Secure deflector to discharge chute with (2)
5/16—18 UNC carriage bolts, metal washers, and
locknuts. Make sure the square shoulders on the
carriage bolts align with inside square on discharge
chute. Position metal washers to the outside of de-
flector as shown in Figure 3. DO NOT OVER-
TIGHTEN BOLTS.
Figure 4
4. Carriage bolt
5. Metal washer
6. Locknut
1. Chute deflector
2. Chute
3. Rubber washer
BEFORE OPERATING
SECURING POWER SUPPLY CORD
The proper extension cord is a requirement for safe
and efficient use of your appliance. Your Toro
snowthrower has been designed for use with cord
size recommended in the Extension Cord Chart.
A WARNING
e Electric shock can cause injury or death.
e Use only a UL listed extension cord rec-
ommended for outdoor cold weather use.
Refer to Extension Cord Chart.
e Don't handle plug or appliance with wet
hands or while standing in water.
EXTENSION CORD CHART
If length of extension cord 100 ft 150 ft
is less than or equal to:
Assure wire size gauge
(A.W.G.) in cord is: 16 14
Note: Use of extension cord over 150 feet is not rec-
ommended.
OPERATING INSTRUCTIONS
BEFORE OPERATING
1. Check the condition of the unit, and make sure
the rotor turns freely.
2. Before connecting the extension cord to the
snowthrower, tie the extension cord to the loop in the
handle as shown in Figure 5. This helps prevent cord
separation during operation.
Figure 5
1. Key 2. Control bar
3. To unlock the snowthrower, push key into the
hole (Fig. 6). While holding key down, turn key coun-
terclockwise. Interlock tab rotates away from prongs,
allowing extension cord to be plugged in (Fig. 6). Do
not attempt to remove key when in the unlocked po-
sition.
A WARNING
e Electric shock can cause injury or death.
e Use only a UL listed extension cord rec-
ommended for outdoor cold weather use.
Refer to Extension Cord Chart, page 4.
e Don't handle plug or appliance with wet
hands or while standing in water.
NOTE: The interlock tab is a safety device to prevent
unauthorized use of snowthrower.
4. Lock snowthrower cord when unit is not being
used. Remove cord and push key into hole. While
holding key down, turn key clockwise, and remove
key (Fig. 6). Store key in a memorable place.
Figure 6
1. Locked position 2. Unlocked position
STARTING/STOPPING
To start rotor, squeeze the control bar. To stop rotor,
release the control bar (Fig. 5).
OPERATING TIPS
A WARNING
e Foreign objects can be thrown by
snowthrower in operator’s or bystander’s
direction.
e Thrown objects can cause serious person-
al injury.
e If an obstruction or foreign object is hit
while operating snowthrower, stop unit by
releasing the control bar, unplug extension
cord, remove obstruction, and check unit
for damage.
1. Keep the area to be cleared free of stones, toys,
or other foreign objects which may be picked up and
thrown by the rotor blades. Such items could be cov-
ered by snowfall and, therefore, unnoticed until
struck by the rotor blades. Always be sure to keep
children and pets away from area of operation.
2. ADJUSTING DISCHARGE CHUTE—Rotate the
chute crank clockwise to move discharge chute to
the left and counterclockwise to move chute to the
right.
Note: The chute crank makes a noise as you turn
the crank. This is normal.
The deflector handle on top of the discharge chute
controls the height of the snow stream (Fig. 7).
OPERATING INSTRUCTIONS
Figure 7
1. Chute deflector handle
A WARNING
e Do not force the chute deflector over the
stops because snow and anything that may
be picked up by snowthrower will fly into
the operator’s zone.
e Thrown objects could cause serious per-
sonal injury.
e Do not force the chute deflector over the
stops.
e Do not over—tighten deflector mounting
nuts so excessive force is required to adjust
deflector.
3. Begin snow removal near the electrical outlet
and work outward. Blow back and forth, not away
and toward outlet.
When turning at the end of a swath, step over the
cord and turn the snowthrower.
4. Always overlap each swath and discharge snow
downwind when possible.
5. Shave down large banks of snow by placing the
snowthrower on the bank. Lift the snowthrower by
the primary and secondary handles only (Fig. 8). Let
the unit's weight shave down the bank in a back and
forth motion.
6. When clearing steps or deep drifts, hold the unit
by the primary and secondary handles (Fig. 8) and
use a swinging or sweeping motion.
7. Keep extension cord clear of obstructions, sharp
objects, and all moving parts. Do not pull sharply on
cord or abuse it in any manner. Frequently inspect
cord for damage which could result in electric shock.
If cord becomes damaged in any way, replace it.
8. In some snow and cold weather conditions,
some controls and moving parts may freeze solid.
Therefore, when any control becomes hard to oper-
6
ate, stop the motor by releasing the control bar, and
check all parts for freeze up. DO NOT USE EXCES-
SIVE FORCE WHEN TRYING TO OPERATE THE
CONTROLS IF FROZEN. Free all controls and mov-
ing parts before operating.
A WARNING
e When using the secondary handle, never
direct snow discharge chute at operator or
bystanders. Foreign objects could be
thrown by snowthrower.
e Thrown objects could cause serious per-
sonal injury.
e When using the secondary handle, always
turn the discharge chute in the opposite
direction from where you or bystanders are
standing.
Figure 8
1. Primary handle 2. Secondary handle
9. When operating snowthrower, keep snowthrower
wheels 1 inch off pavement by tipping unit forward.
This helps prevent snow from building up on wheels.
10. AFTER CLEARING SNOW—Let motor run for a
few minutes so ice doesn't freeze moving parts solid.
After motor is shut off, wipe ice and snow off entire
unit. Rotate chute crank several times to clear
mechanism of snow.
11. Disconnect the extension cord when through
using the snowthrower. Turn the key and insert plug
into cord lock to prevent unauthorized use of ma-
chine. To release plug for snowthrower use, insert
key and turn clockwise. Keep key in a memorable
place so it will not be misplaced.
MAINTENANCE
A CAUTION
e Someone could accidentally operate
snowthrower while you are performing
maintenance on it.
e Operation of snowthrower while mainte-
nance is being performed on it could
cause serious personal injury.
e To prevent accidental operation of the
snowthrower while performing mainte-
nance, disconnect extension cord, push
extension cord into cord lock, and remove
key from handle.
REPLACING ROTOR
Note: Determine left and right sides of snowthrower
by standing in the normal operating position.
1. Remove (5) screws securing right side cover and
skid to snowthrower frame (Fig. 10).
LUBRICATING SNOWTHROWER
The showthrower does not have to be lubricated as
all bearings are lubricated for the life of the product.
REPLACING SCRAPER
A replaceable scraper is located at the bottom of the
rotor housing.
1. Remove (2) screws securing scraper to
snowthrower.
2. Install new scraper and fasten securely with (2)
screws.
Figure 9
1. Scraper 2. Screw
Figure 10
1. Right side cover 2. Screw 3. Skid
2. Using a 3/8" Allen wrench, turn the rotor shaft
clockwise (left hand thread) while holding the rotor
(Fig. 11). The Allen wrench may need to be tapped
with a hammer to loosen the rotor shaft. Wedge a
stick or hammer handle in rotor to prevent rotation.
Note: If unable to remove rotor shaft by holding ro-
tor, remove left side cover and skid (Fig. 12) and
hold hex nut with 7/8” wrench while unscrewing rotor
shaft (Fig. 13).
3. Hold rotor and pull out rotor shatt.
Figure 11
1. Rotor shaft 2. Rotor
MAINTENANCE
Figure 12
1. Left side cover 2. Skid
Figure 13
1. Hex nut
4. Remove rotor. Retain washer on right side of ro-
tor for reassembly. Replace washer if worn.
5. If necessary, insert a new washer into right side
of new rotor.
6. Align left side of new rotor with coupler. The 3
bosses on rotor end must align with slots on coupler
(Fig. 14). When mounting coupler to drive hex, cou-
pler tabs must be aligned to inside. Slide right side
of rotor into mounting position.
Figure 14
3. Slot
4. Drive hex
1. Coupler
2. Boss
7. Reinsert rotor shaft through rotor. Make sure that
shaft fits into bearing on the right side. Torque to a
minimum of 10 ft—Ibs.
8. Reinstall cover and skid.
REPLACING BELTS
LARGE BELT REPLACEMENT
1. Remove (5) screws securing left side plate to
snowthrower frame (Fig. 12). Remove side plate and
skid.
2. Remove idler spring from idler arm (Fig. 15).
\ | X 2 UN SE
A HN >
\ = К uy N / >
== La ss „N
0) VS
Lx
{<
7
N JI
No
Figure 15
1. Idler spring 2. ldler arm
3. Rotate rotor with left hand while walking (sliding)
belt off large pulley with right hand (Fig. 16).
MAINTENANCE
Figure 16
1. Large pulley 2. Belt
4. Slip new belt over small pulley. Lift up idler arm
and slip belt under idler pulley (Fig. 17). Rotate rotor
with left hand while walking (sliding) belt onto large
pulley with right hand (Fig. 18).
\ Nr
\ = — ©
_ ооо
|
Figure 18
SMALL BELT REPLACEMENT
1. Remove (5) screws securing left side plate and
skid to snowthrower frame (Fig. 12). Remove side
plate and skid.
2. Remove large belt by slowly walking (sliding) it
off small pulley (Fig. 16). Refer to steps 2—3 in Large
Belt Replacement section.
3. Remove bolt (left hand thread) by turning bolt
clockwise, remove (2) washers, and small pulley
(Fig. 19). Remove and discard small belt.
Figure 17
1. Idler arm 2. Idler pulley 3. Small pulley
5. Reassemble idler spring, making sure idler
pulley is riding on belt.
6. Reinstall left side cover and skid with (5) screws.
Figure 19
1. Bolt (left hand thread)
2. Washers
3. Small pulley
4. Small belt
5. Motor shaft pulley
4. Slide (2) washers onto bolt. Insert bolt through
small pulley. Bolt must ride on bearings in small
pulley.
5. Place new belt on small pulley.
6. Slide belt over motor shaft pulley (Fig. 19).
MAINTENANCE
7. When tightening bolt, bolt head and washers
must be flush against small pulley. Torque bolt to
25—30 in—Ibs. DO NOT OVERTIGHTEN BOLT.
8. Slip large belt over small pulley (Fig. 18). Refer to
Large Belt Replacement, steps 4—6.
STORING SNOWTHROWER
1. Run snowthrower for a few minutes to melt any
snow that may have accumulated on unit during use.
2. Examine the snowthrower thoroughly for worn,
loose or damaged parts. If parts repair or replace-
ment is necessary, contact your local Authorized
TORO Service Dealer for assistance.
3. Examine extension cord thoroughly for signs of
wear or damage. Replace, if worn or damaged. Con-
tact your local Authorized TORO Service Dealer or
TORO Service Center for genuine TORO replace-
ment parts.
4. Disconnect the extension cord from the
snowthrower. Store the extension cord with the
snowthrower to prevent misplacement.
5. Store the snowthrower in a clean, dry place.
Cover it to provide protection.
PRODUCT IDENTIFICATION
A model and a serial number decal is located on the lower metal tube by the wheels. Always refer to specific
numbers on the decal in correspondence or when replacement parts are needed.
TORO SERVICE SUPPORT
If your unit requires service or maintenance, your nearest TORO Master Service Dealer is the best dealer to as-
sist you. Refer to the “Yellow Pages” of your local telephone directory in the section titled “Lawn Mowers.”
TORO Master Service Dealers are listed under the TORO trademark. If you need help locating a TORO Master
Service Dealer near you, call 1-800-421-9684 for assistance.
10
MAINTENANCE RECORD
Date
Hours
Used
UPL-59019
11
The Toro Promise
A Full One Year Residential Use Warranty
The Toro Company warrants this TORO Product for one year against defects in material or work-
manship. To receive a replacement or repair, at Toro's option, just return the complete unit, postage
prepaid, to the seller or any TORO Electric Service Dealer or the TORO Service Center, 5300 Shore-
line Blvd., Mound, MN 55364, along with proof of purchase. This warranty covers product defects
only. It does not cover incidental or consequential damages. Some states do not allow the exclu-
sion or limitation of incidental or consequential damages, so the above limitation may not apply to
you. This warranty gives you specific rights, and you may have other rights Which vary from state to
state.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should con-
tact their TORO Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for
any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee infor-
mation, contact the TORO importer. If all other remedies fail, you may contact us at The Toro Company.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
