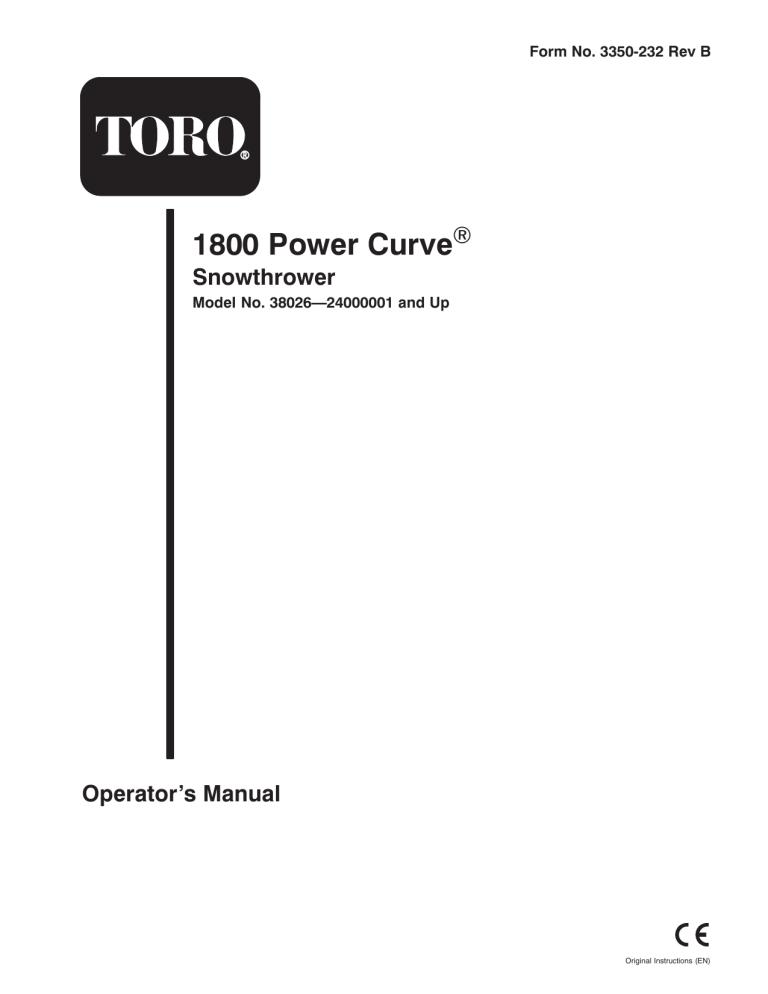

Form No. 3350-232 Rev B
1800 Power Curve®
Snowthrower
Model No. 38026—24000001 and Up
Operator’s Manual
Original Instructions (EN)
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Toro Snowthrower Safety . . . . . . . . . . . . . . . . . .
Sound Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals . . . . . . . . . . . . . . .
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Upper Handle and Chute Crank . .
Installing the Discharge Chute . . . . . . . . . . . . . . .
Before Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . .
Operating Tips . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubricating the Snowthrower . . . . . . . . . . . . . . .
Replacing the Scraper . . . . . . . . . . . . . . . . . . . . .
Replacing the Rotor . . . . . . . . . . . . . . . . . . . . . . .
Replacing the Large Belt . . . . . . . . . . . . . . . . . . .
Replacing the Small Belt . . . . . . . . . . . . . . . . . . .
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and
serial numbers of your product ready. Figure 1 illustrates
the location of the model and serial numbers on the
product.
Page
2
3
4
4
4
4
5
6
6
7
7
8
8
8
9
9
10
10
11
12
12
1
1516
Figure 1
1. Location of the model and serial numbers
Write the product model and serial numbers in the space
below:
Model No.
Introduction
Serial No.
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and product
damage. Although Toro designs and produces safe
products, you are responsible for operating the product
properly and safely.
This manual identifies potential hazards and has special
safety messages that help you and others avoid personal
injury and even death. Danger, Warning, and Caution are
signal words used to identify the level of hazard.
However, regardless of the hazard, be extremely careful.
Danger signals an extreme hazard that will cause serious
injury or death if you do not follow the recommended
precautions.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer,
or to register your product.
Warning signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
Caution signals a hazard that may cause minor or
moderate injury if you do not follow the recommended
precautions.
This manual uses 2 other words to highlight information.
Important calls attention to special mechanical
information and Note: emphasizes general information
worthy of special attention.
W 2005 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
2
Contact us at www.Toro.com
All Rights Reserved
Printed in the USA
Safety
•
This snowthrower meets or exceeds the ISO standard
8437 in effect at the time of production.
Operation
Before use, check the supply and extension cord for
signs of damage or aging.
Read and understand the contents of this manual
before the engine is ever started.
•
Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
•
Disconnect the machine from the power source before
checking, cleaning, or working on the machine and
when it is not in use.
•
If the cord becomes damaged during use, disconnect
the cord from the power supply immediately. Do not
touch the cord before disconnecting the power
supply.
•
Do not use the machine if the cord is damaged or
worn.
•
Keep extension cords away from the rotor blades.
•
The power supply used with the appliance should be a
residential current device (RCD) with a tripping
current of not more than 30 mA.
•
Exercise extreme caution when crossing gravel
drives, walks, or roads. Stay alert for hidden hazards
or traffic.
•
Do not attempt to clear snow from a crushed-rock or
gravel surface. This product is intended for use only
on paved surfaces.
•
After striking a foreign object, stop the motor,
thoroughly inspect the snowthrower for any damage,
and repair the damage before operating the
snowthrower.
•
If the unit should start to vibrate abnormally, stop the
motor and check immediately for the cause. Vibration
is generally a warning of trouble.
Improperly using or maintaining this snowthrower
could result in injury or death. To reduce this potential,
comply with the following safety instructions.
The following instructions have been adapted from the
ANSI/OPEI standard B71.3–1995, the ISO 8437:1989
standard, and European Standard EN 786:1996 and
EN 60335-2-91:2002:
Training
•
Read the operator’s manual carefully. Be thoroughly
familiar with the controls and the proper use of the
equipment. Know how to stop the unit and disengage
the controls quickly.
•
Never allow children to operate the snowthrower.
Never allow adults to operate the snowthrower
without proper instruction.
•
Keep the area of operation clear of all persons
(particularly small children) and pets.
•
Exercise caution to avoid slipping or falling.
Preparation
•
Thoroughly inspect the area where you will use the
snowthrower. Remove all doormats, sleds, boards,
wires, and other foreign objects.
•
Stop the motor whenever you leave the operating
position, before unclogging the discharge chute, and
when making any repairs, adjustments, or inspections.
•
Release the control bar to disengage the rotor blades
before starting the engine.
•
•
Do not operate the snowthrower without wearing
adequate winter garments. Wear footwear that will
improve your footing on slippery surfaces.
When cleaning, repairing, or inspecting, make certain
that the rotor blades and all moving parts have
stopped.
•
•
Never attempt to make any adjustments while the
motor is running, except where specifically
recommended by Toro.
Do not clear snow across the face of slopes. Exercise
extreme caution when changing direction on slopes.
Do not attempt to clear steep slopes.
•
•
Let the motor and the snowthrower adjust to the
outdoor temperature before starting to clear snow.
Never operate the snowthrower without proper
guards, plates, or other safety protective devices in
place.
•
•
Operating any powered machine can result in foreign
objects being thrown into the eyes. Always wear
safety glasses or eye shields while operating,
adjusting, or repairing the snowthrower.
Never operate the snowthrower near glass enclosures,
automobiles, window wells, and drop-offs without
properly adjusting the snow discharge angle. Keep
children and pets away.
•
Always ensure that the ventilation openings are kept
clear of debris.
Do not overload the machine capacity by attempting
to clear snow at too fast a rate.
•
Look behind and use care when backing up with the
snowthrower.
•
3
•
Never direct the discharge at bystanders or allow
anyone in front of the unit.
Sound Pressure
•
Never operate the snowthrower without good
visibility or light. Always be sure of your footing, and
keep a firm hold on the handle. Walk; never run.
This unit has a maximum sound pressure level at the
operator ’s ear of 89 dBA, based on measurements of
identical machines per Directive 98/37/EC.
Sound Power
Maintenance and Storage
•
Check all fasteners at frequent intervals for proper
tightness to be sure that the equipment is in safe
working condition.
This unit has a guaranteed sound power level of 104 dBA,
based on measurements of identical machines per
Directive 2000/14/EC.
•
Always refer to this operator’s manual for important
details if the snowthrower is to be stored for an
extended period.
Vibration
•
Maintain or replace safety and instruction labels when
necessary.
This unit does not exceed a hand/arm vibration level of
2.26 m/s2, based on measurements of identical machines
per Directive 98/37/EC.
Toro Snowthrower Safety
The following list contains safety information specific to
Toro products or other safety information that you must
know.
•
Rotating rotor blades can injure fingers or hands.
Stay behind the handles and away from the discharge
opening while operating the snowthrower. Keep your
face, hands, feet, and any other part of your body
or clothing away from moving or rotating parts.
•
Before adjusting, cleaning, repairing, and inspecting
the snowthrower, and before unclogging the discharge
chute, stop the motor and wait for all moving parts
to stop.
•
Use a stick, not your hands, to remove obstructions
from the discharge chute.
•
Before leaving the operating position, stop the motor
and wait for all moving parts to stop.
•
Do not wear loose-fitting clothing that could get
caught in moving parts.
•
If a shield, safety device, or decal is damaged,
illegible, or lost, repair or replace it before beginning
operation. Also, tighten any loose fasteners.
•
Do not use the snowthrower on a roof.
•
Perform only those maintenance instructions
described in this manual. Before performing any
maintenance, service, or adjustment, stop the motor
and disconnect the power cord from the power source.
If major repairs are ever needed, contact your
Authorized Service Dealer.
•
Purchase only genuine Toro replacement parts and
accessories.
4
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger. Replace any decal that is damaged or lost.
107-3040
1. Cutting dismemberment, impeller and cutting dismemberment,
auger hazards—keep bystanders a safe distance from the
snowthrower.
107-3324
1. Double insulated
2. Thrown object; cutting dismemberment, impeller; and cutting dismemberment, auger hazards—read the Operator’s Manual and keep
bystanders a safe distance from the snowthrower.
3. Electric shock hazard—do not use a damaged power cord; disconnect the power cord from the power source and read the instructions
before servicing or performing maintenance.
5
Setup
6. Place the mounting plate over the tubes (Fig. 3).
Note: Determine the left and right hand sides of the
snowthrower by standing in the normal operating position.
2
4
1
3
Installing the Upper Handle
and Chute Crank
1. Stand the snowthrower on its wheels and position the
upper handle.
1532
2. Inspect the open internal wiring; if it is damaged, do
not assemble. Contact an Authorized Service Dealer.
Figure 3
1. Mounting plate
2. Shroud
Caution
Internal wiring could be damaged during
assembly, causing serious personal injury when
operating the snowthrower.
3. Chute crank
4. Gear
7. Align the mounting plate holes with the upper and
lower tubing holes.
8. Insert the end of the chute crank through the hole in
the shroud.
• Carefully assemble the snowthrower so that you
will not damage the electrical wiring.
• If wiring is damaged, do not assemble the
snowthrower. Contact an Authorized Service
Dealer.
9. Turn the chute crank rod slowly until the flattened end
drops into the slot in the gear, then firmly push the
chute crank into the gear until it snaps into place
(Figs. 3 and 4).
3. Carefully insert the right side of the upper tubing over
the end of the lower right side tubing (Fig. 2).
1
2
SQUEEZE
1
1533
Figure 4
1. Chute crank
2. Chute crank gear
2
10. Secure the upper and lower tubing and the mounting
plate together with 2 machine screws and 2 locknuts.
1531
Note: Position the screw heads on the outside of the
mounting plate. Be careful not to damage the internal
electrical wiring when you insert the screws. If the
wiring blocks the hole, use a blunt 1/8-in. punch to
carefully route the electrical wiring away from the aligned
holes.
Figure 2
1. Upper tubing
2. Lower tubing
4. Carefully insert the left side of the upper tubing into
the end of the lower left side tubing (Fig. 2).
5. Squeeze the upper tubes together, and wiggle the upper
tubes down until the mounting holes in the upper and
lower tubing line up (Fig. 2).
6
Before Starting
Installing the Discharge Chute
1. Position the chute deflector onto the discharge chute
and align the mounting holes (Fig. 5).
For safe and efficient use of your appliance, use only an
extension cord recommended for outdoor use. Use only a
2.5 mm2 extension cord up to 25 m long.
1
Warning
5
Contact with water while operating the
snowthrower can cause electric shock, resulting in
personal injury or death.
6
Don’t handle the plug or the appliance with wet
hands or while standing in water.
2
Note: To prevent the extension cord from disconnecting
during operation, tie it to the loop in the upper handle
before you connect it to the snowthrower (Fig. 6).
4
3
1534
Figure 5
1. Chute deflector
2. Discharge chute
3. Rubber washer (2)
2
4. Carriage bolt (2)
5. Metal washer (2)
6. Locknut (2)
1
2. Insert a rubber washer between the chute deflector and
the discharge chute on each side while maintaining the
hole alignment (Fig. 5).
1535a
Figure 6
1. Extension cord
3. Secure the deflector to the discharge chute with
2 carriage bolts, 2 metal washers, and 2 locknuts.
Note: Ensure that the square shoulders on the carriage
bolts align with the inside square on the discharge chute.
Position the metal washers to the outside of the chute
deflector as shown in Figure 5. Do not overtighten the
bolts.
2. Loop
Warning
The electrical cord can get damaged, causing a
shock or fire.
Thoroughly inspect the electrical cord before
using the snowthrower. If the cord is damaged, do
not operate the snowthrower. Repair or replace
the damaged cord immediately. Contact an
Authorized Service Dealer for assistance.
7
Operation
• To adjust the discharge chute, rotate the chute crank
clockwise to move the discharge chute to the left;
counterclockwise to move it to the right.
Check the condition of the snowthrower before operating
it to ensure that the rotor turns freely.
Note: The chute crank makes a noise as you turn the
crank. This is normal.
To adjust the height of the snow stream, raise or lower
the chute deflector handle (Fig. 8).
Starting and Stopping
1. To start the rotor, squeeze the control bar (Fig. 7).
1
1
1535a
Figure 7
1516
1. Control bar
Figure 8
1. Chute deflector handle
2. To stop the rotor, release the control bar.
Operating Tips
Warning
Warning
A gap between the discharge chute and the chute
deflector may allow the snowthrower to throw
snow and objects in the direction of the operator.
Thrown objects could cause serious personal
injury.
If snowthrower hits an object while in operation,
the object could be thrown in operator’s or
bystander’s direction. Thrown objects could cause
serious personal injury.
• Do not force the chute deflector too far forward
so that a gap appears between the discharge
chute and chute deflector.
• Do not overtighten the locknuts that hold the
chute deflector in place.
Keep the area to be cleared free of all objects
which may be picked up and thrown by the rotor
blades.
• Always keep children and pets away from the area of
operation.
• Begin removing snow near the electrical outlet and
work outward. Blow back and forth, not away from
and toward the outlet.
• Keep the area to be cleared free of stones, toys, or
other objects which the rotor blades can throw. Such
items could be covered by snowfall and go unnoticed.
If the snowthrower strikes an object during operation,
stop the snowthrower, unplug the extension cord,
remove the obstruction, and check the snowthrower for
damage.
• When turning at the end of a swath, step over the cord
and turn the snowthrower.
• Always overlap each swath and discharge the snow
downwind when possible.
8
• When operating the snowthrower, keep the wheels
1 inch (2.5 cm) off the pavement by tipping the
snowthrower forward. This helps prevent the snow
from building up on the wheels.
• To shave down large banks of snow, lift the
snowthrower by the primary and secondary handles
(Fig. 9) and place the snowthrower on the bank. Let
the weight of the snowthrower shave down the bank in
a back-and-forth motion.
• After clearing the snow, let the motor run for a few
minutes so that moving parts don’t freeze. Then shut
off the motor, wait for all moving parts to stop, and
wipe the ice and snow off the snowthrower. Rotate the
chute crank several times to remove the snow.
1
Maintenance
2
Important All electrical repairs should be performed
only by an Authorized Service Dealer.
Note: Determine the left and right sides of the
snowthrower by standing in the normal operating position.
Warning
1516
If the extension cord is plugged into the
snowthrower, someone could accidentally operate
snowthrower while you are performing
maintenance on it, causing serious personal
injury.
Figure 9
1. Primary handle
2. Secondary handle
• When clearing steps, hold the snowthrower by the
primary and secondary handles and use a swinging or
sweeping motion.
Disconnect the extension cord before you perform
any maintenance.
Warning
Lubricating the Snowthrower
When using the secondary handle, never direct
the snow discharge chute at the operator or
bystanders. The snowthrower can throw objects
and cause serious personal injury.
You do not need to lubricate the snowthrower; all the
bearings were lubricated at the factory for the life of the
snowthrower.
When using the secondary handle, always turn the
discharge chute in the opposite direction from
where you or bystanders are standing.
• Keep the extension cord clear of obstructions, sharp
objects, and all moving parts. Do not pull sharply on
cord or abuse it in any manner. Frequently inspect the
extension cord for damage that may result in an
electric shock. If the extension cord becomes
damaged, replace it.
• In cold and snowy weather conditions, some controls
and moving parts may freeze. Therefore, when any
control becomes difficult to operate, stop the motor,
disconnect the extension cord, and check for frozen
parts. Do not use excessive force when trying to
operate frozen controls. Free all the controls and
moving parts before operating.
9
Replacing the Scraper
2. Use a 5/16-inch Allen wrench to turn the rotor shaft
clockwise (left-hand thread) while holding the rotor
(Fig. 12).
The scraper is located at the bottom of the rotor housing
as shown in Figure 10.
2
1
2
2
1
Figure 12
1517
1. Rotor shaft
Figure 10
1. Scraper
1538
2. Screw
2. Rotor
Note: You may need to tap the Allen wrench with a
hammer to loosen the rotor shaft. Wedge a stick or a
hammer handle in the rotor to prevent it from rotating.
1. Remove the 2 screws that secure the scraper to the
snowthrower (Fig. 10).
Note: If you cannot remove the rotor shaft by holding the
rotor, remove the left side cover and the skid (Fig. 13).
2. Install the new scraper and fasten it securely with
2 screws.
Replacing the Rotor
1. Remove the 3 screws that secure the right side cover
and the skid to the snowthrower frame (Fig. 11).
1
2
1539
Figure 13
1. Left side cover
2
3
1
2. Skid
3. Hold the hex nut with a 7/8-inch wrench while
unscrewing the rotor shaft (Fig. 14).
1537
Figure 11
1. Right side cover
2. Screw
3. Skid
1
1525
Figure 14
1. Hex nut
4. Hold the rotor and pull out the rotor shaft.
5. Remove the rotor.
10
6. Align the left side of the new rotor with the coupler.
3. Remove the idler spring from the idler arm (Fig. 16).
Note: The 3 bosses on the rotor end must align with
the slots on the coupler (Fig. 15).
1
1
2
4
1526
Figure 16
1. Idler spring
3
2
1518
4. Rotate the rotor with your left hand while sliding the
belt off the large pulley with your right hand (Fig. 17).
Figure 15
1. Coupler
2. Boss
2. Idler arm
3. Slot
4. Drive hex
1
2
Note: When mounting the coupler to the drive hex,
align the coupler tabs to the inside.
7. Slide the right side of the rotor into the mounting
position.
1527
8. Insert the rotor shaft through the rotor and ensure that
the shaft fits into the bearing on the right side.
Figure 17
1. Large pulley
9. Torque it to at least 10 ft-lb (14 N⋅m).
10. Install the cover and the skid.
2. Belt
5. Slip the new belt over the small pulley (Fig. 18).
1
Replacing the Large Belt
2
1. Remove the 3 screws that secure the left side plate to
the snowthrower frame (Fig. 13).
2. Remove the side plate and the skid.
3
Caution
1528
Figure 18
The idler spring could fly in your face while you
remove it, causing personal injury.
1. Idler arm
2. Idler pulley
Wear safety goggles when working with the idler
spring.
3. Small pulley
6. Lift up the idler arm and slip the belt under the idler
pulley (Fig. 18).
11
7. Slide 2 washers onto the bolt and insert the bolt
through the small pulley.
7. Rotate the rotor with your left hand while sliding the
belt onto the large pulley with your right hand
(Fig. 19).
Note: The bolt must ride on bearings in the small
pulley.
8. Place the new belt on the small pulley.
9. Slide the belt over the motor shaft pulley (Fig. 20).
10. Torque the bolt to 25 to 30 in-lb (2.8 to 3.4 N⋅m). Do
not overtighten the bolt.
Note: The bolt, the bolt head, and the washers must be
flush against the small pulley.
1529
Figure 19
11. Slip the large belt over the small pulley (Fig. 19).
Refer to step 5 through 9 of Replacing the Large Belt
on page 11.
8. Assemble the idler spring (Fig. 16), ensuring that the
idler pulley rides on the belt.
Storage
9. Install the left side cover and the skid with the
3 screws.
1. Run the snowthrower for a few minutes to melt away
any snow on the snowthrower.
Replacing the Small Belt
2. Disconnect the extension cord from the snowthrower.
1. Remove the screws that secure the left side plate and
the skid to the snowthrower frame (Fig. 13).
3. Examine the extension cord thoroughly for signs of
wear or damage. Replace it if it is worn or damaged.
2. Remove the side plate and the skid.
4. Examine the snowthrower thoroughly for worn, loose,
or damaged parts. For repairing or replacing parts,
contact an local Authorized Service Dealer for
assistance.
3. Remove the large belt by slowly sliding it off the small
pulley (Fig. 17).
Note: Refer to steps 2 and 3 of Replacing the Large
Belt on page 11.
5. Store the extension cord with the snowthrower.
4. Remove the small pulley bolt (left hand thread) by
turning the bolt clockwise.
6. Store the snowthrower in a clean, dry place.
5. Remove the 2 washers and the small pulley (Fig. 20).
5
4
3
2
1
1530
Figure 20
1. Bolt (left-hand thread)
2. Washers
3. Small pulley
4. Small belt
5. Motor shaft pulley
6. Remove and discard the small belt (Fig. 20).
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
