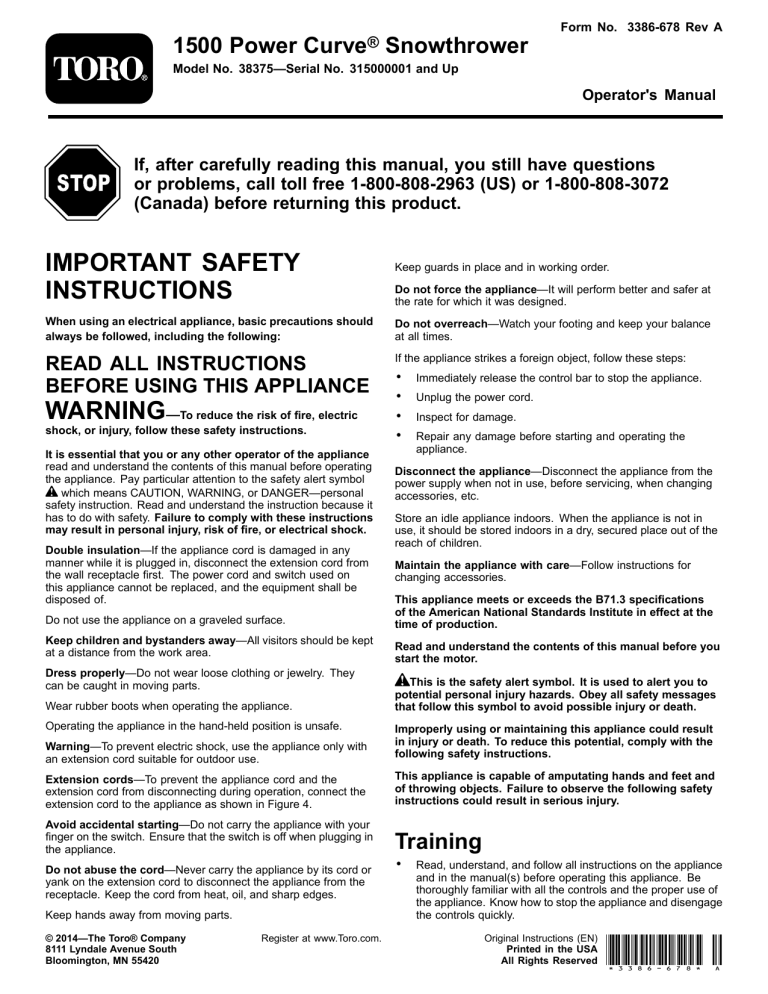

Form No. 3386-678 Rev A
1500 Power
Curve®
Snowthrower
Model No. 38375—Serial No. 315000001 and Up
Operator's Manual
If, after carefully reading this manual, you still have questions
or problems, call toll free 1-800-808-2963 (US) or 1-800-808-3072
(Canada) before returning this product.
IMPORTANT SAFETY
INSTRUCTIONS
Keep guards in place and in working order.
Do not force the appliance—It will perform better and safer at
the rate for which it was designed.
When using an electrical appliance, basic precautions should
always be followed, including the following:
Do not overreach—Watch your footing and keep your balance
at all times.
READ ALL INSTRUCTIONS
BEFORE USING THIS APPLIANCE
If the appliance strikes a foreign object, follow these steps:
WARNING—To reduce the risk of fire, electric
shock, or injury, follow these safety instructions.
It is essential that you or any other operator of the appliance
read and understand the contents of this manual before operating
the appliance. Pay particular attention to the safety alert symbol
which means CAUTION, WARNING, or DANGER—personal
safety instruction. Read and understand the instruction because it
has to do with safety. Failure to comply with these instructions
may result in personal injury, risk of fire, or electrical shock.
Double insulation—If the appliance cord is damaged in any
manner while it is plugged in, disconnect the extension cord from
the wall receptacle first. The power cord and switch used on
this appliance cannot be replaced, and the equipment shall be
disposed of.
Do not use the appliance on a graveled surface.
Keep children and bystanders away—All visitors should be kept
at a distance from the work area.
Dress properly—Do not wear loose clothing or jewelry. They
can be caught in moving parts.
Wear rubber boots when operating the appliance.
Operating the appliance in the hand-held position is unsafe.
•
•
•
•
Immediately release the control bar to stop the appliance.
Unplug the power cord.
Inspect for damage.
Repair any damage before starting and operating the
appliance.
Disconnect the appliance—Disconnect the appliance from the
power supply when not in use, before servicing, when changing
accessories, etc.
Store an idle appliance indoors. When the appliance is not in
use, it should be stored indoors in a dry, secured place out of the
reach of children.
Maintain the appliance with care—Follow instructions for
changing accessories.
This appliance meets or exceeds the B71.3 specifications
of the American National Standards Institute in effect at the
time of production.
Read and understand the contents of this manual before you
start the motor.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Warning—To prevent electric shock, use the appliance only with
an extension cord suitable for outdoor use.
Improperly using or maintaining this appliance could result
in injury or death. To reduce this potential, comply with the
following safety instructions.
Extension cords—To prevent the appliance cord and the
extension cord from disconnecting during operation, connect the
extension cord to the appliance as shown in Figure 4.
This appliance is capable of amputating hands and feet and
of throwing objects. Failure to observe the following safety
instructions could result in serious injury.
Avoid accidental starting—Do not carry the appliance with your
finger on the switch. Ensure that the switch is off when plugging in
the appliance.
Training
Do not abuse the cord—Never carry the appliance by its cord or
yank on the extension cord to disconnect the appliance from the
receptacle. Keep the cord from heat, oil, and sharp edges.
Keep hands away from moving parts.
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
•
Read, understand, and follow all instructions on the appliance
and in the manual(s) before operating this appliance. Be
thoroughly familiar with all the controls and the proper use of
the appliance. Know how to stop the appliance and disengage
the controls quickly.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3386-678* A
•
•
•
snowthrowers. Never use your hand to clean out the discharge
chute.
Never allow children to operate the appliance. Never allow
adults to operate the appliance without proper instruction.
Keep the area of operation clear of all persons, particularly
small children.
Exercise caution to avoid slipping or falling.
To clear the chute:
• Shut the motor off, remove the key, and unplug the
extension cord from the appliance!
• Wait 10 seconds to be sure the rotor blades have stopped
rotating.
• Always use a clean-out tool, not your hands.
Preparation
•
•
•
•
•
Thoroughly inspect the area where the appliance is to be
used and remove all doormats, sleds, boards, wires, and
other foreign objects.
Do not operate the appliance without wearing adequate winter
garments. Avoid loose fitting clothing that can get caught in
moving parts. Wear footwear that will improve footing on
slippery surfaces.
Do not attempt to clear snow from a gravel or crushed rock
surface. This appliance is intended for use only on paved
surfaces.
Never attempt to make any adjustments while the motor
is running (except when specifically recommended by
manufacturer).
Always wear safety glasses or eye shields during operation or
while performing an adjustment or repair to protect eyes from
foreign objects that may be thrown from the appliance.
Maintenance and Storage
•
•
•
•
SAVE THESE INSTRUCTIONS
Safety and Instructional
Decals
Operation
•
•
•
•
•
•
•
•
•
•
•
•
Check all fasteners at frequent intervals for proper tightness
to ensure that the appliance is in safe working condition.
Always refer to this Operator’s Manual for important details if
the appliance is to be stored for an extended period.
Maintain or replace safety and instruction labels as needed.
Run the appliance for a few minutes after throwing snow to
prevent freeze-up of the rotor blades.
Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times.
Exercise extreme caution when operating on or crossing
gravel drives, walks, or roads. Stay alert for hidden hazards
or traffic.
After striking a foreign object, stop the motor, unplug the
extension cord, remove the key, and thoroughly inspect
the appliance for any damage. Repair any damage before
starting and operating the appliance.
If the appliance should start to vibrate abnormally, stop the
motor and check immediately for the cause. Vibration is
generally a warning of trouble.
Stop the motor, remove the key, and unplug the appliance
whenever you leave the operating position, before unclogging
the rotor blade housing or discharge chute, and when making
any repairs, adjustments, or inspections.
When cleaning, repairing, or inspecting the appliance, stop
the motor, remove the key, unplug the appliance, and ensure
that the rotor blades and all moving parts have stopped.
Exercise extreme caution when operating on slopes.
Never operate the appliance without proper guards and other
safety protective devices in place and working.
Never direct the discharge toward people or areas where
property damage can occur. Keep children and others away.
Do not overload the capacity of the appliance by attempting to
clear snow at too fast a rate.
Look behind and use care when backing up with the
appliance.
Never operate the appliance without good visibility or light.
Always be sure of your footing, and keep a firm hold on the
handle. Walk; never run.
Safety decals and instructions are easily
visible to the operator and are located near
any area of potential danger. Replace any
decal that is damaged or lost.
114-9034
114-9035
Clearing a Clogged Discharge
Chute
1. Cutting/dismemberment hazard, impeller and auger—do
not place your hand in the chute; remove the ignition key
and read the instructions before servicing or performing
maintenance.
Hand contact with the rotating rotor blades inside the discharge
chute is the most common cause of injury associated with
2
Setup
Note: Determine the left and right sides of the appliance
from the normal operating position.
Installing the Upper Handle
1. Remove the handle knobs, oval bolts, and curved washers
from the lower handle.
2. Install the upper handle to the lower handle of the appliance
with the handle knobs, curved washers, and oval bolts as
shown in Figure 1.
127–7065
1. Warning—read the
Operator’s Manual.
3. Cutting/dismemberment
hazard of hand, impeller;
cutting/entanglement
hazard of foot,
auger—stay away from
moving parts; keep all
guards and shields
in place; disconnect
the machine from the
power outlet and read
the instructions before
servicing or performing
maintenance.
2. Thrown object
hazard—keep bystanders
a safe distance from the
machine.
Figure 1
1. Handle knob (2)
4. Lower handle
2. Curved washer (2)
5. Upper handle
3. Oval bolt (2)
Note: Ensure that the power cord attached to the
appliance is routed over the lower handle and to the
inside of the handle assembly.
119-9841
1. 1) Push the interlock
switch; 2) Hold the handle
to engage the rotation of
the auger blade.
3. Tighten the handle knobs firmly by hand.
2. Release the handle to
disengage the rotation of
the auger blade.
4. Attach the cord guide to the handle (Figure 2).
3
cord recommended for outdoor use. A polarized plug will fit in a
polarized cord only one way. If the plug does not fit fully in the
cord, reverse the cord. If it still does not fit, purchase a polarized
extension cord. If you have a polarized extension cord and the
extension cord plug does not fit fully into the wall receptacle,
reverse the plug. If it still does not fit, contact a qualified electrician
to install the proper outlet. Do not change the appliance or
extension cord plug in any way.
DANGER
Figure 2
1. Cord guide
Contact with water while operating the appliance could
cause electric shock, causing injury or death.
3. Cord
2. Handle
• Don't handle the plug or the appliance with wet
hands or while standing in water.
• Use only an extension cord recommended for
Operation
outdoor cold-weather use.
Product Overview
Extension Cord Length
Minimum Wire Gauge
(A.W.G.)
100 feet
14
150 feet
12
4
1
2
Note: Do not use an extension cord over 150 feet.
Important: Check the extension cord frequently during
use for holes or cracks in the insulation. Do not use a
damaged cord. Do not run the cord through standing
water or wet grass.
5
3
6
7
8
9
Note: To prevent disconnecting the extension cord from
the power cord during operation, insert the extension cord
in the cord lock (on the power cord) before you connect the
extension cord to the power cord (Figure 4).
10
1
11
G017928
Figure 3
1. Upper handle
7. Discharge chute handle
2. Interlock key
8. Discharge chute deflector
trigger
3. Power cord
9. Discharge chute deflector
4. Bail
10. Belt cover (not shown)
5. Cord lock
6. Handle knobs
11. Rotor blades
G018743
Figure 4
1. Cord lock
Important: This appliance is intended for outdoor,
residential use only. Do not use it indoors or for
commercial or industrial purposes.
WARNING
A damaged appliance cord can cause a shock or fire.
Thoroughly inspect the appliance cord before using
the appliance. If the cord is damaged, do not operate
the appliance. The supply cord or switch of this
appliance cannot be replaced, and the appliance shall
be disposed of.
Connecting to a Power Source
To reduce the risk of electric shock, this appliance has a
polarized plug (i.e., one blade is wider than the other). Use only
a polarized plug, UL-listed (CSA certified in Canada) extension
4
Starting and Stopping the
Motor
WARNING
A gap between the discharge chute and the chute
deflector may allow the appliance to throw snow and
objects in the direction of the operator. Thrown objects
could cause serious personal injury.
1. To start the motor, insert the interlock key, press and hold the
interlock key, and squeeze the bail to the handle (Figure 5).
• Do not force the chute deflector too far forward so
2
that a gap appears between the discharge chute
and chute deflector.
• Do not adjust the chute deflector with the bail
engaged. Release the bail before adjusting the
chute deflector.
Operating Tips
1
WARNING
If the appliance hits an object while in operation, the
object could be thrown in operator's or bystander's
direction. Thrown objects could cause serious
personal injury.
G017930
Figure 5
1. Interlock key
Keep the area to be cleared free of all objects which
may be picked up and thrown by the rotor blades.
2. Bail
Note: You may release the interlock key after you
squeeze and hold the bail to the handle.
2. To stop the motor, release the bail.
Note: When you stop the appliance after you have
removed the snow, remove the interlock key and
disconnect the extension cord from the appliance.
Adjusting the Discharge Chute
and Chute Deflector
To adjust the direction of the snow stream from the discharge
chute, move the handle on the discharge chute (Figure 6).
1
•
Check the condition of the appliance before operating it to
ensure that the rotor turns freely.
•
Always keep children and pets away from the area of
operation.
•
Keep the area to be cleared free of stones, toys, or other
objects which the rotor blades can throw. Such items could
be covered by snowfall and go unnoticed. If the appliance
strikes an object during operation, stop the appliance, unplug
the extension cord, remove the obstruction, and check the
appliance for damage.
•
Begin removing snow near the electrical outlet and work
outward. Blow back and forth, not away from and toward the
outlet.
•
When turning at the end of a swath, step over the cord and
turn the appliance.
•
Always overlap each swath and discharge the snow downwind
when possible.
WARNING
2
When using the discharge chute handle, never
direct the snow discharge chute at the operator or
bystanders. The appliance can throw objects and
cause serious personal injury.
When using the discharge chute handle, always
turn the discharge chute in the opposite direction
from where you or bystanders are standing.
G017929
Figure 6
1. Discharge chute deflector trigger
•
Keep the extension cord clear of obstructions, sharp objects,
and all moving parts. Do not pull sharply on cord or abuse
it in any manner. Inspect the extension cord frequently for
damage that may result in an electric shock. If the extension
cord is damaged, replace it.
•
In cold and snowy weather conditions, some controls and
moving parts may freeze. Therefore, if any control becomes
difficult to operate, stop the motor, disconnect the extension
cord, and check for frozen parts. Do not use excessive force
when trying to operate frozen controls. Bring the appliance
indoors to thaw frozen controls before operating it.
2. Discharge chute handle
To adjust the height of the snow stream from the discharge
chute, squeeze the trigger and raise or lower the discharge chute
deflector (Figure 6).
5
•
When operating the appliance, keep the wheels 1 inch (2.5
cm) off the pavement by tipping the appliance forward. This
helps prevent the snow from building up on the wheels.
•
After clearing the snow, let the motor run for a few minutes
so that moving parts do not freeze. Then shut off the motor,
wait for all moving parts to stop, and wipe the ice and snow
off the appliance. Rotate the chute crank several times to
remove any snow.
Maintenance
Figure 8
1. Screw (2)
Note: Determine the left and right sides of the appliance
from the normal operating position.
WARNING
If the extension cord is plugged into the appliance,
someone could accidentally operate the appliance
while you are performing maintenance on it, causing
serious personal injury.
Remove the key and disconnect the extension cord
before you perform any maintenance on the appliance.
Lubricating the Appliance
Figure 9
You do not need to lubricate the appliance; all the bearings have
been lubricated at the factory for the life of the appliance.
1. Screws
Replacing the Scraper
2. Remove and discard the old scraper.
3. Install the new scraper, and fasten it securely with the 4
screws that you previously removed.
The scraper is located at the bottom of the rotor housing as shown
in Figure 7.
Replacing the Rotor
1. Remove the screws that secure the right side plate to the
appliance frame (Figure 10).
Figure 7
1. Scraper
1. Remove the screw from each side plate that holds the
scraper (Figure 8) and 2 screws from under the appliance
(Figure 9) that secure the scraper to the appliance.
Figure 10
2. Remove the rotor pin (Figure 11).
6
Service
Toro has designed this appliance to give you years of trouble-free
use. Should it need service, bring the appliance to an Authorized
Toro Service Dealer, who is specially trained to repair Toro
products and will ensure that your Toro stays “all” Toro.
Double-insulated Appliances
In a double-insulated appliance, two systems of insulation
are provided instead of grounding. No grounding means is
provided on a double-insulated appliance, nor should a means for
grounding be added to the appliance. Servicing a double-insulated
appliance requires extreme care and knowledge of the system,
and should be done only by the qualified service personnel at
an Authorized Toro Service Dealer. Replacement parts for a
double-insulated appliance must be identical to the parts they
replace. A double-insulated appliance is marked with the words
“Double Insulation” or “Double Insulated.” The symbol (square
within a square)
may also be marked on the appliance.
Figure 11
1. Rotor pin
3. Remove the old rotor.
4. Install the new rotor by inserting the end of the rotor onto the
fitted end in the housing and rotating the rotor until it snaps
into place (Figure 12).
Product Information
A model and serial number decal is located on the housing.
Always refer to specific numbers on the decal in correspondence
or when you need replacement parts.
Storage
1. Run the appliance for a few minutes and wipe away any
melted snow on the appliance.
2. Remove the key and disconnect the extension cord from
the appliance.
3. Examine the extension cord thoroughly for signs of wear or
damage. Replace it if it is worn or damaged.
4. Examine the appliance thoroughly for worn, loose, or
damaged parts. To repair or replace parts, contact an
Authorized Service Dealer for assistance.
Figure 12
5. Store the extension cord with the appliance.
1. Fitted end of the rotor
6. Store the appliance in a clean, dry place.
Note: Ensure that the nut that secures the rotor pin
remains inside the recessed hole in the right inside wall
of the housing.
Note: The housing will flex when you install the rotor.
5. Tighten the bolt on the side of the housing.
6. Install the right side plate with the screws that you removed
in step 1.
7
The Toro Promise - Electric Products
A Two-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for two years against
defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. E
374-0262 Rev E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
