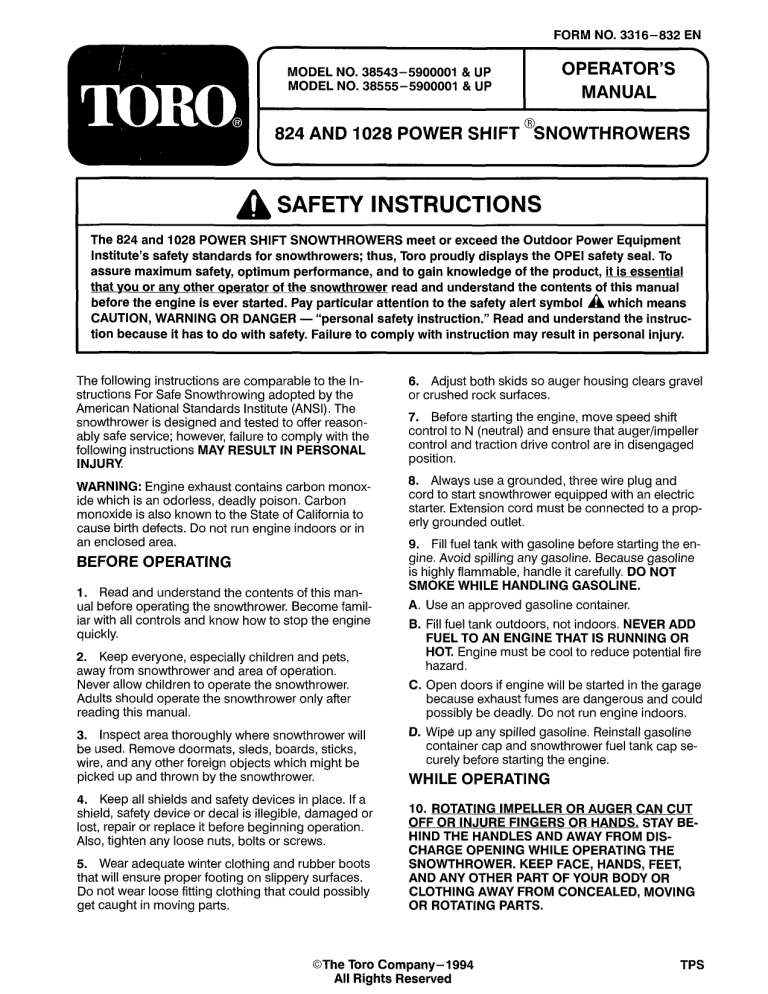

FORM NO. 3316-832 EN
Да
MODEL NO. 38543—5900001 & UP
MODEL NO. 38555—5900001 & UP
OPERATOR’S В
MANUAL
N
824 AND 1028 POWER SHIFT “SNOWTHROWERS
—
4) SAFETY INSTRUCTIONS
The 824 and 1028 POWER SHIFT SNOWTHROWERS meet or exceed the Outdoor Power Equipment
Institute’s safety standards for snowthrowers; thus, Toro proudly displays the OPEI safety seal. To
assure maximum safety, optimum performance, and to gain knowledge of the product, it is essential
that you or any other operator of the snowthrower read and understand the contents of this manual
before the engine is ever started. Pay particular attention to the safety alert symbol
CAUTION, WARNING OR DANGER — “personal safety instruction.” Read and understand the instruc-
tion because it has to do with safety. Failure to comply with instruction may result in personal injury.
A which means
The following instructions are comparable to the In-
structions For Safe Snowthrowing adopted by the
American National Standards Institute (ANSI). The
snowthrower is designed and tested to offer reason-
ably safe service; however, failure to comply with the
following instructions MAY RESULT IN PERSONAL
INJURY.
WARNING: Engine exhaust contains carbon monox-
ide which is an odorless, deadly poison. Carbon
monoxide is also known to the State of California to
cause birth defects. Do not run engine indoors or in
an enclosed area.
BEFORE OPERATING
1. Read and understand the contents of this man-
ual before operating the snowthrower. Become famil-
iar with all controls and know how to stop the engine
quickly.
2. Keep everyone, especially children and pets,
away from snowthrower and area of operation.
Never allow children to operate the snowthrower.
Adults should operate the snowthrower only after
reading this manual.
3. Inspect area thoroughly where snowthrower will
be used. Remove doormats, sleds, boards, sticks,
wire, and any other foreign objects which might be
picked up and thrown by the snowthrower.
4. Keep all shields and safety devices in place. If a
shield, safety device or decal is illegible, damaged or
lost, repair or replace it before beginning operation.
Also, tighten any loose nuts, bolts or screws.
5. Wear adequate winter clothing and rubber boots
that will ensure proper footing on slippery surfaces.
Do not wear loose fitting clothing that could possibly
get caught in moving parts.
6. Adjust both skids so auger housing clears gravel
or crushed rock surfaces.
7. Before starting the engine, move speed shift
control to N (neutral) and ensure that auger/impeller
control and traction drive control are in disengaged
position.
8. Always use a grounded, three wire plug and
cord to start snowthrower equipped with an electric
starter. Extension cord must be connected to a prop-
erly grounded outlet.
9. Fill fuel tank with gasoline before starting the en-
gine. Avoid spilling any gasoline. Because gasoline
is highly flammable, handle it carefully. DO NOT
SMOKE WHILE HANDLING GASOLINE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors, not indoors. NEVER ADD
FUEL TO AN ENGINE THAT IS RUNNING OR
HOT. Engine must be cool to reduce potential fire
hazard.
C. Open doors if engine will be started in the garage
because exhaust fumes are dangerous and could
possibly be deadly. Do not run engine indoors.
D. Wipe up any spilled gasoline. Reinstall gasoline
container cap and snowthrower fuel tank cap se-
curely before starting the engine.
WHILE OPERATING
10. ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS. STAY BE-
HIND THE HANDLES AND AWAY FROM DIS-
CHARGE OPENING WHILE OPERATING THE
SNOWTHROWER. KEEP FACE, HANDS, FEET,
AND ANY OTHER PART OF YOUR BODY OR
CLOTHING AWAY FROM CONCEALED, MOVING
OR ROTATING PARTS.
©The Toro Company —1994 TPS
All Rights Reserved
A) SAFETY INSTRUCTIONS
11. BEFORE ADJUSTING, CLEANING, REPAIR-
ING, AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DISCHARGE
CHUTE, SHUT ENGINE OFF AND WAIT FOR ALL
MOVING PARTS TO STOP. ALSO, PULL WIRE OFF
SPARK PLUG AND KEEP WIRE AWAY FROM THE
PLUG TO PREVENT ACCIDENTAL STARTING.
USE A STICK, NOT YOUR HAND, TO REMOVE
OBSTRUCTIONS FROM DISCHARGE CHUTE.
12. Before leaving the operator’s position (behind
handles), rotate ignition key to OFF and wait for all
moving parts to stop. Remove key from switch if
snowthrower will be left unattended.
13. Allow engine to warm up outdoors before clear-
ing snow.
14. Operate the snowthrower only when there is
good visibility or light. Always maintain secure foot-
ing and balance and keep a firm grip on the handles,
especially when operating in reverse. Walk; never
run.
15. Be attentive when using the snowthrower, and
stay alert for holes in the terrain and other hidden
hazards. Be careful when clearing snow from a
gravel drive because stones could be picked up and
thrown if skids are not adjusted so auger housing
clears all rocks.
16. Do not make any adjustments while the engine
IS running.
17. Never direct discharge of snow or operate
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a drop — off
without proper adjustment of the snow chute and
deflector.
18. Clear snow from slopes by going up and down,
never across the face. Use caution when changing
directions. Use lower gear and rear wheel position
when operating on slopes. Never clear snow from
steep slopes.
19. Do not overload the snowthrower by clearing
snow at too fast a rate.
20. DO NOT USE SNOWTHROWER ON A ROOF.
21. If a foreign object is hit or snowthrower vibrates
abnormally, stop engine by turning key to OFF and
wait for all moving parts to stop. Pull wire off spark
plug and check snowthrower immediately for possi-
ble damage, an obstruction or loose parts. Vibration
is generally a sign of trouble. Repair any damage
before starting engine and operating snowthrower
again.
EN-2
22. Do not touch engine while it is running or soon
after it is stopped because the engine will be hot
enough to cause a burn. Do not add oil or check oil
level in crankcase when engine is running.
23. Never operate snowthrower at high transport
speeds on slippery surfaces. Use care when back-
ing.
MAINTAINING SNOWTHROWER
24. Perform only those maintenance instructions de-
scribed in this manual. Shut engine off before per-
forming any maintenance service or adjustment. Ad-
ditionally, pull wire off spark plug and keep wire
away from plug to prevent accidental starting. If ma-
jor repairs are ever needed, contact your local
Authorized TORO Service Dealer for assistance.
25. Keep snowthrower in safe operating condition by
keeping nuts, bolts, and screws tight. Check engine
mounting bolts frequently to ensure they are tight.
26. Do not overspeed the engine by changing gov-
ernor settings: Recommended maximum engine
speed is 3500 rpm. To ensure safety and accuracy,
check maximum engine speed (3500 rpm) with a
tachometer.
27. Allow engine to cool before storing in an enclo-
sure such as a garage or storage shed. NEVER
STORE SNOWTHROWER IN HOUSE (LIVING
AREA) OR BASEMENT BECAUSE GASOLINE AND
FUMES ARE HIGHLY FLAMMABLE, EXPLOSIVE,
AND DANGEROUS IF INHALED. Do not store
snowthrower near any open flame or where gasoline
fumes may be ignited by a spark.
28. When storing the snowthrower for an extended
time—off season storage or 30 days—drain gasoline
from fuel tank to prevent a potential hazard. Store
gasoline in a safety —approved red metal container.
Remove key from ignition switch when storing
snowthrower. Store key in a memorable place.
29. At the time of manufacture, the snowthrower
conformed with or exceeded OPEI safety standards
in effect for snowthrowers. Therefore, to ensure best
performance and safety, purchase genuine TORO
replacement parts and accessories to keep the
TORO all TORO. NEVER USE “WILL FIT” RE-
PLACEMENT PARTS AND ACCESSORIES. The
TORO logo assures genuineness.
30. For safety reasons, use only those accessories
and attachments recommended by The TORO Com-
pany to ensure continued safety certification of the
product. Using unapproved accessories and attach-
ments could contribute to a potential hazard.
ÁN SAFETY INSTRUCTIONS
BEFORE OPERATING
Read and understand the contents of this manual
before operating the snowthrower. Become familiar
with all controls and know how to stop the engine
| POSITION N
472
CAUTION: IMPROPER USE MAY RESULT
IN LOSS OF FINGERS, HANDS OR FEET.
HIGH SPEED IMPELLER
WITHIN 2 INCHES OF
OPENING
EN ОА
ul ine and be sure
fl ve slopped belote
all qaris have
unclogging discharge chule
LOW SPEED AUGER
HAS MOVING PINCH
POINT, CLOSE TO
OPENING.
EN-3
dA SAFETY SYMBOL GLOSSARY
Safety decals and instructions are easily visible to the operator and are located
near any area of potential danger. Replace any decal that is damaged or lost.
A Y m
Safety alert Keep hands away Slow
lll ©,
Hot surface
Read and understand
operators manual
\
À
Shut off engine
before unclogging
discharge chute
® e
ai
Stop engine before
leaving operator position
Choke Choke Auger/impeller
on off engaged
конь Ч
Traction drive
engaged
Chute direction
EN-4
@ Y ®
Fast Ignition Ignition
on off
Engine speed
(Throttle)
Avoid injury from rotating
auger. Keep hands, feet
and clothing away.
Primer pump
Reverse
Forward
TABLE OF CONTENTS
Safety Instructions ....... ee ee 1
Safety Symbol Glossary .................... 4
Loose Parts ..................... LL. 6
Accessories ........................ ea. 6
Assembly Instructions ..................... 7
BeforeOperating .......................... 10
Fill Crankcase With Oil .............. .... 10
Fill Fuel Tank With Gasoline .............. 11
Controls ............eeeeeecsoecearereereo. 11
Starting and Stopping Instructions ........... 13
Operating Instructions ..................... 14
Power Shift Operation ................... 14
Free Wheeling or Self-Propelled Drive .... 14
Snowthrowing Tips ....... PO 14
Adjusting Scraper ................ naa 15
Adjusting Skids ........................ 15
Page
Adjusting Headlight. .................... 16
Maintenance .............omeoreeeecorren.. 16
Draining Gasoline ...................... 16
Lubricating Snowthrower ........... Le 17
Changing Crankcase Oil .............. .. 17
Auger GearBox Oil ..................... 17
Adjusting Auger/Impelier Drive Belt ...... 17
Adjusting Traction Drive Belt ............. 19
Replacing Drive Belts ....... aaa 19
Adjusting Drive Chain ................... 20
Adjusting Carburetor . ................... 21
Replacing Spark Plug ................... 22
Preparing Snowthrower for Storage ....... 22
Identification and Ordering ............—..... 23
Toro Service Support ...................... 23
EN-5
LOOSE PARTS
Part
©
=
Use
Flange head capscrew — 5/16—18 x 3/4" lg.
Lower belt cover
Flange head capscrew — 1/4—-20 x 1/2” Ig.
Cable cover
Mount Auger Housing, page 7
Shift rod
Locknut—3/8—16
Install Shift Rod, page 8
Discharge chute
Install Discharge Chute, page 8
Worm gear
Gear bracket
Carriage bolt—5/16—-18 x 1” Ig.
Flat washer
Locknut—5/16
Skid
Flange head capscrew—5/16—18 x 3/4” Ig.
Flat washer
Locknut—5/16
Install Skids, page 9
Key
Use in Ignition Switch
‘Registration card
N= DN NN N=, LLL + | IN II JN = O
Specifications and design subject to change without notice.
ACCESSORIES
Description
Part/Model Number
110 Vac Electric Starter Kit
37-4810 (models 38543 8: 38555)
Tire Chain Kit
Tire Chain Kit (for std. axle; not for use
with Differential Kit)
56—2700 (model 38543)
63—3040 (model 38555)
Snow Cab
68—9500
Weight Kit (required with Snow Cab on
model 38543; recommended
with Snow Cab on model 38555)
74— 1190
Drift Breaker
66—7960 (model 38543)
66—7970 (model 38555)
Light Kit (standard on 38555)
66—7941 (model 38543)
Differential Kit
38038
EN-6
Install Chute Control Gear, page 8
Use to register product with factory
ASSEMBLY INSTRUCTIONS
Note: Determine left and right sides of snowthrower
by standing in the normal operating position.
MOUNT AUGER HOUSING (Figs. 1-3)
1. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove idler
pulley assembly.
2. Align auger housing and engine frame mounting
holes (Fig. 1).
Figure 2
1. Lower belt cover
(shown from bottom)
2. Mounting tabs
3. Flange head capscrew
9. Mount upper belt cover to engine frame with (3)
1/4—20x1/2” Ig. flange head capscrews (Fig. 3).
Figure 1
1. Auger housing
2. Engine frame
3. Impeller pulley
4. Idler pulley assembly
5. Mounting screws (2)
3. Route impeller belt around impeller pulley.
4. Secure auger housing to engine frame with (6)
5/16—18x3/4” Ig. flange head capscrews.
5. Reinstall idler pulley assembly. Make sure idler
pulleys are aligned with belts when reinstalling idler
pulley assembly.
6. Tip snowthrower up on front edge of auger hous-
ing.
7. Mount lower belt cover to underside of auger
housing and engine frame with (2) 1/4—20x1/2” Ig.
flange head capscrews (Fig. 2). Make sure belt cover
mounting tabs are positioned to rear of engine frame
member.
8. Check adjustment of impeller cable; refer to step
3 of Adjusting Auger/Impeller Drive Belt, page 17.
166
Figure 3
1. Upper belt cover 3. Flange head capscrew
2. Cable cover
10. Slide cable cover onto cables and into hole in
belt cover (Fig. 3).
EN-7
ASSEMBLY INSTRUCTIONS
INSTALL SHIFT ROD (Fig. 4)
1. Insert upper shift rod ball joint stud through front
of shift bracket and secure with 3/8—16 locknut.
Note: Shift rod to be positioned with bend rearward.
2. Insert bottom ball joint stud through right side of
transmission lever and secure with 3/8 —16 locknut.
3. Shift into 2nd gear and check shift rod alignment
with Power Shift slot.
INSTALL DISCHARGE CHUTE (Fig. 5)
Note: Before installing discharge chute, apply a light
coat of low temperature grease to chute ring.
1. Set discharge chute-—open side forward—onto
auger discharge opening, so plastic chute retainers
are positioned on chute ring. Make sure chute retain-
er guide pins are inserted into holes in chute gear.
va y | |
_ Sok AM | =
> | В
Figure 4
Shift rod
Ball joint
Shift bracket
Transmission lever
Locknut
Jam nut |
Gear shift lever
Power Shift slot
EN.
ONDA
Note: If gear shift [ever is not aligned with Power
Shift slot in control panel (Fig. 4, inset), shift rod
length must be adjusted as follows:
‘A. Disconnect ball joint from transmission lever and
loosen jam nut.
B. Rotate ball joint up or down, until gear shift lever
is aligned with Power Shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
EN-8
Figure 5
1. Discharge chute 3. Chute retainer plate
2. Plastic chute retainer 4. Chute ring
2. Tighten machine screw and locknut, on left side,
until chute retainer plate is positioned against plastic
chute retainer and discharge chute is secured to
chute ring. | | |
3. Push chute retainers, on right side, toward dis-
charge chute (slotted) and tighten machine screw.
4. Make sure chute rotates freely on ring. If chute
binds, move right hand retainer outward to ease op-
eration.
INSTALL CHUTE CONTROL GEAR (Fig. 6)
1. Insertthe 5/16—18 x 1” Ig. carriage bolt into gear
bracket mounting hole. Ш |
2. Position worm gear into bracket, align holes and
insert chute gear rod through bracket and gear.
3. Loosely mount worm gear and bracket to mount-
ing flange with carriage bolt, flat washer, and lock-
nut.
ASSEMBLY INSTRUCTIONS
4. Slide worm gear into teeth of chute gear and
tighten locknut.
through rear slots in skids. Assemble both skids so
that washers are between skids and sideplates
(Fig. 8). Do not tighten bolts.
Figure 6
1. Gear bracket
2. Carriage bolt, flat washer
8 locknut
3. Worm gear
4. Chute gear rod
5. Mounting flange
5. Check operation. Move gear slightly outward if
binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires because
they are over -—inflated at the factory for shipping.
Therefore, before the snowthrower is operated,
reduce pressure in both tires to 7—15 psi equally.
INSTALL SKIDS
1. Check tire pressure; refer to Check Tire Pres-
sure, page 9.
2. Move the snowthrower onto a flat surface and
check if scraper (Fig. 7) is parallel to the ground. If
not, adjust scraper; refer to Adjusting Scraper,
page 15.
\ KE
\ =
(а | |
a 171
Figure 7
1. Scraper
3. Remove (2) flange bolts and washers securing
ends of scraper to side plates (Fig. 8). Reinstall bolts
NÓ
/
/
|
2“
UN
y.
474
Figure 8
1. Flange bolts 3. Flat washers
2. Skid 4. Locknut
5. Sideplate
4. Install (2) flange bolts thru front slots in skids and
thru sideplates. Install flat washers and locknuts on
inside of sideplates. Do not tighten bolts.
Note: The following steps adjust the skids for paved
surfaces. For gravel or crushed rock surfaces, refer
to Adjusting Skids, page 15.
5. Manually move wheels to the rear Power Shift
position by lifting up on handles and moving the shift
control fully forward to Power Shift position (Fig. 9).
Figure 9
6. Support the scraper to be 1/8 inch above a level
surface if the snowthrower is to be used on smooth
avement. |
Note: The scraper should be higher than 1/8 inch
above the pavement if the pavement surfaces are
cracked, rough or uneven.
7. Move the skids down to sit flat on the ground
and tighten the (4) flange bolts securing both skids
to the auger side plates.
EN-9
ASSEMBLY INSTRUCTIONS
CHECK AUGER GEAR BOX OIL (Fig. 10)
1. Move snowthrower to a level surface.
2. Clean area around pipe plug so dirt is removed.
3. Remove pipe plug from gear box.
4. Check oil level in gear box. Oil must be at point
of overflowing in filler opening.
5. If level of oil is low, add GL—5 or GL—6 SAE
85— 95 EP transmission oil to the gear box until point
of overflow.
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
Pp
X
\
)
\
Y
171
Figure 10
1. Pipe plug
BEFORE OPERATING
FILL CRANKCASE WITH OIL (Fig. 11)
The engine is shipped from the factory without oil in
the crankcase. Therefore, before starting the engine,
oil must be added to the crankcase.
IMPORTANT: Check level of oil every 5 operating
hours or each time unit is used. Initially, change
oil after the first 2 hours of operation; thereafter,
under normal conditions, change oil after every
25 hours of operation or annually, whichever
comes first.
1. Move unit to a level surface to ensure an accu-
rate oil level reading.
2. Clean area around dipstick to prevent foreign
matter from entering filler hole when dipstick is re-
moved.
3. Remove dipstick from crankcase.
4. Slowly pour SAE 5W—-30 or SAE 10 oil into the
filler hole, using the filler chart below. The engine
uses any high—quality detergent oil having the
American Petroleum Institute (API) “service classifi-
cation”—SE, SF or SG.
Note: Dipstick must be fully installed to ensure accu-
rate gauging of oil level. DO NOT OVERFILL.
OIL FILL CHART
824 & 1028 Snowthrowers 24 ounces of ail
EN-10
Figure 11
1. Dipstick 2. Filler hole. 3. Fuel tank cap
BEFORE OPERATING
A WARNING
DANGER: Because gasoline is flammable, caution must be used when storing or handling it. Do not
fill fuel tank while engine is running, hot, or when unit is in an enclosed area. Keep away from open
flame and electrical spark. DO NOT SMOKE while filling the fuel tank to prevent the possibility of an
explosion. Always fill fuel tank outside and wipe up any spilled gasoline before starting engine. Use
a funnel or spout to prevent spilling gasoline. Do not fill tank full. Fill fuel tank to about 1/4 ” to 1/2”
(6 to 13 mm) from the top of the tank, not into the filler neck. This space is for expansion of fuel.
Store gasoline in a clean, approved container and keep the cap in place on the container. Keep
gasoline in a cool, well-ventilated place—never in the house. To assure volatility, do not buy more
- than a 30 day supply of gasoline. Gasoline is a fuel for internal combustion engines. Therefore, do
not use it for any other purpose. Since many children like the smell of gasoline, keep it out of their
reach because the fumes are explosive and dangerous to inhale.
FILL FUEL TANK WITH GASOLINE
THE TORO COMPANY STRONGLY RECOMMENDS
THE USE OF CLEAN, FRESH UNLEADED REGU-
LAR GASOLINE IN TORO GASOLINE POWERED
PRODUCTS. UNLEADED GASOLINE BURNS
CLEANER, EXTENDS ENGINE LIFE, AND PRO-
MOTES GOOD STARTING BY REDUCING THE BUIL-
DUP OF COMBUSTION CHAMBER DEPOSITS.
LEADED GASOLINE CAN BE USED IF UNLEADED
IS NOT AVAILABLE. |
IMPORTANT: NEVER USE METHANOL, GASO-
LINE CONTAINING METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, PREMIUM
GASOLINE, OR WHITE GAS BECAUSE ENGINE
FUEL SYSTEM DAMAGE COULD RESULT.
Toro also recommends that Toro Stabilizer/Condition-
er be used regularly in all Toro gasoline powered
products during operation and storage seasons.
Toro Stabilizer/Conditioner cleans the engine during
operation and prevents gum—like varnish deposits
from forming in the engine during periods of storage.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO'S STA-
BILIZER/CONDITIONER OR A SIMILAR PROD-
UCT. TORO’S STABILIZER/CONDITIONER IS A
PETROLEUM DISTILLATE BASED CONDITIONER/
STABILIZER. TORO DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE SUCH
AS ETHANOL, METHANOL OR ISOPROPYL. AD-
DITIVES SHOULD NOT BE USED TO TRY TO EN-
HANCE THE POWER OR PERFORMANCE OF MA-
CHINE.
1. Clean area around the fuel tank cap (Fig. 11).
Remove cap from fuel tank. Using unleaded, regular
gasoline, fill tank to within 1/4” to 1/2”
(6 to 13 mm) from the top of the tank, not into the
filler neck. This space is for expansion of fuel. Do not
fill tank full. Reinstall fuel tank cap.
Fuel tank capacity is 4 quarts.
CONTROLS
Auger/Impeller Control (Fig. 12)—Control has two
positions: ENGAGE and DISENGAGE. To engage
both auger and impeller, compress lever against
right handle grip. To disengage, release lever.
Traction Drive Control (Fig. 12)—To engage traction
(wheel drive) or activate power shift system, lever
must be compressed against left handle grip. To
stop traction, release lever.
Speed Shift Control (Fig. 12)—The control has a
neutral position, four speeds forward and two re-
verse, and also controls power shifting of wheels. To
select speeds, move shift control to desired position.
Note: When shifting gears into or out of reverse or
when using the Power Shift feature, the traction drive
control must be released. On—the—go shifting may
be accomplished between any of the forward speeds
without releasing the traction drive control.
Auger Lock—Up (Fig. 12)—When the auger/impel-
ler control and traction drive control are both com-
pressed, the traction control locks the auger/impeller
control down. Releasing the traction control releases
the auger/impeller control.
Discharge Chute Control (Fig. 12)—Rotate dis-
charge chute control clockwise to move discharge
chute to the right and counterclockwise to move
chute to the left. |
Ignition Switch (Fig. 12)—Switch has two positions:
ON and OFF. Rotate key to ON position before start-
ing engine. To stop engine, rotate key to OFF.
EN-11
CONTROLS
Figure 14
1. Fuel shut-off valve
Figure 12 |
1. Auger/impeller control 3. Speed shift control Deflector Handle (Fig. 15)—Deflector handle on top
2. Traction drive 4. Ignition switch of discharge chute is used to control the height of
control 5. Discharge chute control the snow stream.
Throttle (Fig. 13)—Move throttle upward to increase
the engine speed.
Choke (Fig. 13)—Rotate choke to ON position to
start a cold engine. As engine warms up, rotate
choke gradually to OFF.
176
Figure 15
1. Deflector handle 2. Discharge chute
Recoil Starter (Fig. 16) —Recoil starter is on back
side of engine. Pull recoil starter to start engine.
935
Figure 13
1. Throttle 2. Choke 3. Primer
Primer (Fig. 13) —Press primer to pump a small
amount of gasoline into engine for improved cold
weather starting. |
Fuel Shut—Off Valve (Fig. 14)—Valve is located un-
der fuel tank. Close valve to stop fuel flow from fuel
tank and open valve to allow fuel to flow to the car-
buretor. Close valve when snowthrower is not used. 1. Recoil starter
Figure 16
EN-12
STARTING/STOPPING INSTRUCTIONS
TO START ENGINE
Note: If engine is operated when temperature is
+40° F (4° C) or higher, remove carburetor heater
box. However, the heater box (Fig. 17) must be rein-
stalled when temperature falls below +40° F (4° C).
To remove heater box:
937
Figure 17
1. Mounting screw 2. Heater box
A. Remove (2) mounting screws securing heater box
in place. Grasp choke knob and pull it off mount-
ing pin.
B. Lift heater box up and away from the engine, and
reinstall choke knob on mounting pin.
IMPORTANT: Check auger and impeller to ensure
that both parts are not frozen, but free to rotate.
Also, make sure discharge chute is not obstructed.
USE A STICK, NOT YOUR HAND, TO REMOVE
ANY OBSTRUCTIONS.
1. Move speed shift control to N (neutral) and throt-
tle to FAST (Fig. 12).
2. Ensure that auger/impeller control and traction
drive control are in disengaged position.
3. Open fuel shut—off valve below fuel tank
(Fig. 14).
4. Move choke to ON choke position (Fig. 13).
5. Rotate ignition key to ON (Fig. 12).
6. Cover hole in center of primer with thumb and
push primer three times slowly. DO NOT PRIME IF
THE ENGINE HAS BEEN RUNNING AND IS HOT.
Note: Excessive priming may cause flooding of en-
gine and failure to start.
7. Grasp recoil starter handle (Fig. 16) and pull it
out slowly until positive engagement results; then
pull vigorously to start the engine. Keep firm grip on
starter handle and return the rope slowly.
Note: If engine does not start or if temperature is
—10° F or below, additional priming may be re-
quired. After each additional prime, try to start the
engine before priming again.
8. After engine starts, immediately move choke
(Fig. 13) to 3/4 position. As engine warms up, move
choke to 1/2 position; then to OFF position. If engine
falters, return choke to 1/2 position. When engine
warms sufficiently, move choke to OFF position.
BEFORE STOPPING ENGINE
1. Engage auger to clear any remaining snow from
inside the housing.
2. Run engine for a few minutes to help dry off any
moisture which may have accumulated on engine.
3. With engine running, pull recoil starter with a
rapid, continuous full arm stroke three or four times.
This helps prevent possible freeze—up of recoil
starter due to extreme snow blowing conditions.
Note: Pulling of recoil starter rope produces a loud,
clattering sound. This is not harmful to the engine or
the starter.
TO STOP ENGINE
1. Release traction and auger/impeller drive con-
trols (Fig. 12).
2. Move throttle to slow and rotate ignition key to
OFF.
3. Wait for all moving parts to stop before leaving
‘the operator’s position (behind the handles).
EN-13
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION FREE WHEELING OR SELF—-PROPELLED
a DRIVE
Wheels will shift forward (or rearward) with every oth-
er movement of the shift control. The snowthrower can be free wheeled or engaged
for self—propelled operation. There are two holes in
Move wheels to the rear Power Shift position in each end of the axle. When axle pins are thru outer
heavy and/or drifted snow. axle holes and not thru wheel hub (Fig. 20),
snowthrower free wheels. By contrast, when both
pins are installed thru holes in wheel hub and inner
hole of axle (Fig. 20), snowthrower propels itself.
Leave wheels in the front position for light snow or
for transporting snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear position, move
shift control fully forward to Power Shift position and
hold (Fig. 18). | |
3. Fully engage traction drive lever to move wheels
into alternate position (Figs. 18 & 19).
Note: When power shifting it may be necessary to
slightly raise handle to assist wheel movement.
Note: To shift wheels manually if engine is not run-
ning, follow steps 1 and 2 and then lift up on handles
to unlock wheels.
| Figure 20
1. Axle pin 3. Outer axle hole and
2. Inner axle hole | wheel hub -
SNOWTHROWING TIPS
1. When snowthrower is not being used, close fuel
shut—off valve and remove key from the switch.
2. Remove snow as soon as possible after it falls.
This produces best snow removal results.
3. When in the rear Power Shift position, push
down on handles to increase traction if necessary.
4, Discharge snow downwind whenever possible,
and overlap each swath to ensure complete snow
removal. If wheels slip, shift into a lower gear to re-
duce forward speed.
5. In some snow and cold weather conditions,
some controls and moving paris may freeze. There-
fore, when any control becomes hard to operate,
stop the engine and wait for all moving parts to stop;
then check all parts for freeze up. DO NOT USE EX-
CESSIVE FORCE AND TRY TO OPERATE THE CON-
TROLS WHEN FROZEN. Free all controls and mov-
ing parts before operating. -
6. Adjust skids to match the type of surface being
cleaned. Refer to Adjusting Skids, page 15.
7. Run snowthrower for a few minutes after clearing
snow so moving parts do not freeze. Engage auger
Figure 19 to clear any remaining snow from inside housing.
8. Do not overload snowthrower by clearing snow
Note: If wheels do not move in desired direction at too fast a rate. If engine slows down, shift to a low-
when power shifting, repeat procedure. er gear to reduce forward speed.
EN-14
OPERATING INSTRUCTIONS
9. Move wheels to the rear Power Shift position and
shift to a lower gear in heavy and/or drifted snow to
prevent the auger housing from riding up over the
snow.
10. Always use full throttle (maximum engine speed)
when throwing snow. |
11. In wet or slushy conditions, clogging of the dis-
charge chute will be reduced by maintaining maxi-
mum engine speed and by not overloading the en-
gine.
dA Dancer
e ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS. STAY
BEHIND THE HANDLES AND AWAY FROM
DISCHARGE OPENING WHILE OPERATING
THE SNOWTHROWER. KEEP FACE, HANDS,
FEET AND ANY OTHER PART OF YOUR BODY
OR CLOTHING AWAY FROM CONCEALED,
MOVING OR ROTATING PARTS.
e BEFORE ADJUSTING, CLEANING, REPAIR-
ING AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DIS-
CHARGE CHUTE, SHUT ENGINE OFF AND
WAIT FOR ALL MOVING PARTS TO STOP.
ALSO, PULL WIRE OFF SPARK PLUG AND
KEEP WIRE AWAY FROM THE PLUG TO PRE-
VENT ACCIDENTAL STARTING. USE A STICK,
NOT YOUR HANDS, TO REMOVE OBSTRUC-
TIONS FROM DISCHARGE CHUTE. |
ADJUSTING SCRAPER (Fig. 21)
Adjust the scraper to compensate for wear and to
ensure that the auger does not contact the pave-
ment.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Check the tire pressure in both tires. Make sure
that they are both inflated equally between 7 and 15
psi. |
| nS
3. Move the snowthrower onto a flat surface and
shift the wheels to the FRONT position.
4. Loosen the (4) flange bolts securing both skids
to the auger side plates.
5. Next, loosen the carriage bolts securing the
scraper to the auger housing.
6. Support the auger blades so that the auger is
1/8 — 1/4 inch off the ground.
7. Move the scraper so that it contacts the flat sur-
face all the way across, then tighten the two rear
flanged cap screws securing scraper and skids to
the side plates. This temporarily locks the scraper in
the proper position so that the remainder of the fas-
teners can be tightened without affecting adjust-
ment. |
8. Secure the scraper using carriage bolts and ny-
lon locknuts. |
9. Adjust the skids; refer to Adjusting Skids,
page 15.
ADJUSTING SKIDS (Fig. 22)
FOR CONCRETE OR ASPHALT SURFACES
If the snowthrower is not cleaning up the snow close
enough to the pavement, adjust the skids to lower
the scraper.
If the scraper catches on cracks in the pavement,
adjust the skids to raise the scraper.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Loosen the (4) flange bolts securing both skids
to the auger side plates. | -
474
Figure 21
1. Scraper 2. Carriage bolt 3. Auger blades
Figure 22
1. Flange bolts 2. Skid
EN-15
OPERATING INSTRUCTIONS
3. Check scraper adjustment to ensure that the
auger does not contact the pavement; refer to Ad-
justing Scraper, page 15.
4. Move the wheels to the REAR Power Shift posi-
tion. |
5. Support the scraper to be 1/8 inch above a level
surface if the snowthrower is to be used on smooth
avement.
Note: The scraper should be higher than 3/16 inch
above the pavement if the pavement surfaces are
cracked, rough or uneven.
6. Move the skids down to sit flat on the ground
and tighten the (4) flange bolts securing both skids
to the auger side plates.
FOR GRAVEL SURFACES
For gravel or crushed rock surfaces, adjust the skids
to prevent picking up rocks.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Loosen the (4) flange bolts securing both skids
to auger side plates. Next, slide skids down as far as
possible so auger will be supported as far from the
level surface as skid adjustment allows: then tighten
flange bolts.
ADJUSTING HEADLIGHT
1. Rotate headlight to desired position. If light is
difficult to move, loosen locknut (Fig. 23).
2. If necessary, tighten locknut to secure headlight
in place.
3. To turn on headlight, push button switch on top
of light (Fig. 23).
906
Figure 23
1. Headlight 2. Locknut 3. Button switch
MAINTENANCE
ÁN WARNING
To prevent accidental starting of the engine
while performing maintenance, rotate ignition
key to off and remove it from the switch. Next,
pull wire off spark plug and make sure wire
does not accidentally touch the plug.
DRAINING GASOLINE
1. Close fuel shut-off valve located under fuel tank
(Fig. 24).
AN WaRnING
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to pre-
vent a potential fire hazard. Wipe up any gaso-
line that may have spilled. Do not drain gaso-
line near any open flame or where gasoline
fumes may be ignited by a spark. DO NOT
SMOKE a cigar, cigarette or pipe when han-
dling gasoline.
EN-16
Figure 24
1. Fuel shut-off valve 2. Hose clamp 3. Fuel line
2. Place a clean drain pan under shut—off valve.
3. Loosen hose clamps securing fuel line to valve
and slide line off valve (Fig. 24).
4. Open valve allowing fuel to flow into drain pan.
5. Reinstall fuel line and secure with hose clamp.
MAINTENANCE
LUBRICATING SNOWTHROWER
1. Annually lubricate drive chain with chain lubri-
cant (Fig. 25). Wipe up any excess oil.
Figure 25
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 26)
Initially, change oil after the first 2 hours of engine
operation; thereafter, change oil after every 25 hours
of engine operation or annually. If possible, run en-
gine just before changing oil because warm oil flows
better and carries more contaminants than cold oil.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Clean area around oil drain cap. Next, slide oil
drain pan below drain extension; then remove oil
drain cap.
Figure 26
1. Drain cap
3. After all oil is drained, reinstall oil drain cap se-
curely.
4. Position snowthrower on a level surface. Next, fill
crankcase with oil: see Fill Crankcase With Oil, page
10. Wipe up any oil that may have spilled.
AUGER GEAR BOX OIL (Fig. 27)
The auger gear box oil level must be checked at set-
up, after every 10 hours of use, and upon removal
from annual storage. To check the auger gear box
oil level:
1. Position snowthrower on a level surface.
2. Clean area around pipe plug so dirt is removed.
3. Remove pipe plug from gear box (Fig. 27).
N.
\ i
4
Figure 27
1. Pipe plug
4. Check level of oil in gear box. Oil must be at
point of overflowing in filler opening.
5. lIflevel of oil is low, add GL-—5 or GL-—6 SAE
85—95 EP transmission oil to the gear box until point
of overflow. |
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
ADJUSTING AUGER/IMPELLER DRIVE
BELT (Figs. 28—31)
If auger/impeller belt slips, resulting in decreased
snowthrowing performance, an adjustment is re-
quired. WHENEVER A NEW BELT IS INSTALLED,
AN ADJUSTMENT IS REQUIRED. USE ONLY GEN-
UINE TORO REPLACEMENT PARTS.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Remove (3) flange head capscrews securing belt
cover to engine frame and slide belt cover up cables
(Fig. 28). |
EN-17
MAINTENANCE
166
Figure 28
3. Flange head
capscrew (3)
1. Upper belt cover
2. Cable cover
3. Depress the auger/impeller control lever on the
right hand grip. Hold the lever and insert a .010” (.25
mm) feeler gauge between a coil in the center of the
spring (Fig. 29). Adjust the cable to achieve .010”
(.25 mm) gap between the coils.
Figure 30
1. Auger/impelier cable
(outer cable)
3. Mounting bracket
4. Jam nut
2. Traction cable
(inner cable)
5. Rotate bottom jam nut upward to increase belt
tension.
6. Tighten upper jam nut against bracket.
7. Recheck idler adjustment: refer to step 3.
8. Check impeller brake arm clearance by releasing
the auger/impeller lever. With the lever released,
there should be more than 1/8” clearance between
tab on impeller idler arm and brake arm (Fig. 31). If
there is less than 1/8” clearance, belt must be
replaced.
A DANGER
Figure 29
1. Feeler gauge 2. Center of spring
4. Loosen upper jam nut securing auger/impeller
cable to mounting bracket (Fig. 30).
EN-18
e IMPROPER ADJUSTMENT MAY CAUSE IN-
JURY IF AUGER/IMPELLER TURNS WHEN DIS-
ENGAGED.
¢ ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS.
e KEEP FACE, HANDS, FEET AND ANY OTHER
PART OF YOUR BODY OR CLOTHING AWAY
FROM CONCEALED, MOVING OR ROTATING
PARTS.
e MAKE CERTAIN THAT IMPELLER BRAKE
ARM CLEARANCE IS MAINTAINED. |
e DO NOT ADJUST THE AUGER/IMPELLER
DRIVE BELT TOO TIGHT BECAUSE IT MAY
CAUSE THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS IN THE DIS-
ENGAGED POSITION. IF THIS OCCURS, DE-
CREASE BELT TENSION.
9. Reinstall belt cover and cable cover.
MAINTENANCE
10. Check tension of belt by operating the auger. If
belt still slips, replace the belt.
Figure 31
1. Impeller idler arm 2. Brake arm
ADJUSTING TRACTION DRIVE BELT
(Fig. 30)
If the wheels do not turn when the traction lever is
depressed, the traction belt tension should be in-
creased. Whenever the belt is replaced, an adjust-
ment is required.
1. Loosen upper jam nut securing traction cable to
mounting bracket.
2. Rotate bottom jam nut upward to increase belt
tension.
Note: When adjusting cable, always rotate nut one
full turn at a time. |
3. Tighten upper jam nut against bracket.
4. Check tension of belt by operating machine. Ma-
chine should begin to move forward when traction
lever is depressed approximately halfway down to-
ward handle grip. Turn engine off and repeat steps
until proper adjustment is achieved.
IMPORTANT: Do not adjust the belt too tight be-
cause it may cause snowthrower to creep when
traction lever is In disengaged position. If this oc-
curs, decrease belt tension. |
REPLACING DRIVE BELTS (Fig. 32)
If auger/impeller belt or traction belt becomes worn,
glazed, stretched, oil—-soaked or otherwise defec-
tive, belt replacement is required.
1. Pull wire off spark plug and make sure it does
not contact the plug accidentally.
2. Remove (3) flange head capscrews holding belt
cover in place, and slide belt cover up cables (Fig.
28).
3. Move speed shift control to N (neutral).
4. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove idler
pulley assembly.
0
<< SATA
В |/®
Figure 32
1. Idler pulley assembly
2. Flange head capscrews (2) Traction belt
3. Capscrew & lockwasher 7. Middle pulley
4. Half sheave section
8. Idler pulley (2)
Auger/impeller belt
ол
5. Remove capscrew and lockwasher securing half
sheave to front of pulley assembly.
6. Slide half sheave and auger/impeller belt off
crankshaft and remove belt from impeller pulley.
7. If replacing traction belt, slide middle pulley sec-
tion and belt off crankshaft and remove belt from
transmission pulley. |
8. On control cable which corresponds to belt be-
ing replaced, loosen jam nuts securing cable to
bracket (Fig. 30). Cable must be free to slide in
bracket when changing belt(s).
9. Reinstall belts by reversing procedure. Make
sure tabs in half sheave are inserted into mount-
ing grooves in middle pulley section when rein-
stalling.
Note: Make sure idler pulleys are aligned with belts
when reinstalling idler pulley assembly.
10. Readjust belts, refer to Adjusting Auger/Impeller
Drive Belt or Adjusting Traction Drive Belt.
EN-19
MAINTENANCE
A DANGER
e IMPROPER ADJUSTMENT MAY CAUSE IN-
JURY IF AUGER/IMPELLER TURNS WHEN DIS-
ENGAGED.
e ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS.
e KEEP FACE, HANDS, FEET AND ANY OTHER
PART OF YOUR BODY OR CLOTHING AWAY
"FROM CONCEALED, MOVING OR ROTATING
PARTS. |
e MAKE CERTAIN THAT IMPELLER BRAKE
ARM CLEARANCE IS MAINTAINED.
® DO NOT ADJUST THE AUGER/IMPELLER
DRIVE BELT TOO TIGHT BECAUSE IT MAY
CAUSE THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS IN THE DIS-
ENGAGED POSITION. IF THIS OCCURS, DE-
Figure 34
1. Transmission 2. Transmission frame
4. Loosen (4) flange head capscrews (2 each side)
securing transmission frame to engine frame
(Fig. 35).
CREASE BELT TENSION.
ADJUSTING DRIVE CHAIN (Fig. 33-35)
The drive chain must be adjusted to maintain
1/8—3/8 of an inch deflection mid span between
transmission and axle sprocket. Check chain deflec-
tion after every 25 hours of operation.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Make sure wheels are positioned in rear position,
move shift control into 2nd gear, and tip
snowthrower up onto front edge of auger housing.
1/8” _ 3/8”
DEFLECTION ee
Figure 33
IMPORTANT: To adjust drive chain, the
snowthrower must be tipped up on front edge of
auger housing. However, before the snowthrower
is tipped, drain all gasoline from fuel tank. Refer
to Draining Gasoline, page 16.
3. Check deflection of chain by lifting up on chain
with moderate pressure at mid span. There should
be 1/8—3/8" deflection. If deflection is not as speci-
fied, an adjustment is required.
EN-20
Figure 35
1. Flange head capscrews
5. Pivot rear of transmission frame until 1/8—3/8”
chain deflection is attained. Retighten flange head
capscrews.
6. Recheck chain deflection.
IMPORTANT: Excessive chain tension may cause
transmission damage.
7. Chain adjustment will affect gearshift lever align-
ment. If gear shift lever is not aligned with Power
Shift slot in control panel (Fig. 36, inset), shift rod
length must be adjusted as follows:
A. Disconnect ball joint from transmission lever and
loosen jam nut.
MAINTENANCE
B. Rotate ball joint up or down until gear shift lever is
aligned with Power Shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
@O— 5 of
O - | ==
MM |
O 167
Figure 36
1. Shift rod 5. Locknut
2. Ball joint 6. Jam nut
3. Shift bracket
4, Transmission lever
7. Gear shift lever
ADJUSTING CARBURETOR (Fig. 37)
The carburetor has been adjusted at the factory, but
an occasional adjustment may be required.
1. Remove carburetor heater box: see To Start En-
gine, paragraph one, steps A & B, page 13.
Note: Skip steps 2 and 3 if the engine will start and
run.
2. Power Adjusting Screw—Close screw by gently
rotating it clockwise until a slight seating resistance
is felt. Next, rotate power adjusting screw 1 full
turn—360°—counterclockwise.
IMPORTANT: Do not close power adjusting screw
or idle mixture screw too tight because the screw
and seat will likely be damaged.
3. Idle Mixture Screw—Close screw by gently rotat-
ing it clockwise until a slight seating resistance is felt.
Next, rotate idle mixture screw 1—1/2 full turns coun-
terclockwise.
936
Figure 37
1. Power adjusting screw 3. Idle speed screw
2. Idle mixture screw
4. Start engine and let it warm up for approximately
3 to 5 minutes; then move throttle to FAST.
AN WaRninG
Engine must be running so final adjustment of
the carburetor can be performed. To guard
against possible personal injury, move auger
drive and wheel drive controls to DISENGAGE,
and remember to keep hands, feet, face, and
other part of your body or clothing away from
muffler, auger, discharge chute, and any mov-
ing part(s).
AN WaRNING
Engine exhaust contains carbon monoxide
which is an odorless, deadly poison. Do not
run engine indoors or in an enclosed area.
5. Rotate power adjusting screw clockwise—
in—1/8 turn at a time until engine misses because of
a lean gasoline mixture. Then rotate screw counter-
clockwise—out—1/8 turn at time until engine runs
unevenly because of a rich gasoline mixture. Next,
rotate power adjusting screw clockwise, back to the
midpoint between the rich and lean setting, so en-
gine runs smoothly.
Note: Wait several seconds between each 1/8 turn
setting so engine can adjust to the new fuel mixture.
6. Move throttle to idle speed. Next, rotate idle |
speed screw until engine idles fast—1750 rpm.
EN-21
MAINTENANCE
7. Rotate idle mixture screw clockwise—in—1/8
turn at a time until engine begins to miss because of
a lean mixture. Then rotate screw counterclock-
wise—out—1/8 turn at a time until engine runs un-
evenly because of rich mixture. Next, rotate idle mix-
ture screw clockwise, back to the mid-point be-
tween rich and lean settings.
Note: Wait several seconds between each 1/8 turn
setting so engine can adjust to the new fuel mixture.
8. Again, rotate idle speed screw until engine idles
at 1750 rpm.
9. Check carburetor adjustment by quickly moving
throttle from low speed to high speed. Engine should
accelerate without hesitation or sputtering. If engine
does not accelerate properly, adjust carburetor to a
slightly richer mixture. Also, if engine falters under
load, open power adjusting screw 1/8 turn counter-
clockwise.
10. After carburetor is adjusted, shut engine off be-
fore replacing carburetor heater box.
REPLACING SPARK PLUG
Use a Champion RJ—19LM spark plug or equivalent.
Set air gap at 0.030” (0.76 mm). Since air gap be-
tween center and side electrodes of the spark plug
increases gradually during normal engine operation,
install a new plug after every 25 hours of engine op-
eration.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when plug is removed.
2. Pull wire off spark plug (Fig. 38) and remove
plug from cylinder head. |
3. Setair gap between electrodes of new spark
plug at 0.030” (0.76 mm) (Fig. 39). Next, install spark
plug in cylinder head. Tighten plug to 15 ft—Ib (20.4
N.m). |
4. Push the wire onto the spark plug.
0.30”
(0.76 mm)
110
/
я =n | -
= zz
"7 7
\
Figure 38
1. Spark plug wire
IMPORTANT: A cracked, fouled or dirty spark
plug must be replaced. Do not sand blast, scrape
or clean electrodes because grit may eventually
release from the plug and fall into the cylinder.
The result will likely be engine damage.
EN-22
Figure 39
PREPARING SNOWTHROWER FOR
STORAGE |
1. For long term storage, either drain gasoline from
fuel tank or use a fuel additive before storing. To
drain gasoline, refer to Draining Gasoline, page 16.
After fuel is drained, start engine and let it idle until
all fuel is consumed and engine stops. Repeat the
starting procedure two more times to assure all gas
is removed from the engine. If gasoline is not
drained, gum—like varnish deposits will form and
cause poor engine operation and starting problems.
Fuel can be left in gas tank only if a fuel additive,
such as Toro’s Stabilizer/Conditioner, is added to
gasoline and run through engine before storing.
Toro’s Stabilizer/Conditioner is a petroleum distillate
based conditioner/stabilizer. Toro does not recom-
mend stabilizers with an alcohol base, such as etha-
nol, methanol or isopropyl. Use fuel additive in rec-
ommended quantities as specified on container.
Under normal conditions, fuel additives remain effec-
tive in fuel for 6—8 months.
2. Remove spark plug from cylinder head. Next,
pour two teaspoons of engine oil into spark plug
hole in cylinder head. Install spark plug in cylinder
head, but do not install wire on the plug. Then pull
recoil starter slowly to distribute oil on inside of cylin-
der.
3. Lubricate the snowthrower: refer to Lubricating
Snowthrower, page 17. Change crankcase oil: see
Changing Crankcase Oil, page 17.
4. Clean the snowthrower. Touch up chipped sur-
faces with paint. Toro Re—Kote paint is available
from an Authorized TORO Service Dealer. Sand af-
fected areas before painting, and use a rust preven-
tative to prevent metal parts from rusting.
5. Tighten all screws and nuts. If any part is dam-
aged, repair or replace it.
6. Store snowthrower in a clean, dry place, and
cover it for protection.
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBER To order replacement parts from an Authorized
TORO Service Dealer, supply the following informa-
tion:
The snowthrower has two identification numbers: a
model number and a serial number. The two num- 1. Model and serial numbers of the snowthrower.
bers are stamped on a decal which is located on
" | | я tit f rt
back of engine mounting plate. In any correspon- 2. Part number, description, and quantity of part(s)
desired.
dence concerning the snowthrower, supply model
and serial numbers to ensure that correct informa- Note: Do not order by reference number if a parts
tion and replacement parts are obtained. catalog is being used; use the PART NUMBER.
TORO SERVICE SUPPORT
If help—concerning safety, set—up, operation, maintenance, or troubleshooting—is ever needed, contact the
local Authorized TORO Service Dealer or Distributor. Refer to the “Yellow Pages” for assistance. In addition to
skilled service technicians, the dealer and distributor have factory approved accessories and replacement
parts. Keep your TORO all TORO. Buy genuine TORO replacement parts and accessories.
'PL-61184 EN-23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
