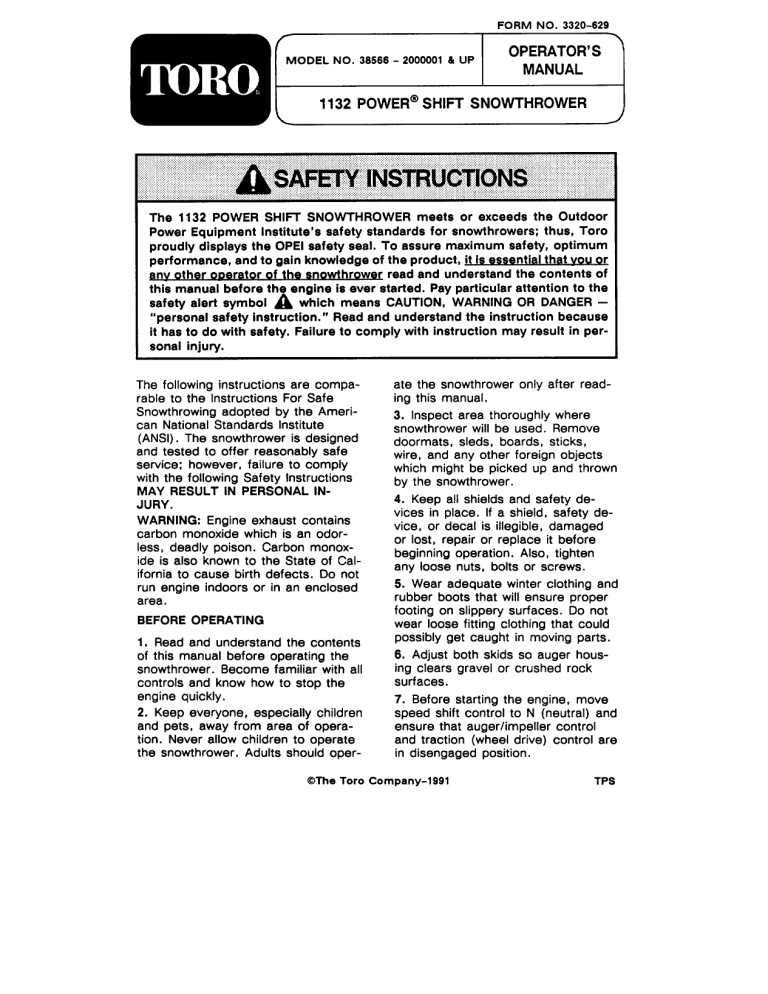

FORM NO. 3320-629
OPERATOR'S
MANUAL
MODEL NO. 38566 - 2000001 4 UP
0 1132 POWER” SHIFT SNOWTHROWER
a.
The 1132 POWER SHIFT SNOWTHROWER meets or exceeds the Outdoor
Power Equipment Institute’s safety standards for snowthrowers; thus, Toro
proudly displays the OPEI safety seal. To assure maximum safety, optimum
performance, and to gain knowledge of the product, it is essential that you or
any other operator of the snowthrower read and understand the contents of
this manual before the engine is ever started. Pay particular attention to the
safety alert symbol which means CAUTION, WARNING OR DANGER —
“personal safety instruction.” Read and understand the instruction because
it has to do with safety. Failure to comply with instruction may result in per-
sonal injury.
The following instructions are compa-
rable to the Instructions For Safe
Snowthrowing adopted by the Ameri-
can National Standards Institute
(ANSI). The snowthrower is designed
and tested to offer reasonably safe
service; however, failure to comply
with the following Safety Instructions
MAY RESULT IN PERSONAL IN-
JURY.
WARNING: Engine exhaust contains
carbon monoxide which is an odor-
less, deadly poison. Carbon monox-
ide is also known to the State of Cal-
ifornia to cause birth defects. Do not
run engine indoors or in an enclosed
area.
BEFORE OPERATING
1. Read and understand the contents
of this manual before operating the
snowthrower. Become familiar with all
controls and know how to stop the
engine quickly.
2. Keep everyone, especially children
and pets, away from area of opera-
tion. Never aliow children to operate
the snowthrower. Adults should oper-
ate the snowthrower only after read-
ing this manual.
3. Inspect area thoroughly where
snowthrower will be used. Remove
doormats, sleds, boards, sticks,
wire, and any other foreign objects
which might be picked up and thrown
by the snowthrower.
4. Keep all shields and safety de-
vices in place. If a shield, safety de-
vice, or decal is illegible, damaged
or lost, repair or replace it before
beginning operation. Also, tighten
any loose nuts, bolts or screws.
5. Wear adequate winter clothing and
rubber boots that will ensure proper
footing on slippery surfaces. Do not
wear loose fitting clothing that could
possibly get caught in moving parts.
6. Adjust both skids so auger hous-
ing clears gravel or crushed rock
surfaces.
7. Before starting the engine, move
speed shift control to N (neutral) and
ensure that auger/impeller control
and traction (wheel drive) control are
in disengaged position.
©The Toro Company-1991 TPS
ÁN SAFETY INSTRUCTIONS
8. Always use a grounded three wire
plug and cord to start snowthrower
equipped with an electric starter. Ex-
tension cord must be connected to a
properly grounded outlet.
9. Fill fuel tank with gasoline before
starting the engine. Avoid spilling any
gasoline. Since gasoline is highly
flammable, handle it carefully. DO
NOT SMOKE WHILE HANDLING
GASOLINE.
A. Use an approved gasoline contain-
er.
B. Fill fuel tank outdoors, not in-
doors. NEVER ADD FUEL TO AN
ENGINE THAT IS RUNNING OR
HOT. Engine must be cool to re-
duce a potential fire hazard.
C. Open doors if engine will be
Started in the garage because ex
haust fumes are dangerous and
could possibly be deadly. Do not
run engine indoors.
D. Wipe up any spilled gasoline. Re-
install gasoline container cap and
snowthrower fuel tank cap se-
curely before starting the engine.
WHILE OPERATING
10. ROTATING IMPE R AUGER
AN F ! Fi
OR HANDS. STAY BEHIND THE
HANDLES AND AWAY FROM DIS-
CHARGE OPENING WHILE OPERAT-
ING THE SNOWTHROWER. KEEP
FACE, HANDS, FEET, AND ANY
OTHER PART OF YOUR BODY OR
CLOTHING AWAY FROM CON-
CEALED, MOVING OR ROTATING
PARTS.
11. BEFORE ADJUSTING, CLEANING,
REPAIRING, AND INSPECTING THE
SNOWTHROWER, AND BEFORE UN-
CLOGGING THE DISCHARGE CHUTE,
SHUT ENGINE OFF AND WAIT FOR
ALL MOVING PARTS TO STOP.
2
ALSO, PULL WIRE OFF SPARK
PLUG AND KEEP WIRE AWAY FROM
THE PLUG TO PREVENT ACCIDEN-
TAL STARTING. USE A STICK, NOT
YOUR HAND, TQ REMOVE QB-
TRUCTIONS FROM DISCHARGE
CHUTE,
12. Before leaving the operator's po-
sition (behind handles), rotate igni-
tion key to OFF and wait for all mov-
ing parts to stop. Remove key from
switch if snowthrower will be left un-
attended.
13. Allow engine to warm up out-
doors before clearing snow.
14. Operate the snowthrower only
when there is good visibility or light.
Always maintain secure footing and
balance and keep a firm grip on the
handles, especially when operating in
reverse. Walk; never run.
15. Be attentive when using the
Snowthrower, and stay alert for holes
in the terrain and other hidden haz-
ards. Be careful when clearing snow
from a gravel drive because stones
could be picked up and thrown if the
skids are not adjusted so auger
housing clears all rocks.
16. Do not make any adjustments
while the engine is running.
17. Never direct discharge of snow
Or operate snowthrower near by-
standers, glass enclosures, automo-
biles and trucks, window wells or a
drop-off without proper adjustment of
the snow chute and deflector angie.
18. Clear snow from slopes by going
up and down, never across the face.
Use caution when changing direc-
tions. Use lower gear and rear wheel
position when Operating on slopes.
Never clear snow from steep slopes.
19. Do not overload the snowthrower
by clearing snow at too fast a rate.
20. DO NOT USE SNOWTHROWER
ON A ROOF.
ÁN SAFETY INSTRUCTIONS
21. If a foreign object is hit or
snowthrower vibrates abnormally,
stop engine by turning key to OFF
and wait for all moving parts to stop.
Pull wire off spark plug and check
snowthrower immediately for possible
damage, an obstruction or loose
parts. Vibration is generally a sign of
trouble. Repair any damage before
restarting engine and operating
snowthrower again.
22. Do not touch engine while it is
running or soon after it is stopped
because the engine will be hot
enough to cause a burn. Do not add
oil or check oil level in crankcase
when engine is running.
23. Never operate snowthrower at
high transport speeds on slippery
surfaces. Use care when backing.
MAINTAINING SNOWTHROWER
24. Perform only those maintenance
instructions described in this manual.
Shut engine off before performing
any maintenance service or adjust-
ment. Additionally, pull wire off spark
plug and keep wire away from plug
to prevent accidental starting. If ma-
jor repairs are ever needed, contact
your local Authorized TORO Service
Dealer for assistance.
25. Keep snowthrower in safe operat-
ing condition by keeping nuts, bolts,
and screws tight. Check engine
mounting bolts frequently to ensure
they are tight.
26. Do not overspeed the engine by
changing governor settings. Recom-
mended maximum engine speed is
3500 rpm. To ensure safety and ac-
curacy, check maximum engine
speed (3500 rpm) with a tachome-
ter.
27. Allow engine to cool before stor-
ing snowthrower in an enclosure such
as a garage or storage shed. NEVER
STORE SNOWTHROWER IN HOUSE
(LIVING AREA) OR BASEMENT BE-
CAUSE GASOLINE AND FUMES ARE
HIGHLY FLAMMABLE, EXPLOSIVE,
AND DANGEROUS IF INHALED. Do
not store snowthrower near any open
flame or where gasoline fumes may
be ignited by a spark.
28. When storing the snowthrower for
an extended time—off season storage
or 30 days—drain gasoline from fuel
tank to prevent a potential hazard.
Store gasoline in a safety-approved
red metal container. Remove key
from ignition switch when storing
snowthrower. Store key in a memo-
rable place.
29. At the time of manufacture, the
snowthrower conformed with or ex-
ceeded OPE! safety standards in ef-
fect for snowthrowers. Therefore, to
ensure best performance and safety,
purchase genuine TORO replacement
parts and accessories to keep the
TORO all TORO. NEVER USE “WILL
FIT” REPLACEMENT PARTS AND
ACCESSORIES. The TORO logo en-
sures genuineness.
30. For safety reasons, use only
those accessories and attachments
recommended by The TORO Com-
pany to ensure continued safety cer-
tification of the product. Using unap-
proved accessories and attachments
could contribute to a potential haz-
ard.
ÁN SAFETY INSTRUCTIONS
HIGH SPEED IMPELLER
AND DISCHARGE CHUTE
LOW SPEED
AA DANGER
AUGER
ALTA:
a - AE ET
пли. Shul ol! GOT TI TEMO ETA
all parts have stopper betyr-
unchegiag ischerge chute
NN J
BEFORE OPERATING
Read and understand the contents of this
manual before operating the snowthrower.
Become familiar with all controls and know
how to stop the engine quickly.
AL SAFETY SYMBOL GLOSSARY
Safety decals and instructions are easily visible to the operator and are lo-
cated near any area of potential danger. Replace any decal that is damaged
or lost.
Safety alert Slow Fast
Keep hands away
Read and understand
operator's manual
A
Hot surface
S o
Y
I
+
a” .
/ \
Stop engine before
leaving operator position
Primer pump
NH €
Choke Choke
on off ` ’
”
Auger/impeller
engaged
sw
E
Traction drive
engaged
Chute direction
Shut off engine before
unciogging discharge chute
Ignition Ignition
on off
Pa =
1
Ya -”
Neutral Engine speed
(Throttle)
h
wo
Ly
Avoid injury from rotating
auger. Keep hands, feet
and clothing away.
ка:
P< um
Disengage
e
+
Reverse
ra
a
у Y
a»
Forward
LOOSE PARTS
Part Qty Use
Flange head capscrew—
5/16-18 x 5/8” Ig.
Lower belt cover
Flange head capscrew—
174-20 x 1/2” |g.
Cable cover
©
Mount Auger Housing, page 8
—
Shift rod
Locknut—3/8-16
install Shift Rod, page 9
Discharge chute Install Discharge Chute, page 9
Worm gear
Gear bracket
Carriage bolt—5/16-18 x 1” lg.
Flat washer
Locknut—5/16
Install Chute Control Gear, page 10
NY [= = + a al aN) a= ON
Skid
Flange head capscrew—
5/16-18 x 1” lg.
Flat washer
Locknut—5/16”
Install Skids, page 10
—^ IN) NO —
Key Use in Ignition Switch
N
Registration card Use to register product with factory
Specifications and design subject to change without notice.
ACCESSORIES
Description Part Number
110 Vac Electric Starter Kit (for Canada only) 37-4630
Tire Chain Kit ( for std. axle: not 63-3040
for use with differential Kit)
Snow Cab 68-9500
Weight Kit (optional with Snow Cab) 74-1190
Drift Breaker 66-7980
12 V Electric Starter Kit 66-7700
Differential Kit 38038
TABLE OF CONTENTS
Page
Safety Instructions ............ 1
Safety Symbol Glossary ......... 5
loose Parts ................... 6
Accessories ..........eeeecee. 6
Assembly Instructions .......... 8
Before Operating .............. 12
Fill Crankcase With Oil ...... 12
Fill Fuel Tank With Gasoline .. 13
Controls coreo 13
Starting and Stopping Instructions 15
Operating Instructions .......... 16
Power Shift Operation ....... 16
Free Wheeling or
Self-Propelled Drive ....... 16
Snowthrowing Tips .......... 16
Adjusting Scraper .......... 17
Adjusting Skids . ............ 18
Page
Adjusting Headlight ......... 19
Maintenance .................. 19
Draining Gasoline .......... 19
Lubricating Snowthrower .... 19
Changing Crankcase Oil ..... 20
Auger Gear Box Oil ......... 20
Adjusting Auger/impeller
Drive Belt ................ 21
Adjusting Traction Drive Belt . 22
Replacing Drive Belts ....... 23
Adjusting Drive Chain ....... 24
Adjusting Carburetor ........ 25
Replacing Spark Plug ....... 26
Preparing Snowthrower for
Storage ................. 26
Identification and Ordering ...... 27
Maintenance Record ........... 28
ASSEMBLY INSTRUCTIONS
Note: Determine left and right sides
of snowthrower by standing in the
normal operating position.
MOUNT AUGER HOUSING (Fig. 1-3)
1. Remove (2) flange head
Ccapscrews securing idler pulley as-
sembly to engine frame. Remove
idler pulley assembly.
2. Align auger housing and engine
frame mounting holes (Fig. 1).
8. Check adjustment of impeller
cable; refer to Adjusting Auger/Im-
peller Drive Belt, page 21.
—
Fs
о
ъ
a
Ve N In =
7 E Й
> "т
10€ | æ
Az (5) Val e
A ry 3)
ties
\ й e °
7 7 A,
/ 7 ES
J 2) o
D ses
Figure 1
1. Auger housing 4. Idler pulley
2. Engine frame assembly
3. Impeller pulley 5. Mounting
screws (2)
3. Route impeller belt around impel-
ler pulley.
4. Secure auger housing to engine
frame with (6) 5/16-18 x 3/4” lg.
flange head capscrews.
5. Reinstall idler pulley assembly.
Make sure idler pulleys are aligned
with belts when reinstalling idler pul-
ley assembly.
6. Tip snowthrower up on front edge
of auger housing.
7. Mount lower belt cover to under-
side of auger housing and engine
frame with (2) 1/4-20 x 1/2" Ig.
flange head capscrews (Fig. 2).
Make sure belt cover mounting tabs
are positioned to rear of engine
frame member.
8
Figure 2
1. Lower belt cover
(shown from bottom)
2. Mounting tabs
3. Flange head capscrew
8. Mount upper belt cover to engine
frame with (3) 1/4-20 x 1/2” Ig.
flange head capscrews (Fig. 3).
| a"
I N
0
=
Figure 3
1. Upper belt cover
2. Cable cover
E
]
Na
v
—
a
O
\
166
3. Flange head
capscrew
ASSEMBLY INSTRUCTIONS
10. Slide cable cover onto cables
and into hole in belt cover.
INSTALL SHIFT ROD (Fig. 4)
1. Insert upper shift rod ball joint
stud through front of shift bracket
and secure with 3/8-16 locknut.
Note: Shift rod should be positioned
with bend rearward.
2. Insert bottom ball joint stud
through right side of transmission
lever and secure with 3/8-16 locknut.
3. Shift into 2nd gear and check shift
rod alignment with Power Shift slot.
Figure 4
Shift rod 5. Locknut
Bail joint 6. Jam nut
. Shift bracket
. Transmission
lever
7. Gear shift lever
8. Power Shift siot
Pa с) № =a
Note: If gear shift lever is not aligned
with Power Shift slot in control panel
(Fig. 4, inset), shift rod length must
be adjusted as follows:
A. Disconnect ball joint from trans-
mission lever and loosen jam nut.
B. Rotate ball joint up or down, until
gear shift lever is aligned with
Power Shift slot.
C. Reinstall ball joint to transmission
lever and tighten jam nut.
INSTALL DISCHARGE CHUTE
(Fig. 5)
Note: Before installing discharge
chute, apply a light coat of low tem-
perature grease to chute ring.
1. Set discharge chute—open side
forward—onto auger discharge open-
ing, sO plastic chute retainers are
positioned on chute ring. Make sure
chute retainer guide pins are inserted
into holes in chute gear.
Figure 5
1. Discharge chute 3. Chute retainer
2. Plastic chute plate
retainer 4. Chute ring
2. Tighten machine screw and lock-
nut, on left side, until chute retainer
plate is positioned against plastic
chute retainer and discharge chute is
secured to chute ring.
ASSEMBLY INSTRUCTIONS
3. Push chute retainers, on right
side, toward discharge chute
(slotted) and tighten machine screw.
4, Make sure chute rotates freely on
ring. If chute binds, move right hand
retainer outward to ease operation.
INSTALL CHUTE CONTROL GEAR
(Fig. 6)
1. Insert the 5/16-18 x 1” Ig. car-
riage bolt into gear bracket mounting
hole.
2. Position worm gear into bracket,
align holes, and insert chute gear rod
through bracket and gear.
\ N
UA 712 |
Whe NS 5
: No” es
\ x A | || Yo
Nn LU 7 о y)
NET
LAN le \
| E \ > NA
|
Figure 6
1. Gear bracket
2. Carriage bolt,
flat washer &
locknut
3. Loosely mount worm gear and
bracket to mounting flange with car-
riage bolt, flat washer, and locknut.
4. Slide worm gear into teeth of
chute gear and tighten locknut.
5. Check operation. Move gear
slightly outward if binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of
tires because they are over-inflated
at the factory for shipping. There-
fore, before the snowthrower is op-
erated, reduce pressure in both
tires to 7-15 psi equally.
INSTALL SKIDS
1. Check tire pressure: refer to
Check Tire Pressure, page 10.
3. Worm gear
4. Chute gear rod
5. Mounting flange
10
2. Move the snowthrower onto a flat
surface and check if scraper (Fig. 7)
is parallel to the ground. If not, ad-
just scraper; refer to Adjusting
Scraper, page 17.
el)
Figure 7
1. Scraper
3. Remove (2) flange bolts and
washers securing ends of scraper to
side plates (Fig. 8). Reinstall bolts
through rear slots in skids. Assemble
both skids so that washers are be-
ween ski nd si lates (Fig. 8).
Do not tighten bolts.
Figure 8
1. Flange bolts 3. Flat washers
2. Skid 4. Locknut
5. Sideplate
4. Install (2) flange bolts thru front
slots in skids and thru sideplates. In-
stall flat washers and locknuts on in-
side of sideplates. Do not tighten
bolts.
ASSEMBLY INSTRUCTIONS
Note: The following steps adjust the
skids for paved surfaces. For gravel
or crushed rock surfaces, refer to
Adjusting Skids, page 18.
5. Manually move wheels to the rear
Power Shift position by lifting up on
handles and moving the shift control
fully forward to Power Shift position
(Fig. 9).
bolts securing both skids to the au-
ger side plates.
CHECK AUGER GEAR BOX OIL
(Fig. 10)
1. Move snowthrower to a level sur-
face.
2. Clean area around pipe plug so
dirt is removed.
3. Remove pipe plug from gear box.
4. Check oil level in gear box. Oil
must be at point of overflowing in
filler opening.
5. If level of oil is low, add GL-5 or
GL-6 SAE 85-95 EP transmission oil
to the gear box until point of over-
flow.
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
Figure 9
6. Support the scraper to be 1/8
inch above a level surface if the
snowthrower is to be used on
smooth pavement.
Note: The scraper should be higher
than 1/8 inch above the pavement if
the pavement surfaces are cracked,
rough or uneven.
7. Move the skids down to sit flat on
the ground and tighten the (4) flange
Figure 10
1. Pipe plug
11
BEFORE OPERATING
FILL CRANKCASE WITH OIL Oil Fill Chart
(Fig. 11)
The engine is shipped from the fac-
tory without oil in the crankcase.
Therefore, before trying to start the
1132 Snowthrower 48 ounces of oil
engine, oil must be added to the Note: Dipstick must be fully installed
crankcase. to ensure accurate gauging of oil
IMPORTANT: Check level of oil level. DO NOT OVERFILL.
every 5 operating hours or each
time unit is used. Initially, change
oil after the first 2 hours of opera-
tion; thereafter, under normal con-
ditions, change oil after every 25
hours of operation or annually,
whichever comes first.
1. Move unit to a level surface to en-
sure an accurate oil level reading.
2. Clean area around dipstick to pre-
vent foreign matter from entering
filler hole when dipstick is removed.
3. Remove dipstick from crankcase.
4. Slowly pour SAE 5W-30 or SAE 10
oil into the filler hole, using the fol- DN
lowing oil fill chart. The engine uses Figure 11
any high-quality detergent oil having
the American Petroleum Institute
(API) “service classification” —SE, SF
or Sa.
1. Dipstick 3. Fuel tank cap
2. Filler hole
DANGER: Because gasoline is flammable, caution must be used when storing
or handling it. Do not fill fuel tank while engine is running, hot, or when unit
is in an enclosed area. Keep away from open flame and electrical spark. DO
NOT SMOKE while filling the fuel tank to prevent the possibility of an explo-
sion. Always fill fuel tank outside and wipe up any spilled gasoline before
starting engine. Use a funnel or spout to prevent spilling gasoline. Do not fill
tank full. Fill fuel tank to about 1/4 ” to 1/2” (6 to 13 mm) from the top of
the tank, not into the filler neck. This space is for expansion of fuel.
Store gasoline in a clean, approved container and keep the cap in place on
the container. Keep gasoline in a cool, well-ventilated place—never in the
house. To assure volatility, do not buy more than a 30 day supply of gaso-
line. Gasoline is a fuel for internal combustion engines. Therefore, do not
use it for any other purpose. Since many children like the smell of gasoline,
keep it out of their reach because the fumes are explosive and dangerous to
inhale.
12
BEFORE OPERATING
FILL FUEL TANK WITH GASOLINE
THE TORO COMPANY STRONGLY
RECOMMENDS THE USE OF CLEAN,
FRESH UNLEADED REGULAR GASO-
LINE IN TORO GASOLINE POWERED
PRODUCTS. UNLEADED GASOLINE
BURNS CLEANER, EXTENDS ENGINE
LIFE, AND PROMOTES GOOD START-
ING BY REDUCING THE BUILDUP OF
COMBUSTION CHAMBER DEPOSITS.
LEADED GASOLINE CAN BE USED IF
UNLEADED IS NOT AVAILABLE.
IMPORTANT: NEVER USE METHA-
NOL, GASOLINE CONTAINING
METHANOL, GASOHOL CONTAINING
MORE THAN 10% ETHANOL, PRE-
MIUM GASOLINE, OR WHITE GAS
BECAUSE ENGINE FUEL SYSTEM
DAMAGE COULD RESULT.
Toro also recommends that Toro Sta-
bilizer/Conditioner be used regularly
in all Toro gasoline powered products
during operation and storage sea-
sons. Toro Stabilizer/Conditioner
cleans the engine during operation
and prevents gum-like varnish de-
posits from forming in the engine
during periods of storage.
DO NOT USE FUEL ADDITIVES
OTHER THAN THOSE MANUFAC-
TURED FOR FUEL STABILIZATION
DURING STORAGE SUCH AS
TORO'S STABILIZER/CONDITIONER
OR A SIMILAR PRODUCT. TORO'S
STABILIZER/CONDITIONER IS A PE-
TROLEUM DISTILLATE BASED CON-
DITIONER/STABILIZER. TORO DOES
NOT RECOMMEND STABILIZERS
WITH AN ALCOHOL BASE SUCH AS
ETHANOL, METHANOL OR ISOPRO-
PYL. ADDITIVES SHOULD NOT BE
USED TO TRY TO ENHANCE THE
POWER OR PERFORMANCE OF MA-
CHINE.
1. Clean area around the fuel tank
cap (Fig. 11). Remove cap from fuel
tank. Using unleaded, regular gaso-
line, fill tank to within 1/4” to 1/2”
(6 to 13 mm) from the top of the
tank, not into the filler neck. This
space is for expansion of fuel. Do
not fill tank full. Reinstall fuel tank
cap.
Fuel tank capacity is 4 quarts.
CONTROLS
Auger/impelier Control
(Fig. 12) Control has two positions:
ENGAGE and DISENGACE. To engage
both auger and impeller, compress
lever against right handle grip. To
disengage, release lever.
Traction Drive Control (Fig. 12)—To
engage traction (wheel drive) or acti-
vate power shift system, lever must
be compressed against left handle
grip. To stop traction, release lever.
Speed Shift Control (Fig. 12)—The
control has a neutral position, four
speeds forward and two reverse and
also controls power shifting of
wheels. To select speeds, move shift
control to desired position.
1. Auger/impelier 3. Speed shift
control control
2. Traction drive 4. Ignition switch
control 5. Discharge chute
control
13
CONTROLS
Note: When shifting gears into or out
of reverse or when using the Power
Shift feature, the traction drive con-
trol must be released. On-the-go
shifting may be accomplished be-
tween any of the forward speeds
without releasing the traction drive
control.
Auger Lock-Up (Fig. 12)—When
auger/impeller control and traction
drive control are both compressed,
the traction control locks the auger/
impeller control down. Releasing the
traction control releases the auger/
impeller control.
Discharge Chute Control
(Fig. 12)—Rotate discharge chute
control clockwise to move discharge
chute to the right and counterclock-
wise to move chute to the left.
Ignition Switch (Fig. 12) —Switch has
two positions: ON and OFF. Rotate
key to ON position before starting en-
gine. To stop engine, rotate key to
OFF.
Throttle (Fig. 13)—Pulling the throttle
upward increases the engine speed.
174
Figure 13
2. Choke 3. Primer
Choke (Fig. 13)—Choke is located on
left side of engine. Push choke down
1. Throttle
14
to FULL choke position to start a cold
engine. As engine warms up, move
choke up gradually to OFF.
Primer (Fig. 13)—Press primer to
pump small amount of gasoline into
engine for improved cold weather
starting.
Fuel Shut-Off Valve (Fig. 14)—Valve
is located under fuel tank. Close
valve to stop fuel flow from fuel tank
and open valve to allow fuel to flow
to the carburetor. Close valve when
snowthrower is not used.
Figure 14
1. Fuel shut-off valve
Deflector Handle (Fig. 15)—Deflector
handle on top of discharge chute is
used to control the height of the
snow stream.
\
|
Figure 15
176
1. Deflector handle 2. Discharge chute
CONTROLS
Recoil Starter (Fig. 16) —Recoil
starter is on back side of engine. Pull
recoil starter to start engine.
Figure 16
1. Recoil starter
STARTING/STOPPING INSTRUCTIONS
TO START ENGINE
IMPORTANT: Check auger and im-
peller to ensure that both parts are
not frozen, but free to rotate. Also,
make sure discharge chute is not ob-
structed. USE A STICK, NOT YOUR
HAND, TO REMOVE ANY OBSTRUC-
TIONS.
1. Move speed shift control to N
(neutral) and throttle to FAST
(Fig. 12).
2. Ensure that auger/impeller control
and traction drive control are in dis-
engaged position.
3. Open fuel shut-off valve below
fuel tank (Fig. 14).
4. Move choke to ON choke position
(Fig. 13).
5. Rotate ignition key to ON
(Fig. 12).
6. Depress primer (Fig. 13) five
times.
7. Grasp recoil starter handle
(Fig. 16) and pull it out slowly until
positive engagement results; then
pull vigorously to start the engine.
Keep firm grip on starter handle and
return the rope slowly.
Note: If engine does not start or if
temperature is -10° F or below, ad-
ditional priming may be required. Af-
ter each additional prime, try to start
the engine before priming again.
8. After engine starts, immediately
move choke (Fig. 13) to 3/4 posi-
tion. As engine warms up, move
choke to 1/2 position; then to OFF
position. If engine falters, return
choke to 1/2 position. When engine
warms sufficiently, move choke to
OFF position.
BEFORE STOPPING ENGINE
1. Engage auger to clear any re-
maining snow from inside the hous-
ing.
2. Run engine for a few minutes to
help dry off any moisture which may
have accumulated on engine.
TO STOP ENGINE
1. Release traction and auger/impel-
ler drive controls (Fig. 12).
2. Move throttle to slow and rotate
ignition key to OFF,
3. Wait for all moving parts to stop
before leaving the operator’s position
(behind the handles).
15
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Wheels will shift forward (or rear-
ward) with every other movement of
the shift control.
Move wheels to the rear Power Shift
position in heavy and/or drifted snow.
Leave wheels in the front position for
light snow or for transporting
snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear
position, move shift control fully for-
ward to Power Shift position and hold
(Fig. 17).
Figure 17
3. Fully engage traction drive lever to
move wheels into alternate position
(Figs. 17 & 18).
Note: When power shifting it may be
necessary to slightly raise handle to
assist wheel movement.
Note: To shift wheels manually if en-
gine is not running, follow steps 1
and 2 and then lift up on handles to
unlock wheels.
Note: If wheels do not move in de-
sired direction when power shifting,
repeat procedure.
16
Figure 18
FREE WHEELING OR SELF-
PROPELLED DRIVE
The snowthrower can be free
wheeled or engaged for self-
propelled operation. There are two
holes in each end of the axle. When
axle pins are thru outer axle holes
and not thru wheel hub(Fig. 19),
snowthrower free wheels. By con-
trast, when pins are installed thru
holes in wheel hub and inner hole of
axle (Fig. 19), snowthrower propels
itself.
Figure 19
1. Axle pin 3. Inner axle hole
2. Outer axle hole and wheel hub
SNOWTHROWING TIPS
1. When snowthrower is not being
used, close fuel shut-off valve and
remove key from the switch.
OPERATING INSTRUCTIONS
2. Remove snow as soon as possible
after it falls. This produces best snow
removal results.
3. When in the rear Power Shift posi-
tion, push down on handles to in-
crease traction if necessary.
4. Discharge snow downwind when-
ever possible, and overlap each
swath to ensure complete snow re-
moval. If wheels slip, shift into a
lower gear to reduce forward speed.
5. In some snow and cold weather
conditions, some controls and mov-
ing parts may freeze. Therefore,
when any control becomes hard to
operate, stop the engine and wait for
all moving parts to stop; then check
all parts for freeze up. DO NOT USE
EXCESSIVE FORCE AND TRY TO OP-
ERATE THE CONTROLS WHEN FRO-
ZEN. Free all controls and moving
parts before operating.
6. Adjust skids to match the type of
surface being cleaned. Refer to Ad-
justing Skids, page 18.
7. Run snowthrower for a few min-
utes after clearing snow so moving
parts do not freeze. Engage auger to
clear any remaining snow from inside
housing.
8. Do not overload snowthrower by
clearing snow at too fast a rate. If
engine slows down, shift to a lower
gear to reduce forward speed.
9. Move wheels to the rear Power
Shift position and shift to a lower
gear in heavy and/or drifted snow to
prevent the auger housing from rid-
ing up over the snow.
10. Always use full throttle (maximum
engine speed) when throwing snow.
11. In wet or slushy conditions, clog-
ging of the discharge chute will be
reduced by maintaining maximum en-
gine speed and by not overloading
the engine.
e ROTATING IMPELLER OR AU-
ER CAN CUT OFF OR INJURE
FINGERS OR HANDS. STAY BE-
HIND THE HANDLES AND AWAY
FROM DISCHARGE OPENING
WHILE OPERATING THE
SNOWTHROWER. KEEP FACE,
HANDS, FEET AND ANY OTHER
PART OF YOUR BODY OR CLOTH-
ING AWAY FROM CONCEALED,
MOVING OR ROTATING PARTS.
e BEFORE ADJUSTING, CLEAN-
ING, REPAIRING AND INSPECTING
THE SNOWTHROWER, AND BE-
FORE UNCLOGGING THE DIS-
CHARGE CHUTE, SHUT ENGINE
OFF AND WAIT FOR ALL MOVING
PARTS TO STOP. ALSO, PULL
WIRE OFF SPARK PLUG AND
KEEP WIRE AWAY FROM THE
PLUG TO PREVENT ACCIDENTAL
STARTING. USE A STICK, NOT
YOUR HAN TO REMOV -
T Tl FROM DISCHAR
CHUTE.
ADJUSTING SCRAPER (Fig. 20)
Adjust the scraper to compensate for
wear and to ensure that the auger
does not contact the pavement.
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Check the tire pressure in both
tires. Make sure that they are both
inflated equally between 7 and 15
psi.
3. Move the snowthrower onto a flat
surface and shift the wheels to the
FRONT position.
4. Loosen the (4) flange bolts secur-
ing both skids to the auger side
plates.
5. Next, loosen the carriage bolts se-
curing the scraper to the auger hous-
ing.
17
OPERATING INSTRUCTIONS
171
Figure 20
1. Scraper
2. Carriage bolt
6. Support the auger blades so that
the auger is 1/8 — 1/4 inch off the
ground.
7. Move the scraper so that it con-
tacts the flat surface all the way
across, then tighten the two rear
flanged cap screws securing scraper
and skids to the side plates. This
temporarily locks the scraper in the
proper position so that the remainder
of the fasteners can be tightened
without affecting adjustment.
8. Secure the scraper using carriage
bolts and nylon locknuts.
9. Adjust the skids; refer to Adjusting
Skids, page 18.
ADJUSTING SKIDS (Fig. 21)
FOR CONCRETE OR ASPHALT SUR-
FACES
If the snowthrower is not cleaning up
the snow close enough to the pave-
ment, adjust the skids to lower the
scraper.
If the scraper catches on cracks in
the pavement, adjust the skids to
raise the scraper.
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Loosen the (4) flange bolts secur-
ing both skids to the auger side
plates.
3. Auger blades
18
3. Check scraper adjustment to en-
sure that the auger does not contact
the pavement; refer to Adjusting
Scraper, page 17.
4. Move the wheels to the REAR
Power Shift position.
5. Support the scraper to be 1/8
inch above a level surface if the
snowthrower is to be used on
smooth pavement.
Note: The scraper should be higher
than 1/8 inch above the pavement if
the pavement surfaces are cracked,
rough or uneven.
Figure 21
1. Flange bolts 2. Skid
6. Move the skids down to sit flat on
the ground and tighten the (4) flange
bolts securing both skids to the au-
ger side plates.
FOR GRAVEL SURFACES
For gravel or crushed rock surfaces,
adjust the skids to prevent picking up
rocks.
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally,
2. Loosen the (4) flange bolts secur-
ing both skids to auger side plates.
Next, slide skids down as far as pos-
sible so auger is as far from the lev-
el surface as skid adjustment allows:
then tighten flange bolts.
OPERATING INSTRUCTIONS
ADJUSTING HEADLIGHT
1. Rotate headlight to desired posi-
tion. If light is difficult to move, loos-
en locknut (Fig. 22).
2. If necessary, tighten locknut to
secure headlight in place.
3. To turn on headlight, push button
switch on top of light (Fig. 22).
(1) A
Figure 22
1. Headiight 3. Button switch
2. Locknut
MAINTENANCE
the engine while performing
maintenance, rotate ignition key
to off and remove it from the
switch. Next, pull wire off spark
plug and make sure wire does
not accidentally touch the plug.
DRAINING GASOLINE
1. Close fuel shut-off valve located
under engine (Fig. 23).
UE
| > An
UE 2 3».
Г
| ay \ 175
Figure 23
1. Fuel shut-off valve
2. Hose clamp
3. Fuel line
a-
ble, drain it outdoors and make
sure engine is cool to prevent a
potential fire hazard. Wipe up
any gasoline that may have
spilled. Do not drain gasoline
near any open flame or where
gasoline fumes may be ignited
by a spark. DO NOT SMOKE a
cigar, cigarette or pipe when
handling gasoline.
2. Place a clean drain pan under
shut-off valve.
3. Loosen hose clamps securing fuel
line to valve and slide line off valve
(Fig. 23).
4. Open valve allowing fuel to flow
into drain pan.
5. Reinstall fuel line and secure with
hose clamp.
LUBRICATING SNOWTHROWER
1. Annually lubricate drive chain with
chain lubricant (Fig. 24). Wipe up
any excess oil.
19
MAINTENANCE
Figure 24
1. Drive chain
CHANGING CRANKCASE OIL
(Fig. 25)
Initially, change oil after the first 2
hours of engine operation; thereafter,
change oil after every 25 hours of
engine operation or annually, which-
ever comes first. If possible, run en-
gine just before changing oil because
warm oil flows better and carries
more contaminants than cold oil.
© 102
extension; then remove oil drain cap.
3. After all oil is drained, reinstall oil
drain cap securely.
4. Position snowthrower on a level
surface. Next, fill crankcase with oil:
see Fill Crankcase With Oil, page 12.
Wipe up any oil that may have
spilled.
AUGER GEAR BOX OIL (Fig. 26)
The auger gear box oil level must be
checked at setup, after every 10
hours of use, and upon removal from
annual storage. To check the auger
gear box oil level:
1. Position snowthrower on a level
surface.
2. Clean area around pipe plug so
dirt is removed.
3. Remove pipe plug from gear box
(Fig. 26).
4. Check level of oil in gear box. Oil
must be at point of overflowing in fill-
er opening.
5. If level of oil is low, add GL-5 or
GL-6 SAE 85-95 EP transmission oil
to the gear box until point of over-
flow.
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
Figure 25
1. Drain cap
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Clean area around oil drain cap.
Next, slide oil drain pan below drain
20
A}
Figure 26
1. Pipe plug
MAINTENANCE
ADJUSTING AUGER/IMPELLER
DRIVE BELT (Fig. 27-30)
If auger/impeller belt slips, resulting
in decreased snowthrowing perform-
ance, either an adjustment or a new
belt is required. WHENEVER A NEW
BELT IS INSTALLED, AN ADJUST-
MENT IS REQUIRED. USE ONLY
GENUINE TORO REPLACEMENT
PARTS.
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Remove (3) flange head
capscrews securing belt cover to en-
gine frame and slide belt cover up
cables (Fig. 27).
Figure 28
1. Feeler gauge 2. Center of spring
4. Loosen upper jam nut securing
auger/impeller cable to mounting
bracket (Fig. 29).
166
Figure 27
1. Upper belt cover
2. Cable cover
3. Flange head
capscrew
3. CHECKING IMPELLER CABLE AD-
JUSTMENT—Depress the auger/impel-
ler control lever on the right hand
grip. Hold the lever and insert a
.010" (.25mm) feeler gauge between
a coil in the center of the spring
(Fig. 28). Adjust the cable to achieve
.010” (.25 mm) gap between the
coils.
Figure 29
1. Auger/impeller 3. Mounting
cable (outer cable) bracket
2. Traction cable 4. Jam nut
(inner cable)
9. Rotate bottom jam nut upward to
increase belt tension.
6. Tighten upper jam nut against
bracket.
7. Recheck idler adjustment: refer to
step 3.
21
MAINTENANCE
8. Check impeller brake arm clear-
ance by releasing the auger/impeller
lever. With the lever released, there
should be more than 1/8” clearance
between tab on impeller idler arm
and brake arm (Fig. 30). If there is
less than 1/8” clearance, belt must
be replaced.
® IMPROPER ADJUSTMENT MAY
CAUSE INJURY IF AUGER/IMPEL-
LER TURNS WHEN DISENGAGED.
e ROTATING IMPELLER OR AU-
ER CAN T OFF OR INJURE
FINGER R HANDS.
e KEEP FACE, HANDS, FEET AND
ANY OTHER PART OF YOUR
BODY OR CLOTHING AWAY
FROM CONCEALED, MOVING OR
ROTATING PARTS.
e MAKE CERTAIN THAT IMPEL-
LER BRAKE ARM CLEARANCE IS
MAINTAINED.
e DO NOT ADJUST THE AUGER!
IMPELLER DRIVE BELT TOO
TIGHT BECAUSE IT MAY CAUSE
THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS
IN THE DISENGAGED POSITION.
IF THIS OCCURS, DECREASE
BELT TENSION.
9. Reinstall belt cover and cable cov-
er.
10. Check tension of belt by operat-
ing the auger. If belt still slips, re-
place the belt.
22
Figure 30
1. Impeller idler arm 2. Brake arm
ADJUSTING TRACTION DRIVE BELT
(Fig. 29)
If the wheels do not turn when the
traction lever is depressed, the trac-
tion belt tension should be increased.
Whenever the belt is replaced, an
adjustment is required.
1. Loosen upper jam nut securing
traction cable to mounting bracket.
2. Rotate bottom jam nut upward to
increase belt tension.
Note: When adjusting cable, always
rotate nut one full turn at a time.
3. Tighten upper jam nut against
bracket.
4. Check tension of belt by operating
machine. Machine should begin to
move forward when traction lever is
depressed approximately halfway
down toward handle grip. Turn en-
gine off and repeat steps until proper
adjustment is achieved.
IMPORTANT: Do not adjust the belt
too tight because it may cause
snowthrower to creep when traction
lever is in disengaged position. If
this occurs, decrease belt tension.
MAINTENANCE
REPLACING DRIVE BELTS (Fig. 31)
If auger/impeller belt or traction belt
becomes worn, glazed, stretched,
oil-soaked, or otherwise defective,
belt replacement is required.
1. Pull wire off spark plug and make
sure it does not contact the plug ac-
cidentally.
2. Remove (3) flange head
capscrews holding belt cover in
place, and slide belt cover up cables
(Fig. 27).
3. Move speed shift control to N
(neutral).
4. Remove (2) flange head
capscrews securing idler pulley as-
sembly to engine frame. Remove
idler pulley assembly.
185
Figure 31
Half sheave
Auger/impeller
beit
. Traction belt
. Middle pulley
section
Idler pulley (2)
1. idler pulley
assembly
2. Flange head
capscrews (2)
3. Capscrew &
lockwasher
œ Y o Ja
5. Remove capscrew and lockwasher
securing half sheave to front of pul-
ley assembiy.
6. Slide half sheave and auger/impel-
ler beit off crankshaft and remove
belt from impeller pulley.
7. If replacing traction belt, slide
middle pulley section and belt off
crankshaft and remove belt from
transmission pulley.
8. On control cable which corre-
sponds to belt being replaced,
loosen jam nuts securing cable to
bracket (Fig. 29). Cable must be
free to slide in bracket when chang-
ing belt(s).
9. Reinstall belts by reversing proce-
dure. Make sure tabs in half sheave
are inserted into mounting grooves
in middle pulley when reinstalling.
Note: Make sure idler pulleys are
aligned with belts when reinstalling
idler pulley assembly.
10. Readjust belts, refer to Adjusting
Auger/Impeller Drive Belt or Adjusting
Traction Drive Belt.
® IMPROPER ADJUSTMENT MAY
CAUSE INJURY IF AUGER/IMPEL-
LER TURNS WHEN DISENGAGED.
e ROTATING IMPELLER OR AU-
GER CAN CUT OFF OR INJURE
FINGERS OR HANDS.
e KEEP FACE, HANDS, FEET AND
ANY OTHER PART OF YOUR
BODY OR CLOTHING AWAY
FROM CONCEALED, MOVING OR
ROTATING PARTS.
e MAKE CERTAIN THAT IMPEL-
LER BRAKE ARM CLEARANCE IS
MAINTAINED.
e DO NOT ADJUST THE AUGER/
IMPELLER DRIVE BELT TOO
TIGHT BECAUSE IT MAY CAUSE
THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS
IN THE DISENGAGED POSITION.
IF THIS OCCURS, DECREASE
BELT TENSION.
23
MAINTENANCE
ADJUSTING DRIVE CHAIN
(Fig. 32-35)
The drive chain must be adjusted to
maintain 1/8-3/8 of an inch deflec-
tion at mid span between transmis-
sion and axle sprocket. Check chain
deflection after every 25 hours of op-
eration.
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Make sure wheels are positioned
in rear position, move shift control
into 2nd gear, and tip snowthrower
up onto front edge of auger housing.
IMPORTANT: To adjust drive chain,
the snowthrower must be tipped up
on front edge of auger housing.
However, before the snowthrower is
tipped, drain all gasoline from fuel
tank; refer to Draining Gasoline,
page 19.
3. Check deflection of chain by lifting
up on chain with moderate pressure
at mid span. There should be
1/8-3/8" deflection (Fig. 32). If de-
flection is not as specified an adjust-
ment is required.
1/ э 3/8”
DEFLECTION
186
Figure 32
4. Loosen (4) flange head capscrews
(2 each side) securing transmission
frame to engine frame (Fig. 34).
5. Pivot rear of transmission frame
until 1/8-3/8" chain deflection is at-
tained. Retighten flange head
capscrews,
24
Figure 33
1. Transmission 2. Transmission frame
Figure 34
1. Flange head capscrews
6. Recheck chain deflection.
IMPORTANT: Excessive chain ten-
sion may cause transmission dam-
age.
7. Chain adjustment will affect gear-
shift lever alignment. If gear shift
lever is not aligned with Power Shift
slot in control panel (Fig. 35, inset),
shift rod length must be adjusted as
follows:
MAINTENANCE
A. Disconnect ball joint from trans-
mission lever and loosen jam nut.
B. Rotate ball joint up or down until
gear shift lever is aligned with
Power Shift slot.
C. Reinstall ball joint to transmission
lever and tighten jam nut.
Figure 35
Shift rod 5. Locknut
Ball joint 6. Jam nut
. Shift bracket 7. Gear shift lever
. Transmission lever
a GQ Noa
ADJUSTING CARBURETOR (Fig. 36)
The carburetor has been adjusted at
the factory, but an occasional adjust-
ment may be required.
1. Needle Vailve—Close needle valve
finger-tight by gently rotating it
clockwise.
IMPORTANT: Do not close needle
valve too tight because valve and
seat in carburetor will likely be
damaged.
2. Rotate—open—needie valve 1-1/2
turns counterclockwise.
3. Idle Valve—Close idle valve finger—
tight by gently rotating it clockwise.
IMPORTANT: Do not close idle valve
too tight because valve and seat in
carburetor will likely be damaged.
4. Rotate—open—idle valve 1/4 turn
to 3/4 of a turn counterclockwise.
5. Start engine and let it warm up for
approximately 2 to 3 minutes; then
move throttle to FAST.
188
Figure 36
1. Needle valve 3. Idle speed
2. Idle valve adjusting screw
6. Rotate needie valve clockwise—
in—until engine misses because of a
lean gasoline mixture. Then rotate
needie valve counterciockwise—out—
until engine runs unevenly because
of a rich gasoline mixture. Next, ro-
tate needle valve clockwise, back to
the midpoint between the rich and
lean setting, so engine runs
smoothly.
7. Move throttle control backward to
idle speed. Next, rotate idle speed
adjusting screw until engine idles
fast—1750 rpm.
25
MAINTENANCE
Engine must be running so final
adjustment of the carburetor
can be performed. To guard
against possible personal injury,
move auger drive and wheel
drive controls to DISENGAGE,
and remember to keep hands,
feet, face and other parts of
your body and clothing away
from muffler, auger, discharge
chute, and any moving part(s).
Engine exhaust contains carbon
monoxide which is an odorless,
deadly poison. Do not run engine
indoors or in an enclosed area.
8. Rotate idle valve clockwise—in—
until engine begins to miss because
of a lean mixture. Then rotate idle
valve counterclockwise—out—until en-
gine runs unevenly because of rich
mixture. Next, rotate idle valve clock-
wise, back to the mid-point between
rich and lean settings.
9. Again, rotate idle speed adjusting
screw until engine idles at 1750 rpm.
10. Check carburetor adjustment by
quickly moving throttle from idle
speed to high speed. Engine should
accelerate without hesitation or sput-
tering. If engine does not accelerate
properly, adjust carburetor to a
slightly richer mixture.
11. After carburetor is adjusted, shut
engine off.
REPLACING SPARK PLUG
Use a Champion RCJ-8 or Autolite
AR7N spark plug. Set air gap at
0.030” (0.76 mm). Since air gap be-
tween center and side electrodes of
26
the spark plug increases gradually
during normal engine operation, in-
stall a new plug after every 25 hours
of engine operation.
1. Clean area around spark plug so
foreign matter cannot fall into cylin-
der when plug is removed.
2. Pull wire off spark plug and re-
move plug from cylinder head.
IMPORTANT: A cracked, fouled, or
dirty spark plug must be replaced.
Do not sand blast, scrape, or clean
electrodes because grit may eventu-
ally release from the plug and fall
into the cylinder. The result will
likely be engine damage.
3. Set air gap between electrodes of
new spark plug at 0.030” (0.76 mm)
(Fig. 37). Next, install spark plug in
cylinder head. Tighten plug to 15 ft-
Ib (20.4 N.m).
4. Push the wire onto spark plug.
0.30”
(0.76 mm)
110
Figure 37
PREPARING SNOWTHROWER FOR
STORAGE
1. For long term storage, either drain
gasoline from fuel tank or use a fuel
additive before storing. To drain gas-
oline, refer to Draining Gasoline,
page 19. After fuel is drained, start
engine and let it idle until all fuel is
consumed and engine stops. Repeat
the starting procedure two more
times to assure all gas is removed
from the engine. If gasoline is not
drained, gum-like varnish deposits
will form and cause poor engine op-
eration and starting problems.
MAINTENANCE
Fuel can be left in gas tank only if a
fuel additive, such as Toro's Stabiliz-
er/Conditioner, is added to gasoline
and run through engine before stor-
ing. Toro's Stabilizer/Conditioner is a
petroleum distillate based condition-
er/stabilizer. Toro does not recom-
mend stabilizers with an alcohol
base, such as ethanol, methanol or
isopropyl. Use fuel additive in recom-
mended quantities as specified on
container.
Under normal conditions, fuel addi-
tives remain effective in fuel for 6-8
months.
2. Remove spark plug from cylinder
head. Next, pour two teaspoons of
engine oil into spark plug hole in cyl-
inder head. Install spark plug in cylin-
der head, but do not install wire on
the plug. Then pull recoil starter
slowly to distribute oil on inside of
cylinder.
3. Lubricate the snowthrower: refer
to Lubricating Snowthrower, page 19.
Change crankcase oil: see Changing
Crankcase Oil, page 20.
4. Clean the snowthrower. Touch up
chipped surfaces with paint. Toro
Re-Kote paint is available from an
Authorized TORO Service Dealer.
Sand affected areas before painting,
and use a rust preventative to pre-
vent metal parts from rusting.
5. Tighten all screws and nuts. If any
part is damaged, repair or replace it.
6. Store snowthrower in a clean, dry
place, and cover it for protection.
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBER
The snowthrower has two identifica-
tion numbers: a model number and a
serial number. The two numbers are
stamped on a decal which is located
on back of engine mounting plate. In
any correspondence concerning the
snowthrower, supply model and serial
numbers to assure that correct infor-
mation and replacement parts are
obtained.
To order replacement parts from an
Authorized TORO Service Dealer,
supply the following information:
1. Model and serial numbers of the
snowthrower.
2. Part number, description, and
quantity of part(s) desired.
Note: Do not order by reference
number if a parts catalog is being
used; use the PART NUMBER.
TORO SERVICE SUPPORT
If help—concerning safety, set-up, operation, maintenance, or troubleshooting—
is ever needed, contact the local Authorized TORO Service Dealer or Distribu-
tor. Refer to the “Yellow Pages” for assistance. In addition to skilled service
technicians, the dealer and distributor have factory approved accessories and
replacement parts. Keep your TORO all TORO. Buy genuine TORO replacement
parts and accessories.
27
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
Lubrication
Summer
Storage
Fall
Service
Spark
Plug Gap
28
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
