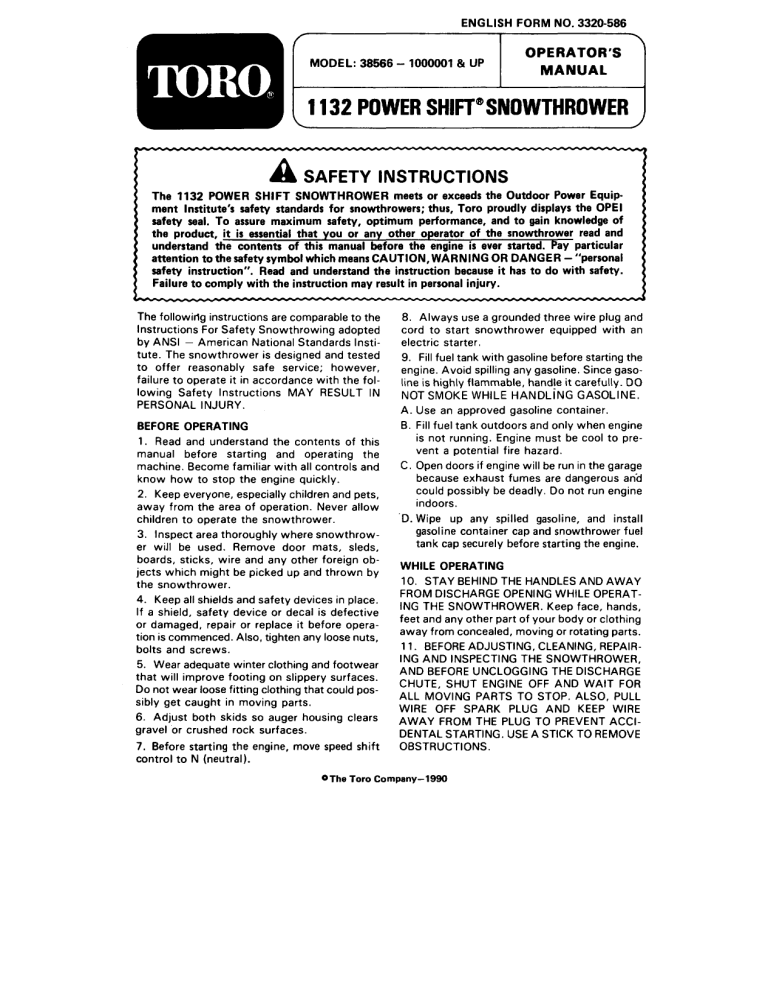

 ENGLISH FORM NO. 3320-586
MODEL: 38566 — 1000001 & UP
OPERATOR'S
MANUAL
1 132 POWER SHIFT” SNOWTHROWER |
lie aie le ale all alle ale ale mi am an BR oe ae ie i Y Y a a
The following instructions are comparable to the
Instructions For Safety Snowthrowing adopted
by ANSI — American National Standards Insti-
tute. The snowthrower is designed and tested
to offer reasonably safe service; however,
failure to operate it in accordance with the fol-
lowing Safety Instructions MAY RESULT IN
PERSONAL INJURY.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the
machine. Become familiar with all controls and
know how to stop the engine quickly.
2. Keep everyone, especially children and pets,
away from the area of operation. Never allow
children to operate the snowthrower.
3. Inspect area thoroughly where snowthrow-
er will be used. Remove door mats, sleds,
boards, sticks, wire and any other foreign ob-
jects which might be picked up and thrown by
the snowthrower.
4. Keep all shields and safety devices in place.
If a shield, safety device or decal is defective
or damaged, repair or replace it before opera-
tion is commenced. Also, tighten any loose nuts,
bolts and screws.
5. Wear adequate winter clothing and footwear
that will improve footing on slippery surfaces.
Do not wear loose fitting clothing that could pos-
sibly get caught in moving parts.
6. Adjust both skids so auger housing clears
gravel or crushed rock surfaces.
7. Before starting the engine, move speed shift
control to N (neutral).
A SAFETY INSTRUCTIONS
The 1132 POWER SHIFT SNOWTHROWER meets or exceeds the Qutdoor Power Equip-
ment Institute's safety standards for snowthrowers; thus, Toro proudly displays the OPEI
safety seal. To assure maximum safety, optimum performance, and to gain knowledge of
the product, it is essential that you or any other operator of the snowthrower read and
understand the contents of this manual before the engine is ever started. Pay particular
attention to the safety symbol which means CAUTION, WARNING OR DANGER — “personal
safety instruction”. Read and understand the instruction because it has to do with safety.
Failure to comply with the instruction may result in personal injury.
8. Always use a grounded three wire plug and
cord to start snowthrower equipped with an
electric starter.
9. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since gaso-
line is highly flammable, handle it carefully. DO
NOT SMOKE WHILE HANDLING GASOLINE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors and only when engine
is not running. Engine must be cool to pre-
vent a potential fire hazard.
C. Open doors if engine will be run in the garage
because exhaust fumes are dangerous and
could possibly be deadly. Do not run engine
indoors.
‘D. Wipe up any spilled gasoline, and install
gasoline container cap and snowthrower fuel
tank cap securely before starting the engine.
WHILE OPERATING
10. STAY BEHIND THE HANDLES AND AWAY
FROM DISCHARGE OPENING WHILE OPERAT-
ING THE SNOWTHROWER. Keep face, hands,
feet and any other part of your body or clothing
away from concealed, moving or rotating parts.
11. BEFORE ADJUSTING, CLEANING, REPAIR-
ING AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DISCHARGE
CHUTE, SHUT ENGINE OFF AND WAIT FOR
ALL MOVING PARTS TO STOP. ALSO, PULL
WIRE OFF SPARK PLUG AND KEEP WIRE
AWAY FROM THE PLUG TO PREVENT ACCI-
DENTAL STARTING. USE A STICK TO REMOVE
OBSTRUCTIONS.
O The Toro Company — 1990
SAFETY INSTRUCTIONS
12. Keep people and pets a safe distance away
from the snowthrower and area of operation.
13. Allow engine to warm up for about 2
minutes and machine to adjust to outdoor tem-
perature before clearing snow.
14. Do not run engine indoors, except when
starting engine. When starting engine indoors,
open outside doors because exhaust gasses are
dangerous.
15. Operate the snowthrower only when there
ts good visibility or light. Always maintain se-
cure footing and keep a firm grip on the handles,
especially when operating in reverse.
16. Be attentive when using the snowthrower,
and stay alert for holes in the terrain and other
hidden hazards. Be careful when clearing snow
from a gravel drive because stones could be
picked up and thrown if the skids are not adjust-
ed so auger housing clears all rocks.
17. Do not make any adjustments while the en-
gine is running.
18. Never direct discharge of snow or operate
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a drop-
off without proper adjustment of the snow dis-
charge angle.
19. Clear snow from slopes by going up and
down; never across the face, and use caution
when changing directions. Use lower gear and
rear wheel position when operating on slopes.
Never clear snow from steep slopes.
20. Do not overload the snowthrower by clear-
ing snow at too fast a rate.
21. DO NOT USE SNOWTHROWER ON A
ROOF.
22. If a solid object is hit or snowthrower
vibrates abnormally, shut engine off and wait for
all movement to stop. . Pull wire off spark plug
and check snowthrower immediately for possible
damage, an obstruction or loose parts. Vibration.
is generally a warning of trouble. Repair any
damage before restarting engine and operating
snowthrower again.
23. Do not touch engine while it is running or
soon after it is stopped because the engine will
be hot enough to cause a burn. Do not add oil
or check oil level in crankcase when engine is
running because this could be a potential hazard.
24. Betore leaving the operator's position — be-
hind handles — rotate ignition key to OFF. Re-
move key from switch if snowthrower will be left
unattended.
EN-2
25. Never operate snowthrower at high trans-
port speeds on slippery surfaces. Use care when
backing.
26. Let engine run for a few minutes after clear-
ing snow so moving parts do not freeze.
MAINTAINING SNOWTHROWER
27. Perform only those maintenance instruc-
tions described in this manual. Shut engine off
before performing any maintenance service or
adjustment. Additionally, pull wire off spark
plug and keep wire away from plug to prevent
possibility of accidental starting. If major repairs
are ever needed, contact the local Authorized
TORO Service Dealer for assistance.
28. Keep snowthrower in safe operating con-
dition by keeping nuts, bolts and screws tight.
Check engine mounting bolts frequently to as-
sure they are tight.
29. Do not overspeed the engine by changing
governor settings. Recommended maximum en-
gine speed is 3500 rpm. To assure safety and
accuracy, check maximum engine speed (3500
rpm) with a tachometer.
30. Allow engine to cool before storing snow-
thrower in an enclosure such as a garage or
storage shed, and make sure the snowthrower
fuel tank is empty. Never store snowthrower in
house (living area) or basement because gasoline
and fumes are highly flammable, explosive, and
dangerous if inhaled. Do not store snowthrower
near any open flame or where gasoline fumes
may be ignited by a spark.
31. When storing the snowthrower for an ex-
tended time — off season storage or 30 days
— drain gasoline from fuel tank to prevent a
potential hazard. Store gasoline in a safety-
approved red metal container. Remove key from
ignition switch and keep it in a memorable place.
32. At the time of manufacture, the snowthrow-
er conformed with and exceeded safety stan-
dards in effect for snowthrowers. Therefore, to
assure optimum performance and safety, pur-
chase genuine TORO replacement parts and ac-
cessories to keep the TORO all TORO. NEVER
USE “WILL-FIT” REPLACEMENT PARTS AND
ACCESSORIES. The TORO logo assures
genuineness.
33. For safety reasons, use only those acces-
sories and attachments recommended by The
TORO Company to assure continued safety cer-
tification of the product. Using unapproved ac-
cessories and attachments could contribute to
a potential hazard.
SYMBOL GLOSSARY
Safety decals and instructions are easily visible to the operator and are located near any area of
potential danger. Replace any decal that is damaged.
A ood
Safety alert
Slow Fast Ignition ignition
(W on off
Keep hands away ee” =
’ 1
‘ '
Se „”
Read and understand Neutral Efigine speed
operator's manual |
“hil. 7,
E
Hot surface
a
A “
O © XL “y
y
em
E -
Stop engine before =z
leaving operator
position
Shut off engine before Avoid injury from rotating
unclogging discharge chute auger, keep hands, feet and
clothing away.
\ $ ‘À X na Disengage
Q ! |
\ 4
\
41
Primer pump
Se -?
Choke Choke Auger/impeller
on off engaged
Traction drive Forward
engaged
Chute Direction
LOOSE PARTS
Part Qty Use
Flange head capscrew- 6 Mount Auger Housing, page 5
5/16-18 x 5/8” lg.
Lower belt cover 1
Flange head capscrew- 5 Mount Belt Covers, page 5
1/4-20x 1/2” lg.
Cable cover 1
Shift rod 1
Locknut-3/8-16 2 Install Shift Rod, page 5
Discharge chute 1 Install Discharge Chute, page 6
Worm gear 1
Gear Bracket 1
Carriage bolt-5/16-18 x1” |g. 1 Install Chute Control Gear, page 6
Flat washer 1
Locknut-5/16 1
Key 1 Use in Ignition Switch
Registration card 2 Use to Register Product with Factory
Specifications and design subject to change without notice.
TABLE OF CONTENTS
Safety Instructions . .. .............. 1-2
Symbol Glossary . . .................. 3
Loose Parts . ...................... 4
Setting Up Instructions ............. 5-7
Preparation Before Starting ........... 8-9
Fill Crankcase With Oil ............. 8
Fill Fuel Tank With Gasoline. . . ...... 8-9
Controls ....... ee 9-10
Starting and Stopping Instructions ...... 11
Operating Instructions ............. 12-13
Power Shift Operation .............. 12
Free Wheeling or Self Propelled Drive ..12
Snowthrowing Tips ................ 12
Adjusting Skids . . .. ........ 12-13
Adjusting Scraper ................ 13
EN-4
Page
Adjusting Headlight. . . ............ 13
Maintenance. . . ................. 14-19
Draining Gasoline . . .............. 14
Lubricating Snowthrower . . . ........ 14
Changing Crankcase Oil ............ 14
Auger Gear Box Oil .......... ce... 15
Adjusting Auger/Impeller Drive Belt. . 15-16
Adjusting Traction Drive Belt ........ 16
Replacing Drive Belts. . . ......... 16-17
Adjusting Drive Chain ........... 17-18
Replacing Spark Plug . . . ........... 18
Adjusting Carburetor . . . . .. aaa 18-19
Preparing Snowthrower for Storage. .. . . 19
Identification and Ordering. ........... 20
Maintenance Record ........... o... .. 20
SETTING UP INSTRUCTIONS
Note: Determine left and right sides of snow-
thrower by standing in the normal operating
position,
MOUNT AUGER HOUSING (Fig. 1-3)
1. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove
idler pulley assembly.
2. Align auger housing and engine frame
mounting holes (Fig. 1).
Figure 1
4. Idler pulley assembly
5. Mounting screws (2)
1. Auger housing
2. Engine frame
3. Impeller pulley
3. Route impeller belt around impeller pulley.
4. Secure auger housing to engine frame with
(6) 5/1618 x 5/8” lg. flange head capscrews.
gl Ё
Ly | |
MA ZW
В |
я
Varas
| =,
Me
Figure 2
1. Lower belt cover 2. Mounting tabs
{shown from bottom) 3. Flange head capscrew
5. Reinstall idler pulley assembly. Make sure
idler pulleys are aligned with belts when reinstall-
ing idler pulley assembly.
6. Tip snowthrower up on auger housing.
7. Mount lower belt cover to underside of auger
housing and engine frame with (2) 1/4-20 x 1/2”
lg. flange head capscrews (Fig. 2), Make sure
belt cover mounting tabs are positioned to rear
of engine frame member.
8. Mount upper belt cover to engine frame
with (3) 1/4-20 x 1/2" 1g. flange head capscrews
(Fig. 3).
9. Slide cable cover onto cables and into hole
in belt cover (Fig. 3).
Figure 3
1. Upper belt cover
2. Cable cover
3. Flange head capscrew
INSTALL SHIFT ROD (Fig. 4)
Note: Shift rod to be positioned with bend
rearward.
1. Insert upper shift rod ball joint stud thru front
of shift bracket and secure with 3/8-16 locknut.
2. Insert bottom ball joint stud thru right side
of transmission lever and secure with 3/8-16
locknut.
3. Shift into 2ND gear and check alignment of
shift rod with Power Shift slot.
Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 4, Inset), shift
rod length must be adjusted as follows:
EN-5
SETTING UP INSTRUCTIONS
A. Disconnect ball joint from transmission lever
and loosen jam nut.
B. Rotate ball joint up or down, until gear shift
lever 1s aligned with power shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
pals
Figure 4
5. Locknut
6. Jam nut
7. Gear shift lever
8. Shift siot
1. Shift rod
2. Ball joint
3. Shift bracket
4. Transmission lever
INSTALL DISCHARGE CHUTE (Fig. 5)
Note: Before installing discharge chute, apply a
light coat of low temperature grease to chute
ring.
1. Set discharge chute — open side forward —
onto auger discharge opening, so plastic chute
retainers are positioned on chute ring. Make sure
chute retainer guide pins are inserted into holes
in chute gear. |
2. Tighten machine screw and locknut, on left
side, until chute retainer plate is positioned
against plastic chute retainer and discharge chute
is secured to chute ring.
3. Push chute retainers, on right side, toward
discharge chute {slotted} and tighten machine
SCrew.
EN-6
4. Make sure chute rotates freely on ring. Move
right hand retainer outward to ease operation.
Figure 5
3. Chute retainer plate
4. Chute ring
1. Discharge chute
2. Plastic chute retainer
INSTALL CHUTE CONTROL GEAR (Fig. 6)
1. Insert the 5/1618 x1” lg. carriage bolt into
gear bracket mounting hole.
2. Position worm gear into bracket, align holes
and insert chute gear rod through bracket and
gear.
Figure 6
Gear bracket
Carriage bolt, flat-washer & locknut
Worm gear
Chute gear rod
Mounting flange
51 & ©) №) —
SETTING UP INSTRUCTIONS
3. Loosely mount worm gear and bracket to
mounting flange with carriage bolt, flat washer
and locknut.
4. Slide worm gear into teeth of chute gear and
tighten locknut.
5. Check operation. Move gear slightly outward
if binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires because
they are over inflated at the factory for shipping.
Therefore, before the snowthrower is operated,
reduce pressure in tires to 10-15 psi.
TIRE CHAINS
If snowthrower is to be equipped with optional
tire chains, wheels must be pinned to outer axle
holes (Fig. 16).
CHECK AUGER GEAR BOX OIL (Fig. 7)
1. Move snowthrower to a level surface.
2. Remove pipe plug from gear box.
3. Check level of oil in gear box. Oil must be at
point of overflowing in filler opening.
Figure 7
1. Pipe plug
4. |f level of oil is low, add GL-5 or GL-6 SAE
85-95 EP transmission oil to the gear box until
point of overflow,
NOTE: Do not use synthetic gear oil.
5. Install pipe plug in gear box.
PREPARATION BEFORE STARTING
FILL CRANKCASE WITH OIL (Fig. 8)
The engine is shipped from the factory without
oil in the crankcase. Therefore, before trying to
start engine, oil must be added to the crankcase.
IMPORTANT: Check level of oil every 5 operat-
ing hours or each time unit is used. Initially,
change oil after the first 2 hours of operation;
thereafter, under normal conditions, change oil
after every 25 hours of operation or annually.
1. Move unit to a level surface to assure an ac-
curate oil level reading.
2. Clean area around dipstick to prevent foreign
matter from entering filler hole when dipstick is
removed.
3. Remove dipstick from crankcase.
Figure 8
1. Dipstick 3. Fuel tank cap
2, Filler Hole
4. Stowly, pour SAE SW-30 or SAE 10 oil into
the filler hole, using oil filler chart below. The en-
gine uses any high-quality detergent oil having
the American Petroleum Institute — API —
"Service classification” SE or SF.
Oil Fill Chart
1132 Snowthrower 48 ounces of oil
Note: Dipstick must be fully installed to assure
accurate gauging of oil level. DO NOT OVERFILL.
FILL FUEL TANK WITH GASOLINE.
THE TORO COMPANY STRONGLY RECOM-
MENDS THE USE OF CLEAN, FRESH UNLEAD-
EN-8
NP i NA EU E Y PU” UY Y
en
Because gasoline is flammable, caution
must be used when storing or handling it.
Do not fill fuel tank while engine is running,
hot or when unit is in an enclosed area. Keep
away from open flame and electrical spark,
and DO NOT SMOKE while filling the fuel ‘
tank to prevent the possibility of an explo-
sion. Always fill fuel tank outside and wipe
up any spilled gasoline before starting en-
gine. Use a funnel or spout to prevent spill-
ing gasoline, and fill fuel tank to about 1/2
inch (13 mm) from the top of the tank, not
the filler neck.
Store gasoline in a clean, approved contain-
er and keep the cap in place on the contain-
er. Keep gasoline in a cool, well-ventilated
place; never in the house. To assure volatil-
ity, do not buy more than a 30 day supply
of gasoline. Gasoline is a fuel for internal
combustion engines; therefore, do not use
it for any other purpose. Since many chil-
dren like the smell of gasoline, keep it out
of their reach because the fumes are explo-
sive and dangerous to inhale.
le A
"a ЧИ
a a a a USA UA YN PN EEE PO
FAR WA
Pa ae ofa Pi i a pli
2 de. de aan вы an ame a ie gle Pt Te EA mn
i
Alla dll EEE
"A y y Ny NN NN AUN AFP CAF PC A PC AP A
ED REGULAR GASOLINE IN TORO GASOLINE
POWERED PRODUCTS. UNLEADED GASOLINE
BURNS CLEANER, EXTENDS ENGINE LIFE, AND
PROMOTES GOOD STARTING BY REDUCING
THE BUILDUP OF COMBUSTION CHAMBER
DEPOSITS. LEADED GASOLINE CAN BE USED
IF UNLEADED IS NOT AVAILABLE.
NOTE: NEVER USE METHANOL, GASOLINE
CONTAINING METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, PRE-
MIUM GASOLINE, ORWHITE GAS BECAUSE
ENGINE FUEL SYSTEM DAMAGE COULD
RESULT.
Toro also recommends that Toro Stabilizer/Con-
ditioner be used regularly in all Toro Gasoline
powered products during operation and storage
seasons. Toro Stabilizer/Conditioner cleans the
engine during operation and prevents gum-iike
varnish deposits from forming in the engine
during periods of storage.
DO NOT USE FUEL ADDITIVES OTHER
THAN THOSE MANUFACTURED FOR FUEL
STABILIZATION DURING STORAGE SUCH
AS TORO'S STABILIZER/CONDITIONER
OR A SIMILAR PRODUCT. TORO'S STABILI-
ZER/CONDITIONER IS A PETROLEUM
PREPARATION BEFORE STARTING
DISTILLATE BASED CONDITIONER/STABI-
LIZER. TORO DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR ISO-
PROPYL. ADDITIVES SHOULD NOT BE
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
1. Clean area around the fuel tank cap (Fig. 8).
Remove cap from fuel tank and fill tank to
within 1/2’ (13 mm) from the top with unleaded
regular gasoline. Reinstall fuel tank cap.
Fuel tank capacity is 4 quarts.
CONTROLS
Auger/Impeller Control (Fig. 9) — Control has
two positions: ENGAGE and DISENGAGE. To en-
gage auger and impeller, compress lever against
right handle grip. To disengage, release lever.
Traction Drive Control (Fig. 9) — To engage trac-
tion or activate power shift system, lever must
be compressed against left handle grip. To stop
traction, release lever.
Speed Shift Control {Fig. 9) — The control has
four speeds forward and two reverse and also
controls power shifting of wheels. To select
speeds, move shift control to desired position.
Note: When shifting gears to change direction
or shifting to the Power Shift position, traction
drive control must be released. Shifting on-the-
go may be accomplished between any of the
forward speeds without releasing traction drive
control.
Auger Lock-Up (Fig. 9) — When auger/impeller
control and traction drive control are both com-
pressed, the traction control locks the au-
ger/impeller contro! down. Releasing the traction
control releases the auger/impeller.
Figure 9.
. Auger/impeller control
Traction drive control
. Speed shift control
Ignition switch
Discharge chute control
с № О ~
Discharge Chute Control (Fig. 9) — Rotate dis-
charge chute control clockwise to move dis-
charge chute to the right and counterclockwise
to move chute to the left.
Ignition Switch (Fig. 9) — Switch has two posi-
tions: ON and OFF, Rotate key to ON position
before starting engine. To stop engine, rotate key
to OFF.
Throttle (Fig. 10) — Pulling the throttle upward
increases the engine speed.
Choke (Fig. 10) — Choke is located on left side
of engine. Push choke down to FULL choke
position to start a cold engine. As engine warms
up, move choke up gradually to off.
Figure 10
1. Throttle
2. Choke
3. Primer
Primer (Fig. 10} — Press primer to pump small
amount of gasoline into engine for improved cold
weather starting.
EN-9
CONTROLS
Fuel Shut-Off Valve (Fig. 11) — Valve is located
under fuel tank. Close valve to stop fuel flow
from fuel tank and open valve to allow fuel to
flow to the carburetor. Close valve when snow-
thrower is not used.
Figure 11
1. Fuel shut-off valve
Deflector Handle (Fig. 12) — Deflector handle
on top of discharge chute is used to control the
height of the snow stream.
Figure 12
1. Deflector handle
2 Discharge chute
EN-10
Figure 13
1. Recoil starter
Recoil starter (Fig. 13) — Recoil starter is on
back side of engine. Puli recoil starter to start
engine.
STARTING AND STOPPING INSTRUCTIONS
TO START ENGINE
IMPORTANT: Check auger and impeller to assure
that both parts are not frozen solid, but free to
rotate. Also, make sure discharge chute is not
obstructed.
1. Move speed shift control to N (neutral) and
throttle to FAST (Fig. 9).
2. Open fuel shut-off valve below fuel tank (Fig.
11).
3. Move choke to full choke position (Fig. 10).
4. Rotate ignition key to ON (Fig. 9).
5. Depress primer (Fig. 10) five times.
6. Grasp recoil starter handle (Fig. 12) and pull
it out slowly until positive engagement results;
then pull vigorously to start the engine. Keep firm
grip on starter handle and return the rope slowly.
Note: If engine does not start or if temperature
is —10° Е or below, additional priming may be
required.
7. After engine starts, immediately move choke
(Fig. 10) to 3/4 position. As engine warms up,
move choke to 1/2 position; then to OFF posi-
tion. If engine falters, return choke to 1/2 posi-
tion. When engine warms sufficiently, move
choke to OFF position.
BEFORE STOPPING ENGINE
1. Run engine for a few minutes to help dry off
any moisture which may have accumulated on
engine.
2. With engine running, pull recoil starter with
a rapid, continuous full arm stroke (3) three or
{4) four times. This will help prevent possible
freeze-up of recoil starter due to extreme snow
blowing conditions.
NOTE: Pulling of recoil starter rope produces
a loud, clattering sound. This is not harmful to
the engine or the starter.
TO STOP ENGINE
1. Release traction and auger/impeller drive con-
trols (Fig. 9).
2. Move speed selector to N — neutral.
3. Move throttle to slow and rotate ignition key
to OFF.
EN-11
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Move wheels rearward to the Power Shift posi-
tion in heavy and/or drifted snow.
Leave wheels in the front position for light snow
or for transporting snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear position,
move shift control fully forward to Power Shift
position and hold (Fig. 14).
Figure 14
3. Fully engage traction drive lever to move
wheels into Power Shift position (Figs. 14 & 15).
Note: When power shifting it may be necessary
to slightly raise handles to assist wheel move-
ment.
Figure 15
- Note: If wheels do not move in desired direction
when power shifting, repeat procedure. Wheels
must rotate in forward direction to move wheels
ahead and rotate rearward to move wheels back.
FREE WHEELING OR SELF PROPELLED DRIVE
The snowthrower can be free wheeled or en-
gaged for self propelled operation. When axle
pins are through outer axle holes (Fig. 16), snow-
thrower will free wheel. By contrast, when both
pins are installed through holes in wheel hub and
EN-12
inner hale of axle (Fig. 16), snowthrower will self
propel itself,
Figure 16
1. Axle pin
SNOWTHROWING TIPS
1. When snowthrower is not being used, close
fuel shut-off valve, have speed shift control in
N (Neutral) position, and key removed from the
switch,
2. Remove snow as soon as possible after it
falls. This produces the best snow removal
results.
3. When in the Power Shift position, push down
on handles to increase traction. |
4. If snow will be removed from crushed rock
or gravel areas, adjust skids so bottom of auger
housing clears the rocks: refer to Adjusting
Skids, page 12.
5. For concrete or asphalt surfaces, adjust skids
so there is 1/8 inch {3 mm) between bottom of
auger and concrete or asphalt surface.
6. Discharge snow downwind whenever possi-
ble, and overlap each swath to assure complete
snow removal. If wheels slip, shift into a lower
gear which reduces forward speed.
7. In some snow and cold weather conditions,
some controls and moving parts may freeze
solid. Therefore, when any control becomes hard
to operate, stop the engine; then check all parts
for freeze up. DO NOT USE EXCESSIVE FORCE
AND TRY TO OPERATE THE CONTROLS WHEN
FROZEN. Free all controls and moving parts be -
fore operating.
ADJUSTING SKIDS (Fig. 17)
When snowthrower will be used on concrete or
asphalt surfaces, adjust skids using steps 1 - 2.
However, use only step 3 when using snowthrow-
er on gravel or crushed rock surfaces.
OPERATING INSTRUCTIONS
1. Move snowthrower to a level surface, and
rotate the wheels rearward to the Power Shift
position.
2. Next, loosen four flange bolts securing both
skids to auger side plates. Skids must slide up
and down.
3. Adjust both skids so there is 1/8 of an inch
between bottom of auger and level surface.
When skids are adjusted correctly, tighten flange
bolts. Next, check scraper blade that is mounted
at bottom of auger housing. Scraper must be
parallel with level surface. If scraper is not
parallel, adjust skids again. Do not use step 4
after adjusting skids for hard surfaces.
4. Loosen four flange bolts securing both skids
to auger side plates. Next, slide skids down as
far as possible so auger is as far from the level
surface as skid adjustment allows; then tighten
flange bolts.
Figure 17
1. Flange bolts
ADJUSTING SCRAPER
If the amount of snow being picked up by the
snowthrower begins to decrease, the scraper
may need adjustment.
1. Move wheels rearward to the Power Shift
position.
2. Loosen the (4) flange bolts securing both
skids to the auger side plates (Fig. 17}.
3. Next, loosen the (6) carriage bolts securing
the scraper to the auger housing (Fig. 18).
4. Slide the scraper up and down until there
is 1/8” between the bottom of the scraper and
a level surface.
2. Skid
Figure 18
1. Scraper 2. Carriage bolt
5. When the scraper is adjusted correctly, tighten
the {6) carriage bolts securely.
6. Readjust the skids so there is 1/8” between
the bottom of the skids and a level surface.
Tighten the (4) flange bolts securely.
ADJUSTING HEADLIGHT
1. Rotate headlight to desired position. If
light is difficult to move, loosen locknut (Fig. 19).
Figure 19
1. Headlight
2. Locknut
3. Button switch
2. If necessary, tighten locknut to secure
headlight in place.
3. To turn on headlight, push button switch on
top of light (Fig. 19).
EN-13
MAINTENANCE
E Y Y Y Y AL
ÁN caurion
|
q
To prevent accidental starting of the engine
while performing maintenance, rotate igni- |
tion key to off and remove it from the
|
|
|
|
|
|
switch. Next, pull wire off spark plug and
make sure wire does not accidentally touch
the plug.
E” y Ay" A AN E AA
нь ль лы mie le ome ame aie E fle alle
er
e Mn Hr die am a a a am ame a am ie agi ie lie oie tlie Mie iil i i
UU UPF UPA APEC a ae NN
DRAINING GASOLINE
1. Close fuel shut-off valve located under en-
gine (Fig. 20).
2. Place a clean drain pan under shut-off valve.
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to
prevent a potential fire hazard. Wipe up any
gasoline that may have spilled. Do not drain
gasoline near any open flame or where
gasoline fumes may be ignited by a spark.
Do not smoke a cigar, cigarette, or a pipe
when handling gasoline.
Figure 20
1. Fuel shut-off valve
2. Hose clamp
3. Fuel line
3. Loosen hose clamps securing fuel line to
valve and slide line off valve (Fig. 20).
4. Open valve allowing fuel to flow into drain
pan.
5. Reinstall fuel line and secure with hose
clamp.
EN-14
LUBRICATING SNOWTHROWER
1. Annually, lubricate drive chain with chain
lubricant (Fig. 21). Wipe up any excess oil.
Figure 21
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 22)
Initially, change oil after the first 2 hours of en-
gine operation; thereafter, change oil after ev-
ery 25 hours of engine operation or annually. If
possible, run engine just before changing oil be-
cause warm oil flows better and carries more
contaminants than cold oil.
1. Pull wire off spark plug and make sure wire
does not contact plug accidentally.
2. Clean area around oil drain cap. Next, slide
oil drain pan below drain extension; then remove
oil drain cap.
Figure 22
1. Drain cap
3. After all oil is drained, reinstall oil drain cap.
4. Position snowthrower on a level surface.
Next, fill crankcase with oil: see Fill Crankcase
With Oil, page 8. Wipe up any oil that may have
spilled.
MAINTENANCE
AUGER GEAR BOX OIL (Fig. 23)
The auger gear box oil level must be checked at
setup, after every 10 hours of use, and upon
removal from annual storage. To check the auger
gear box oil level:
1. Position snowthrower on a level surface.
2. Clean area around pipe plug so dirt is removed.
3. Remove pipe plug from gear box (Fig. 23).
4. Check level of oil in gear box. Oil must be
at point of overflowing in filler opening.
5. If level of oil is low, add GL-5 or GL-6 SAE
85-95 EP transmission oil to the gear box until
point of overflow.
Note: Do not use synthetic gear oil.
©
A4
Figure 24
1. Upper belt cover
2 Cable cover
3. Flange head capscrew
Figure 23
1. Pipe plug
6. Install pipe plug in gear box.
ADJUSTING AUGER/IMPELLER DRIVE BELT
(Figs. 24-26)
If auger/impeller belt slips, resulting in decreased
snowthrowing performance, an adjustment is
required. WHENEVER A NEW BELT IS IN-
STALLED, AN ADJUSTMENT IS REQUIRED.
USE ONLY GENUINE TORO REPLACEMENT
PARTS.
1. Remove (3) flange head capscrews securing
belt cover to engine frame and slide cover
up cables (Fig. 24).
2. CHECKING IMPELLER CABLE ADJUST-
MENT —With the engine off, depress the impel-
ler lever on the right handgrip. Hold the lever
and insert a .010" (.25mm) feeler gauge between
the coil in the center of the spring (Fig. 25).
Adjust the cable to achieve .009” - 012" (.23mm
- .3mm) gap between the coils.
3. Check idler and brake adjustment. There
should be a minimum clearance of 1/8" between
tab on impeller idler arm and brake arm (Fig.
Figure 25
1. Feeler gauge
2. Spring
27). If there is less than 1/8‘ clearance, belt
must be replaced.
4. Loosen upper jam nut securing auger/impeller
cable to mounting bracket (Fig. 26).
5. Rotate bottom jam nut upward to increase
belt tension (Fig. 26).
Note: When adjusting cable, always rotate nut
one turn at a time,
EN-15
MAINTENANCE
Figure 26
1. Auger/impeller cable 3. Mounting bracket
2. Traction cable 4. Jam nut
See gn Ba ale me mn En mh JB ль gn mn me me ole fe SE ee Je oi ie ie Sie Je tie ie fe Be al fe ama al
"7 "A Uy NE A E EA NN EN A ae A Y ЧЩ ЩИ
A WARNING
improper adjustment may cause injury if
auger/impeller turns when disengaged.
rar A
Figure 27
1. Impeller idier arm
2. Brake arm
6. Tighten upper jam nut against bracket.
7. Reinstall belt cover.
8. Check tension of belt by operating the au-
ger. If belt slips, repeat procedure.
EN-16
ADJUSTING TRACTION DRIVE BELT
(Fig. 26) |
If traction belt slips during operation, an adjust-
ment is required. Whenever the belt is replaced,
an adjustment is required. |
1. Loosen upper ¡am nut securing traction cable
to mounting bracket.
2. Rotate bottom jam nut upward to increase
belt tension.
Note: When adjusting cable, always rotate nut
one turn at a time.
3. Tighten upper jam nut against bracket.
4. Check tension of belt by operating machine.
If belt still slips, repeat procedure.
IMPORTANT: Do not adjust the belt too tight be-
cause it may cause snowthrower to creep when
traction lever is in disengaged position. If this
occurs, readjust, loosening belt tension.
REPLACING DRIVE BELTS (Fig. 28)
If auger/impeller belt or traction belt become
worn, glazed, stretched, oil-soaked, or other-
wise defective, belt replacement is required. Use
only genuine Toro replacement parts.
1. Pull wire off spark plug and make sure it does
not contact the plug accidentally.
2. Remove (3) flange head screws holding
belt cover in place, and slide belt cover up cables.
3. Move speed shift control to N (neutral).
4. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove
idler pulley assembly.
Figure 28
1. Idler puliey assembly
2. Flange head capscrews (2)
3. Capscrew & lockwasher
4. Half sheave
5. Auger/impelier belt
6. Traction belt
MAINTENANCE
5. Remove capscrew and lockwasher securing
half sheave to front of pulley assembly.
6. Slide auger/impeller pulley and belt off crank-
shaft and remove belt from impeller pulley.
7. If replacing traction belt, slide traction pul-
ley and belt off crankshaft and remove belt from
transmission pulley.
8. On control cable which corresponds to belt
being replaced, loosen jam nuts securing cable
to bracket (Fig. 26). Cable must be free to slide
in bracket when changine belt(s).
9. Reinstall belts by reversing procedure. Make
sure tabs in half sheave are inserted into mount-
ing grooves in auger/impeller pulley when re-
installing.
Note: Make sure idler pulleys are aligned with
belts when reinstalling idler pulley assembly.
10. Readjust belts, refer to Adjusting Auger/
impeller Drive Belt or Adjusting Traction Drive
Belt.
a ae fi al ae a ale JE A ee apie ue al ae ale ie ae i tie ge le ie i ii aie li ie gli anit ОЧ
NN Ny UNAS Er AP AF E FAP ar ar A A A
A WARNING
improper adjustment may cause injury if
auger/impeller turns when disengaged.
At
"y" "A FU NAF AP FAN CACA CP AF FCE E AP AF AP A ЧН
ADJUSTING DRIVE CHAIN (Fig. 29-32)
The drive chain must be adjusted to maintain
1/8-3/8 of an inch deflection at mid span be-
tween transmission and axle sprocket. Check
chain deflection after every 25 hours of
operation.
1. Check deflection of chain by lifting up on
chain with moderate pressure at mid span. There
should be 1/8'-3/8” deflection (Fig. 29). If
deflection is not as specified, an adjustment is
required.
1/8" - 3/8”
DEFLECTION
Figure 29
IMPORTANT: To adjust drive chain, the snow-
thrower must be tipped up on auger housing.
However, before the snowthrower is tipped,
drain all gasoline from fuel tank.
2. Make sure wheels are positioned in rear po-
sition, move shift control into 2nd gear and tip
snowthrower up onto auger housing.
Figure 30
1. Transmission
2. Transmission frame
3. Loosen (4) flange head capscrews (2 each
side) securing transmission frame to engine
frame (Figs. 30-31).
4. Pivot rear of transmission frame until Ye-%
chain deflection is attained, then, retighten
flangehead capscrews.
L
Figure 31
1. Flange head cap screws
EN-17
MAINTENANCE
Figure 32
Shift rod
Ball joint
Shift bracket
Transmission lever
5. Locknut
6. Jam nut
7. Gear shift lever
AN =
IMPORTANT: Excessive chain tension may
cause transmission damage.
Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 32 inset),
shift rod length must be adjusted as follows:
A. Disconnect ball joint from transmission lever
and loosen jam nut.
B. Rotate ball joint up or down, until gear shift
lever is aligned with Power Shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
5. Recheck chain deflection and lower snow-
thrower to normal position.
REPLACING SPARK PLUG (Figs. 33-34)
Use a Champion RCJ-8 or Autolite AR7N
spark plug. Set air gap at 0.030” (0.76 mm).
Since air gap between center and side electrodes
of the spark plug increases gradually during nor-
mal engine operation, install a new plug after
every 25 hours of engine operation.
1. Clean area around spark plug so foreign mat-
ter cannot fall into cylinder when plug is
removed (Fig. 33).
2. Pull wire off spark plug and remove plug from
cylinder head.
EN-18
Figure 33
1. Spark plug wire
IMPORTANT: A cracked, fouled, or dirty spark
plug must be replaced. Do not sand blast,
scrape, or clean electrodes because grit may
eventually release from the plug and fall into the
cylinder. The result will likely be engine damage.
3. Set air gap between electrodes of new spark
plug at 0.030" (0.76 mm) (Fig. 34). Next,
install spark plug in cylinder head. Tighten plug
to 15 ft-lb (20.4 N-m). If torque wrench
is not used, tighten plug firmly.
4. Push the wire onto spark plug.
0.030"
(0.76 mm)
Figure 34
ADJUSTING CARBURETOR (Fig. 35)
The carburetor has been adjusted at the facto-
ry, but an occasional adjustment may be re-
quired.
1. Needle Valve — Close needle valve finger-tight
by gently rotating it clockwise.
IMPORTANT: Do not close needle valve too
tight because valve and seat in carburetor will
likely be damaged.
2. Rotate — open — needle valve 1-1/2 turns
counterclockwise.
3. Idle Valve — Close idle valve finger-tight by
gently rotating it clockwise.
MAINTENANCE
ie i ie ie ie le ie ii ae ie ile ie al ale i Te le lll ale ah ale
E EC EF PCE le ge YN PA Y A me lh gi AN UNA AU A A YA
М слотом
)
р
р
)
Engine must be running so final adjustment
of the carburetor can be performed. To
guard against possible personal injury, move
) auger drive and wheel drive controls to
DISENGAGE, and remember to keep hands,
| feet, face, and other parts of the body away
| from muffler, auger, discharge chute, and
) any moving part(s).
SNe fe gti ie gle ie gle ale eile gle ge gl Y YAA AAA A A AY
he i a ie Ei ie le ae a ai a lal he le ale al al al a ele le dl a am a
IMPORTANT: Do not close idle valve too tight
because valve and seat in carburetor will likely
be damaged.
4. Rotate — open — idle valve 1/4 turn to 3/4
of a turn counterclockwise.
Note: The needle valve and idle valve settings
are approximates, however the settings will
allow engine to be started so carburetor can be
fine tuned — steps 5- 11.
CEE A E Y AUN YN
AU AA OEA aie ale le ale SN ER ER ae ol ame
ый
3
2
NN _—
Figure 3b
1. Needle valve
2. Idie valve
3. Idle speed adjusting screw
5. Start engine and let it warm up for approxi-
mately two to three minutes; then move throttle
to FAST.
6. Rotate needle valve clockwise — in — until
engine misses because of a lean gasoline mixture,
Then rotate needle valve counterclockwise — out
— s0 engine runs unevenly because of a rich
gasoline mixture. Next, rotate needle valve clock-
wise, back to the midpoint between the rich and
lean setting so engine runs smoothly.
7. Move throttle control backward to idle speed.
Rotate idle speed adjusting screw until engine
idles fast — 1750 rpm.
8. Rotate idle valve clockwise — in — until
engine begins to miss because of a lean mixture.
Then rotate idle valve counterclockwise — out —
until engine runs unevenly because of rich
mixture, Next, rotate idle valve clockwise, back
to the mid-point between rich and lean setting.
9. Again rotate idle speed adjusting screw until
engine idles at 1750 rpm.
10. Check carburetor adjustment by quickly
moving throttle from idle speed to high speed.
Engine should accelerate without hesitation or
sputtering. If engine does not accelerate properly,
adjust carburetor to a slightly richer mixture.
11. After carburetor is adjusted shut engine off.
PREPARING SNOWTHROWER FOR STORAGE
1. For long term storage, either drain gasoline
from fuel tank or use a fuel additive before
storing. To drain gasoline, refer to Draining
Gasoline, page 14. After fuel is drained, start
engine and let it idle until all fuel is consumed
and engine stops. Repeat the starting procedure
two more times to assure all gas is removed
from the engine. If gasoline is not drained,
gumlike varnish deposits will form and cause
poor engine operation, even starting problems.
Fuel can be left in gas tank only if a fuel
additive, such as Toro's Stabilizer/Condi-
tioner, is added to gasoline before storing.
Toro's Stabilizer/Conditioner is a petroleum
distillate based conditioner/stabilizer. Toro
does not recommend stabilizers with an alcohol
base, such as ethanol, methanol or isopropyl.
Use fuel additive in recommended quantities as
specified on container.
Under normal conditions, all fuel additives
remain effective in fuel for 6-8 months.
2. Remove spark plug from cylinder head.
Next, pour two teaspoons of engine oil into
spark plug hole in cylinder head. Install
spark plug in cylinder head, but do not install
wire on the plug. Then pull recoil starter slow-
ly to distribute oil on inside of cylinder.
3. Lubricate the snowthrower: refer to Lub-
ricating Snowthrower. Change crackcase oil:
see Changing Crankcase Oil.
4. Clean the snowthrower. Touch up chipped
surfaces with paint. Toro Re-Kote paint is
available from an Authorized Toro Service
Dealer. Sand affected areas before painting,
and use a rust preventative to prevent metal
parts from rusting.
5. Tighten all screws and nuts. If any part is
damaged, repair or replace it.
6. Store snowthrower in a clean, dry place,
and cover it to give protection.
7. The snowthrower may be stored in up-
right position. Make sure to drain gas and oil
before tipping snowthrower upright on auger
housing.
EN-19
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The snowthrower has two identification num-
bers: a model number and a serial number. The
two numbers are stamped on a decal which is
located on back of engine mounting plate. In any
correspondence concerning the snowthrower,
supply model and serial numbers to assure that
correct information and replacement parts are
obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following in-
formation:
1. Model and serial numbers of the snow-
thrower.
2. Part number, description, and quantity of
part(s) desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
MAINTENANCE RECORD
Spark
Date
Hours
Used
Oil
Change
Lubrication
Summer
Storage
Fall
Service
Plug
Gap
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
