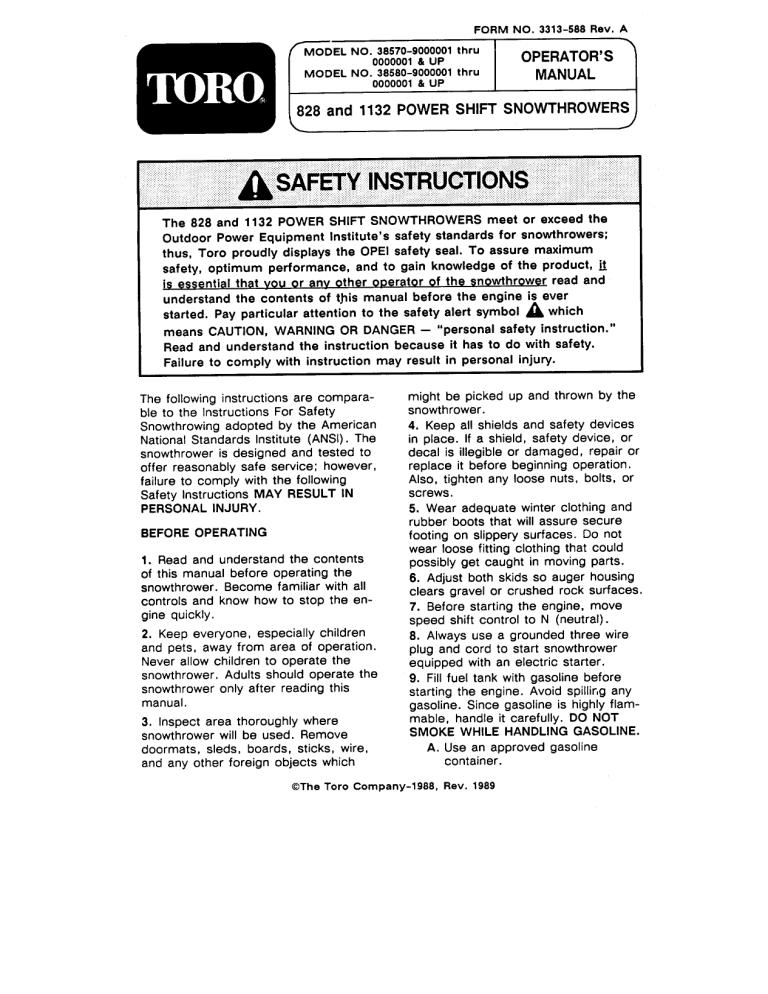

FORM NO. 3313-588 Rev. A
MODEL NO. 38570-9000001 thru
0000001 & UP
MODEL NO. 38580-9000001 thru
0000001 & UP
OPERATOR'S
MANUAL
(228 and 1132 POWER SHIFT SNOWTHROWERS
The 828 and 1132 POWER SHIFT SNOWTHROWERS meet or exceed the
Outdoor Power Equipment Institute’s safety standards for snowthrowers;
thus, Toro proudly displays the OPE! safety seal. To assure maximum
safety, optimum performance, and to gain knowledge of the product, it
is essential that you or any other operator of the snowthrower read and
understand the contents of this manual before the engine is ever
started. Pay particular attention to the safety alert symbol А which
means CAUTION, WARNING OR DANGER — “personal safety instruction.”
Read and understand the instruction because it has to do with safety.
Failure to comply with instruction may result in personal injury.
The following instructions are compara-
ble to the Instructions For Safety
Snowthrowing adopted by the American
National Standards Institute (ANSI). The
snowthrower is designed and tested to
offer reasonably safe service; however,
failure to comply with the following
Safety Instructions MAY RESULT IN
PERSONAL INJURY.
BEFORE OPERATING
1. Read and understand the contents
of this manual before operating the
snowthrower. Become familiar with all
controls and know how to stop the en-
gine quickly.
2. Keep everyone, especially children
and pets, away from area of operation.
Never allow children to operate the
snowthrower. Adults should operate the
snowthrower only after reading this
manual.
3. Inspect area thoroughly where
snowthrower will be used. Remove
doormats, sleds, boards, sticks, wire,
and any other foreign objects which
might be picked up and thrown by the
snowthrower.
4. Keep all shields and safety devices
in place. If a shield, safety device, or
decal is illegible or damaged, repair or
replace it before beginning operation.
Also, tighten any loose nuts, bolts, or
SCrews.
5. Wear adequate winter clothing and
rubber boots that will assure secure
footing on slippery surfaces. Do not
wear loose fitting clothing that could
possibly get caught in moving parts.
6. Adjust both skids so auger housing
clears gravel or crushed rock surfaces.
7. Before starting the engine, move
speed shift control to N (neutral).
8. Always use a grounded three wire
plug and cord to start snowthrower
equipped with an electric starter.
9. Fill fuel tank with gasoline before
starting the engine. Avoid spilling any
gasoline. Since gasoline is highly flam-
mable, handle it carefully. DO NOT
SMOKE WHILE HANDLING GASOLINE.
A. Use an approved gasoline
container.
©The Toro Company-1988, Rev. 1989
A\ SAFETY INSTRUCTIONS
B. Fill fuel tank outdoors, not
indoors. NEVER ADD FUEL TO
AN ENGINE THAT IS RUNNING
OR HOT. Engine must be cool to
prevent a potential fire hazard.
C. Open doors if engine will be run
in the garage because exhaust
fumes are dangerous and could
possibly be deadly. Do not run
engine indoors.
D. Wipe up any spilled gasoline, and
reinstall gasoline container cap
and snowthrower fuel tank cap
securely before starting the
engine.
WHILE OPERATING
10. STAY BEHIND THE HANDLES AND
AWAY FROM DISCHARGE OPENING
WHILE OPERATING THE SNOW-
THROWER. Keep face, hands, feet,
and any other part of your body or
clothing away from concealed, moving,
or rotating parts.
11. BEFORE ADJUSTING, CLEANING,
REPAIRING, AND INSPECTING THE
SNOWTHROWER, AND BEFORE UN-
CLOGGING THE DISCHARGE CHUTE,
SHUT ENGINE OFF AND WAIT FOR
ALL MOVING PARTS TO STOP. ALSO,
PULL WIRE OFF SPARK PLUG AND
KEEP WIRE AWAY FROM THE PLUG
TO PREVENT ACCIDENTAL START-
ING. USE A STICK TO REMOVE OB-
STRUCTIONS.
12. Keep people and pets a safe dis-
tance away from the snowthrower and
area of operation.
13. Allow engine to warm up for about
2 minutes and machine to adjust to
outdoor temperature before clearing
snow.
14. Do not run engine indoors, except
when starting engine. When starting
engine indoors, open outside doors be-
cause exhaust gasses are dangerous.
15. Operate the snowthrower only when
there is good visibility or light. Always
2
maintain secure footing and balance
and keep a firm grip on the handies,
especially when operating in reverse.
Walk; never run.
16. Be attentive when using the
snowthrower, and stay alert for holes in
the terrain and other hidden hazards.
Be careful when clearing snow from a
gravel drive because stones could be
picked up and thrown if the skids are
not adjusted so auger housing clears
ali rocks.
17. Do not make any adjustments while
the engine is running.
18. Never direct discharge of snow or
operate snowthrower near bystanders,
glass enclosures, automobiles and
trucks, window wells or a drop-off
without proper adjustment of the snow
discharge angle.
19. STAY AWAY FROM DISCHARGE
OPENING WHILE OPERATING THE
SNOWTHROWER. Keep face, hands,
feet, and any other part of your body
or clothing away from concealed, mov-
ing, or rotating parts.
20. Clear snow from slopes by going
up and down, never across the face.
Use caution when changing directions.
Use lower gear and rear wheel position
when operating on slopes. Never clear
snow from steep slopes. |
21. DO NOT USE SNOWTHROWER ON
A ROOF.
22. Do not overload the snowthrower
by clearing snow at too fast a rate.
23. If a solid object is hit or snow-
thrower vibrates abnormally, shut en-
gine off and wait for all moving parts to
stop. Pull high tension wire off spark
plug and check snowthrower immedi-
ately for possible damage, an obstruc-
tion, or loose parts. Vibration is gener-
ally a sign of trouble. Repair any dam-
age before restarting engine and oper-
ating snowthrower again.
A\ SAFETY INSTRUCTIONS
24. Do not touch engine while it is run-
ning or soon after it is stopped be-
cause the engine will be hot enough to
cause a burn. Do not add oil or check
oil level in crankcase when engine is
running because this could be a poten-
tial hazard. |
25. Before leaving the operator's posi-
tion (behind handles), rotate ignition
key to OFF. Remove key from switch if
snowthrower will be left unattended.
26. Never operate snowthrower at high
transport speeds on slippery surfaces.
Use care when backing.
27. Let snowthrower run for a few min-
utes after clearing snow sO moving
parts do not freeze.
MAINTAINING SNOWTHROWER
28. Perform only those maintenance
instructions described in this manual.
Shut engine off before performing any
maintenance service or adjustment.
Additionally, pull high tension wire off
spark plug and keep wire away from
plug to prevent accidental starting. If
major repairs are ever needed, contact
your local Authorized TORO Service
Dealer for assistance.
29. Keep snowthrower in safe operating
condition by keeping nuts, bolts, and
screws tight. Check engine mounting
bolts frequently to assure they are
tight.
30. Do not overspeed the engine by
changing governor settings. Recom-
mended maximum engine speed is
3500 rpm. To assure safety and accu-
racy, check maximum engine speed
(3500 rpm) with a tachometer.
31. Allow engine to cool before storing
snowthrower in an enclosure such as a
garage or storage shed, and make
sure the snowthrower fuel tank is
empty. NEVER STORE
SNOWTHROWER IN HOUSE (LIVING
AREA) OR BASEMENT BECAUSE
GASOLINE AND FUMES ARE HIGHLY
FLAMMABLE, EXPLOSIVE, AND DAN-
- GEROUS IF INHALED. Do not store
snowthrower near any open flame or
where gasoline fumes may be ignited
by a spark.
32. When storing the snowthrower for
an extended time—off season storage
or 30 days—drain gasoline from fuel
tank to prevent a potential hazard.
Store gasoline in a safety-approved
red metal container. Remove key from
ignition switch when storing
snowthrower. Store key in a memora-
ble place. :
33. At the time of manufacture, the
snowthrower conformed with and ex-
ceeded safety standards in effect for
snowthrowers. Therefore, to assure op-
timum performance and safety, pur-
chase genuine TORO replacement parts
and accessories to keep the TORO all
TORO. NEVER USE “WILL FIT” RE-
PLACEMENT PARTS AND ACCESSO-
RIES. The TORO logo assures genuine-
ness.
34. For safety reasons, use only those
accessories and attachments recom-
mended by The TORO Company to as-
sure continued safety certification of
the product. Using unapproved acces-
sories and attachments could contrib-
ute to a potential hazard.
A) SAFETY DECALS
Safety decals and instructions are easily visible to the operator and are lo-
cated near any area of potential danger. Replace any decal that is damaged.
LT:
N \ J NEXT TO PRIMER
<p (Part No. 63-2320)
\_ A
ON AUGER HOUSING
(Part No. 53-7670)
A WARNING
63-3740 ALONGSIDE
THROTTLE
(Part No. 63-2340)
AVOID INJURY!
Shut off engine and be sure
all parts have stopped before
unclogging discharge chute.
BEFORE ADJUSTING CABLES OR REPLACING BELTS
IMPROPER ADJUSTMENT MAY CAUSE J Op RES. ON CHUTE
AUGER/IMPELLER TURNS WHEN DISENGAGED. — $ (Part No. 63-3740)
USE ONLY GENUINE TORO REPLACEMENT PARTS. — 3
ON ENGINE BASE
(Part No. 63-3460)
OFF HOT
ON do SURFACES
ON ENGINE ON ENGINE
(Part No. 63-2360) (Part No. 62-7290)
TO CHANGE WHEEL POSITION
ly LE
4, FO II ET EA
CC PET IE
A CAUTION
USE LOWER GEAR AND REAR WHEEL
POSITION OW SLOPES
IO NOT USE OM STEEP SLOPES
INJURY MAY RESULT FAOM LOSS
06 FOOTING ON CONTROL
TRACTION DRIVE un.
1 ema am AUGER/WPE| LEA
MEPLACIMENT MABVAL AY ar LAME BEMAL =" PF
© Y micro me NN MET EN y SE
- и
HEENGAGE ENGAGE #3 7340 ENGAGE DISEMGACE
ON CONTROL PANEL
(Part No. 63-2540)
Tr
LOOSE PARTS
Part Qty
Use
©
Flange head capscrew—
5/16-18 x 5/8” Ig.
Lower belt cover
Flange head capscrew—
1/4-20 x 1/2” 1g.
Cable cover
Shift rod
Locknut—3/8-16
Discharge chute
Worm gear
Gear bracket
Carriage bolt—5/16-18 x 1” Ig.
Flat washer
Locknut—5/16
Key
Registration card
UT —
NO —b od ad = = A A NJ A
Mount Auger Housing, page 6
Mount Belt Covers, page 6
Install Shift Rod, page 7 |
Install Discharge Chute, page 7
Install Chute Control Gear, page 8
Use in Ignition Switch
Use to register product with factory
Specifications and design subject to change without notice.
OPTIONS
Heavy duty skids, Part No. 74-1100
TABLE OF CONTENTS
Page
Safety Instructions ............. 1-3
Safety Decals ................... 4
Loose Parts ......... ccna 5
©] o] [0] a= a sa an 0 5
Assembly Instructions ........... 6-8
Before Operating .............. 8-10
Fill Crankcase With Oil ....... 8-9
Fill Fuel Tank With Gasoline .. 9-10
Controls ........ee_eresorevo. 10-11
Starting and Stopping Instructions . 12
Operating Instructions ......... 12-14
Power Shift Operation ...... 12-13
Free Wheeling or Self-Propelled
Drive .............. 5..5... 13
Snowthrowing Tips ............ 13
~ Adjusting Skids ............ 13-14
Adjusting Scraper ............ 14
Maintenance ................ 15-21
Draining Gasoline ........ Cee 15
Lubricating Snowthrower ....... 15
Changing Crankcase Qil .... 15-16
Replacing Auger Gear Box Oil .. 16
Adjusting Auger/Impeller Drive
Belt ...... RAA 16-17
Adjusting Traction Drive Belt .... 17
Replacing Drive Belts .......... 18
Adjusting Drive Chain ...... 18-19
Adjusting Carburetor ....... 19-20
Replacing Spark Plug .......... 21
Preparing Snowthrower for
Storage ........... ieee 21
Identification and Ordering ........ 22
Toro Service Support ..........e. 22
Maintenance Record ............. 23
The Toro Promise ............... 24
ASSEMBLY INSTRUCTIONS
Note: Determine left and right sides of
snowthrower by standing in the normal
operating position.
MOUNT AUGER HOUSING (Fig. 1-3)
1. Remove (2) flange head capscrews
~ securing idler pulley assembly to en-
gine frame. Remove idler pulley as-
sembly.
2. Align auger housing and engine
frame mounting holes (Fig. 1).
LT
CC | === 0.
Figure 2
3. Flange
head capscrew
1. Lower belt cover
(shown from bottom)
2. Mounting tabs
8. Mount upper belt cover to engine
frame with (3) 1/4-20 x 1/2” Ig. flange
head capscrews (Fig. 3). |
9. Slide cable cover onto cables and
into hole in belt cover.
Figure 1
1. Auger housing 4. Idler pulley
2. Engine frame | assembly
3. Impelier puliey 5. Mounting
screws (2)
3. Route impeller belt around impeller
pulley.
4. Secure auger housing to engine
frame with (6) 5/16-18 x 5/8” Ig.
flange head capscrews.
5. Reinstall idler pulley assembly. Make
sure idler pulleys are aligned with belts
when reinstalling idler pulley assembly.
6. Tip snowthrower up on auger hous-
ing.
7. Mount lower belt cover to underside
of auger housing and engine frame
with (2) 1/4-20 x 1/2” lg. flange head
capscrews (Fig. 2). Make sure belt
cover mounting tabs are positioned to
rear of engine frame member.
6
Figure 3
1. Upper belt cover 3. Flange head
2. Cable cover capscrew
ASSEMBLY INSTRUCTIONS
INSTALL SHIFT ROD (Fig. 4)
1. Insert upper shift rod ball joint stud
through front of shift bracket and se-
cure with 3/8-16 locknut.
Note: Shift rod to be positioned with
bend rearward.
2. Insert bottom ball joint stud through
right side of transmission lever and se-
cure with 3/8-16 locknut.
3. Shift into 2nd gear and check shift
rod alignment with Power Shift slot.
Note: If gear shift lever is not aligned
with Power Shift slot in control panel
(Fig. 4, inset), shift rod length must be
adjusted as follows:
A Ue
Figure 4
1. Shift rod 5. Locknut
2. Ball joint 6. Jam nut
3. Shift bracket 7. Gear shift lever
4. Transmission 8. Power shift slot
lever
A. Disconnect ball joint from
transmission lever and loosen jam
nut.
B. Rotate ball joint up or down, until
gear shift lever is aligned with Power
Shift slot.
C. Reinstall ball joint to transmission
lever and tighten jam nut.
INSTALL DISCHARGE CHUTE (Fig. 5)
Note: Before installing discharge chute,
apply a light coat of low temperature
grease to chute ring.
1. Set discharge chute—open side for-
ward—onto auger discharge opening,
so plastic chute retainers are posi-
tioned on chute ring. Make sure chute
retainer guide pins are inserted into
holes in chute gear.
2. Tighten machine screw and locknut,
on left side, until chute retainer plate is
positioned against plastic chute retainer
and discharge chute is secured to
chute ring.
3. Push chute retainers, on right side,
toward discharge chute (slotted) and
tighten machine screw.
4. Make sure chute rotates freely on
ring. Move right hand retainer outward
to ease operation.
Figure 5
1. Discharge chute 3. Chute retainer
2. Plastic chute plate
retainer 4. Chute ring
ASSEMBLY INSTRUCTIONS
INSTALL CHUTE CONTROL GEAR
(Fig. 6)
1. Insert the 5/16-18 x 1” Ig. carriage
bolt into gear bracket mounting hole.
2. Position worm gear into bracket,
align holes, and insert chute gear rod
through bracket and gear.
Figure 6
1. Gear bracket 4. Chute gear
2. Carriage bolt, flat rod
washer & locknut 5. Mounting
3. Worm gear flange
3. Loosely mount worm gear and
bracket to mounting flange with car-
riage bolt, flat washer, and locknut.
4. Slide worm gear into teeth of chute
gear and tighten locknut.
5. Check operation. Move gear slightly
outward if binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires
because they are over-inflated at the
factory for shipping. Therefore, be-
fore the snowthrower is operated, re-
duce pressure in both tires to 10-15
psi equally.
TIRE CHAINS
If snowthrower is to be equipped with
optional tire chains, wheels must be
pinned to outer axle holes (Fig. 16).
CHECK AUGER GEAR BOX OIL
(Fig. 7)
1. Move snowthrower to a level sur-
face.
2. Remove pipe plug from gear box.
3. Check oil level in gear box. Oil must
be at point of overflowing in filler open-
ing.
19
Figure 7
1. Pipe plug
4. If level of oil is low, add GL-5 or
GL-6 SAE 85-95 EP transmission oil to
the gear box until point of overflow.
5. Install pipe plug in gear box.
BEFORE OPERATING
FILL CRANKCASE WITH OIL (Fig. 8)
The engine is shipped from the factory
without oil in the crankcase. Therefore,
before trying to start the engine, oil
must be added to the crankcase.
IMPORTANT: Check level of oil every
5 operating hours or each time unit is
used. Initially, change oil after the
8
first 2 hours of operation; thereafter,
under normal conditions, change oil
after every 25 hours of operation or
annually.
1. Move unit to a level surface to as-
sure an accurate oil level reading.
2. Clean area around dipstick to pre-
vent foreign matter from entering filler
hole when dipstick is removed.
BEFORE OPERATING
3. Remove dipstick from crankcase
(Fig. 8).
Figure 8
1. Dipstick 3. Fuel tank cap
2. Filler hole
4. Slowly pour SAE 5W-30 or SAE 10
oil into the filler hole, using oil filler
chart below. The engine uses any
high-quality detergent oil having the
American Petroleum Institute (API)
“service classification” —SE or SF.
Oil Fill Chart
828 Snowthrower 44 ounces of oil
1132 Snowthrower 48 ounces of oil
Note: Dipstick must be fully installed to
assure accurate gauging of oil level.
DO NOT OVERFILL.
FILL FUEL TANK WITH GASOLINE
THE TORO COMPANY STRONGLY REC-
OMMENDS THE USE OF CLEAN, FRESH
UNLEADED REGULAR GASOLINE IN
TORO GASOLINE POWERED PROD-
UCTS. UNLEADED GASOLINE BURNS
CLEANER, EXTENDS ENGINE LIFE, AND
PROMOTES GOOD STARTING BY RE-
DUCING THE BUILDUP OF COMBUSTION
CHAMBER DEPOSITS. LEADED GASO-
LINE CAN BE USED IF UNLEADED IS
NOT AVAILABLE.
caution must be used when storing
or handling it. Do not fill fuel tank
while engine is running, hot, or
when unit is in an enclosed area.
Keep away from open flame and
electrical spark. DO NOT SMOKE
while filling the fuel tank to prevent
the possibility of an explosion. Al-
ways fill fuel tank outside and wipe
up any spilled gasoline before start-
ing engine. Use a funnel or spout
to prevent spilling gasoline, and fill
fuel tank to about 1/2” (13 mm)
from the top of the tank, not the
filler neck.
Store gasoline in a clean, approved
container and keep the cap in place
on the container. Keep gasoline in
a cool, well-ventilated place—never
in the house. To assure volatility,
do not buy more than a 30 day sup-
ply of gasoline. Gasoline is a fuel
for internal combustion engines.
Therefore, do not use it for any
other purpose. Since many children
like the smell of gasoline, keep it
out of their reach because the
fumes are explosive and dangerous
to inhale.
IMPORTANT: NEVER USE METHANOL,
GASOLINE CONTAINING METHANOL,
GASOHOL CONTAINING MORE THAN
10% ETHANOL, PREMIUM GASOLINE,
OR WHITE GAS BECAUSE ENGINE
FUEL SYSTEM DAMAGE COULD RE-
SULT.
BEFORE OPERATING
DO NOT USE FUEL ADDITIVES OTHER
THAN THOSE MANUFACTURED FOR
FUEL STABILIZATION DURING STOR-
AGE (SUCH AS TORO'S PRESERVIT
OR A SIMILAR PRODUCT). ADDITIVES
SHOULD NOT BE USED TO TRY TO
ENHANCE THE POWER OR PERFORM-
ANCE OF MACHINE,
1. Clean area around the fuel tank cap
(Fig. 8). Remove cap from fuel tank
and fill tank to within 1/2” (13 mm)
from the top with unleaded regular
gasoline. Reinstall fuel tank cap.
Fuel tank capacity is 4 quarts.
CONTROLS
Auger/Impeller Control (Fig. 9)—Con-
trol has two positions: ENGAGE and
DISENGAGE. To engage auger and im-
peller, compress lever against right
handle grip. To disengage, release
lever.
Traction Drive Control (Fig. 9)—To en-
gage traction or activate power shift
system, lever must be compressed
against left handle grip. To stop trac-
tion, release lever.
Speed Shift Control (Fig. 9)—The con-
trol has four speeds forward and two
reverse and also controls power shift-
ing of wheels. To select speeds, move
shift control to desired position.
Figure 9
1. Auger/impelier 3. Speed shift
control control
2. Traction drive 4. lgnition switch
control 5. Discharge chute
control
10
Note: When shifting gears to change
direction or shifting to the Power Shift
position, traction drive control must be
released. On-the-go shifting may be
accomplished between any of the for-
ward speeds without releasing traction
drive control.
Auger Lock-Up (Fig. 9)—When auger/
impeller control and traction drive con-
trol are both compressed, the traction
control locks the auger/impeller control
down. Releasing the traction control
releases the auger/impeller.
Discharge Chute Control (Fig. 9)—Ro-
tate discharge chute control clockwise
to move discharge chute to the right
and counterclockwise to move chute to
the left.
Ignition Switch (Fig. 9) —Switch has
two position: ON and OFF. Rotate key
to ON position before starting engine.
To stop engine, rotate key to OFF.
Throttle (Fig. 10)—Moving the throttle
upward increases the engine speed.
Choke (Fig. 10)—Choke is located on
left side of engine. Push choke down
to FULL choke position to start a cold
engine. As engine warms up, move
choke gradually to OFF.
Primer (Fig. 10)—Press primer to
pump small amount of gasoline into
engine for improved cold weather start-
ing.
CONTROLS
Deflector Handle (Fig. 12)—Deflector
handle on top of discharge chute is
used to control the height of the snow
stream.
Figure 10 Figure 12
1. Throttle 3. Primer
2" Choke 1. Deflector handle 2. Discharge chute
Fuel Shut-Off Valve (Fig. 11)—Valve is
located under fuel tank. Close valve to Recoil Starter (Fig. 13)—Recoil starter
stop fuel flow from fuel tank and open is on back side of engine. Pull recoil
valve to allow fuel to flow to the carbu- starter to start engine.
retor. Close valve when snowthrower is
not used.
Figure 13
Figure 11
1. Recoil starter
1. Fuel shut-off valve
11
STARTING/STOPPING INSTRUCTIONS
TO START ENGINE
IMPORTANT: Check auger and impel-
ler to assure that both parts are not
frozen solid, but free to rotate. Also,
make sure discharge chute is not ob-
structed.
1. Move speed shift control to N (neu-
tral) and throttle to FAST (Fig. 9).
2. Open fuel shut-off valve below fuel
tank (Fig. 11).
3. Move choke to ON choke position
(Fig. 10).
4. Rotate ignition key to ON (Fig. 9).
5. Depress primer (Fig. 10) five times.
6. Grasp recoil starter handle (Fig. 13)
and pull it out slowly until positive en-
gagement results; then pull vigorously
to start the engine. Keep firm grip on
starter handle and return the rope
slowly.
Note: If engine does not start or if
temperature is —10° F or below, addi-
tional priming may be required.
7. After engine starts, immediately
move choke (Fig. 10) to 3/4 position.
As engine warms up, move choke to
1/2 position; then to OFF position. If
engine falters, return choke to 1/2 po-
sition. When engine warms sufficiently,
move choke to OFF position.
BEFORE STOPPING ENGINE
1. Run engine for a few minutes to
help dry off any moisture which may
have accumulated on engine.
2. With engine running, pull recoil
starter with a rapid, continuous full arm
stroke three or four times. This helps
prevent possible freeze-up of recoil
starter due to extreme snow blowing
conditions.
Note: Pulling of recoil starter rope pro-
duces a loud, clattering sound. This is
not harmful to the engine or the
starter.
TO STOP ENGINE
1. Release traction and auger/impeller
drive controls (Fig. 9).
2. Move speed shift control to N (neu-
tral).
3. Move throttle to slow and rotate ig-
nition key to OFF.
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Move wheels rearward to the Power
Shift position in heavy and/or drifted
SNOW.
Leave wheels in the front position for
light snow or for transporting
snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear po-
sition, move shift control fully forward
to Power shift position and hold
(Fig. 14).
3. Fully engage traction drive lever to
move wheels into Power Shift position
(Figs. 14 & 15).
12
Figure 14
Note: When power shifting it may be
necessary to slightly raise handle to
assist wheel movement.
OPERATING INSTRUCTIONS
Figure 15
Note: If wheels do not move in desired
direction when power shifting, repeat
procedure. Wheels must rotate in for-
ward direction to move wheels ahead
and rotate rearward to move wheels
back.
FREE WHEELING OR SELF-
PROPELLED DRIVE
The snowthrower can be free wheeled
or engaged for self-propelled opera-
tion. When axle pins are through outer
axle holes (Fig. 16), snowthrower free
wheels. By contrast, when both pins
are installed through holes in wheel
hub and inner hole of axle (Fig. 16),
snowthrower will propel itself.
Figure 16
1. Axle pin
SNOWTHROWING TIPS
1. When snowthrower is not being
used, close fuel shut-off vaive, have
speed control in N (neutral) position,
and key removed from the switch.
2. Remove snow as soon as possible
after it falls. This produces best snow
removal results.
3. When in the Power Shift position,
push down on handies to increase
traction.
4. To remove snow from crushed rock
or gravel areas, adjust skids so bottom
of auger housing clears the rock: refer
to Adjusting Skids, page 13.
5. For concrete or asphalt surfaces,
adjust skids so there is 1/8 inch (3
mm) between bottom of auger and
concrete or asphalt surface.
6. Discharge snow downwind whenever
possible, and overlap each swath to
assure complete snow removal. If
wheels slip, shift into a lower gear to
reduce forward speed.
7. In some snow and cold weather
conditions, some controls and moving
parts may freeze solid. Therefore,
when any control becomes hard to op-
erate, stop the engine; then check all
parts for freeze up. DO NOT USE EX-
CESSIVE FORCE AND TRY TO OPERATE
THE CONTROLS WHEN FROZEN. Free
all controls and moving parts before
operating.
ADJUSTING SKIDS (Fig. 17)
To use snowthrower on concrete or as-
phalt surfaces, adjust skids using steps
1-2. However, use only step 3 when
using snowthrower on gravel or
crushed rock surfaces.
1. Move snowthrower to a level surface
and move wheels rearward into the
Power Shift position.
2. Next, loosen four flange bolts secur-
ing both skids to auger side plates.
Skids must slide up and down.
12
OPERATING INSTRUCTIONS
3. Adjust both skids so there is 1/8 of
an inch between bottom of auger and
level surface. When skids are adjusted
correctly, tighten flange bolts. Next,
check scraper blade that is mounted at
bottom of auger housing. Scraper must
be parallel with level surface. If scraper
is not parallel, adjust skids again. Do
not use step 3 after adjusting skids for
hard surfaces.
Figure 17
1. Flange bolts 2. Skid
4. Loosen four flange bolts securing
both skids to auger side plates. Next,
slide skids down as far as possible so
auger is as far from the level surface
as skid adjustment allows; then tighten
flange bolts.
ADJUSTING SCRAPER
If the amount of snow being picked up
by the snowthrower begins to de-
14
crease, the scraper may need adjust-
ment.
1. Move wheels rearward to the Power
Shift position.
2. Loosen the (4) flange bolts securing
both skids to the auger side plates
(Fig. 17).
3. Next, loosen the (6) carriage bolts
securing the scraper to the auger
housing (Fig. 18).
5 —
Figure 18
1. Scraper 2. Carriage bolt
4. Slide the scraper up and down until
there is 1/8” between the bottom of
the scraper and a level surface.
5. When the scraper is adjusted cor-
rectly, tighten the (6) carriage bolts
securely.
6. Readjust the skids so there is 1/8”
between the bottom of the skids and a
level surface. Tighten the (4) flange
bolts securely.
MAINTENANCE
To prevent accidental starting of
the engine while performing main-
tenance, rotate ignition key to off
and remove it from the switch.
Next, pull wire off spark plug and
make sure wire does not acciden-
tally touch the plug.
DRAINING GASOLINE
1. Close fuel shut-off valve located un-
der engine (Fig. 19).
Figure 19
1. Fuel shut-off valve 3. Fuel line
2. Hose clamp
2. Place a clean drain pan under shut-
off valve.
3. Loosen hose clamps securing fuel
line to valve and slide line off valve
Since gasoline is highly flammable,
drain it outdoors and make sure
engine is cool to prevent a poten-
tial fire hazard. Wipe up any gaso-
line that may have spilled. Do not
drain gasoline near any open flame
or where gasoline fumes may be
ignited by a spark. DO NOT SMOKE
a cigar, cigarette, or pipe when
handling gasoline.
4. Open valve allowing fuel to flow into
drain pan.
5. Reinstall fuel line and secure with
hose clamp.
LUBRICATING SNOWTHROWER
1. Annually lubricate drive chain with
chain lubricant (Fig. 20). Wipe up any
excess oil.
Figure 20
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 21)
Initially, change oil after the first 2
hours of engine operation; thereafter,
change oil after every 25 hours of en-
gine operation or annually. If possible,
run engine just before changing oil be-
cause warm oil flows better and carries
more contaminants than cold oil.
Figure 21
1. Drain cap
15
MAINTENANCE
1. Pull wire off spark plug and make
sure wire does not contact plug acci-
dentally.
2. Clean area around oil drain cap.
Next, slide oil drain pan below drain
extension; then remove oil drain cap.
3. After all oil is drained, reinstall oil
drain cap.
4. Position snowthrower on a level sur-
face. Next, fill crankcase with oil: see
Fill Crankcase With Qil, page 8. Wipe
up any oil that may have spilled.
REPLACING AUGER GEAR BOX OIL
(Fig. 22)
The auger gear box is filled with oil at
the factory so regular maintenance is
not required. However, if oil must be
replaced in gear box:
1. Drain gasoline from fuel tank. Wipe
up any spilled gas.
2. Position snowthrower on a level sur-
face.
3. Clean area around pipe plug so dirt
is removed.
4. Put a drain pan below front of auger
gear box and remove pipe plug: refer
to Check Auger Gear Box Oil, page 8.
5. Tip snowthrower forward and hold it
up until ali oil drains from the gear
box.
6. Carefully let snowthrower down to its
normal position. Make sure it is on a
level surface. Next, fill auger gear box
with GL-5 or GL-6 SAE 85-95 EP
transmission oil to the point of over-
flow.
7. Install pipe plug in gear box.
ADJUSTING AUGER/IMPELLER DRIVE
BELT (Figs. 23-25)
If auger/impeller belt slips, resulting in
decreased snowthrowing performance,
an adjustment is required. WHENEVER
A NEW BELT IS INSTALLED, AN AD-
JUSTMENT IS REQUIRED.
1. Remove (3) flange head capscrews
securing belt cover to engine frame
and slide belt cover up cables
(Fig. 23).
Figure 22
1. Pipe plug
16
Figure 23
1. Upper belt cover 3. Flange head
2. Cable cover capscrew
2. Check idler and brake adjustment.
There should be a minimum clearance
of 1/8” between tab on impeller idler
warm and brake arm (Fig. 25). If there
is less than 1/8” clearance, belt must
be replaced.
MAINTENANCE
3. Loosen upper jam nut securing
auger/impeller cable to mounting
bracket (Fig. 24).
Figure 24
1. Auger/impeller 3. Mounting bracket
cable 4. Jam nut
2. Traction cable
4. Rotate bottom jam nut upward to
increase belt tension.
Note: When adjusting cable, always
rotate nut one turn at a time.
5. Tighten upper jam nut against
bracket.
IMPORTANT: Do not adjust the belt
too tight because it may cause the
auger/impeller to turn when the
auger/impeller is in the disengaged
position. If this occurs, readjust, loos-
ening belt tension.
Improper adjustment may cause in-
jury if auger/impeller turns when
disengaged.
Figure 25
1. Impeller Idler arm 2. Brake arm
6. Recheck idler and brake adjustment:
refer to step 2.
7. Reinstall belt cover.
8. Check tension of belt cover by op-
erating the auger. If belt still slips, re-
peat procedure.
ADJUSTING TRACTION DRIVE BELT
(Fig. 24)
If traction belt slips during operation,
an adjustment is required. Whenever
“the belt is replaced, an adjustment is
reguired.
1. Loosen upper jam nut securing trac-
tion cable to mounting bracket.
2. Rotate bottom ¡am nut upward to
increase belt tension.
Note: When adjusting cable, always
rotate nut one turn at a time.
3. Tighten upper jam nut against
bracket.
4. Check tension of belt by operating
machine. If belt still slips, repeat pro-
cedure.
IMPORTANT: Do not adjust the belt
too tight because it may cause
snowthrower to creep when traction
lever is in disengaged position. If this
occurs, readjust, loosening belt ten-
sion.
17
MAINTENANCE
REPLACING DRIVE BELTS (Fig. 26)
If auger/impeller belt or traction belt
become worn, glazed, stretched, oil-
soaked, or otherwise defective, belt
replacement is required.
1. Pull wire off spark plug and make
sure it does not contact the plug acci-
dentally.
2. Remove (3) flange head screws
holding belt cover in place, and slide
belt cover up cables.
Cable must be free to slide in bracket
when changing beit(s).
9. Reinstall belts by reversing proce-
dure. Make sure tabs in half sheave
are inserted into mounting grooves in
auger/impeller pulley when reinstalling.
Note: Make sure idler pulleys are
aligned with belts when reinstalling idler
pulley assembly. |
10. Readjust belts, refer to Adjusting
Auger/Impeller Drive Belt or Adjusting
Traction Drive Belt.
e
1. Idler pulley 4. Half sheave
assembly 5. Auger/impeller
2. Flange head beit
capscrews (2) 6. Traction belt
3. Capscrew &
lockwasher
3. Move speed shift control to N (neu-
tral).
4. Remove (2) flange head capscrews
securing idler pulley assembly to en-
gine frame. Remove idler pulley as-
sembly.
5. Remove capscrew and lockwasher
securing half sheave to front of pulley
assembly.
6. Slide auger/impeller pulley and belt
off crankshaft and remove belt from
impeller pulley.
7. If replacing traction belt, slide trac-
tion pulley and belt off crankshaft and
remove belt from transmission pulley.
8. On control cable which corresponds
to belt being replaced, loosen jam nuts
securing cable to bracket (Fig. 23).
18
Improper adjustment may cause in-
jury if auger/impeller turns when
disengaged.
ADJUSTING DRIVE CHAIN
(Figs. 27-30)
The drive chain must be adjusted to
maintain 1/8-3/8 of an inch deflection t
mid span between transmission and
axle sprocket. Check chain deflection
after every 25 hours of operation.
1. Make sure wheels are positioned in
rear position, move shift control into
2nd gear, and tip snowthrower up onto
auger housing. |
1/8” - 3/8”
DEFLECTION
Figure 27
IMPORTANT: To adjust drive chain,
the snowthrower must be tipped up
on auger housing. However, before
the snowthrower is tipped, drain all
gasoline from fuel tank.
MAINTENANCE
2. Check deflection of chain by lifting
up on chain with moderate pressure at
mid span. There should be 1/8-3/8”
deflection. If deflection is not as speci-
fied an adjustment is required.
Figure 28
2. Transmission
frame
1. Transmission
3. Loosen (4) flange head capscrews
(2 each side) securing transmission
frame to engine frame (Fig. 29).
4. Pivot rear of transmission frame until
1/8-3/8” chain deflection is attained,
then, retighten flange head capscrews.
Figure 29
1. Flange head capscrews
IMPORTANT: Excessive chain tension
may cause transmission damage.
Note: If gear shift lever is not aligned
with Power Shift slot in control panel
(Fig. 30, inset), shift rod length must
be adjusted as follows:
A. Disconnect ball joint from
transmission lever and loosen jam
nut.
B. Rotate ball joint up or down until
gear shift lever is aligned with Power
Shift slot.
C. Reinstall ball joint to transmission
lever and tighten jam nut.
5. Recheck chain deflection and lower
snowthrower to normal position.
e:
№
Figure 30
Shift rod 5. Locknut
Ball joint 6. Jam nut
Shift bracket
Transmission lever
ADJUSTING CARBURETOR (Fig. 31)
The carburetor has been adjusted at
the factory, but an occasional adjust-
ment may be required.
7. Gear shift lever
da с) № —^
19
MAINTENANCE
1. Needle Valve—Close needle valve
finger-tight by gently rotating it clock-
wise.
IMPORTANT: Do not close needle
valve too tight because valve and seat
in carburetor will likely be damaged.
2. Rotate—open—needle valve 1-1/2
turns counterclockwise.
3. Idle Valve—Close idle valve finger-
tight by gently rotating it clockwise.
IMPORTANT: Do not close idle valve
too tight because valve and seat in
carburetor will likely be damaged.
4. Rotate—open—idle valve 1/4 turn to
3/4 of a turn counterclockwise.
Engine must be running so final
adjustment of the carburetor can
be performed. To guard against
possible personal injury, move
auger drive and wheel drive con-
trols to DISENGAGE, and remember
to keep hands, feet, face, and
other part of the body away from
muffler, auger, discharge chute,
and any moving part(s).
Figure 31
1. Needle valve 3. Idle speed
2. Idle valve adjusting screw
Note: The needle valve and idle valve
settings are approximates; however,
the settings will allow engine to be
started so carburetor can be fine tu-
ned—steps 5-11.
5. Start engine and let it warm up for
approximately 2 to 3 minutes; then
move throttle to FAST.
20
6. Rotate needle valve clockwise—in—
until engine misses because of a lean
gasoline mixture. Then rotate needle
valve counterclockwise—out— until en-
gine runs unevenly because of a rich
gasoline mixture. Next, rotate needle
valve clockwise, back to the midpoint
between the rich and lean setting, so
engine runs smoothly.
7. Move throttle control backward to
idle speed. Next, rotate idle speed ad-
justing screw until engine idles
fast—1750 rpm.
8. Rotate idle valve clockwise—in—until
engine begins to miss because of a
lean mixture. Then rotate idle valve
counterclockwise—out—until engine
runs unevenly because of rich mixture.
- Next, rotate idle valve clockwise, back
to the mid-point between rich and lea
settings. |
9. Again, rotate idle speed adjusting
screw until engine idles at 1750 rpm.
10. Check carburetor adjustment by
quickly moving throttle from idle speed
to high speed. Engine should acceler-
ate without hesitation or sputtering. If
engine does not accelerate properly,
adjust carburetor to a slightly richer
mixture.
11. After carburetor is adjusted, shut
engine off.
MAINTENANCE
REPLACING SPARK PLUG
Use a Champion RCJ-8 or Autolite
AR7N spark plug. Set air gap at 0.030”
(0.76 mm). Since air gap between
center and side electrodes of the spark
plug increases gradually during normal
engine operation, install a new plug af-
ter every 25 hours of engine operation.
1. Clean area around spark plug so
foreign matter cannot fall into cylinder
when plug is removed.
2. Pull wire off spark plug (Fig. 32)
and remove plug from cylinder head.
IMPORTANT: A cracked, fouled, or
dirty spark plug must be replaced. Do
not sand blast, scrape, or clean elec-
trodes because grit may eventually
release from the plug and fall into the
cylinder. The result will likely be en-
gine damage.
Figure 32
1. Spark plug wire
3. Set air gap between electrodes of
new spark plug at 0.030” (0.76 mm)
(Fig. 33). Next, install spark plug in
cylinder head. Tighten plug to 15 ft-lb
(20.4 N-m). If torque wrench is not
used, tighten plug firmly.
4. Push the wire onto spark plug.
Figure 33
PREPARING SNOWTHROWER FOR
STORAGE
1. Drain gasoline from fuel tank: refer
to Draining Gasoline, page 15. Wipe up
any gasoline that may have spilled.
2. Start the engine and let it run until it
stops because there is no gasoline in
the fuel system.
3. Remove spark plug from cylinder
head. Next, pour two teaspoons of en-
gine oil into spark plug hole in cylinder
head. Install spark plug in cylinder
head, but do not install wire on the
plug. Then pull recoil starter slowly to
distribute oil on inside of cylinder.
4. Lubricate the snowthrower: refer to
Lubricating Snowthrower, page 15.
5. Change crankcase oil: see Changing
Crankcase Oil, page 15.
6. Ciean the snowthrower. Touch up
chipped surfaces with paint. Toro Re-
Kote paint is available from an Author-
ized TORO Service Dealer. Sand af-
fected areas before painting, and use
a rust preventative to prevent metal
parts from rusting.
7. Tighten all screws and nuts. If any
part is damaged, repair or replace it.
8. Store snowthrower in a clean, dry
place, and cover it for protection.
9. The snowthrower may be stored in
upright position. Be sure to drain gas
and oil before tipping snowthrower up-
right on auger housing.
21
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBER To order replacement parts from an
Authorized TORO Service Dealer, sup-
The snowthrower has two identification ply the following information:
numbers: a model number and a serial
number. The two numbers are 1. Model and serial numbers of the
stamped on a decal which is located snowthrower.
on back of engine mounting plate. In
any correspondence concerning the
snowthrower, supply model and serial
2. Part number, description, and quan-
tity of part(s) desired.
numbers to assure that correct infor- Note: Do not order by reference num-
mation and replacement parts are ob- ber if a parts catalog is being used;
tained. use the PART NUMBER.
TORO SERVICE SUPPORT
If help—concerning safety, set-up, operation, maintenance, or troubleshooting—is
ever needed, contact the local Authorized TORO Service Dealer or Distributor. Refer
to the ‘'Yellow Pages” for assistance. In addition to skilled service technicians, the
dealer and distributor have factory approved accessories and replacement parts.
Keep your TORO all TORO. Buy genuine TORO replacement parts and accessories.
22 :
MAINTENANCE RECORD
Spark
Hours Oil nati Summer Fall Plu
Date Used Change Lubrication Storage | Service Gap
UPL-49806
E
- Hs Rs НН Gia e
The Toro Promise
A Two Year Limited Warranty
On All
Gasoline Powered Consumer Products
“The Toro Company promises to repair these TORO Products if defective in materials
or workmanship. The following time periods from the date of purchase apply:
NN
Residential Product
Residential Products Used Commercially
eee ie
BO on
eee
COCOS
atera
Can
gg og за чачая
CONCE AE
rate
Ct,
«+ Ч, un
o
eo
ApeDeoeTen ey
nt nas Xx
x
een ae ee ee, a, E
CN O nen
ao
CEE,
ee
“>
SR
The cost of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer or
TORO Distributor.
Should you feel your TORO Product is de-
fective and wish to rely on The Toro Prom-
ise, you may return it to:
1. Contact any Authorized TORO Service
Dealer, TORO Master Service Dealer,
or TORO Distributor. (The Yellow
Pages of your telephone directory is a
good reference source).
2. The dealer will either Instruct you to
return the product to the dealer or will
recommend another Authorized TORO
Service outlet which might be more con-
venient.
3. Bring the product along with your
original sales slip, or other evidence
of purchase date, to the service
dealer.
4. The servicing dealer will inspect the unit,
advise you whether the product is
defective and, If so, make all repairs
necessary to correct the defect without
any extra charge to you.
If for any reason you are dissatisfied with the
analysis of the defect or the service per-
formed, you may contact us.
Write: TORO Customer Service Dept.
8111 Lyndale Avenue South
Minneapolis, MN 55420
The above remedy of product defects through
repair by an Authorized TORO Service Dealer
is the purchaser's sole remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY.
ALL IMPLIED WARRANTIES OF MERCHAN-
TIBILITY AND FITNESS FOR USE ARE LIM-
ITED TO THE DURATION OF THE EXPRESS
WARRANTY.
Some states do not allow limitations
on how long implied warranty lasts, so
the above limitation may not apply to
you.
This warranty applies only to parts or
components which are defective and
does not cover repairs necessary due
to normal wear, misuse, accidents, or
lack of proper maintenance. Regular,
routine maintenance of the unit to keep
it in proper operating condition is the
responsibility of the owner.
All warranty repairs reimbursable under
The Toro Promise must be performed
by an Authorized Toro Service Dealer
using Toro approved replacement
parts.
Repairs or attempted repairs by any-
one other than an Authorized TORO
Service Dealer are not reimbursable
under the TORO Promise. In addition,
these unauthorized repair attempts
may result in additional malfunctions,
the correction of which is not covered
by warranty.
THE TORO COMPANY IS NOT LIABLE
FOR INDIRECT OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE
USE OF THE PRODUCT.
Some states do not allow the exclu-
sion of incidental or consequential
damages, so the above exclusion may
not apply to you.
tay a!
Loli
nn
SS
AA
e O
ee EE
ee el ae
Ray > snl
uh
Se :
This warranty gives you specific legal
rights, and you may also have other
rights which vary from state to
SIR
sen
5
ee
aaa
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should contact their
TORO Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you
are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the
TORO importer. if all other remedies fail, you may contact us at The Toro Company.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
