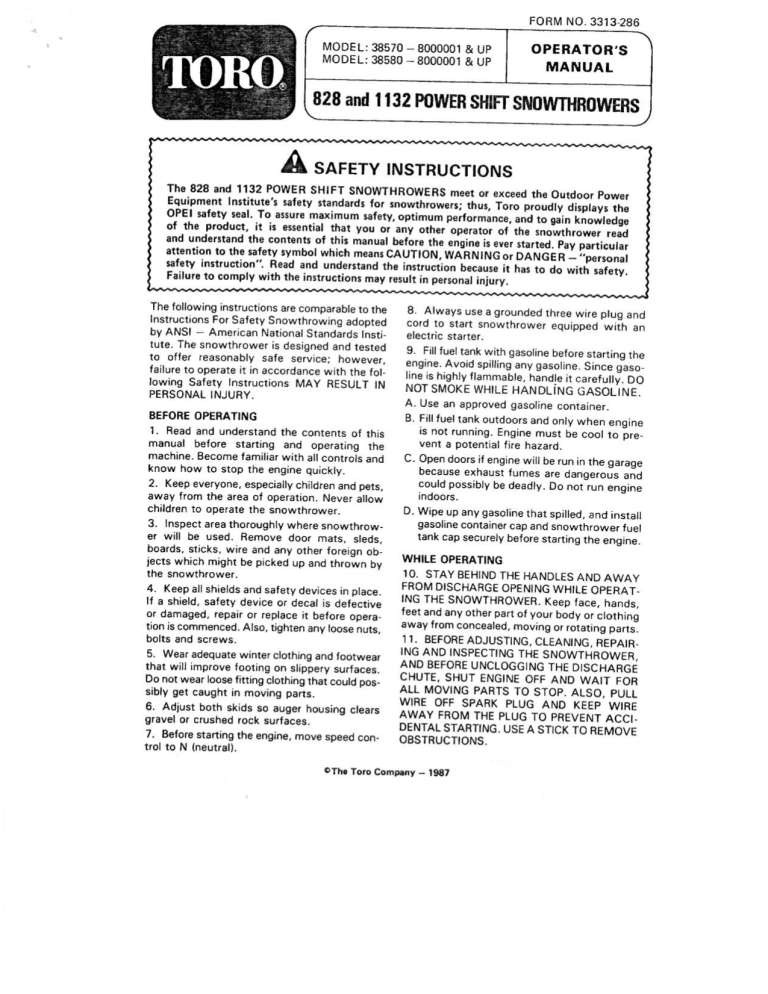

FORM NO. 3313-286
MODEL: 38570 — 8000001 & UP
MODEL: 38580 — 8000001 & UP
OPERATOR'S
MANUAL
828 and 1132 POWER SHIFT SNOWTHROWERS )
The following instructions are comparable to the
Instructions For Safety Snowthrowing adopted
by ANSI — American National Standards Insti-
tute. The snowthrower is designed and tested
to offer reasonably safe service: however,
failure to operate it in accordance with the fol-
lowing Safety Instructions MAY RESULT IN
PERSONAL INJURY.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the
machine. Become familiar with all controls and
know how to stop the engine quickly.
2. Keep everyone, especially children and pets,
away from the area of operation. Never allow
children to operate the snowthrower.
3. Inspect area thoroughly where snowthrow-
er will be used. Remove door mats, sleds,
boards, sticks, wire and any other foreign ob-
jects which might be picked up and thrown by
the snowthrower.
4. Keep all shields and safety devices in place.
If a shield, safety device or decal is defective
or damaged, repair or replace it before opera-
tion is commenced. Also, tighten any loose nuts,
bolts and screws.
5. Wear adequate winter clothing and footwear
that will improve footing on slippery surfaces.
Do not wear loose fitting clothing that could pos-
sibly get caught in moving parts.
6. Adjust both skids so auger housing clears
gravel or crushed rock surfaces.
1. Before starting the engine, move speed con-
trol to N (neutral).
A SAFETY INSTRUCTIONS
The 828 and 1132 POWER SHIFT SNOWTHROWERS meet or exceed the Outdoor Power
Equipment Institute's safety standards for snowthrowers; thus, Toro proudly displays the
OPEI safety seal. To assure maximum safety, optimum performance, and to gain knowledge
of the product, it is essential that you or any other operator of the snowthrower read
and understand the contents of this manual before the engine is ever started. Pay particular
attention to the safety symbol which means CAUTION, WARNING or DANGER — “personal
safety instruction”. Read and understand the instruction because it has to do with safety,
Failure to comply with the instructions may result in personal
injury,
8. Always use a grounded three wire plug and
cord to start snowthrower equipped with an
electric starter.
9. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since gaso-
line is highly flammable, handle it carefully. DO
NOT SMOKE WHILE HANDLING GASOLINE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors and only when engine
is not running. Engine must be cool to pre-
vent a potential fire hazard.
C. Open doors if engine will be run in the garage
because exhaust fumes are dangerous and
could possibly be deadly. Do not run engine
indoors.
D. Wipe up any gasoline that spilled, and install
gasoline container cap and snowthrower fuel
tank cap securely before starting the engine.
WHILE OPERATING
10. STAY BEHIND THE HANDLES AND AWAY
FROM DISCHARGE OPENING WHILE OPERAT-
ING THE SNOWTHROWER. Keep face, hands,
feet and any other part of your body or clothing
away from concealed, moving or rotating parts.
11. BEFORE ADJUSTING, CLEANING, REPAIR-
ING AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DISCHARGE
CHUTE, SHUT ENGINE OFF AND WAIT FOR
ALL MOVING PARTS TO STOP. ALSO, PULL
WIRE OFF SPARK PLUG AND KEEP WIRE
AWAY FROM THE PLUG TO PREVENT ACCI-
DENTAL STARTING. USE A STICK TO REMOVE
OBSTRUCTIONS.
©The Toro Company — 1987
SAFETY INSTRUCTIONS
12. Keep people and pets a safe distance away
from the snowthrower and area of operation,
13. Allow engine to warm up for about 2
minutes and machine to adjust to outdoor tem-
perature before clearing snow.
14. Do not run engine indoors, except when
starting engine. When starting engine indoors,
open outside doors because exhaust gasses are
dangerous.
15. Operate the snowthrower only when there
is good visibility or light. Always maintain se-
cure footing and keep a firm grip on the handles,
especially when operating in reverse.
16. Be attentive when using the snowthrower,
and stay alert for holes in the terrain and other
hidden hazards. Be careful when clearing snow
from a gravel drive because stones could be
picked up and thrown if the skids are not adjust-
ed so auger housing clears all rocks.
17. Do not make any adjustments while the en-
gine is running.
18. Never direct discharge of snow or operate
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a drop-
off without proper adjustment of the snow dis-
charge angle.
19. Clear snow from slopes by going up and
down; never across the face, and use caution
when changing directions. Use lower gear and
rear wheel position when operating on slopes.
Never clear snow from steep slopes.
20. Do not overload the snowthrower by clear-
ing snow at too fast a rate.
21. If a solid object is hit or snowthrower
vibrates abnormally, shut engine off and wait for
all movement to stop. Pull high tension wire off
spark plug and check snowthrower Immediate-
ly for possible damage, an obstruction or loose
parts. Vibration is generally a warning of trou-
ble. Repair any damage before restarting engine
and operating snowthrower again.
22. Do not touch engine while it is running or
soon after it is stopped because the engine will
be hot enough to cause a burn, Do not add oil
or check oil level in crankcase when engine is
running because this could be a potential hazard.
23. Before leaving the operator's position — be-
hind handles — rotate ignition key to OFF. Re-
move key from switch if snowthrower will be left
unattended.
24. Never operate snowthrower at high trans-
port speeds on slippery surfaces. Use care when
backing.
25. Let engine run for a few minutes after clear-
ing snow so moving parts do not freeze,
MAINTAINING SNOWTHROWER
26. Perform only those maintenance instruc-
tions described in this manual. Shut engine off
before performing any maintenance service or
adjustment. Additionally, pull high tension wire
off spark plug and keep wire away from plug to
prevent possibility of accidental starting. If major
repairs are ever needed, contact the local Autho-
rized TORO Service Dealer for assistance,
27. Keep snowthrower in safe operating con-
dition by keeping nuts, bolts and screws tight.
Check engine mounting bolts frequently to as-
sure they are tight.
28. Do not overspeed the engine by changing
governor settings. Recommended maximum en-
gine speed is 3500 rpm. To assure safety and
accuracy, check maximum engine speed (3500
rpm) with a tachometer.
29. Allow engine to cool before storing snow-
thrower in an enclosure Such as a garage or
storage shed, and make sure the snowthrower
fuel tank is empty. Do not store snowthrower
near any open flame or where gasoline fumes
may be ignited by a spark.
30. When storing the snowthrower for an ex-
tended time — off season storage or 30 days
— drain gasoline from fuel tank to prevent a
potential hazard. Store gasoline in a safety-
approved red metal container. Remove key from
ignition switch and keep it in a memorable place.
31. At the time of manufacture, the snowthrow-
er conformed with and exceeded safety stan-
dards in effect for snowthrowers. Therefore, to
assure optimum performance and safety, pur-
chase genuine TORO replacement parts and ac-
cessories to keep the TORO all TORO. NEVER
USE “WILL-FIT” REPLACEMENT PARTS AND
ACCESSORIES. The TORO logo assures
genuineness.
32. For safety reasons, use only those acces-
sories and attachments recommended by The
TORO Company to assure continued safety cer-
tification of the product. Using unapproved ac-
cessories and attachments could contribute to
a potential hazard,
SAFETY DECALS
Safety and instruction decals are located on the snowthrower chassis and engine.
Replace any decal that is damaged.
eh
Pi
ON AUGER HOUSING NEXT TO PRIMER ALONGSIDE
FANGS) (Part No. 63-2320) TL + S92700 THROTTLE
SE ERE ECR (Part No. 63-2340)
all parts have stopped before
unclogging. discharge chute.
A WARNING
“HOT
SURFACES
ON ENGINE
Part No. 62-7290}
aa ON
A WARNING
ON CHUTE
{Part No. 63-3740)
ON ENGINE
(Part No. 63-2360)
ON ENGINE BASE
{Part No. 63-3460)
— “тонн ==,
|| TO CHANGE WHEEL POSITION:
ERE aL TT TE RTE
PE ET TT TEA DES EE TA TT
pi EEC TENE NEL ET TE ЧА
or
=
5 | А | $)
в. a
USE LOWER GEAR ARE Еж Е WHEEL
Eo Ne: анао iT rai v R ++ TE En ir SLOPES
A EPTELTOS Y MAN LLL DN OPERATE AnD SiR IY У MIA MÁ RESULT вам |055
mal MER OF FOOTIRE D8 CARTAN
a ня
TRACTHOe DRIVE Pme wns = i a ая = BLIGE AL IPE LER
ot YN airman yi a me $ Fa
Ke re rt o EN Pa
DESTACADA ENGAGE va ENGAGE станы |
ON CONTROL PANEL 3
(Part No. 63-2540)
LOOSE PARTS
Use
Part | Qty
Flange head capscrew- 6
5/16-18x 5/8" Ig.
Lower belt cover 1
Flange head capscrew- 5
1/4-20x1/2" lg.
Cable cover 1
Shift rod 1
Locknut-3/8-24 2
Discharge chute 1
Worm gear 1
Gear Bracket 1
Carriage bolt-5/16-18 x 1" Ig. 1
Flat washer 1
Locknut-5/16 1
Key 1
| Registration card 2 |
Mount Auger Housing, page 5
Mount Belt Covers, page 5,
Install Shift Rod, page 5
Install Discharge Chute, page 6
Install Chute Control Gear, page 6
Use in Ignition Switch
Use to Register Product with Factory
Specifications and design subject to change without notice.
TABLE OF CONTENTS
Page
Safety Instructions ............ 1-2
eN DSBEÍS ooo vo axes gu Lo 3
loose Parts .......... .. .. . . 4
Setting Up Instructions... ..... 5-7
Preparation Before Starting. ......... 8
Fill Crankcase With Oil ...... 8
Fill Fuel Tank With Gasoline. . . .... 8
Controls ................... 9-10
Starting and Stopping Instructions .. . 11
Operating Instructions ............—. 12-13
Power Shift Operation .............. 12
Free Wheeling or Self Propelled Drive _. 12
Snowthrowing Tips . .......... 5 12
Adjusting Skids. . . ......... .. 12
Maintenance oom ema EEES. 13
Page
Draining Gasoline ....... .. . .. 0 13
Lubricating Snowthrower . . .. .... 14
Changing Crankcase Oil ..... .. .. 14
Auger Come BEX amu 2 y pu 14
Adjusting Auger Drive Belt ....... ‚14
Adjusting Traction Drive Belt ........ 15
Replacing Drive Belts ...... | 15
Adjusting Drive Chain . . . o a 1 530
Replacing Spark PIU us a sa ES Do LL 17
Adjusting Carburetor . . .. ... .. EF
Preparing Snowthrower For Storage .. ..18
Identification and ONE: women oo 19
Maintenance Chart ........ ОО 19
Toro Promise ............ ~~ 20
SETTING UP INSTRUCTIONS
Note: Determine left and right sides of snow-
thrower by standing in the normal operating
position.
MOUNT AUGER HOUSING (Fig. 1-3)
1. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove
idler pulley assembly.
2. Align auger housing and engine frame
mounting holes (Fig. 1).
Figure 1
4. Idler pulley assembly
1. Auger housing
5. Mounting screws (2)
2. Engine frame
3. Impeller pulley
3. Route impeller belt around impeller pulley.
4. Secure auger housing to engine frame with
(6) 5/16-18 x 5/8" lg. flange head capscrews.
|
| 1
Re;
9 iL
A
mM 2 I
=~ =
К == ©,
Figure 2
1. Lower belt cover
(shown from bottom)
2. Mounting tabs
5. Reinstall idler pulley assembly. Make sure
idler pulleys are aligned with belts when reinstall-
ing idler pulley assembly.
6. Tip snowthrower up on auger housing.
7. Mount lower belt cover to underside of auger
housing and engine frame with (2) 1/4-20 x 1/2"
lg. flange head capscrews (Fig. 2). Make sure
belt cover mounting tabs are positioned to rear
of engine frame member.
8. Mount upper belt cover to engine frame
with (3) 1/4-20x 1/2” Ig. flange head capscrews
(Fig. 3).
9. Slide cable cover onto cables and into hole
in belt cover,
©
м )
y
+
O ®
Figure 3
1. Upper belt cover
2, Cable cover
INSTALL SHIFT ROD (Fig. 4)
1. Insert upper shift rod ball joint stud thru front
of shift bracket and secure with 3/8-24 locknut.
2. Insert bottom ball joint stud thru right side
of transmission lever and secure with 3/8-24
locknut.
Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 4, Inset), shift
rod length must be adjusted as follows:
A. Disconnect ball joint from transmission lever
and loosen jam nut.
B. Rotate ball joint up or down, until gear shift
lever is aligned with power shift slot.
5
SETTING UP INSTRUCTIONS
C. Reinstall ball joint to transmission lever and
tighten jam nut.
Figure 4
1. Shift rod 5. Locknut
2. Ball joint 6. Jam nut
Jd, Shift bracket 7. Gear shift lever
4. Transmission lever 8. Power shift slot
INSTALL DISCHARGE CHUTE (Fig. 5)
1. Set discharge chute — open side forward —
onto auger discharge opening, so plastic chute
retainers are positioned on chute ring. Make sure
chute retainer guide pins are inserted into holes
in chute gear.
2. Tighten left hand machine screw and locknut
until chute retainer plate is positioned against
plastic chute retainer and discharge chute is
secured to chute ring.
3. Push right hand chute retainers toward
discharge chute (slotted) and tighten machine
screw.
4. Make sure chute rotates freely on ring. Move
right hand retainer (slotted) outward to ease
operation.
Figure 5
1. Discharge chute 3. Chute retainer plate
2. Plastic chute retainer
INSTALL CHUTE CONTROL GEAR (Fig. 6)
1. Insert the 5/16-18 x 1“ Ig. carriage bolt into
gear bracket mounting hole,
2. Position worm gear into bracket, align holes
and insert chute gear rod through bracket and
gear.
Figure 6
1. Gear bracket
2. Carriage bolt, flat-washer & locknut
3. Worm gear
4. Chute gear rod
SETTING UP INSTRUCTIONS
3. Loosely mount worm gear and bracket to
mounting flange with flat washer and locknut.
4. Slide worm gear into teeth of chute gear and
tighten locknut.
5. Check operation, move gear slightly outward
if binding is evident.
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires because
they are over inflated at the factory for shipping.
Therefore, before the snowthrower is operated,
reduce pressure in both tires to 10-15 psi equally.
CHECK AUGER GEAR BOX OIL (Fig. 7)
1. Move snowthrower to a level surface.
2. Remove pipe plug from gear box.
3. Check level of oil in gear box. Oil must be at
point of overflowing in filler opening.
4, |f level of oil is low, add GL-5 or GL-6 SAE
85-95 EP transmission oil to the gear box until
Figure 7
1. Pipe plug
point of overflow.
D. Install pipe plug in gear box.
PREPARATION BEFORE STARTING
FILL CRANKCASE WITH OIL (Fig. 8)
The engine is shipped from the factory without
oil in the crankcase. Therefore, before trying to
start engine, oil must be added to the crankcase.
IMPORTANT: Check level of oil every 5 operat-
ing hours or each time unit is used. Initially,
change oil after the first 2 hours of operation;
thereafter, under normal conditions, change oil
after every 25 hours of operation or annually.
1. Move unit to a level surface to assure an ac-
curate oil level reading.
2. Clean area around dipstick to prevent foreign
matter from entering filler hole when dipstick is
removed.
3. Remove dipstick from crankcase.
Figure 8
1. Dipstick
2. Filler Hole
4. Slowly, pour SAE 5W-30 or SAE 10 oil into
the filler hole, using oil filler chart below. The en.
gine uses any high-quality detergent oil having
the American Petroleum Institute — APl —
“Service classification” SE or SF.
Oil Fill Chart
828 Snowthrower 44 ounces of oil
1132 Snowthrower 48 ounces of ojl
Note: Dipstick must be fully installed to assure
accurate gauging of oil level. DO NOT OVERFILL.
FILL FUEL TANK WITH GASOLINE.
THE TORO COMPANY STRONGLY RECOM-
MENDS THE USE OF CLEAN, FRESH UNLEAD-
ED REGULAR GASOLINE IN T
POWERED PRODUCTS. U
BURNS CLEANER,
PROMOTES GOO
NOTE: NEVER
CONTAINING
AA caution
Because gasoline is flammable, caution
must be used when storing or handling it.
Do not fill fuel tank while engine is running,
hot or when unit is in an enclosed area. Keep
away from open flame and electrical spark,
and DO NOT SMOKE while filling the fuel
tank to prevent the possibility of an explo-
sion. Always fill fuel tank outside and wipe
up any spilled gasoline before starting en-
gine. Use a funnel or Spout to prevent spill-
ing gasoline, and fill fuel tank to about 1/2
inch (13 mm) from the top of the tank, not
the filler neck.
Store gasoline in a clean, approved contain-
er and keep the cap in place on the contain-
er. Keep gasoline in a cool, well-ventilated
place; never in the house. To assure volatil-
ity, do not buy more than a 30 day supply
of gasoline. Gasoline is a fuel for internal
combustion engines: therefore, do not use
it for any other purpose. Since many chil-
dren like the smell of gasoline, keep it out
of their reach because the fumes are explo-
sive and dangerous to inhale.
ORO GASOLINE
NLEADED GASOLINE
EXTENDS ENGINE LIFE, AND
D STARTING BY REDUCING
THE BUILDUP OF COMBUSTION CHAMBER
DEPOSITS. LEADED GASOL
IF UNLEADED IS NOT AVAILABLE.
USE METHANOL, GASOLINE
METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, GASO-
LINE ADDITIVES, PREMI
WHITE GAS BECAUSE E
DAMAGE COULD RESULT.
1. Clean area around the fuel tank cap. Remove
cap from fuel tank and fill tank to within 1/2”
(13 mm) from the top with unl
gasoline. Reinstall fuel tank cap.
Fuel tank Capacity is 4 quarts.
INE CAN BE USED
UM GASOLINE, OR
NGINE FUEL SYSTEM
eaded regular
CONTROLS
Auger/Impeller Control (Fig. 9) — Control has
two positions: ENGAGE and DISENGAGE, To en-
gage auger and impeller, compress lever against
right handle grip. To disengage, release lever.
Traction Drive Control (Fig. 9) — To engage trac-
tion or activate power shift system, lever must
be compressed against left handle grip. To stop
traction, release lever.
Speed Shift Control (Fig. 9) — The control has
four speeds forward and two reverse and also
controls power shifting of wheels. To select
speeds, move shift control to desired position.
Note: Release traction drive control when shift-
ing to change speeds or to Power Shift.
Auger Lock-Up: (Fig. 9) — When auger/impeller
control and traction drive control are both com-
pressed, the traction control locks the au-
ger/impeller control down. Releasing the traction
control releases the auger/impeller.
Figure 9.
. Auger/impeller control
Traction drive control
Speed shift control
. Ignition switch
. Discharge chute control
Discharge Chute Control (Fig. 9) — Rotate dis-
charge chute control clockwise to move dis-
charge chute to the right and counterclockwise
to move chute to the left.
Ignition Switch (Fig. 9) — Switch has two posi-
tions: ON and OFF. Rotate key to ON position
before starting engine. To stop engine, rotate key
to OFF.
Throttle (Fig. 10) — Moving the throttle upward
increases the engine speed.
Choke (Fig. 10) — Choke is located on left side
of engine. Push choke down to FULL choke
position to start a cold engine. As engine warms
up, move choke gradually to OFF,
Figure 10
1. Throttle
2. Choke
3. Primer
Primer (Fig. 10) — Press primer to pump small
amount of gasoline into engine for improved cold
weather starting.
Figure 11
1. Fuel shut-off valve
CONTROLS
Fuel Shut-Off Valve (Fig. 11) — Valve Is located
under fuel tank. Close valve to stop fuel flow
from fuel tank and open valve to allow fuel to
flow to the carburetor. Close valve when snow-
thrower is not used.
Deflector Handle — Deflector handle on top of
discharge chute is used to control the height of
the snow stream.
Recoil Starter (Fig. 12) — Recoil starter is on
back side of engine. Pull recoil starter to start
engine.
10
Figure 12
1. Recoil starter
STARTING AND STOPPING INSTRUCTIONS
IMPORTANT: Check auger and impeller to assure
that both parts are not frozen solid, but free to
rotate. Also, make sure discharge chute is not
obstructed.
1. Move speed selector to N — neutral — and
throttle to FAST (Fig. 9).
2. Open fuel shut-off valve below fuel tank.
Move choke to full choke position (Fig. 10).
Rotate ignition key to ON (Fig. 9).
Depress primer (Fig. 10) five times.
6. Grasp recoil starter handle (Fig. 12) and pull
it out slowly until positive engagement results;
then pull vigorously to start the engine. Keep firm
grip on starter handle and return the rope slowly.
Note: If engine does not start or if temperature
is —10° F or below, additional priming may be
required.
ao
8. After engine starts, immediately move choke
(Fig. 10) to 3/4 position. As engine warms up,
move choke to 1/2 position: then to OFF posi-
tion. If engine falters, return choke to 1/2 posi-
tion. When engine warms sufficiently, move
choke to OFF position.
BEFORE STOPPING ENGINE
1. Run engine for a few minutes to help dry off
any moisture which may have accumulated on
engine.
TO STOP ENGINE:
1. Release traction and auger/impeller drive con-
trols (Fig. 9).
2. Move speed selector to N — neutral.
3. Move throttle to slow and rotate ignition key
to OFF.
11
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Move wheels rearward to the Power Shift posi-
tion in heavy and/or drifted snow.
Leave wheels in the front position for light snow
or for transporting snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear position,
move shift control fully forward to Power Shift
position and hold (Fig. 13).
=
Figure 13
3. Fully engage traction drive lever to move
wheels into Power Shift position (Figs. 13 & 14).
Note: When power shifting it may be necessary
to slightly raise handles to assist wheel move-
ment.
Figure 14
Note: If wheels do not move in desired direction
when power shifting, repeat procedure. Wheels
must rotate in forward direction to move wheels
ahead and rotate rearward to move wheels back.
FREE WHEELING OR SELF PROPELLED DRIVE
The snowthrower can be free wheeled or en-
gaged for self propelled operation. When axle
pins are through outer axle holes (Fig. 15), snow-
thrower will free wheel. By contrast, when both
pins are installed through holes in wheel hub and
12
inner hole of axle (Fig. 15), snowthrower will self
propel itself,
Figure 15
1. Axle pin
SNOWTHROWING TIPS
1. When snowthrower is not being used, close
fuel shut-off valve, have speed control in N —
neutral position, and key removed from the
switch.
2. Remove snow as soon as possible after it
falls. This will produce best snow removal
results.
3. When in the Power Shift position, push down
on handles to increase traction.
4. If snow will be removed from crushed rock
or gravel areas, adjust skids so bottom of auger
housing clears the rocks: refer to Adjusting
Skids, page 12.
5. For concrete or asphalt surfaces, adjust skids
so there is 1/8 inch (3 mm) between bottom of
auger and concrete or asphalt surface.
6. Discharge snow downwind whenever possi-
ble, and overlap each swath to assure complete
snow removal. If wheels slip, shift into a lower
gear which reduces forward speed.
7. In some snow and cold weather conditions,
some controls and moving parts may freeze
solid. Therefore, when any control becomes hard
to operate, stop the engine; then check all parts
for freeze up. DO NOT USE EXCESSIVE FORCE
AND TRY TO OPERATE THE CONTROLS WHEN
FROZEN. Free all controls and moving parts be-
fore operating.
ADJUSTING SKIDS (Fig. 16)
When snowthrower will be used on concrete or
asphalt surfaces, adjust skids using steps 1 - 2.
However, use only step 3 when snowthrower
will be used on gravel or crushed rock surfaces.
OPERATING INSTRUCTIONS
1. Move snowthrower to a level surface, Next,
loosen four flange screws securing both skids
to auger side plates. Skids must slide up and
down.
2. Adjust both skids so there is 1/8 of an inch
between bottom of auger and level surface,
When skids are adjusted correctly, tighten flange
nuts. Next, check scraper blade that is mounted
at bottom of auger housing. Scraper must be
parallel with level surface. If scraper is not
parallel, adjust skids again. Do not use step 3
after adjusting skids for hard surfaces.
3. Loosen four flange screws securing both Figure 16
skids to auger side plates. Next, slide skids down 1. Flange screws
as far as possible so auger is as far from the level
surface as skid adjustment allows: then tighten
flange screws.
MAINTENANCE
TEE AAA
A dd dé día de e
“FC e" Nt
To prevent accidental starting of the engine
while performing maintenance, rotate igni-
tion key to off and remove it from the
switch. Next, pull wire off spark plug and
make sure wire does not accidentally touch
the plug.
a E оао, сабы о сабы сны,
Se ae a
EN at lt al NN Ni Na Nal
ail le i a mC oC
Sl Ee ae
du 7 A a
o]; ANA
JO Eee
DRAINING GASOLINE
1. Close fuel shut off valve located under en-
gine (Fig. 17).
2. Place a clean drain pan under shut off valve,
Figure 17
1.. Fuel shut off valve
2. Hose clamp
3. Fuel line
de sitión
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to
prevent a potential fire hazard. Wipe up any
gasoline that may have spilled. Do not drain
gasoline near any open flame or where
gasoline fumes may be ignited by a spark.
Do not smoke a cigar, cigarette, or a pipe
when handling gasoline.
РЦ A A le i о, ;
vaive and slide line off valve (Fig. 18).
ae i a ha Ad A ai
TTR TN lag gt ap a ag
pan.
Fa 8A
To
clamp.
Ae a р Ч
a" "a
3. Loosen hose clamps securing fuel line to
4. Open valve allowing fuel to flow into drain
5. Reinstall fuel line and secure with hose
MAINTENANCE
LUBRICATING SNOWTHROWER
1. Annually, lubricate drive chain with chain
lubricant (Fig. 18). Wipe up any excess oil.
Figure 18
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 19)
Initially, change oil after the first 2 hours of en-
gine operation; thereafter, change oil after ev-
ery 25 hours of engine operation or annually. If
possible, run engine just before changing oil be-
cause warm oil flows better and carries more
contaminants than cold oil.
1. Pull wire off spark plug and make sure wire
does not contact plug accidentally.
2. Clean area around oil drain cap. Next, slide
oil drain pan below drain extension: then remove
oil drain cap.
Figure 19
1. Drain cap
3. After all oil is drained, install oil drain cap.
4. Position snowthrower on a level surface.
Next, fill crankcase with oil: see Fill Crankcase
With Qil, page 8. Wipe up any oil that may have
spilled.
14
AUGER GEAR BOX OIL (Fig. 20)
The auger gear box is filled with oil at the facto-
ry so regular maintenance is not required.
However, if oil must be replaced in gear box:
1. Drain gasoline from fuel tank. Wipe up any
spilled gas.
2. Position snowthrower on a level surface.
3. Clean area around pipe plug so dirt is
removed.
4. Put a drain pan below front of auger gear box
and remove pipe plug: refer to Check Auger Gear
Box Oil, page 7.
5. Tip snowthrower forward and hold it up un-
til all oil drains from the gear box.
Figure 20
1. Pipe plug
6. Carefully let snowthrower down to its nor-
mal position. Make sure it is on a level surface.
Next, fill auger gear box with GL-5 or GL-6 SAE
85-95 EP transmission oil to the point of
overflow,
7. Install pipe plug in gear box.
ADJUSTING AUGER/IMPELLER DRIVE BELT
(Figs. 21-22)
If auger/impeller belt slips, resulting in decreased
snowthrowing performance, an adjustment is re-
quired. WHENEVER A NEW BELT IS INSTALLED,
AN ADJUSTMENT IS REQUIRED.
1. Remove (3) flange head capscrews securing
belt cover to engine frame and slide belt cover
up cables.
2. Check idler and brake adjustment. There
should be a minimum clearance of 1/8” between
tab on impeller idler arm and brake arm (Fig. 22).
If there is less than 1/8” clearance, belt must be
replaced.
3. Loosen upper jam nut securing auger/impeller
cable to mounting bracket (Fig. 21).
MAINTENANCE
Figure 21
1. Auger/impeller cable 3. Mounting bracket
2. Traction cable
4. Rotate bottom jam nut upward to increase
belt tension.
Note: When adjusting cable, always rotate nut
one turn at a time,
IMPORTANT: Do not adjust the belt too tight
because it may cause the auger/impeller to turn
when the auger/impeller is in the disengaged
position. If this occurs, readjust, loosening belt
tension.
5. Tighten upper jam nut against bracket.
i ee i i ae BE ae a a
i И a FPS
ur
ei ЧР
Foam aa
RE A я
Figure 22
1. Idler arm
2. Brake arm
6. Recheck idler and brake adjustment, refer to
step #2.
7, Reinstall belt cover.
8. Check tension of belt by operating the au-
ger. If belt still slips, repeat procedure.
ADJUSTING TRACTION DRIVE BELT (Fig. 21)
If traction belt slips during operation, an adjust-
ment is required, Whenever the belt is replaced,
an adjustment is required.
1. Loosen upper jam nut securing traction cable
to mounting bracket.
2. Rotate bottom jam nut upward to increase
belt tension.
Note: When adjusting cable, always rotate nut
one turn at a time,
3. Tighten upper jam nut against bracket.
4. Check tension of belt by operating machine,
If belt still slips, repeat procedure.
IMPORTANT: Do not adjust the belt too tight be-
cause it may cause snowthrower to creep when
traction lever is in disengaged position. If this
occurs, readjust, loosening belt tension.
REPLACING DRIVE BELTS (Fig. 23)
If auger/impeller belt or traction belt become
worn, glazed, stretched, oil-soaked, or otherwise
defective, belt replacement is required.
1. Pull wire off spark plug and make sure it does
not contact the plug accidentally.
2. Remove (3) thread forming screws holding
belt cover in place, and slide belt cover up cables,
3. Move speed shift control to N, neutral.
4. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove
idler pulley assembly.
Figure 23
1. idler pulley assembly
2. Mounting screws (2) 5. Auger/impeller belt
3. Capscrew 8 lockwasher 6. Traction belt
5. Remove capscrew and lockwasher securing
half sheave to front of pulley assembly.
6. Slide auger/impeller pulley and belt off crank-
shaft and remove belt from impeller pulley. 15
4. Half sheave
MAINTENANCE
7. If replacing traction belt, slide traction pul-
ley and belt off crankshaft and remove belt from
transmission pulley.
8. On control cable which corresponds to belt
being replaced, loosen jam nuts securing cable
to bracket (Fig. 21). Cable must be free to slide
in bracket when changing belt(s).
9. Reinstall belts by reversing procedure. Make
sure tabs in half sheave are inserted into mount-
ing grooves in auger/impeller pulley when re-
installing.
Note: Make sure idler pulleys are aligned with
belts when reinstalling idler pulley assembly,
10. Readjust belts, refer to Adjusting Auger/
Impeller Drive Belt or Adjusting Traction Drive
Belt.
Al iso
Improper adjustment may cause injury if
auger/impeller turns when disengaged. Use
only genuine Toro replacement parts.
“E” al" tt a ЧЩ
or
ADJUSTING DRIVE CHAIN (Figs. 24-27)
The drive chain must be adjusted to maintain
1/8-3/8 of an inch deflection at mid span be-
tween transmission and axle sprocket. Check
chain deflection after every 25 hours of
operation.
1. Check deflection of chain by lifting up on
chain with moderate pressure at mid span. There
should be 1/8-3/8" deflection. If deflection is not
as specified an adjustment is required.
1/8" - 3/8"
DEFLECTION
Figure 24
IMPORTANT: To adjust drive chain, the snow-
thrower must be tipped up on auger housing.
However, before the snowthrower is tipped,
drain all gasoline from fuel tank.
2. Make sure wheels are positioned in rear po-
sition, move shift control into 2nd gear and tip
snowthrower up onto auger housing.
16
Figure 25
1. Transmission
2. Transmission frame
3. Loosen (4) flange head capscrews (2 each
side) securing transmission frame to engine
frame (Fig. 26).
4. Lightly lift up on transmission frame until
1/8-3/8” chain deflection is attained, then,
retighten flangehead capscrews.
Figure 26
1. Flange head cap screws
IMPORTANT: Do not pry or use excessive force
when lifting transmission frame, as transmission
damage may occur.
Note: If gear shift lever is not aligned with Pow-
er Shift slot in control panel (Fig. 27 inset)
shift rod length must be adjusted as follows:
Fr
MAINTENANCE
Figure 27
1. Shift rod
2. Ball joint
3. Shift bracket
4. Transmission lever
5. Locknut
6. Jam nut
7. Gear shift lever
A. Disconnect ball joint from transmission lever
and loosen jam nut.
B. Rotate ball joint up or down, until gear shift
lever is aligned with Power Shift slot.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
5. Recheck chain deflection and lower snow-
thrower to normal position.
REPLACING SPARK PLUG (Fig. 28)
Correct spark plug to use is a Champion RCJ-8
or Autolite AR7N, and correct air gap is 0.030
of an inch (0.76 mm). Since air gap between
center and side electrodes of the spark plug in-
creases gradually during normal engine opera-
tion, install a new plug after every 25 hours of
engine operation.
1. Clean area around spark plug so foreign mat-
ter cannot fall into cylinder when plug is
removed.
2. Pull wire off spark plug and remove plug from
cylinder head.
IMPORTANT: A cracked, fouled, or dirty spark
plug must be replaced. Do not sand blast,
scrape, or clean electrodes because grit may
eventually release from the plug and fall into the
cylinder. The result will likely be engine damage.
3. Set air gap between electrodes of new spark
plug at 0.030 of an inch (0.76 mm) (Fig, 28).
Next, install spark plugin cylinder head. Tighten
plug to 15 ft-Ib {20.4 N-m). If torque wrench is
not used, tighten plug firmly,
4. Push the wire onto spark plug.
Figure 28
ADJUSTING CARBURETOR (Fig. 29)
The carburetor has been adjusted at the factory,
but an occassional adjustment may be required.
1. Needle Valve — Close needle valve finger-tight
by gently rotating it clockwise.
IMPORTANT: Do not close needle valve too
tight because valve and seat in carburetor will
likely be damaged.
2. Rotate — open — needle valve 1-1/2 turns
counterclockwise,
3. Idle Valve — Close idle valve finger-tight by
gently rotating it clockwise.
IMPORTANT: Do not close idle valve too tight
because valve and seat in carburetor will likely
be damaged.
4. Rotate — open — idle valve 1/4 turn to 3/4
otf a turn counterclockwise.
Note: The needle valve and idle valve settings
are approximates; however the settings will allow
engine to be started so carburetor can be fine
tuned — steps 5 - 11,
Figure 29
1. Needle valve
2. Idle valve 17
J. Idle speed adjusting screw
MAINTENANCE
Ч
pm
ii
7
Engine must be running so final adjustment
of the carburetor can be performed. To
guard against possible personal injury, move
auger drive and wheel drive controls to
DISENGAGE, and remember to keep hands,
feet, face, and other parts of the body away
from muffler, auger, discharge chute, and
any moving part(s).
a TD a 8
Ма що a a йо PPP PP Ps
SR LER EL ae me
a
iii a” a A Ч”
ae ale ae Ne LE ie il ie me ob
E SES EF NP EF a” JB a am am a a a a a
ee a с
EET al i tN a a
5. Start engine and let it warm up for approxi-
mately two to three minutes: then move throttle
to FAST.
6. Rotate needle valve clockwise — in — until
engine misses because of alean gasoline mixture,
Then rotate needle valve counterclockwise — out
— $0 engine runs unevenly because of a rich
gasoline mixture. Next, rotate needle valve clock-
wise, back to the midpoint between the rich and
lean setting so engine runs smoothly,
7. Move throttle control backward to idle speed.
Rotate idle speed adjusting screw until engine
idles fast — 1750 rpm,
8. Rotate idle valve clockwise — in — until
engine begins to miss because of a lean mixture.
Then rotate idle valve counterclockwise — out —
until engine runs unevenly because of rich
mixture, Next, rotate idle valve clockwise, back
to the mid-point between rich and lean setting.
9. Again rotate idle speed adjusting screw
until engine idles at 1750 rpm.
18
10. Check carburetor adjustment by quickly
moving throttle from idle speed to high speed.
Engine should accelerate without hesitation or
sputtering. If engine does not accelerate properly,
adjust carburetor to a slightly richer mixture,
11. After carburetor is adjusted shut engine off,
PREPARING SNOWTHROWER FOR STORAGE
1. Drain gasoline from fuel tank: refer to Drain-
ing Gasoline. Wipe up any gasoline that may
have spilled.
2. Start the engine and let it run until it stops
because there is no gasoline in the fuel system.
3. Remove spark plug from cylinder head. Next,
pour two teaspoons of engine oil into spark plug
hole in cylinder head. Install spark plug in
cylinder head, but do not inst: wire on the plug.
Then pull recoil starter slowly to distribute oil on
inside of cylinder.
4. Lubricate the snowthrower: refer to Lubricat-
ing Snowthrower. Change crankcase oil: see
Changing Crankcase Oil.
5. Clean the snowthrower. Touch up chipped
surfaces with paint. Sand affected areas before
painting, and use a rust preventative to prevent
metal parts from rusting.
6. Tighten all screws and nuts. If any part is
damaged, repair or replace it.
7. Store snowthrower in a clean, dry place, and
cover it to give protection.
8. The snowthrower may be stored in upright
position. Make sure to drain gas before tipping
snowthrower upright on auger housing.
UPL-44178
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The snowthrower has two identification num-
bers: a model number and a serial number. The
two numbers are stamped on a decal which is
located on back of engine mounting plate. In any
correspondence concerning the snowthrower,
supply model and serial numbers to assure that
correct information and replacement parts are
obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following in-
formation:
1. Model and serial numbers of the snow-
thrower.
2. Part number, description, and quantity of
part(s) desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
MAINTENANCE RECORD
: Spark
Date Hours Oil Lubrication Summer Fall Plug
Used Change Storage Service Gap
19
Che Tora Promise
я A Two Year Limited Warranty
= On AI
ны Gasoline Powered Consu mer Products
: The Toro Company promises to repair these TORO Products if defective in materials
ых or workmanship. The following time periods from the date of purchase apply:
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO service Dealer
or TORO Distributor,
Should you feel your TORO is defective and wish to Some states do not allow limitations on how long
rely on The Toro Promise, the following procedure implied warranty lasts, so the above limitation may
w | is recommended: not apply to you, a
- 1. Contact any Authorized TORO Service Dealer, This Warranty applies only to parts or components A
= TORO Master Service Dealer, or TORO Distributor which are defective and does not cover repairs =
a {the Yellow Pages of your telephone directory is necessary due to normal wear, misuse, accidents, or )
a à good reference source). lack of proper mai ntenance. Regular, routine
2. He will either instruct You to return the product Maintenance of the unit to keep it in proper
to him or recommend another Authorized TORO Operating condition is the responsibility of the owner.
Service outlet which might be more convenient. All warranty repairs reimbursable under The Toro a
& 3. Bring the product along with your original sales Promise must be performed by an Authorized TORO =
> slip, or other evidence of purchase date, to the Service Dealer using Toro approved replacement
service dealer. parts,
E 4. The servicing dealer will inspect the unit, advise — Repairs or attempted repalrs by anyone other than
- you whether the product is defective and, if so, an Authorized TORO Service Account are not
make all repairs necessary to correct the defect "elmbursable under The Toro Promise. In addition,
without extra charge to you, these unauthorized repair attempts may result in
additional malfunctions, the correction of which is
If for any reason you are dissatisfied with the dealer's not covered by warranty
sy, analysis of the defect or the service performed, you =
E may contact us, THE TORO COMPANY IS NOT LIABLE FOR IN-
— Write: DIRECT, INCIDENTAL OR CONSEQUENTIAL
: DAMAGES IN CONNECTION WITH THE USE OF
: С t
Tn Тулой, bids Sth THE PRODUCT INCLUDING ANY COST OR
Minneapolis, Minnesota 55420 EXPENSE OF PROVIDING SUBSTITUTE EQUIP.
MENT OR SERVICE DURING PERIODS F MAL.
The above remedy of product defects through FUNCTION OR NON-USE OF MAL
M repair by an Authorized TORO Service Dealer is
the purchaser's sole remedy for any defect, Some states do not allow the exclusion of incidental
THERE IS NO OTHER EXPRESS WARRANTY. or consequential damages, 50 the above exclusion
ALL IMPLIED WARRANTIES OF MERCHANT. May not apply to you.
ABILITY AND FITNESS FOR USE ARE LIMITED — This warranty gives you specific legal rights, and you
"2 TO THE DURATION OF THE EXPRESS may also have other rights which vary from state to
oop WARRANTY. state.
=
FE EC Ev E | =. oy Tl RT rl RT Ве Pr 1" E A ES her "A RS e jo nel Rell Ro Ee fe "E EE e "E Ara er FO er Wi
РЕ
с
E
ЧИ
Во
—_
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported You are dissatisfied with your Distributor's service or
from the United States or Canads should contact their have difficulty obtaining guarantee information, contact
TORO Distributor (Dealer! to obtain guarantee policies the TORO importer. If all other remedies fail, you may
for your country, province or state. If for any reason contact us at The Toro Company,
Compliance with Radio Interference Regulations Certified,
Certifié Conforme au Reglament sur la Broulllage Radlos/ectrique,
Lithe in US. A,
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
