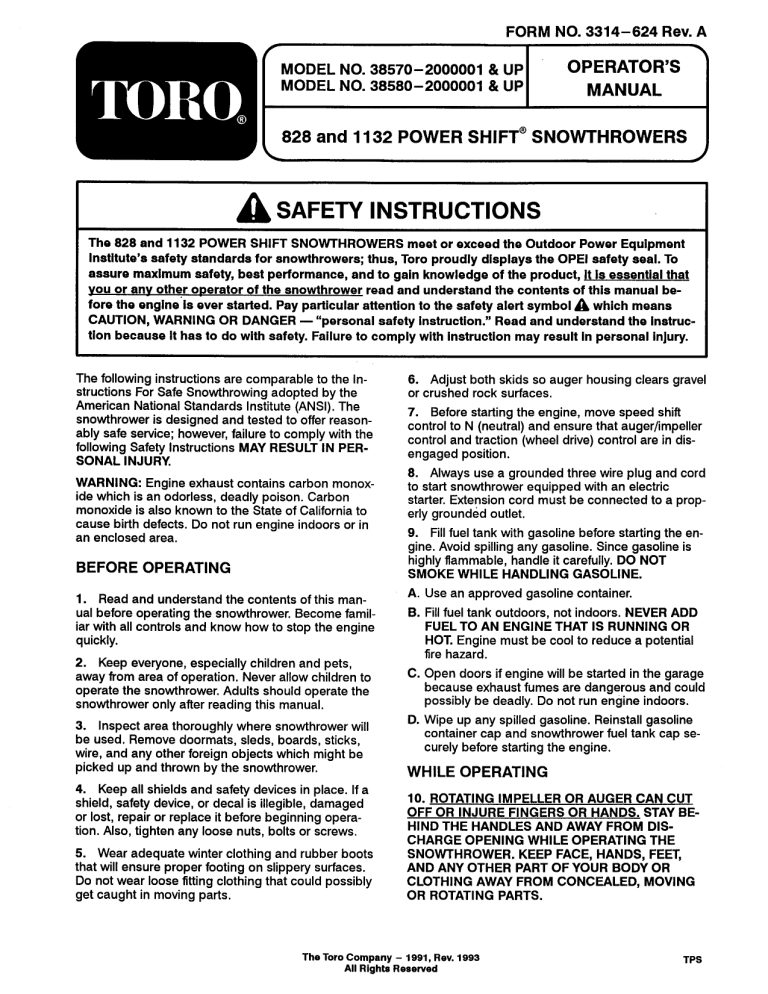

FORM NO. 3314-624 Rev. À
и
MODEL №. 38570-2000001 & UP
MODEL NO. 38580—2000001 8 UP
OPERATOR’S A
MANUAL
| 826 and 1132 POWER SHIFT’ SNOWTHROWERS
dA SAFETY INSTRUCTIONS
The 828 and 1132 POWER SHIFT SNOWTHROWERS meet or exceed the Outdoor Power Equipment
Institute’s safety standards for snowthrowers; thus, Toro proudly displays the OPEI safety seal. To
assure maximum safety, best performance, and to gain knowledge of the product, it Is essential that
you or any other operator of the snowthrower read and understand the contents of this manual be-
fore the engine is ever started. Pay particular attention to the safety alert symbol A which means
CAUTION, WARNING OR DANGER — “personal safety instruction.” Read and understand the instruc-
tion because it has to do with safety. Failure to comply with instruction may result in personal injury.
The following instructions are comparable to the In-
structions For Safe Snowthrowing adopted by the
American National Standards Institute (ANSI). The
snowthrower is designed and tested to offer reason-
ably safe service; however, failure to comply with the
following Safety Instructions MAY RESULT IN PER-
SONAL INJURY.
WARNING: Engine exhaust contains carbon monox-
ide which is an odorless, deadly poison. Carbon
monoxide is also known to the State of California to
cause birth defects. Do not run engine indoors or in
an enclosed area.
BEFORE OPERATING
1. Read and understand the contents of this man-
ual before operating the snowthrower. Become famil-
iar with all controls and know how to stop the engine
quickly.
2. Keep everyone, especially children and pets,
away from area of operation. Never allow children to
operate the snowthrower. Adults should operate the
snowthrower only after reading this manual.
3. Inspect area thoroughly where snowthrower will
be used. Remove doormats, sleds, boards, sticks,
Wire, and any other foreign objects which might be
picked up and thrown by the snowthrower.
4. Keep all shields and safety devices in place. If a
shield, safety device, or decal is illegible, damaged
or lost, repair or replace it before beginning opera-
tion. Also, tighten any loose nuts, bolts or screws.
5. Wear adequate winter clothing and rubber boots
that will ensure proper footing on slippery surfaces.
Do not wear loose fitting clothing that could possibly
get caught in moving parts.
6. Adjust both skids so auger housing clears gravel
or crushed rock surfaces.
7. Before starting the engine, move speed shift
control to N (neutral) and ensure that auger/impeller
control and traction (wheel drive) control are in dis-
engaged position.
8. Always use a grounded three wire plug and cord
to start snowthrower equipped with an electric
starter. Extension cord must be connected to a prop-
erly grounded outlet.
9. Fill fuel tank with gasoline before starting the en-
gine. Avoid spilling any gasoline. Since gasoline is
highly flammable, handle it carefully. DO NOT
SMOKE WHILE HANDLING GASOLINE.
~ A. Use an approved gasoline container.
B. Fill fuel tank outdoors, not indoors. NEVER ADD
FUEL TO AN ENGINE THAT IS RUNNING OR
HOT. Engine must be cool to reduce a potential
fire hazard.
C. Open doors if engine will be started in the garage
because exhaust fumes are dangerous and could
possibly be deadly. Do not run engine indoors.
D. Wipe up any spilled gasoline. Reinstall gasoline
container cap and snowthrower fuel tank cap se-
curely before starting the engine.
WHILE OPERATING
10. ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS. STAY BE-
HIND THE HANDLES AND AWAY FROM DIS-
CHARGE OPENING WHILE OPERATING THE
SNOWTHROWER. KEEP FACE, HANDS, FEET,
AND ANY OTHER PART OF YOUR BODY OR
CLOTHING AWAY FROM CONCEALED, MOVING
OR ROTATING PARTS.
The Toro Company — 1991, Rev. 1993 TPS
All Rights Reserved
ÁN sareTy INSTRUCTIONS
11. BEFORE ADJUSTING, CLEANING, REPAIR-
ING, AND INSPECTING THE SNOWTHROWER,
AND BEFORE UNCLOGGING THE DISCHARGE
CHUTE, SHUT ENGINE OFF AND WAIT FOR ALL
MOVING PARTS TO STOP. ALSO, PULL WIRE OFF
SPARK PLUG AND KEEP WIRE AWAY FROM THE
PLUG TO PREVENT ACCIDENTAL STARTING.
USE A STICK, NOT YOUR HAND, TO REMOVE
OBSTRUCTIONS FROM DISCHARGE CHUTE.
12. Before leaving the operator's position (behind
handles), rotate ignition key to OFF and wait for all
moving parts to stop. Remove key from switch if
snowthrower will be left unattended.
13. Allow engine to warm up outdoors before clear-
ing snow.
14. Operate the snowthrower only when there is
good visibility or light. Always maintain secure foot-
ing and balance and keep a firm grip on the handles,
especially when operating in reverse. Walk; never
run.
15. Be attentive when using the snowthrower, and
stay alert for holes in the terrain and other hidden
hazards. Be careful when clearing snow from a
gravel drive because stones could be picked up and
thrown if the skids are not adjusted so auger hous-
ing clears all rocks.
16. Do not make any adjustments while the engine
IS running.
17. Never direct discharge of snow or operate
snowthrower near bystanders, glass enclosures,
automobiles and trucks, window wells or a drop —off
without proper adjustment of the snow chute and
deflector angle.
18. Clear snow from slopes by going up and down,
never across the face. Use caution when changing
directions. Use lower gear and rear wheel position
when operating on slopes. Never clear snow from
steep slopes.
19. Do not overload the snowthrower by clearing
snow at too fast a rate.
20. DO NOT USE SNOWTHROWER ON A ROOF.
21. If a foreign object is hit or snowthrower vibrates
abnormally, stop engine by turning key to OFF and
wait for all moving parts to stop. Pull wire off spark
plug and check snowthrower immediately for possi-
ble damage, an obstruction or loose parts. Vibration
is generally a sign of trouble. Repair any damage
before restarting engine and operating snowthrower
again.
22. Do not touch engine while it is running or soon
after it is stopped because the engine will be hot
enough to cause a burn. Do not add oil or check oil
level in crankcase when engine is running.
23. Never operate snowthrower at high transport
speeds on slippery surfaces. Use care when back-
ing.
MAINTAINING SNOWTHROWER
24. Perform only those maintenance instructions de-
scribed in this manual. Shut engine off before per-
forming any maintenance service or adjustment. Ad-
ditionally, pull wire off spark plug and keep wire
away from plug to prevent accidental starting. If ma-
jor repairs are ever needed, contact your local
Authorized TORO Service Dealer for assistance.
25. Keep snowthrower in safe operating condition by
Keeping nuts, bolts, and screws tight. Check engine
mounting bolts frequently to ensure they are tight.
26. Do not overspeed the engine by changing gov-
ernor settings. Recommended maximum engine
speed is 3500 rpm. To ensure safety and accuracy,
check maximum engine speed (3500 rpm) with a
tachometer.
27. Allow engine to cool before storing snowthrower
In an enclosure such as a garage or storage shed.
NEVER STORE SNOWTHROWER IN HOUSE (LIV-
ING AREA) OR BASEMENT BECAUSE GASOLINE
AND FUMES ARE HIGHLY FLAMMABLE, EXPLO-
SIVE, AND DANGEROUS IF INHALED. Do not store
snowthrower near any open flame or where gasoline
fumes may be ignited by a spark.
28. When storing the snowthrower for an extended
time—off season storage or 30 days—drain gasoline
from fuel tank to prevent a potential hazard. Store
gasoline in a safety — approved red metal container.
Remove key from ignition switch when storing
snowthrower. Store key in a memorable place.
29. At the time of manufacture, the snowthrower
conformed with or exceeded OPEI safety standards
in effect for snowthrowers. Therefore, to ensure best
performance and safety, purchase genuine TORO
replacement parts and accessories to keep the
TORO all TORO. NEVER USE “WILL FIT” RE-
PLACEMENT PARTS AND ACCESSORIES. The
TORO logo ensures genuineness.
30. For safety reasons, use only those accessories
and attachments recommended by The TORO Com-
pany to ensure continued safety certification of the
product. Using unapproved accessories and attach-
ments could contribute to a potential hazard.
ÁN saFETY INSTRUCTIONS
HIGH SPEED IMPELLER
AND DISCHARGE CHUTE
(01 1 ION ©
Shut ofl engine and be sure
all paris have stopped before
unclogging discharge chule.
BEFORE OPERATING
Read and understand the contents of this
manual before operating the
snowthrower. Become familiar with all
controls and know how to stop the en-
gine quickly.
LOW SPEED
AUGER
ADANGER
AB
NX,
9
A <p )
472
A) SAFETY DECALS AND INSTRUCTIONS
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
E a
ALONGSIDE
THROTTLE
(Part No. 63-2340)
(
1
63-3740
AVOID INJURY!
NM LM TT
all parts have stopped belore
ON AUGER HOUSING
(Part No. 53—7670)
NEXT TO PRIMER
(Part No. 63— 2320)
unclogging discharge chute.
| RELEASE |
A WARNING (rar Tra LEVER
¿o shift
H 111] etween
FORWARD
dia REVERSE
ON ENGINE ` ’
(Part No. 66-6840) ON LEVER
(Part No. 63-3050)
FA WARNING Ÿ
BEFORE ADJUSTING CABLES OR REPLACING BELTS
SEE OPERATORS MANUAL
IMPROPER ADJUSTMENT MAY CAUSE INJURY
IF AUGER/ IMPELLER TURNS WHEN DISENGAGED.
USE ONLY GENUINE TORO PARTS. 66.6060
x
ON ENGINE
ON ENGINE BASE
(Part No. 66—6860)
OFF
ON
>
\
(Рай Мо. 63-2360
TO CHANGE WHEEL POSITION:
RGR ER HY i
2 MOVE SHIFT CONTROL TO POWER SHIFT POSITION AND HD
3. ENGAGE h
MEL ENTES MORTAL
E
O
a ‚
TRACTION DRIVE
ВЧ К
> a
\__ ENGAGE DISENGAGE
AVOID INJURY
STOP ENGINE TO ADJUST, UNCLOG.
чи а
(75 REPLACEMENT MANUAL AVAILABLE BY SENDING MODEL AND SERIAL
eN NUMBERS TO THE TORU CO. B11 LYNDALE AV. 5. MPLS. MN 55420
BA- 5450
ON CONTROL PANEL
(Part No. 66—6850)
SERVICE OR REMOVE DEBRIS. A CAUTION
DO NDT DIRECT DISCHARGE AT OTHERS. R USE LOWER GEAR AND REAR WHEEL
) POSITION ON SLOPES.
READ YOUR OPERATOR'S MANUAL FOR + | DONOT USE ON STEEP SLOPES.
OPERATING AND SAFETY INSTRUCTIONS. У INJURY MAY RESULT FROM LOSS
OF FOOTING OR CONTROL
_ AUGER/IMPELLER
©
> ENGAGE DISENGAGE
LOOSE PARTS
Part
2
<
Use
Flange head capscrew — 5/16—18 x 3/4" lg.
Lower belt cover
Flange head capscrew — 1/4—20 x 1/2” lg.
Cable cover
Mount Auger Housing, page 6
Shift rod
Locknut—3/8—16
Install Shift Rod, page 7
Discharge chute
Install Discharge Chute, page 7
Worm gear
Gear bracket
Carriage bolt—5/16—-18 x 1” Ig.
Flat washer
Locknut—5/16
Install Chute Control Gear, page 8
Skid
Flange head capscrew—5/16—18 x 3/4” Ig.
Flat washer
Locknut—5/16
Install Skids, page 8
Key
Use in Ignition Switch
Registration card
PO = IY № N N= = + + aA |= NY == nN = ©
Use to register product with factory
Specifications and design subject to change without notice.
ACCESSORIES
Description Part Number
110 Vac Electric Starter Kit 37-4630
Tire Chain Kit ( for std. axle; not 63-3040
for use with differential kit)
Snow Cab 68 —9500
Weight Kit (recommended with Snow Cab) 74—1190
Drift Breaker 66—7970 (Model 38570)
66-7980 (Model 38580)
Light Kit 66—7940
Differential Kit 38038
TABLE OF CONTENTS
| Page Page
Safety Instructions ............................ 1 Maintenance ......._..eceececreoorvcoroorereo.. 15
SafetyDecals ................... coil 4 Draining Gasoline ........................ 15
Loose Parts 000000000000 e eee eee en eee 5 Lubricating Snowthrower .................. 16
Accessories .... EN 5 Changing СгапКксазе ОИ ................... 16
Assembly Instructions seu su 1 1 6 6 0 au 1 6 41 4 6 6 6 1 4 468 6 Replacing Auger Gear BOX Oil a A A a 4 A A a a ue 16
Before operating eee ite RG 9 Adjusting Auger/impeller Drive Belt ......... 16
Fil rankcase With Oil NUS 9 Adjusting Traction Drive Belt ............... 18
Fil Fuel Tank With Gasoline ................ 10
Replacing Drive Belts ..................... 18
Controls ......... ccc iii, 11 y
Adjusting Drive Chain ..................... 19
Starting and Stopping Instructions ............. 12 ‘ustina C 20
Operating Instructions ........................ 13 Adjusting ArbUretor ................íe...
Power Shift Operation ..................... 13 Replacing Spark Plug ..................... 21
Free Wheeling or Self— Propelled Drive ...... 13 Preparing Snowthrower for Storage ......... 21
Snowthrowing Tips ...................... 13 Identification and Ordering .................... 21
Adjusting Scraper ........................ 14 Toro Service Support ..............ere..e..e.. 22
Adjusting Skids ...............0.0e....... 14 Maintenance Record ............... nene 22
Adjusting Headlight ....................... 15 The Toro Total Coverage Guarantee .... Back Page
Note: Determine left and right sides of snowthrower 5. Reinstall idler pulley assembly. Make sure idler
by standing in the normal operating position. pulleys are aligned with belts when reinstalling idler
pulley assembly.
MOUNT AUGER HOUSING (Fig. 1-3)
6. Tip snowthrower up on front edge of auger hous-
1. Remove (2) flange head capscrews securing ng.
idler pulley assembly to engine frame. Remove idler 7. Mount lower belt cover to underside of auger
pulley assembly. housing and engine frame with (2) 1/4—20 x 1/2” Ig.
flange head capscrews (Fig. 2). Make sure belt cover
2. Align auger housing and engine frame mounting mounting tabs are positioned to rear of engine frame
holes (Fig. 1). member.
8. Check adjustment of impeller cable; refer to Ad-
justing Auger/Impeller Drive Belt, page 16.
=
Figure 1
1. Auger housing 4. Idier pulley assembly
2. Engine frame S. Mounting screws (2)
3. Impeller pulley 164
Figure 2
3. Route impeller belt around impeller pulley. 1. Lower belt cover 3. Flange head
4. Secure auger housing to engine frame with (6) (shown from bottom) capscrew
5/16—18 x 3/4” Ig. flange head capscrews. 2. Mounting tabs
6
ASSEMBLY INSTRUCTIONS
9. Mount upper belt cover to engine frame with (3)
1/4—-20 x 1/2” Ig. flange head capscrews (Fig. 3).
10. Slide cable cover onto cables and into hole in
belt cover.
C. Reinstall ball joint to transmission lever and
tighten jam nut.
©
166
=}
(9) cn
AR)
I a | 2
9 9-5 >
Figure 3
1. Upper belt cover
2. Cable cover
3. Flange head capscrew
INSTALL SHIFT ROD (Fig. 4)
1. Insert upper shift rod ball joint stud through front
of shift bracket and secure with 3/8 —16 locknut.
Note: Shift rod should be positioned with bend rear-
ward.
2. Insert bottom ball joint stud through right side of
transmission lever and secure with 3/8 —16 locknut.
3. Shift into 2nd gear and check shift rod alignment
with Power Shift slot.
Note: If gear shift lever is not aligned with Power
Shift slot in control panel (Fig. 4, inset), shift rod
length must be adjusted as follows:
A. Disconnect ball joint from transmission lever and
loosen jam nut.
B. Rotate ball joint up or down, until gear shift lever
is aligned with Power Shift slot.
5)
167
Figure 4
1. Shift rod 5. Locknut
2. Ball joint 6. Jam nut
3. Shift bracket 7. Gear shift lever
4. Transmission lever 8. Power Shift slot
INSTALL DISCHARGE CHUTE (Fig. 5)
Note: Before installing discharge chute, apply a light
coat of low temperature grease to chute ring.
1. Set discharge chute—open side forward—onto
auger discharge opening, so plastic chute retainers
are positioned on chute ring. Make sure chute retain-
er guide pins are inserted into holes in chute gear.
2. Tighten machine screw and locknut, on left side,
until chute retainer plate is positioned against plastic
chute retainer and discharge chute is secured to
chute ring.
3. Push chute retainers, on right side, toward dis-
charge chute (slotted) and tighten machine screw.
4. Make sure chute rotates freely on ring. If chute
binds, move right hand retainer outward to ease op-
eration.
ASSEMBLY INSTRUCTIONS
CHECK TIRE PRESSURE
IMPORTANT: Check pressure of tires because
they are over inflated at the factory for shipping.
Therefore, before the snowthrower is operated,
reduce pressure in both tires to 7—15 psi equally.
INSTALL SKIDS
SS
1. Check tire pressure; refer to Check Tire Pres-
sure, page 8.
2. Move the snowthrower onto a flat surface and
check if scraper (Fig. 7) is parallel to the ground. If
not, adjust scraper; refer to Adjusting Scraper, page
14.
Figure 5
1. Discharge chute 3. Chute retainer plate
2. Plastic chute retainer 4. Chute ring
INSTALL CHUTE CONTROL GEAR (Fig. 6)
1. Insertthe 5/16—18 x 1” Ig. carriage bolt into gear
bracket mounting hole. Figure 7
2. Position worm gear into bracket, align holes, and 1. Scraper
insert chute gear rod through bracket and gear.
171
3. Remove (2) flange bolts and washers securing
ends of scraper to side plates (Fig. 8). Reinstall bolts
through rear slots in skids. Assemble both skids so
that washers are between skids and sideplates
(Fig. 8). Do not tighten bolts.
» NA
y 7
SE 3 y | |
o |
|
ES] A
à x N
Figure 6 Л \ (2) aN
1. Gear bracket 3. Worm gear DA
2. Carriage bolt, flat washer 4. Chute gear rod NZ
& locknut 5. Mounting flange
474
3. Looseiy mount worm gear and bracket to mount- Fiaure 8
ing flange with carriage bolt, flat washer, and lock- g
nut 1. Flange bolts 3. Flat washers
: 2. Skid 4. Locknut
4. Slide worm gear into teeth of chute gear and 5. Sideplate
tighten locknut. 4. Install (2) flange bolts thru front slots in skids and
5. Check operation. Move gear slightly outward if thru sideplates. Install flat washers and locknuts on
binding is evident. inside of sideplates. Do not tighten bolts.
8
ASSEMBLY INSTRUCTIONS
Note: The following steps adjust the skids for paved
surfaces. For gravel or crushed rock surfaces, refer
to Adjusting Skids, page 14.
5. Manually move wheels to the rear Power Shift
position by lifting up on handles and moving the shift
control fully forward to Power Shift position (Fig. 9).
178
Figure 9
6. Support the scraper to be 1/8 inch above a level
surface if the snowthrower is to be used on smooth
avement.
Note: The scraper should be higher than 1/8 inch
above the pavement if the pavement surfaces are
cracked, rough or uneven.
7. Move the skids down to sit flat on the ground
and tighten the (4) flange bolts securing both skids
to the auger side plates.
CHECK AUGER GEAR BOX OIL (Fig. 10)
1. Move snowthrower to a level surface.
2. Clean area around pipe plug so dirt is removed.
3. Remove pipe plug from gear box.
4
Check oil level in gear box. Oil must be at point
of overflowing in filler opening.
5. If level of oil is low, add GL—5 or GL—6 SAE
85—95 EP transmission oil to the gear box until point
of overflow.
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
"as"
Fr
171
Figure 10
1. Pipe plug
BEFORE OPERATING
FILL CRANKCASE WITH OIL
(Fig. 11 & 12)
The engine is shipped from the factory without oil in
the crankcase. Therefore, before trying to start the
engine, oil must be added to the crankcase.
IMPORTANT: Check level of oil every 5 operating
hours or each time unit is used. Initially, change
oil after the first 2 hours of operation; thereafter,
under normal conditions, change oil after every
25 hours of operation or annually, whichever
comes first.
The 1132 snowthrower has a dipstick in the oil fill tube
(Fig. 11) and the 828 snowthrower has an oil fill cap
(Fig. 12).
1. Move unit to a level surface to ensure an accu-
rate oil level reading.
2. Clean area around dipstick/oil fill cap.
3. Remove dipstick/oil fill cap from fill tube.
4. Slowly pour SAE 5W-30 or SAE 10 oil into the
filler hole; refer to Oil Fill Chart to determine correct
amount of oil. The engine uses any high—quality de-
tergent oil having the American Petroleum Institute
(API) “service classification” —SE, SF or SG.
Note: POUR OIL SLOWLY. DO NOT OVERFILL.
Oil Fill Chart
44 ounces of oil
48 ounces of oil
828 Snowthrower
1132 Snowthrower
1132 Snowthrower
Figure 11
2. Filler hole
1. Dipstick 3. Fuel tank cap
BEFORE OPERATING
828 Snowthrower
Figure 12
1. Oil fill cap
A\ WARNING
DANGER: Because gasoline is flammable, caution must be used when storing or handling it. Do not
fill fuel tank while engine is running, hot, or when unit is in an enclosed area. Keep away from open
flame and electrical spark. DO NOT SMOKE while filling the fuel tank to prevent the possibility of an
explosion. Always fill fuel tank outside and wipe up any spilled gasoline before starting engine. Use
a funnel or spout to prevent spilling gasoline. Do not fill tank full. Fill fuel tank to about 1/4 ” to 1/2”
(6 to 13 mm) from the top of the tank, not into the filler neck. This space is for expansion of fuel.
Store gasoline in a clean, approved container and keep the cap in place on the container. Keep
gasoline in a cool, well-ventilated place—never in the house. To assure volatility, do not buy more
than a 30 day supply of gasoline. Gasoline is a fuel for internal combustion engines. Therefore, do
not use it for any other purpose. Since many children like the smell of gasoline, keep it out of their
reach because the fumes are explosive and dangerous to inhale.
FILL FUEL TANK WITH GASOLINE
THE TORO COMPANY STRONGLY RECOMMENDS
THE USE OF CLEAN, FRESH UNLEADED REGU-
LAR GASOLINE IN TORO GASOLINE POWERED
PRODUCTS. UNLEADED GASOLINE BURNS
CLEANER, EXTENDS ENGINE LIFE, AND PRO-
MOTES GOOD STARTING BY REDUCING THE BUIL-
DUP OF COMBUSTION CHAMBER DEPOSITS.
LEADED GASOLINE CAN BE USED IF UNLEADED
IS NOT AVAILABLE.
IMPORTANT: NEVER USE METHANOL, GASO-
LINE CONTAINING METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, PREMIUM
GASOLINE, OR WHITE GAS BECAUSE ENGINE
FUEL SYSTEM DAMAGE COULD RESULT.
Toro also recommends that Toro Stabilizer/Condition-
er be used regularly in all Toro gasoline powered
products during operation and storage seasons.
Toro Stabilizer/Conditioner cleans the engine during
10
operation and prevents gum—like varnish deposits
from forming in the engine during periods of storage.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO’S STA-
BILIZER/CONDITIONER OR A SIMILAR PROD-
UCT. TORO’S STABILIZER/CONDITIONER IS A
PETROLEUM DISTILLATE BASED CONDITIONER/
STABILIZER. TORO DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE SUCH
AS ETHANOL, METHANOL OR ISOPROPYL. AD-
DITIVES SHOULD NOT BE USED TO TRY TO EN-
HANCE THE POWER OR PERFORMANCE OF MA-
CHINE.
1. Clean area around the fuel tank cap (Fig. 11).
Remove cap from fuel tank. Using unleaded, regular
gasoline, fill tank to within 1/4” to 1/2” (6 to 13 mm)
from the top of the tank, not into the filler neck. This
space is for expansion of fuel. Do not fill tank full.
Reinstall fuel tank cap.
Fuel tank capacity is 4 quarts.
CONTROLS
Auger/Impeller Control (Fig. 13)—Control has two
positions: ENGAGE and DISENGAGE. To engage
both auger and impeller, compress lever against
right handle grip. To disengage, release lever.
Traction Drive Control (Fig. 13)—To engage traction
(wheel drive) or activate power shift system, lever
must be compressed against left handle grip. To
stop traction, release lever.
Speed Shift Control (Fig. 13)—The control has a
neutral position, four speeds forward and two re-
verse and also controls power shifting of wheels. To
select speeds, move shift control to desired position.
Note: When shifting gears into or out of reverse or
when using the Power Shift feature, the traction drive
control must be released. On—the—go shifting may
be accomplished between any of the forward speeds
without releasing the traction drive control.
Auger Lock—Up (Fig. 13)—When auger/impeller
control and traction drive control are both com-
pressed, the traction control locks the auger/impeller
control down. Releasing the traction control releases
the auger/impeller control.
Discharge Chute Control (Fig. 13) —Rotate dis-
charge chute control clockwise to move discharge
chute to the right and counterclockwise to move
chute to the left.
Ignition Switch (Fig. 13) —Switch has two positions:
ON and OFF. Rotate key to ON position before start-
ing engine. To stop engine, rotate key to OFF.
Throttle (Fig. 14)—Move throttle upward to increase
the engine speed.
Figure 13
1. Auger/impeller control 4. Ignition switch
2. Traction drive control 5. Discharge chute
3. Speed shift control control
Choke (Fig. 14)—Push choke down to FULL choke
position to start a cold engine. As engine warms up,
move choke gradually to OFF.
Primer (Fig. 14)—Press primer to pump small
amount of gasoline into engine for improved cold
weather starting.
174
Figure 14
1. Throttle 2. Choke 3. Primer
Fuel Shut-Off Valve (Fig. 15)—Valve is located un-
der fuel tank. Close valve to stop fuel flow from fuel
tank and open valve to allow fuel to flow to the car-
buretor. Close valve when snowthrower is not used.
Figure 15
1. Fuel shut-off valve
11
CONTROLS
Deflector Handle (Fig. 16)—Deflector handle on top
of discharge chute is used to control the height of
the snow stream.
|
Figure 16
1. Deflector handle 2. Discharge chute
Recoil Starter (Fig. 13) —Recoil starter is on back
side of engine. Pull recoil starter to start engine.
Figure 17
1. Recoil starter
STARTING/STOPPING INSTRUCTIONS
TO START ENGINE
IMPORTANT: Check auger and impeller to ensure
that both parts are not frozen, but free to rotate.
Also, make sure discharge chute is not obstructed.
USE A STICK, NOT YOUR HAND, TO REMOVE
ANY OBSTRUCTIONS.
1. Move speed shift control to N (neutral) and throt-
tle to FAST (Fig. 13).
2. Ensure that auger/impeller control and traction
drive control are in disengaged position.
3. Open fuel shut—off valve below fuel tank
(Fig. 15).
4. Move choke to ON choke position (Fig. 14).
5. Rotate ignition key to ON (Fig. 13).
6. Depress primer (Fig. 14) five times.
7. Grasp recoil starter handle (Fig. 17) and pull it
out slowly until positive engagement results; then
pull vigorously to start the engine. Keep firm grip on
starter handle and return the rope slowly.
Note: If engine does not start or if temperature is
—10° F or below, additional priming may be re-
quired. After each additional prime, try to start the
engine before priming again.
12
8. After engine starts, immediately move choke
(Fig. 14) to 3/4 position. As engine warms up, move
choke to 1/2 position; then to OFF position. If engine
falters, return choke to 1/2 position. When engine
warms sufficiently, move choke to OFF position.
BEFORE STOPPING ENGINE
1. Engage auger to clear any remaining snow from
inside the housing.
2. Run engine for a few minutes to help dry off any
moisture which may have accumulated on engine.
TO STOP ENGINE
1. Release traction and auger/impeller drive con-
trols (Fig. 13).
2. Move throttle to slow and rotate ignition key to
OFF.
3. Wait for all moving parts to stop before leaving
the operator's position (behind the handles).
OPERATING INSTRUCTIONS
POWER SHIFT OPERATION
Wheels will shift forward (or rearward) with every oth-
er movement of the shift control.
Move wheels to the rear Power Shift position in
heavy and/or drifted snow.
Leave wheels in the front position for light snow or
for transporting snowthrower.
1. Release traction drive lever.
2. To move wheels to front or rear position, move
shift control fully forward to Power shift position and
hold (Fig. 18).
FREE WHEELING OR SELF—-PROPELLED
DRIVE
The snowthrower can be free wheeled or engaged
for self—propelled operation. There are two holes in
each end of the axle. When axle pins are thru outer
axle holes and not thru wheel hub(Fig. 20),
snowthrower free wheels. By contrast, when pins are
installed thru holes in wheel hub and inner hole of
axle (Fig. 20), snowthrower propels itself.
Figure 18
3. Fully engage traction drive lever to move wheels
into alternate position (Figs. 18 & 19).
Note: When power shifting it may be necessary to
slightly raise handle to assist wheel movement.
Note: To shift wheels manually if engine is not run-
ning, follow steps 1 and 2 and then lift up on handles
to unlock wheels.
Note: If wheels do not move in desired direction
when power shifting, repeat procedure.
\ a
\
179
Figure 19
~/
473
Figure 20
1. Axle pin 3. Inner axle hole and
2. Outer axle hole wheel hub
SNOWTHROWING TIPS
1. When snowthrower is not being used, close fuel
shut—off valve and remove key from the switch.
2. Remove snow as soon as possible after it falls.
This produces best snow removal results.
3. When in the rear Power Shift position, push
down on handles to increase traction if necessary.
4. Discharge snow downwind whenever possible,
and overlap each swath to ensure complete snow
removal. If wheels slip, shift into a lower gear to re-
duce forward speed. |
5. In some snow and cold weather conditions,
some controls and moving parts may freeze. There-
fore, when any control becomes hard to operate,
stop the engine and wait for all moving parts to stop;
then check all parts for freeze up. DO NOT USE EX-
CESSIVE FORCE AND TRY TO OPERATE THE CON-
TROLS WHEN FROZEN. Free all controls and mov-
ing parts before operating.
6. Adjust skids to match the type of surface being
cleaned. Refer to Adjusting Skids, page 14.
7. Run snowthrower for a few minutes after clearing
snow so moving parts do not freeze. Engage auger
to clear any remaining snow from inside housing.
8. Do not overload snowthrower by clearing snow
at too fast a rate. If engine slows down, shift to a low-
er gear to reduce forward speed.
13
OPERATING INSTRUCTIONS
9. Move wheels to the rear Power Shift position and
shift to a lower gear in heavy and/or drifted snow to
prevent the auger housing from riding up over the
SNOW.
10. Always use full throttle (maximum engine speed)
when throwing snow.
11. In wet or slushy conditions, clogging of the dis-
charge chute will be reduced by maintaining maxi-
mum engine speed and by not overloading the en-
gine.
ÁN DANGER
e ROTATING IMPELLER OR AUGER CAN
CUT OFF OR INJURE FINGERS OR HANDS.
STAY BEHIND THE HANDLES AND AWAY
FROM DISCHARGE OPENING WHILE OPER-
ATING THE SNOWTHROWER. KEEP FACE,
HANDS, FEET AND ANY OTHER PART OF
YOUR BODY OR CLOTHING AWAY FROM
CONCEALED, MOVING OR ROTATING
PARTS.
e BEFORE ADJUSTING, CLEANING, RE-
PAIRING AND INSPECTING THE
SNOWTHROWER, AND BEFORE UNCLOG-
GING THE DISCHARGE CHUTE, SHUT EN-
GINE OFF AND WAIT FOR ALL MOVING
PARTS TO STOP. ALSO, PULL WIRE OFF
SPARK PLUG AND KEEP WIRE AWAY FROM
THE PLUG TO PREVENT ACCIDENTAL
STARTING. USE A STICK, NOT YOUR
HANDS, TO REMOVE OBSTRUCTIONS
FROM DISCHARGE CHUTE.
7. Move the scraper so that it contacts the flat sur-
face all the way across, then tighten the two rear
flanged cap screws securing scraper and skids to
the side plates. This temporarily locks the scraper in
the proper position so that the remainder of the fas-
teners can be tightened without affecting adjust-
ment.
fm
18 +
171
ADJUSTING SCRAPER (Fig. 21)
Adjust the scraper to compensate for wear and to
ensure that the auger does not contact the pave-
ment.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Check the tire pressure in both tires. Make sure
that they are both inflated equally between 7 and 15
psi.
3. Move the snowthrower onto a flat surface and
shift the wheels to the FRONT position.
4. Loosen the (4) flange bolts securing both skids
to the auger side plates.
5. Next, loosen the carriage bolts securing the
scraper to the auger housing.
6. Support the auger blades so that the auger is
1/8 — 1/4 inch off the ground. -
14
Figure 21
1. Scraper 2. Carriage bolt
8. Secure the scraper using carriage bolts and ny-
lon locknuts.
9. Adjust the skids; refer to Adjusting Skids,
page 14.
ADJUSTING SKIDS (Fig. 22)
FOR CONCRETE OR ASPHALT SURFACES
If the snowthrower is not cleaning up the snow close
enough to the pavement, adjust the skids to lower
the scraper.
If the scraper catches on cracks in the pavement,
adjust the skids to raise the scraper.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Loosen the (4) flange bolts securing both skids
to the auger side plates.
3. Check scraper adjustment to ensure that the
auger does not contact the pavement; refer to Ad-
justing Scraper, page 14.
4. Move the wheels to the REAR Power Shift posi-
tion.
5. Support the scraper to be 1/8 inch above a level
surface if the snowthrower is to be used on smooth
avement.
Note: The scraper should be higher than 1/8 inch
above the pavement if the pavement surfaces are
cracked, rough or uneven.
6. Move the skids down to sit flat on the ground
and tighten the (4) flange bolts securing both skids
to the auger side plates.
OPERATING INSTRUCTIONS
474
ADJUSTING HEADLIGHT
(optional on model 38570)
1. Rotate headlight to desired position. If light is
difficult to move, loosen locknut (Fig. 23).
2. If necessary, tighten locknut to secure headlight
in place.
3. To turn on headlight, push button switch on top
of light (Fig. 23).
Figure 22
1. Flange bolts 2. Skid
FOR GRAVEL SURFACES
For gravel or crushed rock surfaces, adjust the skids
to prevent picking up rocks.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Loosen the (4) flange bolts securing both skids
to auger side plates. Next, slide skids down as far as
possible so auger is as far from the level surface as
skid adjustment allows: then tighten flange bolts.
/ 906
Figure 23
1. Headlight 2. Locknut 3. Button switch
MAINTENANCE
À WARNING
To prevent accidental starting of the engine
while performing maintenance, rotate ignition
key to off and remove it from the switch. Next,
pull wire off spark plug and make sure wire
does not accidentally touch the plug.
DRAINING GASOLINE
AN WARNING
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to pre-
vent a potential fire hazard. Wipe up any gaso-
line that may have spilled. Do not drain gaso-
line near any open flame or where gasoline
fumes may be ignited by a spark. DO NOT
SMOKE a cigar, cigarette, or pipe when han-
dling gasoline.
1. Close fuel shut-off valve located under engine
(Fig. 24).
Figure 24
1. Fuel shut-off valve 2. Hose clamp 3. Fuel line
2. Place a clean drain pan under shut-off valve.
3. Loosen hose clamps securing fuel line to valve
and slide line off valve (Fig. 24).
4. Open valve allowing fuel to flow into drain pan.
5. Reinstall fuel line and secure with hose clamp.
15
MAINTENANCE
LUBRICATING SNOWTHROWER
1. Annually lubricate drive chain with chain lubri-
cant (Fig. 25). Wipe up any excess oil.
Figure 25
1. Drive chain
CHANGING CRANKCASE OIL (Fig. 26)
Initially, change oil after the first 2 hours of engine
operation; thereafter, change oil after every 25 hours
of engine operation or annually, whichever comes
first. If possible, run engine just before changing oil
because warm oil flows better and carries more con-
taminants than cold oil.
3. After all oil is drained, reinstall oil drain cap se-
curely.
4. Position snowthrower on a level surface. Next, fill
crankcase with oil: see Fill Crankcase With Qil, page
9. Wipe up any oil that may have spilled.
AUGER GEAR BOX OIL (Fig. 27)
The auger gear box oil level must be checked at set-
up, after every 10 hours of use, and upon removal
from annual storage. To check the auger gear box
oil level:
1. Position snowthrower on a level surface.
2. Clean area around pipe plug so dirt is removed.
3. Remove pipe plug from gear box (Fig. 27).
4. Check level of oil in gear box. Oil must be at
point of overflowing in filler opening.
5. Iflevel of oil is low, add GL—5 or GL—6 SAE
85— 95 EP transmission oil to the gear box until point
of overflow.
Note: Do not use synthetic gear oil.
6. Reinstall pipe plug in gear box.
Figure 26
1. Drain cap
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Clean area around oil drain cap. Next, slide oil
drain pan below drain extension; then remove oil
drain cap.
16
Figure 27
1. Pipe plug
ADJUSTING AUGER/IMPELLER DRIVE
BELT (Figs. 28—31)
If auger/impeller belt slips, resulting in decreased
snowthrowing performance, either an adjustment or
a new belt is required. WHENEVER A NEW BELT IS
INSTALLED, AN ADJUSTMENT IS REQUIRED.
USE ONLY GENUINE TORO REPLACEMENT
PARTS.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Remove (3) flange head capscrews securing belt
cover to engine frame and slide belt cover up cables
(Fig. 28).
MAINTENANCE
©
166
5. Rotate bottom jam nut upward to increase belt
tension.
6. Tighten upper jam nut against bracket.
7. Recheck idler adjustment: refer to step 3.
8. Check impeller brake arm clearance by releasing
the auger/impelier lever. With the lever released,
there should be more than 1/8” clearance between
tab on impeller idler arm and brake arm (Fig. 31). If
there is less than 1/8” clearance, belt must be
replaced.
ÁN DANGER
Figure 28
1. Upper belt cover
2. Cable cover
3. Flange head capscrew (3)
3. CHECKING IMPELLER CABLE ADJUSTMENT—
Depress the auger/impeller control lever on the right
hand grip. Hold the lever and insert a .010” (.25mm)
feeler gauge between a coil in the center of the
spring (Fig. 29). Adjust the cable to achieve .010”
(.25 mm) gap between the coils.
e IMPROPER ADJUSTMENT MAY CAUSE IN-
JURY IF AUGER/IMPELLER TURNS WHEN DIS-
ENGAGED.
e ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS.
e KEEP FACE, HANDS, FEET AND ANY OTHER
PART OF YOUR BODY OR CLOTHING AWAY
FROM CONCEALED, MOVING OR ROTATING
PARTS.
e MAKE CERTAIN THAT IMPELLER BRAKE
ARM CLEARANCE IS MAINTAINED.
e DO NOT ADJUST THE AUGER/IMPELLER
DRIVE BELT TOO TIGHT BECAUSE IT MAY
CAUSE THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS IN THE DIS-
ENGAGED POSITION. IF THIS OCCURS, DE-
CREASE BELT TENSION.
1. Feeler gauge
2. Center of spring
4. Loosen upper jam nut securing auger/impeller
cable to mounting bracket (Fig. 30).
Figure 30
1. Auger/impeller cable
(outer cable)
2. Traction cable
(inner cable)
3. Mounting bracket
4. Jam nut
9. Reinstall belt cover and cable cover.
17
MAINTENANCE
10. Check tension of belt by operating the auger. If
belt still slips, replace the belt.
Figure 31
1. Impeller idler arm 2. Brake arm
ADJUSTING TRACTION DRIVE BELT
(Fig. 30)
If the wheels do not turn when the traction lever is
depressed, the traction belt tension should be in-
creased. Whenever the belt is replaced, an adjust-
ment is required.
1. Loosen upper jam nut securing traction cable to
mounting bracket.
2. Rotate bottom jam nut upward to increase belt
tension.
Note: When adjusting cable, always rotate nut one
full turn at a time.
3. Tighten upper jam nut against bracket.
4. Check tension of belt by operating machine. Ma-
chine should begin to move forward when traction
lever is depressed approximately halfway down to-
ward handle grip. Turn engine off and repeat steps
until proper adjustment is achieved.
IMPORTANT: Do not adjust the belt too tight be-
cause it may cause snowthrower to creep when
traction lever is in disengaged position. If this oc-
curs, decrease belt tension.
18
REPLACING DRIVE BELTS (Fig. 32)
If auger/impeller belt or traction belt becomes worn,
glazed, stretched, oil—soaked, or otherwise defec-
tive, belt replacement is required.
1. Pull wire off spark plug and make sure it does
not contact the plug accidentally.
2. Remove (3) flange head capscrews holding belt
cover in place, and slide belt cover up cables (Fig.
28).
3. Move speed shift control to N (neutral).
4. Remove (2) flange head capscrews securing
idler pulley assembly to engine frame. Remove idler
pulley assembly.
Figure 32
1. Idler pulley assembly 5. Auger/impeller belt
2. Flange head capscrews (2) 6. Traction belt
3. Capscrew & lockwasher 7. Middle pulley
4. Half sheave section
8. Idler pulley (2)
5. Remove capscrew and lockwasher securing half
sheave to front of pulley assembly.
6. Slide half sheave and auger/impeller belt off
crankshaft and remove belt from impeller pulley.
7. lf replacing traction belt, slide middle pulley sec-
tion and belt off crankshaft and remove belt from
transmission pulley.
8. On control cable which corresponds to belt be-
ing replaced, loosen jam nuts securing cable to
bracket (Fig. 30). Cable must be free to slide in
bracket when changing belt(s).
9. Reinstall belts by reversing procedure. Make
sure tabs in half sheave are inserted into mount-
ing grooves in middle pulley when reinstalling.
Note: Make sure idler pulleys are aligned with belts
when reinstalling idler pulley assembly.
10. Readjust belts, refer to Adjusting Auger/Impeller
Drive Belt or Adjusting Traction Drive Belt.
MAINTENANCE
À DANGER
e IMPROPER ADJUSTMENT MAY CAUSE IN-
JURY IF AUGER/IMPELLER TURNS WHEN DIS-
ENGAGED.
eo ROTATING IMPELLER OR AUGER CAN CUT
OFF OR INJURE FINGERS OR HANDS.
e KEEP FACE, HANDS, FEET AND ANY OTHER
PART OF YOUR BODY OR CLOTHING AWAY
FROM CONCEALED, MOVING OR ROTATING
PARTS.
e MAKE CERTAIN THAT IMPELLER BRAKE
ARM CLEARANCE IS MAINTAINED.
e DO NOT ADJUST THE AUGER/IMPELLER
DRIVE BELT TOO TIGHT BECAUSE IT MAY
CAUSE THE AUGER/IMPELLER TO TURN
WHEN THE CONTROL LEVER IS IN THE DIS-
ENGAGED POSITION. IF THIS OCCURS, DE-
CREASE BELT TENSION. -
ADJUSTING DRIVE CHAIN (Figs. 33—36)
The drive chain must be adjusted to maintain
1/8 —3/8 of an inch deflection at mid span between
transmission and axle sprocket. Check chain deflec-
tion after every 25 hours of operation.
1. Pull wire off spark plug and make sure wire does
not contact plug accidentally.
2. Make sure wheels are positioned in rear position,
move shift control into 2nd gear, and tip
snowthrower up onto front edge of auger housing.
IMPORTANT: To adjust drive chain, the
snowthrower must be tipped up on front edge of
auger housing. However, before the snowthrower
is tipped, drain all gasoline from fuel tank; refer
to Draining Gasoline, page 15.
1/8" - 3/8”
DEFLECTION
Figure 33
3. Check deflection of chain by lifting up on chain
with moderate pressure at mid span. There should
be 1/8—3/8” deflection (Fig. 33). If deflection is not
as specified an adjustment is required.
Figure 34
1. Transmission 2. Transmission frame
4. Loosen (4) flange head capscrews (2 each side)
securing transmission frame to engine frame
(Fig. 35).
Figure 35
1. Flange head capscrews
5. Pivot rear of transmission frame until 1/8—3/8”
chain deflection is attained. Retighten flange head
capscrews.
6. Recheck chain deflection.
IMPORTANT: Excessive chain tension may cause
transmission damage.
7. Chain adjustment will affect gearshift lever align-
ment. If gear shift lever is not aligned with Power
Shift slot in control panel (Fig. 36, inset), shift rod
length must be adjusted as follows:
A. Disconnect ball joint from transmission lever and
loosen jam nut.
B. Rotate ball joint up or down until gear shift lever is
aligned with Power Shift slot.
19
MAINTENANCE
© © SF
\ /
A \ | >= À
5)
167
Figure 36
1. Shift rod 5. Locknut
2. Ball joint 6. Jam nut
3. Shift bracket 7. Gear shift lever
4. Transmission lever
C. Reinstall ball joint to transmission lever and
tighten jam nut.
ADJUSTING CARBURETOR (Fig. 37)
The carburetor has been adjusted at the factory, but
an occasional adjustment may be required.
1. Needle Valve—Close needle valve finger—tight
by gently rotating it clockwise.
IMPORTANT: Do not close needle valve too tight
because valve and seat in carburetor will likely be
damaged.
2. Rotate—open—needle valve 1—1/2 turns coun-
terclockwise.
3. Idle Valve—Close idle valve finger—tight by gent-
ly rotating it clockwise.
IMPORTANT: Do not close idle valve too tight be-
cause valve and seat in carburetor will likely be
damaged.
4. Rotate—open—idle valve 1/4 turn to 3/4 of a turn
counterclockwise. |
5. Start engine and let it warm up for approximately
2 to 3 minutes; then move throttle to FAST.
20
|
©
Yo
N
Y
O 2)
188
Figure 37
1. Needle valve
. 3. Idle speed adjusting screw
2. Idle valve
6. Rotate needle valve clockwise—in—until engine
misses because of a lean gasoline mixture. Then
rotate needle valve counterclockwise—out— until
engine runs unevenly because of a rich gasoline
mixture. Next, rotate needle valve clockwise, back to
the midpoint between the rich and lean setting, so
engine runs smoothly.
7. Move throttle control backward to idle speed.
Next, rotate idle speed adjusting screw until engine
idles fast—1750 rpm.
ÁN WARNING
Engine must be running so final adjustment of
the carburetor can be performed. To guard
against possible personal injury, move auger
drive and wheel drive controls to DISENGAGE,
and remember to keep hands, feet, face, and
other part of your body or clothing away from
muffler, auger, discharge chute, and any mov-
ing part(s).
AN WARNING
Engine exhaust contains carbon monoxide
which is an odorless, deadly poison. Do not
run engine indoors or in an enclosed area.
8. Rotate idle valve clockwise—in—until engine be-
gins to miss because of a lean mixture. Then rotate
idle valve counterclockwise—out—until engine runs
unevenly because of rich mixture. Next, rotate idle
valve clockwise, back to the mid—point between rich
and lean settings.
9. Again, rotate idle speed adjusting screw until
engine idles at 1750 rpm.
MAINTENANCE
10. Check carburetor adjustment by quickly moving
throttle from idle speed to high speed. Engine
should accelerate without hesitation or sputtering. If
engine does not accelerate properly, adjust carbure-
tor to a slightly richer mixture.
11. After carburetor is adjusted, shut engine off.
REPLACING SPARK PLUG
Use a Champion RCJ—8 or Autolite AR7N spark
plug. Set air gap at 0.030” (0.76 mm). Since air gap
between center and side electrodes of the spark
plug increases gradually during normal engine op-
eration, install a new plug after every 25 hours of en-
gine operation.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when plug is removed.
2. Pull wire off spark plug and remove plug from
cylinder head.
IMPORTANT: A cracked, fouled, or dirty spark
plug must be replaced. Do not sand blast, scrape,
or clean electrodes because grit may eventually
release from the plug and fall into the cylinder.
The result will likely be engine damage.
3. Set air gap between electrodes of new spark
plug at 0.030” (0.76 mm) (Fig. 38). Next, install spark
plug in cylinder head. Tighten plug to 15 ft—Ib (20.4
N.m).
4. Push the wire onto spark plug.
0.030”
(0.76 mm)
110
Figure 38
PREPARING SNOWTHROWER FOR
STORAGE
1. For long term storage, either drain gasoline from
fuel tank or use a fuel additive before storing. To
drain gasoline, refer to Draining Gasoline, page 15.
After fuel is drained, start engine and let it idle until
all fuel is consumed and engine stops. Repeat the
starting procedure two more times to assure all gas
is removed from the engine. If gasoline is not
drained, gum—like varnish deposits will form and
cause poor engine operation and starting problems.
Fuel can be left in gas tank only if a fuel additive,
such as Toro’s Stabilizer/Conditioner, is added to
gasoline and run through engine before storing.
Toro’s Stabilizer/Conditioner is a petroleum distillate
based conditioner/stabilizer. Toro does not recom-
mend stabilizers with an alcohol base, such as etha-
nol, methanol or isopropyl. Use fuel additive in rec-
ommended quantities as specified on container.
Under normal conditions, fuel additives remain effec-
tive in fuel for 6-8 months.
2. Remove spark plug from cylinder head. Next,
pour two teaspoons of engine oil into spark plug
hole in cylinder head. Install spark plug in cylinder
head, but do not install wire on the plug. Then pull
recoil starter slowly to distribute oil on inside of cylin-
der.
3. Lubricate the snowthrower: refer to Lubricating
Snowthrower, page 16.
4. Change crankcase oil: see Changing Crankcase
Oil, page 16.
5. Clean the snowthrower. Touch up chipped sur-
faces with paint. Toro Re—Kote paint is available
from an Authorized TORO Service Dealer. Sand af-
fected areas before painting, and use a rust preven-
tative to prevent metal parts from rusting.
6. Tighten all screws and nuts. If any part is dam-
aged, repair or replace it.
7. Store snowthrower in a clean, dry place, and
cover it for protection.
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBER
The snowthrower has two identification numbers: a
model number and a serial number. The two num-
bers are stamped on a decal which is located on
back of engine mounting plate. In any correspon-
dence concerning the snowthrower, supply model
and serial numbers to assure that correct information
and replacement parts are obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following informa-
tion:
1. Model and serial numbers of the snowthrower.
2. Part number, description, and quantity of part(s)
desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
21
TORO SERVICE SUPPORT
If help—concerning safety, set—up, operation, maintenance, or troubleshooting—is ever needed, contact the
local Authorized TORO Service Dealer or Distributor. Refer to the “Yellow Pages” for assistance. In addition to
skilled service technicians, the dealer and distributor have factory approved accessories and replacement
parts. Keep your TORO all TORO. Buy genuine TORO replacement parts and accessories.
MAINTENANCE RECORD
HOURS OIL
USED | CHANGE
SUMMER FALL SPARK
DATE STORAGE | SERVICE | PLUG GAP
LUBRICATION OTHER
22
MAINTENANCE RECORD
DATE
HOURS
USED
OIL
CHANGE
LUBRICATION
SUMMER
STORAGE
FALL
SERVICE
SPARK
PLUG GAP
OTHER
UPL-58916
23
Consumer
Products
TORO.
THE TORO TOTAL COVERAGE
GUARANTEE
A Full Two-Year Warranty
(Limited Warranty for Commercial Use)
What Is Covered By This Express Warranty?
The Toro Company promises to repair any TORO Product
used for residential purposes if defective in materials or work-
manship for a period of two years from the date of purchase.
The cost of parts and labor are included, but the customer
pays the transportation costs.
Transportation within a 15 mile radius of the servicing dealer
is covered under this warranty for two-stage snowthrowers,
walk behind debris equipment and all TORO Wheel Horse
riding products. Walk power mowers, single stage
snowthrowers, and other products not specifically covered,
are excluded from the transportation coverage provided by
this warranty.
What Products Are Covered By This Warranty?
This warranty applies to all gasoline powered Consumer
Products (including TORO Wheel Horse riding products).
ProLine riding products, wide area walk behind mowers and
21” Commercial mowers without blade stop controls are cov-
ered by separate warranty statements.
How About Commercial Use?
TORO Consumer Products used for commercial, institutional
or rental use are covered by a limited warranty for the follow-
ing time periods from the date of purchase:
Products Warranty Period
e Garden Tractors
Chassis ....... 1 year limited warranty
Engine ....... 2 year limited warranty
oe 21” Commercial Duty Walk Mower
with blade stop controls .... 1 year limited warranty
eo Lawn Tractors, Yard Tractors, Rear Engine Riders,
3.0 and 3.5 HP Edgers,
Straight Shaft Trimmers,
and Backpack Blowers ..... 90 day limited warranty
e AliOthers ................. 45 day limited warranty
How Do You Get Warranty Service?
Should you feel your TORO product contains a defect in ma-
terial or workmanship, contact the dealer who sold you the
product or any Authorized TORO Service Dealer or TORO
Master Service Dealer. The Yellow Pages of your telephone
directory is a good reference source. The dealer will either
arrange service at his/her dealership or recommend another
Authorized Service Dealer who may be more convenient. You
may need proof of purchase (copy of registration card, sales
receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with the Service Dealer's
analysis of the defect in materials or workmanship or if you
need a referral to a TORO Service Dealer, please feel free to
contact us at the following address:
Toro Customer Service Department
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
612-888-8801
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the main-
tenance procedures described in the operators manual. Such
routine maintenance, whether performed by a dealer or by
you, is at your expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except the TORO Starting
Guarantee on GTS Engines. This express warranty does not
cover:
e Cost of regular maintenance service or parts, such as filters,
fuel, lubricants, tune —up parts, blade sharpening, brake and
clutch adjustments.
e Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents,
or lack of proper maintenance.
e Repairs necessary due to improper fuel, contaminants in the
fuel system, or failure to properly prepare the fuel system prior
to any period of non—use over three months.
e Pickup and delivery charges for distances beyond a 15 mile
radius from an Authorized TORO Service Dealer (covered
products only).
All repairs covered by this warranty must be performed by an
Authorized TORO Service Dealer using Toro approved replace-
ment parts.
Repair by an Authorized TORO Service Dealer is your sole
remedy under this warranty.
The Toro Company is not liable for indirect, incidental or
consequential damages in connection with the use of the
TORO Products covered by this warranty, including any
cost or expense of providing substitute equipment or ser-
vice during reasonable periods of malfunction or non-use
pending completion of repairs under this warranty. Some
states do not allow exclusions of incidental or consequen-
tial damages, so the above exclusion may not apply to
you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
fail, you may contact us at The Toro Company.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should contact their TORO Dis-
tributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with
your Distributor’s service or have difficulty obtaining guarantee information, contact the TORO importer. If all other remedies
24
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
