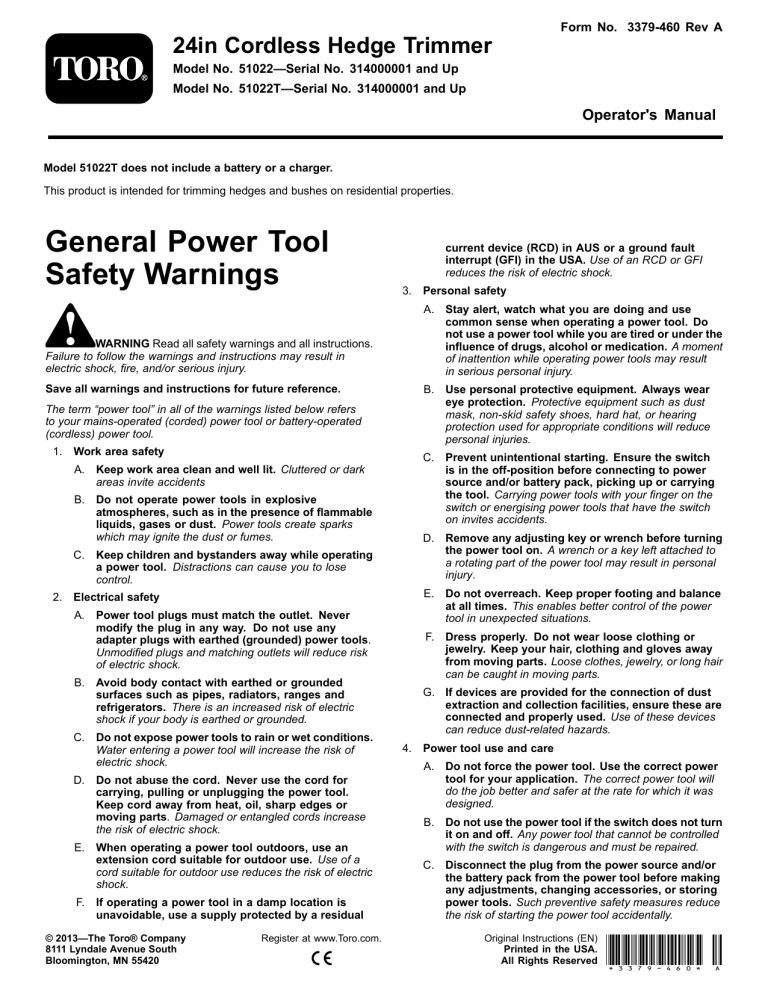

Form No. 3379-460 Rev A
24in Cordless Hedge Trimmer
Model No. 51022—Serial No. 314000001 and Up
Model No. 51022T—Serial No. 314000001 and Up
Operator's Manual
Model 51022T does not include a battery or a charger.
This product is intended for trimming hedges and bushes on residential properties.
General Power Tool
Safety Warnings
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers
to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
D. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
E. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
F.
If operating a power tool in a damp location is
unavoidable, use a supply protected by a residual
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
current device (RCD) in AUS or a ground fault
interrupt (GFI) in the USA. Use of an RCD or GFI
reduces the risk of electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
F.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
G. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
4. Power tool use and care
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Original Instructions (EN)
Printed in the USA.
All Rights Reserved *3379-460* A
exposed metal parts of the power tool “live” and could give
the operator an electric shock.
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
•
E. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
F.
Sound Pressure
This unit has a measured sound pressure level at the operator’s
ear of 76 dBA, with an uncertainty value (K) of 3.0 dBA.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
Sound Power
This unit has a measured sound power level of 93.7 dBA, and a
guaranteed sound power level of 96 dBA.
G. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed.. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
Hand/Arm Vibration
The unit vibration level does not exceed 2.5 m/s2, with an
uncertainty value (K) of 1.5 m/s2.
5. Battery tool use and care
A. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
Important: The vibration emission during actual use of the
power tool can differ from the declared total value depending
on the way the tool is used. The operator should take safety
measures based on an estimation of exposure in the actual
conditions of use.
B. Use power tools only with specifically designated
battery packs. Use any other battery packs may create
a risk of injury and fire.
C. When battery pack is not in use, keep it away from
the other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
D. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
E. Charging time will be increased if the battery is charged
when the temperature is not between 41 to 104 degrees
F (5 to 40 degrees C).
6. Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Hedge Trimmer Safety Warnings
• Use both hands when operating the hedge trimmer.
Using one hand could cause loss of control and result
in serious personal injury.
•
Keep all parts of the body away from the cutter blade. Do
not remove cut material or hold material to be cut when
blades are moving. Make sure the switch is off when
clearing jammed material. Blades coast after turn off. A
moment of inattention while operating the hedge trimmer may
result in serious personal injury.
•
Carry the hedge trimmer by the handle with the cutter
blade stopped. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter blades.
•
Hold the power tool by insulated gripping surfaces only,
because the cutter blade may contact hidden wiring or its
own cord. Cutter blades contacting a “live” wire may make
DANGER – Keep hands away from blade. Contact with
blade will result in serious personal injury.
2
Safety and Instructional Decals.
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
121–7679
1. Read the Operator’s
Manual.
2. Do not dispose of the
battery in fire.
3. Do not throw Lithium-Ion
batteries in the trash.
121–7676
1. Product is made for
household use only.
3. Do not throw the charger
in the trash.
2. Read the Operator’s
Manual.
4. Double insulated
121–7680
1. Read the Operator’s
Manual.
2. Do not dispose of the
battery in fire.
3. Do not throw Lithium-Ion
batteries in the trash.
121–7677
3
1. Product is made for
household use only.
3. Do not throw the charger
in the trash.
2. Read the Operator’s
Manual.
4. Double insulated
121–7687
1. Warning—read the
Operator’s Manual.
4. Warning—do not operate
in wet conditions.
2. Warning—stay away from 5. Do not dispose with other
household waste—recycle
moving parts; keep guards
according to your local
in shields in place.
codes.
3. Thrown object
hazard—wear eye
protection.
121–7654
121-7675
1. Warning—read the
Operator’s Manual.
4. Warning—do not operate
in wet conditions.
2. Warning—stay away from 5. Do not dispose with other
household waste—recycle
moving parts; keep guards
according to your local
in shields in place.
codes.
3. Thrown object
hazard—wear eye
protection.
4
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
SPM
Strokes per minute
Speed of blade
V
Volts
Voltage
5
Setup
2. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 3).
Cut the zip-tie away from your body and remove it from the trigger
handle (Figure 1).
Figure 1
1. Zip-tie
Figure 3
Operation
Important: The battery pack is not fully charged when it is
purchased. Before using the hedge trimmer for the first
time, place the battery pack in the charger and charge it until
the LED indicators turn green. Make sure to read all safety
precautions. With regular use, it will need shorter charging
time. If storing for a prolonged period of time, remove the
battery. When ready to use again, charge the battery pack
until the LED indicators turn green.
1. Auxiliary handle
5. Trigger handle
2. Auxiliary handle trigger
6. Tongue
3. Lock switch
4. Trigger
7. Latch
3. Grasp the trigger handle (Figure 3).
4. Push the battery pack into the handle until the latch locks
into place.
Important: The battery pack is not fully charged when it
is purchased. Before using the hedge trimmer for the
first time, place the battery pack in the charger charge
until the LED indicators turn green. Make sure to read all
safety precautions. With regular use, it will need shorter
charging time. If storing for a prolonged period of time,
remove the battery. When ready to use again, charge
the battery pack until the LED indicators turn green.
Starting the Hedge Trimmer
1. Remove the protective cover from the cutter blades (Figure
2).
WARNING
5. Place one hand on the trigger handle. Place the other hand
on the auxiliary handle and press the auxiliary handle trigger
(Figure 3).
The hedge trimmer blades can cause cuts or
amputation.
6. Slide the lock switch backwards, towards you, then squeeze
the trigger switch to turn on the hedge trimmer (Figure 3).
Be careful when handling the hedge trimmer with
the protective cover removed.
Note: The trimmer will stay on as long as the trigger and the
auxiliary handle trigger are squeezed. The lock switch may
be released once hedge trimmer is running
Figure 2
1. Protective cover
6
Rotating the Hedge Trimmer
Handle
Stopping the Hedge Trimmer
1. Release either the trigger switch or the auxiliary handle
trigger (Figure 3).
1. Press and hold the rotational lock button.
2. Allow at least 5 seconds for the cutting blade to stop moving.
Charging the Battery Pack
Important: For best results, your battery tool should be
charged in a location where the temperature is more than 5°
C (41° F) but less than 40° C (104° F). To reduce the risk of
serious personal injury, do not store outside or in vehicles.
Charging time will be increased if not charged within this
range.
1. If the power cord is not plugged in to the charger, plug it
into the charger (Figure 5), then plug the power cord into
a power socket.
Note: Use the power cord that matches your power sockets.
2. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 5 and Figure 6).
Figure 4
1. Rotational lock button
2. Handle
2. Rotate the handle to the right or left depending on desired
cutting direction, then release the rotational lock button to
lock the handle in the desired position.
Figure 5
1. Insert battery here
2. LED indicators
7
3. Charge/storage mode
switch
4. Power cord plug-in
location
Figure 6
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
4. Test button
3. Slide the battery into the charger until it clicks into place.
4. To remove the battery, hold down the charger, pull up on
the release button, and slide the battery backwards out of
the charger.
Note: If you have trouble removing the battery, apply some
dielectric grease to the battery terminals (Figure 7). Do
not use any type of lubricant as it can cause damage to
the terminals.
Figure 8
1. Red light on; green
light flashing—battery is
charging.
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
charged.
6. Red light off; green light
on—battery is prepared
for storage.
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
40 C (104 F) or less than 5
C (41 F).
4. Charge/storage mode
switch
8. Red light flashing; green
light flashing—battery is
defective.
Important: If the charger indicates an abnormal battery
temperature, allow the battery to cool or warm up as needed
before inserting the battery into the charger.
Storing a lithium-ion battery at 40% of its capacity maximizes
battery life.
Use storage mode (Figure 8) when the battery will not be used for
1 month or longer.
1. Insert the battery into the charger.
Figure 7
2. Turn storage mode on.
1. Battery terminals
3. The battery will charge or discharge as necessary to
approximately 40% charge.
5. Refer to Figure 8 to interpret the LED indicators on the
battery charger.
0
0
0
0
4. When the battery is ready for storage (Figure 8, item 6.),
remove the battery from the charger.
8
Maintenance
Operating Tips.
•
The unit is used for cutting in either direction in a slow,
sweeping action from side to side.
•
Stand so that you are stable and balanced on both feet. Do
not overreach.
•
•
•
Oiling the Trimmer Blade
Note: The trimmer blade should be oiled before and after each
use.
Inspect and clear the area of any hidden objects.
1. Stop the motor and remove the battery.
Never use the hedge trimmer near power lines, fencing,
posts, buildings, or other immovable objects.
2. Clean dirt and debris from the body of the hedge trimmer,
using a damp cloth with a mild detergent.
Never use a blade after hitting a hard object without first
inspecting it for damage. Do not use if any damage is
detected.
•
Never touch blades or service unit with the power supply
connected.
•
Do not force the hedge trimmer through heavy shrubbery.
This can cause the blades to bind and slow down. If the
blades slow down, reduce the pace.
•
Do not attempt to cut stems or twigs that are larger than .71
inches (18 mm), or those obviously too large to feed into the
cutting blade. Use a hand saw or pruning saw to trim large
stems.
•
If blades do become jammed, stop the motor, allow the blades
to stop, and remove the battery before attempting to remove
the obstruction.
•
If desired, you can use a string to help cut your hedge level.
Decide how high you want the hedge. Stretch a piece of
string along the hedge at the desired height. Trim the hedge
just above the guide line of string.
•
Trim the side of a hedge so that it will be slightly narrower at
the top. More of the hedge will be exposed when shaped this
way, and it will be more uniform.
•
Wear gloves when trimming thorny or prickly growth. When
trimming new growth, use a wide sweeping action, so that the
stems are fed directly into the cutting blade.
Note: Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils such as pine and lemon, and by solvents such
as kerosene.
3. Lay the hedge trimmer on a flat surface. Apply light weight
machine oil along the edge of the top blade. If you will be
using the hedge trimmer for an extended period of time, it is
advisable to oil the blade during use.
Note: Do not oil while the hedge trimmer is running.
Preparing the Battery Pack for
Recycling
WARNING
Before recycling, cover the battery pack's terminals
with heavy-duty adhesive tape. Do not attempt to
destroy or disassemble the battery pack or remove
any of its components. Lithium-ion batteries must be
recycled or disposed of properly at the nearest battery
recycling facility.
Service
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Storage
•
•
Clean all foreign material from the product.
•
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Store it in a well-ventilated place that is inaccessible to
children.
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
9
Notes:
10
International Distributor List
Distributor:
Country:
Phone Number:
Distributor:
Phone
Number:
57 1 236 4079
Colombia
Japan
81 3 3252 2285
Czech Republic 420 255 704
220
420 255 704
Slovakia
220
Argentina
54 11 4 821
9999
Russia
7 495 411 61 20
Ecuador
593 4 239 6970
Finland
358 987 00733
Agrolanc Kft
Balama Prima Engineering Equip.
B-Ray Corporation
Hungary
Hong Kong
Korea
36 27 539 640
852 2155 2163
82 32 551 2076
Maquiver S.A.
Maruyama Mfg. Co. Inc.
Mountfield a.s.
Casco Sales Company
Puerto Rico
787 788 8383
Mountfield a.s.
Ceres S.A.
Costa Rica
506 239 1138
Munditol S.A.
CSSC Turf Equipment (pvt) Ltd.
Cyril Johnston & Co.
Cyril Johnston & Co.
Sri Lanka
Northern Ireland
Republic of Ireland
94 11 2746100
44 2890 813 121
44 2890 813 121
Equiver
Femco S.A.
ForGarder OU
Mexico
Guatemala
Estonia
52 55 539 95444
502 442 3277
372 384 6060
Norma Garden
Oslinger Turf Equipment SA
Oy Hako Ground and Garden
Ab
Parkland Products Ltd.
Perfetto
Pratoverde SRL.
New Zealand
Poland
Italy
G.Y.K. Company Ltd.
Geomechaniki of Athens
Golf international Turizm
Guandong Golden Star
Hako Ground and Garden
Japan
Greece
Turkey
China
Sweden
81 726 325 861
30 10 935 0054
90 216 336 5993
86 20 876 51338
46 35 10 0000
Prochaska & Cie
RT Cohen 2004 Ltd.
Riversa
Lely Turfcare
Solvert S.A.S.
Austria
Israel
Spain
Denmark
France
Hako Ground and Garden
Hayter Limited (U.K.)
Hydroturf Int. Co Dubai
Hydroturf Egypt LLC
Irrimac
Irrigation Products Int'l Pvt Ltd.
Norway
United Kingdom
United Arab Emirates
Egypt
Portugal
India
Spypros Stavrinides Limited
Surge Systems India Limited
T-Markt Logistics Ltd.
Toro Australia
Toro Europe NV
Valtech
Cyprus
India
Hungary
Australia
Belgium
Morocco
Jean Heybroek b.v.
Netherlands
47 22 90 7760
44 1279 723 444
97 14 347 9479
202 519 4308
351 21 238 8260
0091 44 2449
4387
31 30 639 4611
Victus Emak
Poland
Country:
64 3 34 93760
48 61 8 208 416
39 049 9128
128
43 1 278 5100
972 986 17979
34 9 52 83 7500
45 66 109 200
33 1 30 81 77
00
357 22 434131
91 1 292299901
36 26 525 500
61 3 9580 7355
32 14 562 960
212 5 3766
3636
48 61 823 8369
European Privacy Notice
The Information Toro Collects
Toro Warranty Company (Toro) respects your privacy. In order to process your warranty claim and contact you in the event of a product recall, we ask you
to share certain personal information with us, either directly or through your local Toro company or dealer.
The Toro warranty system is hosted on servers located within the United States where privacy law may not provide the same protection as applies
in your country.
BY SHARING YOUR PERSONAL INFORMATION WITH US, YOU ARE CONSENTING TO THE PROCESSING OF YOUR PERSONAL INFORMATION
AS DESCRIBED IN THIS PRIVACY NOTICE.
The Way Toro Uses Information
Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell
you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not
sell your personal information to any other company. We reserve the right to disclose personal information in order to comply with applicable laws and
with requests by the appropriate authorities, to operate our systems properly or for our own protection or that of other users.
Retention of your Personal Information
We will keep your personal information as long as we need it for the purposes for which it was originally collected or for other legitimate purposes
(such as regulatory compliance), or as required by applicable law.
Toro's Commitment to Security of Your Personal Information
We take reasonable precautions in order to protect the security of your personal information. We also take steps to maintain the accuracy and current
status of personal information.
Access and Correction of your Personal Information
If you would like to review or correct your personal information, please contact us by email at [email protected]
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
374-0269 Rev H
The Toro Promise - Electric Products
A Two-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for two years against
defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. E
374-0262 Rev E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
