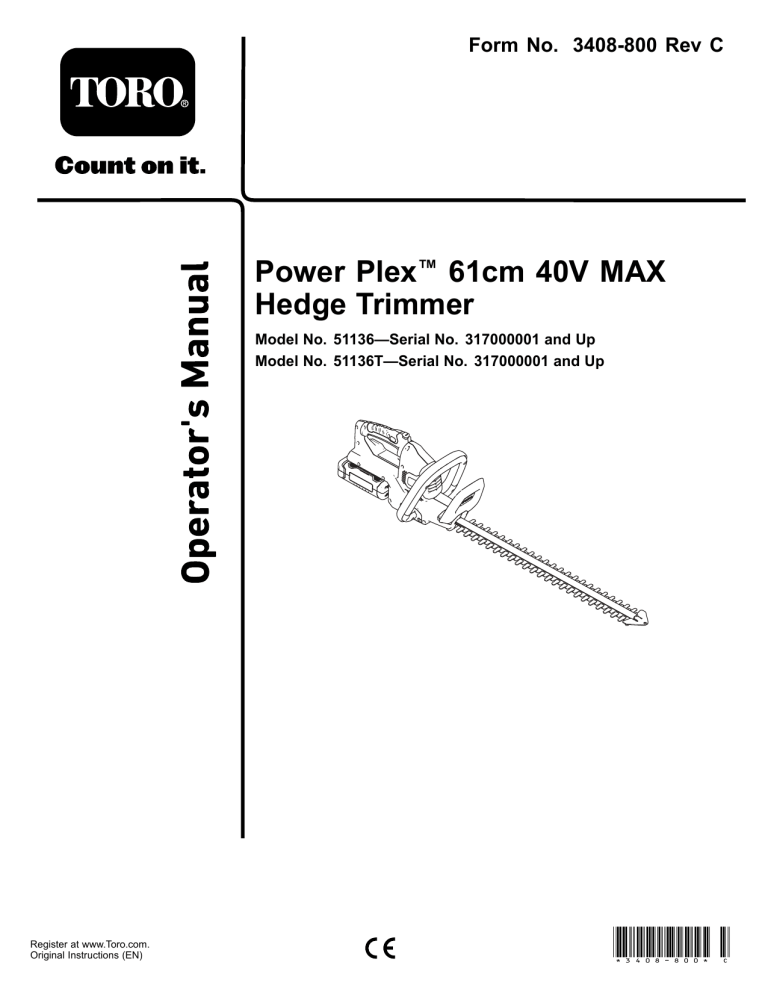

Form No. 3408-800 Rev C
Power Plex™ 61cm 40V MAX
Hedge Trimmer
Model No. 51136—Serial No. 317000001 and Up
Model No. 51136T—Serial No. 317000001 and Up
Register at www.Toro.com.
Original Instructions (EN)
*3408-800* C
Safety
WARNING: When using electric gardening appliances,
always follow the basic safety precautions to reduce
the risk of fire, electric shock, and personal injury,
including the following:
Introduction
This hedge trimmer is intended to be used by
residential homeowners to maintain bushes and
hedges. It is designed to use only battery pack Models
88525 (provided with Model 51136) or 88526.
WARNING
Failure to follow all warnings and instructions
may result in electric shock, fire and/or
serious injury.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Read all safety warnings and all instructions.
Save all warnings and instructions for future
reference.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a
dealer, or to register your product.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Model 51136T does not include a battery or a
charger.
1.
2.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Work area safety
A.
Keep the work area clean and well lit.
Cluttered or dark areas invite accidents.
B.
Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gasses, or dust.
Power tools create sparks, which may ignite
the dust or fumes.
C.
Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
D.
Avoid dangerous environments. Do not
use appliances in damp or wet locations.
Personal safety
A.
Stay alert; watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the influence
of drugs, alcohol, or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
B.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, a hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
C.
Prevent unintentional starting. Ensure
that the switch is in the OFF position
before connecting to a power source
and/or battery pack and picking up or
carrying the tool. Carrying power tools
with your finger on the switch or energizing
power tools that have the switch on invites
accidents.
Contact us at www.Toro.com.
Printed in China
All Rights Reserved
3.
D.
Remove any adjusting key or wrench
before turning on the power tool. A
wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
E.
Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
F.
Dress properly. Do not wear loose
clothing or jewelry. Keep your hair tied
back and your clothing and gloves away
from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
G.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure that these
are connected and properly used. Use
of dust collection can reduce dust-related
hazards.
G.
4.
Battery tool use and care
A.
Charge only with the charger specified
by the manufacturer. A charger that is
suitable for 1 type of battery pack may
create a risk of fire when used with another
battery pack.
B.
Use power tools only with specifically
designated battery packs. Using any
other battery packs may create a risk of
injury and fire.
C.
When battery pack is not in use, keep it
away from other metal objects, such as
paper clips, coins, keys, nails, screws,
or other small metal objects that can
make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
D.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush
with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery may cause irritation
or burns.
E.
Charging time increases if the battery
pack is not charged within the appropriate
temperature range; refer to Specifications
(page 8).
Power tool use and care
A.
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
B.
Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
C.
Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
D.
5.
Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tools
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power
tools.
F.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
Service
Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
E.
Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Using the power tool for
operations different from those intended
could result in a hazardous situation.
Hedge Trimmer Safety Warnings
• Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure that the switch is off when clearing
jammed material. The blades coast after you
turn them off. A moment of inattention while
operating the hedge trimmer may result in serious
personal injury.
• Carry the hedge trimmer by the handle with
the cutter blade stopped. Proper handling of the
hedge trimmer reduces possible personal injury
from the cutter blades.
3
Additional Safety Warnings for the Charger
• This charger can be used by persons with reduced
• Hold the power tool by insulated gripping
•
surfaces only, because the cutter blade may
contact hidden wiring or its own cord. Cutter
blades contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give
you an electric shock.
DANGER—Keep your hands away from blade.
Contact with blade will result in serious personal
injury.
•
•
Additional Safety Warnings
• Keep hands and feet away from the cutting device
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
at all times and especially when switching the
product on.
Do not try to grasp or remove trimmings when the
product is running. Remove only trimmings when
the product is switched off and disconnected from
the power supply.
Never hold the product by the guard.
Always be sure of a safe and secure operating
position while using the product.
Never use the product while standing on steps or
a ladder. Do not work over shoulder height.
Always ensure the safety guard supplied is
fitted before using the product. Never attempt to
use an incomplete product or one fitted with an
unauthorized modification.
Check the cutting device regularly for damage,
and if damaged, repair immediately.
Do not overload the product.
Check immediately if the product starts to vibrate
abnormally. Excessive vibration can cause injury.
Switch the product off when the cutting device
is blocked. Disconnect it from power supply
(i.e., remove the battery pack) and remove the
blockage. Inspect the cutting device for damage
before using the product again.
Follow the maintenance and repair instructions for
this product. Never carry out any modifications of
the product. Information about maintenance and
repair is provided in this instruction manual.
Know how to stop the product quickly in an
emergency.
Do not expose the product to rain. Do not operate
the product on a wet hedge.
Use the product only in daylight or good artificial
light.
Check the hedge for foreign objects before
operation (e.g., wire fences). Take care that the
cutting device does not come into contact with wire
or other metal objects.
Hold the hedge trimmer properly (e.g., with both
hands if 2 handles are provided). Loss of control
can cause personal injury.
•
•
•
•
•
•
•
•
•
physical, sensory or mental capabilities or lack of
experience and knowledge if they are supervised
or instructed concerning using the charger safely
and understand the hazards involved.
Children shall not play with the charger.
Cleaning and user maintenance shall not be made
by children without supervision.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
Disconnect the charger from the power supply and
allow it to cool down before cleaning, maintenance,
storage, and transportation.
Before using the charger, read all the instructions
and cautionary markings on the charger and
battery pack.
The charger and battery pack supplied with it are
specifically designed to work together. Use the
charger only with the battery pack for this tool.
Charge the battery pack indoors only as the
charger is designed for indoor use only.
Do not charge non-rechargeable batteries.
Protect the charger against moisture and wet
conditions. There is a danger of electric shock.
Do not place any object on top of the charger as it
could cause overheating. Do not place the charger
near any heat source.
Do not use an extension cord on the charger
unless it is absolutely necessary. The use of an
improper extension cord could cause the risk of
fire, electric shock or electrocution.
Do not use the charger if it has been subjected to
a heavy knock, dropped or otherwise damaged in
any way. Have the charger checked and repaired
by an authorized service center.
Additional Safety Warnings for Battery Packs
• Do not attempt to charge the battery pack with any
•
•
4
other charger than the one supplied. The charger
and battery pack supplied with it are specifically
designed to work together.
To ensure the longest battery life and best
performance, charge and store the battery pack
only in temperatures that are within the appropriate
range; refer to Specifications (page 8). Do not
charge or store the battery pack in temperatures
outside of the suggested range.
Small leakage of liquid from the battery pack
may occur under extreme usage or temperature
conditions. However, if the outer seal is broken
and this leakage comes into contact with your
skin, wash the affected area quickly with water. If
Sound Pressure
the leakage gets in your eyes, flush your eyes with
clean water for a minimum of 10 minutes and seek
immediate medical attention.
This unit has a sound pressure level at the operator’s
ear of 82.3 dBA, with an Uncertainty Value (K) of 3
dBA.
• Never attempt to open the battery pack for any
reason. If the plastic housing of the battery pack
breaks open or cracks, immediately discontinue its
use and do not recharge it.
The sound pressure level was determined according
to the procedures outlined in EN ISO 11201.
• Do not store or carry a spare battery pack in a
pocket or toolbox or any other place where it may
come into contact with metal objects. The battery
pack may short-circuit, causing damage to the
battery pack, burns, or a fire.
Sound Power
This unit has a guaranteed sound power level of 95
dBA, which includes an Uncertainty Value (K) of 3
dBA.
• Do not pierce the battery with nails, strike the
battery with a hammer, step on the battery, or
otherwise subject it to strong impacts or shocks.
The sound power level was determined according to
the procedures outlined in EN ISO 11094.
• Protect the battery pack against heat. Do not
place the battery in direct sunlight or use or store
the battery inside cars in hot weather. Doing so
may cause the battery to generate heat, explode
or ignite.
Hand/Arm Vibration
Measured vibration level for right hand = 2.04 m/s2
• Never try to charge a battery pack that is cracked
Measured vibration level for left hand = 1.83 m/s2
or damaged in any other way. There is a danger
of electric shock or electrocution.
Uncertainty Value (K) = 1.5 m/s2
The measured values were determined according to
the procedures outlined in EN ISO 20643.
SAVE THESE INSTRUCTIONS
Important: The vibration emission during actual
use of the power tool can differ from the declared
total value depending on the way the tool is
used. The operator should take safety measures
based on an estimation of exposure in the actual
conditions of use.
5
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
Symbol
Designation/Explanation
Read the instruction manual.
Wear hearing protection.
decal136-2496
136-2496
Wear eye protection.
1. Do not discard.
Wear a dust mask.
Wear protective gloves.
Wear protective, slip-resistant
footwear.
decal136-2499
136-2499
1. Read the Operator’s
Manual.
2. Do not burn the battery.
Do not expose the product
to rain or wet conditions
(moisture).
3. Do not operate in wet
conditions.
4. Do not discard.
Keep fingers away from
moving cutting device.
WEEE symbol. Waste
electrical products should not
be disposed of with household
waste. Please recycle where
facilities exist. Check with
your Local Authority or local
store for recycling advice.
decal136-2495
136-2495
1. Do not discard.
decal136-2501
136-2501
1. Do not discard.
2. Double insulated
6
3. Residential
4. Read the Operator’s
Manual.
decal136-2504
136-2504
1. The battery pack is
charging.
3. The battery pack is too
warm.
2. The battery pack is fully
charged.
4. The battery pack needs to
be replaced.
decal136-2537
136-2537
1. Warning—read the Operator’s Manual; wear hearing
protection; wear eye protection; do not operate in wet
conditions.
decal136-2534
136-2534
1. The battery does not
come out of the box fully
charged.
4. Stop—follow these
instructions before first
use.
2. Place the battery in the
battery charger.
5. Read the Operator’s
Manual.
decal136-2539
136–2539
1. Charge the battery where the temperature is between 0°C
and 40°C (32°F and 104°F).
3. Wait until the battery is
fully charged before the
first use.
7
Setup
Product Overview
Note: The battery pack is not fully charged when it
is purchased. Before using the tool for the first time,
refer to Charging the Battery Pack (page 10).
Mounting the Battery
Charger (Optional)
If desired, mount the battery charger securely on a
wall using the wall-mount key holes on the back of
the unit.
g204357
Figure 2
Left Side of Hedge Trimmer
Make sure to mount it indoors (such as a garage or
other dry place), near a power outlet, and out of the
reach of children.
Refer to Figure 1 for assistance in mounting the
charger.
1. Blades
2. Guard
6. Lock switch
7. Trigger
3. Auxiliary-handle switch
8. Battery latch
4. Auxiliary handle
9. Battery pack
5. Handle-rotation button
Note: Slide and twist the charger over the
appropriately positioned hardware to secure the
charger in place (hardware not included).
10. Protective cover
Specifications
Model
51136
51136T
Cutting Length
610 mm
610 mm
Rated Voltage
40 VDC maximum; 36 VDC nominal
No-load Speed
3000 dual action spm at 40V maximum
Cutting width
18 mm
Charger Type
88527
Battery Type
88525 (included with 51136), 88526
(sold separately)
Weights
Mass of the machine without
the battery
3.6 kg (8.0 lb)
Mass of the machine with
battery 88525
4.6 kg (10.2 lb)
Mass of the machine with
battery 88526
5.2 kg (11.5 lb)
Appropriate Temperature Ranges
g194202
Figure 1
Charge the battery at
0°C (32°F) to 40°C (104°F)*
Use products at
-15°C (5°F) to 60°C (140°F)
Store products at
-15°C (5°F) to 60°C (140°F)
Unplug the charger if
Below 0°C (32°F) or above
40°C (104°F)
*Charging time will increase if you do not charge the
battery within this range.
Store the tool, battery pack and battery charger in an
enclosed clean, dry area.
8
Operation
The trimmer stays on as long as the
auxiliary-handle switch is engaged and the
trigger is squeezed. The lock switch may be
released once the hedge trimmer is running
(Figure 4).
Starting the Hedge Trimmer
1.
Remove the protective cover from the cutter
blades (Figure 3).
Rotating the Hedge Trimmer
Handle
WARNING
The hedge trimmer blades can cause
cuts or amputation.
Be careful when handling the hedge
trimmer with the protective cover
removed.
1.
Press and hold the rotational lock button (A of
Figure 5).
2.
Rotate the handle 90° to the right or left
depending on desired cutting direction, then
release the rotational lock button to lock the
handle in the desired position (B of Figure 5).
g203890
Figure 3
1. Protective cover
2. Blades
2.
Make sure that the vents on the hedge trimmer
are clear of any dust and debris.
3.
Align the cavity of the battery pack with the
tongue in the handle housing, grasp the handle,
and push the battery pack into the handle until
the latch locks into place (Figure 4).
g190070
Figure 5
Stopping the Hedge
Trimmer
1.
Release the trigger or auxiliary-handle switch
(Figure 4).
2.
Allow at least 5 seconds for the cutting blade to
stop moving.
g194473
Figure 4
1. Auxiliary-handle switch
4. Trigger
2. Auxiliary handle
5. Battery latch
3. Lock switch
6. Hedge trimmer venting
areas
4.
Place 1 hand on the trigger handle. Place the
other hand on the auxiliary handle (Figure 4).
5.
Press the lock switch and then squeeze
the trigger switch while engaging the
auxiliary-handle switch to turn on the hedge
trimmer (Figure 4).
9
Removing the Battery Pack
Press the battery latch on the tool to release the
battery pack and slide the battery pack out of the tool
(Figure 6).
g192748
Figure 7
1. Battery pack cavity
g194190
Figure 6
2. Battery pack terminals
1. Battery latch
4. Battery-charge-indicator
button
5. LED indicators (current
charge)
3. Battery pack venting areas
Charging the Battery Pack
4.
Make sure that the vents on the battery charger
are clear of any dust and debris.
Important: Read all safety precautions.
5.
Slide the battery pack into the charger until it is
fully seated (Figure 8).
Important: Charge the battery pack only in
temperatures that are within the appropriate
range; refer to Specifications (page 8).
Note: At any time, press the battery-charge-indicator
button on the battery pack to display the current
charge (LED indicators).
1.
Plug the power cord that matches your power
outlets into the battery charger.
2.
Make sure that the vents on the battery are clear
of any dust and debris.
3.
Line up the cavity in the battery pack (Figure 7)
with the tongue on the charger.
g194423
Figure 8
1. Charger venting areas
3. Right indicator light
2. Left indicator light
6.
10
To remove the battery pack, slide the battery
backward out of the charger.
7.
Refer to the following table to interpret the LED
indicators on the battery charger.
Left Light
Right Light
Indicates
Off
Red
Charger is on; no battery
pack inserted
Red
Red
Battery pack is charging
Green
Red
Battery pack is charged
Orange
Red
Battery pack is too warm
Red Blinking
Red
Replace the battery pack
Operating Tips
• Use the power tool for cutting in either direction in
a slow, sweeping action from side to side.
• Stand so that you are stable and balanced on both
feet. Do not overreach.
• Inspect and clear the area of any hidden objects.
• Never use the hedge trimmer near power lines,
fencing, posts, buildings, or other immovable
objects.
• Never use a blade after hitting a hard object
without first inspecting it for damage. Do not use if
it is damaged.
• Never touch blades or service unit with the power
supply connected.
• Do not force the hedge trimmer through heavy
shrubbery. This can cause the blades to bind and
slow down. If the blades slow down, reduce the
pace.
• Do not attempt to cut stems or twigs that are larger
than 18 mm (0.71 inch) in diameter, or those
obviously too large to feed into the cutting blade.
Use a non-powered hand saw or pruning saw to
trim large stems.
• If blades do become jammed, stop the motor and
remove the battery before attempting to remove
the obstruction.
• If desired, you can use a string to help cut your
hedge level. Decide how high you want the hedge.
Stretch a piece of string along the hedge at the
desired height. Trim the hedge just above the
guide line of string.
• Wear gloves when trimming thorny or prickly
growth. When trimming new growth, use a wide
sweeping action so that the stems are fed directly
into the cutting blade.
11
Maintenance
• To reduce the risk of serious personal injury, do
Disconnect the product from the power supply (i.e.
remove the plug from the power supply or the battery
pack) before maintenance or cleaning work.
• Store the tool, battery pack, and battery charger
Use only the manufacturer’s recommended
replacement parts and accessories.
Preparing the Battery Pack
for Recycling
not store the battery pack outside or in vehicles.
in an enclosed clean, dry area.
Inspect and maintain the product regularly. Have the
product repaired only by an authorized service center
or similar qualified specialist.
Important: Upon removal, cover the terminals of
the battery pack with heavy-duty adhesive tape.
Do not attempt to destroy or disassemble the
battery pack or remove any of its components.
Lithium-ion battery packs must be recycled
or disposed of properly at the nearest battery
recycling facility.
Oiling the Trimmer Blade
Note: Oil the trimmer blade before and after each
use.
1.
Stop the motor and remove the battery.
2.
Clean dirt and debris from the body of the
hedge trimmer, using a damp cloth with a mild
detergent.
For more information on recycling lithium-ion
battery packs and to locate the battery
recycling facility closest to you, visit
www.Call2Recycle.org (US and Canada only).
If you are located outside of the US and
Canada, please contact your authorized Toro
distributor.
Note: Do not use any strong detergents on
the plastic housing or the handle. They can be
damaged by certain aromatic oils, such as pine
and lemon, and by solvents such as kerosene.
3.
Lay the hedge trimmer on a flat surface. Apply
light-weight machine oil along the edge of the
top blade. If you will be using the hedge trimmer
for an extended period of time, oil the blade
during use.
Note: Do not oil the hedge trimmer while it is
running.
Storage
Important: Store the tool, battery pack, and
charger only in temperatures that are within the
appropriate range; refer to Specifications (page 8).
Important: If you are storing the tool for a year or
longer, remove the battery pack from the tool and
charge the battery pack until 2 or 3 LED indicators
turn blue on the battery. Do not store a fully
charged or fully depleted battery. When ready to
use again, charge the battery pack until the left
indicator light turns green on the charger or all 4
LED indicators turn blue on the battery.
• Clean all foreign material from the product.
• Store the tool, battery pack, and battery charger
in a well-ventilated place that is inaccessible to
children.
• Keep the tool, battery pack, and battery charger
away from corrosive agents such as garden
chemicals and de-icing salts.
12
Troubleshooting
Perform only the steps described in these instructions. All further inspection, maintenance, and repair work
must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the
problem yourself.
Problem
The tool does not start.
Possible Cause
Corrective Action
1. The battery is not fully installed in the
tool.
1. Remove and then replace the battery
into the tool, making sure that it is fully
installed and latched.
2. The battery pack is not charged.
2. Remove the battery pack from the tool
and charge it.
3. Replace the battery pack.
4. Contact an Authorized Service Dealer.
3. The battery pack is damaged.
4. There is another electrical problem
with the tool.
1. The battery pack charge capacity is
too low.
1. Remove the battery pack from the tool
and fully charge the battery pack.
2. The air vents are blocked.
2. Clean the air vents.
The tool is producing excessive vibration
or noise.
1. The blades are dull or damaged.
1. Contact an Authorized Service Dealer.
The battery pack loses charge quickly.
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
The battery charger is not working.
1. The battery charger is over or under
the appropriate temperature range.
1. Unplug the battery charger and move
it to a place where it is dry and the
temperature is between 0°C (32°F)
and 40°C (104°F).
2. The outlet that the battery charger is
plugged into does not have power.
2. Contact your licensed electrician to
repair the outlet.
The battery pack shows only 3 LED
indicators after only a few seconds of
using a fully charged battery.
1. This is a normal occurrence.
1. Stop the tool and press
battery-charge-indicator button or
the remove the battery from the tool to
display the actual battery charge.
All 4 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
All 4 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
2 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
2 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
The tool does not reach full power.
13
Problem
Possible Cause
Corrective Action
1 LED indicator is blinking on the battery
pack.
1. The battery pack voltage is low.
1. Place the battery pack on the charger.
It is difficult to remove the battery pack
from the tool.
1. The battery pack/tool is new or there
is corrosion in the battery terminals
and/or the terminals on the tool.
1. Clean the terminals on the battery pack
and the tool. Then apply dielectric
grease to the battery terminals; do not
use any other type of lubricant as it can
damage the terminals.
14
European Privacy Notice
The Information Toro Collects
Toro Warranty Company (Toro) respects your privacy. In order to process your warranty claim and contact you in the event of a product recall, we ask you
to share certain personal information with us, either directly or through your local Toro company or dealer.
The Toro warranty system is hosted on servers located within the United States where privacy law may not provide the same protection as applies
in your country.
BY SHARING YOUR PERSONAL INFORMATION WITH US, YOU ARE CONSENTING TO THE PROCESSING OF YOUR PERSONAL INFORMATION
AS DESCRIBED IN THIS PRIVACY NOTICE.
The Way Toro Uses Information
Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell
you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not
sell your personal information to any other company. We reserve the right to disclose personal information in order to comply with applicable laws and
with requests by the appropriate authorities, to operate our systems properly or for our own protection or that of other users.
Retention of your Personal Information
We will keep your personal information as long as we need it for the purposes for which it was originally collected or for other legitimate purposes
(such as regulatory compliance), or as required by applicable law.
Toro's Commitment to Security of Your Personal Information
We take reasonable precautions in order to protect the security of your personal information. We also take steps to maintain the accuracy and current
status of personal information.
Access and Correction of your Personal Information
If you would like to review or correct your personal information, please contact us by email at [email protected]
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
374-0282 Rev C
Residential Products
The Toro Warranty
and
The Toro GTS Starting Guarantee
Instructions for Obtaining Warranty Service
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company, pursuant to
an agreement between them, jointly promise to repair the Toro Product
listed below if defective in materials or workmanship or if the Toro GTS
(Guaranteed to Start) engine will not start on the first or second pull,
provided the routine maintenance required in the Operator's Manual have
been performed.
If you think that your Toro Product contains a defect in materials or
workmanship, follow this procedure:
1.
Contact your seller to arrange service of the product. If for any
reason it is impossible for you to contact your seller, you may
contact any Toro Authorized Distributor to arrange service. Visit
http://www.toro.com/en-us/locator/pages/default.aspx to locate a Toro
distributor in your area.
2.
Bring the product and your proof of purchase (sales receipt) to the
servicing outlet. If for any reason you are dissatisfied with the servicing
outlet’s analysis or with the assistance provided, contact us at:
The following time periods apply from the original date of purchase:
Products
Walk Power Mowers
•Cast Deck
Warranty Period
—Engine
—Battery
•Steel Deck
—Engine
TimeMaster Mowers
•Engine
•Battery
Electric Hand Held Products
•Ultra Products
•Power Plex Products
—Battery
Electric Walk Power Mowers
All Ride-On Units Below
•Engine
•Battery
•Attachments
DH Lawn & Garden Tractors
TimeCutter
•Engine
TimeCutter HD
•Engine
1Original
5 years Residential Use2
90 Days Commercial Use
5 years GTS Guarantee, Residential
Use3
2 years
2 years Residential Use2
30 Days Commercial Use
2 years GTS Guarantee, Residential
Use3
3 years Residential Use2
90 Days Commercial Use
3 years GTS Guarantee, Residential
Use3
2 years
2 years Residential Use2
3 years Residential Use2
2 years
No Warranty for Commercial Use
See engine manufacturer's warranty4
2 years Residential Use2
2 years Residential Use2
2 years Residential Use2
30 Days Commercial Use
3 years Residential Use2
30 Days Commercial Use
3 years Residential Use2
2 years or 300 hours Commercial
Use 5
3 years or 300 hours 5
3 years or 300 hours Commercial
Use 5
Items and Conditions Not Covered
There is no other express warranty except for special emission system
coverage and engine warranty coverage on some products. This express
warranty does not cover the following:
•
Cost of regular maintenance service or parts, such as filters, fuel,
lubricants, oil changes, spark plugs, air filters, blade sharpening
or worn blades, cable/linkage adjustments, or brake and clutch
adjustments
•
•
Components failing due to normal wear
•
•
•
use means use of the product on the same lot as your home. Use at more than one
location is considered commercial use and the commercial use warranty would apply.
•
Toro GTS Starting Guarantee does not apply when the product is used commercially.
4Some
Any product or part which has been altered, misused, neglected,
requires replacement, or repair due to accidents or lack of proper
maintenance
Pickup and delivery charges
Repairs or attempted repairs by anyone other than an Authorized Toro
Service Dealer
Repairs necessary due to failure to follow recommended fuel
procedure (consult Operator's Manual for more details)
–
Removing contaminants from the fuel system is not covered
–
Use of old fuel (more than one month old) or fuel which contains
more than 10% ethanol or more that 15% MTBE
–
Failure to drain the fuel system prior to any period of non-use
over one month
Purchaser means the person who originally purchased the Toro Product.
2Residential
3The
Toro Warranty Company
Toro Customer Care Department, RLC Division
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
001–952–948–4707
engines used on Toro Products are warranted by the engine manufacturer.
5Whichever
•
occurs first.
Warranty may be denied if the hour meter is disconnected, altered, or
shows signs of being tampered with.
Repairs or adjustments to correct starting difficulties due to the
following:
–
Failure to follow proper maintenance procedures or recommended
fuel procedure
–
Rotary mower blade striking an object
Special operational conditions where starting may require more than
two pulls:
–
First time starts after extended period of non-use over three
months or seasonal storage
Owner Responsibilities
–
You must maintain your Toro Product by following the maintenance
procedures described in the Operator's Manual. Such routine maintenance,
whether performed by a dealer or by you, is at your expense.
Cool temperature starts such as those found in early spring and
late autumn
–
Improper starting procedures - if you are having difficulty starting
your unit, please check the Operator's Manual to ensure that
you are using the correct starting procedures. This can save an
unnecessary visit to an Authorized Toro Service Dealer.
General Conditions
The purchaser is covered by the national laws of each country. The rights
to which the purchaser is entitled with the support of these laws are not
restricted by this warranty.
374-0268 Rev L
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
