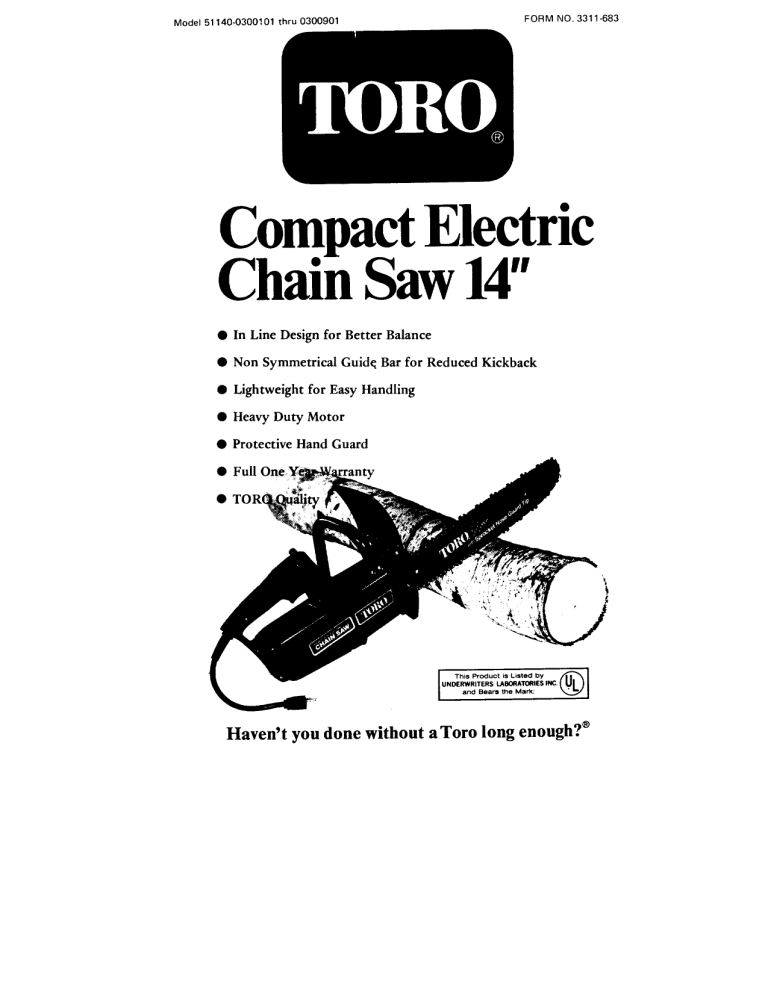

Model 51140-0300101 thru 0300901 FORM NO. 3311-683
Compact Electric
Chain Saw 14”
e In Line Design for Better Balance
® Non Symmetrical Guide Bar for Reduced Kickback
e Lightweight for Easy Handling
e Heavy Duty Motor
Oe Protective Hand Guard
Oe Full One
POY ran e TT
This Product is Listed by
UNDERWRITERS LABORATORIES INC.
and Bears the Mark:
Haven’t you done without a Toro long enough?”
WELCOME to the TORO® family of fine lawn and
garden equipment. Your TORO ELECTRIC CHAIN
SAW features advanced concepts in engineering
design and safety. This Operator's Manual has been
designed to help you thoroughly understand your
new tool before using it. Please read it completely
before operating the tool. You will find that as your
knowledge of the tool increases, your proficiency
with it will improve.
A Pay particular attention to the instructions
highlighted by this safety alert symbol. Failure to
comply with the safety instructions may result
in personal injury. Safety, mechanical, and some
general information in this manual is emphasized.
DANGER, WARNING, and CAUTION identify
the safety messages. IMPORTANT identifies
special mechanical information and NOTE
identifies general information worthy of special
attention.
5
N— a
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — 1980
Minneapolis, MN 55423 — U.S.A.
TORO COMPACT 14” CHAIN SAW MODEL 51140
OPERATOR'S MANUAL
A Safety Instructions
Y YY Y YY YY YY Y Y YY Y YY Y Y Y Y Y Y Y Y Y YY Y Y Y YY AA
NN NN NAAA YUU EEE NAPA APA EF EFFES EF AFP AP EEE EF OE
To assure optimum performance, and to gain knowledge of the Chain Saw, it
is essential that you or any other operator of the Chain Saw read and under- |
stand the contents of this manual before operating Chain Saw. Pay particular |
attention to the instructions highlighted by the safety alert symbol. Failure $
to comply with the safety instructions may result in personal injury. q
Mi A MI MI MD dell Alltel Ale a ie ai a AAPP i ii PP PP Py
"NA
NNUU AAA AAA A
1. READ OPERATORS MANUAL
CAREFULLY. Become fully familiar
with the chain saw before attempting to
operate it.
2. KEEP WORK AREA CLEAN. Clut-
tered areas and benches invite accidents.
3. AVOID DANGEROUS ENVIRON-
MENT. Don’t expose saw to rain, or use
saw in damp or wet locations. Keep
work area well lit. NEVER OPERATE
THE SAW WHILE IN CONTACT WITH
WATER.
4. WEAR PROPER APPAREL. Loose
clothing or jewelry may get caught in
moving parts. Wear a hard hat during
felling of trees.
5. WEAR SAFETY GLASSES. Use
safety glasses with most tools. Also use
a face or dust mask if cutting operation
is dusty.
6. KEEP CHILDREN AWAY. All visi-
tors should be kept a safe distance from
work area.
7. NEVER OPERATE SAW WHEN
YOU ARE FATIGUED.
8. USE PROPER EXTENSION CORD
OUTDOORS. When tool is used out-
doors, use only extension cords suitable
for use outdoors and so marked. (Sug-
gested cord sizes listed on page 5.
9. MAINTAIN SAW WITH CARE.
Never operate a chain saw that is unclean,
SNA ERES
improperly adjusted, or is not complete-
ly and securely assembled. Keep the saw
handles dry, clean and free of oil. Use
only identical replacement parts. Follow
instructions for lubricating and changing
accessories.
10. REMOVE ADJUSTING TOOLS.
Form habit of checking to see that
adjusting tools are removed from too!
before turning it on.
11. DISCONNECT SAW WHEN NOT
IN USE. Disconnect before servicing
and when changing accessories such as
guide bar or saw chain.
12. KEEP GUARDS IN PLACE AND
IN WORKING ORDER.
13. USE CORRECT SAW. Don't force
small saw or attachment to do the job
of a heavy-duty saw.
14. Аве AWARE OF KICKBACK.
When the moving chain at the nose of the
guide bar touches an object, the chain
and guide bar often are thrown upward
with speed and force, (see figure 12).
Your TORO chain saw's special non-
symmetrical guide bar reduces this
action, but care must be taken regard-
less.
15. SECURE WORK. Use clamps or
chocks to secure work.
A Safety Instructions (cont.)
16. CONNECT CHAIN SAW TO COR-
RECT VOLTAGE (120V).
17. AVOID ACCIDENTAL START-
ING. Do not place finger on switch when
plugging in or until ready for cutting.
Always carry the chain saw from one lo-
cation to another with the power cord
disconnected and finger off of switch.
The guide bar and saw chain should be
to the rear, and away from your body
(see figure 12).
18. BETWEEN CUTS set the saw down
and pick it back up by the front handle
to avoid contacting switch and starting
saw unintentionally.
19. GRIP SAW PROPERLY. Always
hold the chain saw firmly with both
hands when the saw is running. Use a
firm grip with thumbs and all fingers en-
circling the chain saw handles.
20. DON'T OVERREACH. Keep pro-
per footing and balance at all times.
21. KEEP HANDS AWAY FROM CUT-
TING AREA. Be sure all parts of your
body or clothing are away from the cut-
ting area before starting the saw and
during its operation.
22. DON'T ABUSE CORD. Never carry
tool by cord or yank it to disconnect
from receptacle. Keep cord away from
heat, oil, sharp edges and away from
operator.
23. CLEAR SAW CHAIN BEFORE
STARTING. Before you start the saw,
make sure the saw chain is not contact-
ing operator.
24. DON'T FORCE SAW. It will do the
job better and safer at the rate for which
it was designed.
25. STORE IDLE SAW. When not in
use, saw should be stored in dry, high,
or locked-up place — out of reach of
children.
26. BE ALERT WHEN CUTTING
LIMBS. When cutting a limb that is un-
der tension be alert for spring back so
that you will not be struck when the ten-
sion in the wood fibers is released.
27. USE CAUTION WHEN CUTTING
BRUSH AND SAPLINGS. Slender brush
and saplings may catch the saw chain and
be whipped toward you or pull you off
balance.
28. BE CAREFUL WHEN CUTTING
TREES. Do not operate a chain saw in a
tree unless specifically trained to do so.
When felling trees never start cutting un-
til you have a clear work area, secure
footing, and a planned retreat path.
29. CUTTING STANDING TREES RE-
QUIRES EXPERTISE AND POSES
HAZARDS. Your Toro Chain Saw should
not be used to fell large trees with dia-
meters greater than the length of your
quide bar.
Assembly Instructions
Install Guide Bar and Saw Chain
1. Remove the guide bar hexagon
nut and spring washer. Then remove
sprocket cover (Fig. 1).
2. Loosen the guide bar adjusting
block by turning the tension adjusting
screw counter clockwise to the screw
end (Fig. 2).
3. Insert the saw chain into the groove
of the guide bar with the cutting edge
facing forward toward the nose of the
guide bar (see inset). Note that the
through hole near the guide bar slot
must be positioned below the slot as
indicated (Fig. 3).
4. Loop the open end of the saw chain
around the sprocket and position the
guide bar slot over the guide bar bolt
and guide bar pin so that the projected
portion of the adjusting block fits into
the through hole (Fig. 4).
A note: GUIDE BAR IS NOT
REVERSIBLE.
5. Replace the sprocket cover, spring
washer and guide bar hexagon nut.
Secure finger tight.
Assembly Instructions (cont.)
Adjust Saw Chain Tension
A CAUTION: Make sure chain saw is
disconnected from power source before
adjusting chain tension. Use gloves or
rag to protect hands.
IMPORTANT: Do not operate chain
saw if chain is not properly adjusted.
A loose chain will shorten sprocket and
guide bar life and may cause chain
breakage. An over-tightened chain will
overheat the quide bar and chain, caus-
ing rapid wear and may cause motor
burnout.
1. Loosen the guide bar hexagon nut
by turning counter clockwise 1/2 turn.
Then tension the chain by turning the
tension adjustment screw clockwise
(Fig. b).
2. The tension is correct when the
chain fits tightly but can be moved
easily around the guide bar by hand.
An easy test for correct tension is to
lift one chain cutter away from the
middle of the guide bar (Fig. 6). There
should be approximately 1/8” clearance
between the bottom of the side links
and the guide bar (Fig. 7). The bottom
of the chain drive link should never be
loose enough to drop or be pulled beyond
the lip of the bar slot.
3. Lift up the nose of the guide bar,
tighten the guide bar hexagon nut and
retest the chain tension. If tension has
changed, repeat entire procedure.
NOTE: Check chain tension after the
first few cuts. New chains usually stretch
and will require readjustment.
Before Operating
Fill Oil Reservoir
A caution: Make sure chain saw is
disconnected from power source before
performing maintenance operations.
1. (Fig. 8).
2. Using a pouring spout or funnel,
fill the oil reservoir. When temperature
is below 30° Fahrenheit (1° C) use SAE
#10 motor oil. For temperatures above
30°F (1°C) use SAE #30 motor oil.
3. Replace and tighten fill cap im-
mediately after filling. Failure to tighten
the cap will cause excessive oil leakage.
Due to the vacuum type oiling system
there may be a constant minimal
leakage.
IMPORTANT: Cutting without proper
oiling will damage the saw's chain and
bar.
Extension Cords
1. The proper extension cord is a must
for safe and efficient use of your chain
saw. Your extension cord should be
suitable for outdoor use and comply
with the requirements specified in the
National Electric Code. Refer to the
following table for proper extension cord
usage. Examine the extension cord
periodically and replace immediately if
damaged.
Extension Cord
Length in Feet 0-50
50-100 | 100-150
Required wire size
(A.W.G.) incord | 16 | 14 12
2. Connect extension cord as shown in
figure 9.
Operating Instructions
AA CAUTION: Operating a chain saw
may be hazardous. Read and follow
operating instructions carefully to help
avoid possible personal injury.
1. Operate the chain saw with two
hands. Use a firm grip with your fingers
encircling both chain saw handles.
2. Stand to the left of the saw (Fig. 10)
with your left hand on the front handle;
hold the rear handle with your right
hand so you can operate the switch
Operating Instructions (cont.)
Never stand directly behind the chain
saw (Fig. 12).
3. Stand securely with your weight
evenly distributed on both feet.
4, Don’t
balanced.
overreach, Keep vyourself
5. Always cut with the spike bar set
firmly against the wood. Start saw chain
before cutting into wood (Fig. 11).
6. When cutting, keep the nose of the
guide bar from contacting logs, branches,
the ground or any other obstruction.
This can cause KICKBACK, which is a
quick and dangerous upward movement
of the guide bar and saw chain (Fig.12)!
7. IMPORTANT: Motor overload and
burnout can be caused by:
A. Starting saw while chain is pinched
in a cut.
B. Forcing the saw into a cut so hard
that chain speed is drastically
slowed.
C. Working with a saw chain that is dull
or improperly sharpened or a chain
that is too tight.
D. Using an unsuitable extension cord.
E. Using a saw with dirty, dusty, clog-
ged air passages. Good air circulation
is necessary to properly cool the
motor.
8. By pushing the oiling button with
moderate pressure, oil will feed into the
guide bar slot and onto the saw chain
(Fig. 13). To keep the saw chain prop-
erly lubricated, push the oiling button
at least once before each cut and reqular-
ly during extended cuts. Check the oil
level in the reservoir frequently.
dA IMPORTANT: Cutting without
proper oiling will damage the saw's
chain and bar.
9. Before carrying the saw from one
location to another disconnect the
extension cord. Carry the saw with the
guide bar and saw chain to the rear and
away from your body (Fig. 14).
Operating Instructions (cont.)
Felling a Tree
AN CAUTION: Cutting standing trees
requires expertise and poses hazards.
Your TORO Chain Saw should not be
used to fell large trees with diameters
greater than the length of your guide
bar.
The proper operator stance for felling a
tree is shown in Figure 15.
1. Before attempting to cut a big tree,
practice cut a few branches, limbs or
small logs to familiarize yourself with
the controls.
2. Next, the direction of the fall must
be determined. Consider the wind dir-
ection, if there are heavier limbs on any
one side of the tree and the tree's
natural tilt, if any.
3. Have a wide path cleared behind the
planned direction of fall as a safety re-
treat.
4. To fell the tree, make the first cut
1/3 of the way through tree diameter on
the side you want the tree to fall. The
second cut should be made as illustrated
to complete the notch (Fig. 16).
5. The third cut should be made from
the opposite side of the first two cuts and
two or three inches higher than the bot-
tom of the notch as shown in Figure 16.
6. Stop the third cut one or two inches
from the notch to form a “hinge” which
will keep the tree from falling in the
wrong direction or twisting as it falls.
Limbing a Tree
A CAUTION: When cutting limbs
from a standing tree, use a well secured
ladder to reach the higher areas. After
you have a firm position on the ladder,
hoist the chain saw with a rope. Do not
climb on limbs or branches with the
chain saw and don’t overreach. Cut with
both hands on the saw.
1. Make the first cut from the under-
side of the limb about 1/2 foot from the
trunk. Cut one third of the way through
the limb (Fig. 17).
Operating Instructions (cont.)
2. Make the second cut two to four
inches farther out on the limb and from
above. Cut until the limb falls.
3. Cut one third the diameter of the
limb stub from underneath as close to
the trunk as possible.
4. Make the final cut from above so
that it meets the previous cut as close as
possible to the trunk.
Cutting Fallen Trees (Bucking)
1. When cutting branches from a fall-
en tree or cutting a log into lengths, sup-
port the log off the ground (preferably
on a sawbuck).
2. When cutting a log supported on
one end, cut from the top. If the chain
saw should bind in the cut, never try to
free it by running the motor. Stop the
chain saw, then use a wedge to pry open
the cut and release the saw (Fig. 18).
3. When cutting a log supported on
both ends, start from the top and cut
about 1/3 of the way through the log.
The second cut should be made from
the underside to meet the first cut. This
will keep the log from pinching the saw
(Fig. 19).
Maintenance
Refilling Oil Reservoir
A CAUTION: Make sure chain saw is
disconnected from power source before
performing maintenance operations.
1. Remove the oil fill cap (Fig. 20).
2. Using a pouring spout or funnel, fill
the oil reservoir. When temperature is
below 30° Fahrenheit use SAE #10
motor oil. For temperatures above 30°
use SAE #30 motor oil.
3. Replace and tighten fill cap im-
mediately after filling. Failure to tighten
the cap will cause excessive oil leakage.
Due to the vacuum type oiling system
there may be a constant minimal leakage.
IMPORTANT: Cutting without proper
oiling will damage the saw’s chain and
bar.
Sharpening the Saw Chain
A caution: Before beginning the
sharpening procedure, make sure chain
saw power source is disconnected. Wear
gloves to protect hands.
1. The saw chain needs sharpening
when it must be forced onto the wood
or it does not produce wood chips as
large as when new.
2. Following the tensioning procedure
on page 4, adjust chain tension extra
tight so cutters are firm and remain
steady as sharpened.
3. To sharpen the cutters, you will
need a 5/32 round file and a file guide.
4. First, file all left hand cutters (from
inside out). Then file all right hand
cutters. The correct angle is 30° (Fig. 21).
5. Press File Guide so it rides on both
cutter top plate and depth gauge, with
guide marks in line with the length of
chain (Fig. 22).
Maintenance (cont.)
6. Move to other side of chain and file
all cutters opposite to complete chain
sharpening. File all cutters identically
(Fig. 23).
7. Depth gauges should be checked
every third sharpening with a depth
gauge tool. Depth gauge setting is .025",
Place the depth gauge tool as indicated
and file away portions of each depth
gauge which extend above the tool's slot
(Fig. 24).
8. Round off leading edges of depth
gauges as shown (Fig. 25).
9. IMPORTANT: saw chain
Reset
tension. See instructions on page 4.
10. Any other servicing should be per-
formed by an authorized TORO Service
Dealer.
Identification and Ordering
Model and Serial Numbers
The compact electric chain saw has two
identification numbers: a model number
and a serial number. The two numbers
are stamped on a decal that is located
on the right side of the chain saw housing.
In any correspondence concerning the
chain saw, supply model and serial
numbers to assure that correct informa-
tion and replacement parts are obtained.
To order replacement parts from an
Authorized TORO Service Dealer supply
the following information:
1. Model and serial numbers of the
compact electric chain saw.
2. Part number, description,
quantity of part(s) desired.
NOTE: Do not order by reference
number from parts catalog: use the
PART NUMBER.
and
Chain Saw Parts List
yy
9
de Part No. Description de
1 34-6040 Flange Nut 1
2 34-6150 Shaft Support Bracket 1
3 34-6370 Oil Cap 1
4 34-1460 Decal - Caution 1
5 34-0980 Decal - Chainsaw 1
6 34-0960 Decal - Toro L.H. 1
7 34-6400 Hex Nut 1
8 34-6300 Adjusting Block Assembly 1
9 33-8290 Guide Bar 1
10 34-3400 Saw Chain 1
11 34-5980 Spring Washer 1
12 34-5970 Nut 1
13 34-5950 Screw 1
14 34-0970 Decal - Toro R.H. 1
15 34-6090 Handguard 1
Toro also has a full line of
premium-quality snowthrower products...
Model 38150 826 Snowthrower Model 38090 1132 Snowthrower
Haven't you done without a Toro long enough?”
Toro Compact Electric Chain Saw 14”
Product Registration Card
Below is a removable product ragistration card which we ask that you complete and send to THE
TORO COMPANY, Outdoor Apptiance Division. IMPORTANT! Return of this card is important
to ensure this Toro Product receives proper post-sale service.
We have provided you space to record the date of purchase and the serial number of your
Trimmaer. Please use this information with any correspondence to THE TORO COMPANY.
Date of Purchase: EA / 51140 Serial No. | | | | | | | |
Mo Day Yr Model No.
Detach here and retain this section for your records.
#0 H 6 66Eroo ro ir + # # # + #4 т фа а а 4 в т ооо еее чево вв ео ев в
Seal card here.
Toro Compact Electric Chain Saw 14”
1 0 Mr. 2.0 Mrs. 3. 0 Ms. 4 D Miss 67B
Name (First/Initial /Last)
СЕТЕ ТЕТЕ! |
Street
City State Zip
Date of Purchase: Serial No. || | 1 | | |
Mo. Day Yr.
Month and year of your birth:
FL] [11
Mo. Yr.
Store where purchased: Marital status:
1. О Hardware 1. O Married 2. O Unmarried
2. 3 Lawn 4 garden center `
3. D Department Which group best describes your family
4. (3 Drug income?
5. О Catalog showroom /discount 1. El Under $10,000 6. O $30,000-$34,999
6. O Other 2. D $10,000-$14,999 7. 1 $35,000-$39,999
3. D $15.000-$19,999 В. О $40,000-$44,999
Check the 2 most important factors 4. (1 $20,000-$24,999 9. O $45,000-$49,999
influencing your selection of this TORO 5. О $25,000-$29,999 10. О $50,000 & over
product:
1. D Special features Do you have any children in any of the
2. О Durabitity following age groups who are living at home?
3. Cl Warranty 1. O Under age 2 5.0 Age 11-12
4. O Advertisement 2. OJ Age 2-4 6. OJ Age 13-15
5. O Friend's recommendation 3. O Age 5-7 7. O Age 16-18
6. O Previous experience with TORO 4. С Age 8-10
7. O Store display/fiterature
8. [] Dealer's recommendation Do you:
9 D Price 1. D Own a house?
2. OJ Rent a house?
What brand Chain Saw did you own prior to 3. O Own a townhouse /condominium?
this one? 4. O Rent an apartment?
1. O This is my first Chain Saw
2. D Sears Which of the following types of credit cards do
3. OJ Remington you use?
4 D Wen 1. O Travel/Entertainment (American
5. D Skil Express, Diners Club, Carte Blanche)
6. D Other 2. О Bank (Master Charge, Visa)
3. O Gas, department store, etc.
Which of the following have you done in the
past 6 months? (check all that apply) What is your occupation (check one)
1. 3) Redeemed a product coupon 1. O Professional/Technical 6. О Student
2. О Ordered an item from mail order catalog 2. J Upper Mgt./Administrator 7. О Housew
3. D Sent in product inquiry card from magazine 3. Cl Sales/Service/Middle Mg. 8. D Retired
4. D Bought item from offer received in mail 4. D Clerical /White Collar
5. 9 Entered sweepstakes/contest 5. O Craftsman /Biue Collar
(over)
The Toro Promise
A Full One Year Warranty
TORO warrants your electric outdoor appliance against defects in material or workman-
ship for a period of one year from the date of purchase when used non-commercially.
During the warranty period, TORO will, at its option, replace a defective electric outdoor
appliance with a new or rebuilt unit, or will repair or replace any defective parts. Just re-
turn your electric outdoor appliance, transportation prepaid, to either: (1) the retailer
who sold it to you or, (2) any Toro Appliance Service Dealer, or (3) our Toro Service
Center, Galahad Road and Wisconsin Street, North Hudson, Wisconsin 54016. Proof of
purchase may be required. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Which of the following interests and hobbies
Detach here and retain this section for your records.
PLACE
FIRST-CLASS
STAMP
HERE
TORO,
Outdoor Appliance Division
Post Office Box 5826
Denver, Colorado 80217
do you and your family enjoy?
11.
12.
13.
14.
15.
16.
17.
18.
19.
21.
22.
23.
24.
25.
26.
«=
CONDO AWN
UUOODOUQO0O00000000000000000000
Tennis
Golf
Snow Skiing
Running /Jogging
Camping /Hiking
Hunting /Shooting
Fishing
Bicycling
Racquetball
Sailing /Boating
Stamp /Coin Collecting
Motorbiking /Motorcycling
Home Video Games
Physical Fitness /Exercise
Home Video Recording
Recreational Vehicle/4-WD
Photography
CB Radio
Home Workshop /Do-It-Yourself
Gardening/Piants
Electronics
Automotive Work
Sewing /Needlework
Crafts
Collectibles /Collections
Art 8 Antiques
Please fold here.
0e... NN ENE NN EE EN NE NN NN EEN EEN EEE EF EEE EE EE EE Er EE EE EE YY
28. OO Foreign Travel
29. D Attending Cultural /Arts Events
30. O) Gourmet Foods/Cooking
31. CJ Health/Natural Foods
32. OO Wines
33 D Fashion Clothing
34. О Home Furnishings/Decorating
35. LJ) Records 4 Tapes
36. D Avid Book Reading
37. O Science Fiction
38. O Astrology /Occult
39. O Stock/Bond Investments
40. O Real Estate Investments
41. [J Self Improvement Programs
42. O Community /Civic Activities
We appreciate your taking the time to com-
plete this card; the information provided will
help us serve you better in the future. We partici-
pate in a multi-company program whereby you
can receive information about new products, de-
velopments, trends, etc. related to the interest
areas and other information you have indicated
above. Please check here if you would prefer not
to learn about such products and services. ©
Please send further comments and suggestions
to The Toro Company, Outdoor Appliance
Division, 8111 Lyndale Avenue South,
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
