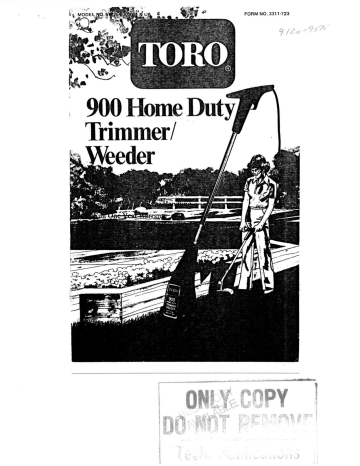

 у 6 MODEL 40 5 E
E
FORM NO. 3311-723
a
nh
Trimmer/
Ана,
pill il Tell Sill Shell al Nell oll Beil Theil Boal” ell Tl Bell hai’ Ball Beal Bai all hel ad Bd hal Bai Bal Dual Dek Bead’ ой Sill Bed Ball Bett Bal |
4
NOVENA —
- | 3
{Jd
THE TORO PROMISE —
TORO TRIMMER/WEEDER Pa
A FULL ONE YEAR WARRANTY -
The Toro Company warrants your TORO Product against defects in material
or workmansbip. During the warranty pertod, Toro will, at its option, replace
a defective product with a new or rebuilt unit, ar will repair or replace any
defective parts. The folluwing time periods from the date of purchase apply.
Resident]: cc cn omen dng SE FR SA FRE =
Residential Products Used Commercially . . . ........ 45 Days — ==.
The cost of replacement or repair is included, but the customer pays the
rransportation costs.
lili
Г,
Repairs or attempted repairs by anyone other than a TORO Electrical
Service Dealer are not reimbursable under The Toro Promise. In addition,
these unauthorized repair attempts may result in additional malfunctions,
the correction of which is not covered by warranty.
(|
A
—
=, This warranty gives you specific legal rights, and you may also have other
— rights which vary from stare ro state.
— y Should you feel your TORO Product is defective and wish to rely on The г ==
Toro Promise, you may return it to: :
Бо —
Ей The original place of purchase Pe
ada a y * —
= A TORO Electrical Service Dealer Ce a
mm rs
в The Toro Service Center Jam
— Galahad Road and Wisconsin Street gr
— North Hudson, WI 54016 Li
E {Postage Prepaid) + —
> Upon return of your unit to one of the above, it will be inspected and you р
re, will be advised whether the product is defective. If defective, arrangements Pe J
=. will be made for repair or replacement without extra charge to you. =
> pe
el if for any reason you are dissatisfied with the analysis of the defect or the me
Ca service performed, you may contact us. CN
Di Lp
—— Write: TORO Consumer Service Department »
— 8111 Lyndale Avenue South Rar
— Minneapolis, MN $5470 rm
a + LE
— THERE IS NO OTHER EXPRESS WARRANTY em
— THE TORO COMPANY IS NOT LIABLE FOR INDIRECT OK CONSE- : —
as) QUENTIAL DAMAGES IN CONNECTION WITH THE USE OF THE Kom
y PRODUCT, eee
Le Some states do not allow the exclusion or limitation of incidental or =
— consequential damages, so the above Limitation or exclusion may not X —
Seat, apply to you. к и
lomos Mia
— This Warranty applies only to parts or components which are defective and — ==
PC does not cover repairs necessary due to normal wear, misuse, accidents, or ==
== lack of proper maintenance. Regular, routine maintenance of the unit to [=
—l keep it in proper operating condition is the responsibility of the owner. q"
— i | —
< All warranty repairs reimbursable under The Toro Promise must be per- PoE
o formed by a TORO Electrical Service Dealer using Toro approved Po
a replacement parts. * a тан
la rm
~~
en
—
L CCP CA
CPC OE CAP
AMA A AI IT O OSI
AO
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO mation, contact the TORO importer. If
products exported from the United States all other remedies fail, you may contact
or Canada should contact their TORO us at The Toro Company.
Distributor (Dealer) to obtain guarantee
policies for your country, province or ttm rta
state. If for any reason you are dissatis- One Corporate Center
fied with your Distributor's service or 7401 Metro Boulevard
have difficulty obtaining guarantee infor- Minneapolis, Minnesota 55435 U.S.A,
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — 1980
MINNEAPOLIS, MN 55420 — U.S.A.
EEE re]
aaa
a TE) дов
EE NE E Ea Aa EIA mA aa
EPIA a AT Ti LP ;
ai — 4 at Te
2% : ar -
i I SF et TE mE
il } AT MRE a y
# mera 1 hs
- a a A: E pa = F Ч LE и
air USER AGE TE A
bo A E
TORO TRIMMER MODEL 51225
WERE Th MR EER I Aa E
E Bierge, e TE | Си эй 4 т
A.
OPERATOR'S MANUAL
Safety Instructions
al ds
Re i i ee ile EE EE EE EE EE NE CE CRE CRE
le pe am Pi
eg dl iii a lg a i ei Чай Че Чей gg i ig agi ig gd
To assure optimum performance, and to gain knowledge of the Trimmer, it
is essential that you or any other operator of the Trimmer read and under-
stand the contents of this manual before operating Trimmer. Pay particular
attention to the instructions highlighted by the safety alert symbol. Failure
RNR gE Nt Sgt gt gh Si EEE aa EEE
to comply with the safety instructions may result in personal injury.
Se a el a le lle ln si Sia
¿ti бы ee i a ie le a le Ne le Jie i ol ie oie i le le oe me
1. Read and understand Operator's
Manual before using Trimmer. Be thor-
oughly familiar with proper use of the
Trimmer.
2. Never allow children to operate the
Trimmer. It is not a toy. Never allow
adults to operate unit without first read-
ing the Operator's Manual.
3. Always wear safety goggles or other
suitable eye protection.
4, Never operate the Trimmer in wet
or damp conditions.
5. Do not use in rain,
6. Keep area of operation clear of
all persons, particularly small children
and pets.
7. Dress properly — Do not wear loose
clothing or jewelry. They can be caught
in moving parts. Always wear substantial
footwear and long pants.
8. Use the right appliance — Do not
use the appliance for any job except
that for which it was intended.
9. To prevent electric shock, use only
an approved Toro Extension Cord, Toro
Part No. 29-8580 or equivalent suitable
for outdoor use. Replace damaged
extension cord immediately.
10. Extension cord — To prevent dis-
connection of the power supply cord
from the extension cord during oper-
ation, properly connect extension cord
with pigtail power cord.
11. Avoid unintentional starting — Do
not carry plugged-in Trimmer with
finger on switch.
12. Don't abuse cord — Never yank
tal" al "aaa aaa A ag gi ag a a gl a a A a a a a a a a a a a a
cord to disconnect from receptacle.
Keep cord away from heat, oil and
sharp edges. Replace damaged cords.
13. Don't force the Trimmer — It will
do the job better and safer at the rate
for which it was designed.
14. Always be sure of your footing;
keep a firm hold on the handle and
walk, never run.
15. Stop the motor and unplug the
supply cord whenever you leave the
Trimmer, before cleaning the housing
and when making any repairs or in-
spections.
16. When not in use, store your Trimmer
in a dry place out of the reach of children.
17. Keep all fasteners tight to be sure
the Trimmer is in safe working condition.
18. Never operate without proper guards
or other protective safety devices in place.
19. Do not put hands or feet near or
under rotating parts. Keep clear at all
times.
20, If the Trimmer should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration
is generally a warning of trouble.
21. Do not operate your TORO Trimmer
after it has been dropped or damaged.
Return it to your nearest authorized
service dealer for inspection and repair.
22. When servicing use only identical
replacement parts. Replace or repair
damaged cords.
ge ой
"lag" a ча чу
Before Operating
Your Toro 900 Trimmer comes fully assembled in the box. You need no tools. Free
the cutting line and secure the pigtail power cord to a suitable extension cord as
directed below. For your safety do not operate until you have read the Safety and
Operating Instructions in this manual.
Cutting Line
NOTE: The cutting line for your Trim-
mer is a special monofilament line. Your
Trimmer comes complete with a 50 foot
supply of this line already wound onto
the spool.
1. To avoid line tangle during
shipment the tip of the monofilament
line has been taped to the head assembly.
The tape must be removed before
operation. (Fig. 1).
Figure 1
9 After each use, either retaping or
looping the line through the eyelet
(figure 2) will prevent unraveling.
Securing Pigtail Power Cord
NOTE: The proper extension cord is
a requirement for safe and efficient
use of your Toro 900 Trimmer. Use
only a U.L. listed extension cord
recommended for outdoor use with a
maximum length of 100 feet ( minimum
16 gauge).
1. Secure the
and a suitable
shown in figure 3.
cord
cord as
pigtail power
extension
Figure 3
Operating Instructions
AA caution: Always wear safe-
ty goggles or other suitable eye
protection, long pants and shoes
while operating Trimmer.
1. Inspect area to be trimmed for any
wire, cord or string like matter which
could become entangled in the rotating
line.
2. Trim only when grass and weeds
are dry.
3. Your Trimmer will cut grass and
small weeds in difficult and hard to reach
places. However, since this tool provides
a totally new method of cutting, you
will most likely experience some line
breakage during your first few uses,
As you learn the trimming techniques,
you will be able to cut areas around
trees, shrubs, foundation walls, along
fences, sidewalks, patios, etc., with
minimal line fatique or line breakage.
4. DO NOT FORCE THE UNIT,
Allow the very tip of the nylon line to
do the cutting (especially along walls).
Cutting with more than the tip will re-
Figure 4
duce cutting efficiency and overload the
motor. (Fig. 4).
The tip of the cutting line will wear
during use and cause a reduction in
the 9" cutting swath. If the line is not
advanced occasionally, it will wear down
to the drum eyelet. When the trimmer is
stopped the line will tend to relax and
may retract into the drum. Should this
occur, be sure to replace the cutting line
in the proper position before restarting
or indexing the Trimmer (page 5, no. 4)
or the line may tangle around the drum.
5. Whenever possible cut to your
left. When cutting to the left, the unit's
cutting efficiency is somewhat better
since the line is contacting the grass as
soon as it leaves the guard, and the clip-
pings are moving away from the operator.
EA RA ST ainia
6. Slowly move unit into and out of
area being cut, maintaining unit at
desired cutting height. This can be
either a forward-backward or side-to-side
motion as indicated. (Fig. 5 & 6).
Figure 6
3 Umar 751
7. Grass in excess of 8 inches tall or
Operating Instructions (cont.)
small weeds should be cut by working
from the top to the bottom in small in-
crements to avoid premature line wear.
8. The life of your cutting line is de-
pendent upon following the above trim-
ming techniques, as well as what is being
cut, and where the cutting is being done.
For example, line will wear faster when
trimming against a foundation wall as
opposed to trimming around a tree.
Some line breakage will occur from
moving unit too fast, from entangle-
ment with foreign matter, from normal
line fatigue, and from attempting to cut
thick, stalky weeds in excess of unit's
capability. As cutting line wears, for best
performance, lengthen as indicated in
Lengthening Cutting Line procedure.
9. Never drag the Trimmer spool cap
on the ground while trimming. This cau-
ses motor over load and spool cap wear.
10. Lay out the extension cord so that
it won't be in your way and to prevent
kinking or tangling.
Lengthening Cutting Line
1. To lengthen line, firmly tap spool
on the ground while the motor contin-
ues to run. The line will be fed from the
spool and cut off to the proper length
by the cutting knife attached to the
shield. (Fig. 7).
Figure 7
NY
y
Remember to keep the Trimmer run-
ning while lengthening the line. Just tap
the Trimmer on the ground; do not hold
it on the ground. After the tap and the
line has fed out, wait until you hear the
line being cut to the proper length be-
fore continuing to trim.
NOTE: To prevent line tangle, never tap
more than once at a time.
2. Lengthen line only when line has
been shortened by wear. Unnecessary
lengthening will waste line.
NOTE: The spool cap may wear during
normal use of the line advance feature
and may require occasional replacement.
Spools prewound with 50 feet of cutting
line are available through your Toro
retailer,
Se he ee a
ls
did i Ee о ща i i бо а,
= Fra ay iia
Ri a Sl Ч agg e
il
li ge lie
AA erento Use only .040"
nylon monofilament cutting line.
Sh GR Ee i ie i ie ie
gag ug ще
A A AA ii ¿Ma AAA Adelia ies
Replacing Cutting Line
1. Replacement line or prewound re-
placement spoals can be purchased from
your local TORQ retailer. The cutting
line used by TORO is specially formu-
lated for use on your trimmer. Other
line may not provide the same high
quality performance.
ANlcaurion: Always be sure cut.
ting head has completely stopped
rotating before inverting it.
dias
== a
2. To remove empty spool, insert
widest possible blade screw driver
snugly into one of the two window slots.
With screw driver pressed firmly into
window slot twist screw driver 1/4 turn.
Spool will snap off. (Fig. 8).
3. To rewind empty spool, follow
the steps below:
A. Hook one end of line into groove on
spool allowing no more than 1/8
inch of line to protrude. Wind line
in direction of arrows on spool in
level rows between spool flanges.
(Fig. 9).
B. Do not wind more than 50 feet of
line onto spool. Do not use line
over .040" diameter.
C. Keep line tight on spool by making
a hook in the line and secure in
groove, (Fig. 9).
NOTE: Before reassembly, be sure
to thorougly clean out drum area
and visually inspect for any dam-
aged or worn parts.
D. The spool and the core are keyed.
Be sure they are properly aligned
when putting spool back on. Thread
end of line through eyelet, place
spool on keyed core and push in
place until you hear it click. Pull
line free from groove in spool.
Unwind no more than three inches
from spool. (Fig. 10).
4. If line should tangle or break at
eyelet, refeed cutting line through
eyelet by pushing spool in as far as it
will go and threading line back through
eyelet. Or you may remove spool
completely, refeed the line through
the eyelet and reassemble spool to
Trimmer. (Fig. 11).
General Maintenance
1. Always be sure your Trimmer is
unplugged and stopped before attempt
ing any maintenence.
2 To keep the exterior clean, just
wipe it off with a damp cloth — never
hose it down.
3. Wipe or scrape clean the drum and
spool area any time there is an accumula-
tion of dirt or cuttings.
4. Check and tighten all fasteners. If
any part Is damaged, repair or replace it.
5. Air outlet vent is located on under-
side of shield. Scrape vent clean regularly.
6. Wipe debris away from air intake
holes in motor housing.
IMPORTANT: Keeping inlet and ex-
haust vents free of grass and debris,
will help prevent motor overheating
and possible failure.
7. Any other servicing should be
performed by an authorized Toro
Service Dealer.
Identification and Ordering
Model and Serial Numbers
The TORO Trimmer has two identifi-
cation numbers: à model number and a
serial number. The two numbers are
stamped on a decal that is located on
handle tube.
In any correspondence concerning the
Trimmer, supply model and serial
numbers to assure that correct informa-
tion and replacement parts are obtained.
To order replacement parts from an
Authorized TORO Service Dealer supply
the following information:
1. Model and serial numbers of the
Trimmer.
2. Part number, description, and quan-
tity of part(s) desired.
NOTE: Do not order by reference
number from parts catalog; use the
PART NUMBER.
Trouble Shooting
UNIT WILL
NOT FEED LINE
Remove
Spool Cap
Check for
Dirt or Grass
on Drum Inside
Clean
Drum Inside
fe
| Check for Line
Tight on Spool
Check for Worn
Driver Teeth
Rewind Spool
Correctly
N
|
Check for Dirty
or Damaged Core
|
|
Replace
Driver
a
Clean or
Replace Core
SEE YOUR AUTHORIZED TORO SERVICE DEALER.
|
Trimmer Parts List
2
3
4
5
6
Ref. E No.
No. Part No. Description Used
1 34-3270 Decal 1
2 33-8680 Drum with Eyelet 1
3 29-8230 Compression Spring 1
4 29-8120 Spool Core 1
5 34-4200 Driver 1
6 33-7920 Prewound Spool 1
29-8110 Empty Spool 1
33-7900 50° Coil - .040" Cutting Line 1
A 29-8580 100’ Extension Cord 1
*Optional
-
TORO Toro Service Distributors
The Toro Company's national service network is in place to help you with any difficulty
you may have with your Toro Trimmer. Each distributor listed below has a local network
of service dealers to service Your unit. The yellow pages of your telephone directory isa
good source for the name of a TORO Master Service Dealer or Electrical Service Dealer
in your area, These dealers have the training and equipment necessary to provide com-
plete service on your Trimmer.
Distributor or write us:
ALABAMA
Gulf Shore Turf Supply
Pensacola, Florida
Kolb & Co, Inc.
Homewood, Alabama
ALASKA
Turf & Toro Distributors
Seattle, Washington
ARIZONA
The Norton Corporation
Las Vegas, Nevada
Phoenix, Arizona
ARKANSAS
Champion Turf Equipment
Wichita, Kansas
Goldwaites of Texas
Dallas, Texas
Turfaid, Inc.
Memphis, Tennessee
Wait Sales Company, Inc,
Tulsa, Oklahoma
CALIFORNIA
Westoro
Burlingame, California
Toro Pacific Distributing
Los Angeles, California
San Diego Toro
San Diego, California
COLORADO
L.L. Johnson Dist. Co.
Denver, Colorado
Southwest Toro, Inc.
Albuquerque, New Mexico
El Paso, Texas
CONNECTICUT
The Bronson £ Townsend Company
Hamden, Connecticut
Eimco Distributing
White Plains, New York
DELAWARE
Philadelphia, Toro
Doylestown, Pennsylvania
The Toro Company
If you are unable to locate a convenient dealer, you may contact your local TORO
Customer Service Department
8111 Lyndale Avenue South
Minneapolis, MN 55420
FLORIDA
Hector Turf & Garden Supply
Miami, Florida
Gulf Shore Turf Supply
Pensacola, Florida
daun Equipment Inc.
Jacksonville, Florida
Orlando, Florida
St. Petersburg, Florida
GEORGIA
Tennessee Turf & Toro
Knoxville, Tennessee
Kolb & Co., Inc,
Atlanta, Georgia
Zaun Equipment Inc.
Jacksonville, Florida
Orlando, Florida
St. Petersburg, Florida
HAWAII
Pacific Machinery
Waipahu, Hawaii
IDAHO
Inland Toro Distributors
Spokane, Washington
Tur! Equipment Company
Salt Lake City, Utah
ILLINOIS
Kenney Machinery
Indianapolis. Indiana
Scruggs Drake Equipment
Decatur, Iingis
Chicago Toro Turf-Irrig., Inc
Chicago, Illinois
Tri State Toro
Davenport, lowa
Central South Turf Distributors
Nashville, Tennessee
Louisville, Kentucky
INDIANA
Century Toro Distributors
Cincinnati, Ohio
Columbus, Ohio
Toledo, Ohio
Summit Power Equipment
Fort Wayne, Indiana
Kenney Machinery Corp.
Indianapolis. Indiana
Chicago Toro Turf -trrig., Inc,
Chicago, lllingis
Central South Turf Dist.
Nashville, Tennessee
Louisville, Kentucky
IOWA
Midwest Toro
Omaha, Nebraska
Tri Stare Toro
Davenport, Iowa
KANSAS
Champion Turf Equipment
Kansas City, Missouri
Wichita, Kansas
KENTUCKY
Century Toro Distributors
Cincinnati, Ohio
Columbus, Ohio
Toledo, Ohio
Kenney Machinery Corp.
Indianapolis, Indiana
Central South Turf Dist,
Louisville, Kentucky
Nashville, Tennessee
Baker Equipment Eng. Co., Inc.
Charleston, West Virginia
LOUISIANA
Gulf Shore Turf Supply
Pensacola, Florida
Goldwaites of Texas
Dalles, Texas
MAINE
Yerxa's Inc
South Portland, Mame
MARYLAND
Turf Equipment Supply Co.
Elkridge, Maryland
Toro Service Distributors
MASSACHUSETTS
The Branson & Townsend Co.
Hamden, Connecticut
Grassland Equipment &
Irrigation Corp.
Latham, New York
Turf Products Co.
Auburn, Massachusetts
MICHIGAN
Century Toro Distributors
Cincinnati, Ohio
Columbus, Ohio
Toledo, Oo
R L. Ryerson Company
Milwaukee, Wisconsin
Spartan Distributors, Inc
Sparta, Michigan
Wilkie Tur! Equipment
Pontiac, Michigan
MINNESOTA
Minnesota Toro, Inc
Minneapolis, Minnesota
MISSISSIPPI
Gult Shore Тис! Supply
Pensacola, Florida
Turtand, Inc.
Memphis, Tennessee
MISSOURI
Champion Turf Equipment
Kansas City, Missouri
Wichita, Kansas
Turfaid, Inc
Memphis, Tennessee
MONTANA
Inland Toro Distributors
Spokane, Washington
Midland Implement Co, Inc.
Billings, Montana
NEBRASKA
L. L. Johnson Dist. Co.
Denver, Colorado
Midwest Toro
Omaha, Nebraska
NEVADA
The Norton Corporation
Phoenix, Arizona
Las Vegas, Nevada
Turf Equipment Company
Salt Lake City, Utah
NEW HAMPSHIRE
Turt Products Corporation
Auburn, Massachusetts
NEW JERSEY
Philadelphia Toro
Philadelphia, Penn.
Elmco Distributing
White Plains, New York
NEW MEXICO
Southwest Toro
Albuquerque, New Mexico
El Paso, Texas
NEW YORK
The Bronson & Townsend Co.
Hamden, Connecticut
Eaton Equipment Corp.
Hamburg, New York
Grassland Equip & Irrig,
Latham, New York
Haverstick Golf & Tractor
Syracuse, New York
Elmco Distributing
White Plains, New York
NORTH CAROLINA
E. J. Smith & Sons Co.
Charlotte, North Carolina
NORTH DAKOTA
Minnesota Toro, Inc,
Minneapolis, Minnesota
OHIO
Baker Equipment Eng. Co., Inc.
Cherleston, West Virginia
Century Toro Distributors
Cincinnati, Ohio
Columbus, Ohio
Toledo, Ohio
Schaefer Turf & Irrig. Co.
Cleveland, Ohio
Allegheny Toro Distnbuting, Inc.
Pittsburgh, Pennsylivania
OKLAHOMA
Wait Sales Company
Tulsa, Oklahoma
OREGON
Oregon Toro Distributors
Portland, Oregon
Turf Equipment Company
Salt Lake City, Utah
PENNSYLVANIA
Eaton Equipment Corporation
Hamburg, New York
Haverstick Golf & Tractor
Syracuse, New York
Philadelphia Toro Company
Doylestown, Pennsylvama
Allegheny Toro Distributing, Inc.
Pittsburgh, Pennsylvania
RHODE ISLAND
Turf Products Corp.
Auburn, Massachusetts
SOUTH CAROLINA
E. J. Smith & Sons Co.
Charlotte, North Carolina
SOUTH DAKOTA
Midwest Toro
Omaha, Mebraska
Minnesota Toro
Minneapolis, Minnesota
TENNESSEE
Kolb & Co., Inc.
Homewood, Alabama
10
(con't)
Turfaid, Inc.
Memphis, Tennessee
Central South Turf Dist.
Nashville, Tennessee
TEXAS
Goldthwaites of Texas
Fort Worth, Texas
Goldthwaites of Texas
Dallas, Texas
Goldthwaites of Texas
Houston, Texas
Goldthwaites of Texas
San Antonio, Texas
Southwest Toro, Inc.
Albuquerque, New Mexico
El Paso, Texas
UTAH
Turf Equipment Company
Salt Lake City, Utah
VERMONT
The Bronson & Townsend Co.
Hamden, Connecticut
VIRGINIA
Central South Turf Dist., Inc.
Nashville, Tennesse
Baker Equipment Eng, Co., Inc.
Charleston, West Virginia
Richmond Power Equip. Co.
Richmond, Virginia
Turf Equipment & Supply Co.
Elkridge, Maryland
WASHINGTON
Inland Toro Distributors
Spokane, Washington
Oregon Toro Distributors
Portland, Oregon
Turf & Toro Distributors
Seattle, Washington
WEST VIRGINIA
Baker Equipment Eng. Co, Inc.
Charleston, West Virginia
Richmond Power Equipment
Richmond, Virgina
Allegheny Toro Distributing, Inc.
Pittsburgh, Pennsylvania
Turf Equipment & Supply Co.
Elkridge, Maryland
WISCONSIN
Minnesota Toro, Inc.
Minneapolis, Minnesota
R. L. Ryerson Co., Inc,
Milwaukee, Wisconsin
Tri State Toro Company
Davenport, lowa
WYOMING
L. L. Johson Dist. Co.
Denver, Colorado
Midland Implement Co., Inc.
Billings, Montana
Turf Equipment Company
Salt Lake City, Utah
THE NEW TORO, COMPACT HOSE & REEL SYSTEM
Compact
enough to store
anywhere.
It's a remarkable hose, 50 feet
weighs less than 4 Ibs. The secret is 3
special new hose design that's unbelievably
flexible and lightweight, vet still tough and durable.
And the reel actually squeezes out water whi le taking
the hose in.
11
Toro also has a full line of
premium-quality snowthrower products...
==
=
$
Model 38100 S-140 Recoil
E '
Model 38130 S-200 Electric Start Model 38010 421 Snowthrower
- ” "А Re .
I iZ |
a
Model 38040 524 Snowthrower Model 38050 724 Snowthrower
175
ès
+ ¢
Model 38150 826 Snowthrower Model 38090 1132 Snowthrower
Haven't you done without a Toro long enough?”
Toro 900 Home Duty Trimmer/ Weeder
Product Registration Card
‘Below is a removable product registration card which we ask that you complete and send to
The Toro Company, Outdoor Products Division. IMPORTANT! Return of this card helps to
ensure the Toro Product receives proper post-sale service. The information aids in better un-
derstanding the needs of Toro customers in designing future products and programs.
Date of Purchase: / /
Mo Day Yr
51225 Serial No. | | | | | | | |
Model No.
Detach here and retan this section for your records
бен! card here
Toro 900 Home Duty Trimmer/ Weeder
1. OO mr. 2. 0 Mrs. 3. [J Ms.
Name (First/Initial/Last)
4. [] Miss. 67F
(TT TT TT TT TT TT TT
Street
(TT TT TT TT ET
City
State Zi
Date of Purchase: / F
Store where purchased: o
[J Hardware store
(J Lawn 8: garden center
[J Department store
[J Discount Store
[J Catalog showroom
[J Other
Check the 2 most important factors
influencing your selection of this
TORO product:
[J Special features
O Durability
OO Warranty
[0 TORO's reputation
[J Advertisement
[J Friend's recommendation
(OJ Previous experience with TORO
[J Store display/literature
[J Dealer's recommendation
. [] Price
ls your lawn:
1. [J Larger than 1 acre?
2, 0 %-1 acre?
3. [OJ Less than % acre?
4. [J Less than % acre?
What brand Trimmer did you own
prior to this one?
1. OO This is my first Trimmer
2. L1 TORO
3. О] Weed-Eater 5. [J Sears
4, [J Black & Decker 6. [J Other
Was It?
Delectric OCordiess O) Gas
DM SAUNA
QCLE®NOMALN
mE
(over)
INTI ENTES
7
|
|
51225 serai. [ T1111 11
Model No.
Which of the following have you done in the
past 6 months? (check all that apply)
1. О Redeemed a product coupon
2.0 Ordered an item from mail order catalog
3, D Sent in product inquiry card from magazine
4, O Bought item from offer received in mail
5. 0 Entered sweepstakes/contest
Month and year of your birth:
19
Marital status:
1.0 Married 2.0 Unmarried
Which group best describes your family income?
1.0 Under $10,000 6.0 $30,000-$34 999
2.0 $10,000-$14,999 7.0 $35,000-$39-999
3. 0 $15,000-$19,999 8, gg $40,000-844 999
4. 0 $20 /000-$24,999 9. 0 $45,000-$49 999
5.0 $25,000-$29 99910. D $50,000 & Over
Do you have any children in any of the following age
groups who are living at home?
1,0 Under age 2 S. D Age 11-12
2.0 Age 2-4 6. 0 Age 13-15
3.0 Age 5-7 7.0 Age 16-18
4. О Age 8-10
Do you:
1. g Own a house?
2.0 Rent a house?
3. 0 Own a townhouse/condominium?
4, q Rent an apartment?
Which of the following types of credit cards do you use?
1.0 Travel/Entertainment (American Express,
Diners Club, Carte Blanche)
2.0 Bank (Master Charge, Visa)
3.0 Gas, department store, etc,
What is your occupation? (check one)
. O Professional/Technical 6.0 Student
. 0 Upper Mgt./Administrator 7.0 Housewife
. D Sales/Service/Middie Mat. 8.0 Retired
.(Q Clerical/White Collar
. O Craftsman/Blue Collar
E со № —
TEE dE
ria
LF EAN
ERLE
eh ae re
i rE же aa
we WW TEM
See inside front cover
for warranty statement.
TORO.
PLACE
FIRST-CLASS
STAMP
HERE
Outdoor Products Division
Post Office Box 17427
Denver, Colorado 80217
do you and your family enjoy?
Sewing /Needlework
Cratts
Collectibles /Collectrons
Art 6 Antiques
27. D Stereo Music Equipment
1. D Tennis
2 О Goll
3 D Snow Skiing
4. O Running/Jogging
5 DO Camping/Hiking
6. O Hunting/Shooting
7. O Fishing
8. O Bicycling
9 O Racquetball
10. Cl) Sailing /Boating
11. O Stamp/Coin Collecting
12. O Motorbiking/Motorcycling
13. O Home Video Games
14. О Physical Fitness /Exercise
15. © Home Video Recording
16. O Recreational Vehicle/4-WD
17. D Photography
18. О СВ Radio
19. O Home Workshop /Do-It-Yoursel!
20. O Gardening/Plants
21. O Electronics
22 D Automotive Work
о
о
o
О
Pigase fold here
Which of the following interests and hobbies
28. O Foreign Travel
29. O Attending Cultural/Arts Events
30. D Gourmet Foods/Cooking
31. O Health/Natural Foods
32. D Wines
33. D Fashion Clothing
34 D Home Furnishings/Decorating
35. 0 Records & Tapes
36. 0 Avid Book Readıng
37. O) Science Fiction
38. O Astrology/Occult
39 O Stock/Bond Investments
40. CO Real Estate Investments
41. O Self Improvement Programs
42. O Community /Civic Activities
We appreciate your taking the time to com-
plete this card; the information provided will
help us serve you better in the future. We partici-
pate in a multi-company program whereby you
can receive information about new products, de-
velopments, trends, etc. related 10 the interest
areas and other information you have indicated
above. Please check here if you would prefer not
to learn about such products and services. [J
Please send further comments and suggestions
to The Toro Company, 10901 Red Circle Drive,
Minnetonka, MN 55343.
rr E o ¿E = чо сон вв = ==
= =
E
CFTR NWR TER. FY TR 97
te dot
Y A
14
\
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
