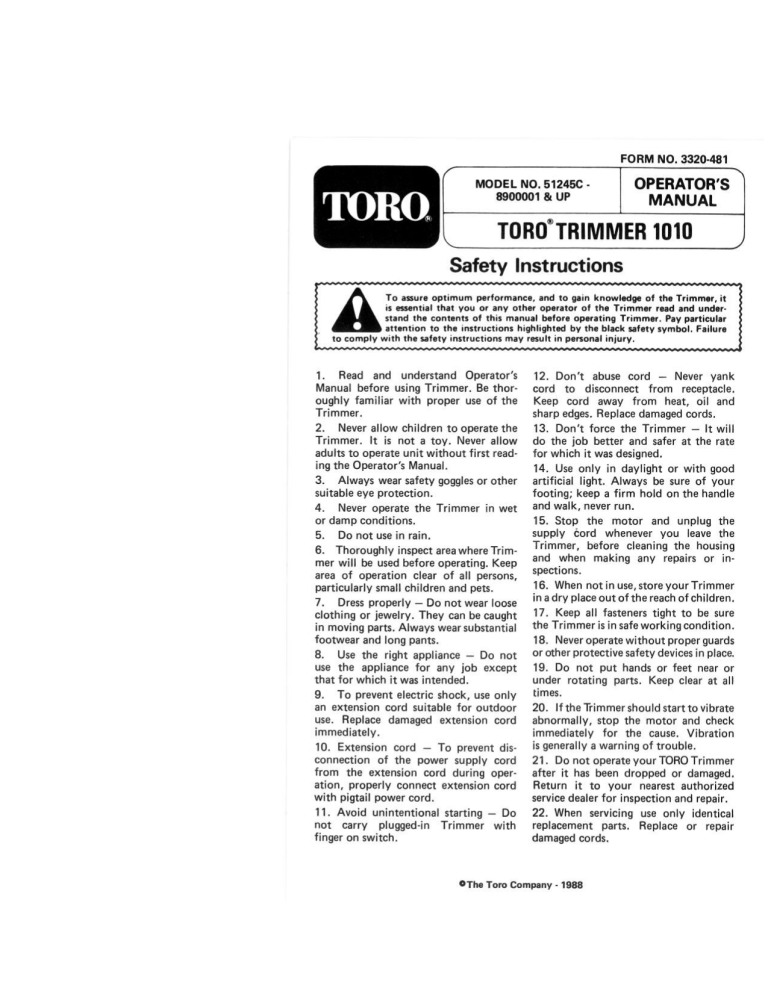

MODEL NO. 51245C -
8900001 & UP
TORO TRIMMER 1010
FORM NO. 3320-481
OPERATOR'S
MANUAL
Safety Instructions
ee le a le RN CE Le ch Gi bm ol Lm oe
az)
ee ee ie ile le i
ag ga Ng Sagat Ng
%
ai Sg a a a ЩЕ ЩЕ AAA aaa
Sicilia
Addis
EE ge ng ag age ag a ae нат
To assure optimum performance, and to gain knowledge of the Trimmer, it
is essential that you or any other operator of the Trimmer read and under-
stand the contents of this manual before operating Trimmer. Pay particular
attention to the instructions highlighted by the black safety symbol. Failure
to comply with the safety instructions may result in personal injury,
i el le ee i le el i le i oh he i he GE i le Si i i he sh Gh i sh ih i si
Se ee i a
ei а
ii gi aii gg a gi gl a a ae Tp
1. Read and understand Operator's
Manual before using Trimmer. Be thor-
oughly familiar with proper use of the
Trimmer.
2. Never allow children to operate the
Trimmer. It is not a toy. Never allow
adults to operate unit without first read-
ing the Operator's Manual.
3. Always wear safety goggles or other
suitable eye protection.
4. Never operate the Trimmer in wet
or damp conditions.
b. Do not use in rain.
6. Thoroughly inspect area where Trim-
mer will be used before operating. Keep
area of operation clear of all persons,
particularly small children and pets.
7. Dress properly — Do not wear loose
clothing or jewelry. They can be caught
in moving parts. Always wear substantial
footwear and long pants.
8. Use the right appliance — Do not
use the appliance for any job except
that for which it was intended.
9. To prevent electric shock, use only
an extension cord suitable for outdoor
use. Replace damaged extension cord
immediately.
10. Extension cord — To prevent dis-
connection of the power supply cord
from the extension cord during oper-
ation, properly connect extension cord
with pigtail power cord.
11. Avoid unintentional starting — Do
not carry plugged-in Trimmer with
finger on switch.
Ч ЧЩ ЧЕ ще TEE ЕЕ ЧЩ A A ag ag
12. Don't abuse cord — Never yank
cord to disconnect from receptacle.
Keep cord away from heat, oil and
sharp edges. Replace damaged cords.
13. Don't force the Trimmer — It will
do the job better and safer at the rate
for which it was designed.
14. Use only in daylight or with good
artificial light. Always be sure of your
footing; keep a firm hold on the handle
and walk, never run.
15. Stop the motor and unplug the
supply cord whenever you leave the
Trimmer, before cleaning the housing
and when making any repairs or in-
spections.
16. When not in use, store your Trimmer
in a dry place out of the reach of children,
17. Keep all fasteners tight to be sure
the Trimmer is in safe working condition.
18. Never operate without proper guards
or other protective safety devices in place.
19. Do not put hands or feet near or
under rotating parts. Keep clear at all
times.
20. If the Trimmer should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration
is generally a warning of trouble.
21. Do not operate your TORO Trimmer
after it has been dropped or damaged.
Return it to your nearest authorized
service dealer for inspection and repair.
22. When servicing use only identical
replacement parts. Replace or repair
damaged cords.
©The Toro Company - 1988
Assembly Instructions
SECURE UPPER AND LOWER TUBES 4, Secure with capscrew and locknut
1. Remove and discard shipping bush- and tighten until all play between tubes
ings secured to upper and lower handle is eliminated (Fig. 3).
tubes. Inspect the open internal wiring,
if damaged do not assemble; contact
your service dealer,
2. Pivot tube ends until aligned (Fig. 1).
Upper
Support
Lower Tube
я Upper Tube
Figure 1
3. Slide lower tube into upper tube and
align screw holes (Fig. 2). Check align- 5. Supporthandle may now be adjusted
ment of handgrip and housing. to desired operating position by loosen-
ing black knob, sliding handle to desired
height and retightening (Fig. 3).
A CAUTION: Cutting knife on grass
shield is sharp and care should be taken
when handling shield. Remove tape
from knife before operation.
Figure 3
Figure 2
Before Operating
Cutting Line
NOTE: The cutting line for your Trim-
mer is a special monofilament line. Your
Trimmer comes complete with a 30 foot
supply of this line already wound onto
the spool.
1. To avoid line tangle during ship-
ment the tip of the monofilament line
has been taped to the head assembly.
The tape must be removed before
operation (Fig. 4).
2. After each use, either retape or
loop the line through the eyelet (see
figure 5) to prevent unraveling
Figure 4
Figure 5
Securing Pigtail Power Cord
NOTE: The proper extension cord
Is a requirement for safe and efficient
use of your Toro Trimmer. Use only
a UL-C.S.A. listed extension cord re-
commended for outdoor use with a
maximum length of 100 feet (minimum
16 gauge).
1. Secure the pigtail power cord and a
suitable extension cord as shown in
figure 6.
<>
Figure 6
Operating Instructions
lie lie lie ie lie lle ile le ae
a ag gg ag gl gag gl pag
Se ie ie ie ie le le ie ie i
A CAUTION: Always wear >
safety goggles or other suitable
( eye protection, long pants and }
| shoes while operating Trimmer. ¢
Se i lie le ole ie ile ole le i ole ile cli lie
a a a a hg gS a hg ap gg
See il le le le i ie ie le ie
1. Inspect area to be trimmed for any
wire, cord or string like matter which
could become entangled in the rotating
line.
2. Trim only when grass and weeds
are dry.
3. Your Trimmer will cut grass and
small weeds in difficult and hard to reach
places. However, since this tool provides
a totally new method of cutting, you
will most likely experience some line
breakage during your first few uses.
As you learn the trimming techniques,
you will be able to cut areas around
trees, shrubs, foundation walls, along
fences, sidewalks, patios, etc., with
minimal line fatigue or line breakage.
4. DO NOT FORCE THE UNIT.
Allow the very tip of the nylon line to
do the cutting (especially along walls).
Cutting with more than the tip will re-
duce cutting efficiency and overload the
motor (Fig. 7).
The tip of the cutting line will wear
during use and cause a reduction in
the 10" cutting swath. If the line is not
advanced occasionally, it will wear down
to the drum eyelet. When the trimmer is
stopped the line will tend to relax and
may retract into the drum. Should this
occur, be sure to replace the cutting line
in the proper position before restarting
the Trimmer (page 6, #4) or the line
may tangle around the drum.
5. Whenever possible cut to your
left. When cutting to the left, the unit's
cutting efficiency is somewhat better
since the line Is contacting the grass as
soon as it leaves the guard, and the clip-
pings are moving away from the operator.
®%
e
AL ITU IA WAL A NERNEY AN
Figure 8
6. Slowly move unit into and out of
area being cut, maintaining unit at
desired cutting height. This can be
either a forward-backward or side-to-
side motion as indicated (Fig. 8 & 9).
= =
MA WIR IL AL I | LE
Figure 9
Operating Instructions (cont.)
7. Grass in excess of 8 inches tall or
small weeds should be cut by working
from the top to the bottom in small in-
crements to avoid premature line wear,
8. The life of your cutting line is de-
pendent upon following the above trim-
ming techniques, as well as what is being
cut, and where the cutting is being done.
For example, line will wear faster when
trimming against a foundation wall as
opposed to trimming around a tree.
Some line breakage will occur from
moving unit too fast, from entangle-
ment with foreign matter, from normal
line fatigue, and from attempting to cut
thick, stalky weeds in excess of unit's
capability. As cutting line wears, for best
performance, lengthen as indicated in
Lengthening Cutting Line procedure.
9. Never drag the Trimmer spool cap
on the ground while trimming (Fig. 10).
This causes motor over load and spool
cap wear.
10. Lay out the extension cord so that
it won't be in your way and to prevent
kinking or tangling.
Lengthening Cutting Line
1. To lengthen line, firmly tap spool
on the ground while the motor contin-
ues to run. The line will be fed from the
spool and cut off to the proper length
by the cutting knife attached to the
shield (Fig. 10).
Remember to keep the Trimmer ‘on’
while lengthening the line. Just tap the
Figure 10
Trimmer on the ground; do not hold it
on the ground. After the tap and the
line has fed out, wait until you hear the
line being cut to the proper length be-
fore continuing to trim.
NOTE: To prevent line tangle, never tap
more than once at a time.
2. Lengthen line only when line has
been shortened by wear. Unnecessary
lengthening will waste line.
NOTE: The spool cap may wear during
normal use of the line advance feature
and may require occasional replacement.
Spools prewound with 30 feet of cutting
line are available through your TORO
retailer.
Se Sh oh oh om
didas
EMP
4 |
y out |
il
dia. nylon monofilament cutting
line.
cé es
ar
cólico
dd deidad dd
ps ee AE A a a a
EE A e Ц gg ge ge
Replacing Cutting Line
1. Replacement line or prewound re-
placement spools can be purchased from
your local TORO retailer. The cutting
line used by TORO is specially formu-
lated for use on your trimmer. Other
line may not provide the same high
quality performance.
ie lle le
ls
{
1
| caution: Always be sure cut-
ting head has completely stopped
rotating before inverting Trimmer.
ie йо le le li
pg ag ag ag ag aga gt
Figure 13
+
Figure 14
2. To remove empty spool, insert
widest possible blade screw driver
snugly into one of the two window slots.
With screw driver pressed firmly into
window slot twist screw driver 1/4 turn.
Spool will snap off (Fig. 11).
3. To rewind empty spool, follow
the steps below:
A. Hook one end of line into groove on
spool allowing no more than 1/8
inch of line to protrude. Wind line
in direction of arrows on spool in
level rows between spool flanges
(Fig. 12).
B. Do not wind more than 30 feet of
line onto spool. Do not use line
over .050” diameter.
C. Keep line tight on spool by making
a hook in the line and secure in
groove (Fig. 12).
NOTE: Before reassembly, be sure
to thorougly clean out drum area
and visually inspect for any dam-
aged or worn parts.
D. The spool and the core are keyed.
Be sure they are properly aligned
aan iia ennal khasbl An Thraad
LA E pre ELITE Ll dd LA
end of line through eyelet, place
spool on keyed core and push in
place until you hear it click. Pull
line free from groove in spool.
Unwind no more than three inches
from spool (Fig. 13).
4, If line should tangle or break at
eyelet, refeed cutting line through eye-
let by pushing spool in as far as it will
go and threading line back through
eyelet. Or you may remove spool com-
pletely, refeed the line through the
eyelet and reassemble spool to Trimmer
(Fig. 14).
General Maintenance
1. ÁN Always be sure your Trimmer is
unplugged and stopped before attempt-
ing any maintenance.
2. To keep the exterior clean, just
wipe it off with a damp cloth — never
hose it down.
3. Wipe or scrape clean the drum and
spool area any time there is an accumula-
tion of dirt or cuttings.
4. Check and tighten all fasteners. If
any part is damaged, repair or replace it.
5. Air exhaust vent is located on under-
side of shield. Scrape vent clean regularly.
6. Wipe debris away from air intake
holes in motor housing.
IMPORTANT: Keeping intake and ex-
haust vents free of grass and debris,
will help prevent motor overheating
and possible failure.
Air Intake
holes
Figure 15
7. Any other servicing should be
performed by an authorized Toro
Service Dealer,
Identification and Ordering
The Trimmer has two identification
numbers: a model number and a serial
number. The two numbers are stamped
into a plate attached to the handle tube
assembly. In any correspondence con-
cerning the Trimmer, supply the model
and serial numbers to assure that correct
information and replacement parts are
obtained.
To order replacement parts from an
Authorized TORO Service Dealer, supply
the following information.
1. Model and serial numbers of the
Trimmer.
2. Part number, description and quan-
tity of part(s)desired.
NOTE: Do not order by reference
number if a parts catalog is being used;
use PART NUMBER.
Accessories
Part No. Description
34-3870 Prewound Spool
29-8110 Empty Spool
34-8580 30’ Coil — .050 Cutting Line
Warranty Service
A copy of the Full One Year Warranty covering your Trimmer
is presented below. Should you feel your Toro Trimmer is
defective and wish to have it repaired or replaced in accordance
with this Full One Year Warranty, please follow the procedure
below:
Return the Trimmer to the dealer who
sold it to you. Remember to have a
copy of your original sales slip or other
evidence of purchase date along with
you, The retailer will inspect the unit,
advise you whether the product is de-
fective, and if so make arrangements for
a replacement Trimmer or appropriate
service,
NE,
TORO FULL ONE YEAR WARRANTY
If your Trimmer is defective and within
warranty period, it will be repaired or
replaced and returned to you postage
paid.
Non-warranty service may be obtained
through an authorized Toro Trimmer
dealer or distributor.
VV VV UVV VY VV UvYEs
-
=; The Toro Company promises to repair or replace at our option, any <
a: Toro Trimmer used residentially if defective in materials or workman- pe
= ship one year from the date of purchase. The cost of the replacement =
= unit is included, but the customer is responsible for the return of the =
= product to the selling dealer. This product is not warranted if used =
e commercially. This warranty gives you specific rights, and you may <
& have other rights which vary from country to country. =
= =
AA AAA" a ANIA ARAN AN A ANE NEN NAN AN CE ne
aa 00 BRIBOYVIO YRS BRIDOIDOIERIEDION IURIODIORIDRIORIPO IER IDRIORIONIODIDN(ONID
UPL-45608
0001000 13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
