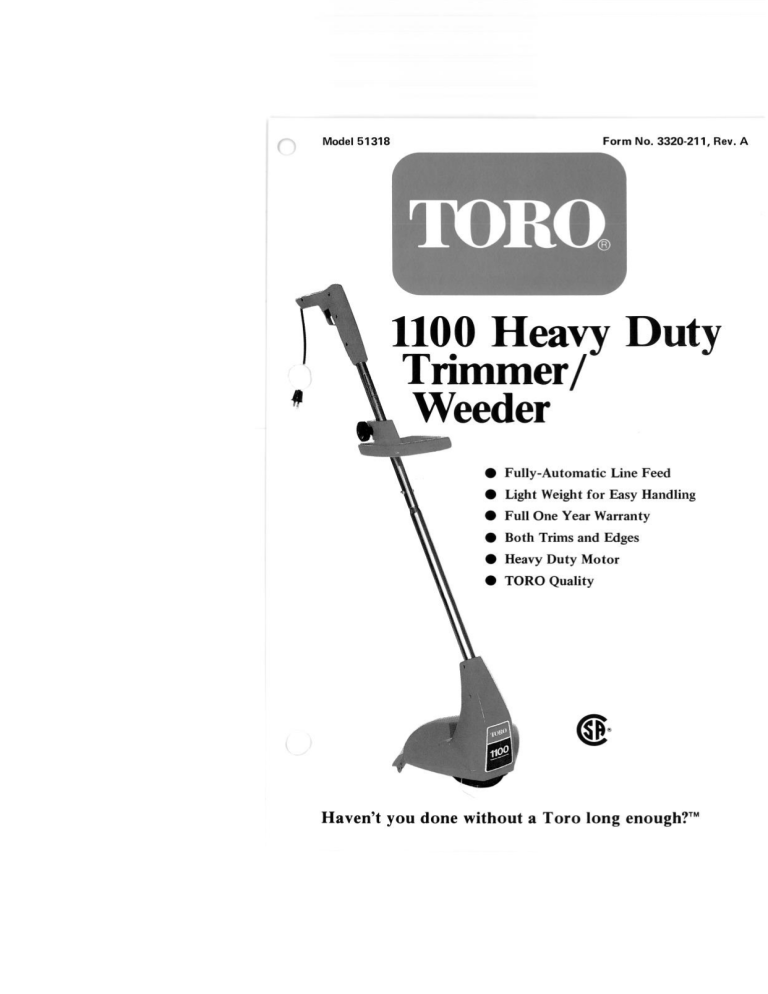

Model 51318 Form No. 3320-211, Rev. A
1100 Heavy Duty
Trimmer/
Weeder
O Fully-Automatic Line Feed
O Light Weight for Easy Handling
O Full One Year Warranty
O Both Trims and Edges
O Heavy Duty Motor
® TORO Quality
Haven't you done without a Toro long enough?”
4 ee
WELCOME to the TORO® family of fine lawn
care equipment! Your TORO TRIMMER is a new
kind of lawn and garden tool and has advanced
concepts in engineering, design and safety. This
Operator’s Manual has been designed to help you
thoroughly understand your new tool before using it.
Please read it completely before operating the Trimmer.
You will find that as your knowledge of the tool
increases, your proficiency with it will improve.
Further, you will learn more and more uses for it,
making many of your lawn care chores quick and easy.
Now, read through your Operator’s Manual
and then enjoy the ease of trimming your TORO
TRIMMER brings you and your family.
=>
— sm
COPYRIGHT 6 ALL RIGHTS RESERVED
The Toro Company — 1979, Rev. 1980
MINNEAPOLIS, MN 55420 — U.S.A.
TORO TRIMMER/WEEDER MODEL 51318
OPERATOR'S MANUAL
Safety Instructions
em a me am am an i
RDA ЧР ЗЕ Ч
1. Read and understand Operator's
Manual before using Trimmer. Be thor-
oughly familiar with proper use of the
Trimmer.
Never allow children to operate the
Trimmer, It is not a toy. Never allow
adults to operate unit without first read-
ing the Operator's Manual.
3. Always wear safety glasses or other
suitable eye protection.
4, Never operate the Trimmer in wet
or damp conditions.
5, Do not use in rain,
6. Keep area of operation clear of all
persons, particularly small children and
pets.
7. Dress properly — do not wear loose
clothing or jewelry. They can be caught
in moving parts. Always wear substantial
footwear and long pants.
8. Use the right appliance — do not
use the appliance for any job except
that for which it was intended.
9. To prevent shock hazard, use only
with an extension cord suitable for
outdoor use. You may obtain extension
cords from your TORO retailer.
10. Extension cord — to prevent dis-
connection of the power supply cord
from the extension cord during oper-
ation, properly connect extension cord
h pigtail power cord.
11. Avoid unintentional starting — do
not carry plugged-in Trimmer with
finger on switch.
To assure optimum performance, and to gain knowledge of the Trimmer, it
is essential that you or any other operator of the Trimmer read and under-
stand the contents of this manual before operating Trimmer. Pay particular
attention to the instructions highlighted by the black safety symbol. Failure
to comply with the safety instructions may result in personal injury.
12. Don't abuse cord — never yank
cord to disconnect from receptacle.
Keep cord away from heat, oil and
sharp edges. Replace damaged cords.
13. Don't force the Trimmer — it will
do the job better and safer at the rate
for which it was designed.
14. Always be sure of your footing;
keep a firm hold on the handle and
walk, never run.
15. Stop the motor and unplug the
supply cord whenever you leave the
Trimmer, before cleaning the housing
and when making any repairs or
inspections.
16. When not in use, store your Trim-
mer in a dry place out of the reach of
children.
17. Keep all fasteners tight to be sure
the Trimmer is in safe working condition.
18. Never operate without proper guards
or other protective safety devices in
place.
19. Do not put hands or feet near or
under rotating parts. Keep clear at all
times.
20. If the Trimmer should start to
vibrate abnormally, stop the motor and
check immediately for the cause. Vib-
ration is generally a warning of trouble,
21. Do not operate your TORO Trim-
mer after it has been dropped or
damaged. Return it to your nearest
authorized service dealer for inspection
and repair.
Assembly Instructions
Tools Needed for Assembly
1 - wide blade screw driver
1- 5/16" wrench
1-3/8" wrench
Install Support Handle
Upper
Tube
Support
Handle
Lower
Tube
1. Slide support handle over open
internal wiring and position on upper
tube (Fig. 1).
Figure 2
Carriage
Bolt
2. Fit carriage bolt through support
handle and secure to upper tube by
tightening black knob (Fig. 2).
Attach Upper to Lower Tubes
Mic lied Adiós oo a a a ea
En. A a Eh dh bb a Lm on
E” El” age
"aa"
ÁN wanninc: Do not FORCE
upper and lower handle tubes to-
gether. Extreme pressure may
damage wires.
Adan
dd i и,
tl" gl" gl" aj" al aj" a a Ч
a
gata. == EE
e Aa RE
aie eae аб — ий ооо le Gl абы ыы бы, lh Jb she im i
ЧО Ч a grep
1. Wiring harness is flexible. Form
loop (Fig. 3). Insert upper loop in upper
tube. Insert lower loop in lower tube
(Fig. 4). Fit upper tube over lower tube
and align screw holes.
Figure 3
Lower Loop
/ Upper Tube
Lower Tube
Upper Loop
Upper Tube
Lower Tube ">
NOTE: Internal wiring may interfere
with installation of capscrew. With blunt
object such as a punch, carefully route
internal wiring away from aligned holes
{Fig 5},
Figure 5
Assembly Instructions (Continued)
2. Secure with capscrew and locknut
and tighten until all play between tubes
is eliminated (Fig. 6).
Figure 6
e
EA
Upper Support
Tube Handle
3. Support handle may now be adjust-
ed to desired operating position by
loosening black knob, sliding handle to
desired height and retightening (Fig. 2).
Installing Grass Shield
1. Place grass shield over trimmer head
assembly.
2. Tilt grass shield so that back side of
shield is under locking shelf.
Figure 9
3. Push front side of grass shield down
and align screw holes. Tighten withscrew.
CAUTION: Grass shield should be kept
on Trimmer to prevent foreign material
or debris from being thrown into oper-
ator zone.
NOTE: Cutting knife is sharp and care
should be taken when handling shield.
Before Operating
Cutting Line
NOTE: The cutting line for your Trim-
mer is a special monofilament line. Your
Trimmer comes complete with a 50 foot
supply of this line already wound onto
the spool,
1. (Figure 10) To avoid line tangle
during shipment, the tip of the morio-
Figure 10
filament line has been taped to the
head assembly. The tape must be remov-
ed before operation.
2. After each use, either retaping or
looping the line through the eyelet (see
figure 11) will prevent unraveling.
Figure 11
Securing Pigtail Power Cord
NOTE: The proper extension cord is a
requirement for safe and efficient use of
your Toro 1100 Trimmer. Use only a
U.L. - C.5.A. listed extension cord
recommended for outdoor use with a
Figure 12
maximum length of 100 feet (minimum
16 gauge).
1. Secure the pigtail power cord and a
suitable extension cord as shown in
figure 12.
Operating Instructions
A CAUTION: Always wear safety
glasses or other suitable eye protection
and long pants while operating Trimmer,
1. Inspect area to be trimmed for any
wire, cord or string-like matter which
could become entangled in the rotating
line.
2. Your Trimmer will cut grass and
small weeds in difficult and hard to reach
places. However, since this tool provides
totally new method of cutting, you
ill most likely experience some line
preakage during your first few uses.
As you learn the trimming techniques,
you will be able to cut areas around
trees, shrubs, foundation walls, along
fences, sidewalks, patios, etc., with
minimal line fatigue or line breakage.
3. (Fig. 13) DO NOT FORCE THE
UNIT. Allow the very tip of the nylon
line to do the cutting (especially along
walls). Cutting with more than the tip
will reduce cutting efficiency and over-
load the motor.
Figure 13
7 Y
A
4. Whenever possible cut to your
left. When cutting to the left, the
nit's cutting efficiency is somewhat
petter since the line is contacting the
grass as soon as it leaves the guard, and
the clippings are moving away from the
operator.
5. Slowly move unit into and out of
area being cut, maintaining unit at
desired cutting height. This can be
either a forward-backward or side-to-
side motion.
Figure 14
®%
=
ELT EA RR EA IW AA uma AO
Figure 15
“a
AS -
é
ND
IN URNA AAU
6. Grass in excess of 8 inches tall
or small weeds should be cut by working
from the top to the bottom in small in-
crements to avoid premature line wear.
7. Trim only when grass and weeds are
dry.
8. The life of your cutting line is
dependent upon following the preceding
trimming techniques, as well as what is
Operating Instructions (Continued)
being cut, and where the cutting is
being done, EXAMPLE: Line will wear
faster when run against a foundation
wall as compared to trimming around a
tree. Some line breakage will occur from
moving unit too fast, from entangle-
ment with foreign matter, from normal
line fatigue, and from attempting to cut
thick, stalky weeds in excess of unit's
capability,
9. Lay out the extension cord so that
it won't be in your way and to prevent
kinking or tangling.
10. Never drag the Trimmer spool cap
on the ground while trimming. This
causes motor overload and spool cap
wear.
11. Your Toro Trimmer is also an
edger. Edging is usually required to
keep grass from growing over side-
walks, driveways and curbs. The old
way to edge was to dig a trench along
the border. A quick way to edge is
with your Toro Trimmer. Let your
grass grow over the trench and use the
Trimmer to remove the grass off the
driveway by trimming along the top
of the pavement.
Figure 16
Lengthening Cutting Line
Your Trimmer is equipped with an automatic line feeding device so the line can be
lengthened WITHOUT STOPPING THE MOTOR. Simply tap the Trimmer once on
the ground WHILE THE MOTOR 15
lengthen and be cut to the proper length.
1. (Fig. 17) To lengthen line, firmly
tap spool on the ground while the
motor continues to run. The line will be
fed from the spool and cut off to the
proper length by the cutting knife
attached to the shield.
7
‘gure 17
RUNNING and line will automatically
Remember to keep the Trimmer ‘on’
while lengthening the line. Just tap the
Trimmer on the ground; do not hold it
on the ground, After the line has fed
out, wait until you hear the line being
cut to the proper length before con-
tinuing to trim.
NOTE: To prevent line tangle, never tap
more than once at a time.
2. Lengthen line only when line has
been shortened by wear. Unnecessary
lengthening will waste line.
NOTE: The spool cap may wear during
normal use of the line advance feature
and may require occasional replacement.
Spools prewound with 50 feet of cutting
line are available through your Trimmer
retailer or directly from The Toro
Company Outdoor Appliance Division.
Replacing Cutting Line
Figure 18
1. To replace cutting line when your
factory furnished supply runs out, you
may purchase replacement line to re-
wind the empty spool or prewound
replacement spools from your Toro
Retailer.
CAUTION: Always unplug Trimmer
from power source before inverting it.
2. To remove empty spool, insert
widest possible blade screw driver
snugly into one of the two window slots.
With screw driver pressed firmly into
window slot, twist screw driver 1/4 turn.
Spool will snap off.
Replacing Cutting Line (Continued)
3. (Fig. 19) To rewind empty spool,
follow the steps below:
A. Hook one end of line into groove on
spool allowing no more than 1/8
Figure 19
Figure 20
Figure 21
inch of line to protrude. Wind line
in direction of arrows on spool in
level rows between spool flanges
as shown.
B. Do not wind more than 50 feet of
line onto spool. Do not use line
over ,.065” diameter,
C. Keep line tight on spool by making
a hook in the line, and secure in
groove.
NOTE: Before reassembly, be :
to thoroughly clean out drum area
and visually inspect for any dam-
aged or worn parts.
D. The spool and the core are keyed.
Be sure they are properly aligned
when putting spool back on, Thread
end of line through eyelet, place
spool on keyed core and push in
place until you hear it click. Pull
line free from groove in spool. Un-
wind no more than three inches
from spool.
4, (Fig. 21) If the line should tangle or
break at eyelet, refeed cutting line
through eyelet by pushing spool in as
far as it will go and threading line back
through eyelet. Or you may remove
spool completely, refeed the line through
the eyelet and reassemble spool to
Trimmer.
General Maintenance
1. Always be sure your Toro Trimmer
is unplugged before attempting any
maintenance.
2. To keep the exterior clean, just
wipe it off with a damp cloth — don't
ever hose it down.
3. Wipe debris away from air intake
holes in lower tube.
4, Wipe or scrape clean the spool
area anytime there is an accumulat’
of dirt or cuttings.
5. Check and tighten all fasteners.
If any part is damaged, repair or
replace it,
Warranty Service
A copy of the Full One Year Warranty covering your Trimmer
is presented on the outside back cover of this manual. Should
you feel your Toro Trimmer is defective and wish to have it
repaired or replaced in accordance with this Full One Year
Warranty, please follow the procedure below:
Return the Trimmer to the dealer who
sold it to you. Remember to have a
copy of your original sales slip or other
evidence of purchase date along with
you. The retailer will inspect the unit,
advise you whether the product is de-
f-<tive, and if so make arrangements for
placement Trimmer or appropriate
Se VICE,
If your Trimmer is defective and within
warranty period, it will be repaired or
replaced and returned to you postage
paid.
Non-warranty service may be obtained
through an authorized Toro Trimmer
dealer or distributor,
Trouble Shooting
On page 10 you are provided a brief
trouble shooting guide that will assist
you in finding and correcting minor
problems,
Should the problem continue after
following the prescribed recom-
mendations, see your nearest TORO
ELECTRIC SERVICE DEALER.
Trouble Shooting
UNIT WILL
NOT FEED LINE
Remove
Spool Cap
Check for
Dirt or Grass
on Drum Inside
Clean
Drum Inside
Check for Tight
Line on Spool
Rewind Spool
Correctly
Check for Worn
Driver Teeth
ДО
Replace
Driver
Check for Dirty
or Damaged Core
ul
Clean or
Replace Core
SEE YOUR AUTHORIZED TORO SERVICE DEALER.
10
THE NEW TORO,
ELECTRIC CHAINSAWS
Engineered
for better balance.
For better balance, Toro
chainsaws have the motor centered
directly behind the cutting bar. Add a
specially -designed tip to reduce kickback.
And automatic shut-off if the chainsaw is dropped
or the handle accidently released. Available in both 10°" and 14" size.
dy
11
a
AAA UA TA VAT TA TA VA UA TIA TE UA VAL VS TA TIA TA TA TA TI TAL TT Ur
y
TORO FULL ONE YEAR WARRANTY
=
The Toro Company promises to repair or replace at our option, any
Toro Trimmer used residentially if defective in materials or workman-
ship one year from the date of purchase. The cost of the replacement
unit is included, but the customer is responsible for the return of the
product to the selling dealer. This product is not warranted if used
commercially. This warranty gives you specific rights, and you may
have other rights which vary from country to country.
=
UVA a
pe
A
= VANA
E,
NIDO YY DOLO DO DOT DTETOST 1371 nar
v 19-845
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
