FORM NO. 3312-518 Rev. A
MODEL NO. 51430-5000001
THRU 6000001 & UP
OPERATOR'S a
MANUAL
\
TORO TRIMMER 1210

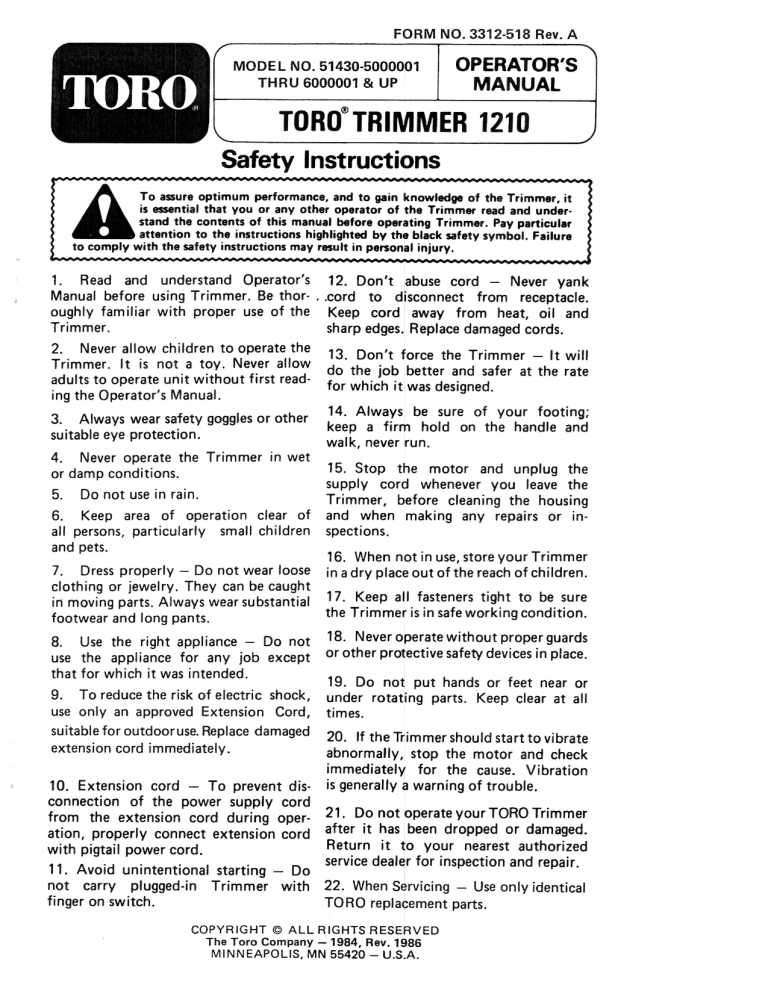

Safety Instructions
PR ig Se ee ee ee at ee PE бобы бы бб бы боб ыы бы бы ыы ыыы ыы ыы a an a a ль
WW ww www ww ar arr wala a a al ala al allay
To assure optimum performance, and to gain knowledge of the Trimmer, it
is essential that you or any other operator of the Trimmer read and under-
stand the contents of this manual before operating Trimmer. Pay particular
attention to the instructions highlighted by the black safety symbol. Failure
to comply with the safety instructions may result in personal injury.
Pr IPPO BB BB Ml Al Ml AAA AAA AMA eli AMM
Pi a a AMAT Ml a
Di A di o e e e e
1. Read and understand Operator's
Manual before using Trimmer. Be thor- .
oughly familiar with proper use of the
Trimmer.
2. Never allow children to operate the
Trimmer. It is not a toy. Never allow
adults to operate unit without first read-
ing the Operator's Manual.
3. Always wear safety goggles or other
suitable eye protection.
4. Never operate the Trimmer in wet
or damp conditions.
5. Do not use in rain.
6. Keep area of operation clear of
all persons, particularly small children
and pets.
7. Dress properly — Do not wear loose
clothing or jewelry. They can be caught
in moving parts. Always wear substantial
footwear and long pants.
8. Use the right appliance — Do not
use the appliance for any job except
that for which it was intended.
9. To reduce the risk of electric shock,
use only an approved Extension Cord,
suitable for outdooruse. Replace damaged
extension cord immediately.
10. Extension cord — To prevent dis-
connection of the power supply cord
from the extension cord during oper-
ation, properly connect extension cord
with pigtail power cord.
11. Avoid unintentional starting — Do
not carry plugged-in Trimmer with
finger on switch.
NNN NE NNN NNN NNN NN NN NNN NN NNN NNN NNN aaa al Na a a a ay
12. Don’t abuse cord — Never yank
cord to disconnect from receptacle.
Keep cord away from heat, oil and
sharp edges. Replace damaged cords.
13. Don’t force the Trimmer — It will
do the job better and safer at the rate
for which it was designed.
14. Always be sure of your footing;
keep a firm hold on the handle and
walk, never run.
15. Stop the motor and unplug the
supply cord whenever you leave the
Trimmer, before cleaning the housing
and when making any repairs or in-
spections.
16. When not in use, store your Trimmer
in adry place out of the reach of children.
17. Keep all fasteners tight to be sure
the Trimmer is in safe working condition.
18. Never operate without proper guards
or other protective safety devices in place.
19. Do not put hands or feet near or
under rotating parts. Keep clear at all
times.
20. If the Trimmer should start to vibrate
abnormally, stop the motor and check
immediately for the cause. Vibration
Is generally a warning of trouble.
21. Do not operate your TORO Trimmer
after it has been dropped or damaged.
Return it to your nearest authorized
service dealer for inspection and repair.
22. When Servicing — Use only identical
TORO replacement parts.
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — 1984, Rev. 1986
MINNEAPOLIS, MN 55420 — U.S.A.
Assembly Instructions
Tools Needed for Assembly: medium blade Phillips screw driver
5/16" wrench
3/8" wrench
Assemble Upper and Lower Tubes 5. Secure upper and lower tubes
1. Remove Trimmer and loose parts with capscrew and locknut.
from carton.
2. Remove and discard shipping bush-
ings inserted in upper and lower handle
tubes. Inspect the open internal wiring,
if damaged do not assemble; contact
your service dealer.
Si gle ale gle olin gf le AP AAA af Jf of a of ae af oh of gfe ole gin oie gle gin gle gfe oe gfe gle of ой
“> > E UP UP EP US US UP UP UY UP UY Y UA Y UY UN UN NN NN NN TY ew
A ARNING: Do not FORCE
upper and lower handle tubes
together. Extreme pressure may
damage wires or insulation.
Pe
Py Y Y Y Y YY a
UP UY TTT
y Uy A UY UE UY NE UY Y UA
Install Support Handle
3. Slide upper and lower tubes to-
gether aligning holes.
1. Insert bolt thru one side of handle
bracket and tee h
4. Slide plastic sleeve into position
between upper and lower tubes and
align holes.
NOTE: Internal wiring may interfere
with installation of capscrew. Using =
alignment pin (included in loose parts 2
bag), carefully route internal wiring °
away from aligned holes. (Fig. 2
o
2
Fit handle brackets together around
upper tube and push bolt thru second
side of handle bracket.
Assembly Instructions (cont.)
3. Secure support handles by
tightening bolt to adjustment knob.
The tee handle can now be adjusted
to desired position and tightened.
Installing Grass Shield
A CAUTION: Cutting knife on grass
shield is sharp and care should be taken
when handling shield.
1. Place grass shield over motor housing
with the raised tab on shield centered
with notch in motor housing side.
2. Lock shield into position by firmly
turning 1/4 turn so raised tab on shield
locks into square notch in motor
housing back.
3. Secure shield to motor housing with
(2) self tapping screws.
4. THE GRASS SHIELD MUST
ALWAYS BE KEPT ON TRIMMER.
Mounted on the shield is a cutting knife
used to automatically cut line to proper
cutting length. The use of too long a
line can result in shortened motor life.
5. Remove tape from cutoff blade.
A AUTION: Grass shield must be
kept on Trimmer to prevent foreign
material or debris from being thrown
into operator zone.
Before Operating
Cutting Line
NOTE: The cutting line for your Trim-
mer is a special monofilament line. Your
Trimmer comes complete with a 38 foot
supply of this line already wound onto
the spool.
1. To avoid line tangle during ship-
ment the tip of the monofilament line
has been taped to the head assembly.
The tape must be removed before
operation (Fig. 10).
2. After each use, either retaping or
looping the line through the eyelet (see
figure 11) will prevent unraveling.
Securing Pigtail Power Cord
NOTE: The proper extension cord
is a requirement for safe and efficient
use of your Toro Trimmer. Use only
a UL listed extension cord recommend-
ed for outdoor use with a maximum
length of 100 feet (minimum 16 guage).
1. Secure the pigtail power cord and a
suitable extension cord as shown in
figure 12.
в
FY YY OO OPO VO OY YO YY YY APPS PSP PP
YY
: Always wear
=
eye protection, long pants and
shoes while operating Trimmer.
a бы бы бы бы бы бы iP a ae a i A a Te ST iP Y Y Bn Y Y Y Y Y Y Y Y ый,
Ny UY" UY NN UA UN UU UA AE EA EEE EE E E
>
>
)
safety goggles or other suitable
)
)
y
Pa Pe Pe Pe РРР,
PR ie a an ae Pe ae a a
NE NIE ENS
)
4
1. Inspect area to be trimmed for any
wire, cord or string like matter which
could become entangled in the rotating
line.
2. Trim only when grass and weeds
are dry.
3. Your Trimmer will cut grass and
small weeds in difficult and hard to reach
places. However, since this tool provides
a totally new method of cutting, you
will most likely experience some line
breakage during your first few uses.
As you learn the trimming techniques,
you will be able to cut areas around
trees, shrubs, foundation walls, along
fences, sidewalks, patios, etc., with
minimal line fatique or line breakage.
4. DO NOT FORCE THE UNIT.
Allow the very tip of the nylon line to
do the cutting (especially along walls).
Cutting with more than the tip will re-
duce cutting efficiency and overload the
motor (Fig. 13).
The tip of the cutting line will wear
during use and cause a reduction in
Instructions
the 12" cutting swath. If the line is not
advanced occasionally, it will wear down
to the drum eyelet. When the trimmer is
stopped the line will tend to relax and
may retract into the drum. Should this
occur, be sure to replace the cutting line
in the proper position before restarting
the Trimmer (page 7, #4) or the line
may tangle around the drum.
5. Whenever possible cut to your
left. When cutting to the left, the unit's
cutting efficiency is somewhat better
since the line is contacting the grass as
soon as it leaves the guard, and the clip-
pings are moving away from the operator.
6. Slowly move unit into and out of
area being cut, maintaining unit at
desired cutting height. This can be
either a forward-backward or side-to-
side motion as indicated (Fig. 14 & 15).
Operating Instructions (cont.
7. Grass in excess of 8 inches tall or
small weeds should be cut by working
from the top to the bottom in small in-
crements to avoid premature line wear.
8. The life of your cutting line is de-
pendent upon following the above trim-
ming techniques, as well as what is being
cut, and where the cutting is being done.
For example, line will wear faster when
trimming against a foundation wall as
opposed to trimming around a tree.
Some line breakage will occur from
moving unit too fast, from entangle-
Lengthening
1. To lengthen line, firmly tap spool
on the ground while the motor contin-
ues to run. The line will be fed from the
spool and cut off to the proper length
by the cutting knife attached to the
shield (Fig. 16).
Remember to keep the Trimmer ‘on’
while lengthening the line. Just tap the
Trimmer on the ground; do not hold it
ment with foreign matter, from normal
line fatigue, and from attempting to cut
thick, stalky weeds in excess of unit's
capability. As cutting line wears, for best
performance, lengthen as indicated in
Lengthening Cutting Line procedure.
9. Never drag the Trimmer spool cap
on the ground while trimming (Fig. 16).
This causes motor over load and spool
cap wear.
10. Lay out the extension cord so that
it won't be in your way and to prevent
kinking or tangling.
Cutting Line
on the ground. After the tap and the
line has been fed out, wait until you
hear the line being cut to the proper
length before continuing to trim.
NOTE: To prevent line tangle, never tap
more than once at a time.
2. Lengthen line only when line has
been shortened by wear. Unnecessary
lengthening will waste line.
NOTE: The spool cap may wear during
normal use of the line advance feature
and may require occasional replacement.
Spools prewound with 38 feet of cutting
line are available through your Toro
retailer.
ae al A hala le gin ih Bn gl he бы бы сы ыы ыы ыы ь сы бы бы ль бы A.
“EEE CEP ee ee ОЧЕР ОЧЕР ОЧЕР ОЧЕР ОЧЕР ОЧЕР ОЧЕР ОЧЕР ЧР Ч UP UU UY UU ЧР ОЧ ЕР UY ЧЕ”
Ad caurion: Use only .080”
dia. nylon monofilament cutting
line.
PPP EP A Y Y Y UN
tn. ль UT Y Y Y Y Y Y
WW WW WWW Ww WN
Replacing Cutting Line
1. Replacement line or prewound re-
placement spools can be purchased from
your local TORO retailer. The cutting
line used by TORO is specially formu-
lated for use on your trimmer. Other
line may not provide the same high
quality performance.
)
)
)
)
)
)
)
)
)
)
)
)
)
р
)
)
)
|
¢
€
€
q
€
4
q
‹
¢
(
q
‹
q
q
q
|
q
q
|
4
|
€
€
{
‹
(
‹
q
q
4
q
|
q
4
€
> Y Y Y Y Y Y
wT Te Ye YY www
wa Ww ww www
widest possible blade screw driver
snugly into one of the two window slots.
With screw driver pressed firmly into
window slot twist screw driver 1/4 turn.
‘Spool will snap off (Fig. 17).
3. To rewind empty spool, follow the
steps below:
A. Hook one end of the line into
groove on spool allowing no more
than 1/8 inch of line to protrude.
Wind line in direction of arrows on
spool in level rows between spool
flanges (Fig. 18).
B. Do not wind more than a total of
38 feet of line onto spool. Do not
use line over .080".
i
C. Keep line tight on spool by making
a hook in the line and secure in
groove (Fig. 18).
NOTE: Before reassembly, be sure
to thoroughly clean out drum area
and visually inspect for any dam-
aged or worn parts.
D. The spool and the core are keyed.
Be sure they are properly aligned
when putting spool back on.
Thread ends of line through eyelets,
place spool on keyed core and push
in place until you hear it click. Pull
line free from groove in spool. Un-
wind no more than three inches
from spool (Fig. 19).
4. If line should tangle or break at
eyelet, refeed cutting line through
eyelet by pushing spool in as far as it
will go and threading line back through
eyelet. Or you may remove spool com-
pletely, refeed the line through the eyelet
and reassemble spool to Trimmer
(Fig. 20).
General Maintenance
1. Always be sure your Trimmer is
unplugged and stopped before attempt-
ing any maintenance.
2. To keep the exterior clean, just
wipe it off with a damp cloth — never
hose It down.
3. Wipe or scrape clean the drum and
spool area any time there is an accumu-
lation of dirt or cuttings.
4. Check and tighten all fasteners. If
5. Air outlet vent is located on under-
side of shield. Scrape vent clean regularly.
6. Wipe debris away frorn air intake
holes in lower handle tube.
IMPORTANT: Keeping inlet and exhaust
vents free of grass and debris, will help
prevent motor overheating and possible
failure.
7. Any other
performed by
servicing should be
an authorized Toro
any part is damaged, repair or replace it. Service Dealer.
VOLODIA OIDO
e _a"a 4 == á a 4 a * a dé e Mm e NN 6 |% a $ ae Me a am A Dl Tha
y
THE TORO PROMISE
TORO TRIMMER/WEEDER
a
v
4
À A FULL ONE YEAR WARRANTY
A The Toro Company warrants your TORO Product against defects in materials or workmanship. During
y the warranty period, Toro will, at its option, replace a defective product with a new or rebuilt unit, or
will repair or replace any defective parts. The following time periods from the date of purchase apply:
y Residential, . .., ...eÑooecocoeoroaoooenaoro naaa aaa a 8 0 4 4 4 4 4 4 0 0 04 0 1 Year
` Residential Products Used Commercially >... 22200000 a 8 00 0 0 80000 0 200 0 45 Days
Y The cost of replacement or repair is included, but the customer pays the transportation costs.
X Should you feel your TORO Product is defective and wish to rely on The Toro Promise, you may
WM return it to:
y The original place of purchase
PY OR
5 2. A TORO Electrical Service Dealer
OR
3. The Toro Service Center
E
21350 Cedar Ave. So.
Lakeville, MN 55044
(Postage Prepaid) !
Upon return of your unit to one of the above, it will be inspected and you will be advised whether the
product is defective. If defective, arrangements will be made for repair or replacement without extra
charge to you.
If for any reason you are dissatisfied with the analysis of the defect or the service performed, you may
contact us,
Write:
TORO Consumer Service Department
8111 Lyndale Avenue South
Minneapolis, MN 55420
THERE IS NO OTHER EXPRESS WARRANTY.
THE TORO COMPANY IS NOT LIABLE FOR INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE USE OF THE PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
This Warranty applies only to parts or components which are defective and does not cover repairs
necessary due to normal wear, misuse, accidents, or lack of proper maintenance. Regular, routine
maintenance of the unit to keep it in proper operating condition is the responsibility of the owner.
All warranty repairs reimbursable under The Toro Promise must be performed by a TORO Electrical
Service Dealer using Toro approved replacement parts.
Repairs or attempted repairs by anyone other than a TORO Electrical Service Dealer are not reim-
bursable under The Toro Promise. In addition, these unauthorized repair attempts may result in
additional malfunctions, the correction of which is not covered by warranty.
This warranty gives you specific legal rights, and you may also have other rights which vary from
: - L 4 4 PRIT PU PC ISSU UT,
state to state.
PR É - = Pa
AO ON
| COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO with your Distributor's service or have
products exported from the United States difficulty obtaining guarantee information,
or Canada should contact their TORO contact the TORO importer. If all other
Distributor (Dealer) to obtain guarantee remedies fail, you may contact us at The
policies for your country, province or Toro Company.
state. If for any reason you are dissatisfied
PL al Dt
CoP CF 0 TaOPT FT 0 0 CT 9 ¢ 9 _ 9 9 0 _° IEC ICI РЕ РЕ ВР 9.9.
Sl Dll el Dl Dl Dl af De Jl e ый"
VO
1
LE L AIN ВИ E EEE EE Es
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
