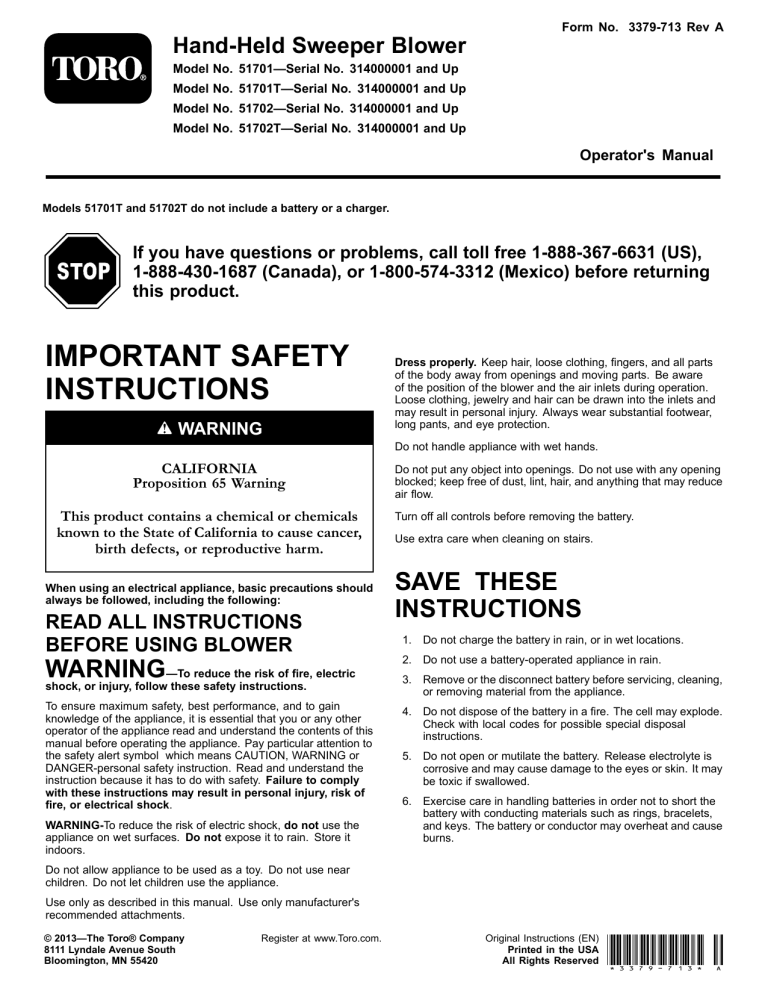

Form No. 3379-713 Rev A
Hand-Held Sweeper Blower
Model No. 51701—Serial No. 314000001 and Up
Model No. 51701T—Serial No. 314000001 and Up
Model No. 51702—Serial No. 314000001 and Up
Model No. 51702T—Serial No. 314000001 and Up
Operator's Manual
Models 51701T and 51702T do not include a battery or a charger.
If you have questions or problems, call toll free 1-888-367-6631 (US),
1-888-430-1687 (Canada), or 1-800-574-3312 (Mexico) before returning
this product.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
Dress properly. Keep hair, loose clothing, fingers, and all parts
of the body away from openings and moving parts. Be aware
of the position of the blower and the air inlets during operation.
Loose clothing, jewelry and hair can be drawn into the inlets and
may result in personal injury. Always wear substantial footwear,
long pants, and eye protection.
Do not handle appliance with wet hands.
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS
BEFORE USING BLOWER
WARNING
—To reduce the risk of fire, electric
shock, or injury, follow these safety instructions.
To ensure maximum safety, best performance, and to gain
knowledge of the appliance, it is essential that you or any other
operator of the appliance read and understand the contents of this
manual before operating the appliance. Pay particular attention to
the safety alert symbol which means CAUTION, WARNING or
DANGER-personal safety instruction. Read and understand the
instruction because it has to do with safety. Failure to comply
with these instructions may result in personal injury, risk of
fire, or electrical shock.
WARNING-To reduce the risk of electric shock, do not use the
appliance on wet surfaces. Do not expose it to rain. Store it
indoors.
Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce
air flow.
Turn off all controls before removing the battery.
Use extra care when cleaning on stairs.
SAVE THESE
INSTRUCTIONS
1. Do not charge the battery in rain, or in wet locations.
2. Do not use a battery-operated appliance in rain.
3. Remove or the disconnect battery before servicing, cleaning,
or removing material from the appliance.
4. Do not dispose of the battery in a fire. The cell may explode.
Check with local codes for possible special disposal
instructions.
5. Do not open or mutilate the battery. Release electrolyte is
corrosive and may cause damage to the eyes or skin. It may
be toxic if swallowed.
6. Exercise care in handling batteries in order not to short the
battery with conducting materials such as rings, bracelets,
and keys. The battery or conductor may overheat and cause
burns.
Do not allow appliance to be used as a toy. Do not use near
children. Do not let children use the appliance.
Use only as described in this manual. Use only manufacturer's
recommended attachments.
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3379-713* A
Safety and Instructional Decals
Important: Safety and instruction decals are located near areas of potential danger. Replace damaged or lost decals.
125–3230
Model 51701
125–3234
Model 51702
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
121–7655
Model 51701T
121–7656
Model 51702T
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
2
125–3226
125–7602
121–7692
125–3295
3
Setup
Register your product at www.Toro.com to ensure that Toro can
notify you in the case of a safety or warranty product recall.
Charge the battery before first use. See Charging the Battery
Pack (page 6).
Assembling the Blower
1. Slide the blower tube onto the sweeper. You may need to
press down on the tabs for the blower tube to install properly
(Figure 1).
1
g019526
Figure 1
125–3279
1. Tabs
2. Align the tongue of the battery pack with the cavity in the
handle housing, grasp the handle, and push the battery pack
into the handle until the latch locks into place (Figure 2).
1
g019551
Figure 2
1. Battery latch
121–7691
4
Removing the Battery
Operation
Press down on the latch to separate the battery from the sweeper
(Figure 5).
Important: This blower is intended for outdoor, residential
use only. Do not use it indoors or for commercial or industrial
purposes. This appliance is for household use only.
Starting, Stopping, and
Adjusting the Air Speed of the
Blower
Adjust the air speed by moving the switch to the desired position
(Figure 3).
1
1
3
2
Figure 5
1. Latch
g019528
Figure 3
1. Off
3. High
2. Low
Using the Blower
The blower is intended for residential use only. Use the blower
outdoors to move leaf-like debris as needed.
WARNING
The blower can throw debris, possibly causing serious
personal injury to the operator or bystanders.
• Do not blow hard objects such as nails, bolts, or
rocks.
• Do not operate the blower near bystanders or pets.
• Use extra care when cleaning debris from stairs or
other tight areas.
• Wear safety goggles or other suitable eye
protection, long pants, and shoes.
Separating the Blower Tube
Press down on both tabs to separate the blower tube from the
sweeper (Figure 4).
1
g019529
Figure 4
1. Tabs
5
g019527
Charging the Battery Pack
WARNING
CALIFORNIA
Proposition 65 Warning
WARNING: The power cord on this product
contains lead, a chemical known to the State
of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Note: For best results, your battery tool should be charged in a
location where the temperature is in accordance with the chart
below. To reduce the risk of serious personal injury, do not store
outside or in vehicles. Charging time will be increased if not
charged within this range.
Battery voltage
Minimum charging Maximum
temperature
charging
temperature
20 V
0° C (32° F)
40° C (104° F)
24 V
5° C (41° F)
40° C (104° F)
Figure 7
24V, Sweeper model 51702
1. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 6 and Figure 8).
1. LED indicators
2. Insert battery here
Figure 8
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
2. Slide the battery into the charger until it clicks into place.
Figure 6
20V, Sweeper model 51701
1. LED indicators
3. To remove the battery, press up on the release button and
slide the battery backward out of the charger.
2. Insert battery here
6
4. Refer to the table below to interpret the LED indicators on
the battery charger.
Service
LED COLOR
Toro has designed this product to give you years of trouble free
use. Should it need service, bring the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Top
Bottom
Indicates:
Red
Red
Battery is charging
Red
Green
Fully charged
Red
Orange
Battery is too
warm: Remove
for approximately
30 minutes
Storage
Store the blower indoors, in a cool dry location, out of reach of
children and animals.
Troubleshooting
If your blower fails to run when you turn it on, check the following
before contacting your Authorized Toro Service Dealer:
•
•
Ensure that the battery is fully charged.
Ensure that the battery is secured in place on the back of the
blower and that it is fully seated.
Using the battery when it is hot can reduce the operating time.
Remove the battery from the charger and allow it to cool before
placing it back into the sweeper.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the blower.
The Toro Promise - Electric Products
A Two-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for two years against
defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-574-3312 (Mexico)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of providing
substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this warranty.
Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
7
