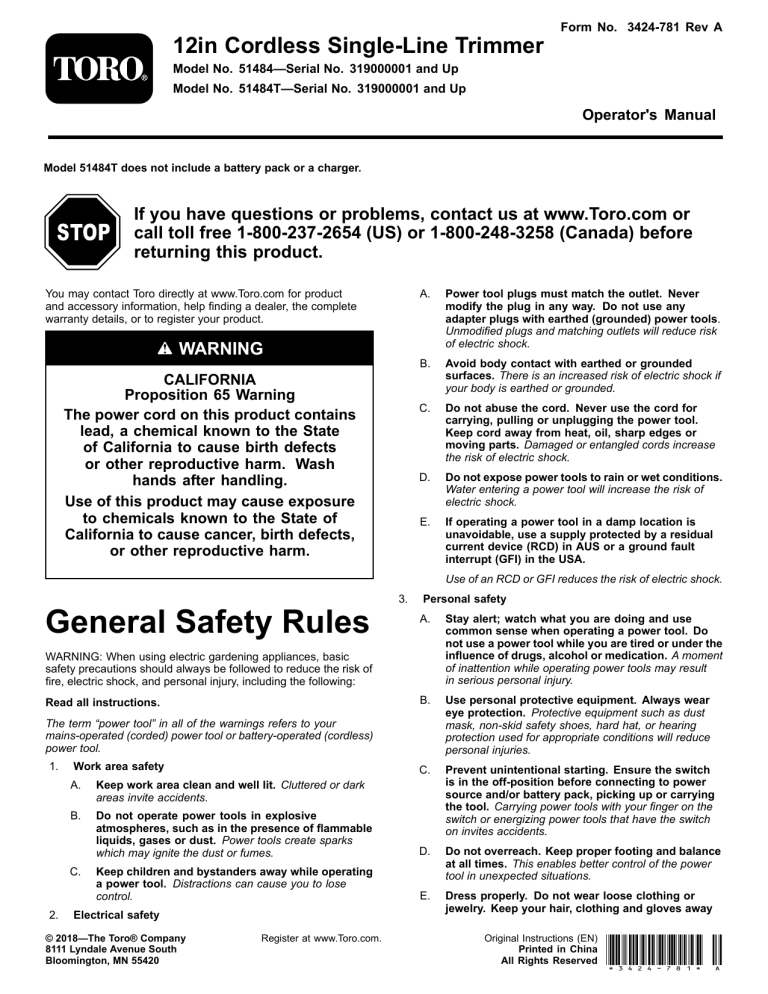

Form No. 3424-781 Rev A
12in Cordless Single-Line Trimmer
Model No. 51484—Serial No. 319000001 and Up
Model No. 51484T—Serial No. 319000001 and Up
Operator's Manual
Model 51484T does not include a battery pack or a charger.
If you have questions or problems, contact us at www.Toro.com or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, the complete
warranty details, or to register your product.
A.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B.
Avoid body contact with earthed or grounded
surfaces. There is an increased risk of electric shock if
your body is earthed or grounded.
C.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
D.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
E.
If operating a power tool in a damp location is
unavoidable, use a supply protected by a residual
current device (RCD) in AUS or a ground fault
interrupt (GFI) in the USA.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Use of this product may cause exposure
to chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Use of an RCD or GFI reduces the risk of electric shock.
3.
General Safety Rules
Personal safety
A.
Stay alert; watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B.
Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C.
Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
WARNING: When using electric gardening appliances, basic
safety precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
Read all instructions.
The term “power tool” in all of the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1.
Work area safety
A.
Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
B.
Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
D.
Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
E.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
C.
2.
Electrical safety
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in China
All Rights Reserved *3424-781* A
as rings, bracelets, and keys. The battery pack or
conductor may overheat and cause burns.
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
F.
4.
SAVE THESE INSTRUCTIONS
Power tool use and care
A.
Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
B.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
C.
Remove the battery pack from the power tool before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
D.
Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
E.
Store idle appliances indoors. When not in use,
appliances should be stored indoors in a dry and high
or locked-up place, out of the reach of children.
F.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
G.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
H.
Use the power tool in accordance with these
instructions and in the manner intended for the
particular type of power tool, taking into account the
working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
I.
5.
Keep hands and feet away from the cutting area.
Keep guards in place and in working order.
Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
6.
Battery Safety
A.
Do not charge appliance in rain, or in wet locations.
B.
Do not use battery-operated appliance in the rain.
C.
Use only the following type and size battery(ies): Toro
battery pack model 88502.
D.
Remove or disconnect the battery pack before servicing,
cleaning, or removing material from the gardening
appliance.
E.
Do not dispose of the battery pack in a fire. The cell
may explode. Check with local codes for possible
special disposal instructions.
F.
Do not open or mutilate the battery pack. Released
electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
G.
Exercise care in handling batteries in order not to
short the battery pack with conducting materials such
2
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or missing.
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
V
Volts
Voltage
decal125-3281
125-3281
Model 51484
decal121-7691
121-7691
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
decal121-7657
121-7657
Model 51484T
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
decal125-3279
125-3279
3
decal125-3295
125-3295
decal138-6681
138-6681
4
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
Description
Qty.
Auxiliary handle
Latch
Brace
Guard
Phillips screw
1
1
1
1
1
Mounting the guard to the base of the
trimmer.
Wire edge guard
1
Installing the edge guard
No parts required
–
Adjust the auxiliary handle, trimmer
height, and base position.
1
Installing the Auxiliary
Handle
Parts needed for this procedure:
1.
1
Auxiliary handle
1
Latch
1
Brace
Position the auxiliary handle on the shaft of the trimmer with
the smooth surface facing you (Figure 1).
g017277
Figure 1
1. Auxiliary handle
Use
3. Brace
2. Latch
5
Installing auxiliary handle.
2.
Slide the brace into the auxiliary handle so that the brace
rests in the groove along the shaft (Figure 1).
3.
Slide the latch from the left through the handle and brace
as shown and tighten the latch screw with a Phillips head
screwdriver (Figure 1).
2
3
Installing the Guard
Installing the Edge Guard
Parts needed for this procedure:
Parts needed for this procedure:
1
Guard
1
Phillips screw
1
Wire edge guard
Procedure
Procedure
1.
Remove the Phillips screw that is taped to the guard (Figure
2).
2.
Slide the guard onto the trimmer base as shown in Figure 2.
Insert the ends of the wire edge guard into the holes in the trimmer
housing as shown in Figure 3.
g017506
Figure 2
1. Phillips screw
3.
g017642
Figure 3
2. Guard
1. Wire edge guard
Secure the guard using a Phillips screw.
6
Operation
4
Important:
The battery pack is not fully charged when
it is purchased. Before using the trimmer for the first time,
place the battery pack in the charger and charge until the
LED indicators turn green. Make sure to read all safety
precautions. With regular use, it will need shorter charging
time. If storing for a prolonged period of time, remove the
battery pack. When ready to use again, charge the battery
pack until the LED indicators turn green.
Adjusting the Auxiliary
Handle, Trimmer Height,
and Base Position
Starting the Trimmer
No Parts Required
1.
Procedure
•
Align the tongue of the battery pack with the cavity in the
handle housing (Figure 6).
To adjust the auxiliary handle height, release the auxiliary
handle latch, slide the auxiliary handle up or down to the
desired height, then secure the auxiliary handle in place by
closing the auxiliary latch (Figure 4).
g016190
Figure 6
g015655
Figure 4
1. Auxiliary handle
1. Trigger handle
3. Height adjustment latch
3. Latch
2. Tongue
2. Auxiliary handle latch
•
To adjust the trimmer height, open the height adjustment
latch, then slide the shaft up or down to desired height,
securing it in place with the latch (Figure 4).
•
To adjust the position of the base, press down on the rotator
button located at the base of the shaft, then move the base
to face the desired direction (Figure 5).
g017507
Figure 5
1. Rotator button
7
2.
Grasp the trigger handle (Figure 6).
3.
Push the battery pack into the handle until the latch locks
into place.
4.
To start the trimmer, slide the lock switch back to the ON
position, then squeeze the trigger (Figure 6).
g016189
Figure 7
1. Lock switch
2. Trigger
g019895
Figure 8
1. LED indicators
2. Insert the battery pack
here.
Stopping the Trimmer
To stop the trimmer, release the trigger.
Charging the Battery Pack
Important: For best results, charge your battery tool
where the temperature is more than 0°C (32°F) but less than
40°C (104°F). To reduce the risk of serious personal injury, do
not store it outside or in vehicles. Charging time will increase
if you do not charge it within this range.
1.
Turn the battery pack upside down and line up the battery
terminal with the slot in the charger (Figure 8 and Figure 9).
g016223
Figure 9
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
8
2.
Slide the battery pack into the charger until it clicks into
place.
3.
To remove the battery pack, press down on the release
button and slide the battery pack backward out of the
charger.
4.
Trimming
Refer to the table below to interpret the LED indicators on
the battery charger.
Top
Bottom
Indicates
Red
Red
Battery pack is
charging
Red
Green
Battery pack is
charged
Red
Orange
Battery pack is too
warm: Remove for
approximately 30
minutes
Advancing the Line
Note:
The trimmer is equipped with an auto-feed head.
1.
With the trimmer running, release the switch trigger.
2.
Wait two seconds, then slide the lock switch back to the ON
position and squeeze the trigger.
Note:
The line extends approximately 6 mm (1/4 inch)
with each stop and start of the switch trimmer until the line
reaches the length of the grass deflector blade.
3.
Resume trimming.
Advancing the Line
Manually
Remove the battery from the trimmer, then push the red button
at the base of the spool retainer while pulling on the trimmer line
to manually advance the line.
g016254
Figure 10
Edging
As an edger, press the rotator button and rotate the head as
shown in Figure 11.
g017509
Figure 11
1. Rotator button
9
Operating Tips
5.
Brush debris away from air intake vents on motor housing
to prevent the motor from overheating.
•
Keep the trimmer tilted toward the area being cut; this is the
best cutting area.
•
The string trimmer cuts when passing the unit from left to
right. This will avoid throwing debris at you.
•
Use the tip of the string to do the cutting; do not force string
head into uncut grass.
Use only 1.65 mm (0.065 inch) diameter monofilament string. Use
original manufacturer’s replacement string for best performance
(Toro Part No. 88532 or 88524).
•
Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may wear
string rapidly.
Important:
•
Avoid trees and shrubs. Tree bark, wood moldings, siding,
and fence posts can easily be damaged by the strings.
Replacing the Spool
Using a larger diameter string will cause the
motor to overheat and fail.
1.
Remove the battery.
2.
Push in the tabs on the side of the spool retainer (Figure 13).
g017508
Figure 12
1. Direction of rotation
g017510
Figure 13
3. String path
2. Ideal cutting range
Maintenance
1. Spool retainer
3. Slots
2. Spool
4. Tabs
3.
Pull the spool retainer up to remove it and remove the spool.
4.
To install the new spool, ensure that the string is captured in
one of the retaining slots on the new spool. Make sure the
end of the string extends approximately 6 inches (152 mm).
After each use of the trimmer, complete the following:
1.
Remove the battery from the trimmer.
5.
2.
Wipe the trimmer clean with a damp cloth. Do not hose the
trimmer down or submerge it in water.
Install the new spool so that the string aligns with the eyelet
in the string head. Thread the string into the eyelet.
6.
Pull the string extending from the string head so the string
releases from the slot in the spool.
7.
Reinstall the spool retainer by depressing tabs into slots and
pushing down until spool retainer clicks into place.
CAUTION
The line cut-off blade on the deflector is sharp and
can cut you.
Replacing the String
Do not use your hands to clean the deflector
shield and blade.
3.
Wipe or scrape clean the cutting head area any time there is
an accumulation of debris.
4.
Check and tighten all fasteners. If any part is damaged or
lost, repair or replace it.
10
1.
Remove the battery.
2.
Remove the spool; refer to Replacing the Spool (Figure 13).
Storage
•
•
•
Clean all foreign material from the product.
Store it in a well-ventilated place that is inaccessible to
children.
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery automatically stops working when it is overheated to
prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
g015662
Figure 14
Note:
3.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
2. Hole
1. Spool
Remove any old string remaining on the spool.
The spool accepts up to 4.5 m (15 ft) of string.Use only 1.65
mm (0.065 inch) diameter monofilament string.
Note: Do not use any other gauge or type of string, as this
could damage the trimmer.
4.
Insert the string into the anchor hole in the upper part of
the spool (Figure 14). Wind the string onto the spool in the
direction shown by the arrows on the spool.
5.
Place the string in the slot on the upper spool flange, leaving
about 152 mm 6 inch (6 inches) extended beyond the slot.
Note:
Do not overfill. After winding the string, there should
be at least 6 mm 1/4 inch (1/4 inch) between the wound
string and the outside edge of the spool.
6.
Replace the spool and the spool retainer. Refer to Replacing
the Spool (page 10) earlier in this manual.
Preparing the Battery Pack
for Recycling
Important: Upon removal, cover the terminals of the
battery pack with heavy-duty adhesive tape. Do not attempt
to destroy or disassemble the battery pack or remove any of
its components. Recycle or properly dispose of lithium-ion
battery packs at a battery recycling facility.
For more information on recycling lithium-ion
battery packs and to locate the battery
recycling facility closest to you, visit
www.Call2Recycle.org (US and Canada only).
If you are located outside of the US and
Canada, please contact your authorized Toro
distributor.
Service
Should this item need service, take the product to your Authorized
Service Dealer.
11
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
