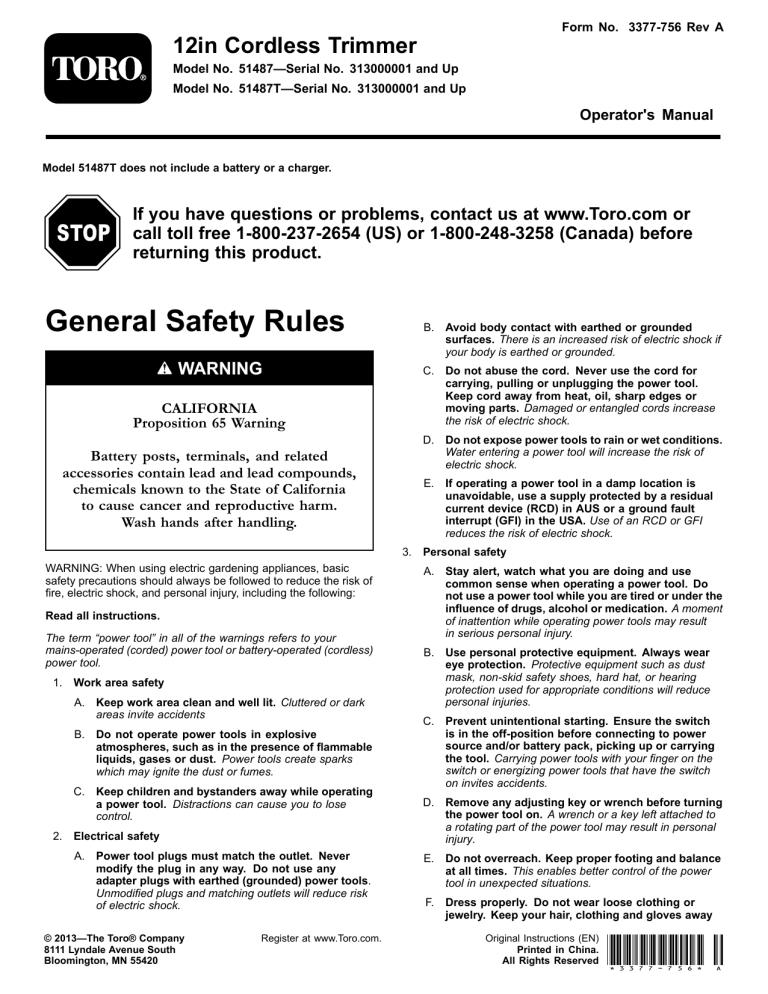

12in Cordless Trimmer
Model No. 51487—Serial No. 313000001 and Up
Model No. 51487T—Serial No. 313000001 and Up
Operator's Manual
Model 51487T does not include a battery or a charger.
If you have questions or problems, contact us at www.Toro.com or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
General Safety Rules
WARNING
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
B. Avoid body contact with earthed or grounded
surfaces. There is an increased risk of electric shock if
your body is earthed or grounded.
C. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
D. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
E. If operating a power tool in a damp location is
unavoidable, use a supply protected by a residual
current device (RCD) in AUS or a ground fault
interrupt (GFI) in the USA. Use of an RCD or GFI
reduces the risk of electric shock.
3. Personal safety
WARNING: When using electric gardening appliances, basic
safety precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
Read all instructions.
The term “power tool” in all of the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
F.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
Original Instructions (EN)
Printed in China.
All Rights Reserved *3377-756* A
H. Charging time will be increased if the battery is charged
when the temperature is not between 41 to 104 degrees
F (5 to 40 degrees C).
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
G. Keep hands and feet away from the cutting area.
SAVE THESE INSTRUCTIONS
4. Power tool use and care
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
E. Store idle appliances indoors. When not in use,
appliances should be stored indoors in a dry and high
or locked-up place, out of the reach of children.
F.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
G. Use the power tool in accordance with these
instructions and in the manner intended for the
particular type of power tool, taking into account the
working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
H. Keep guards in place and in working order.
5. Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
6. Battery Safety
A. Do not charge appliance in rain, or in wet locations.
B. Do not use battery-operated appliance in the rain.
C. Use only the following type and size battery: Toro
battery model 88504 or 88506 and battery charger
88503.
D. Remove or disconnect the battery before servicing,
cleaning, or removing material from the gardening
appliance.
E. Do not dispose of the battery in a fire. The cell may
explode. Check with local codes for possible special
disposal instructions.
F.
Do not open or mutilate the battery. Released electrolyte
is corrosive and may cause damage to the eyes or skin.
It may be toxic if swallowed.
G. Exercise care in handling batteries in order not to short
the battery with conducting materials such as rings,
bracelets, and keys. The battery or conductor may
overheat and cause burns.
2
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
V
Volts
Voltage
121–7615
121–7658
Model 51487T
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
121–7614
125–3291
125–3227
Model 51487
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
3
121–7606
121–7602
125–3226
4
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
5
6
Description
Use
Qty.
Screw
Wall-mounting bracket
2
1
No parts required
–
Auxiliary handle
Latch
Brace
Guard
Phillips head screw
1
1
1
1
1
Wire edge guard
1
Install the edge guard
No parts required
–
Adjust the trimmer height and base
orientation
Mount the wall-mounting bracket.
Install the auxiliary handle.
Mount the guard to the base of the
trimmer.
1
Mounting the Wall-Mounting
Bracket
Parts needed for this procedure:
2
Screw
1
Wall-mounting bracket
Procedure
Note: The bracket should be mounted indoors and the trimmer
should be out of the reach of children.
1. Place the bracket against the wall and mark the 2 hole
locations.
Figure 1
2. Drill the pilot holes.
1. Screw
A. If mounting the bracket on wall board, plaster, or
cement, drill 2 holes for the wall anchors (not supplied)
at the marked locations.
B. If mounting the bracket on wood, drill 2 holes slightly
smaller than the diameter of the screw threads at the
marked locations.
3. Install the screws (Figure 1).
A. If mounting the bracket on wall board, plaster, or
cement, insert the 2 wall anchors (not supplied) into the
holes then thread the screws into the wall anchors.
B. If installing the bracket on wood, drive the 2 screws into
the wall.
5
3. Cut the zip-tie and remove it from the trigger handle
(Figure 4).
2
Assembling the Trimmer
No Parts Required
Procedure
1. Remove the tape and the tube from the upper pole
(Figure 2).
Figure 4
1. Zip-tie
Figure 2
1. Tube
3. Lower pole
2. Tape
2. Slide the upper pole into the lower pole, lining up the tab in
the upper pole with the receiving tabs in the lower pole, and
secure it by tightening the screw.
Note: There is an audible click when the upper pole and
lower pole are in the proper position.
Figure 3
1. Upper pole
3. Shaft clamp
2. Screw
6
3
4
Installing the Auxiliary Handle
Installing the Guard
Parts needed for this procedure:
Parts needed for this procedure:
1
Auxiliary handle
1
Guard
1
Latch
1
Phillips head screw
1
Brace
Procedure
Procedure
1. Remove the Phillips head screw taped to the guard
(Figure 6).
1. Position the auxiliary handle on the shaft of the trimmer with
the smooth surface facing the operator (Figure 5).
2. Slide the guard onto the trimmer base as shown in Figure 6.
G017277
Figure 5
1. Auxiliary handle
3. Brace
G017622
2. Latch
Figure 6
2. Slide the brace into the auxiliary handle so that the brace
rests in the groove along the shaft (Figure 5).
1. Phillips head screw
3. Slide the latch from the left through the handle and brace
as shown and tighten the latch screw with a Phillips head
screwdriver (Figure 5).
3. Secure the guard using a Phillips head screw.
7
2. Guard
5
6
Installing the Edge Guard
Adjusting the Handle Height
and Base Orientation
Parts needed for this procedure:
1
No Parts Required
Wire edge guard
Procedure
Procedure
•
Insert the ends of the wire edge guard into the holes in the trimmer
housing, as shown in Figure 7.
To adjust the auxiliary handle height, release the auxiliary
handle latch, slide the auxiliary handle up or down to the
desired height, then secure the auxiliary handle in place by
closing the auxiliary latch (Figure 8).
Figure 8
1
1. Auxiliary handle
•
2. Auxiliary handle latch
To adjust the orientation of the base, press down on the
rotator button located at the base of the shaft, then move the
base to face the desired direction (Figure 9).
G017621
Figure 7
1. Wire edge guard
G015683
1
Figure 9
1. Rotator button
8
Operation
Important: The battery pack is not fully charged when it
is purchased. Before using the trimmer for the first time,
place the battery pack in the charger and charge until the
LED indicators turn green. Make sure to read all safety
precautions. With regular use, it will need shorter charging
time. If storing for a prolonged period of time, remove the
battery. When ready to use again, charge the battery pack
until the LED indicators turn green.
g017454
2
Starting the Trimmer
Figure 11
1. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 10).
1. Lock switch
3
2. Trigger
Stopping the Trimmer
To stop the trimmer, release the trigger.
2
1
g017453
Figure 10
1. Trigger handle
1
3. Latch
2. Tongue
2. Grasp the trigger handle (Figure 10).
3. Push the battery pack into the handle until the latch locks
into place.
4. To start the trimmer, slide the lock switch back to the On
position, then squeeze the trigger (Figure 11).
9
Charging the Battery Pack
4. Refer to the table below to interpret the LED indicators on
the battery charger.
Important: For best results, your battery tool should be
charged in a location where the temperature is more than
41 degrees F (5 degrees C) but less than 104 degrees F (40
degrees C). To reduce the risk of serious personal injury,
do not store outside or in vehicles. Charging time will be
increased if not charged within this range.
LED COLOR
1. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 12 and Figure 13).
Left
Right
Indicates:
Red
Red
Battery is charging
Red
Green
Fully charged
Red
Orange
Battery is too
warm: Remove
for approximately
30 minutes
Red
Green
No battery present
Red (blinking)
Red (blinking)
Defective battery
2
Advancing the Line
The trimmer is equipped with an auto-feed head. The line will
advance 6 mm (1/4 inch) each time you stop and start the
trimmer. When the line reaches the blade in the deflector, it will
be cut off at that length.
1
1. With the trimmer running, release the switch trigger.
2. Wait two seconds, then press the switch trigger.
3. Resume trimming.
Advancing the Line Manually
G017407
Disconnect the string trimmer from the power supply, then push
the red button at the base of the spool retainer while pulling on the
trimmer line to manually advance the line.
Figure 12
1. LED indicators
2. Insert battery here
3
2
1
Figure 14
G016223
1. Button
Figure 13
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
2. Slide the battery into the charger until it clicks into place.
3. To remove the battery, press down on the release button
and slide the battery backwards out of the charger.
10
Trimming
Push down and rotate the power saver knob (Figure 17) 180
degrees (1/2 turn) to shorten the length of the trimmer line. This
reduces the power consumption of the trimmer and extends the
runtime of the battery.
To resume operation in the regular mode, push down and rotate
the power saver knob 180 degrees (1/2 turn).
g017455
1
Figure 17
G016254
1. Power saver knob
Figure 15
Operating Tips
Edging
To use the trimmer as edger, press the rotator button and rotate
the head as shown in Figure 16.
2
1
Keep the trimmer tilted toward the area being cut; this is the
best cutting area.
•
Tilt the trimmer so that the trimmer string is lowest on the
right side.
•
The string trimmer cuts best when passing the unit from left to
right. This will also avoid throwing debris at the operator.
•
Use the tip of the string to do the cutting; do not force string
head into uncut grass.
•
Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may wear
string rapidly.
•
Avoid trees and shrubs. Tree bark, wood moldings, siding,
and fence posts can easily be damaged by the strings.
G015660
Figure 16
1. Rotator button
•
2. Edger guide
Using the Power Saver Feature
Engaging the power saver feature will extend the run time of the
battery by shortening the length of the trimmer line and decreasing
the load on the motor.
If you are experiencing reduced battery runtime, it is recommended
that you engage the power saver feature.
11
1
4
2
3
G015663
Figure 18
1. Direction of rotation
Figure 19
3. String path
2. Ideal cutting range
1. Spool retainer
3. Slots
2. Spool
4. Tabs
3. Pull the spool retainer up to remove it and remove the spool.
Maintenance
4. To install the new spool, make sure the string is captured in
one of the retaining slots on the new spool. Make sure the
end of the string extends approximately 6 inches (152 mm).
After each use of the trimmer, complete the following:
1. Remove the battery from the trimmer.
5. Install the new spool so that the string aligns with the eyelet
in the string head. Thread the string into the eyelet.
2. Wipe the trimmer clean with a damp cloth. Do not hose the
trimmer down or submerge it in water.
6. Pull the string extending from the string head so the string
releases from the slot in the spool.
7. Reinstall the spool retainer by depressing tabs into slots and
pushing down until spool retainer clicks into place.
CAUTION
The line cut-off blade on the deflector is sharp and
can cut you. Do not use your hands to clean the
deflector shield and blade.
Replacing the String
1. Remove the battery.
2. Remove the spool. See Replacing the Spool (Figure 19).
3. Wipe or scrape clean the cutting head area any time there is
an accumulation of debris.
4. Check and tighten all fasteners. If any part is damaged or
lost, repair or replace it.
5. Brush debris away from air intake vents on motor housing
to prevent the motor from overheating.
Replacing the Spool
1
Use only .065 inch (1.6 mm) diameter monofilament string. Use
original manufacturer’s replacement string for best performance
(Toro part number 88532 or 88524).
2
Important: Use of a larger diameter string will cause the
motor to overheat and fail.
G015662
1. Remove the battery.
2. Push in the tabs on the side of the spool retainer (Figure 19).
Figure 20
1. Slot in upper spool flange
12
2. Hole
Preparing the Battery Pack for
Recycling
Note: Remove any old string remaining on the spool.
3. The spool will accept up to 15 feet (4.5 m) of string. Use
only .065 inch (1.6 mm) diameter monofilament string.
Note: Do not use any other gauge or type of string, as this
could damage the trimmer.
WARNING
Before recycling, cover the battery pack's terminals
with heavy-duty adhesive tape. Do not attempt to
destroy or disassemble the battery pack or remove
any of its components. Lithium-ion batteries must be
recycled or disposed of properly at the nearest battery
recycling facility.
4. Insert the string into the anchor hole in the upper part of
the spool (Figure 20). Wind the string onto the spool in the
direction shown by the arrows on the spool.
5. Place the string in the slot on the upper spool flange, leaving
about 6 inches (152 mm) extended beyond the slot.
Note: Do not overfill. After winding the string, there should
be at least 1/4 inch (6 mm) between the wound string and
the outside edge of the spool.
Service
6. Replace the spool and the spool retainer. Refer to
Replacing the Spool (page 12).
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Storage
•
•
Clean all foreign material from the product.
•
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Store it in a well-ventilated place that is inaccessible to
children.
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
Using the trimmer to cut thick grass in temperatures above 90
Fahrenheit (32 Celsius) may reduce the run time. Engage the
power saving feature to help increase the operating time. Refer to
Using the Power Saver Feature (page 11).
13
Notes:
14
Notes:
15
The Toro Promise - Electric Products
A Two-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for two years against
defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-574-3312 (Mexico)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of providing
substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this warranty.
Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. D
374-0262 Rev D
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
