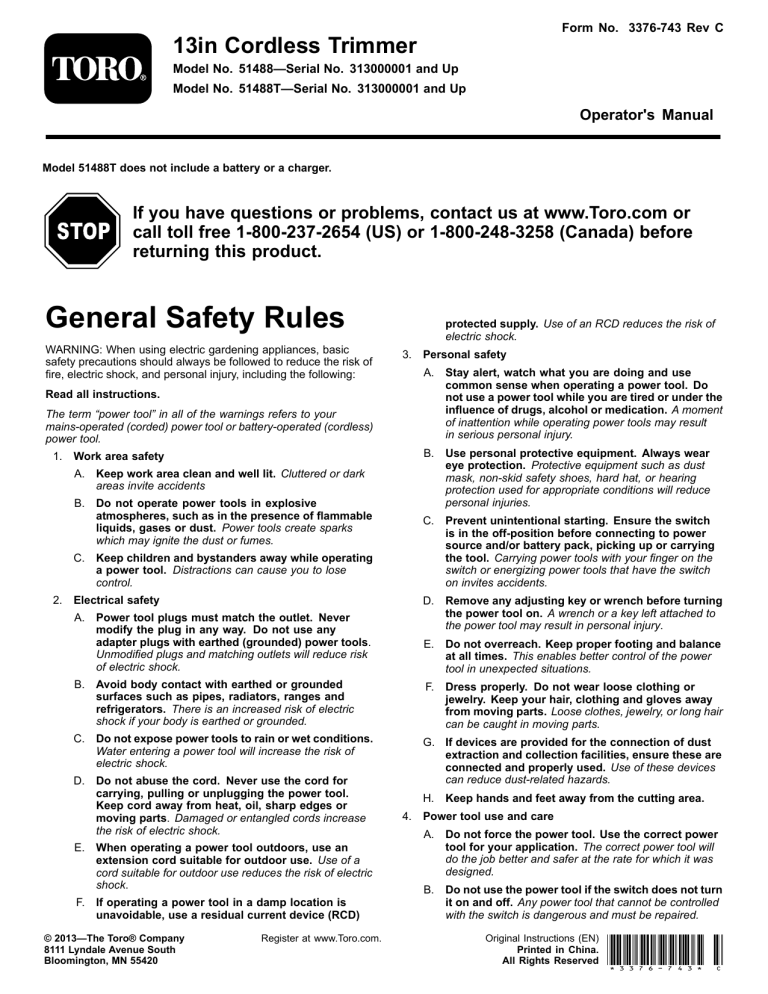

Form No. 3376-743 Rev C
13in Cordless Trimmer
Model No. 51488—Serial No. 313000001 and Up
Model No. 51488T—Serial No. 313000001 and Up
Operator's Manual
Model 51488T does not include a battery or a charger.
If you have questions or problems, contact us at www.Toro.com or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
General Safety Rules
WARNING: When using electric gardening appliances, basic
safety precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
Read all instructions.
The term “power tool” in all of the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
the power tool may result in personal injury.
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
B. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
F.
C. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
G. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
D. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
E. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
F.
If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
H. Keep hands and feet away from the cutting area.
4. Power tool use and care
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Original Instructions (EN)
Printed in China.
All Rights Reserved *3376-743* C
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
E. Store idle appliances indoors. When not in use,
appliances should be stored indoors in a dry and high
or locked-up place, out of the reach of children.
F.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
G. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
H. Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power tool
for operations different from those intended could result
in a hazardous situation.
I. Keep guards in place and in working order.
5. Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
6. Battery Safety
A. Do not charge appliance in rain, or in wet locations.
B. Do not use battery-operated appliance in the rain.
C. Use only the following type and size battery: Toro
battery model 88508 or 88509 and battery charger
88507 or 88510.
D. Remove or disconnect the battery before servicing,
cleaning, or removing material from the gardening
appliance.
E. Do not dispose of the battery in a fire. The cell may
explode. Check with local codes for possible special
disposal instructions.
F.
Do not open or mutilate the battery. Released electrolyte
is corrosive and may cause damage to the eyes or skin.
It may be toxic if swallowed.
G. Do not open or mutilate the battery. Released electrolyte
is flammable and can cause damage if exposed to fire.
H. Exercise care in handling batteries in order not to short
the battery with conducting materials such as rings,
bracelets, and keys. The battery or conductor may
overheat and cause burns.
I. Ideal charging temperature is between 5° C and 40° C
(32° and 122° F). Charging outside of this temperature
range will increase the charging time.
SAVE THESE INSTRUCTIONS
2
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
V
Volts
Voltage
125–3225
125–3240
121–7667
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
125–3236
1. Warning—read the Operator’s Manual; do not operate in
the rain; wear eye protection.
3
121–7654
121–7651
4
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
Description
Use
Qty.
No parts required
–
Guard
Phillips head screw
Auxiliary handle
Latch
Brace
1
2
1
1
1
No parts required
–
Mount the guard to the base of the
trimmer.
Install the auxiliary handle.
Adjusting the handle height.
1
Assembling the Trimmer
No Parts Required
Procedure
1. Remove the tape and the tube from the upper pole (Figure
1).
Figure 2
1. Upper pole
3. Clamp
2. Screw
3. Cut the zip-tie away from your body and remove it from the
trigger handle (Figure 3).
Figure 1
1. Tube
Figure 3
3. Upper pole
2. Tape
1. Zip-tie
2. Slide the upper pole into the lower pole, lining up the tabs in
the upper pole with the receiving tabs in the lower pole, and
secure it by tightening the screw (Figure 2).
Note: There is an audible click when the upper pole and
lower pole are in the proper position.
5
2
3
Installing the Guard
Installing the Auxiliary Handle
Parts needed for this procedure:
Parts needed for this procedure:
1
Guard
1
Auxiliary handle
2
Phillips head screw
1
Latch
1
Brace
Procedure
Procedure
1. Remove the 2 Phillips head screws taped to the guard
(Figure 4).
1. Position the auxiliary handle on the upper shaft of the
trimmer with the smooth surface facing the operator (Figure
5).
2. Slide the guard onto the trimmer base as shown in Figure 4.
Figure 4
1. Phillips head screw
3. Guard
2. Washer
4. Lock washer
Figure 5
3. Secure the guard using 2 Phillips head screws.
1. Auxiliary handle
3. Brace
2. Latch
4. Upper shaft
2. Slide the brace into the auxiliary handle so that the brace
rests in the groove along the shaft (Figure 5).
3. Slide the latch from the left through the handle and brace as
shown in Figure 5 and tighten the latch screw with a Phillips
head screwdriver.
6
Operation
4
Important: The battery pack is not fully charged when it is
purchased. Before using the trimmer for the first time, place
the battery pack in the charger and charge it until the LED
display indicates the battery is charged. Make sure to read
all safety precautions. With regular use, it will need shorter
charging time. If storing for 1 month or longer, enable storage
mode on the charger. When ready to use again, charge the
battery pack until the LED display indicates the battery is
charged. Refer to Charging the Battery Pack (page 8).
Adjusting the Handle Height
No Parts Required
Procedure
To adjust handle height, flip the auxiliary handle latch, slide it up
or down to the desired height, then secure it in place by closing
the latch (Figure 6).
Starting the Trimmer
1. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 7).
Figure 7
1. Trigger handle
2. Tongue
Figure 6
1. Auxiliary handle
3. Latch
2. Auxiliary handle latch
2. Grasp the trigger handle (Figure 7).
3. Push the battery pack into the handle until the latch locks
into place.
4. To start the trimmer, hold down the lock switch, then squeeze
the trigger (Figure 8).
Figure 8
1. Thumb wheel
2. Lock switch
7
3. Trigger
Charging the Battery Pack
5. Slide the thumb wheel away from you to increase the motor
speed, and towards you to decrease motor speed (Figure 9).
Important: For best results, your battery tool should be
charged in a location where the temperature is more than 5°
C (41° F) but less than 40° C (104° F). To reduce the risk of
serious personal injury, do not store outside or in vehicles.
Charging time will be increased if not charged within this
range.
Note: A higher motor speed is effective for trimming thicker
grass, but will decrease the battery operation time. Use a
lower motor speed to increase the operation time.
1. If the power cord is not plugged in to the charger, plug it in
to the charger (Figure 10), then plug the power cord into
a power socket.
2. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 10 and Figure 11).
Figure 9
Figure 10
1. Thumb wheel
1. Insert battery here
Stopping the Trimmer
3. Charge/storage mode
switch
4. Power cord plug-in
location
2. LED indicators
To stop the trimmer, release the trigger (Figure 8).
Figure 11
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
4. Test button
3. Slide the battery into the charger until it clicks into place.
4. To remove the battery, pull up on the release button and
slide the battery backwards out of the charger.
8
Advancing the Line
5. Refer to Figure 12 to interpret the LED indicators on the
battery charger.
The trimmer is equipped with an auto-feed head. The line will
advance 6 mm (1/4 inch) each time you stop and start the
trimmer. When the line reaches the blade in the deflector, it will
be cut off at that length.
1. With the trimmer running, release the switch trigger.
2. Wait two seconds to allow the trimmer head to stop rotating,
then press the switch trigger.
3. Resume trimming.
Advancing the Line Manually
Remove the battery from the string trimmer, then push the red
button at the base of the spool retainer while pulling on the
trimmer line to manually advance the line.
Figure 12
1. Red light on; green
light flashing—battery is
charging.
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
charged.
6. Red light off; green light
on—battery is prepared
for storage.
Figure 13
1. Button
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
40 C (104 F) or less than 5
C (41 F).
4. Charge/storage mode
switch
8. Red light flashing; green
light flashing—battery is
defective.
Important: If the charger indicates an abnormal battery
temperature, allow the battery to cool or warm up as needed
before inserting the battery into the charger.
Storing a lithium-ion battery at 40% of its capacity maximizes
battery life.
Use storage mode (Figure 12) when the battery will not be used
for 1 month or longer.
1. Insert the battery into the charger.
2. Turn storage mode on.
3. The battery will charge or discharge as necessary to
approximately 40% charge.
4. When the battery is ready for storage (Figure 12, item 6.),
remove the battery from the charger.
9
Trimming
Figure 15
1. Direction of rotation
3. String path
2. Ideal cutting range
Maintenance
After each use of the trimmer, complete the following:
1. Remove the battery from the trimmer.
2. Wipe the trimmer clean with a damp cloth. Do not hose the
trimmer down or submerge it in water.
CAUTION
The line cut-off blade on the deflector is sharp and
can cut you. Do not use your hands to clean the
deflector shield and blade.
Figure 14
3. Wipe or scrape clean the cutting head area any time there is
an accumulation of debris.
Operating Tips
•
Keep the trimmer tilted toward the area being cut; this is the
best cutting area (Figure 15, item2.).
•
The string trimmer cuts when passing the unit from left to
right. This will avoid throwing debris at the operator.
•
Use the tip of the string to do the cutting; do not force string
head into uncut grass.
•
Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may wear
string rapidly.
•
Avoid trees and shrubs. Tree bark, wood moldings, siding,
and fence posts can easily be damaged by the strings.
4. Check and tighten all fasteners. If any part is damaged or
lost, repair or replace it.
5. Brush debris away from the air vents on the motor housing
and shaft to prevent the motor from overheating (Figure 16).
Figure 16
1. Air vents
10
Replacing the Spool
Replacing the String
1. Remove the battery.
Use only .065 inch (1.6 mm) diameter monofilament string. Use
original manufacturer’s replacement string for best performance
(Toro part number 88518 and 88528).
2. Remove the spool. See Replacing the Spool (Figure 17).
1. Remove the battery.
2. Push in the tabs on the side of the spool retainer (Figure 17).
Figure 18
1. Slot in upper spool flange
3. Slot in lower spool flange
2. Hole
Note: Remove any old string remaining on the spool.
3. The spool will accept up to 15 feet (4.5 m) of string. Use
only .065 inch (1.6 mm) diameter monofilament string.
Note: Do not use any other gauge or type of string, as this
could damage the trimmer.
Figure 17
1. Spool retainer
3. Slots
2. Spool
4. Tabs
4. Insert the string into the anchor holes in the upper part of
the spool (Figure 18). Wind the string onto the spool in the
direction shown by the arrows on the spool.
5. Place the string in the slot on the upper spool flange, leaving
about 6 inches (152 mm) extended beyond the slot.
3. Pull the spool retainer up to remove it and remove the spool.
6. Repeat steps 4 and 5 for the lower string.
4. To install the new spool, make sure the strings are captured
in the retaining slots on the new spool. Make sure the end of
the strings extends approximately 6 inches (152 mm).
Note: Do not overfill. After winding the string, there should
be at least 1/4 inch (6 mm) between the wound string and
the outside edge of the spool.
5. Thread the strings into the eyelet. Install the new spool so
that the strings align with the eyelets in the string head.
7. Replace the spool and the spool retainer. Refer to Spool
Replacement earlier in this manual.
6. Pull the strings extending from the string head so the strings
release from the slots in the spool.
7. Reinstall the spool retainer by depressing tabs into slots and
pushing down until spool retainer clicks into place.
11
Battery Pack Preparation For
Recycling
WARNING
Upon removal, cover the battery pack's terminals with
heavy-duty adhesive tape. Do not attempt to destroy
or disassemble the battery pack or remove any of its
components. Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery recycling
facility.
Service
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Storage
•
•
Clean all foreign material from the product.
Store it in a well-ventilated place that is inaccessible to
children.
•
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
•
Use the storage mode on the battery charger if it will be
unused for 1 month or longer. Refer to Charging the Battery
Pack (page 8).
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
Using the trimmer to cut thick grass in temperatures above 32° C
(90° F) may reduce the run time. Decrease the motor speed to
help increase the operating time; refer to ( Starting the Trimmer
(page 7).
Failing to clear debris from the trimmer head vents may result in
reduced run time. The trimmer may also stop working when it
is overheated to prevent damage to the trimmer. Clear debris
from the air vents on the motor housing and shaft and allow the
trimmer to cool before attempting to use the trimmer again. Refer
to Maintenance (page 10)
12
Notes:
13
Notes:
14
Notes:
15
The Toro Promise - Electric Products
A Three-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for three years
against defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
Trimmers:
Blowers:
Snowthrowers:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of providing
substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this warranty.
Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. F
374-0262 Rev F
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
