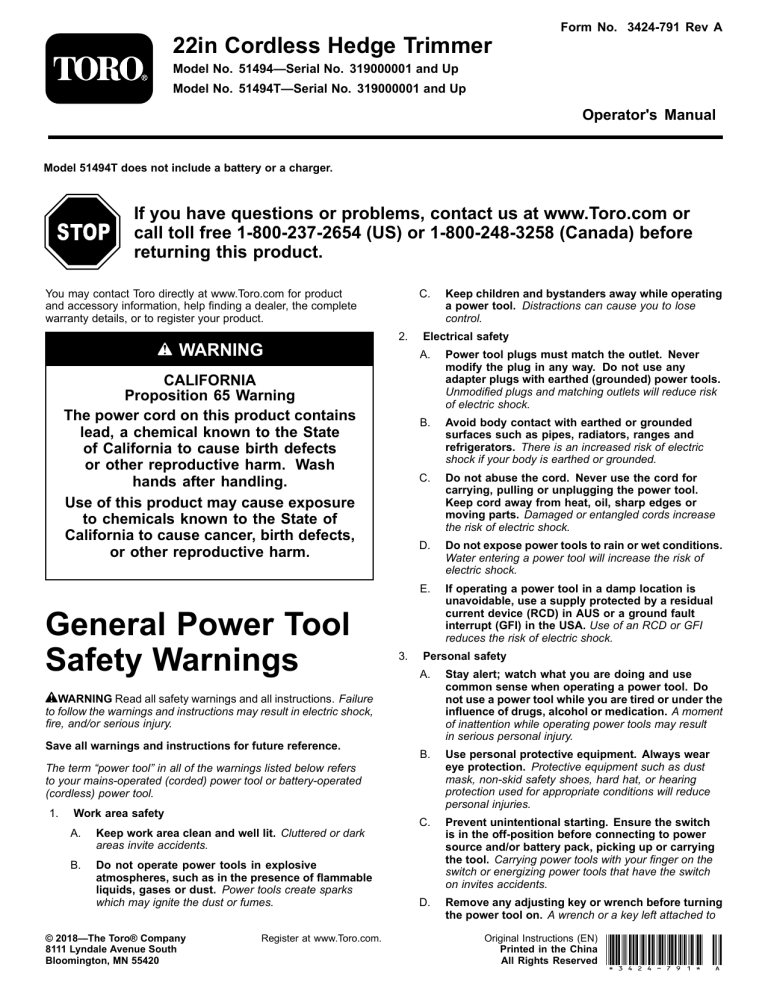

Form No. 3424-791 Rev A
22in Cordless Hedge Trimmer
Model No. 51494—Serial No. 319000001 and Up
Model No. 51494T—Serial No. 319000001 and Up
Operator's Manual
Model 51494T does not include a battery or a charger.
If you have questions or problems, contact us at www.Toro.com or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, the complete
warranty details, or to register your product.
C.
2.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Use of this product may cause exposure
to chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
General Power Tool
Safety Warnings
3.
Electrical safety
A.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
D.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
E.
If operating a power tool in a damp location is
unavoidable, use a supply protected by a residual
current device (RCD) in AUS or a ground fault
interrupt (GFI) in the USA. Use of an RCD or GFI
reduces the risk of electric shock.
Personal safety
A.
Stay alert; watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B.
Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C.
Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
D.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
WARNING Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock,
fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers
to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1.
Work area safety
A.
Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
B.
Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Original Instructions (EN)
Printed in the China
All Rights Reserved *3424-791* A
a rotating part of the power tool may result in personal
injury.
4.
E.
Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
B.
Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
F.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
C.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
D.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
E.
Charging time will be increased if the battery is charged
when the temperature is not between 0° C (32° F) and
40° C (104° F).
Power tool use and care
A.
B.
C.
D.
E.
5.
of battery pack may create a risk of fire when used with
another battery pack.
Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Disconnect the battery pack from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power
tool accidentally.
6.
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
Hedge Trimmer Safety Warnings
• Use both hands when operating the hedge trimmer.
Using one hand could cause loss of control and result
in serious personal injury.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
F.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
G.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed.. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
•
Keep all parts of the body away from the cutter blade. Do
not remove cut material or hold material to be cut when
blades are moving. Make sure the switch is off when
clearing jammed material. Blades coast after turn off. A
moment of inattention while operating the hedge trimmer may
result in serious personal injury.
•
Carry the hedge trimmer by the handle with the cutter
blade stopped. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter blades.
•
Hold the power tool by insulated gripping surfaces only,
because the cutter blade may contact hidden wiring or its
own cord. Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give
the operator an electric shock.
•
DANGER – Keep hands away from blade. Contact with
blade will result in serious personal injury.
Battery tool use and care
A.
Service
Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
Symbol
Name
Designation/Explanation
DC
Direct current
Type of current
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
SPM
Strokes per minute
Speed of blade
V
Volts
Voltage
2
decal125-3277
125–3277
Model 51494
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
decal125-3279
125–3279
decal121-7659
121–7659
Model 51494T
1. Warning—read the Operator’s Manual; do not operate in
wet conditions; wear eye protection.
decal125-3295
125–3295
decal138-6699
138-6699
decal121-7691
121–7691
3
Operation
for the first time, place the battery pack in the charger
charge until the LED indicators turn green. Make sure
to read all safety precautions. With regular use, it will
need shorter charging time. If storing for a prolonged
period of time, remove the battery. When ready to use
again, charge the battery pack until the LED indicators
turn green.
Important:
The battery pack is not fully charged when
it is purchased. Before using the hedge trimmer for the
first time, place the battery pack in the charger charge until
the LED indicators turn green. Make sure to read all safety
precautions. With regular use, it will need shorter charging
time. If storing for a prolonged period of time, remove the
battery. When ready to use again, charge the battery pack
until the LED indicators turn green.
Starting the Hedge Trimmer
1.
Remove the protective cover from the cutter blades (Figure
1).
WARNING
The hedge trimmer blades can cause cuts or
amputation.
Be careful when handling the hedge trimmer with
the protective cover removed.
g016138
Figure 1
1. Protective cover
2.
Align the tongue of the battery pack with the cavity in the
handle housing (Figure 2).
g016139
Figure 2
1. Auxiliary handle
4. Tongue
2. Lock switch
3. Trigger
5. Latch
3.
Grasp the trigger handle (Figure 2)..
4.
Push the battery pack into the handle until the latch locks
into place.
Important: The battery pack is not fully charged
when it is purchased. Before using the hedge trimmer
4
5.
Place one hand on the trigger handle. Place the other hand
on the auxiliary handle (Figure 2).
6.
Slide the lock switch backwards, towards you, then squeeze
the trigger switch to turn on the hedge trimmer (Figure 2).
The trimmer will stay on as long as the trigger switch is
squeezed. Lock-off switch may be released once hedge
trimmer is running (Figure 2).
Rotating the Hedge Trimmer
Handle
1.
Press and hold the rotational lock button.
g016188
Figure 3
g019895
1. Auxiliary handle
Figure 4
3. Handle
2. Rotational lock button
2.
1. LED indicators
2. Insert battery here
Rotate the handle to the right or left depending on desired
cutting direction, then release the rotational lock button to
lock the handle in the desired position.
Stopping the Hedge
Trimmer
1.
Release the trigger switch (Figure 2).
2.
Allow at least 5 seconds for the cutting blade to stop moving.
Charging the Battery Pack
Important: For best results, your battery pack should be
charged in a location where the temperature is more than 0°
C (32° F) but less than 40° C (104° F). To reduce the risk of
serious personal injury, do not store outside or in vehicles.
Charging time will increase if it is not charged within this
range.
1.
g016223
Figure 5
1. LED indicators (level of
charge)
Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 4 and Figure 5).
3. Battery terminal
2. Release button
5
2.
Slide the battery into the charger until it clicks into place.
3.
To remove the battery, press down on the release button
and slide the battery backwards out of the charger.
4.
Maintenance
Refer to the table below to interpret the LED indicators on
the battery charger.
LED COLOR
Top
Bottom
Indicates:
Oiling the Trimmer Blade
Red
Red
Battery is charging
Note:
Red
Green
Fully charged
Red
Orange
Battery is too
warm: Remove
for approximately
30 minutes
The trimmer blade should be oiled before and after each
use.
1.
Stop the motor and remove the battery.
2.
Clean dirt and debris from the body of the hedge trimmer,
using a damp cloth with a mild detergent.
Note:
Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils such as pine and lemon, and by solvents such
as kerosene.
Operating Tips
•
The unit is used for cutting in either direction in a slow,
sweeping action from side to side.
•
Lay the hedge trimmer on a flat surface. Apply light weight
machine oil along the edge of the top blade. If you will be
using the hedge trimmer for an extended period of time, it is
advisable to oil the blade during use.
Stand so that you are stable and balanced on both feet. Do
not overreach.
Note:
•
•
Inspect and clear the area of any hidden objects.
Never use a blade after hitting a hard object without first
inspecting it for damage. Do not use if any damage is
detected.
•
Never touch blades or service unit with the power supply
connected.
•
Do not force the hedge trimmer through heavy shrubbery.
This can cause the blades to bind and slow down. If the
blades slow down, reduce the pace.
•
Do not attempt to cut stems or twigs that are larger than
9/16 in., or those obviously too large to feed into the cutting
blade. Use a non-powered hand saw or pruning saw to trim
large stems.
•
If blades do become jammed, stop the motor, allow the blades
to stop, and remove the battery before attempting to remove
the obstruction.
•
If desired, you can use a string to help cut your hedge level.
Decide how high you want the hedge. Stretch a piece of
string along the hedge at the desired height. Trim the hedge
just above the guide line of string.
•
Trim the side of a hedge so that it will be slightly narrower at
the top. More of the hedge will be exposed when shaped this
way, and it will be more uniform.
Do not oil while the hedge trimmer is running.
Preparing the Battery Pack
for Recycling
Never use the hedge trimmer near power lines, fencing,
posts, buildings, or other immovable objects.
•
•
3.
WARNING
Before recycling, cover the battery pack's terminals
with heavy-duty adhesive tape. Do not attempt to
destroy or disassemble the battery pack or remove
any of its components. Lithium-ion batteries must be
recycled or disposed of properly at the nearest battery
recycling facility.
Service
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Storage
Wear gloves when trimming thorny or prickly growth. When
trimming new growth, use a wide sweeping action, so that the
stems are fed directly into the cutting blade.
•
•
Clean all foreign material from the product.
•
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Store it in a well-ventilated place that is inaccessible to
children.
Troubleshooting
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
6
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
