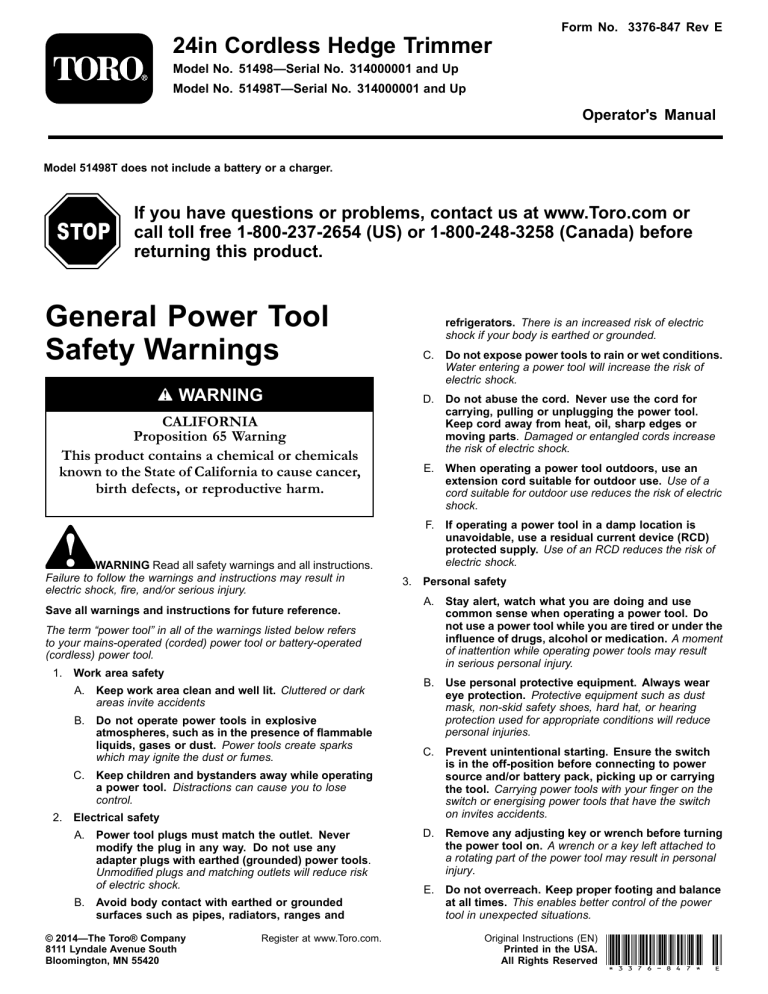

Form No. 3376-847 Rev E
24in Cordless Hedge Trimmer
Model No. 51498—Serial No. 314000001 and Up
Model No. 51498T—Serial No. 314000001 and Up
Operator's Manual
Model 51498T does not include a battery or a charger.
If you have questions or problems, contact us at or
call toll free 1-800-237-2654 (US) or 1-800-248-3258 (Canada) before
returning this product.
General Power Tool
Safety Warnings
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
D. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
E. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers
to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark
areas invite accidents
B. Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
C. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
2. Electrical safety
A. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
B. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at
If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
B. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
C. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
D. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
E. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
Original Instructions (EN)
Printed in the USA.
All Rights Reserved *3376-847* E
6. Service
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
G. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
Hedge Trimmer Safety Warnings
• Keep all parts of the body away from the cutter blade. Do
not remove cut material or hold material to be cut when
blades are moving. Make sure the switch is off when
clearing jammed material. Blades coast after turn off. A
moment of inattention while operating the hedge trimmer may
result in serious personal injury.
4. Power tool use and care
A. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
B. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Use both hands when operating the hedge trimmer.
Using one hand could cause loss of control and result
in serious personal injury.
C. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Carry the hedge trimmer by the handle with the cutter
blade stopped. Proper handling of the hedge trimmer will
reduce possible personal injury from the cutter blades.
D. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
Hold the power tool by insulated gripping surfaces only,
because the cutter blade may contact hidden wiring or its
own cord. Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give
the operator an electric shock.
DANGER – Keep hands away from blade. Contact with
blade will result in serious personal injury.
E. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
G. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed.. Use of the power tool for operations
different from those intended could result in a hazardous
5. Battery tool use and care
A. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
B. Use power tools only with specifically designated
battery packs. Use any other battery packs may create
a risk of injury and fire.
C. When battery pack is not in use, keep it away from
the other metal objects, like paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
D. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
E. Ideal charging temperature is between 5 and 40
degrees C (41 and 104 degrees F). Charging outside of
this temperature range will increase the charging time.
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential danger.
Replace any decal that is damaged or lost.
1. Warning—read the Operator’s Manual; do not use in wet
conditions; wear eye protection.
1. Warning—read the Operator’s Manual; do not use in wet
conditions; wear eye protection.
Direct current
Type of current
Frequency (cycles per second)
Strokes per minute
Speed of blade
2. Align the tongue of the battery pack with the cavity in the
handle housing (Figure 3).
Cut the cable tie away from your body and remove it from the
trigger handle (Figure 1).
Figure 1
1. Cable tie
Figure 3
Important: The battery pack is not fully charged when
it is purchased. Before using the hedge trimmer for the
first time, refer to Charging the Battery Pack (page 6).
Make sure to read all safety precautions. If storing for
a prolonged period of time, remove the battery. When
ready to use again, charge the battery pack; refer to
Charging the Battery Pack (page 6).
1. Auxiliary handle
4. Trigger handle
2. Lock switch
5. Tongue
3. Trigger
6. Latch
3. Grasp the trigger handle (Figure 3).
4. Push the battery pack into the handle until the latch locks
into place.
5. Place one hand on the trigger handle. Place the other hand
on the auxiliary handle (Figure 3).
6. Slide the lock switch backward, toward you, then squeeze
the trigger switch to turn on the hedge trimmer (Figure 3).
Starting the Hedge Trimmer
Note: The trimmer will stay on as long as the trigger
and the auxiliary handle trigger are squeezed. You may
release the switch once the hedge trimmer is running.
1. Remove the protective cover from the cutter blades (Figure
The hedge trimmer blades can cause cuts or
Be careful when handling the hedge trimmer with
the protective cover removed.
Figure 2
1. Protective cover
Rotating the Hedge Trimmer
1. Press and hold the rotational lock button.
Figure 5
1. Insert battery here
3. Charge/storage mode
4. Power cord plug-in
2. LED indicators
Figure 4
1. Auxiliary handle
3. Trigger handle
2. Rotational lock button
2. Rotate the handle to the right or left depending on desired
cutting direction, then release the rotational lock button to
lock the handle in the desired position.
Stopping the Hedge Trimmer
1. Release the trigger switch (Figure 3).
2. Allow at least 5 seconds for the cutting blade to stop moving.
Figure 6
Charging the Battery Pack
Important: For best results, your battery pack should
be charged in a location where the temperature is more
than 5° C (41° F) but less than 40° C (104° F). To reduce
the risk of serious personal injury, do not store outside
or in vehicles. Charging time will be increased if not
charged within this range.
1. LED indicators (level of
3. Battery terminal
2. Release button
4. Test button
3. Slide the battery into the charger until it clicks into place.
4. To remove the battery, hold down the charger, pull up on
the release button, and slide the battery backward out of
the charger.
1. If the power cord is not plugged in to the charger, plug it
into the charger (Figure 5), then plug the power cord into
a power socket.
Note: If you have trouble removing the battery, apply
some dielectric grease to the battery terminals (Figure
7). Do not use any other type of lubricant as it can
damage the terminals.
2. Turn the battery upside down and line up the battery terminal
with the slot in the charger (Figure 5 and Figure 6).
Figure 7
1. Battery terminals
5. Refer to Figure 8 to interpret the LED indicators on the
battery charger.
Figure 8
1. Red light on; green
light flashing—battery is
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
6. Red light off; green light
on—battery is prepared
for storage.
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
40 C (104 F) or less than 5
C (41 F).
4. Charge/storage mode
8. Red light flashing; green
light flashing—battery is
Important: If the charger indicates an abnormal battery
temperature, allow the battery to cool or warm up as
needed before inserting the battery into the charger.
Storing a lithium-ion battery at 40% of its capacity maximizes
battery life.
Use storage mode (Figure 8) when the battery will not be used for
1 month or longer.
1. Insert the battery into the charger.
2. Turn storage mode on.
3. The battery will charge or discharge as necessary to
approximately 40% charge.
4. When the battery is ready for storage (Figure 8, item 6.),
remove the battery from the charger.
Operating Tips
This unit is used for cutting in either direction in a slow,
sweeping action from side to side.
Stand so that you are stable and balanced on both feet. Do
not overreach.
Oiling the Trimmer Blade
Note: The trimmer blade should be oiled before and after
each use.
Inspect and clear the area of any hidden objects.
1. Stop the motor and remove the battery.
Never use the hedge trimmer near power lines, fencing,
posts, buildings, or other immovable objects.
2. Clean dirt and debris from the body of the hedge trimmer,
using a damp cloth with a mild detergent.
Never use a blade after hitting a hard object without first
inspecting it for damage. Do not use if you detect any
Never touch the blades or service this appliance with the
power supply connected.
Do not force the hedge trimmer through heavy shrubbery.
This can cause the blades to bind and slow down. If the
blades slow down, reduce the pace.
Do not attempt to cut stems or twigs that are larger than 16
mm (5/8 inch), or those obviously too large to feed into the
cutting blade. Use a non-powered hand saw or pruning saw
to trim large stems.
If blades become jammed, stop the motor, allow the blades
to stop, and remove the battery before attempting to remove
the obstruction.
If desired, you can use a string to help cut your hedge level.
Decide how high you want the hedge. Stretch a piece of
string along the hedge at the desired height. Trim the hedge
just above the guide line of string.
Trim the side of a hedge so that it is slightly narrower at the
top. You expose more of the hedge when you shape it this
way, and the hedge will appear more uniform.
Wear gloves when trimming thorny or prickly growth. When
trimming new growth, use a wide sweeping action, so that the
stems are fed directly into the cutting blade. Older growth
will have thicker stems and most easily trimmed by using a
sawing movement.
Note: Do not use any strong detergents on the plastic
housing or the handle. Certain aromatic oils such as
pine and lemon, and by solvents such as kerosene can
damage plastic parts.
3. Lay the hedge trimmer on a flat surface. Apply light weight
machine oil along the edge of the top blade. If you will be
using the hedge trimmer for an extended period of time, it is
advisable to oil the blade during use.
Note: Do not oil the appliance while it is running.
Battery Pack Preparation For
Upon removal, cover the battery pack's terminals with
heavy-duty adhesive tape. Do not attempt to destroy
or disassemble the battery pack or remove any of its
components. Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery recycling
Should this item need service, take the product to your Authorized
Toro Service Dealer. Your Toro Dealer is specially trained to repair
Toro products and will ensure that your Toro stays “All” Toro.
Clean all foreign material from the product.
Keep away from corrosive agents such as garden chemicals
and de-icing salts.
Store it in a well-ventilated place that is inaccessible to
Using the battery when it is hot can reduce the operating time.
The battery will automatically stop working when it is overheated
to prevent damage to it. Remove the battery from the charger and
allow it to cool before placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause
the trimmer to malfunction. Allow the battery to dry or wipe it dry
before placing it back into the trimmer.
The Toro Promise - Electric Products
A Three-Year Full Warranty for Residential Use for the United States and Canada
The Toro Company and its affiliate, Toro Warranty Company, pursuant to an agreement between them, jointly warrant this product for three years
against defects in material or workmanship when used for normal residential purposes.*
If you think your Toro Product contains a defect in materials or workmanship, if you have questions or problems, and before returning this product call
toll free:
1-800-237-2654 (US)
1-800-248-3258 (Canada)
1-888-367-6631 (US)
1-888-430-1687 (Canada)
1-800-808-2963 (US)
1-800-808-3072 (Canada)
To receive a replacement or repair, at our option, return the complete unit to the seller. United States and Canada customers may return their product,
with proof of purchase, to any Authorized Service Dealer. United States customers may also return their product, with proof of purchase, postage
prepaid, to the Toro Service Center, 5500 SE Delaware, Ankeny, IA 50021.
This warranty covers product defects only. Neither The Toro Company nor Toro Warranty Company is liable for indirect, incidental, or
consequential damages in connection with the use of the Toro Products covered by this warranty, including any cost or expense of
providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Countries Other than the United States and Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law
Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
* Residential use means use of the product on the same lot as your home.
Part Number 374-0262 Rev. F
374-0262 Rev F
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
