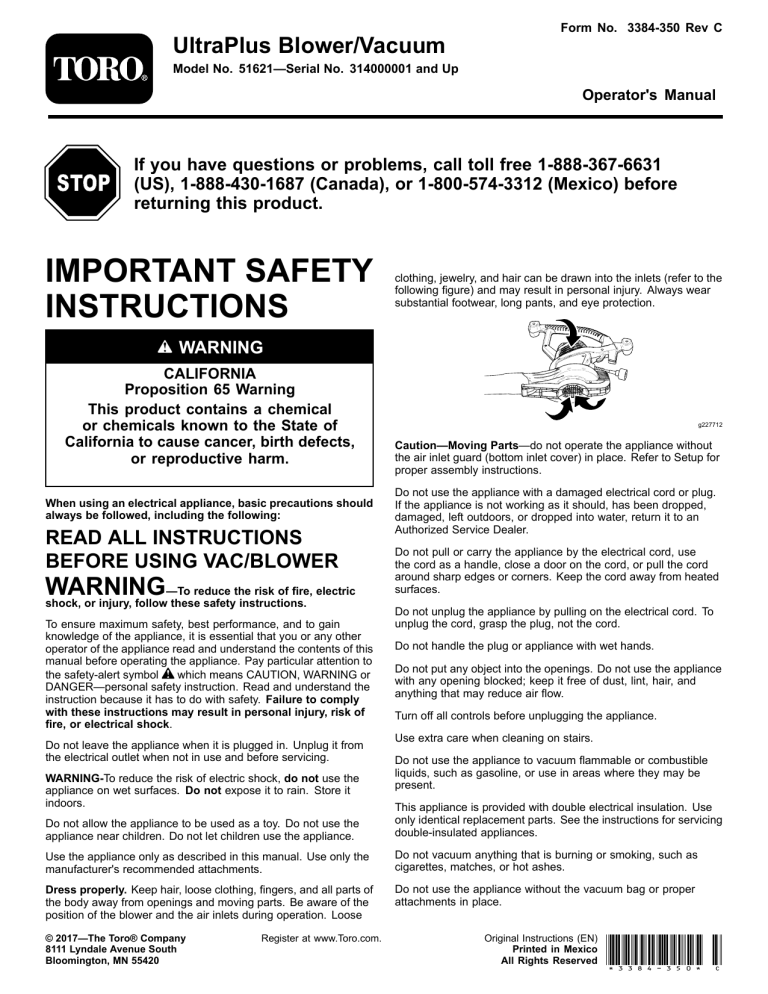

Form No. 3384-350 Rev C
UltraPlus Blower/Vacuum
Model No. 51621—Serial No. 314000001 and Up
Operator's Manual
If you have questions or problems, call toll free 1-888-367-6631
(US), 1-888-430-1687 (Canada), or 1-800-574-3312 (Mexico) before
returning this product.
IMPORTANT SAFETY
INSTRUCTIONS
clothing, jewelry, and hair can be drawn into the inlets (refer to the
following figure) and may result in personal injury. Always wear
substantial footwear, long pants, and eye protection.
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical
or chemicals known to the State of
California to cause cancer, birth defects,
or reproductive harm.
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS
BEFORE USING VAC/BLOWER
WARNING
—To reduce the risk of fire, electric
shock, or injury, follow these safety instructions.
To ensure maximum safety, best performance, and to gain
knowledge of the appliance, it is essential that you or any other
operator of the appliance read and understand the contents of this
manual before operating the appliance. Pay particular attention to
which means CAUTION, WARNING or
the safety-alert symbol
DANGER—personal safety instruction. Read and understand the
instruction because it has to do with safety. Failure to comply
with these instructions may result in personal injury, risk of
fire, or electrical shock.
Do not leave the appliance when it is plugged in. Unplug it from
the electrical outlet when not in use and before servicing.
WARNING-To reduce the risk of electric shock, do not use the
appliance on wet surfaces. Do not expose it to rain. Store it
indoors.
g227712
Caution—Moving Parts—do not operate the appliance without
the air inlet guard (bottom inlet cover) in place. Refer to Setup for
proper assembly instructions.
Do not use the appliance with a damaged electrical cord or plug.
If the appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to an
Authorized Service Dealer.
Do not pull or carry the appliance by the electrical cord, use
the cord as a handle, close a door on the cord, or pull the cord
around sharp edges or corners. Keep the cord away from heated
surfaces.
Do not unplug the appliance by pulling on the electrical cord. To
unplug the cord, grasp the plug, not the cord.
Do not handle the plug or appliance with wet hands.
Do not put any object into the openings. Do not use the appliance
with any opening blocked; keep it free of dust, lint, hair, and
anything that may reduce air flow.
Turn off all controls before unplugging the appliance.
Use extra care when cleaning on stairs.
Do not use the appliance to vacuum flammable or combustible
liquids, such as gasoline, or use in areas where they may be
present.
Do not allow the appliance to be used as a toy. Do not use the
appliance near children. Do not let children use the appliance.
This appliance is provided with double electrical insulation. Use
only identical replacement parts. See the instructions for servicing
double-insulated appliances.
Use the appliance only as described in this manual. Use only the
manufacturer's recommended attachments.
Do not vacuum anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
Dress properly. Keep hair, loose clothing, fingers, and all parts of
the body away from openings and moving parts. Be aware of the
position of the blower and the air inlets during operation. Loose
Do not use the appliance without the vacuum bag or proper
attachments in place.
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in Mexico
All Rights Reserved *3384-350* C
SAVE THESE INSTRUCTIONS
Safety and Instructional Decals
Important:
Safety and instruction decals are located near areas of potential danger. Replace damaged or missing decals.
decal127-2265
127-2265
Setup
Assembling the Blower
Register your product at www.Toro.com so that Toro can notify
you in the case of a safety or warranty product recall.
Important: The motor should not run unless the bottom
inlet cover is locked in place.
Note:
If the motor runs without the bottom inlet cover in place,
do not use the appliance. Return it to an Authorized Service
Dealer.
Install the blower tube and bottom inlet cover.
g224170
Figure 2
1. Blower tube
3. Upper-vacuum tube
2. Bottom inlet cover
4. Lower-vacuum tube
g227713
2
Converting from Blower to
Vacuum
Converting from Vacuum to
Blower
1.
Remove the vacuum bag and the vacuum tube.
WARNING
The impeller rotates for a few seconds after you turn
off the appliance and can cut or injure fingers.
Do not remove the bottom inlet cover when the motor
is running or when the appliance is plugged into a
power outlet.
1.
Remove the bottom inlet cover and the blower tube.
g227714
g227717
2.
Install the vacuum tube and bag.
Important:
The motor should not run unless the
vacuum tube is locked in place.
2.
Install the blower tube and bottom inlet cover.
Important:
The motor should not run unless the
bottom inlet cover is locked in place.
Note:
If the motor runs without the vacuum tube in place,
do not use the appliance. Return it to an Authorized Service
Dealer.
Note: If the motor runs without the bottom inlet cover in
place, do not use the appliance. Return it to an Authorized
Service Dealer.
g227718
g227715
3.
Adjust the bag strap as needed for comfortable operation.
3
Operation
Important: This appliance is intended for outdoor,
residential use only. Do not use it indoors or for commercial
or industrial purposes. This appliance is for household use
only.
Connecting to a Power
Source
To reduce the risk of electric shock, this appliance has a polarized
plug (i.e., one blade is wider than the other). Use only a polarized,
UL listed (CSA certified in Canada) extension cord recommended
for outdoor use. A polarized plug will fit in a polarized cord only
one way. If the plug does not fit fully in the cord, reverse the cord.
If it still does not fit, purchase a polarized extension cord. If you
have a polarized extension cord and the extension cord plug does
not fit fully into the wall receptacle, reverse the plug. If it still does
not fit, contact a qualified electrician to install the proper outlet. Do
not change the appliance or extension cord plug in any way.
g224197
Figure 8
1. Extension cord
2. Cord lock
Starting/Stopping/Adjusting
the Air Speed
Use only an extension cord recommended for outdoor use.
WARNING
If you do not fully seat the extension cord on the
inlet plug, or if the plug and cord do not fit firmly, the
loose plug could lead to overheating and cause a fire,
possibly burning you or others.
• Ensure that you fully seat the cord on the plug.
• Check the connection regularly to ensure that the
cord is firmly attached.
• Do not use a worn-out or loose extension cord.
Extension Cord Length
Minimum Wire Gage
(A.W.G.)
100 ft
14
150 ft
12
Note: Do not use an extension cord over 150 feet.
Important: Check the extension cord frequently during
use for holes or cracks in the insulation. Do not use a
damaged electrical cord. Do not run the cord through
standing water or wet grass.
Secure the extension cord to the appliance using the molded
in cord-lock feature.
g025396
4
Using the Appliance as a
Vacuum
Using the Nozzles
Install the power and concentrator nozzles into the blower tube
to reach into narrow spaces or to remove matted debris from
hard surfaces.
The appliance used as a vacuum is intended for residential use
only. Use it outdoors to collect debris as needed.
WARNING
Using the appliance as a vacuum can throw debris,
possibly causing serious personal injury to you or
bystanders.
• Do not operate the vacuum without the bag installed
or with the bag zipper open.
• Do not vacuum sharp, pointed, or hard objects that
g025397
1. Blower tube
2. Power Nozzle
could be thrown through the fabric of the bag, such
as wires, staples, nails, or rocks.
3. Concentrator nozzle
4. Cord wrap
Using the Oscillator Nozzle
Accessory
Install the oscillator nozzle onto the blower tube to save time
clearing hardscapes. It automatically sweeps the back-and-forth,
creating a wider blowing path with less side-to-side wrist
movement.
g017098
Important: Vacuum only leaves and soft items. Hard
items such as sticks, rocks, acorns, and pine cones will
damage the impeller.
g026691
Important:
Do not force the vacuum tube into a pile of
debris or hold the tube upright while force feeding debris into
the tube. Either action may clog and damage the impeller. If
the appliance starts to vibrate or make abnormal noise, stop
it, unplug the cord, and check for the cause.
Note:
Remove the oscillator nozzle before using the cord wrap
to store the appliance.
Using the Appliance as a
Blower
Emptying the Bag
The appliance used as a blower is intended for residential use
only. Use it outdoors to move debris as needed.
1.
Turn off the appliance and unplug it from the power source.
2.
Empty any debris from the bag.
WARNING
Using the appliance as a blower can throw debris,
possibly causing serious personal injury to you or
bystanders.
• Do not blow hard objects such as nails, bolts, or
rocks.
• Do not operate the blower near bystanders or pets.
• Use extra care when cleaning debris from stairs or
g026692
other tight areas.
Do not store debris in the bag. To clean the bag, turn it
inside out and shake out any excess debris. Once a year,
hand wash the bag in soapy water and allow it to air dry.
• Wear safety goggles or other suitable eye
protection, long pants, and shoes.
5
Service
DANGER
Normal usage of the bag causes it to wear and
deteriorate over time. A worn or deteriorated bag
allows small objects to be thrown through the bag,
possibly injuring you or bystanders.
To best protect your investment and maintain optimal performance
of your Toro equipment, count on Toro genuine parts. When it
comes to reliability, Toro delivers replacement parts designed to
the exact engineering specifications of our equipment. For peace
of mind, insist on Toro genuine parts.
Check the bag frequently. If it is worn or
deteriorated, replace it with a genuine Toro
vacuum bag.
Double-insulated
Appliances
Separating the Vacuum Tube
In a double-insulated appliance, two systems of insulation
are provided instead of grounding. No grounding means
is provided on a double-insulated appliance, nor should a
means for grounding be added to the appliance. Servicing a
double-insulated appliance requires extreme care and knowledge
of the system, and should be done only by the qualified service
personnel at an Authorized Service Dealer. Replacement parts for
a double-insulated appliance must be identical to the parts they
replace. A double-insulated appliance is marked with the words
“Double Insulation” or “Double Insulated.” The symbol (square
may also be marked on the appliance.
within a square)
g227719
Storage
Removing Clogged Debris
from the Impeller
1.
Turn off and unplug the appliance from the power source
and wait for all moving parts to stop.
2.
Remove the vacuum tube then remove the debris from the
impeller blades.
Store the appliance and extension cord indoors, in a cool dry
location, out of reach of children and animals.
Using the Cord Wrap
Install the cord wrap as illustrated in Using the Nozzles (page
5). Wrap your extension cord (cord not provided) around the
appliance, as shown, for ease of storage.
Important: Always unplug the appliance before wrapping
the cord or storing it.
g017267
g227720
3.
Check the impeller for any signs of damage. If it is damaged,
contact an Authorized Service Dealer.
4.
Install the vacuum tube, or, if you want to switch to blower
mode, install the bottom inlet cover. Refer to Converting
from Vacuum to Blower (page 3) or Converting from Blower
to Vacuum (page 3) for more information.
Troubleshooting
If your appliance fails to run when you turn it on, check the
following before contacting an Authorized Service Dealer:
6
•
Ensure that the bottom inlet cover or vacuum tube is locked in
place.
•
Ensure that the power cord is secured in place at the back of
the appliance and that the plug is fully seated.
Notes:
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
