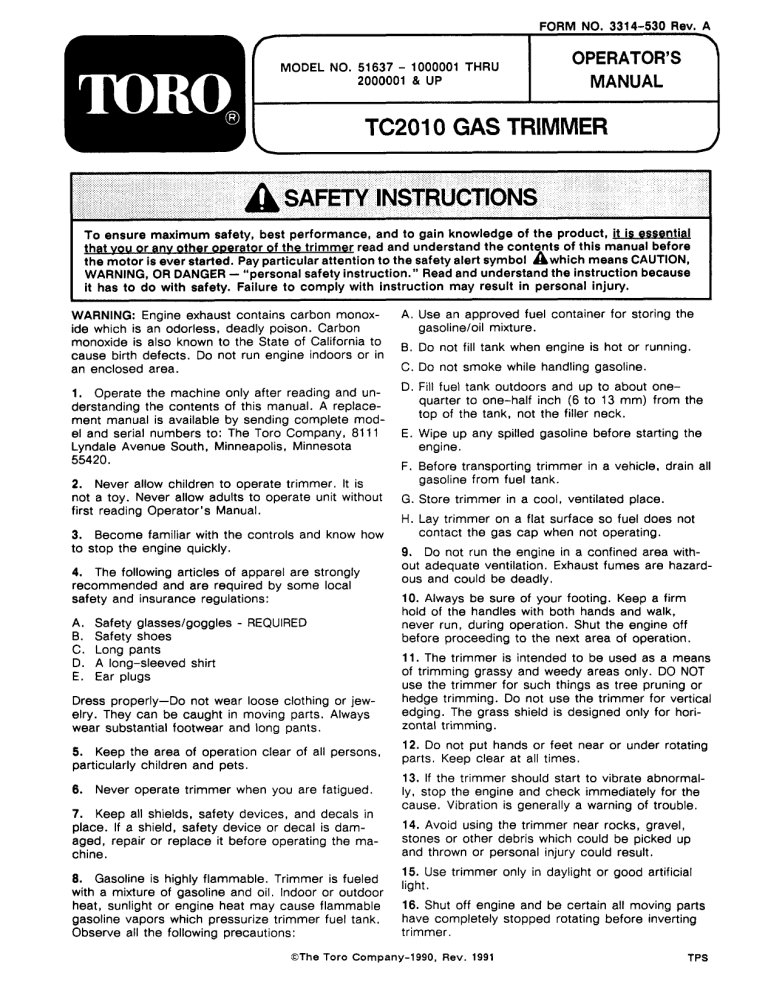

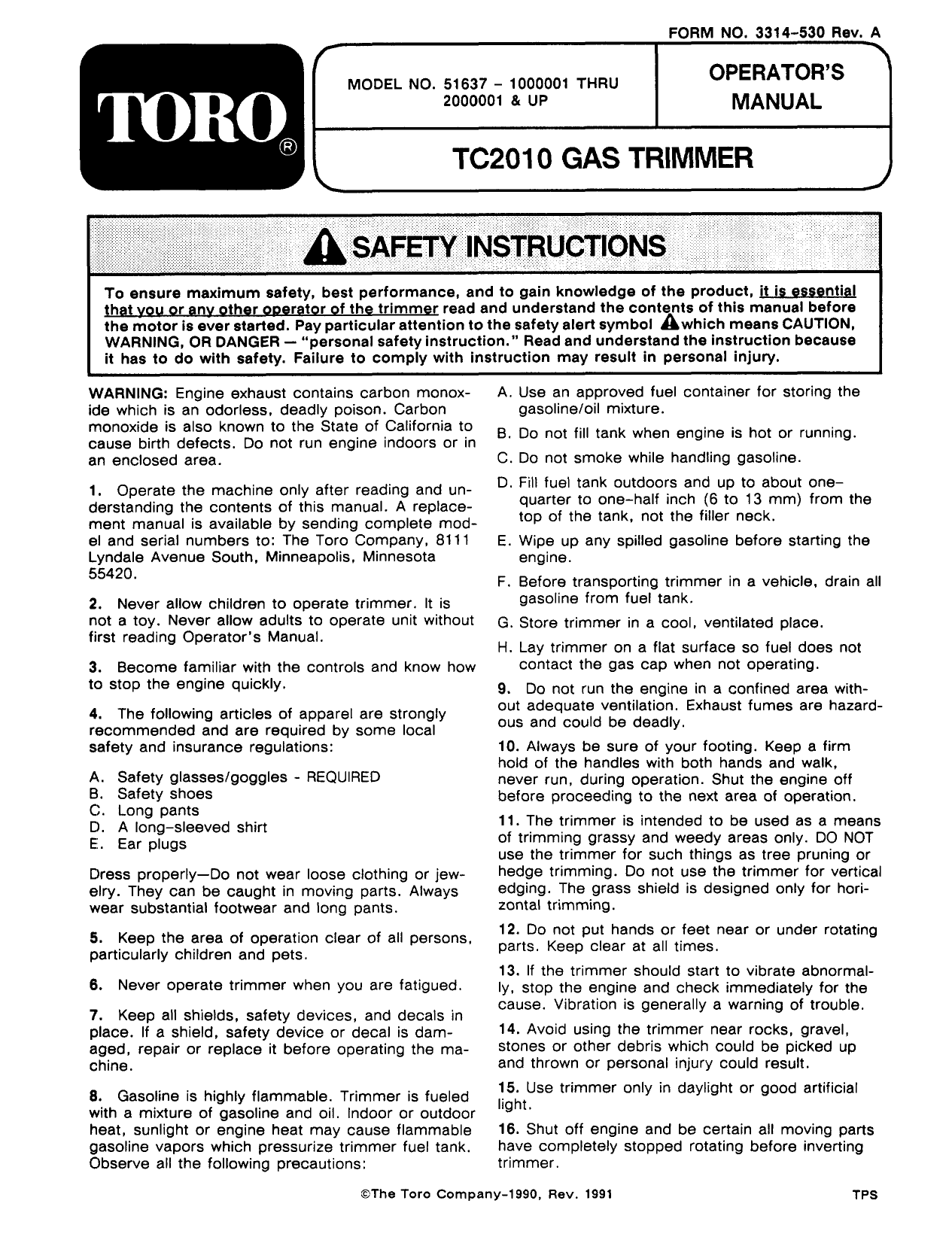

Toro TC 2010 Gas Trimmer Operator's Manual

a
MODEL NO. 51637 —- 1000001 THRU
2000001 & UP
FORM NO. 3314-530 Rev. A
OPERATOR'S >
MANUAL
_
TC2010 GAS TRIMMER
_/
To ensure maximum safety, best performance, and to gain knowledge of the product, it is essential
that vou or any other operator of the trimmer read and understand the contents of this manual before
the motor is ever started. Pay particular attention to the safety alert symbol
WARNING, OR DANGER — “personal safety instruction.” Read and understand the instruction because
it has to do with safety. Failure to comply with instruction may result in personal injury.
which means CAUTION,
WARNING: Engine exhaust contains carbon monox-
ide which is an odorless, deadly poison. Carbon
monoxide is also known to the State of California to
cause birth defects. Do not run engine indoors or in
an enclosed area.
1. Operate the machine only after reading and un-
derstanding the contents of this manual. A replace-
ment manual is available by sending complete mod-
el and serial numbers to: The Toro Company, 8111
Lyndale Avenue South, Minneapolis, Minnesota
55420.
2. Never allow children to operate trimmer. It is
not a toy. Never allow adults to operate unit without
first reading Operator's Manual.
3. Become familiar with the controls and know how
to stop the engine quickly.
4. The following articles of apparel are strongly
recommended and are required by some local
safety and insurance regulations:
A. Safety glasses/goggles - REQUIRED
B. Safety shoes
C. Long pants
D. A long-sleeved shirt
E. Ear plugs
Dress properly—Do not wear loose clothing or jew-
elry. They can be caught in moving parts. Always
wear substantial footwear and long pants.
5. Keep the area of operation clear of all persons,
particularly children and pets.
6. Never operate trimmer when you are fatigued.
7. Keep all shields, safety devices, and decals in
place. If a shield, safety device or decal is dam-
aged, repair or replace it before operating the ma-
chine.
8. Gasoline is highly flammable. Trimmer is fueled
with a mixture of gasoline and oil. Indoor or outdoor
heat, sunlight or engine heat may cause flammable
gasoline vapors which pressurize trimmer fuel tank.
Observe all the following precautions:
©The Toro Company-1990, Rev. 1991
A. Use an approved fuel container for storing the
gasoline/oil mixture.
B. Do not fill tank when engine is hot or running.
©
. Do not smoke while handling gasoline.
D. Fill fuel tank outdoors and up to about one-
quarter to one-half inch (6 to 13 mm) from the
top of the tank, not the filler neck.
E. Wipe up any spilled gasoline before starting the
engine.
F. Before transporting trimmer in a vehicle, drain all
gasoline from fuel tank.
G. Store trimmer in a cool, ventilated place.
H. Lay trimmer on a flat surface so fuel does not
contact the gas cap when not operating.
9. Do not run the engine in a confined area with-
out adequate ventilation. Exhaust fumes are hazard-
ous and could be deadly.
10. Always be sure of your footing. Keep a firm
hold of the handles with both hands and walk,
never run, during operation. Shut the engine off
before proceeding to the next area of operation.
11. The trimmer is intended to be used as a means
of trimming grassy and weedy areas only. DO NOT
use the trimmer for such things as tree pruning or
hedge trimming. Do not use the trimmer for vertical
edging. The grass shield is designed only for hori-
zontal trimming.
12. Do not put hands or feet near or under rotating
parts. Keep clear at all times.
13. If the trimmer should start to vibrate abnormal-
ly, stop the engine and check immediately for the
cause. Vibration is generally a warning of trouble.
14, Avoid using the trimmer near rocks, gravel,
stones or other debris which could be picked up
and thrown or personal injury could result.
15. Use trimmer only in daylight or good artificial
light.
16. Shut off engine and be certain all moving parts
have completely stopped rotating before inverting
trimmer.
TPS
AL SAFETY INSTRUCTIONS
17. Never use wire or metal reinforced string in
place of monofilament cutting line.
18. Wear a long sleeve or other similar arm protec-
tion to avoid possible contact with hot engine sur-
faces.
19. Before servicing or making adjustments to the
machine, stop the engine and pull wire off spark
plug to prevent accidental starting of the engine.
20. Ensure entire machine is in good condition.
Keep all nuts, bolts, and screws properly tightened.
21. If major repairs are ever needed or if assistance
is desired, contact an Authorized Toro Service
Dealer.
22. To reduce potential fire hazard, keep the engine
area free of excessive oil, grass, leaves and accu-
mulations of dirt.
23. If the engine must be running to perform a
maintenance adjustment, keep hands, feet, clothing
and any part of the body away from any moving
parts. Keep everyone away.
24. Never store trimmer in house (living area) or
basement because gasoline and fumes are highly
flammable, explosive and dangerous if inhaled.
Never store trimmer with fuel in fuel tank inside a
building where ignition sources such as an open
flame, sparks, hot water and space heaters and
clothes dryers are present. Allow engine to cool
before storing.
A\ SAFETY DECALS
Safety decals and instructions are easily visible to the operator and are located
near any area of potential danger. Replace any decal that is damaged or lost.
READ YOUR OPERATOR'S MANUAL FOR
OPERATING AND SAFETY INSTRUCTIONS.
TO GET A REPLACEMENT MANUAL, SEND
MODEL AND SERIAL NUMBERS TO: THE
TORO CO., 8111 LYNDALE AVE. S., MPLS. MN
55420. 83-6620
ON DRIVE SHAFT TUBE
(Part No, 83-6620)
AWARNING
AER
A
AA WARNING
HOT
SURFACE
65 2690
ON ENGINE HOUSING
(Part No. 65-2690)
« THROWN DEBRIS CAN SERIOUSLY INJURE EYES AND
CONTACT WITH GUTTER CAN .
/GLASSES.
ALS AWAY FROM CUTTING AREA.
UTTER GUARD IN
* REMAIN AT CONTROLS UNTIL CUTTER STOPS.
* WEAR SHOULDER HARNESS WHEN USING FLEX BLADE.
ON DRIVE SHAFT TUBE
(Part No. 82-6210)
TABLE OF CONTENTS
Page
Assembly Instructions ............. ". ._ 3
Before Operating . 4
Operating Instructions . ...................... 5
Maintenance ............ cn. 7
Replacing Cutting Line ................... 7
Adjusting Carburetor .................... 8
Servicing Muffler . ....................... 9
Replacing Spark Plug
Cooling System Service ..................
Servicing Air Cleaner
Cleaning Trimmer Head
Replacing Fuel Filter
Adjusting Throttle Control ................. 11
Lubricate Flexible Shaft
Preparing Trimmer for Storage
Product Identification . ....................... 13
Toro Service Support ......,.............,.. 13
Accessories .............,................, 13
10 Troubleshooting Chart ....................... 14
10 The Toro Total Coverage Guarantee
ASSEMBLY INSTRUCTIONS
MOUNT CUTTER HEAD (Fig. 1)
1. Remove plastic shipping cap from end of drive
shaft tube to expose flexible shaft.
Note: Hold flexible shaft in drive shaft tube as it
may slide out of tube when cap is removed.
6. Remove the protective tape from line cut-off
knife.
SECURE SUPPORT HANDLE (Fig. 2)
1. Rotate support handle upright and adjust to
comfortable operating position. Tighten handie knob
securely.
Figure 1
1. Retaining clips
2. Drive shaft tube
3. Slotted area
4. Bearing housing
5. Flexible shaft
6. Line cut-off knife
2. Insert flexible shaft into square hole in bearing
housing.
3. Align retaining clips on drive shaft tube with
slotted area in bearing housing.
4. Insert drive shaft tube and flexible shaft into
bearing housing. Tube should slide into bearing
housing until holes in retaining clips line up with
mounting holes in bearing housing.
5. Secure tube and retaining clips to bearing hous-
ing with capscrew and locknut.
OL
2. Handle knob
1. Support handle
Note: Do not remove tape from cutting line before
initial start up.
THROTTLE CONTROL
The throttle control has been factory adjusted to
obtain maximum throttle when the throttle trigger is
fully squeezed. However, readjustment will be nec-
essary during the first few hours of operation due to
slight stretching of the throttle cable. Refer to Ad-
justing Throttle Control, page 11.
BEFORE OPERATING
dren.
DANGER: Gasoline is extremely flammable and explosive under certain conditions. Do not smoke
when handling fuel and keep fuel far away from open flames and sparks. Never buy more than a
30 day supply of gasoline. Store it in an approved container. Keep gasoline out of reach of chil-
Refuel outdoors and only when engine is cold. Do not fill tank full. Fill tank to within 1/4” to
1/2” (6 to 13 mm) from top of tank, not into filler neck. This space is for expansion of fuel. Use
funnel or spout to prevent spilling. Wipe up any spilled gas.
MIX GASOLINE AND OIL — 40:1 RATIO
1. APPROVED MIXTURE—For simplicity and best
engine performance, mix the contents of one
3.2-0unce bottle of Toro “EASY MIX” Two-Cycle
Oil with one gallon of fresh, unleaded regular gaso-
line. Leaded regular gasoline may be used if un-
leaded regular is not available.
Toro Two-Cycle Qil is specially formulated to pro-
vide superior lubrication, make starting easy, and
prolong engine life. If Toro Two-Cycle Oil is not
available, mix one gallon of gasoline and 3.2
ounces of another high grade two-cycle oil that has
the NMMA or BIA-TCW certification printed on the
label.
NEVER USE AUTOMOTIVE OIL (i.e. SAE 30, 10W30
etc.), TWO-CYCLE OIL THAT IS NOT CERTIFIED
NMMA/BIA-TCW, OR THE WRONG MIX RATIO BE-
CAUSE THE ENGINE CAN BE DAMAGED, AND IT
WOULD NOT BE COVERED BY THE TORO WAR-
RANTY.
Toro also recommends that Toro Stabilizer/Condi-
tioner be used regularly in all Toro gasoline pow-
ered products during operation and storage sea-
sons. Toro Stabilizer/Conditioner cleans the engine
during operation and prevents gum-like varnish de-
posits from forming in the engine during periods of
storage.
2. Mixing Gasoline and Oil—Pour correct amount of
two cycle oil into an approved gasoline container
and add a half gallon of gasoline. Install cap on
gasoline container and shake the container to mix
oil and gas thoroughly. Remove cap and add re-
maining amount of gasoline.
IMPORTANT: NEVER USE METHANOL, GASOLINE
CONTAINING METHANOL, GASOHOL CONTAINING
MORE THAN 10% ETHANOL, PREMIUM GASOLINE,
OR WHITE GAS BECAUSE ENGINE FUEL SYSTEM
DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO'S STABI-
LIZER/CONDITIONER OR A SIMILAR PRODUCT.
TORO'S STABILIZER/CONDITIONER IS A PETRO-
LEUM DISTILLATE BASED CONDITIONER/STABILIZ-
ER. TORO DOES NOT RECOMMEND STABILIZERS
WITH AN ALCOHOL BASE SUCH AS ETHANOL,
METHANOL OR ISOPROPYL. ADDITIVES SHOULD
NOT BE USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
NOTE: Do not mix gasoline and oil in the product
fuel tank. Oil that is at room temperature mixes
easier and more thoroughly than cold oil.
40:1 GAS/OIL Mixing Chart
U.S. GALLON
Gasoline Oil
1 gallon 3.2 OZ.
1.5 gallons 4.8 oz.
2 gallons 6.4 oz.
®
Add oil to small
amount of gasoline.
@
Install cap and
shake can to mix.
©
Add remaining
amount of gasoline.
111
Figure 3
OPERATING INSTRUCTIONS
STARTING AND STOPPING (Figs. 4 & 5)
Cold Engine
1. Lay trimmer on a flat surface with engine in up-
right position.
2. Move ignition switch to ON position.
oN NY
Y OR
WD,
371
Figure 4
1. Ignition switch 2. Throttle trigger
3. Move choke lever to the CLOSED position
(to LEFT).
Figure 5
1. Choke lever
2. Primer bulb
3. Recoil starter
4. Fuel tube
5. CLOSED position
6. OPEN position
4. Push the carburetor primer bulb repeatedly until
fuel completely fills the clear fuel tube. Keep push-
ing primer bulb until bubbles in the fuel tube dis-
appear.
Note: Repeated pushing of primer bulb will not
cause over-priming; all excess fuel goes back into
the fuel tank.
5. Leave throttle trigger in idle position (do not
squeeze).
6. Pull recoil starter handle out slowly until starter
ratchets are engaged, then pull handle with short,
sharp strokes until engine starts. Slowly move
choke lever to OPEN position (to RIGHT). If engine
fails to start, repeat all steps above.
Note: Always pull starter rope straight up. Pulling
rope at an angle will force it against the eyelet and
cause it to fray and wear more quickly. Hold the
starter handle when rope retracts. Never allow it to
snap back from extended position. The rope can
fray or snag and the starter can be damaged.
Warm Engine
1. Move ignition switch to “ON” position.
2. Move choke lever to OPEN position (to RIGHT).
3. Leave throttle trigger in idle position.
4. Pull recoil starter handle out slowly until starter
ratchets are engaged, then pull handle with short,
sharp strokes until engine starts. If engine fails .to
start, follow Cold Engine starting procedure.
Note: Use of the primer bulb is not required to start
a warm engine. However, if a combination of a hot
engine and warm outside temperatures induces a
vapor lock condition, use the primer bulb. This will
introduce cool fuel into the carburetor and break
the vapor lock.
To Stop Engine:
1. Release throttle trigger and move ignition switch
n.
The cutter head continues to rotate for a
few seconds after the engine is shut off. Do
not place any part of the body in the cutter
head area until you are sure the cutter head
has stopped.
CENTRIFUGAL CLUTCH
This machine is equipped with a centrifugal clutch
which is designed to engage when engine speed
reaches approximately 3600 — 4200 RPM. This is
the point at which the cutter head begins to rotate.
The clutch will slip to prevent possible engine dam-
age should the cutter head be prevented from ro-
tating. Should this situation occur, STOP ENGINE,
remove obstruction, and resume operation.
ENGINE OPERATION
1. Allow the engine to run at idle speed a few min-
utes to warm up before using.
IMPORTANT: The cutting head should not rotate
at engine idle speed. If cutting head rotates at
idle, decrease idle speed by adjusting idle stop
screw. Refer to Adjusting Carburetor, page 8.
Note: DO NOT have engine under load during this
warm up period.
OPERATING INSTRUCTIONS
2. By squeezing throttle lever, increase engine
RPM to speed required for operation before placing
trimmer under load.
IMPORTANT: Do not use trimmer at very low en-
gine speeds. Cutting efficiency will be poor and
clutch damage could result.
3. ALWAYS reduce engine speed to idle when not
trimming.
4. NEVER operate the engine at high RPM without
line extended.
OPERATING TIPS (Figs. 6 & 7)
Always wear safety goggles or other suitable
eye protection and long pants and shoes while
operating trimmer. Wear a long sleeve shirt or
other similar arm protection to avoid possible
contact with hot muffler surface. Ear protec-
tion must be worn when operating trimmer for
prolonged periods of time (over 2-1/2 hours).
DEBRIS THROWN | BY CUTTING ATTACHMENT
CAN CAUSE SEVERE INJURY TO OPERATOR'S
EYES. ALWAYS WEAR SAFETY GOGGLES OR
SAFETY GLASSES WHILE OPERATING TRIM-
MER.
DO NOT OPERATE TRIMMER WITHOUT CUT-
TING HEAD GUARD IN PLACE.
A
7
Safety goggles/glasses must comply with the
latest ANSI Z 87.1 Standard to ensure ade-
quate eye protection. If you do not have ap-
propriate safety goggles/glasses, you are
expected to procure them before operating
this product. Safety goggles/glasses can be
purchased from a trimmer/brushcutter deal-
er, hardware stores and industrial supply
companies.
ALWAYS WEAR A SHOULDER HARNESS WHEN
USING OPTIONAL NYLON FLEX BLADE AT-
TACHMENT.
1. The trimmer will cut grass, weeds, ivy, and oth-
er similar grasses, and can be used to cut areas
around shrubs, foundation walls, along fences,
sidewalks, and patios.
Be sure to inspect area to be trimmed for any wire,
cord, or string-like matter which could become en-
tangled in the rotating line.
Thrown debris and contact with cutting attach-
ment can cause severe injury to nearby per-
sons or animals.
KEEP ALL PEOPLE AND ANIMALS FAR AWAY
FROM TRIMMER WHILE OPERATING.
AAN
2. Do not force the unit. Remember, it is only the
tip of the cutting line that does the job. Forcing the
line against an object like a foundation wall or fence
could cause the line to break (Fig. 6).
WIE VE NCO RE AN
Figure 6
3. A Get comfortable. Make sure support handle
adjusting knob is tightened securely before operat-
ing trimmer. When trimming you should be standing
in a natural position without having to bend over or
stand on your toes.
Always be sure of your footing when operating
trimmer.
4. Slowly move trimmer in a side-to-side motion
into the area being cut, while at the same time,
holding the unit at the desired height of cut. Always
tip the leading edge of the cutter slightly downward
to gain maximum cutting efficiency (Fig. 7).
OPERATING INSTRUCTIONS
and cut off to the proper length by the cutting knife
attached to the shield.
Figure 7
5. The life of your cutting line is dependent upon
following the previous trimming techniques, as well
as what is being cut, and where the cutting is
done. EXAMPLE: Line will wear faster when run
against a foundation wall as compared to trimming
around a tree. Some line breakage will occur from
moving unit too fast, from entanglement with for-
eign matter, from normal line fatigue, and from at-
tempting to cut thick, stalky weeds in excess of
unit's capability.
LENGTHENING CUTTING LINE (Fig. 8)
Your Toro trimmer is equipped with an automatic
line feeding device so the line can be lengthened
WITHOUT STOPPING THE ENGINE.
Note: Engine speed and noise will increase notice-
ably when line wears down.
1. To lengthen line, firmly tap spool on the ground
while the engine continues to run at normal cutting
RPM (Fig. 8). The line will be fed from the spool
Y
——
/ À
E
Figure 8
Remember to keep the engine speed up while
lengthening the line. Just tap the trimmer on the
ground; do not hold it on the ground.
Note: The spool cap may wear during normal use
of the line advance feature and may require occa-
sional replacement.
Spools prewound with 38 feet of cutting line are
been worn through, cracked or has chips out
of it.
MAINTENANCE
REPLACING CUTTING LINE (Figs. 9-12)
1. To replace cutting line when your factory fur-
nished supply runs out, you may purchase .080”
dia. replacement line to rewind the empty spool or
prewound replacement spools from your Toro retail-
er.
Shut off engine, disconnect wire from spark
plug, and be certain cutter head has complete-
ly stopped rotating before inverting trimmer.
2. To remove empty spool, insert medium blade
screwdriver in one of two window slots on spool
hub and twist screwdriver 1/4 turn. Spool will snap
off.
Note: Use as wide a screwdriver as will fit in slot so
as not to mar cap when twisting.
Figure 9
3. To rewind empty spool, use the following steps:
A. Hook end of line into the keyhole slot on spool.
Wind line around spool in level rows between
spool flanges in the direction shown in Figure 10.
7
MAINTENANCE
Note: Avoid crossover or crisscrossing of line to
insure proper line advancing. Winding line in
wrong direction will cause spool, core and driver
(Fig. 20) to detach from cutter head.
B. Do not wind more than 38 feet of line onto spool
or allow wound line to extend outside of spool.
Only use line .080” dia.
C. Keep line tight on spool by securing in remaining
spool notch (Fig. 10). Leave about 4 inches of
line extended beyond the notch.
WIND LINE THIS DIRECTION
SPOOL CORE
KEY
EYELET
390
Figure 11
Do not use any type of wire or other string-like
substance. Use only Toro approved replace-
ment monofilament line of .080 inch diameter.
Use of improper monofilament line could result
in personal injury.
Note: Before reassembly, be sure to thoroughly
clean drum and powershaft area and visually in-
spect for any damaged or worn parts.
D. The spool and core are keyed and must be
properly aligned when putting spool back on.
Push downward on spool core and rotate it until
“key” feature on the core is aligned with the
eyelet on the drum (Fig. 11). With line still re-
tained in spool notch, thread end of line through
eyelet (Fig. 12). Place spool onto keyed spool
core; the spool notch must be aligned with eye-
let and spool core key (Fig. 12). Push spool in-
ward until you hear it click. Pull line outward
while pushing spool inward to free line from
notch. Unwind no more than six inches of line
from spool. To extend line, pull line out while
pushing spool inward. To retract line, rotate
spool counterclockwise while pushing spool in-
ward.
Figure 12
4. If line should break at the eyelet, remove the
spool completely, refeed the cutting line through
the eyelet and reassemble spool to trimmer follow-
ing instructions in step D.
ADJUSTING CARBURETOR (Fig. 13)
The carburetor air/fuel mixture ratio has been set at
the factory. There are no external air/fuel mixture
adjustments on the carburetor. If power and per-
formance are marginal when operating in higher
altitude areas, bring trimmer to your Authorized
TORO Service Dealer for adjustment.
N
T
Engine must be running to adjust idle speed.
To guard against possible personal injury, keep
hands, feet, and face away from concealed,
moving, or rotating parts.
MAINTENANCE
1. ADJUSTING IDLE SPEED—Start the engine and
let it warm up for approximately 3-5 minutes. Do
not adjust carburetor when engine is cold. Be sure
to perform carburetor adjustment while at a temper-
ature that will be the average outdoor temperature
at which the trimmer will be used. Allow the engine
to idie. if necessary, readjust the idle speed to
keep the engine from stalling (2600-3200
RPM). Turn screw clockwise to increase idle speed,
counterclockwise to decrease idle speed.
Note: When making adjustments, turn adjustment
screw 1/8 turn at a time and wait for engine to re-
spond to change.
IMPORTANT: Cutter head should not rotate at idle
speed.
| SIA
7
|
Е
|
| 366
Figure 13
1. Idle speed screw
SERVICING MUFFLER (Fig. 14 & 15)
If engine speed or power decreases drastically, in-
spect and clean muffler and exhaust port of carbon
deposits to relieve back pressure.
1. Remove two (2) screws securing engine cover
to trimmer (Fig. 14).
2. Remove two (2) nuts securing muffler to engine
(Fig. 15). Remove muffler.
3. Clean any carbon build-up from muffler port
(Fig. 15).
4. Pull recoil starter slowly to rotate the engine
crankshaft until the piston totally covers the exhaust
port (Fig. 15). Clean the exhaust port area by using
a clean, flat piece of hard wood. Remove all loose
particies.
IMPORTANT: Use extreme care when cleaning ex-
haust port. Stay clear of the piston so it will not
be damaged. Piston damage can cause early en-
gine failure.
5. Reinstall muffler to engine.
6. Reinstall engine cover and tighten all fasteners
securely.
| | vI O 2
Figure 14
1. Engine cover 2. Screws (2)
368
Figure 15
1. Muffler
2. Nuts
3. Muffler port
4. Exhaust port
REPLACING SPARK PLUG (Fig. 16)
Use a Champion CJ8 or RCJ8 spark plug or equiva-
lent. Correct air gap is .024"-.028" (0.6-0.7 mm).
Remove plug after every 25 operating hours and
check its condition.
1. Stop engine. Remove spark plug cover by
squeezing sides and sliding off engine cover
(Fig. 16). Pull wire off spark plug.
2. Clean around spark plug and remove plug from
cylinder head.
MAINTENANCE
IMPORTANT: Replace a cracked, fouled or dirty
spark plug. Do not sand blast, scrape or clean
electrodes because engine damage could result
from grit entering cylinder.
369
Figure 16
1. Spark plug cover
3. Set air gap at .024”-.028” (0.6-0.7 mm)
(Fig. 17). Install correctly gapped spark plug and
gasket seal. Tighten plug firmly to 9 ft-Ib
(1.2 Kg-m).
.024”-.025”
(0.6-0.7 mm)
Figure 17
COOLING SYSTEM SERVICE
To avoid overheating and possible engine damage,
visually inspect the cooling air inlet for debris ob-
structing the air passages, muffler, and also the
cooling fins around the cylinder after each use. Re-
move any contamination by using a flat piece of
wood shaped so it will pass between the fins.
SERVICING AIR CLEANER (Fig. 18)
After every 25 hours of operation inspect and clean
air cleaner.
1. Remove one (1) screw securing air cleaner
cover.
2. Carefully remove foam filter.
3. Wash foam filter in a soap and water solution
and thoroughly dry. If filter shows any sign of dam-
age, replace it.
10
Figure 18
1. Air cleaner cover 2. Screw 3. Foam filter
4. Saturate the foam filter with one teaspoon
(5 mi) of SAE 30 oil. Squeeze filter to distribute oil
evenly and to remove excess oil. A damp element
is desirable.
5. Reinstall air cleaner components as shown in
Figure 18.
CLEANING TRIMMER HEAD (Figs. 19 & 20)
Stringy weeds or other debris may become wound
around powershaft. Trimmer head assembly must
be removed and cleaned periodically.
1. Drain gasoline from fuel tank. Remove spark
plug cover by squeezing sides and sliding off en-
gine cover (Fig. 16). Pull wire off spark plug.
2. insert medium blade screwdriver in one of two
window slots on spool hub and twist screwdriver 1/4
turn. Spool will snap off.
Note: Use as wide a screwdriver as will fit in slot so
as not to damage cap when twisting.
Figure 19
3. Hold drum securely and unscrew spool core
counterclockwise. This will unscrew the driver.
MAINTENANCE
4. Remove washer and compression spring, and
slide drum off powershaft.
5. Clean debris from inside and outside of drum
and any wrapped around powershaft.
6. Slide drum onto powershaft, ensuring roll pin
fits into slot on top of drum.
7. Install compression spring, washer, spool core,
and driver onto powershaft.
8. The spool and spool core are keyed. Be sure
they are properly aligned when putting spool back
on. Thread end of line through eyelet, place spool
on keyed core, and push in place until you hear it
click; refer to Replacing Cutting Line, page 7.
< | 7
J > Î /
©
zz E
—_—]]——
Figure 20
1. Spool hub 5. Compression spring
2. Driver 6. Drum
3. Spool core 7. Power shaft assembly
4. Washer 8. Roll pin
REPLACING FUEL FILTER (Fig. 21)
After every 25 hours of operation, remove and re-
place fuel filter.
1. Drain gasoline from fuel tank. Start engine and
let it run at idle speed until it stops and all fuel is
expended.
2. Remove fuel tank cap. Invert trimmer and shake
until end of suction hose is accessible or passes
through fuel tank opening.
| |
LH
©
/
oO
2. Fuel filter
Alternate Method: Insert a clean wire with a hooked
end into tank, hook suction hose above weight, and
carefully pull hose out through fuel tank opening.
N
370
1. Suction hose
3. Replace fuel filter and reinstall suction hose into
tank.
4. Reinstall fuel tank cap.
ADJUSTING THROTTLE CONTROL (Fig. 22)
The throttle control will need to be adjusted periodi-
cally to compensate for slight stretching of the
throttle cable. Initially, check throttle control adjust-
ment every few hours of operation, and every 25
hours thereafter.
1. Squeeze throttie trigger and note travel of
throttle shaft plate.
2. When throttle trigger is in full throttle position
(squeezed against rubber handgrip), throttle plate
should make contact with stop.
3. To adjust, loosen jam nut on fitting and rotate
fitting. Tighten jam nut and recheck throttie opera-
tion.
5
A
=
| 5
Figure 22
1. Throttle shaft plate 3. Fitting
2. Stop 4. Jam nut
11
MAINTENANCE
LUBRICATE FLEXIBLE SHAFT
The flexible drive shaft has been evenly greased at
the factory. After approximately 40 hours of opera-
tion, the flexible drive shaft should be removed
from the drive shaft housing and all surfaces of it
should be evenly greased with No. 2 general pur-
pose lithium base grease. To remove flexible drive
shaft from drive shaft housing, first remove cutter
head assembly by reversing assembling instructions
in Cleaning Trimmer Head, page 10. Then pull flex-
ible drive shaft from drive shaft housing.
PREPARING TRIMMER FOR STORAGE
1. For long term storage, either drain gasoline
from fuel tank or add a fuel stabilizer to the gaso-
line. After fuel is drained, start engine and let it idle
until all fuel is consumed and engine stops. Repeat
the starting procedure two more times to ensure all
gas is removed from the engine. If gasoline is not
drained, gum-like varnish deposits will form and
cause poor engine operation, even starting prob-
lems.
Fuel can be left in gas tank only if a fuel additive,
such as Toro's Stabilizer/Conditioner, is added to
gasoline and run through engine before storing.
Toro’s Stabilizer/Conditioner is a petroleum distillate
based conditioner/stabilizer. Toro does not recom-
mend stabilizers with an alcohol base, such as
ethanol, methanol or isopropyl. Use fuel additive in
recommended quantities as specified on container.
Under normal conditions, all fuel additives remain
effective in fuel for 6-8 months.
12
2. If trimmer is stored with fuel and a fuel additive
in gas tank, lay trimmer on a flat surface so fuel
does not contact gas cap.
DANGER: Never store trimmer in house (living
area) or basement because gasoline and fumes
are highly flammable, explosive and dangerous if
inhaled. Never store trimmmer with fuel in fuel
tank inside a building where ignition sources such
as an open flame, sparks, hot water and space
heaters and clothes dryers are present. Allow en-
gine to cool before storing.
3. Remove dirt and grime from external parts of
trimmer housing. Also clean the cooling system:
reter to Cooling System Service, page 10.
4. Pull wire off spark plug, clean area around plug
so foreign matter cannot fall into cylinder when plug
is removed. Remove plug from cylinder head and
pour one teaspoon (5 ml) of 2 cycle oil into spark
plug hole. Pull recoil starter handle slowly to distrib-
ute oil on inside of cylinder. Reinstall spark plug and
tighten it to 9 ft-lbs (1.2 Kg-m). If torque wrench is
not used, tighten plug firmly. DO NOT INSTALL
WIRE ON SPARK PLUG.
5. Check condition of cutter head; replace line, if
necessary; refer to Replacing Cutting Line,
page 7.
6. Clean the air cleaner if necessary: refer to
Servicing Air Cleaner, page 10.
7. Check and tighten all screws, bolts, nuts and
mating parts. If any part is damaged, repair or re-
place it.
8. Store trimmer in a clean, dry place. Cover trim-
mer to protect it and keep it clean.
A model number and a serial number decal is located on the drive shaft tube. Always refer to specific
PRODUCT IDENTIFICATION
numbers on this decal in correspondence or when replacement parts are needed.
TORO SERVICE SUPPORT
If help—concerning safety, set-up, operation, and maintenance or troubleshooting—is ever needed, con-
tact the local Authorized TORO Service Dealer or Distributor. Refer to the “Yellow Pages” for assistance.
In addition to skilled service technicians, the dealer and distributor have factory approved accessories and
replacement parts. Keep your TORO all TORO. Buy genuine TORO replacement parts and accessories.
ACCESSORIES
PART NO. DESCRIPTION
46-2951 Shoulder Harness
83-4640 Prewound Spool
43-5000 38' Coil — .080” Cutting Line
46-2710 1 ib. — .080” Cutting Line (400 ft.)
83-4390 Accessory Kit (Flex Blade and Harness)
46-2961 Deluxe Harness
46-2691 Clamp and Ring Kit
83-4620 Single Line Bump-Feed Head Assembly
13
TROUBLESHOOTING CHART
not intended as a guide for major overhaul proce-
dures. For problems which are not covered in this
This Troubleshooting Chart is intended as a guide to
assist in correcting some of the common problems
which may occur. Most of the “remedies” can be
performed with common hand tools. The chart is
Troubleshooting Chart or the Operator's Manual,
consult your local Toro Dealer.
Problem Possible Causes Remedy
Engine won't A. No fuel A. Fill fuel tank with gasoline/oil mix: refer to
start or hard Before Operating.
starting B. Stale fuel B. Drain fuel tank. Fill fuel tank with proper fuel.
C. Carburetor maladjusted C. Adjust: refer to Adjusting Carburetor.
D. Faulty spark plug D. Replace spark plug.
E. Improper starting E. Refer to Starting and Stopping Procedures.
F. Clogged air cleaner FF. Refer to Air Cleaner Service.
G. Fuel filter plugged G. Replace fuel filter.
H. Carbon build-up in exhaust system H. Clean exhaust system, refer to Servicing Muffler.
Engine RPM too A. Wrong fuel mix A. Drain fuel tank. Fill with proper gasoline/oil mix. Refer to
slow Before Operating.
B. Clogged air cleaner B. Refer to Air Cleaner Service.
C. Engine overheating C. Refer to Cooling System Service.
D. Carbon build-up in exhaust system D. Clean exhaust system, refer to Servicing Muffler.
E. Trimmer head dirty E. Clean trimmer head; refer to Cleaning Trimmer Head.
F. Throttle cable maladjusted F. Refer to Adjusting Throttle Control.
G. High-altitude operation G. See Authorized Toro Service Dealer for installation of
high-altitude jet in carburetor.
Engine runs A. Contaminated fuel A. Drain fuel tank. Fill fuel tank with fresh fuel mixture. Refer
erratically to Before Operating.
B. Fuel filter plugged B. Replace fuel filter.
Engine stops run- | A. Out of fuel A. Fill fuel tank.
ning B. Fuel filter plugged В. Replace fuel filter.
Lemmer y rates A. Line wound incorrectly A. Rewind cutting line; refer to Replacing Cutting Line.
B. Trimmer head dirty B. Clean trimmer head; refer to Cieaning Trimmer Head.
14
UPL-54796
Consumer
Products
THE TORO TOTAL COVERAGE
GUARANTEE
A Full Two-Year Warranty
(Limited Warranty for Commercial Use)
What Is Covered By This Express Warranty?
The Toro Company promises to repair any TORO Product
used for residential purposes if defective in materials or work-
manship for a period of two years from the date of purchase.
The cost of parts and labor are included, but the customer
pays the transportation costs.
Transportation within a 15 mile radius of the servicing dealer
is covered under this warranty for two-stage snowthrowers,
walk behind debris equipment and all TORO Wheel Horse
riding products. Walk power mowers, single stage
snowthrowers, and other products not specifically covered,
are excluded from the transportation coverage provided by
this warranty.
What Products Are Covered By This Warranty?
This warranty applies to all gasoline powered Consumer
Products (including TORO Wheel Horse riding products).
Wide area walk behind mowers, ProLine 118, and 21” Com-
mercial mowers without blade stop controls are covered by
separate warranty statements.
How About Commercial Use?
TORO Consumer Products used for commercial, institutional
or rental use are covered by a limited warranty for the follow-
ing time periods from the date of purchase:
Products Warranty Period
e 300 through 700 Series Tractors
(except 612-2) and 1600 HMR
Chassis ...... 1 year limited warranty
Engine ....... 2 year limited warranty
eo 21” Commercial Duty Walk Mower
with blade stop controls .... 1 year limited warranty
eo 200 Series Tractors, Rear Engine Riders,
612-2, 1200 HMR
3.0 and 3.5 HP Edgers
Straight Shaft Trimmers,
and Backpack Blowers ..... 90 day limited warranty
e AllOthers ................ 45 day limited warranty
How Do You Get Warranty Service?
Should you feel your TORO product contains a defect in ma-
terial or workmanship, contact the dealer who sold you the
product or any Authorized TORO Service Dealer or TORO
Master Service Dealer. The Yellow Pages of your telephone
directory is a good reference source. The dealer will either
arrange service at his/her dealership or recommend another
Authorized Service Dealer who may be more convenient. You
may need proof of purchase (copy of registration card, sales
receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with the Service Dealer's
analysis of the defect in materials or workmanship or if you
need a referral to a TORO Service Dealer, please feel free to
contact us at the following address:
Toro Customer Service Department
8111 Lyndale Avenue South
Minneapolis, MN 55420
612-888-8801
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the main-
tenance procedures described in the operator's manual. Such
routine maintenance, whether performed by a dealer or by
you, is at your expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except the TORO Starting
Guarantee on GTS Engines. This express warranty does not
cover:
e Cost of regular maintenance service or parts, such as filters,
fuel, lubricants, tune-up parts, blade sharpening, brake and
clutch adjustments.
e Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents,
or lack of proper maintenance.
e Repairs necessary due to improper fuel, contaminants in
the fuel system, or failure to properly prepare the fuel system
prior to any period of non-use over three months.
e Pickup and delivery charges for distances beyond a 15 mile
radius from an Authorized TORO Service Dealer (covered
products only).
All repairs covered by this warranty must be performed by an
Authorized TORO Service Dealer using Toro approved re-
placement parts.
Repair by an Authorized TORO Service Dealer is your sole
remedy under this warranty.
The Toro Company is not liable for indirect, incidental or con-
sequential damages in connection with the use of the TORO
Products covered by this warranty, including any cost or ex-
pense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending com-
pletion of repairs under this warranty. Some states do not allow
exclusions of incidental or consequential damages, so the
above exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
fail, you may contact us at The Toro Company.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should contact their TORO
Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with
your Distributor's service or have difficulty obtaining guarantee information, contact the TORO importer. If all other remedies

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
