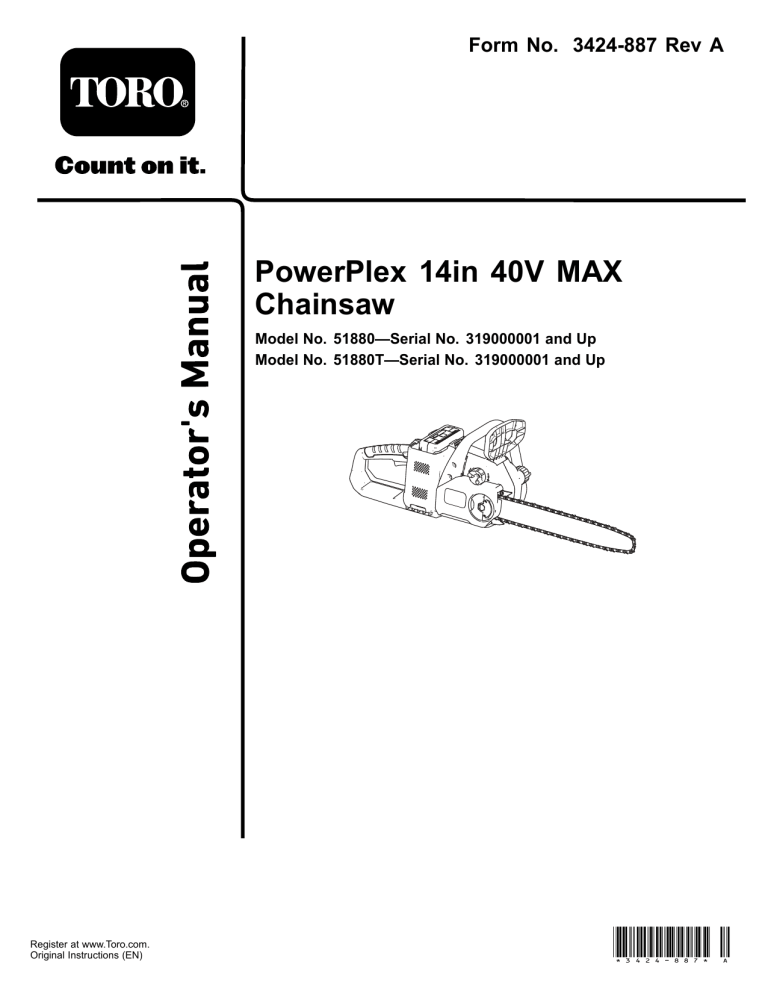

Form No. 3424-887 Rev A
PowerPlex 14in 40V MAX
Chainsaw
Model No. 51880—Serial No. 319000001 and Up
Model No. 51880T—Serial No. 319000001 and Up
Register at www.Toro.com.
Original Instructions (EN)
*3424-887* A
Important: With your mobile device, you can
scan the QR code (if equipped) on the serial
number plate to access warranty, parts, and other
product information.
If you have questions or
problems, call toll free
1-855-340-7689 before
returning this product.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Use of this product may cause exposure
to chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
g263343
Figure 1
1. Model and serial number location
Introduction
This chain saw is designed for cutting tree branches,
logs, and wooden beams of a diameter no longer than
the cutting length of the guide bar. It is to be used
only by adults. It is designed to use only battery pack
Model 88540 (provided with Model 51880) or Model
88541.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a
dealer, complete warranty details, or to register your
product.
Model 51880T does not include a battery pack or
a charger.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in China
All Rights Reserved
Safety
wrench or a key left attached to the power
tool may result in personal injury.
When using electric power tools, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock, and personal injury,
including the following:
E.
Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
F.
Dress properly. Do not wear loose
clothing or jewelry. Tie back and keep
your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry,
or long hair can get caught in moving parts.
G.
If devices are provided for the dust
extraction and collection, ensure that
these are connected and properly
used. Using these devices can reduce
dust-related hazards.
H.
Keep your hands and feet away from the
cutting area.
WARNING
Failure to follow all warnings and instructions
may result in electric shock, fire and/or
serious personal injury.
Read all safety warnings and all instructions.
Save all warnings and instructions for future
reference.
The term “power tool” in all the warnings refers to
your corded power tool or battery-operated (cordless)
power tool.
1.
Power tool use and care
A.
Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gasses, or dust.
Power tools create sparks, which may ignite
the dust or fumes.
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
B.
Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
C.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before adjusting it, changing
accessories on it, or storing it. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
D.
Store idle power tools out of the reach
of children, and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
E.
Store idle appliances indoors. When not
in use, appliances should be stored indoors
in a dry and high or locked-up place, out of
the reach of children.
A.
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
B.
C.
2.
3.
Work area safety
Personal safety
A.
B.
Stay alert, watch what you are doing,
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the influence
of drugs, alcohol, or medication. A
moment of inattention while operating power
tools could result in serious personal injury.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions reduces
personal injuries.
C.
Prevent unintentional starting. Ensure
that the switch is in the OFF position
before you connect the tool to a power
source and/or battery pack, pick it up,
or carry it. Carrying power tools with
your finger on the switch or energizing
power tools that have the switch on invites
accidents.
F.
Maintain power tools. Check for
misalignment or binding of moving
parts, broken parts, and any other
condition that may affect the operation
of the power tools. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
D.
Remove any adjusting key or wrench
before turning the power tool on. A
G.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
3
cutting edges are less likely to bind and are
easier to control.
H.
I.
J.
K.
4.
Use the power tool, accessories,
tool bits, etc. in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Using the power tool for operations different
from those intended could result in a
hazardous situation.
Use extreme caution when cutting brush
and saplings. The slender material may
catch the saw chain and be whipped toward
you or pull you off balance.
H.
Carry the chain saw by the front handle
with the chain saw switched off and
away from your body. When transporting
or storing the chain saw, always use
the guide bar cover. Proper handling of
the chain saw reduces the likelihood of
accidental contact with the moving saw
chain.
Keep guards in place and in working
order.
I.
Use only replacement guide bars and
chains specified by the manufacturer.
Incorrect replacement guide bars and
chains may cause chain breakage and/or
kickback.
Follow the instructions for lubricating,
chain tensioning, and changing
accessories. Improperly tensioned or
lubricated chain may either break or
increase the chance for kickback.
J.
Keep handles dry, clean, and free from
oil and grease. Greasy, oily handles are
slippery, causing loss of control.
K.
Avoid kickback. Kickback may occur when
the nose or tip of the guide bar touches an
object, or when the wood pinches the saw
chain while you are cutting. Tip contact may
cause a sudden reverse reaction, kicking
the guide bar up and back toward you;
pinching the saw chain along the top of the
guide bar may push the guide bar rapidly
back toward you. Either of these reactions
may cause you to lose control of the saw,
which could result in a serious personal
injury. You can avoid kickback by taking
proper precautions as given below:
Follow the manufacturer’s sharpening
and maintenance instructions for the
saw chain. Decreasing the depth gauge
height can lead to increased kickback.
Chain Saw Safety
A.
Hold the power tool by insulated gripping
surfaces only, because the saw chain
may contact hidden wiring or its own
cord. Saw chains contacting a live wire may
make exposed metal parts of the power tool
live and could give you an electric shock.
B.
Wear safety glasses, hearing protection,
and protective equipment for your head,
hands, legs, and feet. Wearing adequate
protective clothing reduces personal injury
by flying debris or accidental contact with
the saw chain.
C.
Cutting trees can be hazardous and
requires expertise. Do not use the chain
saw to fell large trees that have a diameter
greater than the length of the guide bar.
D.
Do not operate a chain saw in a tree.
Operating a chain saw while up in a tree
may result in personal injury.
E.
Always keep proper footing and operate
the chain saw only when standing on a
fixed, secure, and level surface. Slippery
or unstable surfaces such as ladders may
cause a loss of balance or control of the
chain saw.
F.
G.
• Use both hands whenever you
operate the chain saw. Maintain a
firm grip, with thumbs and fingers
encircling the chain saw handles,
with both hands on the saw, and with
your body and arm in position that
allows you to resist kickback forces.
You can control kickback forces if proper
precautions are taken. Do not let go of
the chain saw!
• Do not overreach and do not cut
above shoulder height. This helps
prevent unintended tip contact and
enables better control of the chain saw
in unexpected situations.
5.
Service
Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This ensures that the safety
of the power tool is maintained.
When cutting a limb that is under
tension, be alert for spring back. When
the tension in the wood fiber is released, the
spring loaded limb may strike you and/or
throw the chain saw out of control.
6.
4
Battery Safety
A.
Do not charge the power tool in rain or in
wet locations.
B.
Do not use a battery-operated power tool
in the rain.
C.
Use only the following type and size of
battery(ies): Toro battery Model 88540 or
88541 and battery charger Model 88542.
D.
Remove or disconnect the battery before
servicing, cleaning, or removing material
from the power tool.
E.
Do not dispose of the battery in a fire; the
cell may explode. Check with local codes
for possible special disposal instructions.
F.
Do not open or mutilate the battery.
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
G.
Do not open or mutilate the battery.
Released electrolyte is flammable and can
cause damage if exposed to fire.
H.
Exercise care in handling batteries to
prevent shorting the battery with conducting
materials such as rings, bracelets, and keys.
The battery or conductor may overheat and
cause burns.
I.
Charging time increases if the battery
pack is not charged within the appropriate
temperature range.
SAVE THESE INSTRUCTIONS
5
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
decal136-2469
136-2469
decal136-2473
136-2473
decal136-2470
136-2470
decal136-2475
136-2475
1. Read the Operator’s Manual; wear hearing and eye
protection; do not contact objects with the guide bar tip; tip
contact can cause serious personal injury; always use 2
hands when operating the chain saw.
decal136-2471
136-2471
Model 88540
decal136-2476
136-2476
6
1. The battery pack is
charging.
3. The battery pack is too
warm.
2. The battery pack is fully
charged.
4. Replace the battery pack.
decal136-2539
136–2539
1. Charge the battery where the temperature is between 0°C
and 40°C (32°F and 104°F).
decal138-6699
138-6699
decal136-2533
136-2533
1. Warning—read the Operator’s Manual; keep away from
moving parts; keep all guards and covers in place; wear
eye protection; do not operate in wet conditions.
decal136-2534
136-2534
1. The battery does not
come out of the box fully
charged.
4. Stop—follow these
instructions before first
use.
2. Place the battery in the
battery charger.
5. Read the Operator’s
Manual.
3. Wait until the battery is
fully charged before the
first use.
7
Mounting the Battery
Charger (Optional)
Setup
Note: The battery pack is not fully charged when you
purchase it. Before using the tool for the first time,
refer to Charging the Battery Pack (page 15).
If desired, mount the battery charger securely on a
wall using the wall-mount key holes on the back of
the charger.
Filling the Chain Saw with
Bar and Chain Oil
Mount it indoors (such as a garage or other dry place),
near a power outlet, and out of the reach of children.
Important: Use only bar and chain oil (sold
Refer to Figure 3 for assistance in mounting the
charger.
separately).
Note: Slide and twist the charger over the
1.
Place the chain saw on a level surface.
2.
Clean the area around the oil cap (Figure 2).
appropriately positioned hardware to secure the
charger in place (hardware not included).
Note: Make sure that you do not allow
debris/wood chips to enter the oil tank.
g192110
Figure 2
1. Oil cap
3.
2. Oil window
Remove the cap and pour oil into the chain saw
until the oil fills the window (Figure 2).
Do not fill the chain saw higher than the bottom
of the fill neck.
4.
g194202
Figure 3
Clean up any spilled oil and replace the oil cap.
8
Operation
Product Overview
Before Using the Chain Saw
Before using the chain saw, do the following:
• Check the chain tension; refer to Adjusting the
Chain Tension (page 18).
• Clean and check the chain components for
excessive wear or damage and replace them as
needed; refer to Servicing the Guide Bar, Chain,
and Drive Sprocket (page 18) and Sharpening the
Chain (page 20).
g192115
Figure 4
Left Side of Chain Saw
• Check the oil level; refer to Checking the Oil Level
1. Chain
6. Battery pack
2. Guide bar
7. Trigger lock
3. Oil window
8. Trigger (on rear handle)
4. Oil cap
9. Guide bar cover
and Adding Bar and Chain Oil (page 17).
• Check the chain brake; refer to Checking the
Chain Brake (page 17).
5. Front handle
Starting the Chain Saw
1.
Make sure that the vents on the chain saw
(Figure 6 and Figure 7) are free from dust and
debris.
g192114
Figure 5
Right Side of Chain Saw
1. Chain brake
3. Wing nut
2. Chain tensioning knob
Specifications
Appropriate Temperature Ranges
g197204
Charge the battery at
0°C (32°F) to 40°C (104°F)*
Use products at
-15°C (5°F) to 60°C (140°F)
Store products at
-15°C (5°F) to 60°C (140°F)
Unplug the charger if
Below 0°C (32°F) or above
40°C (104°F)
Figure 6
1. Vent
*Charging time will increase if you do not charge the
battery within this range.
Store the tool, battery pack, and battery charger in an
enclosed clean, dry area.
g197205
Figure 7
1. Vent (inside the battery
cavity)
9
2. Vent
2.
Set the chain saw down on a level surface.
Shutting Off the Chain Saw
3.
Align the tongue of the battery pack with the
battery cavity in the chain saw (Figure 8).
To shut off the chain saw, release the trigger.
Whenever you are not using the saw or are
transporting the saw to or from the work area, move
the chain brake to the STOP position (Figure 9) and
remove the battery.
Cutting with the Chain Saw
WARNING
Operating a chain saw improperly can cause
serious personal injury or death.
g228731
Figure 8
4.
Push the battery pack into the battery cavity until
the battery pack locks into place.
5.
Remove the protective cover from the chain.
6.
Ensure that the chain brake is in the OPERATING
position (Figure 9).
Read and follow all operating instructions
carefully to avoid possible personal injury.
WARNING
Kickback can cause serious or fatal injury to
you.
Always ensure that the chain brake system
is working properly before you operate the
chain saw.
Avoid touching objects to be cut with the tip
of the chain saw.
There are 2 types of kickback:
• A fast upward motion of the chain saw that results
g192111
when the chain at the nose or top of the bar
contacts an object
Figure 9
1. Chain brake (OPERATING
position)
7.
2. Chain brake (STOP
position)
• A fast backward motion of the chain saw that
results when the chain at the nose or top of the bar
is pinched by the object being cut
With 1 hand on the front handle and the other
on the rear handle, press the trigger lock, then
squeeze the trigger (Figure 10).
Figure 11 shows the area of the bar to avoid contacting
an object to prevent kickback.
g026070
Figure 11
g192113
Figure 10
1. Front handle
3. Trigger lock
2. Chain brake
4. Trigger
1.
10
Grip the chain saw with 2 hands, with your left
hand on the front handle and your right hand on
the rear handle as shown in Figure 12.
Pruning a Tree
Note: Keeping your left arm straight with your
elbow locked helps reduce kickback.
WARNING
Cutting higher limbs from a tree off the ground
can put you in an unstable position that could
be unsafe for you while handling a chain saw,
resulting in possible serious personal injury
or death to you or bystanders.
When cutting limbs from a standing tree, use
the following practices:
• Do not climb on limbs or branches with a
chain saw.
• Do not overreach, and cut with both hands
on the chain saw.
• Ensure that all bystanders are away from
the area where branches may fall.
g204033
Figure 12
2.
Stand to the left side of the chain saw and not
in line with the chain, and position yourself for
balanced, stable footing while sawing.
3.
Stand on solid, even ground in front of the wood
to be cut.
4.
While cutting, have the wood near the chain saw
head, at the exposed near end of the guide bar.
You can use the bucking teeth (Figure 13) to add
pressure but it works best with a sharp-toothed
chain.
1.
Grip the chain saw as shown in Figure 12.
2.
While cutting small branches, apply light
pressure to the branch to be cut.
3.
While cutting larger branches, make a shallow
undercut and then complete the cut from the
topside of the branch.
A.
Cut from the underside of the limb about 15
cm (6 inches) from the trunk. Cut a third of
the way through the limb.
B.
Cut 5.0 to 10.0 cm (2 to 4 inches) farther
out on the limb and from above. Cut the
limb until it falls.
C.
Cut about a third of the diameter of the limb
stub from underneath as close to the trunk
as possible.
D.
Cut the limb stub from above so that it
meets the previous cut as close to the trunk
as possible.
g200720
Figure 13
1. Bucking teeth
5.
Press the chain saw lightly against the wood,
allowing the weight of the chain saw to drive the
cutting.
6.
Keep steady pressure on the chain saw
throughout the cut, and release pressure only
near the end of the cut.
Felling a Tree
WARNING
Cutting standing trees requires expertise and
poses hazards.
• Before attempting to cut a big tree, practice
cutting a few branches, limbs, or small logs
to familiarize yourself with the chain saw.
• Do not use this chain saw to fell large trees
with a diameter larger than the length of
the guide bar.
The proper operator stance for felling a tree is shown
in Figure 14.
11
g228707
Figure 16
g195831
Figure 14
1.
Determine the direction that the tree will fall.
Consider the wind direction, if there are heavier
limbs on 1 side of the tree, and the natural tilt
of the tree, if any.
2.
Determine a clear, safe retreat path away from
the danger area; refer to Figure 15.
1. First cut
3. Hinge
2. Second cut
4. Back cut
5.
Make a second cut to form a notch, starting the
cut at least 5 cm (2 inches) above and away
from the first cut (Figure 16).
6.
Make the back cut from the opposite side of the
notch and about 5 cm (2 inches) higher than the
bottom of the notch as shown in Figure 16.
Important: Stop the third cut 2.5 to 5.0 cm
(1 to 2 inches) from the notch to form a hinge
between the cuts (Figure 16), which keeps
the tree from falling in the wrong direction
or twisting as it falls.
Note: As the back cut nears the hinge (Figure
16), the tree should begin to fall.
7.
When the tree begins to fall, remove the chain
saw, shut it off, put it down, and retreat along the
path you determined in step 2.
Important: If the tree begins to fall in an
undesired direction, immediately stop the
cut, shut off the chain saw, put the chain saw
down, and use a wedge to open the cut and
push the tree in the desired direction.
g024800
Figure 15
1. Retreat path
3. Danger area
2. 45 degree angle
3.
Grip the chain saw as shown in (Figure 12).
4.
Make the first cut a third of the way through the
tree diameter on the side where you want the
tree to fall (Figure 16).
Note: Making this cut prevents the chain saw
from being pinched while making the next cut.
12
Limbing a Fallen Tree
1.
Grip the chain saw as shown in Figure 12.
2.
Cut off the smaller limbs from the tree that are
not supporting its weight off the ground.
g194825
Figure 18
3.
g194824
Figure 17
Cut the larger limbs that support the weight of
the tree from the bottom upward so that the
limbs do not pinch the saw blade (Figure 19).
g194822
Figure 19
13
Bucking a Log
• If you are cutting branches from a fallen tree or
cutting a log into lengths, support the log off the
ground (preferably on a sawbuck); refer to Figure
20.
g194820
Figure 20
• If the log is supported on an end, cut from the top.
If the chain saw binds in the cut, do not attempt
to free it by running the motor. Shut off the saw,
then use a wedge to pry open the cut and release
the saw.
• If the log is supported on both ends, start from
g194819
Figure 21
the top and cut about a third of the way through
the log (Figure 20A). Make a second cut from the
underside to meet the first cut (Figure 20B). This
keeps the log from pinching the saw.
• If the log is on a hill, always stand on the uphill
side of the log (Figure 22).
• If the log is supported along its entire length, cut
all the way through the log from the top.
• If the log is supported on both ends but not in the
middle, cut a third of the diameter from the top,
then either cut from the bottom or roll the log over
to meet the first cut (Figure 21).
g024807
Figure 22
1. Direction of slope
14
Removing the Battery Pack
Charging the Battery Pack
1.
Place the chain saw on a flat surface.
Important: Read all safety precautions.
2.
Press down on the latch and remove the battery
pack from the cavity.
Important: Charge the battery pack only in
temperatures that are within the appropriate
range; refer to Specifications (page 9).
Note: At any time, press the battery-charge-indicator
button on the battery pack to display the current
charge (LED indicators).
1.
Make sure that the vents on the battery pack are
clear of any dust and debris.
2.
Line up the cavity in the battery pack (Figure 24)
with the tongue on the charger.
g192109
Figure 23
1. Latch
g228487
Figure 24
1. Battery pack cavity
2. Battery pack terminals
4. Battery-charge-indicator
button
5. LED indicators (current
charge)
3. Battery pack venting areas
3.
15
Make sure that the vents on the battery charger
are clear of any dust and debris.
4.
Installing the Battery Pack
Slide the battery pack into the charger until it is
fully seated (Figure 25).
1.
Set the chain saw down on a level surface.
2.
Align the tongue of the battery pack with the
battery cavity in the chain saw (Figure 26).
g194423
Figure 25
1. Charger venting areas
g192108
Figure 26
3. Right indicator light
2. Left indicator light
3.
5.
To remove the battery pack, slide the battery
backward out of the charger.
6.
Refer to the following table to interpret the LED
indicators on the battery charger.
Left Light
Right Light
Indicates:
Off
Red
Charger is on; no battery
pack inserted
Red
Red
Battery pack is charging
Green
Red
Battery pack is charged
Orange
Red
Battery pack is too warm
Red Blinking
Red
Replace the battery pack
16
Push the battery pack into the battery cavity until
the battery pack locks into place.
Maintenance
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Before each use or daily
Maintenance Procedure
•
•
•
•
Check the oil level and add bar and chain oil if necessary.
Check the chain brake.
Check the chain tension and adjust it if necessary.
Check the chain for sharpness; contact an Authorized Service Dealer to have the
chain sharpened or replaced.
After each battery drain
cycle
• Check the oil level and add bar and chain oil if necessary.
• Check the chain brake.
• Check the chain tension and adjust it if necessary.
Yearly or before storage
• Service the guide bar, chain, and drive sprocket.
• Check the chain for sharpness; contact an Authorized Service Dealer to have the
chain sharpened or replaced.
Checking the Chain Brake
Checking the Oil Level and
Adding Bar and Chain Oil
Service Interval: Before each use or daily
After each battery drain cycle
Service Interval: Before each use or daily
After each battery drain cycle
1.
2.
Place the chain saw on a flat surface and
remove the battery pack; refer to Removing the
Battery Pack (page 15).
1.
Place the chain saw on a flat surface and
remove the battery pack; refer to Removing the
Battery Pack (page 15).
2.
Engage the chain brake by moving the chain
brake forward to the STOP position (Figure 28).
Check the oil level in the window. If you cannot
see oil in the window, add bar and chain oil to
the chain saw (Figure 27).
g192111
Figure 28
g192110
1. Chain brake (OPERATING
position)
Figure 27
1. Oil cap
3.
2. Window
3.
Grip the chain with a gloved hand and attempt
to pull it around the guide bar; the chain should
not move around the guide bar. If it does, take
the chain saw to an Authorized Service Dealer
for repair.
4.
Disengage the chain brake by moving the
chain brake rearward to the OPERATING position
(Figure 28).
5.
Grip the chain with a gloved hand and attempt
to pull it around the guide bar; the chain should
Clean the area around the oil cap (Figure 27).
Note: Make sure that you do not allow
debris/wood chips to enter the oil tank.
4.
Remove the cap and pour oil into the chain saw
until the oil fills the window (Figure 27).
Note: Do not fill the chain saw higher than the
bottom of the fill neck.
5.
2. Chain brake (STOP
position)
Clean up any spilled oil and replace the oil cap.
17
Adjust the chain until the chain touches the
bottom edge of the guide bar, then tighten the
knob an additional 1/8 to 1/4 turn.
move around the guide bar. If it does not, take
the chain saw to an Authorized Service Dealer
for repair.
Adjusting the Chain
Tension
Service Interval: Before each use or daily
After each battery drain cycle
5.
Tighten the wing nut until it is snug and fold the
wing-nut tab (Figure 30).
6.
Check the chain tension; if the chain is loose,
repeat this procedure.
Servicing the Guide Bar,
Chain, and Drive Sprocket
Ensure that the chain is properly tensioned. A loose
chain will shorten the life of the drive sprocket and the
guide bar and may break the chain. An overtightened
chain will overheat the guide bar and chain, causing
rapid wear and possible motor burnout. Also, check
the chain tension after a few cuts. A new chain usually
stretches and requires adjustment after its first use.
Service Interval: Yearly or before storage
DANGER
Contact with the chain saw teeth can cause
serious personal injury.
The chain tension is correct when you are able to use
a gloved hand to pull the chain smoothly around the
guide bar. The chain should remain in contact with
the bottom edge of the guide bar.
• Remove the battery pack before adjusting
or maintaining the chain saw.
• Always wear gloves when adjusting or
maintaining the chain saw.
DANGER
Contact with the chain saw teeth can cause
serious personal injury.
• Remove the battery pack before adjusting
or maintaining the chain saw.
• Always wear gloves when adjusting or
maintaining the chain saw.
1.
Place the chain saw on a level surface and
remove the battery pack; refer to Removing the
Battery Pack (page 15).
2.
Unfold the wing-nut tab and loosen, but do not
remove the wing nut on the cover (Figure 28).
3.
Hold up the tip of the guide bar (Figure 29).
1.
Place the chain saw on a flat surface and
remove the battery pack; refer to Removing the
Battery Pack (page 15).
2.
Unfold the wing-nut tab and remove the wing nut
that secures the cover (Figure 30).
g228710
Figure 30
g192117
Figure 29
4.
Adjust the chain.
• To tighten the chain, turn the chain
tensioning knob clockwise.
• To loosen the chain, turn the chain
tensioning knob counterclockwise
18
1. Chain tensioning knob
3. Wing nut
2. Cover
4. Wing-nut tab
3.
Loosen the chain by turning the chain-tightening
screw counterclockwise (Figure 30).
4.
Separate the chain from the guide bar and set
them aside.
5.
Remove the clip, spacer, and drive sprocket
from the chain saw (Figure 31).
g192116
Figure 31
1. Oil passage
3. Spacer
2. Clip
4. Drive sprocket
6.
Inspect the drive sprocket; if it is excessively
worn or damaged, replace it.
7.
Check the oil passage (Figure 31) for debris and
clean the area if necessary.
8.
Install the drive sprocket, spacer, and clip.
9.
Clean the guide bar and chain; use a wire or a
small flat-head screwdriver to remove dirt and
debris from the groove along the edge of the
guide bar, starting from the sprocket on the front
end and moving rearward.
g192112
Figure 32
If the guide bar or grooves are damaged or the
sprocket on the front end does not rotate freely,
replace the guide bar; if the chain is excessively
worn or damaged, replace it.
10.
Place the chain around the drive sprocket on
the front end of the guide bar, with the cutting
edge of the chain teeth on the top of the bar
facing forward as shown in the diagram on the
side of the chain saw (Figure 32C).
11.
Feed the chain around the guide bar and align
the chain teeth into the groove of the bar.
12.
Position the open loop of the chain (not on the
guide bar) around the drive sprocket on the
chain saw and install the guide bar and attached
chain onto the chain saw as shown in Figure 32.
Important: Ensure that the chain adjusting
stud is inserted into the hole indicated by the
arrow in Figure 32C. You may need to rotate
the chain tensioning knob to fit the stud into
the hole in the guide bar.
19
13.
Install the cover and the wing nut, but do not
fully tighten the wing nut (Figure 32D). Fold the
wing-nut tab.
14.
Adjust the chain tension; refer to Adjusting the
Chain Tension (page 18).
Sharpening the Chain
Storage
Service Interval: Before each use or daily
Important: Store the tool, battery pack, and
Yearly or before storage
charger only in temperatures that are within the
appropriate range; refer to Specifications (page 9).
The chain needs sharpening or replacement when
you must force it onto the wood or it produces smaller
chips than when it was new.
Important: If you are storing the tool for a year
or longer, remove the battery pack from the tool
and charge the battery pack until 2 or 3 LED
indicators turn blue on the battery. Do not store a
fully charged or fully depleted battery. When you
are ready to use the tool again, charge the battery
pack until the left indicator light turns green on
the charger or all 4 LED indicators turn blue on
the battery.
Contact an Authorized Service Dealer to have the
chain sharpened or replaced.
Preparing the Battery Pack
for Recycling
• Clean all foreign material from the product.
Important: Upon removal, cover the terminals of
• Store the tool, battery pack, and battery charger
the battery pack with heavy-duty adhesive tape.
Do not attempt to destroy or disassemble the
battery pack or remove any of its components.
Recycle or properly dispose of lithium-ion battery
packs at a battery recycling facility.
in a well-ventilated place that is inaccessible to
children.
• Keep the tool, battery pack, and battery charger
away from corrosive agents such as garden
chemicals and de-icing salts.
For more information on recycling lithium-ion
battery packs and to locate the battery
recycling facility closest to you, visit
www.Call2Recycle.org (US and Canada only).
If you are located outside of the US and
Canada, please contact your authorized Toro
distributor.
• To reduce the risk of serious personal injury, do
not store the battery pack outside or in vehicles.
• Store the tool, battery pack, and battery charger
in an enclosed clean, dry area.
Service
Should the chain saw need service, take the product
to your Authorized Service Dealer.
20
Troubleshooting
Perform only the steps described in these instructions. All further inspection, maintenance, and repair work
must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the
problem yourself.
Problem
The motor does not run or runs
intermittently.
Possible Cause
Corrective Action
1. The chain brake is engaged.
1. Disengage the chain brake by moving
the chain brake rearward.
2. The battery pack is low on charge.
3. The battery pack is not fully seated.
2. Charge the battery pack.
3. Ensure that the battery pack is inserted
all the way into the housing.
4. Allow the battery pack to cool.
5. Release the trigger, then press the
trigger switch.
6. Remove the cover and clean out any
debris.
4. The battery pack is too hot.
5. The battery pack has exceeded high
amperage limits.
6. There is debris under the cover.
The motor runs, but the chain does not
rotate.
1. The chain is not properly seated on the
drive sprocket.
1. Install the chain and ensure that the
links are properly seated in the drive
sprocket.
The chain brake does not engage.
1. There is a chain brake malfunction.
1. Immediately take the chain saw to a
Authorized Service Dealer.
The chain saw does not properly cut.
1. The chain is not tensioned correctly.
1. Set the proper tension on the chain.
2. The chain is dull.
3. The chain is installed backward.
4. The chain is dry.
2. Replace the chain.
3. Install the chain correctly.
4. Check the oil level.
1. The oil port is plugged.
1. Clean out debris from the oil port.
2. The oil groove in the guide bar is
plugged.
3. The strainer in the oil tank is plugged
(if equipped).
2. Clean out debris in the bar.
The chain oil is not lubricating properly.
3. Clean debris out of the strainer in the
oil tank (if equipped).
The battery pack loses charge quickly.
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
The battery charger is not working.
1. The battery charger is over or under
the appropriate temperature range.
1. Unplug the battery charger and move
it to a place where it is dry and the
temperature is between 0°C (32°F)
and 40°C (104°F).
2. The outlet that the battery charger is
plugged into does not have power.
2. Contact your licensed electrician to
repair the outlet.
1. There is moisture on the leads of the
battery pack.
1. Allow the battery pack to dry or wipe it
dry.
2. The battery pack is not fully installed
into the chain saw.
2. Remove and then replace the battery
pack into the chain saw making sure
that it is fully installed and latched.
The battery pack shows only 3 LED
indicators after only a few seconds of
using a fully charged battery.
1. This is a normal occurrence.
1. Shut off the tool and press the
battery-charge-indicator button or the
remove the battery from the tool to
display the actual battery charge.
All 4 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
The chain saw does not run or run
continuously.
21
Problem
Possible Cause
Corrective Action
All 4 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. The battery pack is over or under the
appropriate temperature range.
1. Move the battery pack to a place
where it is dry and the temperature is
between 0°C (32°F) and 40°C (104°F).
2 LED indicators are blinking on
the battery pack after you press the
battery-charge-indicator button on the
battery pack and the current charge
displays (when the battery pack is not in
use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
2 LED indicators are blinking on the
battery pack after releasing the trigger
(when the battery pack is in use).
1. There is a difference in voltage
between cells in the battery pack.
1. Place the battery on the charger until
it is fully charged.
1 LED indicator is blinking on the battery
pack.
1. The battery pack voltage is low.
1. Place the battery pack on the charger.
It is difficult to remove the battery pack
from the tool.
1. The battery pack/tool is new or there
is corrosion in the battery terminals
and/or the terminals on the tool.
1. Clean the terminals on the battery pack
and the tool. Then apply dielectric
grease to the battery terminals; do not
use any other type of lubricant as it can
damage the terminals.
22
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
Rev A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
