FORM NO. 3314-228
OPERATOR'S
MANUAL
MODEL NO. 51720 - 0000001 & UP
« CORDLESS POWER” STRING TRIMMER

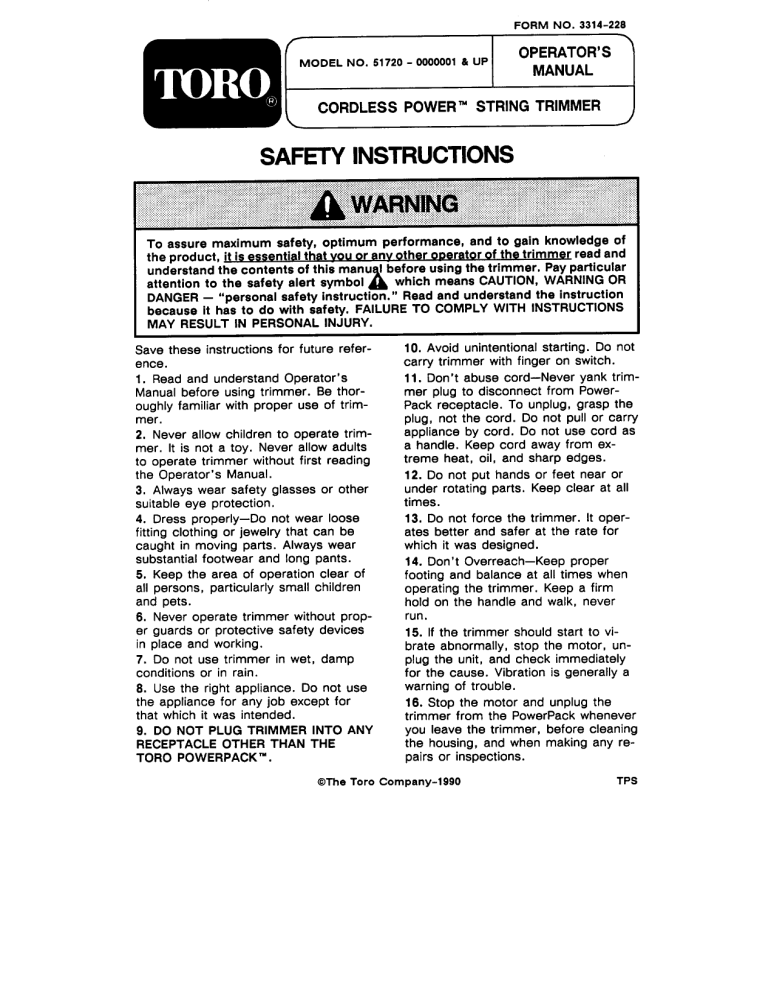

SAFETY INSTRUCTIONS
To assure maximum safety, optimum performance, and to gain knowledge of
the product, iti ntial that r any other rator of the trimmer read and
understand the contents of this manual before using the trimmer. Pay particular
attention to the safety alert symbol which means CAUTION, WARNING OR
DANGER — “personal safety instruction.” Read and understand the instruction
because it has to do with safety. FAILURE TO COMPLY WITH INSTRUCTIONS
MAY RESULT IN PERSONAL INJURY.
Save these instructions for future refer-
ence.
1. Read and understand Operator's
Manual before using trimmer. Be thor-
oughly familiar with proper use of trim-
mer.
2. Never allow children to operate trim-
mer. It is not a toy. Never allow adults
to operate trimmer without first reading
the Operator's Manual.
3. Always wear safety glasses or other
suitable eye protection.
4. Dress properly—Do not wear loose
fitting clothing or jewelry that can be
caught in moving parts. Always wear
substantial footwear and long pants.
5. Keep the area of operation clear of
all persons, particularly small children
and pets.
6. Never operate trimmer without prop-
er guards or protective safety devices
in place and working.
7. Do not use trimmer in wet, damp
conditions or in rain.
8. Use the right appliance. Do not use
the appliance for any job except for
that which it was intended.
9. DO NOT PLUG TRIMMER INTO ANY
RECEPTACLE OTHER THAN THE
TORO POWERPACK™,
10. Avoid unintentional starting. Do not
carry trimmer with finger on switch.
11. Don't abuse cord—Never yank trim-
mer plug to disconnect from Power-
Pack receptacle. To unplug, grasp the
plug, not the cord. Do not pull or carry
appliance by cord. Do not use cord as
a handle. Keep cord away from ex-
treme heat, oil, and sharp edges.
12. Do not put hands or feet near or
under rotating parts. Keep clear at all
times.
13. Do not force the trimmer. It oper-
ates better and safer at the rate for
which it was designed.
14. Don't Overreach—Keep proper
footing and balance at all times when
operating the trimmer. Keep a firm
hold on the handle and walk, never
run.
15. If the trimmer should start to vi-
brate abnormally, stop the motor, un-
plug the unit, and check immediately
for the cause. Vibration is generally a
warning of trouble.
16. Stop the motor and unplug the
trimmer from the PowerPack whenever
you leave the trimmer, before cleaning
the housing, and when making any re-
pairs or inspections.
©The Toro Company-1990 TPS
dA SAFETY INSTRUCTIONS
17. Use only TORO charger and TORO
PowerPack™ with your trimmer.
18. Keep all fasteners tight to be sure
trimmer is in safe working condition.
Follow maintenance instructions pro-
vided in this manual.
19. Do not operate your trimmer after
it has been dropped or damaged. Re-
turn it to your nearest Authorized Toro
Service Dealer for inspection and re-
pair.
18. Maintain Appliance With Care—Keep
cutting head and motor housing clean
for best performance and to reduce
the risk of injury. Follow General Main-
tenance Instructions on page 7.
19. CAUTION—Cutting knife on grass
shield is sharp and care should be tak-
en when cleaning and handling.
20. When not in use, store your trim-
mer in a dry, cool place; high or
locked up out of the reach of chil-
dren.
21. WARNING—To reduce risk of elec-
trical shock or fire, replace charger im-
mediately if case or cord is damaged.
22. This appliance is intended for resi-
dential household use only.
23. Do not attempt to repair trimmer.
Have repairs made by your local Au-
thorized Toro Service Dealer. Use only
identical TORO replacement parts.
4) SAFETY DECALS
Safety decals and instructions are easily visible to the operator and are lo-
cated near any area of potential danger. Replace any decal that is damaged.
PACK MODEL NUMBER 51710.
(12 VOLTS D.C. USE ONLY WITH TORO BATTERY
CAUTION: EYE PROTECTION SHOULD BE
WORN BY THE OPERATOR OF THIS UNIT. SEE OPERATORS
MANUAL FOR SAFETY AND OPERATING INSTRUCTIONS.
A WARNING: KEEP HANDS, FEET, AND FACE
CLEAR OF ROTATING FILAMENT LINE. WHEN SERVICING
USE ONLY IDENTICAL REPLACEMENT PARTS.
USE ONLY .050" NYLON
MONOFILAMENT CUTTING LINE.
J HE TORO COMPANY, MOUND, MN 55364 U.S.A.
MFD. UNDER
U.S. PATENT NO.4134204, AND
4524515
MODEL NUMBER
51720
SERIAL NUMBER
ON METAL TUBING
ASSEMBLY INSTRUCTIONS
CONNECTING TRIMMER TO POWER-
PACK (Fig. 1)
1. Insert trimmer plug into Toro Power-
Pack™ receptacle. Make sure the plug
is all the way in the receptacle before
beginning operation,
RECEPTACLE
Figure 1
CUTTING LINE (Figs. 2 & 3)
NOTE: The cutting line for your trim-
mer is a special monofilament line.
Your trimmer comes complete with a
12 foot supply of this line already
wound onto the spool.
1. To avoid tangling line during ship-
ment, the tip of the monofilament line
has been taped to the head assembly.
The tape must be removed before op-
eration (Fig. 2).
MONOFILAMENT TAPE
LINE
Figure 2
2. After each use, either retape or
loop the line through the eyelet to pre-
vent unraveling (Fig. 3).
Figure 3
OPERATING INSTRUCTIONS
Always wear safety glasses or oth-
er suitable eye protection and
long pants while operating trim-
mer.
1. Inspect area to be trimmed for any
wire, cord or string-like matter which
could become entangled in the rotating
line.
2. Hold the assist handle with one hand
while operating the on/off switch bar
with the other hand.
3. To turn the trimmer on, squeeze the
switch bar on handle (Fig. 4). The
switch bar must be depressed for the
trimmer to run.
Figure 4
OPERATING INSTRUCTIONS
4. It is possible under extreme use
conditions to trip the circuit breaker in
the PowerPack™. If this occurs, allow
the tool to rest for a few minutes.
Then reset the circuit breaker by push-
ing the button on the side of the Pow-
erPack and continue. If the circuit
breaker opens immediately, the system
should be inspected by an Authorized
Toro Electric Service Dealer.
BUTTON
Figure 5
5. To turn the trimmer off, release the
switch bar. The trimmer will stop sec-
onds after switch is released.
Do not invert trimmer until cutting
head has completely stopped ro-
tating and trimmer has been un-
plugged from PowerPack.
TIPS FOR BEST TRIMMING RESULTS
Your trimmer will cut grass and small
weeds in difficult and hard to reach
places. However, you will experience
some line breakages during your first
few uses. As you learn the trimming
techniques, you will be able to cut ar-
eas around trees, shrubs, foundation
walls, along fences, sidewalks, patios,
4
etc., With minimal line wear or break-
age.
1. Hold the cutting head parallel to the
ground, and the cutting head will be at
the correct angle with the grass to be
trimmed.
2. DO NOT FORCE THE UNIT. Allow
the very tip of the nylon line to do the
cutting (especially along walls)
(Fig. 6). Cutting with more than the tip
will reduce cutting efficiency and over-
load the motor.
Figure 6
The tip of the cutting line will wear dur-
ing use and cause a reduction in the
cutting swath. If the line is not ad-
vanced occasionally, it will wear down
to the drum eyelet. When the trimmer
is stopped, the line tends to relax and
may retract into the drum. Should this
occur, unplug the PowerPack and be
sure to replace the cutting line in the
proper position before restarting the
trimmer or the line may tangle around
the drum.
3. Grass over 8 inches tall should be
cut by working from the top to the bot-
tom in small increments to avoid pre-
mature line wear or motor drag.
4. Whenever possible, cut to your left.
When cutting to the left, the unit's cut-
ting efficiency is somewhat better since
the line is contacting the grass as soon
as it leaves the guard, and the clip-
pings are moving away from the opera-
tor.
5. Slowly move the trimmer into and
out of the area being cut, maintaining
trimmer at desired cutting height. This
can be either a forward-backward or
side-to-side motion (Figs. 7 & 8).
Maintain top speed for best cutting.
OPERATING INSTRUCTIONS
4 =
Vin LVL LAMA OD HAY
Figure 7
Forward-backward cutting motion
>
EEE A
Figure 8
Side-to-side cutting motion
6. Trim only when grass and weeds
are dry.
7. The life of your cutting line is de-
pendent upon following the previously
stated trimming techniques, as well as
what is being cut, and where the cut-
ting is being done. For example, line
will wear faster when trimming against
a foundation wall as opposed to trim-
ming around a tree. Some line break-
age will occur from moving unit too
fast, from entanglement with foreign
matter, from normal line fatigue, and
from attempting to cut thick, stalky
weeds in excess of unit's capability. As
cutting line wears, for best perform-
ance, lengthen as indicated in Length-
ening Cutting Line procedure.
8. Never drag the trimmer spool cap
on the ground while trimming. This
causes unnecessary battery drain and
spool cap wear (Fig. 9).
Figure 9
LENGTHENING CUTTING LINE
(Fig. 10)
1. To lengthen line, firmly tap spool on
the ground while the motor continues
to run. The line will be fed from the
spool and cut off to the proper length
by the cutting knife attached to the
shield.
Remember to keep the trimmer running
while lengthening the line. Just tap the
trimmer on the ground; do not hold it
on the ground. After the tap and the
line has fed out, wait until you hear the
line being cut to the proper length be-
fore continuing to trim.
Figure 10
OPERATING INSTRUCTIONS
Note: To help prevent line tangle, tap
once only to lengthen line. If additional
line is required, wait a few seconds
before retapping trimmer head. Do not
allow line to wear too short. Keep line
length at 9" diameter as much as pos-
sible.
2. Lengthen the line only when line has
been shortened by wear. Unnecessary
lengthening will waste line.
Note: The spool cap may wear during
normal use of the line advance feature
and may require occasional replace-
ment. Replacements are available
through your local Toro retailer.
For optimum performance, use
only TORO .050” nylon monofila-
ment cutting line. The trimmer
will not perform the way it is de-
signed to if another weight of cut-
ting line is used.
REPLACING CUTTING LINE
Replacement line or prewound replace-
ment spools can be purchased from
your local Toro retailer. The cutting line
used by TORO is specially formulated
for use on your trimmer. Other line
may not provide the same high quality
performance.
Always be sure cutting head has
completely stopped rotating and
trimmer is unplugged from Power-
Pack™ before inverting it.
1. To remove empty spool, insert wid-
est possible blade screwdriver snugly
into one of the two window slots on the
spool hub and twist screwdriver 1/4
turn (Fig. 11). Spool will snap off.
6
Figure 11
2. To rewind empty spool, follow these
steps:
A. Hook one end of line into groove on
spool, allowing no more than 1/8”
to protrude. Wind line in direction of
arrows on spool in level rows be-
tween spool flanges as shown in
Figure 12.
Note: Trimmer will not function
properly if line is wound in the
wrong direction.
B. Do not wind more than 12 feet of
line onto spool. Do not use line over
.050” diameter.
1/8" Max WIND LINE
Figure 12
C. Keep line tight on spool by making a
hook in the line and secure in
groove (Fig. 13).
Figure 13
OPERATING INSTRUCTIONS
Note: Before reassembly, be sure
to thoroughly clean out drum area
and visually inspect for any dam-
aged or worn parts.
D. The spool and the core are keyed.
Be sure they are properly aligned
when putting spool back on
(Fig. 14). Thread end of line
through eyelet, place spool on
keyed core, and push in place until
you hear it click (Figs. 14 & 15).
Pull line free from groove in spool.
Unwind no more than 3 inches from
spool.
3. If line should tangle or break at eye-
let, refeed cutting line through eyelet
by pushing spool in as far as it will go
and threading line back through eyelet.
Or you may remove spool completely,
refeed the line through the eyelet, and
reassemble spool to trimmer.
Figure 15
GENERAL MAINTENANCE
Always be sure your trimmer is
stopped and unplugged from Pow-
erPack™ before attempting any
maintenance.
1. To keep the exterior clean, just wipe
it off with a damp cloth—never hose it
down.
2. Wipe or scrape clean the drum and
spool area anytime there is an accu-
mulation of dirt or cuttings.
3. Check and tighten all fasteners. If
any part is damaged, repair or replace
it.
4. Air exhaust vent is located on un-
derside of shield (Fig. 16). Scrape
vent clean regularly.
5. Wipe debris from air intake holes in
motor housing (Fig. 16).
IMPORTANT: Keeping intake and ex-
haust vents free of grass and debris
prevents motor overheating and possi-
ble failure.
Air Exhaust
Vent
Air Intake
Holes
Figure 16
6. Make sure the PowerPack is un-
plugged from trimmer before storing.
7. Store trimmer in a cool, dry place.
Do not store trimmer in direct sunlight
or near a furnace.
8. Any other servicing should be per-
formed by an authorized Toro Electric
Service Dealer.
PRODUCT IDENTIFICATION
A model and serial number decal is located on the lower portion of the chrome
tube. Always refer to specific numbers on this decal in correspondence or when
replacement parts are needed.
TORO SERVICE SUPPORT
If help—concerning safety, set-up, operation, maintenance, or troubleshooting—is
ever needed, contact the local Authorized Toro Electric Service Dealer or Distribu-
tor. Refer to the “Yellow Pages” for assistance. In addition to skilled service techni-
cians, the dealer and distributor have factory approved accessories and replace-
ment parts. Keep your Toro all TORO. Buy genuine TORO replacement parts and
accessories.
ee
ces
=
este
anche
Sa
EF
2 The Toro Promise |
. Cordless Power Products |
2 A Full One Year Residential Use Warranty
The Toro Company warrants this TORO product for one year against de- о
72. fects in material or workmanship. To receive a replacement or repair, at %
Toro's option, just return the complete unit, postage prepaid, to the seller E
# or any TORO Electric Service Dealer or the TORO Service Center, 5300
© Shoreline Blvd., Mound, MN 55364, along with proof of purchase. This fa
=. warranty covers product defects only. It does not cover incidental or con-
ER
Ce
nl
ar
Sa
o
seguential damages. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation may not me
ee
SE
E
ge
a
apply to you. This warranty gives you specific rights, and you may have es
other rights which vary from state to state.
se “e us peace ле e o Ne и Meda ее; я x. e *, x es ce 2. я залитые ST Se en ой A en ee NOA a tete ace
Cs A ЛВ
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
