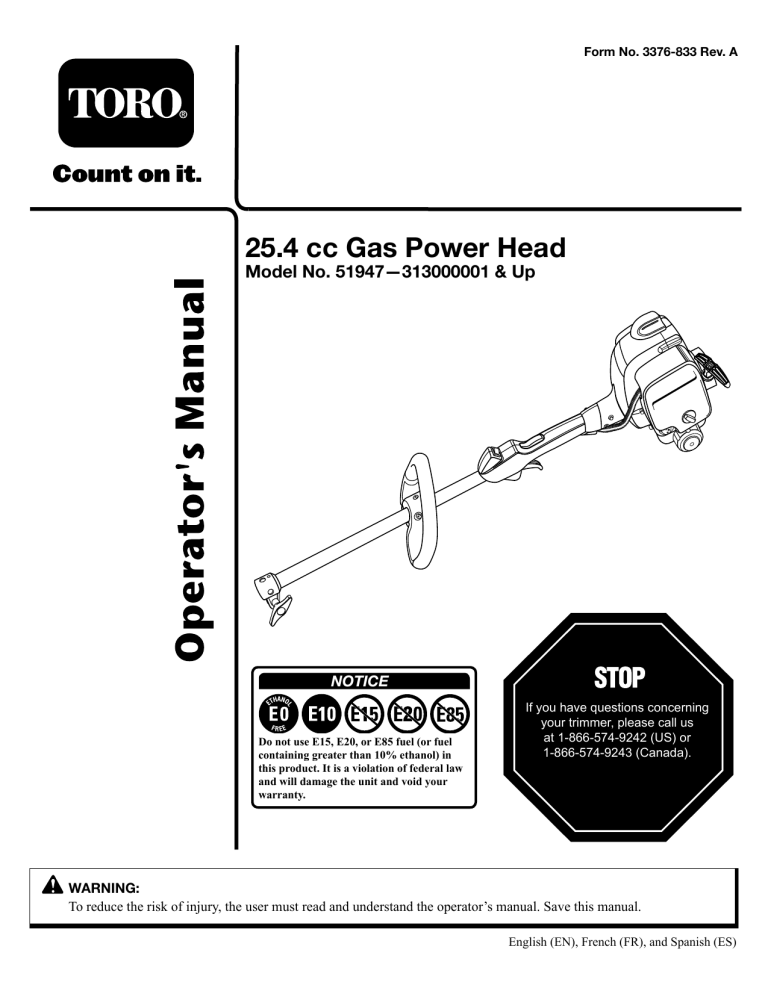

Form No. 3376-833 Rev. A
25.4 cc Gas Power Head
Model No. 51947—313000001 & Up
NOTICE
Do not use E15, E20, or E85 fuel (or fuel
containing greater than 10% ethanol) in
this product. It is a violation of federal law
and will damage the unit and void your
warranty.
If you have questions concerning
your trimmer, please call us
at 1-866-574-9242 (US) or
1-866-574-9243 (Canada).
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual. Save this manual.
English (EN), French (FR), and Spanish (ES)
STOP
READ THIS INFORMATION
Before you use your new trimmer, read the following helpful hints to
get you started.
Fueling
WARNING:
Gasoline and its vapors are highly flammable and
explosive. To prevent serious personal injury and
property damage, handle it with care. Keep away
from ignition sources and open flames, handle
outdoors only, do not smoke and wipe up spills
immediately.
1. Obtain a clean container that is approved for use with gasoline.
2. Mix all of the 2-cycle oil provided with 1 US gallon of 87-octane, unleaded gasoline (50:1).
3. Fill the trimmer’s gas tank carefully.
Cold Starting vs. Warm Starting
When you restart the trimmer and you are not sure whether the engine is still warm, set the choke
lever to RUN and pull the starter cord. If the engine does not start within 5 pulls, refer to “To Start a
Cold Engine” later in this manual.
Flooded Engine
Will the engine start? If not, it may be flooded. Relax, this is easy to correct. Set the choke lever to
RUN. Squeeze the trigger and pull the starter cord quickly for 10 to 12 pulls.
If the engine does not start, refer to “Troubleshooting” later in this manual or call toll-free at
1-866-574-9242 (US) or 1-866-574-9243 (Canada).
CALL
2 (US) or
1-866-574-924 nada)
3 (Ca
1-866-574-924
For questions concerning your trimmers,
call us toll free at 1-866-574-9242 (US) or
1-866-574-9243 (Canada).
California Proposition 65
WARNING: This product, its exhaust, and other substances that may become airborne
from its use may contain chemicals, including lead, known to the State of California to cause cancer,
birth defects, or other reproductive harm. Wash hands after handling.
2
Table of Contents
Introduction....................................................................................................................................................................................4
General Safety Rules.................................................................................................................................................................. 5-6
Specific Safety Rules.....................................................................................................................................................................6
Symbols.........................................................................................................................................................................................7
Product Labels...............................................................................................................................................................................8
Features..........................................................................................................................................................................................9
Product Specifications............................................................................................................................................................9
Assembly................................................................................................................................................................................10-11
Unpacking.............................................................................................................................................................................10
Packing List..........................................................................................................................................................................10
Connecting the Attachment to the Upper Shaft....................................................................................................................10
Removing the Attachment from the Upper Shaft.................................................................................................................11
Attaching the Front Handle..................................................................................................................................................11
Operation................................................................................................................................................................................ 12-14
Applications..........................................................................................................................................................................12
Fueling and Refueling the Power Head................................................................................................................................12
Oxygenated Fuels ................................................................................................................................................................12
Operating the Power Head....................................................................................................................................................13
Blade Thrust .........................................................................................................................................................................13
Starting the Product..............................................................................................................................................................14
Stopping the Product.............................................................................................................................................................14
Maintenance........................................................................................................................................................................... 15-18
General Maintenance............................................................................................................................................................15
Cleaning the Product.............................................................................................................................................................15
Servicing the Product............................................................................................................................................................15
Checking the Fuel Cap, Tank, and Lines..............................................................................................................................15
Cleaning the Air Filter..........................................................................................................................................................15
Replacing the Spark Arrestor................................................................................................................................................16
Replacing the Spark Plug......................................................................................................................................................16
Idle Speed Adjustment..........................................................................................................................................................17
Storing the Product...............................................................................................................................................................17
Transporting the Product......................................................................................................................................................17
High Altitude Engine Operation...........................................................................................................................................18
Maintenance Schedule..........................................................................................................................................................18
Troubleshooting...........................................................................................................................................................................19
Warranty.......................................................................................................................................................................................20
Table of Contents
3
Introduction
Thank you for purchasing a Toro product.
We would like for you to be completely satisfied with your new product, so feel free to contact an authorized service dealer
for help with service, genuine Toro parts, or other information you may require.
Whenever you contact an authorized service dealer, always know the model and serial numbers of the product. These numbers will help the service representative provide exact information about your specific product. You will find the model and
serial number decal located on the motor housing.
For your convenience, write the product model and serial numbers in the space below.
Model No.
Serial No.
Data Label
Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you
and others avoid personal injury and damage to the product. Although Toro designs, produces, and markets safe, state-of-theart products, you are responsible for using the product properly and safely. You are also responsible for training persons you
allow to use the product about safe operation.
The Toro warning system in this manual identifies potential hazards and has special safety messages that help you and others
avoid personal injury, even death. DANGER, WARNING, and CAUTION are signal words that identify the level of hazard.
However, regardless of the hazard, be extremely careful. Two other words, “Important” and “Note,” highlight information.
4
Introduction
General Safety Rules
WARNING:
Read and understand all instructions. Failure to follow all instructions may result in electric shock, fire
and/or serious personal injury.
read all instructions
 For safe operation, read and understand all instructions
before using this product. Follow all safety instructions.
Failure to follow all safety instructions listed below, can
result in serious personal injury.
 Do not allow children or untrained individuals to use this
unit.
 Do not start or operate the engine in a confined space,
building, near open windows, or in other unventilated
space where dangerous carbon monoxide fumes can collect. Carbon monoxide, a colorless, odorless, and extremely dangerous gas, can cause unconsciousness or death.
 Clear the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or loose string
which can be thrown or become entangled in the cutting
line or blade.
 Always wear eye protection with side shields marked to
comply with ANSI Z87.1 along with hearing protection
when operating this equipment.
 Wear heavy, long pants, long sleeves, boots, and gloves.
Do not wear loose fitting clothing, short pants, sandals,
or go barefoot. Do not wear jewelry of any kind.
 Heavy protective clothing may increase operator fatigue,
which could lead to heat stroke. During weather that is
hot and humid, heavy work should be scheduled for early
morning or late afternoon hours when temperatures are
cooler.
 Product users on United States Forest Service land, and
in some states, must comply with fire prevention regulations. This product is equipped with a spark arrestor;
however, other user requirements may apply. Check with
your federal, state, or local authorities.
 Never operate this unit on the operator’s left side.
 Secure long hair above shoulder level to prevent entanglement in moving parts.
 Keep all bystanders, children, and pets at least
50 ft. (15 m) away. Bystanders should be encouraged to
wear eye protection. If you are approached, stop the engine and cutting attachment. In the case of bladed units,
there is the added risk of injury to bystanders from being
struck with the moving blade in the event of a blade
thrust or other unexpected reaction of the saw.
 Do not operate this unit when you are tired, ill, upset, or
under the influence of alcohol, drugs, or medication.
 Do not operate in poor lighting.
 Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot
surfaces.
Safety Rules
 Do not use on a ladder or unstable support. Stable footing on a solid surface enables better control of the unit in
unexpected situations.
 Keep all parts of your body away from any moving part.
 To avoid hot surfaces, never operate the unit with the
bottom of the engine above waist level.
 Do not touch area around the muffler or cylinder of the
unit, these parts get hot from operation. Contact with hot
surfaces could result in possible serious personal injury.
 Always stop the engine and remove the spark plug wire
before making any adjustments or repairs except for
carburetor adjustments.
 Inspect the unit before each use for loose fasteners, fuel
leaks, etc. Replace any damaged parts before use.
 Never use blades, flailing devices, wire, or rope on trimmer attachment. Never use flailing devices, wire, or rope
on any attachment.
 The cutting attachment should never rotate at idle during
normal use. The cutting attachment may rotate at idle
during carburetor adjustments.
 It has been reported that vibrations from hand-held
tools may contribute to a condition called Raynaud’s
Syndrome in certain individuals. Symptoms may include
tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors,
exposure to cold and dampness, diet, smoking, and work
practices are all thought to contribute to the development
of these symptoms. It is presently unknown what, if any,
vibrations or extent of exposure may contribute to the
condition. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
a) Keep your body warm in cold weather. When operating the unit wear gloves to keep hands and wrists
warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome.
b) After each period of operation, exercise to increase
blood circulation.
c) Take frequent work breaks. Limit the amount of
exposure per day.
d) Keep the tool well maintained, fasteners tightened,
and worn parts replaced.
If you experience any of the symptoms of this condition, immediately discontinue use and see your physician
about these symptoms.
 Mix and store fuel in a container approved for gasoline.

 Mix fuel outdoors where there are no sparks or flames.
Wipe up any fuel spillage. Move 30 ft. (9 m) away from
refueling site before starting engine. Slowly remove the fuel
cap after stopping engine. Do not smoke when refueling.
5
 Stop the engine and allow to cool before refueling or
storing the unit.
 Allow the engine to cool; empty the fuel tank into a container approved for fuel and secure the unit from moving
before transporting in a vehicle.
 Wear your protective equipment and observe all safety
instructions. For units equipped with a clutch, be sure the
cutting attachment stops turning when the engine idles.
When the unit is turned off make sure the cutting attachment has stopped before the unit is set down.
Specific Safety Rules
 This product is intended for infrequent use by homeowners and other occasional users for such general applications as trimming light and heavy vegetation, etc. It is
not intended for prolonged use. Prolonged periods of
operation can cause circulatory problems in the user’s
hands due to vibration. For such use, it may be appropriate to use a product having an anti-vibration feature.
Specific Safety Rules for Trimmer Use
 Inspect before use. Replace damaged parts. Make sure
fasteners are in place and secure. Check for fuel leaks.
 Replace string head if cracked, chipped, or damaged in
any way. Be sure the string head or blade is properly installed and securely fastened. Failure to do so can cause
serious injury.
 Make sure all guards, straps, deflectors, and handles are
properly and securely attached.
 Use only the manufacturer’s replacement line in the
cutting head. Do not use any other cutting attachment.
To install any other brand of replacement line or cutting
head to this string trimmer can result in serious personal
injury. Never use, for example, wire or wire-rope, which
can break off and become a dangerous projectile.
 Never operate unit without the grass deflector in place
and in good condition.
 Maintain a firm grip on both handles while trimming.
Keep string head below waist level. Never cut with the
string head located over 30 in. or more above the ground.
Specific Safety Rules for Brushcutter
and Blade Use
 Brushcutter blades coast after throttle trigger is released
or engine is stopped. Keep the rotating blade in thicker
weeds or pulpy stalks until the blade completely stops.
 Do not operate the brushcutter unless the brushcutter
guard is firmly secured in place and in good condition.
 Use heavy gloves when operating the brushcutter and
when installing or removing blades.
 Always stop the engine and remove the spark plug wire
before attempting to remove any obstruction caught or
jammed in the blade or before removing and installing
the blade.
 Do not attempt to touch or stop the blade when it is rotating.
 A coasting blade can cause injury while it continues
to spin after the engine is stopped or throttle trigger
released. Maintain proper control until the blade has
completely stopped rotating.
 Replace any blade that has been damaged. Always make
sure blade is installed correctly and securely fastened
before each use. Failure to do so can cause serious injury.
 Use only the manufacturer’s replacement blade intended
for use on this brushcutter. Do not use any other blade.
To install any other brand blade or cutting head to this
brushcutter can result in serious personal injury.
 The blade is suited for cutting thicker weeds or pulpy
stalks only. Do not use for any other purpose. Never use
the blade to cut woody brush.
 Exercise extreme caution when using the blade with this
unit. Blade thrust is the reaction that may occur when the
spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit.
This reaction can be violent enough to cause the operator
to lose control of the unit. Blade thrust can occur without
warning if the blade snags, stalls, or binds. This is more
likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the
weeds being cut from the right to the left. In the event an
unexpected object or woody stock is encountered, this
could minimize the blade thrust reaction.
 Never cut any material over 1/2 in. diameter.
 Always wear the shoulder harness when using the brushcutter and adjust to a comfortable operating position.
Maintain a firm grip on both handles while cutting with
a blade. Keep the blade away from your body and below
waist level.
 Never use the brushcutter with the blade located 30 in. or
more above the ground level.
 Save these instructions. Refer to them frequently and use
them to instruct others who may use this tool. If you loan
someone this tool, loan them these instructions also.
NOTE: ADDITIONAL SPECIFIC SAFETY RULES CAN BE FOUND IN THE
­APPLICABLE ATTACHMENT’S OPERATOR’S MANUAL
6
Safety Rules
Symbols
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
SYMBOL
SIGNAL
MEANING
DANGER:
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury.
NOTICE:
(Without Safety Alert Symbol) Indicates important information not related
to an injury hazard, such as a situation that may result in property damage.
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe operation
of this product.
Symbol
Symbols
Name
EXPLANATION
Safety Alert
Indicates a potential personal injury hazard.
Read Operator’s Manual
To reduce the risk of injury, user must read and understand operator’s manual before using this product.
Eye, Hearing and Head
Protection
Always wear eye protection with side shields marked to comply
with ANSI Z87.1, along with hearing protection. Head protection
may also be required depending on the type of attachment used and
as prescribed in the attachment’s Operator’s Manual.
Keep Bystanders Away
Keep all bystanders at least 50 ft. (15 m) away.
Ricochet
Thrown objects can ricochet and result in personal injury or property damage.
No Blade
Do not install or use any type of blade on a product displaying this
symbol.
Gasoline and Oil
Use unleaded gasoline intended for motor vehicle use with an octane rating of 87 [(R + M)/2] or higher. This product is powered by
a 2-cycle engine and requires pre-mixing gasoline and 2-cycle oil.
7
Product Labels
Product labels and instructions are easily visible to the operator and are located near any area of potential danger.
Replace damaged or lost labels.
Part No. 940686099
Part No. 940864003
ON
STOP
Part No. 940627020
Part No. 940657034
50' 15m
Handle Position
Part No. 940865001
8
Product Labels
Features
Product Specifications
Name
Specification
Engine
25.4cc Full Crank
Weight
8.5 lbs.
Know Your Product
Engine
See Figure 1.
The safe use of this product requires an understanding of the
information on the tool and in this operator’s manual as well
as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules, in both this manual and the operator’s manuals for all attachments that your are using with
this power head.
The engine is powerful and easy to start. It is effectively
counterbalanced, which allows for less vibration and more
durability.
Ergonomic Design
The design of the product provides for easy handling. It is
designed for comfort and ease of grasp when operating in
different positions and at different angles.
Muffler
Choke
Lever
Engine
Starter
Grip and
Rope
On/Stop
Switch
Front Handle
Coupler
Throttle
Trigger
Fuel
Cap
Knob
Figure 1
Features
9
Assembly
Unpacking
This product requires assembly.
n Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
WARNING:
Do not use this product if any parts on the packing list are already assembled to your product
when you unpack it. Parts on this list are not assembled to the product by the manufacturer and
require customer installation. Use of a product
that may have been improperly assembled could
result in serious personal injury.
n Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
n Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
n If any parts are damaged or missing, please call
1-866-574-9242 (US) or 1-866-574-9243 (Canada) for
assistance.
Packing List
Power Head Assembly
Front Handle
WARNING:
To prevent accidental starting that could cause
serious personal injury, always disconnect the
engine spark plug wire from the spark plug
when assembling parts.
Connecting the Attachment to the
Upper Shaft
See Figure 2.
WARNING:
Read and understand entire Operator’s Manual
for each optional attachment used on this power
head and follow all warnings and instructions.
Failure to follow all instructions can result
in electric shock, fire and/or serious personal
injury.
WARNING:
Never install, remove, or adjust any attachment
while power head is running. Failure to stop the
engine can cause serious personal injury. Never
operate power head without an attachment.
Lubricant
Operator’s Manual
WARNING:
If any parts are damaged or missing do not
operate this product until the parts are replaced.
Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition leading to possible serious personal injury.
10
WARNING:
Be certain the knob is fully tightened before
operating equipment; check it periodically for
tightness during use to avoid serious personal
injury.
The attachment connects to the power head by means of a
coupler device. Follow these steps to connect the attachment
to the upper shaft.
1. Stop the engine and disconnect the spark plug wire.
2. Loosen the knob by turning it counterclockwise.
3. Remove the end cap from the attachment shaft.
Assembly
4. Push in the button located on the attachment shaft. Align
the button with the guide recess on the power head coupler and slide the two shafts together. Rotate the attachment shaft until the button locks into the positioning hole.
Note: If the button does not release completely in the
positioning hole, the shafts are not locked into place.
Slightly rotate from side to side until the button is locked
into place.
5. Tighten the knob securely by turning it clockwise.
Coupler
Attaching the Front Handle
See Figure 3.
Follow these steps to attach the front handle.
1. Remove the slotted Torx™ screws to separate the handle
from the handle support.
2. Press the front handle onto the top of the upper shaft, in
the position indicated by the arrow on the shaft, angling
the handle toward the throttle trigger.
3. Place the front handle along the upper shaft to a position
that allows for comfortable operation.
4. Place the handle support on the bottom of the shaft on
the opposite side of the front handle.
Power Head
Shaft
5. Secure the handle with the slotted Torx™ screws using a
T25 Torx driver or flat blade screwdriver.
Guide
Recess
Note: Do not cover any portion of the warning label with
the front handle.
Button
Front
Handle
Slotted
Torx
Screw
Knob
Attachment
Shaft
Figure 2
Throttle
Trigger
Removing the Attachment from the
Upper Shaft
See Figure 2.
Follow these steps to remove the attachment from the upper
shaft.
1. Stop the engine and disconnect the spark plug wire.
2. Loosen the knob by turning it counterclockwise.
Handle Support
Figure 3
3. Push in the button and twist the shafts to unlock and
separate.
Assembly
11
Operation
Fuel Mixture
WARNING:
Do not allow familiarity with this product to
make you careless. Remember that a careless
fraction of a second is sufficient to inflict
serious injury.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
hearing protection. Head protection may also
be required depending on the type of attachment used and as prescribed in the attachment’s
Operator’s Manual. Failure to do so could result
in objects being thrown into your eyes and other
possible serious injuries.
This product is powered by a 2-cycle engine and requires
pre-mixing gasoline and 2-cycle lubricant. Pre-mix unleaded
gasoline and 2-cycle engine lubricant in a clean container
approved for gasoline. DO NOT mix quantities larger than
usable in a 30-day period.
Recommended fuel: This engine is certified to operate on
unleaded gasoline intended for automotive use.
Note: We recommend you use high-quality synthetic
2-cycle l­ubricant in this product. Mix at 2.6 oz. per gallon
(US).
Do not use automotive lubricant or 2-cycle outboard
­lubricant.
high quality 2-cycle engine lubricant
Gasoline
lubricant
1.0 gal. (US) (3.8 liter)
2.5 gal. (US) (9.5 liter)
2.6 oz. (76 ml)
6.4 oz. (189 ml)
Filling Tank
WARNING:
Never use flailing devices, wire, or rope on this
product. Do not use any attachments or accessories not recommended by the manufacturer of
this tool. The use of attachments or accessories
not recommended can result in serious personal
injury.
WARNING:
Operation of this equipment can create sparks
that can start fires around dry vegetation. A spark
arrestor may be required. The operator should
contact local fire agencies for laws or regulations
relating to fire prevention requirements.
Applications
Use this product for the following applications when used
with the appropriate attachment:
■ Cutting grass, weeds, and light undergrowth
1. Clean surface around fuel cap to prevent contamination.
2. Loosen fuel cap slowly by turning counterclockwise. Rest
the cap on a clean surface.
3. Carefully pour fuel into the tank. Avoid spillage.
4. Prior to replacing the fuel cap, clean and inspect the gasket.
5. Immediately replace fuel cap and hand tighten by turning
clockwise. Wipe up any fuel spillage.
6. Move at least 30 ft. (9 m) away from refueling area before
starting the product.
Note: It is normal for smoke to be emitted from a new
engine after first use.
WARNING:
Always shut off engine before fueling. Never
add fuel to a machine with a running or hot
engine. Move at least 30 ft (9 m). from refueling
site before starting engine. Do not smoke and
stay away from open flames and sparks. Failure to safely handle fuel could result in serious
personal injury.
■ Edging along sidewalks and driveways
Fueling and Refueling the Power Head
WARNING:
Gasoline and its vapors are highly flammable
and explosive. To prevent serious personal
injury and property damage, handle it with care.
Keep away from ignition sources and open
flames, handle outdoors only, do not smoke and
wipe up spills immediately.
12
Oxygenated Fuels
notice:
Do not use e15, E20, or e85 fuel (or fuel
containing greater than 10% ethanol) in this
product. It is a violation of federal law and
will damage the unit and void your warranty.
Fuel system damage or performance problems resulting
from the use of an oxygenated fuel containing more than
Operation
the percentage of oxygenates stated below are not covered
under warranty.
Ethanol. Gasoline containing up to 10% ethanol by volume
(commonly referred to as E10) is acceptable. E15 and E85
are not.
Proper Trimmer
Operating Position
Operating the Power Head
See Figure 4.
WARNING:
Engine housing may become hot during operation. Do not rest or place your arm, hand, or
any body part against the engine housing during operation. Only hold the unit as shown in
Figure 5 during trimmer operation with all body
parts clear of engine housing (or as shown in
the applicable attachment Operator’s Manual).
Extended contact with the engine housing can
result in burns or other injuries.
WARNING:
Always position the unit on the operator’s right
side. The use of the unit on the operator’s left side
will expose the user to hot surfaces and can result
in possible burn injury.
WARNING:
To avoid burns from hot surfaces, never operate
unit with the bottom of the engine above waist
level.
Hold the power head with your right hand on the rear handle
and your left hand on the front handle. Keep a firm grip with
both hands while in operation. Power head should be held at
a comfortable position with the rear handle about hip height.
Always operate power head at full throttle. If debris
becomes wrapped around the attachment, STOP THE
ENGINE, disconnect the spark plug wire, and remove the
debris. Prolonged cutting at partial throttle will result in
lubricant dripping from the muffler.
WARNING:
Always hold the power head and attachment
away from the body keeping clearance between
the body and the product. Any contact with
the power head or attachment cutting head can
result in burns and/or other serious personal
injury.
Operation
Figure 4
WARNING:
Extreme care must be taken when using blades
to ensure safe operation. Read the safety information for safe operation when using a blade
and refer to the safety rules and instructions in
your attachment manual.
Blade Thrust
Exercise extreme caution when using a blade attachment
with this unit. Blade thrust is the reaction that may occur
when the spinning blade contacts anything it cannot cut.
This contact may cause the blade to stop for an instant,
and suddenly “thrust” the unit away from the object that
was hit. This reaction can be violent enough to cause the
operator to lose control of the unit. Blade thrust can occur
without warning if the blade snags, stalls, or binds. This is
more likely to occur in areas where it is difficult to see the
material being cut. For cutting ease and safety, approach the
weeds being cut with the brushcutter from the right to the
left. In the event an unexpected object or woody stock is
encountered, this practice could minimize the blade thrust
reaction.
13
Starting the Product
See Figures 5 - 7.
Starting the product differs depending on whether the engine
is cold or warm. Refer to the label on the air filter cover.
To Start a Cold Engine:
Follow these steps to start a cold engine.
1. Lay the product on a flat, bare surface.
2. Push the primer bulb eight times.
3. Set the choke lever to FULL.
Set Choke to FULL
4. Depress lock-out button and squeeze throttle trigger fully
(thru step 7) and pull starter handle sharply until engine
attempts to start (no more than 4x).
5. Set the choke lever to HALF.
6. Pull starter handle until engine runs, no more than 6
pulls.
7. Set the choke lever to RUN.
Note: In cooler environments, additional pulls of the
starter handle may be required with the choke lever in
the FULL position.
Set Choke to RUN
Figure 6
Stopping the Product
See Figure 7.
Follow these steps to stop the product.
1. Release the trigger.
2. Press and hold on/stop switch to (STOP) position until
the engine stops. The switch will automatically return to
the (ON) position when released.
To Start a Warm Engine:
On/Stop
Switch
Follow these steps to start a warm engine.
1. Lay the product on a flat, bare surface.
2. Push the primer bulb up to eight times.
3. Set the choke lever to RUN.
4. Depress lock-out button and squeeze throttle trigger
fully, pull the starter cord.
Note: If the product does not start, repeat the previous
steps.
Switch
Lock-out
Button
Throttle
Trigger
Figure 7
Throttle
Trigger
Primer
Bulb
Starter
Grip and
Rope
Figure 5
14
Operation
Maintenance
WARNING:
Use only Toro replacement parts when servicing
this product. Use of any other parts could create
a hazard or cause product damage.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
hearing protection. Head protection may also
be required depending on the type of attachment used and as prescribed in the attachment’s
Operator’s Manual. Failure to do so could result
in objects being thrown into your eyes and other
possible serious injuries.
WARNING:
Before inspecting, cleaning, or servicing the
machine, shut off engine, wait for all moving
parts to stop, and disconnect spark plug wire
and move it away from spark plug. Failure to
follow these instructions can result in serious
personal injury or property damage.
General Maintenance
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, lubricant, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating lubricants,
etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which
can result in serious personal injury.
NOTICE:
Keeping air intake vents free of grass and debris
prevents motor overheating and possible failure.
Servicing the Product
Check and tighten all fasteners. If any part is damaged or
lost, repair it or replace it.
Checking the Fuel Cap, Tank, and Lines
WARNING:
Check for fuel leaks. A leaking fuel cap, tank,
or lines are a fire hazard and must be replaced
immediately. If you find any leaks, correct the
problem before using the product. Failure to do
so could result in a fire that could cause serious
personal injury.
The fuel cap contains a non-serviceable filter and check
valve. A clogged fuel filter causes poor engine performance.
If performance improves when the fuel cap is loosened,
the check valve may be faulty or the filter may be clogged.
Replace the fuel cap if necessary.
Cleaning the Air Filter
See Figure 8.
Clean the air filter as indicated by the maintenance schedule.
Follow these steps to clean the air filter.
1. Stop the trimmer.
2. Remove the spark plug boot.
3. Loosen the air filter cover by turning the knob counter
clockwise.
4. Remove the air filter cover.
5. Remove the air filter.
6. Clean the air filter with warm soapy water.
Air Filter
Cleaning the Product
1. Stop the product before cleaning.
2. Clean the exterior of the product with a damp cloth.
3. Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
4. Wipe or scrape the trimmer head and spool area when
they accumulate dirt or clippings.
5. Scrape debris away from air intake vents on both sides of
the motor housing.
Air Filter
Cover
Knob
Figure 8
Maintenance
15
7. Rinse the air filter and let it dry completely.
To replace the spark arrester:
8. Work two drops of oil into the air filter.
1. Remove the five screws that hold the cover.
Note: Removing these screws requires the use of a T20
and T25 torx screwdriver.
9. Replace the air filter (fits only one way).
10. Replace the air filter cover.
11. Tighten the air filter cover by turning the knob clockwise.
12. Replace the spark plug boot.
Note: Replace the air filter as indicated by the maintenance
schedule.
Replacing the Spark Arrestor
2. Remove the cover.
3. Remove the two screws holding the muffler assembly in
place.
4. Remove the muffler assembly and muffler gasket. It
may be necessary to work the muffler assembly free
from the muffler gasket.
5. Separate the muffler cover from the muffler.
See Figure 9.
WARNING:
Stop engine, remove spark plug boot, and allow
engine and muffler to cool before replacing
the spark arrestor. Contact with a hot muffler
or engine could cause burns or other serious
personal injuries.
Note: Depending on the type of fuel used, the type and
amount of lubricant used, and/or your operating conditions,
the exhaust port, muffler, and/or spark arrestor screen may
become blocked with carbon deposits. If you notice a power
loss with your gas powered tool, you may need to remove
these deposits to restore performance. We highly recommend that only qualified service technicians perform this
service.
The spark arrester may need to be cleaned or replaced
replaced after repeated use. If replacement is necessary, use
Toro part number 000998216.
Cover
6. Remove the three screws that hold the plates on the
muffler.
7. Remove the spark arrester.
8. Replace the old spark arrester with the new one.
9. Reassemble the muffler by reinstalling the plates and
tightening the three screws [torque to 18 in.lb. (2.03 Nm)
minimum, 22 in.lb. (2.49 Nm) maximum].
10. Reassemble the muffler and muffler cover and attach to
the muffler gasket with the two screws.
11. Reinsert the muffler assembly and tighten two screws to
engine [torque to 60 in.lb (6.78 Nm) minimum, 80 in.lb.
(9.04 Nm) maximum].
12. Reinstall the cover on the tool and fasten with the five
screws [torque to 16 in.lb. (1.81 Nm) minimum,
22 in.lb. (2.49 Nm) maximum].
Note: Do not overtighten screws.
Replacing the Spark Plug
See Figure 10.
All model numbers included in this manual use a Champion
RCJ4 or RCJ6Y spark plug. Use an exact replacement and
replace annually.
1. Remove the spark plug boot.
Screw(s)
2. Loosen the spark plug by turning it counterclockwise
with a socket.
Spark Plug
Boot
Spark
Arrester
Muffler
Gasket
Muffler
Plate
Muffler
Cover
Spark
Plug
Screw(s)
Screw(s)
Figure 9
Figure 10
16
Maintenance
3. Remove the spark plug.
4. Inspect the new spark plug. The spark plug must
be properly gapped and free of deposits in order to
ensure proper engine operation. The correct gap is
approximately 0.025 in. (0.64 mm). To widen gap, if
necessary, carefully bend the ground (top) electrode.
To lessen gap, gently tap ground electrode on a hard
surface.
Idle Speed
Screw
5. Hand thread the new spark plug, turning it clockwise.
6. Tighten with a socket. [Torque to 170 in.lb. (19.20 Nm)
minimum, 190 in.lb. (21.47 Nm) maximum. Do not
overtighten].
NOTICE:
Be careful not to cross-thread the spark plug. Crossthreading will seriously damage the product.
Figure 11
Idle Speed Adjustment
See Figure 11.
WARNING:
The blade/cutting head will move when
adjusting the idle speed. Wear all protective
clothing and keep all bystanders, children,
and pets at least 50 ft (15 m) away. Make
adjustments with the unit supported by hand
so that the blade/cutting head does not contact
the ground or any object. Keep all parts of your
body away from the blade/cutting head and
muffler. Failure to follow these instructions
could result in serious personal injury.
If the cutting attachment turns at idle, the idle speed screw
needs adjusting on the engine. Turn the idle speed screw
counterclockwise to reduce the idle RPM and stop the cutting attachment movement. If the cutting attachment still
moves at idle speed, contact a service dealer for adjustment
and discontinue use until the repair is made.
WARNING:
The cutting attachment should never turn at idle.
Turn the idle speed screw counterclockwise
to reduce the idle RPM and stop the cutting
attachment, or contact a service dealer for
adjustment and discontinue use until the repair
is made. Serious personal injury can result from
the cutting attachment turning at idle.
Storing the Product
Storing the product differs depending on the amount of time
it will be in storage.
Note: If the product includes an attachment, place the storage cap on the end of the attachment shaft and hang it up to
store.
To Store the Product Short Term:
1. Clean all foreign material from the product.
2. Store the product in a well-ventilated place that is inaccessible to children.
To Store the Product Long Term:
If you do not intend to use the product for more than one
month, follow the storage procedures below.
Follow these steps to store the product long term.
1. Drain all of the fuel from the tank into a container approved for gasoline.
2. Run the engine until it stops.
3. Clean all foreign material from the product.
4. Store the product in a well-ventilated place that is inaccessible to children.
Note: Keep the product away from corrosive agents
such as garden chemicals and de-icing salts.
Note: Abide by all federal and local regulations for the
safe storage and handling of gasoline.
Transporting the Product
1. Drain the fuel mixture into a container that is approved
for use with gasoline.
2. Carry the product by the front handle.
3. Secure the product in your vehicle or on a trailer.
Maintenance
17
High Altitude Engine Operation
Please have an authorized service center adjust this engine if it is to be run above 2000 feet. Failure to do so may result in
poor engine performance and increased emissions. An engine adjusted for high altitudes can not be run at 2000 feet or lower.
In doing so, the engine will overheat and cause serious engine damage. Please have an authorized service center restore high
altitude modified engines to the original factory specification before operating below 2000 feet.
This Product Was Manufactured With A Catalyst Muffler
Congratulations! You have made an investment toward protecting the environment. In order to maintain this product’s original emission level, please refer to the maintenance section below.
MAINTENANCE SCHEDULE
Maintenance
Part
Inspect for
Damage Before
Each Use
Clean
Every
5 Hours
Clean or Replace
Every 25 Hours
or Yearly
Replace
Every
125 Hours
* CATALYTIC MUFFLER ASSEMBLY.................................................................................................................. X
SPARK SCREEN........................................................................................................... X
* AIR FILTER ASSY
includes:
Filter........................................................................................X
* CARBURETOR ASSY
includes:
Gaskets........................................... X
* FUEL TANK ASSY
includes:
Fuel Lines....................................... X
Fuel Cap......................................... X
Fuel Filter....................................................................................................................... X
* IGNITION ASSY
includes:
Spark Plug...................................................................................................................... X
*NOTICE: The use of emission control components other than those designed for this
unit is a violation of federal law.
CALL US FIRST
CALL
2 (US) or
1-866-574-924 nada)
3 (Ca
1-866-574-924
18
For any questions about operating or maintaining your product,
call the Toro® Help Line!
Your product has been fully tested prior to shipment to ensure
your complete satisfaction.
Maintenance
Troubleshooting
Problem
Engine will not start
Engine does not reach full
speed and emits excessive
smoke
Oil drips from muffler
Troubleshooting
Possible Cause
1. No spark
Solution
1. Remove the spark plug. Reattach the spark
plug cap and lay the spark plug on the
metal cylinder. Pull the starter cord and
watch for a spark at the spark plug tip.
If there is no spark, repeat the test with a
new spark plug.
2. No fuel
2. Push primer bulb until the bulb is full of
fuel. If the bulb does not fill, the primary fuel delivery system is blocked. If
the primer bulb fills, the engine may be
flooded. (See next item.)
3. Flooded engine
3. Remove the spark plug. Turn the product
so that the spark plug hole is aimed at the
ground. Make sure the choke lever is set
to RUN and pull the starter cord 10 to
14 times. This clears excess fuel from the
engine. Clean and reinstall the spark plug.
With the trigger fully depressed, pull the
starter cord 3 times. If the engine does not
start, set the choke lever to FULL and
follow normal starting instructions. If the
engine still fails to start, repeat the procedure with a new spark plug.
4. Starter cord pulls harder now than when
new
1. Check oil fuel mixture
4. Contact an authorized service dealer.
1. Use fresh fuel and the correct 2-cycle oil
mix.
2. Air filter is dirty
2. Clean the air filter.
3. Spark arrestor screen is dirty
3. Clean the spark arrester.
1. Operate the product at full throttle.
1. Operating the product at part throttle
2. Check oil/fuel mixture
2. Use fresh fuel and the correct 2-cycle oil
mix.
3. Air filter is dirty
3. Clean the air filter.
19
Warranty
This product is manufactured under
license from The Toro Company by
Techtronic Industries North America, Inc.
Techtronic Industries north America, Inc. warrants to the
original retail purchaser that this gas trimmer Product is free
from defects in material and workmanship and agrees to
repair or replace, at our option, any defective Product free of
charge within these time periods from the date of purchase:
 Three years for Gas Power Head, if the Product is used
for personal, family, or household use;
 90 days, if Gas Power Head is used for any other purpose, such as commercial or rental.
 Three years for emissions control systems on Gas Power
Head used for any purpose, as provided below.
Except as provided in the Emission Control Warranty Statement, this warranty extends to the original retail purchaser
only and commences on the date of original retail purchase.
Instructions for Obtaining Warranty
­Service
Any part of the Product manufactured or supplied by
Techtronic Industries North America, Inc. and found in
the reasonable judgement of Techtronic Industries North
America, Inc. to be defective in material or workmanship
will be repaired or replaced by an authorized service dealer
for this product without charge for parts and labor. To locate
your nearest authorized service dealer for this product, contact us Toll free at 1-866-574-9242 (US) or 1-866-574-9243
(Canada).
The Product including any defective part must be returned
to an Authorized Service Dealer for this product within
the warranty period. The expense of delivering the Gas
Power Head to the service dealer for warranty work and
the expense of returning it back to the owner after repair
or replacement will be paid for by the owner. Techtronic
Industries North America. Inc.’s responsibility in respect to
claims is limited to making the required repairs or replacements and no claim of breach of warranty shall be cause
for cancellation or rescission of the contract of sale of any
Product. Proof of purchase will be required by the dealer to
substantiate any warranty claim. All warranty work must
be performed by a service dealer authorized by Techtronic
Industries North America, Inc. to service this product.
This warranty does not cover any Gas Power Head that has
been subject to misuse, neglect, negligence, or accident, or
that has been operated in any way contrary to the operating instructions as specified in the Operator’s Manual. This
warranty does not apply to any damage to the Gas Power
Head that is the result of improper maintenance or to any
20
Gas Power Head that has been altered or modified so as
to adversely affect the products operation, performance
or durability or that has been altered or modified so as to
change its intended use. The warranty does not extend to repairs made necessary by normal wear or by the use of parts
or accessories which are either incompatible with the Gas
Power Head or adversely affect its operation, performance
or durability.
In addition, this warranty does not cover the following
­(except to the extent covered by the emissions control
­warranty set forth below):
A. Tune-ups – Spark Plugs, Carburetor Adjustments, Filters
B. Wear Items – Starter Pulley and Starter Ropes
Techtronic Industries North America, Inc. reserves the right
to change or improve the design of any Gas Power Head
without assuming any obligation to modify any product
previously manufactured.
ALL IMPLIED WARRANTIES ARE LIMITED IN
DURATION TO THE STATED WARRANTY PERIOD.
­ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES INCLUDING MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, OR OTHERWISE,
ARE DISCLAIMED IN THEIR ENTIRETY AFTER THE
EXPIRATION OF THE APPROPRIATE THREE-YEAR
OR NINETY DAY WARRANTY PERIOD. Techtronic
Industries North America, INC.’S OBLIGATION
UNDER THIS WARRANTY IS STRICTLY AND EXCLUSIVELY LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS AND TECHTRONIC
INDUSTRIES NORTH AMERICA, INC. DOES NOT
ASSUME OR AUTHORIZE ANYONE TO ASSUME FOR
THEM ANY OTHER OBLIGATION. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN
­IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Techtronic Industries North America, INC.
ASSUMES NO RESPONSIBILITY FOR INCIDENTAL,
CONSEQUENTIAL, OR OTHER DAMAGES INCLUDING, BUT NOT LIMITED TO EXPENSE OF RETURNING THE GAS POWER HEAD TO A GAS POWER
HEAD AUTHORIZED SERVICE DEALER AND EXPENSE OF DELIVERING IT BACK TO THE OWNER,
MECHANIC’S TRAVEL TIME, TELEPHONE, OR
TELEGRAM CHARGES, RENTAL OF A LIKE PRODUCT DURING THE TIME WARRANTY SERVICE IS
­BEING PERFORMED, TRAVEL, LOSS, OR DAMAGE
TO PERSONAL PROPERTY, LOSS OF REVENUE, LOSS
OF USE OF THE PRODUCT, LOSS OF TIME, OR INCONVENIENCE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights, and you may
also have other rights, which vary, from state to state.
Warranty
Customer Service Information
If your product requires service or maintenance, contact your nearest authorized service
dealer. To locate your nearest authorized service dealer for this product, contact us toll
free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).
This product is assembled by Techtronic Industries North America,
Inc.under license from the Toro Company
Techtronic Industries North America, Inc.
P.O. Box 35 Highway 8
Pickens, SC 29671
USA
990000351
11-8-12 (REV:01)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
