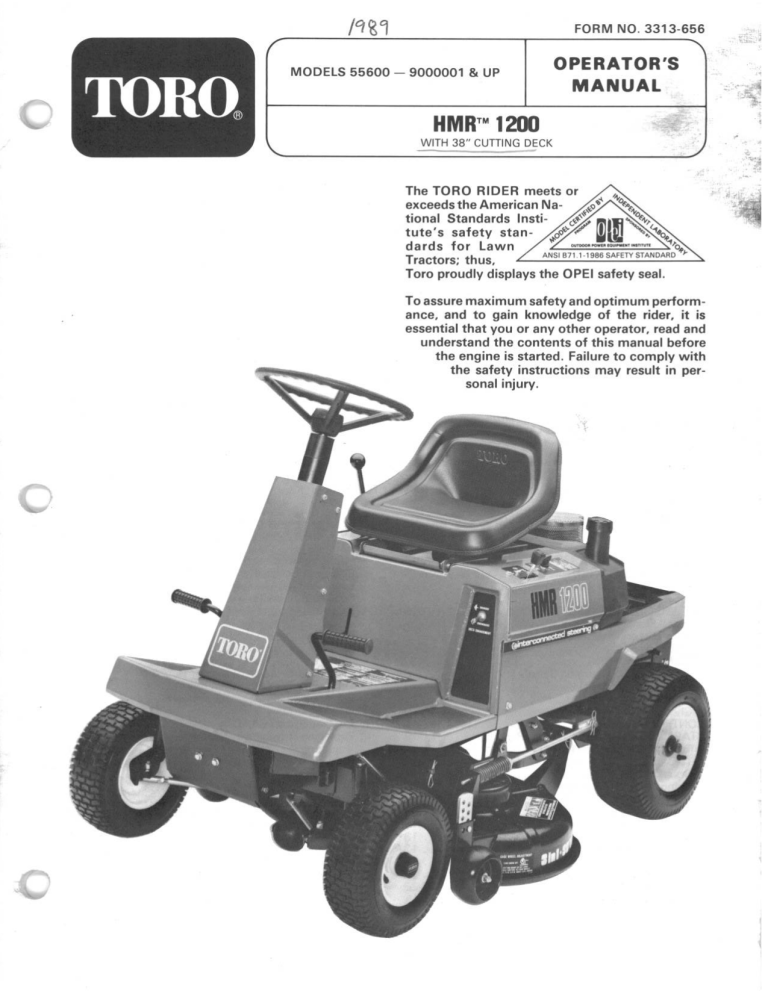

FORM NO. 3313-656
Ш r
MODELS 55600 — 9000001 & UP OPERATOR'S
MANUAL
HMR™ 1200
\ WITH 38” CUTTING DECK 7
The TORO RIDER meets or
exceeds the American Na-
tional Standards Insti-
tute's safety stan-
dards for Lawn
Tractors; thus,
Toro proudly displays the OPEI safety seal.
ÓN
ANSI B71.1-1986 SAFETY STANDARD
To assure maximum safety and optimum perform-
ance, and to gain knowledge of the rider, it is
essential that you or any other operator, read and
understand the contents of this manual before
the engine is started. Failure to comply with
the safety instructions may result in per-
sonal injury.
fr
FOREWORD
The TORO Rider contains the latest engineering and technical workmanship and should provide long
troublefree performance and service.
Since you have purchased this fine product, we are sure that dependability and performance are important to
you. TORO is also concerned about future use of the machine and of safety to the user. Therefore, you should
read this manual thoroughly so that proper safety, operation and maintenance procedures are practiced at all
times. The major sections of this manual are:
1. Safety Instructions 3. Before Operating 5. Maintenance
2. Setting Up Instructions 4. Operating Instructions 6. Trouble Shooting
Safety, mechanical and some general information in this manual is emphasized. DANGER, WARNING and
CAUTION identify safety messages. Whenever the triangular safety symbol appears it is followed by a safety
message that must be read and understood. More complete details concerning safety are contained on page 3, 4
and 5. IMPORTANT identifies special mechanical information and NOTE identifies general information worthy
of special attention.
OPTIONAL SPARK ARRESTER
In some areas there are local, state or federal regulations requiring that a spark arrester be used on the engine of
this mower. If a spark arrester is required, order the following parts from your local authorized Briggs & Stratton
Dealer. Or the part may be ordered directly from:
Briggs & Stratton Corporation, Milwaukee, Wisconsin 54201
1 Spark Arrester, part no. 392154
These parts are approved by the United States Department of Agriculture Forestry Service.
When a mower is used or operated on any California forest, brush or grass covered land, a working
order spark arrester must be attached to muffler. If not, the operator is violating state law, Section
4442 Public Resources Code.
Si a a VW N VA
ag ag wt wg Wr Ww
Further assistance concerning safety, operation and maintenance can be acquired by contacting your local
Authorized TORO Service Dealer. Your TORO Authorized Service Dealer can provide you with genuine TORO
replacement parts and also optional equipment for your TORO Rider. Keep your TORO all TORO. Buy genuine
TORO parts and accessories.
TABLE OF CONTENTS
Page Page
SAFETY INSTRUCTIONS ....-=== === ua 3-4 Servician Mi GUN -....... ... ....... ..... 16
SAFETY AND INSTRUCTION DECALS............. 5 Changing Crankcase Oil ............. 5..5... 17
SREECIFICATIONO Riad CENA 6 Fuel Filter Replacement .........ñ...eeeene.eoe. 17
SE PIR Ey wire Ma ASA OE BEI 7 Replacing Spark Plug ..........e...eese.emeo. 18
SETTING UP INSTRUCTIONS <-..2::523.2050d0%% 7-8 Adjusting Throttle-Choke Control .............. 18
Install Front WHEELS ... === "asas 7 Adjusting Carburetor - .. .... .....=c0... 21010080 19
Install Steering Wheel Assembly ............... 8 Removing Cutting Deck ...................... 20
AUS SOUL ax Tr a ra acer rar 8 ServicingCutterBlades ...................... 20
BEFORE OPERATING ........oeoeeeseoccooreo. 8-10 Install Cutting Deck ...........0000000000 000 21
Activating and Charging Battery (12 Volt) ........ 8 Cleaning Underside of Mower Housing ........ 22
Check Crankcase Oil Level ............e..00.0.00.. 9 Tension Cutter Deck Drive Belt................ 22
Fill Fuel Tank With Gasoline .................. 10 Replacing Blade Spindle Drive Belt ............ 22
Check Tire Pressure ¡ua cae EL 10 Leveling Cutting Deck .........eoeeeeeerocon. 23
CENTRES ua mara sm: sms sc roca eos 11 Adjusting Drive Chain .........eoeereenvoeceo. 23
STARTING AND STOPPING INSTRUCTIONS ... 12-13 Replacing Drive Chains .......0.000000000000000 24
To Start and Operate Machine ................ 12 Adjusting Front Wheel Alignment ............ 24
TO SIOD ovr ov morn amsmeane vee sesame bosses 12 Adjusting Brakes .........00000000000000 00000 24
BORK soovnavisiis simi Ris snare 12 Adjusting Electric Deck Clutch ............... 25
Using Parking Brake ...........00000000 RE 12 Adjusting Transmission Linkage .............. 25
Adjusting Height-of-Cut ............... ewewe2e.e. 12 Shift Linkage Adjustment ...........ñ..eeeeo. 25
Adjusting Gage Wheels ...............eeeccoc. 13 Adjusting Linkage to Steering Clutches........ 26
OPERATING INSTRUCTIONS ..........eree.. 13-14 Replacing Traction Belts .........ñ..ceeeeee.. 26
Gras DONCCION ss amer ERA 13 Wmneel Removal == :=—= esas 27
Operating Procedure.......0.000000000000000000 13 Checking Saftey Interlock System ............. 28
Grass Cutting Tips. :a iss evasive vias 14 Battery Charging System ........0.0.000000000 000 28
MAINTENANCE INTERVAL CHART .............. 14 Preparing Mower For Storage ............... . 28
MAINTENANCE ........ocerceeerrscoorecoroo 15-28 WIRING DIAGRAM 272.15 >0.200/22/4 2 e coins as weve 29
Grease Front Axle Spindles and Wheels ....... 15 IDENTIFICATION AND ORDERING ............... 29
Grease Steering Spindle .........._.w_.-weeeeoo. 16 SLOPE GAGE. disc icons stam ARA». о
Lubricate Mechanical Pivot Points . ............ 16 THE TORO GUARANTEE........oeo.cessscoccco ‚ 32
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — 1988
2 MINNEAPOLIS, MN 55420 — U.S.A.
SAFETY INSTRUCTIONS
This safety alert symbol
means CAUTION, WARN-
ING or DANGER —
“personal safety instruc-
tion”. Read and under-
stand the instruction
because it has to do with
safety. Failure to comply with the instruction
may result in personal injury.
Improper use or maintenance of the machine can
result in injury. To reduce the potential for injury,
comply with the following safety instructions.
BEFORE OPERATING
1. Read and understand the contents of this
Operator's Manual before operating the machine.
Become familiar with all controls and know how to
stop quickly. A free replacement manual is available
by sending complete Model and Serial Number to:
The Toro Company
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
2. Do not allow children to operate the machine.
Do not allow adults to operate the machine
without proper instruction.
3. Remove all debris or other objects that might
be picked up and thrown by the cutter blades. Keep
all bystanders away from the mowing area.
4. Keep all shields and safety devices in place. If
a shield, safety device or decal is defective or
damaged, repair or replace it before operation is
commenced. Also tighten any loose nuts, bolts and
screws to assure machine is in safe operating
condition.
5. Do not operate machine while wearing sandals,
tennis shoes, sneakers or shorts. Also, do not wear
loose fitting clothing which could get caught in
moving parts. Always wear long pants and sub-
stantial shoes. Wearing safety glasses, safety shoes
and a helmet is advisable and required by some
local ordinances and insurance regulations.
6. Fill fuel tank with gasoline before starting the
engine. Avoid spilling gasoline. Since gasoline is
flammable, handle it carefully.
A. Use an approved gasoline container.
B. Do not fill fuel tank indoors, when the engine
Is running, or until engine cools for several
minutes after running.
C. Do not smoke while handling gasoline.
D. Fill fuel tank outdoors and up to about one half
inch from top of the tank, not the filler neck.
E. Open doors if engine will be run in the garage
because exhaust fumes are dangerous and
could possibly be deadly. Do not run engine
indoors.
F. Wipe up any gasoline that spilled, and install
gasoline container cap and rider fuel tank cap
before starting the engine.
7. Before attempting to start the engine, shift into
neutral, move deck engagement switch into DIS-
ENGAGE position and lock parking brake. Engine will
not start with key unless gear shift is in neutral, deck
engagement switch is in DISENGAGE position, and
the operator is on the vehicle seat.
8. Assure interlock system is functioning correctly
before each use of the rider. Have all safety related
components and safety interlock switches checked by
an Authorized TORO Service Dealer every two years
to assure safe operation of the rider.
WHILE OPERATING
9. Never carry passengers on the rider.
10. Keep people and pets a safe distance away from
the rider and area of operation.
11. Do not run the engine in a confined area
without adequate ventilation. Exhaust fumes are
hazardous and could possibly be deadly.
12. Using the machine demands attention, and to
prevent loss of control:
A. Mow only in daylight or when there is good
artificial light.
Watch for holes or other hidden hazards.
Do not drive close to a drop off, ditch, creek or
other hazard.
D. Reduce speed when making sharp turns and
when turning on hillsides.
Never mow steep slopes.
F. Never mow side hills over 10°. See slope
gage on page 30.
13. During operation the grass deflector or complete
rear grass catcher assembly must be installed on
mower housing and rider. Move deck engagement
switch into DISENGAGE, shift into neutral, set park-
ing brake, and shut engine off before removing the
rear grass catcher hopper or unclogging discharge
chute or tube. Use a stick to remove any obstruction.
3
SAFETY INSTRUCTIONS
14. Before backing up, move deck engagement switch
into DISENGAGE. Do not mow in reverse unless ab-
solutely necessary and then only after careful obser-
vation of the entire area behind the mower.
15. Cut grass slopes up and down, never across the
face. When going uphill or downhill do not stop or
start suddenly. To prevent tipping or loss of control,
reduce speed on slopes and when making turns.
Extreme caution must be used when changing
direction on slopes. If machine stops while going
uphill, stop blade and back slowly down.
16. Watch out for traffic when crossing or near roads.
Always yield the right-of-way.
17. If the cutting blades strike a solid object or the
machine vibrates abnormally, shut engine off.
Remove high tension wires from spark plugs to
prevent possibility of accidental starting. Check
cutting unit and traction unit for damage and defec-
tive parts. Repair any damage before restarting the
engine and operating the cutting unit. Be sure blades
are in good condition and blade nuts are tight.
18. Keep face, hands, feet, or any other part of the
body and clothing away from concealed, moving, or
rotating parts such as the cutter blades, discharge
area, wheels, belts, and engine. Always sit on the seat
while operating the rider and mower.
19. When driving from one area to another, crossing
a gravel driveway, road, or sidewalk, move deck
engagement switch into DISENGAGE and raise
mower housing to its highest level. This will prevent
loose sand, rocks, and other debris from being thrown
by the whirling blades.
20. Do not touch engine or muffler while engine
is running or soon after it is stopped. These areas
could be hot enough to cause a burn.
21. Before leaving the operator's position on the seat,
or leaving rider unattended, shift transmission into
NEUTRAL, apply parking brake, move deck engage-
ment switch to OFF, and shut OFF engine.
22. Use only the drawbar hitch point at rear of chassis
to pull atrailer or cart. Limit loads to those that can be
controlled safely. Be very careful when backing and
turning: Make wide turns with trailer attached. Turn-
ing too sharp could damage trailer or vehicle.
MAINTENANCE
23. Disconnect high tension wire from spark plug to
prevent accidental starting of the engine when servic-
ing, adjusting or storing the machine.
24. If rider and mower has to be tipped to perform
maintenance or an adjustment, drain gasoline from
fuel tank, oil from crankcase, and remove battery.
Rider is not designed to stand on rear end.
25. Perform only those maintenance instructions
described in this manual. If major repairs are ever
needed or assistance is desired, contact an Author-
ized Toro Dealer.
26. To reduce potential fire hazard, keep the engine
free of excessive grease, grass, leaves and accumu-
lations of dirt.
27. Be sure machine is in safe operating condition by
keeping nuts, bolts and screws tight. Check the blade
mounting nuts frequently to be sure they are tighten-
ed to specification.
28. If the engine must be running to perform a
maintenance adjustment, keep hands, feet, clothing
and other parts of the body away from the cutting
unit blades and other moving parts.
29. Do not overspeed the engine by changing
governor settings. To be sure of safety and accuracy,
have an Authorized TORO Dealer check maximum
engine speed (3200 RPM) with a tachometer.
30. Engine must be shut off before checking oil
or adding oil to the crankcase.
31. To ensure optimum performance and safety,
always purchase genuine TORO replacement parts
and accessories to keep the Toro all TORO. NEVER
USE “WILL-FIT” REPLACEMENT PARTS AND
ACCESSORIES MADE BY OTHER MANUFAC-
TURERS. Look for the TORO logo to assure
genuineness. Using unapproved replacment parts
and accessories could void the warranty of The
Toro Company.
TORO
©
==
SAFETY AND INSTRUCTION DECALS
The following safety and instruction decals are mounted on the TORO
Rider. Replace any that become damaged or illegible.
DO NOT STEP
BOTH SIDES OF MOWER DECK
(Part No. 36-3400)
= Never mow steep slopes.
A WARNING
USE EXTREME CAUTION
ON HILLS AND as A
TO MINIMIZE THE RISK OF INJURY
= Never mow gide hills over 10°.
» Mow slopes up and down. nol across the lace.
« When going uphill or downhill do not stop or start suddenly.
« Reduce speed and use extreme caution when making turns
on slopes to reduce the risk of tipping or losing control,
« Slay alerl for holes in the terrain and other hidden hazards.
Do not drive close to a ditch, creek. or dropofl to prevent
tipping or loss of control 84-3460
OFF
С 6"
+
START
4 IGNITION
IMPORTANT
WHEN RECOIL STARTIN
* Move gear selector to neutral.
« Set parking brake.
* Attachment clulch switch must be
in disengaged position.
« Move throtile [ever to chok
* Turn ignition switch to “on”
* Do noi sil on seat.
= Pull recoil rope to start engine.
GAGE WHEEL ADJUSTMENT
en
TURN ENGINE OFF. O:
AFTER SETTING HEIGHT-OF-CUT LEVER
AT DESIRED POSITION, SET GAGE WHEELS
©
ON DECK TO BE 3/8 IN. ABOVE LEVEL GROUND.
58-3380
ON LEFT SIDE OF
MOWER DECK
(Part No. 68-3380)
ON DEFLECTOR
(Part No. 54-9220)
OPERATE ONLY WITH DEFLECTOR
OR CATCHER IN PLACE
«| | DANGER
KEEP HANDS and FEET AWAY |
68-3450
REAR OF STEERING TOWER
(Part No. 68-3460)
AROUND KEY SWITCH
(Part No. 68-3450)
<>
E
В
МЕХТ ТО
THROTTLE CONTROL
(Part No. 68-3530)
{ ENGAGED
{+ DISENGAGED
DECK ENGAGEMENT
———] TÍ]
bo
BLADE DRIVE BELT ROUTING
IMPORTANT
MAKE WIDE TURNS WITH TRAILER ATTACHED.
TURNING TOO SHARP COULD DAMAGE TRAILER OR VEHICLE.
68-3420
LEFT FRONT
SIDE OF SEAT
(Part No. 68-3540)
FRONT OF MOWER DECK
(Part No. 57-7010)
UNDER DEFLECTOR
(Part No. 68-3650)
A DANGER 68-3650
DEFLECTOR IS NOT IN PLACE. DO NOT OPERATE.
LEFT SIDE OF MOWER DECK
(Part No. 68-3660)
SPRING LOADED MECHANISM
SEE OPERATOR'S MANUAL
FOR DISASSEMBLY PROCEDURE.
REAR OF FRAME ABOVE HITCH
(Part No. 68-3420)
AN WARNING
HOT
SURFACE
65-2690
ON RIGHT REAR
ROTATING BLADES UNDER ENTIRE MOWER DECK.
KEEP HANDS and FEET AWAY.
THROWN OBJECTS ARE DANGEROUS.
KEEP DEFLECTOR IN PLACE. KEEP BYSTANDERS AWAY.
ON BOTH SIDES OF MOWER DECK
(Part No. 66-1340)
ON BOTH LIFT BARS FENDER
(Part No. 55-4300) (Part No. 65-2690) ®
HIGH
6
CLUTCH PEDAL VEHICLE SPEED SELECTOR x TO STOP: ERAKE PEDAL
- то SAT: | imme
rr A, РЕНО À 5
DEPRESS CLUTES WREN Seal | Reve Pa 18 Мая И
ue Maire [A CAUTION 4
TO KEY START ENGINE: TO STOP ENGINE: pena
Nore pmo page meno E
CLUTES suites 9 OISENOAEE e BE у 3
sano IMPORTANT:
¡uan кан вето о алая ar a LOW
§ 4
ATTACHMENT CLUTCH SWITCH (7) PARKING BRAKE pi" HEIGHT OF CUT
LT air mat oviedo TREL gry ET
" apmansı {+ oy Anning Bras Lev EVER IM ON Patines 2 RIG HT
STAIR TO DISENGAGE PARKING BRAKE = FRONT SIDE
= PUSH DEH Db FAAKING BRLEL (TWIN ss ire E OF SEAT
ON FLOOR PANEL (Part No.
(Part No. 68-3390) 68-3430)
5
SPECIFICATIONS
Briggs & Stratton Engine: IC series, electric start
with Recoil Backup. Four-cycle engine has output of
12 hp (8.9 KW) @ 3600 rpm and 20 ft-lb (27.2 N-m)
torque @ 2800 rpm. Displacement is 28.40 cubic
inches (465 cc). Crankcase oil capacity is 3 pints
(1.42 1). Correct spark plug is a Champion RCJ-8 or
Autolite AR7N resistor type. Air gap setting is 0.030
in. (0.762 mm)
Fuel Tank: Capacity is 3.5 gallons (13.25 |).
Controls: Throttle/choke control and ignition key
located to left of operator's seat. Engine has recoil
backup with handle facing to left side of machine.
Traction Clutch: A foot operated pedal on the left
side of the steering tower simultaneously declutches
the input v-belts to the two transmissions. Operator
must be in the seat to engage or operate the traction
drive.
Transmission Control: Hand operated shift lever
with Z' pattern located at right side of operator. The
two transmissions are synchronizedto shift together
by a factory adjusted tie rod.
Traction Drive: (2) 5 speed forward, one speed
reverse transmissions with integral brake in each
transmission. Each transmission drives an individual
rear wheel through a chain and sprocket. Trans-
missions are driven by individually clutched v-belts
from the engine. Independent left and right trans-
mission clutching is controlled by steering angle.
Rear wheel declutching begins at approximately 20%
turn angle of the inside front wheel. There is no
differential.
Ground Speed @ 3200 Engine rpm:
1st gear — 1.55 mph (2.49 km/hr)
2nd gear — 2.41 mph (3.87 km/hr)
3rd gear — 3.61 mph (5.80 km/hr)
4th gear — 4.59 mph (7.38 km/hr)
5th gear — 5.89 mph (9.47 km/hr)
Rev. — 1.81 mph (2.91 km/hr)
Chain Drive to Rear Wheels: #40 chain drive.
Belt Drive to Gear Box: (2) "A" section v-belts from
engine to each transmission.
Steering: Pinion and sector gear to cross-axle tie
rods which control front wheels. 15 inch steering
wheel turns 1-3/4 turns lock-to-lock. Inside front tire
will turn up to 80° from straight ahead.
Wheels and Tires:
Front — Heavy duty wheel bearings and 13 x 5.0
— 6 pneumatic tube-type tires.
Rear — Welded steel rims with 16 x 6.5 — 8
pneumatic tubeless tires. Wheels include flange
for chain sprockets and have two sealed HD ball
bearings in each hub. Rear axle is adjustable for
chain tension.
Brake: A foot operated pedal on the right side of the
steering tower, via an extension spring, simultan-
eously operates a brake caliper on each of the two
transmissions.
Parking Brake: Hand operated lever located on the
right side of the operator on the front of the seat base.
Lift to engage while depressing the brake pedal.
Press on brake pedal to disengage. Transmission
must be in neutral or reverse to apply parking brake.
Deck Control Switch: Toggle switch (pull out and up
to engage) on left front of seat support tower. Switch
releases blade brake and engages clutch to drive
cutter deck. Operator must be in seat to engage or
operate the cutter deck.
Height-of-Cut Control: Hand operated lever located
at right of operator. Seven height positions from 1-
1/2 to 4-1 /2 in. (38 to 114 mm).
Deck Suspension: Full floating, front-to-rear and
side-to-side. Deck has three fixed anti-scalp rollers and
two adjustable gage wheels (set 3/8 in. [10 mm]
above the ground). The discharge side is supported
by a flotation lift spring. Deck suspension is adjust-
able for both front-to-rear and side-to-side tilt.
Mower Housing: Housing is 12 gauge (2.64 mm)
stamped steel with right side discharge. Width of cut
is 38 in. (0.965 m). Cast iron spindle housings with
shafts supported by two double seal ball bearings.
Blade spindle pulleys are driven by a spring-tensioned
A section V-belt.
Cutter Drive: Spring tensioned “B” section v-belt
from electric clutch/brake on engine to deck pulley.
Cutter Blades: Two, one piece, hardened .187"
(4.75 mm) thick carbon steel blades are 19-5/16 in.
(0.491 m) long.
Blade Tip Speed: 17,137 ft/min (87.05 m/s) @
3300 maximum engine rpm.
SPECIFICATIONS
General Dimensions (approx):
Wheel Base — 45 in. (1.14 m)
Tread Width; center to center —
Front— 30.5 in. (0.775 m)
Rear — 29 in. (0.737 m)
Width — 35.5 in. (0.902 m) without deck
45.6 in. (1.158 m) with 38 in. (0.965 m)
deck
Height — 45.7 in. (1.160 m)
Length — 68 in. (1.727 m)
Turning Radius — 4 in. (0.102 m) outside edge of rear
tire
Weight — 630 Ib (285.8 kg) with 38 in. (0.965 m) deck
Deck Weight — 95 Ib (43.09 kg)
Safety Features: Meets B71.1 — 1986 ANSI safety
specifications.
Traction drive, blade drive and seat interlocks.
Electromagnetic blade clutch and brake.
Parking brake lockout for forward gears.
Automatically slows down in sharp turns.
Optional Accessories and Attachments:
Twin Bag Grass Catcher, Model 59186.
Front Bumper, Part No. 68-3340.
Hour Meter Kit, Part No. 68-3610.
Deluxe Seat Kit, Part No. 68-3800.
Spark Arrestor for Standard muffler, Briggs &
Stratton No. 392154.
LOOSE PARTS
DESCRIPTION QTY. USE
Tire and Wheel Assembly 2 Mount to front axles.
Cotter Pin 1/8 in. x 1-1/4 in. 2 Secure wheels to axles.
Flange Washer 2 Mount to front axles.
Hub Cap 2 Mount to front axles.
Steering Shaft Cover 1 On steering shaft.
Steering Wheel 1 On steering shaft.
Steering Wheel Cap 1 On Steering Wheel
Roll Pin 1 Secure steering wheel to shaft.
Carriage Bolt 1/4 - 20x 3/4 in. 2 Install battery cables.
Wing Nut 2 Install battery cables.
Key 1 Install in start switch.
Operator's Manual 1 Read manual before operating rider.
Reg. Card 1 Fill out and return to Toro.
SETTING UP INSTRUCTIONS
INSTALL FRONT WHEELS
Tools Required: Pliers and hammer.
Note: Apply grease to axle shafts before installing.
1. Install wheel onto axle.
2. Mount flange washer onto axle (flange side out),
Insert cotter pin and open pin ends with pliers (Fig. 1).
3. Install hub cap.
4. Repeat steps 1-3 on opposite side.
5. Check front and rear tires for 14 psi (96.5 kPa)
inflation.
Figure 1
1. Flange washer
2. Cotter pin
SETTING UP INSTRUCTIONS
6. Lubricate both front wheels w/No. 2 general
purpose grease. Pump grease gun until grease
comes through bearings. Wipe up any excess grease.
INSTALL STEERING WHEEL ASSEMBLY
Tools Required: Small ball peen hammer and drift
punch.
1. Position front wheels in straight ahead direction
and slide steering shaft cover over steering shaft.
2. Slip steering wheel over shaft and line the
steering wheel mount hole with the shaft mounting
hole. Steering wheel cap should be readable from
operator's position when installed.
Figure 2
1. Steering shaft cover
2. Roll pin
3. Insert a drift punch partially through the holes to
maintain alignment and insert the roll pin in from the
opposite side.
4. Drive the roll pin in until it is flush with the
outside of the wheel (Fig. 2).
ADJUSTING SEAT
Tip the seat forward, loosen the seat mounting
capscrews and relocate the seat for operator comfort.
Retighten the capscrews and lower the seat.
Figure 3
1. Seat adjusting screws
BEFORE OPERATING
ACTIVATING AND CHARGING BATTERY
(12 Volt)
Tools Required: 3 to 4 Amp Battery Charger.
Since the battery for the rider is not filled with
electrolyte or activated, the battery must be removed
from the machine so it can be filled with electrolyte
and charged. Bulk electrolyte with 1.260 specific
gravity must be purchased from a local battery supply
outlet. Remove the battery and activate it as follows:
1. Tip the seat forward exposing battery (Fig. 4).
2. Remove wing nut securing battery hold downs to
rider chassis. (Fig. 4).
8
A CAUTION
Wear safety goggles and rubber gloves
when working with electrolyte. Charge
the battery in a well ventilated place so
gases produced while charging can dis-
sipate. Since the gases are explosive,
keep open flame and electrical spark
away from the battery; do not smoke.
Nausea may result if the gases are in-
haled. Unplug charger from electrical
outlet before connecting or disconnect-
ing charger leads from battery posts.
BEFORE OPERATING
a nani Вы
= mi HR
20 aa
Eel ji
i r Ч es
Figure 4
1. Battery hold down
2. Vent tube
3. Lift up on top battery hold down and pivot off
battery.
4. Disconnect vent tube from battery.
5. Remove battery from chassis and set it aside.
6. Remove filler caps from battery and slowly fill
each cell until electrolyte is just above the plates. To
obtain best results, let battery set for 20 minutes. Add
electrolyte to the maximum capacity.
mad
FILLER CAPS
TORO
Figure 5
7. Leave filler caps off and connect a 3 to 4 amp
battery charger to the battery posts. Charge the
battery at a rate of 4 amperes or less for 4 hours.
8. When battery is charged, disconnect charger
from electrical outlet and then from battery posts.
9. Slowly add electrolyte to each cell until level is up
to fill ring. Install filler caps.
IMPORTANT: Do not overfill battery. Electrolyte
will overflow onto other parts of the machine and
severe corrosion and deterioration will result.
10. Install the battery with the battery vent tube
toward the rear. Reconnect vent tube.
11. Reinstall battery hold downs.
12. Install the positive cable to the positive (+)
terminal and the negative cable (black) to the
negative (-) terminal of the battery and secure with
carriage bolts and wing nuts (Fig. 6).
Figure 6
1. Positive cable
2. Negative cable
3. Vent tube
CHECK CRANKCASE OIL LEVEL
The rider is shipped from the factory with oil in the
crankcase. However, check the oil level in the
crankcase prior to starting the engine.
1. Place rider on a level surface to assure an
accurate oil level reading. Ensure the oil drain plug is
securely tightened (Fig. 7).
Figure 7
1. Drain plug
BEFORE OPERATING
2. Unscrew and remove the dipstick from the oil fill
tube (Fig. 8).
Figure 8
1. Dipstick
3. Ifoillevelislow, insert afunnel into the tube and
slowly add engine oil into the crankcase. Use a high
quality detergent oil classified “For Service SC, SD,
SE or MS". Oil viscosity (weight) must be selected
according to anticipated ambient temperature,
A. Above +40° F (4° C) — Use SAE 30; 10W-30
as a substitute.
B. Below +40° F (4° C) — Use SAE 5W-20 or
5W-30; SAE 10 or 10W-30 as substitutes.
C. Below 0° F (-18° C) — Use SAE 10 or 10W-
30 diluted 10% with kerosene.
Note: Avoid premature engine failure by insuring the
funnel used is clean so contaminents are not intro-
duced into the crankcase. Wipe any oil spilled, so it
will not cause dirt to collect on the engine.
4. Insure the oil level is to the full mark on the
dipstick when it is fully installed. Do not overfill or
engine damage may result.
5. Insertthedipstick andturn it clockwise to secure
it in the fill tube.
Note: Check the oil level every 5 operating hours or
each time rider is used. Initially, drain the oil and
replace it after the first 5 hours of operation to
remove the contaminents produced by normal
engine break-in; thereafter, under normal condi-
tions, change oil after 25 hours of operation. Change
the oil more frequently when the engine is operated
in dusty or dirty conditions.
10
FILL FUEL TANK WITH GASOLINE
A DANGER
Because gasoline is flammable, caution
must be used when storing or handling
it. Do not fill fuel tank while engine is
running, hot or when machine is in an
enclosed area. Vapors may build up and
be ignited by a spark or flame source
many feet away. DO NOT SMOKE while
filling the fuel tank to prevent the
possibility of an explosion. Always fill
fuel tank outside and wipe up any spilled
gasoline before starting engine. Use a
funnel or spout to prevent spilling
gasoline, and fill tank to about 1/2 inch
(12.7 mm) from top of tank, not the filler
neck. Store gasoline in a clean safety-
approved container and keep the cap in
place on the container. Keep gasoline in
a cool, well-ventilated place; never in an
enclosed area such as a hot storage
shed. To assure volatility, do not buy
more than a 30 day supply of gasoline.
Gasoline is a fuel for interal combustion
engines; therefore, do not use it for any
other purpose. Since many children like
the smell of gas, keep it out of their reach
because the fumes are explosive and
dangerous to inhale.
pr A a A. A An бы dd + dE A de 6 A.
THE TORO COMPANY STRONGLY RECOMMENDS
THE USE OF CLEAN, FRESH UNLEADED REGULAR
GASOLINE IN TORO GASOLINE POWERED PRO-
DUCTS. UNLEADED GASOLINE BURNS CLEANER,
EXTENDS ENGINE LIFE, AND PROMOTES GOOD
STARTING BY REDUCING THE BUILD-UP OF COM-
BUSTION CHAMBER DEPOSITS. LEADED GASO-
LINE CAN BE USED IF UNLEADED IS NOT AVAIL-
ABLE.
NOTE: NEVER USE METHANOL, GASOLINE
CONTAINING METHANOL, GASOHOL CON-
TAINING MORE THAN 10% ETHANOL, GASO-
LINE ADDITIVES, PREMIUM GASOLINE, OR
WHITE GAS BECAUSE ENGINE FUEL SYSTEM
DAMAGE COULD RESULT.
1. Clean area around fuel tank cap so foreign matter
cannot enter tank when cap is removed.
2. Remove cap from fuel tank (Fig. 8) and fill tank
with gasoline up to about one half inch from top of
tank, not the filler neck. Then reinstall fuel tank cap.
3. Wipe up any gasoline that may have spilled.
CHECK TIRE PRESSURE
Check and insure the tires are inflated to 14 psi (96.5
kpa) before operating the machine.
CONTROLS
Clutch Pedal (Fig. 9) — Foot operated clutch pedal is
used in conjunction with the gear shift and brakes.
Depress clutch fully when shifting gears or braking.
Figure 9
1. Clutch pedal
2. Brake pedal
Throttle Control (Fig. 10) — Throttle control
connects to and operates carburetor mounted
throttle and choke. Control has three positions:
IDLE, FAST and CHOKE. The control must be
pushed slightly to the left and forward to obtain
CHOKE position. Return control to FAST as engine
warms up.
qu y 4 > и”
Figure 10
1. Ignition switch
2. Throttle control
3. Deck engagement switch
Ignition Switch (Fig. 10) — Switch is part of bat-
tery ignition system, and it has three positions:
OFF, ON and START. Key automatically returns
to ON position from START position when re-
leased after engine starts.
Deck Engagement Switch (Fig. 10) — Toggle switch
(Pull out and up to engage) releases blade brake and
engages electromagnetic clutch to drive cutter blades.
Operator must be on the seat to engage or operate
cutter deck.
Brake Pedal (Fig. 9) — Foot operated pedal, which
when depressed, actuates a disc brake assembly at
the side of each transmission. Clutch pedal must also
be depressed while braking.
Parking Brake (Fig. 11) — Parking brake is used in
conjunction with standard brake assembly. When
brake pedal is depressed and parking brake lever
is pulled upward, a latch plate secures the brake
assembly in the engaged position preventing the
machine from moving.
Note: Transmission must be in neutral or reverse to
engage parking brake.
\№
Figure 11
1. Gear shift
2. Height-of-cut control
3. Parking brake
Gear Shift (Fig. 11) — Transmission has five forward
speeds, neutral and reverse, and has a “Z" shaped
pattern. An interlock switch, which prevents engine
from being started when the transmission is in gear,
is mounted on the top of one transmission. Operator
must be on the seat to engage or operate trans-
mission.
Height-of-Cut Control (Fig. 11) — Height-of-cut
control varies the cutting height from 1 1/2 10 4 1/2
inches (38 to 114 mm) in seven increments. Gage
wheels on deck must be reset when height-of-cut is
changed.
Recoil Starter (Fig. 12) — (Emergency starting only).
See operating instructions for procedure.
11
STARTING AND STOPPING INSTRUCTIONS
Note: Engine will not key start unless deck engage-
ment switch is DISENGAGED, shift lever is in neutral
and operator is sitting on the seat.
TO KEY START MACHINE
1. Shift into neutral, move deck engagement switch
to DISENGAGE and lock parking brake.
2. Sit on seat, move throttle control to CHOKE
position and rotate ignition key to START. When
engine starts, release key and move throttle control
between FAST and SLOW.
Note: Choke may not be required when starting a
warm engine.
RECOIL BACKUP STARTING
(Emergency Starting only)
1. Shift into NEUTRAL, move deck engagement
switch to DISENGAGE, move throttle control to
CHOKE position, set parking brake and rotate ignition
key to ON.
Note: Choke may not be required when starting a
warm engine.
2. DO NOT SIT ON SEAT. Stand to left side of rider,
pull recoil starter handle out until positive engage-
ment results; then pull handle vigorously to start
engine (Fig. 12). When the engine starts, immediately
move throttle control between FAST and SLOW
positions if choke was used for starting. Get onto the
rider from the left side and sit on the seat.
Figure 12
1. Recoil starter
IMPORTANT: Do not pull recoil rope to its limit or
let go of the starter handle when rope is pulled out
because rope may break or recoil assembly may be
damaged.
OPERATE CUTTER DECK
1. Select desired height-of-cut, adjust gage wheels,
start machine and pull out and up on deck engage-
ment switch to ENGAGE.
12
2. Release parking brake, depress clutch pedal and
shift into forward gear.
TO STOP
1. Depress brake and clutch pedals, move throttle
control lever to SLOW position, move deck
engagement switch to DISENGAGE, and rotate
ignition key to OFF.
2. Shift transmission to neutral and engage park-
ing brake.
3. Remove key from ignition switch.
BREAK-IN
The engine requires no special break-in other than
changing oil after the first five hours of operation.
Operate the transmission in all gears to assure that
drive system is functioning correctly.
USING PARKING BRAKE
A CAUTION
If the engine stalls or must be stopped
while operating on a hill or slope, the
engine must be shut off and parking
brake engaged.
1. Depress brake pedal fully, shift transmission
to neutral.
2. Move parking brake control upward and re-
lease brake pedal.
3. Torelease the parking brake, depress brake pedal
(Fig. 9), and push parking brake lever (Fig. 11) down to
return it to its disengaged position. Release brake
pedal slowly.
ADJUSTING HEIGHT-OF-CUT
The height-of-cut may be set in one of seven positions
from approximately 1-1/2 to 4-1/2 inches (38 to
114 mm).
Deck Lever Height-of-Cut
Selection Setting (Approx.)
1 1-1/2 in.
2 2 in.
3 2-1/2 in.
4 3
5 3-1/2 in.
6 4 in.
т
(TRANSPORT) 4-1/2 in.
STARTING AND STOPPING INSTRUCTIONS
1. Assure the deck engagement switch is in DIS-
ENGAGE position (Fig. 10).
2. Move height-of-cut control (Fig. 11) into desired
setting. Adjust gage wheels.
ADJUST GAGE WHEELS (Fig. 13)
With rider on a flat surface, tires inflated to 14 psi and
height-of-cut in desired setting, gage wheels are to
be positioned so they are approximately 1/4"to 3/8"
above the ground.
IMPORTANT: It is important that gage wheels be
adjusted each time height-of-cut is changed, so
that the deck will follow the contour of the ground
and does not scalp the turf.
1. Remove hairpin cotter and clevis pin securing
gage wheel to cutting deck.
2. Move gage wheel up or down to required setting
and reinstall clevis pin and cotter pin.
3. Reposition gage wheels each time height-of-cut
setting is changed.
Figure 13
1. Gage wheel
OPERATING INSTRUCTIONS
GRASS DEFLECTOR
AA...
The grass deflector and toe bar is a safety
device that routes discharged material
down toward the turf; therefore, do not
remove deflector from mower housing.
If the deflector is ever damaged, replace
it. Without the deflector or complete
grass catcher assembly mounted in place,
discharged material could cause personal
injury.
OPERATING PROCEDURE
1. Move deck engagement switch into DIS-
ENGAGE.
2. Start the engine: refer to Starting/Stopping
Instructions, page 12.
IMPORTANT: When rider is used for the first
time, operate the transmission in all gears to assure
that drive system is functioning correctly, and be-
come familiar with the controls and operating
characteristics. Never shift without first depressing
the clutch pedal or transmission damage could
result.
3. Depress clutch pedal and shift transmission into a
low gear. Then release pedal slowly until traction
drive engages. Do not downshift into a lower gear
without first slowing down or transmission damage
could occur.
IMPORTANT: Do not operate machine with
foot resting on either brake or clutch pedal or
mechanical damage can occur.
IMPORTANT: To avoid a jerky start and putting a
heavy load on the transmissions, release clutch
pedal slowly. If shifting into reverse gear is difficult,
let out clutch pedal slowly while maintaining a
slight rearward pressure on gear shift. Do not
force the gear shift because damage may result.
Should you encounter a jerking or grabbing condi-
tion during operation, contact your local Author-
ized TORO Service Dealer for assistance.
A WARNING
To avoid loss of control, slow down
when turning, backing and changing
direction. Before backing up, move deck
engagement switch into DISENGAGE.
Do not mow in reverse unless absolutely
necessary and then only after careful
observation of the entire area behind the
mower.
¿Pt A. ie
Ч a щи
ii 2e 0 A e e al a a i ae ai i e a a бы бы a i
gE ag age age age age age age.
iil CEP CEP EF a a
TEE TEE TEE TEE TEE EEE EEE WWW OWE WE OWT OWE OWE owe wm
Se ie i ae a e ae. ie
TE TEE TEE aE Tae a ww
uk
Ww
OPERATING INSTRUCTIONS
4. Toengage blades for cutting, move height-of-cut
control to the desired setting, then pull out and up on
deck engagement switch.
5. To stop the engine, in sequence, depress clutch
and brake pedals, move throttle control to SLOW,
deck engagement switch into DISENGAGE, gear
shift into neutral, engage parking brake, and rotate
key to OFF position.
IMPORTANT: Never leave the deck engagement
switch in the engaged position when the engine is
not running. Doing so with the ignition switch ON
will discharge the tractor battery.
Note: Remove the ignition key and store it in a
memorable place between operating periods.
GRASS CUTTING TIPS
1. When the rider is used to cut a lawn for the
first time, cut grass slightly longer than normal to
assure that cutting width of mower housing will
not cause scalping, which could result from severe
undulations of the ground. In general, however,
the cutting height used in the past is probably the
best one to use.
2. If the grass is ever allowed to grow slightly
longer than normal, or if it contains a high degree
of moisture, raise cutting height higher than usual
and cut the grass at this setting. Next, cut the
grass again using the lower, normal setting. This
method of cutting long grass results in an even
distribution of clippings and an acceptable quality-
of-cut.
3. Very long or extremely wet grass can be cut, but
specific operating techniques must be used. Start by
setting height-of-cut in Position #6. Using 1st gear
and maximum throttle speed, move into the grass and
cut a swath that is only half as wide as the mower
housing. Direct grass clippings toward area that was
cut previously. Stop forward movement occasionally
to allow discharge area to clear itself. Cutting too
much grass may clog the mower housing and dis-
charge area. If mower housing does clog, shut engine
off, disengage blades and remove the obstruction
with a stick.
A DANGER
Before removing obstruction from mower
housing, move deck engagement switch
into DISENGAGE, depress clutch and
brake pedals, shift into neutral, turn
ignition key to OFF position and set
parking brake. Remove wire from spark
plug to prevent possibility of accidental
starting.
4. When mowing, operate engine at full throttle.
This maintains proper blade speed and air flow
to facilitate discharge of clippings. Mowing with a
lower rpm causes the blades to tear the grass,
resulting in poor lawn appearance. Lower rpm also
reduces alternator charging efficiency which may
affect battery performance.
MAINTENANCE INTERVAL CHART
5 25
Hours Hours
Storage
Service
Spring 2
Service Years Notes
Change Oil (Initial) X
Change Oil (Periodic)
Check Safety Interlock
Check Cutter Blades
Check Brakes
Grease Front Axle Spindles
and Wheels
Grease Steering Spindle
Lubricate Pivot Points
Grease Rear Wheels
Service Air Cleaner
Check Spark Plug
Check Battery Electrolyte Level
Check Tire Pressure
Clean Outside of Engine
Check Chain Tension
Check Blade Drive Belts
Check Traction Drive Belts
Drain Gasoline
Clean Mower Housing
Paint Chipped Surfaces
Check Interlock Switches
HK XX
Xx Xx Xx
HH HH HK HHH KK
» More often in dusty,
X dirty conditions.
More often in dusty,
X dirty conditions.
More often in dusty,
dirty conditions.
EEE EEE EEE XX X
ж.
14
MAINTENANCE
РО И
ЧР Ро О _J
A CAUTION
To prevent accidental starting of the
engine while performing maintenance,
shut engine off, remove key from igni-
tion switch, and pull wire off spark plug
(Fig. 14). Make sure wire does not con-
tact plug accidentally.
WT OWE EE EE mae nae wae wae wage age
a pr
160040
Figure 14
1. Spark plug wire
2. Spark plug
GREASE FRONT AXLE SPINDLES AND FRONT
8: BACK WHEELS
Tools Required: Clean Rag and Grease Gun
w/No. 2 General Purpose Lithium Grease
The front axle spindles and wheels must be lubri-
cated after every 25 hours of operation; however,
lubricate more frequently when conditions are
dusty or sandy.
1. Wipe grease fittings on spindles and wheels
(Fig. 15, 16) with a clean rag. If there is paint on front
of fittings, scrape it off.
2. Lubricate both axle spindles and front and back
wheels w/No. 2 general purpose grease (Fig. 15).
Continue to pump grease until it oozes out the
spindle. Wipe up any excess grease.
Figure 15
1. Steering spindle location
Figure 16
GREASE STEERING SPINDLE
Tools Required: Clean Rag and grerase gun w/No. 2
General Purpose Lithium Grease.
The steering spindle, above steering rack, must be
lubricated after every 25 hours of operation; however
lubricate more frequently when conditions are dusty
or sandy.
1. Wipe grease fitting on spindle with a clean rag. If
there is paint on fitting, scrape it off. (Fig. 15, Inset).
2. Lubricate spindle w/No. 2 general purpose
grease. Wipe up any excess grease.
15
MAINTENANCE
4
LUBRICATE MECHANICAL PIVOT POINTS
Tools Required: Oil can filled with SAE 10 engine oil
or a pressurized can of spray lubricant similar to
WD-40.
Lubricate the mechanical pivot points every 25 hours
with a few drops of SAE 10 oil or WD-40 spray
lubricant.
Note: Keep all lubricants away from drive belts,
pulleys and brake discs.
SERVICING AIR CLEANER
Tools Required: None.
The air cleaner element must be cleaned after every
25 hours engine operation if engine is operated in
clean air conditions. However, element must be
cleaned every few hours if operating conditions are
extremely dusty or sandy.
1. Remove (2) knobs securing air cleaner cover in
place and remove cover (Fig. 17).
Figure 17
1. Knobs
2. Arr cleaner cover
2. Remove foam pre-cleaner by sliding it off the
cartridge (Fig. 18).
A. Wash foam pre-cleaner in liquid soap and
warm water.
B. Wrap foam pre-cleaner in cloth and squeeze
dry.
C. Saturate foam in engine oil. Squeeze to
remove excess oil.
3. Remove (2) nuts from top of cartridge (Fig. 18).
4. Remove cartridge and clean air cleaner body
carefully to prevent dirt from entering carburetor.
16
Figure 18
1. Foam pre-cleaner
2. Cartridge
3. Nuts
5. Clean cartridge by tapping gently on flat
surface.
A. If very dirty, replace cartridge or wash in a
low or non-sudsing detergent and warm
water solution.
B. Rinse thoroughly from INSIDE OUT until
water is clear.
C. Cartridge must be allowed to stand and
air dry thoroughly before using.
6. Reassemble air cleaner.
A IMPORTANT
Petroleum solvents, such as kerosene,
are not to be used to clean cartridge.
They may cause deterioration of the
cartridge. DO NOT OIL CARTRIDGE.
DO NOT USE PRESSURIZED AIR TO
CLEAN OR DRY CARTRIDGE.
IMPORTANT: Always operate engine with air
cleaner element in place or engine damage will
result.
CHANGING CRANKCASE OIL
Tools Required: Clean rag, 7/16 inch open end
wrench, and shallow oil drain pan.
1. Check level of oil before starting engine and
after every 5 hours of operation. Maintain oil level
at FULL mark on dipstick.
MAINTENANCE
To check level of oil:
A. Position rider on level surface.
B. Clean the area around oil dipstick so
foreign matter cannot enter filler hole when
dipstick is removed.
C. Unscrew dipstick and wipe oil off.
D. Screw dipstick fully in to filler neck: then
remove it and check oil level on dipstick. If
level is low, add only enough oil to raise level
to FULL mark. Do not overfill or engine
damage may result.
E. Screw dipstick back into filler neck.
2. Change oil after first 5 hours of operation;
every 25 hours thereafter. Change oil more fre-
quently when operating conditions are extremely
dusty or dirty.
To change oil:
A. Position rider on level surface. Start and run
engine for a period to warm the oil.
B. Turn engine off, set parking brake and place
drain pan below drain plug (Fig. 19). Remove
drain plug and allow all oil to flow into drain pan.
Install drain plug securely after oil stops flowing.
Figure 19
1. Drain plug
C. Unscrew dipstick and add oil to crankcase.
Refer to CHECK CRANKCASE OIL LEVEL, page
10. Capacity is 48 oz. (1.42 1). DO NOT OVERFILL
or engine damage may result. Recheck oil level
before operating.
Use any high-quality A.P.l. classification SC,
SD, SE, or MS engine oil. Recommended
viscosity of oil to use is:
e Above +40°F (4°C) — Use SAE 30; 10W-30
as a substitute.
e Below +40°F (4°C) — Use SAE 5W-20 or
bW-30; SAE 10 or 10W-30 as substitutes.
e Below 0°F (-18°C) — Use SAE 10 or 10W-30
diluted 10% with kerosene.
FUEL FILTER REPLACEMENT
Tools Required: Hose clamp pliers, drain pan.
An in-line filter is incorporated into the fuel line
between the fuel tank and carburetor (Fig. 20).
Use the following procedures should replacement
become necessary:
A...
Since gasoline is highly flammable, drain
it outdoors and make sure engine is cool
to prevent a potential fire hazard. Wipe
up any gasoline that may have spilled.
Do not drain gasoline near any open
flame or where gasoline fumes may be
ignited by a spark. Do not smoke a
cigar, cigarettte, or a pipe when handling
gasoline.
Se. я ie A. aE ae о Чо о Ро РО ЧР e e ale
Figure 20
1. Fuel filter
2. Hose clamps
1. Close fuel shut off valve, located under fuel tank
(access from under seat).
17
MAINTENANCE
2. Loosen the hose clamp on the carburetor side of
filter and remove the fuel line from the filter.
3. Place a drain pan under filter, loosen the remain-
ing hose clamp and remove filter.
4. Install the new filter with arrow on the filter body
pointing towards the carburetor. Reinstall clamps.
5. Open fuel shut-off valve fully.
REPLACING SPARK PLUG
Tools Required: Spark Plug Socket, Spark Plug
Gapping Tool, and Clean Rag.
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of
electrodes after every 25 operating hours. Recom-
mended air gap is 0.030 of an inch (0.762 mm).
Correct spark plug to use is:
Champion RCJ-8 or Autolite AR7N.
Note: The spark plug usually lasts a long time;
however, the plug should be removed and checked
whenever the engine malfunctions.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is re-
moved.
2. Pull high tension wire off spark plug and re-
move plug from cylinder head.
3. Check condition of side electrode, center
electrode, and center electrode insulator to assure
there is no damage.
IMPORTANT: A cracked, fouled, dirty or defec-
tive spark plug must be replaced. Do not sand
blast, scrape, or clean electrodes by using a wire
brush because grit may eventually release from the
plug and fall into the cylinder. The result is usually
a damaged engine.
5. Set air gap between center and side electrodes
at 0.030 of an inch (0.762 mm) (Fig. 21). Install
correctly gapped spark plug w/gasket seal, and
tighten plug to 15 ft-lb (20.4 N-m). If torque
wrench is not used, tighten plug firmly.
6. Push high tension wire onto spark plug but do
not leave key in the ignition. This will prevent ac-
cidental starting when mower is being stored be-
tween use periods. Keep key in memorable place
so It is not lost.
18
0.030"
(0.762 mm)
Figure 21
ADJUSTING THROTTLE-CHOKE CONTROL
Tools Required: Medium blade screwdriver.
Proper choke operation is dependent upon proper
adjustment of remote controls. Before adjusting
the carburetor, assure the throttle-choke control
is operating properly.
1. Remove the knobs holding air cleaner in place
and lift air cleaner cover off air cleaner.
2. Move remote control lever to CHOKE position and
check the position of the choke butterfly; it should be
fully closed.
3. Move remote control lever to FAST position. The
butterfly should be in the fully open position.
Figure 22
1. Clamp screw
2. Link
3. Throttle lever
MAINTENANCE
4. If the choke butterfly is positioned as described
in steps 2 and 3, replace the air cleaner assembly
and continue operation.
If either the choke butterfly does not close or
is not fully open in the FAST position, adjust
the remote control lever as follows:
1. Place remote control lever in CHOKE position.
2. Loosen the throttle cable clamp screw (Fig. 22)
and move the control cable casing and wire until
the throttle lever touches link.
3. Tighten the cable clamp and assemble the air
cleaner cover to the air cleaner,
ADJUSTING CARBURETOR
Tools Required: Medium Blade Screwdriver
The carburetor has been set at the factory, but an
occasional adjustment may be required. How-
ever, do not make unnecessary carburetor adjust-
ments because factory settings are usually cor-
rect. An adjustment may be required to com-
pensate for differences in fuel, temperature and
altitude.
IMPORTANT: Before the carburetor is adjusted,
throttle control must be checked for proper
operation: refer to Adjusting Throttle/Choke
Control, page 18.
1. Needle Valve (Fig. 23) — Close valve by gently
rotating it clockwise.
ER
Figure 23
1. Needle valve
2. Idle valve
3. Idle speed adjusting screw
IMPORTANT: Do not close the needle valve too
tight because the valve and seat in carburetor will
likely be damaged.
2. Rotate — open — the needle valve 2 turns
counterclockwise (Fig. 23).
Note: The needle valve setting is an approximate;
however, the setting will allow engine to be started
so carburetor can be fine tuned — steps 3-9.
A WARNING
Engine must be running so final ad-
justment of the carburetor can be per-
formed. To guard against possible per-
sonal injury, move deck engagement
switch into DISENGAGE detent, shift
into neutral, and engage parking brake.
Keep hands, feet, face, and other parts
of the body away from the cutter blade,
underside of mower housing, discharge
area, and any rotating engine parts.
3. Start engine and let it warm up for approxi-
mately two minutes. Next, move throttle control
into FAST detent.
IMPORTANT: A clean air cleaner must be installed
on the engine whenever high speed is being ad-
justed. The air cleaner mounting screw must also
be installed when engine is run.
4. Rotate needle valve (Fig. 23) clockwise, 1/8
turn at a time, until engine starts to lose speed. Let
engine react to each 1/8 turn setting.
5. Rotate needle valve (Fig. 23) counterclockwise
— out — 1/8 turn at a time, until engine first runs
rough. Let engine react to each 1/8 turn setting.
6. Rotate needle valve (Fig. 23) clockwise — in —
very slowly until engine starts to run smoothly.
This setting, under no load, may be slightly rich;
however; the slightly rich setting will assure proper
operation when engine is under load.
7. Move throttle control backward so engine idles.
If engine stalls, rotate idle adjusting screw until
engine speed increases (1750 rpm).
Note: Rotate idle adjusting screw clockwise to
Increase idle rpm. By contrast, rotate idle adjusting
screw counterclockwise to decrease idle rpm.
8. Turn idle valve in (lean) and out (rich) slowly
until engine idles smoothly.
19
MAINTENANCE
9. Check carburetor adjustment by quickly
moving throttle control from SLOW to FAST. En-
gine speed should increase without hesitation. If
engine tends to stall or die out, rotate needle valve
1/8 turn counterclockwise until engine accelerates
smoothly.
10. After carburetor is adjusted, shut engine off.
If mower will not be used immediately, remove key
from switch to prevent possibility of accidental
starting. Keep key in a memorable place so it is
not lost accidentally.
REMOVING CUTTING DECK
Tools Required: None
1. Set height-of-cut lever in lowest position.
2. Remove washer and cotter pin securing rear of
each tension rod to rider post and disconnect rod. Use
caution — spring is under tension.
3. Note right and left rods, so they can be reinstalled
on the same side.
4. Remove (2) cotter pins and clevis pins securing
front deck hangers to hanger bars and lower front of
deck to ground.
5. Push deck rearward until it slides off back of lift
bars. Raise height-of-cut lever to highest position and
slide deck out from under rider.
A CAUTION
Suspension bars are spring loaded. Use
caution when removing deck.
a
Figure 24
3. Rear deck hangers
4 Lift bar
1. Deck tension rod
2. Washer € cotter pin
20
SERVICING CUTTER BLADES
Tools Required: Rag or thickly padded Glove,
15/16 inch Socket Wrench and Handle, File and
Blade Balancer.
To service blades:
1. Insure engine is shut off, lock parking brake and
remove the high tension wire from the spark plug.
A CAUTION
Stop the machine and examine the cutter
blades for damage and loss of torque of
the nut securing the blades to the spindle
shaft whenever the blades strike an im-
moveable object. Disconnect the spark
plug lead, engage the parking brake and
move deck engagement switch into
DISENGAGE detent prior to examining
the blade. If blade is cracked, bent or
twisted or severely eroded (fig. 26), re-
place the blade. Always use genuine
Toro replacement blades to assure safety
and optimum performance. NEVER USE
WILLFIT REPLACEMENT BLADES. See
To Service Blades above.
2. Remove cutting deck; refer to Removing Cutting
Deck, page 19.
3. Turn cutting unit on its side, grasp the end of the
blade with a rag or thickly padded glove; then remove
the locknut, anti-scalp cup and blade (Fig. 25).
Figure 25
1. Locknut, anti-scalp cup and blade
0
—-
MAINTENANCE
4. Examine cutting ends of the blade carefully,
especially where the flat and curved parts of the blade
meet (Fig. 26A). Since sand and abrasive material can
wear away the metal that connects the flat and
curved parts of the blade, check the blade before
using the mower. If wear is noticed (Fig. 26), replace
the blade.
FLAT PART SAIL
E
® x
® SAIL
( rd
|
uE
\— WEAR
O SAIL
E = SLOT
| 6 FORMED
L o_o иене н ны
Figure 26
A CAUTION
If blade is allowed to wear, a slot will
form between the sail and flat part of the
blade (Fig. 26C). Eventually, a piece of
the blade may break off and be thrown
from under the housing, possibly result-
ing in serious injury to yourself or by-
stander.
Note: Since lock nut is tightened at the factory, it
may be difficult to remove the nut. If nut cannot
be removed, contact an Authorized TORO Service
Dealer for assistance.
5. Using a file, sharpen cutting edge at both ends
of the blade (Fig. 27). File only top side of blade,
not the bottom side.
SHARPEN AT IL
ORIGINAL ANGLE
Le
END VIEW OF BLADE
Figure 27
6. Check balance of blade by putting it on a
blade balancer. (An inexpensive balancer can be
purchased at a hardware store). A balanced blade
will stay in a horizontal position on the balancer.
By contrast, a blade that is not balanced will
settle to the heavy side. If blade is not balanced,
file more material off cutting edge of the blade.
Continue to file and check the blade until it is
balanced.
7. In sequence, install blade, anti-scalp cup and
locknut (Fig. 25). Tighten locknut to 50-60 ft/lb
(68-81 N-m).
IMPORTANT: Make sure blade sail is facing top of
mower housing and cutting edge of blade is away
from top of mower housing (Fig. 25). While lock
nut is tightened, move blade slightly so it seats
between sides of blade retainer.
8. Mount the cutting unit to the rider. Refer to Install
Cutting Unit, below, for proper procedures.
INSTALL CUTTING DECK
Tools Required: None.
1. Remove (4) clevis pins and cotter pins from deck
hanger brackets on cutting deck.
2. Insure height-of-cut lever is in the highest height
setting.
3. Lock parking brake, and slide deck under rider.
4. Position the cutting deck so the hanger bars bisect
the deck hanger brackets on each side of deck. Lower
the height-of-cut lever to its lowest setting.
A CAUTION
Suspension bars are spring loaded. Use
caution when installing deck.
5. Route belt around deck pulley and engine pulley.
6. Starting with the front, pull down on each hanger
bar while lifting deck enough to install the clevis pins
into the bracket holes. Secure with cotter pins.
7. With washer, spacer and spring installed on deck
tension rod, insert front end of rod into bracket on
deck and rear end onto post on rider frame. Secure
rear end on post with a washer and cotter pin (Fig. 28).
Note: Rear end of rod to be positioned on post with
welded bracket on inside of rod as shown in Fig. 29.
21
MAINTENANCE
=
go
== y я de
—
Figure 28
1. Clevis pin & cotter pin 2. Hanger brackets 3. Hanger bar
TENSION CUTTER DECK DRIVE BELT
1. To tension belt, tighten front jam nuts on deck
tension rods equally until springs are compressed to a
length 3/16" longer than spacers inside of springs
(Fig. 29). Secure rear jamnuts.
Figure 29
I. Deck tension rod 2. Deck bracket
Note: Check position of tension rods. Both rods are to
extend equally through deck brackets within 1/4" per
side in order to prevent binding on hanger bars. If an
adjustment is required, readjust jam nuts to equalize
rods.
2. Check position of both belt guides. Guides should
be positioned so rod edges are approximately .10 inch
from back side of each belt.
CLEANING UNDERSIDE OF MOWER HOUSING
Tools Required: Wooden scraper, garden hose and
paste wax.
To assure a good quality-of-cut and efficient grass
bagging, underside of mower housing and inside
of discharge area must be kept clean. Whenever the
mower is removed, clean out debris with a scraper
and hose and apply a coat of paste wax on inside
of mower housing and grass deflector. This will
retard corrosion and prevent grass and dirt from
sticking on inside of housing.
22
REPLACING BLADE SPINDLE DRIVE BELT
The blade drive belt, tensioned by the spring loaded
idler, is very durable. However, after many hours of
use, the belt will show signs of wear. Signs of a worn
belt are: squealing when belt is rotating, blades
slipping when cutting grass, frayed edges, burn
marks and cracks. Replace the belt if any of these
conditions are evident.
Tools Required: Medium Blade Screwdriver.
1. Remove the cutting deck. Refer to Removing
Cutting Deck, page 19.
2. Remove the screws securing belt shields to deck
and remove shields (Fig. 30).
Figure 30
1. Belt shield
2. Idier pulley spring
A CAUTION
Idler arm and pulley are spring loaded;
use caution when loosening belt.
aie. ie ae le i Mer
3. Unhook idler pulley spring to relieve tension on
belt.
4. Remove old belt.
5. Install new belt around spindle pulleys and idler
pulley.
6. Connect idler pulley spring.
7. Reinstall belt shields to cutting deck.
8. Reinstall cutting deck to rider: refer to Installing
Cutting Deck, page 20.
©
I
MAINTENANCE
LEVELING CUTTING DECK
Tools Required: 3/4 inch wrench, 6 inch (15 mm)
scale ruler.
If mower doesn't cut level from side to side and
cutting blade is not bent, level the cutting unit as
follows:
1. Place rider on level surface, lock parking brake
and remove spark plug wire.
2. Check to make sure front and rear tires are
inflated to 14 psi.
3. Place height-of-cut lever in number 3 position
and position cutter blades at right angle to direction of
rider travel.
4. Measure the blade tip height at outermost end of
each blade. Rotate each blade 180° and measure the
blade tip height of opposite end of blade. Position
lowest end of each blade in outermost position.
5. Compare outermost blade tip heights. Measure-
ments should be within 3/16 inch (5 mm) of one
another.
6. If blade tip heights are not within 3/16 inch
(5 mm), level cutting unit by adjusting height-of-cut
link connected to right hand lift bar as follows:
A. Block up deck and remove cotter pin and
washer securing link to lift bar (Fig. 31).
Figure 31
I. HO.C. link
2. Jam nut
B. Loosen jam nut on link and rotate link to
adjust up or down.
C. Tighten jam nut, reinstall link to lift bar with
washer and cotter pin.
D. Recheck adjustment.
6. To adjust cutting deck front to back.
A. Set height-of-cut lever in No. 3 position and
make sure all tires are inflated to 14 psi.
B. Measure blade tip height with tip of blade in
farthest forward position. Rotate blade 180°
and measure same blade tip in rearward
position.
C. Front measurement should be 1/8” to 3/8"
lower than rear measurement. If an adjust-
ment is required, proceed to step D.
D. Block up deck, remove cotter pin and washer
from one of the front link yokes (Fig. 32).
Figure 32
3. Jam nut
4. Yoke
1. Front link
2. Washer & cotter pin
E. Loosen jam nut and rotate front link yoke to
adjust up or down.
F. Reinstall link to lift bar, tighten jam nut and
repeat procedure on opposite side.
G. Make sure both links are adjusted the same
number of turns.
H. Recheck adjustment.
ADJUSTING DRIVE CHAINS
The drive chains must be adjusted to maintain 1/2"
deflection when a 101b force is applied perpendicular
to chain at the mid span between transmission and
sprocket. Check chain deflection after first 5 hours of
operation and after every 25 hours of operation,
thereafter.
IMPORTANT: If chain is worn, loose or adjusted
incorrectly, chain could come off sprockets, re-
sulting in no brakes or traction drive. If assistance is
needed, contact your local authorized Toro Dealer.
1. Check deflection of drive chain by pressing up on
chain with approximately 10 Ibs force (moderate
pressure) at mid span. There should be 1/2" deflec-
tion (Fig. 33). If deflection is not as specified an
adjustment is required.
23
MAINTENANCE
el
m
*
1
>
EU
=
ча
=
mi
E
Mr
=
pe
"E
-
E
Г
Figure 33
1. Axle 3. Chain deflection
2. Chain tensioner
2. Block up rear of rider chassis, so rear wheels are
off the floor and axle can be moved.
3. Slightly loosen (4) flange nuts securing both sides
of axle to rider frame.
4. On both sides of axle, loosen rear jam nuts on
chain tensioners.
5. Rotate inside nut on chain tensioner until desired
chain tension is attained on each side.
6. Tighten rear jam nuts on chain tensioners.
7. Tighten (4) flange nuts securing both sides of axle
to rider frame.
8. Recheck chain tension.
REPLACING DRIVE CHAINS
1. Block up rear of rider chassis, so rear wheels are
off the floor.
2. Loosen (4)flange nuts securing both sides of axle
to rider frame.
3. On both sides of axle, loosen rear jam nuts on
chain tensioners.
4. Rotate inside nut on chain tensioners until chain
IS loose.
5. The master link on the chain may now be
removed and chain removed from sprockets.
IMPORTANT: Whenever changing chains or sproc-
kets, both sides should be changed. Inspect (4)
sprockets and replace both chains and sprockets if
necessary.
6. Install new chains and adjust, refer to Adjusting
Drive Chains, page 23.
24
ADJUSTING FRONT WHEEL ALIGNMENT
1. Assure Front Axle is level with frame and steering
rack timing mark is centered on steering stop pin
(Fig. 34).
2. To align front wheels, loosen jam nuts and turn
tie rods until centerline distance across front of
wheels is equal to or 3/16" max less than centerline
distance across rear of front wheels (Fig. 34). Wheels
should be straight ahead or toe-in should be equal
when timing mark is centered.
Figure 34
1. Front axle 2. Timing mark 3. Steering stop pin
3. Tighten jam nuts.
Note: No toe-out is allowable.
ADJUSTING BRAKES
Adjust brakes if parking brake does not hold or brak-
ing power is not sufficient when brake pedal is
depressed.
1. Shut engine off and remove wire from spark plug.
Shift transmission into 1st gear.
2. Tighten locknut on each transmission brake lever
(Fig. 35) until lever cannot be wiggled from side to
side. DO NOT OVERTIGHTEN.
Figure 35
2. Locknut
1. Brake lever
MAINTENANCE
3. Back off each locknut 1/4 turn. Lever should be
loose enough to wiggle slightly. If not, repeat
procedure.
ADJUSTING ELECTRIC DECK CLUTCH
The electric clutch is adjustable to ensure proper
engagement and braking of the cutter blades. If the
blades do not stop within a few seconds after the deck
engagement switch is DISENGAGED, check the
adjustment of the electric clutch.
1. Toadjust the clutch, tighten or loosen locknuts on
flange studs (Fig. 36).
MU. 000. ELA
Ч
Figure 36
1. Clutch 2. Flange stud
2. Check adjustment by inserting feeler gauge thru
slots next to flange studs.
3. The proper disengaged clearance between the
clutch plates is .012-.018 inches. It will be necessary
to check this clearance at each of the three slots to
ensure the plates are parallel to each other.
ADJUSTING TRANSMISSION LINKAGE
If engine will not start when gear shift lever is in
neutral position, but will start if the lever is pressed
slightly forward or backward, an adjustment to the
transmission linkage may be required.
Note: Check to make sure all shift linkage nuts and
bolts are securely fastened before proceeding.
1. Move gear shift lever to 5th gear.
2. Remove capscrew securing end of tie rod to left
transmission shift lever (Fig. 37).
3. Manually move right and left transmission levers
as far left as possible into fifth gear detent.
4. Without disturbing position of levers, reposition
tie rod over left transmission lever and check align-
ment of tie rod end mounting hole and lever mounting
hole.
Figure 37
1. Left transmission lever 2. Tie rod
5. If mounting holes do not align, loosen jam nuts on
tie rod and adjust rod until holes align.
6. Tighten jam nuts and resecure tie rod to lever
with capscrew.
SHIFT LINKAGE ADJUSTMENT
If the gear shift lever is not centered in neutral slot, an
adjustment to the shift linkage may be required.
1. Move gear shift lever to NEUTRAL position.
2. Check position of gear shift lever. Lever should be
centered in neutral slot when viewed from side of
machine (Fig. 38).
Figure 38
1. Gear shift lever
25
MAINTENANCE
3. Iflever is not centered, loosen jam nuts and rotate
tie rod until lever is correctly positioned in neutral slot
(Fig. 39). Tighten jam nuts.
_ ©
Figure 39
1. Tie rod 2. Transmission lever
ADJUSTING LINKAGE TO STEERING
CLUTCHES
1. Assure Front Axle is level with frame and steering
rack timing mark is centered on steering stop pin
(Fig. 40).
2. Check to make sure ends of front pull rods are
positioned at the rear of the slots in the pull rod plate
(Fig. 40 inset).
Figure 40
4. Pull rod plate
5. Rear pull rods
6. Traction pivot plates
1. Front Axle
2. Timing mark and stop pin
3. Front pull rods
26
3. Adjust jam nuts on rear pull rods so the bent ends
of the rods are on center to 1/8" behind the center of
the slots in the traction pivot plates (Fig. 40 & 41).
IMPORTANT: Make sure that the bent ends of the
pull rods remain 90° to the pivot plates or binding
will occur.
REPLACING TRACTIONS BELTS
Note: Read and understand the following instruc-
tions before beginning. Contact your local authorized
TORO Dealer if assistance is required.
1. Remove cutting deck, refer to Removing Cutting
Deck, page 20. Block up rear of machine or use wheel
ramps for rear wheels. Block front tires and apply
parking brake. Disconnect spark plug wire.
2. Have a helper depress clutch pedal while you
insert (2) 1/4" capscrews into holes in pivot platform
(Fig. 41). Slowly release clutch pedal allowing pivot
plates to rest against capscrews, relieving tension
from the belts.
Figure 41
4. Pivot platform
5. Clutch retainer
6. Driven pulley
7. Belt guides
8. Rear pull rods
9. Belt retainers
1. Holes in pivot platform
2. Cluteh wire connector
3. R-clamp
3. Unplug clutch wire connector and remove nut
and carriage bolt securing R-clamp to pivot platform.
4. Remove (3) capscrews and lockwashers securing
clutch retainer and pivot platform to rider. (Electric
clutch may have to be rotated to remove clutch
retainer) (Fig. 41).
5. Loosen (4) belt guides on (2) driven pulleys.
Remove belts from driven pulleys.
MAINTENANCE
6. Remove front jam nut from each rear pull rod so
that both pull rods can be disconnected (Fig. 41).
7. Remove assembly of pivot platform, pull rods and
A CAUTION
traction belts.
Pivot plates are spring loaded.
8. Remove (2) capscrews securing (2) belt retainers
to pivot plates (Fig. 41) and remove belt retainers.
Replace both traction belts and reinstall belt retainers
and capscrews to pivot plates.
9. With (2) capscrews previously removed, reinstall
assembly of pivot platform and rear pull rods. Loosely
install front jam nuts on pull rods.
10. Reinstall belts around driven pulleys.
11. Reinstall clutch retainer to pivot platform with
remaining capscrew.
12. Reinstall R-clamp to pivot platform and connect
clutch wire connector,
13. Have a helper depress clutch pedal while you
remove the (2) capscrews installed in step #2.
14. Adjust and securely tighten (4) belt guides on (2)
driven pulleys.
IMPORTANT: Belt guides must be positioned .08-
.14" from back of traction belt or belt life will be
greatly reduced.
15. Adjust both rear pull rods, refer to Adjusting
Linkage to Steering Clutches, page 26.
16. Install cutting deck, refer to install Cutting Deck,
page 21.
WHEEL REMOVAL
Tools Required: Pry Bar, Pliers, Wrench, Floor Jack,
Wheel Blocks.
Front Wheels:
1. Assure parking brake is locked and block rear
wheels.
2. Place jack under front of frame and raise wheels
off floor. DO NOT DAMAGE STEERING COM-
PONENTS.
3. Use a pry bar to lever the hub cap off the axle.
4. Remove the cotter pin and flange washer (Fig. 42)
and remove the wheel from the axle.
2. Mount flat washer onto axle, insert cotter pin
and open pin ends with pliers (Fig. 1).
Figure 42
5. Assemble in reverse order.
Rear Wheels:
1. Assure parking brake is locked and block the front
wheels.
2. Place jack under rear of frame and raise one
wheel at a time off floor.
3. Remove masterlink and chain from wheel hub.
4. Remove the cotter pin and washer and remove
the wheel from the axle (Fig. 43).
Figure 43
1. Cotter pin and washer
5. Assemble in reverse order.
27
MAINTENANCE
CHECKING SAFETY INTERLOCK SYSTEM
The purpose of the safety interlock system is to
prevent the engine from cranking or starting unless
the operator is on the seat, the transmission shifted
into neutral and the cutting unit deck engagement
switch is in the Disengage position. In addition, the
engine will stop if the operator gets off the seat when
the deck engagement switch is engaged or trans-
missions are in gear. To assure interlock system is
functioning correctly, check it before each use of the
rider. Have the safety interlock switches checked by
an Authorized TORO Service Dealer every two years
to assure safe operation of the rider.
1. Sit on seat and move shift control into neutral
position. Engage the parking brake to prevent move-
ment of the rider.
2. Move deck engagement switch to the ENGAGE
position. Rotate the ignition key to START. Engine
should not crank. If engine cranks, the interlock
system is malfunctioning and it must be repaired by
an Authorized TORO Service Dealer. If engine does
not crank, proceed to step 3.
3. Move deck engagement switch to DISENGAGE
position, push clutch in and place shift control into
one of the gear selections. Rotate the ignition key to
START. Engine should not crank; but if it does, the
interlock system is malfunctioning and it must be
repaired by an Authorized TORO Service Dealer. If
engine does not crank, proceed to step 4.
4. Move shift control into neutral and deck engage-
ment switch to DISENGAGE position. Engage the
parking brake to prevent movement of the rider.
Rotate ignition key to START position and start
engine. Place the deck engagement switch in
ENGAGE position and carefully raise off the seat: the
engine should stop running. If engine does not stop
running, shut engine off and have interlock system
repaired by an Authorized TORO Service Dealer. If
engine shuts off when you raised off seat, the
interlock system is functioning correctly.
Aone
Do not operate the rider if the interlock
system is malfunctioning because it is a
safety device, designed for protection.
2 2. A A a le a ae
Ve age Wg Wp WE WE MEF a me ae owe owe
BATTERY CHARGING SYSTEM
An AGC 10 Amp Fuse is incorporated in the charging
circuit as a protective device against alternator
damage caused by possible “short-outs™ in the wiring
harness. If the battery is fully charged, but fails to
28
crank the engine, have the electrical system checked
by an Authorized TORO Service Dealer.
PREPARING MOWER FOR STORAGE
1. Drain gasoline from fuel tank and fuel line:
refer to Fuel Filter Replacement, page 17. Next,
start engine and let it run at idle speed until it
stops and all gasoline is used. Replace the fuel
filter.
Note: All gasoline must be expended to prevent
gum-like varnish deposits from forming in the
carburetor, fuel line, and fuel tank. Such deposits,
if allowed to form, will cause starting problems
and poor engine operation.
2. Pull high tension wire off spark plug and clean
area around the plug so foreign matter cannot fall
into cylinder when plug is removed. Next, remove
plug from cylinder head and pour two tablespoons
of engine oil into spark plug hole. Rotate engine
by hand slowly to distribute oil on inside of cylin-
der. Then reinstall spark plug and tighten it to
15 ft-lb (20.4 N-m). If torque wrench is not used,
tighten plug firmly. DO NOT INSTALL HIGH
TENSION WIRE ON SPARK PLUG.
3. Drain oil from crankcase and refill with proper
viscosity oil: refer to Changing Crankcase Oil,
page 17.
4. Clean dirt and chaff from outside of cylinder,
cylinder head fins, and blower housing. Also,
remove grass clippings, dirt, and grime from external
parts of rider, engine, shrouding, and top of mower
housing.
5. Clean underside of mower housing: refer to
Cleaning Underside of Mower Housing, page 22.
6. Check condition of blades: refer to Servicing
Cutter Blades, page 20.
7. Check and tighten all cap screws, bolts, screws,
nuts, and mating parts. If any part is damaged,
repair or replace it.
8. Lubricate wheels and spindles with grease: refer
to Grease Front Axle Spindles and Wheels, page 15.
9. Check air cleaner element: refer to Servicing
Air Cleaner, page 16.
10. Touch up all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
Note: TORO Re-Kote “touch-up” paint is available
from any Authorized TORO Service Dealer. The
spray paint dries in minutes to a glossy, factory-
finish.
MAINTENANCE
11. Remove the battery from the machine, recharge
it and store it in a cool, dry place. Recharge it
every 30 days to prevent it from discharging. Refer
to Activating and Charging Battery, page 8.
IMPORTANT: Improper storage or failure to
recharge may cause battery failure.
12. Place blocks under the front and rear axles to
raise the wheels off floor and prevent tire deterior-
ation.
13. Store the rider in a clean, dry place. Remove key
from ignition switch and keep it in a memorable place.
Cover the rider to protect it and keep it clean.
WIRING DIAGRAM
GREEN
YELLOW
TRANS. SW SEAT SW.
& С 40 ECK
EC НАМ® a 1 _ [ENGAGEMENT BRIDGE
KEY Ay Bt 2ElSWITCH RECT.
IGNITION SWITCH BLACK RED
OFF M & G CLOSED
ON BAL CLOSED ==
START BAS CLOSED 7 В BROWN
DECK ENGAGEMENT SW. oR
OFF C 8D CLOSED
ON B &A CLOSED
TRANS. SWITCH | -BLADE
NORMALLY CLOSED IN 4 CLUTCH MAG
NEUTRAL :
SEAT SWITCH T
elit SBE TH ORANGE [ 3-2 4 LT. BLUE \ Г |
= PURPLE | y = | 2 ENGINE =
YELLOW IGNITION :
SWITCH COSTARTER
PURPLE
SOLENOID
RED
+
BATTERY
WHITE
WHITE
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The TORO Rider has two identification numbers: a
model number and a serial number. The two numbers
are stamped on a decal that is located under the seat,
on inside of rider body.
In any correspondence concerning the rider, supply
model and serial numbers to assure that correct
information and replacement parts are obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following infor-
mation:
1. Model and serial numbers of the tractor.
2. Part number, description and quantity of part(s)
desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
29
Va6-401
ALIGN THIS EDGE WITH A VERTICAL SURFACE
(TREE, BUILDING, FENCEPOST, POLE ETC.)
10° SLOPE GAGE
Read all safety decals and safety instructions on pages 3-5.
I
I
I
I
I
I
1
I
I
I
I
I
I
/
!
I
I
!
I
I
I
I
I
!
I
¿Merino NA“
„че Ч
—
«Pp
in Lors pr ras
D
N°
al ——
pr —Ios
#
= — сш O u
TT if
| =
| =
3903
030104 HLIM 3dOTS
JHVdNOD :31dNVWX3
=
| PF |
> UN
| 1
Am
| 3
.e— [6
7 DE
г
©
j 5
=
4 &
=
НЕ
m
0
Ъ
ной
©
wn
r=
=
m
[A WARNING
USE EXTREME CAUTION
ON HILLS AND SLOPES
© & &
TO MINIMIZE THE RISK OF INJURY
= Mover mpa mean slopes
5 Hever mow side МЫ ower 10°
* Мом порах ve 10d deere. nol across Ie ce
« When going epéill er déeabili de noi slop ar ata
rireme cauties when making
suddenly
fig lures
« Reduce tpeed and ute extreme
on slopes tn reduce the risk of lipging ar letimg cemirol
lerrain and ебет: hidden hazards
tipging ar leza af control
= Stay alert for hotes in The
De not drive cite 10 à élich creakc or drepolí in prevent
an ARS
VU: UE OOOO OOOO 33
Che Toro Total Coverage Guarantee
A Two Year Limited Warranty
On All
Toro Riding Mowers
The Toro Company promises to repair TORO Riding Mowers if defective in materials or
workmanship. The following time periods from the date of purchase apply:
Residential Product ......veeieins ce seicveasss wens 2 Years
Residential Products Used Commercially:
Riders With 25” Cutting Decks ................ 45 Days
Riders With 32” or Larger Cutting Decks ....... 90 Days
The costs of parts and labor are included, as are transportation costs within a 15 mile radius of
the servicing dealer. Just contact any Authorized TORO Service Dealer or TORO
Distributor. Should you feel your TORO Rider is defective and wish to rely on The Toro
Total Coverage Guarantee, the following procedure is recommended:
1. Contact the dealer where you purchased the rider. If this is
not convenient, just contact any Authorized TORO Service
Dealer, TORO Master Service Dealer, or TORO Distributor
(the Yellow Pages of your telephone directory is a good
reference source).
2. The Service Dealer will either instruct you to return the
product to him or recommend another Authorized TORO
Service Outlet which might be more suitable (not all TORO
Dealers are equipped to service Riding Mowers).
3. Pickup and delivery of your TORO Rider by the servicing
dealer is covered up to a 15 mile radius from the dealer's
place of business. Mileage charges beyond a 15 mile
radius are not covered by this warranty and are the
responsibility of the owner.
If you wish to bring the rider in yourself, first obtain prior
approval from your dealer and the dealer will provide
reasonable monetary compensation as specified by Toro.
If repairs to your rider are not covered by this warranty,
transportation charges connected with repairs will be
charged at the dealer's prevailing rates.
4. Please make the original sales slip, copy of the TORO
Registration Card, or other evidence of purchase date
available to the dealer when the unit is brought to the
dealer's place of business.
The servicing dealer will inspect the unit, advise you
whether the product is defective and, if so, make all repairs
necessary to correct the defect without extra charge to
you.
If for any reason you are dissatisfied with the dealer's analysis
of the defect or the service performed, you may contact us.
Write:
TORO Customer Service Department
8111 Lyndale Avenue South
Minneapolis, MN 55420
NN E ESC DS DES
The above remedy of product defects through repair by an
Authorized TORO Service Dealer is the purchaser's sole
remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY FOR THIS
PRODUCT. ALL IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR USE ARE LIMITED TO THE
DURATION OF THE EXPRESS WARRANTY.
Some states do not allow limitations on how long implied
warranty lasts, so the above limitation may not apply to you.
THIS WARRANTY APPLIES ONLY TO PARTS OR COM-
PONENTS WHICH ARE DEFECTIVE AND DOES NOT COVER
REPAIRS NECESSARY DUE TO NORMAL WEAR, MISUSE,
ACCIDENTS, OR LACK OF PROPER MAINTENANCE. REGU-
LAR, ROUTINE MAINTENANCE OF THE UNIT TO KEEP IT IN
PROPER OPERATING CONDITION IS THE RESPONSIBILITY
OF THE OWNER.
All warranty repairs reimbursable under this warranty must
be performed by an Authorized TORO Service Dealer using
TORO approved replacement parts and maintenance
procedures.
Repairs or attempted repairs by anyone other than an
Authorized TORO Service Account are not reimbursable
under The Toro Promise. In addition, these unauthorized
repair attempts may result in additional malfunctions, the
correction of which is not covered by warranty.
THE TORO COMPANY IS NOT LIABLE FOR INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CON-
NECTION WITH THE USE OF THE PRODUCT INCLUDING ANY
COST OR EXPENSE OF PROVIDING SUBSTITUTE EQUIP-
MENT OR SERVICE DURING PERIODS OF MALFUNCTION
OR NON-USE.
Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not apply
to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
re 8 er i у E # why
!
oll Ke a
I
>
NANI
WU
=
=
=
=
=
=
3
=
a
=
Ро
=
=
2
=
=
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported
from the United States or Canada should contact their
TORO Distributor (Dealer) to obtain guarantee policies for
your country, province or state. If for any reason you are
dissatisfied with your Distributor’s service or have difficulty
obtaining guarantee information, contact the TORO im-
porter. If all other remedies fail, you may contact us at The
Toro Company.
Compliance with Radio Interference Regulations Certified
Certifie Conforme au Reglement sur le Brouillage Radicelectrique.
Litho in U.S.A
-
U
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
