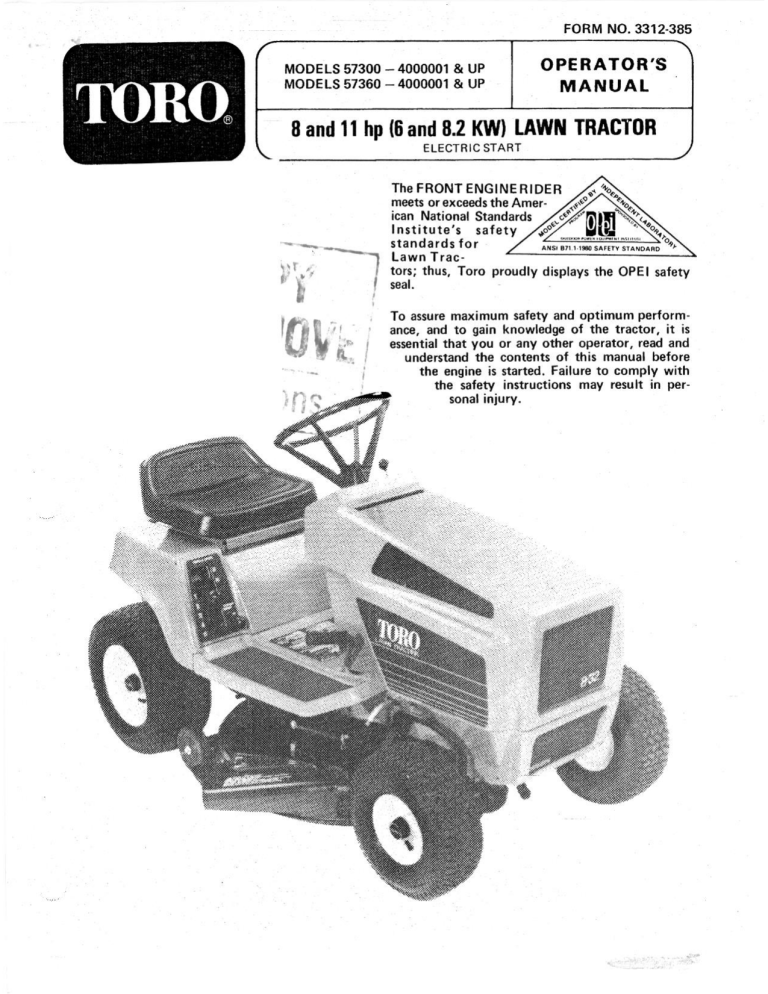

FORM NO. 3312-385
a >
MODELS 57300 — 4000001 & UP OPERATOR'S
MODELS 57360 — 4000001 & UP MANUAL
8 and 11 hp (6 and 8.2 KW) LAWN TRACTOR
Ne ELECTRIC START
The FRONT ENGINERIDER
meets or exceeds the Amer-
ican National Standards
Institute's safety
— standards for
> y Lawn Trac-
И | tors; thus, Toro proudly displays the OPEI safety
seal.
To assure maximum safety and optimum perform-
il E ance, and to gain knowledge of the tractor, it is
sn "y da essential that you or any other operator, read and
id A understand the contents of this manual before
the engine is started. Failure to comply with
| iP the safety instructions may result in per-
CLE sonal injury.
A
TE
a
т ;
En
Page Page
Safety Instructions . . ENE E E . 444 Maintenance AO e Eos 5 y my MAA
Safety and Instruction Decals . . . _ 5 Grease Front Axle Spindles and Wheels 14
Specifications à = 6-7 Grease Rear Axles SHOR eh os oe a 15
Loose Parts a 4 7 Lubricate Steering Shaft and Pivot Points 15
Setting Up Instructions 3-9 Servicing Air Cleaner : Co 15
Install Front Wheels . _ i 8 Changing Crankcase Oil 16
Install Steering Wheel Assembly 8 Fuel Filter Replacement 16
Install Seat , , | | Ня 8 Replacing Spark Plug re ww i 17
Adjusting Seat . 9 Adjusting Throttle-Choke Control 17
Install Hitch Plate . 9 Adjusting Carburetor 18
Before Operating . . . | Eo a 9-11 Servicing Cutter Blade 19
Activating and Charging Battery 9 Install Cutting Unit : ù ru 20
Check Crankcase Oil Level 10 Cleaning Underside of Mower Housing 21
Fill Fuel Tank with Gasoline 11 Replacing Blade Drive Belt к хх = 21
Check Tire Pressure AOS Es 11 Leveling Cutting Unit 22
Controls . . . = =~ sd 10 Replacing Traction Belt 22
Starting and Stopping Instructions . . . 12-13 Brake Adjustment 23
To Start and Operate Machine . . . . 12 Wheel Removal . . E Al e aa 23
ToStop . . Enea: #9 Checking Safety Interlock System 24
Break In. 2121, | ve uo Y Battery Charging System . 25
Using Parking Brake . _ FEE à à. 13 Headlight Circuit (11-32 Only) 25
Adjusting Height-of-Cut ~~ _ GEE A oe oe 12 Preparing Mower for Storage 25
Operating Instructions . Ed COSO NES és a TA Wiring Diagram EE Be om a . 26
Grass Deflector . . . aa aan 13 Troubleshooting ENE GE 27-28
Operating Procedure . - | 5 ss sum 18 Identification and Ordering . 29
Grass Cutting Tips. . ae a. 13 Maintenance Record sa 29-31
Maintenance Interval Chart EN; 14 The Toro Promise . . | E Back Cover
2
FOREWORD
The TORO Lawn Tractor contains the latest engineering and technical workmanship
and should provide long troublefree performance and service,
Since you have purchased this fine product, we are sure that dependability and performance
are important to you. TORO is also concerned about future use of the machine and of
safety to the user, Therefore, you should read this manual thoroughly so that proper safety,
operation and maintenance procedures are practiced at all times. The major sections of this
manual are:
1. Safety Instructions 3. Before Operating 9. Maintenance
2. Setting Up Instructions 4. Operating Instructions 6. Trouble Shooting
Safety, mechanical and some general information in this manual is emphasized. DANGER,
WARNING and CAUTION identify safety messages. Whenever the triangular safety symbol
appears it is followed by a safety message that must be read and understood. More complete
details concerning safety are contained on Page 3, 4 and 5. IMPORTANT identifies special
mechanical information and NOTE identifies general information worthy of special attention.
OPTIONAL SPARK ARRESTER
In some areas there are local, state or federal regulations requiring that a spark arrester be
used on the engine of this mower. If a spark arrester is required, order the following parts
from your local Toro Distributor:
« 1 Spark Arrester, part no. 36-7880 (8-32 only)
1 Spark Arrester, part no. 36-7890 (11-32 only)
These parts are approved by the United States Department of Agriculture Forestry Service.
The approval numbers for the exhaust system are 16361 (8-32) and 16362 (11-32).
When mower is used or operated on any California forest, brush or grass covered land,
a working order spark arrester must be attached to muffler. If not, the operator js
violating state law, Section 4442 Public Resources Code.
Further assistance concerning safety, operation and maintenance can be acquired by
contacting your local Authorized TORO Service Dealer. Your TORO Authorized Service
Dealer can provide you with genuine TORO replacement parts and also optional equipment
for your TORO Lawn Tractor. Keep your TORO all TORO. Buy genuine TORO parts
and accessories. TABLE OF CONTENTS
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — 1984
MINNEAPOLIS, MN 55420 — USA.
SAFETY INSTRUCTIONS
This safety alert symbol
means ARNING or
CAUTION — PERSONAL
SAFETY INSTRUCTION
— Read the instruction
because it has to do with
safety. Failure to comply
with the instruction may result in personal
injury.
The TORO LAWN TRACTOR was tested and veri-
fied by an independent laboratory for compliance
with the B71.1 1980 specifications of the American
National Standards Institute. However, improper
use or maintenance by the operator or owner of
the mower can still result in injury. To reduce the
potential for injury, follow these safety in-
structions.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the tractor
and mower. Become familiar with all controls, and
know how to stop the engine and machine quickly.
NEVER ALLOW CHILDREN TO OPERATE THE
TRACTOR.
2. Keep everyone, especially children and pets,
away from the area of operation. Remove sticks,
stones, wire, and any other debris or objects which
might be picked up and thrown by the mower.
3. Keep all shields and safety devices in place. If
a shield, safety device or decal is defective or
damaged, repair or replace it before operation is
commenced. Also frequently check and tighten any
loose nuts, bolts and screws.
4. Wear long pants and substantial shoes. Do not
operate the tractor while barefoot, wearing sandals,
tennis shoes, sneakers, or shorts.
5. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since gasoline
is highly flammable, handle it carefully.
A. Use an approved gasoline container.
B. Fill tractor fuel tank outdoors. To prevent
a potential hazard when filling tank, engine
must be cool and not running.
C. Wipe up any gasoline spills, and install
gasoline container cap and tractor fuel
tank cap before starting engine.
D. Do not run engine indoors without adequate
ventilation. Exhaust fumes are dangerous
and can be deadly.
6. Before attempting to start engine, shift into
neutral, move deck engagement switch into DIS-
ENGAGE position and lock parking brake. Engine
will not start unless gear shift is in neutral, deck
engagement switch is in DISENGAGE position,
and the operator is on the vehicle seat.
7. Assure interlock system is functioning correct-
ly before each use of the tractor. Have all safety
related components checked and safety inter-
lock switches replaced by an Authorized TORO
Service Dealer every two years to assure safe
operation of the tractor.
WHILE OPERATING
8. Never carry passengers on the tractor.
9. Keep people and pets a safe distance away from
the tractor and the area of operation.
10. Start engine when parking brake is set, blade is
disengaged, and transmission is in neutral.
11. Using a riding mower demands attention; there-
fore, mow only in daylight or when there is good
artificial light. Stay alert for holes in the terrain
and other hidden hazards. To prevent tipping or
loss of control, do not drive close to a ditch or
creek.
12. Cut steep grass slopes up and down, never
across the face. When going uphill or downhill do
not stop or start suddenly. To prevent tipping or
loss of control, reduce speed on slopes and when
making sharp turns. Extreme caution must be used
when changing direction on slopes. If a steep hill
must be ascended, back the tractor up the hill and
drive forward when descending.
13. Watch out for traffic when crossing or near
roads. Always yield the right-of-way.
14. Keep face, hands, feet, or any other part of the
body and clothing away from concealed, moving,
or rotating parts such as the cutter blade, discharge
area, wheels, belts, and engine. Always sit on the
seat while operating the tractor and mower,
15. During operation the grass deflector or com-
plete rear grass catcher assembly must be installed
on mower housing and tractor. Move deck en-
gagement switch into DISENGAGE, shift into
neutral, set parking brake, and shut engine off
before removing the rear grass catcher hopper or
unclogging discharge chute or tube. Use a stick
to remove any obstruction.
16. When driving from one area to another, crossing
a driveway, road, or sidewalk, move deck en-
gagement switch into DISENGAGE and raise
SAFETY INSTRUCTIONS
mower housing to its highest level. This will
prevent loose sand, rocks, and other debris from
being thrown by the whirling blade.
17.Do not touch engine, muffler or muffler
shields while it is running or soon after jt is
stopped, because the engine and muffler com-
ponents may be hot enough to cause a burn.
18. Use only the drawbar hitch point at rear of
chassis to pull the lightweight cart that is sold as an
accessory. Limit loads to those that can be con-
trolled safely. Be very careful when backing and
turning: Never turn sharply, |
19. Before leaving the operator's position — on the
seat — or leaving tractor unattended, shift trans-
mission into NEUTRAL, apply parking brake, move
deck engagement switch into DISENGAGE, rotate
ignition key to OFF, and remove key from switch.
20. If the blade strikes a solid object or mower
vibrates abnormally, shift transmission into neutral,
set parking brake, move deck engagement switch
into DISENGAGE, rotate ignition key to OFF,
and remove key from switch. Disconnect high
tension wire from spark plug, and keep wire away
from the plug to prevent possibility of accidental
starting. Check tractor and mower for possible
damage, bent blade or other parts. Make all
repairs before restarting the engine and operating
the mower.
MAINTAINING MOWER
21. Before starting the tractor, or performing any
maintenance service and adjustment, shift trans.
mission into neutral, set parking brake, move deck
engagement switch into DISENGAGE, rotate
ignition key to OFF and remove key from switch.
Keep the key in a memorable place. Also dis-
connect high tension wire from spark plug to
prevent possibility of accidental starting.
22. If major repairs are ever needed or assistance
Is desired, contact an Authorized TORO Service
Dealer.
23. If tractor and mower must be tipped to perform
maintenance or an adjustment, drain gasoline from
fuel tank and oil from crankcase and remove the
battery.
24. Keep tractor and mower housing in safe operat-
ing condition by having nuts, bolts, and screws
tight. Check the blade mounting nut frequently to
make sure the nut is tight (50-60 ft-Ib: 63-81 N-m).
25. To reduce potential fire hazard, make sure
engine, engine compartment, transmission and
brake areas are free of excessive grease, grass,
leaves and dirt.
26. Check all components of optional grass catcher,
including discharge chute and duct, for wear,
damage or deterioration and replace if necessary
with genuine TORO parts.
27. Allow engine to cool before storing tractor in
any enclosure such as a garage or storage shed. Make
sure the tractor fuel tank is empty if machine is to
be stored in excess of 30 days. Do not store
tractor near any open flame or where gasoline
fumes may be ignited by a spark. Always store
gasoline in a safety-approved, red metal container.
28. Do not overspeed the engine by changing
governor settings. Recommended engine speed is
3400 rpm. To assure safety and accuracy, have an
Authorized TORO Service Dealer check maximum
engine speed (3400 rpm) with a tachometer.
29. At the time of manufacture, the tractor con-
formed to safety standards in effect for lawn
tractors. Therefore, to assure optimum perform-
ance and safety, purchase genuine TORO replace-
ment parts and accessories to keep the Toro all
TORO. NEVER USE "WILL-FIT" REPLACEMENT
PARTS AND ACCESSORIES. The TORO logo
assures genuine TORO replacement parts and
accessories.
E ]
Genuine
TORO
PARTS & ACCESSORIES
E
|
A CAUTION
1. KEEP ALL SHIELDS IN PLACE,
2. BEFORE LEAVING OPERATOR'S POSITION,
A. MOVE TRANSMISSION TO NEUTRAL,
B. SET PARKING BRAKE,
C. DISENGAGE ATTACHMENT CLUTCH,
D. SHUT OFF ENGINE.
E. REMOVE IGNITION KEY.
3. WAIT FOR ALL MOVEMENT TO STOP
BEFORE SE RVICING MACHINE.
4. KEEP BYSTANDERS FROM AREAS
BEING MOWED.
SAFETY AND INSTRUCTION DECALS
The following safety and instruction decals are mou nted on the TORO
Lawn Tractor. Replace any that become damaged or illegible.
LOWER LEFT
SIDE OF
DASH PANEL
(Part No. 44-5710)
ATTACHMENT
CLUTCH
+
ENGAGE
(PULL OUT
AND UP)
DISENGAGE
{+
AROUND KEY SWITCH
(Part No. 28-2690)
| E
start |
©
EHICLE MAINTENANCE UNDERSIDE OF HOOD
' ' A (Part No. 36-5190)
INTERLOCK SYSTEM
THÉ ENGINE SHOULD NOT CRANK OR START
UNLESS THE OPERATOR IS ON THE SEAT. THE
TRANSMISSION IS IN NEUTRAL AND THE DECK 15
DISENGAGED THE ENGINE SHOULD STOP IF THE
OPERATOR LEAVES THE SEAT WITH THE TRANSMISSION
AND/OR THE DECK ENGAGED. IF INTERLOCK SYSTEM
FAILS TO OPERATE AS DESCRIBED SEE AN AUTHORIZED
TORO SERVICE DEALER. DO NOT OPERATE VEHICLE UN TiL
FAULT IS CORRECTED.
BATTERY
| MAINTAIN LEVEL OF ELECTROLYTE AT FILLER RING WITH CLEAN TAP WATER SEE OPERATORS MANUAL
> WHEN REMOVING BATTERY DISCONNECT BLACK NEGATIVE CABLE GROUND) FIRST. FOR COMPLETE INSTRUCTIONS
ENGINE
|. CHECK DIL LEVEL BEFORE STARTING ENGINE AND AFTER EVERY 5 HOURS OF OPERATION.
3 CHANCE OIL AFTER FIRST 5 HOURS OF OPERATION AND EVERY 25 HOURS THEREAFTER. CHANGE OIL MORE FREQUENTLY WHEN OPERATING IN EXTREMELY
BUSTY CONDITIONS. USE A HIGH QUALITY GRADE OF A P|. CLASSIFICATION SC. 50. Ok SE ENGINE OIL. FOR USE ABOVE 40 F SAE 10W-30. SAE 10W-40 OR
USE SAE 30 FOR USE UNDER 40 F USE SAE 5W-20, SAE 5W-30 OR SAE 10W-30. CRANKCASE CAPACITIES: 8 W.P.—36 87. 11H P.—48 OZ.
1 CLEAN AIR CLEANER ELEMENT EVERY 25 HOURS WHEN OPERATING IN DUSTY CONDITIONS. CLEAN MORE OFTEN. REMOVE FOAM ELEMENT AND WASH IN
SOLUTION OF LIQUID DETERGENT AND WARM WATER AND SQUEEZE DRY. SATURATE ELEMENT WITH FRESH ENGINE OIL AND SQUEEZE TO REMOVE EXCESS
OIL (ELEMENT SHOULD BE DAMP WITH OILI
4 CHECK SPARK PLUG EVERY 25 OPERATING HOURS. RESET GAF TO .030 OR REPLACE SPARK PLUG IF NECESSARY REPLACE WITH (CHAMPION ACJ-B)
OR [AUTOLITE ARTN) SPARK PLUGS.
CHASSIS че
| ADJUST BRAKES AS NECESSARY, LOOSEN OUTER JAM NUT. TIGHTEM INMER JAM MUT ON TRANSMISSION BRAKE = ‘ “
LEVER UNTIL BRANE LEVER HAS 1/2 INCHM FREE MOVEMENT BEFORE CALIPERS TIGHTEN ON BRAKE DISC. BRANE —f 13
PUCKS SHOULD HOT DRAG ON DISC WHEN BRAKE PEDAL IS RELEASED TIGHTEN OUTER JAM NUT. hw
> GREASE FRONT WHEEL BEARINGS AND FRONT AKLE SPINDLES EVERY 25 HOURS OF OPERATION. eE
USE A NUMBER TWO LITHIUM BASED GREASE. : we
3. TIRE PRESSURE — 13 PSI. -
a LUBRICATE STEERING SHAFT AND PIVOT POINTS SHOWN WITH LIGHT OIL EVERY 25 OPERATING HOURS UR AS NECESSARY TO MEEP = | | i
STEERING SYSTEM OPERATING EASILY. |
E
CAUTION remove aut euILDUP Of GRASS OR DEBRIS THAT MAY BE IN THE ENGINE COMPARTMENT OR ABOVE THE TRANSAXLE
| IGNITION
À
ON DEFLECTOR
(Part No. 12-2890)
‘AROUND’
LIGHT SWITCH
(11-32 ONLY)
(Part No. LEFT SIDE RIGHT SIDE
28-2510) OF SEAT OF SEAT
ACAUTION
KEEP HANDS AND FEET CLEAR ANYTIME
ENGINE IS RUNNING
DO NOT OPERATE MOWER UNLESS ENTIRE
GRASS CATCHER 15 ATTACHED OR
DEFLECTOR IS CLOSED AND SECURED
(Part No. 44-5840) {Part No. 36-1530)
| png Eur | | Lp НМ SPEND
оп О=
off (J
ON FLOOR PANEL
LIGHTS |
(Part No. 44-5850) |
CLUTCH PEDAL ATTACHMENT CLUTCH SWITCH TO STOP: BRAKE PEDAL
5 san ae A
Cher E y ! ". >
a М F ” us {+ A CAUTION Ty =
; \ Busia Domo mer Tw MAE | ; UNDERSIDE OF HOOD
DEPRESS CLUTCH Wark l SENT FULL SWITCH BUT LE UP STHPFIME ONLY. ENT
VNS NTH GEAR DA CHANGING DECK ENGAREMENT SWITCH Mut) BL IN iT SLOWER GEAR WHEN (Part No. 44-5860)
GEARE HLENUACEE POSITION TO STARE [HRN A Cro e
TO START ENGINE: TO STOP ENGINE: a DANGER
; ORE LLAVING GFLRA TOE SELY, BT0F [MEINE
Tw ra WH- PLACE ALL pb TE PT NET he BELT CHAN GING q RE
AFTACNOMENT CLUTCH SWITCH (3 № .DEPAESE BRAÑÍ PERAL ANO BET PARE RUNING OF WHILE ENGINE IE HOT 1.DECK BELT — REMOVE COTTER PINS FROM DECK o 7
MATA ve UN VENOCLO SENT. ase TAN CLEAN ENCINE COMPARTMENT O ANT ERASE DA DEENIE TENSIONING BRACKETS AND PULL BRACKETS OFF , [ÉS
Sn ман Are give ne PAU ota [HY
4 NEFF SYETANDIRS PREM WORNINE AREA я : PR URE T
mmm. OT ae fiery PLACE INSTALL NEW BELT. © UP
+ ATTACHMENT CLUTCH PWTTGH MOST Li TLL liom bie NEUTRA HEI MANOS ARR VEIT AWAY [ROR MOUSE PRES 2 TRANSMISSION BELT — REMOVE ENGINE-TO-DECK pi
+ MOVE TAMOTILE LOWER 1 CONE E. SEAD AMD UNDERSTÄM OPERATION S ARMA, MTOR bon Ta EE ABOVE. REMOVE CLUTCH WIRE # Tas
; ; . PARKS BRAKE MUST BI HELLA SED ace w D DISCONNECT WIRE. REMOVE DE > Fi
TVA ition TWITCH 18 STANT" pions pe TS FORWARD AEE oly a NT EU DE 8111 LTMGALE A VERN CLUTCH FROM ENGINE CRANKSHAFT, PULL OLER E и
STANTS. MINIEAPO E. MINNESOTA 35420 PULLEY BACK AND REMOVE BELT FROM PULLEY. т
H LINKAGE MAY HAVE TO BE DISCONNECTED E.
HEIGHT OF CUT PARKING BRAKE | ow VEHICLE SPEED SELECTOR TO ALLOW YT ING LEVER), O UT | %
TH APPLY PATRIEE DL OFF TD SHIFT: ; .
re - EFAS CLUTON Ama RAU PEDALE JO MCE pe REASSEMBLE IN REVERSE ORDER. MAKE
36 CLUTÉN PEDAL MENTRAL
a мат вет алла го taa = > мен сна ат гомо tee | ан su BE a SLOT IN DECK CLUTCH FITS
: ; OVER STEEL POST AND THAT WIRE IS
RELEASE BRAKE AJB CLUTCH PEDAL REVERSE — нони ская жит то
E E HELD AWAY F A T “i
LS Low TO DISENGAGE PARKING BRAKE: ELUTch rion iswty WARE es Не TIE DOWN. ROM ALCBELTE WIN WAHR: |
ET Sn dde 88 FARING LALLY LEVER aT ra
er a ES
SPECIFICATIONS
8-32 LAWN TRACTOR EL ECTRIC, MODEL 57300
11-32 LAWN TRACTOR ELECTRIC, MODEL 57360
8-32 — Briggs & Stratton Engine: Electric start
with alternator, four cycle engine, has output of
8 hp (6 KW) € 3600 rpm and 12.7 ft/lb (17.2
N'm) torque @ 2500 rpm. Displacement is 19.44
cubic inches (318.6 cc). Crankcase oil capacity is
2 1/4 pints (1.065 1) and fuel tank capacity is 7
quarts (6.62 1). Correct spark plug is a Champion
RCZ-8 or an Autolite AR7N resistor type and
recommended air gap is .030 of an inch (0.762 mm).
11-32 — Briggs & Stratton Engine: IC Series,
electric start with alternator, four cycle engine, has
output of 11 hp (8.2 KW) @ 3600 rpm and 16.8
ft/Ib (22.8 N-m) torque @ 2800 rpm. Displacement
Is 24.36 cubic inches (399.2 cc). Crankcase oil
capacity is 3 pints (1.42 1) and fuel tank capacity
is 7 quarts (6.62 |). Correct spark plug is a
Champion RCJ-8 or Autolite AR7N resistor type
and air gap is .030 of an inch (0.762 mm).
Mower Housing: Full floating, front to rear, side
to side. 12 gauge (2.64 mm) stamped steel housing
with right side discharge. Deck width is 32 inches
(.0813 m). Steel spindle housing with shaft is
supported by two double seal ball bearings. Blade
spindle pulley is driven by a spring tensioned “A”
section V-belt from clutch on engine crankshaft.
Cutter Blade: Single blade is 31 1/4 inches (0.794
m) long, made of one piece hardened 7 gauge (2.72
mm) carbon steel,
Blade Tip Speed: 17,000 ft./min (86 360 m/s)
@ 3400 engine rpm. Height of Cut Range: Height of
cut is adjustable to one of five approximate set-
tings from 1 1/2 inches to 3 3/4 inches (38 to
91 mm).
Transmission: Transmission fully enclosed per-
manently lubricated with differential enclosed. In
line shift pattern with five speeds forward and
one reverse,
Traction Drive: “A” Section V-belt with 2:1
reduction from engine pulley to automotive type
clutch on transaxle input shaft.
Ground Speed @ 3400 Engine rpm:
Ist gear — 1.2 MPH (1.9 km/hr)
2nd gear — 2.49 MPH (4.0 km/hr)
3rd gear — 3.73 MPH (6.0 km/hr)
I
4th gear — 4.76 MPH (7.7 km/hr)
Sth gear — 5.43 MPH (8.7 km/hr)
Rev. — 1.87 MPH (3.0 km/hr)
Wheels and Tires: The front 14 x 5.00-6 and the
rear 16 x 6.50 8 tubeless, pneumatic turf tires are
installed on demountable stamped steel wheels.
Recommended tire pressure is 13 psi (89.6 Kpa).
Steering: 13 inch (0.330 m) diameter steering
wheel mounted on a TORO design high helix screw
shaft with a 6.3:1 reduction. One and one half
wheel turns cramp to cramp.
Engine Controls: Control wire and casing with
FAST, SLOW and CHOKE positions. Key switch
with ON, OFF and START positions. Both con-
trols mounted on dash panel,
Transmission Control: Hand operated lever on right
side of operator with in line shifting with Z
pattern.
Traction Clutch: Foot operated pedal on left side.
Depressing pedal disengages clutch friction disc,
Brake Pedal: Foot Operated pedal on right side.
Depressing pedal thgages caliper on 2 1/2 inch
(64 mm) diameter disc.
Parking Brake Control: Hand operated lever on
right side of Operator. Depress brake pedal and
lift lever to engage. Transmission must be in neutral
to apply parking brake.
Cutter Blade Control: Toggle switch (pull out and
Up to engage) on steering tower in front of
Operator. Switch releases blade brake and en-
gages electromagnetic clutch.
Height-Of-Cut Control Lever: Hand Operated lever
at left of operator. Height of cut selection is
variable in five increments from 1 1/2 to 3 3/4
inches (38 to 91 mm),
General Dimensions (approx.):
Wheel Base — 46 in. (1.168 m)
Tread Width — 31 in, (0.787 m) front outside
to outside
— 32 in. (0.813 m) rear outside
to outside
SPECIFICATIONS
Turning Radius — 32 in. (0.813 m) inside wheel
Length — 62 in. (1.575 m)
Width — 38 1/2 in (0.978 m) including
cutter deck
Height — 40 in. (1.016 m)
Weight — 8-32: 415 pounds (188.24 Kg)
11-32: 430 pounds (195.05 Kg)
Safety Features: Meets B71.1 — 1980 ANSI safety
specifications.
Traction drive, blade drive and seat interlock.
Enclosed engine and muffler.
Enclosed traction drive.
Automotive type traction clutch.
Full foot rests.
Convenient, easy to operate controls.
Automatic blade brake.
Stable-Wide track and low center of gravity.
Parking brake lockout prevents forward travel if
parking brake is engaged.
Optional Accessories Attachments:
Easy Empty Grass Catcher, Model #59111.
Twin Bagger, Model #59122
Bumper Kit #52102.
Dump Cart.
Headlight Kit, Model #38-5760 (8-32 only).
42" Snow Blade Kit, Model #59140.
36" Snowthrower, Model #59160.
Tire Chain Kit, Model 447-7220
Spark Arrester Muffler, Part #36-7880 (8-32)
Part #36-7890 (11-32)
High Vacuum Bagging Kit,
Part #38-5730
Mulcher Kit, Model #59155
LOOSE PARTS
DESCRIPTION ОТУ. USE
Tire and Wheel Assembly 2 Mount to front axles.
Cotter Pin 1/8 in. x 1-1/4 in. 2 Secure wheels to axles.
Washer 2 Mount to front axles.
Hub Cap 4 Mount to front axles.
Steering Wheel 1 On steering shaft.
Roll Pin 1 Secure steering wheel to shaft.
Seat 1 Install on machine.
| Spacer 4 Install between seat and seat mount plate.
| Hitch Plate 1 Rear frame behind transaxle.
Capscrew 5/16 - 18 x 3/4 in. 8 Secure hitch plate to frame and mount seat.
Clamp 1 Secure wire harness to seat mount plate.
Carriage Bolt 1/4-20 x 5/8 in. 1 Secure wire harness to seat mount plate.
Locknut 5/16 - 18 4 Secure hitch plate to frame.
Locknut -/4 - 20 1 Secure wire harness to seat mount plate.
Capscrew 1/4 - 20 x 5/8 in. 2 Install battery cables.
Wing Nut 2 Install battery cables.
Key 2 Install in start switch.
Operator's Manual 1 Read manual before operating Tractor.
Reg. Card 1 Fill out and return to Toro.
SETTING UP INSTRUCTIONS
INSTALL FRONT WHEELS
Tools Required: Pliers.
1. Install wheel onto axle.
2. Mount flat washer onto axle, insert cotter pin
and open pin ends with pliers (Fig. 1).
Pismayo Y
3. Install hub cap and grease wheel bearing.
4. Repeat steps 1-3 on Opposite side.
INSTALL STEERING WHEEL ASSEMBL Y
Tools Required: Small ball peen hammer and drift
punch.
1. Slip steering wheel over shaft and line the
steering wheel mount hole with the shaft mount-
ing hole.
2. Insert a drift punch partially through the holes
to maintain alignment and insert the roll pin in
from the opposite side.
3. Drive the roll pin in until it is flush with the
outside of the wheel (F ig. 2).
Figure 2
ee
INSTALL SEAT
Tools Required: 7/16 in, 1/2 in wrench.
1. Remove battery from under Seat mount plate
and set aside.
2. Position seat onto mounting plate and insert
cable end from seat switch through grommet in
plate (Fig. 3).
A
lu. 15
Figure 3
3. Insert carriage bolt into square hole next to
grommet (Fig. 4), install Spacers between seat and
mount plate and set seat into position (Fig. 5).
Note: It is easier to install and secure the spacers
with flange head tapscrews individually: see step 4.
rr) E
e pe
=”
=
я
:
;
En
4: Lift seat mount plate, hold seat and spacers in
position and install flange head Capscrews (Fig. 6).
“. Insert seat switch connector into wire harness
<9nnector (Fig. 6).
SETTING UP INSTRUCTIONS
2 ADJUSTING SEAT
Tip the seat forward, loosen the seat mounting cap-
SCrews and relocate the seat for operator comfort.
Retighten the capscrews and lower the seat.
INSTALL HITCH PLATE
Tools Required: 1/2 inch box end wrench and
1/2 inch socket wrench,
1. Place hitch plate under the rear edge of the
RE es frame, line the mount holes with one another and
Pisa 6 CSSS insert the flange head capscrews through the holes
Figure 6 from the top.
6. Install clamp around seat switch wire and over 2 | |
| я : . Install the locknuts and tighten them to secure
carriage bolt and secure with locknut (Fig. 7). the plate to the frame (Fig. 8).
Note: Use a screwdriver or pry bar to hold the
head of the carriage bolt in place while installing
the locknut.
TOR
ça PLATE
Figure 7
Figure /
ACTIVATING AND CHARGING BATTERY vity must be purchased from a local battery supply
(12 Volt) outlet. Remove the battery and activate it as
follows:
Tools Required: 3 to 4 Amp Battery Charger.
1. Tip the seat forward and lift battery out of
Since the battery for the tractor is not filled with compartment (Fig. 9).
electrolyte or activated, the battery, if you have =
not already done so, must be removed from the
machine so it can be filled with electrolyte and
charged. Bulk electrolyte with 1.260 specific gra-
CAUTION
Wear safety goggles and rubber gloves
when working with electrolyte. Charge
the battery in a well ventilated place so
gases produced while charging can dis-
sipate. Since the gases are explosive,
keep open flame and electrical spark
away from the battery; do not smoke.
Nausea may result if the gases are in-
haled. Unplug charger from electrical
outlet before connecting to or discon-
pacting charger leads from battery posts.
BP Na ™
BEFORE OPERATING
2. Remove filler caps from battery and slowly
fill each cell until electrolyte is just above the
plates. To obtain best results, let battery set for
20 minutes. Add electrolyte to the maximum
capacity.
3. Leave filler caps off and connect a 3 to 4 amp
battery charger to the battery posts. Charge the
battery at a rate of 4 amperes or less for 4 hours.
4. When battery is charged, disconnect charger
from electrical outlet and battery posts.
5. Slowly add electrolyte to each cell until level
is up to fill ring. Install filler caps.
IMPORTANT: Do not overfill battery. Electrolyte
will overflow onto other parts of the machine and
severe corrosion and deterioration will result.
6. Install the battery into the battery compart-
ment with the terminal posts toward the rear of
the machine,
7. Install the positive cable (rubber boot over
end) to the positive (+) terminal and the negative
cable (black) to the negative (—) terminal of the
battery and secure with capscrews and wing nuts.
Slide the rubber boot over the positive terminal
to prevent possible short-out from occurring
(Fig. 11).
CHECK CRANKCASE OIL LEVEL
The tractor is shipped from the factory with oil in
the crankcase. However, check the oil level in
the crankcase prior to starting the engine. |
1. Place tractor on a level surface to assure accu-
rate oil level reading and open the hood. Ensure the
oil drain plug is securely tightened, Page 16,
(Fig. 22).
2. Unscrew and remove the dipstick from the oil
fill tube (Fig. 12).
Figure 12
3. If oil level is low, insert a funnel into the tube
and slowly add engine oil into the crankcase, Use
a high quality detergent oil classified “For Service
SC, SD, SE or MS” Oil viscosity (weight) must be
selected according to anticipated ambient tem-
perature.
A. Above +40° F (4° C) — Use SAE 30: 10W-30
and 10W-40 as substitutes.
B. Below +40° F (4° C) — Use SAE bW-20 or
oW-30; SAE 10 or 10W-30 as Substitutes.
C. Below 0° F (-18° C) — Use SAE 10 or
10W-30 diluted 10% with kerosene.
Note: Avoid Premature engine failure by insuring
the funnel used is clean SO contaminents are not
introduced into the crankcase. Wipe any oil spilled, .
so it will not cause dirt to collect on the engine.
4. Insure the oil level is to the full mark on the
dipstick when it js fully installed. Do not overfill
or engine damage may result.
5. Insert the dipstick and turn it clockwise to
secure it in the fill tube.
Note: Check the oil level every 5 operating hours
or each time rider is used. Initially, drain the oil
and replace it after the first 5 hours of operation
to remove the contaminents produced by normal
BEFORE OPERATING
engine break-in; thereafter, under normal condi-
tions, change oil after every 25 hours of operation.
Change the oil more frequently when the engine
is operated in dusty or dirty conditions.
FILL FUEL TANK WITH GASOLINE
Tools Required: Clean Rag and Funnel
A DANGER
Because gasoline is flammable, caution
must be used when storing or handling
it. Do not fill fuel tank while engine is
running, hot or when machine is in an
enclosed area. Vapors may build up and
be ignited by a spark or flame source
many feet away. DO NOT SMOKE while
filling the fuel tank to prevent the
possibility of an explosion. Always fill
fuel tank outside and wipe up any spilled
gasoline before starting engine. Use a
funnel or spout to prevent spilling
gasoline, and fill tank to about 1/2 inch
(12.7 mm) below the filler neck. Store
gasoline in a clean safety-approved
container and keep the cap in place on
the container. Keep gasoline in a cool,
well-ventilated place; never in an enclosed
area such as a hot storage shed. To assure
volatility, do not buy more than a 30
day supply of gasoline. Gasoline is a fuel
for internal combustion engines; there-
fore, do not use it for any other purpose.
Since many children like the smell of gas,
keep it out of their reach because the
fumes are explosive and dangerous to
inhale.
IMPORTANT: Leaded regular gasoline is recom-
mended. If leaded regular gasoline is not available,
low lead regular gasoline can be used. Do not mix
any oil with the gasoline, and never use premium
gasoline, gasohol, gasoline additives or white gas
because engine damage could result. Capacity of
fuel tank is 7 quarts (6.62 1).
1. Open the hood.
2. Clean area around fuel tank cap so foreign
matter cannot enter tank when cap is removed.
3. Remove cap from fuel tank and fill tank with
leaded-regular gasoline (Fig. 13). Then install fuel
tank cap.
ETA В : i ; РОЛ
Figure 13
4. Wipe up any gasoline that may have spilled.
5. Close the hood and make sure it snaps in place.
CHECK TIRE PRESSURE
Tools Required: Tire Pump and Tire Gauge.
Check and insure the tires are inflated to 13 psi
(89.6 kpa) before operating the machine.
CONTROLS
Clutch Pedal (Fig. 14) — Foot operated clutch
pedal is used in conjunction with the gear shift.
Clutch must be fully depressed when shifting gears
so that friction drive plates are separated on clutch
assembly.
Throttle Control (Fig. 14) — Throttle control
connects to and operates carburetor mounted
throttle and choke. Control has three positions:
IDLE, FAST and CHOKE. The control must be
pushed slightly to the right and forward to obtain
CHOKE position.
Ignition Switch (Fig. 14) — Switch is part of bat-
tery ignition system, and it has three positions:
OFF, ON and START. Key automatically returns
to ON position from START position when re-
leased after engine starts.
Light Switch — Model 11-32 only (Fig. 14) — Two
position switch for actuating headlights. Lights
will not function unless engine is running as
current is supplied by the engine alternator.
Deck Engagement Switch (Fig. 14) — Toggle switch
(Pull out and up to engage) releases blade brake
and engages electromagnetic clutch to drive
cutter blade,
Brake Pedal (Fig. 14) Foot operated pedal, which
when depressed, actuates a disc brake assembly at
the side of the transmission. Clutch pedal should
also be depressed while braking to achieve maxi-
mum brake effectiveness.
Parking Brake (Fig. 15) — Parking brake is used in
conjunction with standard brake assembly. When
brake pedal is depressed and parking brake lever
is pulled upward, a latch plate secures the brake
assembly in the engaged position preventing the
machine from moving.
CONTROLS
100 ee pe ese do
MA A
e
de En porc
ee ee pra
See
Figure 14
Note: Transmission must be in neutral to engage
parking brake.
Gear Shift (Fig. 15) — Transmission has five for-
ward speeds, neutral and reverse, and has an in-line
shift pattern. An interlock switch, which prevents
Figure 15
engine from being started when transmission is in
gear, is mounted on the top of the transmission.
Height-of-Cut Control (Fig. 15) — Height-of-cut
control varies the cutting height from 1 1/2 to
3 3/4 inches (38 to 91 mm) in five increments.
STARTING AND STOPPING INSTRUCTIONS
Note: Engine will not start unless deck engagement
switch is DISEN GAGED, shift lever is in neutral
and operator is sitting on the seat.
TO START AND OPERATE MACHINE
1. Shift into neutral, move deck engagement
switch to DISENGAGE.
2. Move throttle control to CHOKE position and
rotate ignition key to START. When engine starts,
release key and move throttle control between
FAST and SLOW.
3. Select desired height-of-cut and pull out and up
on deck engagement switch to ENGAGE,
4. Release parking brake, depress clutch pedal
and shift into gear.
TO STOP
1. Depress brake and clutch pedals, move throttle
control lever to SLOW position, move deck
engagement switch to DISENGAGE, and rotate
ignition key to OFF.
2. Shift transmission to neutral and engage park-
ing brake.
3. Remove key from ignition switch.
BREAK-IN
The engine requires no special break-in other than
changing oil after the first five hours of operation.
Operate the transmission in all gears to assure that
drive system is functioning correctly. After the
first five hours of Operation, check the condition
of the belts.
12
USING PARKING BRAKE
If the engine stalls or must be stopped
while operating on a hill or slope, the
engine must be shut off and parking
brake engaged.
1. Depress brake pedal fully, shift transmission
to neutral.
2. Move parking brake control upward and re-
lease brake pedal.
3. To release the parking brake, depress brake
pedal (Fig. 14), and push parking brake lever
(Fig. 15) down to return ittoits disengaged position.
Release brake pedal slowly,
ADJUSTING HEIGHT-OF-CUT
The height-of-cut may be set in one of five
positions from approximately 1 1/2 to 3 3/4
inches (38 to 91 mm).
1. Assure the deck Engagement switch is in
DISENGAGE position (Fig. 14).
2. Move height-of-cut control (Fig. 15) into
desired setting.
3. To engage blade for cutting, pull up and out
on deck engagement switch.
OPERATING INSTRUCTIONS
GRASS DEFLECTOR
The grass deflector and toe bar is a safety
device that routes discharged material
down toward the turf; therefore, do not
remove deflector from mower housing.
If the deflector is ever damaged, replace
it. Without the deflector or complete
grass catcher assembly mou nted in place,
discharged material could cause personal
injury.
OPERATING PROCEDURE
1. Move deck engagement switch into DIS-
ENGAGE.
2. Start the engine: refer to Starting/Stopping
Instructions, page 12.
IMPORTANT: When tractor is used for the first
time, operate the transmission in all gears to assure
that drive system is functioning correctly, and be-
come familiar with the controls and operating
characteristics. Never shift while the machine is
moving or without first depressing the clutch pedal
or transmission damage could result.
3. Depress clutch pedal and shift transmission
into 1st gear. Then release pedal slowly until
traction drive engages.
IMPORTANT: To avoid a jerky start and putting a
heavy load on the transmission, release clutch pedal
slowly. If shifting into reverse gear is difficult, jog
clutch pedal in and out to get gears to mesh. Do
not force the gear shift because damage may re-
sult. Should you encounter a jerking or grabbing
condition during operation, contact your local
Authorized TORO Service Dealer for assistance.
A WARNING
To avoid loss of control, always come to a
complete stop before shifting gears, and
slow down when turning, backing and
changing direction. Look behind the
tractor to assure area is clear before
backing.
4. To engage blade for cutting, move height-of-cut
control to the desired setting, then pull out and
up on deck engagement switch.
5. To stop the engine, in sequence, depress clutch
and brake pedals, move throttle control to SLOW,
deck engagement switch into DISENGAGE, gear
shift into neutral, engage parking brake, and rotate
key to OFF position.
IMPORTANT: Never leave the deck engagement
switch in the engaged position when the engine is
not running. Doing so with the ignition switch ON
will discharge the tractor battery.
Note: Remove the ignition key and store it in a
memorable place between operating periods.
GRASS CUTTING TIPS
1. When the tractor is used to cut a lawn for the
first time, cut grass slightly longer than normal to
assure that cutting width of mower housing will
not cause scalping, which could result from severe
undulations of the ground. In general, however,
the cutting height used in the past is probably the
best one to use.
2. If the grass is ever allowed to grow slightly
longer than normal, or if it contains a high degree
of moisture, raise cutting height higher than usual
and cut the grass at this setting. Next, cut the
grass again using the lower, normal setting. This
method of cutting long grass results in an even
distribution of clippings and an acceptable quality-
of-cut.
3. Very long or extremely wet grass can be cut,
but specific operating techniques must be used.
Start by setting height-of-cut in the highest po-
sition. Using 1st gear and maximum throttle
speed, move into the grass and cut a swath that is
only half as wide as the mower housing. Direct
grass clippings toward area that was cut previously.
Stop forward movement occasionally to allow dis-
charge area to clear itself. Cutting too much grass
may clog the mower housing and discharge area.
If mower housing does clog, shut engine off, dis-
engage blade and remove the obstruction with a
stick.
A DANGER
Before removing obstruction from mower
housing, move deck engagement switch
into DISENGAGE, depress clutch and
brake pedals, shift into neutral, turn
ignition key to OFF position and set
parking brake. Remove high tension
wire from spark plug to prevent possi-
bility of accidental starting.
4. When mowing, operate engine at full throttle.
This maintains proper blade speed and air flow
to facilitate discharge of clippings. Mowing with a
lower rpm causes the blade to tear the grass,
resulting in poor lawn appearance. Lower rpm also
reduces alternator charging efficiency which may
affect battery performance.
MAINTENANCE INTERVAL CHART
25
Hours
—
Hours
X
Change Oil (Initial)
Change Oil (Periodic)
Check Safety Interlock
Check Cutter Blade
Check Brake
Grease Front Axle Spindles
Lubricate Pivot Points
Grease Rear Axle
Service Air Cleaner
Check Spark Plug
Check Battery
Electrolyte Level
Check Blade Drive Belt
Check Traction Drive Belt
Check Tire Pressure
Drain Gasoline
Clean Outside of Engine
Clean Mower Housing
Paint Chipped Surfaces
_ Replace Interlock Switches |
XXX
x XX XX XXX
>
Storage
Service
Spring 2
. Note
Service Years 5
Xx XX Xx XxX XXX XXXXX XX >
More often in dusty,
dirty conditions.
71
More often in dusty,
dirty conditions.
More often in dusty,
dirty conditions.
MAINTENANCE
CAUTION
To prevent accidental starting of the
engine while performing maintenance,
shut engine off and remove key from
ignition switch. Also, open the hood and
pull high tension wire off spark plug
(Fig. 16). Make sure wire does not con-
tact plug accidentally,
GREASE FRONT AXLE SPINDLES AND
WHEELS
Gun
Tools Required: Clean Rag and Grease
w/No. 2 General Purpose Lithium Grease
14
The front axle spindles and wheels must be lubri-
cated after every 25 hours of operation; however,
lubricate more frequently when conditions are
dusty or sandy.
1. Wipe grease fittings on spindles and wheels
(Fig. 17, 18) with a clean rag. If there is paint on
front of fittings, scrape it off.
Figure 17
2. Lubricate both axle spindles w/No. 2 general
purpose grease (Fig. 17). Continue to pump grease
until it oozes out the spindle. Wipe up any excess
grease,
MAINTENANCE
3 Lubricate both front wheels w/No. 2 general
purpose grease (Fig. 18). Pump grease gun about
a. AMI AYANACE Mr PACA
Figure 18
Figure 18
GREASE REAR AXLES
The rear wheels should be removed and axles
greased, once a year, to prevent the formation of
rust and to simplify future wheel removal. Refer
to Wheel Removal, page 23. *
LUBRICATE STEERING SHAFT AND
PIVOT POINTS
Tools Required: Oil can filled with SAE 10 engine
oil or a pressurized can of spray lubricant similar
to WD-40.
Lubricate the steering shaft and pivot points every
25 hours with a few drops of SAE 10 oil or WD-40
spray lubricant (Fig. 19). Turn the front wheels
fully to the left to position the lower follower
assembly below the fuel tank to make it more
pagi thle
Figure 18
Figure 19
Note: The fuel tank has been removed in Figure 19
in order to clarify the points needing lubrication.
The tank does not have to be removed to lubricate
the steering assembly.
SERVICING AIR CLEANER
Tools Required: Medium blade.
The air cleaner element must be cleaned after every
25 hours engine operation if engine is operated
in clean air conditions. However, element must be
cleaned every few hours if operating conditions
are extremely dusty or sandy.
8-32 ONLY
1. Open the hood and remove the high tension
wire from the spark plug.
2. Remove two screws and lift complete air
cleaner assembly off carburetor (Fig. 20).
ra a
3. Remove cover and screen from foam element,
remove spacers from element and element from
body (Fig. 21). Examine element for dirt or
discoloration and clean if necessary.
4. A. Wash foam element in solution of liquid
detergent and water to remove dirt.
B. Wrap the element in cloth and squeeze it
dry. Do not twist the element or it may tear.
MAINTENANCE
C. Apply approximately 5 teaspoons (25 mi)
of oil to the element, work the oil in until the
whole element is impregnated and squeeze the
element thoroughly to remove all excess oil.
D. Assemble the air cleaner assembly, mount it
on the carburetor and secure it in place with
the screws.
Note: When assembling make certain the lip of the
foam element extends over the edge of the air
cleaner body so it will form a protective seal.
IMPORTANT: Always operate engine with aijr
cleaner element in place or engine damage will
result.
11-32 ONLY
1. Open the hood and remove the high tension
wire from spark plug.
2. Remove air cleaner stud, screw and cover.
Replace cover gasket if damaged (Fig, 221.
Figure 22
3. Remove plate screw washer and piste (Fig. 233,
A WASHER
Figure 23
4. Remove cartridge and clean air cleaner body
carefully to prevent dirt from entering carburetor.
Brush dirt from body thru holes into duct.
16
5. Clean cartridge by tapping gently on flat
surface,
a. If very dirty, replace cartridge or wash ina
low or non-sudsing detergent and warm
water solution.
b. Rinse thoroughly from OUTSIDE IN until
water is clear.
C. Cartridge must be allowed to stand and
air dry thoroughly before using.
6.
Reassemble air cleaner.
A CAUTION
Petroleum solvents, such as kerosene,
are not to be used to clean cartridge.
They may cause deterioration of the
cartridge. DO NOT OIL CARTRIDGE.
DO NOT USE PRESSURIZED AIR TO
CLEAN OR DRY CARTRIDGE,
IMPORTANT: Always operate engine with air
cleaner element in place or engine damage will
result, |
CHANGING CRANKCASE OIL
Tools Required: Clean rag, 7/16 inch open end
wrench, and shallow oil drain pan.
1. Check level of oil before starting engine and
after every 5 hours of operation. Maintain oil level
at FULL mark on dipstick.
To check level of oil:
A. Position tractor on level surface.
B. Clean the area around oil dipstick so
foreign matter cannot enter filler hole when
dipstick is removed.
C. Unscrew dipstick and wipe oil off.
D. Screw dipstick fully in to filler neck; then
remove it and check oil level on dipstick. If
level is low, add only enough oil to raise level
to FULL mark. Do not overfill or engine
damage may result.
E. Screw dipstick back into filler neck.
2. Change oil after first 5 hours of operation:
every 25 hours thereafter. Change oil more fre-
quently when Operating conditions are extremely
dusty or dirty.
MAINTENANCE
To change oil:
A. Position tractor on level surface. Start and
run engine for a period to warm the oil.
B. Turn engine off and place drain pan below
drain plug (Fig. 24). Remove drain plug and
allow all oil to flow into drain pan. Install drain
plug after oil stops flowing. |
C. Open hood, unscrew dipstick and add oil
to crankcase. Refer to CHECK CRANKCASE
OIL LEVEL, page 10. Capacity of 8 hp (6 kw)
tractor crankcase is 36 oz. (1.065 1) and 11 hp
(9.2 kw) tractor is 48 oz. (1.42 1) DO NOT
OVERFILL ar engine damage my result.
O en A SA EG
Sma cs er ER НЕ:
LE = a
Ro ae
Jr e a
al = ce
= Ce cr =
Te
x
Ea a
dE
ee e.
Figure 24
Use any high-quality A.P.l. classification SC,
SD, SE, or MS engine oil. Recommended
viscosity of oil to use is:
e Above +40°F (4°C) — Use SAE 30; 10W-30
and 10W-40 as substitutes.
e Below +40°F (4°C) — Use SAE 5W-20 or
5W-30; SAE 10 or 10W-30 as substitutes.
e Below O°F (-18°C) — Use SAE 10 or 10W-30
diluted 10% with kerosene.
FUEL FILTER REPLACEMENT
Tools Required: Hose clamp pliers, drain pan.
An in-line filter is incorporated into the fuel line
between the fuel tank and carburetor (Fig. 25).
Use the following procedures should replacement
become necessary!
= Lt eq
ЗЕ Ди ЕН
тай Te = :
те e
Figure 25
1. Open the hood.
2. Loosen the hose clamp on the carburetor side
of filter and remove the fuel line from the filter.
3. Place a drain pan under filter, loosen the re-
maining hose clamp and remove filter.
A CAUTION
Since gasoline is highly flammable, drain
it outdoors and make sure engine is cool
to prevent a potential fire hazard. Wipe
up any gasoline that may have spilled.
Do not drain gasoline near any open
flame or where gasoline fumes may be
ignited by a spark. Do not smoke a
cigar, cigarettte, or a pipe when handling
gasoline.
A. Install the new filter with arrow on the filter
body pointing towards the carburetor.
REPLACING SPARK PLUG
Tools Required: Spark Plug Socket, Spark Plug
Gapping Tool, and Clean Rag.
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of
electrodes after every 25 operating hours. Recom-
mended air gap is 0.030 of an inch (0.762 mm).
Correct spark plug to use is:
Champion RCJ-8 or Autolite AR7N.
Note: The spark plug usually lasts a long time;
however, the plug should be removed and checked
whenever the engine malfunctions.
1. Open the hood.
2 Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is re-
moved.
3. Pull high tension wire off spark plug and re-
move plug from cylinder head.
4. Check condition of side electrode, center
electrode, and center electrode insulator to assure
there is no damage.
IMPORTANT: A cracked, fouled, dirty or defec-
tive spark plug must be replaced. Do not sand
blast, scrape, or clean electrodes by using a wire
brush because grit may eventually release from the
plug and fall into the cylinder. The result is usually
a damaged engine.
5. Set air gap between center and side electrodes
at 0.030 of an inch (0.762 mm) (Fig. 26). Install
correctly gapped spark plug w/gasket seal, and
17
MAINTENANCE
Figure 26
tighten plug to 15 ft-lb (20.4 N.m). If torque
wrench is not used, tighten plug firmly.
6. Push high tension wire onto spark plug but do
not leave key in the ignition. This will prevent ac-
cidental starting when mower is being stored be-
tween use periods. Keep key in memorable place
so it is not lost.
ADJUSTING THROTTLE-CHOKE CONTROL
Tools Required: Medium blade screwdriver,
Proper choke operation is dependent upon proper
adjustment of remote controls. Before adjusting
the carburetor, assure the throttle-choke control
Is operating properly.
1. Open the hood, remove the screws holding
air cleaner in place and lift air cleaner cover off air
cleaner.
2. Move remote control lever to CHOKE position
and check the position of the choke butterfly; it
should be fully closed (Fig. 27).
3. Move remote control lever to FAST position.
The butterfly should be in the fully open posi-
tion (Fig. 27).
Pepe
ee 5
Figura 27
4. If the choke butterfly is positioned as described
in steps 2 and 3, replace the air cleaner assembly
and continue operation.
18
If either the choke butterfly does not close or
is not fully open in the FAST position, adjust
the remote control lever as follows:
1. Place remote control lever in CHOKE position.
2. Loosen the throttle cable clamp screw (Fig. 27)
and move the control cable casing and wire until
the throttle lever touches link.
3. Tighten the cable clamp and assemble the ajr
cleaner cover to the air cleaner,
ADJUSTING CARBURETOR
Tools Required: Medium Blade Screwdriver
The carburetor has been set at the factory, but an
occasional adjustment may be required. How-
ever, do not make unnecessary carburetor adjust-
ments because factory settings are usually cor-
rect. An adjustment may be required to com-
pensate for differences in fuel, temperature and
altitude. |
IMPORTANT: Before the carburetor is adjusted,
throttle control must be checked for proper
operation: refer to Adjusting Throttle/Choke
Control, page 17.
1. Needle Valve (Fig. 28) — Close valve by gently
rotating it clockwise.
IMPORTANT: Do not close the needle valve too
tight because the valve and seat in carburetor will
likely be damaged.
2. Rotate — open — the needle valve ? turns
couriterciociusise (Fig. 28:
Note: The needle valve setting is an approximate:
however, the setting will allow engine to be stared
SO carburetor can be fine tuned — steps 3-9.
MAINTENANCE
A WARNING
Engine must be running so final ad-
justment of the carburetor can be per-
formed. To guard against possible per-
sonal injury, move deck engagement
switch into DISENGAGE detent, shift
into neutral, and engage parking brake.
Keep hands, feet, face, and other parts
of the body away from the cutter blade,
underside of mower housing, discharge
area, and any rotating engine parts.
3, Start engine and let it warm Up for approxi-
mately two minutes. Next, move throttle control
into FAST detent.
IMPORTANT: Air cleaner must be installed on the
engine whenever high speed is being adjusted. The
air cleaner mounting screw must also be installed
when engine Is run.
4 Rotate needle valve (Fig. 28) clockwise, 1/8
turn at a time, until engine starts to lose speed. Let
engine react to each 1/8 turn setting.
5. Rotate needle valve (Fig. 28) counterclockwise
— out — 1/8 turn at a time, until engine first runs
rough. Let engine react 10 each 1/8 turn setting.
6. Rotate needle valve (Fig. 28) clockwise — in —
very slowly until engine starts to run smoothly.
This setting, under no load, may be slightly rich;
however: the slightly rich setting will assure proper
operation when engine is under load.
7. Move throttle control backward so engine idles.
If engine stalls, rotate idle adjusting screw until
engine speed increases (1750 rpm).
Note: Rotate idle adjusting screw clockwise to
increase idle rpm. By contrast, rotate idle adjusting
screw counterclockwise to decrease idle rpm.
3. Turn idle valve in (lean) and out (rich) slowly
until engine idles smoothly.
9. Check carburetor adjustment by quickly
moving throttle control from SLOW to FAST. En-
gine speed should increase without hesitation. If
engine tends to stall or die out, rotate needle valve
1/8 turn counterclockwise until engine accelerates
smoothly.
10. After carburetor is adjusted, shut engine off.
If mower will not be used immediately, remove key
from switch to prevent possibility of accidental
starting. Keep key In a memorable place so it IS
not lost accidentally.
SERVICING CUTTER BLADE
Tools Required: Rag or thickly padded Glove,
15/16 inch Socket Wrench and Handle, File and
Blade Balancer.
To service blade:
1. Insure engine is shut off, lock parking brake,
open the hood and remove the high tension wire
from the spark plug.
Stop the machine and examine the cutter
blade for damage and loss of torque of
the nut securing the blade to the spindle
shaft whenever the blade strikes an
immoveable object. Open the hood and
disconnect the spark plug lead, engage
the parking brake and disengage the
cutter blade prior to examining the
blade. If blade 1s cracked, badly bent
or twisted or severely eroded (Fig. 32),
replace the blade. Always use genuine
Toro replacement blades to assure safety
and optimum performance. NEVER USE
WILL FIT REPLACEMENT BLADES.
See To Service Blade below.
2. Set cutting unit down in lowest height-of-cut
position, remove the hair pin cotters and washers
securing the deck spring straps on both sides
(Fig. 29) and pull straps off clevis pins.
Figure 79
3. Slide deck forward and slip the belt off the
cutting unit spindle pulley.
4. Turn tractor front wheels fully to the right,
turn the cutting unit so the rear wheels face the
right side of the tractor and pull the unit out from
under the machine (Fig. 30).
19
5. Turn cuttin
of the blade w
then remove the lock
g unit on its side, grasp the end
ith a rag or thickly padded glove:
nut, anti-scalp cup and blade
6. Examine cutting ends of
especially where the flat
blade meet (Fig. 32A).
material can we
flat and curved
before using the mowe
32B), replace the blade.
Figure 30
the blade carefully,
and curved parts of the
Since sand and abrasive
ar away the metal that connects the
parts of the blade, check the blade
r. If wear is noticed (Fig.
FLAT PART
OF BLADE
© —— X
| ©
®
29
Figure 32
MAINTENANCE
=
WEAR
SLOT
FORMED
A CAUTION
If blade is allowed to wear, a slot will
form between the sail and flat part of
the blade (Fig. 32C). Eventually, a piece
of the blade may break off and be
thrown from under the housing, possibly
resulting in serious injury to yourself
or bystander,
Note: Since lock nut is tightened at the factory, it
may be difficult to remove the nut. If nut cannot
be removed, contact an Authorized TORO Service
Dealer for assistance.
7. Using a file, sharpen cutting edge at both ends
of the blade (Fig. 33). File only top side of blade,
not the bottom side.
SHARPEN AT SAIL
ORIGINAL ANGLE
eee,
il
END VIEW OF BLADE
Figure 33
8. Check balance of blade by putting it on a
blade balancer. (An Inexpensive balancer can be
purchased at a hardware store). A balanced blade
will stay in a horizontal position on the balancer.
By contrast, a blade that is not balanced will
settle to the heavy side. If blade Is not balanced,
file more material off cutting edge of the blade.
Continue to file and check the blade until it is
balanced.
9. In sequence, install blade, anti-scalp cup and
locknut (Fig. 31). Tighten locknut to 50-60 ft/lb
(68-81 N-m).
IMPORTANT: Make sure blade sail is facing top of
mower housing and cutting edge of blade is away
from top of mower housing (Fig. 31). While lock
nut is tightened, move blade slightly so it seats
between sides of blade retainer.
10. Mount the cutting unit to the tractor. Refer
to Install Cutting Unit, page 20, for proper pro-
cedures.
INSTALL CUTTING UNIT
Tools required: None.
1. Lock parking brake, turn the front wheels to
a full turn position to allow more clearance for the
cutting unit.
9. Set the cutting unit down on the wheels
and rollers and slide the cutting unit (front end
first) under the tractor (Flg. 34).
Figure 34
3. Insure the height-of-cut lever is in the lowest
height setting. Position the cutting unit so the
parallel links bisect the front brackets on each side
and insert the clevis pins into the bracket holes
from the inside toward the outside (Fig. 35).
Figure 35
4. Slip the cutting unit drive belt around the
spindle drive pulley, then lift the rear of the cut-
ting unit and position the rear hanger brackets so
they just rest over the top of the pins extending
out from the pivot bar (Fig. 35). Insure belt is in-
stalled on front engine pulley.
5, Pull the deck spring straps forward while
pushing deck rearward and position the clevis pins
through the strap holes. Install a flat washer and a
+7 secure the assembly (Fig. 36).
Eau 4 ps en e
~ AE COL
Figure 30
CLEANING UNDERSIDE OF MOWER HOUSING
Tools Required: Wooden scraper, garden hose and
paste wax.
To assure a good quality-of-cut and efficient grass
bagging, underside of mower housing and inside
of discharge area must be kept clean. Whenever the
mower is removed, clean out debris with a scraper
and hose and apply a coat of paste wax on inside
of mower housing and grass deflector. This will
retard corrosion and prevent grass and dirt from
sticking on inside of housing.
REPLACING BLADE DRIVE BELT
Tools Required: None
1. Lock parking brake, open hood and remove
high tension lead from spark plug.
2 Lower cutting unit to the lowest height-of-cut
setting.
3. Remove hair pin cotters and flat washers from
the deck spring straps and remove straps from
the pins (Fig. 37).
4. Slide the cutting unit forward and remove the
belt from both front and rear pulleys.
5. Insure rear cutting unit brackets (Fig. 37)
are resting on the pins and install the new belt.
6. Slide the deck rearward, remount the deck
spring straps, flat washers and hair pin cotters.
2х
MAINTENANCE
Fi
Figure 37
LEVELING CUTTING UNIT
Tools Required: 1/2 inch wrench, 6 inch (15 mm)
scale ruler.
If mower doesn’t cut level from side to side and
cutting blade is not bent, level the cutting unit
as follows:
1. Place tractor on level surface, lock parking
brake, open hood and remove spark plug wire.
2. Place height-of-cut lever in number 3 position
and position cutter blade at right angle to direction
of rider travel. |
3. Measure the blade tip height at one end of
blade, rotate blade 180° and measure same blade
tip at opposite side of tractor. Measurement should
be within 1/8 inch (3 mm) of one another.
4. If blade tip height is not within 1/8 inch
(3 mm), level cutting unit by loosening right hand
pivot bar retainer hex nuts and raising or lowering
the retainer (Fig. 38).
Note: The right rear wheel may have to be
removed.
5. Assure blade tip height is within 1/8 inch
(3 mm) and retighten hex nuts.
Figure 3
REPLACING TRACTION BELT
Tools Required: (2) Adjustable Wrenches, 5/8 inch
Socket Wrench and Handle, Wheel Blocks.
1. Remove the cutting unit. Refer to Replacing
Blade Drive Belt, steps 1 through 4, page 21,
2. Insure the parking brake is locked and place
blocks in front of and behind one rear wheel.
3. Reach under the tractor frame just forward of
the rear wheels, grasp the idler pulley assembly,
(Fig. 39) pull on it to relieve tension on the belt
and remove the belt from the belt guide and idler
pulley (Fig. 39).
SE : E TT оное Ra o:
es se!
St)
pale
Figure 39
CAUTION
The idler pulley arm is under heavy spring
tension. Hold the arm firmly while al-
lowing the arm to return to its relieved
position,
4. Disconnect the bolt retaining the wire tie down
from the electromagnetic blade clutch. Discon-
nect the in-line wire connector (Fig. 40).
5. Remove the bolt securing the blade clutch
assembly (Fig. 40) at the front of the machine and
remove the assembly. Note how the clutch is
prevented from rotating by a steel post welded to
the underside of the tractor.
Note: If there is difficulty in removing blade clutch
mount bolt with use of standard socket wrench,
contact a Toro Service Dealer for assistance. An
air impact wrench may be necessary.
6. Slip the belt off the engine pulley, then remove
it from the traction clutch pulley on top of the
transmission at the rear of the machine.
Figure 40
Figure 40
7. Slide the belt between the top of the traction.
clutch assembly and the clutch actuator bar
(Fig. 8]
— Fimure 41 о
Figure 41
Note: There may not be enough clearance between
the actuator and clutch to remove the belt. Dis-
connect the clutch pedal linkage 10 gain more
clearance, if necessary.
8. Assemble the new belt to the machine by re-
versing the disassembly procedures. Apply grease or
«NEVER SEEZE" to crankshaft before installing
blade clutch. Reassemble the clutch insuring that
the slot in the clutch fits over the steel post.
Torque the mount bolt for the blade clutch
assembly to 60 ft-ib (81 N-m).
9. Reconnect the wire connectors and remount
the wire tie down to the tractor body. Make sure
that all wires are positioned away from moving
parts.
Tools Required: Two 1/2 inch Open End Wrenches,
Wheel Blocks.
The disc brake assembly is a coaster type brake,
therefore, the traction clutch pedal must be actu-
ated in conjunction with the brake pedal to achieve
maximum brake effectiveness. Periodically adjust
the brake assembly to maintain the brake pedal
free travel of 1/2 inch.
1. Place blocks on each side of one rear wheel
and disengage parking brake.
2. Loosen the locknuts at right hand side of trans-
mission (Fig. 42).
3. Rotate the inner locknut clockwise approxi-
mately 1/4 turn and check amount of free travel
of brake pedal. Continue to adjust nut until brake
pedal free travel is 1/2 inch (13 mm).
4. Rotate the outer locknut clockwise until it
contacts the inner locknut, hold the inner locknut
with a wrench to prevent it from turning and
tighten the outer locknut against it to secure the
adjustment.
WHEEL REMOVAL
Tools Required: Pry Bar, Pliers, 9/16 inch Socket
Wrench, Floor Jack, Wheel Blocks.
Front Wheels:
1. Assure parking brake is locked and block one
rear wheel.
2 Place jack under front axle and raise wheel
off floor.
3. Use a pry bar to lever the hub cap off the
axle (Fig. 43).
23
MAINTENANCE
Figure 43
4. Remove the cotter pin and flat washer (Fig. 44)
and remove the wheel from the axle.
Figure 44
5. Assemble in reverse order.
Rear Wheels:
1. Assure parking brake is locked and block the
front wheels.
2. Place a block of wood between jack and rear
axle and raise wheel off floor.
IMPORTANT: Place jack as close as possible to
inside of wheel to prevent damage to transmission.
3. Use a pry bar to lever the hub cap off the
axle.
4. Remove the capscrew from the axle (Fig. 45).
5. Assemble in reverse order of the disassembly
procedures. Use grease or “NEVER-SEEZE” on
axle before mounting wheel. Insure woodruff key
is installed. Tighten the mounting capscrew until
the wheel hub bottoms out on the end of the axle.
Torque to 30 ft-Ib (40.7 N-m).
24
Figure 45
CHECKING SAFETY INTERLOCK SYSTEM
The purpose of the safety interlock system is to
prevent the engine from cranking or starting unless
the operator is on the seat, the transmission shifted
into neutral and the cutting unit deck engagement
switch is in the Disengage position. In addition, the
engine will stop if the Operator gets off the seat
when the cutter blade drive control is engaged or
transmission is in gear. To assure interlock system
is functioning correctly, check it before each use of
the tractor. Have the safety interlock switches re-
placed by an Authorized TORO Service Dealer
every two years to assure safe operation of the
tractor.
1. Sit on seat and move shift control into neutral
position. Engage the parking brake to prevent
movement of the tractor.
2. Move deck engagement switch (Fig. 46) to the
ENGAGE position. Rotate the ignition key to
START. Engine should not crank. If engine cranks,
the interlock system is malfunctioning and it must
be repaired by an Authorized TORO Service
Dealer. If engine does not crank, proceed to step 3.
ade ne A et
46
Figure
MAINTENANCE
3. Move deck engagement switch to DISENGAGE
position (Fig. 46), push clutch in and place shift
control into one of the gear selections (Fig. 47).
Rotate the ignition key to START. Engine shou!d
not crank; but if it does, the interlock system is
malfunctioning and it must be repaired by an
Authorized TORO Service Dealer. If engine dass
not crank, proceed to step 4.
COMTROL
4. Move shift control (Fig. 47) into neutral and
deck engagement switch (Fig. 46) to DISENGAGE
position. Engage the parking brake to prevent
movement of the tractor. Rotate ignition key to
START position and start engine. Place the deck
engagement switch in ENGAGE position and care-
fully raise off the seat: the engine should stop
running. If engine does not stop running, shut
engine off and have interlock system repaired by an
Authorized TORO Service Dealer. If engine shuts
off when you raised off seat, the interlock system
is functioning correctly.
WARNING
Do not operate the tractor if the interlock
system is malfunctioning because it is a
safety device, designed for protection.
ile ie ge ile ge oi i me mm. mm
BATTERY CHARGING SYSTEM
An AGC 7-1/2 Amp Fuse (Fig. 48) is incorporated
in the charging circuit as a protective device against
alternator damage caused by possible “‘short-outs”’
in the wiring harness. If the battery is fully charged,
but fails to crank the engine, have the electrical
system checked by an Authorized TORO Service
Dealer.
—. CHABGING CIRCUITE, % 3
Mew - NS
-MÓNEL 4 SERIAL
NUMBER PLATE
EE AA tar
ce EE
Figure 48
HEADLIGHT CIRCUIT (11-32 ONLY)
Power for the headlights on the 11-32 Tractor is
provided by electric current from the engine
alternator; therefore, the headlights will not func-
tion unless the engine is operating. An AGC 7-1/2
Amp Fuse (Fig. 48) is incorporated in the headlight
circuit as a protective device against alternator
damage caused by possible “'short-outs” in the
wiring harness. If the headlights are inoperative,
raise hood, separate fuse block and check fuse. |f
fuse is defective, check wiring for “short-outs’”.
If none can be ascertained, contact your Authorized
TORO Service Dealer for assistance.
PREPARING MOWER FOR STORAGE
1. Drain gasoline from fuel tank and fuel line:
refer to Fuel Filter Replacement, page 16. Next,
start engine and let it run at idle speed until it
aps and all gasoline is used. Replace the fuel
ilter.
Note: All gasoline must be expended to prevent
gum-like varnish deposits from forming in the
carburetor, fuel line, and fuel tank. Such deposits,
If allowed to form, will cause starting problems
and poor engine operation.
MAINTENANCE
2. Pull high tension wire off spark plug and clean
area around the plug so foreign matter cannot fall
into cylinder when plug is removed. Next, remove
plug from cylinder head and pour two tablespoons
of engine oil into spark plug hole. Rotate engine
by hand slowly to distribute oil on inside of cylin-
der. Then reinstall spark plug and tighten it to
15 ft-lb (20.4 N-m). If torque wrench is not used,
tighten plug firmly. DO NOT INSTALL HIGH
TENSION WIRE ON SPARK PLUG.
3. Drain oil from crankcase and refill with proper
viscosity oil:* refer to Changing Crankcase Oil,
page 16.
4. Clean dirt and chaff from outside of cylinder,
cylinder head fins, and blower housing. Also,
remove grass clippings, dirt, and grime from external
parts of rider, engine, shrouding, and top of mower
housing.
5. Clean underside of mower housing: refer to
Cleaning Underside of Mower Housing, page 21.
6. Check condition of blade: refer to Servicing
Cutter Blade, page 19.
7. Check and tighten all cap screws, bolts, screws,
nuts, and mating parts. If any part is damaged,
repair or replace it.
8. Lubricate wheels and spindles with grease: refer
to Grease Front Axle Spindles and Wheels, page 14.
9. Check air cleaner element: refer to Servicing
Air Cleaner, page 15.
10. Touch up all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
Note: TORO Re-Kote “touch-up” paint is available
from any Authorized TORO Service Dealer. The
spray paint dries in minutes to a glossy, factory-
finish.
11. Remove the battery from the machine, recharge
it and store it in a cool, dry place. Recharge it
every 30 days to prevent it from d ischarging. Refer
to Activating and Charging Battery, page 9.
IMPORTANT: Improper storage or failure to
recharge may cause battery failure.
12. Place blocks under the front and rear axles to
raise the wheels off floor and prevent tire deterior-
ation.
13. Store the tractor in a clean, dry place. Remove
key from ignition switch and Keep it in a memor-
able place. Cover the rider to protect it and keep
it clean.
WIRING DIAGRAM
ORANGE N FÜ
YELLOW APR ue
NO AGC 75 LIGHT
TRANS. SW SEAT SW. SWITCH
[ Ay Br sE SWITCH LIGHTS
BLACK TER | )
T= Lo
| | =
1
RED
| -BLADE ape 988 #5,
| “32 ONLY
| i
4ENGINE |
(STARTER
LT. BLUE
RED KEY
IGNITION SWITCH
OFF MA G CLOSED
OFF C & D CLOSED
ON В & А CLOSED
TRANS. SWITCH
NORMALLY CLOSED IN
NEUTRAL
SEAT SWITCH
NORMALLY CLOSED WITH
OPERATOR ON SEAT
mesma
| Problem
Engine does not start, starts
hard, loses power, Of fails
to keep running.
TROUB
o
Engine does not idle or
idles poorly.
16. Module or switch is defective.
ae
Possible Causes
1. Gas tank is empty.
2. Transmission is in gear.
3. Deck engagement switch is in
ENGAGE detent.
4. Spark plug is loose.
5. High tension wire is loose or
disconnected from spark plug.
6. Spark plug gap is incorrect.
7. Spark plug 1s pitted, fouled, or
defective in some other way.
8. Wrong spark plug is used.
9. Electrical connections are
loose.
10. Carburetor is adjusted
incorrectly.
11. Air cleaner is dirty.
12. Plugged fuel filter.
13. Dirt, water or stale fuel
in fuel system.
14. Dead battery.
15. Defective points, condenser, |
ignition coil, or ignition switch.
LE SHOOTING
Corrective Action
1. Fill fuel tank with
gasoline.
2. Shift transmission into
neutral.
3. Move deck engagement
switch into DISENG AGE detent.
4, Tighten plug to 15 ft-lb
(20.4 Nm). |
5 Install high tension wire
on spark plug.
6. Set gap between electrodes
at 0.030 of an inch (0.762 mm).
7. Install new correctly
gapped spark plug.
8. Install correct spark plug.
9. Check electrical system
to assure good contact.
10. Adjust the carburetor.
11. Clean the air cleaner
element.
12. Refer to Fuel Filter Re-
placement, page 16.
13. Have tractor serviced by
Authorized TORO Service
Dealer.
14. Have tractor serviced by
Authorized TORO Service
Dealer.
1. Air cleaner is dirty.
9 Oil level in crankcase 15 low.
3. Cooling fins and air passages
under engine blower housing are
plugged.
A. Idle speed is too low or high
speed mixture is incorrect.
5. Plugged fuel filter.
6. Dirt, water or stale fuel
is in fuel system
7. Spark plug is pitted, fouled or
defective in some other way.
1. Clean air cleaner element.
2. Add oil to crankcase.
3. Remove obstruction from
cooling fins and air passages.
4. Adjust the carburetor.
5 Refer to Fuel Filter Re-
placement, page 16.
6. Have tractor serviced by
Authorized TORO Service
Dealer.
7. Install new correctly
gapped spark plug.
27
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine loses power
1. Oil level in crankcase is low.
2. Cooling fins and air passages
under engine blower housing are
plugged.
3. Engine load is excessive.
4. Air cleaner is dirty.
9. Plugged fuel filter.
6. Dirt or water is in fuel system.
7. Carburetor is adjusted in-
correctly.
8. Spark plug is pitted, fouled or
defective in some other way.
1. Add oil to crankcase.
2. Remove obstruction from
cooling fins and air passages.
3. Shift into lower gear to
reduce load.
4. Clean air cleaner element.
5. Refer to Fuel Filter Re-
placement, page 16.
6. Have tractor serviced by
Authorized TORO Service
Dealer.
7. Adjust the carburetor.
8. Install new correctly gapped
spark plug.
Engine over heats
1. Cooling fins and air passages
under engine blower housing are
plugged.
2. Carburetor is adjusted
incorrectly.
3. Oil level in crankcase is low.
4. Engine load is excessive.
1. Remove obstruction from
cooling fins and air passages.
2. Adjust the carburetor.
3. Add oil to crankcase.
4. Shift into lower gear to
reduce load.
Tractor vibrates abnormally.
1. Engine mounting bolts are
loose.
2. Loose blade clutch pulley, idler
pulley or blade pulley.
3. Cutter blade is unbalanced.
4. Lock nut holding blade is loose.
9. Drive pulley is damaged.
1. Tighten engine mounting
bolts.
2. Tighten the appropriate
pulley,
3. Install new cutter blade.
4. Tighten nut to 50-60 ft-Ib
(68-81 N-m).
5. Replace drive pulley.
Blade does not rotate
1. Blade drive belt is worn, loose
or broken.
2. Blade drive belt is off pulley,
3. Faulty blade clutch assembly or
damaged pulley.
1. Install new blade drive belt.
2. Install blade drive belt.
3. Have tractor serviced by
Authorized TORO Service
Dealer.
Tractor does not drive.
1. Traction drive belt is worn,
loose or broken. |
2. Traction drive belt is off
pulley.
3. Transmission does not shift
gear.
4. Damaged clutch or pulley,
1. Install new traction drive
belt.
2. Install traction drive belt.
3, 4. Have tractor serviced by
Authorized TORO Service
Dealer. |
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The TORO Lawn Tractor has two identification
numbers: a model number and a serial number.
The two numbers are stamped on a decal that is
located under the hood to the right of steering
shaft. See page 25, Fig. 48.
In any correspondence concerning the tractor,
supply model and serial numbers to assure that
correct information and replacement parts are
obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following infor-
mation:
1. Model and serial numbers of the tractor.
2. Part number, description and quantity of part(s)
desired.
Note: Do not order by reference nu mber if a parts
catalog is being used; use the PART NUMBER.
MAINTENANCE RECORD
Air Cleaner
Service
Hours Oil
Date Used Change
Lubrication
Spark
Plug Gap
Sharpen | Winter Spring
Blade Storage Service
0 |
аще af
== a —— —
22
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
| Air Cleaner
Service
Lubrication
Sharpen
Blade
Winter
Storage
Spring
Service
Spark
Plug Gap
MAINTENANCE RECORD
H Oil Air Cleaner Sharpen | Winter | Spring Spark
Date Usan Change Service Lubricatón Blade È-- Service | Plug Gap
—
A AM
== пе
31
THE TORO PROMISE
It is Toro's policy to design and produce TORO
products to provide our customers with a high level of
performance and durability in normal operation. Our
products, however, are produced in high volume, and
it is inevitable that occasionally a unit will reach a
customer with a defect in materials or workmanship
which causes the unit to fall below the normal high
level of TORO performance. Invariably, such a defect
will be noticed in a residential product within one year
after purchase. Recognizing this possibility, Toro has
established a simple guarantee policy and procedure
that is intended to assure customer satisfaction. This
guarantee statement is as follows:
SW VW: VY N
CUYA ME
=
-
=
=
:
*
DE E
The Toro Promise
A Two Year Limited Warranty
On All
Riding Mowers, Premium Rotary Mowers, Tillers, and Gas Edgers.
The Toro Company promises to repair these TORO Products if defective in materials
or workmanship. The following time periods from the date of purchase apply :
Residential Product
Residential Products Used Commercially
. . 2 Years
45 Days
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer
or TORO Distributor.
Should you feel your TORO is defective and wish to rely
on The Toro Promise, the following procedure is recom-
mended:
1. Contact any Authorized TORO Service Dealer, TORO
Master Service Dealer, or TORO Distributor {the Yellow
Pages of your telephone directory is a good reference
source).
2. Ha will either instruct you to return the product to him
ar recommend another Authorized TORO Service outlet
which might be more convenient.
3. Bring the product along with your original sales slip, or
other evidence of purchase date, to the service dealer.
4. The servicing dealer will inspect the unit,
whether the product is defective and,
repairs necessary to correct the defect
charge to you.
advise you
if so, make all
without extra
if for any reason you are dissatisfied with the dealer's analy
sis of the detect or the service performed, you may contact
us,
Write:
TORO Customer Service Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
The above remedy of product defects through repair by
an Authorized TORO Service Dealer is the purchaser's sole
remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY. ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND
COMPLIANCE WiTH BADD ok TERF§ BERCE BEGL. LTE CRE TIFIED i
CEMTIÉNE CONFORME A REG_EMEST Sul Lf BROW iLiad Ward LE Crm QE JE"
FITNESS FOR USE ARE LIMITED TO THE DURATION
OF THE EXPRESS WARRANTY.
Some states do not allow limitation on how long implied
warranty lasts, so the above limitation may not apply to
vou.
This Warranty applies only to parts or componants which
are defective and does not cover repairs necessary due to
normal wear, misuse, accidents, or lack of proper mainte-
nance. Regular, routine maintenance of the unit to keep
It in proper operating condition is the responsibility of the
owner,
AH warranty repairs reimbursable under The Toro Promise
must be performed by an Authorized TORO Service Dealer
using Toro approved replacement parts.
Repairs or attempted repairs by anyone other than an Au-
thorized TORO Service Account are not reimbursable under
The Toro Promise. In addition, these unauthorized repair
attempts may result in additional malfunctions, the cor-
rection of which is not covered by warranty.
The Toro Company is not liable for indirect, incidental
or consequential damages in connection with the use of the
product including any cost or expense of providing sub-
stitute equipment or service during periods of malfunction
ór non-uUse.
Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not
apply to you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
i us
=
ivi
EI ООО ИИ ONE ON OTTO N VV aviv dvi
83 YY CY ORATOR NONE =
Litho in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
