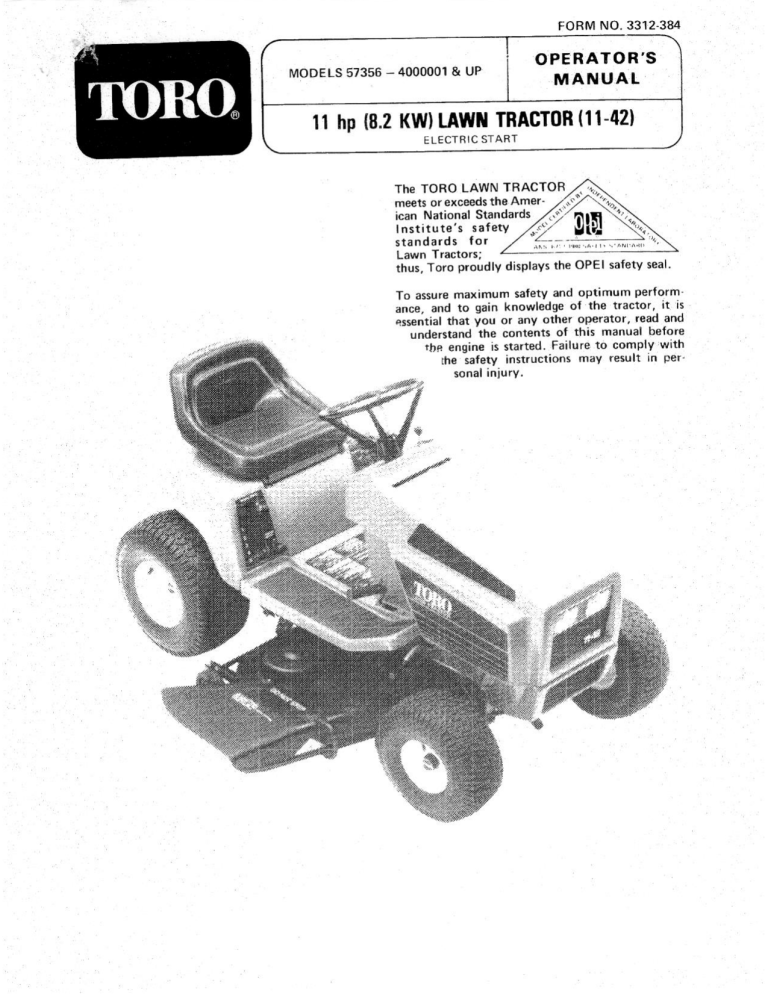

| OPERATOR'S
MODELS 57356 — 4000001 & UP MANUAL
11 hp (8.2 KW) LAWN TRACTOR (11-42)
ELECTRIC START J
meets or exceeds the Amer-
ican National Standards
Institute's safety
standards for
Lawn Tractors;
thus, Toro proudly displays the OPEI safety seal.
To assure maximum safety and optimum perform-
ance, and to gain knowledge of the tractor, it is
assential that you or any other operator, read and
understand the contents of this manual before
the engine is started. Failure to comply with
the safety instructions may result in per-
sonal injury.
FOREWORD
The TORO Lawn Tractor contains the latest engineering and technical workmanship and should provide
long troublefree performance and service.
Since you have purchased this fine product, we are sure that dependability and performance are important
to you. TORO is also concerned about future use of the machine and safety to the user. Therefore, you
should read this manual thoroughly so that proper safety, operation and maintenance procedures are
oracticed at all times. The major sections of this manual are:
1. Safety Instructions 3. Before Operating 5. Maintenance
2. Setting Up Instructions 4. Operating Instructions 6. Trouble Shooting
Safety, mechanical and some general information in this manual is emphasized. DANGER, WARNING and
CAUTION identify safety messages. Whenever the triangular safety symbol appears it is followed by a
safety message that must be read and understood. More complete details concerning safety are contained
on page 3, 4 and 5. IMPORTANT identifies special mechanical information and NOTE identifies general
information worthy of special attention.
OPTIONAL SPARK ARRESTER
In some areas there are local, state or federal regulations requiring that a spark arrester be used on the
engine of this mower. If a spark arrester is required, order the following part from your local Toro
Distributor:
1 Spark Arrester, part no. 36-7890
These parts are approved by the United States Department of Agriculture Forestry Service. The approval
number for the exhaust system is 16362.
When mower is used or operated on any California forest, brush or grass covered land, a working
order spark arrester must be attached to muffler. If not, the operator is violating state law,
Section 4442 Public Resources Code.
Further assistance concerning safety, operation and maintenance can be acquired by contacting your local
Authorized TORO Service Dealer. Your TORO Authorized Service Dealer can provide you with genuine
TORO replacement parts and also optional equipment for your TORO Lawn Tractor. Keep your TORO
all TORO. Buy genuine TORO parts and accessories.
TABLE OF CONTENTS
Page Page
Safety Instructions . . . . . . . . . . 34 Maintenance Interval Chart . . . . . . . 14
Safety and Instruction Decals . . . . . . 5 Maintenance . . . . . . . . . . . . 15-26
Specifications . . . . . . . . . . . . 6-7 Grease Front Axle Spindles and Wheels . 15
Loose Parts 7 press Rear Axles . . . . . . ... 15
Setting Up Instructions ВЕ 8-9 ubricate Steering Shaft and Pivot Points 15
I Front Wheels- .-... en vow vB Servicing Air Cleaner Caw ow ww gw 16
Insta о Ch C k |
Install Steering Wheel Assembl x Lo - В anging Crankcase Oi naa a. 18
En: Fuel Filter Replacement . . . . . . . 17
Install Hitch Plate 9 Replacing Spark Plug sE B® wow = vu Yi
: Adjusting Throttle-Choke Control к ей #6
Install Cutting Unit . 9 PET
Before Oberating 10-12 Adjusting Carburetor aa a a 19
A E ns Servicing Cutter Blades . . . . . . . . 20
Activating and Charging Battery . . . . 10 Clean ; ‘
A aning Underside of Mower Housing . . 21
Check Crankcase Oil Level . . . . . . 11 Replaci
: ; ; placing Blade Drive Belt . . . . . . 21
Fill Fuel Tank With Gasoline . . . . . 11 R ‘ ‘
eplacing Traction Belt . . . . . . . 22
Check Tire Pressure . . . . . . . . . 12 Brake Adjustment 23
Adjusting Seat. . . . . . . . . + 12 Wheel Removal . . . . . . . . . . . 23
Controls . . - «ea e e e ene 5 12 Checking Safety Interlock System . . . 24
Starting and Stopping Instructions . . . 12 Battery Charging System . . . . . . . 24
то a" and Operate Machine . . . . . E Headlight Circuit . . . . . . . . . . 25
o Stop IRE OE OE € % € & à Preparing Mower For Stora 2440 |
Break-In" "cv à à % + vu = à = € «1 Wiring Diagram 1% EE N | 4% 4 % 4 à =
Operating Instructions . . . . . . . . 13-14 Trouble Shooting i wos oa os ow ow à 27:28
Adjusting Heaight-of-Cut . . . . . . . 13 Identification and Ordering . . . . . . . 29
Operating Procedure . . . . . . . . . 13 Maintenance Record . . . . . . . . . 29-31
Grass Cutting Tips. . . . . . . . . 14 The Toro Promise . . . . . . . Back Cover
COPYRIGHT © ALL RIGHTS RESERVED
2 The Toro Company — 1984
MINNEAPOLIS, MN 55420 — US.A
SAFETY INSTRUCTIONS
This safety symbol means '
WARNING or CAUTION
— PERSONAL SAFETY
INSTRUCTION — Read |
the instruction because it
has to do with safety.
Failure to comply with
the instruction may result in personal injury.
The TORO LAWN TRACTOR was tested and veri-
fied by an independent laboratory for compliance
with the B71.1-1980 specifications of the Ameri-
can National Standards Institute. However, im-
proper use or maintenance by the operator or
owner of the mower can still result in injury. To
reduce the potential for injury, follow these
safety instructions.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the tractor
and mower. Become familiar with the controls, and
know how to stop the engine and machine quickly.
NEVER ALLOW CHILDREN TO OPERATE THE
TRACTOR. ‘
2. Keep everyone, especially children and pets,
away from the area of operation. Remove sticks,
stones, wire,and any other debris or objects which
might be picked up and thrown by the mower.
3. Keep all shields and safety devices in place. If
a shield, safety device or decal is defective or
damaged, repair or replace it before operation is
commenced. Also frequently check and tighten
any loose nuts, bolts and screws.
4. Wear long pants and substantial shoes. Do not
operate the tractor while barefoot, wearing sandals,
tennis shoes, sneakers, or shorts.
5. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since Gasoline
is highly flammable, handle it carefully — DO NOT
SMOKE.
A. Use an approved gasoline container.
B. Fill fuel tank outdoors and only when
engine is not running. Engine must be cool
to prevent a potential fire hazard.
C. Wipe up any gasoline that spilled, and install
gasoline container cap and machine fuel
tank cap securely before starting the engine,
D. Do not run engine indoors without adequate
ventilation. Exhaust fumes are dangerous
and can be deadly.
6. Before attempting to start the engine, shift into
neutral, move deck engagement switch into DIS-
ENGAGE position and lock parking brake. Engine
will not start unless gear shift is in neutral, deck
engagement switch is in DISENGAGE position,
and the operator is on the vehicle seat. |
7. Assure interlock system is functioning correctly
before each use of the tractor. Have all safety
related components checked and safety interlock
switches replaced by an Authorized TORO Service
Dealer every two years to assure safe operation of
the tractor.
WHILE OPERATING
8 Never carry passengers on the tractor.
9, Using a tractor demands attention; there-
fore, mow only in daylight or when there is good
artificial light. Stay alert for holes in the terrain
and other hidden hazzards. To prevent tipping or
loss of control, do not drive close to a ditch or
creek.
10. Cut steep grass slopes up and down, never across
the face. When going uphill or downhill do not stop
or start suddenly. To prevent tipping or loss of
contro! reduce speed on slopes and when making
sharp turns. Extreme caution must be used when
changing direction on slopes. |f a steep hill must
be ascended. back the tractor up the hill and drive
forward when descending.
11. Watch out for traffic when crossing or near
roads. Always yield the right-of-way.
12. Keep face, hands, feet, or any other part of the
body and clothing away from concealed, moving,
or rotating parts such as the cutter blade, discharge
area, wheels, belts, and engine. Always sit on the
seat while operating the tractor and mower.
13. When driving from one area to another, crossing
a gravel driveway, road, or sidewalk, move deck
engagement switch into DISENGAGE and raise
mower housing to its highest level. This will
prevent loose sand, rocks, and other debris from
being thrown by the whirling blades.
14. Do not touch engine, muffler or muffler shields
while it is running or soon after it is stopped,
because the engine and muffler components may be
hot enough to cause a burn.
15. Use only the drawbar hitch point at rear of
chassis to pull the lightweight cart that is sold as an
accessory. Limit loads to those that can be con-
trolled safely. Be very careful when backing and
turning: Never turn sharply.
16. Before leaving the operator's position — on the
seat — or leaving tractor unattended, shift trans:
3
SAFETY INSTRUCTIONS
mission into neutral, set parking brake, move deck
engagement switch into DISENGAGE, rotate
ignition key to OFF, and remove key from switch.
17. If the blade strikes a solid object or mower
vibrates abnormally, shift transmission into neutral,
set parking brake, move deck engagement switch
into DISENGAGE, rotate ignition key to OFF,
and remove key from switch. Disconnect high
tension wire from spark plug, and keep wire away
from the plug to prevent possibility of accidental
starting. Check tractor and mower for possible
damage, bent blade, defective belt or an obstruc-
tion, and a loose blade or other parts. Make all
‘repairs before restarting the engine and operating
the mower.
MAINTAINING MOWER
18. Before storing the tractor, or performing any
maintenance service and adjustment, shift trans-
mission into neutral, set parking brake, move deck
engagement switch into DISENGAGE, rotate
ignition key to OFF and remove key from switch.
Keep the key in a memorable place. Also dis-
connect high tension wire from spark plug to
prevent possibility of accidental starting.
19. If major repairs are ever needed or assistance
is desired, contact an Authorized TORO Service
Dealer,
20. If tractor and mower must be tipped to perform
maintenance or an adjustment, drain gasoline from
fuel tank and oil from crankcase and remove the
battery.
21. Keep tractor and mower housing in safe
operating condition by having nuts, bolts, and
screws tight, Check the blade mounting nut
frequently to make sure the nut is tight
(50-60 ft-1b [68-81 N-ml).
22. To reduce potential fire hazard, make sure
engine, engine compartment, transmission and brake
areas are free of excessive grease, grass, leaves and
dirt. —
23. Allow engine to cool before storing tractor in
any enclosure such as a garage or storage shed.
Make sure the tractor fuel tank is empty if machine
Is to be stored in excess of 30 days. Do not store
tractor near any open flame or where gasoline
fumes may be ignited by a spark. Always store
gasoline in a safety-approved, red metal container.
24. Do not overspeed the engine by changing gov-
ernor settings. Recommended engine speed is 3400
rpm. To assure safety and accuracy, have an
Authorized TORO Service Dealer check maximum
engine speed (3400 rpm) with a tachometer.
25. At the time of manufacture, the tractor
conformed to safety standards in effect for lawn
tractors. Therefore, to assure optimum performance
and safety, purchase genuine TORO replacement
parts and accessories to keep the Toro all TORO.
NEVER USE“WILL-FIT"REPLACEMENTPARTS
AND ACCESSORIES. The TORO logo assures
genuine TORO replacement parts and accessories.
Genuine
PARTS & ACCESSORIES
ee ED
A CAUTION
KEEP ALL SHIELDS IN PLACE.
2 BEFORE LEAVING OPERATOR'S POSITION.
A. MOVE TRANSMISSION TO NEUTRAL.
B. SET PARKING BRAKE.
C. DISENGAGE ATTACHMENT CLUTCH.
D. SHUT OFF ENGINE.
E. REMOVE IGNITION KEY.
3. WAIT FOR ALL MOVEMENT TO STOP
BEFORE SERVICING MACHINE.
4. KEEP BYSTANDERS FROM AREAS
BEING MOWED.
SAFETY AND INSTRUCTION DECALS
The following safety and instruction decals are mounted on the TORO
Lawn Tractor. Replace any that become damaged or illegible.
{ | VEHICLE MAINTENANCE
DECK
INTERLOCK SYSTEM
UNDERSIDE OF HOOD
(Part No. 44-5840)
ENGAGEMENT THE ENGINE SHOULD MOT CRANK OR START
UNLESS THE OPERATOR IS DN THE SEAT. THE
TRANSMISSION IS IN NEUTRAL AND THE DECK IS
; DISENCAGED. THE EMGIME SHOULD STOP IF THE
ENGAGE LOWER OPERATOR LEAVES THE SEAT WITH THE TRANSMISSION
(pull out LEFT SIDE AND /OR THE DECK ENGAGED. IF INTERLOCK STSTEM
me OF DASH FAILS TO OPERATE AS DESCRIBED SEE AN AUTHORIZED
PANEL TORO SERVICE DEALER. DO NOT OPERATE YERICLE UNTIL
FAULT IS CORRECTED
(Part No. BATTERY
; 44-5710) i. MAINTAIN LEVEL OF ELECTROLYTE AT FILLER RING WITH CLEAN TAP WATER, SEE OPERATORS MANUAL
DISENGAGE 2 WHEN REMOVING SATTERY DISCONNECT BLACK NEGATIVE CABLE (GROUND) FIRST FOR COMPLETE INSTRUCTIONS
+ ENGINE
1. CHECK Oil LEVEL BEFORE STARTING EMGIME AMD AFTER EVERY 5 HOURS OF OFEAATION
Va mr a
2 CHANGE CIL AFTER FIRST 5 HOURS OF OPERATION AND EWERY 25 HOURS THEREAFTER CHANCE CIL MORE FREQUENTLY WHEN OPERA TIMO (6 EXTREMELT
DUSTY CONDITIONS, USE A HIGH QUALITY GRADE OF API CLASSIFICATION 5C. 50. OR SE ENGINE OIL FOR USE ABOVE 40 5 SAC 10W-30 54€ 106-940 08
USE SAE 30 FOR USE UNDER 40 F USE SAE SW-20. SAE 5W-30 OR SAE 10W- 30. CRANKCASE CAPACITIES: A M.P.—36 07. 11H PF —4B8 07
1 CLEAN AIR CLEANER ELEMENT EVERY 25 HOURS WHEN OPERATING IM DUSTY CONDITIONS. CLEAN MORE OFTEN REMOVE FOAM ELEMENT AMD WASH IN
AROUND LIGHT SWITCH SOLUTION OF LIQUID DETERGENT AND WARM WATER AMD SQUEEZE DRT SATURATE ELEMENT WITH FRESH ENGINE OIL AND SQUEEZE TO REMOVE EXC:55
{Part No. 28-2510} ; OIL (ELEMENT SHOULD BE DAMP WITH DIL)
4 CHECK SPARK PLUG EVERY 25 OPERATING HOURS. RESET GAP TO 030 OR REPLACE SPARK PLUG IF MECESSARY. REPLACE WITH (CHAMPION ACJ-B)
Of JAUTOLITE ARTH| SPARK PLUGS.
on ee CHASSIS . x
— 1. ADJUST BRAKES AS NECESSARY. LOOSEN OUTER JAM NUT. TIHGHTEM INNEA JAM HUT ON TRANSMISSION BRAKE = ; .
LEVER UNTIL BRAKE LEVER HAS 12 IMCH FREE MOVEMENT BEFORE CALIPERS TIGHTEN ON BRAKE DISC. BRAKE sa > a PR,
FUCKS SHOULD NOT DRAG ON DISC WHEN BRAKE PEDAL IS RELEASED, TIGHTEN OUTER JAR NUT or
7. GREASE FROMT WHEEL BEARINGS AND IRONT AXLE SPINDLES EVERY 25 HOURS Of OPERATION ‘сё я
off a USE A MUMBER TWO LITHIOM BASED GREASE ' Ч
J. TIRE PRESSURE — 1] PSI i & =
LIG HTS i CEC EN ce POINTS SHOWN WITH LIGHT OIL EVERY 25 OPERATING HOURS 0R AS MECESSARY TO KEEP | - | |
CAUTION remove any BUILDUP OF GRASS OR DEBRIS THAT MAY BE IN THE ENGINE COMPARTMENT OR ABOVE THE TRANSAXLE ë
AROUND KEY SWITCH ‘ LEFT Et RIGHT SIDE RIGHT SIDE OF MOWER DECK
(Part No. 28-2690) OF SEA OF SEAT (Part No. 36-3410)
(Part No. 36-2050 (Part No. 36-2940) -
ACAUTION
KEEP HANDS AND FEET CLEAR ANYTIME
ENGINE IS RUNNING.
& off O
& |
IGNITION
BOTH SIDES OF MOWER DECK
(Part No. 36-3400)
DO NOT STEP
ON FLOOR PANEL FRONT OF MOWER DECK
alle TT ; Part No, 36-5360
{Part No. 44-5850) |
CLUTCH PEDAL DECK ENGAGEMENT SWITCH TO STOP: BRAKE PEDAL
K # ERGACE MUÉN 4 phi PRE nn а A
I !
! DISEMESCE MECA {+ dà CAUTI es BEEBE
BIPANSE CLUTEN Ward gemrT + Руд SID BUT AWD UF PEDIA 3d anand я в
WC IED GEAR QF CHANGING . GECE FRGAGIMUNT SWATCE MUST HI N INTO ELOWEE CERT WHER
GARE EUEMOALED POSTAS TO STAMP MENO EEE om
TO START ENGINE: TO STOP ENGINE: dk DANGER
MOTE: emo wii ent Aran am + PEACE ALL COMTACLS 06 MIUTAAL EN SET PARSING TRA MEE a.
EER SLAY RENT 2 INIA. pac DERI NGAGE POSITION BO HÓF nr GaSELI CANE ei [TALE B LA D E DR IV E B E LT R OUTIN G
ICH SMILE is sEIFRESS NEARED FIDE BND SII FARM EbirbimE OR WEILE Eg
FELINA AmO Fl SEIRATOR 15 ÓN INE BRAKE CLEAN EN 56 EARLE
СЛЕЗА = TURN ORIG EC Io DE a eh Tish PARLE и EE a
"Ривз Надя! 08 347 га ЦНС IMPORTANT: sir a" sense gis i Si LE FT SI DE O FMOWER DECK
„нам блая 511 НСО ТО ыы Рая ВЕР АЦ ВЫ
HETIL I SR CT AR on were rs (Rat No 25-1 38)
AI iO CAN a y E
REO mms ISTE ott wren TO ADJUST
"Posirion Etes mate taime MTOR SATIRE ITA RRRRAMCEAR RUE 10d Tomo amphmr 3101 {tact Abin DECK WHEELS
Tho : OREA PUT HEIGHT OF CUT LEVER IN HIGH POSITION.
PULL WHEEL ADJUSTMENT LEVER AND ROTATE WHEEL SHAFT
HEIGHT OF CUT PARKING BRAKE um a Не is PEED SELECTOR WHEEL ADJUSTMENT R 111
16 APPLO FAME! dix ou 1 AL
E a "ENEE Nor = BELA FAR AIRE HEBNE ” METRES \ \ Ч DY SHAFT
Fria + BIFAESA CLUTCA AAC UNA RE FUNMAS i gi Re Hl amin | % = 1 1
WE ENT BOLIC TON 18 MGTAAL = MO DAR DO DESIRED SPH 0 a | || Pas
+ LOT PANBINE BRALE LIVEN TE CA POSITION | 4
TL A EC IE REVERSE — mow cium swift 1a Fr:
om TO DISENGAGE PARKING BRAKE: 210th iu coms wan! ul 5 :
+OIPRESS NRANRT FEQAL MAINTAINING CLIENT arma Por stul
Coan + PUJA DFW (НЕ РО АК НС BREE LED Dir GEAR ET
SPECIFICATIONS
11-42 LAWN TRACTOR ELECTRIC, MODEL 57356
11-42 — Briggs & Stratton Engine: Electric start
with alternator, four cycle engine, has output of
11 hp (8.2 Kw) @ 3600 rpm and 16.8 ft/lb
(22.8 N-m) torque E 2800 rpm. Displacement is
24.36 cubic inches (399 cc). Crankcase oil capacity
is 3 pints (1.41 |) and fuel tank capacity is 7
quarts (6.624 1). Correct spark plug is a Champion
RCJ-8 or Autolite AR7N resistor type and air
gap is .030 of an inch (0.762 mm).
Mower Housing: Full floating, front to rear, side
to side. 12 gauge (2.64 mm) stamped steel housing
with right side discharge. Width of cut is 42 inches
(1.067 m). Steel spindle housings with shafts are
supported by two double seal ball bearings. Blade
spindle pulleys are driven by spring tensioned “A”
section V-belt from clutch on engine crankshaft.
Cutter Blades: Each blade is 14.8 inches (0.378 m)
long, made of one piece hardened 7 gauge
(2.72 mm) carbon steel,
Blade Tip Speed: 15,500 ft/min (78 740 m/s) @
3400 engine rpm. Height of Cut Range: Height of
cut is adjustable to one of seven approximate
settings from 1 inch (25 mm) to 4% inches
(114 mm).
Transmission: Transmission fully enclosed, per-
manently lubricated with differential enclosed. In
line shift pattern with five speeds forward and one
reverse,
Traction Drive: “A” section V-belt with 21
reduction from engine pulley to automotive type
clutch on transaxle input shaft.
Ground Speed @3400 Engine rpm:
1st gear — 1.39 MPH (2.27 Km/hr)
2nd gear — 2.86 MPH (4.60 Km/hr)
3rd gear — 4.28 MPH (6.88 Km/hr)
4th gear — 5.45 MPH (8.77 Km/hr)
5th gear — 6.43 MPH (10.34 Km/hr)
Rev. — 2.14 MPH (3.44 Km/hr)
Wheels and Tires: The front 15 x 6.00-6 and the
rear 18 x 8.50-8 tubeless, pneumatic turf tires are
installed on demountable stamped steel wheels.
Recommended tire pressure is 13 psi (89.6 kpa).
Steering: 13 inch (0.33 cm) diameter steering
wheel mounted on a TORO design high helix screw
shaft with a 6.3:1 reduction. One and one half
wheel turns cramp to cramp.
Engine Controls: Control! wire and casing with
FAST, SLOW and CHOKE positions. Key switch
with ON, OFF and START positions. Both
controls mounted on dash panel.
Transmission Control: Hand operated lever on
right side of operator with in line shifting with
Z pattern,
Traction Clutch: Foot operated pedal on left side.
Depressing pedal disengages clutch friction disc.
Brake Pedal: Foot operated pedal on right side.
Depressing pedal engages caliper on 2-1/2 inch
(64 mm) diameter disc.
Parking Brake Control: Hand operated lever on
right side of operator. Depress brake pedal and
lift lever to engage. Transmission must be in neutral
to apply parking brake.
Cutter Blade Control: Toggle switch (pull out and
up to engage) on steering tower in front of operator.
Switch releases blade brake and engages electro-
magnetic clutch.
- Height-of-Cut Control Levers: Hand operated lever
at left of operator raises mower for high cutting
and transporting. Lever on left side of mower deck
adjusts deck wheels for five lower cutting heights.
General Dimensions (approx.):
Wheel Base . — 46 in. (1.168 m)
Tread Width — 33 in. (0.838 m) front outside
to outside |
— 35 in. (0.889 m) rear outside
to outside
Turning Radius — 32 in. (0.813 m) inside wheel
Length — 62 in. (1.575 m)
Width — B54 in. (1.372 m) including
cutter deck
Height — 41 in. (1.041 m)
Weight — 492 pounds (223.3 Kg)
specifications.
Traction drive, blade drive and seat interlock.
Enclosed engine and muffler.
Enclosed traction drive.
Automotive type traction clutch.
Convenient, easy to operate controls.
Automatic blade brake.
Stable-Wide track and lower center of gravity.
DESCRIPTION
— nm
QTY. USE
SPECIFICATIONS
Safety Features: Meets B71.1-1980 ANSI safety
Parking brake lockout prevents forward travel if
parking brake is engaged.
Optional Accessories and Attachments:
Dump cart
Tire chains #11-0430
42'" snow blade #59140
36” Snowthrower, #59160
Spark Arrester Muffler, #36-7890
Bumper Kit #59102
LOOSE PARTS
Tire and Wheel Assembly
Mount to front axles.
Cotter Pin 1/8 in. x 1-1/4 in. 2 Secure wheels to axles.
Washer 2 Mount to front axles. TS
Hub Cap 4 Mount to front axles.
Steering Wheel 1 On steering shaft. о
Roll Pin 1 Secure steering wheel to shaft. ©
| Seat 1 Install on machine.
В Spacer 4 Install between seat and seat mount plate.
Hitch Plate 1 Rear frame behind transaxle.
Capscrew 5/16 - 18 x 3/4 in. 8 | Secure hitch plate to frame and mount seat.!
Clamp 1 Secure wire harness to seat mount plate.
Carriage Bolt 1/4-20 x 5/8 in. 1 Secure wire harness to seat mount plate,
| Locknut 5/16 - 18 4 Secure hitch plate to frame.
Locknut 1/4 - 20 1 Secure wire harness to seat mount plate.
V-Belt 1 Mount cutting unit. a |
Clevis Pin 2 Mount cutting unit.
Washer 2 Mount cutting unit.
Cotter Pin 3/8 in. x 1-1/2 in. 2 Mount cutting unit.
Capscrew 1/4 - 20 x 5/8 in. 2 Install battery cables.
Wing Nut 2 Install battery cables.
Key 2 Install in start switch.
Operator's Manual 1 Read manual before operating.
Reg. Card | 1 Fill out and return to Toro.
SETTING UP INSTRUCTIONS
INSTALL FRONT WHEELS
Tools Required: Pliers.
1. Install wheel onto axle.
2. Mount flat washer onto axle, insert cotter pin
and open pin ends with pliers (Fig. 1)
Figure 1
La)
3. Install hub cap and grease wheel bearing.
4. Repeat steps 1-3 on opposite side.
INSTALL STEERING WHEEL ASSEMBLY
Tools Required: Small ball peen hammer and drift
punch.
1. Slip steering wheel over shaft and line the
steering wheel mount hole with the shaft mount-
ing hole.
2. Insert a drift punch partially through the holes
to maintain alignment and insert the roll pin in
from the opposite side.
3. Drive the roll pin in until it is flush with the
outside of the wheel (Fig. 2).
INSTALL SEAT
Tools Required: 7/16 in, 1/2 in wrench.
1. Remove battery from under seat mount plate
and set aside.
2. Position seat onto mounting plate and insert
wire end from seat switch through grommet in
plate (Fig. 3).
3. Insert carriage bolt into square hole next to
grommet (Fig. 4), install spacers between seat and
mount plate and set seat into position (Fig. 5).
Note: It Is easier to install and secure the spacers
with flange head capscrews individually: see step 4.
FE Beca
A
sra mt
aa DE er =
re) ee = e e а e ce :
e
а т 2 eee re
ete e da
E
be
, о Creel E e E
5 Fr SUNBH N = DÉS EE ee en a
' Suu re
PTE TE
4. Lift seat mount plate, hold seat and spacers in
position and install flange head capscrews (Fig. 6).
9. Insert seat switch connector into wire harness
connector (Fig. 6),
Figure Z
SETTING UP INSTRUCTIONS
6. Install clamp around seat switch wire and over
carriage bolt and secure with locknut (Fig. 7).
Note: Use a screwdriver or pry bar to hold the
head of the carriage bolt in place while installing
the locknut.
INSTALL HITCH PLATE
Tools Required: 1/2 inch box end wrench and
1/2 inch socket wrench.
1. Place hitch plate under the rear edge of the
frame, line the mount holes with one another and
insert the flange head capscrews through the holes
from the top.
2. Install the locknuts and tighten them to secure
the plate to the frame (Fig. 8).
Lara 7
INSTALL CUTTING UNIT
Tools Required: Pliers.
1. Remove cutting deck from shipping carton.
2. Set cutting unit down on the wheels and rollers
and slide cutting unit under tractor.
3. Slide deck under tractor aligning bars of deck
suspension with deck hanger brackets.
4. Insure height-of-cut lever is held down in
lowest height-of-cut position.
Note: A narrow wooden block may be placed in
height-of-cut slot to hold lever down.
CAUTION
Suspension bars are spring loaded: use
caution when installing deck.
Note: Use rear holes in hanger brackets for initial
mounting of deck. When properly adjusted the front
tip of the blade should be 3/8 inch (10 mm) lower
than the rear tip when the blades are in the fore
and aft ¢ sition.
5. Lift .ront hanger brackets to suspension bars
and slide deck rearward slightly.
6. Install engine to deck drive belt.
7. Push cutting unit rearward, align rear clevis
pin holes and install long clevis pins (Fig. 9).
8. Remove cable tie securing tension pin to
tractor.
9. Pull tension pin forward, while pushing deck
rearward, hook end on long clevis pin and secure
with washer and cotter pin (Fig. 9).
ur. а
BEFORE OPERATING
ACTIVATING AND CHARGING BATTERY
(12 VOLT)
Tools Required: 3 to 4 Amp Battery Charger.
Since the battery for the tractor is not filled with
electrolyte or activated, the battery, if you have
not already done so, must be removed from the
machine so it can be filled with electrolyte and
charged. Bulk electrolyte with 1.260 specific
gravity must be purchased from a local battery
supply outlet. Remove the battery and activate
it as follows:
1. Tip the seat forward and lift battery out of
compartment (Fig. 10).
2. Remove filler caps from battery and slowly
fill each cell until electrolyte is just above the
plates. To obtain best results, let battery set for
20 minutes. Add electrolyte to the maximum
capacity.
Figure 11
10
CAUTION
Wear safety goggles and rubber gloves
when working with electrolyte. Charge
the battery in a well ventilated place so
gases produced while charging can dis-
sipate. Since the gases are explosive,
keep open flame and electrical spark
away from the battery; do not smoke.
Nausea may result if the gases are in-
haled. Unplug charger from electrical
outlet before connecting to or discon-
necting charger leads from battery posts.
3. Leave filler caps off and connect a 3 to 4 amp
battery charger to the battery posts. Charge the
battery at a rate of 4 amperes or less for 4 hours.
4, When battery Is charged, disconnect charger
from electrical outlet and battery posts.
5. Slowly add electrolyte to each cell until level
is up to fill ring. Install filler caps.
IMPORTANT: Do not overfill battery. Electrolyte
will overflow onto other parts of the machine and
severe corrosion and deterioration will result.
6. Install the battery into the battery compart-
ment with the terminal posts toward the rear of
the machine. |
7. Install the positive cable (rubber boot over
end) to the positive (+) terminal and the negative
cable (black) to the negative (—) terminal of the
battery and secure with capscrews and wing nuts.
Slide the rubber boot over the positive terminal
to prevent possible short-out from occurring
(Fig. 12).
Ce
wir
28 Sa
he
=
ä EA
NT Аба НИННЫ
о
= A etat
Figure 12
BEFORE OPERATING
CHECK CRANKCASE OIL LEVEL
The tractor is shipped from the factory with oil in
the crankcase. However, check the oil level in the
crankcase prior to starting the engine.
1. Place tractor on a level surface to assure accurate
oil level reading and open the hood. Ensure the oil
drain plug is securely tightened, Page 17, (Fig. 24).
2. Unscrew and remove the dipstick from the oil
fill tube (Fig. 13). |
Le =: 2450 y ES Зы
Te e, kl
роте я
date"
ge TE я
ый
=
|
sen £314 ILL ME
| de fhe
Figure 13
3. If oil level is low, insert a funnel into the tube
and slowly add engine oil into the crankcase. Use
a high quality detergent oil classified “For Service
SC, SD, SE or MS". Qil viscosity (weight) must be
selected according to anticipated ambient tem-
perature,
e Above +40°F (+4° C) — Use SAE 30: 10W-30
and T0W-40 as substitutes,
* - Below +40% F (+4° C) — Use SAE 5W-20 or
5W-30; SAE 10 or 10W-30 as substitutes.
* Below 0° F (-18° C) — Use SAE 10 or 10W-30
diluted 10% with kerosene.
Note: Avoid premature engine failure by insuring
the funnel used is clean so contaminents are not
introduced into the crankcase. Wipe any oil spilled
so it will not cause dirt to collect on the engine.
4. Insure the oil level is to the full mark on the
dipstick when it is fully installed. Do not overfill
or engine damage may result.
5. Insert the dipstick and turn it clockwise
to secure it in the fill tube.
Note: Check the oil level every 5 operating hours
or each time tractor is used. Initially, drain the
oil and replace it after the first 5 hours operation
to remove the contaminents produced by normal
engine break-in; thereafter, under normal condi-
tions, change oil after every 25 hours operation.
Change the oil more frequently when the engine
Is operated in dusty or dirty conditions.
FILL FUEL TANK WITH GASOLINE
Tools Required: Clean Rag and Funnel
IMPORTANT: Leaded regular gasoline is recom-
mended. If leaded regular gasoline is not available,
low lead regular gasoline can be used. Do not mix
any oil with the gasoline, and never use premium
gasoline, gasohol, gasoline additives or white gas
because engine damage could result. Capacity of
fuel tank is 7 quarts (6.62 |).
A DANGER
Because gasoline is flammable, caution
must be used when storing or handling
it. Do not fill fuel tank while engine is
running, hot or when machine is in an
enclosed area. Vapors may build up and |
be ignited by a spark or flame source
many feet away. DO NOT SMOKE while
filling the fuel tank to prevent the
possibility of an explosion. Always fill
fuel tank outside and wipe up any spilled
gasoline before starting engine. Use a
funnel or spout to prevent spilling
gasoline, and fill tank to about 1/2 inch
(12.7 mm) below the filler neck. Store
gasoline in a clean safety-approved
container and keep the cap in place on
the container. Keep gasoline in a cool,
well-ventilated place; never in an enclosed
area such as a hot storage shed. To assure
volatility, do not buy more than a 30
day supply of gasoline. Gasoline is a fuel
for internal combustion engines; there-
fore, do not use it for any other purpose.
Since many children like the smell of gas,
keep it out of their reach because the
fumes are explosive and dangerous to
inhale. |
1. Open the hood.
2. Clean area around fuel tank cap so foreign
matter cannot enter tank when cap is removed.
3. Remove cap from fuel tank and fill tank with
leaded regular or low lead regular gasoline (Fig. 14).
Then install fuel tank cap.
11
BEFORE OPERATING
4. Wipe up any gasoline that may have spilled.
5. Close the hood and make sure it snaps in place.
CHECK TIRE PRESSURE
Tools Required: Tire Pump and Tire Gauge.
Check and insure the tires are inflated to 13 psi
(89.6 kpa) before operating the machine.
ADJUSTING SEAT
Tip the seat forward, loosen the seat mounting cap-
screws and relocate the seat for operator comfort.
Retighten the capscrews and lower the seat.
CONTRO LS
Clutch Pedal (Fig. 15) — Foot operated clutch
pedal is used in conjunction with the gear shift.
Clutch must be fully depressed when shifting gears
so that friction drive plates are separated on clutch
assembly.
Throttle Control (Fig. 15) — Throttle control
connects to and operates carburetor mounted
throttle and choke. Control has three positions:
IDLE, FAST and CHOKE. To obtain choke posi-
tion control must be pushed slightly to the right
and forward.
Ignition Switch (Fig. 15) — Switch is part of bat-
tery ignition system, and it has three positions:
OFF, ON and START. Key automatically returns
to ON position from START position when re-
leased after engine starts.
Light Switch (Fig. 15) — Two position switch for
actuating headlights. Lights will not function
unless engine is running as current is supplied by
the engine alternator.
Deck Engagement Switch (Fig. 15) — Toggle switch
(Pull out and up to engage) releases blade brake
and engages electromagnetic clutch to drive cutter
blade.
Brake Pedal (Fig. 15) — Foot operated pedal, which
when depressed, actuates a disc brake assembly at
the side of the transmission. Clutch pedal should
also be depressed while braking to achieve maxi-
mum brake effectiveness.
Parking Brake (Fig. 16) — Parking brake is used in
conjunction with standard brake assembly, When
brake pedal is depressed and parking brake lever
is pulled upward, a latch plate secures the brake
assembly in the engaged position preventing the
machine from moving.
Note: Transmission must be in neutral to engage
parking brake.
“DEAR
Negi
PARKING
RARE
Figure 16
Gear Shift (Fig. 16) — Transmission has five forward
speeds, neutral and reverse, and has an in-line
shift pattern. An interlock switch, which prevents
engine from being started when transmission is in
gear, is mounted on the top of the transmission.
Height-of-Cut Control (Fig. 16) — Height-of-cut
control varies the cutting height from 1 to 4-1/2
inches (25 mm to 114 mm) in seven positions.
STARTING AND STOPPING INSTRUCTIONS
Note: Engine will not start unless deck engagement
switch is DISENGAGED, shift lever is in neutral
and operator is sitting on the seat.
TO START AND OPERATE MACHINE
1. Shift into neutral,
switch to DISENGAGE.
12
move deck engagement
2. Move throttle control to CHOKE position and
rotate ignition key to START. When engine starts,
release key and move throttle control between
FAST and SLOW.
3. Check height-of-cut position and pull out and
up on deck engagement switch to ENGAGE.
4. Release parking brake, depress clutch pedal and
shift into gear.
STARTING AND STOPPING INSTRUCTIONS
TO STOP
1. Depress brake and clutch pedals, move throttle
control lever to SLOW position, move deck engage-
ment switch to. DISENGAGE, and rotate ignition
key to OFF,
2. Shift transmission to neutral and engage park-
ing brake.
3. Remove key from ignition switch.
USING PARKING BRAKE
A CAUTION
If the engine stalls or must be stopped
while operating on a hill or slope, the
engine must be shut off and parking
brake engaged,
1. Depress brake pedal fully, shift transmission to
neutral.
2. Move parking brake control upward and release
brake pedal.
3. To release the parking brake, depress brake
pedal (Fig. 15), and push parking brake lever down
to return it to its disengaged position. Release
brake pedal slowly.
BREAK-IN
The engine requires no special break-in other than
changing oil after the first five hours of operation,
Operate the transmission in all gears to assure that
drive system is functioning correctly. After the first
five hours of operation, check the condition of the -
belts.
OPERATING INSTRUCTIONS
ADJUSTING HEIGHT-OF-CUT
The height-of-cut may be set in one of seven
positions from approximately 1-4% inches (25mm
to 114 mm).
Deck Lever
Selection
Height-of-Cut
Setting (Approx.)
1 in. (25 mm)
1-1/2 in. (38 mm)
2 in. (51 mm)
2-5/8 in. (67 mm)
3-1/4 in. (83 mm)
N a ON =
Height-of-Cut
Lever Selection
High 3-7/8 in. (98 mm)
Transport 4-1/2 in. (114 mm)
1. Assure the deck engagement switch is in
DISENGAGE position (Fig. 16).
2. To adjust deck wheels, stop engine, set park-
ing brake, put height-of-cut lever in high posi-
tion, pull cut lever out on deck and rotate wheel
shaft to desired height of cut.
Figure 17
3. Move height-of-cut control on tractor (Fig. 17)
into desired setting for high or low cutting.
4. To engage blade for cutting, pull up and out
on deck engagement switch.
OPERATING PROCEDURE
1. Move deck engagement switch into DIS.
ENGAGE.
2. Start the engine: refer to Starting/Stopping
Instructions, page 12.
IMPORTANT: When tractor is used for the first
time, operate the transmission in all gears to assure
that drive system is functioning correctly, and
become familiar with the controls and operating
characteristics. Never shift while the machine IS
moving or without first depressing the clutch pedal
Or transmission damage will result.
3. Depress clutch pedal and shift transmission
into 1st gear. Then release pedal slowly until
traction drive engages.
IMPORTANT: To avoid a jerky start and putting a
heavy load on the transmission, move throttle to
slow speed and release clutch pedal slowly. When
traction drive engages, increase the engine speed.
If shifting into gear is difficult, jog clutch pedal in
and out to get gears to mesh. Do not force the gear
shift because damage may result. Should you
encounter a jerking or grabbing condition during
13
OPERATING INSTRUCTIONS
operation, contact your local Authorized Toro
Service Dealer for assistance.
AR aan
To avoid loss of control, always come to
a complete stop before shifting gears, and
slow down when turning, backing and
changing direction. Look behind the trac-
tor to assure area is clear before backing.
4. To engage blade for cutting, check height-of-
cut ‚setting, then pull out and up on deck engage-
ment switch.
5. To stop the engine, in sequence, depress clutch
and brake pedals, move throttle control to SLOW,
deck engagement switch into DISENGAGE, gear
shift into neutral, rotate key to OFF position, and
set parking brake.
IMPORTANT: Never leave the deck engagement
switch in the ENGAGED position when the en-
gine is not running. Doing so with the igni-
tion switch ON will discharge the tractor battery.
Note: Remove the ignition key and store it in a
memorable place between operating periods.
GRASS CUTTING TIPS
1. When the tractor is used to cut a lawn for the
first time, cut grass slightly longer than normal
to assure that cutting width of mower housing will
not cause scalping, which could result from severe
undulations of the ground. In general, however,
the cutting height used in the past is probably the
best one to use.
2. If the grass is ever allowed to grow slightly
longer than normal, or if it contains a high degree
of moisture, raise cutting height higher than usual
and cut the grass at this setting. Next, cut the
grass again using the lower, normal setting. This
method of cutting long grass results in an even
distribution of clippings and an acceptable quality-
of-cut.
3. Very long or extremely wet grass can be cut,
but specific operating techniques must be used.
Start by setting height-of-cut in the highest position.
Using 1st gear and maximum throttle speed, move
into the grass and cut a swath that is only half as
wide as the mower housing. Direct grass clippings
toward area that was cut previously. Stop forward
movement occasionally to allow discharge area to
clear itself. Cutting too much grass may clog the
mower housing and discharge area. |f mower housing
does clog, shut engine off, disengage blades and
remove the obstruction with a stick,
A DANGER
Before removing obstruction from mower
housing, move deck engagement switch
into DISENGAGE, depress clutch and
brake pedals, shift into neutral and set
parking brake. Turn ignition key to OFF
position. Remove high tension wire from
spark plug to prevent possibility of
accidental starting.
4. When mowing, operate engine at full throttle.
This maintains proper blade speed and air flow to
facilitate discharge of clippings. Mowing with a
lower rpm causes the blade to tear the grass, re-.
sulting in poor lawn appearance. Lower rpm also
reduces alternator charging efficiency which may
affect battery performance.
MAINTENANCE INTERVAL CHART
5 25
Hours Hours
Storage
Service
Spring 2
Service Years Notes
Change Oil (Initial) X
Change Oil (Periodic)
Check Safety Interlock
Check Cutter Blades
Check Brake
Grease Front Axle Spindles
Lubricate Pivot Points
Grease Rear Axle
Lubricate Deck Linkage
Service Air Cleaner
Check Spark Plug
Check Battery Electrolyte Level
Check Blade Drive Belt
Check Traction Drive Belt
Check Tire Pressure
Drain Gasoline
Clean Outside of Engine
Clean Mower Housing
Paint Chipped Surface
Replace Interlock Switches
xxx
HXXX XX XXX
>
More often in dusty
dirty conditions
More often in dusty
dirty conditions
xx
More often in dusty
dirty conditions
PEAK HKHKHKHKHHK HX XX Xx
14
MAINTENANCE
CAUTION
To prevent accidental starting of the
engine. while performing maintenance
F
shut engine off and remove key from
ignition switch. Also, open the hood and
pull high tension wire off spark plug
(Fig. 18). Make sure wire does not con-
tact plug accidentally.
GREASE FRONT AXLE SPINDLES AND
WHEELS
Tools Required: Clean Rag and Grease Gun
w/No. 2 General Purpose Lithium Grease
The front axle spindles and wheels must be lubri-
cated after every 25 hours of operation; however,
lubricate more frequently when conditions are
dusty or sandy.
1. Wipe grease fittings on spindles and wheels
(Fig. 19, 20) with a clean rag. If there is paint on
front of fittings, scrape it off.
Bs
ak
" jura UT
2. Lubricate both axle spindles w/No. ? general
purpose grease (Fig. 19). Continue tc pump grease
until it oozes out the spindle. Wipe up any excess
yrease. |
3. Lubricate both front wheels w/No. 2 general
purpose grease (Fig. 20). Pump grease gun about
four times. Wipe up any cxcess grease.
OINDRAZE FIT YINGE BOT SHOWRS
Figure 20
GREASE REAR AXLES
The rear wheels should be removed and axles
greased, once a year, to prevent the formation of
rust and to simplify future wheel removal. Refer
to Wheel Removal, page 23.
LUBRICATE STEERING SHAFT AND PIVOT
POINTS |
Tools Required: Oil can filled with SAE 10 engine
oil or a pressurized can of spray lubricant similar
lo WD-40.
Lubricate the steering shaft and pivot points every
25 hours with a few drops of SAE 10 oil or WD-40
spray lubricant (Fig. 21). Turn the front wheels
fully to the left to position the lower follower
assembly below the fuel tank to make it more
easily accessible,
Ree
y
a
ЗЕ
©
=
=
=
Е iqure 21 a
15
MAINTENANCE
Note: The fuel tank has been removed in Figure 21
in order to clarify the points needing lubrication.
The tank does not have to be removed to lubricate
the steering assembly,
SERVICING AIR CLEANER
Tools Required: Medium blade screwdriver,
The cleaner element must be cleaned after every
25 hours engine operation if engine is operated in
clean air conditions. However, element must be
cleaned every few hours if operating conditions
are extremely dusty or sandy.
1, Open the hood and remove the high tension
wire from the spark plug.
2. Remove air cleaner stud, screw and cover.
Replace cover gasket if damaged (Fig 22).
Figure 27
3. Remove plate screw, washer and plate (Fig. 23).
4. Remove cartridge and clean air cleaner body
carefully to prevent dirt from entering carburetor.
Brush dirt from body thru holes into duct.
1 Flarescaum C7
: PEA & WABHES
Figure 23
5. Clean cartridge by tapping gently on flat
surface.
a. If very dirty, replace cartridge or wash in a
low or non-sudsing detergent and warm
water solution.
16
b. Rinse thoroughly from QUTSIDE IN
until water is clear.
c. Cartridge must be allowed to stand and
air dry thoroughly before using.
6. Reassemble air cleaner.
A CAUTION
Petroleum solvents, such as kerosene,
are not to be used to clean cartridge.
They may cause deterioration of the
cartridge. DO NOT OIL CARTRIDGE.
DO NOT USE PRESSURIZED AIR TO
CLEAN OR DRY CARTRIDGE.
IMPORTANT: Always operate engine with air
cleaner element in place or engine damage will
result. |
CHANGING CRANKCASE OIL
Tools Required: Clean rag, 7/16 inch open end
wrench, shallow oil drain pan, and funnel.
1. Check level of oil before starting engine and
atter every 5 hours of operation. Maintain oil level
at FULL mark on dipstick.
To check level of oil:
A. Position tractor on level surface.
B. Clean the area around oil dipstick so
foreign matter cannot enter filler hole when
dipstick is removed.
C. Unscrew dipstick and wipe oil off.
D. Screw dipstick fully in to filler neck: then
remove it and check oil level on dipstick. If
level is low, add only enough oil to raise level
to FULL mark. Do not overfill or engine
damage may result.
E. Screw dipstick back into filler neck.
2. Change oil after first 5 hours of operation;
every 25 hours thereafter. Change oil more
frequently when operating conditions are extremely
dusty or dirty. |
To change oil:
A. Position tractor on level surface. Start and
run engine for a period to warm the oil.
B. Turn engine off and place drain pan below
drain plug (Fig. 24). Remove drain plug and
aliow all oil to flow into drain pan. Install
drain plug after oil stops flowing.
MAINTENANCE
Figure 24
C. Open hood, unscrew and remove dipstick
from oil fill tube.
D. Insert a funnel into the tube and slowly
add 48 ounces (1.42 |) of engine oil into the
crankcase. DO NOT OVERFILL or engine
damage may result. Use a high quality deter-
gent oil classified “For Service SC, SD, SE or
MS”, Oil viscosity (weight) must be selected
according to anticipated ambient temperature.
® Above +40° (+4° C) — Use SAE 30: 10W-30
and 10W-40 substitutes.
e Below +40° F (+4° C) — Use SAE 5W-20 or
5W-30; SAE 10 or 10W-30 as substitutes.
* Below 0° F (-18° C) — Use SAE 10 or 10W-30
diluted 10% with kerosene.
FUEL FILTER REPLACEMENT
Tools Required: Hose clamp pliers, drain pan.
An in-line filter is incorporated into the fuel line
between the fuel tank and carburetor (Fig. 25).
Use the following procedures should replacement
become necessary:
Le Pe . и. ferro SETTER i,
ON = e" Qu iL pee a
PS
25
Figure
1. Open the hood.
т Loosen the hose clamp on the carburetor side
of filter and remove the fuel line from the filter.
3. Place a drain pan under filter, loosen the re-
maining hose clamp and remove filter.
A CAUTION
Since gasoline is highly flammable, drain
it outdoors and make sure engine is cool
to prevent a potential fire hazard. Wipe
up any gasoline that may have spilled.
Do not drain gasoline near any open
flame or where gasoline fumes may be
ignited by a spark. Do not smoke a
cigar, cigarette, or a pipe when handling
gasoline,
4. Install the new filter and reinstall hose clamps.
REPLACING SPARK PLUG
Tools Required: 3/4-Inch Spark Plug Socket,
Spark Plug Gapping Tool, and Clean Rag.
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of
electrodes after every 25 operating hours. Recom-
mended air gap is 0.030 of an inch (0.76 mm). Cor-
rect spark plug to use is:
Champion RCJ-8 or Autolite AR7N.
Note: The spark plug usually lasts a long time:
however, the plug should be removed and checked
whenever the engine malfunctions.
1. Open the hood.
2. Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is re-
moved,
3. Pull high tension wire off spark plug and re-
move plug from cylinder head (Fig. 26).
4. Check condition of side electrode, center
electrode, and center electrode insulator to assure
there is no damage.
IMPORTANT: A cracked, fouled, dirty or defec-
tive spark plug must be replaced. Do not sand blast,
scrape, or clean electrodes by using a wire brush
17
MAINTENANCE
ли Trey my ON
ent a
Figure 26
because grit may eventually release from the plug
and fall into the cylinder. The result is usually a
damaged engine.
5. Set air gap between center and side electrodes
at 0.030 of an inch (0.762 mm) (Fig. 27). Install
correctly gapped spark plug w/gasket seal, and
tighten plug to 15 ft-lb (20.4 N-m). If torque
wrench is not used, tighten plug firmly.
0. 030” я
(0.762 mm)
Figure 27
6. Push high tension wire onto spark plug but do
not leave key in the ignition. This will prevent ас-
cidental starting when mower is being stored be-
tween use periods. Keep key in memorable place
sc it is not lost.
ADJUSTING THROTTLE-CHOKE CONTROL
Tools Required: Medium blade screwdriver.
Proper choke and stop switch operation is depen-
dent upon proper adjustment of remote controls.
Before adjusting the carburetor, assure the throttle-
choke control is operating properly.
18
1. Open the hood, remove the screws holding air
cleaner cover in place and remove cover (Fig. 28).
2. Move remote control lever to CHOKE position
and check the position of the choke butterfly: it
should be fully closed.
3. Move remote control lever to FAST position.
The butterfly should be in the fully open posi-
tion.
Di a Be a
Ps,
Figure 29
ra eg Ey Pp By t= тат
ann a iat aa nn т со
4. If the choke butterfly. is positioned as described
in steps 2 and 3, replace the air cleaner assembly
and continue operation,
If either the choke butterfly does not close or
is not fully open in the FAST position, adjust
the remote control lever as follows:
MAINTENANCE
1. Place remote control lever in CHOKE position.
2. Loosen the throttle cable clamp screw (Fig. 29)
and move the control cable casing and wire until
the throttle lever touches link.
3. Tighten the cable clamp and assemble the air
cleaner cover to the air cleaner.
ADJUSTING CARBURETOR
Tools Required: Medium Blade Screwdriver
The carburetor has been set at the factory, but an
occasional adjustment may be required. How:
ever, do not make unnecessary carburetor adjust
ments because factory settings are usually cor
rect. An adjustment may be required to com-
pensate for differences in fuel, temperature and
altitude.
IMPORTANT: Before the carburetor is adjusted,
throttle control must be checked for proper
operation: refer to Adjusting Throttle/Choke
Control, page 18.
1. Needle Valve (Fig. 30) — Close valve by gently
rotating it clockwise.
IMPORTANT: Do not close the needle valve too
tight because the valve and seat in carburetor will
likely be damaged.
2. Rotate — open — the needle valve 2 turns
counterclockwise (Fig. 30).
Figure 30
Note: The needle valve setting is an approximate;
however, the setting will allow engine to be started
so carburetor can be fine tuned — steps 3-9.
WARNING
Engine must be running so final adjust-
ment of the carburetor can be performed.
To guard against possible personal injury,
move deck engagement switch into
DISENGAGE detent, shift into neutral,
and engage parking brake. Keep hands,
feet, face, and other parts of the body
away from the cutter blade, underside
of mower housing, discharge area, and
any rotating engine parts.
3. Start engine and let it warm up for approxi-
mately two minutes. Next, move throttle control
into FAST detent.
IMPORTANT: Air cleaner must be installed on the
engine whenever high speed is being adjusted. The
air cleaner mounting screw must also be installed
when engine is run. |
4, Rotate needle valve (Fig. 30) clockwise, 1/8
turn at a time, until engine starts to lose speed. Let.
engine react to each 1/8 turn setting.
5. Rotate needle valve (Fig. 30) counterclockwise
— out — 1/8 turn at a time, until engine first runs
rough. Let engine react to each 1/8 turn setting.
6. Rotate needle valve (Fig. 30) clockwise — in —
very slowly until engine starts to run smoothly.
This setting, under no load, may be slightly rich;
however; the slightly rich setting will assure proper
operation when engine is under load.
7. Move throttle control to SLOW, Next, rotate
idle adjusting screw (Fig. 30) until engine speed Is
1750 rpm.
Note: Rotate idle adjusting screw clockwise to
increase idle rpm. By contrast, rotate idle adjusting
screw counterclockwise to decrease idle rpm.
8. Тит idle valve in (lean) and out (rich) slowly
until engine idles smoothly. Reset idle speed to
1750 rpm.
0 Check carburetor adjustment by quickly -
moving throttle control from SLOW to FAST. En-
gine speed should increase without hesitation. If
engine tends to stall or die out, rotate needle valve
1/8 turn counterclockwise until engine accelerates
smoothly. |
19
MAINTENANCE
10. After carburetor is adjusted, shut engine off.
If mower will not be used immediately, remove key
from switch to prevent possibility of accidental
starting. Keep key in a memorable place so it is
not lost accidentally. |
SERVICING CUTTER BLADES
Tools Required: Pliers, Pin Punch, Rag or thickly
padded Glove, 15/16 inch Socket Wrench and
Handle, File and Blade Balancer.
A CAUTION
Stop the machine and examine the cutter
blades for damage and loss of torque of
the nut securing the blade to the spindle
shaft whenever the blade strikes an
immoveable object. Open the hood and
disconnect the spark plug lead, engage
the parking brake and disengage the
cutter blades prior to examining the
blades. If blades are cracked, badly bent
or twisted or severely eroded (Fig. 35),
replace the blades. Always use genuine
Toro replacement blades to assure safety
and optimum performance. NEVER USE
WILL FIT REPLACEMENT BLADES.
To service blade:
1. Insure engine is shut off and parking brake
locked. Open the hood and remove the high tension
wire from spark plug.
2. With height-of-cut lever in transport position,
set cutting unit deck wheels in center position
(Fig. 31).
20
3. Lower cutting unit to level surface.
A CAUTION
Suspension bars spring loaded use cau-
tion when removing deck.
aie A ad
4. Remove cotter pin, flat washer and tension rod
from each rear clevis pin (Fig. 32).
5. Remove right rear clevis pin.
6. Insure height-of-cut lever is held down in
lowest height-of-cut position. Remove left rear
clevis pin by pushing it out with a pin punch
(Fig. 33).
Note: A narrow wooden block may be placed in
height-of-cut slot to hold lever down.
Figure 33
7. Push down on height-of-cut lever and slide deck
forward until clevis pins, securing front deck hanger
brackets to suspension bar clear suspension bars.
MAINTENANCE
8. Remove cutting unit drive belt,
9. Slide deck out from under tractor.
10. Turn cutting unit on its side, grasp the end
of a blade with a rag or thickly padded glove: then
remove the locknut and blade (Fig. 34).
liqure 34
11. Examine cutting ends of the blades carefully,
especially where the flat and curved parts of the
blades meet (Fig. 35A). Since sand and abrasive
material can wear away the metal that connects the
flat and curved parts of the blades, check the
blades before using the mower. |f wear Is noticed
(Fig: 358), replace the blades.
FLAT PART | SAIL
e
SAIL
|
mr N
WEAR
ЗА!
Re A SLOT
FORMED
=
Figure 35
A CAUTION
If blade is allowed to wear, a slot will form
between the sail and flat part of the blade.
(Fig. 35C). Eventually a piece of the blade
may break off and be thrown from under the
housing, possibly resulting in serious injury
to yourself or bystander.
Note: Since lock nut is tightened to 50-60 ft/lb
(68-81 N-m) at the factory, it may be difficult to
remove the nut. If nut cannot be removed, contact
an Authorized TORO Service Dealer for assistance,
12. Using a file, sharpen cutting edge at both ends
of the blade (Fig. 36). |
SHARPEN AT SAIL
ORIGINAL ANGLE
pal
END VIEW OF BLADE
2
Figure 36
13. Check balance of blade by putting it on a
blade balancer. (An inexpensive balancer can be
purchased at a hardware store). A balanced blade
will stay in a horizontal position on the balancer.
By contrast, a blade that is not balanced will
settle to the heavy side. If blade is not balanced,
file some material off heavy cutting edge end of
blade. Continue to check the blade until it is
balanced.
14. In sequence, install blade, and lock nut
(Fig. 35). Tighten lock nut to 50-60 ft-Ib (68-81
N-m). | |
IMPORTANT: Make sure cutting edge of blade
is away from top of mower housing (Fig, 35).
While lock nut is tightened, move blade slightly
so it seats between sides of blade retainer.
15. Mount the cutting unit to the tractor. Refer to
Install Cutting Unit, page 9 for proper procedures.
CLEANING UNDERSIDE OF MOWER HOUSING
Tools Required: Wooden scraper, garden hose and
paste wax.
To assure a good quality-of-cut and efficient grass
bagging, underside of mower housing and inside
of discharge area must be kept clean, Whenever the
mower is removed, clean out debris with a scraper
and hose and apply a coat of paste wax on inside
of mower housing and grass deflector. This will
retard corrosion and prevent grass and dirt from
sticking on inside of housing.
REPLACING BLADE DRIVE BELT
Tools Required: 1/2 inch wrench, pliers and medi-
um blade screwdriver,
1. Remove the cutting unit. Refer to Servicing
Cutter Blade, steps 1 through 9, page 20.
21
MAINTENANCE
2. Remove screws securing belt shields to deck
and remove shields (Fig. 37).
CAUTION
Idler arm and pulley are spring loaded;
use caution when loosening belt.
— "—" TE WE WE OW Wr Wr Wr we EE
Figure 37
3. Roll belt off idler pulley to relieve tension
on belt.
4. Remove old belt.
5. Install new belt around spindle pulleys and
idler pulley.
6. Reinstall belt shields to cutting deck.
refer to
7. Reinstall cutting unit to tractor:
Install Cutting Unit, page 9.
REPLACING TRACTION BELT
Tools Required: (2) Adjustable Wrenches, 5/8 inch
Socket Wrench and Handle, Wheel Blocks.
1. Remove the cutting unit. Refer to Servicing
Cutter Blade, steps 1 through 9, page 20.
2. Insure the parking brake is locked and place
blocks in front of and behind one rear wheel.
3. Reach under the tractor frame just forward of
the rear wheels, grasp the idler pulley assembly,
(Fig. 38) pull on it to relieve tension on the belt
and remove the belt from the pulley. Then, remove
the belt from the belt guide (Fig. 38).
4. Disconnect the bolt retaining the wire tie down
from the electromagnetic blade clutch. Disconnect
the in-line wire connector (Fig. 39).
20.
Figure 38
CAUTION
The idler pulley arm is under heavy spring
tension. Hold the arm firmly while al-
lowing the arm to return to its relieved
position. |
5. Remove the bolt securing the cutter blade
clutch assembly (Fig. 39) at the front of the
machine and remove the assembly. Note how the
clutch is prevented from rotating by a steel post
welded to the underside of the tractor.
Note: If there is difficulty in removing blade
clutch mount bolt with use of standard socket
wrench, contact a Toro Service Dealer for assis-
tance. An air impact wrench nay be 2 necesa.
Figure 39 |
6. Slip the belt off the engine pulley, then remove
it from the traction clutch pulley on top of the
transmission at the rear of the machine.
7. Slide the belt between the top of the traction
clutch assembly and the clutch actuator bar
(Fig. 40).
Note: There may not be enough clearance between
the actuator and clutch to remove the belt. Dis-.
connect the clutch pedal linkage to gain more
clearance, if necessary.
MAINTENANCE
3. Rotate the inner locknut clockwise approxi-
mately 1/4 turn and check amount of free travel
of brake pedal. Continue to adjust nut until brake
pedal free travel is 1/2 inch (13 mm).
4 Rotate the outer locknut clockwise until it
contacts the inner locknut, hold the inner locknut
with a wrench to prevent it from turning and
tighten the outer locknut against it to secure the
adjustment.
WHEEL REMOVAL
Tools Required: Pry Bar, Pliers, 9/16 inch Socket
Wrench, Floor Jack, Wheel Blocks.
Front Wheels:
da я ÉL ht E
EP A 1
Figure 40
Assure parking brake is locked and block one
rear wheel.
8. Assemble the new belt to the machine by
reversing the disessembly procedures. Apply grease 2. Place jack under front axle and raise wheel
or "NEVER SEEZE to crankshaft before installing off floor.
blade clutch. Reassemble the clutch insuring that
the slot in the clutch fits over the steel post. 3 Use a pry bar to lever the hub cap off the axle
Torque the mount bolt for the blade clutch (Fig. 42).
assembly to 60 ft-1b (81 N-m).
9 Reconnect the wire connectors and remount
the wire tie down to the tractor body. Make sure
that all wires aré positioned away from moving
parts.
BRAKE ADJUSTMENT
Tools Required: Two 1/2 inch Open End Wrenches,
Wheel Blocks. |
“The disc brake assembly is a coaster type brake,
therefore, the traction clutch pedal must be actu-
ated in conjunction with the brake pedal to achieve
maximum brake effectiveness. Periodically adjust
the brake assembly to maintain the brake pedal
free travel of 1/2 inch (13 mm). 4 Remove the cotter pin and flat washer (Fig. 43)
and remove the wheel from the axle.
pe. ; gadis
1. Place blocks on each side of one rear wheel
and disengage parking brake.
2. Loosen the locknuts at right hand side of tran
mission (Fig. 41). |
rec
E"
Za À
NE ai
Fiqure 41 5 Assemble in reverse order.
ds
ОГНЕ #3
23
MAINTENANCE
Rear Wheels:
1. Assure parking brake is locked and block the
front wheels.
2. Place a block of wood between jack and rear
axle and raise wheel off floor,
IMPORTANT: Place jack as close as possible to
inside of wheel to prevent damage to transmission,
3. Use a prise bar to lever the hub cap off the
axle.
4. Remove capscrew securing wheel to axle
(Fig.
A eT
Figure 44
5. Assemble in reverse order of the disassembly
procedures. Use grease or “NEVER SEEZE" on
axle before mounting wheel. Insure woodruff key
is installed. Tighten the mounting capscrew until
the wheel hub bottoms out on the end of the axle.
Torque mounting capscrew to 30 ft-lbs. (40.7 N-m)
Note: When installing right rear wheel make sure
spacer is between end of axle and wheel hub.
CHECKING SAFETY INTERLOCK SYSTEM
The purpose of the safety interlock system is to
prevent the engine from cranking or starting unless
the operator is on the seat, the transmission shifted
into neutral and the cutting unit deck engagement
switch is in the Disengage position. In addition,
the engine will stop, because of a seat switch, if the
operator gets off the seat when the cutter blade
drive control is engaged or transmission is in gear.
To assure interlock system is functioning correctly,
check it before each use of the tractor. Have the
safety interlock switches replaced by an Authorized
TORO Service Dealer every two years to assure
safe operation of the tractor.
24
1. Sit on seat and move shift control into neutral
position. Engage parking brake to prevent move-
ment of tractor.
2. Move deck engagement switch (Fig. 45) to the
ENGAGE position. Rotate the ignition key to
START. Engine should not crank. If engine cranks,
the interlock system is malfunctioning and it must
be repaired by an Authorized TORO Service Dealer.
If engine does not crank, proceed to step 3.
3. Move deck engagement switch to DISENGAGE
position (Fig. 45) and place shift control into one
of the gear selections (Fig. 46). Rotate the ignition
key to START. Engine should not crank; but if it
does, the interlock system is malfunctioning and
It must be repaired by an Authorized TORO Service
Dealer. If engine does not crank, proceed to step 4.
By
eo BMHIFY
"CONTROL
4. Move shift control (Fig. 46) into neutral and
deck engagement switch (Fig. 45) to DISENGAGE
position. Engage the parking brake to prevent
movement of the tractor. Rotate ignition key to
START position and start engine. Place the deck
engagement switch in ENGAGE position and
carefully raise off the seat: the engine should stop
running. If engine does not stop running, shut
engine off and have interlock system repaired by an
Authorized TORO Service Dealer. If engine shuts
off when you raised off seat, the interlock system
is functioning correctly.
MAINTENANCE
Authorized TORO Service Dealer. If engine shuts
off when you raised off seat, the interlock system
is functioning correctly.
ÁN unan
Do not operate the tractor if the interl ock
system is malfunctioning because it is à
safety device, designed for protection.
BATTERY CHARGING SYSTEM
An AGC 7-1/2 Amp Fuse (Fig. 47) is incorporated
in the charging circuit as a protective device against
alternator damage caused by possible "'short-outs
in the wiring harness. If the battery lacks power
to crank engine, raise the hood, separate the fuse
block (Fig. 47) and check the fuse. If fuse is de-
fective, replace It. | replacement fuse also fails,
have the electrical system checked by an Authoriz-
ed TORO Service Dealer. Also have electrical
system checked if the fuse is not defective but the
battery lacks power.
CT RISE BLOGK NT
o LHABEINO CIRIA
; Red Wired
sAODEL, USE HAL
NLMADER PLATE
pa
| Figure 47
HEADLIGHT CIRCUIT
Power for the headlights on the 11-42 Lawn Tractor
is provided by electric current from the engine
alternator; therefore, the headlights will not
function unless the engine is operating. An
AGC 7-1/2 Amp Euse (Fig. 47) is incorporated in
the headlight circuit as a protective device against
alternator damage caused by possible "short-outs”
in the wiring harness. If the headlights are
inoperative, raise hood, separate fuse block and
check fuse. If fuse is defective, check wiring for
“chort-outs”. If none can be ascertained, contact
your Authorized TORO Service Dealerfor assistance.
PREPARING MOWER FOR STORAGE
1. Drain gasoline from fuel tank and fuel line;
refer to Fuel Filter Replacement, page 17. Next,
start engine and let it run at idle speed until it
stops because all gasoline is used. Replace the
fuel filter. |
Note: All gasoline must be expended to prevent
gum-like varnish deposits from forming in the
carburetor, fuel line, and fuel tank. Such deposits,
if allowed to form, will cause starting problems
and poor engine operation. |
2. Pull high tension wire off spark plug and clean
area around the plug so foreign matter cannot fall
into cylinder when plug is removed. Next, remove
plug from cylinder head and pour two tablespoons
of engine oil into spark plug hole. Rotate engine
by hand slowly to distribute oil on inside of cylin-
der. Then reinstall spark plug and tighten it to
15 ft-lb. If torque wrench is not used, tighten plug
firmly. DO NOT INSTALL HIGH TENSION WIRE
ON SPARK PLUG.
3. Drain oil from crankcase and refill with proper
viscosity oil: refer to Changing Crankcase Oil,
page. 16.
A. Clean dirt and chaff from outside of cylinder,
cylinder head fins, and blower housing. Also, re-
move grass clippings, dirt, and grime from external
parts of tractor, engine, shrouding, and top of
mower housing.
5. Clean underside of mower housing: refer to
Cleaning Underside of Mower Housing, page 21.
6. Check condition of blades: refer to Servicing
Cutter Blade, page 20.
7. Check and tighten all capscrews, bolts, screws,
nuts, and mating parts. If any part is damaged, re-
pair or replace it.
8. Lubricate wheels and spindles with grease: refer
to Grease Front Axle Spindles and Wheels, page
15.
9. Check air cleaner element: refer to Servicing
Air Cleaner, page 16.
10. Touch up all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
Note: TORO RE-Kote “touch-up” paint is available
from any Authorized TORO Service Dealer. The
spray paint dries in minutes to a glossy, factory:
finish.
25
MAINTENANCE
11. Remove the battery from the machine, recharge
it and store it in a cool, dry place. Recharge it
every 30 days to prevent it from discharging. Refer
to Activating and Charging Battery, page 10.
IMPORTANT: Improper storage or failure to
recharge may cause battery failure.
12. Place blocks under the front and rear axles to
raise the wheels off floor and prevent tire
deterioration.
13. Store the tractor in a clean, dry place. Remove
key from ignition switch and keep itin a memorable
place. Cover the tractor to protect it and keep it
clean,
WIRING DIAGRAM
ORANGE
YELLOW
TRANS SW SEAT SW
Le ORANGE Ti
BLACK
i]
GRAY
| -BLADE
À CLUTCH
BLACK
ORANGE
PURPLE
YELLOW
-—
ha
L
IGN. SW
n|DECK
ENGAGEMENT
SWITCH
GREEN — TA e
7.5 AMP
NO AGE 75 LIGHT
SWITCH
LIGHTS
=D
ul
RED
BLACK
Бе
GREEN
Ti
с
u
m
WHITE
RED
MAG. [BLACK
A
¿ENGINE
=
=
( STARTER
- SOLENOID EN
BATTERY
WHITE
WHITE
SL
KEY
IGNITION SWITCH
CFF MS CLOSED .
ON B BL CLOSED:
START BAS CLOSED
DECK ENGAGEMENT SW
OFF C & D CLOSED
ON B &A CLOSED
TRANS, SWITCH
NORMALLY CLOSED IN
NEUTRAL
SEAT SWITCH
MORMALLY CLOSED WITH
OPERATOR ON SEAT
26
TROUBLE SHOOTING
pe Problem Possible Causes Corrective Action |
Engine does not start, starts 1. Gas tank is empty. 1. Fill fuel tank with | |
hard, loses power, or fails gasoline.
| to keep running.
2 Transmission is in gear.
3. Deck engagement switch is in
ENGAGE detent.
4. Spark plug is loose.
5. High tension wire is loose or
disconnected from spark plug.
6. Spark plug gap is incorrect.
7. Spark plug is pitted, fouled, or
defective in some other way.
8. Wrong spark plug is used.
9. Electrical connections are
loose.
10. Carburetor is adjusted
incorrectly.
11. Air cleaner is dirty.
12. Plugged fuel filter.
13. Dirt, water, or stale fuel
in fuel system.
14. Dead battery.
15. Defective points, condenser,
ignition coil, or ignition switch.
16. Module or switch is defective.
2 Shift transmission into
neutral.
3. Move deck engagement
switch into DISENGAGE detent.
4, Tighten plug to 15 ft-lb
(20.4 N-m). |
5. Install high tension wire
on spark plug.
6. Set gap between electrodes
at 0.030 of an inch (0.762 mm).
7. Install new correctly
gapped spark plug.
8. Install correct spark plug.
9. Check electrical system
to assure good contact.
10. Adjust the carburetor.
11. Clean the air cleaner
element.
12. Refer to Fuel Filter
Replacement, page 17.
13. Have tractor serviced by
Authorized TORO Service
Dealer.
Have tractor serviced by
Authorized TORO Service
Dealer.
Engine does not idle or
idles poorly.
Lee =e
1. Air cleaner is dirty.
29. Oil level in crankcase is low.
3. Cooling fins and air passages
under engine blower housing are
plugged.
4. Idle speed is too low or high
speed mixture is incorrect.
5. Plugged fuel filter.
6. Dirt, water, or stale fuel is
in fuel system.
7. Spark plugis pitted, fouled or
defective in some other way.
1. Clean air cleaner element.
2. Add oil to crankcase.
3. Remove obstruction from
cooling fins and air passages.
4. Adjust the carburetor.
5. Refer to Fuel Filter Re-
placement, page 17.
6. Have tractor serviced by
Authorized TORO Service
Dealer.
7. Install new correctly
gapped spark plug.
27
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine loses power
1. Oil level in crankcase is low.
2. Cooling fins and air passages
under engine blower housing are
plugged.
3. Engine load is excessive.
4. Air cleaner is dirty.
5. Plugged fuel filter,
6. Dirt or water is in fuel system.
7. Carburetor is adjusted
incorrectly.
8. Spark plug is pitted, fouled or
defective in some other way.
1. Add oil to crankcase.
2. Remove obstruction from
cooling fins and air
passages.
3. Shift into lower gear to
reduce load.
4. Clean air cleaner element.
5. Refer to Fuel Filter Re-
placement, page 16.
6. Have tractor serviced by
Authorized TORO Service
Dealer.
7. Adjust the carburetor.
8. Install new correctly
gapped spark plug.
Engine over heats
1. Cooling fins and air passages
under engine blower housing are
plugged.
2. Carburetor is adjusted
Incorrectly.
3. Oil level in crankcase is low.
4. Engine load is excessive.
1. Remove obstruction from
cooling fins and air passages.
2. Adjust the carburetor.
3. Add oil to crankcase.
4. Shift into lower gear to
reduce load.
Tractor vibrates abnormally.
1. Engine mounting bolts are
loose.
2. Loose blade clutch pulley, idler
| pulley or blade pulley.
3. Cutter blade is unbalanced.
4. Lock nut holding blade is loose,
5. Drive pulley is damaged.
1. Tighten engine mounting
bolts.
2. Tighten the appropriate
pulley,
3. Install new cutter blade.
4. Tighten nut to 50-60 ft-lb
(68-81 N-m).
5. Replace drive pulley.
Blade does not rotate
1. Blade drive belt is worn, loose
or broken.
2. Blade drive belt is off pulley.
3. Faulty blade clutch assembly
or damaged pulley.
1. Install new blade drive
- belt.
2. Install blade drive belt.
3, Have tractor serviced by
Authorized TORO Service
Dealer.
Tractor does not drive.
1. Traction drive belt is worn,
loose or broken.
2. Traction drive belt is off
pulley.
3. Transmission does not shift
gear.
4. Damaged clutch or pulley.
1. Install new traction drive
belt.
2. Install traction drive belt.
3, 4. Have tractor serviced by
Authorized TORO Service
Dealer.
28
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The TORO Lawn Tractor has two identification
numbers: a model number and a serial number.
The two numbers are stamped on a decal that is
located under the hood to the right of steering
shaft. See page 25, Fig. 47.
In any correspondence concerning the tractor,
supply model and serial numbers to assure that
correct information and replacement parts are
obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following infor-
mation:
1. Model and serial numbers of the tractor.
2. Part number, description and quantity of
part(s) desired.
Note: Do not order by reference number if a parts
catalog is being used; use the PART NUMBER.
MAINTENANCE RECORD
Air Cleaner
Service
Hours Oil
Date |. Used Change
Lubrication
Spark
Plug Gap
Sharpen
Winter | Spring
Blade
Storage Service
MAINTENANCE RECORD
Hours Oil Air Cleaner gin Sharpen Winter Spring Spark
Date Used Change Service |-ubrication| To Storage | Service | Plug Gap
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
Air Cleaner
Service
Lubrication
Sharpen
Blade
Winter
Storage
Service
Spring
Spark
Plug Gap
VG 438
31
THE TORO PROMISE
It is Toro's policy to design and produce TORO
products to provide our customers with a high level of
performance and durability in normal operation. Our
products, however, are produced in high volume, and
it is inevitable that occasionally a unit will reach a
customer with a defect in materials or workmanship
which causes the unit to fall below the normal high
level of TORO performance. Invariably, such a defect
will be noticed in a residential product within one year
after purchase. Recognizing this possibility, Toro has
established a simple guarantee policy and procedure
that is intended to assure customer satisfaction. This
guarantee statement is as follows:
3 PALLADIAN 32
The Toro Promise
A Two Year Limited Warranty
On All
Riding Mowers, Premium Rotary Mowers, Tillers, and Gas Edgers.
ATA AAA TA ATT DA ADA VDL AP PARA A
FD DANDO NDA
CAT RT O
The Toro Company promises to repair these TORO Products if defective in materials
or workmanship. The following time periods from the date of purchase apply:
Residential Product
Residential Products Used Commercially
. 2 Years
45 Days
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer
or TORO Distributor.
Should you feel your TORO is defective and wish to rely
on The Toro Promise, the following procedure is recom-
mended:
1. Contact any Authorized TORO Service Dealer, TORO
Master Service Dealer, or TORO Distributor {the Yellow
Pages of your telephone directory is a good reference
source).
2. He will aither instruct you to return the product to him
or recommend another Authorized TORO Service outlet
which might ba more convenient.
3. Bring the product along with your original sales slip, or
other evidence of purchase date, to the service dealer.
4, The sarvicing dealer will inspect the unit, advise Y OU
whether the product is detective and, if so, make all
rapairs necessary to correct the defect without extra
charga to you.
If for any reeson vou are dissatisfied with the dealer's analy
sis of the defect or the service performad, you may contact
Lis.
Write:
TORO Customer Service Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
The above remedy of product defects through repair by
an Authorized TORO Service Dealer is the purchaser's sole
remedy for any defect,
THERE 15 NO OTHER EXPRESS WARRANTY. ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND
СМР ол АНСЕ 1 ТЫ AA CIN TEA LL PENCE SÉGuULAT O65 CERTIEITH
CERT FIE CONMFORME BL MELE WEN SUM ob Bis A Far EL ALLE
FITNESS FOR USE ARE LIMITED TO THE DURATION
OF THE EXPRESS WARRANTY.
Some states do not allow limitation on how long implied
warranty lasts, so the above limitation may not apply to
vou.
This Warranty applies only to parts or components which
are defective and does not cover repairs necessary due to
normal wear, misuse, accidents, or lack of proper mainte-
nance. Regular, routine maintenance of the unit to keep
it in proper operating condition is the responsibility of the
owner.
All warranty repairs reimbursable under The Toro Promise
must be performed by an Authorized TORO Service Dealer
Using Toro approved replacement parts.
Repairs or attempted repairs by anyone other than an Au-
thorized TORO Service Account area not reimbursable under
The Toro Promise. In addition, these unauthorized repair
attempts may result in additional malfunctions, the cor-
reaction of which is not covered by warranty.
The Toro Company is not liable for indirect, incidental
or consequential damages in connection with the use of the
product including any cost or expense of providing sub-
stitute equipment or service during periods of malfunction
Or nom usa,
some states do not allow the exclusion ot incidental or
consequential damages, so the above exclusion may not
apply to you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
WII VIII III TV TT aR
=
Wii
ANNAN уса
Litho in U.S, A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
