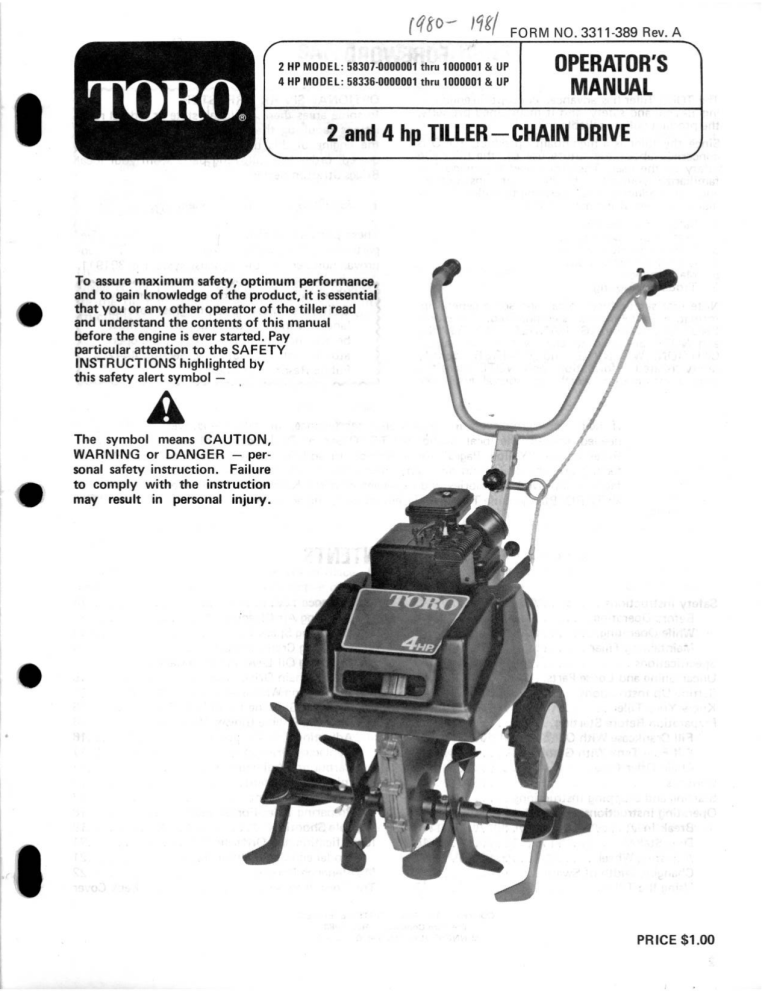

(450 148/ FORM NO. 3311-389 Rev. A
и
2 HP MODEL: 58307-0000001 thru 1000001 & UP OPERATOR'S
4 HP MODEL: 58336-0000001 thru 1000001 & UP MANUAL
2 and 4 hp TILLER — CHAIN DRIVE
N
To assure maximum safety, optimum performance,
and to gain knowledge of the product, it is essential
that you or any other operator of the tiller read
and understand the contents of this manual
before the engine is ever started, Pay
particular attention to the SAFETY
INSTRUCTIONS highlighted by
this safety alert symbol —
у
The symbol means CAUTION,
WARNING or DANGER — рег-
sonal safety instruction. Failure
to comply with the instruction
may result in personal injury.
PRICE $1.00
FOREWORD
The TORO Tiller has advanced concepts in engineer-
ing, design, and safety and if maintained properly,
the product will be reliable.
Since the tiller is a high-quality product, TORO is
concerned about the future use of the tiller and
safety of the user. Therefore, read this manual to
familiarize yourself with the safety instructions
and the product before operating the tiller. The six
major sections of the manual are:
Safety Instructions
Setting Up Instructions
Preperation Before Starting
Operating Instructions
Maintenance
Trouble Shooting
Note that safety, mechanical, and some general in-
formation in the manual is emphasized. The words
CAUTION, WARNING, DANGER, IMPORTANT,
and NOTE are used to classify the information.
CAUTION, WARNING, and DANGER identify
safety related information; and NOTE identifies
general information worthy of special attention.
DAWN.
OPTIONAL SPARK ARRESTER
In some areas there are local, state or federal regu-
lations requiring that a spark arrester be used on
the engine of this tiller. If a spark arrester is re-
quired, order the following parts from your local
Briggs-Stratton dealer:
1 392190 Spark Arrester Assembly
These parts are approved by the United States De-
partment of Agriculture and Forestry. The ap-
proval number for the exhaust system is 391911.
SE о Ne Ne GE GR Re ie ооо gle ie ge ie ie ie ie ie i ie ie Re
WT TT WT WE WT WT WT NE NE a NE ae age age ame age ape wg wpe oe ge We Wa Wg WEE wpe ame ge wg a a
When tiller is used or operated on any
California forest, brush or grass covered
land, a working order spark arrester must
be attached to muffler. If not, the oper-
ator is violating state law, Section 4442
Public Resources Code.
¿0 270 00 aie Re ie ie SR ie Re. GR 00 ie 0 0 aN Gl Ne aie. aie. e aE Ge Ge Ne. GE A GE GS 0 A Ne
TE TEE TE TET TEE TEE EE EE EE EE EE EET TE WEEE RE WE WE WE WE WE WE mE me me me age owe ae wae owe
4
$
‘
|
‘
|
$
$
$
If help — concerning set-up, operation, maintenance, or safety — is ever
needed, contact the local Authorized TORO Service Dealer or Distributor.
Refer to the “Yellow Pages’ for assistance. In addition to skilled service
technicians, the dealer and distributor have other TORO products, as well as
factory approved accessories and replacement parts. Keep your Toro Tiller
all TORO. Buy genuine TORO replacement parts and accessories.
TABLE OF CONTENTS
Page
Safety INGtruCtHIONs . ox ii is 275 dans du i nan 3
Batore Operatina: .. =. 1:25: ci. 00: Mari 3
While Operating. ........é.e2.w..:ce.e ..... 3
Maintaining Tiller ......0.0.00000000000 000 3
SOBCITICREONS us aca aaa a CEA 4
Uncartoningand Loose Parts. ................ 5
Setuño Up Instructions. .-..—.— акации акс 1 és. 5
Know Your TUE ke ur <a caos da ae 6
Preparation Before Starting. . ................ 7
Fill Crankcase With Oil . ................. 7
Fill Fuel Tank With Gasoline. ............. 7
Chain Drive Case......e.o_eceeesresrorerooa 8
CONO: ....=...—. ca cn a 0 MU soo) 8
Starting and Stopping Instructions ........... 9
Operating Instructions: +3 «ua: 7 > Puse « o 10
BOC: a ¿1 PT Йо оо сов ен и a 10
КН OD: y aaa a EEE ho 10
Adjusting Wheel oii vans aa Tis mas day 11
Changing Width of Swath ............... 11
Using CO VINO ........0.000000000000004 12
Page
Maintenance : »....... ...feos 20.000.00 redox 13
Servicing Air Cleaner. ......o_e..eeeceoeoo 13
Replacing Spark Plug. .................. 13
Changing Crankcase Ol. . . «vo sso vs cows 14
Checking Oil Level in Chain Case ......... 14
Filling Chain DriveCase ................ 15
Lubricating Wheels and Idler Pulley ...... ‚15
Draining Gasoline From Fuel Tank........ 16
Cleaning Engine Blower Housing. ......... 16
Adjusting Belt Tension ................. 16
Replacing DriveBelt................... 17
Carburetor Adjustment. ................ 17
Initial Adjustment...........o—eeeeecóero 17
Ji: 97: To sip - | SN A RO 17
Preparing Tiller For Storage ............. 18
DE OU +00 ss Pocas va veu 19
Identificationand Ordering. ................ 21
Model and Serial Numbers. .............. 21
Ма!тп1епапсе Несог@ ...................... 22
The Toro Promise ................ .Back Cover
COPYRIGHT © ALL RIGHTS RESERVED
The Toro Company — Rev. 1980
MINNEAPOLIS, MN 55420 — U.S.A.
SAFETY INSTRUCTIONS
This safety alert symbol
means CAUTION, WARN-
ING, or DANGER — “per-
sonal safety instruction”.
Read and understand the
instruction, because it has
to do with safety. Failure
to comply with the in-
struction may result in personal injury.
The following “Instructions for Safe Tilling” are
suggested by The Toro Company. Failure to oper-
ate the tiller in accordance with these Safety In-
structions MAY RESULTIN PERSONAL INJURY.
BEFORE OPERATING
1. Read and understand the contents of this
manual before starting and operating the tiller. Be-
come familiar with all controls and know how to
stop tiller quickly. NEVER ALLOW CHILDREN
TO OPERATE TILLER.
2. Keep everyone, especially children and pets,
away from the area of operation. Remove glass,
metal objects, sticks, stones, wire and any other de-
bris that might get caught in or possibly be thrown
by the tines.
3. Keep all shields and safety devices in place. If
shield, safety device or decal is defective or dam-
aged, repair or replace it before operation is com-
menced. Also tighten any loose nuts, bolts and
screws.
4. Wear long pants and substantial shoes while us-
ing the tiller. Do not operate tiller while barefoot,
wearing sandals, tennis shoes, sneakers or shorts.
5. Fill fuel tank with gasoline before starting the
engine. Avoid spilling any gasoline. Since gasoline
is highly flammable, handle it carefully.
A. Use an approved gasoline container.
B. Fill tiller fuel tank outdoors when engine is
cool. Engine must not be running to pre-
vent a potential hazard.
C. Wipe up any gasoline that may have spilled.
and install gasoline container cap and tiller
fuel tank cap before starting the engine.
WHILE OPERATING
6. Open doors if engine will be run in the garage,
because exhaust fumes are dangerous and could
possibly be deadly. Do not run engine indoors.
7. Do not operate the tiller if someone is near the
area to be tilled.
8. Tilling the soil demands attention. Always
maintain secure footing, balance and control.
9. Till the soil when it is dry, because wet or sticky
soil can cause mechanical damage.
10. Keep face, hands, feet and any other part of
the body or clothing away from concealed or ex-
posed rotating parts such as the tines, belts and pul-
leys. Stay behind the handles and away from the
tines while operating the tiller.
11. Release clutch control, shut engine off and
wait for all parts to stop before removing any ob-
struction from the tines.
12. If a solid object is hit by the tines or tines get
plugged, release clutch control and shut engine off.
Remove high tension wire from spark plug; then
check for possible damage, an obstruction or loose
parts. Make all repairs before using the tiller again.
13. Before leaving the operator's position — behind
handles — release clutch control and shut engine
off. Pull high tension wire off spark plug to prevent
possibility of accidental starting.
14. Do not touch the engine while it is running or
soon after it is stopped, because the engine may be
hot enough to cause a burn.
MAINTAINING TILLER
15. Before performing any maintenance or servic-
ing the tiller, shut engine off and pull high tension
wire off spark plug to prevent possibility of acci-
dental starting.
16. Perform only those maintenance instructions
described in this manual. If major repairs are ever
needed or assistance is desired, contact an Author-
ized TORO Service Dealer.
17. Keep tiller in safe operating condition by hav-
ing nuts, bolts, and screws tight.
SAFETY INSTRUCTIONS
18. To reduce potential fire hazard, make sure en-
gine and tiller chassis is free of excessive grease,
vegetation, dirt and other foreign matter.
19. Do not overspeed the engine by changing gov-
ernor settings. Recommended engine speed is
3000 rpm. To assure safety and accuracy, have an
Authorized TORO Service Dealer check maximum
engine speed (3200 rpm) with a tachometer.
SPECIFICATIONS
Engine: 2 hp (1.5 kw) Briggs & Stratton engine,
four cycle, air cooled with output of 2 hp (1.5 kw)
at 3600 rom and 3.15 ft-Ib (4.27 Nm) of torque at
3000 rpm. Displacement is 6.65 cubic inches
(10.89 cc). Fuel tank capacity is 1 quart (.946 1) of
gasoline, and crankcase capacity is 20 ounces (.591 1)
of oil.
4 hp (3 kw)Briggs & Stratton engine, four cycle, air
cooled, with output of 4 hp (3 kw) at 3600 rpm
and 6.1 ft-lb (8.27 N'm) of torque at 2700 rpm.
Displacement is 11.39 cubic inches. Fuel tank
capacity is 2 quarts (1.88 |) of gasoline, and crank-
case capacity is 20 ounces (.591 |) of oil.
Clutch: Clutching system has a tight/slack V-belt
controlled by a pivoting idler pulley.
Tines:
blades.
8 double-ended heat-treated slasher-style
Chain Drive: All heavy duty ball and roller bearings.
Controls: Throttle control mounted on engine has
three positions: FAST, SLOW, and STOP. Drive
clutch control is mounted on the right handle. By
squeezing the control against handle, pivoting idler
pulley is pulled against a V-belt; thus, tine engage-
ment results. When desired, a thumb-actuated lock-
ing pin may be used to maintain the engagement.
Wheels: Polypropylene wheels with sintered metal
wheel bushings.
Tires: Two 8 x 1.75 semi-pneumatic tires with
diamond tread.
Chassis/Chain Case: 1/8 inch (3 mm) wall, 2 piece
bolt-together die cast aluminum to provide enclo-
sure for chain drive and mounting for engine, lower
handle column, pivot blocks for drag or draw bar,
and forward mounting for shroud.
Handles: 1 inch (25 mm) diameter x 16 gauge
(1.65 mm) steel tubing, welded to a control
bracket. Handles are zinc plated and have vinyl
handle grips. Handles fold down to a storage
position.
Drag Bar: a 1/4 inch x 1 inch (6 mm x 25 mm)
steel U-formed drag bar manually pivoted to
working and storage position. The drag bar is
free swinging, approx. 90°.
Width of Swath: Width of swath is adjustable from
11 to 22 inches (.305 m to .559 m).
Overall Dimensions: Handles in operating position
— 43 inches (1.092 m) lona, 22 inches (.559 m)
wide, 37 inches (.940 m) high. Handles folded in
storage position — 29 inches (.737 m) long, 22 inches
(.559 m) wide, 26 inches (.66 m) high.
Weight: 2 hp (1.5 kw) — dry weight 70 Ib. (31.75Kg)
(арргох.); 4 hp (3 kw) — dry weight 73 1b.(33.11 Kg)
(approx.).
Parts and Accessories: At the time of manufacture,
the tiller was made from quality parts and is as safe
as normal tiller design allows. To assure safety and
optimum performance, purchase only genuine
TORO replacement parts and accessories to keep
the Toro Tiller all TORO. NEVER USE "WILL-
FIT” REPLACEMENT PARTS AND ACCESSOR-
IES. The TORO label assures you it is genuine.
Genuine
| TORO
PARTS & ACCESSORIES
LOOSE PARTS
NOTE: Carefully remove all loose parts and packing inserts from carton. Cut end of carton nearest the
wheels and ROLL tiller out of carton to avoid any unnecessary lifting. Use chart below to make sure that
all parts have been shipped.
Description Quantity Use
Owner's Manual 1 Read Owner's Manual before operating tiller.
Registration Card 1 Fill out and send to The TORO Company.
Oil Tube 1 Filling crankcase with oil.
HANDLE y SHIPPING .
LOCKING SUPPORT
KNOB (DISCARD) ;
RE
Figure 1
Tiller-Chain Drive
out of carton
Your new Chain Drive Tiller comes completely as-
sembled from the factory. However, the handle
must be rotated into the operating position.
ROTATE
HANDLE
ASSEMBLY
.
HS
Figure 2
Handles Rotated to
Operating Position
To rotate handles:
1. Remove handle locking knob.
2. Discard shipping support (Fig 1).
3. Replace handle knob and rotate handle upward
so that the slot in the handle assembly is under the
handle locking knob.
4. Secure the handle assembly to the chassis tube
by tightening handle locking knob securely.
KNOW YOUR TILLER
LOCKING PIN
DRIVE CLUTCH CONTROL
HANDLE LOCKING KNOB
CHAIN GUIDE
AIR CLEANER
ENGINE OIL FILL AND
THROTTLE CONTROL
LEVER DRAIN PLUG NOT SHOWN
WHEEL ADJUSTMENT MUEELER
LEVER
-SPARK PLUG
FUEL TANK ми | 94 ENGINE
RECOIL STARTER
A Е TE
Зо Е
e anna
Figure 3
LEFT and RIGHT indicate the left and right sides of the tiller when
facing toward the front of the machine from the operating position.
SHROUD
TINES
CHAIN DRIVE
OIL LEVEL AND
FILL PLUG
BEARING COVER
PREPARATION BEFORE STARTING
FILL CRANKCASE WITH OIL
Tools Required: Pliers, Clean Rag, Funnel and Oil
Tube (provided)
IMPORTANT: The tiller is shipped from the fac-
tory without oil in the crankcase. Before starting
engine, crankcase must be filled to the proper level
with recommended oil.
IMPORTANT: Check level of oil every 5 operating
hours or each time tiller is used. Initially, change oil
after the first 2 hours of operation; thereafter, under
normal conditions, change oil after every 25 hours
of operation. Change oil more frequently when
engine is operated in only dusty or dirty conditions.
1. Move tiller to a level surface to assure accurate
oil level reading.
2. Clean the area around the oil filler plug so for-
eign matter cannot enter filler hole when plug is
removed.
3. Remove filler plug from crankcase (Fig. 4).
4, Slowly, pour approximately 20 ounces (.591 1)
of oil into crankcase using provided oil tube with
funnel (Fig. 4). The Briggs & Stratton engine uses
any high quality detergent oil having the American
Petroleum Institute — API — “service classification”
MS, SC, SD, or SE. Oil viscosity — weight — must
be selected according to the season’s ambient
temperature.
A. Summer (over 40°F, 4°C) Use S.A.E. 30
or 10W-40 oil.
B. Winter (below 40°F, 4°C) — Use S.A.E.
FILLER PLUG—® _
5
FILLER HOLE —%—%
Filling Crankcase With Oil
5. After crankcase is filled with oil, rock the tiller
gently to release any air that may be trapped in the
crankcase. If level of oil drops, add enough to bring
It up to the point of overflowing.
6. Install filler plug into opening in crankcase.
Wipe up any oil that may have spilled.
FILL FUEL TANK WITH GASOLINE
Tools Required: Clean Rag and Funnel with Filter
Always use clean, fresh gasoline. If gasoline is al-
lowed to stand it will form gum-like varnish depos-
its in the carburetor, fuel line, and fuel tank. Such
deposits cause starting problems and poor engine
operation.
IMPORTANT: Do not mix oil w/gasoline because
engine damage and poor performance may result.
Do not use premium gas, gasohol, white gas or
gasoline additives. Either leaded-regular or low
lead gasoline is acceptable to fill the 2 quart
(1.88 1) fuel tank.
a...
Because gasoline is flammable, caution
must be used when storing or handling
it. Do not fill fuel tank while engine is
running, hot or when machine is in an
enclosed area. Vapors may build up and
be ignited by a spark or flame source
many feet away. DO NOT SMOKE
while filling the fuel tank to prevent the
possibility of an explosion. Always fill
fuel tank outside and wipe up any spilled
gasoline before starting engine. Use a
funnel or spout to prevent spilling
gasoline, and fill tank to about 1/2 inch
(12.7 mm) below the filler neck. Store
gasoline in a clean safety-approved con-
tainer and keep the cap in place on the
container. Keep gasoline in a cool, well-
ventilated place; never in an enclosed
area such as a hot storage shed. To assure
volatility, do not buy more than a 30 day
supply of gasoline. Gasoline is a fuel for
internal combustion engines; therefore,
do not use it for any other purpose. Since
many children like the smell of gas, keep
it out of their reach because the fumes
are explosive and dangerous to inhale.
i i ie i i ge ie ge ie ie ge i GE ты ты,
Sie a. ae ae ie бы, абы a ie i a. EE GER ame am me
el ah J J a a. a. ЧЩ
PREPARATION BEFORE STARTING
1. Clean area around the fuel tank cap so foreign
matter cannot enter the tank when cap is removed.
2. Remove cap from fuel tank and fill tank with
leaded regular or low lead gasoline. Then install
fuel tank cap.
3. Wipe up any gasoline that may have spilled
while tank was being filled.
CHAIN DRIVE CASE
The chain drive case comes filled with oil. It is not
necessary to fill chain drive case unless shipping
carton shows evidence that oil has leaked out: Refer
to Filling Chain Drive Case, page 17.
Under normal operating conditions the chain drive
case need only be checked once a year to make sure
oil level is maintained. However, if there is evidence
of oil leaking from the chain case or bearings, check
oil level more frequently. If oil leaks persist contact
your nearest Authorized TORO Service Dealer.
CONTROLS
Drive Clutch Control (Fig. 5) — Clutch control is
mounted near the left handle grip. By squeezing
control against handle, pivoting idler pulley is pulled
against a V-belt; thus, forward tine engagement re-
sults. To maintain tine engagement, squeeze clutch
control continuously or depress locking pin and re-
lease control against pin. Squeeze clutch control
against handle, which will disengage locking pin,
and allow control to release: Tines and forward
movement will stop.
LOCKING PIN
He
DRIVE
4 CLUTCH
Y CONTROL
Figure 5
Locking Pin and
Drive Clutch Control
Throttle Lever (Fig. 6) — Throttle lever is mounted
on the right side of the engine, and it has three posi -
tions — FAST, SLOW, and STOP.
8
Fee
“THROTTLE LEVER
o Re ь
Figure 6
Throttle Lever
Choke Valve (Fig. 7) — Choke valve is located on
the carburetor and is used for starting a cold engine;
The choke valve has two positions:
A. Full choke — choke valve fully extended.
B. No choke — choke valve fully pushed in.
Figure 7
Full Choke Position
CONTROLS
Recoil Starter (Fig. 8) — Pull recoil starter handle Wheel Adjusting Lever (Fig. 9) — The wheels on
to start engine. the tiller can be raised or lowered to govern the
forward speed of the tiller and depth of tilling.
ge RR
=
E
ERR
So EE
o
o
Eto |
Figure 8 Figure 9
Recoil Starter Adjusting Wheels
© STARTING AND STOPPING INSTRUCTIONS
NOTE: Make sure the high tension wire is installed 2. Pull Throttle lever out to the FAST position
on the spark plug before attempting to start engine. (Fig. 11).
1. Check drive clutch control to make sure it is
fully released (Fig. 10).
%
iE THRQTTLESLEVER
Se
= 8 я:
EE ый
-
——
Figure 10 Figure 11
Clutch Control Released Throttle in Fast Position
STARTING AND STOPPING INSTRUCTIONS
3. Pull the choke valve out (Fig. 12) when start-
ing a cold engine. However, a warm or hot engine
usually does not require any choking. When start-
ing a warm engine, move throttle lever to the FAST
position.
Figure 12
Full Choke Position
4. Pull recoil starter handle out until positive en-
gagement results: Then pull handle vigorously to
start engine (Fig. 13). When engine starts, regulate
choke and throttle to keep the engine running. As
engine gets warm move choke inward fully (no-
choke position).
OPERATING
BREAK-IN
The engine requires no special break-in other than
changing crankcase oil after the first two hours of
operation. Operate the tines to make sure that drive
system is functioning correctly. After the first five
hours of operation, check condition of belt and
check for possible loosening of any nuts, bolts, and
SCrews.
10
Figure 13
Recoil Starter
5. To stop engine, during operation, release (dis-
engage) drive clutch control and move throttle lever
to the stop position.
release (disengage) drive clutch control and
move throttle lever to the STOP position.
2 270 27e 270 274 270 Ро оо de
Г
{
{
|
A |
{
CAUTION
{
4
d
|
Г
{
«
Г
{
;
,
]
:
y
y
y
)
у = a =
To stop engine quickly in an emergency,
}
y
)
;
]
>
;
FN aE a WE EW WW awww
INSTRUCTIONS
DRAG STAKE
Drag Stake (Fig. 14 and 15) — When the drag stake
engages the soil, it forces the tines into the soil and
eases operator effort in controlling forward advance
and overall control of the tiller. When tiller is pulled
backward, drag stake will pivot forward so move-
ment is not adversely affected.
OPERATING INSTRUCTIONS
Tilling (Engaged) Position:
1. Rotate locking channel so that the drag stake
is free to rotate down to tilling position (Fig. 14).
eN
CHANNEL
R
Tilling Position
Transport Position:
1. After tilling, move drag stake forward and
rotate locking channel to hold drag stake in trans-
port position (Fig. 15).
LOCKING u
CHANNEL
DRAG STAKE IN |
TRANSPORT POSITION
Figure 15
Storage and Transport Position
ADJUSTING WHEELS
8 Wheels on the tiller can be raised or lowered to
govern forward speed of the tiller and depth of
tilling. To adjust, proceed as follows:
1. Move adjusting lever upward (Fig. 16). Raise
or lower the wheels to the desired position, then
GREASE
THIS AREA
RAISE {
WHEELS
Figure 16
Adjusting Wheels
lock wheels in position by depressing adjusting lever.
Ground conditions vary greatly, and you will have
to experiment with degree of adjustment untii you
get satisfactory results.
2. Wheels will ride on the ground once tilling be-
gins.
3. After tilling, wheels can be adjusted again for
transporting tiller.
CHANGING WIDTH OF SWATH
1. The width of swath is adjustable from 11 to 22
inches (.305 m to .559 m) by removing the two (2)
outboard tine sections. To remove tine sections,
remove cotter pins and clevis pins; then slide tine
sections off inboard tines (Fig. 17 and 18).
Figure 17
Maximum Width
Figure 18
Minimum Width
11
OPERATING INSTRUCTIONS
USING THE TILLER
The tiller is a multiple-use, soil conditioning pro-
duct. It can be used to renovate a garden, flower-
bed or lawn. Soil “conditioning” occurs when the
soil is blended, mixed, aerated or pulverized by the
rotation of the tines. Two or more passes may be
required to condition soil properly; however, dif-
ferent types of soil will affect the total working
time. Wet soil tends to ball up, stick to the tines,
and may result in poor conditioning. Wet, tilled
soil may dry into rock-like lumps with a hard
crusty cover. This condition is not conducive to
seed germination and plant growth. Wet soil may
plaster onto the tine rotor, resulting in reduced
penetration when tilling. In addition, any abnor-
mal buildup of soil on the belts may cause mechan-
ical damage. Therefore, use the tiller only when
the ground is “dry” (when soil may be crumbled
with the hand), and wash tiller after use to remove
any accumulated dirt and vegetation.
Generally, there are three types of soil conditioning
applications:
1. Breaking up untilled soil.
2. Conditioning soil that has previously been
tilled.
3. Cultivating.
Before starting the engine, engage the drag stake,
and adjust wheels to the desired position. The
penetrating drag stake tends to retard forward
movement of the tiller, thus making it easier to
control. When breaking up untilled soil run engine
at maximum speed. To prevent fatigue of the
left hand, use the locking pin to hold drive clutch
control in the engaged position.
Clutch control locking pin should not be
used when tilling in confined areas or near
fences.
dE о о ооо оо e Ч
eile. dl J J EE CE i i
Initially, untilled soil and grass are broken apart
by pressing down on the handles to produce slow
forward movement and maximum rotation of the
tines; and it may even be necessary to hold back on
the handles to further reduce forward movement.
After the soil is broken apart, slight upward pres-
sure on the handles produces faster forward move-
ment of the tiller. During the actual tilling opera-
tion you may try to maneuver a turn. The compact
tiller is versatile and will react to turning maneu-
vers without any damage to the tiller. However,
experience and soil conditions will dictate degree
of turn. The tiller can be pulled backward and
turned easily, since the drag stake pivots out of
the ground.
12
To condition the soil effectively, a definite tilling
pattern must be used. Till a single row; then skip a
space equal to the width of the tines, and make the
return pass. Continue this pattern until the entire
area is broken apart. Next, condition the entire area
again by tilling at right angles to the previously tilled
swaths. When the entire area is broken up, till
deeper by raising wheels and adjusting handle force
for a slow propelling rate. A four-inch depth of
conditioned soil is deep enough for most row crops
and turf, seed-bed areas. Vine crops, however, usu-
ally require six or more inches of conditioned soil.
Another tiller application is conditioning soil that
has been tilled previously. Even though the soil has
been conditioned before, the ground must be dry
for the effective reconditioning that may be re-
quired. Do not till when the soil is wet. Engine
speed should be regulated to produce good pulver-
ization of the soil, and this is affected by the type
of soil being conditioned. Never condition the soil
until it becomes granular or powdery, because the
surface soil will have a tendency to pack and resist
plant growth. If the general texture of the soil is
somewhat sandy, use only enough engine speed to
loosen the soil for planting. Other than engine
speed, the use of the tiller and tilling pattern is the
same as when untilled is first conditioned. Keep
the wheels adjusted so that an erect, non-straining
operating position can be maintained.
When cultivating — uprooting weeds — the tiller
must be controlled carefully to avoid plant damage.
To maintain control of the tiller, adjust wheels, en-
gage drag stake, and reduce engine speed. Wheels
should be adjusted to allow the operator to main-
tain an erect position.
In summary, till or cultivate the soil when it is dry,
because better “conditioning” will result. Maximum
engine speed is required to break up soil that has
never been tilled. By comparison, regulate engine
speed as required when conditioning soil that has
already been tilled. Cultivating, by contrast, re-
quires reduced engine speed so that precise control
of the tiller can be maintained. And, after the tiller
has been used, hose off any dirt and vegetation
from the tines, pulleys, belts and shroud. Wipe en-
gine with a damp cloth, in preference to spraying it
with water. Store the tiller in a clean, dry garage
or storage shed.
IMPORTANT: 1) Always make sure that air clean-
er is cleaned and serviced before operating tiller.
2) Make sure blower and air cleaner are free of de-
bris. Clean every 4 hours when tilling dry vegeta-
tion or dry, dusty soil. If this is not done, chaff
will build up in blower housing, causing engine to
overheat.
MAINTENANCE
2 270 204 Ро 0 00 0 РО РО РО ER GEE Ge i e Ee GE Ne. GN GER. Ne << e
aie а д а д д д д EA CP EP EP UE” EF E” EE” i de a a i a a
Shut engine off before performing any
maintenance service. To prevent possibility
of accidental starting, pull high tension wire
off spark plug. Make sure that wire does
not contact plug accidentally (Fig. 19).
2 7 ae a ame
ia a
чо, бы обо бы бы, бы сы ale ae
НР НР ee a
HIGH TENSION WIRE
Figure 19
High Tension Wire
in V Notch
SERVICING AIR CLEANER
Tools Required: Screwdriver
NOTE: The air cleaner element must be cleaned
after every 25 hours of engine operation. However,
element must be cleaned every few hours when op-
erating conditions are extremely dusty or sandy.
1. Pull high tension wire off spark plug.
2. Remove screw and cover to expose air cleaner
element (Fig. 20).
3. Inspect air cleaner element at the inlet holes on
the bottom of air cleaner, and at the top of the air
cleaner element. If element is dirty or discolored,
it must be removed from the air cleaner body, then
cleaned.
A. WASH element in a solution of liquid de-
tergent and water. Squeeze element to re-
move dirt, but do not twist the element,
because it may tear.
27 27 бы, бы, 74 ie ie i бы объ бы ить, бы aE об,
EO a we ae age aa ae ue age ag ag ag a
=
EA
ELEMENT
Figure 20
Air Cleaner Element
B. DRY element by wrapping it in a clean rag.
Squeeze rag and element until element is dry.
C. SATURATE element with 5 teaspoons
(25 ml) of engine oil, and squeeze element
to distribute and remove excess oil. A damp
element is desirable. Next, put element into
body. Also install screen and spacer on top
of element.
4. Install cover on air cleaner body, and make sure
cover and element form a seal. Mount air cleaner
assembly on top of carburetor with long screw.
Make sure that all parts are seated in place and
form a seal.
IMPORTANT: Do not operate engine without air
cleaner element and screw mounted in place, be-
cause engine damage will likely result.
REPLACING SPARK PLUG
Tools Required: Spark Plug Socket Wrench, Spark
Plug Gapping Tool and Clean Rag
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of elec-
trodes after every 25 operating hours. Recom-
mended air gap is 0.030 of an inch (0.76 mm).
Correct spark plugs to use are Champion RCJ-8 or
Autolite AR7N.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is removed.
2. Pull high tension wire off spark plug and remove
plug from cylinder head.
13
MAINTENANCE
3. Check condition of side electrode, center elec-
trode and center electrode insulator to make sure
there is no damage.
IMPORTANT: A cracked, fouled, dirty or defective
spark plug must bereplaced. Donot sand blast, scrape
or clean electrodes because grit may eventually
release from the plug and fall into the cylinder.
The result is usually a damaged engine.
4. Set air gap between center and side electrodes
at 0.030 of an inch (0.76 mm) (Fig. 21). Install
correctly gapped spark plug with gasket seal, and
tighten plug to 15 ft-lb (20.4 N'm). If torque
wrench is not used, tighten plug firmly.
Figure 21
Air Gap Between Electrodes
5. Do not install high tension wire onto spark plug
unless tiller is to be used immediately. This pre-
vents possibility of accidental starting.
CHANGING CRANKCASE OIL
Tools Required: 3/8 Inch Open End Wrench, Shal-
low Oil Drain Pan, and Clean Rag
Check oil level after every 5 hours of operation or
each time tiller is used. Change oil after the first 2
hours of operation; thereafter, under normal con-
ditions, change oil after every 25 hours of engine
operation. However, change oil more frequently
when engine is operated in dusty or sandy condi-
tions. If possible, run engine just before changing
oil: warm oil flows better and carries out more con-
taminants than does cool oil.
1. Position tiller on level surface so oil drains com-
pletely and a true reading results when crankcase is
refilled.
14
2. Shut engine off, and pull high tension wire off
spark plug.
3. Clean area around drain plug (Fig. 22). Next,
place shallow drain pan below drain plug so oil can
run into pan.
4. Remove drain plug from crankcase, and let oil
drain into pan. To make sure that oil drains com-
pletely, tip tiller slightly to the rear.
A
FILLER PLUG —
OIL DRAIN PLUG—
Figure 22
Location of Oil
Drain Plug Installed
5. After oil drains completely, reinstall drain plug,
and wipe up any oil that may have spilled.
6. With tiller parked on level surface, fill crankcase
with oil: Refer to Fill Crankcase With Oil, page 7.
CHECKING OIL LEVEL IN CHAIN CASE
Tools Required: Screwdriver and Clean Rag
Under normal operating conditions, the chain drive
case needs to be checked only once a year to make
sure oil level is maintained. However, if there is
evidence of oil leaking from the chain case or bear-
ings, check oil level more frequently. If oil leaks
persist, contact your nearest Authorized TORO
Service Dealer.
1. Position tiller on a level surface.
2. Clean area around oil level plug to prevent for-
eign matter from entering inspection hole when plug
is removed.
0)
MAINTENANCE
3. Remove oil levei plug (Fig. 23).
4. A small amount of oil should flow from the in-
spection hole, indicating chain drive case is properly
filled.
5. Replace oil level plug.
Figure 23
Oil Level
Plug Removed
FILLING CHAIN DRIVE CASE
Tools Required: Screwdriver, Funnel, SAE 30 Oil,
and Clean Rag
1. Position tiller on a level surface.
2. Clean area around oil level plug to prevent for-
eign matter from entering inspection hole when
plug is removed.
3. Remove oil level plug (Fig. 23).
4, Tip tiller on the left side, insert funnel into oil
inspection hole, and add a small amount of SAE 30
oil.
5. Remove funnel; place tiller back upright. When
a small amount of oil flows from the inspection
hole, chain drive case is properly filled.
6. Replace oil level plug.
LUBRICATING WHEELS AND IDLER PULLEY
Tools Required: Screwdriver, SAE 30 Oil, and
Clean Rag
The wheel bushings and idler pulley must be lubri-
cated after every 15 hours of operation or, if used
less, once a year. Lubricate more frequently when
conditioris are extremely dusty or sandy.
1. Clean area around wheel bushings with rag. Lu-
bricate wheel bushing with a few drops of oil (Fig.
24). Spin wheels to distribute the oil, and wipe up
any excess oil.
Tn
Figure 24
Lubricating Wheels
2. Remove 6 screws holding the shroud to the
tiller chassis; remove shroud (Fig. 25).
Figure 25
Removal of Screws
Holding Shroud
15
MAINTENANCE
3. Clean area around idler pulley and on back of
idler pulley. Lubricate idler pulley hub and pivot
with a few drops of SAE 30 oil (Fig. 26). Spin idler
pulley to distribute oil; wipe up any excess oil.
4. Replace shroud and fasteners.
Figure 26
Lubrication Points
DRAINING GASOLINE FROM FUEL TANK
Tools Required: Pump-Type Siphon and Clean Rag
A CAUTION
Since gasoline is highly flammable, to pre-
vent potential fire hazard make sure engine
is cool and drain gasoline outdoors. Wipe
up any gas that may spill. Do not drain gas-
oline near open flames, because gasoline
fumes may be ignited by a spark. Do not
smoke when handling gasoline.
A Ad dd ¿e ¿e ¿A A о Рыб, бы о, оо,
EN" a A AS A A CEA CARA me wae CEP EP aw
1. Clean area around fuel tank to prevent foreign
matter from entering filler hole when cap is removed.
2. Using a pump-type siphon, pump gasoline into
a clean gas can. This is the only method recom-
mended for draining gasoline.
CLEANING ENGINE BLOWER HOUSING
Tools Required: 7/16 Inch Open End Wrench,
Screwdriver and Brush
16
IMPORTANT: When tilling dry vegetation or under
very dry, dusty conditions, clean blower housing
every 2 to 4 hours of operation. Proceed as follows:
1. Remove 6 screws that hold shroud to tiller
chassis (Fig. 27).
Removal of Screws
Holding Shroud
2. Remove the three 7/16 inch screws that hold ¢
engine blower housing to engine (Fig. 28).
3. Clean all debris out of engine cooling fins.
4. Reinstall engine blower housing and shroud.
i aR jo e UE
ue o. de -
PU НЕт
a
=
=
sin
EA
=.
||
||
1
i
Figure 28
Blower Housing Removed
ADJUSTING BELT TENSION
If tines slip or do not rotate when tilling, it may be
necessary to adjust belt tension.
1. Remove spring from idler pulley arm.
MAINTENANCE
2. Move spring up on link on the chain. Reinstall
spring on idler pulley arm (Fig. 29).
3. Start engine and engage clutch control drive:
Tines should now rotate. Continue the above steps
until tine rotation is evident, or slippage has been
cured. Tines must not rotate when drive clutch
control handle is released.
Figure 29
Adjusting Belt Tensioh
REPLACING DRIVE BELT
Tools Required: 3/8 Inch Open End Wrench, Screw-
driver, and New Belt
Under normal conditions, belt replacement should
not be necessary. However, if belt replacement is
necessary, proceed as follows:
1. Remove 6 screws holding shroud to tiller
chassis (Fig. 30).
e
Figure 30
Removal of Screws
Holding Shroud
2. Remove belt from pulleys.
3. Loosen belt guide locking screw (Fig. 31).
4. Assemble new belt, and adjust the belt guide to
allow 1/16 inch (1.6 mm) clearance between the
bottom of the belt and the belt guide when clutch
control is engaged (Fig. 31).
5. Tighten belt guide locking screw.
6. Start engine: With drive clutch control released,
belt and chain case pulley must not rotate.
7. Stop engine, and disconnect spark plug wire.
8. Reassemble tiller shroud and screws.
Co
INCH |
(1.6 mm). E
Figure 31
Belt Replacement
and Adjustment
CARBURETOR ADJUSTMENT
Carburetors are adjusted at the factory, and nor-
mally do not need adjustment unless they have been
disassembled.
INITIAL ADJUSTMENT
Close needle valve (turn clockwise — (Fig. 32), then
open 1% turns (turn counterclockwise). This initial
adjustment will permit the engine to be started
and warmed up before making final adjustment.
FINAL ADJUSTMENT
With drive clutch control released (tines stopped)
and engine running at normal operating speed (ap-
proximately 3000 rpm without load) close the
needle valve slowly (turn clockwise) until engine
starts to lose speed (lean mixture). Then slowly
open needle valve (turn counterclockwise), past
the point of smoothest operation, until engine just
17
MAINTENANCE
begins to run unevenly. This mixture should be rich
enough for best performance under load (Fig. 32).
Hold throttle in idling position. Turn idle adjusting
screw until fast idle is obtained (1750 rpm).
Test the engine under full load. If engine tends to
stall or die out, it usually indicates that the mixture
is slightly lean, and it may be necessary to open the
needle valve slightly (1/8 to 1/4 turn counterclock-
wise) to provide a richer mixture. This richer mix-
ture may cause a slight unevenness in idling.
RBJUSTING |
„ча
‚ — ай 7 «a
FRACTION RESSURE._
LI. SCREN Se
de =
Rs =
|
Figure 32
Carburetor With Air
Cleaner Removed
A WARNING
Engine must be running so final adjustment
of carburetor can be performed. To guard
against possible personal injury, disengage
drive clutch control. Keep hands, feet, face,
and other parts of the body away from the
tines, belts and pulleys.
ón +. +. A. A GE ie a Ge a i a i A i a i i i a RR
AAA Fr
EG a A A сы” a
i a a Ne am
td A О Че
18
IMPORTANT: Air cleaner must be installed on
the engine whenever carburetor is being adjusted.
The air cleaner mounting screws must also be tight
when engine is run. Fuel tank must be half full of
gasoline to get best carburetor adjustment.
PREPARING TILLER FOR STORAGE
1. Drain gasoline from fuel tank: Refer to Drain-
ing Gasoline From Fuel Tank, page 16. Next, start
engine and let it run at idle speed until it stops be-
cause all gasoline is used.
2. Pull high tension wire off spark plug, and clean
area around the plug so foreign matter cannot fall
into cylinder when plug is removed. Next, remove
plug from cylinder head and pour two tablespoons
(25 ml) of engine oil into spark plug hole. Pull
recoil starter handle slowly to distribute oil on
inside of cylinder. Then reinstall spark plug, and
tighten it to 15 ft-lb (20.4 N'm). If torque wrench
is not used, tighten plug firmly. DO NOT INSTALL
HIGH TENSION WIRE ON SPARK PLUG.
3. Drain oil from crankcase: Refer to Changing
Crankcase Oil, page 14. However, do not fill crank-
case with oil at this time.
4. Clean dirt and chaff from outside of cylinder,
cylinder head fins and blower housing. Also, re-
move vegetation, dirt and grime from external parts
of tiller chassis, engine, shrouding and tines. Make
sure idler pulley pivots freely.
5. Check and tighten all cap screws, bolts, screws,
nuts and mating parts. If any part is damaged, re-
pair or replace it.
6. Lubricate wheels and pivot points: Refer to
Lubricating Wheels and |dler Pulley, page 15.
7. “Touch up” all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
8. Fill crankcase with oil: Refer to Fill Crankcase
With Oil, page 7. Clean air cleaner element: Refer
to Servicing Air Cleaner, page 13.
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine does not start.
. Gas tank is empty.
. Choke arm not in FULL
position.
. Spark plug loose.
. High tension wire loose or dis-
connected from spark plug.
. Spark plug gap is incorrect.
. Spark plug is defective.
. Faulty points or condenser.
. Fill fuel tank with gasoline: Refer
to Fill Fuel Tank With Gasoline,
page /.
. Move choke to FULL CHOKE po-
sition: Refer to Starting and Stop-
ping Instructions, page 9.
. Tighten spark plug to 15 ft-lb
(20.4 N'm).
. Install high tension wire on spark
plug.
.Set gap between electrodes at
0.030 of an inch (0.76 mm).
. Install new, correctly gapped plug:
Refer to Replacing Spark Plug,
page 13.
. Contact Authorized TORO Ser-
vice Dealer.
Engine starts hard or loses
power.
. Dirt, water, or stale fuel
in gas tank.
. Vent hole in fuel tank cap is
plugged.
. Air cleaner is dirty.
. Drain gas and clean fuel tank. Fill
tank with clean, fresh gasoline:
Refer to Fill Fuel Tank With Gas-
oline, page 7.
. Clean or replace fuel tank cap.
. Clean the air cleaner element:
Refer to Servicing Air Cleaner,
page 13.
Engine operates erratically.
. Spark plug is defective.
. Spark plug gapped incorrectly.
. Air cleaner is dirty.
. Install new, correctly gapped plug:
Refer to Replacing Spark Plug,
page 13.
. Set gap between electrodes at
0.030 of an inch (0.76 mm).
. Clean the air cleaner element:
Refer to Servicing Air Cleaner,
page 13.
19
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine idles poorly.
. Air cleaner is dirty.
. Oil level in crankcase is low.
. Air slots in engine shroud are
plugged.
. Cooling fins and air passages
under engine blower housing
are plugged.
. Improper idle adjustment.
. Add oil to crankcase:
‚Clean the air cleaner element:
Refer to Servicing Air Cleaner,
page 13.
Refer to
Fill Crankcase With Oil, page 7.
. Remove obstruction from slots.
. Remove obstruction from cooling
fins and blower housing: Refer to
Cleaning Engine Blower Housing,
page 16.
. Adjust carburetor properly, page 17.
Engine misfires at high
speed.
. Air gap between electrodes of
spark plug is too close.
. Carburetor adjusted incorrectly.
=
. Set air gap at 0.030 of an inch
(0.76 mm).
. Adjust carburetor: Refer to Car-
buretor Adjustment, page 17.
Engine overheats.
. Cooling air flow is restricted.
. Oil level in crankcase is low.
. Incorrect spark plug.
. Add oil to crankcase:
. Remove any obstruction from
slots in shroud, blower housing,
air passages and cooling fins on
engine (Fig. 30).
Refer to
Fill Crankcase With Oil, page 7.
. Install Champion RCJ8 spark plug
that is gapped at 0.030 of an inch.
Tiller vibrates abnormally.
. Tine section is loose.
. Engine mounting bolts are loose.
. Improper carburetor adjustment.
. Air cleaner plugged.
. Secure tine section with clevis
pin and hair pin cotter.
. Tighten engine mounting bolts.
. Adjust carburetor properly, page 17.
. Service air cleaner, page 13.
Tines do not rotate.
. Belt is broken.
. Belt is adjusted incorrectly.
. Contact Authorized TORO Service
Dealer.
. Adjust drive clutch belt: Refer to
adjusting Belt Tension, page 16.
20
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBERS
The tiller has two identification numbers: a model
number and a serial number. The two numbers are
stamped on a decal which is located on the rear of
the chain drive case (Fig. 33). In any correspond-
ence concerning the tiller, supply the model and
serial numbers to make sure that correct informa-
tion and replacement parts are obtained.
To order replacement parts from an Authorized
TORO Service Dealer, supply the following infor-
mation:
1. Model and serial numbers of the tiller.
2. Part number, description, and quantity of part(s)
desired.
NOTE: Do not order by reference number if a
parts catalog is beingused; use the PART NUMBER.
Figure 33
Location of Model and
Serial No. Decal
21
MAINTENANCE RECORD
Date
Hours
Used
Qil
Change
Air Cleaner
Service
Lubrication
Inspect
Drive Belt
Winter
Storage
Spring
Service
Spark
Plug
22
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
Air Cleaner
Service
Lubrication
Inspect
Drive Belt
Winter
Storage
Spring
Service
Spark
Plug
23
Che Corn Promise
A ONE YEAR LIMITED WARRANTY
The Toro Company promises to repair your TORO Product if defective in materials
or workmanship. The following time periods from the date of purchase apply:
Residential Product
Residential Products Used Commercially
. 1 Year
45 Days
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer
or TORO distributor,
Should you feel your TORO Product is defective and
wish to rely on The Toro Promise, the following
procedure is recommended:
1. Contact any Authorized TORO Service Dealer,
TORO Master Service Dealer, or TORO Distributor
(the Yellow Pages of your.telephone directory is
a good reference source).
2. He will either instruct you to return the product
to him or recommend another Authorized TORO
Service outlet which might be more convenient.
3. Bring the product along with your original sales
slip, or other evidence of purchase date, to the
service dealer,
4. The servicing dealer will inspect the unit, advise
you whether the product is defective and, if so,
make all repairs necessary to correct the defect
without extra charge to you.
If for any reason you are dissatisfied with the
dealer's analysis of the defect or the service
performed, you may contact us.
Write:
TORO Consumer Service Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55420
The above remedy of product defects through
repair by an Authorized TORO Service Dealer is
the purchaser's sole remedy for any defect.
THERE 1S NO OTHER EXPRESS WARRANTY,
ALL IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR USE ARE LIMITED
TO THE DURATION OF THE EXPRESS
WARRANTY.
Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may
not apply to you.
This warranty applies only to parts or components
which are defective and does not cover repairs
necessary due to normal wear, misuse, accidents, or
lack of proper maintenance. Regular, routine
maintenance of the unit to keep it in proper
operating condition is the responsibility of the owner.
All warranty repairs reimbursable under The Toro
Promise must be performed by an Authorized TORO
Service Dealer using Toro approved replacement
parts.
Repairs or attempted repairs by anyone other than
an Authorized TORO Service Account are not
reimbursable under The Toro Promise. In addition,
these unauthorized repair attempts may result in
additional malfunctions, the correction of which is
not covered by warranty.
THE TORO COMPANY IS NOT LIABLE FOR IN-
DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE USE OF
THE PRODUCT INCLUDING ANY COST OR
EXPENSE OF PROVIDING SUBSTITUTE EQUIP-
MENT OR SERVICE DURING PERIODS OF
MALFUNCTION OR NON-USE.,
Some states do not allow the exclusion or limit-
ation of incidental or consequential damages, so
the above limitation or exclusion may not apply
to you.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state.
у
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported
from the United States or Canada should contact their
TORO Distributor (Dealer) to obtain guarantee policies
for your country, province or state. If for any reason
you are dissatisfied with your Distributor's service or
have difficulty obtaining guarantee information, contact
the TORO importer. If all other remedies fail, you may
contact us at The Toro Company.
International Group
Service Department
One Corporate Center
7401 Metro Boulevard
Minneapolis, Minnesota 55435 U.S A.
Compliance with Radio Interference Regulations Certified.
Certifie Conforme au Reglement sur le Brouillage Radioelectrique.
Litho in U.S A,
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
