7

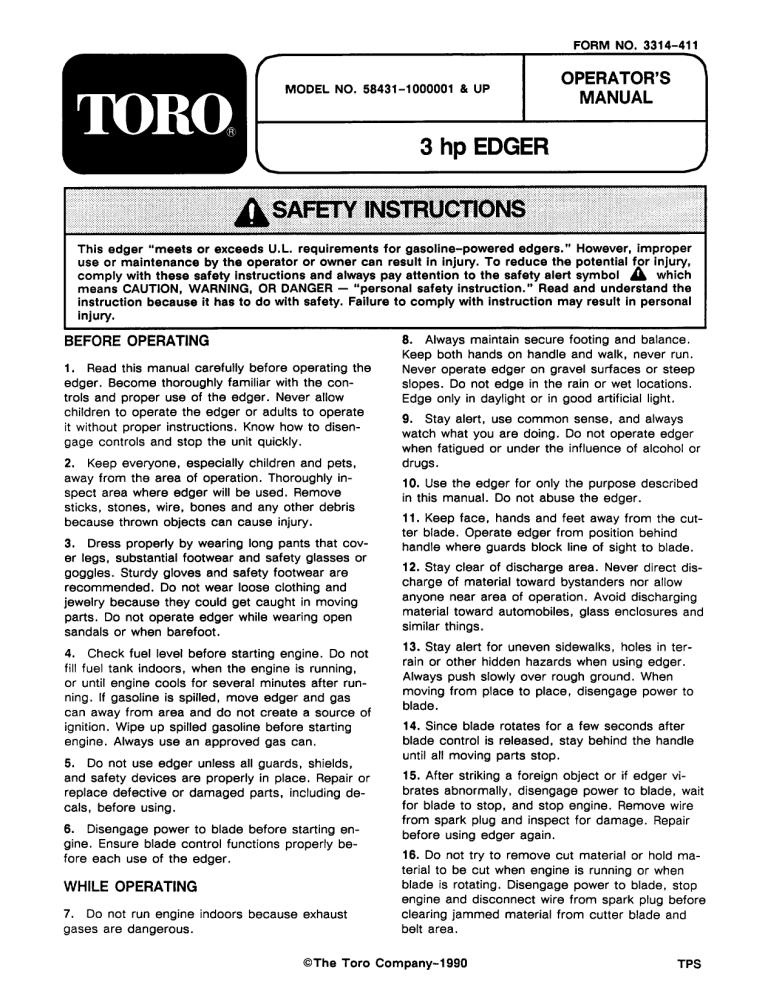

MODEL NO, 58431-1000001 á UP
FORM NO. 3314-411
OPERATOR'S A
MANUAL
3 hp EDGER |
injury.
This edger “meets or exceeds U.L. requirements for gasoline-powered edgers.” However, improper
use or maintenance by the operator or owner can result in injury. To reduce the potential for injury,
comply with these safety instructions and always pay attention to the safety alert symbol
means CAUTION, WARNING, OR DANGER — “personal safety instruction.” Read and understand the
instruction because it has to do with safety. Failure to comply with instruction may result in personal
which
BEFORE OPERATING
1. Read this manual carefully before operating the
edger. Become thoroughly familiar with the con-
trols and proper use of the edger. Never allow
children to operate the edger or adults to operate
it without proper instructions. Know how to disen-
gage controls and stop the unit quickly.
2. Keep everyone, especially children and pets,
away from the area of operation. Thoroughly in-
spect area where edger will be used. Remove
sticks, stones, wire, bones and any other debris
because thrown objects can cause injury.
3. Dress properly by wearing long pants that cov-
er legs, substantial footwear and safety glasses or
goggles. Sturdy gloves and safety footwear are
recommended. Do not wear loose clothing and
jewelry because they could get caught in moving
parts. Do not operate edger while wearing open
sandals or when barefoot.
4. Check fuel level before starting engine. Do not
fill fuel tank indoors, when the engine is running,
or until engine cools for several minutes after run-
ning. If gasoline is spilled, move edger and gas
can away from area and do not create a source of
ignition. Wipe up spilled gasoline before starting
engine. Always use an approved gas can.
5. Do not use edger unless all guards, shields,
and safety devices are properly in place. Repair or
replace defective or damaged parts, including de-
cals, before using.
6. Disengage power to blade before starting en-
gine. Ensure blade control functions properly be-
fore each use of the edger.
WHILE OPERATING
7. Do not run engine indoors because exhaust
gases are dangerous.
8. Always maintain secure footing and balance.
Keep both hands on handle and walk, never run.
Never operate edger on gravel surfaces or steep
slopes. Do not edge in the rain or wet locations.
Edge only in daylight or in good artificial light.
9. Stay alert, use common sense, and always
watch what you are doing. Do not operate edger
when fatigued or under the influence of alcohol or
drugs.
10. Use the edger for only the purpose described
in this manual. Do not abuse the edger.
11. Keep face, hands and feet away from the cut-
ter blade. Operate edger from position behind
handle where guards block line of sight to blade.
12. Stay clear of discharge area. Never direct dis-
charge of material toward bystanders nor allow
anyone near area of operation. Avoid discharging
material toward automobiles, glass enclosures and
similar things.
13. Stay alert for uneven sidewalks, holes in ter-
rain or other hidden hazards when using edger.
Always push slowly over rough ground. When
moving from place to place, disengage power to
blade.
14. Since blade rotates for a few seconds after
blade control is released, stay behind the handle
until all moving parts stop.
15. After striking a foreign object or if edger vi-
brates abnormally, disengage power to blade, wait
for blade to stop, and stop engine. Remove wire
from spark plug and inspect for damage. Repair
before using edger again.
16. Do not try to remove cut material or hold ma-
terial to be cut when engine is running or when
blade is rotating. Disengage power to blade, stop
engine and disconnect wire from spark plug before
clearing jammed material from cutter blade and
belt area.
OThe Toro Company-1990 TPS
A\ SAFETY INSTRUCTIONS
17. Before leaving operator's position, disengage
power to blade, wait for blade to stop, and stop
engine. Disconnect wire from spark plug if edger
will be unattended or not used.
18. Do not touch muffler or engine while it is run-
ning or shortly after it is stopped because muffler
and engine may be hot enough to cause a burn.
19. Perform only those maintenance instructions
described in this manual. If major repairs are ever
needed or if assistance is desired, contact an Au-
thorized TORO Service Dealer.
MAINTENANCE
20. Before edger is cleaned, inspected, serviced,
adjusted or transported, disengage power to blade
and wait for blade to stop. Stop engine and dis-
connect wire from spark plug. Keep wire away
from spark plug to prevent accidental starting.
21. To ensure edger is in safe operating condition,
frequently check and keep all nuts, bolts, and
screws properly tightened. Ensure blade nut is
tightened to proper specification.
22. To reduce potential fire hazard, keep the en-
gine area free of excessive grease, grass, leaves
and accumulations of dirt.
23. Allow engine to cool before storing edger in
any enclosure. Do not store edger near any open
flame or where gasoline fumes may be ignited by
a spark. Do not store edger in a car trunk or
truck.
24. Do not overspeed the engine by changing gov-
ernor settings.
25. When not in use, store edger in a dry place in
an area that can be locked or is otherwise inac-
cessible to children.
26. At the time of manufacture, the edger con-
formed to the safety standards in effect for
edgers. To ensure best performance and contin-
ued safety certification of the edger, use genuine
TORO replacement parts and accessories. Re-
placement parts and accessories made by other
manufacturers may result in non-conformance
with the safety standards, and that could be dan-
gerous.
A\ SAFETY DECALS AND INSTRUCTIONS
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger. Replace any decal that is damaged or lost.
00000
ge
DEEP SHALLOW
BLADE DEPTH
ON DEPTH ADJUSTMENT PLATE
(Part No. 57-7420)
A WARNING
à _N Stay away from
9 _J rotating blade.
ON BLADE GUARD
(Part No. 68-7410)
AL AWARNING
WEAR PROTECTIVE EYE GEAR. + $573%9
KEEP BYSTANDERS AWAY FROM AREA.
READ OPERATOR'S MANUAL BEFORE USE.
ON LOWER HANDLE
(Part No. 68-7390)
BLADE ENGAGEMENT
LIFT TO ENGAGE AND
LOWER BLADE
RELEASE TO STOP
ON UPPER HANDLE
(Part No. 57-7450)
ON AIR CLEANER
(Part No. 82-8130)
TABLE OF CONTENTS
Page
Set Up Instructions 024428000000 0004050040 3
Before Operating ........._eecoreveredcereare. 4
Operating Instructions .........eeerreorecoro 5
Maintenance .....q.. _weoerceccreccorrrereecneo 7
Servicing Air Cleaner .................. 7
Adjusting Carburetor .................... 8
Draining Gasoline . ...................... 8
Cleaning Cooling System ................ 8
Replacing Spark Plug ................... 8
Page
Changing Oil ........e.eoceoereosresrere. 8
Cleaning and Lubricating Pivot Arm ....... 9
Replacing Blade ....................... 9
Storage .... hii ie ice ieee 9
Toro Service Support ........._.eeoc_éecresao. 10
Product Identification ...................... 10
Maintenance Interval Chart ................. 10
Maintenance Record ...................... 11
The Toro Promise
SET UP INSTRUCTIONS
INSTALL LOWER HANDLE (Fig. 1)
1. Pivot lower handle and handle latches rearward
and align mounting holes. Secure handle latches
to lower handle with (2) 5/16-18x3/4" Ig.
capscrews and locknuts. Tighten front latch screw
and wheel nut.
LOWER
HANDLE
><
7)
HANDLE
LATCH
2. Slide air cieaner hose onto air cleaner cover
opening and secure with tie strap.
INSTALL DEPTH CONTROL ROD
(Fig. 3 & 4)
1. Insert end of control rod with Z-bend into
mounting hole in depth adjustment plate.
Figure 1
INSTALL UPPER HANDLE (Fig. 2)
1. Align upper and lower handle mounting holes
and secure each side with (2) 5/16-18x3/4” Ig.
capscrews and locknuts. Position depth adjustment
assembly on left side of handle.
DEPTH
ADJUSTMENT
PLATE
CONTROL
ROD
Figure 3
2. Insert other end of rod into pivot lever mount-
ing hole and secure with washer and cotter pin.
UPPER
HANDLE >
LOWER Ns
HANDLE
HA 7 À
= ©
7 7
74
Ш!
LEVER
=
Figure 2
Figure 4
со
BEFORE OPERATING
FILL CRANKCASE WITH OIL
1. Position edger on level surface. Clean around
oil fill plug (Fig. 5) and remove plug from engine.
Figure 5
2. Fill oil sump to point of overflowing with ap-
proximately 20 ounces of oil and reinstall oil fill
plug securely.
Recommended SAE Viscosity Oil Grades
OIL RECOMMENDATIONS
°F-20 0 20 40 60 80 100
T 1 T I T i 1 |
“c30 20 -10 0 10 20 30 40
| TEMPERATURE RANGE ANTICIPATED BEFORE
NEXT OIL CHANGE
Use A P.1. Classification SC, SD, SE or SF.
Note: Check oil level each time edger is used or
after every 5 operating hours. To check, remove
fill plug and check level. Initially, change oil after
the first 5 hours of operation; thereafter, change
oil after every 25 hours of operation. More fre-
quent oil changes are required in dusty or dirty
conditions.
DANGER: Gasoline is extremely flammabl
dren.
when handling fuel and keep fuel far away from open flames and sparks. Never buy more than a
30 day supply of gasoline. Store it in an approved container. Keep gasoline out of reach of chil-
Refuel outdoors and only when engine is cold. Do not fill tank full. Fill tank to within 1/4” to 1/2"
(6 to 13 mm) from top of tank, not into filler neck. This space is for expansion of fuel. Use funnel
or spout to prevent spilling. Wipe up any spilled gas.
FILL FUEL TANK WITH GASOLINE
The Toro Company strongly recommends the use
of clean, fresh unleaded regular grade gasoline in
Toro gasoline powered products. Unleaded gaso-
line burns cleaner, extends engine life, and pro-
motes good starting by reducing the build-up of
combustion chamber deposits. Leaded gasoline
can be used if unleaded is not available.
Toro also recommends that Toro Stabilizer/Condi-
tioner be used regularly in all Toro gasoline pow-
ered products during operation and storage sea-
sons. Toro Stabilizer/Conditioner cleans the engine
during operation and prevents gum-like varnish
deposits from forming in the engine during periods
of storage.
1. Remove gas cap and fill tank to within 1/4 to
1/2 inch (6 to 13 mm) from the top with fresh un-
leaded regular gasoline.
4
2. Install gas cap and wipe up any spilled gaso-
line.
IMPORTANT: DO NOT MIX OIL WITH THE GASO-
LINE. NEVER USE METHANOL, GASOLINE CON-
TAINING METHANOL, GASOHOL CONTAINING
MORE THAN 10% ETHANOL, PREMIUM GASO-
LINE, OR WHITE GAS BECAUSE ENGINE FUEL
SYSTEM DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO'S STA-
BILIZER/CONDITIONER OR A SIMILAR PRODUCT.
TORO'S STABILIZER/CONDITIONER IS A PETRO-
LEUM DISTILLATE BASED STABILIZER/CONDI-
TIONER. TORO DOES NOT RECOMMEND STABI-
LIZERS WITH AN ALCOHOL BASE SUCH AS
ETHANOL, METHANOL OR ISOPROPYL. STABI-
LIZERS SHOULD NOT BE USED TO TRY TO EN-
HANCE THE POWER OR PERFORMANCE OF MA-
CHINE.
OPERATING INSTRUCTIONS
STARTING, STOPPING, EDGING
1. CONTROLS—Blade/clutch control bar is on up-
per handle (Fig. 6) and depth adjustment handle is
on left side of upper handle (Fig. 10). Throttle,
choke and stop switch are engine mounted
(Fig. 7).
BLADE/CLUTCH
CONTROL BAR
N
Ze
\
Figure 6
2. STARTING—Push wire onto spark plug and en-
sure blade control is disengaged. Push engine
stop switch away from spark plug and make sure
throttle is pushed down. Move choke lever to
CHOKE position. A warm engine will require little
or no choking. Rotate fuel shut-off valve to “ON”
position (Fig. 8). Place foot on rear wheel and pull
recoil starter out slowly until positive engagement
results; then pull vigorously until engine starts.
When engine starts, gradually move choke lever to
“RUN” position.
THROTTLE
cutter to preset depth. Release blade/clutch con-
trol bar to disengage blade and raise cutter head.
Figure 7
3. EDGING—Squeeze blade/clutch control bar
(Fig. 6) against handle to engage blade and move
ay
| 4
|
= FUEL
CSN SHUT-OFF
No VALVE
Figure 8
4. STOPPING—Release blade/clutch control bar
(Fig. 6) and push engine stop switch against spark
plug. Close fuel shut-off valve (Fig. 8) before
storing or transporting machine.
Stay behind handle until blade stops spinning.
Contact with spinning blade may cause injury.
OPERATING TIPS
The Toro Edger puts the finishing touch on a
beautiful lawn in minutes. Use it to edge along the
walk, driveway, curb, flower bed and similar ob-
jects.
ieee ae ee el ae al a ale ae ae a a
A CAUTION
)
,
4
Do not stand in line
|
,
,
|
)
with cutter head. '
Stand directiy be-
hind the handie.
li ii a a al A a A a
Figure 9
OPERATING INSTRUCTIONS
® For best results, adjust blade edging depth
from 1/2 to 1 inch deep. Edging too deeply places
an unnecessary load on the engine and causes
premature blade wear. Not edging deeply enough
allows grass to grow back sooner than normal. Be
sure to adjust edging depth as blade wears.
® Do not force the edger. Move the edger ahead
at moderate speeds.
e Best edging appearance will result when grass
is dry. Do not edge wet grass. Wet grass may
clog the blade and cause the lawn to take on an
irregular edge. Also, you could slip and fall, and a
body part could contact the edger blade.
ADJUSTING EDGING DEPTH
1. Position edger on level surface and move
blade to vertical position.
2. CHECK EDGING DEPTH (Fig. 10)—Squeeze
blade/clutch lever against handle. Space between
bottom of tire and ground is actual blade edging
depth. If adjustment is required, go to step 3.
=
SET
— a
ос
©)
WHEEL
VERTICAL
BLADE
Le EDGING
DEPTH
a PR
Figure 10
3. ADJUSTING DEPTH (Fig. 11)—Release blade/
clutch control rod. Move depth adjustment handle
forward to increase blade depth and rearward to
decrease blade depth.
6
DEPTH
ADJUSTMENT
HANDLE
Figure 11
ADJUSTING BLADE TILT (Fig. 12)
From the normal vertical position, blade can be
adjusted to three other positions for tapered (-15,
+15, and +30) edging.
1. Release blade/clutch control bar and stop en-
gine.
2. Pull handle on tilt lever and move it into de-
sired notch in bracket.
EZ Es //
< VERTICAL
+15°
Figure 12
ADJUSTING DROP WHEEL (Fig. 13)
The adjustable drop wheel lets you edge along
curbs and similar object. Simply loosen the adjust-
ing knob and slide the wheel assembly up or down
until edger is level. Then tighten knob and start
edging.
OPERATING INSTRUCTIONS
Pull wire off spark plug before performing
adjustments or maintenance. After engine is
run, stay away from muffler and nearby en-
gine areas because they could be hot enough
to cause burns.
SERVICING AIR CLEANER (Fig. 14)
Normally, clean and re—oil foam pre-cleaner after
every 25 operating hours. More frequent cleaning
is required when engine is operated in dusty or
dirty conditions.
1. Stop engine and pull wire off spark plug.
2. Remove knob and air cleaner cover.
3. Slide foam pre-cieaner off paper cartridge.
4
A. Wash element in solution of liquid soap
and warm water. Squeeze to remove dirt
but do not twist because foam may tear.
Rinse thoroughly with clear water.
B. Dry by wrapping in a clean rag. Squeeze
rag and foam element to dry.
C. Saturate element with engine oil. Squeeze
element to remove excess oil and to
thoroughly distribute oil. A damp element is
desirable.
5. Reinstall foam pre-cleaner over paper car-
tridge.
6. Reinstall air cleaner cover and spark plug wire.
Yearly or every 100 hours, whichever occurs first,
remove paper cartridge. Clean by tapping gently
MAINTENANCE
on flat surface. If very dirty, replace cartridge, or
wash in a low or nonsudsing detergent and warm
water solution. Rinse thoroughly with flowing water
from inside out until water is clear. Cartridge must
be allowed to stand and air dry thoroughly before
using. Service more often if necessary.
IMPORTANT: Do not operate engine without air
cleaner element because extreme engine wear
and damage will likely result.
—+— COVER
MY \ E Ea e TAY PRE-
N ; te aa he , LEANER
ha . ho,
Cam)
Figure 14
MAINTENANCE
ADJUSTING CARBURETOR (Fig. 15)
The carburetor has been adjusted at the factory,
but an adjustment may be required to compensate
for difference in fuel, temperature or altitude.
THROTTLE
IDLE SPEED
SCREW
IDLE MIXTURE
VALVE
M /
à
Note: The is the only procedure recommended for
draining fuel.
3. Reinstall spark plug wire.
CLEANING COOLING SYSTEM
After every 75 operating hours (more frequently
when dusty or dirty), clean dirt and chaff from су!-,
inder, cylinder head fins and from around carbure-'
tor and linkage. Also remove debris from air intake
slots on recoil housing. This will ensure proper
cooling and best engine performance.
REPLACING SPARK PLUG (Fig. 16)
Use a CHAMPION CJ-8 spark plug or equivalent.
Correct air gap is 0.030” (0.76 mm). Remove
plug after every 25 operating hours and check its
condition.
EEDLE VALVE
Figure 15
1. INITIAL SETTING—Proper setting for needle
valve is 1-1/2 turns open, and one turn open for
idle valve. These settings should allow engine to
be started. To adjust screws, gently rotate screw
in (clockwise) until slight seating resistance is felt.
DO NOT OVERTIGHTEN SCREWS BECAUSE CARBU-
RETOR WILL BE DAMAGED. Then rotate screw out
(counterclockwise) to the prescribed setting.
2. FINE TUNING—Start engine and let it run for 5
minutes. Turn needle valve in (clockwise) until en-
gine slows (lean mixture). Then turn it out past
smooth operating point (rich mixture). Now turn
needle valve to the midpoint between rich and
lean. Next, adjust idle RPM. Rotate throttle coun-
terclockwise and hold against stop while adjusting
idle speed screw to obtain 1750 RPM. Hold throttle
against stop while turning idle valve in (lean) and
out (rich). Set at midpoint between rich and lean.
Recheck idle RPM. Release throttle. If engine will
not accelerate properly, the carburetor may have
to be readjusted, usually to a slightly richer mix-
ture.
DRAINING GASOLINE
1. Stop engine and pull wire off spark plug.
2. Remove cap from gas tank and use pump-
type syphon to drain fuel into clean gas can.
8
|
= L 0.030”
—— (0.76 mm)
— 110
Figure 16
1. Stop engine and pull wire off spark plug.
2. Clean around spark plug and remove plug
from cylinder head.
IMPORTANT: Replace a cracked, fouled or dirty
spark plug. Do not sand blast, scrape or clean
electrodes because engine damage could result
from grit entering cylinder.
3. Set air gap. Install correctly gapped spark plug
and gasket seal. Tighten plug firmly.
CHANGING OIL (Fig. 17)
Change oil after the first 2 operating hours and
every 25 hours thereafter. Since warm oil drains
better and carries more contaminants than cold
oil, run engine for a minute or so before draining
oil.
1. Stop engine and pull wire off spark plug.
2. Drain gasoline: refer to Draining Gasoline,
page 8.
3. While holding front of edger up slightly, re-
move oil fill and drain plugs (Fig. 17). Slowly tip
forward and empty all oil into drain pan. Tip up
and down several times to ensure oil drains com-
pletely.
MAINTENANCE
Ce DRAIN
A PLUG
Figure 17
4. Reinstall oil drain plug and tighten firmly. Fill oil
sump with proper oil: refer to Fill Crankcase With
Oil, page 4.
5. Reinstall spark plug wire.
CLEANING AND LUBRICATING PIVOT ARM
(Fig. 18)
After every 25 operating hours, more often in
dusty or dirty conditions, clean entire pivot arm
assembly and lubricate it with #2 general purpose
grease.
1. Clean grease fittings and surrounding areas.
2. Continue to apply grease until noticeable
amount overflows. This helps force dirt out of pivot
assembly.
SM
A
2. Using a 1-1/4 inch wrench, hold squared bear-
ing shield and remove blade nut and washer. Slide
blade and washer off spindle.
3. Install new blade, existing washers and blade
nut in sequence shown. Tighten nut to 40-60 ft-lb.
SHIELD
Figure 18
REPLACING BLADE (Fig. 19)
The edger has a 10 inch blade that gradually
wears because of use. Replace blade if it wears
down to 5 inches or less.
1. Stop engine and pull wire off spark plug.
Figure 19
STORAGE
1. For long term storage, either drain gasoline
from fuel tank or add a fuel stabilizer to the gaso-
line. To drain gasoline, refer to Draining Gasoline,
page 8. After fuel is drained, start engine and let
it idle until all fuel is consumed and engine stops.
Repeat the starting procedure two more times to
assure all gas is removed from the engine. If gas-
oline is not drained, gum-like varnish deposits will
form and cause poor engine operation, even start-
ing problems.
Fuel can be left in gas tank only if a fuel additive,
such as Toro's Stabilizer/Conditioner, is added to
gasoline and run through engine before storing.
Toro's Stabilizer/Conditioner is a petroleum distil-
late based conditioner/stabilizer. Toro does not
recommend stabilizers with an alcohol base, such
as ethanol, methanol or isopropyl. Use fuel addi-
tive in recommended quantities as specified on
container.
Under normal conditions, all fuel additives remain
effective in fuel for 6-8 months.
2. Drain oil and refill with fresh oil: refer to
Changing Oil, page 8. After oil is drained, do not
fil crankcase until steps 3-9 are completed.
3. Clean air cleaner: refer to Servicing Air Clean-
er, page 7.
4. Clean dirt and chaff from cylinder, cylinder
head fins and blower housing. Also remove grass
clippings, dirt and grime from external parts of the
engine and shrouding. Clean entire edger thor-
oughly.
MAINTENANCE
5. Clean and lubricate pivot arm assembly: refer 8. Touch up all rusted or chipped paint surfaces.
to Cleaning and Lubricating Pivot Arm, page 9. Toro Re-Kote paint is available from an Authorized
TORO Service Dealer.
6. Inspect edger blade for wear or other visible 9. Gently pull recoil starter until a drag is felt.
damage: refer to Replacing Blade, page 9. This is done to close the valve.
10. Store edger in a clean, dry place. Cover edger
7. Tighten all nuts, bolts and screws. to keep it clean and protected.
TORO SERVICE SUPPORT
If help - concerning safety, set-up, operation and maintenance or troubleshooting - is ever needed, con-
tact the local Authorized TORO Service Dealer or Distributor. Refer to the “Yellow Pages” for assistance.
In addition to skilled service technicians, the dealer and distributor have factory approved accessories and
replacement parts. Keep your Toro all TORO. Buy genuine TORO replacement parts and accessories.
PRODUCT IDENTIFICATION
A model number and a serial number decal is located on the lower handle. Always refer to specific num-
bers on this decal in correspondence or when replacement parts are needed.
MAINTENANCE INTERVAL CHART
Before After Every Every Every
Each First 2 25 50 75
Use Hours Hours Hours Hours
Check Oil X
Check Blade X
Lubricate Wheel Bearings X
Lubricate Pivot Arm X
Check and Gap Spark Plug X
Service Air Cleaner* X
Change Oil X X
Clean Cooling System X
*Service more frequently when conditions are dusty or sandy.
10
MAINTENANCE RECORD
Date
Check
Blade
Spark
Plug
Pivot Arm
and Wheel
Bearings
Clean Air
Cleaner
Change
Qil
Cooling
System
Storage
11
PE COD RN 4
EII HA
р 5 ce ed
= НЙ LL ae
de
a
a!
a!
saute
ce
RRR
EU
EE
SNE
5
aa
CAO
re Un
e
Ar a!
oe
Rl
me
a
En mn
os ns
oe
ee
+
=
"a
E
я
-
т
Residential Product
Residential Products Used Commercially
5 H.P. Blower Used Commercially
A Two Year Limited Warranty
On All
Gasoline Powered Consumer Products
The Toro Company promises to repair these TORO Products if defective in materials or work-
manship. The following time periods from the date of purchase apply:
The cost of parts and labor are included, but the custo
return any residential product to an Authorized TORO
NOUS LALALA ALCA TACO и ие A por
ZA ИСО ОИОНИИ
я owt A A A A of , у Fs
Za Cr E и e ое: ЛЕС e и 7 a Пили be Ze = ue
mise
Straight Shaft Trimmers, 3 H.P. Edger, Back Pack Blowers, 5 H.P, Lawn Vac,
mer pays the transportation costs. Just
Service Dealer or TORO Distributor.
Should you feel your TORO Product is defective
and wish to rely on The Toro Promise, the follow-
ing procedure is recommended:
1. Contact any Authorized TORO Service Dealer,
TORO Master Service Dealer, or TORO Dis-
tributor (the Yellow Pages of your telephone
directory is a good reference source).
. He will either instruct you to return the
product to him or recommend another Au-
thorized TORO Service outlet which might
be more convenient.
. Bring the product along with your original
sales slip, or other evidence of purchase
date, to the service dealer.
4. The servicing dealer will inspect the unit,
advise you whether the product is defective
and, if so, make all repairs necessary to
correct the defect without extra charge to
you.
EE
EEC
SER
OOO DOT
ao,
If for any reason you are dissatisfied with the
analysis of the defect or the service per-
formed, you may contact us.
em
us
SH
эн
a
:
e
:
Yall
na
а
МНЕ
Write: TORO Customer Service Dept.
8111 Lyndale Avenue South
Minneapolis, MN 55420
The above remedy of product defects through
repair by an Authorized TORO Service Dealer is
the purchaser's sole remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY
EXCEPT FOR THE TORO STARTING GUARAN-
ON GTS ENGINES. ALL IMPLIED
WARRANTIES OF MERCHANTIBILITY AND FIT-
NESS FOR USE ARE LIMITED TO THE DURA-
TION OF THE EXPRESS WARRANTY.
Some states do not allow limitations on how
long implied warranty lasts, so the above
limitation may not apply to you.
This Warranty applies only to parts or com-
ponents which are defective and does not
cover repairs necessary due to normal wear,
misuse, accidents, or lack of proper mainte-
nance. Regular, routine maintenance of the
unit to keep it in proper operating condition
is the responsibility of the owner.
All warranty repairs reimbursable under The
Toro Promise must be performed by an
Authorized Toro Service Dealer using Toro
approved replacement parts.
Repairs or attempted repairs by anyone other
than an Authorized TORO Service Dealer are
not reimbursable under the TORO Promise. In
addition, these unauthorized repair attempts
may result in additional malfunctions, the cor-
rection of which is not covered by warranty.
THE TORO COMPANY IS NOT LIABLE FOR INDI-
RECT OR CONSEQUENTIAL DAMAGES IN CON-
NECTION WITH THE USE OF THE PRODUCT IN-
CLUDING ANY COST OR EXPENSE OF PROVID-
ING SUBSTITUTE EQUIPMENT OR SERVICE DUR-
ING PERIODS OF MALFUNCTION OR NON-USE.
Some states do not allow the exclusion of
incidental or consequential damages, so the
above exclusion may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state.
ree a и e te nee a tr ie el AN a DN edi ie Te e a e aaron
een e ae as II O O OT Си: CC TONTO CD
EAT НН ОНО ООН НОС ОИЯНИННИННЫ RT ARDE e re E
=
So
x
X
ЗН
Зо
etes
ARTIC
oo
3
ваза
м ЗЕ
su
nai
recia
3
E
а!
CD
ean
a
ow
RON
A Eu
sain
ЗА:
я,
3
ua:
EEE
ae
SE
totus’
Co
aereo
ODA
aaa,
pg
ace
>
RRA
SR
IN
a
Os
pee
me
e
a Satara at!
a
к
Е
e.
ANDO
ÇA,
a
rola in en SCI
Sa
ena aaa
DSC
Sa
o da
3 За,
= ce se
a
=
за!
Sp
aie
Sana
Tessie
EER
EE
se
X=
A
a =
cute
Tat!
a
uu
Tae ente
E 5
es
des a
He
az, ая
eee
son =
se
еее;
EE,
ales:
es
нана,
arate
a a 2
COSCO
ten
Since
ce es
ee ve
-
a!
se
aa ee
ES
ERE
a
a
=
te
Frac
EC
Cno ee ААНННЫ,
EEE
SEE
WAY
E
НН
=
Ca
aon
tn!
Tu
nas
o
o.
Te
ce
a Sa
>
o
Customers who have purchased TORO products ex
Distributor (Dealer) to obtain guarantee policies for your country
with your Distributor's service or have difficulty obtaining guarant
remedies fall, you may contact us at The Toro Company.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
ported from the United States or Canada should contact their TORO
If for any reason you are dissatisfied
, province, or state.
ee information, contact the TORO importer. If all other
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
