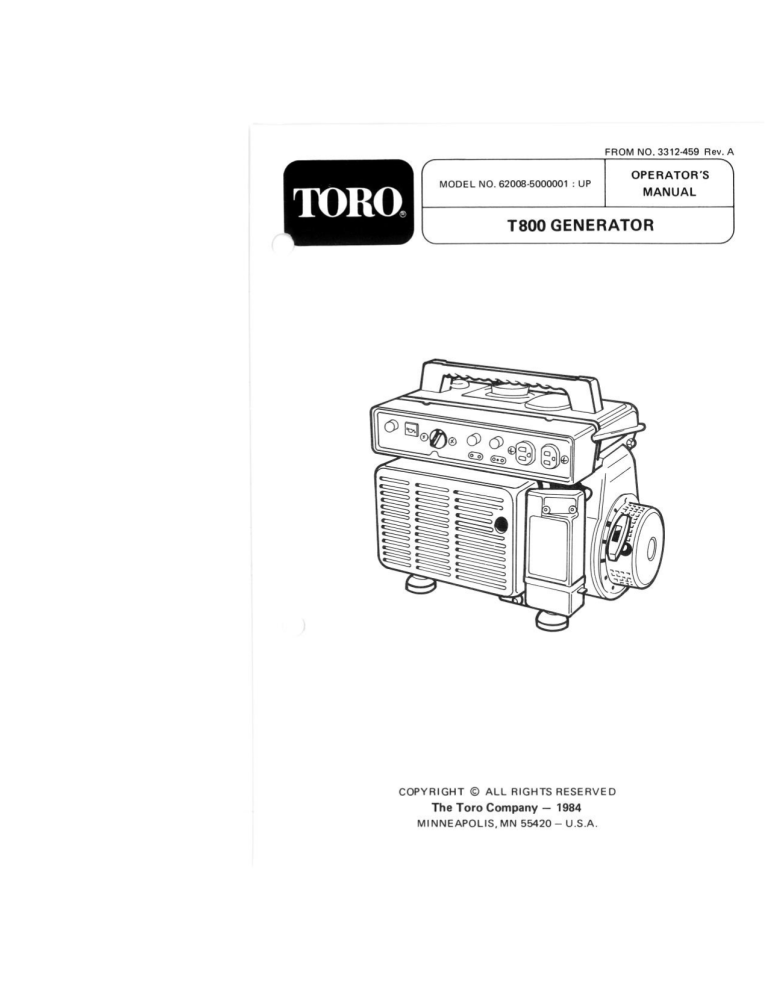

 FROM NO. 3312-459 Rev. A
MODEL NO. 62008-5000001 : UP OPERATOR'S
| | MANUAL
L T800 GENERATOR J
||
Tim
7
ОД
/
/
\
COPYRIGHT O ALL RIGHTS RESERVED
The Toro Company — 1984
MINNEAPOLIS, MN 55420 — U.S.A.
IMPORTANT NOTICE
Please read this manual and follow its
instructions carefully.
To emphasize special information the words
WARNING, IMPORTANT and NOTE carry
special meanings and should be carefully
reviewed.
WARNING:
The personal safety of the operator
may be involved. Disregarding this
information could result in injury to
the operator.
IMPORTANT:
These instructions point out special
service procedures or precautions that
must be followed to avoid damaging
the machine.
NOTE:
Special information to make mainte-
nance easier or important instructions
clearer.
All information, illustrations and specifica-
tions contained in this manual are based on
the latest product information available at
the time of publication. Due to improve-
ments or other changes, there may be some
discrepancies in this manual. TORO reserves
the right to make changes at any time.
WARNING:
© Read owner's manual before operat-
ing this generator.
S This generator is intended to be
assembled, serviced, and inspected
by your authorized TORO Genera-
tor Dealer prior to sale. Y ou should
depend on him to perform these
very important operations, as failure
to do so could result, in damage to
the generator and injury to the
operator.
Copyright O All Rights Reserved The Toro
Company — 1984 Minneapolis, Mn55420 —
U.S.A.
FOREWORD CONTENTS
The TORO ® generator T800 uses a forced | LOCATION OF PARTS ......... 2
air-cooled, 4-cycle engine with side valves.
This features quiet operation, excellent dura- | PRECAUTIONS ............... 3
bility and stable performance. The revolving
fie'd type self-exciting generator produces | PRE-OPERATION CHECK ...... 5
à AC voltage which is controlled at a
constant level by an A.V.R. (automatic | OPERATION ................. 6
voltage regulator). Starting the Engine . . ........... 6
Stopping the Engine ............ +
This manual provides the technical informa-
tion required for the operating, handling and | RANGE OF APPLICATION ..... 8
the routine care of the TORO Generator
T800. APPLICATIONS vives on vu van 9
HOW TO CONNECT POWER
We hope that you will use the generator in | CORDS .................... 11
the correct manner, according to the instruc-
tions given in this manual and you will keep | DAILY INSPECTION ......... 12
the machine at top performance for many
years. PERIODIC INSPECTION ....... 13
Engine oil replacement... ....... 13
Clean thespark plug . .......... 13
Clean the spark arrester ......... 14
Clean the air cleaner element ... .. 14
Clean the fuel strainer .......... 15
Check tightness of boltsand nuts. . . 15
LONG-TERM STORAGE. ...... 16
SPECIFICATIONS: . ===... so 17
The Toro Company | WIRING DIAGRAM. .......... 18
Publications Department Partname 4 05 10 iain aa 18
Wirecolor . ................. 18
LOCATION OF PARTS
(=a)
)@ © A
9
su
N
N
LA Ce | -
«== Pas г
SE || 5)
= => Ч : | 5)
— «=== Г а — E
DZ ED = a If | I
=== E (6)
E E A
X= EZ = \ Ца,
A
8)
o a
ay)
©
Oil level alarm lamp
Engine switch and fuelcock knob
DC receptacle
(4) AC receptacle
(5) Choke lever
(6) Starter grip
) Recoil starter
8) Air cleaner
) Circuit breaker (DC)
10 Circuit breaker (AC)
SS
or
(©) (es) (<3)
AD Spark plug
(12 Tank cap
03 Carrying handle
14 Fuel gauge
19 Exhaust hole
16 Oil cap
(7 Tool kit
PRECAUTIONS
WARNINGS:
(1) To avoid fire, never use the generator
near spark, flame or other heat source.
(2) To prevent fire, keep the generator at
least 3 ft (1 m) from any combustible
materials.
(3) To prevent electrical shock, do not
touch with wet hands.
®
(4) When filling with gasoline, always stop
the engine to avoid fire. Do not overfill.
If gasoline overflows, wipe off before
operation,
® ‘ PE
(5) Exhaust gas contains components harmful
to people and animals. Avoid breathing
exhaust gases and never use the generator
indoors or in tunnels.
(6) Keep the generator upright at all times
to prevent spillage of gasoline and oil
which may result in fire.
IMPORTANT:
(1) To avoid overheating, do not cover
during operation.
(2) Never connect the generator to a wall
socket. Doing so may damage the genera-
tor and connected electric appliance,
injure the operator or result in fire.
2)
(3) Never use the generator in rain, snow near
water. Doing so will damage the generator
or connected electric appliance and
could cause electrical shock.
(4) Do not wash the generator with water.
Doing so will damage the generator.
®
Al
== === a
В == == = 5 a= Em mr тт == == Em E E
(5 Never operate the generator on unstable
or uneven ground. Doing so may cause
fuel spillage and cause the generator to
fall down or shift.
A
(6) To prevent engine damage, make sure to
check the engine oil level prior to opera-
tion,
7 To prevent injury, do not operate the
generator with covers, etc. detached,
If the generator should encounter
troubles, immediately stop the generator.
You should consult your TORO dealer
immediately.
PRE-OPERATION CHECK
IMPORTANT:
* This GENERATOR has been ship-
ped from factory without oil.
Therefore, be certain to fill the
GENERATOR with oil according
to the following instructions before
use.
* Make sure to check oil level and
add oil as necessary before use
everyday.
down to below the lower level
line, the alarm lamp turns on and
the engine stops automatically. Add
the engine oil up to the specified
line and start the engine again.
1. Filling engine oil
Oil capacity
* When the engine oil level comes 3.
и Oil level
alarm lamp
Engine oil replacement
Draining the engine oil
While the engine is still warm, remove
the oil filler cap (A) and remove the
drain plug В.
Refilling with engine oil
Firmly tighten the drain plug (B and
add the engine oil through the tank
filler up to the upper limit line.
Replace the oil filler cap A .
T800 0.5L (1.06 US.pt.)
IMPORTANT:
IMPORTANT:
Check the oil level with the generator
on level ground.
Oil replacement; First 20 hours
Every 100 hours
2. Check the engine oil level
Remove the dipstick, wipe clean, insert
but do NOT screw in. Pull dipstick out
and read the level.
IMPORTANT:
When the engine oil level comes down
to below the lower level line, the alarm
lamp turns on and the engine stops
automatically. Add the engine oil up
to the specified line and start the
engine again.
Oil viscosity:
(Multi-grade)
SAE =
~30-20-10 © 10 20 JO 40 50 60 70 80 90 °F
Temperature
(Single grade)
SAE =
10 70 30 40 50 60 70 BD 90 °F
Temperature
=30 =20 =10 0
4. Filling gasoline
Tank capacity
T800 3.4 L (0.90 US. gal.)
5. Check the fuel level
Level indicator
IMPORTANT:
Check the fuel level with the generator
on level ground. Be sure to check the
fuel level before refueling. If the
level is low, add gasoline.
Винчи
WARNING:
Gasoline is very dangerous!
Use unleaded or regular gasoline.
> Minors should not refill the fuel
tank.
© Refuel in a well-ventilated area with
the engine stopped.
o When filling gasoline, take care so
that no dust or water enters the
tank.
Do not fill fuel tank near spark,
flame or other heat source.
© Do not fill the fuel tank above the
red line in the fuel inlet. Overfilling
will cause spillage and potential
fire hazard.
о ©
`
о
OPERATION
Starting the Engine
1. Check the oil and fuel levels,
4. Pull the starter rope. Stopping the Engine
1. Turn off any connected electric appliance.
5. Return the choke lever.
OFF
IMPORTANT: a
Do not operate the generator more 2. Turn the engine switch and fuel cock
than 30 minutes at maximum output. “OFF.”
>
—.
RANGE OF APPLICATION
When malfunctions or more
Appliance E current is required than the
pplication capacity of the generator.
AC circuit breaker will auto:
matically be turned off.
120V 60Hz 0.66KVA
AC
ны — — — — a m — mm сн == === === == ——
Those electric appliance incor-
porating a motor require usual-
ly a power three times the
minimum rated input. Hence,
those appliance whose wattage
is within the ranges listed on
the left can be connected to
the generator. However, there
are instances where some pro-
duct can not be operated,
120V 60Hz Up to 180W depending upon the type of
a AA VASP IM
[A TE Phd Ty a
DC circuit breaker will burn
out when more current is
required than the capacity of
the generator.
Up to 8.3A
(12V) IMPORTANT:
Never use this generator for
charging batteries with a
capacity of less than 12V-
26AH.
APPLICATIONS
(4) Power source for spray machine
The TORO generator has a wide range of
applications. The following examples are
but a few of them.
IMPORTANT:
The power requirement of various
lectrical equipment varies. Check the
| rating before use.
(1) Power source for safety signs
(3, ‚wer source for television reception
unit
(8) For use in recreational activities AD Power source at time of disasters
(9) Power supply for small ventilator 12 For charging battery
— 10 —
IMPORTANT:
Before starting operation, read the
labels and tags attached to the genera-
tor carefully and thoroughly.
HOW TO CONNECT POWER
CORDS
A.C. Applications
IMPORTANT:
Before you start operating electrical
appliance, be sure to check specifica-
tions as posted in the label affixed on
the equipment. Make sure that specifi-
cations of the electrical appliance
match with those of the generator.
Models T800
Rated voltage
(V) 120
x tr frequency 60
Rated current 55
(A)
Rated output
(KVA) 0.08
DC | Rated output 12V, 8.3A
VOLTAGE TOTAL
Model & HZ WATTAGE
00 120V 60Hz | 0.66KVA
IMPORTANT:
o Never connect the generator to a
wall socket. This could cause an
overload and seriously damage the
generator,
NOTE:
© Make sure the pilot light is on.
o Be sure to plug the cord in com-
pletely.
D.C. Applications
Exclusively for
battery charge 12V- В.ЗА
CAUTION:
O Use the D.C. terminals for charging
12V automotive type batteries
only.
O Never use this generator for charging
batteries with capacity of less than
12V-26AH,
© Before connecting the generator to
the battery, make sure all wires are
disconnected from the battery.
O Don't insert the plug of any other
electric appliance to this D.C. plug
socket.
o Observe the correct polarity when
connecting the battery to the
generator otherwise the generator
may be damaged.
— 11 —
DAILY INSPECTION
@ Fuel strainer
Prior to starting daily operations, be sure to | (5) Receptacle
check the generator for proper functions
and evidence of damage etc., as follows.
WARNING:
NEVER start the engine without
performing these checks.
(1) Starter rope
(6) Fuel leakage
(7) High tension cord damage
O O
Engine switch and fuel cock knob
(9) Choke lever
©
— 12 —
PERIODIC INSPECTION
No.
Interval
Item
Initial (Every
20 50
Hrs. | Hrs.
Every
100
Hrs.
Hrs. or
Every
One
year
Engine oil
replacement
"O
*О
Clean the spark
plug
Clean the spark
arrester screen
Clean the air
cleaner element
* +)
Clean the fuel
strainer
Check tightness
of bolts and
nuts
Combustion
chamber
cleaning
wu)
Tappet
clearance
adjustment
#0)
Valve mainte-
nance
LO
* +
MPORTANT:
Check oil level and add oil as ne-
cessary everyday.
frequently.
*** For
check-ups by yourself.
When used in dusty areas, the air
cleaner should be serviced more
these check-ups, ask your
TORO dealer. Don't make these
1. Engine oil replacement
See page 5.
2. Clean the spark plug
A dirty, oily or sooty spark plug will
adversely affect engine performance.
Clean it periodically.
(D Remove the spark plug.
(2) Check for carbon deposits or discolo-
ration (burning).
NGK BPMGA
(3) Remove the carbon.
@ Adjust the spark plug gap.
—
or
Nr J 0.024 — 0.28 in.
(0.6 — 0.7 mm)
== 13 —
3. Clean the spark arrester screen
The exhaust system muffler assembly
contains a spark arrester screen that
must be cleaned periodically to remove
accumulated carbon particles.
(1) Screen comp.
(2) Screw
3) Muffler
Clean out procedure
(1) Remove the screw (2) and pull the screen
comp. (1) out.
(2) Start the engine and disiodage the accu-
mulated carbon particles inside the
muffler @.
(3) If the screen is clogged with soot or
carbon, use a screwdriver or the like to
scrape it away. At this time, care should
be exercised that the screen be neither
indented nor reformed.
@ After cleaning, install the screen comp.
(1) with the screw 2).
4. Clean the air cleaner element
A dirty or clogged air cleaner will result
in engine power loss. Clean it periodically.
IMPORTANT:
© When used in dusty area, the air
cleaner should be serviced more
frequently.
Oo When installing the element, make
sure that the element seals all of the
WARNING:
Be sure that the muffler cover and the
muffler assembly are not hot when
you begin to perform the clean out
operation.
way around its edge.
(1) Remove the air cleaner element.
(2) Wash the element in nonflammable
cleaning solvent,
== Тани
(4) Oil the element with engine oil. (2) Remove the bracket set nut.
(5) Squeeze excess oil from the element.
Install the element carefully.
(4) Wash the fuel strainer parts in non-
flammable cleaning solvent.
(5) Reinstall the fuel strainer, the bracket
set nut and the cover.
5. Clean the fuel strainer
(1) Remove the fuel tank.
WARNING:
afore removing the fuel strainer cup,
ake certain that the fuelcock lever
is in the “OFF” position and the
engine is not hot.
6. Check tightness of bolts and nuts
a =
LONG-TERM STORAGE
(1 Gently pull the recoil starter, until you
start feeling a drag. Then, stop pulling of
the recoil starter.
This is done so that the valve comes to
a closed position.
(2) Drain all gasoline from the fuel tank and
carburetor.
Follow all gasoline handling warnings.
(3) Drain the existing engine oil and refill
with new oil,
(4) Remove the spark plug and pour 1 or 2
tablespoons of engine oil into spark plug
hole. Reinstall the spark plug.
(5) Retighten the bolts and nuts.
©) Clean the air cleaner element.
See page 14.
= =
(7) Clean the fuel strainer.
Wash the fuel strainer parts in non-
flammable cleaning solvent.
(8 Thoroughly wipe off dust or dirt from
the top of the generator body.
(@ Cover the generator body with a card-
board box or a vinyl cover, etc.
Ï
|
|
I
I
|
I
|
I
|
|
|
|
|
|
J
|
10 As a storage site, select a place free from
dust, with low humidity.
"A
Y
=
\
SPECIFICATIONS T800
Generator
AC
Rated voltage (V) 120
Frequency (Hz)... . . . 60
Rated current (A) .... 5.5
Rated output (KVA). .. 0.66
Max. output (KVA). . . . 0.76
Rated revolution
Ir/min). . ......... 3600
DC
Rated output ....... 12V, 8.3A
Engine
TYDO === su wu wa a . Forced air-cooled,
4-cycle, gasoline
Piston displacement
[cu. in. (cm#)]
Bore x Stroke
[in. (mm)]
Continuous output
[hp (kw) @ rpm] .. .. .
Fuel used
5.19 (85)
1.89 x 1.85 (48 x 47)
= ww AECA @
1.6 (1.20)/3600
Unleaded gasoline or
regular gasoline
ж в и ® в я = & =
Fuel tank capacity
[gal. (L)]
Oil capacity [pt. (L)]
Ignition system . .
Starting system . . .
Standard spark plug . . .
0.90 (3.4)
. 1.06 (0.5)
. Transistorized ignition
. . Recoil starter
NGK BPMGA
Dimension and dry weight
Dimensions, Length x
Width x Height
lin, (mm)] ........ 16.1 x 10.6 x 14.5
(410 x 269 x 368)
Dry weight [Ib (kg)] . . . 51.4 (23.3)
Breaker
AC circuit breaker (A) . . 6.34
DC circuit breaker (A) . . 10A
NOTE:
Specifications are subject to change without notice.
Ре
WIRING DIAGRAM
(T800)
*110V ...
120V ..
220V ..
240V ..
Part Name:
ОЧ № тн
6P connecting plug
Main coil
Exciting coil
Rotor coil
Diode
Capacitor
DC output
AC output
Engine switch
Unit
Ignition coil
Plug
Brushes
Circuit breaker (DC)
. Circuit breaker (AC)
. Oil level alarm lamp
. Oil level unit
. Oil sensor
. Pilot lamp
Wire color:
B : Black
Br : Brown
R : Hed
Y : Yellow
O : Orange
G : Green
P Pink
Bl : Blue
Lbl : Light blue
B/W: Black/White
— 18 —
@
PAY
VALE OREGON OEA OOOO
A
=!
OO NAVINI NANA
SUPRA DARL APA ENEE E
Che Toro Promise
A Two Year Limited Warranty
On Al
Gasoline Powered Consumer Products
The Toro Company promises to repair these TORO Products if defective in materials
ar workmanship. The following time periods from the date of purchase apply:
Residential Product . .
Residential Products Used Commercially
2 Years
45 Days
The costs of paris and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Authorized TORO Service Dealer
or TORO Distributor.
Should you feel your TORO is defective and wish to
rely on The Toro Promise, the following procedure
is recommended:
1. Contact any Authorized TORO Service Dealer,
TORO Master Service Dealer, or TORO Distributor
[the Yellow Pages of your telephone directory is
a good reference source),
2. He will either instruct you to return the product
to him or recommend another Authorized TORO
Service outlet which might be more convenient,
3, Bring the product along with your original sales
slip, or other evidence of purchase date. to the
service dealer.
4. The servicing dealer will inspect the unit, advise
you whether the product is defective and, if so,
make all repairs necessary to correct the defect
without extra charge to you,
If for any reason you are dissatisfied with the dealer's
analysis of the defect or the service performed, you
may Contact us,
Write:
TORO Customer Service Department
8111 Lyndale Avenue South
Minneapolis, Minnesota 55470
The above remedy of product defects through
repair by an Authorized TORO Service Dealer is
the purchaser's sole remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY.
ALL IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR USE ARE LIMITED
TO THE DURATION OF THE EXPRESS
WARRANTY,
Some states do not allow limitations on how long
implied warranty lasts, so the above limitation may
not apply to you.
This Warranty applies only to parts or components
which are defective and does not cover repairs
necessary due to normal wear, misuse, accidents. or
lack of proper maintenance. Regular, routine
maintenance of the unit to keep it in proper
operating condition is the responsibility of the owner.
All warranty repairs reimbursable under The Toro
Promise must be performed by an Authorized TORO
Service Dealer using Toro approved replacement
parts,
Repairs or attempted repairs by anyone other than
an Authorized TORO Service Account are not
reimbursable under The Toro Promise. In addition,
these unauthorized repair attempts may result in
additional malfunctions, the correction of which is
not covered by warranty
THE TORO COMPANY IS NOT LIABLE FOR IN-
DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE USE OF
THE PRODUCT INCLUDING ANY COST OR
EXPENSE FAC OA AA UB Fi ETC Caida
EEE E LL AFH |A 7 EL А aa STITUTE ЕЛЕ -
MENT OR SERVICE DURING PERIODS OF MAL-
FUNCTION OR NON-USE,
Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusión
may not apply to you,
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state,
"Ma
NENNEN ONE ENTE NENNEN NEN NEON NENNEN И ЬНаЬ
ENT
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported
from the United States or Canada should contact ther
TORO Distributor (Dealer! to obtain guarantee policies
for your country, province or state. If for any reason
you are изза with your Distributors service or
have difficulty obtainmg guarantee information, contact
the TORO importer. If all other remedies fail, you may
contact us at The Toro Company
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
