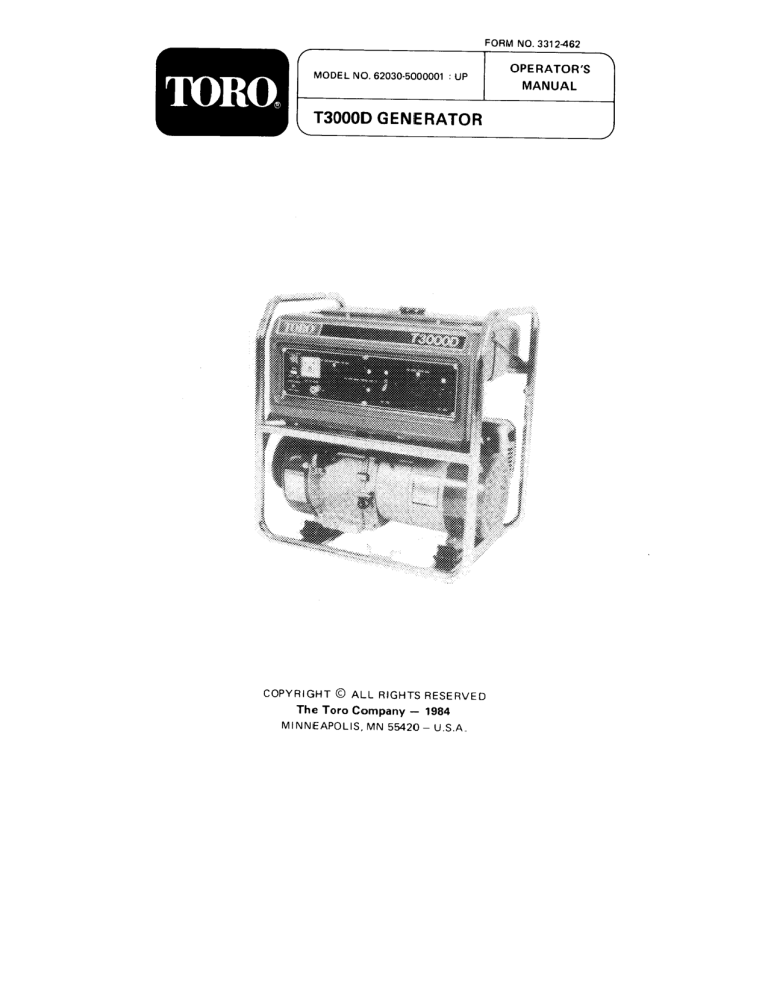

FORM NO. 3312462
OPERATOR'S
MANUAL
MODEL NO. 62030-5000001 : UP
T3000D GENERATOR
COPYRIGHT O ALL RIGHTS RESERVED
The Toro Company — 1984
MINNEAPOLIS, MN 55420 — U S.A.
IMPORTANT NOTICE— —
Please read this manual and follow its
instructions carefully.
To emphasize special information the words
WARNING, IMPORTANT and NOTE carry
special meanings and should be carefully
reviewed,
—
| WARNING:
| The personal safety of the operator
may be involved. Disregarding this |
information could result in injury to
the operator.
IMPORTANT:
These instructions point out special
service procedures or precautions that
must be followed to avoid damaging
the machine.
NOTE:
Special information to make mainte-
nance easier or important instructions
clearer. |
All information, illustrations and specifica-
tions contained in this manual are based on
the latest product information available at
the time of publication. Due to improve-
ments or other changes, there may be some
discrepancies in this manual. TORO reserves
the right to make changes at any time.
WARNING:
o Read owner's manual before operat-
ing this generator.
O This generator is intended to be
assembled, serviced, and inspected
by your authorized TORO Genera-
tor Dealer prior to sale. You should
depend on him to perform these
very important operations, as failure
to do so could result, in damage to
the generator and injury to the
operator.
Copyright © All Rights Reserved The Toro
Company — 1984 Minneapolis, Mn55420 —
U.S.A.
FOREWORD
The TORO ® generator T3000D uses a forced
air-cooled, 4-cycle engine with side valves.
This features quiet operation, excellent dura-
bility and stable performance. The revolving
field type self-exciting generator produces
an AC voltage which is controlled at a
constant level by an A.V.R. (automatic
voltage regulator).
This manual provides the technical informa-
tion required for the operating, handling and
the routine care of the TORO Generator
T3000D.
We hope that you will use the generator in
the correct manner, according to the instruc-
tions given in this manual and you will keep
the machine at top performance for many
years,
The Toro Company
Publications Department
| CONTENTS
LOCATION OF PARTS ..... 2
PRECAUTIONS ........... 3
PRE-OPERATION CHECK ... 5
FREQUENCY ADJUSTMENT .... 6
OPERATION ............. . 7
Starting the Engine . . ........... 7
Stopping the Engine ............ 7
RANGE OF APPLICATION ..... 8
APPLICATIONS .............. 9
HOW TO CONNECT POWER
CORDS ................. 11
DAILY INSPECTION ...... 12
PERIODIC INSPECTION... .. .. 14
Engine oil replacement. , ........ 14
Clean the spark plug ........... 14
Clean the spark arrester ......... 15
Clean the air cleaner element ..... 15
Clean the fuel strainer ......... . 16
Check tightness of bolts and nuts . . . 16
LONG-TERM STORAGE ....... 17
SPECIFICATIONS ............ 18
WIRING DIAGRAM. ........ 19
Partname ................. . 19
Wirecolor . ............... .. 19
A ONE YEAR LIMITED WARRAN-
TY is attached to the last page of this
manual.
LOCATION OP PARTS
La
ore
pr
Pi
pas
ace
9966099096 09980
6668
DOY
®
: Oil level alarm lamp
: Engine switch
- Volt meter
: Fuel gauge
: Tank cap
AC receptacle
: Circuit breaker (DC)
: DC terminal
: Oil drain plug
: Oil filler cap
: Circuit breaker (AC)
- Generator
: Muffler
: Spark plug
: Choke lever
: Air cleaner
: Earth terminal
: Fuelcock lever
: Frequency adjusting screw
: Starter grip
: Recoil starter
: Tool kit
—
spree
e a
A a E -
4
5
®
PRECAUTIONS
WARNINGS:
(D To avoid fire, never use the generator
near spark, flame or other heat source.
(9 When filling with gasoline, always stop
the engine to avoid fire. Do not overfill.
If gasoline overflows, wipe off before
operation,
@ To prevent fire, keep the generator at
least 3 ft (1 m) from any combustible
materials.
@ To prevent electrical shock, do not
touch with wet hands.
(® Exhaust gas contains components harmful
to people and animals. Avoid breathing
exhaust gases and never use the generator
indoors or in tunnels.
© Keep the generator upright at all times
to prevent spillage of gasoline and oil
which may result in fire.
IMPORTANT:
(To avoid overheating,
during operation.
do not cover
(2) Never connect the generator to a wall
socket. Doing so may damage the genera-
tor and connected electric appliance,
injure the operator or result in fire.
(3) Never use the generator in rain, snow near
water. Doing so will damage the generator
or connected electric appliance and
could cause electrical shock.
(4 Do not wash the generator with water.
Doing so will damage the generator.
(® Never operate the generator on unstable
or uneven ground. Doing so may cause
fuel spillage and cause the generator to
fall down or shift.
(6) To prevent engine damage, make sure to
check the engine oil level prior to opera-
tion.
7D To prevent injury, do not operate the
generator with covers, etc. detached.
If the generator should encounter
troubles, immediately stop the generator.
You should consult your TORO dealer
immediately.
O Do not adjust frequency adjustment
screw. Preset at the factory. Special
meters are required for proper adjust-
ment. Improper adjustment could result
damage to the generator or connected
electrical appliances.
PRE-OPERATION CHECK
IMPORTANT:
* This GENERATOR has been ship-
ped from factory without oil.
Therefore, be certain to fill the
GENERATOR with oil according
to the following instructions before
use,
* Make sure to check oil level and
add oil as necessary before use
everyday.
* When the engine oil level comes
down to below the lower level
Lower limit
2. Check the engine oil level
Remove the dipstick, wipe clean, insert
but do NOT screw in. Pull dipstick out
and read the level.
line, the alarm lamp turns on and 3. Engine oil replacement
the engine stops automatically. Add Draining the engine oil
the engine oil up to the specified While the engine is still warm, remove
line and start the engine again. the oil filler cap (À and remove the
drain plug В.
Refilling with engine oil
Firmly tighten the drain plug B and
add the engine oil through the tank
filler up to the upper limit line.
IMPORTANT:
Check the oil level with the generator
| on level ground.
1. Filling engine oil
Oil capacity
T3000D 2.11 pt. (1.0 L)
IMPORTANT:
Oil replacement; First 20 hours
Every 100 hours
Oil viscosity:
(Multi-grade)
SAE =
-20 -20 -10 0 10 20 20 40 50 60 70 80 90 °F
Temperature
(Single grade)
SAE =
=m
10W |
-30 -20-10 9 0 20 30 40 50 60 70 80 90 °F
Temperature
=
4. Filling gasoline
TT
Tank capacity
T3000D | 2.91 gal. (11 L)
5. Check the fuel level
| IMPORTANT:
Check the fuel level with the generator
on level ground. Be sure to check the
fuel level before refueling. If the
level is low, add gasoline.
C Gasoline is very dangerous!
C Use unleaded or regular gasoline.
o Minors should not refill the fuel
tank.
o Refuel in a well-ventilated area with
the engine stopped.
C When filling gasoline, take care so
that no dust or water enters the
tank.
c Do not fill fuel tank near spark,
flame or other heat source.
© Do not fill the fuel tank above the
red line in the fuel inlet. Overfilling
will - cause spillage and potential
fire hazard.
FREQUENCY ADJUSTMENT
This GENERATOR has been shipped out
from factory adjusted for frequency.
Also, voltmeter-attached model cannot be
adjusted unless using a tachometer.
Accordingly, when they have to be adjust
ed, consult your TORO dealer.
PD
Зи
=
EN PEA
(2) Frequency adjusting screw
(3) Engine tachometer
| æ
3
OPERATION
Starting the Engine
3. Turn the fuelcock |
4. Turn the engine sw
ever "ON."
tch “ON.”
E
E
ema
5, Push the choke lever down.
a,
6. Pull the starter rope.
RMN ae
7. Lift the choke lever upward.
IMPORTANT:
Do not operate the generator more
than 30 minutes at maximum output.
Stopping the Engine
1. Turn off any connected electric appli-
anced.
2. Turn the AC switch “OFF.”
—— e
ua qu
3. Turn he TuelicocK lever “OFF.
4, Turn the engine switch “OFF.”
я
RANGE OF APPLICATION
| Scope of application | when malfunctions or more
| Appliance current is required than the
| T3000D capacity of the generator,
y
|
AC circuit breaker will auto-
matically be turned off.
E NN
120V 60Hz 1.45KVA
чт т от ow or ow = EE OE EE EE EE EE EN = = = = =
} 60Hz 2.9KVA
Those electric appliance in-
corporating a motor require
usually a power three times
120V 60Hz UP to 375W the minimum rated input.
Hence, those appliance
whose wattage is within the
ranges listed on the left
L..L...1............) can be connected to the
generator. However, there
are instances where some
product can not be operated,
ou] 60Hz Up to 750 W depending upon the type of
motor windings.
DC circuit breaker will auto-
matically be turned off.
IMPORTANT:
Up to 8.3A Never use this generator
(12V) for charging batteries
with a capacity of less
than 12V-26AH.
APPLICATIONS (@ Power source for washing machine.
The TORO generator has a wide range of
applications, The following examples are
but a few of them.
IMPORTANT:
The power requirement of various
electrical equipment varies. Check the
rating before use.
(1) Power source for chain saws.
(8 Power source at times of disasters.
Before starting operation, read the
labels and tags attached to the genera- |
tor carefully and thoroughly. |
IMPORTANT:
| IMPORTANT:
Before you start operating electrical
appliance, be sure to check specifica-
tions as posted in the label affixed on
the equipment. Make sure that specifi-
cations of the electrical appliance
match with those of the generator.
Item Specifications
Rated voltage (V) 120 | 120 | 240
AC Rated frequency (Hz) 60
Rated current (A) 12.1 | 24.2] 12.1
Rated output (KV A) 1.45 2.9
DC | Rated output 12V,8.3A
— 10—
HOW TO CONNECT POWER
CORDS
A.C. Applications
VOLTAGE | TOTAL
Models & HZ WATTAGE
| ) 120V 60Hz 1.45KVA
O EE
A NA 120V вон) 2 OKVA
AYTO | 240V 60Hz '
IMPORTANT:
AC receptacles and circuit breakers are
connected with each other respectively,
the O-marked with the O-marked and
the O-marked with the O-marked, as
illustrated below.
When taking out power supply from
those AC’ receptacles, sufficiently
check these marks to make sure the
correct power supply can be obtain-
ed, before setting ON the required
circuit breaker.
IMPORTANT:
O Never connect the generator to a
wall socket. This could cause an
overload and seriously damage the
generator.
O Never use this generator for operat-
ing an electrical appliance with a
lagger current than the rated
current. Use the generator according
to the instructions indicated on the
control panel.
O Make sure that specifications of the
electrical appliance match with
those of the generator.
NOTE:
O Be sure to plug the cord in com-
pletely.
D.C. Applications
Exclusively for
battery charge
12V, 8.3A
IMPORTANT:
© Use the D.C. terminals for charging
12V automotive type batteries only.
O Before connecting the generator to
the battery, make sure all wires are
disconnected from the battery.
© Don't insert the plug of any other
electric appliance to this D.C. plug
socket.
O Never use this generator for charging
batteries with a capacity of less
than 12V-26AH.
o When the appliance is grounded it
is advisable to ground the generator
as well.
O When using generator to charge
battery, connectred lead to positive
(+) battery terminal and black
lead to negative (—) battery termi-
nal. Failure to do so may cause
11—
generator damane.
To charge battery
1. Connect battery to generator,
2. Start generator.
After battery is charged
. Turn off generator before disconnecting
battery.
2. Disconnect battery by removing leads
from battery first.
WARNING:
Charge battery in a well-ventilated area
because gases are produced while
battery is being charged. Do not inhale
the gases because nausea may result.
Also, the gases are explosive. There-
fore, do not charge battery near open
flame or electrical spark, and do not
smoke in the area of the battery when
it is being charged. And most impor-
tantly, turn off the generator connect-
ing or disconnecting the generator
from the battery.
BRUSH REPLACEMENT
Remove two screws and pull out the brush
holder. If their length (A) are 3.5 mm or less,
replace with new brushes.
DAILY INSPECTION
Prior to starting daily operations, be sure to
check the generator for proper functions
and evidence of damage etc., as follows.
WARNING:
NEVER start the engine without
performing these checks.
(1) Starter rnne
—12—
(8 Fuel strainer
(6) Receptacles
High tension cord damage
| O Switch
—13—
AD Fuelcock lever
a
e =.
PERIODIC INSPECTION
Interval Every
Every
100
Hrs.
Initial
20
Hrs.
Every
50
Hrs,
Hrs, or
One
year
No.| Item
Engine oil
replacement
*O
Clean the spark
plug
Clean the spark
arrester
Clean the air
cleaner element
Clean the fuel
strainer
Check tightness
6 | of bolts and
nuts
Combustion
7 chamber
cleaning
=u 8")
Tappet
B | clearance
adjustment
uw)
Valve mainte-
nance | |
=.
IMPORTANT:
* Check oil level and add oil as ne-
cessary everyday.
** When used in dusty areas, the air
cleaner should be serviced more
frequently.
*** For these check-ups, ask your
TORO dealer. Don't make these
check-ups by yourself.
|
1. Engine oil replacement
See page 5.
2. Clean the spark plug
A dirty, oily or sooty spark plug will
adversely affect engine performance,
Clean it periodically.
(D Pemave the mpark olug.
@ Check for carbon
ration (burning).
NGK BP-5HS
@ Remove the carbon.
—14—
® Adjust the spark plug gap.
on. 0.028 — 0.031 in.
1 (0.7 — 0.8 mm)
3. Clean the spark arrester
The exhaust system muffler assembly
contains a spark arrester that must be
cleaned periodically to remove accumu-
lated carbon particles.
WARNING:
Be sure that the muffler cover and the
muffler assembly are not hot when
you begin to perform the clean out
operation.
(1) Muffler
€} Clean out tube
(3) Clean out tube set screw
(4) Clean out bolts
Clean out procedure
(1) Remove the clean out tube set screws and
pull the clean out tube out of the muffler
with a pair of pliers.
@ Remove the two spark arrester clean out
bolts.
@) In a well-ventilated area free from grass
or combustible materials start the engine.
With the engine running, tap the muffler
on its side with a small tool such as a
small hammer handle to dislodge the
accumulated carbon particles. Remove
any carbon particles from the end of the
two clean out holes. Likewise, decarbo-
nize the clean out tube, which is pulled
out from the muffler, by tapping its side
with a small-size hammer.
(4) Stop the engine.
(5) After being sure that the muffler assemb-
ly is cool to touch, reinstall the clean out
tube, the clean out tube set screw, and
the two clean out bolts.
4. Clean the air cleaner element
A dirty or clogged air cleaner will result
in engine power loss. Clean it periodically.
(1) Remove the air cleaner element.
(2 Wash the element in nonflammable
cleaning solvent,
—15—
(3) Squeeze the element dry.
(4) Oil the element with engine oil.
(5) Squeeze excess oil from the element.
Install the element carefully.
IMPORTANT:
О When used in dusty area, the air
cleaner should be serviced more
frequently.
O When installing the element, make
sure that the element seals all of the
way around its edge.
5. Clean the fuel strainer
(1) Remove the fuel strainer.
WARNING:
Before removing the fuel strainer cup,
make certain that the fuelcock lever
is in the “OFF” position and the
engine is not hot.
(2) Wash the fuel strainer parts in non-
flammable cleaning solvent.
(3) Reinstall the fuel strainer.
6. Check tightness of bolts and nuts
Don’t adjust frequency screw.
— l6—
LONG-TERM STORAGE
(D Gently pull the recoil starter, until you
start feeling a drag. Then, stop pulling of
the recoil starter.
This is done so that the valve comes to a
closed роки.
e A
PA EAT
O Drain all gasoline from the fuel tank and
carburetor.
Follow all gasoline handling warnings.
O Drain the existing engine oil and refill
with new oil,
@ Remove the spark plug and pour 1 or 2
tablespoons of engine oil into spark plug
hole. Reinstall the spark plug.
(6) Clean the air cleaner element.
See page 15
(7) Clean the fuel strainer.
Wash the fuel strainer parts in non-
flammable cleaning solvent,
—17—
(8 Thoroughly wipe off dust or dirt from
the top of the generator body.
(9) Cover the generator body with a card-
board box or a vinyl cover, etc.
(0 As a storage site, select a place free from
dust, with low humidity.
SPECIFICATIONS T3000D
Generator
AC
Rated voltage (V) 120 | 120 | 240
Frequency (Hz) 60
Rated current (A) 121 | 24.2 | 12.1
Rated output (KV A) 14.5 2.9
Maximum output
(КМА) 1.55 3.1
Rated revolution (rpm) 3600
AC circuit breaker (A) | 125 | 25 | 125
DC
Rated output . ... 12V, 8.3A
DC circuit breaker (A) . . 15
Type ............ Forced air-cooled,
4-cycle, gasoline
17.1 (281)
.. 2.99 х 2.44 (76 х 62)
5.6 (4.2)/3600
Unleaded gasoline or
regular gasoline
Piston displacement
(cu. in. {cm3)]
Bore x Stroke
[in. (mm)]
Continuous output
[hp (kw) @ rpm] . . . . .
Fuel used
Fuel tank capacity
[gal. (L}] 2.91 (11)
Oil capacity [pt. (L)] .. 2.11 (1.0)
Ignition system . . Transistorized ignition
Starting system . . . . . . Recoil starter
Standard spark plug . . . NGK BP-5HS
Dimension and dry weight
Dimensions, Length x
Width x Height
[in. (mm)]
22.6 x 15.2 x 21.3
(575 x 385 x 540)
121.3 (55.0)
EF = a тж 4 EF =
Dry weight [Ib (kg)] . . .
NOTE:
Specifications are subject to change without notice.
—18—
WIRING DIAGRAM
Part Name:
Terminals
4P coupler
DC coil
Main coil
Rotor coil
Aux. coil
Dual coil
Diode
Brushes
A.V.R.(Automatic voltage regulator)
Volt meter
Receptacle
Circuit breaker (AC)
DC terminal
Engine switch
4P coupler
Circuit breaker (DC)
18. Transistor control unit
19. Oil level alarm light
20. Oil level alarm unit
21. Oil level sensor
22. Ignition coil
—# — — — — a al ==й
но ло юн Оо чо лью ю
Wire Color:
B : Black
G : Green
R : Red
W : White
Y : Yellow
O : Orange
P : Pink
Lg : Light Green
Br : Brown
BI : Blue
R/W : Red with White tracer
B/W : Black with White tracer
— 19 —
4 {>
Che Toro Promise
A One Year Limited Warranty
The Toro Company promises to repair these TORO Products if defective in materials
or workmanship. The following time periods from the date of purchase apply:
Residential Product. .......
a... ..1 Year
Residential Products Used Commercially ..,.. 45 Days
The costs of parts and labor are included, but the customer pays the transportation
costs. Just return any residential product to an Autborized TORO service Dealer
or TORO Distributor,
Should you feel your TORO is defective and wish to
rely on The Toro Promise, the following procedure
is recommended :
1. Contact any Authorized TORO Service Dealer,
TORO Master Service Dealer, or TORO Distributor
(the Yellow Pages of your telephone directory is
a good reference source),
2. He will either instruct you to return the product
to him or recommend another Authorized TORO
Service outlet which might be more convenient.
3. Bring the product along with your original sales
slip, or other evidence of purchase date, to the
service dealer,
4. The servicing dealer will inspect the unit, advise
you whether the product is defective and, if so,
make all repairs necessary to correct the defect
without extra charge to you,
If for any reason you are dissatisfied with the dealer's
analysis of the defect or the service performed, you
may contact us,
Write:
TORO Customer Service Department
B111 Lyndale Avenue South
Minneapolis, Minnesota 55420
The above remedy of product defects through
repair by an Authorized TORO Service Dealer is
the purchaser's sole remedy for any defect.
THERE IS NO OTHER EXPRESS WARRANTY.
ALL IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR USE ARE LIMITED
TO THE DURATION OF THE EXPRESS
WARRANTY,
Some states do not allow limitations on how long
implied warranty lasts, so the above limitation may
not apply to you,
This Warranty applies only to parts or components
which are defective and does not cover repairs
necessary due to normal wear, misuse, accidents, or
lack of proper maintenance. Regular, routine
maintenance of the unit to keep it in proper
operating condition is the responsibility of the owner.
All warranty repairs reimbursable under The Toro
Promise must be performed by an Authorized TORO
Service Dealer using Toro approved replacement
parts.
Repairs or attempted repairs by anyone other than
an Authorized TORO Service Account are not
reimbursable under The Toro Promise. In addition,
these unauthorized repair attempts may result in
additional malfunctions, the correction of which is
not covered by warranty,
THE TORO COMPANY IS NOT LIABLE FOR IN-
DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE USE OF
THE PRODUCT INCLUDING ANY COST OR
EXPENSE OF PROVIDING SUBSTITUTE EQUIP-
MENT OR SERVICE DURING PERIODS OF MAL.
FUNCTION OR NON-USE.
Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion
may not apply to you.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
e
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported
from the United States or Canada should comtact their
TORO Distributor (Dealer) to obtain guarantee policies
for your country, province or state. If for any reason
you are dissatisfied with your Distributor's service or
have difficulty obtaining guarantee information, contact
the TORO importer. If all other remedies fail, you may
contact us at The Toro Company.
Compliance with Radio Interference Regulations Certified.
Certifie Conforme au Reglement sur le Brouillage Redicelectrigua,
Litho in US. A,
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
