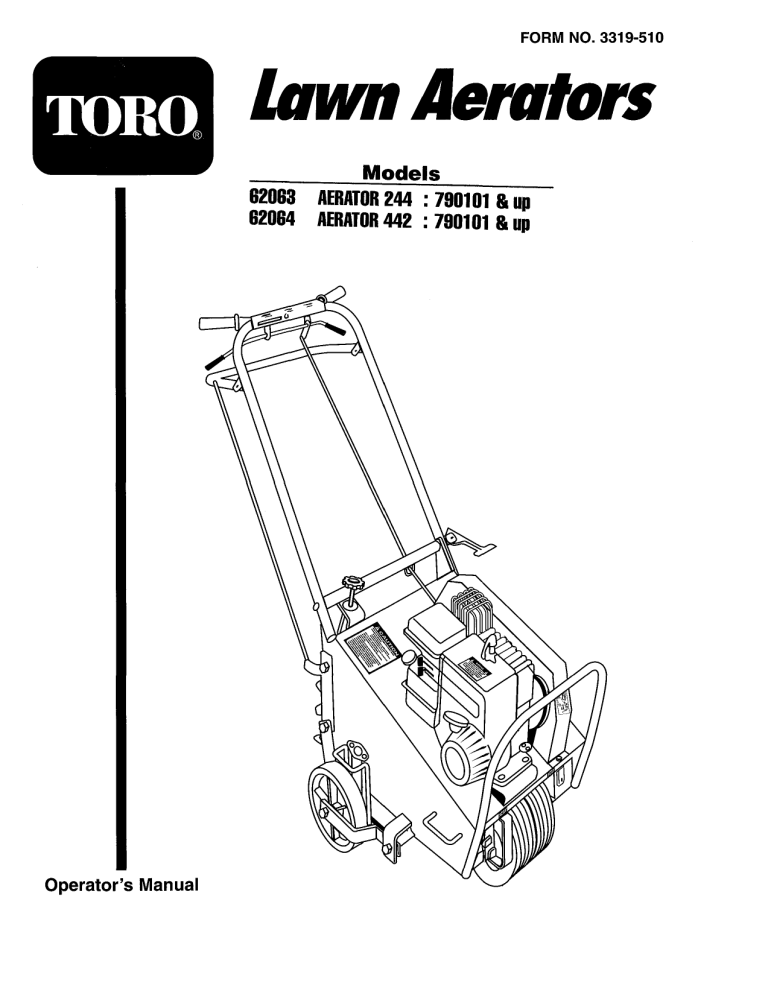

FORM NO. 3319-510
Lawn Aerators
Models
62068 AERATOR 244 : 790101 & up
62064 AERATOR 442 : 790101 & up
TORO
Operator’s Manual
Toro Lawn Aerators
Index
Section 1 * Operators Guide | Раде
брес!Пса&Попб....ееннененнненненнннннненнененненененнененннненннненннненененнненненнннннннненнененнненнеенене: 4
Features and Controls .....................0000cecereri ee renereecenee reee eeararececerererereererareeeneecenenrenee 5-6
General Information...............eeerererereoi er rece oie nene Den eeeeenciea rece ceniorercececrevecanenrererrerenTene 7
Safety Procedures.............e...nneen Dee eee ree rene eee cet ce 7
Safety and Instruction DDecals.….….…….…srseeneenseeenennençennnenmnenennnennnnnnnnnnnnnnnnnnnnnnnnm 8
Decal Placement................es0ecrririire ce e en nec reee e eecerecerecrr on enenererececereereacenareeeonococrece. 9
Assembly Instructions ...............eerereerererer RD DDD ene 10
Section 2 *« Operating Instructions Page
Aeration Tips..............eereeeereeer eben 11
Before You Start ...............eeecccacarrine ener ee ica er nacer iec ar cen erereeeeee o ee arecereeneararerereocererreveces 11
Aerating.................ecereereeec enero De DD ee Re eee ener e ne rrecarrer en renrece re reice reee eee 11
Rear Wheel Adjustment................e.esrereen nr eee ee ner eee eee 12
Turning and Maneuvering.................. 262 DI CR O Ree eee rene 12
Operating on Hills .................... eee eee encerraron reee. 12
Transporting ..............w=e....e.e.ree ees 13
Section 3 * Maintenance and Service Instructions Page
Cleaning and Washing ...............e..e.e reee ee Ree Deere eee 14
Two-Minute Warning .……errereencenrenenentenentnanennnnnnmnnnennnnnnnnnnnnnnnnannnnnnnnn 14
103 TOO OOOO OPO O PUPP OPO T PIPPI PPR PPO 14
Preventative Maintenance Schedule
Lubrication Scehdule ...........eecencccaccccre O DT ÉEUEGÉ É IC C CC RC re ercer e Dee 15
Inspection Schedule ……….….rencrarescencententententensenseentsnestencencenterensecensencen rene» 14
Tine Wear .….……cccicrccccsserrrrrrrrrarenanenanaasensananenaanaanen nana cases era nocacas na U nan ar Ace 14
Service
Engine Service & Maintenance .……ssrisressersranmentenemnensenentententestrmasnsenceseenceneue 15
Drive Train
Engine Removal and Replacement………………nsrernesensnmnenennnenmnennnnnnnnnnnnnnn 15
Drive Belt Replacement and AdjUstment..….………erreressensesteneenteneenessenseneences 15
Clutch Cable Removal and Replacement ………sessenserseascenensntenenntnñnhsnnenn 15
Chain Removal and Replacement..….….……resrerssesençansnennensnnennnnnnnnnnnnnn 16
Adjusting Chain Tension ............—.....eeeeeeee ID II DR RI 16
Handle |
Inspection............. eee e ener een rereenarerreenrernereee reo eneneenercecene 16
Adjustment ...................eeeiineice enano eee eee ere reee eee erre reee. 16
Wheels
Rear Wheel Removal and Replacement ................e.eseaccererier DD EEE 16
Drive Wheel Shaft Removal and Replacement …….….rressresersenseenseascsneencense 16
Tine and Tine Shaft |
Tine REplacementœ……nsersreseenmseennennenantenençnnnnnnnnnnnnnnnnnnnnnnnnnnnnnne 17
Tine Shaft Bearing Removal and Replacement.….……esrrsrererenmeenenastennnnnnnn 17
Free-Wheeling Tine Assembly Removal and Replacement …….….sseess 18
Unit Assembly and Parts Diagrams
Model 244...................e.eriricaciearerercaceaceceeeaccer coreo rrerrenorenecerarer reee Verre senc cncee 19-22
Model 442 ..................errerrricic eee ear iore rte rerrercarec reee econo renereerrereororerececeecacene 23-26
Section 4 * General Product Information Page
Warranty ................esrecenece ene eee e e eee ener een. Inside Back Cover
Sound and Vibration Test..................e.e...e.e.e0ereenerenecocerre ee ere ere e. Back Cover
Purchase Record ...........eererienrecreonenonoceronocooceonenoraricccer enero ere re er e eee. Back Cover
Sales and Service Contact..............e..eecacecocireriocoreereonconerieci ener erener recen once. Back Cover
Operators Guide
SPECIFICATIONS
A) POWER UNIT 244 442
Engine 3.5HP Briggs & Stratton ИС (2.6kw) | 3.5HP I/C Briggs & Stratton 1/C (2.6kw)
Clutch Belt tensioner Belt tensioner
Primary drive
One V-belt (A-44")
One V-belt (A-44”)
Secondary drive
Permalube Chain
Permalube Chain
Hole pattern
| Gear reduction 6:1 6:1
B) WHEELS
Bearings FRONT — */4” (1.9 cm) sealed FRONT — */4” (1.9 cm) sealed
ball bearings with stamping kit ball bearings with stamping kit
RFAR - °/4” (1.9 em) roller bearing REAR — */4” (1.9 cm) roller bearing
Rear tires 8” x 2” (20 x 5cm) solid rubber 8” x 2” (20 x 5cm) solid rubber
Front tire 10” x 6” (25 x 15cm) semi-pneumatic | 10" x 6° (25 x 15cm) semi-pneumatic Ш
C) AERATION a
Tines °/4” (1.9 cm) open spoon tine. °/4” (1.9 cm) open spoon tine.
24 per unit 42 per unit
Aeration width 17.5” (44.5 ст) 25%” (64.5 cm)
4.4 x 7.87 (11.2 x 19.8cm)
35/87 x 63/47 (9.2 x 17.1cm)
Core depth Up to 3” (7.6 cm) Up to 3” (7.6 cm)
— Holes per sq ft 4.2 5.9
Working speed 250 ft/min (4.57 km/h) 290 ft/min (5.3 km/h)
Productivity Up to 21,900 sq ft/hr (2030 m*/h) Up to 37,100 sq ft/hr (3450 m’/h) -
D) WEIGHTS
Net weight 265 Ibs (120 kg) — 422 Ibs (192 kg)
Shipping weight 290 lbs (132 kg) 487 lbs (221 kg)
Removable weights 2 x 36 lbs (16.3 kg) À x 18 Ibs (8.1 kg) and 2 x 36 Ibs (16.3 kg)
E) DIMENSIONS
Height 28” (71.1ст) w/ handle folded 28” (71.1ст) less handle
Height overall 49.5” (126cm) 52” (132cm)
Length | 40” (101.6cm) w/ handle folded 30” (76.2cm) less handle
Length overall 48” (122ст) | 507 (127cm)
Width 26.5” (67.3em) 36” (91.4cm)
Shipping carton
28” х 29” х 43” (71 х 74 х 109ст)
41” x 34” x 30” (104 x 86 x 76cm)
Operators Guide
MODEL 244 - FEATURES AND CONTROLS
Handle Bar
«>
— FN Clutch Control
[=
АЕ
|
7 Rear Wheel Control Handle
GA
Folding Handle
Folding Handle Cam Lock
Ne Engine Start/
N > Speed Controls
/ = xx - Drive Guard
(S/N Inside)
Engine Guard
Depth/Stability
Control Knob
Aerating
Tine
NE Lock
Lifting Handles | Powered Front Wheel
Removable Weights X
Note: Serial Number is located under Drive Guard.
Figure 1
«5
Operators Guide
MODEL 442 - FEATURES AND CONTROLS
Handle Bar |
Se LS
Clutch Control
Ca E ue
E
Rear Wheel _ A Ds
Control Handle д)
) ©
Depth/Stability
Control Knob >
R bl | Drive Guard
Weight - © Á (S/N Inside)
E AL Removable
Engine | Weight
Guard
|
P
a
/ wu Adjustable
Powered Rear Wheel
Front Wheel Weight Lock
Removable Weights
Note: Serial Number is located under Drive Guard.
Se
Figure 2
Operator’s Guide
GENERAL INFORMATION
This manual will assist you in the safe operation and proper maintenance of your Toro equipment. Read it thoroughly before
attempting to operate the machine. Do not hesitate to call your dealer or Toro if additional information 1s required.
The following safety symbols are used throughout the manual to alert you to information about unsafe actions or situations:
ЛМ DANGER indicates immediate hazards that will result in severe injury or death.
Aa] WARNING indicates unsafe actions or situations that may cause severe injury or death.
2 CAUTION indicates unsafe actions or situations that may cause injury, and/or equipment or property
damage.
This equipment should not be modified without the manufacturer's prior written authorization. Doing so without our written
permission may not only affect the equipment 's performance and durability, but also create safety hazards for the operator and
the surroundings. Warranty will be void if changes are made to the equipment without the manufacturers prior written
authorization.
SAFETY PROCEDURES
M Read all maintenance and service instructions before attempting work
M Read engine manufacturer’s operating and maintenance instructions
M Inspect lawn to be aerated and remove rocks, wire, string and other objects that might present a hazard before
starting
B Indentify and mark all ground objects to be avoided, such as sprinkler heads, stakes, water valves, clothes line
anchors, etc.
This machine was designed for lawn aeration only
Keep children away from the equipment
a
a
M Make sure that removable weights are securely latched in position while operating the aerator
B Adopt safe lifting and moving techniques when loading/unloading and moving the equipment
E
Make sure all decals are in place
M Do not service while running
Do not use on any surface other than grass
Do not operate on slopes exceeding 35% grade
Do not place hands or feet near moving or rotating parts
Do not attempt to lift the equipment alone
Do not run engine in an unventilated space
Do not run engine while servicing. Remove spark plug wire before commencing service
Do not smoke or allow open flames or sparks near unit, and always stop the engine when refueling
Do not remove guards when operating
Do not modify this equipment
Do not use this equipment for purposes other than intended, i.e. lawn aeration
m7
8"
Operators Guide
SAFETY AND INSTRUCTION DECALS
The following decals are found on Model 244 and 442 aerators. If any are missing or not legible, replace them before putting
aerator into operation. Part numbers for the complete decal kits are listed below. See Figure 3 for decal placement.
MODEL 244 MODEL 442
A - Model 244 only (1 EA) J - Model 442 only (1 EA)
B - Model 244 & 442 (2 EA) C - Model 442 only (4 EA)
1 - Model 244 8 442 (1 EA)
doLvaay NMYT (270
D - Model 244 & 442 (1 EA)
A CAUTION
* READ AND UNDERSTAND OPERATORS MANUAL BEFORE
OPERATING OR SERVICING
TO CBTAIN REPLACEMENT MANUALS CONTACT:
THE TORO COMPANY
8111 LYNDALE AVE S.
BLOOMINGTON, MN 55420-1196
+ OBEY ALL SAFETY INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN INJURY TO YOU OR OTHERS.
* BE SURE MACHINE IS IN SAFE OPERATING CONDITION
BEFORE USE.
+ KEEP GUARDS IN PLACE WHEN MACHINE IS IN OPERATION,
+ STOP ENGINE AND WAIT FOR ALL MACHINE MOVEMENT TO
STOP BEFORE SERVICING, ADJUSTING, OR CLEANING,
* DO NOT RUN ENGINE INSIDE UNVENTILATED SPACE.
* MAKE SURE EVERYONE IS CLEAR OF MACHINE BEFORE
STARTING ENGINE, ENGAGING POWER, OR OPERATING.
- STAY OFF SLOPES TOO STEEP FOR SAFE OPERATION.
+ PICK UP DEBRIS BEFORE USE.
F - Model 244 8 442 (1 EA)
A WARNING A
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm. Engines produce carbon monoxide which is
an odorless deadly poison. DO NOT OPERATE
IN AN ENCLOSED AREA.
E - Model 244 & 442 (1 EA)
G - Model 244 & 442 (1 EA)
LAWN AERATOR
H - Model 244 & 442 (2 EA)
Decal Kit Part Numbers
T7109 Decal Kit, Model 442
T8343 Decal kit, Model 244
Operator’s Guide
DECAL PLACEMENT - MODELS 244 AND 442
E (on deck
behind
engine)
| (On back of
housing over
tine rotor)
m
ZZ
Mes
— D _ Xe с
J (For Model 442)
A (For Model 244)
7 Model 442)
5 (For Model 244)
Refer to page 8 for decal identification.
Figure 3
TB
o
Operators Guide
ASSEMBLY INSTRUCTIONS
Model 244 -
1. Remove wooden blocks. Note: Watch for nails and wood splinters. Wear eye protection.
2. Carefully cut open side of carton.
3. Lawn Aerator 244 is shipped with handle folded. Rear wheel control handle strapped together with the clutch control.
First cut straps, then unfold handle. Lock handle in position using the cam lock lever.
Model 442 -
1. Remove wooden blocks. Note: Watch for nails and wood splinters. Wear eye protection.
2. Carefully cut open side of carton.
3. Lawn Aerator 442 is shipped with the handle detached. Mount the handle using 2 each 1/2” wrenches.
(A) Slide handle onto handle mounting brackets (see figure 4).
(В) Insert and tighten fasteners, which are located on handle mounting brackets (See figure 5-A). For further detail on
assembly, see page 24.
4, Connect top of control rod to rear wheel control handle with fasteners located on rear wheel control handle (see figure
5-B). For further detail on assembly, see page 24.
5. Connect bottom of control rod to QUTER side of lever on the torque arm using the fastener assembly (see figure 5-C).
6. Run the clutch cable through the guide hole in the handle bracket support bar located at rear of the deck (see figure 4).
7. Attach end of cable to the “S” hook located on the belt idler pulley.
Rear Wheel
Control
Handle
Control Rod &
fa —
Rear Wheel Za =.
Neo Control Handle < ==] -
(A) // Control Rod 7 j | >
Torque Arm
Clutch Cable
wr
Guide Hole
Handle
Bracket
Support Bar
Figure 5
Mounting
Bracket
Figure 4
Operating Instructions
AERATION TIPS
Should I water before aerating?
Best aerating condition is a soft and moist ground. If you are unsure of the ground conditions such as in a soil with a high clay
content, a simple test will determine whether it is necessary to water before aerating. Using a garden hand spade or a large
screw driver, you should be able to drive the tool in the ground 2 to 3 inches with little effort. If you are unable to do so, then
watering the lawn a day before aerating is necessary.
When should I use the removable weights?
Soil conditions will dictate whether extra machine weight is needed for effective coring action. The weights are provided to give
you added control, and greater tine penetration.
BEFORE YOU START
1. Make sure that engine oil is at engine manufacturers recommended level (refer to engine manual). Be sure gear
reduction oil is at engine manufacturers level.
With the folding handle in its operating position, lock the handle cam lock (Model 244 only).
Rear wheel control handle must be pulled up so rear wheels are all the way down.
If weights are needed, insert and lock in place.
Kan SD
Be sure handle 1s properly mounted.
i CAUTION: Be sure clutch cable is routed properly.
6. Test clutch handle to insure clutch spring releases freely.
7. The engine top speed 15 preset by the engine manufacturer. Consult the engine manufacturers manual for directions to
adjust the governor and carburetor if speed is not within correct range.
AERATING
1. Start engine and adjust throttle setting to provide a comfortable walking speed and maintain control of the equipment at
all times.
2. Adjust depth control knob (see figure 1 or 2) to desired depth. Coring depth decreases by turning the knob clockwise.
Note that by raising the rear wheels all the way up (to obtain maximum coring depth) you will reduce the unit’s stability
but increase length of core.
Push down the rear wheel control handle to lower aerating tines into the ground (rear wheels will rise).
Push down on handle bar, for better tine penetration and maneuverability (front wheel will rise).
Engage clutch control.
Adjust engine throttle setting, if needed, for comfortable speed.
To stop, release clutch control.
AID ABD
Zk] CAUTION: Never cross hard objects or surfaces (sidewalks, driveways, stepping stones, etc.)
with tines down.
N
Oo
©.
”
mii
12 =
Operating Instructions (continued)
REAR WHEEL ADJUSTMENT
The rear wheel Depth/Stability Control Knob (see figure 6) allows adjustment for more stability
(and maneuverability) by turning knob clockwise. Adjusting for more depth by turning knob
counter-clockwise determines the length of the cores pulled in the following ways:
(A) The rear wheels can be adjusted to the level you desire so you can control the penetration
of the tines to within a “fraction of an inch.” The length of the cores pulled can be
controlled accordingly. |
(B) With the rear wheels adjusted to the full up position, you will obtain maximum tine
penetration. Pushing down on the machine's handle bars will put all the weight of the
machine on the tines. In this configuration you will pull the longest cores. (Front wheel Figure 6
will rise). | | Depth/Stability Control Knob
NOTE: Adjusting for more stability will shorten the length of the cores you pull. You will
gain greater side-to-side stability (See below “Operating on Hills.” Adjustments for greater stability will also improve
maneuverability during aeration.
TURNING AND MANEUVERING THE AERATOR
Gradual maneuvering while aerating can be accomplished by simply guiding the machine. We recommend that you adjust your
engine's speed control to allow for a comfortable walking speed. This will also help you maintain complete control while
working in tight spaces. Adjusting for more stability (with the rear wheels lowered, reducing tine penetration) will make turning
easier. |
When reversing direction or making sharp turns, two methods of turning can be used. Select the safest and most comfortable
method for the conditions you face: |
(A) Release clutch control handle, pull up rear wheel control handle, then pivot machine on rear wheels to turn.
(B) Release clutch control handle, lift handle bar and pivot machine on front wheel.
Warning: This method is not recommended when operating on hills. {See next section).
g Р g
OPERATING ON HILLS
à WARNING - DO NOT OPERATE ON HILLS EXCEEDING 35% GRADE.
This unit is not designed to be used on steep slopes. Be aware that when operating on hills the
tilt of the aerator will cause the machine’s center of gravity to shift to the downhill side of the
machine. Under these circumstances, you may experience:
(A) The need to exert a greater effort to steer and maintain the balance of the machine.
(B) Uneven tine penetration, when operating across a hill. Due to the shifted center of gravity
the downhill tines will penetrate to the maximum depth, while uphill tines may not.
WARNING: In extreme situations (very steep hills) the machine may be so
unbalanced, that it may present the danger of rolling over. Do not operate on steep Figure 7
slopes. 31° Grade
When operating on hills, you may consider the following:
(A) Operate the machine up and down the hills rather than across them.
(B) Use the rear wheel depth/stability control knob to set the rear wheels for extra stability.
This can be a great benefit when you do choose to run the aerator across a hill. An
added benefit of using the rear wheel depth control when aerating across a hill is that
you will improve the consistency of the cores pulled from the uphill tines when
compared to those pulled by the downhill tines.
(C) Removing the downhill weight to reduce roll-over risk and maintain consistent core
plugs length (on 442 only). See Figure 8.
(D)Remove remaining weight from downhill side to uphill side after each pass when Figure 8
operating across hills. Remove Downhill Weight
WARNING: Never disengage tines from ground when travelling up or down hill.
Only disengage on flat surface.
Operating Instructions (continued)
TRANSPORTING THE TORO AERATOR
MODEL 244
The Toro 244 Aerator has three convenient features to assist you in transporting the unit in your pick-up truck, van, and even
in some car trunks. Those features are: removable weights, a folding handle, and convenient lifting handles on the sides of the
machine. The features are provided for your optional use and can be of great benefit when required.
Figure 9 Figure 10 Figure 11
Removable Weights Folding Handle Lifting Handles
* Unlatch weight locks. * Release handle cam lock. Lifting handles are located on both sides
. : , of the aerator, to allow two people to lift
Grab weight handles and pull the Fold handle forward over the engine the unit WARNING: Avoid back or
weights from the machine. until it is resting on the engine guard.
muscle injury! Use safe lifting techniques,
not exceed your physical limitations.
44 DO NOT attempt to lift alone.
Note: Weight 193 1b/88 kg w/o weights
Note: Weight 36 1b/16 kg each
MODEL 442
removable weights on the Model 442 is for tine penetration as applicable.
AA CAUTION: To avoid back or muscle injury, do not attempt to lift the Model 442.
With the weights in place, this model is designed for easy loading and unloading on trailers. The treaded front wheel provides
better traction for ramp. The unit will load more easily when the engine is operating.
" 13
14
Maintenance and Service Instructions
CLEANING AND WASHING
Regular cleaning, washing and lubricating will prolong the service of your machine.
NOTE: Use care with power washers to avoid damage to Warning Decals, Operator Instruction Labels, Bearings,
Chain and Engine. Limit direct spray on these items.
4% DO NOT EXCEED 1000 PSI WATER PRESSURE FOR CLEANING.
4% TWO-MINUTE WARNING
Aerators may be tipped on their engine guard for cleaning and access for no more than 2 minutes. Engine damage may result
from gasoline draining into the crankcase if prolonged. See engine manufacturer's operating and maintenance instructions.
STORAGE
Refer to engine manufacturers instructions for engine storage information.
Clean machine.
Cover all scratches with touch up paint.
Lubricate according to Lubrication Schedule. (See page 14).
Lightly oil or mil board tines to inhibit rust.
Store unit with machine in transport position.
Handle may be folded if desired.
Covered or indoor storage is recommended.
PREVENTATIVE MAINTENANCE SCHEDULE
© NRW m
INSPECTION SCHEDULE
20 hrs
LUBRICATION SCHEDULE
Each Use
20hrs 60 hrs asreq'd store
Engine oil (Refer to engine mfg. manual)
ele]
Ka
ele]
|
|
LL]
Le Le
|
Engine oil (Refer to
engine mfg. manual)
Rear wheel bearing —
grease (Jithium/soda)
Chain, chain lubricant.
Tines, light machine oil
Linkage
TINE WEAR
ena ст)
After your Toro Aerator has been used for sometime, the
tines will tend to wear. When this happens their aerating
performance will diminish. Inspect tines using the
drawing below, replace when at minimum length or
before. (Tines are 5” when new)
[e [e LL le ile le le le [e)
[lee lle Le LLLL
Clutch tension
Chain tension
Decals and warnings
Fasteners and fittings
Belt wear (cracks, fraying, edges rounding)
Folding cam handle (on Model 244)
Tine condition and wear
Frame condition (rust, cracks, etc.)
Clutch and cable
Excessive vibration
Engine air cleaner
Figure 12
Service
ENGINE SERVICE AND MAINTENANCE
Follow the engine manufacturer’s maintenance instructions. Should any malfunction occur with the engine during the warranty
period, take it to an Authorized Service Dealer. DO NOT tear down the engine, as this may void the Engine Manufacturers
Warranty. Note: Refer to engine manufacturers owners manual for all engine service information.
DRIVE TRAIN
Engine, Removal and Replacement
1. Remove weights for access.
Remove drive guard.
Remove V-belt.
Remove engine bolts.
Laft engine from unit.
Remove and retain V-pulley and key.
Replacement procedure opposite of removal.
ENDURO
Adjust drive belt, see following section.
Drive Belt Replacement and Adjustment
1. Remove drive guard.
2. Remove V-belt.
3. Inspect condition of V-pulleys and replace if necessary.
4
Check V-pulley alignment by looking down belt with clutch engaged. Be sure both
V-pulleys are directly in line with each other. Correct their alignment if they are not.
5. Install new belt over small V-pulley first, then over the large V-pulley. (See Figure 13).
NOTE: Many parts including the drive belt on your Toro Aerator are made specifically
for Toro to give many hours of use. Replace all parts with genuine Toro parts to obtain Figure 13
maximum performance and life. Routing of V-belt
6. Insure V-belt is inside both keeper arms.
Check that the V-belt clears the top belt keeper arm when idler pulley is pulled tight.
Check that the aerator rolls freely (with handle folded on Model 244), with the belt slack. Adjust the keeps or clutch
cable length if necessary.
8. For clutch adjustments refer to next section (Clutch Cable Removal and Replacement).
9. Replace drive guard.
Clutch Cable Removal and Replacement
1. Remove old cable.
2. Route new cable through the cable guide on the bottom of the handle lock tube.
3. Attach cable to clutch control and the “S” hook on the idler pulley spring.
4
Adjust cable to obtain */4" to 1'/4" extension of the clutch spring when clutch is engaged.
(See figure 14).
Figure 14
Adjusting Clutch
= 15
Service (continued)
idler Adjustment Chain Removal and Replacement
Drive Sprocket Screw > 1. Remove weights.
— Ox ; 2. Remove drive guard.
Idler Sprocket < Rotor 3. For easier servicing lift machine onto a bench
Sprocket (Model 244 only).
Back off chain idler adjustment bolt and lock nut
Wheel!
Sprocket
ej —
Remove master link and remove chain.
cy <
о
0 1gihiamm Free Play 6. Inspect and align sprockets. (See Figure 16). as |
Check set screws (double set screws for Е igure 16
Figure 15 wheel/rotor). Aligning Sprockets
7. Install new chain from top (drive sprocket side)
and route in accordance with figure 15.
NOTE: Chain is most easily connected just
behind the front drive wheel sprocket.
8. Install master link with pin plate on engine side
of chain, with keeper plate installed on outboard
side. Install clip with split to front of machine.
Adjusting Chain Tension
1. Remove drive guard, loosen hex nut on idler adjustment bolt.
Figure 17
Adjusting Tension
2. Turn idler adjustment bolt to adjust tension to allow 1/8" to 1/4" movement at the
center point between the wheel sprocket and the rotor sprocket
(see Figures 15 and 17).
3. Set idler adjustment hex nut.
HANDLE - MODEL 244 ONLY
Inspection
1. The handle cam lock must lock shut under moderately heavy hand pressure. Handle frame should be tightly secured to
the aerator body.
2. Check the cam rod lock nut. If it turns freely by hand when cam is released, the locking strength of the nut has been
relieved and the nut must be replaced to maintain the security of the lock.
Adjustment
With the handle in the operating position, slow! tighten the cam rod lock nut (1/4 turn at a time) until the cam handle
locks with moderately heavy hand pressure. AX] IMPORTANT: excessive adjustment of the lock nut will damage the
cam handle. ALWAYS replace a free spinning nut to avoid unwanted loosening of the handle. For smooth operation of
the cam, apply a small amount of grease on the cam edge.
WHEELS
Rear Wheel Removal and Replacement
1. Lower the rear wheel control handle to let the aerator rest on the tines.
2. Turn the rear wheel Depth/Stability control knob to adjust the rear wheels for minimum depth clockwise (more
stability).
3. Remove the wheel.
Install a new wheel with grease fitting facing out, with seals carefully in place on the wheel bushing. Insert axle bolt
through wheel and wheel lift frame. Use washer and lock nut, tighten firmly.
5. Grease wheel.
Drive Wheel Shaft Removal and Replacement
Remove weights.
Remove drive guard.
Loosen chain by loosening hex nut on adjustment screw, back off screw to loosen the chain. Remove master link and chain.
Tip the front end up to let the aerator rest on its handle. The front wheel will be approximately 1 foot off the ground.
Remove the wheel shaft bearing bolts (4 on the 244 and 6 on the 442).
Remove the wheel axle assembly.
> AENA
Service (continued)
Drive Wheel Shaft Removal and Replacement (Continued)
7. Pull sprocket and bearing from shaft. NOTE: Sprocket is double set screwed. To remove the bearings, you must first
remove the collar by loosening the set screw, then insert pin punch into the hole next to the set screw and, using a
hammer, with moderate striking, hit collar so that it rotates in the opposite direction the rotor would normally turn.
If bearings are rusted in place they will have to be replaced along with the wheel and shaft.
8. Install bearings and sprocket loosely onto the shaft. Model 244: hub side towards wheels. Model 442 has 3 bearings.
Wheel bearings should have hubs facing away from wheel. Wheel shaft bearing should have hub facing away from
sprocket. -
9. Bolt bearings into place.
10. Center the wheels between the weight cages and lock bearing collars in the same direction as wheel rotates.
11. Align and tighten the sprockets (there are double set screws stacked two in each hole) use blue loctite with the key in
place.
12. Replace the chain following procedures in section “Chain Removal and Replacement.” (See page 16).
13. Adjust chain per section “Adjusting Chain Tension” and replace drive guard. |
TINE AND TINE SHAFT
Tine Replacement
1. Remove weights.
2. Fold handle on the Model 244.
3. Place on workbench (Model 244 only) and chock wheels.
4. Note direction of tine bolt. Reinstall the bolt facing in the same direction on the Model 244 to avoid contact with
weights.
5. Remove and replace tines by loosening stop bolt, remove retaining bolt and old tine, insert new tine and fasten with
retaining bolt in the same direction as it was removed. When all tines are replaced, tighten stop bolts. NOTE: Replace
worn lock nuts to insure that bolts will hold tines in place.
Tine Shaft Bearing Removal and Replacement
Remove weights.
Remove drive guard.
Fold handle for better access to tines (on Model 244 only).
Elevate approximately 47, block and chock rear wheels.
Cycle the drive chain for access to master link.
Back off chain idler adjustment screw counter clockwise to loosen the chain.
Remove the master link and free rotor sprocket.
Remove the tine rotor shaft bearing bolts (4).
Figure 18
Remove the chain scraper bolts (2) and chain scraper (on Model 244 only). Unlocking Collar
DY» ON D лов оо юн
—
>
. Remove the rotor shaft assembly.
—
|->
. Remove outer rotor bearing by loosening the set screw in the collar.
|
bo
. Unlock collar (best accomplished by using a hammer and pin punch). Insert pin punch into the hole next to the set
screw and, using the hammer, with moderate striking, hit collar so that it rotates in the opposite direction the rotor
would normally turn. (See figure 18).
13. Reverse these steps to reinstall.
14. Refer to sections “Chain Removal and Replacement” and “Adjusting Chain Tension” for chain replacement and
adjustment of chain tension.
m17
18 =
Service (continued)
Free-Wheeling Tine Assembly Removal and Replacement - Model 442 Only
Complete steps 1 through 12 in previous section, then proceed with the following:
1.
2.
3.
8.
After the bearing is off the rotor, unlock the inner bearing that holds on the tine assembly.
Remove outer free-wheeling tine assembly.
Place the new rotor assembly beside the old assembly so that you have a pattern to follow which provides the correct
direction which the new tines are to be installed. You can also refer to the tines on the fixed tine assembly as an example
of proper assembly.
. Once the tines are installed on the free-wheeling assembly, re-install the inner and outer bearing assemblies on the free-
wheeling assembly with the bearing hubs facing toward the fixed tines making sure that the inner bearing has a locking
collar. Hand tighten the nuts only.
Slide the new free-wheeling tine assembly on the shaft making sure that the tine direction matches the direction of the
fixed tine assembly, the bearing with the locking collar faces the fixed tines and butts up against the shoulder of the
shaft.
Tighten the four nuts for the bearing assemblies.
Lock the bearing collar in place with the hammer and punch making sure the collar locks in the same direction as the
rotation of the fixed tines.
Replace outer shaft bearing and re-install the entire rotor assembly by reversing steps 1 through 12.
Instructions are for one side. Both are identical procedurally.
Parts Main Frame - Model 244
PARTS MAIN FRAME - MODEL 244
Item No. | Part No. | Description No. Reqd. | | Item No. | Part No. | Description No. Reqd.
1 17144 | Weight, 36 Ibs., solid steel 2 6 17202 Scraper kit, chain with hardware 1
2 T7154 | Housing with decals 1 T7227 | Decal kit, 244 1
3 T7186 | Drive guard with decals 1
4 T7200 | Drive guard fastener kit 1
5 17201 Latch kit, weight with hardware 2
NOTE: No. Req'd refers to the quantity used in a complete machine.
Please Order by Part Number
= 19
Model 244
Parts Handle and Control - Model 244
<>: Wr,
“era
©
|
PARTS HANDLE AND CONTROL - MODEL 244
Item No. | PartNo. | Description No Reqd. | | Item No. | PartNo. | Description No Reqd.
1 T0034 | Grip, clutch 2 8 T7191 | Grips, pair 1
2 T5129 | Spring, clutch 1 9 T7221 | Fastener kit, clutch control to handle 1
3 T5256 | Cam, locking 1 10 T7222 | Clutch cable kit 1
4 17149 Clutch contro! with grips 1 11 T7223 Pin kit, rear wheel control handle 1
5 T7151 | Handle with grips 1 12 T7224 | Control rod kit, rear wheel 1
6 T7174 Handle, control, rear wheel 1 13 17225 Cam rod kit, with cam 1
7 T7189 Clutch cable 1 14 T7226 Cam rod kit, without cam 1
NOTE: No. Reg'd refers to the quantity used in a complete machine.
Please Order by Part Number
Parts Rear Wheel - Model 244
I
©
o
PARTS REAR WHEEL - MODEL 244 =
Item No. | PartNo. | Description No. Regd | | Item No. | Part No. | Description No. Regd
1 T0048 | Bearing, roller with bushing and seals 2 9 17215 | Bracket kit, depth/stability 1
2 T7107 | Lift link 2 10 T7216 | Fastener kit, torque arm/housing 2
3 T7133 | Torque arm, depth adjustment 1 11 T7217 | Fastener kit, linkage 4
4 T7148 | Wheel carriage, axle 1 12 T7218 | Fastener kit, carriage/housing 2
5 T7163 | Knob, depth/stability 1 13 T7219 | Bolt kit, rear wheel 2
6 T7195 | Spring, axle 2 14 T7220 | Wheel kit, rear, with roller bearing,
7 | T7213 | Control kit, depth/stability 1 bushing and seals 2
8 T7214 | Knob spring kit, depth/stability 1
NOTE: No. Req'd refers to the quantity used in a complete machine.
Please Order by Part Number "
+
<
N
©
Lo
©
=
22m
Parts Power Train and Tine Rotor - Model 244
V
Option:
Solid spike tine
NOTE: Sprockets are
double set screwed.
PARTS POWER TRAIN AND TINE ROTOR - MODEL 244
Item No. | Part No. | Description No. Regd | | Item No. | Part No. | Description No. Reqd
1 10301 | Sprocket, jackshaft, with key and spacer 1 15 T7205 | Belt keeper kit 1
2 T0302 | Sprocket, wheel, with set screws and key 1 16 T7206 | Idler arm kit, pulley 1
3 10303 | Sprocket, rotor, with set screws and key 1 17 T7207 | Idler pulley kit 1
4 T0307 | Master link for T0308 1 18 T7208 | Idler arm kit, chain 1
5 T0308 | Chain, #40 perma lube roller 1 19 T7209 | Idler sprocket kit, chain 1
6 T0315 | Bearing, 3/4” with lock collar 4 20 T7210 | Front wheel and shaft kit 1
7 T0317 | Bearing, 1” with lock collar 2 21 17211 | Tine set, closed spoon, 24 each 1
8 T0328 | V-pulley, A-4” with set screws and key 1 T7112 | Tine set, closed spoon, 6 each 4
9 T0332 | V-pulley, A-10" with set screws and key 1 22 T7212 | Tine/Spike fastener kit, 48 ea. bolts and nuts 1
10 T0336 | V-belt, A-44" special 1 T7103 | Tine/Spike fastener kit, 12 ea. bolts and nuts 4
11 T5185 | Stamping kit w/fasteners (for 3/4” bearing) 4 23 T7232 | Jackshaft, with key 1
12 T5786 | Stamping kit w/fasteners (for 1” bearing) 2 24 T7311 | Spike set, 24 each 1
13 T7157 | Rotor shaft, tine without bolts 1
14 T7204 | Fastener kit, engine 1
NOTE: No. Reg'd refers to the quantity used in a complete machine.
Please Order by Part Number
Parts Main Frame - Model 442
PARTS MAIN FRAME - MODEL 442
Item No. | Part No. | Description No. Reqd Item No. | Part No. | Description No. Reqd
1 T7144 | Weight, 36 Ibs., solid steel 2 7 T7123 | Weight, 18 Ibs., solid steel 4
2 T7118 | Housing with decals 1 T7109 | Decal kit 1
3 T7100 | Drive guard with decals 1
4 T7200 | Fastener kit, drive guard 1
5 T7201 | Latch kit, weight with hardware 4
NOTE: No. Reg'd refers to the quantity used in a complete machine.
Please Order by Part Number
и 23
Parts Handle and Control - Model 442
7
©
“o // Ó ©
©
Oty
PARTS HANDLE & CONTROL - MODEL 442
Item No. | Part No. | Description No. Reqd. | | Item No. | Part No. | Description No. Regd.
1 T0034 | Grip, clutch, 1 each 2 8 T7221 | Fastener kit, clutch control to handle 1
2 T5129 | Spring, clutch 1 9 T7222 | Clutch cable kit
3 17149 | Clutch control, with grips 1 (complete assy. except #15129) 1
м 4 T7113 | Handle with grips 1 я = = kit, rear wheel contr handle 1
Ч 5 17174 | Handle, control, rear wheel 1 car wheel control rod kit 1
+ 6 T7189 | Clutch cable 1 12 T7117 | Fastener kit, handle 1
@ 7 T7191 | Grips, pair 1
5
=
NOTE: No. Req'd refers to the quantity used in a complete machine.
д Please Order by Part Number
Parts Rear Wheel - Model 442
PARTS REAR WHEEL - MODEL 442
[tem No. [Part No. | Description No. Reqd. | | [tem No. | Part No. | Description No. Regd.
1 T0048 | Bearing, roller with bushing and seals 2 9 T7215 | Bracket kit, depth/stability 1
2 T7107 | Lift link 2 10 | 17216 | Fastener kit, torque arm/housing 2
3 T7119 | Torque arm, depth adjustment 1 11 | 17217 | Fastener kit, linkage 4
4 T7122 | Wheel carriage, axle 1 12 | T7124 | Fastener kit, carriage/housing 2
5 T7163 | Knob, depth/stability 1 13 T7219 | Bolt kit, rear wheel 2
6 T7195 | Spring, axle 2 14 | T7220 | Wheel kit, rear, with roller bearing,
7 17213 | Control kit, depth/stability 1 bushing and seals 2
8 17214 | Knob spring kit, depth/stability 1
NOTE: No. Req'd refers to the quantity used in a complete machine.
Please Order by Part Number
Parts Power Train and Tine Rotor - Model 442
NOTE: Sprockets are
double set screwed.
PARTS POWER TRAIN AND TINE ROTOR - MODEL 442
NOTE: No. Req'd refers to the quantity used in a complete machine.
Item No. | Part No. | Description No. Item No. | Part No. | Description No. Reqd
1 T0304 | with 1 17 T7205 | Belt keeper kit 1 |
wheel, with set screws and 1 18 T7206 | Idler arm kit, pulley 1
rotor, with set screws and 1 19 T7207 | Idler pulley kit 1
Master 1 20 T7208 | Idler arm kit, chain 1
in, #40 1 21 T7209 | Idler sprocket kit, chain 1
6 4” with lock collar 5 22 T7120 | Front wheel and shaft kit 1
7 ing, 1” wi collar 4 23 T7111 | Tine set, closed spoon, 42 each 1
8 -4” with set screws 1 T7112 | Tine set, closed spoon, 6 each 7
9 V -10” with set screws and 1 24 T7102 | Tine/Spike fastener kit, 96 ea. bolts and nuts 1
10 V-belt, A-44” 1 T7103 | Tine/Spike fastener kit, 12 ea, bolts and nuts 7
11 ing kit 4” beari 5 25 T7106 | Jackshaft, with key 1
(N 12 ing ki 1” bear 2 26 T7104 | Spike set, 42 each 1
Y 13 ine rotor 1 27 | T7105 | Stamping kit (for 1” bearing)
Ч 14 Outer rotor kit 2 with nuts and washers 4
т 15 14 | Center tine rotor 1 28 T7108 | Bearing, 1” (does NOT include lock collar) 2
к 16 Fastener kit, engine 1 |
=
Please Order by Part Number
26m
Toro Total Coverage Guarantee
A One-Year Limited Warranty
(A Two-Year Full Warranty for Residential Use)
What is Covered By This Express Warranty?
The Toro Company promises to repair any TORO product used for
commercial, institutional, or rental purposes if defective in materials or
workmanship for a period of one year from the date of purchase. The
cost of parts and labor are included, but the customer pays the
transportation cost. Transportation within a 15-mile radius of a TORO
ProLine Service Dealer is covered under this warranty for Riding
Products, Mid-size Mowers and Turf Maintenance Equipment.
What Products Are Covered By This Warranty?
The following products and their attachments are covered by this
warranty:
+ Z-Master Zero Radius Tractors
+ ProLine Mid-size Mowers
* Groundsmaster Riding Mowers
+ ProLine Hand-held Gas Products
Backpack Blowers
* Commercial WPM
* Turf Maintenance Equipment
+ Debris Management Equipment
How About Residential Use?
TORO products used for residential use are covered by a full two-year
warranty.
How Do You Get Warranty Service?
Should you feel your TORO product contains a defect in materials or
workmanship, contact the dealer who sold you the product or any
TORO ProLine Service Dealer. The Yellow Pages of your telephone
directory is a good reference source; look under TORO Commercial
Service Dealers. The Service Dealer will either arrange service at his/her
dealership or recommend another authorized Service Dealer who may
be more convenient. You may need proof of purchase (copy of
registration card, sales receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with a Service Dealer's analysis of
the defect in materials or workmanship or if you need a referral to a
TORO ProLine Service Dealer, please feel free to contact us at the
following address:
Toro Customer Service Department
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
612-888-8801 or 800-348-2424
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the maintenance
procedures described in the operator’s manual. Such routine
maintenance, whether performed by a dealer or by you, is at your own
expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except as described above. This
express warranty does not cover:
+ Cost of regular maintenance service or parts, such as filters, fuel,
lubricants, tune-up parts, blade sharpening, brake and clutch
adjustments.
* Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents, or
lack of proper maintenance.
* Repairs necessary due to improper fuel, contaminants in the fuel
system, or failure to properly prepare the fuel system prior to any
period of non-use over three months.
* Pickup and delivery charges for distances beyond a 15-mile radius
from a TORO ProLine Service Dealer.
All repairs covered by this warranty must be performed by a TORO
Service Dealer using Toro approved replacement parts.
The Toro Company is not liable for indirect or consequential
damages in connection with the use of the TORO Products covered
by this warranty, including any cost or expense of providing
substitute equipment or service during reasonable periods of
malfunction or non-use pending completion of repairs under this
warranty. Some states do not allow exclusions of incidental or
consequential damages, so the above exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Countries other than the United States or Canada
Customers who have purchased TORO products exported from the
United States or Canada should contact their TORO Distributor
(Dealer) to obtain guarantee policies for your country, province, or
state. If for any reason you are dissatisfied with your Distributor’s
service or have difficulty obtaining guarantee information, contact
the TORO importer. If all other remedies fail, you may contact us at
The Toro Company:
Sound - Model 244
Lwa
98.3
L.A
87
OPERATOR
Sound Test
Sound test conducted was in accordance with
79/113/EEC and was performed on 8 March 95
under the conditions listed.
General Condition; Partly Cloudy
Temperature: 52°F (11.1°C)
Wind Speed: 10 MPH (16kmh)
Wind Direction: S.W.
Humidity: 36%
24.9” Hg (631mm Hg)
Barometric Pressure:
Vibration - Model 244
Vibration Level 1.75g
Vibration level at the operators handles
0.19
were measured in the vertical, lateral, and
longitudinal directions using calibrated
vibration test equipment.
Tests were performed on 8 March 95
under the conditions listed:
General Condition: Partly Cloudy
Temperature: 52°F (11.1°C)
Wind Speed: 10 MPH (16 kmh)
Humidity: 36%
Barometric Pressure:24.9" Hg (631 mm Hg)
Sound - Model 442
Loa
LA
p
OPERATOR
Sound Test
Sound test conducted was in accordance with N/A
and was performed on N/A under the conditions
listed.
General Condition:
Temperature:
Wind Speed:
Wind Direction:
Humidity:
Barometric Pressure:
Vibration - Model 442
Vibration Level 1.75g
Vibration level at the operators handles
were measured in the vertical, lateral, and
longitudinal directions using calibrated
vibration test equipment.
Tests were performed on N/A under the
conditions listed:
General Condition:
Temperature:
Wind Speed:
Humidity:
Barometric Pressure:
For Sales and Service, contact dealer where purchased:
Phone
Toro
TORO 8111 Lyndale Avenue South
Bloomington, MN 55420-1196 USA
(612) 888-8801
800-348-2424
Record Your Purchase:
Model Number:
Serial Number:
Purchase Date:
Engine Model
Engine Serial No.
Form No. 01978137T (Ptd. in USA)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
