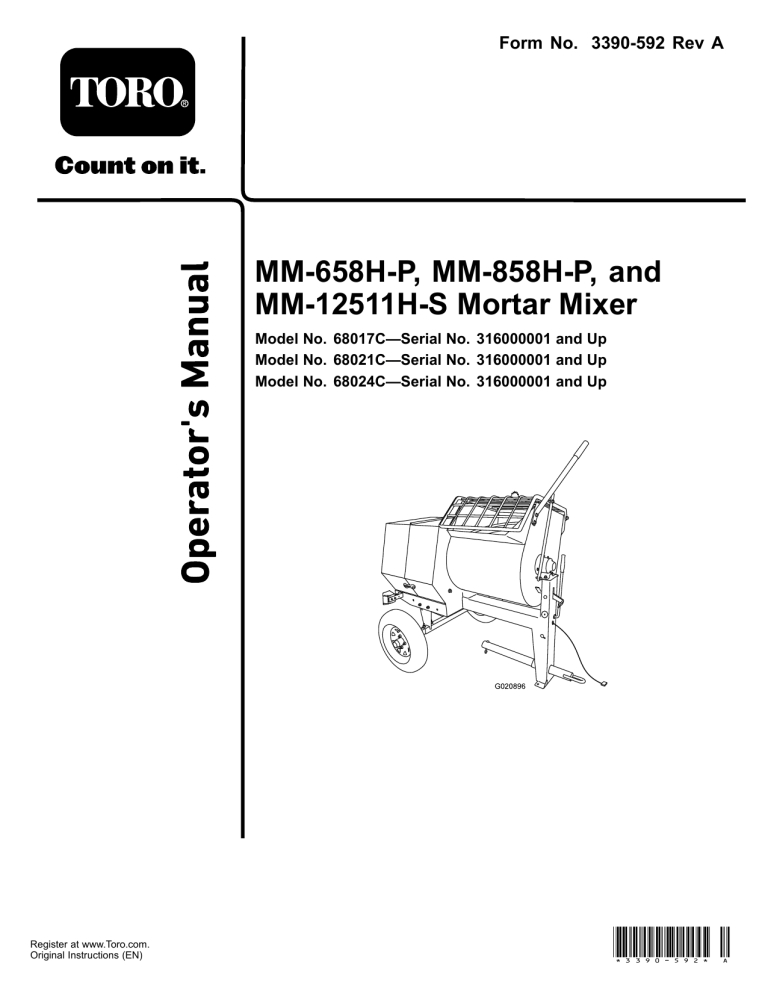

Form No. 3390-592 Rev A
MM-658H-P, MM-858H-P, and
MM-12511H-S Mortar Mixer
Model No. 68017C—Serial No. 316000001 and Up
Model No. 68021C—Serial No. 316000001 and Up
Model No. 68024C—Serial No. 316000001 and Up
G020896
Register at www.Toro.com.
Original Instructions (EN)
*3390-592* A
to: Administrator, NHTSA, 1200 New Jersey Avenue,
SE West Building, Washington, DC 20590. You can also
obtain other information about motor vehicle safety from
http://www.safercar.gov.
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Use of this product may cause exposure to
chemicals known to the State of California
to cause cancer, birth defects, or other
reproductive harm.
• To contact Transport Canada, you may call
1-800-333-0510 or (819) 994-3328; go to
http://www.tc.gc.ca/roadsafety/; write to: Road
Safety and Motor Vehicle Regulation Directorate,
Transport Canada, Tower C, Place de Ville, 330
Sparks Street, Ottawa, Ontario, K1A 0N5; or email
[email protected]
This spark ignition system complies with Canadian ICES-002.
Because in some areas there are local, state, or federal
regulations requiring that a spark arrester be used on the
engine of this machine, a spark arrester is available as
an option. If you require a spark arrester, contact your
Authorized Toro Service Dealer.
Genuine Toro spark arresters are approved by the USDA
Forestry Service.
Important: It is a violation of California Public
Resource Code Section 4442 to use or operate the engine
on any forest-covered, brush-covered, or grass-covered
land without a spark arrester muffler maintained in
working order, or the engine constricted, equipped, and
maintained for the prevention of fire. Other states or
federal areas may have similar laws.
The enclosed engine owner's manual is supplied for
information regarding the US Environmental Protection
Agency (EPA) and the California Emission Control
Regulation of emission systems, maintenance, and
warranty. Replacements may be ordered through the engine
manufacturer.
If you believe that your machine has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) if you live in the United States,
or Transport Canada if you live in Canada, in addition to
notifying The Toro Company.
If NHTSA or Transport Canada receives similar complaints,
it may open an investigation, and if it finds that a safety defect
exists in a group of machines, it may order a recall and remedy
campaign. However, NHTSA or Transport Canada cannot
become involved in individual problems between you, your
dealer, or The Toro Company.
• To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to http://www.safercar.gov; or write
© 2016—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA
All Rights Reserved
Introduction
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
This machine is designed to mix mortar, plaster, fireproofing
material, grout, and other small-grained Portland cement
products. A vehicle equipped with an appropriate pintle hitch
or ball hitch can tow the machine.
Figure 2
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
1. Safety-alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
You may contact Toro directly at www.Toro.com for product
safety and operation training materials, accessory information,
help finding a dealer, or to register your product.
Tire Information
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your product ready. Write the numbers in the space provided.
The DOT tire information is located on the side of each tire.
This information gives load and speed ratings. Replacement
tires should have the same or better ratings.
Note: The various machines in this manual have different
weights; refer to Specifications (page 13) to ensure that the
tires on your machine meet or exceed the weight requirements
of your machine.
G020900
1
2
Figure 1
1. Model and serial number
location
2. Vehicle identification
number (VIN) location
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety-alert symbol (Figure 2),
3
Contents
Troubleshooting ...........................................................46
Safety ........................................................................... 5
Safe Operating Practices........................................... 5
Setup ............................................................................ 8
1 Installing the Dump Handle ................................... 8
2 Installing the Tow Pole .......................................... 8
3 Installing the Safety Chain ...................................... 8
4 Adjusting the Mixing Paddles.................................. 9
Product Overview .........................................................10
Controls ...............................................................11
Specifications ........................................................13
Attachments/Accessories........................................13
Operation ....................................................................14
Think Safety First ...................................................14
Preparing to Tow the Machine..................................14
Extending the Axle—Belt-Drive Models ...................18
Towing the Machine ...............................................19
Preparing to Use the Machine...................................19
Opening and Closing the Cowl .................................20
Adding Fuel...........................................................20
Checking the Engine-Oil Level.................................22
Starting and Shutting Off the Engine.........................23
Controlling the Paddles ...........................................24
Mixing the Material.................................................25
Using the Drum .....................................................26
Maintenance .................................................................27
Recommended Maintenance Schedule(s) ......................27
Premaintenance Procedures ........................................28
Preparing the Machine for Maintenance.....................28
Disconnecting the Spark-Plug Wire...........................28
Removing and Installing the Divider Plate ..................28
Lubrication ...............................................................29
Lubricating the Bearings and Seals ............................29
Engine Maintenance ..................................................30
Servicing the Air Cleaner .........................................30
Changing the Engine Oil .........................................31
Servicing the Spark Plug ..........................................32
Servicing the Spark Arrester.....................................33
Removing and Installing the Engine ..........................34
Fuel System Maintenance ...........................................35
Servicing the Fuel System ........................................35
Drive System Maintenance .........................................36
Servicing the Gear Case—Gear-Case Model...............36
Belt Maintenance ......................................................38
Servicing the Belts—Belt-Drive Models.....................38
Replacing the Belts—Belt-Drive Models ....................39
Aligning the Pulleys—Belt-drive Models....................41
Replacing the Light Bulbs............................................41
Replacing the Rear-Facing Taillight Bulbs...................41
Replacing the Side-Facing Taillight Bulbs ...................41
Replacing the Front Amber Bulbs .............................42
Maintaining the Mixing Paddles....................................42
Adjusting the Paddles..............................................42
Cleaning ...................................................................44
Cleaning the Machine..............................................44
Storage ........................................................................44
Storing the Machine................................................44
4
Safety
• Never let children or untrained people operate or service
Improperly using or maintaining the machine can result
in injury. To reduce the potential for injury, comply with
these safety instructions and always pay attention to the
safety-alert symbol , which means: Caution, Warning,
or Danger—personal safety instruction. Failure to
comply with the instruction may result in personal injury
or death.
•
the equipment. Local regulations may restrict the age of
the operator.
The owner/user can prevent and is responsible for
accidents or injuries occurring to people or damage to
property.
Towing
Check with your local county or state towing safety
regulations, in addition to meeting Transport Canada (or
Department of Transportation if in the U.S.) towing safety
regulations, before towing the machine.
• In order to reduce the possibility of an accident while
transporting the machine on public roads, make sure
the towing vehicle is mechanically sound and in good
operating condition.
• Shut off the engine before transporting the machine.
• When towing with a ball hitch, ensure that the ball hitch
you are using is the proper size for the hitch coupler on
the machine.
• When towing with a pintle hitch, ensure that the eye of
the tow pole is the correct dimension for the pintle hook.
• Inspect the hitch and coupling for wear. Never tow the
machine with damaged or defective hitches, couplings,
chains, or other components.
• Check the tire-air pressure on the towing vehicle and the
machine.
• Check the tire tread and sidewall for damage and wear.
• Properly attach the safety chains to the towing vehicle.
• Ensure that the directional and brake lights are working
properly.
• Ensure that the directional, backup, and brake lights of
the tow vehicle are working properly.
• Before towing check to make certain your machine is
correctly and securely attached to the towing vehicle.
• Ensure that the safety chains are properly secured to the
vehicle, and leave enough slack for turning.
• Do not carry any material in the machine when towing.
• Avoid sudden starts and stops. This can cause skidding,
or jackknifing. Smooth, gradual starts and stops will
improve towing.
• Avoid sharp turns to prevent rolling. Tow only with a
vehicle that has a hitch designed for towing. Do not
attach towed equipment except at the hitch point.
• Do not tow the machine faster than 88 km/h (55 mph).
• Use caution when backing up; use a spotter outside the
vehicle to guide you.
• Do not allow anyone to sit or ride on the machine.
• Disconnect the machine from the tow vehicle before
using it.
• Ensure that the you secure the machine from rolling
while the machine is parked.
Safe Operating Practices
This machine is capable of amputating hands. Always follow
all safety instructions to avoid serious injury or death.
WARNING
Machining or handling stone, masonry, concrete,
metal, and other materials can generate dust, mists,
and fumes containing chemicals, such as silica,
known to cause serious or fatal injury or illness,
such as respiratory disease, silicosis, cancer, birth
defects, or other reproductive harm.
• Control dust, mist, and fumes at the source
where possible. Use water for dust suppression,
when feasible.
• Use good work practices and follow the
recommendations of the manufacturer
or supplier, CCOHS, OSHA, and other
occupational and trade associations.
• Always follow respiratory precautions.
• When the hazards from inhalation cannot be
eliminated, the operator and any bystanders
should wear a respirator approved by CCOHS or
OSHA for the material being handled.
WARNING
Engine exhaust contains carbon monoxide, an
odorless, deadly poison that can kill you.
Do not run the engine indoors or in an enclosed
area.
Training
• Read the Operator's Manual and other training material. If
the operator(s) or mechanic(s) cannot read or understand
the information, it is the owner's responsibility to explain
this material to them.
• Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
• All operators and mechanics should be trained. The
owner is responsible for training the users.
5
Preparation
Operation
Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
• Use only accessories and attachments approved by the
manufacturer.
• Wear personal-protective equipment and appropriate
clothing including:
– Hard hat
– Respirator or dust mask
– Eye protection
– Hearing protection
– Safety shoes
– Long pants
– Shirt with long sleeves buttoned at the wrists
– Tight-fitting gloves without drawstrings or loose cuffs
• Tie back long hair and do not wear jewelry.
• Operating the equipment safely requires the full attention
of the operator. Do not wear radio or music headphones
while operating the machine.
• Use extra care when handling fuels. They are flammable
and the vapors are explosive. Use the following practices
when handling fuel:
– Use only an approved fuel container.
– Never remove the fuel cap or add fuel with the engine
running.
– Allow the engine to cool before refueling.
– Do not smoke.
– Never refuel or drain the machine indoors.
– Replace the fuel cap and tighten it securely.
– Keep the container nozzle in contact with the tank
during filling.
– Never fill a container while it is inside a vehicle, trunk,
pick-up bed, or any surface other than the ground.
– Never store the machine or fuel container inside
where there is an open flame, such as near a water
heater or furnace.
– If fuel is spilled, wipe it off the engine and equipment.
• Ensure that the machine is on a level surface before
operating the machine.
• Ensure that you secure the machine to prevent unintended
movement.
• Before every use:
– Inspect the coupler, ball, and hitch.
– Ensure that all lights are functioning properly (if
equipped with a light kit).
– Ensure that the tires are properly inflated as
recommended.
– Ensure that the lug nuts are tight and torqued
properly.
– Ensure that the machine is properly secured.
• Never run an engine in an enclosed or poorly ventilated
•
•
•
area.
Only operate the machine in good lighting conditions.
Before starting the machine, make sure that there are no
persons or obstacles near or under the machine.
Shut off the engine before leaving the machine for any
reason.
Never leave a running machine unattended. Always
shut off the engine and verify that all moving parts have
stopped.
• Ensure that the machine is secure from movement or
•
•
•
•
•
•
•
•
•
•
•
•
•
keep it attached to the towing vehicle when it is not in
use, to prevent it from rolling.
Avoid prolonged breathing of exhaust fumes.
Engine-exhaust fumes can cause sickness or death.
Keep hands away from any moving parts. Keep feet away
from the tires and the front post.
Do not operate the machine under the influence of
alcohol or drugs.
Ensure that the area is clear of other people or pets before
operating the machine. Stop the machine if anyone enters
the area.
Never place your hands or any solid object into the drum
when the machine is in operation.
Do not touch parts which may be hot from operation.
Allow them to cool before attempting to maintain, adjust,
or service the machine.
Never move the machine while the engine is running.
Keep the cowl closed and latched during operation.
Ensure that all the guards and shields are securely in place
before operating the machine.
Disconnect the spark-plug wire and keep it away from the
spark plug to prevent accidental starting while maintaining
the machine.
If the mixing paddles strike a foreign object or if the
machine should start making an unusual noise or
vibration, shut off the engine and empty the drum. Wait
for all moving parts to come to a complete stop and cool.
Vibration is generally a warning of trouble. Disconnect
the spark-plug wire and inspect for clogging or damage.
Clean and repair and/or replace damaged parts.
Do not change the engine-governor setting or overspeed
the engine.
Lightning can cause severe injury or death. If you see
lightning or hear thunder in the area, do not operate the
machine; seek shelter.
Maintenance and Storage
• Before performing maintenance, do the following:
– Park the machine on level ground.
6
– Shut off the engine. Wait for all movement to stop
before adjusting, cleaning, or repairing.
– Let the engine cool before performing maintenance
or storing.
– Remove the spark-plug wire before making any
repairs.
– Disengage all power and operation controls.
• Never lubricate, service, repair, or adjust the machine
while it is running.
• Keep equipment materials clear from the muffler and
engine to help prevent fires. Clean up any oil or fuel
spillage.
• Never allow untrained personnel to service the machine.
• Keep hands, feet, and clothing away from moving parts.
If possible, do not make adjustments with the engine
running.
• Keep all parts in good working condition and all hardware
tightened. Replace all worn or damaged decals.
• Remove any buildup of grease, oil, or debris from the
machine.
• Shut off the engine and inspect the machine if a foreign
object enters the drum or causes another obstruction.
Make any necessary repairs before starting the machine.
• Do not tamper with safety devices.
• Ensure that the machine is secure from movement before
you use it.
• Keep all nuts, bolts, screws, and hose clamps securely
tightened. Keep equipment in good condition.
• Use only genuine Toro replacement parts to ensure that
the original standards are maintained.
7
Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
Description
Use
Qty.
Dump handle
Bolt
Nut
1
2
2
Install the dump handle.
Tow pole kit (sold separately)
1
Install the tow pole.
Safety chain
Connecting link
1
2
Install the safety chain.
No parts required
–
Adjust the mixing paddles.
1. Remove the bolt and nut from the tow pole (Figure 3).
1
1
2
3
Installing the Dump Handle
4
Parts needed for this procedure:
1
Dump handle
2
Bolt
2
Nut
5
6
G019804
2
Figure 3
Installing the Tow Pole
Tow pole kit (sold separately)
78.7 cm (31 inches) or 127 cm
(50 inches)
50 mm (2 inch) ball—forged
78.7 cm (31 inches) or 127 cm
(50 inches)
Pintle
78.7 cm (31 inches) or 127 cm
(50 inches)
6. Nut
Note: If the self-locking nylon insert in the locknut
wears with use, replace the nut with a new Grade 5 or
Grade 8 locknut.
The machine has the following tow pole options:
50 mm (2 inch) ball—stamped
5. Frame fitting
4. Thread the nut onto the bolt and tighten them until
they are tight against the frame fitting (Figure 3).
Note: The tow pole is purchased separately and includes the
nut and bolt needed for installation.
Length
2. Front post
3. Bolt
3. Insert the bolt through the holes in the fitting and the
pole (Figure 3).
Installing the Tow Pole to the Machine
Hitch Type
4. Bolt hole
2. Slide the tow pole forward and align the hole in the
pole with the hole in the frame fitting (Figure 3).
Parts needed for this procedure:
1
1. Tow pole
8
3
4
Installing the Safety Chain
Adjusting the Mixing Paddles
Parts needed for this procedure:
No Parts Required
1
Safety chain
2
Connecting link
Procedure
If the mixing paddles and wipers need adjustment, adjust the
paddles and wipers; refer to Adjusting the Paddles (page 42)
Installing the Safety Chain to the
Machine
1. Form a hook on the end of a bendable piece of rod
or stiff wire (not included), and insert it through both
keyholes in the front post of the machine (Figure 4).
A
B
1
2
3
C
D
4
3
g019883
Figure 4
1. Keyhole
3. Safety chain
2. Rod or wire (not included)
4. Connecting link
2. Attach the safety chain to the length of rod or wire
(Figure 4).
3. Pull the rod, or wire, and the safety chain through both
keyholes (Figure 4).
Note: Ensure that approximately equal lengths of
safety chain extend from either side of the front post.
Installing the Connecting Links
1. Align the connecting link to the last link in one end of
the safety chain (Figure 4).
2. Insert the connecting link through the chain link until
the connecting link snaps closed (Figure 4).
3. Repeat steps 1 and 2 to install the other connecting link
in the other end of the safety chain.
9
Product Overview
3
1 2
13
15 14
12
11 10 9 8
13. Drum
14. Chute
15. Axle
1. Dump handle
7. Light (2)
13. Safety-chain
keyhole
2. Bag splitter
8. Wheel
assembly
14. Front post
4. Bag splitter
10. Tow pole
16. Wheel
assembly
3. Grate
4. Front cowl
5. Rear cowl
9. Clutch lever
10. Drum
11. Tow pole
5. Dump handle
11. Lighting wire
harness
12. Safety-chain
keyhole
17. Light (2)
6. Cowl latch
12. Lighting wire
harness
18. Cowl latch
15
14
1
13
12
2
3
4
11
5
10
9
8 7
6
G022173
Figure 6
Right side (Model 68024C)
1. Dump handle
6. Safety-chain
keyhole
11. Light (2)
2. Drum
7. Tow pole
12. Cowl latch
3. Drum latch
4. Front post
8. Grate lift arm
9. Chute
13. Rear cowl
14. Front cowl
5. Lighting wire
harness
10. Wheel
assembly
G022174
Figure 7
Left side (Model 68024C)
G020897
Figure 5
Right side (Models 68017C and 68021C)
7. Clutch lever
8. Drum latch
9. Front post
7
13
9
10
11
12
6
14
8
16
5
15
7
18
17
4
16
6
6. Grate lift arm
3
4
5
1. Rear cowl
2. Front cowl
3. Grate
2
1
15. Grate
10
15. Drum latch
16. Grate lift arm
Controls
Drum Latch
Become familiar with all the controls before you start the
engine and operate the machine.
The drum latch secures the drum to the mix position (upright)
for mixing operations and when transporting the machine.
Clutch Lever
The clutch lever engages and disengages engine power to the
paddles.
• Belt-drive models (models 68017C and 68021C)
1
G019877
Figure 10
1. Drum latch
Dump Handle
1
Use the dump handle to rotate the drum to the dump position
and to rotate the drum to the mix position (upright).
G019875
Figure 8
Belt-drive models
1. Clutch lever
• Gear-case model (model 68024C)
1
1
G019878
G019874
Figure 11
Figure 9
Gear-case model
1. Dump handle
1. Clutch lever
11
Engine Controls
Choke Lever
5
Use the choke lever (Figure 13) to start a cold engine. Before
pulling the recoil-start handle, move the choke lever to the
closed position. Once the engine is running, move the choke
lever to the open position. Do not use the choke if the engine
is already warmed up or the air temperature is high.
4
Throttle Lever
3
The throttle lever (Figure 13) controls the speed (rpm) of the
engine. It is located next to the choke lever. It sets the engine
speed and therefore can increase and decrease the rotation
speed of the mixing paddles. For best performance, set this
control to the fast position when mixing material.
6
2
1
Engine On/Off Switch
7
The ON/OFF switch (Figure 14) allows the operator of the
machine to start and shut off the engine. This switch is
located on the front of the engine. Rotate the ON/OFF switch
to the ON position to start and run the engine. Rotate the
ON/OFF switch to the OFF position to shut off the engine.
8
G019744
Figure 12
1. Recoil-start handle
5. Fuel cap
2. Fuel valve
6. Oil cap/dipstick
3. Choke lever
7. Oil-drain plug
4. Throttle lever
8. On/Off switch
OFF
ON
Fuel Valve
The fuel valve (Figure 13) is located underneath the choke
lever. Move the lever for the fuel valve to the ON position
before attempting to start the engine. When you have finished
mixing, shut off the engine and move the fuel-valve lever to
the OFF position.
1
OFF
ON
1
2
G021 103
Figure 14
1. OFF position
2. ON position
3
2
Recoil-Start Handle
To start the engine, pull the recoil-start handle (Figure 12)
quickly to turn the engine over. The engine controls described
above must all be set correctly for the engine to start.
Oil-Level Switch
The oil-level switch is located inside the engine, and it does
not allow the engine to run in the event the oil level is below
the safe operating limit.
G018792
Figure 13
1. Fuel valve
2. Choke lever
3. Throttle lever
12
Specifications
Note: Specifications and design are subject to change without notice.
Machine Specifications
Model
68017C
68021C
68024C
Batch Capacity
0.17 cubic m (6.0 cubic ft)
0.23 cubic m (8.0 cubic ft)
0.34 cubic m (12.0 cubic ft)
Total Volume
0.20 cubic m (6.9 cubic ft)
0.25 cubic m (9.0 cubic ft)
0.42 cubic m (14.8 cubic ft)
Drum Material
Polyethylene
Polyethylene
Steel
Length
(without tow pole)
163 cm
(64 inches)
193 cm
(86 inches)
205.7 cm
(81 inches)
Width
86 cm
(34 inches)
86 cm
(34 inches)
142.2 cm
(50 inches)
Height
137 cm
(54 inches)
137 cm
0(54 inches)
150 cm
(59 inches)
Weight
241 kg
(530 lb)
266 kg
(585 lb)
508 kg
(1120 lb)
Axle
86 to 117 cm (34 to 46 inches)
extendable
86 to 117 cm (34 to 46 inches)
extendable
142 cm (56 inches)
fixed
Engine
Honda® GX240
Honda® GX240
Honda® GX340
Drive
belt
belt
gearbox
Attachments/Accessories
A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its
capabilities. Contact your Authorized Service Dealer or Distributor.
To best protect your investment and maintain optimal performance of your Toro equipment, count on Toro genuine parts.
When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specification of our equipment.
For peace of mind, insist on Toro genuine parts.
13
Operation
Think Safety First
Carefully read all safety instructions and symbols in the
safety section. Knowing this information could help you or
bystanders avoid injury.
CAUTION
This machine produces sound levels that can cause
hearing loss through extended periods of exposure.
Wear hearing protection when operating this
machine.
G019741
The use of protective equipment for eyes, ears, hands, feet,
and head is recommended.
1
Figure 16
2
5. Extend the axle (Models and 68021C); refer to
Extending the Axle—Belt-Drive Models (page 18).
G009027
Figure 15
1. Wear safety glasses.
2. Wear hearing protection.
Preparing to Tow the Machine
Important: Ensure that your tow vehicle has towing
capacity for the weight of the machine.
Important: Use a Class 2 or larger receiver.
Note: Ensure that your tow vehicle has the appropriate hitch
to tow the machine; options include a 50 mm (2 inch) ball
hitch or a pintle hitch.
Note: Ensure that the electrical connector of the tow vehicle
is compatible with the electrical connector of the machine.
The machine uses a standard 4-flat plug. If your tow vehicle
has a different type of plug, obtain an adapter from an
automotive parts store.
1. Ensure the engine is shut off, the fuel valve is off, and
the drum is empty.
2. If the drum has accumulated any water, dump the
drum; refer to Dumping the Drum (page 26), steps 1,
3, 4, and 5.
3. Using the dump lever, position the drum so that it is in
the mix position (upright) and locked.
4. Close the engine cowl and secure the cowl latches
(Figure 16).
14
Checking the Tires and Wheels
2. Ensure that the tires are inflated to the correct air
pressure. The following Tire-Air Pressure table shows
the appropriate air pressure for the tires as installed at
the factory.
Service Interval: Before each use or daily—Inspect the tires
and wheels.
After each use—Torque the lug nuts to 108 to 122
N∙m (80 to 90 ft-lb) after towing.
Important: Always check the information
on the actual tires for the correct air pressure
requirement.
WARNING
Important: The most common cause of tire
trouble is underinflation. Maintain full air
pressure.
Failure to maintain correct tire pressure may result
in tire failure and loss of control, resulting in
property damage and serious injury or death.
Tire Air Pressure
• Check the tire pressure frequently to ensure
proper inflation. If the tires are not inflated to
the correct pressure, they will wear prematurely.
• Inspect the tire condition before towing and
after any operating accident.
Model
Tire pressure
68017C
Max 414 kPa (60 psi)
68021C and 68024C
Max 241 kPa (35 psi)
3. Ensure that the lug nuts are torqued to 108 to 122
N∙m (80 to 90 ft-lb). Check the torque of the lug nuts
initially and after towing.
The DOT tire information is located on the side
of each tire. This information gives load and speed
ratings. Replacement tires should have the same
or better ratings. For more information go to
http://www.nhtsa.gov/Vehicle+Safety/Tires.
Note: Torque the lug nuts in the sequence shown in
Figure 19.
Note: The various machines in this manual have different
weights; refer to Specifications (page 13) to ensure that the
tires on your machine meet or exceed the weight requirements
of your machine.
1
3
4
2
1. Visually inspect the tires for damage and wear (Figure
17 and Figure 18)
G021 107
Figure 19
G020836
Figure 17
1. Example of tire wear caused by underinflation
Figure 18
1. Example of tire wear caused by overinflation
15
Hitching a Machine with a Stamped Ball
Coupler (optional kit)
Hitching a Machine with a Forged Ball
Coupler (optional kit)
1. Apply chassis grease to the socket of the coupler and
the area of the clamp that contacts the ball.
1. Apply removable thread-locking compound to the
threads of the coupler bolt to prevent the coupler
handle from coming loose (Figure 21).
2. Oil the pivot points and sliding surfaces of the coupler
with SAE 30 motor oil.
Important: Apply thread-locking compound as
needed in the future.
3. Open the coupler latch (Figure 20).
A
A
1
2
B
3
5
4
C
B
D
2
1
G019807
Figure 21
C
1. Coupler handle
4. Bolt
2. Coupler
5. Hitch ball
3. Clamp
2. Apply chassis grease to the socket of the coupler and
the area of the clamp that contacts the ball.
G020359
3. Push the coupler bolt up through the coupler clamp
and the coupler top, and connect the coupler handle to
the bolt (Figure 21).
Figure 20
1. Bail
2. Safety pin
4. Position the coupler so that the socket is on top of the
hitch ball and the clamp is under the ball.
4. Position the coupler on top of the hitch ball (Figure 20).
5. Turn the coupler handle clockwise to thread it onto the
bolt until it is secure (Figure 21).
5. Close the coupler latch (Figure 20).
6. Open the bail on the safety pin, and insert the pin
through the hole in the latch (Figure 20).
Note: Use a wrench to keep the bolt from spinning.
6. Connect the wire plug of the tow vehicle to the wire
plug of the machine.
7. Rotate the free end of the bail over the end of the safety
pin that is protruding through the latch (Figure 20).
8. Connect the wire plug of the tow vehicle to the wire
plug of the machine.
16
Hitching a Machine with a Pintle Hitch
Coupler (optional kit)
A
1
1. Remove the pin from the pintle hitch and open it
(Figure 22).
B
2
3
4
C
D
G020084
Figure 23
1. Hitch pin
3. Pin-hitch coupler
2. Hairpin cotter
4. Pin/clevis-hitch receiver
2. Insert a 19 mm (3/4 inch) or 22 mm (7/8 inch) hitch
pin through the holes in the coupler and the receiver
hitch (Figure 23).
3. Insert a hairpin cotter through the hole in the bottom
of the hitch pin (Figure 23).
4. Connect the wire plug of the tow vehicle to the wire
plug of the machine.
G019809
Figure 22
Connecting the Safety Chains to the
Tow Vehicle
2. Position the ring on the tow pole onto the hook of the
pintle hitch (Figure 22).
Connect the safety chain to the machine and the tow vehicle
as follows:
3. Close the top of the pintle hitch and secure it with the
pin (Figure 22).
1. Pull the safety chain through the slots in the keyholes
located in the front post of the machine, so that the
lengths on each side are equal (Figure 24).
4. Connect the wire plug of the tow vehicle to the wire
plug of the machine.
2. Cross both lengths of chain under the tow pole.
Hitching a Machine with a Pin Hitch
Coupler (optional kit)
Note: Crossing the chains decreases the chances of
the front of the machine dropping to the ground if the
hitch does not hold the connection.
1. Position the front of the pin-hitch coupler so that it
is located between the top and bottom plates of the
pin/clevis hitch of the tow vehicle, and ensure that the
holes are aligned (Figure 23).
17
2
1
G020828
Figure 26
Note: The machine uses a standard 4-flat plug. If your tow
vehicle has a different type of plug, obtain an adapter from an
automotive-parts store.
3
Important: Routinely check the lights to ensure that
they are working properly, including the tail lights, brake
lights, and each appropriate turn signal.
G021 177
Figure 24
1. Connecting links
Checking the Lights
3. Chain crossed under tow
pole
• Ensure that the tail lights of the machine illuminate when
2. Keyholes in front post
you turn on the headlights of tow vehicle.
• Ensure that the brake lights of the machine illuminate
3. Connect each length of chain to the safety
chain-mounting point on the tow vehicle with the
connecting links (Figure 25).
when you press the brake pedal of the tow vehicle.
• Ensure that the appropriate turn signal flashes when you
operate the corresponding turn signal of the tow vehicle.
Important: Ensure that the chain has enough
slack for turning around corners when towing the
machine.
Extending the Axle—Belt-Drive
Models
Note: Stow the excess chain inside the bottom of the
front post by pushing it into the keyholes and latching
the appropriate links into the keyhole slots.
Models 68017C and 68021C
WARNING
1
The machine is not stable when towing it with the
axle in the narrow position.
2
Tow the machine with the axle in the wide position.
3
Important: Adjust the axle to the narrow position only
to move the machine through a narrow access point,
such as the gate of a fence or the doorway of a building.
Preparing to Change the Axle Width
1. Move the machine to a level job-site surface.
G021 178
2. Disconnect the machine from the tow vehicle.
Figure 25
1. Connecting link
3. Ensure that the machine is secure from movement
before you use it.
3. Chain link
2. Safety chain mounting
point on tow vehicle
4. Ensure that the drum is empty and in the mix position
(upright).
5. Ensure that the drum latch is engaged and that the
drum does not rotate toward the dump position.
Connecting the Lighting Wire Harness
Connect the electrical plug of the machine with the electrical
plug of the tow vehicle, as shown in Figure 26.
18
Adjusting the Axle Width
• Slide each side of the axle inward to the narrow
WARNING
•
Mechanical or hydraulic jacks may fail to support
the machine and cause serious injury.
position (Figure 28).
Slide each side of the axle outward to the wide
(tow) position (Figure 28).
6. Align the holes of the inner axle with the holes of the
outer axle.
Use jack stands when supporting the machine.
7. Insert the bolts through the axle holes (Figure 28).
8. Thread the nuts onto the bolts, and torque the nuts
to 87 N∙m (64 ft-lb).
1. Align a jack with an adequate lift height and weight
capacity under the axle; refer to Specifications (page
13).
Towing the Machine
2. Lift the machine until the tires are off the ground.
3. Use a jack stand at each support point on the rear
frame extension (Figure 27).
WARNING
Towing the machine at high speed increases the
risk of a hitch malfunction and tire failure. Higher
speeds also increase the momentum of the machine
and braking distance. If the machine becomes
detached from the tow vehicle at high speed, it
could cause damage to property, or injury or death
to bystanders.
Do not exceed 88 km/h (55 mph) when towing the
machine. For poor road conditions or inclement
weather, reduce speed accordingly.
1
WARNING
G020019
Towing the machine with material in the drum
increases the risk of a hitch malfunction and tire
failure. In addition, material could bounce out of
the drum and hit other vehicles and/or people.
Material in the drum increases the weight, which
affects momentum and braking distance.
Figure 27
1. Support point (2)
4. Remove the bolts and nuts that secure the inner axle to
the outer axle (Figure 28).
1
2
3
3
4
Do not tow the machine with material in the drum.
• Review and understand Safe Operating Practices (page 5).
• Test the brakes of the tow vehicle before towing.
• Avoid sudden starts and stops while towing the machine.
Preparing to Use the Machine
5
5
6
• Review all of the safety decals on the machine.
• Use a hard-hat, hearing protection, a shirt with long
G020020
Figure 28
1. Wide position (towing)
4. Nut (narrow position)
2. Narrow position
5. Bolt (wide position)
3. Nut (wide position)
6. Bolt (narrow position)
•
5. Align the inner axle to the desired position as follows:
•
19
sleeves buttoned at the wrists, tight-fitting gloves without
draw strings or loose cuffs, eye protection, and a dust
mask or respirator. A mesh visor alone does not provide
sufficient eye protection; supplement with protective
glasses.
Ensure that you are familiar with the safety regulations
and shutdown procedures described in the Operator’s
Manual and the Engine Owner’s Manual.
Ensure that all guards are in place and in good condition.
• Ensure that the paddles are in place and in good
4. Rotate the rear cowl up and forward until it is fully
positioned on top of the front cowl (Figure 29).
condition.
• Check the fuel and oil levels of the engine.
• When preparing to mix material:
Closing the Cowl
1. Rotate the rear cowl rearward and down until the
receiver at the bottom center of the cowl is aligned with
the V-fitting and flush on the frame of the machine
(Figure 29).
1. Move the machine to a level job-site surface.
2. Remove the machine from the tow vehicle.
3. Ensure that the machine is secure from movement
before you use it.
2. At the back of the machine, grasp the ring of the latch
and pull it on to the latch anchor on the rear cowl.
4. Ensure that the drum is in the mix position
(upright).
3. At the side of the machine, grasp the ring of the latch
and pull it onto the latch anchor on the rear cowl.
5. Ensure that the drum latch is engaged and that the
drum does not rotate toward the dump position.
4. Repeat step 3 on the opposite side of the machine
(Figure 29).
Opening and Closing the Cowl
Adding Fuel
Opening the Cowl
• For best results, use only clean, fresh (less than 30 days
1. At the side of the machine where the front cowl and
rear cowl meet, grasp the ring of the latch and pull it
off from the latch anchor on the rear cowl (Figure 29).
old), unleaded gasoline with an octane rating of 87 or
higher ((R+M)/2 rating method).
• Ethanol: Gasoline with up to 10% ethanol (gasohol)
A
or 15% MTBE (methyl tertiary butyl ether) by volume
is acceptable. Ethanol and MTBE are not the same.
Gasoline with 15% ethanol (E15) by volume is not
approved for use. Never use gasoline that contains
more than 10% ethanol by volume, such as E15
(contains 15% ethanol), E20 (contains 20% ethanol), or
E85 (contains up to 85% ethanol ). Using unapproved
fuel may cause performance problems and/or engine
damage which may not be covered under warranty.
B
1 2
• Do not use fuel containing methanol.
1
• Do not store fuel either in the fuel tank or fuel containers
C
D
over the winter unless a fuel stabilizer is used.
• Do not add oil to fuel.
3
4
G019879
Figure 29
1. Latch
2. Latch anchor
3. Receiver
4. V-fitting
2. Repeat step 1 on the opposite side of the machine.
3. At the back of the machine where the rear cowl meets
the frame of the machine, grasp the ring of the latch
and pull it off from the latch anchor on the cowl
(Figure 29).
20
DANGER
WARNING
In certain conditions, fuel is extremely flammable
and highly explosive. A fire or explosion from fuel
can burn you and others and can damage property.
Fuel is harmful or fatal if swallowed. Long-term
exposure to vapors can cause serious injury and
illness.
• Fill the fuel tank outdoors, in an open area, when
the engine is cold. Wipe up any fuel that spills.
• Avoid prolonged breathing of vapors.
• Keep face away from nozzle and fuel tank or
conditioner bottle opening.
• Never fill the fuel tank inside an enclosed trailer.
• Do not fill the fuel tank completely full. Add
fuel to the fuel tank until the level is 6 to 13 mm
(1/4 to 1/2 inch) below the bottom of the filler
neck. This empty space in the tank allows the
fuel to expand.
• Avoid contact with skin; wash off spillage with
soap and water.
Using Stabilizer/Conditioner
Use a fuel stabilizer/conditioner in the machine to provide
the following benefits:
• Never smoke when handling fuel, and stay away
from an open flame or where fuel fumes may be
ignited by a spark.
• Keeps fuel fresh during storage of 90 days or less. For
longer storage it is recommended that the fuel tank be
drained.
• Store the fuel in an approved container and keep
it out of the reach of children. Never buy more
than a 30-day supply of fuel.
• Cleans the engine while it runs
• Do not operate without entire exhaust system in
place and in proper working condition.
which causes hard starting
• Eliminates gum-like varnish buildup in the fuel system,
Important: Do not use fuel additives containing
methanol or ethanol.
Add the correct amount of gas stabilizer/conditioner to
the gas.
DANGER
In certain conditions during fueling, static
electricity can be released causing a spark which
can ignite the fuel vapors. A fire or explosion from
fuel can burn you and others and can damage
property.
Note: A fuel stabilizer/conditioner is most effective
when mixed with fresh fuel. To minimize the chance of
varnish deposits in the fuel system, use fuel stabilizer at
all times.
• Always place fuel containers on the ground away
from your vehicle before filling.
• Do not fill fuel containers inside a vehicle or on
a truck or trailer bed because interior carpets
or plastic truck-bed liners may insulate the
container and slow the loss of any static charge.
• When practical, remove gas-powered equipment
from the truck or trailer and refuel the equipment
with its wheels on the ground.
• If this is not possible, then refuel such equipment
on a truck or trailer from a portable container,
rather than from a fuel-dispenser nozzle.
• If you must use a fuel-dispenser nozzle, keep the
nozzle in contact with the rim of the fuel tank
or container opening at all times until fueling is
complete.
21
Filling the Fuel Tank
1
Model(s)
Fuel tank capacity
68017C and 68021C
5.3 L (1.40 US gallons)
68024C
6.1 L (1.61 US gallons)
1. Park the machine on a level surface, shut off the engine,
and allow the engine to cool.
2. Clean around the fuel cap and remove it (Figure 30).
1
G020679
Figure 31
1. Maximum fuel level
4. Install the fuel cap securely (Figure 30).
G019799
Figure 30
5. Wipe up any fuel that may have spilled.
1. Fuel cap
Checking the Engine-Oil Level
3. Add unleaded gasoline to the fuel tank, until the level
is at the bottom of the maximum fuel level, as shown
in Figure 31.
Service Interval: Before each use or daily
Important: Use 4-cycle engine oil that meets or exceeds
the requirements for API service category SJ, SL, SM,
or higher.
Important: This space in the tank allows fuel to
expand. Do not fill the fuel tank completely full.
Model(s)
Crankcase capacity
68017C, 68021C, and 68024C
1.1 L (1.2 US qt)
Important: If the oil level in the crankcase is too low
or too high and you run the engine, you may damage
the engine. This type of damage is not covered by the
warranty.
Note: Use SAE 10W-30 for general use. You can use
the other viscosities shown in the chart when the average
temperature in your area is within the indicated range (Figure
32).
22
30
5W - 30 / 10W - 30
0
20
40
-20 -10 0
60
10
80
20
30
100 F
o
40 C o
g013375
Figure 32
1. Place the machine on a flat, level surface, and shut off
the engine.
2. Allow the engine to cool.
1
3. Clean around the oil dipstick.
2
4. Remove the oil-fill cap/dipstick and wipe the end clean
(Figure 33).
3
G019815
Figure 34
1. Choke lever
2. Fuel valve
3. Throttle lever
2. Move the lever of the fuel valve to the ON position—all
the way to the right (Figure 34); refer to Fuel Valve
(page 12).
3. Position the choke lever as follows:
• To start a cold engine, move the choke lever to the
Figure 33
1. Fill port
3. Oil-level upper limit
CLOSED position—all the way to the left (Figure
34); refer to Choke Lever (page 12).
2. Dipstick
4. Oil-level lower limit
• To start a warm engine, move the choke lever in
the OPEN position—all the way to the right.
5. Slide the dipstick fully into the fill port without
threading it into the port (Figure 33).
4. Rotate the engine switch to the ON position (Figure
34); refer to Engine On/Off Switch (page 12).
6. Remove the dipstick and look at the end. If the
engine-oil level is low, slowly pour only enough oil into
the fill port to raise the level to the Full mark on the
dipstick (Figure 33).
5. Pull the recoil-start handle lightly until you feel
resistance, then pull the handle briskly. Return the
recoil-start handle gently (Figure 35).
Note: Toro Premium Engine Oil is available from
your Authorized Toro Dealer.
7. Replace and secure the dipstick (Figure 33).
Starting and Shutting Off the
Engine
Starting the Engine
1. On the engine, move the throttle lever away from the
MIN position, 1/3 of the way toward the MAX position
(Figure 34); refer to Throttle Lever (page 12).
23
Use the clutch lever to control the power transmission to the
paddles of the machine.
Controlling the Paddles—Belt-drive
Models
Models 68017C and 68021C only
G019747
Figure 35
Note: If the choke lever is set to the CLOSED position to
start the engine, gradually move the choke lever back toward
the OPEN position as the engine warms up. If the engine
stalls or hesitates, move the choke lever back toward the
CLOSED position until the engine runs smooth. Allow the
engine to warm up, then move the choke lever to the OPEN
position; refer to Choke Lever (page 12).
1
2
Shutting Off the Engine
G019873
Figure 36
WARNING
1. Off position
In an emergency situation, shut off the engine
immediately.
Important: During normal operation, if the engine
has been working hard or is hot, let it idle for a minute
before shutting off the engine. This helps to cool the
engine before shutting off.
1. Ensure that the choke lever is in the OFF position
(Figure 34); refer to Choke Lever (page 12).
2. Move the throttle lever to the MIN position (Figure
34); refer to Throttle Lever (page 12).
3. Rotate the engine switch to the OFF position; refer to
Engine On/Off Switch (page 12).
Controlling the Paddles
DANGER
This machine is capable of amputating hands.
• Stay in the operator’s position while the machine
is running.
• Keep all bystanders a safe distance from the
machine.
• Stop the machine immediately if any people or
animals enter the work area.
• Never place any part of your body into a position
that causes an unsafe operating condition.
24
2. On position
Mixing a Batch of Material in the
Machine
Controlling the Paddles—Gear-case
Model
1. Ensure that there is no old, loose material in the drum
that can contaminate the batch of material; refer to
Cleaning the Drum (page 26) and Dumping the Drum
(page 26), then return the drum to the upright position.
Model 68024C only
Note: Ensure that the drum is in the mix position
(upright) and the drum latch is engaged.
2. Move the clutch lever to the OFF position; refer to
Controlling the Paddles (page 24).
3. Start the engine; refer to Starting the Engine (page 23).
1
2
Note: Allow the engine to warm-up at 2/3 throttle
for 1 to 2 minutes.
4. Set the throttle lever on the engine to the MAX position;
refer to Throttle Lever (page 12).
5. Move the clutch lever to the ON position; refer to
Controlling the Paddles (page 24).
6. Add the ingredients for the batch as follows:
A. Pour water into the drum through the grating of
the drum guard.
B. Add the plaster, cement, or other binding material.
G019872
Figure 37
1. On position
2. Off position
Mixing the Material
Note: You can open bags of cement, plaster, and
binding materials by lowering the bag onto the
bag splitter (Figure 38).
DANGER
Eye and skin contact with concrete materials and
breathing the dust involved is hazardous to your
health.
A
B
C
D
• Ensure that there is adequate air ventilation.
• Wear a dust mask to prevent inhalation of dust
while using the machine; refer to Safe Operating
Practices (page 5).
• Avoid direct contact of cement and concrete
materials with skin and eyes.
DANGER
Contact with the mixing paddles could cause
damage or injury.
Never put your hands or tools inside the drum while
the engine is running.
G019973
Figure 38
Important: Do not add more material than the batch
capacity of the machine; refer to Specifications (page 13).
C.
If you are using sand and/or other reinforcing
materials, add them into the drum.
7. Allow the paddles to mix the material until the
ingredients have a uniform appearance.
Note: Follow the manufacturer’s instructions that are printed
on the packaging of the product you are using.
Note: If needed, add water or plaster, cement, or
other binding material until the consistency of the
batch is correct.
25
Note: Allow the machine to completely discharge the
contents of the drum.
8. Release the drum latch and dump the drum; refer to
Dumping the Drum (page 26).
5. Rotate the dump handle clockwise until the drum
latch locks the drum in the upright position (Figure 39).
Using the Drum
6. After discharging a batch of material, clean the drum;
refer to Cleaning the Drum (page 26).
DANGER
Contact with the mixing paddles could cause
damage or injury.
Note: This step cleans the paddles and drum between
batches and prevent dried material from forming, and
contaminating the next batch of material.
Never put your hands inside the drum while the
engine is running.
Cleaning the Drum
Dumping the Drum
Important: Do not strike on the drum with a shovel,
hammer, or any other device to loosen any accumulated
dried materials.
Note: When dumping a batch of material, leave the engine
running and the clutch in the ON position so that the rotating
paddles help discharge the material.
1. Stop the rotation of the paddles by moving the clutch
lever to the OFF position; refer to Controlling the
Paddles (page 24).
1. Align a wheelbarrow or similar container of adequate
capacity in the path of the drum opening.
2. Rotate the engine ON/OFF switch to the OFF position;
refer to Shutting Off the Engine (page 24).
2. Grasp the dump handle with your left hand (Figure 39).
3. Ensure that the drum is in the mix position (upright);
refer to Dumping the Drum (page 26), step 5.
4. Spray the machine with water to remove any
accumulated material.
1
5. Start the engine; refer to Starting the Engine (page 23).
6. Start the rotation of the paddles by moving the clutch
lever to the On position; refer to Controlling the
Paddles (page 24).
2
7. Dump the drum; refer to Dumping the Drum (page
26).
3
4
G019972
Figure 39
1. Dump handle (mix
position)
3. Drum latch (locked
position)
2. Drum latch (release
position)
4. Dump handle (dump
position)
Note: When dumping a batch of material, align a
wheelbarrow or a similar container of adequate capacity
beneath the chute.
3. Lift the handle of the drum latch (Figure 39).
4. With both hands on the dump handle, rotate it
counterclockwise to discharge the contents of the
drum (Figure 39).
26
Maintenance
Important: Before performing any maintenance procedures, first shut off the engine, wait 5 minutes to allow all
moving parts to come to a complete stop and cool, and disconnect the spark-plug wire.
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 25 hours
• Change the engine oil.
• Check the gear-case clutch (Model 68024C only).
• Inspect the belts and adjust as necessary.
Before each use or daily
•
•
•
•
Inspect the tires and wheels.
Check the engine-oil level.
Inspect the air-cleaner elements.
Check the clutch operation (Model 68024C only).
After each use
•
•
•
•
Torque the lug nuts to 108 to 122 N∙m (80 to 90 ft-lb) after towing.
Clean the drum between mixing batches of material.
Lubricate the trunnions.
Clean the machine.
Every 40 hours
• Check the gear-case oil (Model 68024C only).
• Inspect the belts and adjust as necessary.
• Check the clutch operation (Models 68014C, 68017C, and 68021C only).
Every 50 hours
• Clean the air-cleaner elements. Clean them more frequently in dusty operating
conditions.
Every 100 hours
•
•
•
•
Every 300 hours
• Replace the paper air-cleaner element. Replace it more frequently in dusty
operating conditions.
• Replace the spark plug.
Every 800 hours
• Replace the gear-case oil (Model 68024C only).
Monthly
Yearly or before storage
Every 2 years
Change the engine oil.
Check the spark plug.
Clean the spark arrester.
Clean the sediment cup.
• Lubricate the pillow-block bearings.
• Clean the fuel-sediment cup.
• Replace the belts.
Important: Refer to your engine operator's manual for additional maintenance procedures.
27
Premaintenance
Procedures
Removing the Divider Plate
1. Unlatch and open the cowl; refer to Opening the Cowl
(page 20).
2. Use a wrench to remove the 4 bolts that secure the
divider plate to the front cowl.
Preparing the Machine for
Maintenance
Note: Keep the bolts for installing the divider plate.
1. Park the machine on a level surface.
2. Remove the machine from the tow vehicle.
3. Ensure that the machine is secure from movement
before you use it.
4. Open the rear cowl; refer to Opening the Cowl (page
20).
5. Ensure that the engine and muffler are cool.
6. Disable the engine; refer to Disconnecting the
Spark-Plug Wire (page 28).
G020752
Figure 41
Disconnecting the Spark-Plug
Wire
3. To remove the divider plate, lift it upward and rotate
it counterclockwise so that it clears various engine
components.
Pull the spark-plug wire off the terminal of the spark plug
(Figure 40).
Installing the Divider Plate
1
1. Guide the divider plate into position against the front
cowl.
Note: Start with the divider plate rotated slightly
counterclockwise, and then rotate it clockwise while
lowering it into position.
Ensure that the divider plate is not backward.
G019281
Figure 40
1. Spark plug
Removing and Installing the
Divider Plate
G020753
Figure 42
You need to remove the divider plate to provide access before
performing some maintenance procedures.
2. Align the bolt holes in the divider plate and the front
cowl.
Note: Model 68024C does not have a divider plate.
3. Install each of the 4 bolts, and hand-tighten them to
prevent cross-threading.
4. Tighten the bolts with a wrench until they are secure.
28
Lubrication
2. Pump grease into each fitting as follows:
• For the pillow-block bearings, pump 1 shot of
grease into each fitting (Figure 43).
Lubricating the Bearings and
Seals
• For the trunnions, pump several shots of grease
into each fitting until it starts to ooze out of the
bearing housing (Figure 43).
Service Interval: After each use—Lubricate the trunnions.
Monthly—Lubricate the pillow-block bearings.
Important: Pump grease in slowly and carefully
to prevent damage to the bearing seals.
Note: The pillow-block bearings are inside the
cowl—remove the divider plate to access them; refer to
Removing the Divider Plate (page 28).
Model 68024C does not have a divider plate.
3. Wipe up any excess grease.
Grease Type: No. 2 lithium grease.
1. Clean around each grease fitting with a rag and lift the
plastic cap off the grease fitting (Figure 43).
2
3
1
G020684
1
2
3
G020685
Figure 43
1. Pillow-block bearings
3. Front trunnion
2. Rear trunnion
29
Engine Maintenance
1
Servicing the Air Cleaner
2
Service Interval: Before each use or daily—Inspect the
air-cleaner elements.
Every 50 hours—Clean the air-cleaner elements. Clean
them more frequently in dusty operating conditions.
3
Every 300 hours/Yearly (whichever comes
first)—Replace the paper air-cleaner element. Replace
it more frequently in dusty operating conditions.
4
Important: Do not operate the engine without the
air-filter assembly; extreme engine damage can occur.
1. Shut off the engine and wait for all moving parts to
stop.
5
2. Disconnect the wire from the spark plug; refer to
Disconnecting the Spark-Plug Wire (page 28).
3. Remove the nut that secures the cover (Figure 44).
6
G020216
Figure 44
1. Cover nut
2. Cover
4. Foam element
5. Paper element
3. Wing nut
6. Base
4. Remove the cover.
Note: Be careful to prevent dirt and debris from
falling into the base.
5. Remove the foam and paper elements from the base
(Figure 44).
6. Remove the foam element from the paper element
(Figure 44).
7. Inspect the foam and paper elements, and replace them
if they are damaged or excessively dirty.
8. If the paper element is excessively dirty, replace it.
Note: Never try to brush dirt off the paper element;
brushing forces the dirt into the fibers.
9. Clean the foam element in warm, soapy water or in
a nonflammable solvent.
Note: Do not use fuel to clean the foam element
because it could create a risk of fire or explosion.
30
Draining the Engine Oil
10. Rinse and dry the foam element thoroughly.
11. Dip the foam element in clean engine oil, then squeeze
out the excess oil.
WARNING
Oil may be hot after the engine has been run, and
contact with hot oil can cause severe personal injury.
Note: Excess oil in the foam element restricts the air
flow through the element and may reach the paper
filter and clog it.
Avoid contacting the hot engine oil when you drain
it.
12. Wipe dirt from the base and the cover with a moist rag.
Note: Be careful to prevent dirt and debris from
entering the air duct leading to the carburetor.
1. Shut off the engine and wait for all moving parts to
stop.
13. Install the air-cleaner elements and ensure that they are
properly positioned.
2. Disconnect the wire from the spark plug; refer to
Disconnecting the Spark-Plug Wire (page 28).
14. Securely install the cover with the nut.
3. Place a drain pan under the drain hole of the engine
(Figure 46).
Changing the Engine Oil
Service Interval: After the first 25 hours
Every 100 hours
Toro Premium Engine Oil is available from your Authorized
Toro Dealer.
Important: Use 4-cycle engine oil that meets or exceeds
the requirements for API service category SJ, SL, SM,
or higher.
68017C, 68021C, and 68024C
1.1 L (1.2 US qt)
Important: If the oil level in the crankcase is too low
or too high and you run the engine, you may damage
the engine. This type of damage is not covered by the
warranty.
Note: Use SAE 10W-30 for general use. You can use
the other viscosities shown in the chart when the average
temperature in your area is within the indicated range (Figure
45).
1. Drain plug
40
-20 -10 0
60
10
80
20
30
G019750
3. Drain pan
2. Drain hole
5W - 30 / 10W - 30
20
3
Figure 46
30
0
2
1
100 F
4. Remove the drain plug and catch the oil in the drain
pan (Figure 46).
o
5. When the oil has drained completely, install the drain
plug with a new washer (Figure 46).
40 C o
Note: Dispose of the used oil at a certified recycling
center.
g013375
Figure 45
Filling the Engine Crankcase with Oil
1. Remove the dipstick (Figure 47) and slowly pour oil
into the fill hole until the oil reaches the upper-limit
mark (bottom edge of the oil-fill hole) on the dipstick.
31
5. Rotate the spark plug counterclockwise using a 20 mm
(13/16 inch) spark-plug wrench to remove the plug
and the sealing washer (Figure 49).
Figure 47
1. Oil-fill hole
3. Oil-level upper limit
2. Dipstick
4. Oil-level lower limit
2. Replace and secure the dipstick.
G019749
3. Wipe up any spilled oil.
Figure 49
Servicing the Spark Plug
Checking the Spark Plug
Service Interval: Every 100 hours/Every 6 months
(whichever comes first)—Check the
spark plug.
Every 300 hours/Yearly (whichever comes
first)—Replace the spark plug.
Note: Use a gapping tool/feeler gauge to check and adjust
the gap. Install a new spark plug if necessary.
1. Look at the center of the spark plug (Figure 50). If you
see light brown or gray on the insulator, the engine is
operating properly.
Type: NGK BPR6ES or equivalent
Important: Never clean the spark plug. Always
replace the spark plug when it has a black coating,
worn electrodes, an oily film, or cracks.
Gap: 0.7 to 0.8 mm (0.028 to 0.031 inch)
Note: Use a 20 mm (13/16 inch) spark-plug wrench for
removing and installing the spark plug.
1
2
3
4
Removing the Spark Plug
1. Park the machine on a level surface and shut off the
engine; refer to Shutting Off the Engine (page 24).
2. Ensure that the machine surfaces are cool.
3. Pull the spark-plug wire off the terminal of the spark
plug (Figure 48).
G019300
Figure 50
1. Side electrode
2. Center electrode
2. Use a gapping tool for spark plugs or a feeler gauge to
measure the gap between the side electrode and center
electrode (Figure 50).
3. If the gap is not within the specified range, do the
following:
A. If the gap is too small, carefully bend the side
electrode away from the center electrode until
the gap between the electrodes is 0.7 to 0.8 mm
(0.028 to 0.031 inch).
Figure 48
1. Spark plug
3. Insulator
4. 0.7 to 0.8 mm (0.028 to
0.031 inch) gap
2. Wire
4. Clean around the spark plug.
32
B.
Servicing the Spark Arrester
If the gap is too large, carefully bend the side
electrode toward the center electrode until the
gap between the electrodes is 0.7 to 0.8 mm (0.028
to 0.031 inch).
Cleaning the Spark Arrester
Service Interval: Every 100 hours
Installing the Spark Plug
Note: A spark arrester is available as an option. If you
require a spark arrester, contact your Authorized Toro Service
Dealer.
Genuine Toro spark arresters are approved by the USDA
Forestry Service.
Important: Ensure that the gap between the side and
center electrodes is correct before installing the spark
plug.
1. Thread the spark plug clockwise into the spark-plug
hole by hand.
WARNING
Note: Avoid cross-threading the spark plug with the
threads of the spark-plug hole.
If the engine has been running, the muffler will be
hot.
2. Rotate spark plug clockwise using a 20 mm (13/16
inch) spark-plug wrench until the plug and sealing
washer are seated (Figure 49).
1. Remove the divider plate; refer to Removing the
Divider Plate (page 28).
Note: Model 68024C does not have a divider plate.
3. Tighten the spark plug as follows:
2. Remove the 2 nuts (8 mm) and remove the muffler
from the cylinder (Figure 51).
• When installing an in-service spark plug, tighten
the plug an additional 1/8 to 1/4 turn.
10
• When installing a new spark plug, tighten the plug
an additional 1/2 turn.
1
4. Push the spark-plug wire onto the terminal of the spark
plug (Figure 48).
2
12
11
3
4
5
G019331
6
7
8
9
10
Figure 51
1. Deflector (if
applicable)
5. Exhaust pipe
2. Protector
6. Nut, 8 mm
3. Screw (6 mm)
7. Gasket
11. Exhaust port
4. Muffler
8. Bolt (8 mm)
12. Screw (4 mm)
9. Spark arrester
10. Screws (5 mm)
3. Remove the 3 screws (4 mm) from the exhaust
deflector and remove the deflector (Figure 51).
4. Remove the screws (5 mm and 6 mm) from the muffler
protector, and remove the muffler protector (Figure
51).
5. Remove the screw (4 mm) from the spark arrester and
remove the spark arrester from the muffler (Figure 51).
33
1
6. Use a brush to carefully remove carbon deposits from
the spark-arrester screen (Figure 52).
3
Note: Replace the spark arrester if it has breaks or
holes.
2
4
5
G0201 19
Figure 53
1
G019332
Figure 52
1. Screen
1. Anchor bracket
4. Spring-removal tool
(spring removed)
2. Engine deck
5. Spring (spring removed)
2
3. Spring-removal tool (Toro
part 92-5771)
2. Brush
7. Install the spark arrester, muffler protector, exhaust
deflector, and muffler in the reverse order of
disassembly.
7. Remove the bolt and nut that secure the rear bracket
for the engine-deck hinge to the frame of the machine
(Figure 54).
8. Install the divider plate; refer to Installing the Divider
Plate (page 28).
Removing and Installing the
Engine
Models 68017C and 68021C only
Removing the Engine
WARNING
The spring is under tension when installed and can
cause personal injury.
1
6
2
5
Be careful when removing the spring.
4
3
1. Park the machine on a level surface and shut off the
engine; refer to Disconnecting the Spark-Plug Wire
(page 28).
1. Engine deck
4. Frame
2. Ensure that the engine and the exhaust-system surfaces
are cool.
2. Pivot
3. Rear hinge bracket
5. Nut
6. Bolt
G020120
Figure 54
3. Remove the divider plate; refer to Removing and
Installing the Divider Plate (page 28).
8. Lift up on the rear edge of the engine deck and remove
the hinge bracket (Figure 54).
4. Remove the belt guide; refer to Removing the Belts
(page 39).
9. Slide the engine deck rearward and out from the
forward hinge bracket (Figure 55).
5. Remove the belts; refer to Removing the Belts (page
39).
Note: Do not remove the forward hinge bracket.
6. Using a spring-removal tool (Toro part 92-5771),
remove the spring from the anchor bracket on the
engine deck (Figure 53).
Note: Leave the other end of the spring attached to
the frame of the machine.
34
Fuel System
Maintenance
Servicing the Fuel System
Cleaning the Sediment Cup
Service Interval: Every 100 hours/Every 6 months
(whichever comes first)—Clean the
sediment cup.
Yearly or before storage—Clean the fuel-sediment cup.
Underneath the fuel valve is a sediment cup to catch dirt in
the fuel.
1. Park the machine on a level surface and shut off the
engine; refer to Shutting Off the Engine (page 24).
2. Ensure that the engine and the exhaust-system surfaces
are cool.
3. Move the fuel-valve lever to the OFF position, all the
way to the left (Figure 56).
4. Unscrew the sediment cup (Figure 56).
5. Remove the fuel filter and O-ring (Figure 56).
G020121
Figure 55
10. Remove the engine and engine deck from the machine
(Figure 55).
Installing the Engine
1. Align the engine and engine deck to the rear frame of
the machine.
Note: Do not misplace the O-ring.
Note: The drive pulley on the engine must align
forward.
2. Align the pivot on the engine deck with the forward
hinge bracket (Figure 55).
3. Slide the engine deck forward and the pivot into the
forward hinge bracket (Figure 55).
4. Align the rear hinge bracket with the pivot on the
engine-deck hinge (Figure 55).
5. Lift up on the rear edge of the engine deck and slip the
hinge bracket onto the pivot.
1
6. Secure the rear bracket to the frame of the machine
using the bolt and nut (Figure 54) removed in step 7 of
Removing the Engine (page 34).
2
3
4
7. Using a spring-removal tool, (Toro part 92-5771),
install the tension spring to the anchor bracket on the
engine deck (Figure 53).
G019333
Figure 56
8. Install the belts and belt guide; refer to Replacing the
Belts—Belt-Drive Models (page 39).
9. Adjust the belt guide; refer to Adjusting the Belt Guide
(page 40).
1. Fuel valve (Off)
3. Fuel filter
2. O-ring
4. Sediment cup
6.
10. Install the divider plate; refer to Removing and
Installing the Divider Plate (page 28).
7.
8.
9.
35
Note: Do not clean the O-ring in solvent.
Clean the fuel filter and sediment cup using a
nonflammable solvent, and dry it carefully.
Wipe the O-ring with a clean, dry cloth.
Install the fuel filter in the bottom of the carburetor
(Figure 56).
Align the O-ring in to the groove in the sediment cup
and install the sediment cup to fuel-valve housing.
Drive System
Maintenance
10. Move the lever of the fuel valve to the ON position (all
the way to the right) and check for leaks. If it leaks,
replace the O-ring.
Draining the Fuel Tank
1. Remove the engine; refer to Removing the Engine
(page 34).
Servicing the Gear
Case—Gear-Case Model
2. Remove the fuel cap by rotating it counterclockwise.
Model 68024C only
1
2
Checking the Clutch Operation
Service Interval: Before each use or daily—Check the clutch
operation (Model 68024C only).
1. Move the clutch lever to the OFF position; refer to
Controlling the Paddles (page 24).
2. Start the engine; refer to Starting the Engine (page 23).
3. Ensure that the engine throttle is set to the 2/3
position.
G020122
Figure 57
4. If the paddles rotate with the clutch lever to the OFF
position do the following:
A. Shut off the engine; refer to Shutting Off the
Engine (page 24).
3. Align a drain pan to the hinge of the engine deck.
4. Rotate the engine on the hinge side of the engine deck
and drain the fuel from the tank.
B.
5. Carefully lower the engine and engine deck.
6. Install the fuel cap.
Check the clutch-lever force; refer to Checking
the Clutch Lever (page 36).
Checking the Clutch Lever
7. Install the engine; refer to Installing the Engine (page
35).
Service Interval: After the first 25 hours—Check the
gear-case clutch (Model 68024C only).
Important: Check the gear-case clutch if the paddles
rotate when the clutch lever is in the OFF position, if the
paddles rotate slowly, or if the clutch begins to slip.
1. Ensure that the engine is OFF; refer to Shutting Off
the Engine (page 24).
2. Locate the clutch lever at the back of the machine; refer
to Clutch Lever (page 11).
3. Move the clutch lever to the OFF position; refer to
Controlling the Paddles (page 24).
4. Attach a spring scale with a range of 15 to 30 kg (35 to
55 lb) to the grip of the clutch lever (Figure 58).
36
1
2
3
G022166
1
Figure 58
1. Spring scale
3. Clutch lever
2. 15 to 30 kg (35 to 55 lb)
2
5. Using the spring scale, pull the clutch handle to the ON
position as shown in Figure 58.
3
6. Observe the spring scale while pulling to see what the
highest pressure is when moving the clutch handle
from the OFF position to the On position (Figure 58).
G019900
Figure 59
1. Fill plug
Note: Normal clutch pressure is 15 to 30 kg (35 to
55 lb).
3. Drain plug
2. Sight glass
7. If the clutch pressure is greater than or less than
15 to 30 kg (35 to 55 lb), contact an Authorized Toro
Service Dealer.
3. If the oil level is below the bottom 1/3 of the sight
glass, add oil as follows:
A. Remove the fill plug from the fill port in the
housing of the gear case (Figure 59).
B. Slowly add the specified oil into the fill port until
the oil level is between 1/3 and 1/2 of the sight
glass (Figure 59).
C. Clean the fill plug.
D. Apply PTFE thread-sealing tape to the threads
of the plug.
E. Install the plug into the fill port in the housing
(Figure 59).
Checking the Gear-Case Oil
Service Interval: Every 40 hours—Check the gear-case oil
(Model 68024C only).
Important: If the oil level in the gear case is too low
or too high and you run the engine, you may damage
the engine or the gear case. This type of damage is not
covered by the warranty.
Oil Type: SAE 90 gear oil
Gear-case Capacity: 2.13 L (72 fl oz)
Replacing the Gear-Case Oil
1. Locate the gear case between the engine and the front
cowl.
Service Interval: Every 800 hours—Replace the gear-case
oil (Model 68024C only).
1. Align a drain pan with a 3-quart capacity under the
drain plug (Figure 59).
2. Remove the drain plug from the drain port, and
completely drain the gear-case oil (Figure 59).
3. Remove the fill plug (Figure 59).
4. Clean the drain and fill plugs, and apply PTFE
thread-sealing tape to the plug threads.
5. Install the drain plug in the drain port (Figure 59).
6. Slowly add the specified oil into the fill port until the
oil level is between 1/3 and 1/2 of the sight glass
(Figure 59).
7. Install the fill plug in the fill port (Figure 59).
2. At the right side of the gear case, examine the oil level
in the sight glass (Figure 59).
37
Belt Maintenance
1
Servicing the Belts—Belt-Drive
Models
Models 68017C and 68021C only
Inspecting the Belts
Service Interval: After the first 25 hours—Inspect the belts
and adjust as necessary.
Every 40 hours—Inspect the belts and adjust as
necessary.
2
G019976
1. Remove the divider plate; refer to Removing the
Divider Plate (page 28).
3
Figure 60
1. Engine deck
2. Move the clutch lever to the OFF position; refer to
Controlling the Paddles—Belt-drive Models (page 24).
3. Clutch air gap: 6 to 10 mm
(1/4 to 3/8 inch)
2. Clutch roller
3. Examine the belts for wear or damage. If the belts are
worn or damaged, replace them; refer to Servicing the
Belts—Belt-Drive Models (page 38).
3. If the measured air gap is not within the specified
range, adjust the gap as follows:
4. Examine the pulleys for wear, damage, and
misalignment; refer to Replacing the Belts—Belt-Drive
Models (page 39).
A. Move the clutch lever to the OFF position; refer
to Controlling the Paddles (page 24).
B.
5. Install the divider plate; refer to Installing the Divider
Plate (page 28).
Loosen the nuts and bolts that secure the engine
to the engine deck (Figure 61).
Adjusting the Belt Tension
Clutch air gap: 6 to 10 mm (1/4 to 3/8 inch)
1
1. Move the clutch lever to the ON position; refer to
Controlling the Paddles (page 24).
2
3
2. Measure the air gap between the engine deck and the
roller on the clutch (Figure 60).
4 3
3
G020006
4
Figure 61
1. Idler pulley
3. Nut and bolt
2. Setscrew
4. Engine deck
C.
Move the engine position as follows:
• Increase the air gap—move the engine
away from the idler pulley (Figure 61).
• Decrease the air gap—move the engine
toward the idler pulley (Figure 61).
D.
38
Align a straightedge across the engine pulley and
the idler pulley (Figure 62).
1
2
2
1
G020010
Figure 63
1. Bolt
3
G020009
5
4
6
7
2. Belt guide
4. Slip the forward belt forward and off the idler pulley
(Figure 64).
8
Figure 62
1. Engine pulley
5. Idler shaft
2. Idler pulley
6. Jam nut
3. Reduction case (engine)
7. Setscrew
4. Belt guide
8. Straightedge
2
1
3
4
E. If needed, pivot the engine on the engine deck
until the engine pulley and the idler pulley are
aligned to the straightedge (Figure 62).
F.
Tighten the nuts and bolts that secure the engine
to the engine deck to a torque of 18 N∙m (13 ft-lb).
G.
Check the air gap between the engine deck and
the roller on the clutch. If the air gap is not within
the specified range, repeat step 3 until the air gap
measurement is within the specified range.
G020012
Figure 64
H. Install the divider plate; refer to Installing the
Divider Plate (page 28).
1. Engine pulley
3. Idler pulley
2. Forward belt
4. Rear belt
5. Slip the rear belt rearward and off the idler pulley
(Figure 64).
Replacing the
Belts—Belt-Drive Models
6. Slip the belts off the engine pulley.
7. Remove the belts from the machine.
Service Interval: Every 2 years—Replace the belts.
Installing the Belts
Models 68017C and 68021C only
1. Ensure that the clutch lever is in the OFF position;
refer to Controlling the Paddles—Belt-drive Models
(page 24).
Removing the Belts
1. Move the clutch lever to the OFF position; refer to
Controlling the Paddles—Belt-drive Models (page 24).
2. Align the rear belt to the rear groove in the engine
pulley.
2. Remove the divider plate; refer to Removing the
Divider Plate (page 28).
Note: Do not align the rear belt to the idler pulley.
3. Align the forward belt to the forward groove of the
idler pulley.
3. Remove the bolt that secures the belt guide to the
engine, and remove the belt guide (Figure 63).
4. Slip the rear belt over the idler pulley and align the belt
to the rear pulley groove.
39
Important: The belt guide should not
contact the belts with the clutch lever in the
ON position.
5. Slip the forward belt over the engine pulley and align
the belt to the forward pulley groove.
6. Check the belt tension; refer to step 1, step 2, and step
3 in Adjusting the Belt Tension (page 38).
Note: If the air gap between the belt guide and
both belts cannot be attained, then one of the
belts is too long.
7. Loosely secure the belt guide to the engine (Figure 63)
with the bolt that was removed in step 3 of Removing
the Divider Plate (page 28).
C.
8. Adjust the belt guide; refer to Adjusting the Belt Guide
(page 40).
Tighten the bolt that secures the belt guide to the
engine (Figure 65).
D.
Check the clutch operation; refer to Controlling
the Paddles (page 24).
9. Install the divider plate; refer to Installing the Divider
Plate (page 28).
5. Install the divider plate; refer to Installing the Divider
Plate (page 28).
Adjusting the Belt Guide
Checking the Clutch Operation
Note: To access the belt guide, remove the divider plate;
refer to Removing the Divider Plate (page 28).
Service Interval: Every 40 hours—Check the clutch
operation (Models 68014C, 68017C,
and 68021C only).
Guide air gap: 2.5 to 4.0 mm (3/32 to 5/32 inch)
1. Ensure that the clutch lever is in the ON position; refer
to Controlling the Paddles (page 24).
Important: The paddles must not rotate in an empty
drum when the clutch lever is in the OFF position.
2. Ensure that the belt tension is correct; refer to
Adjusting the Belt Guide (page 40).
1. Move the clutch lever to the OFF position; refer to
Controlling the Paddles (page 24).
3. Check that the air gap between the belt guide and the
belts is 2.5 to 4.0 mm (3/32 to 5/32 inch); refer to
Figure 65.
3
2. Start the engine; refer to Starting the Engine (page 23).
3. If the paddles rotate with the clutch lever to the OFF
position do the following:
5
4
A. Shutting off the engine; refer to Shutting Off the
Engine (page 24).
B.
2
Check the air gap between the belt guide and the
belts.
Note: If the air gap is larger than 4.0 mm (0.16
inch), decrease the gap between the belt guide
and the belts; refer to Adjusting the Belt Guide
(page 40).
1
4. Repeat steps 1, 2, and 3 until all the following
conditions are met:
G02001 1
Figure 65
1. Engine pulleys
4. Belt guide
2. Belts
3. Guide air gap: 2.5 to 4.0
mm (3/32 to 5/32 inch)
5. Bolt
• The engine is run at 2/3 throttle.
• The clutch lever is in the OFF position; refer to
Controlling the Paddles (page 24)
• The paddles do not rotate in an empty drum.
4. If the air gap is not within the specified range, do the
following:
A. Loosen the bolt that secures the belt guide to the
engine (Figure 65).
Important: Ensure that the belt guide is
toward the engine pulley.
B.
Rotate the belt guide up or down until there is
an air gap of 2.5 to 4.0 mm (3/32 to 5/32 inch)
between the guide and each belt (Figure 65).
40
Replacing the Light
Bulbs
Aligning the
Pulleys—Belt-drive Models
Models 68017C and 68021C only
Replacing the Rear-Facing
Taillight Bulbs
1. Remove the divider plate; refer to Removing the
Divider Plate (page 28).
2. Place a straightedge across the face of the engine pulley
and the idler pulley (Figure 66).
1
Note: The left rear-facing bulb also illuminates license plate.
1. Use a screwdriver to remove the 4 screws from the
large square lens on the light (Figure 67).
2
A
B
C
D
E
F
G020829
3
4
5
6
Figure 67
G020015
Figure 66
1. Engine pulley
4. Idler shaft
2. Idler pulley
5. Locknut
3. Straightedge
6. Setscrew
2. Remove the lens (Figure 67).
3. Push and twist the bulb counterclockwise to remove it
from the socket (Figure 67).
4. Push a new 1157 bulb into the socket and then twist it
clockwise (Figure 67).
5. Install the lens and the 4 screws (Figure 67).
Note: Both pulleys must be aligned flush with the
straightedge.
3. If the pulleys are not aligned do the following:
Replacing the Side-Facing
Taillight Bulbs
A. Move the clutch lever to the OFF position; refer
to Controlling the Paddles (page 24).
B.
Loosen the locknuts and setscrews that secure the
idler pulley to the idler shaft (Figure 66).
C.
Using a soft-face mallet, tap the idler pulley
forward or backward along the idler shaft until
the engine pulley and the idler pulley are aligned
to the straight edge (Figure 66).
D.
1. Use a screwdriver to remove the 2 screws from the
small rectangular lens on the side of the light (Figure
68).
A
B
C
D
E
F
Tighten the setscrews and locknuts that secure the
idler pulley to the idler shaft (Figure 66).
4. Install the divider plate; refer to Installing the Divider
Plate (page 28).
G020830
Figure 68
41
Maintaining the Mixing
Paddles
2. Remove the lens (Figure 68).
3. Pull the bulb out of the socket (Figure 68).
4. Push a new 168 bulb into the socket (Figure 68).
5. Install the lens and the 2 screws (Figure 68).
Adjusting the Paddles
Replacing the Front Amber
Bulbs
Aligning the Circumferential Drum
Wipers
1. Using a screwdriver, remove the 2 screws from the
amber lens on the front of the light (Figure 69).
1. Rotate a paddle from the left row of paddles around
the drum and locate, at the interior of the drum, the
smallest distance between the drum and the wiper of
the paddle (Figure 70).
2. Mark the inside of the drum at the location that you
determined in step 1.
Figure 69
2. Remove the amber lens (Figure 69).
3. Pull the bulb out of the socket (Figure 69).
4. Insert a new 193 bulb into the socket (Figure 69).
5. Install the amber lens and the 2 screws (Figure 69).
Figure 70
3. Align the wiper of a paddle to the mark.
4. Loosen the carriage bolts and flange locknuts that
secure the paddle blade and wiper to the paddle (Figure
71).
42
Aligning the End Paddle Wipers
1. Rotate the wiper and fixed paddle around the endplate
of the drum and locate smallest distance between the
drum and the wiper of the paddle.
2. Mark the inside of the endplate at the location that you
determined in step 1.
Figure 71
1. Wiper
4. Paddle blade
2. Distance between
paddle-blade edge and
wiper edge—3 to 6 mm
(1/8 to 1/4 inch)
5. Carriage bolt and flange
locknut
3. Wiper bar
5. Adjust the position of the wiper so that the wiper is
within 6 mm (1/4 inch ) of the drum across the length
of the wiper (Figure 72).
Figure 73
1. Carriage bolt and flange
locknut
2. Closest point of contact
3. Drum endplate
3. Align the wiper of a paddle to the mark.
4. Loosen the carriage bolts and flange locknuts that
secure the paddle blade and wiper to the fixed paddle.
(Figure 73)
5. Adjust the position of the wiper so that the wiper is
within 6 mm (1/4 inch) of the end plate across the
length of the wiper.
6. Adjust the position of the paddle blade so that the
outer edge of the bar is 3 to 6 mm (1/8 to 1/4 inch)
from the outer edge of the wiper.
Figure 72
1. Wiper is within 6 mm (1/4 inch ) of the drum at the smallest
distance between the drum and the wiper of the paddle
7. Torque the carriage bolts and nuts to 19 to 25 N∙m
(14 to 18 ft-lb).
6. Adjust the position of the paddle blade so that the
outer edge is 3 to 6 mm (1/8 to 1/4 inch) from the
outer edge of the wiper.
8. Repeat the procedure for the wiper at the end plate on
the other end of the drum.
7. Torque the carriage bolts and nuts to 19 to 25 N∙m
(14 to 18 ft-lb).
8. Repeat steps 4 through 7 for the other paddle for that
paddle row.
9. Repeat the procedure for the other paddle rows.
43
Cleaning
Storage
Cleaning the Machine
Storing the Machine
For storage over 30 days, prepare the machine as follows:
Regular cleaning and washing increase the life span of the
machine. Clean the machine after each use, before the mortar
hardens.
1. Remove dirt and grime from the external parts of the
entire machine, especially the engine. Clean dirt and
debris from the outside of the engine cylinder-head
fins and blower housing.
Ensure that the fuel-tank cap and oil cap/dipstick are secure
to avoid getting water in the tank.
Important: You can wash the machine with mild
detergent and water.
Use care when using a high-pressure sprayer because it can
damage the warning decals, instruction signs, and the engine.
2. Condition the fuel system as follows:
Important: Lubricate the trunnions after cleaning; refer
to Lubricating the Bearings and Seals (page 29).
A. Add a petroleum-based stabilizer/conditioner to
fuel in the tank. Follow the mixing instructions
from the stabilizer manufacturer. Do not use an
alcohol-based stabilizer (ethanol or methanol).
Important: Do not store
stabilizer/conditioned fuel over 90 days.
Note: Fuel stabilizer/conditioner is most
effective when mixed with fresh fuel and used at
all times.
B.
Run the engine for 5 minutes to distribute the
conditioned fuel through the fuel system.
C.
Shut off the engine, allow it to cool, and drain the
fuel tank using a pump-type siphon. Dispose of
fuel properly; recycle it according to local codes.
D.
Start the engine and run it until it stops.
E. Choke the engine.
F.
Start and run the engine until it does not start
again.
3. Clean the sediment cup; refer to Cleaning the Sediment
Cup (page 35).
4. Service the air cleaner; refer to Servicing the Air
Cleaner (page 30).
5. Change the engine-crankcase oil; refer to Changing the
Engine Oil (page 31).
6. Remove the spark plug and check the condition; refer
to Removing the Spark Plug (page 32).
7. Condition the engine as follows:
A. Remove the spark plug and pour 2 tablespoons
of engine oil into the spark-plug hole; refer to
Removing the Spark Plug (page 32).
B.
Pull the recoil-start handle slowly to crank the
engine and distribute the oil inside the cylinder.
C.
Install the spark plug; refer to Installing the Spark
Plug (page 33).
Note: Do not install the wire on the spark plug.
8. Grease the machine; refer to Lubricating the Bearings
and Seals (page 29).
44
9. Check and tighten all bolts, nuts, and screws. Repair or
replace any part that is damaged.
10. Paint all scratched or bare-metal surfaces. Paint is
available from your Authorized Toro Dealer.
11. Store the machine in a clean, dry garage or storage area.
12. Cover the machine to protect it and keep it clean.
45
Troubleshooting
Problem
The engine does not start.
Possible Cause
1. The fuel-valve lever is in the OFF
position.
1. Move the fuel-valve lever to the ON
position.
2. The choke is closed
2. OPEN the choke when starting a hot
engine.
3. CLOSE the choke when starting a cold
engine.
4. Rotate the switch to the ON position.
3. The choke is open.
4. The engine ON/OFF switch is in the
OFF position.
5. The engine-oil level is low (engines
with the oil-level switch).
6. The fuel tank is empty.
7. The engine contains bad/old fuel.
8. The spark plug is fouled or improperly
gapped.
9. The spark plug is wet with fuel (flooded
engine).
10. The spark-plug wire is loose or
disconnected.
The engine lacks power or runs rough.
9. Remove the spark plug, dry it, and
install the plug. Start the engine with
the throttle in the MAX position.
10. Remove the spark-plug wire, clean the
spark-plug terminal and the terminal
socket in the boot of the spark-plug
wire, and reinstall the spark-plug wire.
1. Clean or replace the air-filter
element(s).
2. The engine contains bad/old fuel.
2. Drain the fuel tank and carburetor.
Refuel with fresh fuel.
3. Drain the fuel tank and carburetor.
Refuel with fresh fuel.
4. Clean the fuel filter and sediment cup.
5. Open the choke.
6. Check the electrode gap and adjust or
replace the spark plug.
7. Drain the oil to the proper level.
1. The belt tension is insufficient.
1. Adjust the belt tension.
2. The belts are worn.
3. The pulley(s) are worn.
2. Replace the belts.
3. Contact your Authorized Service
Dealer.
4. Align the pulley(s).
4. The pulley(s) are misaligned.
The paddles rotate when the clutch lever
is in the OFF position (Models 68017C and
68020C).
5. Fill the engine, with the recommended
oil, to the proper level.
6. Fill the fuel tank with fresh fuel.
7. Drain the fuel tank and carburetor.
Refuel with fresh fuel.
8. Gap or replace the spark plug.
1. The air filter is restricted.
3. There is water or contamination in the
fuel.
4. The fuel line is restricted.
5. The choke is closed
6. The spark plug is worn or has buildup
on the electrodes.
7. There is too much oil in the engine
crankcase.
The belts slip or come off the pulleys
(Models 68014C, 68017C, and 68021C).
Corrective Action
1. The clutch lever is not adjusted
correctly.
1. Adjust the belt tension.
2. The belt guide is not adjusted correctly.
2. Adjust the belt guide.
The paddles rotate when the clutch lever
is in the OFF position (Model 68024C).
1. The clutch is not adjusted correctly.
1. Contact your Authorized Service
Dealer.
The paddles do not rotate when the clutch
lever is in the ON position (Models 68017C
and 68021C).
1. The clutch lever is not adjusted
correctly.
1. Adjust the belt tension.
2. The paddles are stuck in the drum
2. Clean the paddles and drum.
1. The clutch is not adjusted correctly.
1. Contact your Authorized Service
Dealer.
The paddles do not rotate when the clutch
lever is in the ON position (Model 68024C).
46
Problem
Possible Cause
Corrective Action
The paddles rotate slowly when the clutch
lever is in the ON position (Models 68017C
and 68021C).
1. The clutch lever is not adjusted
correctly.
1. Adjust the belt tension.
The paddles rotate slowly when the clutch
lever is in the ON position (Model 68024C).
1. The clutch is not adjusted correctly.
1. Contact your Authorized Service
Dealer.
47
The Toro Warranty
A limited warranty (see warranty periods below)
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company, pursuant to
an agreement between them, jointly warrant your Toro Concrete, Masonry,
and Compaction Equipment Products listed below to be free from defects in
materials or workmanship.
This warranty covers the cost of parts and labor, but you must pay
transportation costs.
for that part. Failure to perform required maintenance and adjustments can
be grounds for disallowing a warranty claim.
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the warranty period
are defects in materials or workmanship. This express warranty does not
cover the following:
•
Product failures which result from the use of non-Toro replacement
parts, or from installation and use of add-on, modified, or unapproved
accessories
•
Product failures which result from failure to perform required
maintenance and/or adjustments
•
Product failures which result from operating the Product in an abusive,
negligent or reckless manner
•
Parts subject to consumption through use unless found to be defective.
Examples of parts which are consumed, or used up, during normal
product operation include, but are not limited to, belts, wipers, spark
plugs, tires, filters, gaskets, wear plates, seals, O-rings, drive chains,
clutches.
•
Failures caused by outside influence. Items considered to be outside
influence include, but are not limited to, weather, storage practices,
contamination, use of unapproved coolants, lubricants, additives, or
chemicals, etc.
•
Normal “wear and tear” items. Normal “wear and tear” includes, but is
not limited to, worn painted surfaces, scratched decals, etc.
•
Repairs necessary due to failure to follow recommended fuel
procedure (consult Operator's Manual for more details)
The following time periods apply from the date of purchase:
Products
Concrete Mixers
•Spindle Bearings
Mortar Mixers
•Drum Bearings and Seals
Forward Plate Compactors
Reversible Plates
Rammer Compactors
Mud Buggy
Vibrating Trench Roller
Concrete Saws
Masonry Saws
Power Trowels
Screeds
Concrete Vibrators
Warranty Period
1 year
Lifetime* (original owner only)
1 year
Lifetime* (original owner only)
2 years
1 year
2 years
1 year
2 years
1 year
1 year
1 year
1 year
1 year
Where a warrantable condition exists, we will repair the Product at no cost
to you including diagnosis, labor, and parts.
*Lifetime
Warranty - If the bearing(s) or seal(s) on your mixer fail, it will be replaced under warranty,
at no cost for parts or labor.
Instructions for Obtaining Warranty Service
If you think that your Toro Product contains a defect in materials or
workmanship, follow this procedure**:
1.
Contact any Authorized Servicing Outlet to arrange service at their
dealership. To locate one convenient to you, access our website at
www.Toro.com. Select “Where to Buy” and select “Contractor” under
product type. You may also call our toll free number below.
2.
Bring the product and your proof of purchase (sales receipt) to them.
3.
If for any reason you are dissatisfied with the Service Outlet’s analysis
or with the assistance provided, contact us at:
SWS Customer Care Department
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Toll Free: 800-888-9926
**Toro
Authorized Rental Customers who have purchased products directly from Toro and have
signed the Toro Rental Customer Agreement have the ability to perform their own warranty work.
Please visit Toro’s Rental Portal for electronic warranty clam filing procedures or call the toll free
number above.
Owner Responsibilities
You must maintain your Toro Product by following the maintenance
procedures described in the Operator’s Manual. Such routine maintenance,
whether performed by a dealer or by you, is at your expense. Parts
scheduled for replacement as required maintenance (“Maintenance Parts”),
are warranted for the period of time up to the scheduled replacement time
Concrete,
Masonry, and
Compaction
Equipment
•
•
–
Removing contaminants from the fuel system is not covered
–
Use of old fuel (more than one month old) or fuel which contains
more than 10% ethanol or more that 15% MTBE
–
Failure to drain the fuel system prior to any period of non-use
over one month
Any component covered by a separate manufacturer’s warranty
Pickup and delivery charges
General Conditions
Repair by an Authorized Servicing Outlet or Self-Service as an Authorized
Rental Customer is your sole remedy under the warranty.
Neither The Toro Company nor Toro Warranty Company is liable for
indirect, incidental or consequential damages in connection with the
use of the Toro Products covered by this warranty, including any
cost or expense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending completion of
repairs under this warranty. All implied warranties of merchantability
and fitness for use are limited to the duration of this express warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the
above exclusions and limitations may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Except for the engine warranty coverage and the Emissions warranty
referenced below, if applicable, there is no other express warranty. The
Emissions Control System on your Product may be covered by a separate
warranty meeting requirements established by the U.S. Environmental
Protection Agency (EPA) or the California Air Resources Board (CARB).
Refer to the California Emission Control Warranty Statement supplied with
your Product or contained in the engine manufacturer’s documentation for
details.
Countries Other than the United States or Canada
Customers who have purchased Toro products outside the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee
policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee
information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro
Dealer.
374-0288 Rev C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
