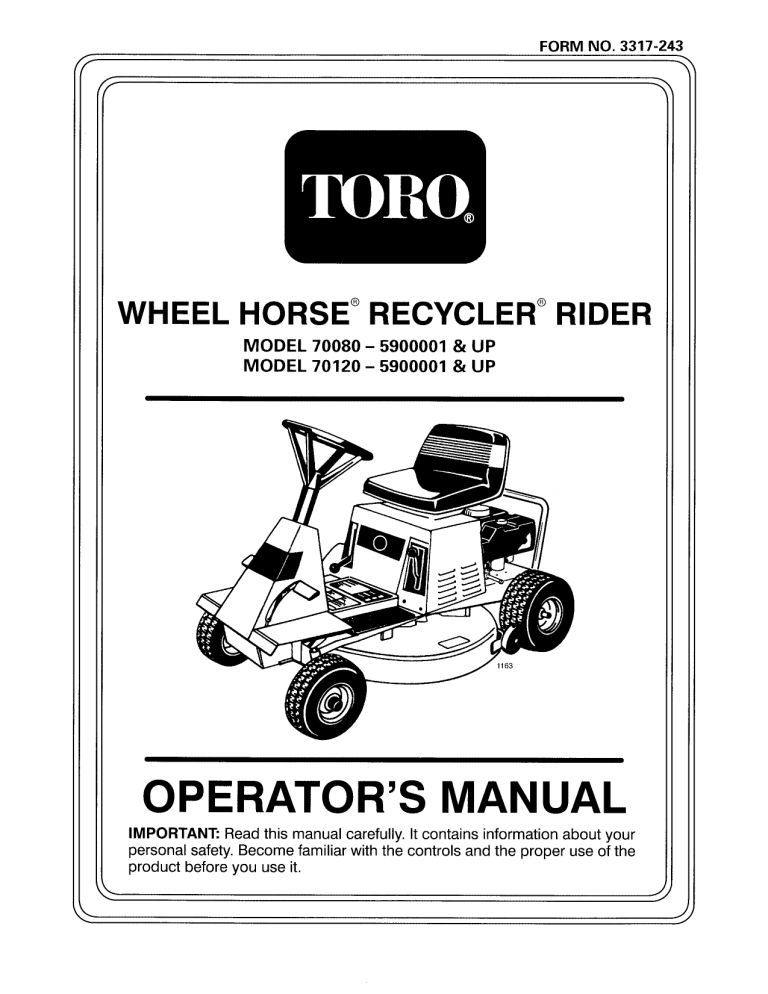

FORM NO. 3317-243
N
WHEEL HORSE RECYCLER RIDER
MODEL 70080 - 5900001 & UP
MODEL 70120 - 5900001 & UP
OPERATOR’S MANUAL
IMPORTANT: Read this manual carefully. It contains information about your
personal safety. Become familiar with the controls and the proper use of the
product before you use it.
~~)
SN
ww
FOR YOUR SAFETY
Two of the most potentially serious types of accidents and follow these instructions. Also refer to the Safe
Involving power mowers are contact with the mower Operation Practice in this Operator's Manual for other
blade and overturning the rider/tractor. To minimize important safety information.
the possibility of having these types of accidents, read
BLADE CONTACT
! DANGER! Mower Blades are Designed
to CUT: therefore,
ALWAYS: A DANGER
+ Shut off engine and set parking brake.
* Remove ignition key.
* Allow moving parts to stop before dismounting,
servicing, or cleaning unit.
NEVER: ROTATING BLADES UNDER ENTIRE MOWER DECK.
KEEP HANDS and FEET AWAY
° Perform ANY work on the mower with engine THROWN OBJECTS ARE DANGEROUS
na. .
Tin other people around. especially children. | KEEP DEFLECTOR IN PLACE. KEEP BYSTANDERS AWAY
* | eave mower unattended.
RIDER/TRACTOR STABILITY
Vehicle stability changes with conditions
and is affected by: A DANGER
» Slope angle and length/bumps/holes, etc.
* Slippery conditions (lawn moisture and length) | TO AVOID INJURY
* Operator size and position/how loaded/
equipment used
* Speed/braking/steering changes
* Operator physical limitations/alertness
* Use good judgement when operating the rider/
tractor, especially on slopes.
* Maintain the vehicle in good operating condition. NEVER MOW UP NEVER MOW SLOPE
e Be attentive to changing conditions affecting
vehicle stability.
NEVER:
» Operate vehicle on extreme slopes.
» Operate vehicle across slopes.
» Abruptly change speed or direction.
HILL OVER 10° OVER 15°
NEVER MOW SIDE
HILL OVER 5°
TABLE OF CONTENTS
Page
Safety Operation Requirements ................ 3
Safety Decals and Instructions .................. 7
Specifications ............. 0 een ane 8
Loose Parts ........... a La aa aa aan ne 9
Setting Up Instructions ....................... 10
Install Front Wheels ................... 10
Install Steering Wheel Assembly ........ 10
Install Seat ........................... 10
BeforeOperating ............................. 11
Activating and Charging Battery ........ 11
Fill Crankcase With Oil ................. 11
Fill Fuel Tank With Gasoline ............ 12
Check TirePressure ................... 12
Controls ........ e. eñ]edrea.i.000rene a 13
Starting and Stopping Instructions .............. 14
Operating Instructions ........................ 14
Brealk-In ............. 2... ei 14
Using Parking Brake ................... 14
Adjusting Height-of-Cut ................ 14
Operating Procedure .................. 14
Side Discharging or Bagging ........... 15
Grass Deflector ....................... 15
Recycler® Rider Tips .......................... 15
Maintenance interval Chart .................... 18
Maintenance. ...................... iui... 19
Page
Grease Front Axle Spindles and Wheels . 19
Lubricate Pivot Points .................. 19
Check/Change Crankcase Oil .......... 20
Servicing Air Cleaner .................. 20
Replacing Spark Plug ................. 21
Draining Gasoline From Fuel Tank . ... ... 22
Adjusting Throttle/Choke Control ........ 22
Adjusting Carburetor .................. 22
Servicing CutterBlade ................. 23
Cleaning Underside of Mower Housing .. 24
Removing/installing Cutting Unit ........ 24
Replacing Blade Drive Belt ............. 25
Adjusting Blade Drive Belt .............. 25
Replacing Traction Drive Belt ........... 25
Adjusting Front Wheel Alignment ........ 26
AdjustingBrake ....................... 26
Leveling Cutting Unit .................. 27
Adjusting Gear Shift Neutral Position .... 27
Checking Interlock System ............. 27
Preparing Mower For Storage .......... 28
Wiring Diagram ............eeeeeeerederearan. 29
Trouble Shooting ............................. 30
Maintenance Record ......................... 32
Slope Chart ........... 2.2. aaa. 33
Warranty .............. e... .. Back Cover
DANGER
CAUTION
These symbols mark important instructions relating to your personal safety. To avoid possibility
of injury, read and follow such instructions carefully.
This symbol warns of extreme immediate hazards which will result in severe person-
al injury or death if proper precautions are not taken.
This symbol warns of a hazard or unsafe practice which can result in personal injury
or death if proper precautions are not taken.
seat.
When manual refers to left or right side of vehicle, it means your left or right when sitting in driver's
SAFE OPERATING REQUIREMENTS - RIDING VEHICLES
WARNING: Engine exhaust contains carbon monox-
ide which is an odorless, deadly poison. Carbon
monoxide is also known to the State of California to
cause birth defects. Do not run engine indoors or in
an enclosed area.
GENERAL
1. This machine is capable of amputating hands
and feet and can throw objects that can cause injury
and damage. KNOW the controls and how to stop
machine quickly. READ THIS OPERATOR'S MANUAL
and instructions furnished with attachments. Read,
understand, and obey all safety messages appear-
ing on the machine and in the operators manual.
LEARN from your operator's manual and from care-
ful EXPERIENCE how to operate your equipment
correctly. Know your machine’s limitations.
2. Keep hands, feet, hair and loose clothing away
from attachment discharge area, underside of mow-
er deck or any moving parts while engine is running.
3. The use of drugs or alcohol while operating any
equipment will place your safety in peril. Do not at-
tempt operation of this machine while taking drugs
or medication or while drinking alcoholic beverages.
©The Toro Company — 1994 3
SAFE OPERATING REQUIREMENTS
4. Only responsible persons with mature judgment
and proper physical capabilities should be allowed
to operate this machine, and only after instruction in
the proper use of this equipment.
5. Do not allow children to operate machine.
6. Do not carry passengers.
7. The purpose of this machine is to perform work.
This equipment is not intended for sport or recre-
ation.
8. Do not mow when people or pets are around.
9. Clear work area of objects (wire, rocks, etc.)
which might be picked up and thrown.
10. Take all possible precautions when leaving ve-
hicle unattended; disengage power-take-off, lower
attachments, shift into neutral, set parking brake,
stop engine and remove key.
11. Watch out for traffic when crossing or near road-
ways.
12. Machine and attachments should be stopped
and inspected for damage after striking a foreign
object. Damage should be repaired before restarting
and operating equipment.
13. Do not change engine governor settings or ov-
er—speed engine.
14. Wear appropriate protective clothing when oper-
ating equipment. Long pants and substantial foot-
wear are essential. Do not operate with bare feet or
open sandals.
15. Do not operate equipment unless properly
seated with feet on footrests or pedals.
16. Keep your eyes and mind on your machine, at-
tachment and the working area. Do not let other in-
terests distract you.
17. Safety switches are intended to stop or prevent
starting of engine to help prevent accidents.
OPERATOR SHOULD TAKE PRECAUTIONS AND
NOT RELY ENTIRELY ON SAFETY SWITCH(ES).
Check switches for proper operation before each
use.
18. Care should be used not to touch equipment or
attachment parts which may be hot from operation.
Muffler and nearby areas may exceed 150° F. Allow
cooling to occur before attempting to maintain, ad-
just or service.
19. Use of stereo headphones, ear protection or oth-
er sound altering/dampening devices may limit your
ability to hear warning sounds (horns, shouts, etc.).
4
FUEL / FIRE PRECAUTIONS
20. Handle gasoline with care. It is highly flammable.
21. Use approved gasoline container. Place contain-
er out of reach of children.
22. Use gasoline only as a fuel — never as a cleaner.
23. Never remove fuel cap or add gasoline to a run-
ning or hot engine, or an engine that has not been
allowed to cool for several minutes after running.
24. Never fill fuel tank indoors. Wipe up spilled gaso-
line.
25. Open doors if engine is run in garage — exhaust
fumes are dangerous. Do not run engine indoors.
26. Do not fill machine with gasoline while smoking
or when near open flame or sparks.
27. Never store equipment with gasoline in the tank
inside a building where fumes may reach an open
flame or spark.
28. Allow engine to cool before storing in any enclo-
sure.
29. To reduce fire hazard, keep engine and attach-
ments free of grass, leaves or excessive grease.
30. Battery acid is a poison and can cause burn.
Avoid contact with skin, eyes and clothes and pro-
tect your face, eyes and clothing when working
around the battery.
31. Battery gases can explode. Keep cigarette,
sparks and flames away from battery.
EQUIPMENT USE AND OPERATION
32. It is recommended that first operation of equip-
ment be done at a slow speed with attachment dis-
engaged. Continue this practice until operator is
thoroughly familiar with the controls and has devel-
oped operating skills.
33. Disengage all attachment clutches, set parking
brake and shift into neutral before attempting to start
engine.
34. Disengage power to attachment(s), set parking
brake and stop engine before leaving operator posi-
tion.
35. Disengage power to attachment(s) and stop en-
gine before making any repairs or adjustments.
36. Disengage power to attachment(s) when trans-
porting or not in use.
37. Disengage attachment clutch before attempting
to remove the mower from a hole or other obstruc-
tion.
SAFE OPERATING REQUIREMENTS
38. Disengage power to attachment(s) before back-
ing. Do not mow in reverse unless absolutely neces-
sary and then only after careful observation of the
entire area behind the machine.
39. LOOK behind machine to make sure the area is
clear before placing the machine in reverse and con-
tinue looking behind while backing.
40. Always back up loading ramps and tilt bed trail-
ers.
41. The parking brake is designed to hold machine
in place at rest, with engine off. Parking brake will
not restrain machine with engine running and trans-
axle engaged.
STABILITY / TIP OVER / TRACTION
42. Know the terrain on which you are operating
your equipment. There are areas on which your
equipment cannot be safely operated.
43. Avoid operating equipment on hillsides, slopes
or rough terrain. DO NOT operate machine on hil-
Isides or slopes exceeding 15° (27% grade). If safety
IS In doubt STAY OFF THE SLOPE.
44. Reduce speed and exercise extreme caution on
slopes above 10° (18% grade) to prevent tipping or
loss of control. Never mow uphill on these slopes —
mow downhill only. If a steep hill must be ascended,
back up the hill, and drive forward down the hill,
keeping machine in gear. If necessary to turn on hill,
always turn downhill.
45. Mow up and down the face of slopes greater
than 5° (9% grade), never across the face. Be espe-
cially cautious when changing directions on all
slopes.
46. Operate your machine smoothly and at a ground
speed slow enough to ensure complete control at all
times. Avoid erratic operation and excessive speed.
47. Sharp turns on any terrain may cause loss of
control. Reduce speed and use caution when mak-
Ing sharp turns.
48. Do not stop or start suddenly when going uphill
or downhill. Avoid uphill starts. If machine is stopped
going up a slope, turn the attachment off and back
slowly down the slope keeping the machine in gear.
Do not stop or change gears (speed) on slopes.
49. Know the terrain on which you are working. Find
hidden obstacles by walking through and inspecting
the area prior to operating your equipment in that
area. Plainly mark obstacles, such as rocks, ruts or
holes and stay well clear of these obstacles when
operating.
50. While operating, stay alert for holes, rocks or
roots, which may cause damage to equipment or
upset. Keep at least 3 ft. away from drop-offs,
ditches, creeks, culverts, washouts and public high-
ways.
51. Exercise care when mowing around a fixed ob-
ject to prevent the equipment or attachment from
striking the object. When mowing, never deliberately
run over any foreign object.
52. Areas wet with dew, rain or snow will be more
slippery than when dry. Areas covered with loose
gravel are more slippery than firm, dry ground.
Greater stopping distances are required in these
slippery areas.
53. Learn to expect changes in operating conditions.
Adding or removing attachments or weight to your
equipment will make your machine perform different-
ly. Rain, snow, loose gravel, wet grass, etc., change
the tractive conditions of the terrain, requiring
changes in your operating technique, which may
include a decision not to operate on that terrain.
54. Use care when pulling loads or using heavy
equipment.
A. Use only approved drawbar hitch points.
B. Limit loads to those you can safely control.
C. Do not turn sharply. Use care when backing.
D. Use counterweight(s) or wheel weights when
suggested in operators manual.
ATTACHMENT USE
55. When using attachments never direct discharge
of material toward bystanders nor allow anyone near
vehicie while in operation.
56. When using machine with mower:
A. Mow only in daylight or in good artificial light.
B. Never make a cutting height adjustment while
engine is running if operator must dismount
to do so.
C. Shut engine off and wait for all moving parts
to stop before unclogging chute.
D. Check blade mounting bolts for proper tight-
ness at frequent intervals.
57. Keep hands and feet away from rotating blade(s)
underneath mower deck. Never place foot on
ground when mower is engaged or when unit is in
motion.
58. DO NOT operate mower attachment without the
chute deflector or complete bagger in place.
59. Exercise care while maneuvering with grass
catcher. Front to rear stability may change.
SAFE OPERATING REQUIREMENTS
MAINTENANCE
60. Keep all nuts, bolts, fasteners and screws tight
to be sure equipment is in safe working condition
and check them frequently. Repair or replace worn,
damaged, distorted or broken parts as needed.
61. Keep vehicle and attachments in good operating
condition and keep safety devices in place and
working.
62. Under normal usage, grass catcher bag material
is subject to deterioration and wear. It should be
checked frequently to determine need for bag re-
placement.
63. Use only genuine Toro Wheel Horse replacement
parts to ensure that original standards are main-
tained.
64. Shields, deflectors, switches, decals, blade con-
trols and other safety devices must be in their proper
position and functional.
65. Do not operate without muffler or tamper with
the exhaust system. Damaged mufflers or spark ar-
resters can create a fire hazard. Periodically inspect
and replace if necessary.
66. If equipment begins to vibrate abnormally, disen-
gage power to attachments and stop engine at
once. Repair any damage before starting or continu-
ing operation.
67. Periodically inspect all shafts, levers, friction de-
vices and other moving parts subject to wear. Make
required adjustment or replace these parts if dam-
aged, distorted or broken, or as soon as wear affects
the normal operation of the vehicle or attachment.
DO NOT operate equipment that is not functioning
properly.
OWNER REGISTRATION AND WARRANTY
Service and warranty assurance is as important to Toro Wheel Horse as it is to you, the owner. To facilitate warranty
service at an Authorized Toro Wheel Horse Dealer, Toro Wheel Horse requires factory registration. A registration card
is supplied with each new rider and attachment. Either you or your dealer must fill in required information and
mail the card to Toro Wheel Horse.
Toro Wheel Horse Limited Warranty Statement is on a “hang tag” in the loose parts bag. This statement describes
what items are covered by the Toro Wheel Horse Limited Warranty, your rights and obligations, and procedure to
follow to obtain warranty service. Please familiarize yourself with the warranty statement. All of us at Toro Wheel
Horse want you to be satisfied with your Toro Wheel Horse rider; please don’t hesitate to contact us for assis-
tance.
PARTS MANUAL
A separate parts manual is available for your Toro Wheel Horse equipment. To obtain a parts manual, write to:
The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Attn: Publications Dept.
BE SURE TO INCLUDE MODEL NUMBER AND SERIAL NUMBER OF EQUIPMENT.
SAFETY DECALS AND INSTRUCTIONS
A
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
ON DEFLECTOR IN FRONT OF SEAT IN FRONT OF SEAT
OPERATE ONLY WITH DEFLECTOR
OR ENTIRE CATCHER IN PLACE
KEEP HANDS and FEET AWAY
w
(Part No. 54-9220) (Part No. 92-7983) (Part No. 92-7984)
ON REAR OF
ON LEFT SIDE OF DECK STEERING TOWER
ON REAR OF (Part No. 66-1340) (Part No. 79-0370)
STEERING TOWER
(Part No. 93-7008) | À DANGER nm A DANGER
© у»
*ROTATING BLADES CAN CUT HANDS AND FEET. 79-070
*KEEP HANDS AND FEET CLEAR OF BLADE AT ALL TIMES.
*NEVER ASSUME BLADE IS STOPPED.
*STOP ENGINE BEFORE LEAVING GPERATOR POSITION,
“USE CARE! DO NOT RELY ON SAFETY SYSTEMS.
RE MOWER DECK.
[= ROTATING BLADES, UNDER ENTIRE M “SAFETY INTERLOCK SYSTEMS CAN FAIL. CHECK BEFORE
BJECTS ARE DANGER EACH USE. SEE OPERATOR'S MANUAL FOR DETAILS.
THROWN O nous.
KEEP DEFLECTOR IN PLACE. KEEP BYSTANDERS AWAY.
da
vu
*DO NOT OPERATE UNLESS SAFETY SYSTEM WORKS.
AE
ON RIGHT SIDE OF SEAT
(Part No. 92-1751)
3 2 1 -
GROUND SPEED
IN FRONT OF SEAT
(Part No. 92-7243)
4 THROTTLE
М
OFF © y C
(08 \
>
UNDER GRASS DEFLECTOR
(Part No. 68-3650)
| A DANGER =
DEFLECTOR IS NOT IN PLACE. DO NOT OPERATE.
ON FLOOR PANEL
(Part No. 76 —1090)
( 4% CLUTCH PEDAL BRAKE PEDAL 4
OPERATING INSTRUCTIONS
TO START: TO SHIFT: TO PARK:
NOTE: Engine will not start » Release Parking Brake. To ENGAGE Parking Brake.
unless instructions are + Depress Clutch pedal. + Move Shift Selector to
followed. + Move gear Shift to desired NEUTR AL". ©
- Operator is ON SEAT. speed. ress Brake Pedal.
- Move gear selector to old Parking Lever in "ON"
“NEUTRAL”. O STOP: “position while releasing Brake
. Depress Brake or set Parking « Fully Depress CLUTCH
B y To DISENGAGE Parking Brake.
rake. and BRAKE PEDALS. al.
+ Attachment Clutch Switch must - Depress Brake P
» Push DOWN on Parking Brake
be in"DISENGAGED position.
+ Move throttle lever to "CHOKE", TO TURN OFF ENGINE. Lever.
choke move throttle or DISENGAGE Position. IMPORTANT:
midway between "slow" & & “fast”, * Depross ARAKE PEDAL and Parking Brake cannot be
ove choke fever to “on' A ; CERN applied unless Gear Selector
Turn Ignition Switch to "START" * Turn Ignition Switch to "OFF". NEUTRAL”.
position, release when engine Parking Brake must be released
starts. before shifting into gear.
A DANGER
TO AVOID SERIQUS INJURY OR DEATH:
- READ AND UNDERSTAND THE OPERATOR'S MANUAL.
NEVER ow SIDE
ER 5°
» KNOW LOCATION AND FUNCTION OF CONTROLS.
» NEVER USE WHEN UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.
+ USE SAFELY; MACHINE IS NOT A TOY.
« NEVER MOW WHEN CHILOREN, PEOPLE OR Wa ARE IN MOWING AREA.
« NEVER CARRY CHILDREN OR OTHER PASSENGE
+ LOOK DOWN ANE BEHIND BEFORE AND WHILE BACKING UP. NEVER MOW UP
HILL OVER 10°
+ KEEP SAFETY DEVICES, т PLACE ANO WORKING,
« REMOVE OBJECTS THAT COULD SE THROWN BY THE BLADE.
« AVOID BLADE UNLESS BLADE AND ENGINE ARE STOPPED.
« SET PARKING BRAKE AND REMOVE KEY BEFORE LEAVING MACHINE.
« GO UP AND DOWN SLOPES, NOT ACROSS.
+ AVOID SHARP QR SUDDEN TURNS AND SLIPPERY OR STEEP AREAS.
» IF MACHINE STOPS GOING UPHILL, STOP BLADE AND BACK SLOWLY DGWN.
REPLACEMENT MANUAL AVAILABLE BY SENDING COMPLETE MODEL NUMBER TO:
NEVER MOW DOWN
HILL OVER 15°
THE TORO CO, 9111 LYNDALE AVENUE, MINNEAPOLIS, MR 55420-1196 75.1090
SPECIFICATIONS
1032 REAR ENGINE RIDER — ELECTRIC START, MODEL 70080
1232 REAR ENGINE RIDER — ELECTRIC START, MODEL 70120
10-32 — Briggs & Stratton Engine (70080): |/C Se-
ries, electric start with alternator, four cycle engine.
Crankcase oil capacity is 48 ounces (1.42 |) and fuel
tank capacity is 5 quarts (4.73 |). Correct spark piug
is a Champion RJ-19 LM or equivalent resistor type.
Recommended spark plug air gap is 0.030 of an
inch (0.762 mm).
12-32 — Briggs & Stratton Engine (70120): 1/C
Quiet Series, electric start with alternator, four cycle
engine. Crankcase oil capacity is 48 ounces (1.42 1)
and fuel tank capacity is 5 quarts (4.73 I). Correct
spark plug is a Champion RJ-19 LM or equivalent
resistor type. Recommended spark plug air gap is
0.030 of an inch (0.762 mm).
Mower Housing: Full floating, front to rear, side to
side. 13 gauge (2.64 mm) stamped steel housing
with kickers, discharge cover, ring and side dis-
charge grass deflector. Deck diameter is 31.75 in-
ches (.8 m). Cast spindle housing with shaft is sup-
ported by two double seal ball bearings. Blade
spindle pulley is driven by “A” section V-belt from en-
gine crankshaft.
Cutter Blade: Single blade is 31.35 inches (0.796 m)
long, made of one piece hardened 7 gauge (2.72
mm) carbon steel.
Blade Tip Speed: 17,000 ft./min (86.36 m/s) @ 3300
engine rpm. Height—of—Cut Range: adjustable to
one of six approximate settings from 1-1/2 inches to
4 inches (38 to 101 mm).
Transaxle: Transaxle fully enclosed, permanently
lubricated with five speeds forward and one reverse.
Axle shafts are 3/4 inch (19 mm) dia. with (2) zerks
on the bottom.
Wheels and Tires: The front 11 x 4.00-5 and the rear
15 x 6.00-6 tubeless, pneumatic turf tires are in-
stalled on demountable stamped steel wheels.
Ground Speed @ 3300 Engine rpm:
1st gear — 1.57 mph (2.52 km/hr)
2nd gear — 2.35 mph (3.78 km/hr)
3rd gear — 3.0 mph (4.82 km/hr)
4th gear — 3.7 mph (5.95 km/hr)
5th gear — 5.0 mph (8.04 km/hr)
Rev. gear — 1.71 mph (2.73 km/hr)
Steering: 4 spoke, dished steering wheel on pinion
and sector gear to tie rods controlling wheels 5.1:1
reduction. Turning diameter of approximately 3.3 ft.
(1 m).
Engine Controls: Throttle control with CHOKE, OP-
ERATE, HOT RESTART and IDLE positions. Key
switch with OFF, RUN and START positions. Both
controls mounted in convenient positions.
Gear Selector Control: Hand operated lever on
right side of operator with in line shifting pattern.
Traction Clutch: Foot operated pedal on left side.
Depressing pedal disengages idler pulley.
Brake Pedal: Foot operated pedal on right side. De-
pressing pedal engages caliper on 2-1/2 inch (64
mm) diameter disc. Located on the transaxle.
Parking Brake Control: Hand operated lever on rear
of steering tower which locks brake pedal and/or
clutch pedal.
Cutter Blade Control: Hand operated lever to right
of operator releases blade brake and engages
clutch.
Height-Of-Cut Control Lever: Hand operated lever
to left of operator. Height—of—cut selection is vari-
able in six increments from approx. 1-1/2 to 4 inches
(38 to 102 mm).
General Dimensions:
Wheel Base — 45 in (1.14 m)
Tread Width — 30 in (.76 m) front outside to
outside
Length — 60 in (1.52 m)
Height — 38 in (.97 m)
Width — 40 in (1.02 m)
Weight — 370 lb (167.84 kg)
Safety Features: Meets or exceeds ANSI/OPEI
B71.1 — 1990 safety specifications.
Traction drive, blade drive and seat interlock.
Full foot rests.
Convenient, easy to operate controls.
Automatic blade brake.
Stable-Wide track and low center of gravity.
Optional Accessories Attachments:
Easy Empty Grass Catcher, Model #79095
Twin Bagger, Model #79085.
LOOSE PARTS
Note: Carefully remove rider and other parts from carton. Use chart below to ensure all parts have been
shipped.
DESCRIPTION QTY. USE
Seat 1
Wire Tie 1
Clamp 1 Install Seat, page 10.
Seat Spacer 4
Locknut 4
Front Wheel Assembly 2
Flat Washer 2 Install Front Wheels, page 10.
Hub Cap 2
Cotter Pin 2
Steering Wheel 1
Roll Pin 1 Install Steering Wheel Assembly, page 10.
Steering Shaft Cover 1
Key 1 Use in Ignition Switch.
Capscrew 2 Secure battery cables to battery, page 11.
Wing Nut 2
Operator's Manual 1 Read manual before operating rider.
Registration Card 1 Fill out and mail to Toro.
Hang Tag 1 Read for Warranty Information.
SETTING UP INSTRUCTIONS
INSTALL FRONT WHEELS
Note: Grease axle shafts before installing wheels.
1. Install wheel onto axle.
2. Mount flat washer onto axle, insert cotter pin and
open pin ends with pliers (Fig. 1).
3. Install hub caps.
3. Insert a drift punch partially through the holes to
maintain alignment and insert the roll pin in from the
opposite side. _
4. Drive the roll pin in until it is flush with the out-
side of the wheel (Fig. 2).
INSTALL SEAT
1. Thread (4) seat spacers into bottom of seat
(Fig. 3).
2. Position seat onto seat base, inserting seat
switch cable thru slot and spacer studs thru mount-
ing holes (Fig. 3).
3. Slide wire clamp over seat switch wire (Fig. 3).
4. Using left front spacer stud, loosely secure wire
clamp and seat to seat base with a locknut (Fig. 3).
Figure 1
1. Flat washer 2. Cotter pin 3. Hub cap
4. Repeat steps 1-3 on opposite side.
5. Check front and rear tires for 12 psi (82.7 kPa)
inflation.
6. Lubricate both front wheels with No. 2 general
purpose grease. Pump grease gun until grease com-
es through bearings. Wipe up any excess grease.
INSTALL STEERING WHEEL ASSEMBLY
1. Position wheels in straight ahead direction and
slide steering shaft cover over steering shaft.
2. Slip steering wheel over shaft and line the steer-
ing wheel mount hole with the shaft mounting hole
(Fig. 2). Toro logo should be readable from opera-
tor's position.
7
E
—
.
Figure 2
1. Steering shaft cover 2. Roll pin
10
A
Figure 3
1. Seat spacers 5. Seat switch slot
2. Wire clamp 6. Seat switch connector
3. Seat switch wire 7. Wire tie
4. Locknut
5. Mount seat to seat base with (3) remaining lock-
nuts.
Note: Seat may be adjusted for operator comfort by
positioning seat as desired in seat base slots.
6. Tighten all locknuts.
7. Insert seat switch connector into wire harness
connector.
8. Secure wire harness to front of seat base with
wire tie.
BEFORE OPERATING
ACTIVATING AND CHARGING BATTERY
The battery must be removed from the machine so it
can be filled with electrolyte and charged. Bulk elec-
trolyte with 1.260 specific gravity must be purchased
from a local battery supply outlet. Remove the bat-
tery and activate it as follows:
1. Tip seat forward exposing battery.
2. Remove wing nut securing battery hold downs to
rider chassis (Fig. 4).
Figure 4
1. Wing nut 2. Battery hold downs 3. Filler cap
3. Lift up on top battery hold down and pivot rear-
ward.
4. Remove battery from chassis and set it aside.
5. Remove filler caps from battery and slowly fill
each cell until electrolyte is just above the “LOWER”
fill line.
6. Leave filler caps off and connect a 3-4 amp bat-
tery charger to battery posts. Charge battery at a
rate of 4 amperes or less for 4 hours (12 volt).
7. When battery is charged, disconnect charger
from electrical outlet and battery posts.
8. Slowly add electrolyte or distilled water to each
cell until level is just below the “UPPER” fill line. Rein-
stall filler caps. Once battery is in service, distilled
water only should be added; never add more elec-
trolyte.
IMPORTANT: Do not overfill battery. Electrolyte
will overflow onto other parts and severe corro-
sion and deterioration will result.
9. Install the battery with the terminal posts toward
the rear of the machine and vent tube on left side of
battery, thru hole in frame (Fig. 5).
Figure 5
1. Vent tube 2. Throttle cable
10. Reinstall battery hold downs.
ÁN WARNING
Be sure battery hold downs do not touch
battery posts during reinstallation of battery.
Contact between battery hold downs and
posts could result in personal injury and/or
damage to the electrical system.
11. Install the red positive cable (rubber boot over
end) to the positive (+) terminal and the negative
cable (black) to the negative (-) terminal of the bat-
tery and secure with capscrews and wing nuts. Slide
the rubber boot over the positive terminal to prevent
a possible short-out from occurring (Fig. 5).
FILL CRANKCASE WITH OIL
The rider is shipped from the factory without oil in
the crankcase.
1. Place rider on a level surface.
2. Unscrew and remove the dipstick from the oil fill
tube (Fig. 6).
3. Insert a funnel into the tube and slowly add en-
gine oil into the crankcase, using oil fill chart below.
Use a high quality detergent oil classified “For Ser-
vice SG”. Oil viscosity (weight) must be selected ac-
cording to anticipated ambient temperature.
Oil Fill Chart
1032 Rear Engine Rider
1232 Rear Engine Rider
48 ounces of ail
48 ounces of oil
11
BEFORE OPERATING
A DANGER
Figure 6
1. Dipstick 2. Fuel tank cap
A. Above + 40° F (4° C) — Use SAE 30 or 10W-30.
В. 0° to + 40° F (4° C) — Use 10W-30.
C. Below 0° (-18° C) — Use 5W- 20 or 5W—30.
Note: Avoid premature engine failure by ensuring
the funnel used is clean so contaminants are not in-
troduced into the crankcase. Wipe up any oll spilled
so it will not cause dirt to collect on the engine.
4. Ensure the oil level is to the full mark on the dip-
stick when it is fully installed. Do not overfill or en-
gine damage may result.
5. Insert the dipstick and turn it clockwise to secure
it in the fill tube.
Note: Check the oil level every 5 operating hours or
each time rider is used. Initially, drain the oil and re-
place it after the first 5 hours of operation to remove
the contaminants produced by normal engine
break-in; thereafter, under normal conditions, change
oil after every 25 hours of operation. Change the oil
more frequently when the engine is operated in
dusty or dirty conditions.
FILL FUEL TANK WITH GASOLINE
The Toro Company strongly recommends the use of
clean, fresh UNLEADED gasoline in Toro gasoline
powered products. Unleaded gasoline burns cleaner,
extends engine life, and promotes good starting by
reducing the build-up of combustion chamber de-
posits. Leaded gasoline can be used if unleaded is
not available.
Toro also recommends that Toro Stabilizer/Condition-
er be used regularly in all Toro gasoline powered
products during operation and storage seasons.
Toro Stabilizer/Conditioner cleans the engine during
operation and prevents gum-—like varnish deposits
from forming in the engine during storage.
12
Because gasoline is flammable, caution
must be used when storing or handling it.
Do not fill fuel tank while engine is running,
hot or when machine is in an enclosed area.
Vapors may build up and be ignited by a
spark or flame source many feet away. DO
NOT SMOKE while filling the fuel tank to
prevent the possibility of an explosion. Al-
ways fill fuel tank outside and wipe up any
spilled gasoline before starting engine. Use
a funnel or spout to prevent spilling gaso-
line, and fill tank to about 1/2 inch (13 mm)
below the filler neck. Store gasoline in a
cool, well-ventilated place; never in an en-
closed area such as a hot storage shed. To
ensure volatility, do not buy more than a 30
day supply of gasoline. Gasoline is a fuel
for internal combustion engines; therefore,
do not use it for any other purpose. Since
many children like the smell of gas, keep it
out of their reach because the fumes are
explosive and dangerous to inhale.
NOTE: NEVER USE METHANOL, GASOLINE CON-
TAINING METHANOL, GASOHOL CONTAINING
MORE THAN 10% ETHANOL, LEADED PREMIUM
GASOLINE OR WHITE GAS BECAUSE ENGINE
FUEL SYSTEM DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER THAN
THOSE MANUFACTURED FOR FUEL STABILIZA-
TION DURING STORAGE SUCH AS TORO’S STA-
BILIZER/CONDITIONER OR A SIMILAR PROD-
UCT. TORO’S STABILIZER/CONDITIONER IS À
PETROLEUM DISTILLATE BASED STABILIZER/
CONDITIONER. TORO DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE SUCH
AS ETHANOL, METHANOL OR ISOPROPYL. STA-
BILIZERS SHOULD NOT BE USED TO TRY TO EN-
HANCE THE POWER OR PERFORMANCE OF MA-
CHINE.
1. Clean area around fuel tank cap so foreign mat-
ter cannot enter tank when cap is removed (Fig. 6).
2. Remove cap from fuel tank and fill tank with un-
leaded gasoline to within 1/2” (13 mm) from top of
tank. Then reinstall fuel tank cap.
3. Wipe up any gasoline that may have spilled.
CHECK TIRE PRESSURE
Check and ensure the tires are inflated to 12 psi
(82.7 kPa) before operating the machine.
CONTROLS
Gear Shift (Fig. 7)—Transaxle has five forward
speeds, neutral and reverse. The gear shift lever is
located at right side of operator. An interlock switch
prevents engine from being started when transaxle is
in any gear except neutral.
pedal in depressed position and a caliper engages
the brake disc at side of transaxle.
Deck Engagement Lever (Fig. 9)—Engages and
disengages the cutter blade. An interlock switch pre-
vents engine from starting when control is in the EN-
GAGE position. Engine will start when control is in
DISENGAGE position only.
Ignition Switch (Fig. 9)-—Switch is part of engine
ignition system, and it has three positions: OFF, RUN
and START. Key automatically returns to RUN posi-
tion from START position when released after engine
starts.
N
Figure 7
1. Gear shift
Clutch Pedal (Fig. 8)—Used in conjunction with
gear shift. Depress clutch pedal fully when shifting
gears and whenever brake is used.
Brake Pedal (Fig. 8)—Must be depressed to slow
down or stop the rider. When pedal is depressed, a
caliper engages the brake disc at side of transaxle.
Remember to depress clutch pedal when using
brake.
Note: Avoid depressing brake pedal while clutch is
engaged otherwise premature brake wear will occur.
Do not rest foot on pedal while mowing.
|
O
—— 5
<
A Z ==
Г? oN 7
1. Deck engagement lever 3. Height—of—cut control
2. Ignition switch 4. Throttle control
Height—of—Cut Control (Fig. 9)--Control varies the
cutting height from approx. 1-1/2 to 4 inches (38 to
102 mm) in six increments.
Throttle Control (Fig. 99—Connects to and operates
carburetor mounted throttle and choke. Control has
four positions: IDLE, HOT RESTART, OPERATE and
CHOKE. Push control slightly to the left and upward
to obtain CHOKE position.
Back—Up Recoil Starter (Fig. 10) Recoil starter
must be used in conjunction with ignition switch. Af-
ter turning ignition key to ON position, pull recoil
starter handle to start engine.
Figure 8
1. Clutch pedal 2. Brake pedal 3. Parking brake
Parking Brake (Fig. 8) —Parking brake must be
used in conjunction with brake pedal. When pedal is
depressed, end of parking brake lever holds brake
Trees
>
(er
D,
|
|
Figure 10
13
STARTING AND STOPPING INSTRUCTIONS
START AND OPERATE MACHINE
Note: Operator must be seated to activate seat
switch before unit will crank.
1. Sit on seat, shift into neutral (N), move deck en-
gagement lever to DISENGAGE.
2. Move throttle control to CHOKE position and ro-
tate ignition key to START. When engine starts, re-
lease key and move throttle control between OPER-
ATE and IDLE.
3. Select desired height-of-cut and move deck en-
gagement lever to ENGAGE.
4. Release parking brake (if necessary), depress
clutch pedal and shift into gear. Release clutch pedal
slowly and smoothly.
RECOIL STARTING
1. Shift into neutral (N), move deck engagement
lever to DISENGAGE. Lock the parking brake.
2. Move throttle control to CHOKE position, and
rotate ignition key to RUN. Stand to right side of rid-
er, pull recoil starter handle out until positive engage-
ment results; then pull handle vigorously to start en-
gine. When the engine starts, immediately move
throttle control between OPERATE and IDLE posi-
tions if choke was used for starting.
IMPORTANT: Do not pull recoil rope to its limit or
let go of the starter handle when rope is pulled
out because rope may break or recoil assembly
may be damaged.
3. Select desired height-of-cut and move blade
control to ENGAGE.
4. Release parking brake, depress clutch pedal
and shift into gear. Release clutch pedal slowly and
smoothly.
TO STOP
1. Depress clutch and brake pedals, move throttle
control lever to SLOW position, move deck engage-
ment lever to DISENGAGE, and rotate ignition key to
OFF.
2. Shift transaxle to neutral and engage parking
brake.
3. Remove key from ignition switch. Wait for all
moving parts to stop before getting off seat.
OPERATING INSTRUCTIONS
BREAK-IN
The engine requires no special break-in other than
changing oil after the first five hours of operation.
Operate the transaxle in all gears to ensure that drive
system is functioning correctly. After the first five
hours of operation, check the condition of the belts.
USING PARKING BRAKE
A CAUTION
If the engine stalls or must be stopped while
operating on a hill or slope, the engine must be
shut off and parking brake engaged.
1. Depress brake pedal fully and shift transaxle to
neutral.
2. Move parking brake control upward and release
brake pedal.
3. To release the parking brake, depress brake
pedal, and parking brake lever will return it to its dis-
engaged position. Release brake pedal slowly.
14
ADJUSTING HEIGHT-OF-CUT
The height-of-cut may be set in one of six positions
from approximately 1-1/2 to 4 inches (38 to 102 mm).
1. Ensure the deck engagement lever is in DISEN-
GAGE position.
2. Move height-of-cut control into desired setting.
3. To engage blade for cutting, move deck engage-
ment lever to ENGAGE.
OPERATING PROCEDURE
1. Move deck engagement lever to DISENGAGE.
2. Start the engine: refer to Starting/Stopping In-
structions, page 14.
IMPORTANT: When rider is used for the first time,
operate the transaxle in all gears to ensure that
drive system is functioning correctly, and become
familiar with the controls and operating character-
istics. Never shift while the machine is moving or
without first depressing the clutch pedal; trans-
axle damage could result.
OPERATING INSTRUCTIONS
A WARNING
To avoid loss of control, always come to a
complete stop before shifting gears, and slow
down when turning, backing and changing di-
rection. Look behind and down to ensure area
is clear before backing.
3. Depress clutch pedal and shift transaxle into
selected gear. Then release pedal slowly until trac-
tion drive engages.
IMPORTANT: To avoid a jerky start and putting a
heavy load on the transaxle, release clutch pedal
slowly. If shifting into reverse gear is difficult, jog
clutch pedal in and out to get gears to mesh. Do
not force the gear shift because damage may re-
sult. Should you encounter a jerking or grabbing
condition during operation, contact your local Au-
thorized TORO Service Dealer for assistance.
4. To engage blade for cutting, move height-of-cut
control to the desired setting. Place throttle in OPER-
ATE position. Then move deck engagement lever to
ENGAGE position.
5. To stop engine, in sequence, depress clutch and
brake pedals, move throttle control to IDLE, deck
engagement lever into DISENGAGE, gear shift into
neutral, throttle to IDLE, engage parking brake, and
rotate key to OFF position after allowing the engine
to idle a short period.
SIDE DISCHARGING OR BAGGING
To side discharge or use bagging attachment, stop
engine and wait for all moving parts to stop. Then
remove the wingnut securing the discharge cover
(Fig. 11) to the mower housing. NEVER REMOVE
THE GRASS DEFLECTOR FROM THE MOWER
HOUSING (Fig. 11). Save the discharge cover and
wingnut for possible future reinstallation.
If you no longer wish to side discharge or bag clip-
pings, the discharge cover can be reinstalled by se-
curing it the mower housing with the wingnut.
GRASS DEFLECTOR
A WARNING
NEVER remove the grass deflector (Fig. 11)
from the mower housing. If the discharge
cover under the grass deflector is removed
in order to side discharge or bag, the grass
deflector routes discharged material down
toward the turf. If the deflector is ever dam-
aged, replace it. Without the deflector or
complete grass catcher assembly mounted
in place, discharged material could cause
personal injury or blade contact could occur.
e Deckring
e Special blade and blade stiffener
e Discharge cover
e Four special “kickers” positioned on the under-
side of the mower deck in strategic positions. (A fifth
kicker is molded into the discharge cover.)
RECYCLER® RIDER TIPS
RECYCLER® RIDER FEATURES
Your Toro Recycler® rider has a new and completely
different cutting concept. It leaves your lawn with a
bagged look without bagging clippings.
The rider is equipped with special parts (Fig. 11)
which increase your rider’s ability to cut and recut
grass clippings, leaves, and other yard debris into
tiny particles which are injected down into the grass.
These parts are:
e Deck ring
e Special blade and blade stiffener
e Discharge cover
e Four special “kickers” positioned on the under-
side of the mower deck in strategic positions. (A fifth
kicker is molded into the discharge cover.)
394
Figure 11
1. Deck ring 4. Blade
2. Discharge cover 5. Blade stiffener
3. Kickers 6. Grass deflector
15
RECYCLER" RIDER TIPS
TIPS FOR CUTTING GRASS
Even with the Recycler® rider, you may encounter
conditions where it is not possible to incorporate all
of the grass clippings or leaves all of the time into
the grass. Follow these instructions for the best cut-
ting results and lawn appearance:
e Always use FAST (full) throttle when mowing.
e Maintain a sharp blade throughout the cutting
season. A sharp blade cuts cleanly and without tear-
ing or shredding the grass blades like a dull blade.
Tearing and shredding causes the grass to turn
brown at the edges which impairs growth and in-
creases susceptibility to diseases. About every 30
days, remove the wire from the spark plug and
check the cutter blade for sharpness. File down any
nicks on blade to restore its sharp edge.
e (Clean any residue from the underside of the rider
housing and kickers after each use. If residue is al-
lowed to build up in rider housing and on kickers,
cutting performance may be unsatisfactory.
e Very long or extremely wet grass can be cut, but
specific operating techniques must be used. Start by
setting height-of-cut in the highest position. Using
1st gear and maximum throttle speed, move into the
grass and cut a swath that is only half as wide as the
mower housing. If side discharging, direct grass clip-
pings toward area that was cut previously. Stop for-
ward movement occasionally to allow discharge area
to clear itself. Cutting too much grass may clog the
mower housing and discharge area. If mower hous-
ing does clog, shut engine off, disengage blade and
remove the obstruction with a stick.
A DANGER
Before removing any obstruction from mower
housing, move blade control into DISENGAGE
detent, depress clutch and brake pedals, shift
into neutral and turn ignition key to OFF posi-
tion. Remove wire from spark plug to prevent
the possibility of accidental starting.
e When the rider is used to cut a lawn for the first
time, cut grass slightly longer than normal to ensure
that cutting height of mower housing will not cause
scalping, which could result from severe undulations
of the ground. In general, however, the cutting height
used in the past is probably the best one to use.
When cutting grass over six inches tall, you may
want to cut the lawn twice to hide clippings down in
the grass.
e Ifthe grass is ever allowed to grow slightly long-
er than normal, or if it contains a high degree of
moisture, raise cutting height higher than usual and
cut the grass at this setting. Next, cut the grass
16
again using the lower, normal setting. This method of
cutting long grass results in an even distribution of
clippings and an acceptable quality-of-cut.
e Inthe heat of the summer, it is best to cut only
about 1/3 of the grass blade. Cutting below the 3rd
setting is not recommended unless grass is sparse
or it is late fall when grass growth begins to slow
down.
e [f the cutting width of the rider is wider than the
mower previously used, raise height-of-cut setting
one notch to ensure undulations in turf are not cut
too short.
e MOWING IN EXTREME CONDITIONS—AIr is re-
quired to cut and recut grass clippings in rider hous-
ing, so do not set height-of-cut too low or totally sur-
round housing by uncut grass. Always try to have
one side of the rider housing free from uncut grass,
allowing air to be drawn into housing. When making
an initial cut thru center of uncut area, operate rider
at a slower ground speed and back up if rider starts
to clog.
e STOPPING RIDER—If forward motion of rider
has to be stopped while cutting, a clump of grass
clippings may be deposited on lawn. Follow this pro-
cedure for stopping while cutting:
A. With blade engaged, move onto a previously cut
area.
B. Raise deck one or two height-of-cut settings
while driving rider forward and deck is in opera-
tion.
C. Depress clutch and brake pedals, move throttle
control lever to IDLE position, disengage mower
and rotate ignition key to OFF.
e MOW AT PROPER INTERVALS—Under most
normal conditions you'll need to mow approximately
every 4—5 days. But remember, grass grows at dif-
ferent rates at different times. This means that in or-
der to maintain the same height-of-cut, which is a
good practice, you'll need to cut more frequently in
early spring; as the grass growth rate slows in mid
summer, cut only every 8—10 days. If you are unable
to mow for an extended period due to weather con-
ditions or other reasons, mow first with the height-of-
cut at a high level; then mow again 2-3 days later
with a lower height setting.
e Alternate mowing direction. This helps disperse
clippings over lawn for even fertilization.
e SIDE DISCHARGING OR BAGGING—To side
discharge or use bagging attachment, stop the en-
gine and wait for all moving parts to stop. Then re-
move the wingnut securing the discharge cover to
the mower housing. NEVER REMOVE THE GRASS
DEFLECTOR FROM THE MOWER HOUSING.
RECYCLER" RIDER TIPS
A WARNING
Never remove the grass deflector (Fig. 11)
from the mower housing. If the discharge
cover under the grass deflector is removed
in order to side discharge or bag, the grass
deflector routes discharged material down
toward the turf. If the deflector is ever dam-
aged, replace it. Without the deflector or
complete grass catcher assembly mounted
in place, discharged material could cause
personal injury or blade contact could occur.
The Recycler® rider's special features reduce clip-
ping size, thus decreasing amount of grass to be
disposed of and number of times bagger will have to
be emptied.
Note: When bagger is full, mower will begin to inject
clippings down into the grass.
If the lawn appearance is not satisfactory after mow-
ing, try one of the following:
e Sharpen the blade.
e Raise the height-of-cut setting on your mower.
e (Cut your grass more frequently.
e Overlap cutting swaths instead of cutting a full
swath with each pass.
e Mow across the marginal areas a second time.
TIPS FOR CUTTING LEAVES
In the fall, you can cut your leaves up into finely cut
particles and inject the particies down into the grass.
When spring arrives, the leaf particles will have de-
composed and restored valuable nutrients to the
soil.
e When cutting is complete, always be sure that
50% of the lawn shows through the finely cut leaf
cover. This may require one or more passes over the
leaves.
e |[f there are more than five inches of leaves on
lawn, raise the deck one or two notches higher. This
makes it easier to feed leaves under mower deck.
e If leaves are not cut up finely enough to be hid-
den down in the grass, make a second pass 90° to
the first pass.
e [i you cut up a lot of oak leaves, you might want
to add lime to your grass in the spring. Lime reduces
the acidity of oak leaves.
17
MAINTENANCE INTERVAL CHART
5
25
Storage
Spring
2
Hours | Hours | Service | Service | Years Notes
Change Ol! (Initial) X
Change Oil (Periodic) X X
Check System Interlock X X X X Before each use
Check Cutter Blade X X X
Check Brake X X X X
Grease Front Axle Spindles (2) & Wheel
Bearings (2) and Rear Axle (2) X X More often
Lubricate Pivot Points X X in dusty,
Service Air Cleaner X X dirty,
Check Spark Plug X X X conditions.
Check Blade Drive Belt X
Check Traction Drive Belt X More often
Drain Gasoline X in dusty,
Clean Outside of Engine X X dirty,
Clean Mower Housing X X conditions.
Paint Chipped Surfaces X
Remove Rear Wheels and Grease Axles X
Remove Rear Wheels and Grease Axle
Zerks X
18
MAINTENANCE
A CAUTION
To prevent accidental starting of the engine,
while performing maintenance, shut engine
off and remove key from ignition switch.
Also, pull wire off spark plug (Fig. 12). Make
sure wire does not contact plug accidentally.
Figure 12
1. Spark plug wire 2. Spark plug
GREASE FRONT AXLE SPINDLES AND WHEELS
AND REAR AXLES
The front axle spindles and wheels must be lubri-
cated after every 25 hours of operation; however,
lubricate more frequently when conditions are dusty
or sandy.
1. Wipe (4) grease fittings on spindles and wheels
(Fig. 13) with a clean rag. If there is paint on front of
fittings, scrape it off.
L
\ =
Figure 13
|
2. Lubricate both axle spindles with No. 2 general
purpose grease (Fig. 13). Continue to pump grease
until it oozes out the spindle. Wipe up any excess
grease.
3. Lubricate both front wheels w/No. 2 general pur-
pose grease (Fig. 13). Pump grease gun until grease
oozes. Wipe up any excess grease.
4. Lubricate rear axles with one to two pumps of
No. 2 general purpose grease. The zerks are located
just inside of the rear tires on the bottom of the trans-
axle (Fig. 14).
LUBRICATE PIVOT POINTS
The mechanical pivot points on the rider must be
lubricated after every 25 hours of operation; howev-
er, lubricate more frequently when conditions are
dusty or sandy.
IMPORTANT: To lubricate all the mechanical pivot
points, the rider must be tipped on its rear end.
Before the rider is tipped, drain all gasoline from
fuel tank and oil from crankcase. Also remove
battery so acid does not spill onto the rider.
1. Drain gasoline from fuel tank: refer to Draining
Gasoline From Fuel Tank, page 22.
2. Drain oil from crankcase: refer to Changing
Crankcase Oil, steps 1—6, page 20.
3. Remove battery from chassis: refer to Activating
and Charging Battery, page 11.
4. Shift transaxle into 1st gear and engage parking
brake.
ол
LOCOS
+
—
TU 5
ln
NE
SUR
773
Figure 14
19
MAINTENANCE
5. Tip rider up and onto its rear end.
6. Remove mower housing from rider chassis: refer
to Removing / Installing Cutting Unit, steps 1-5,
page 24.
7. Lubricate pivot points in the steering, drive,
brake, clutch, and deck engagement linkage with
light oil (Fig. 14). Also lubricate mower housing
(Fig. 15). Wipe up any excess oil.
Figure 15
8. Reinstall mower housing onto rider chassis: refer
to Removing / Installing Cutting Unit, page 24.
9. Tip rider back to its normal operating position.
10. Fill crankcase with oil: refer to Fill Crankcase
With Oil, page 11.
11. Fill fuel tank with gasoline: refer to Fill Fuei Tank
With Gasoline, page 12.
12. Reinstall the battery: refer to Activating and
Charging Battery, steps 9-11, page 11.
CHECK/CHANGE CRANKCASE OIL
1. Check level of oil before starting engine and after
every 5 hours of operation. Maintain oil level at FULL
mark on dipstick.
To check level of oil:
A. Position rider on a level surface.
B. Clean the area around oil dipstick so foreign
matter cannot enter filler hole when dipstick is
removed.
C. Unscrew dipstick and wipe oil off.
D. Screw dipstick fully into filler neck; then re-
move it and check oil level on dipstick. if level
is low, add only enough oil to raise level to
FULL mark. Do not overfill or engine damage
may result.
20
E. Screw dipstick back into filler neck.
2. Change oil after first 5 hours of operation and
every 25 hours thereafter. Change oil more frequent-
ly when operating conditions are extremely dusty or
dirty.
To change oil:
A. Position rider on a level surface. Start and run
engine for a period to warm the oil.
B. Turn engine off and place drain pan below
drain plug (Fig. 16). Remove drain cap. Allow
all oil to flow into drain pan. Reinstall drain
cap after oil stops flowing.
768
Figure 16
1. Drain cap
C. Unscrew dipstick and add oil to crankcase.
Refer to Fill Crankcase With Oil, page 11.
Crankcase capacity is 48 oz. DO NOT OVER-
FILL or engine damage may result.
SERVICING AIR CLEANER
The air cleaner must be cleaned after every 25 hours
engine operation if engine is operated in clean air
conditions. However, element must be cleaned every
few hours if operating conditions are extremely dusty
or sandy.
1. Remove wire from spark plug (Fig. 12).
2. Remove knob and air cleaner cover (Fig. 17).
MAINTENANCE
478
Figure 17
3. Foam pre—cleaner
4. Paper cartridge
5. Nut
1. Knob
2. Air cleaner cover
3. Every 25 hours the foam pre—cleaner should be
cleaned (Fig. 17). Remove foam pre -—cleaner by slid-
ing it off the paper cartridge (Fig. 17).
A. Wash foam pre—cleaner in liquid soap and
warm water. Rinse thoroughly in clear water.
В. Wrap foam pre—cleaner in cloth and squeeze
dry.
C. Saturate foam in engine oil. Squeeze to re-
move excess oil.
4. The paper air cleaner cartridge should be re-
placed every 100 hours. Remove (1) one nut from
top of paper cartridge (Fig. 17).
5. Clean air cleaner body carefully to prevent dirt
from entering carburetor. Remove and discard paper
cartridge.
6. Insert a new paper cartridge into air cleaner
body. Reassemble air cleaner.
IMPORTANT: Petroleum solvents, such as kero-
sene, are not to be used to clean paper cartridge.
They may cause deterioration of the cartridge. DO
NOT OIL CARTRIDGE. DO NOT USE PRESSUR-
IZED AIR TO CLEAN CARTRIDGE.
IMPORTANT: Always operate engine with air
cleaner element in place or engine damage will
result.
REPLACING SPARK PLUG
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of elec-
trodes after every 25 operating hours. Recom-
mended air gap is 0.030 of an inch (0.762 mm). Cor-
rect spark plug to use is: Champion RJ -19LM.
Note: The spark plug usually lasts a long time; how-
ever, the plug should be removed and checked
whenever the engine malfunctions.
1. Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is removed.
2. Pull wire off spark plug and remove plug from
cylinder head (Fig. 18).
3. Check condition of side electrode, center elec-
trode, and center electrode insulator to ensure there
is no damage.
IMPORTANT: A cracked, fouled, dirty or defective
spark plug must be replaced. Do not sand blast,
scrape or clean electrodes by using a wire brush
because grit may eventually release from the plug
and fall into the cylinder which could damage the
engine.
Figure 18
1. Spark plug wire 2. Spark plug
4. Set air gap between center and side electrodes
at 0.030 of an inch (0.762 mm) (Fig. 19). Install cor-
rectly gapped spark plug w/gasket seal, and tighten
plug to 15 ft-lb (20.4 N-m).
0.030"
(0.762 mm)
Figure 19
MAINTENANCE
5. Push wire onto spark plug but do not leave key
in the ignition. This will prevent accidental starting
when mower is being stored between use periods.
Keep key in a memorable place so it is not lost.
DRAINING GASOLINE FROM FUEL TANK
A CAUTION
Since gasoline is highly flammable, drain it
outdoors and make sure engine is cool to
prevent a potential fire hazard. Wipe up any
gasoline that may have spilled. Do not drain
gasoline near any open flame or where gas-
oline fumes may be ignited by a spark. Do
not smoke a cigar, cigarette or pipe when
480
handling gasoline.
IMPORTANT: When the rider is tipped, all gaso-
line must be drained from the fuel tank.
1. Clean area around fuel tank cap so foreign mat-
ter cannot enter filler hole when cap is removed.
Next, remove cap from fuel tank.
2. Using a pump-type syphon, drain gasoline into a
clean gas can.
Note: There is no other recommended way to drain
gasoline from the fuel tank, other than by using a
pump-type syphon. An inexpensive syphon can be
purchased at a hardware store.
ADJUSTING THROTTLE/CHOKE CONTROL
To ensure that choke and carburetor-mounted
throttle are operating properly, the throttle control
must be adjusted correctly. Hard starting may be an
indication of an incorrect adjustment. If throttle con-
trol is ever replaced, an adjustment is also neces-
sary. Before the carburetor is adjusted, ensure that
throttle control is operating properly.
1. Move throttle control lever to FAST position.
2. The throttle lever should be just touching the
choke link (Fig. 20); if they are not in this position, an
adjustment is necessary:
A. Place remote control lever in OPERATE position.
B. Loosen the throttle cable clamp screw (Fig. 20)
and move the control cable casing and wire until
the throttle lever touches choke link.
C. Tighten the cable clamp screw. Move control to
SLOW then back to FAST to ensure jproper ad-
justment. Repeat procedure if necessary.
22
Figure 20
1. Throttle lever 2. Choke link 3. Throttle cable clamp
ADJUSTING CARBURETOR
The carburetor has been set at the factory, but an
occasional adjustment may be required. However,
do not make unnecessary carburetor adjustments
because factory settings are usually correct. An ad-
justment may be required to compensate for differ-
ences in fuel, temperature, altitude and load.
IMPORTANT: Before the carburetor is adjusted,
throttle control must be checked for proper oper-
ation: refer to Adjusting Throttle/Choke Control,
page 22.
1. Gently turn idle mixture valve clockwise until it
just closes (Fig. 21). Turning valve in too far may
cause damage.
1 SL ==
| 1h
477
Figure 21
1. Throttle 3. Idle mixture valve
2. Idle speed adjusting screw
MAINTENANCE
2. Open idle mixture valve one turn counterclock-
wise. This initial adjustment will permit the engine to
be started and warmed up (approximately 5 min-
utes) prior to final adjustment.
3. Start engine and move throttle control to IDLE
position.
A WARNING
6. Grasp end of blade using a rag or thickly
padded glove; then remove blade bolt, curved
washer, biade stiffener and blade (Fig. 22).
Note: Since blade bolt is tightened to 45-60 ft-lb
(61-81 N-m) at the factory, it may be difficult to re-
move. If the bolt cannot be removed, contact an Au-
thorized TORO Service Dealer or a “service station”
for assistance.
Engine must be running so final adjustment of
the carburetor can be performed. To guard
against possible personal injury, move blade
control into DISENGAGE detent, shift into neu-
tral, and engage parking brake. Keep hands,
feet, face, and other parts of the body away
from the cutter blade, underside of mower
| housing and the discharge area.
4. Rotate throttle (Fig. 21) counterclockwise and
hold against idie speed adjusting screw (Fig. 21)
while turning idle speed adjusting screw to obtain
1750 RPM.
5. While still holding throttle against idle speed ad-
justing screw, turn idle mixture valve in (lean) and out
(rich) slowly until engine idles smoothly. Recheck
idle RPM and readjust if required.
6. Release throttle. Engine should accelerate
smoothly. If it does not, carburetor should be read-
justed, usually to a slightly richer mixture.
7. After carburetor is adjusted, shut engine off. If
mower will not be used immediately, remove key
from switch to prevent possibility of accidental start-
ing.
SERVICING CUTTER BLADE
1. Make sure engine is shut off and remove wire
from spark plug.
IMPORTANT: To remove blade from spindle shaft,
the riding mower must be tipped on its rear end.
Before the unit is tipped, drain all gasoline from
fuel tank and remove oil from crankcase. Also
remove battery so acid does not spill onto the
rider. (ALL BAGGING ATTACHMENTS MUST BE
REMOVED BEFORE TIPPING UNIT.)
2. Drain gasoline from fuel tank: refer to Draining
Gasoline From Fuel Tank, page 22.
3. Drain oll from crankcase: refer to Changing
Crankcase Oil, page 20.
4. Remove battery from chassis: refer to Activating
and Charging Battery, page 11.
5. Shift transaxle into 1st gear and engage parking
brake. Tip rider onto its rear end.
Figure 22
1. Blade 2. Blade bolt & curved washer 3. Blade stiffener
7. Using a file, sharpen cutting edge at both ends
of the blade (Fig. 23).
A WARNING
Check cutter blade every time rider is tipped
on end. If blade bolt holding blade is loose,
tighten it to 45-60 ft-lb (61-81 N-m). If blade or
sail (Fig. 23) at end of blade is worn, eroded
or cracked, replace the blade. Replace the
blade if it is bent or out-of-balance. Always
use a genuine TORO replacement blade to
ensure safety and best performance. NEVER
USE A WILL-FIT REPLACEMENT BLADE.
THINNING OF BLADE
IN THIS AREA
SHARPEN AT
ORIGINAL ANGLE
— —
END VIEW OF BLADE
Figure 23
IMPORTANT: Sharpen top side of the blade and
maintain original cutting angle to ensure a sharp
cutting edge. The blade will remain balanced if
same amount of material is removed from both
cutting edges.
23
MAINTENANCE
8. Check balance of blade by putting it on a blade
balancer. (An inexpensive balancer can be pur-
chased at a hardware store.) A balanced blade will
stay in a horizontal position on the balancer. By con-
trast, a blade that is not balanced will settle to the
heavy side. If blade is not balanced, file more materi-
al off cutting edge of the blade. Continue to file and
check the blade until it is balanced.
9. In sequence, install blade, blade stiffener, curved
washer and blade bolt (Fig. 22). The concave side of
the curved washer must point toward the blade.
Tighten blade bolt to 45-60 ft-lb (61-81 N-m).
IMPORTANT: Make sure cutting edge of blade is
away from mower housing.
10. Tip rider back to its normal operating position.
11. Fill crankcase with oil: refer to Fill Crankcase
With Oil, page 11.
12. Fill fuel tank with gasoline: refer to Fill Fuel Tank
With Gasoline, page 12.
13. Install the battery: refer to Activating and Charg-
ing Battery, page 11.
CLEANING UNDERSIDE OF MOWER HOUSING
To ensure a good quality-of-cut, underside of mower
housing, kickers and inside of grass deflector (if dis-
charge cover has been removed) (Fig. 11) must be
kept clean. Periodically apply a coat of paste wax on
inside of mower housing. Wax the grass deflector if
the discharge cover has been removed (Fig.11). This
will retard rust and prevent dirt and grass from stick-
ing on inside of housing.
1. Make sure engine is shut off. Then pull wire off
spark plug.
IMPORTANT: To clean underside of mower hous-
ing, the riding mower must be tipped on its rear
end. Before the unit is tipped, drain all gasoline
from fuel tank and oil from crankcase. Also re-
move battery so acid does not spill onto the rider.
(ALL BAGGING ATTACHMENTS MUST BE RE-
MOVED BEFORE TIPPING UNIT.)
2. Drain gasoline from fuel tank: refer to Draining
Gasoline From Fuel Tank, page 22.
3. Remove battery from chassis: refer to Activating
and Charging Battery, page 11.
4. Shift transaxle into 1st gear and engage the
parking brake. Tip unit onto its rear end.
5. Remove grass clippings and dirt sticking to in-
side of housing by spraying with a garden hose.
Scrape out any grass and dirt not removed; then
spray housing again.
24
6. Since rider is tipped on end, check condition of
blade (Fig. 22).
7. Tip rider back to its normal operating position.
8. Fill crankcase with oil: refer to Fill Crankcase
With Qil, page 11.
9. Fill fuel tank with gasoline: refer to Fiil Fuel Tank
With Gasoline, page 12.
10. Install the battery: refer to Activating and Charg-
ing Battery, page 11.
REMOVING / INSTALLING CUTTING UNIT
1. Lock parking brake and turn front wheels to a full
turn position to allow more clearance for cutting unit.
2. Set height-of-cut control to lowest setting.
3. Loosen belt guides near engine pulley and rotate
them out of the way. Remove deck belt from engine
pulley (Fig. 24).
(Deck belt already
removed in this picture)
Figure 24
1. Belt guides 2. Engine pulley 3. Deck belt
4. Remove cotter pin from adjustment rod and pull
from pivot tube arm (Fig. 25).
MAINTENANCE
Figure 25
1. Cotter pin
2. Adjustment rod 4. Front hanger bracket
5. Remove cotter pins from clevis pins on front
hanger brackets. Hold front of cutting unit in place
with one hand, to prevent falling, and remove clevis
pins to lower cutting unit to ground. Pull rear hanger
brackets off pins on rear suspension arms. Set
height-of-cut control to highest position and slide
cutting unit from under rider.
6. Reinstall in reverse order.
REPLACING BLADE DRIVE BELT
1. Lock parking brake and remove wire from spark
plug.
2. Remove cutting unit: refer to Removing/Installing
Cutting Unit, page 24.
3. Loosen and remove (1) mounting screw secur-
ing each belt guide to cutting unit. Pivot belt guides
away from spindle pulley and remove belt. Visually
inspect belt for wear or damage (Fig. 24).
4. |[nstall new belt if needed and reinstall belt
guides.
5. Reinstall cutting unit: refer to Removing/Installing
Cutting Unit, page 24.
ADJUSTING BLADE DRIVE BELT
1. Set height-of-cut lever in lowest setting and deck
engagement lever to ENGAGE.
2. Remove cotter pin from adjustment rod (Fig. 25).
3. Rotate adjustment rod until there is 0.060 inch
(1.5 mm) or less between end of slot in engagement
bracket and outer diameter of pin (Fig. 26).
Note: Adjustment rod is a left hand thread.
3. Cotter pin and clevis pin
Figure 26
1. Engagement bracket 3. Pin
2. 0.060 inch max. (1.5 mm)
REPLACING TRACTION DRIVE BELT
1. Remove cutting unit: refer to Removing/Installing
Cutting Unit, page 24.
2. Remove belt guides from transaxie pulley. Loos-
en and rotate belt guides at engine pulley out of the
way. Loosen locknut and remove belt retainer from
idler pulley.
Note: To make belt removal easier, set and lock
clutch with parking brake to remove tension from
belt.
3. Remove deck belt from engine pulley (Fig. 24).
4. Remove drive belt. Inspect belt for damage or
wear. Install new belt if needed.
5. Reinstall deck belt.
6. Replace belt guides for transaxle pulley. Reinstall
belt retainer on idler pulley and tighten locknut.
25
MAINTENANCE
(Deck belt already
removed in this picture)
769
Figure 27
5. Engine pulley belt guides
6. Belt retainer and locknut
7. Drive belt
1. Engine pulley
2. Transaxle pulley
3. Idler pulley
4. Transaxle pulley belt guides
IMPORTANT: Idler retainer must be installed at an
80° to 90° angle to the idler mounting bracket
(Fig. 28) or rider may creep with clutch pushed
down.
90°
@
a”
774
Figure 28
1. Idler pulley 2. Idler mounting bracket
7. Reinstall cutting unit: refer to Removing/Instailing
Cutting Unit, page 24.
ADJUSTING FRONT WHEEL ALIGNMENT
1. To align front wheels, loosen jam nut and turn tie
rod end (there is only one adjustable tie rod) until
center line distance across front of wheels (d') is .06
inch (1.5 mm) to .25 inch (6.3 mm) less than center
line distance across rear of front wheels (d”)
(Fig. 29 & 30).
2. Retighten ¡amnuts.
26
Figure 29
1. Tie rod (only one rod is adjustable) 2. Jam nut
d”
Figure 30
ADJUSTING BRAKE
Adjust brake pucks if the parking brake does not
hold or braking power is not sufficient when brake
pedal is depressed. The brake is located on the left
side of the transaxle (Fig. 31).
1. Shut engine off and remove wire from spark
plug.
2. Tighten locknut approximately 1/4 turn clockwise
(Fig. 31).
3. Check operation of the brake by pushing rider:
no brake drag should be evident. If drag is evident,
rotate locknut an additional 1/8 turn counter-clock-
wise or until there is no drag.
MAINTENANCE
|
A
ar —-—о|о‘с..
sg
—
770
Figure 31
1. Locknut
LEVELING CUTTING UNIT
If mower doesn't cut level from side—to—side and
cutting blade is not bent, level the cutting unit as fol-
lows:
1. Place rider on level surface, lock parking brake,
shut off engine and remove key from ignition switch.
2. Raise seat or remove left side panel from rider.
3. Place height-of-cut lever in number 3 position
and position cutter blade at a right angle to direction
of rider travel.
4. Measure the blade tip height at one end of
blade, rotate blade 180% and measure same blade
tip at opposite side of rider. Measurement should be
within 1/8 inch (3 mm) of one another.
Figure 32
1. Height—of—cut support bracket 2. Capscrews
5. If blade tip height is not within 1/8 inch (3 mm),
level cutting unit by loosening height-of-cut support
bracket capscrews and raising or lowering the
bracket (Fig. 32).
6. Ensure blade tip height is within 1/8 inch (3 mm)
and retighten capscrews.
ADJUSTING GEAR SHIFT NEUTRAL POSITION
An adjustment to the gear shift rod may be required
if gear shift will not go into neutral position.
1. Remove cotter pin from rod on right side of
transaxle as viewed from the rear of the unit
(Fig. 33).
2. Lift rod out of bracket hole (Fig. 33).
3. Rotate rod one complete turn clockwise and re-
insert rod into hole in bracket.
4. Move gear shift selector into REVERSE position,
then to NEUTRAL, then to first gear and then back to
NEUTRAL.
5. Try rolling the rider backward and forward. If
wheels turn freely and gear shift selector lines up
with the NEUTRAL mark on the gear shift guide, the
adjustment is correct.
QQ |
|
))
m
SE
Se
a,
Г
+ =
3. Bracket
W
)) —
Г
Е
:
A
D
|
|
=
Г]
Г
Figure 33
1. Cotter pin 2. Rod
6. If adjustment is not correct, remove rod from
hole in bracket again. Rotate rod two turns counter-
clockwise and reinstall rod in hole in bracket.
7. Check adjustment again by repeating step 5.
8. When adjustment is correct, reinstall cotter pin in
rod.
CHECKING INTERLOCK SYSTEM
The interlock switches in the electrical system pre-
vent the engine from starting unless the gear shift is
in neutral and deck engagement lever is disen-
gaged. In addition, the engine will stop — because
of a seat switch — if the operator gets off the seat
when deck engagement lever is engaged or gear
shift is in gear. To ensure interlock system is operat-
ing correctly, check it before each use of the rider.
27
MAINTENANCE
1. Move gear shift into neutral.
2. Move deck engagement lever into ENGAGE. Sit
on the seat and rotate ignition key to START. Engine
should not crank; but if it does, the interlock system
is malfunctioning and it must be repaired by an Au-
thorized TORO Service Dealer. If engine does not
crank, proceed to step 3.
3. Move deck engagement lever into DISENGAGE.
Sit on the seat, depress the brake and clutch pedals,
engage the parking brake and shift into gear. Rotate
ignition key to START. Engine should not crank; but if
it does, the interlock system is malfunctioning and
must be repaired by an Authorized TORO Service
Dealer. If engine does not crank, proceed to step 4.
4. Sit on the seat, move gear shift into neutral, deck
engagement lever into DISENGAGE and ensure
parking brake is engaged. Rotate ignition key to
START. Engine should start and continue to run.
Then engage deck engagement lever and carefully
raise off the seat: the engine should stop. If engine
does not stop running, shut engine off and have in-
terlock system repaired by an Authorized TORO Ser-
vice Dealer. If engine shuts off when you raised off
the seat, the interlock system is functioning correctly
and the rider can be operated safely.
A WARNING
Do not operate the riding mower if the inter-
lock system is malfunctioning. It is a safety
device, designed to protect the operator.
PREPARING MOWER FOR STORAGE
1. For long term storage, either drain gasoline from
fuel tank or use a fuel additive before storing. To
drain gasoline, refer to Draining Gasoline From Fuel
Tank, page 22. After fuel is drained, start engine and
let it idle until all fuel is consumed and engine stops.
Repeat the starting procedure two more times to en-
sure all gas is removed from the engine. If gasoline
is not drained, gum—like varnish deposits will form
and cause poor engine operation, even starting
problems.
Fuel can be left in gas tank only if a fuel additive,
such as Toro's Stabilizer/Conditioner, is added to
gasoline before storing. Toro's Stabilizer/Conditioner
is a petroleum distillate based conditioner/stabilizer.
Toro does not recommend stabilizers with an alcohol
base, such as ethanol, methanol or isopropyl. Use
fuel additive in recommended quantities as specified
on container.
28
Under normal conditions, fuel additives remain effec-
tive in fuel for 6—8 months.
2. Remove wire from spark plug and clean area
around the plug so foreign matter cannot fall into
cylinder when plug is removed. Next, remove plug
from cylinder head and pour two tablespoons of en-
gine oil into spark plug hole. Rotate engine by hand
to distribute oil on inside of cylinder. Then reinstall
spark plug and tighten it to 15 ft-lb (20.4 N-m). DO
NOT REINSTALL WIRE ON SPARK PLUG.
3. Drain oil from crankcase: refer to Changing
Crankcase Oil, page 20. However, do not fill crank-
case with oil at this time.
4. Remove battery from chassis: refer to Activating
and Charging Battery, page 11. Remove corrosion
from battery terminal and wipe any grease and dirt
off the battery case. Check level of electrolyte. If level
is low, add distilled water to the affected cell. Fill only
to the “UPPER?” fill line on side of battery. Reinstall
filler caps.
5. Clean dirt and chaff from outside of cylinder, cyl-
inder head fins, and blower housing. Also, remove
grass clippings, dirt, and grime from external parts of
rider, engine, shrouding, and top of mower housing.
6. Clean underside of mower housing: refer to
Cleaning Underside of Mower Housing, page 24.
7. Check condition of blade: refer to Servicing Cut-
ter Blade, page 23.
8. Check and tighten all cap screws, bolts, screws,
nuts, and mating parts. If any part is damaged, re-
pair or replace it.
9. Lubricate wheels and spindles with grease: refer
to Grease Front Axle Spindles and Wheels, page 19.
10. Remove dust and dirt from air cleaner element:
refer to Servicing Air Cleaner, page 20.
11. Touch up all rusted or chipped paint surfaces.
Make sure to sand affected area before painting.
Note: TORO Re-Kote “touch-up” paint is available
from any Authorized TORO Service Dealer.
12. Fill crankcase with oil: refer to Fill Crankcase
With Oil, page 11.
13. Install the battery: refer to Activating and Charg-
ing Battery, page 11.
14. Store the rider in a clean, dry garage or storage
area. Remove key from ignition switch and keep it in
a memorable place. Cover the rider to protect it and
keep it clean.
WIRING DIAGRAM — 1032 & 1232 REAR ENGINE RIDERS
SEAT SWITCH
NO.
BLACK
SAFETY MODULE
ORANGE
LIGHT BLUE
SAFETY GND.
BLACK
LIGHT BLUE
L
GND ENGINE
ORANGE
BLACK
M
G
WHITE
RED
MAGNETO
ALTERN.
STARTER
YELLOW
GREEN
>
PTO SWITCH NEUTRAL SWITCH
NO NO
И.
7
BLACK
~ +
BATTERY
р
y RED OR BLACK
\ nor SUPPLIED
WITH ay NESS
3
29
767
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine does not start, starts
hard, loses power, or fails to
keep running.
1. Gas tank is empty.
2. Battery is dead.
3. Transaxle is in gear.
4. Deck engagement lever is in
ENGAGE.
5. Spark plug is loose.
6. Wireis loose or disconnected
from spark plug.
7. Spark plug gap is incorrect.
8. Spark plug is pitted, fouled, or
defective in some other way.
9. Electrical connections are
loose.
10. Carburetor is adjusted incor-
rectly.
11. Air cleaner is dirty.
12. Vent hole in fuel tank cap is
plugged.
13. Dirt, water, or stale fuel in fuel
system.
14. Module or switch is defective.
1. Fill fuel tank with gasoline.
2. Charge the battery.
3. Shift transaxle into neutral.
4. Move deck engagement le-
ver into DISENGAGE.
5. Tighten plug to 15 ft-lb
(20.4 N-m).
6. Install wire on spark plug.
7. Set gap between elec-
trodes at 0.030 of an inch
(0.76 mm).
8. Install new,
gapped spark plug.
9. Check electrical system to
ensure good contact.
10. Adjust the carburetor.
correctly
11. Clean the air cleaner ele-
ment.
12. Clean or replace the fuel
cap.
13. Have rider serviced by Au-
thorized TORO Service Dealer.
14. Have rider serviced by Au-
thorized TORO Service Dealer.
Engine does not idle or idles
poorly.
1. Air cleaner is dirty.
2. Idle speed is too low.
3. Dirt, water, or stale fuel is in
the fuel system.
4. Spark plug is pitted, fouled or
defective in some other way.
1. Clean air cleaner element.
2. Adjust the carburetor.
3. Have rider serviced by Au-
thorized TORO Service Dealer.
4. Install new, correctly
gapped spark plug.
30
TROUBLE SHOOTING
Problem
Possible Causes
Corrective Action
Engine loses power.
1. OQil level in crank case is low.
2. Cooling fins and air passages
under engine blower housing are
plugged.
3. Engine load is excessive.
4. Air cleaner is dirty.
5. Dirt, water, or stale fuel is in
fuel system.
6. Carburetor is adjusted incor-
rectly.
7. Spark plug is pitted, fouled or
defective in some other way.
1. Add oil to crank case.
2. Remove obstruction from
cooling fins and air passages.
3. Shift into lower gear to re-
duce load.
4. Clean air cleaner element.
5. Have rider serviced by Au-
thorized TORO Service Dealer.
6. Adjust the carburetor.
7. Install new,
gapped spark plug.
correctly
Engine over heats.
1. Cooling fins and air passages
under engine blower housing are
plugged.
2. Carburetor is adjusted incor-
rectly.
3. Oil level in crankcase is low.
4. Engine load is excessive.
1. Remove obstruction from
cooling fins and air passages.
2. Adjust the carburetor.
3. Add oil to crankcase.
4. Shift into lower gear to re-
duce load.
Rider vibrates abnormally.
1. Engine mounting bolts are
loose.
2. Loose PTO pulley, idler pulley
or blade pulley.
3. Cutter blade is unbalanced,
bent or loose.
4. Bolt holding blade is loose.
5. Drive pulley is damaged.
6. Drive belt is damaged.
1. Tighten engine mounting
bolts.
2. Tighten the appropriate
pulley.
3. Install new cutter blade.
4. Tighten bolt to 45-60 ft-lb
(61-81 N-m).
5. Replace drive pulley.
6. Replace belt.
Blade does not rotate.
1. Blade drive beltis worn, loose
or broken.
2. Blade drive belt is off pulley.
1. Install new blade drive belt.
2. Install blade drive belt and
check idler pulley and belt
guides for correct position.
Rider does not drive.
1. Traction belt is worn, loose or
broken.
2. Transaxle does not shift gear.
3. Traction idler is adjusted in-
correctly.
1. Install new traction drive
belt.
2. Have rider serviced by Au-
thorized TORO Service Dealer.
3. Adjust traction drive belt.
31
MAINTENANCE RECORD
Date
Hours
Used
Oil
Change
Air Cleaner
Service
Lubrication
Sharpen
Blade
Winter
Storage
Spring
Service
Spark
Plug Gap
32
10° SLOPE CHART
Read all safety instructions on pages 3-6
ay
~
“a
"
a
ALIGN THIS EDGE WITH A VERTICAL SURFACE
(TREE, BUILDING, Ив POLE ETC.)
A
rT
af i
7
ТАК IE TEE
FOLD ALONG APPROPRIATE LINE
33
SLOPE WITH FOLDED
34
V44-449
35
THE TORO TOTAL COVERAGE
GUARANTEE
A Full Warranty
(Limited Warranty for Commercial Use)
What Is Covered By This Express Warranty?
The Toro Company promises to repair any TORO Product
used for residential purposes if defective in materials or work-
manship for the following time periods from the date of pur-
chase:
e Super Recycier9 Walk Mowers . 5 year full warranty
e All Others ................... 2 year full warranty
The cost of parts and labor are included, but the customer
pays the transportation costs.
Transportation within a 15 mile radius of the servicing dealer
is covered under this warranty for two -—stage snowthrowers,
walk behind debris equipment and all TORO Wheel Horse
riding products. Walk power mowers, single stage
snowthrowers, and other products not specifically covered,
are excluded from the transportation coverage provided by
this warranty.
What Products Are Covered By This Warranty?
This warranty applies to all gasoline powered Consumer
Products (including TORO Wheel Horse riding products).
ProLine riding products and wide area walk behind mowers
are covered by separate warranty statements.
How About Commercial Use?
TORO Consumer Products used for commercial, institutional
or rental use are covered by a limited warranty for the follow-
ing time periods from the date of purchase:
Products Warranty Period
e Garden Tractors
Chassis ....... 1 year limited warranty
Engine ....... 2 year limited warranty
e 21”? Commercial Duty ....... 1 year limited warranty
Walk Mowers
e Lawn Tractors, Yard Tractors, Rear Engine Riders,
Straight Shaft Trimmers,
and Backpack Blowers ..... 90 day limited warranty
e AliOthers ................. 45 day limited warranty
How Do You Get Warranty Service?
Should you feel your TORO product contains a defect in ma-
terial or workmanship, contact the dealer who sold you the
product or any Authorized TORO Service Dealer or TORO
Master Service Dealer. The Yellow Pages of your telephone
directory is a good reference source. The dealer will either
arrange service at his/her dealership or recommend another
Authorized Service Dealer who may be more convenient. You
may need proof of purchase (copy of registration card, sales
receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with the Service Dealer's
analysis of the defect in materials or workmanship or if you
need a referral to a TORO Service Dealer, please feel free to
contact us at the following address:
Toro Customer Service Department
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
612—888 — 8801
1-800-348-2424
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the main-
tenance procedures described in the operator's manual. Such
routine maintenance, whether performed by a dealer or by
you, is at your expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except the TORO Starting
Guarantee on GTS Engines. This express warranty does not
cover:
e Cost of regular maintenance service or parts, such as filters,
fuel, lubricants, tune—up parts, blade sharpening, brake and
clutch adjustments.
e Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents,
or lack of proper maintenance.
e Repairs necessary due to improper fuel, contaminants in the
fuel system, or failure to properly prepare the fuel system prior
to any period of non-use over three months.
e Pickup and delivery charges for distances beyond a 15 mile
radius from an Authorized TORO Service Dealer (covered
products only).
All repairs covered by this warranty must be performed by an
Authorized TORO Service Dealer using Toro approved replace-
ment parts.
Repair by an Authorized TORO Service Dealer is your sole
remedy under this warranty.
The Toro Company is not liable for indirect, incidental or
consequential damages in connection with the use of the
TORO Products covered by this warranty, including any
cost or expense of providing substitute equipment or ser-
vice during reasonable periods of malfunction or non—use
pending completion of repairs under this warranty. Some
states do not allow exclusions of incidental or consequen-
tial damages, so the above exclusion may not apply to
you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
fail, you may contact us at The Toro Company.
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO products exported from the United States or Canada should contact their TORO Dis-
tributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with
your Distributor’s service or have difficulty obtaining guarantee information, contact the TORO importer. If all other remedies
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
