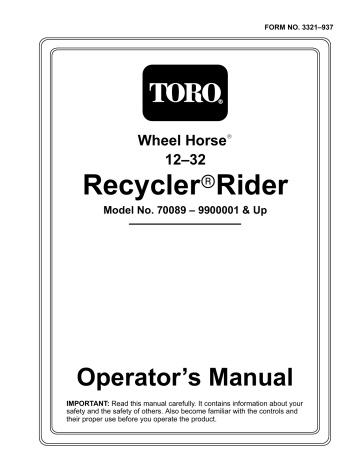

FORM NO. 3321–937
Wheel Horse
12–32

RecyclerRider
Model No. 70089 – 9900001 & Up
Operator’s Manual
IMPORTANT: Read this manual carefully. It contains information about your
safety and the safety of others. Also become familiar with the controls and
their proper use before you operate the product.
Introduction
Thank you for purchasing a Toro product.
All of us at Toro want you to be completely satisfied
with your new product, so feel free to contact your
local Authorized Service Dealer for help with service,
genuine replacement parts, or other information you
may require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
plate located in a unique place on the product as
shown below.
1
The warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by sitting on the seat in the normal operator’s
position.
1. Model and Serial Number Plate (on left frame)
For your convenience, write the product model and
serial numbers in the space below.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Model No:
Serial No.
Read this manual carefully to learn how to operate
and maintain your product correctly. Reading this
manual will help you and others avoid personal injury
and damage to the product. Although we design,
produce and market safe, state-of-the-art products,
you are responsible for using the product properly
and safely. You are also responsible for training
persons, who you allow to use the product, about safe
operation.
IMPORTANT: This engine is not equipped
with a spark arrester muffler. It is a violation
of California Public Resource Code Section
4442 to use or operate this engine on any
forest–covered, brush–covered or
grass–covered land. Other states or federal
areas may have similar laws.
The Toro Comany – 1998
All Rights Reserved
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Operating Practices . . . . . . . . . . . . . .
Slope Chart . . . . . . . . . . . . . . . . . . . . . . . . .
Safety and Instruction Decals . . . . . . . . . .
Gasoline and Oil . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Gasoline . . . . . . . . . . . . . .
Stabilizer/Conditioner . . . . . . . . . . . . . . . .
Filling the Fuel Tank . . . . . . . . . . . . . . . . .
Check Engine Oil Level . . . . . . . . . . . . . . .
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts . . . . . . . . . . . . . . . . . . . . . . . . .
Install Front Wheels . . . . . . . . . . . . . . . . . .
Install Steering Wheel . . . . . . . . . . . . . . . .
Install Seat . . . . . . . . . . . . . . . . . . . . . . . . .
Activate the Battery . . . . . . . . . . . . . . . . . .
Fill Crankcase With Oil . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Think Safety First . . . . . . . . . . . . . . . . . . .
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Shift . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch Pedal . . . . . . . . . . . . . . . . . . . . . . . .
Brake Pedal . . . . . . . . . . . . . . . . . . . . . . . .
Parking Brake . . . . . . . . . . . . . . . . . . . . . . .
Ignition Switch . . . . . . . . . . . . . . . . . . . . . .
Deck Engagement Lever . . . . . . . . . . . . . .
Height–of–Cut Control . . . . . . . . . . . . . . .
Key Choice . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Control . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping
the Engine . . . . . . . . . . . . . . . . . . . . . . . .
Break–In . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Height–of–Cut . . . . . . . . . . . . . .
Page
3
3
7
9
10
10
11
11
11
12
12
13
13
13
14
16
17
17
17
17
17
17
17
18
18
18
18
18
18
19
19
Page
Operating Procedure . . . . . . . . . . . . . . . . .
19
The Safety Interlock System . . . . . . . . . . .
20
Operating–in–Reverse . . . . . . . . . . . . . . . .
20
Side Discharging or Bagging . . . . . . . . . . .
23
Driving Forward or Backward . . . . . . . . . .
23
Stopping the Machine . . . . . . . . . . . . . . . .
24
Positioning the Seat . . . . . . . . . . . . . . . . . .
24
Recyclerr Rider Tips . . . . . . . . . . . . . . . . .
25
Tips for Cutting Grass . . . . . . . . . . . . . . . .
25
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Service Interval Chart . . . . . . . . . . . . . . . .
28
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . .
29
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . .
30
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . .
31
Greasing and Lubrication . . . . . . . . . . . . . .
32
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . .
33
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Front Wheel Toe-In . . . . . . . . . . . . . . . . . .
35
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
Servicing Cutter Blade . . . . . . . . . . . . . . . .
38
Removing/Installing Cutting Unit . . . . . . .
39
Replacing Blade Drive Belt . . . . . . . . . . . .
40
Adjusting Blade Drive Belt . . . . . . . . . . . .
40
Replacing Traction Drive Belt . . . . . . . . . .
40
Leveling Cutting Unit . . . . . . . . . . . . . . . .
41
Adjusting Gear Shift Neutral Position . . . .
42
Wiring Diagram . . . . . . . . . . . . . . . . . . . . .
43
Cleaning and Storage . . . . . . . . . . . . . . . . .
44
Washing Underside of Mower . . . . . . . . . .
45
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .
46
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
# ! ! " $ ! $ # $
1
Contents
2
Safety
This machine meets or exceeds the B71.1–1996
specifications of the American National Standards
Institute, in effect at the time of production.
However, improper use or maintenance by the
operator or owner can result in injury. To reduce
the potential for injury, comply with these safety
instructions and always pay attention to the safety
alert symbol, which means CAUTION,
WARNING, or DANGER—“personal safety
instruction.” Failure to comply with the
instruction may result in personal injury or death.
Safe Operating Practices
This product is capable of amputating hands and feet
and throwing objects. Always follow all safety
instructions to avoid serious injury or death.
POTENTIAL HAZARD
• Engine exhaust contains carbon monoxide,
which is an odorless, deadly poison.
General Operation
1.
Read, understand, and follow all instructions in
the operator’s manual and on the machine before
starting.
2.
Allow only responsible adults who are familiar
with the instructions to operate the machine.
3.
Clear the area of objects such as rocks, toys,
wire, etc., which could be picked up and thrown
by the blade.
4.
Be sure the area is clear of other people before
mowing. Stop the machine if anyone enters the
area.
5.
Never carry passengers.
6.
Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
7.
Be aware of the mower discharge direction and
do not point it at anyone. Do not operate the
mower without either the entire grass catcher or
the guard in place.
8.
Slow down before turning. Sharp turns on any
terrain may cause loss of control.
9.
Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove key before dismounting.
WHAT CAN HAPPEN
• Carbon monoxide can kill you and is also
known to the State of California to cause
birth defects.
HOW TO AVOID THE HAZARD
• Do not run engine indoors or in an enclosed
area.
10. Turn off blades when not mowing.
11. Keep hands, feet, hair and loose clothing away
from attachment discharge area, underside of
mower and any moving parts while engine is
running.
12. Stop the engine before removing the grass
catcher or unclogging the chute.
13. Mow only in daylight or good artificial light.
3
Safety
14. Do not operate the machine while under the
influence of alcohol or drugs.
15. Watch for traffic when operating near or crossing
roadways.
•
Keep all movement on slopes slow and gradual.
Do not make sudden changes in speed or
direction.
•
Avoid starting or stopping on a slope. If tires
lose traction, disengage the blades and proceed
slowly straight down the slope.
16. Use extra care when loading or unloading the
machine onto a trailer or truck.
DO NOT
17. Do not touch equipment or attachment parts
which may be hot from operation. Allow to cool
before attempting to maintain, adjust or service.
Slope Operation
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope or if you feel uneasy on
it, do not mow it.
•
Do not operate machine on hillsides or slopes
exceeding 15°.
•
Avoid turning on slopes. If you must turn, turn
slowly and gradually downhill, if possible.
•
Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly turn
over if a wheel goes over the edge of a cliff or
ditch, or if an edge caves in.
•
Do not mow on wet grass. Reduced traction
could cause sliding.
DO
•
Mow up and down slopes greater than 5°, not
across.
•
Do not try to stabilize the machine by putting
your foot on the ground.
•
Mow downhill only on slopes above 10°, never
mow uphill. If a steep slope must be ascended,
back up the hill, and drive forward down the hill,
keeping the machine in gear.
•
Do not use a grass catcher on steep slopes.
Heavy grass bags could cause loss of control or
overturn the machine.
•
Remove obstacles such as rocks, tree limbs, etc.
from the mowing area. Watch for holes, ruts or
bumps, as uneven terrain could overturn the
machine. Tall grass can hide obstacles.
•
Use slow speed. Choose a low gear so that you
will not have to stop or shift while on the slope.
•
Follow the manufacturer’s recommendations for
wheel weight or counterweights to improve
stability.
•
Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
4
Safety
Children
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you
last saw them. The following requirements must be
followed to prevent injury to children.
1.
Keep children out of the mowing area and under
the watchful care of another responsible adult.
2.
Be alert and turn the machine off if children
enter the area.
3.
Before and while backing, look behind and down
for small children.
4.
Never carry children. They may fall off and be
seriously injured or interfere with safe machine
operation.
5.
Never allow children to operate the machine.
6.
Use extra care when approaching blind corners,
shrubs, trees, the end of a fence or other objects
that may obscure vision.
4.
Keep nuts and bolts tight, especially the blade
attachment bolts. Keep equipment in good
condition.
5.
Never tamper with safety devices. Check safety
systems for proper operation before each use.
6.
Keep the machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage.
Allow the machine to cool before storing.
7.
Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
8.
Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace with
manufacturer’s recommended parts, when
necessary.
9.
Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution
when servicing them.
10. Use only genuine replacement parts to ensure
that original standards are maintained.
11. Check brake operation frequently. Adjust and
service as required.
Service
1.
Stop the engine, disconnect spark plug wire(s)
and remove key before performing any service,
repairs, maintenance or adjustments.
2.
Use extra care when handling gasoline and other
fuels. They are flammable and vapors are
explosive.
12. Battery acid is poisonous and can cause burns.
Avoid contact with skin, eyes and clothing.
Protect your face, eyes and clothing when
working with a battery.
13. Battery gases can explode. Keep cigarettes,
sparks and flames away from battery.
A. Use only an approved container.
B.
Never remove the gas cap or add fuel when
the engine is running. Allow the engine to
cool before refueling. Do not smoke.
C.
Never refuel the machine indoors.
D. Never store the machine or fuel container
inside where there is an open flame, such as
near a water heater or furnace.
3.
Never run a machine inside a closed area.
5
Safety
6
Safety
Slope Chart
Read all safety instructions on pages 3–5.
7
8
Safety
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
ON DEFLECTOR
(Part No. 54-9220)
IN FRONT OF SEAT
(Part No. 92–7244)
ON REAR OF
STEERING TOWER
(Part No. 93–7008)
ON RIGHT SIDE OF SEAT
(Part No. 92–1751)
IN FRONT OF SEAT
(Part No. 92–7245)
ON LEFT SIDE OF DECK
(Part No. 66–1340)
ON STEERING TOWER
(Part No. 99–2981)
ON TOWER NEAR
IGNITION SWITCH
(Part No. 98–5320)
ON FLOOR PANEL
(Part No. 99–6093)
IN FRONT OF SEAT
(Part No. 99–2979)
UNDER GRASS DEFLECTOR
(Part No. 68–3650)
9
Gasoline and Oil
Recommended Gasoline
Use UNLEADED Regular Gasoline suitable for
automotive use (85 pump octane minimum). Leaded
regular gasoline may be used if unleaded regular is
not available.
POTENTIAL HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
IMPORTANT: Never use methanol, gasoline
containing methanol, or gasohol containing
more than 10% ethanol because the fuel
system could be damaged. Do not mix oil with
gasoline.
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Always place gasoline containers on the
•
POTENTIAL HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Use a funnel and fill the fuel tank outdoors,
in an open area, when the engine is cold.
Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the level
is 1/4” to 1/2” (6 mm to 13 mm) below the
bottom of the filler neck. This empty space
in the tank allows gasoline to expand.
• Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fumes may be ignited by a spark.
• Store gasoline in an approved container
and keep it out of the reach of children.
Never buy more than a 30-day supply of
gasoline.
10
•
•
•
ground away from your vehicle before
filling.
Do not fill gasoline containers inside a
vehicle or on a truck or trailer bed because
interior carpets or plastic truck bed liners
may insulate the container and slow the
loss of any static charge.
When practical, remove gas–powered
equipment from the truck or trailer and
refuel the equipment with its wheels on the
round.
If this is not possible, then refuel such
equipment on a truck or trailer from a
portable container, rather than from a
gasoline dispenser nozzle.
If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until fueling is complete.
Gasoline and Oil
Stabilizer/Conditioner
Filling the Fuel Tank
Add the correct amount of gas stabilizer/conditioner
to the gas. Using a stabilizer/conditioner in the
machine:
1.
Shut the engine off and set the parking brake.
2.
Clean around each fuel tank cap and remove the
cap. Add unleaded regular gasoline to both fuel
tanks, until the level is 1/4 to 1/2 inch (6 mm to
13 mm) below the bottom of the filler neck. This
space in the tank allows gasoline to expand. Do
not fill the fuel tanks completely full.
3.
Install fuel tank caps securely. Wipe up any
gasoline that may have spilled.
4.
Fuel gauge is located in right side tank.
•
Keeps gasoline fresh during storage of 90 days
or less. For longer storage it is recommended
that the fuel tank be drained.
•
Cleans the engine while it runs
•
Eliminates gum-like buildup in the fuel system,
which causes hard starting
IMPORTANT: Never use fuel additives
containing methanol or ethanol.
Check Engine Oil Level
Before you start the engine and use the machine,
check the oil level in the engine crankcase; refer to
Checking Oil Level, page 30.
11
Assembly
Loose Parts
Note:
Use the chart below to verify all parts have been shipped.
DESCRIPTION
QTY.
USE
Seat
1
Wire Tie
1
Clamp
1
Seat Spacer (rubber)
2
Seat Spacer (metal)
2
Washer, 5/16” I.D.
2
Screw, 5/16”–18 x 1 1/2” (38 mm)
2
Locknut
2
Front Wheel Assembly
2
Flat Washer
2
Hub Cap
2
Cotter Pin
2
Steering Wheel
1
Roll Pin
1
Steering Shaft Cover
1
Key
2
Capscrew
2
Wing Nut
2
Hose coupling
1
Connect garden hose to washout port during
maintenance.
Operator’s Manual
1
Read manual before operating rider.
Registration Card
1
Fill out and mail to Toro.
Hang Tag
1
Read for Warranty information.
12
Install Seat, page 13.
Install Front Wheels, page 13
Install Steering Wheel Assembly, page 13
Use in ignition and ”Key Choice” Switches
Secure battery cables to battery, page 15.
Assembly
Install Front Wheels
Note:
2.
Grease axle shafts before installing
wheels
1.
Install wheel onto axle.
2.
Mount flat washer onto axle, insert cotter pin
and open pin ends with pliers (Fig. 1).
3.
Install hub caps.
Slip steering wheel over shaft and line the
steering wheel mount hole with the shaft
mounting hole (Fig. 2). Toro logo should be
readable from operator’s position.
2
1
1
2
Figue 2
3
1. Steering shaft cover
3.
Insert a drift punch partially through the holes to
maintain alignment and insert the roll pin in
from the opposite side.
4.
Drive the roll pin in until it is flush with the
outside of the wheel (Fig. 2).
Figure 1
1. Flat washer
2. Cotter pin
2. Roll pin
3. Hub cap
Install Seat
4.
Repeat steps 1-3 on opposite side.
1.
Thread 2 seat spacers (rubber) into bottom of
seat (Fig. 3) in rear holes.
5.
Check front and rear tires for proper inflation.
Refer to Maintenance section under Tire
Pressure, page 33 for proper inflation pressure.
2.
Lubricate both front wheels with No. 2 general
purpose grease. Pump grease gun until grease
comes through bearings. Wipe up any excess
grease.
Position seat onto seat base, inserting seat switch
cable thru slot and spacer studs through the rear
mounting holes (Fig. 3). Secure loosely with two
5/16” locknuts.
3.
Slide wire clamp over seat switch wire (Fig. 3).
4.
Install 2 metal spacers in line with the front
holes. Insert a 5/16” x 1 1/2” (38 mm) screw
through the wire clamp and a 5/16” flat washer.
Insert this screw through the seat bracket and
spacer into the left front seat hole (Fig. 3).
Install another 5/16” x 1 1/2” (38 mm) screw
with a flat washer into the right front seat hole.
6.
Install Steering Wheel
1.
Position wheels in straight ahead direction and
slide steering shaft cover over steering shaft.
13
Assembly
5
3
1
4
8
1
2
2
3
6
7
10
9
Figure 4
Figure 3
1.
2.
3.
4.
5.
6.
Seat spacers (rubber)
Wire clamp
Seat switch wire
Locknut
Seat switch slot
Seat switch connector
7.
8.
9.
10.
Wire tie
Spacers (metal)
Washer, 5/16” I.D.
Screw, 5/16–18 x 1 1/2”
(38 mm)
5.
Adjust seat to desired position in the seat base
slots and tighten locknuts and screws.
6.
Insert seat switch connector into wire harness
connector.
7.
Secure wire harness to front of seat base with
wire tie.
1. Wing nut
2. Battery hold–down
3. Filler cap
3.
Lift up on top battery hold down and pivot
rearward
4.
Remove battery from chassis and set it aside.
Adding Electrolyte
1.
Remove filler caps from battery and slowly fill
each cell until electrolyte is just above the
“LOWER” fill line.
2.
Leave filler caps off and connect a 3-4 amp
battery charger to battery posts. Charge battery at
a rate of 4 amperes or less for 4 hours (12 volt).
Activate the Battery
The battery must be removed from the machine so it
can be filled with electrolyte and charged. Remove
the battery and activate it as follows:
POTENTIAL HAZARD
• Charging battery produces gasses.
Removing the Battery
WHAT CAN HAPPEN
• Battery gasses can explode.
1.
Tip seat forward exposing battery.
• Keep cigarettes, sparks and flames away
2.
Remove wing nut securing battery hold downs to
rider chassis (Fig.4).
HOW TO AVOID THE HAZARD
from battery.
3.
14
When battery is charged, disconnect charger
from electrical outlet and battery posts.
Assembly
4.
Slowly add electrolyte or distilled water to each
cell until level is just below the “UPPER” fill
line. Reinstall filler caps. Once battery is in
service, distilled water only should be added;
never add more electrolyte.
POTENTIAL HAZARD
• The battery terminals could short against
the battery hold–down or metal tractor
components.
IMPORTANT: Do not overfill battery.
Electrolyte will overflow onto other parts and
severe corrosion and deterioration will result.
WHAT CAN HAPPEN
• Sparks can cause the battery gasses to
explode.
Installing the Battery
5.
HOW TO AVOID THE HAZARD
• When removing or installing the battery, do
Install the battery with the terminal posts toward
the rear of the machine and vent tube on left side
of battery, thru hole in frame (Fig.
5).
not allow the battery terminals to touch any
metal parts of the tractor.
• Always keep the battery hold–down rods
in place to protect and secure the battery.
7.
1
Install the red positive cable (rubber boot over
end) to the positive (+) terminal and the negative
cable (black) to the negative (–) terminal of the
battery and secure with capscrews and wing
nuts. Slide the rubber boot over the positive
terminal to prevent a possible short-out from
occurring (Fig. 5).
2
Figure 5
1. Vent tube
6.
2. Throttle cable
Reinstall battery hold downs.
15
Assembly
Fill Crankcase With Oil
The rider is shipped from the factory without oil in
the crankcase.
1.
Place rider on a level surface.
2.
Unscrew and remove the dipstick from the oil
fill tube (Fig. 6).
3.
Insert a funnel into the tube and slowly add
engine oil into the crankcase, using oil fill chart
below. Use a high quality detergent oil classified
“For Service SF, SG, SH”. Oil viscosity (weight)
must be selected according to anticipated
ambient temperature. See table below.
4.
Oil Fill Chart
1
Figure 6
2. Fuel tank cap
USE THESE SAE VISCOSITY OILS
–20
°F
0
–30
°C
–20
16
20
–10
40
0
60
10
80
20
100
30
Ensure the oil level is to the full mark on the
dipstick when it is fully installed. Do not overfill
or engine damage may result.
6.
Insert the dipstick and turn it clockwise to secure
it in the fill tube.
Note:
2
1. Dipstick
5.
40
Check the oil level every 5 operating
hours or each time rider is used.
Initially, drain the oil and replace it
after the first 5 hours of operation to
remove the contaminants produced by
normal engine break-in; thereafter,
under normal conditions, change oil
after every 25 hours of operation.
Change the oil more frequently when
the engine is operated in dusty or dirty
conditions.
Operation
Think Safety First
Clutch Pedal
Please carefully read all the safety instructions on
pages 3–9. Knowing this information could help you,
your family, pets or bystanders avoid injury.
(Fig. 2)—Used in conjunction with gear shift.
Depress clutch pedal fully when shifting gears and
whenever brake is used.
Controls
Brake Pedal
Become familiar with all the controls (Fig. 1) before
you start the engine and operate the machine.
(Fig. 2)—Must be depressed to slow down or stop the
rider. When pedal is depressed, a caliper engages the
brake disc at side of transaxle. Remember to depress
clutch pedal when using brake.
Gear Shift
Note:
(Fig. 1)—Transaxle has five forward speeds, neutral
and reverse. The gear shift lever is located at right
side of operator. An interlock switch prevents engine
from being started when transaxle is in any gear
except neutral.
1
Avoid depressing brake pedal while
clutch is engaged otherwise premature
brake wear will occur. Do not rest foot
on pedal while mowing.
Parking Brake
Always set the parking brake when you stop the
machine or leave it unattended.
(Fig. 2)—Parking brake must be used in conjunction
with brake pedal. When pedal is depressed, end of
parking brake lever holds brake pedal in depressed
position and a caliper engages the brake disc at side
of transaxle.
Setting the Parking Brake
1.
Depress brake pedal fully and shift transaxle to
neutral.
2.
Move parking brake control upward and release
brake pedal.
Figure 1
1. Gear shift
17
Operation
Key Choice
Releasing the Parking Brake
1.
To release the parking brake, depress brake
pedal, and parking brake lever will return it to its
disengaged position. Release brake pedal slowly.
Ignition Switch
A hold and release switch used for deactivating the
“Operating–In–Reverse” interlock feature. Located
on panel in front and below the seat (Fig. 3).
Throttle Control
(Fig. 2)—Switch is part of engine ignition system,
and it has three positions: OFF, RUN and START.
Key automatically returns to RUN position from
START position when released after engine starts.
(Fig. 3)—Connects to and operates carburetor
mounted throttle and choke. Control has four
positions: IDLE, HOT RESTART, OPERATE and
CHOKE. Push control slightly to the left and upward
to obtain CHOKE position.
1
4
1
3
2
4
Figure 2
1. Clutch pedal
2. Brake pedal
2
3. Parking brake lock
4. Ignition switch
3
Deck Engagement Lever
(Fig. 3)—Engages and disengages the cutter blade.
An interlock switch prevents engine from starting
when control is in the ENGAGE position. Engine
will start when control is in DISENGAGE position
only.
Height–of–Cut Control
(Fig. 3)—Control varies the cutting height from
approx. 1–1/2 to 4 inches (38 to 102 mm) in six
increments.
18
Figure 3
1. Deck engagement lever
2. “Key choice” switch
3. Height–of–cut control
4. Throttle control
Starting and Stopping
the Engine
Starting
1.
Shift into neutral (N), move deck engagement
lever to DISENGAGE. Lock the parking brake.
2.
Move throttle control to CHOKE position, and
rotate ignition key to START. When the engine
starts, release the key and immediately move
throttle control between OPERATE and IDLE
positions if choke was used for starting.
Operation
3.
4.
Select desired height-of-cut and move deck
engagement lever to ENGAGE. Release parking
brake (if necessary), depress clutch pedal and
shift into gear.
Release clutch pedal slowly and smoothly.
Operating Procedure
1.
Move deck engagement lever to DISENGAGE.
2.
Start the engine: refer to Starting/Stopping
Instructions, page 16.
IMPORTANT: When rider is used for the
first time, operate the transaxle in all gears to
ensure that drive system is functioning
correctly, and become familiar with the
controls and operating characteristics. Never
shift while the machine is moving or without
first depressing the clutch pedal; transaxle
damage could result.
Stopping
1.
Depress clutch and brake pedals, move throttle
control lever to SLOW position, move deck
engagement lever to DISENGAGE, and rotate
ignition key to OFF.
2.
Shift transaxle to neutral and engage parking
brake.
3.
Remove key from ignition switch. Wait for all
moving parts to stop before getting off seat.
3.
IMPORTANT: To avoid a jerky start and
putting a heavy load on the transaxle, release
clutch pedal slowly. If shifting into reverse
gear is difficult, jog clutch pedal in and out to
get gears to mesh. Do not force the gear shift
because damage may result. Should you
encounter a jerking or grabbing condition
during operation, contact your local
Authorized TORO Service Dealer for
assistance.
Break–In
The engine requires no special break-in other than
changing oil after the first five hours of operation.
Operate the transaxle in all gears to ensure that drive
system is functioning correctly. After the first five
hours of operation, check the condition of the belts.
Adjusting Height–of–Cut
4.
To engage blade for cutting, move height-of-cut
control to the desired setting. Place throttle in
OPERATE position. Then move deck
engagement lever to ENGAGE position.
5.
To stop engine, in sequence, depress clutch and
brake pedals, move throttle control to IDLE,
deck engagement lever into DISENGAGE, gear
shift into neutral, engage parking brake, and
rotate key to OFF position after allowing the
engine to idle a short period.
The height-of-cut may be set in one of six positions
from approximately 1-1/2 to 4 inches (38 to 102
mm).
1.
Ensure the deck engagement lever is in
DISENGAGE position.
2.
Move height-of-cut control into desired setting.
3.
To engage blade for cutting, move deck
engagement lever to ENGAGE.
Depress clutch pedal and shift transaxle into
selected gear. Then release pedal slowly until
traction drive engages.
19
Operation
The Safety Interlock System
Understanding the Safety Interlock
System
The safety interlock system is designed to prevent the
engine from starting unless:
•
The power take off (PTO) is “OFF”
•
The gear shift lever is in “N” neutral.
The safety system is designed to stop the engine if:
•
You rise from the seat when the clutch/brake
pedal is released.
•
You rise from the seat when the blade (PTO) is
“ENGAGED.”
•
You shift into reverse with the power take off
(PTO) engaged and the operating–in–reverse
interlock not deactivated.
Operating–in–Reverse
An interlock feature is provided that prevents the
Power Take Off (PTO) from operating while the
tractor is traveling in reverse. If the unit is shifted
into reverse while the mower blade or other PTO
driven attachment is engaged, the engine will stop.
Do not mow while backing up unless it is
absolutely necessary. If you need to mow while in
reverse gear or use other PTO driven attachments
(such as a snowthrower or tiller), this
operating–in–reverse interlock feature may be
temporarily deactivated.
20
Before deactivating this feature, be sure there are no
children present on or near the property where you are
using the tractor, and that none are likely to appear
while you are mowing or operating an attachment.
Be extra observant after you have chosen to
deactivate the interlock feature because the sound of
the tractor’s engine might prevent you from being
aware that a child or a bystander has entered the area
where you are operating the tractor.
If you are certain that you can safely mow in reverse
or operate an attachment, deactivate the
operating–in–reverse interlock feature by turning the
“Key Choice” switch (Fig. 4), located in front of and
below the seat, after engaging the blade (PTO). A red
light on the front console (Fig. 5) will turn on as a
reminder that the operating–in–reverse interlock has
been deactivated. Once the interlock is deactivated it
stays in this mode––with your mower blade or
PTO–driven attachment operating whenever you back
up–– and the console light stays on until either the
blade (PTO) is disengaged, or the engine is turned
off.
Note:
Do not insert the “Key Choice” key
unless it is absolutely necessary to
mow in reverse or operate and
attachment. The “Key Choice” key
should also be removed from the unit
if it will be operated by someone other
than a responsible, experienced
operator. This will prevent the unit
from operating in reverse with the
mower blade or other PTO attachment
engaged. Always remove both the
ignition and the “Key Choice” keys
and put them in a safe place out of the
reach of children when leaving the unit
unattended.
Operation
1
POTENTIAL HAZARD
• A child or bystander could be backed over
by a riding mower with its blade(s)
engaged.
WHAT CAN HAPPEN
• Blade contact will cause serious personal
injury or death.
HOW TO AVOID THE HAZARD
• Do not mow in reverse unless absolutely
necessary.
• Always look backward and down before
backing up.
• Use “Key Choice” switch only if you are
certain no children or other bystanders will
appear in the mowing area.
• Always remove both the ignition and “Key
Choice” keys and put them in a safe place
out of the reach of children or unauthorized
users when leaving the unit unattended.
1
Figure 4
5. “Key choice” switch
Figure 5
6. Operating–in–reverse light
Testing the Safety Interlock System
Test the safety interlock system before you use the
machine each time. If the safety system does not
operate as described below, have an Authorized
Service Dealer repair the safety system immediately.
1.
Move gear shift into neutral
2.
Move deck engagement lever into ENGAGE. Sit
on the seat and rotate ignition key to START.
Engine should not crank; but if it does, the
interlock system is malfunctioning and it must
be repaired by an Authorized TORO Service
Dealer. If engine does not crank, proceed to step
3.
3.
Move deck engagement lever into
DISENGAGE. Sit on the seat, depress the brake
and clutch pedals, engage the parking brake and
shift into gear. Rotate ignition key to START.
Engine should not crank; but if it does, the
interlock system is malfunctioning and must be
repaired by an Authorized TORO Service Dealer.
If engine does not crank, proceed to step 4.
21
Operation
4.
Sit on the seat, move gear shift into neutral, deck
engagement lever into DISENGAGE and ensure
parking brake is engaged. Rotate ignition key to
START. Engine should start and continue to run.
Then engage deck engagement lever and
carefully raise off the seat: the engine should
stop. If the engine does not stop running, shut
the engine off and have interlock system repaired
by an Authorized TORO Service Dealer. If the
engine shuts off when you raise off the seat, the
interlock system is functioning correctly and the
rider can be operated safely.
5.
Put the PTO lever in the “disengage” position
and the gear shifter in neutral. Now start the
engine. While the engine is running, move the
PTO lever to the “engage” position, push in the
clutch and put the gear shifter in reverse. The
engine should stop.
6.
Put the PTO lever in the “disengage” position
and the gear shifter in neutral. Now start the
engine. Move the PTO lever to the “engage”
position and turn the “Key Choice” key and
release. The “Key Choice” warning light should
illuminate. Move the PTO lever to the
“disengage” position and the “Key Choice”
warning light should turn off.
22
Operation
Side Discharging or Bagging
To side discharge or use bagging attachment, stop
engine and wait for all moving parts to stop.
1.
Shut the engine off and remove the ignition key.
2.
Remove the wing nut securing the discharge
cover (Fig. 6) to the mower housing. NEVER
REMOVE THE GRASS DEFLECTOR
FROM THE MOWER HOUSING (Fig. 6).
3.
Lift the grass deflector and metal tab together to
enable the removal of the metal tab. Continue to
lift the grass deflector enough to remove the
plastic discharge cover off the long bolt. Save
the discharge cover and metal tab for possible
future reinstallation.
4.
Reinstall the wing nut and tighten. Lower the
grass deflector fully down. Unit is ready for side
discharge or bagging.
3
1
IMPORTANT: When the discharge cover is in
place, it must be secured to the grass deflector
with the metal tab and wingnut.
POTENTIAL HAZARD
• Without the grass deflector, discharge
cover, or complete grass catcher assembly
mounted in place, you and others are
exposed to blade contact and thrown
debris.
WHAT CAN HAPPEN
• Contact with rotating mower blades(s) and
thrown debris will cause injury or death.
HOW TO AVOID THE HAZARD
• NEVER remove the grass deflector from
the mower because the grass deflector
routes material down toward the turf. If
the grass deflector is ever damaged, replace
it immediately.
• Never put your hands or feet under the
mower.
• Never try to clear discharge area or mower
blades unless you move the power take off
(PTO) to “OFF” and rotate the ignition key
to “OFF”. Also remove the key and pull
the wire off the spark plug(s).
5
2
4
Figure 6
1. Wing nut
2. Long bolt
3. Plastic discharge cover
4. Metal tab
5. Grass deflector
For improved bagger performance change to high sail
blade and remove Recycler kickers. If you no longer
wish to side discharge or bag clippings, the discharge
cover can be reinstalled by securing it the mower
housing with the wing nut.
Driving Forward or Backward
The throttle control regulates the engine speed as
measured in rpm (revolutions per minute). Place the
throttle control in the “FAST” position for best
performance while mowing.
To go forward push the clutch in and place the gear
shifter in a forward gear, release the parking brake:
refer to Releasing the Parking Brake, page 18 and
slowly release the clutch. To go in reverse push the
clutch in to stop and after stopping completely, place
the gear shifter in reverse. Slowly release the clutch.
23
Operation
Note:
For reverse motion, with the PTO
engaged, the operating–in–reverse
interlock must be deactivated by the
“key choice” switch located in front of
and below the seat.
Stopping the Machine
To stop the machine, push the clutch in and shift to
neutral (”N”). Disengage the power take off (PTO),
and turn the ignition key to “OFF” to stop the engine.
Also set the parking brake if you leave the machine
unattended; refer to Setting the Parking Brake,
page 17. Remember to remove the keys from the
ignition and “Key Choice” switches.
Positioning the Seat
The seat can move forward and backward. Position
the seat where you have the best control of the
machine and are most comfortable.
1.
Raise the seat and loosen the lock nuts (Fig. 7).
2.
Slide the seat to the desired position and tighten
the lock nuts.
1
POTENTIAL HAZARD
• Someone could move or attempt to operate
the tractor while it is unattended.
WHAT CAN HAPPEN
• Children or bystanders may be injured if
they use the tractor.
HOW TO AVOID THE HAZARD
• Always remove the ignition and “Key
Choice” keys and set the parking brake
when leaving the machine unattended, even
if just for a few minutes.
IMPORTANT: Do not “Ride the Brakes”.
Shift to a lower gear for slower ground speed.
Choose a slow speed so that you will not have
to stop or shift while on a slope.
24
Figure 7
1. Lock nuts
Operation
Recyclerr Rider Tips
Tips for Cutting Grass
Recyclerr Rider Features
Your Toro Recyclerr rider has a new and completely
different cutting concept. It leaves your lawn with a
bagged look without bagging clippings.The rider is
equipped with special parts (Fig. NO TAG) which
increase your rider’s ability to cut and recut grass
clippings, leaves, and other yard debris into tiny
particles which are injected down into the grass.
These parts are:
•
Deck ring
•
Special blade and blade stiffener
•
Discharge cover
•
Four special “kickers” strategically positioned on
the underside of the mower deck. A fifth kicker
is molded into the discharge cover.
Even with the Recyclerr rider, you may encounter
conditions where it is not possible to incorporate all
of the grass clippings or leaves all of the time into the
grass. Follow these instructions for the best cutting
results and lawn appearance:
•
Always use FAST (full) throttle when mowing.
•
Maintain a sharp blade throughout the cutting
season. A sharp blade cuts cleanly and without
tearing or shredding the grass blades like a dull
blade. Tearing and shredding causes the grass to
turn brown at the edges which impairs growth
and increases susceptibility to diseases. About
every 30 days, remove the wire from the spark
plug and check the cutter blade for sharpness.
File down any nicks on blade to restore its sharp
edge.
•
Clean any residue from the underside of the rider
housing and kickers after each use. If residue is
allowed to build up in rider housing and on
kickers, cutting performance may be
unsatisfactory.
•
Very long or extremely wet grass can be cut, but
specific operating techniques must be used. Start
by setting height-of-cut in the highest position.
Using 1st gear and maximum throttle speed,
move into the grass and cut a swath that is only
half as wide as the mower housing. If side
discharging, direct grass clippings toward area
that was cut previously. Stop forward movement
occasionally to allow discharge area to clear
itself. Cutting too much grass may clog the
mower housing and discharge area. If mower
housing does clog, shut engine off, disengage
blade and remove the obstruction with a stick.
3
3
5
2
4
1
6
3
394
Figure 8
1. Deck ring
2. Discharge cover
3. Kickers
4. Blade
5. Blade stiffener
6. Grass deflector
25
Operation
•
MOWING IN EXTREME CONDITIONS—Air
is required to cut and recut grass clippings in
rider housing, so do not set height-of-cut too low
or totally surround housing by uncut grass.
Always try to have one side of the rider housing
free from uncut grass, allowing air to be drawn
into housing. When making an initial cut thru
center of uncut area, operate rider at a slower
ground speed and back up if rider starts to clog.
•
STOPPING RIDER—If forward motion of rider
has to be stopped while cutting, a clump of grass
clippings may be deposited on lawn. Follow this
procedure for stopping while cutting:
POTENTIAL HAZARD
• Unexpected blade contact can occur
WHAT CAN HAPPEN
• Personal injury can occur from contact
with blade
HOW TO AVOID THE HAZARD
• Depress clutch and brake pedals, shift into
neutral and turn ignition key to “OFF”
position. Remove wire from spark plug to
prevent someone from accidentally starting
the machine.
A. With blade engaged, move onto a
previously cut area.
•
When the rider is used to cut a lawn for the first
time, cut grass slightly longer than normal to
ensure that cutting height of mower housing will
not cause scalping, which could result from
severe undulations of the ground. In general,
however, the cutting height used in the past is
probably the best one to use. When cutting grass
over six inches tall, you may want to cut the
lawn twice to hide clippings down in the grass.
•
If the grass is ever allowed to grow slightly
longer than normal, or if it contains a high
degree of moisture, raise cutting height higher
than usual and cut the grass at this setting. Next,
cut the grass again using the lower, normal
setting. This method of cutting long grass results
in an even distribution of clippings and an
acceptable quality-of-cut.
•
In the heat of the summer, it is best to cut only
about 1/3 of the grass blade. Cutting below the
3rd setting is not recommended unless grass is
sparse or it is late fall when grass growth begins
to slow down.
•
26
If the cutting width of the rider is wider than the
mower previously used, raise height-of-cut
setting one notch to ensure undulations in turf
are not cut too short.
B.
Raise deck one or two height-of-cut settings
while driving rider forward and deck is in
operation.
C.
Depress clutch and brake pedals, move
throttle control lever to IDLE position,
disengage mower and rotate ignition key to
OFF.
•
MOW AT PROPER INTERVALS—Under most
normal conditions you’ll need to mow
approximately every 4–5 days. But remember,
grass grows at different rates at different times.
This means that in order to maintain the same
height-of-cut, which is a good practice, you’ll
need to cut more frequently in early spring; as
the grass growth rate slows in mid summer, cut
only every 8–10 days. If you are unable to mow
for an extended period due to weather conditions
or other reasons, mow first with the height-of-cut
at a high level; then mow again 2–3 days later
with a lower height setting.
•
Alternate mowing direction. This helps disperse
clippings over lawn for even fertilization.
•
SIDE DISCHARGING OR BAGGING—To
side discharge or use bagging attachment, stop
the engine and wait for all moving parts to stop.
Then remove the wing nut securing the discharge
Operation
cover to the mower housing. NEVER
REMOVE THE GRASS DEFLECTOR
FROM THE MOWER HOUSING.
•
Overlap cutting swaths instead of cutting a full
swath with each pass.
•
Mow across the marginal areas a second time.
Tips For Cutting Leaves
POTENTIAL HAZARD
• Without the grass deflector, discharge
cover, or complete grass catcher assembly
mounted in place, you and others are
exposed to blade contact and thrown
debris.
In the fall, you can cut your leaves up into finely cut
particles and inject the particles down into the grass.
When spring arrives, the leaf particles will have
decomposed and restored valuable nutrients to the
soil.
WHAT CAN HAPPEN
•
When cutting is complete, always be sure that
50% of the lawn shows through the finely cut
leaf cover. This may require one or more passes
over the leaves.
•
If there are more than five inches of leaves on
lawn, raise the deck one or two notches higher.
This makes it easier to feed leaves under mower
deck.
•
If leaves are not cut up finely enough to be
hidden down in the grass, make a second pass
90_ to the first pass.
•
If you cut up a lot of oak leaves, you might want
to add lime to your grass in the spring. Lime
reduces the acidity of oak leaves.
• Contact with rotating mower blades(s) and
thrown debris will cause injury or death.
HOW TO AVOID THE HAZARD
• NEVER remove the grass deflector from
the mower because the grass deflector
routes material down toward the turf. If
the grass deflector is ever damaged, replace
it immediately.
• Never put your hands or feet under the
mower.
• Never try to clear discharge area or mower
blades unless you move the power take off
(PTO) to “OFF” and rotate the ignition key
to “OFF”. Also remove the key and pull
the wire off the spark plug(s).
The Recycler rider’s special features reduce clipping
size, thus decreasing amount of grass to be disposed
of and number of times bagger will have to be
emptied.
Note:
When bagger is full, mower will begin
to inject clippings down into the grass.
If the lawn appearance is not satisfactory after
mowing, try one of the following:
•
Sharpen the blade.
•
Raise the height-of-cut setting on your mower.
•
Cut your grass more frequently.
•
Reduce ground speed.
27
Maintenance
Service Interval Chart
Service Operation
5
Hours
Change Oil (Initial)
X
Change Oil (Periodic)
25
Storage
Hours Service
X
X
X
Check Cutter Blade
X
X
X
Check Brake
X
X
X
Grease Front Axle Spindles (2) & Wheel
Bearings (2) and Rear Axle (2)
X
X
Lubricate Pivot Points
X
X
Service Air Cleaner
X
X
Check Spark Plug
X
X
Check Blade Drive Belt
X
Check Traction Drive Belt
X
Drain Gasoline
X
Wash Underside of Mower
X
X
X
X
Paint Chipped Surfaces
X
Remove Rear Wheels and Grease
Axles
X
Remove Rear Wheels and Grease Axle
Zerks
28
X
2
Years
X
X
Notes
X
Check System Interlock
Clean Outside of Engine
Spring
Service
Before each
use
X
More often in
dusty, dirty,
conditions.
X
More often in
dusty dirty
dusty,
dirty,
conditions.
Maintenance
POTENTIAL HAZARD
• If you leave the key in the ignition switch, someone could start the engine.
WHAT CAN HAPPEN
• Accidental starting of the engine could seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
• Remove the key from the ignition switch and pull the wire(s) off the spark plug(s)
before you do any maintenance. Also push the wire(s) aside so it does not
accidentally contact the spark plug(s).
Air Cleaner
Service Interval/Specification
Foam Element: Clean and re-oil after every 25
operating hours, or yearly, whichever occurs
first.Paper Element: Replace after every 100
operating hours or yearly, whichever occurs
first.Service the air cleaner more frequently (every
few hours) if operating conditions are extremely
dusty or sandy.
1.
Remove the wire from the spark plug (Fig. 12).
2.
Remove the knob and air cleaner cover (Fig. 9).
3.
Every 25 hours the foam pre–cleaner should be
cleaned (Fig. 9). Remove foam pre–cleaner by
sliding it off the paper cartridge (Fig. 9).
A. Wash the foam pre–cleaner in liquid soap
and warm water. Rinse thoroughly in clear
water.
4.
B.
Wrap the foam pre–cleaner in cloth and
squeeze it dry
C.
Saturate the foam in engine oil. Squeeze it
to remove excess oil.
Figure 9
1. Knob
2. Air cleaner cover
3. Foam pre–cleaner
5.
4. Paper cartridge
5. Nut
Clean the air cleaner body carefully to prevent
dirt from entering carburetor. Remove and
discard the paper cartridge.
The paper air cleaner cartridge should be
replaced every 100 hours. Remove one nut from
the top of the paper cartridge (Fig. 9).
29
Maintenance
6.
Insert a new paper cartridge into the air cleaner
body. Reassemble the air cleaner.
IMPORTANT: Petroleum solvents, such as
kerosene, are not to be used to clean the paper
cartridge. They may cause deterioration of
the cartridge. DO NOT OIL THE
CARTRIDGE. DO NOT USE
PRESSURIZED AIR TO CLEAN THE
CARTRIDGE.
IMPORTANT: Always operate the engine
with the air cleaner element in place or engine
damage will result.
Checking Oil Level
1.
Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2.
Clean around the oil dipstick (Fig. 10) so dirt
cannot fall into the filler hole and damage the
engine.
3.
Unscrew the oil dipstick and wipe the metal end
clean (Fig. 10).
4.
Screw dipstick fully into filler neck; then remove
it and check oil level on dipstick. If level is low,
add only enough oil to raise level to FULL mark.
Do not overfill or engine damage may result.
Engine Oil
IMPORTANT: Do not overfill the crankcase
with oil because the engine may be damaged.
Service Interval/Specification
2
Change oil:
•
After the first 5 operating hours.
•
After every 25 operating hours.
Note:
1
Change oil more frequently when
operating conditions are extremely
dusty or sandy.
Oil Type: Detergent oil (API service SF, SG, SH)
Figure 10
Crankcase Capacity: 48 oz. (1.4 l)
1. Oil dipstick
2. Fuel tank cap
Viscosity: See table below
USE THESE SAE VISCOSITY OILS
Changing/Draining Oil
–20
°F
0
–30
°C
–20
30
20
–10
40
0
60
10
80
20
100
30
40
1.
Start the engine and let it run five minutes. This
warms the oil so it drains better.
2.
Park the machine so that the drain side is slightly
lower than the opposite side to assure the oil
drains completely. Then disengage the power
take off (PTO), set the parking brake, and turn
the ignition key to “OFF” to stop the engine.
Remove the key.
Maintenance
3.
Place drain pan below drain plug (Fig. 11).
Remove drain cap. Allow all oil to flow into
drain pan. Reinstall drain cap after oil stops
flowing.
Note:
Dispose of the used oil at a certified
recycling center.
Removing the Spark Plug
1.
Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2.
Pull the wire off the spark plug (Fig. 12).
3.
Clean area around spark plug so foreign matter
cannot fall into cylinder when spark plug is
removed.
4.
Remove the spark plug(s).
1
Figure 11
1
1. Drain cap
4.
Unscrew dipstick and add oil to crankcase. Refer
to Fill Crankcase With Oil, page 16. Crankcase
capacity is 48 oz. DO NOT OVERFILL or
engine damage may result.
2
Figure 12
1. Spark plug wire
2. Spark plug
Spark Plug
Service Interval/Specification
Since air gap between center and side electrodes of
the spark plug increases gradually during normal
operation of the engine, check condition of electrodes
after every 25 operating hours. Recommended air gap
is 0.030 of an inch (0.762 mm). Correct spark plug to
use is: Champion RJ -19LM.
Checking the Spark Plug
1.
Look at the center of the spark plug(s) (Fig. 13).
If you see light brown or gray on the insulator,
the engine is operating properly. A black coating
on the insulator usually means the air cleaner is
dirty.
IMPORTANT: Never clean the spark plug(s).
Always replace the spark plug(s) when it has:
a black coating, worn electrodes, an oily film,
or cracks.
Note: The spark plug usually lasts a long time;
however, the plug should be removed and checked
whenever the engine malfunctions.
2.
Check the gap between the center and side
electrodes (Fig. 13). Bend the side electrode
(Fig. 13) if the gap is not correct.
31
Maintenance
2
the bearings.
3
4.
1
0.030”
(.762 mm)
Wipe up any excess grease.
Where to Add Grease
1.
Lubricate the front wheels and spindles until
grease begins to ooze out of the bearings
(Fig. 14).
Figure 13
1. Center electrode insulator
2. Side electrode
3. Air gap (not to scale)
Installing the Spark Plug(s)
1.
Install the spark plug. Make sure the air gap is
set correctly.
2.
Tighten the spark plug(s) to 15 ft–lb (20.4 Nm).
3.
Push the wire(s) onto the spark plug (Fig. 12).
Figure 14
2.
Greasing and Lubrication
Service Interval/Specification
Grease the machine after every 50 operating hours or
yearly, whichever occurs first. Grease more frequently
when operating conditions are extremely dusty or
sandy.
Grease Type: General-purpose grease.
Lubricate Pivot Points
The mechanical pivot points on the rider must be
oiled after every 25 hours of operation; lubricate more
frequently when conditions are dusty or sandy.
3.
How to Grease
1.
Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2.
Clean the grease fittings with a rag. Make sure to
scrape any paint off the front of the fitting(s).
3.
Connect a grease gun to the fitting. Pump grease
into the fittings until grease begins to ooze out of
32
Grease rear axles with one to two pumps of No.
2 general purpose grease. The zerks are located
just inside of the rear tires on the bottom of the
transaxle (Fig. 15).
Oil pivot points of steering, drive, brake, clutch,
and deck engagement linkage with light oil (Fig.
15). Wipe up any excess oil.
Maintenance
Tire Pressure
Service Interval/Specification
Maintain the air pressure in the front and rear tires as
specified. Check the pressure at the valve stem after
every 25 operating hours or monthly, whichever
occurs first (Fig. 17). Check the tires when they are
cold to get the most accurate pressure reading.
•
Set pressure to 12 psi (83 kPa) front and
rear for tractors with serial numbers
9902000 and prior.
•
Set pressure to 20 psi (138 kPa) (tires with
markings of “Kenda”, “Super Turf”) for
tractors with serial numbers 9902001 and
up.
Figure 15
4.
Remove mower: refer to Removing / lnstalling
Cutting Unit, page 39.
5.
Lubricate mower mounts (Fig. 16). Wipe up any
excess oil.
1
2323
Figure 17
1. Valve stem
Brake
Always set the parking brake when you stop the
machine or leave it unattended. If the parking brake
does not hold securely, an adjustment is required.
Checking the Brake
Figure 16
6.
Install mower: refer to Removing / lnstalling
Cutting Unit, page 39.
1.
Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
33
Maintenance
2.
Rear wheels must lock and skid when you try to
push the tractor forward. Adjustment is required
if the wheels turn and do not lock; refer to
Adjusting the Brake, page 34.
3.
Release the brake and push the tractor forward.
The wheels should rotate freely.
4.
If both conditions are met no adjustment is
required.
Always set the parking brake when you stop the
machine or leave it unattended. If the parking brake
does not hold securely, an adjustment is required.
Adjusting the Brake
Adjust brake pucks if the parking brake does not hold
or braking power is not sufficient when brake pedal is
depressed. The brake is located on the left side of the
transaxle (Fig. 18).
1.
Shut engine off and remove wire from spark
plug.
2.
Tighten locknut approximately 1/4 turn
clockwise (Fig. 18).
3.
Check operation of the brake by pushing rider:
no brake drag should be evident. If drag is
evident, rotate locknut an additional 1/8 turn
counter-clockwise or until there is no drag.
IMPORTANT: With the parking brake
released, the rear wheels must rotate freely
when you push the mower. If brake action
and free wheel rotation cannot be achieved
contact your service dealer immediately.
34
1
Figure 18
1. Locknut
Maintenance
Fuel Tank
Front Wheel Toe-In
Draining The Fuel Tank
Service Interval/Specification
POTENTIAL HAZARD
• In certain conditions gasoline is extremely
flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn
you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Drain gasoline from the fuel tank when the
engine is cold. Do this outdoors in an open
area. Wipe up any gasoline that spills.
• Never drain gasoline near an open flame or
where gasoline fumes may be ignited by a
spark.
• Never smoke a cigarette, cigar or pipe.
1.
Clean area around fuel tank cap so foreign matter
cannot enter filler hole when cap is removed.
Next, remove cap from fuel tank.
2.
Using a pump-type syphon, drain gasoline into a
clean gas can.
Note:
There is no other recommended way
to drain gasoline from the fuel tank,
other than by using a pumpĆtype
syphon. An inexpensive syphon can
be purchased at a hardware store.
Maintain toe-in of the front wheels as specified. If
uneven tire wear, lawn scuffing or hard steering
develop adjustment may be required. Check the toe-in
after every 100 operating hours or yearly, whichever
occurs first (Fig. 19).
Specification: .06” (1.5 mm) – .25” (6.3 mm) toe-in
on front wheels.
Measuring Toe-in
1.
Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2.
Push front tires out, at front, to remove normal
looseness in the linkage.
3.
Measure, between the wheels, at spindle level, in
the front and rear of the wheels (Fig. 19).
4.
The front measurement should be less than the
rear, as specified.
Adjusting Toe-In
1.
To align front wheels, loosen jam nut and turn
tie rod end (there is only one adjustable tie rod)
until center line distance across front of wheels
(d’) is .06 inch (1.5 mm) to .25 inch (6.3 mm)
less than center line distance across rear of front
wheels (d”) (Fig. 19 & 20).
35
Maintenance
Removing the Battery
2
2
1
1
1.
Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2.
Tip seat forward exposing battery.
3.
Disconnect the negative (black) ground cable
from the battery post (Fig. 21).
4.
Lift the rubber cover up on the positive (red)
cable. Disconnect the positive (red) cable from
the battery post (Fig. 21).
5.
Remove wing nut securing battery hold
downs to rider chassis (Fig.21).
6.
Lift up on top battery hold down and pivot
rearward
7.
Remove battery from chassis.
Figure 19
2. Jam nut
1. Tie rod (only one rod is
adjustable)
1
2
Figure 20
3
Figure 21
Battery
1. Wing nut
2. Battery hold down
Service Interval/Specification
Check the electrolyte level in the battery every 5
hours. Always keep the battery clean and fully
charged. Use a paper towel to clean the battery case.
If the battery terminals are corroded, clean them with
a solution of four parts water and one part baking
soda. Apply a light coating of grease to the battery
terminals to prevent corrosion.
Voltage: 12 v, 160 Cold Cranking Amps
36
Installing the Battery
8.
Install the battery into the chassis (Fig. 22).
9.
Secure battery in chassis with hold down rods.
10. Using the bolt and wing nut, connect the positive
(red) cable to the positive (+) battery post
(Fig. 22). Slide the rubber cover over the battery
post.
Maintenance
11. Using the bolt and wing nut, connect the
negative (black) cable to the negative (–) battery
post (Fig. 22).
4
Adding Water to the Battery
The best time to add distilled water to the battery is
just before you operate the machine. This lets the
water mix thoroughly with the electrolyte solution.
1.
Clean the top of the battery with a paper towel.
2.
Lift off the filler caps (Fig. 23).
3.
Slowly pour distilled water into each battery cell
until the level is up to the lower part of the tube
(Fig. 23).
3
2
1
IMPORTANT: Do not overfill the battery
because electrolyte (sulfuric acid) can cause
severe corrosion and damage to the chassis.
Figure 22
1. Positive (red) battery
cable
2. Rubber boot
3. Wing nut and bolt
4. Negative (black) battery
cable
4.
Press the filler caps onto the battery.
Charging the Battery
IMPORTANT: Always keep the battery fully
charged (1.260 specific gravity). This is
especially important to prevent battery
damage when the temperature is below 32°F
(0°C).
Checking Electrolyte Level
1.
With the engine off, lift the seat to see the
battery.
2.
Open covers to see into the cells. The electrolyte
must be up to the lower part of the tube
(Fig. 23). Do not allow the electrolyte to get
below the plates. (Fig. 23).
3.
If the electrolyte is low, add the required amount
of distilled water; refer to Adding Water to the
Battery, page 37.
1
2
1.
Remove the battery from the chassis; refer to
Removing the Battery, page 36.
2.
Check the electrolyte level; refer to Checking
Electrolyte Level, page 37, steps 2–3.
3.
Remove the filler caps from the battery and
connect a 3 to 4 amp battery charger to the
battery posts. Charge the battery at a rate of 4
amperes or less for 4 hours (12 volts). Do not
overcharge the battery. Install the filler caps after
the battery is fully charged.
3
1262
Figure 23
1. Filler caps
2. Lower part of tube
3. Plates
37
Maintenance
POTENTIAL HAZARD
• Charging the battery produces gasses.
2
WHAT CAN HAPPEN
• Battery gasses can explode.
HOW TO AVOID THE HAZARD
• Keep cigarettes, sparks and flames away
from battery.
1
3
4.
Install the battery in the chassis; refer to
Installing the Battery, page 36.
394
Figure 24
Servicing Cutter Blade
1.
Shut off engine and remove wire from spark
plug. Remove ignition key.
2.
Shift transaxle into 1st gear and engage parking
brake.
3.
Remove cutting unit: refer to
Removing/Installing Cutting Unit, page 39.
4.
Grasp end of blade using a rag or thickly padded
glove; then remove blade bolt, curved washer,
blade stiffener and blade (Fig. 24).
Note:
38
Since blade bolt is tightened to 45-60
ft-lb (61-81 Nm) at the factory, it may
be difficult to remove. If the bolt
cannot be removed, contact an
Authorized TORO Service Dealer or a
“service station” for assistance.
1. Blade
2. Blade stiffener
5.
3. Blade bolt and curved
washer
Using a file, sharpen cutting edge at both ends of
the blade (Fig. 25).
Figure 25
Maintenance
8.
POTENTIAL HAZARD
• Worn, eroded or cracked blade can be
dangerous.
WHAT CAN HAPPEN
• Blade can fail and cause personal injury to
bystanders.
Reinstall cutting unit: refer to
Removing/Installing Cutting Unit, page 34.
Removing/Installing Cutting
Unit
1.
Shut off engine and pull wire off spark
plug. Remove ignition key
2.
Lock parking brake and turn front wheels to a
full turn position to allow more clearance for
cutting unit.
3.
Set height-of-cut control to lowest setting.
4.
Loosen belt guides near engine pulley and rotate
them out of the way. Remove deck belt from
engine pulley (Fig. 26).
HOW TO AVOID THE HAZARD
• Check blade often
• Replace if bent or out of balance
• Use genuine Toro replacement blade to
ensure safety and best performance.
NEVER USE A WILL–FIT
REPLACEMENT BLADE.
IMPORTANT: Sharpen top side of the blade
and maintain original cutting angle to ensure
a sharp cutting edge. The blade will remain
balanced if same amount of material is
removed from both cutting edges.
6.
7.
Check balance of blade by putting it on a blade
balancer. (An inexpensive balancer can be
purchased at a hardware store.) A balanced blade
will stay in a horizontal position on the balancer.
By contrast, a blade that is not balanced will
settle to the heavy side. If blade is not balanced,
file more material off cutting edge of the blade.
Continue to file and check the blade until it is
balanced.
In sequence, install blade, blade stiffener, curved
washer and blade bolt (Fig. 24). The concave
side of the curved washer must point toward the
blade. Tighten blade bolt to 45-60 ft-lb (61-81
Nm)
1. Belt guides
2. Engine pulley
IMPORTANT: Make sure cutting edge of
blade is away from mower housing.
5.
Figure 26
3. Deck belt
Remove cotter pin from adjustment rod and pull
from pivot tube arm (Fig. 27).
39
Maintenance
Adjusting Blade Drive Belt
1.
Set height-of-cut lever in lowest setting and deck
engagement lever to ENGAGE.
2.
Remove cotter pin from adjustment rod (27).
3.
Rotate adjustment rod until there is 0.060 inch
(1.5 mm) or less between end of slot in
engagement bracket and outer diameter of pin
(Fig. 28).
Note:
Adjustment rod is a left hand thread.
Figure 27
1. Cotter key
2. Adjustment rod
6.
7.
3. Cotter pin and clevis pin
4. Front hanger bracket
Remove cotter pins from clevis pins on front
hanger brackets. Hold front of cutting unit in
place with one hand, to prevent falling, and
remove clevis pins to lower cutting unit to
ground. Pull rear hanger brackets off pins on rear
suspension arms. Set height-of-cut control to
highest position and slide cutting unit from
under rider.
Install in reverse order.
Figure 28
1. Engagement bracket
2. .060” max. (1.5 mm)
3. Pin
Replacing Blade Drive Belt
Replacing Traction Drive Belt
1.
Lock parking brake and remove wire from spark
plug. Remove ignition key.
1.
Remove cutting unit: refer to
Removing/lnstalling Cutting Unit, page 39.
2.
Remove cutting unit: refer to
Removing/Installing Cutting Unit, page 39 .
2.
3.
Loosen and remove (1) mounting screw securing
each belt guide to cutting unit. Pivot belt guides
away from spindle pulley and remove belt.
Visually inspect belt for wear or damage (Fig.
26).
Remove belt guides from transaxle pulley.
Loosen and rotate belt guides at engine pulley
out of the way. Loosen locknut and remove belt
retainer from idler pulley.
4.
Install new belt if needed and reinstall belt
guides.
5.
Install cutting unit: refer to Removing/Installing
Cutting Unit, page 39.
40
Note:
To make belt removal easier, set and
lock clutch with parking brake to
remove tension from belt.
3.
Remove deck belt from engine pulley (Fig. 26).
4.
Remove drive belt. Inspect belt for damage or
wear.
Maintenance
5.
Install new deck belt if needed.
7.
6.
Replace belt guides for transaxle pulley. Install
belt retainer on idler pulley and tighten locknut.
Install cutting unit: refer to Removing/lnstalling
Cutting Unit, page 39.
Leveling Cutting Unit
2
1
7
5
3
If mower doesn’t cut level from side–to–side and
cutting blade is not bent, level the cutting unit as
follows:
1.
Place rider on level surface, lock parking brake,
shut off engine and remove key from ignition
switch.
2.
Raise seat or remove left side panel from rider.
3.
Place height-of-cut lever in number 3 position
and position cutter blade at a right angle to
direction of rider travel.
4.
Measure the blade tip height at one end of blade,
rotate blade 180 degrees and measure same blade
tip at opposite side of rider. Measurement should
be within 1/8 inch (3 mm) of one another.
5.
If blade tip height is not within 1/8 inch (3 mm),
level cutting unit by loosening height-of-cut
support bracket capscrews and raising or
lowering the bracket (Fig. 31).
6.
Ensure blade tip height is within 1/8 inch
(3 mm) and retighten capscrews.
4
6
5
4
Figure 29
1.
2.
3.
4.
Engine pulley
Transaxle pulley
Idler pulley
Transaxle pulley belt
guides
5. Engine pulley belt guides
6. Belt retainer and locknut
7. Drive belt
IMPORTANT: Idler retainer must be
installed at an 80 to 90 degree angle to the
idler mounting bracket (Fig. 30) or rider may
creep with clutch pushed down.
_
2
1
Figure 30
1. Idler pulley
2. Idler mounting bracket
41
Maintenance
Figure 31
1. Height–of–cut support
bracket
2. Capscrews
Figure 32
1. Cotter pin
2. Rod
6.
If adjustment is not correct, remove rod from
hole in bracket again. Rotate rod two turns
counterclockwise and reinstall rod in hole in
bracket.
7.
Check adjustment again by repeating step 5.
8.
When adjustment is correct, install cotter pin in
rod.
Adjusting Gear Shift Neutral
Position
An adjustment to the gear shift rod may be required if
gear shift will not go into neutral position.
1.
Remove cotter pin from rod on right side of
transaxle as viewed from the rear of the unit
(Fig. 32).
2.
Lift rod out of bracket hole (Fig. 32).
3.
Rotate rod one complete turn clockwise and
reinsert rod into hole in bracket.
4.
Move gear shift selector into REVERSE
position, then to NEUTRAL, then to first gear
and then back to NEUTRAL.
5.
Try rolling the rider backward and forward. If
wheels turn freely and gear shift selector lines up
with the NEUTRAL mark on the gear shift
guide, the adjustment is correct.
42
3. Bracket
Maintenance
Wiring Diagram
KEY SWITCH PN 88-9830
12/32-SCH.
OFF
NO CONNECTION
ON
BIA
START
WIRE COLOR CODES
AND X Y
BIS
BN
BROWN
PK
PINK
BU
BLUE
BK
BLACK
S4
(IGNITION)
A
I
S
X
B
Y
A
I
GY
GREY
Y
YELLOW
S
W
WHITE
T
TAN
B
VIO
VIOLET
GN
GREEN
R
RED
OR
ORANGE
KEY SW
PK
BU
OR
R
F2
R
1
R
7.5A
S2
(PTO)
BATTERY
SHOWN WITH
PTO DISENGAGED
2
3
T GY
GND
PK
GY
F1
S5
ALTERNATOR
BU
SEAT
7.5A
CLOSED WHEN OPERATOR
R
S7
IS IN THE SEAT
T
STARTER
R
(OVER RIDE)
MOMENTARY
KEY SWITCH
Y
S1
3
2
VIO
OR
(NEUTRAL SW)
SHOWN IN
1
NEUTRAL
GN
SOLINOID
MAGNETO
Y
5
K1
3
GN W
4
Y
W
S6
(REVERSE)
(KILL RELAY)
2
1
GY
BN
BK
SWITCH OPENS
IN REVERSE
GY
6
VIO
2
GN
5
T
4
BN
1
NMIR MODULE
VIO
LAMP
(OVER RIDE)
BK
BK
3
GND
43
Maintenance
Cleaning and Storage
1.
Disengage the power take off (PTO), set the
parking brake, and turn the ignition key to
“OFF” to stop the engine. Remove the key.
2.
Remove grass clippings, dirt, and grime from the
external parts of the entire machine, especially
the engine. Clean dirt and chaff from the outside
of the engine’s cylinder head fins and blower
housing.
IMPORTANT: You can wash the machine
with mild detergent and water. DO NOT
PRESSURE WASH THE MACHINE.
Pressure washing may damage the electrical
system or wash away necessary grease at
friction points. Avoid excessive use of water,
especially near the control panel, lights,
engine, and the battery.
3.
Check the brake; refer to Brake, page 33.
4.
Service the air cleaner; refer to Air Cleaner,
page 29.
5.
Grease the chassis; refer to Greasing and
Lubrication, page 32.
6.
Change the crankcase oil; refer to Engine Oil,
page 30.
7.
Remove the spark plug(s) and check its
condition; refer to Spark Plug, page 31. With
the spark plug(s) removed from the engine, pour
two tablespoons of engine oil into the spark plug
hole. Now use the electric starter to crank the
engine and distribute the oil inside the cylinder.
Install the spark plug(s); refer to Spark Plug,
page 31. Do not install the wire on the spark
plug(s).
8.
Remove the battery from the chassis, check the
electrolyte level, and charge it fully; refer to
Battery, page 36. Do not connect the battery
cables to the battery posts during storage.
IMPORTANT: The battery must be fully
charged to prevent it from freezing and being
damaged at temperatures below 32°F (0°C).
44
A fully charged battery maintains its charge
for about 50 days at temperatures lower than
40°F (4°C). If the temperatures will be above
40°F (4°C), check the water level in the
battery and charge it every 30 days.
9.
Check the tire pressure; refer to Tire Pressure,
page 33.
10. For long-term storage (more than 90 days) add
stabilizer/conditioner additive to fuel in the tank
(1 oz. per gallon) (8 ml per liter) and proceed as
follows:
A. Run the engine to distribute conditioned
fuel through the fuel system (5 minutes).
B.
Stop the engine, allow it to cool and drain
the fuel tank; refer to Fuel Tank, page 35, or
operate engine until it stops.
C.
Restart the engine and run until it stops.
Repeat, with the “CHOKE” on, until the
engine will not restart.
D. Dispose of fuel properly or use within 90
days for other applications. Recycle in
accordance with local codes.
11. Check and tighten all bolts, nuts, and screws.
Repair or replace any part that is damaged or
defective.
12. Paint all scratched or bare metal surfaces. Paint
is available from your Authorized Service
Dealer.
13. Store the machine in a clean, dry garage or
storage area. Remove the keys from the ignition
and “key choice” switches and keep it in a
memorable place. Cover the machine to protect
it and keep it clean.
Maintenance
Washing Underside of Mower
1
2
3
After each use wash the underside of the mower to
prevent grass build-up for improved mulch action and
clipping dispersal
1.
Park the machine on a hard level surface,
disengage the power take off (PTO) and turn the
ignition key to “OFF” to stop the engine.
2.
Attach hose coupling to the end of the mower
washout fitting, turn water on high (Fig. 33).
3.
Lower the mower to the lowest height-of-cut.
4.
Sit on the seat and start the engine. Engage
power take off (PTO) and let mower run for one
to three minutes.
m–3118
5.
Disengage the blade, power take off (PTO) and
turn the ignition key to “OFF” to stop the
engine. Wait for all moving parts to stop.
6.
Turn the water off, remove hose coupling from
the washout fitting.
Note:
7.
If the mower is not clean after one
washing, soak and let stand for 30
minutes. Then repeat process again.
Run mower again for one to three minutes to
remove excess water.
Figure 33
1. Washout port
2. Coupling
3. Hose
POTENTIAL HAZARD
• A broken or missing washout fitting could
expose you and others to thrown objects or
blade contact.
WHAT CAN HAPPEN
• Contact with thrown debris or blade will
cause injury or death.
HOW TO AVOID THE HAZARD
• Replace broken or missing washout fitting
immediately, before using nower again.
• Plug any hole(s) in mower with bolts and
locknuts.
• Never put your hands or feet under the
mower or through openings in the mower.
45
Troubleshooting
PROBLEM
Starter does not crank
Engine will not start, starts hard, or
fails to keep running.
Engine does not idle or idles
poorly
46
POSSIBLE CAUSES
CORRECTIVE ACTION
1.
Deck engagement lever is in
ENGAGE.
1.
MOVE DECK
ENGAGEMENT LEVER
INTO DISENGAGE.
2.
Battery is dead.
2.
Charge the battery.
3.
Electrical connections are
corroded or loose.
loose
3.
Chcek electrical connections
for good contact.
contact
4.
Transaxle is in gear.
4.
Position shift lever in neutral.
5.
Relay or switch is defective.
5.
Contact Authorized Service
Dealer.
1.
Fuel tank is empty.
1.
Fill fuel tank with gasoline.
2
2.
Ch k is
i nott ON
Choke
ON.
2
2.
M
h k lever
l
t ON.
ON
Move
choke
to
3.
Air cleaner is dirty.
3.
4.
Spark plug wire is loose or
disconnected
disconnected.
Clean or replace air cleaner
element.
4
4.
Install wire on spark plug.
plug
5.
Spark plug is pitted, fouled, or
gap is incorrect.
5.
Install new, correctly gapped
spark plug.
6
6.
Spark plug gap is incorrect
incorrect.
6
6.
Set gap to 0.030”
0 030” (.76
( 76 mm)
mm).
7.
Dirt, water, or stale fuel is in
f l system.
fuel
7.
Contact Authorized Service
D l
Dealer.
8.
Battery is dead.
8.
Charge the battery.
9.
Vent hole in fuel tank cap
p is
pl gged
plugged.
9.
Clean or replace
the fuel cap.
p
p
10. Carburetor is adjusted
incorrectly.
10. Adjust the carburetor.
11 Module or switch is defective.
11.
defective
11 Contact Authorized Service
11.
Dealer.
12. Spark plug is loose.
12. Tighten plug to 15 ft–lb (20.4
N–m).
1.
Air cleaner is dirty.
1.
Clean air cleaner element.
2
2.
Idl speed
d is
i too
t low.
l
Idle
2
2.
Adj t the
th carburetor.
b t
Adjust
3.
Dirt, water, or stale fuel is in
the fuel system.
3.
Contact Authorized Service
Dealer
4
4.
Sparkk plug
S
l iis pitted,
itt d ffouled
l d or
defective in some other way.
4
4.
IInstall
t ll new, correctly
tl gapped
d
spark plug.
Troubleshooting
PROBLEM
Blade does not rotate
Engine
g
loses power.
p
Engine overheats.
Abnormal vibration.
POSSIBLE CAUSES
CORRECTIVE ACTION
1.
Blade drive belt is worn,, loose
or b
broken.
k
1.
Install new blade drive belt.
2
2.
Blade drive belt is off pulley.
pulley
2
2.
Install blade drive belt and
check idler pulley and belt
guides for correct position.
1.
Engine load is excessive.
1.
Reduce ground speed.
2.
Air cleaner is dirty.
2.
Clean air cleaner element.
3.
Oil level in crankcase is low.
3.
Add oil to crankcase.
4.
Cooling fins and air passages
under engine blower housing
are plugged.
4.
Remove obstruction from
cooling fins and air passages.
5.
Spark plug is pitted, fouled, or
gap is incorrect.
5.
Install new, correctly gapped
spark plug.
6.
Vent hole in fuel cap is
plugged.
6.
Clean or replace the fuel cap.
7.
Carburetor is adjusted
incorrectly.
7.
Adjust the carburetor.
8.
Dirt, water, or stale fuel is in
fuel system.
8.
Contact Authorized Service
Dealer.
1.
Engine load is excessive.
1.
Reduce ground speed.
2
2.
low
Oil level in crankcase is low.
2
2.
crankcase
Add oil to crankcase.
3.
g fins and air passages
p
g
Cooling
under engine blower housing
are plugged.
3.
Remove obstruction from
cooling fins and air passages.
passages
4.
C b
i adjusted
dj
d
Carburetor
is
incorrectly.
4.
Adj
h carburetor.
b
Adjust
the
1.
Engine mounting bolts are
loose.
1.
Tighten engine mounting
bolts.
2.
Loose engine pulley, idler
pulley, or blade pulley.
2.
Tighten the appropriate
pulley.
3.
Engine pulley is damaged.
3.
Contact Authorized S
C
Service
Dealer.
4
4.
Cutter blade is unbalanced,
unbalanced
bent or loose.
4
4.
Install new cutter blade.
blade
5
5.
Blade bolt is loose.
loose
5
5.
Tighten bolt to 45–60 ft–lb
(61–81 N–m).
6.
Drive belt is damaged.
6.
Install blade drive belt and
check idler pulley and belt
guides for correct position.
47
Troubleshooting
PROBLEM
Machine does not drive.
48
POSSIBLE CAUSES
CORRECTIVE ACTION
1.
Traction idler is adjusted
incorrectly.
co ect y
1.
Adjust traction drive belt.
2.
Traction belt is worn, loose or
broken.
2.
Contact Authorized Service
Dealer.
3.
Traction belt is off pulley.
3.
Contact Authorized Service
Dealer.
4.
Transaxle not shifting gears.
4.
Contact Authorized Service
Dealer.
Consumer
Riding
Products
THE TORO TOTAL COVERAGE GUARANTEE
A Full TwoĆYear Warranty
(Limited Warranty For Commercial Use)
What Is Covered By This Express Warranty?
The Toro Company promises to repair any TORO Product
used for normal residential purposes* if defective in materials
or workmanship for a period of two years from the date of
purchase with the following exceptions:
D Batteries are warranted for one year
This warranty covers the cost of parts and labor as well as
transportation within a 15 mile radius of the servicing dealer.
What Products Are Covered By This Warranty?
This warranty applies to all consumer riding products and
their attachments.
How About Commercial Use?
TORO Consumer Products and attachments used for
commercial, institutional or rental use are covered by a limited
warranty for the following time periods from the date of
purchase:
Products
Warranty Period
D 300 and 5xi Series Tractors
Chassis . . . . . . . . . . . . . . . . . . 1 year limited warranty
Liquid Cooled Gas Engines . 1 year limited warranty
Air Cooled Gas and Diesel
Engines . . . . . . . . . . . . . . . . . 2 year limited warranty
D All Others . . . . . . . . . . . . . . . . . . . . . 90 day limited warranty
How Do You Get Warranty Service?
Should you feel your TORO Product contains a defect in maĆ
terial or workmanship, contact the dealer who sold you the
product or any Authorized TORO Service Dealer or TORO
Master Service Dealer. The Yellow Pages of your telephone
directory is a good reference source. The dealer will either
arrange service at his/her dealership or recommend another
Authorized Service Dealer who may be more convenient. You
may need proof of purchase (copy of registration card, sales
receipt, etc.) for warranty validation.
If for any reason you are dissatisfied with the Service Dealer's
analysis of the defect in materials or workmanship or if you
need a referral to a TORO Service Dealer, please feel free to
contact us at the following address:
What Must You Do To Keep The Warranty In Effect?
You must maintain your TORO Product by following the mainĆ
tenance procedures described in the operator's manual. Such
routine maintenance, whether performed by a dealer or by
you, is at your expense.
What Does This Warranty Not Cover?
and
How Does Your State Law Relate To This Warranty?
There is no other express warranty except for special emission
system coverage on some products. This express warranty
does not cover:
D Cost of regular maintenance service or parts, such as filters,
fuel, lubricants, tuneĆup parts, blade sharpening, brake and
clutch adjustments.
D Any product or part which has been altered or misused or
required replacement or repair due to normal wear, accidents,
or lack of proper maintenance.
D Repairs necessary due to improper fuel, contaminants in the
fuel system, or failure to properly prepare the fuel system prior
to any period of nonĆuse over three months.
D Pickup and delivery charges for distances beyond a 15 mile
radius from an Authorized TORO Service Dealer.
All repairs covered by this warranty must be performed by an
Authorized TORO Service Dealer using Toro approved replaceĆ
ment parts.
Repair by an Authorized TORO Service Dealer is your sole
remedy under this warranty.
The Toro Company is not liable for indirect, incidental or
consequential damages in connection with the use of the
TORO Products covered by this warranty, including any
cost or expense of providing substitute equipment or serĆ
vice during reasonable periods of malfunction or nonĆuse
pending completion of repairs under this warranty. Some
states do not allow exclusions of incidental or consequenĆ
tial damages, so the above exclusion may not apply to
you.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
* Normal residential purposes means mowing the lawn on the
same lot as your home. Use at more than one location is
considered commercial use and the commercial use warĆ
ranty would apply.
Toro Customer Service Department
8111 Lyndale Avenue South
Bloomington, MN 55420Ć1196
612Ć888Ć8801
800Ć348Ć2424
COUNTRIES OTHER THAN THE UNITED STATES OR CANADA
Customers who have purchased TORO Products exported from the United States or Canada should contact their TORO
Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with
your Distributor's service or have difficulty obtaining guarantee information, contact the TORO importer. If all other remedies
fail, you may contact us at The Toro Company.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
