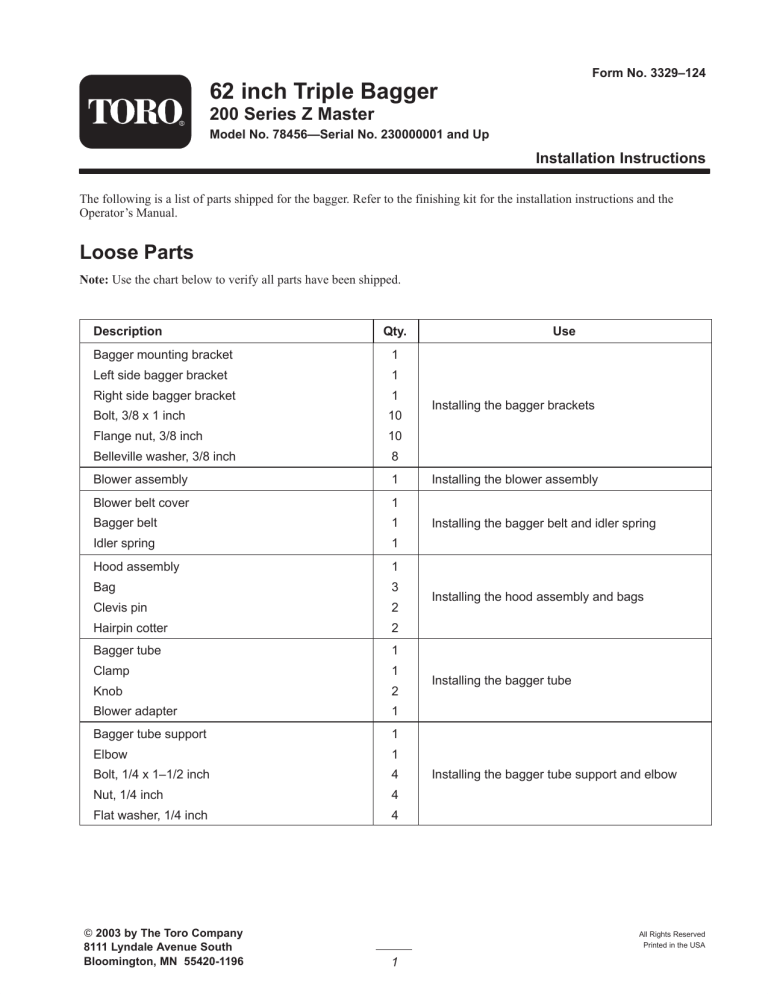

Toro 62
Form No. 3329–124
62 inch Triple Bagger
200 Series Z Master
Model No. 78456—Serial No. 230000001 and Up
Installation Instructions
The following is a list of parts shipped for the bagger. Refer to the finishing kit for the installation instructions and the
Operator’s Manual.
Loose Parts
Note: Use the chart below to verify all parts have been shipped.
Description
Qty.
Bagger mounting bracket
1
Left side bagger bracket
1
Right side bagger bracket
1
Bolt, 3/8 x 1 inch
10
Flange nut, 3/8 inch
10
Belleville washer, 3/8 inch
8
Blower assembly
1
Blower belt cover
1
Bagger belt
1
Idler spring
1
Hood assembly
1
Bag
3
Clevis pin
2
Hairpin cotter
2
Bagger tube
1
Clamp
1
Knob
2
Blower adapter
1
Bagger tube support
1
Elbow
1
Bolt, 1/4 x 1–1/2 inch
4
Nut, 1/4 inch
4
Flat washer, 1/4 inch
4
2003 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Use
Installing the bagger brackets
Installing the blower assembly
Installing the bagger belt and idler spring
Installing the hood assembly and bags
Installing the bagger tube
Installing the bagger tube support and elbow
All Rights Reserved
Printed in the USA
1
Description
Qty.
Caster weight
2
U–bolt
2
Nut, 1/2 inch
4
Lock washer, 1/2 inch
4
Plate
2
Bolt, 1/2 x 3 inch
2
Top weight
2
2
Use
Installing the weights
