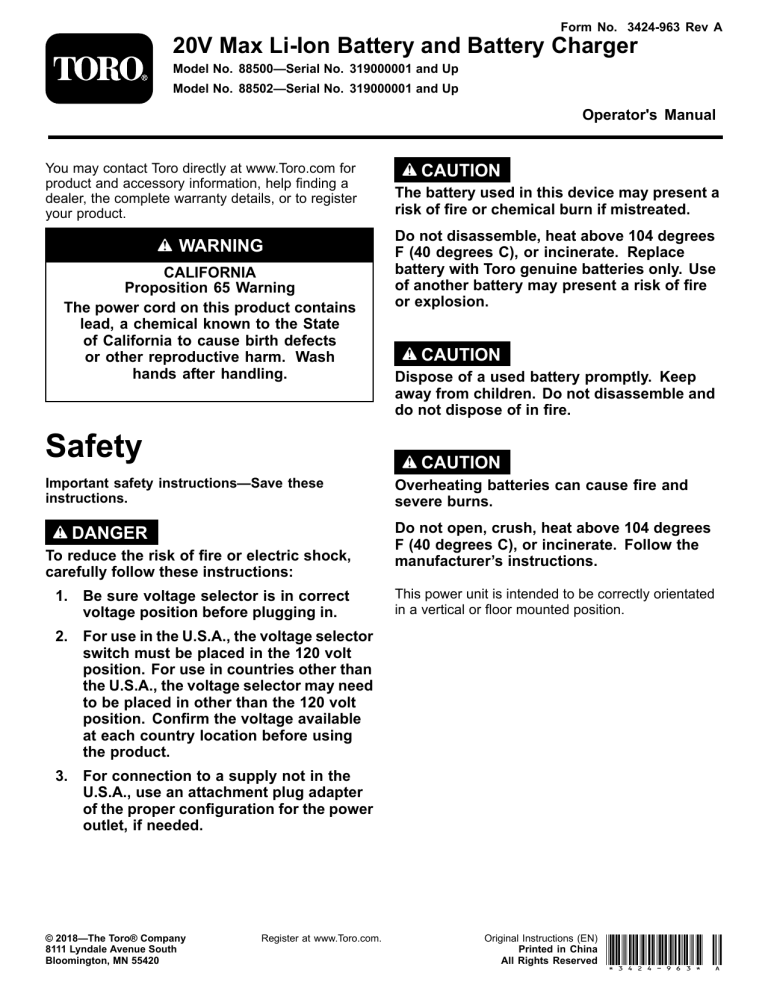

Form No. 3424-963 Rev A
20V Max Li-Ion Battery and Battery Charger
Model No. 88500—Serial No. 319000001 and Up
Model No. 88502—Serial No. 319000001 and Up
Operator's Manual
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a
dealer, the complete warranty details, or to register
your product.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Safety
CAUTION
The battery used in this device may present a
risk of fire or chemical burn if mistreated.
Do not disassemble, heat above 104 degrees
F (40 degrees C), or incinerate. Replace
battery with Toro genuine batteries only. Use
of another battery may present a risk of fire
or explosion.
CAUTION
Dispose of a used battery promptly. Keep
away from children. Do not disassemble and
do not dispose of in fire.
CAUTION
Important safety instructions—Save these
instructions.
DANGER
To reduce the risk of fire or electric shock,
carefully follow these instructions:
1. Be sure voltage selector is in correct
voltage position before plugging in.
Overheating batteries can cause fire and
severe burns.
Do not open, crush, heat above 104 degrees
F (40 degrees C), or incinerate. Follow the
manufacturer’s instructions.
This power unit is intended to be correctly orientated
in a vertical or floor mounted position.
2. For use in the U.S.A., the voltage selector
switch must be placed in the 120 volt
position. For use in countries other than
the U.S.A., the voltage selector may need
to be placed in other than the 120 volt
position. Confirm the voltage available
at each country location before using
the product.
3. For connection to a supply not in the
U.S.A., use an attachment plug adapter
of the proper configuration for the power
outlet, if needed.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in China
All Rights Reserved *3424-963* A
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
decal121-7691
121–7691
decal125-3279
125–3279
decal125-3295
125–3295
2
Charging the Battery Pack
1.
4.
Turn the battery upside down and line up the
battery terminal with the slot in the charger
(Figure 1 and Figure 2).
Refer to the table below to interpret the LED
indicators on the battery charger.
LED COLOR
Top
Bottom
Indicates:
Red
Red
Battery is charging
Red
Green
Fully charged
Red
Orange
Battery is too
warm: Remove
for approximately
30 minutes
Inserting the Battery into
the Trimmer
1.
Align the tongue of the battery pack with the
cavity in the handle housing (Figure 3).
g019895
Figure 1
1. LED indicators
2. Insert battery here
g016329
Figure 3
Hedge trimmer handle shown
1. Cavity
3. Latch
2. Tongue
2. Release button
Slide the battery into the charger until it clicks
into place.
3.
To remove the battery, press down on the
release button and slide the battery backwards
out of the charger.
3.
Push the battery pack into the handle until the
latch locks into place.
charged when it is purchased. Before using
the trimmer for the first time, place the
battery pack in the charger and charge it until
the LED indicators turn green. Make sure to
read all safety precautions. With regular use,
it will need shorter charging time. If storing
for a prolonged period of time, remove the
battery. When ready to use again, charge the
battery pack until the LED indicators turn
green.
3. Battery terminal
2.
Grasp the trimmer handle.
Important: The battery pack is not fully
g016223
Figure 2
1. LED indicators (level of
charge)
2.
3
Battery Pack Preparation
For Recycling
WARNING
Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do
not attempt to destroy or disassemble the
battery pack or remove any of its components.
Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery
recycling facility.
4
Troubleshooting
Using the battery when it is hot can reduce the operating time. The battery will automatically stop working when
it is overheated to prevent damage to it. Remove the battery from the charger and allow it to cool before
placing it back into the trimmer.
Using the battery when there is moisture on the leads can cause the trimmer to malfunction. Allow the battery to
dry or wipe it dry before placing it back into the trimmer.
5
Notes:
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
