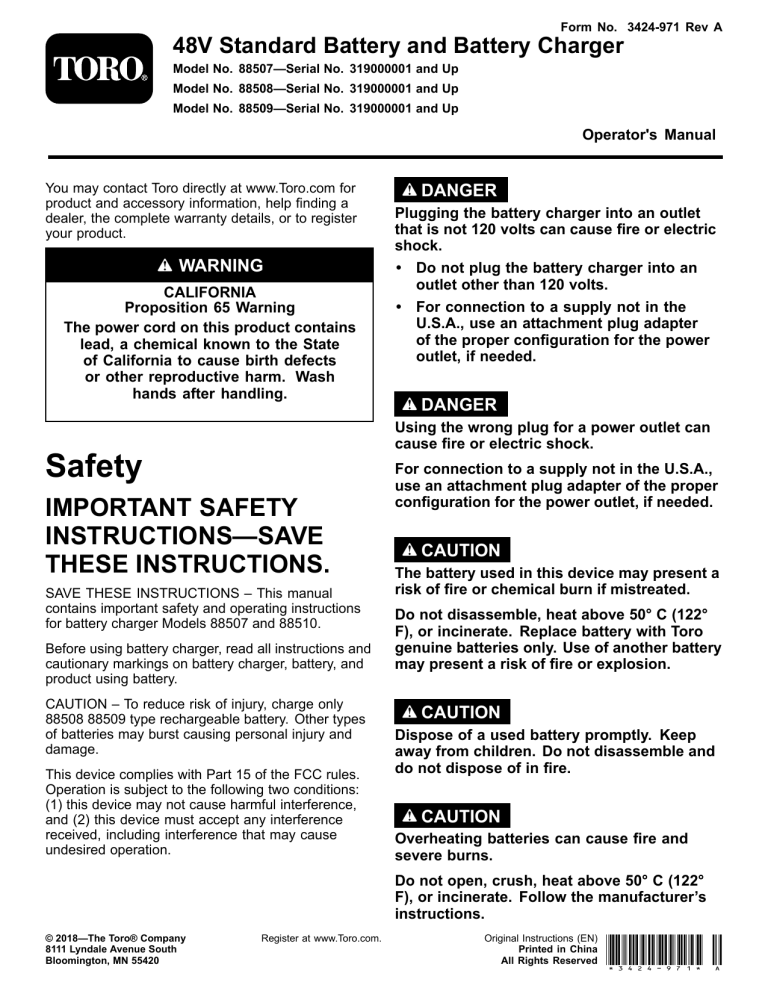

Form No. 3424-971 Rev A
48V Standard Battery and Battery Charger
Model No. 88507—Serial No. 319000001 and Up
Model No. 88508—Serial No. 319000001 and Up
Model No. 88509—Serial No. 319000001 and Up
Operator's Manual
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a
dealer, the complete warranty details, or to register
your product.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
DANGER
Plugging the battery charger into an outlet
that is not 120 volts can cause fire or electric
shock.
• Do not plug the battery charger into an
outlet other than 120 volts.
• For connection to a supply not in the
U.S.A., use an attachment plug adapter
of the proper configuration for the power
outlet, if needed.
DANGER
Using the wrong plug for a power outlet can
cause fire or electric shock.
Safety
IMPORTANT SAFETY
INSTRUCTIONS—SAVE
THESE INSTRUCTIONS.
SAVE THESE INSTRUCTIONS – This manual
contains important safety and operating instructions
for battery charger Models 88507 and 88510.
Before using battery charger, read all instructions and
cautionary markings on battery charger, battery, and
product using battery.
CAUTION – To reduce risk of injury, charge only
88508 88509 type rechargeable battery. Other types
of batteries may burst causing personal injury and
damage.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
For connection to a supply not in the U.S.A.,
use an attachment plug adapter of the proper
configuration for the power outlet, if needed.
CAUTION
The battery used in this device may present a
risk of fire or chemical burn if mistreated.
Do not disassemble, heat above 50° C (122°
F), or incinerate. Replace battery with Toro
genuine batteries only. Use of another battery
may present a risk of fire or explosion.
CAUTION
Dispose of a used battery promptly. Keep
away from children. Do not disassemble and
do not dispose of in fire.
CAUTION
Overheating batteries can cause fire and
severe burns.
Do not open, crush, heat above 50° C (122°
F), or incinerate. Follow the manufacturer’s
instructions.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in China
All Rights Reserved *3424-971* A
Safety and Instructional
Decals
This power unit is intended to be correctly orientated
in a vertical or floor mounted position.
DANGER – TO REDUCE
THE RISK OF FIRE
OR ELECTRIC SHOCK,
CAREFULLY FOLLOW
THESE INSTRUCTIONS.
Important: Safety and instruction decals are
located near areas of potential danger. Replace
damaged decals.
decal125-3240
125–3240
decal125-3299
125–3299
2
decal125-8298
125–8298
decal121-7654
121–7654
decal125-8299
125–8299
3
Charging the Battery Pack
3.
Slide the battery into the charger until it clicks
into place.
Important: For best results, your battery tool
4.
To remove the battery, press down on the
release button and slide the battery backwards
out of the charger.
5.
Refer to Figure 3 to interpret the LED indicators
on the battery charger.
should be charged in a location where the
temperature is more than 5° C (41° F) but less
than 40° C (104° F). To reduce the risk of serious
personal injury, do not store outside or in vehicles.
Charging time will be increased if not charged
within this range.
1.
If the power cord is not plugged in to the charger,
plug it in to the charger (Figure 1), then plug the
power cord into a power socket.
2.
Turn the battery upside down and line up the
battery terminal with the slot in the charger
(Figure 1 and Figure 2).
g021133
Figure 1
1. Insert battery here
g021145
Figure 3
3. Charge/storage mode
switch
4. Power cord plug-in
location
2. LED indicators
1. Red light on; green
light flashing—battery is
charging.
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
charged.
6.
Red light off; green light
on—battery is prepared
for storage.
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
50 C (122 F) or less than 0
C (32 F).
4. Charge/storage mode
switch
8. Red light flashing; green
light flashing—battery is
defective.
Storing a lithium-ion battery at 40% of its capacity
maximizes battery life.
Use storage mode (Figure 3) when the battery will not
be used for 1 month or longer.
g021132
Figure 2
1. LED indicators (level of
charge)
3. Battery terminal
2. Release button
4. Test button
4
1.
Insert the battery into the charger.
2.
Turn storage mode on.
3.
The battery will charge or discharge as
necessary to approximately 40% charge.
4.
Battery Pack Preparation
For Recycling
When the battery is ready for storage (Figure 3),
remove the battery from the charger.
Inserting the Battery Into
the Trimmer
1.
WARNING
Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do
not attempt to destroy or disassemble the
battery pack or remove any of its components.
Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery
recycling facility.
Align the tongue of the battery pack with the
cavity in the handle housing (Figure 4).
Troubleshooting
g021128
Figure 4
1. Trigger handle
Using the battery when it is hot can reduce the
operating time. The battery will automatically stop
working when it is overheated to prevent damage to it.
Remove the battery from the charger and allow it to
cool before placing it back into the trimmer.
3. Latch
2. Tongue
2.
Grasp the trigger handle (Figure 4).
3.
Push the battery pack into the handle until the
latch locks into place.
Using the battery when there is moisture on the leads
can cause the trimmer to malfunction. Allow the
battery to dry or wipe it dry before placing it back into
the trimmer.
Important: The battery pack is not fully charged
when it is purchased. Before using the trimmer for
the first time, place the battery pack in the charger
and charge it until the LED display indicates
the battery is charged. Make sure to read all
safety precautions. With regular use, it will need
shorter charging time. If storing for 1 month or
longer, remove the battery and use storage mode
( Charging the Battery Pack (page 4)). When ready
to use again, charge the battery pack until the LED
display indicates the battery is charged.
5
Notes:
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
Rev A
