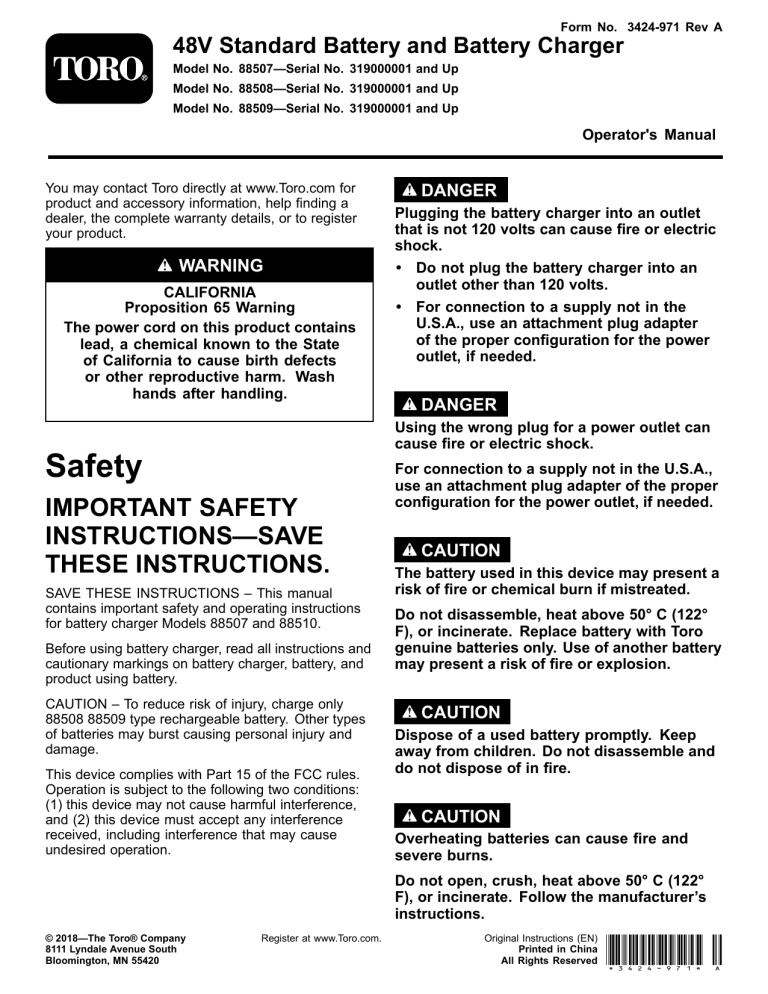

Form No. 3424-971 Rev A
48V Standard Battery and Battery Charger
Model No. 88507—Serial No. 319000001 and Up
Model No. 88508—Serial No. 319000001 and Up
Model No. 88509—Serial No. 319000001 and Up
Operator's Manual
You may contact Toro directly at for
product and accessory information, help finding a
dealer, the complete warranty details, or to register
your product.
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Plugging the battery charger into an outlet
that is not 120 volts can cause fire or electric
• Do not plug the battery charger into an
outlet other than 120 volts.
• For connection to a supply not in the
U.S.A., use an attachment plug adapter
of the proper configuration for the power
outlet, if needed.
Using the wrong plug for a power outlet can
cause fire or electric shock.
contains important safety and operating instructions
for battery charger Models 88507 and 88510.
Before using battery charger, read all instructions and
cautionary markings on battery charger, battery, and
product using battery.
CAUTION – To reduce risk of injury, charge only
88508 88509 type rechargeable battery. Other types
of batteries may burst causing personal injury and
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
For connection to a supply not in the U.S.A.,
use an attachment plug adapter of the proper
configuration for the power outlet, if needed.
The battery used in this device may present a
risk of fire or chemical burn if mistreated.
Do not disassemble, heat above 50° C (122°
F), or incinerate. Replace battery with Toro
genuine batteries only. Use of another battery
may present a risk of fire or explosion.
Dispose of a used battery promptly. Keep
away from children. Do not disassemble and
do not dispose of in fire.
Overheating batteries can cause fire and
severe burns.
Do not open, crush, heat above 50° C (122°
F), or incinerate. Follow the manufacturer’s
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at
Original Instructions (EN)
Printed in China
All Rights Reserved *3424-971* A
Safety and Instructional
This power unit is intended to be correctly orientated
in a vertical or floor mounted position.
Important: Safety and instruction decals are
located near areas of potential danger. Replace
damaged decals.
Charging the Battery Pack
Slide the battery into the charger until it clicks
into place.
Important: For best results, your battery tool
To remove the battery, press down on the
release button and slide the battery backwards
out of the charger.
Refer to Figure 3 to interpret the LED indicators
on the battery charger.
should be charged in a location where the
temperature is more than 5° C (41° F) but less
than 40° C (104° F). To reduce the risk of serious
personal injury, do not store outside or in vehicles.
Charging time will be increased if not charged
within this range.
If the power cord is not plugged in to the charger,
plug it in to the charger (Figure 1), then plug the
power cord into a power socket.
Turn the battery upside down and line up the
battery terminal with the slot in the charger
(Figure 1 and Figure 2).
Figure 1
1. Insert battery here
Figure 3
3. Charge/storage mode
4. Power cord plug-in
2. LED indicators
1. Red light on; green
light flashing—battery is
5. Red light off; green
light flashing—battery is
preparing for storage.
2. Red light on; green
light on—battery is fully
Red light off; green light
on—battery is prepared
for storage.
7. Red light on; green light
3. Red light flashing; green
off—no battery inserted.
light off—abnormal battery
temperature (greater than
50 C (122 F) or less than 0
C (32 F).
4. Charge/storage mode
8. Red light flashing; green
light flashing—battery is
Storing a lithium-ion battery at 40% of its capacity
maximizes battery life.
Use storage mode (Figure 3) when the battery will not
be used for 1 month or longer.
Figure 2
1. LED indicators (level of
3. Battery terminal
2. Release button
4. Test button
Insert the battery into the charger.
Turn storage mode on.
The battery will charge or discharge as
necessary to approximately 40% charge.
Battery Pack Preparation
For Recycling
When the battery is ready for storage (Figure 3),
remove the battery from the charger.
Inserting the Battery Into
the Trimmer
Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do
not attempt to destroy or disassemble the
battery pack or remove any of its components.
Lithium-ion batteries must be recycled or
disposed of properly at the nearest battery
recycling facility.
Align the tongue of the battery pack with the
cavity in the handle housing (Figure 4).
Figure 4
1. Trigger handle
Using the battery when it is hot can reduce the
operating time. The battery will automatically stop
working when it is overheated to prevent damage to it.
Remove the battery from the charger and allow it to
cool before placing it back into the trimmer.
3. Latch
2. Tongue
Grasp the trigger handle (Figure 4).
Push the battery pack into the handle until the
latch locks into place.
Using the battery when there is moisture on the leads
can cause the trimmer to malfunction. Allow the
battery to dry or wipe it dry before placing it back into
the trimmer.
Important: The battery pack is not fully charged
when it is purchased. Before using the trimmer for
the first time, place the battery pack in the charger
and charge it until the LED display indicates
the battery is charged. Make sure to read all
safety precautions. With regular use, it will need
shorter charging time. If storing for 1 month or
longer, remove the battery and use storage mode
( Charging the Battery Pack (page 4)). When ready
to use again, charge the battery pack until the LED
display indicates the battery is charged.
