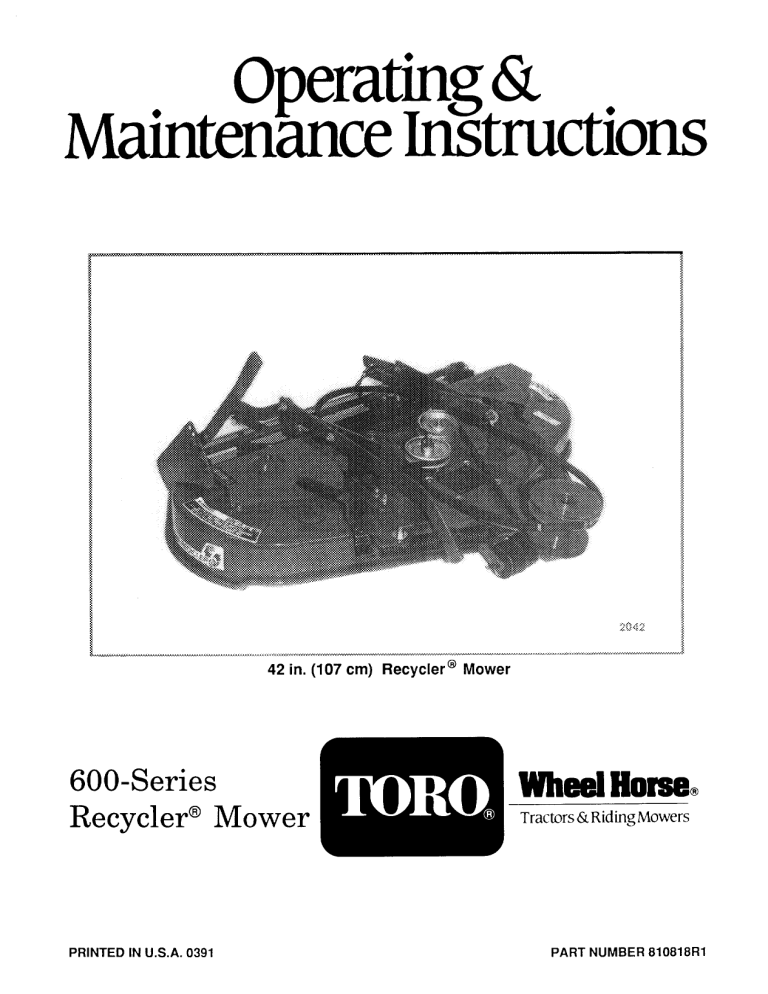

Toro 42
peratin
aintenance ructions
600-Series
Recycler® Mower
PRINTED IN U.S.A. 0391
42 in. (107 cm) Recycler™ Mower
Wheel Horse
Tractors & Riding Mowers
TORO
PART NUMBER 810818R1
MODEL AND SERIAL NUMBER
A Model and Serial Number identifies your Toro Wheel
Horse attachment. These numbers should always be re-
ferred to when consulting with your dealer or factory con-
cerning service, replacement parts, or questions you may
have. If plate is removed during repair operations it should
always be replaced. For your reference, record numbers
from Model and Serial Number plate on your attachment.
Boda and Serial sumber
MOWER INSTALLATION
ATTACH MOWER TO MACHINE
IMPORTANT
Before installation, check that all mower blade nuts
are tight:
Blade nut Torque 80-100ft. Ibs. (112-140 Nm)
Check that front belt pulley and belt arm pivot have
been lubricated. Use a pressure grease gun and #2
multi-purpose lithium grease. See Maintenance section
for locations.
A CAUTION À
Sharp edges of mower blades can cut you during
blade maintenance or adjustment. Use suitable cov-
ering over cutting edges of blade to prevent bodily
harm.
Position mower along right side of tractor. Turn both front
wheels to the left at a 90° angle (Fig. 1). Position height
control lever in center slot of quadrant.
Position mower belt tensioning lever to outside of mower.
Place drive belt over top of front drive pulley.
Slide mower under machine. Front pulley must pass
between front Attach-A-Matic hitch and front shield (Fig. 2).
Open right and left Attach-A-Matic hitches (Fig. 3), push
release buttons in and lower handles. Lower mower height
aan O
3 Positiva Mower Under ВОВ
control lever all the way down. Raise left and right front
mower attaching arms into hitches. Raise handles and be
sure they lock in raised position.
Locate two hanger rod assemblies (Fig. 4). Insert mower
hanger rods into left and right front holes of machine frame.
Install spacers and trunnions on rods with nuts. Tighten nuts
until nut ends are flush with rod.
Install trunnion on mower lift arms using hairpin cotters
(Fig. 5). Adjust left and right nuts to obtain 2 3/4" from
machine frame to bottom of trunnions.
LE.” Fl SEN RRENE
4 install E
Ho Mon
Install mower drive belt and level mower as described
under “INSTALL DRIVE BELT" and “LEVEL MOWER". Move belt tension lever to outside and all the way into
operate position (Fig. 9). Check and adjust mower level as
INSTALL DRIVE BELT necessary.
Lower height control lever all the way down (Fig.6).
MOWER REMOVAL
FIG € Lower Haig: Remove drive belt by reversing procedures under "IN-
STALL DRIVE BELT" section of this manual.
Move belt tension handle to center of mower (Fig. 7).
Position drive belt on top groove of front pulley. Check that Lower mower all the way down and remove left and right
spindle belt is on lower pulley. hanger rod trunnions from mower (Fig. 10).
2.
TE
LO. 18 Meer al
Open left and right front Attach-A-Matic hitches (Fig. 11).
Raise lift lever into middle cutting height. Remove attaching
arms from hitches and move belt tension lever to outside of
mower. Turn wheels to the left 80° and remove mower from
right side of machine.
LEVEL MOWER
Position machine on a level surface and adjust front tire
pressure to 8 PSI and rear tires pressure to 8 PSI.
Adjust left and right hanger rod nuts to obtain 2 3/4 inches
from frame to bottom of trunnions (Fig. 12). Place front
wheels in forward operating position and place mower height
control in 4th notch from top.
Adjust side-to-side mower level:
1. Turn each outside mower blade side-to-side.
2. Measure outside end of each side blade tip and adjust
either right or left lift rod adjustment nut to obtain equal
distances from surface to blade tips (Figs. 13 & 14).
Adjust front-to-back mower level:
1. Turn mower blades front-to-back.
2. Measure blade tips and adjust hanger rods evenly so that
distance from surface to front and rear of blade tips are equal
to 1/8 inch low in front (Figs. 13 & 14).
MOWER DECK
VAAN AAA AAA, V 77 FLL ii
| — SPINDLE
BLADE
[— =]
LU
——————MEASURE HERE
Is IL
LEVEL SURFACE
FIG. 13 Mower Level Measurement
OPERATION
IMPORTANT
Every time mower is installed, check for proper
operation of PTO clutch and brake. Adjustment of
PTO is covered in machine Operator's Manual.
ZN CAUTION ZA
To avoid loss of control, slow down when turning,
backing and changing direction. Look behind ma-
chine to ensure area is clear before backing.
RECYCLER® MOWER TIPS
RECYCLER® MOWER FEATURES
Your Recycler ® mower has a new and completely
different cutting concept. It leaves your lawn with a bagged
look without bagging clippings.
Mower is equipped with special parts which increase ability
to cut and recut grass clippings, leaves, and other yard debris
into tiny particles which are injected down into the grass.
TIPS FOR CUTTING GRASS.
Follow these instructions for best cutting results and lawn
appearance:
1. Always use FAST (full) throttle when mowing.
2. Maintain sharp blades throughout the cutting season.
A sharp blade cuts cleanly and withouttearing or shredding
grass blades like a dull blade. Tearing and shredding
causes grass to turn brown at edges which impairs growth
and increases susceptibility to diseases. About every 30
days, remove wires from machine engine spark plugs and
check cutter blade for sharpness. File down any nicks on
blade to restore its sharp edge.
3. Clean any resudue from under side of mower deck and
kickers after each use. If residure is allowed to build up in
mower deck and on Kickers, cutting performance may be
unsatisfactory.
4. When [email protected] is used to cut a lawn for the first
time, remove about one inch or not more than one third of
the grass blades. When cutting grass over six inches tall,
cut twice to hide clippings down in grass.
5. If grass is ever allowed to grow slightly longer than
normal, or if it contains a high degree of moisture, raise
cutting height higher than usual and cut grass at this
setting. Next, cut grass again using a lower normal setting.
This method of cutting long grass results in an even
distribution of clippings and an acceptable quality-of-cut.
6. In heat of summer, it is best to cut only about one third
of the grass blades. Cutting more than one third of grass
off is not recommended unless grass is sparse or it is late
fall when grass growth begins to slow down. Cutting grass
down to thatch will reduce room to hide cut grass and will
greatly increase amount of loose clippings.
7. If cutting width of mower is wider than a mower
previously used, raise height-of-cut setting one notch to
ensure undulations in turf are not cut too short.
8. Very long or extremely wet grass can be cut, using
specific-operating techniques. Start by setting height-of-
cut in highest position. Using slow speed and maximum
throttle speed, move mower into grass and cut a swath that
is only half as wide as mower deck. Slow forward move-
ment occasionally to allow mower deck to clear itself.
Cutting too much grass may clog mower deck. If mower
deck does clog, disengage PTO, move to cut grass, raise
deck to transpont position and engage PTO to clear mower.
Lower deck and move slowly over clumps to disperse.
MOWING IN EXTREME CONDITIONS
Even with the Recycler® mower, you may encounter con-
ditions where it is not possible to incorporate all grass
clippings or leaves into grass.
Air is required to cut and recut grass clippings in mower
deck. It also takes extra power to recut excess clippings
trapped under deck. Do not set height-of-cut too low or
totally surround mower deck by uncut grass after initial cut.
Always try to have one side of mower deck free from uncut
grass, allowing air to be drawn into mower deck. When
making an initial cut thru center of uncut area, operate
machine at a slower speed and back up if mower starts to
clog.
Under some unusual mowing conditions, mower may
leave a “streak” of uncut grass, which can be caused by any
of the following conditions:
1. Engine being operated at less than full throttle.
2. Dull blades or underside of mower deck clogged with
matted grass.
3. Ground speed too high for conditions - adjust to 2 mph
(3.2 kph), or less if necessary.
4. Streaking on turns indicates turns are being made too
sharply.
5. If blades have been sharpened a number of times, they
may now be too shortto “overlap” each other, and must be
replaced.
STOPPING MACHINE WHEN MOWING
If forward motion of machine has to be stopped while
cutting, a clump of grass clippings may be deposited on lawn.
Follow this procedure for stopping machine while cutting:
1. With blade engaged, move into a previously cut area.
2. Move throttle control lever to SLOW position, stop
motion of machine, disengage PTO and rotate ignition key
to OFF position.
MOW AT PROPER INTERVALS
Under most normal conditions you need to mow approxi-
mately every 4-5 days. However, grass grows at different
rates at different times. This means that in order to maintain
same height-of-cut, which is a good practice, your need to
cut more frequently in early spring; as grass growth rate
slows in mid summer, cut only every 8-10 days. If you are
unable to mow for an extended period due to weather
conditions or other reasons, mow first with height-of-cut at a
higher level; then mow again 2-3 days later with a normal
height setting.
Alternate mowing direction. This helps dispense clippings
over lawn for even fertilization.
TIPS FOR CUTTING LEAVES
In the fall, you can cut your leaves up into finely cut panicles
and inject particles down into grass. When spring arrives,
leaf particles will have decomposed and restored valuable
nutrients into soil.
When cutting is complete, always be sure that 50% of lawr:
shows through finely cut leaf cover. This may require one o:
more passes over leaves.
If there are more than five inches of leaves on lawn, raise:
mower one or two settings higher. This makes it easier tc:
feed leaves under mower deck.
If leaves are not cut up finely enough to be hidden down in
grass, make a second pass 90° to first pass.
If you cut up a lot of oak leaves, you may want to add lime
to your grass in the spring, Lime reduces acidity of oak
leaves.
MAINTENANCE AND STORAGE
LUBRICATION
Front belt pulley, spindle bearings and belt tension arm
pivot should be lubricated at 50 operating hour intervals (Fig.
17 & 18). Use a pressure type brease gun and #2 multi-
purpose lithium grease.
Four to six pumps of a hand type grease gun will usually fill
spindles after 50 hours use. Grease fittings are conveniently
located at top of spindle shafts. Lubricate mower gauge
wheels every 25 hrs.
Lubricate pivoting arms and levers at 25 hour intervals with
light machine oil applied directly to wear surfaces. Anti-scalp
rollers should NOT be lubricated.
BLADE MAINTENANCE
ZN CAUTION A
Sharp edges of mower blades can cut you during
blade maintenance or adjustment. Use suitable
covering over cutting edges of blade to prevent
bodily harm.
Tea,
FIG. 18 Front Puiley and Pivot Grease Fittings
To obtain optimum mowing results, mower blades should
be kept sharp and well balanced. To sharpen blades,
remove mower from machine and invert mower. Remove
blades using optional Toro Wheel Horse spindle blade wrench.
Hold spindle hex with wrench while removing blade attach-
ing nuts and washers from end of spindles. If Spindle blade
wrench is not available when servicing, a short piece of 2" x
4" lumber may be placed between side of mower deck and
blade to “lock” it in position while removing attaching hard-
ware.
File or grind blades evenly. Take care to retain angle of
original cutting edge. Blade balance can be checked on an
inexpensive blade balancer, available at most hardware
stores.
Reinstall blades with lift area (turned up section) facing
mower deck. Tighten blade attaching nuts to a torque of 80-
100 ft. Ibs. (112-140 Nm).
Reinstall mower on machine.
UNDERSIDE CLEANING
It is of vital importance to clean underside of mower deck
frequently. Accumulation of matted clippings seriously im-
pairs mower's ability to "lift" grass blades into cutting position
and discharge clippings evenly. Matted grass clogging
underside of mower is often times a cause of uneven cutting.
MOWER DRIVE BELT REPLACEMENT
Remove drive belt by reversing procedures under "IN-
STALL DRIVE BELT" section of this manual.
Be sure to purchase genuine Toro Wheel Horse belts for
replacement purposes as these belts are designed specifi-
cally for each application.
Install new drive belt as oulinded under "INSTALL DRIVE
BELT" section of this manual.
SPINDLE BELT REPLACEMENT
Remove mower from machine. Note routing of belt. Re-
move left and right belt covers. Check to be sure all pulleys
work freely. Install new Toro Wheel Horse belt. Reinstallbelt
covers. Reinstall mower on machine.
GENERAL CARE AND STORAGE
Top of mower deck should be washed with a garden hose
after each use. A mild automotive detergent may be usedto
remove stubborn dirt. After washing, allow mower to dry,
Then start machine and engage mower for approximately
one minute to remove excess water from belts and pulleys.
Touch-up painted surfaces with afresh coat of “Toro Wheel
Horse Red", available from your authorized Toro Wheel
Horse dealer in aerosol cans.
Store mower in a clean, dry place or protect it with a
weather-proof cover when stored outdoors.
A separate parts manual for your Toro Wheel Horse attachment can be
obtained by completing the attached form below. You will receive an invoice with
manual.
PUBLICATIONS
TORO WHEEL HORSE
8111 Lyndale Ave. So.
Bloomington, Minnesota 55420
PARTS MANUAL ORDER FORM
Enter number shown on your attachment:
MAIL LABEL -- PLEASE PRINT CLEARLY
TO:
Name
Address
City State Zip
Product information and specifications are
shown herein as of the time of printing. Toro
Wheel Horse reserves the right to change
product specifications, designs and stan-
dard equipment without riotice and without
incurring obligation,
Wheel Horse.
Tractors & Riding Mowers
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
